巴西塞阿拉联邦大学高级校区

2016/04/27 15:00:00

查看完整案例

微信扫一扫

下载

(Joana Fran A)

架构师提供的文本描述。塞阿拉联邦大学的Russas高级校区是一个更大的计划的一部分，该计划旨在将公立大学带到巴西内地，使机会民主化。第一阶段由三个结构单元组成：廊道通道、连接通道和行政教学楼。据认为，这一设计有助于今后的扩展，并根据每个单位的具体功能进行设计，并力求通过使用的建筑元素和材料，或通过对没有明确用途的自由遮阳区域的欣赏，使群体团结一致，这些区域也存在于整个建筑物中。对知识交流也发生在这些会议空间的理解推动了知识交流的产生。

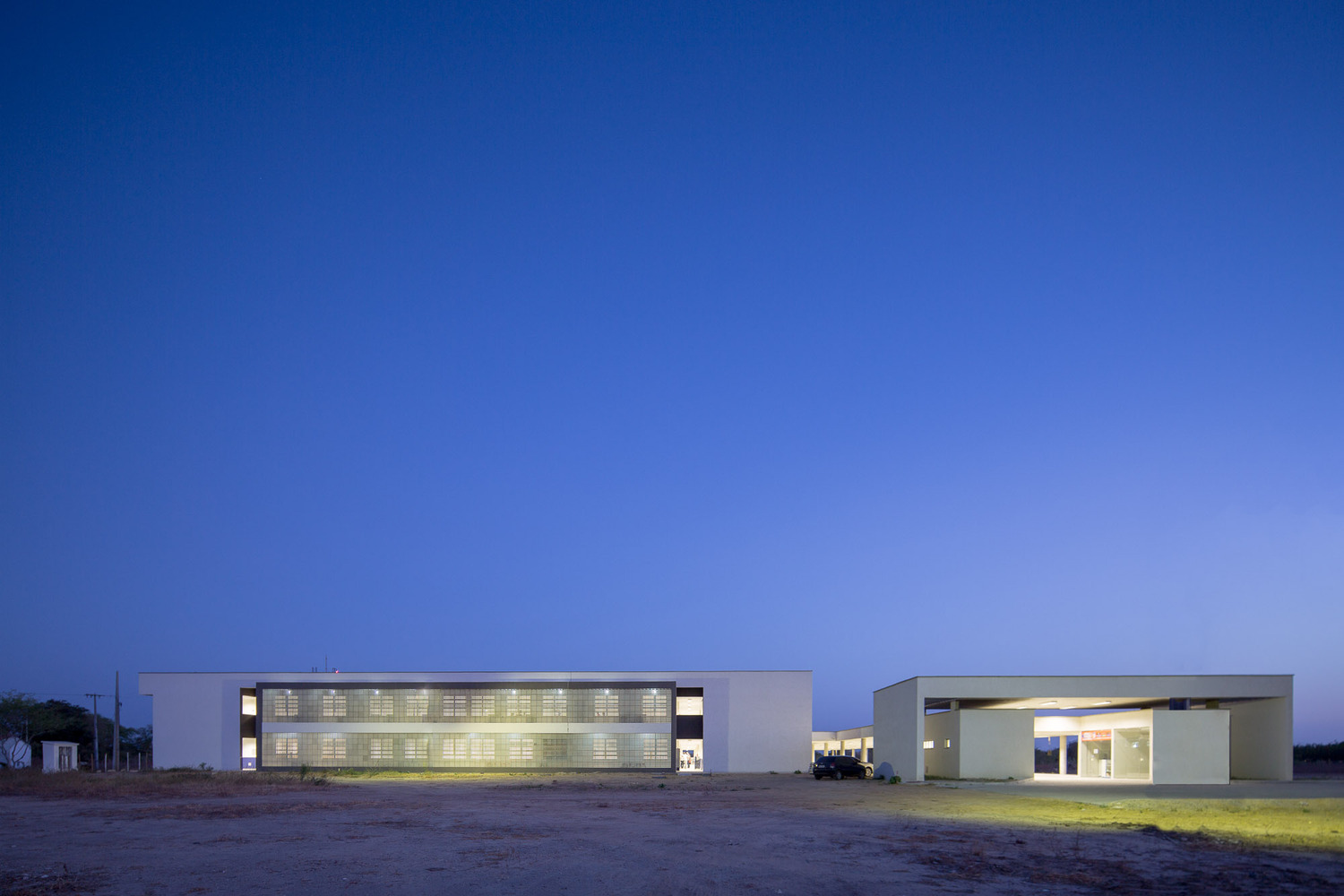

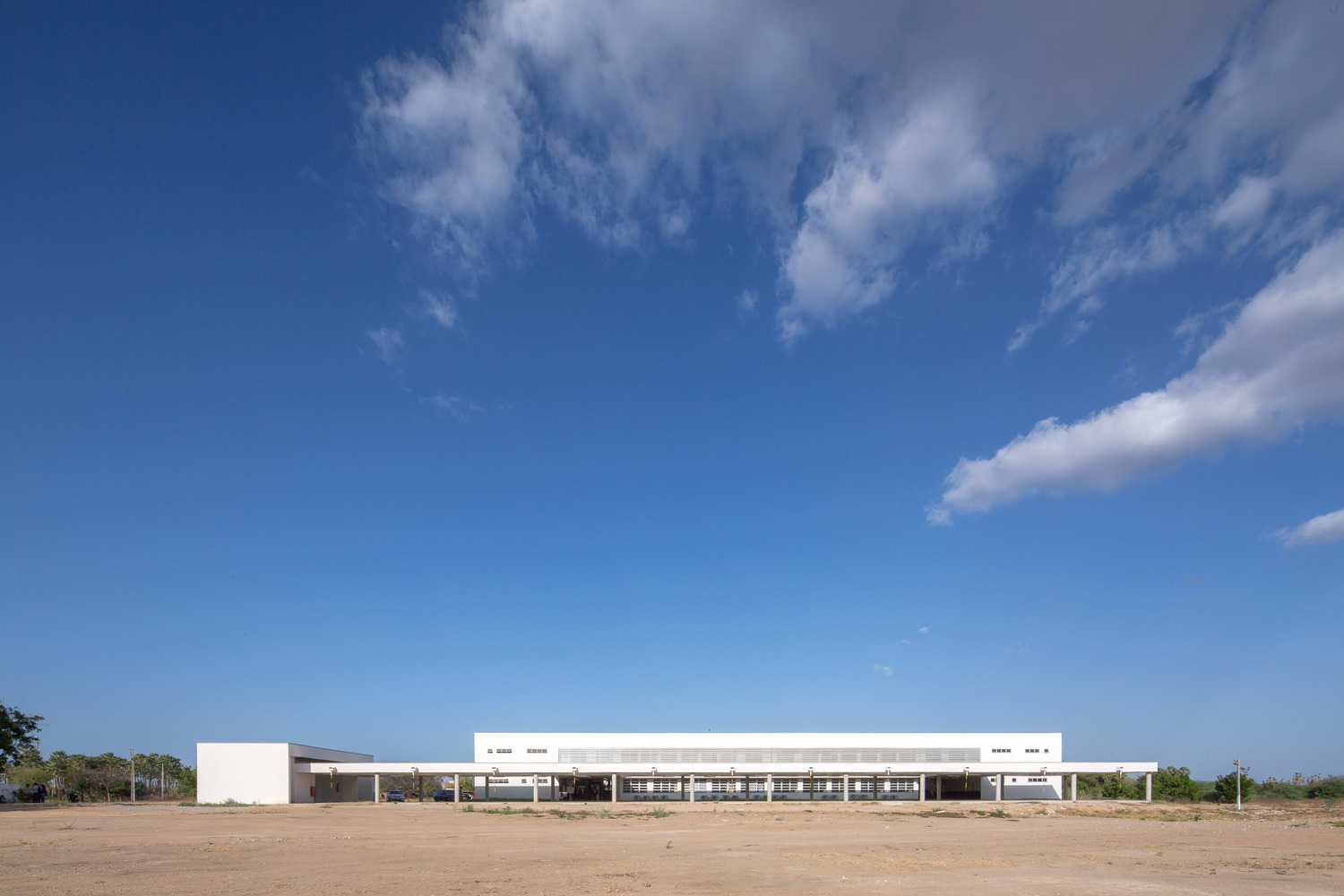

Text description provided by the architects. The Russas Advanced Campus of the Federal University of Ceará is part of a larger plan to take public University to the interior of Brazil, democratizing opportunities. The first stage consists of three structural units: the portico access, the connecting walkway and the administrative and teaching building. The design was thought to facilitate future expansions and design each unit according to their specific function, also seeking to give unity to the group, either through building elements and materials used, or through the appreciation of the free shaded areas without a defined use, also present throughout the buildings. The understanding that the exchange of knowledge occurs also in these meeting spaces has motivated the creation of it.

(Joana Fran A)

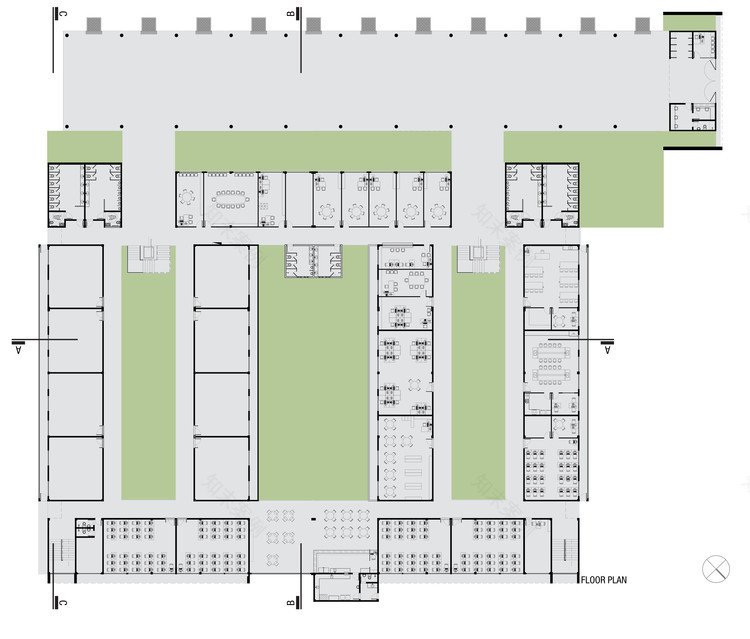

Floor Plan

(Joana Fran A)

门廊定义了访问空间，提供服务和接待的空间。这条长达12米的人行道是校园的一个伟大的立交桥，是一条连接所有街区的有盖街道。从那里你可以进入教学楼，一个大容量与三个内部庭院的存在，方便通风和照明。该街区设有行政、协调、教师室、教室、图书馆、礼堂和实验室以及厕所和自助餐厅。

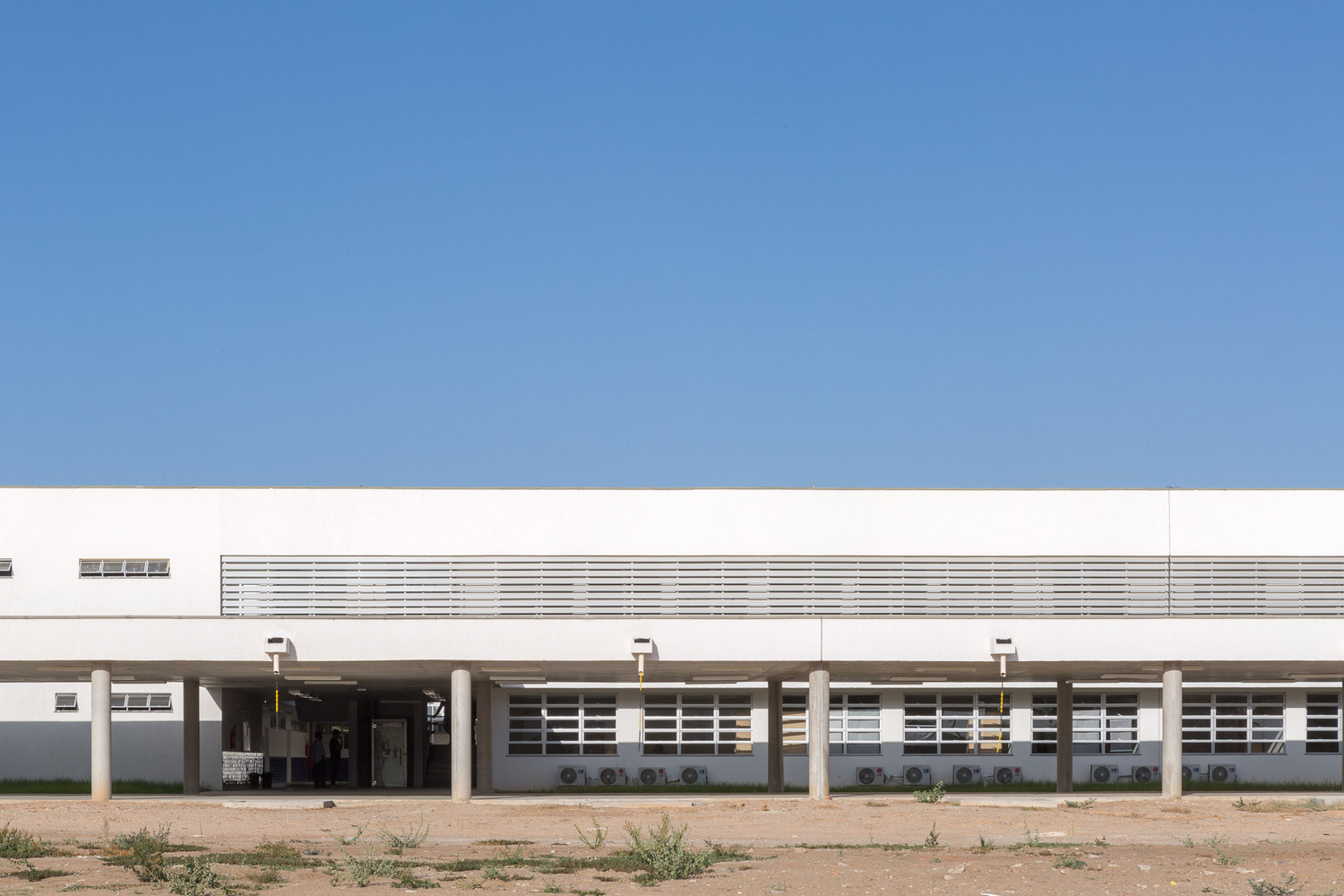

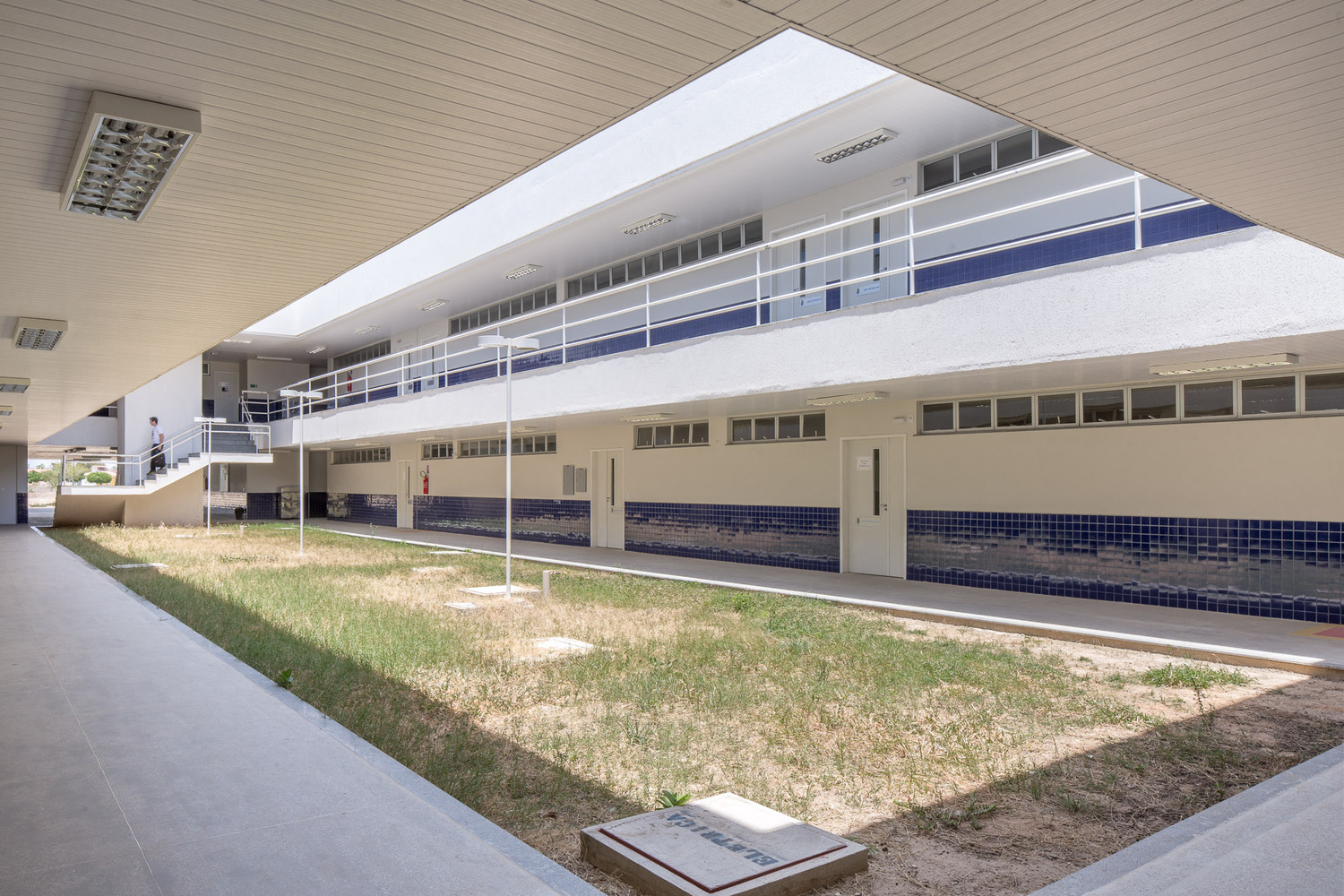

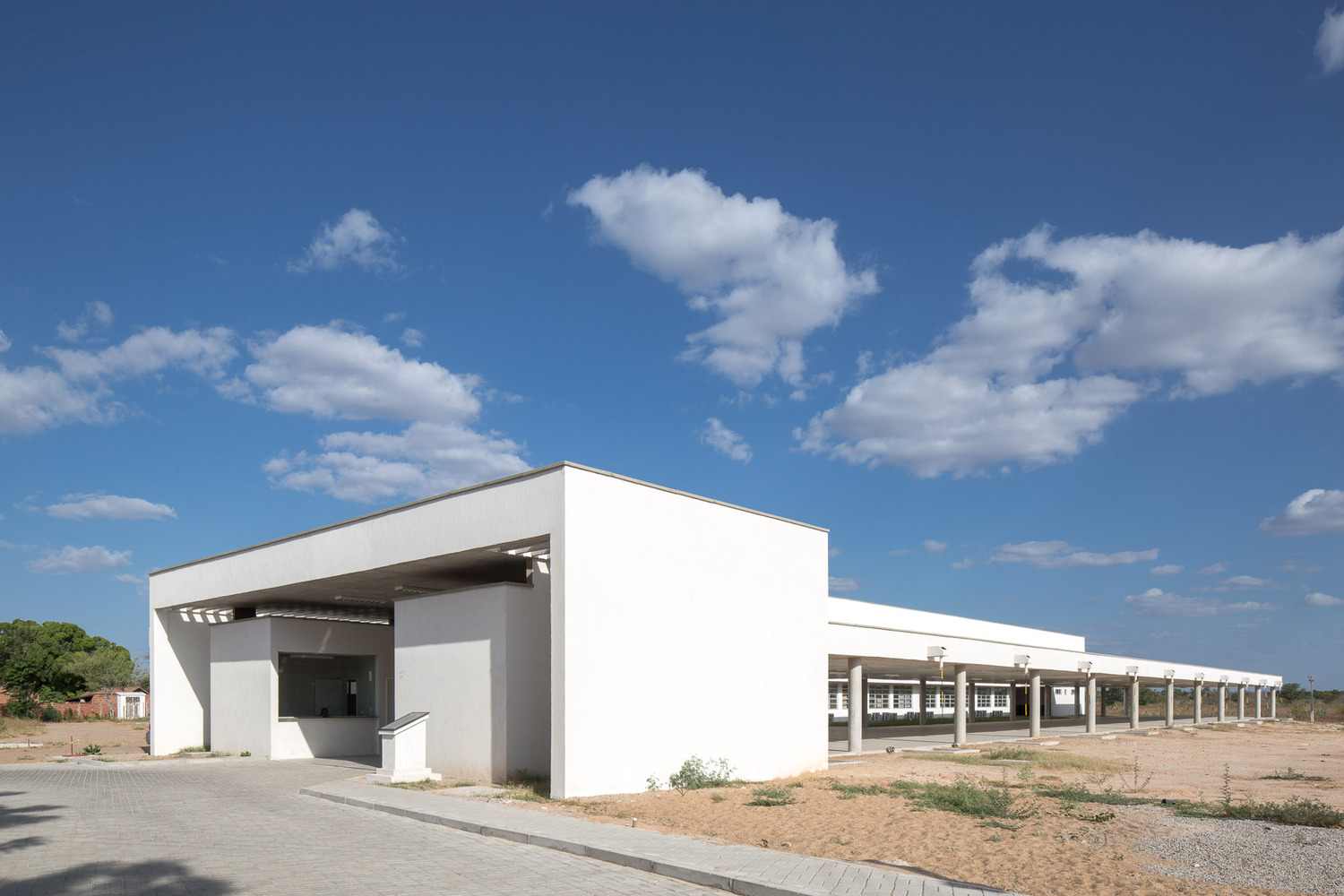

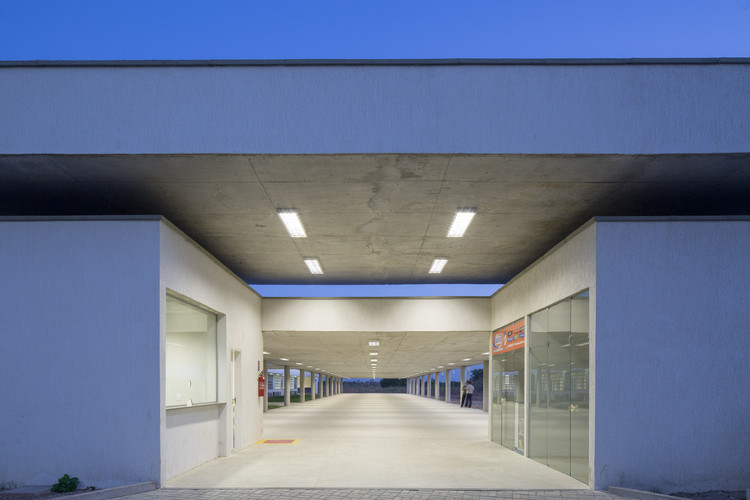

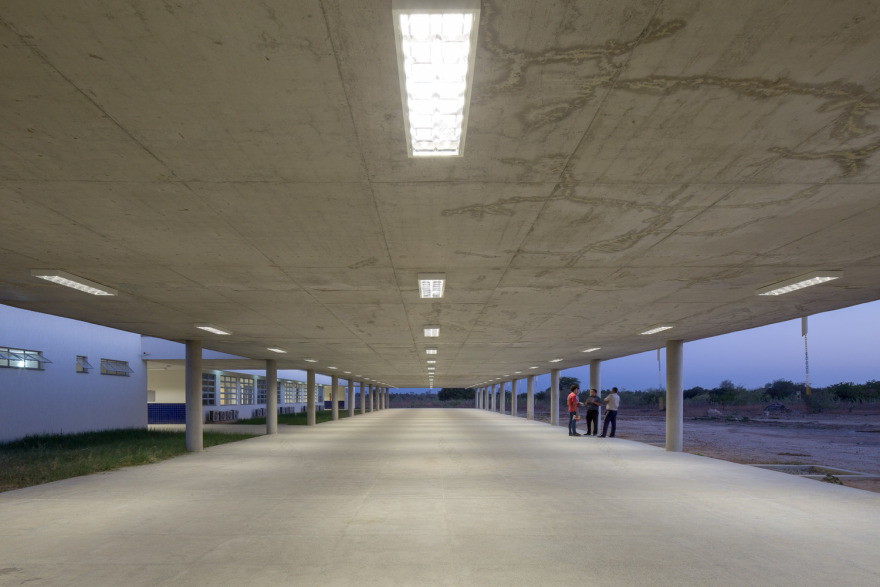

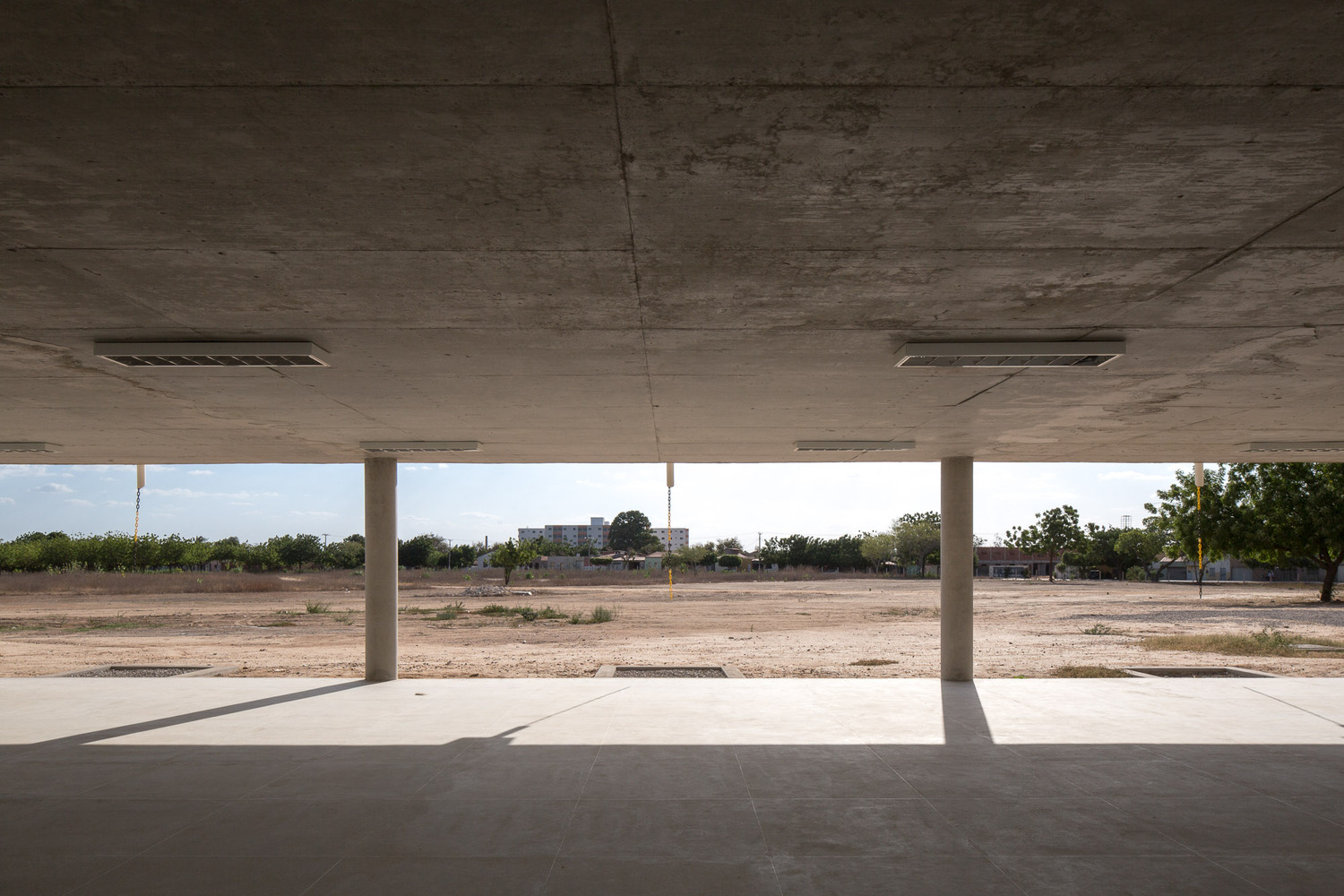

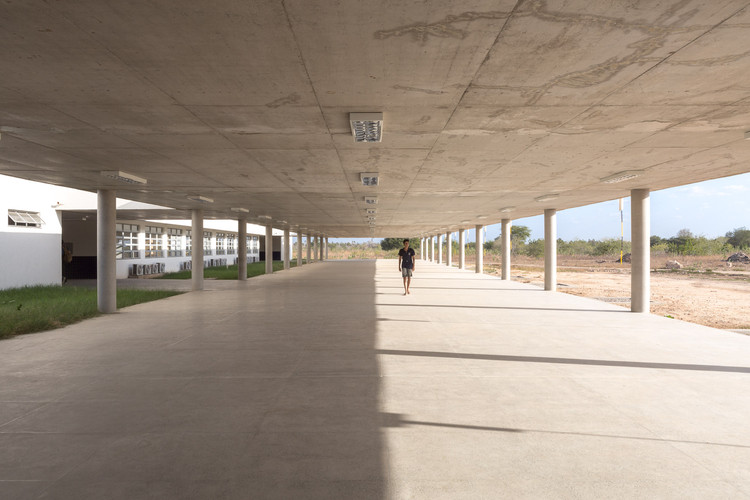

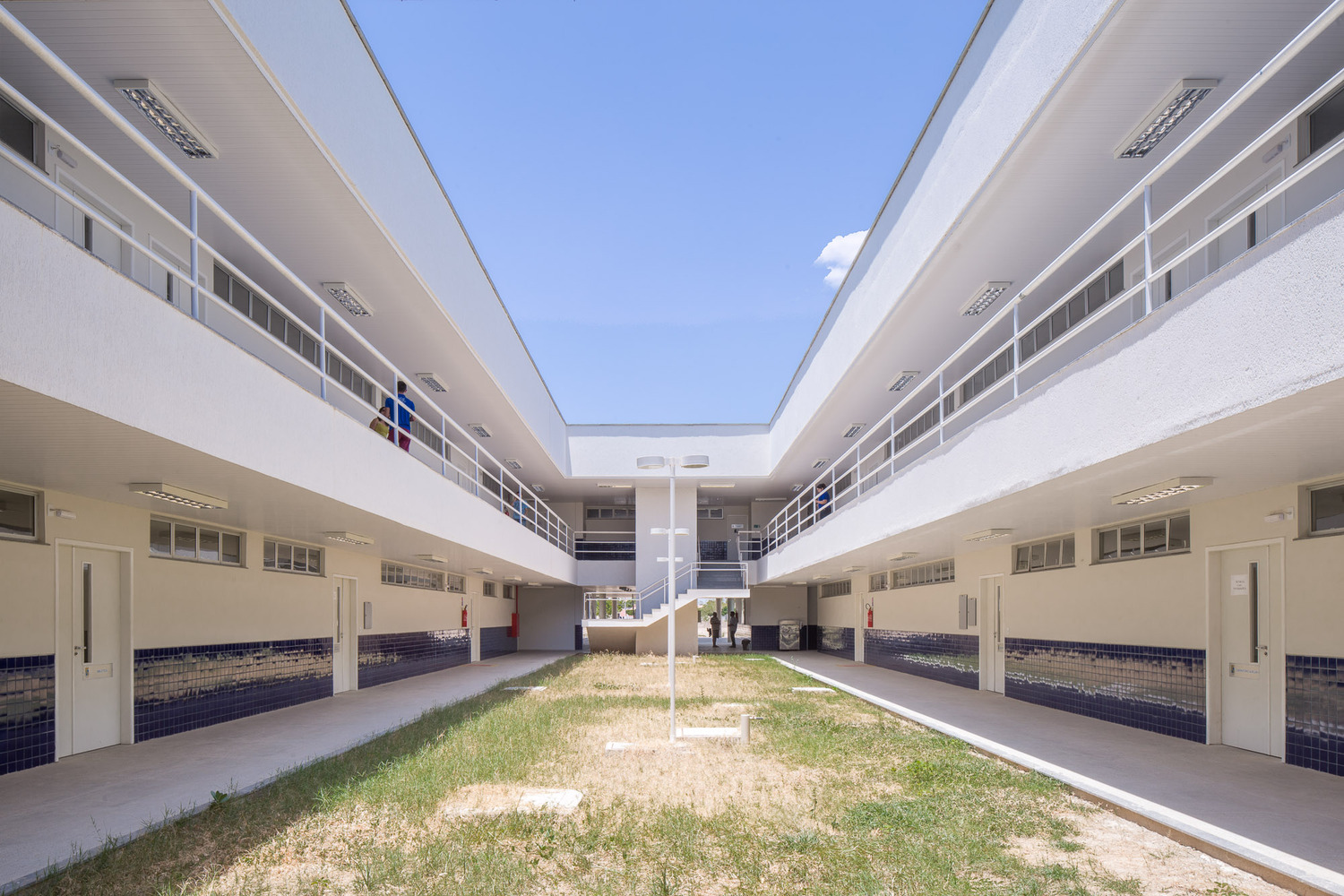

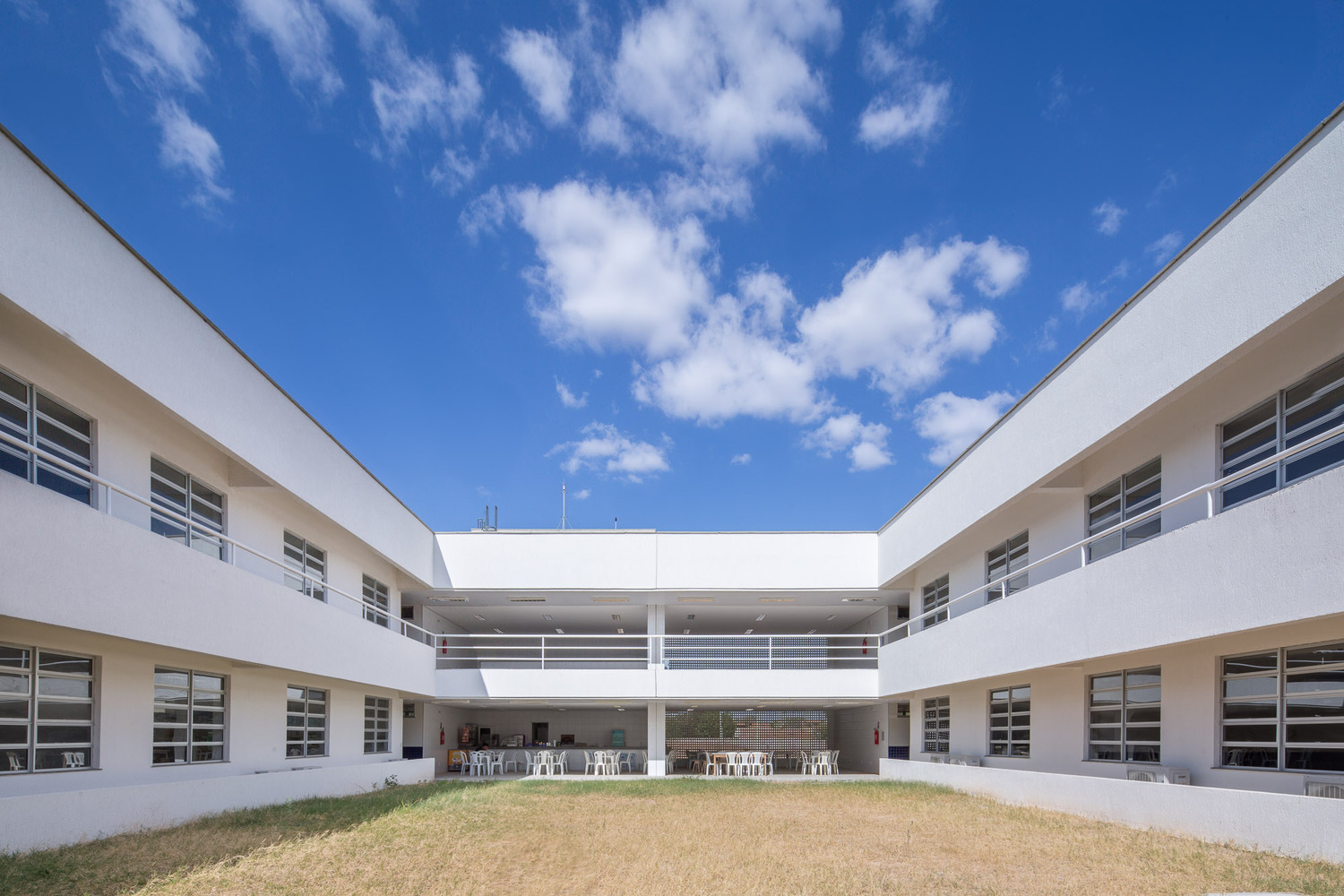

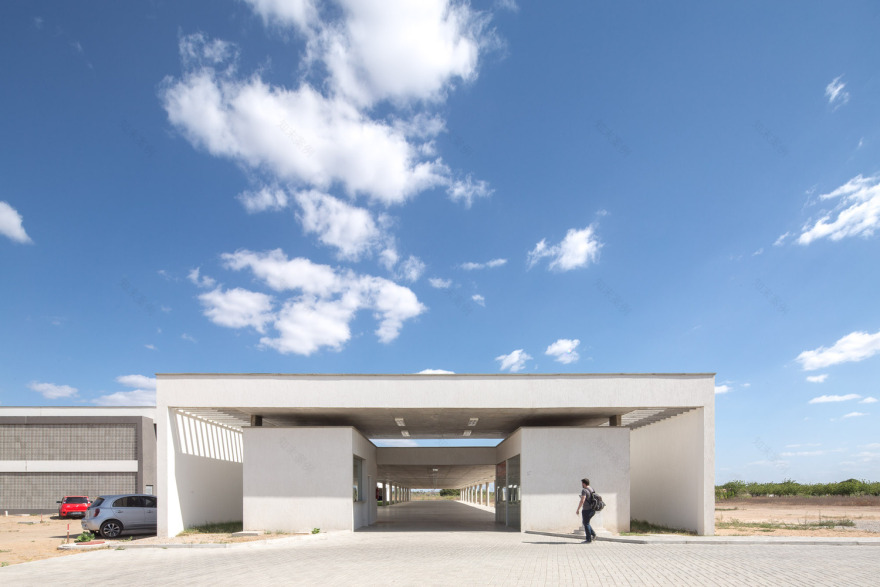

The portico defines the access, with spaces for services and reception. The walkway, a large span of twelve meters, serves as a great articulator of the campus, as a covered street that will connect all the blocks. From there you access the teaching block, a large volume with the presence of three internal courtyards, facilitating ventilation and lighting. This block houses the administration, coordination, teachers room, classrooms, the library, the auditorium and laboratories, as well as toilets and a cafeteria.

(Joana Fran A)

使用模块化的结构和集中的潮湿和公共区域允许灵活的内部空间，使变化随着时间的推移。所有房间的两侧都有走廊，有时充当流道，有时作为技术区域，但也可作为抵御阳光直射的必要战略，这是由于当地的气候所致。在外立面交替的“cobogós”，传统的乡土建筑元素，与铝砖，创造了一个动态的外壳，使通风和保护免受直接日晒。由于块体形状和尺寸的多样性，我们使用简单的饰面，以白色和灰色的纹理和在循环区域的陶瓷，探索阴影和形状。

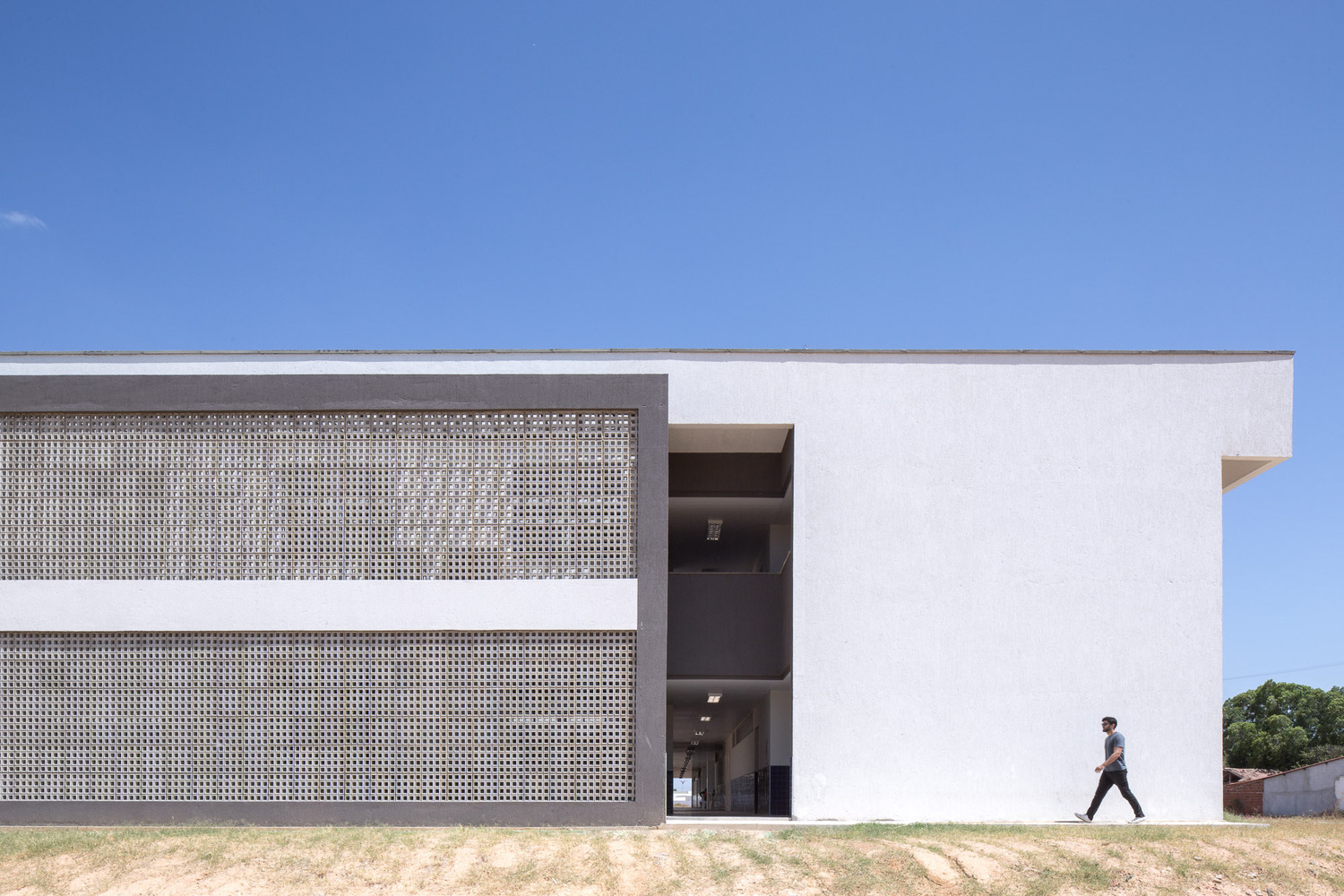

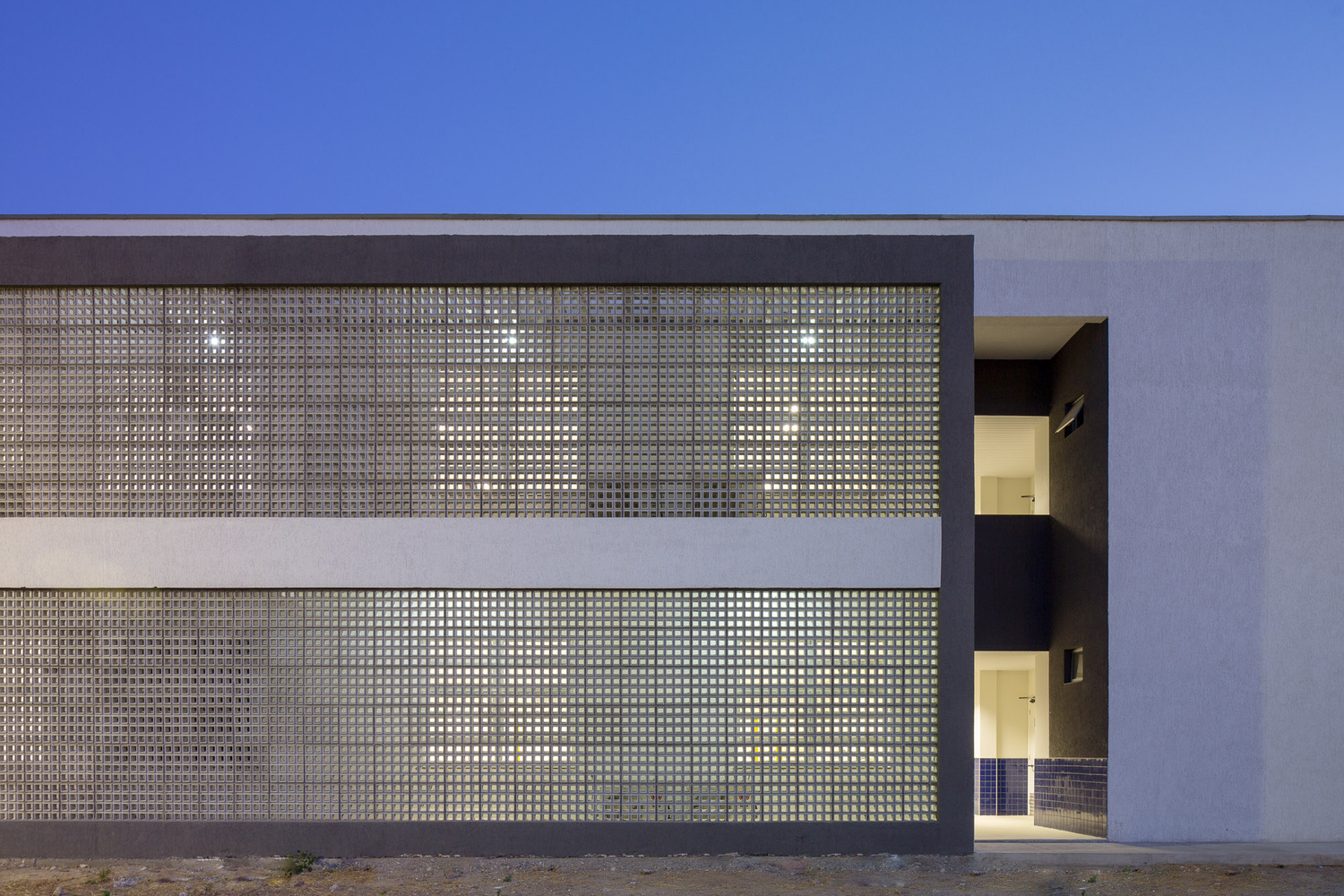

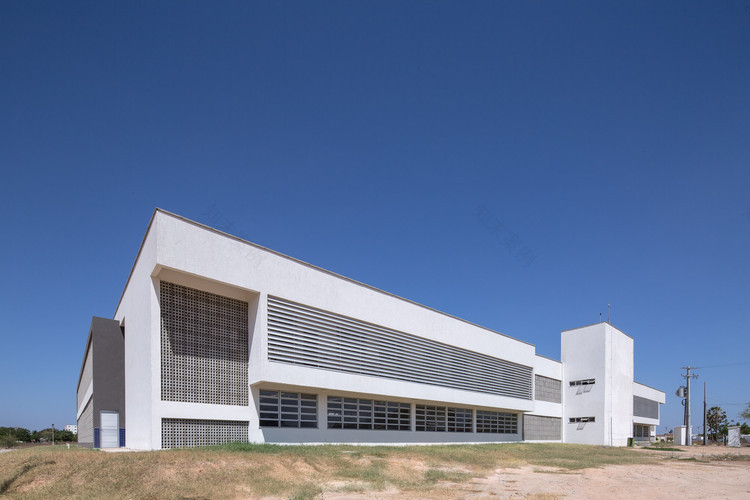

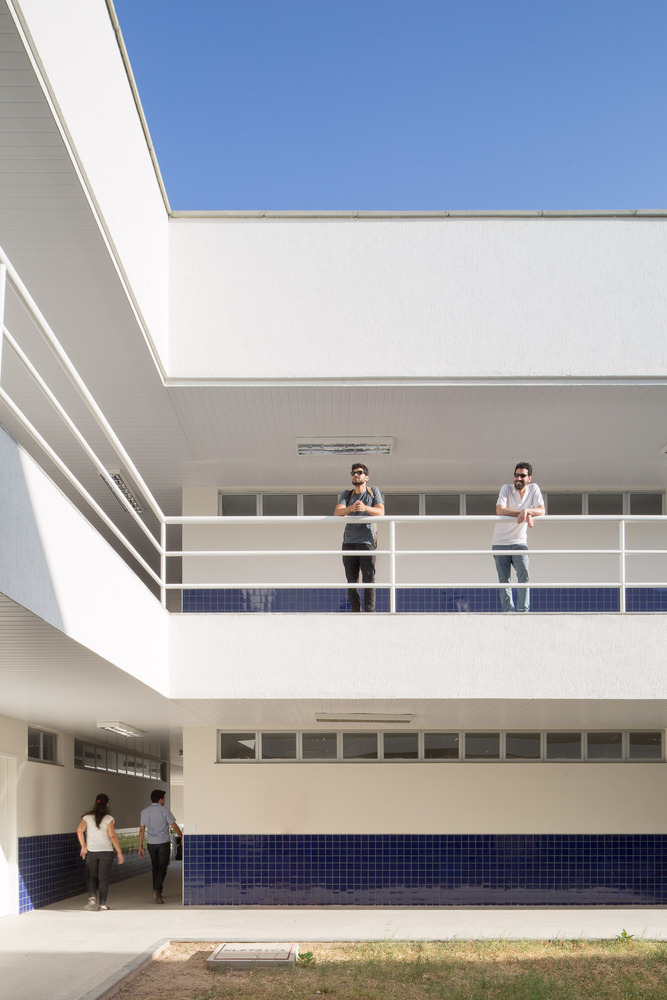

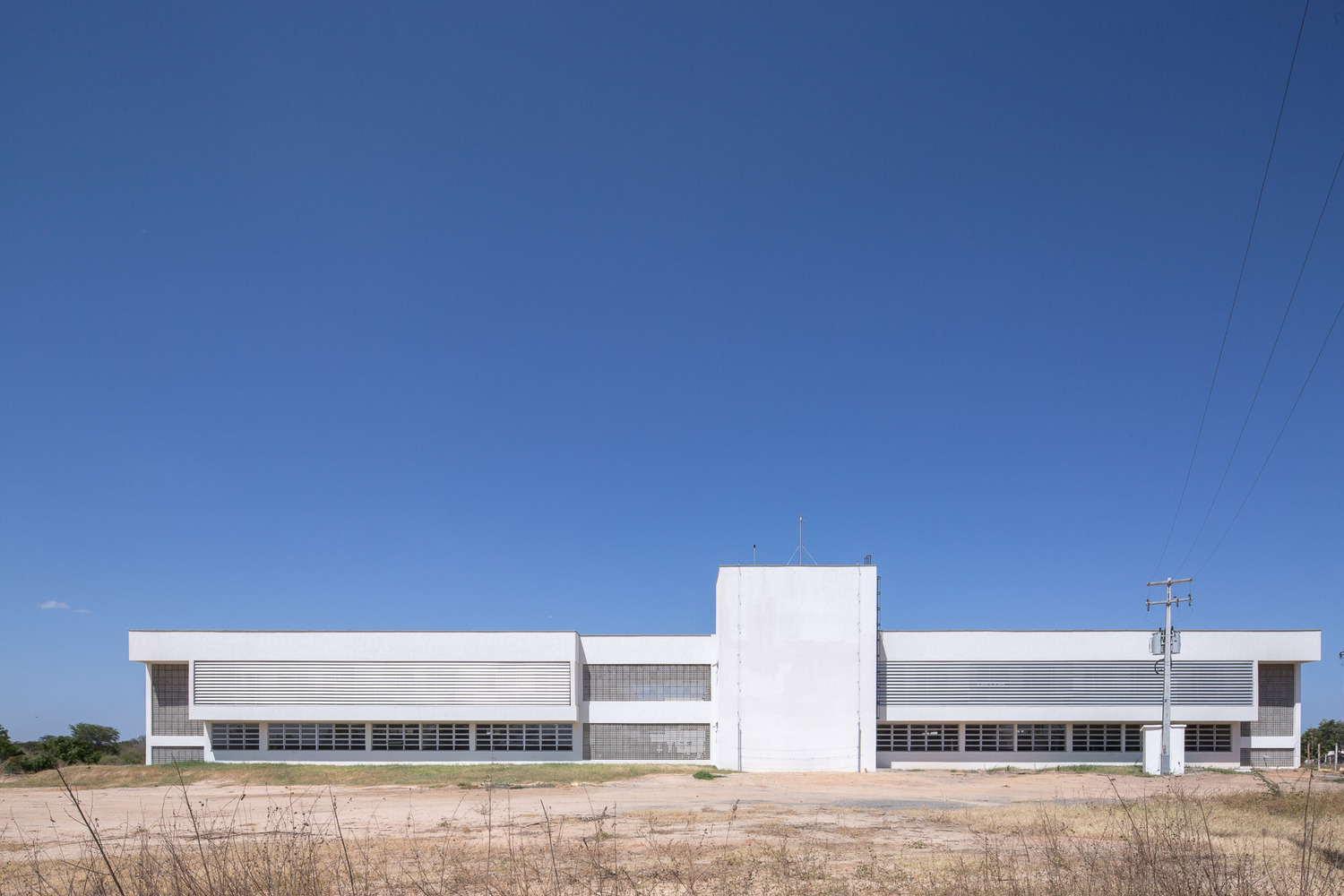

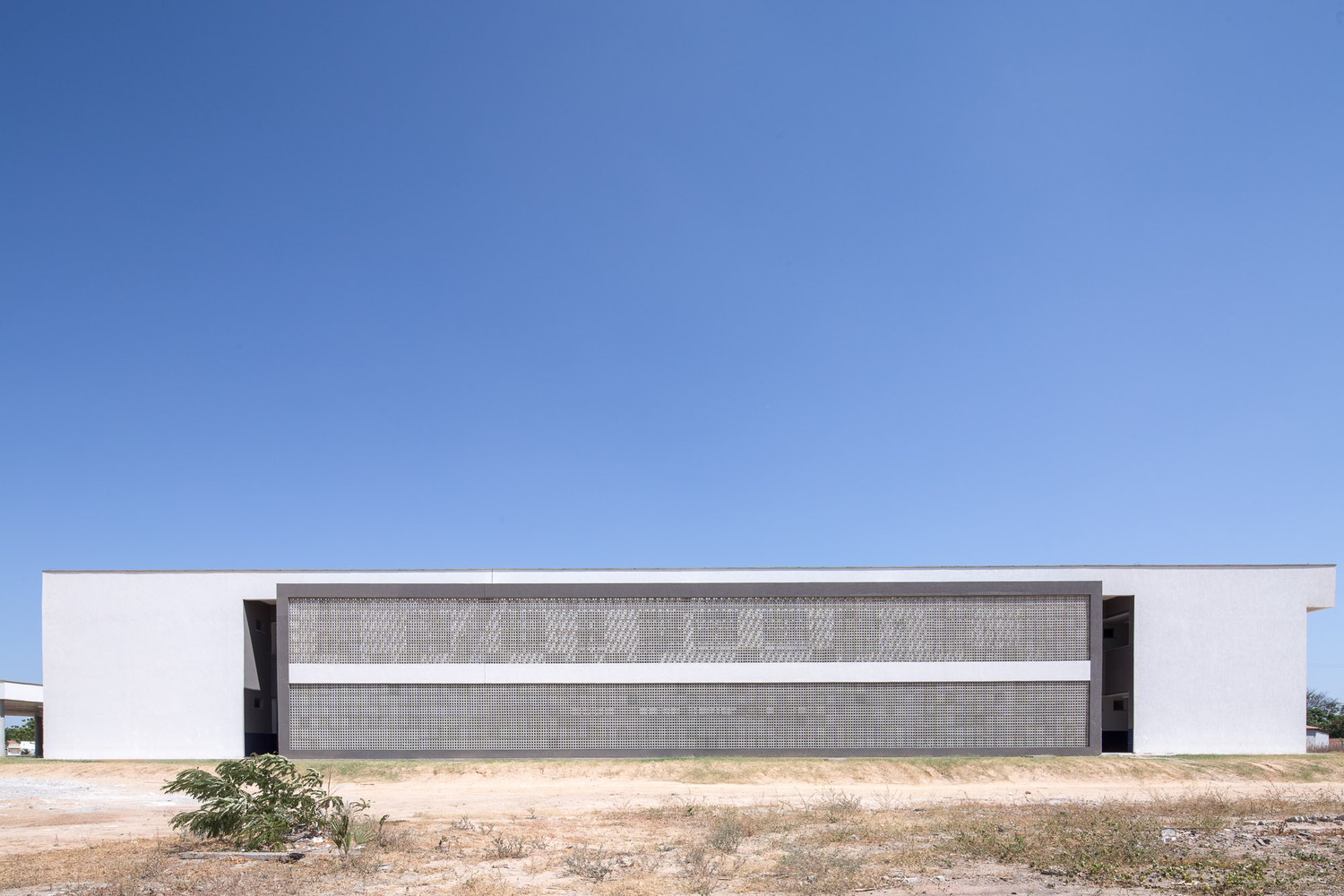

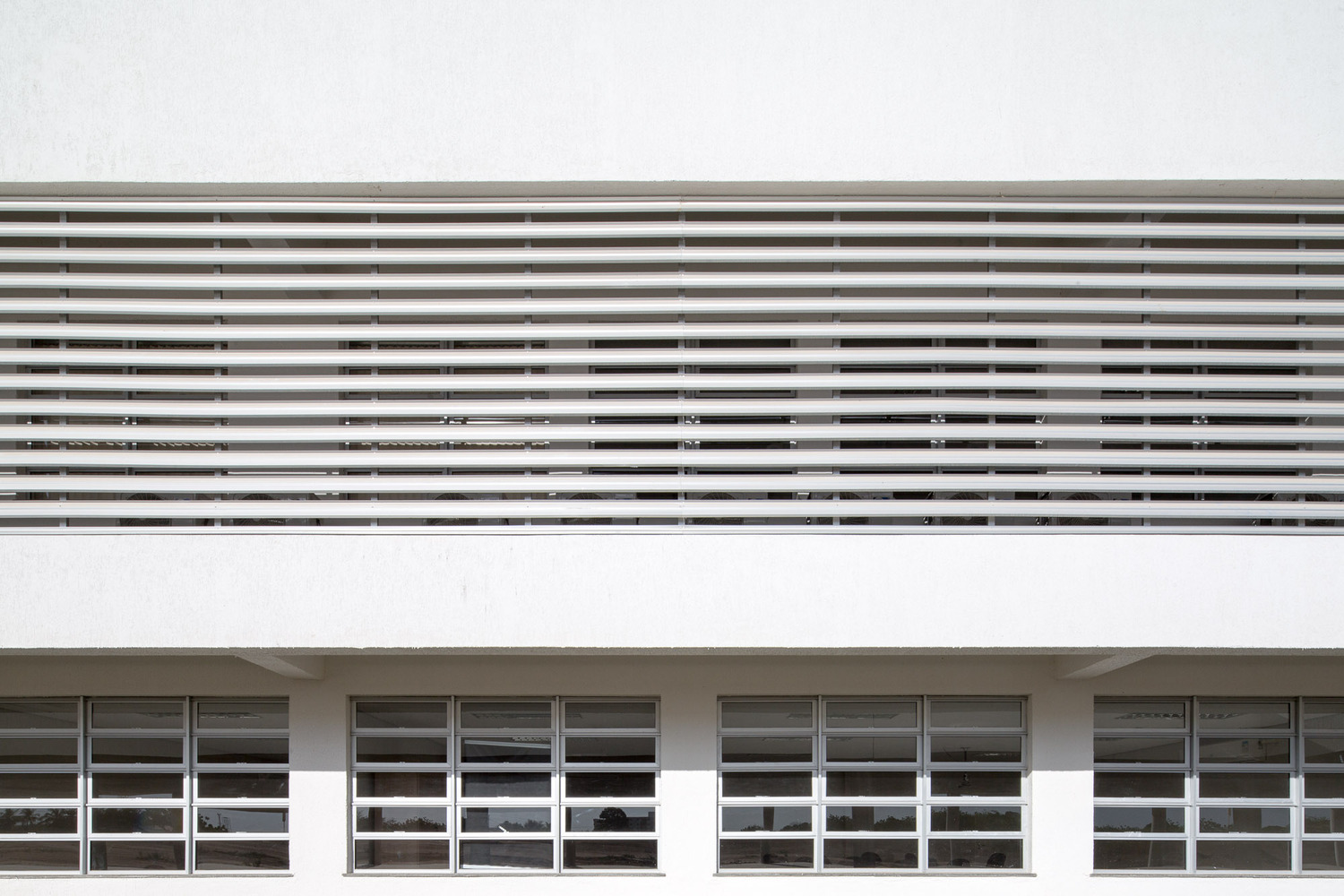

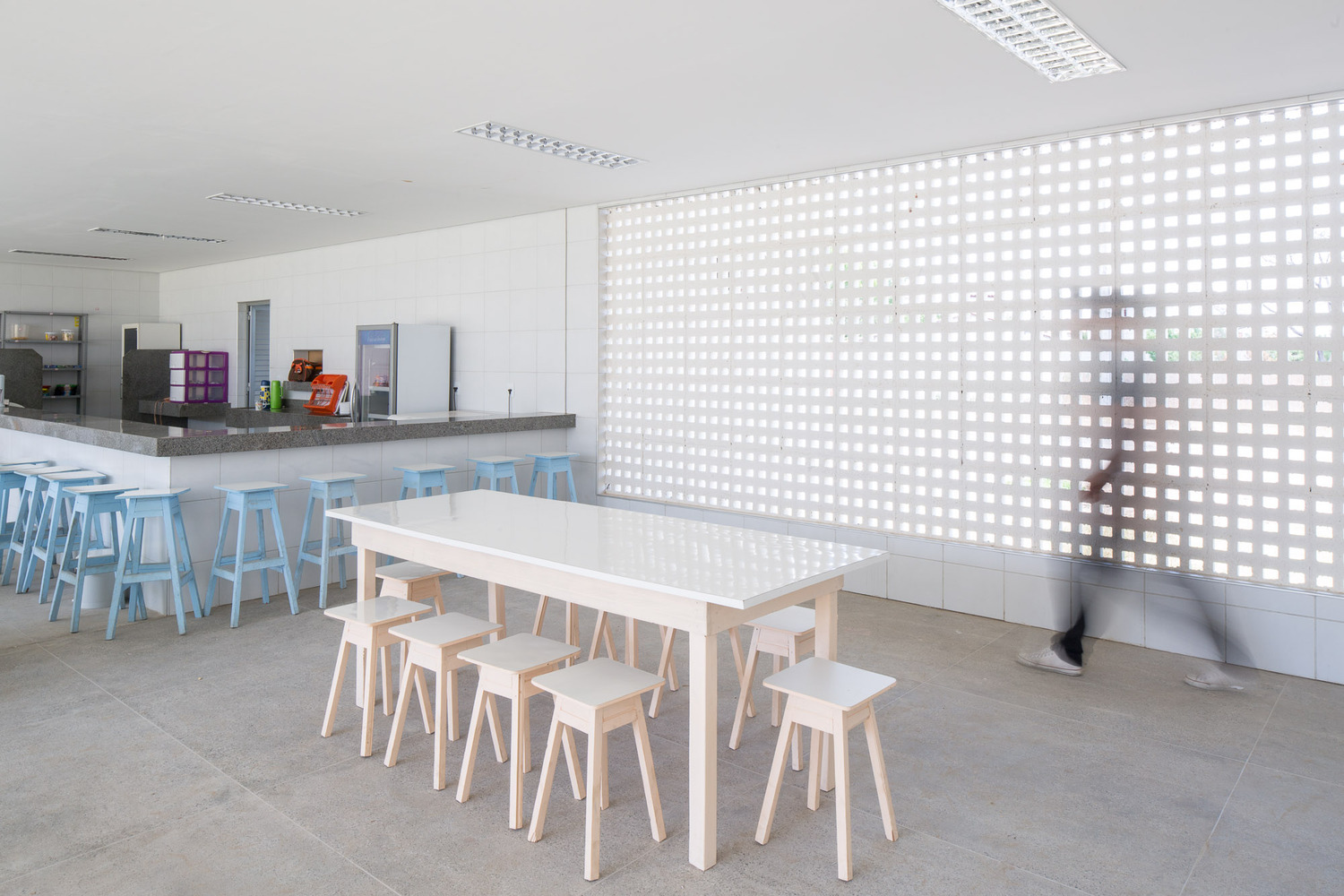

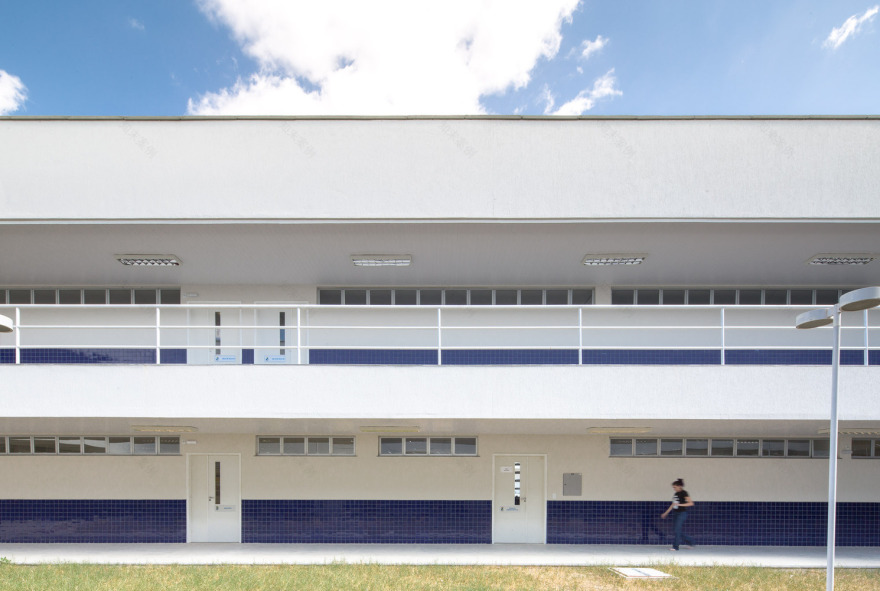

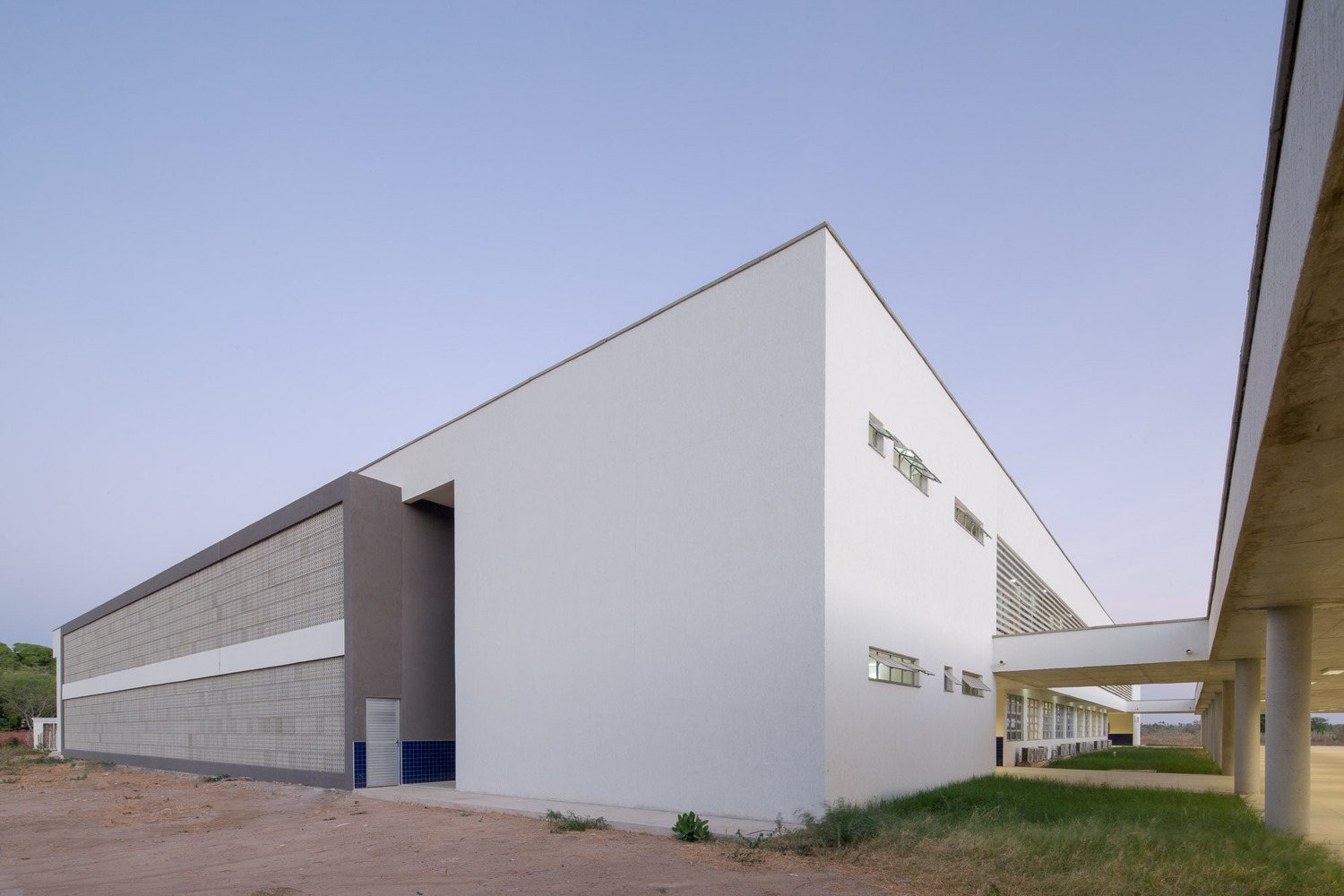

The use of modular structure and the concentration of wet and common areas allows flexibility of the internal spaces, enabling changes over time. All rooms are flanked by corridors, serving sometimes as circulation sometimes as technical areas, but also act as protection against direct sunlight, necessary strategy due to the climate of the place. In the external facades alternate “cobogós”, traditional elements of vernacular construction, with aluminum brises, creating a dynamic shell which allows ventilation and protects from direct insolation. Due to the diversity of shapes and dimensions of the blocks, we used simple finishes, with textures in white and gray colors and ceramic in the circulation areas, exploring the shadows and shapes.

(Joana Fran A)
