首层地面铺装施工图设计

Shop Drawing For Ground Floor Flooring Ceramic, porcelain, Marble, Granite

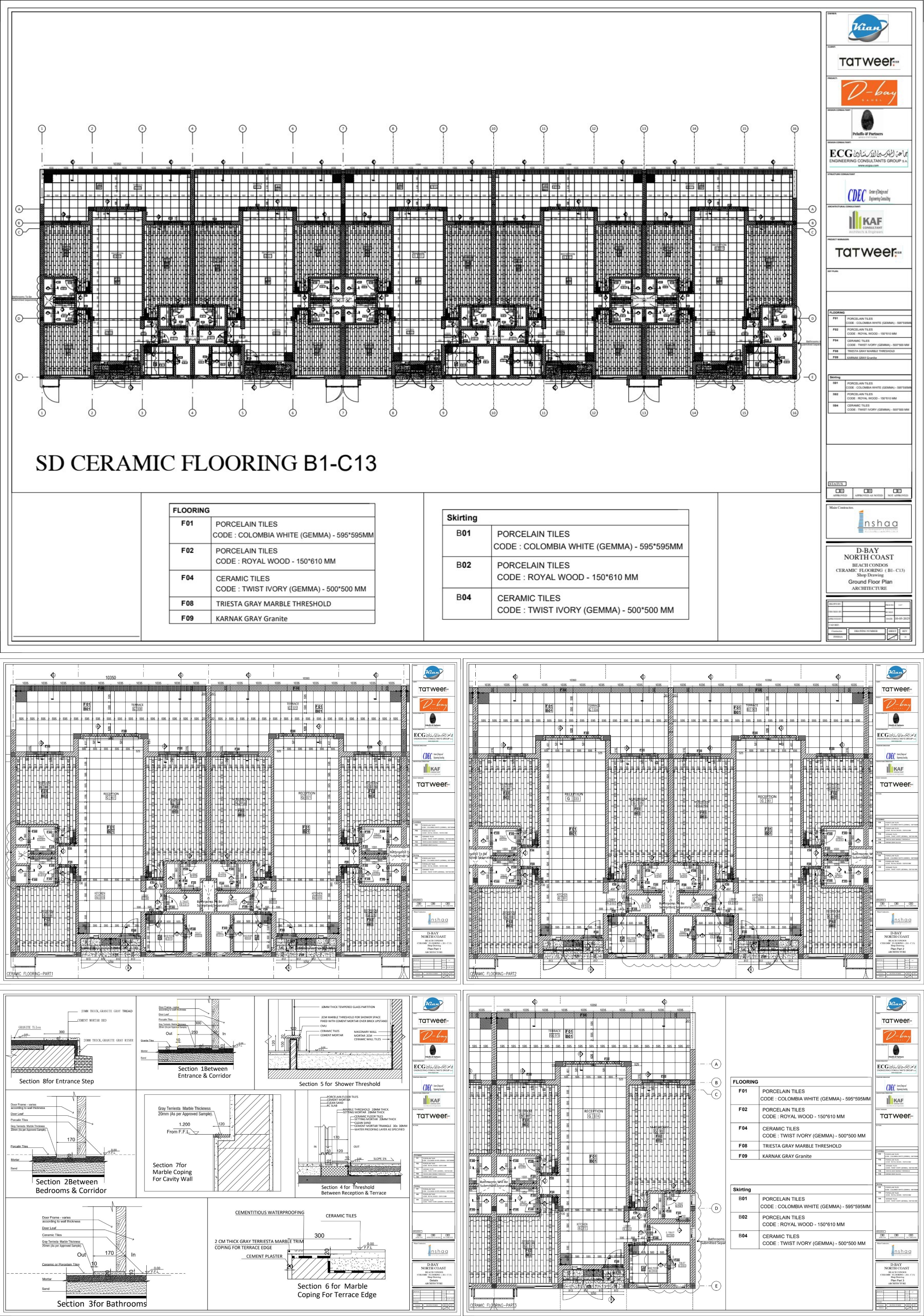

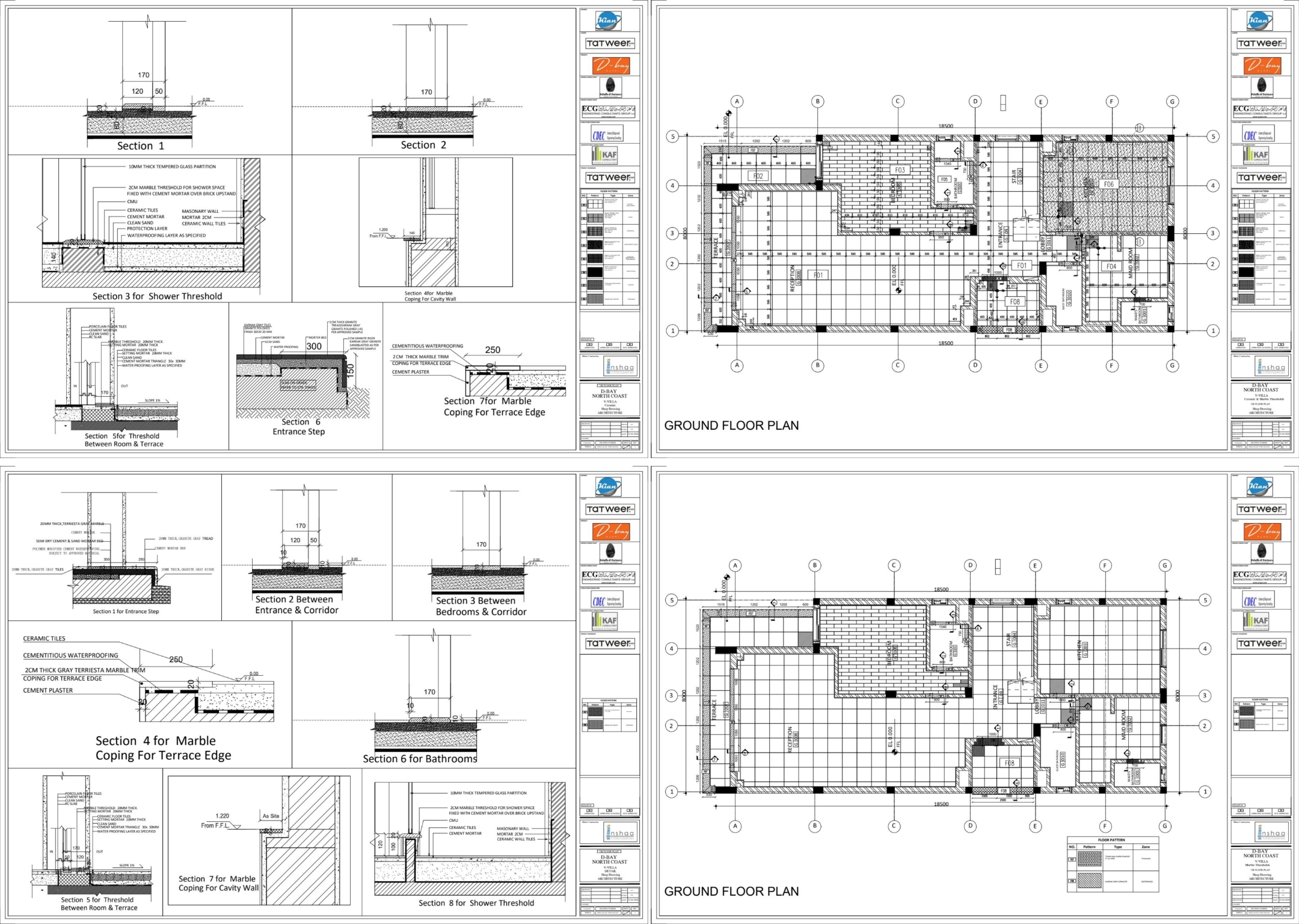

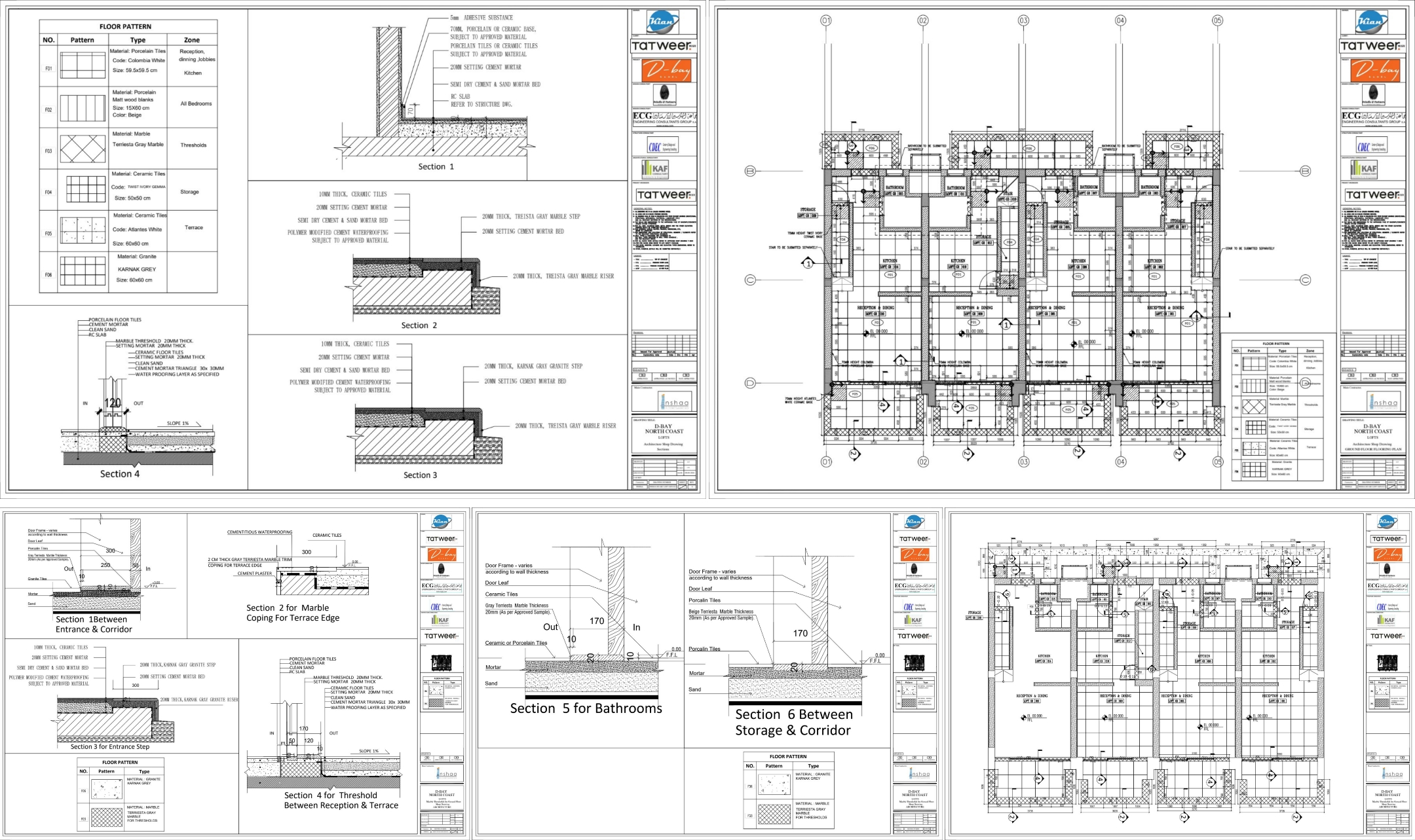

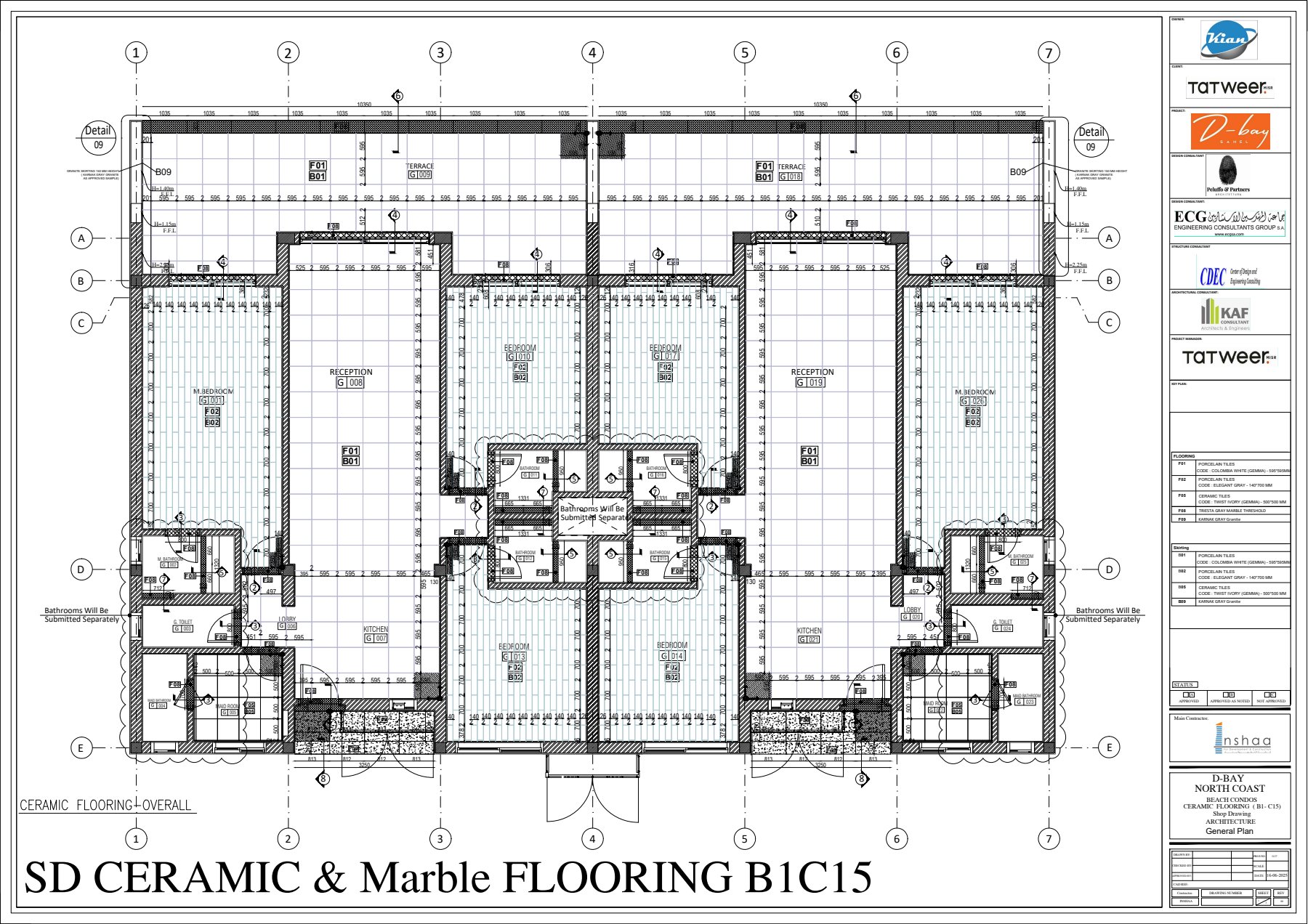

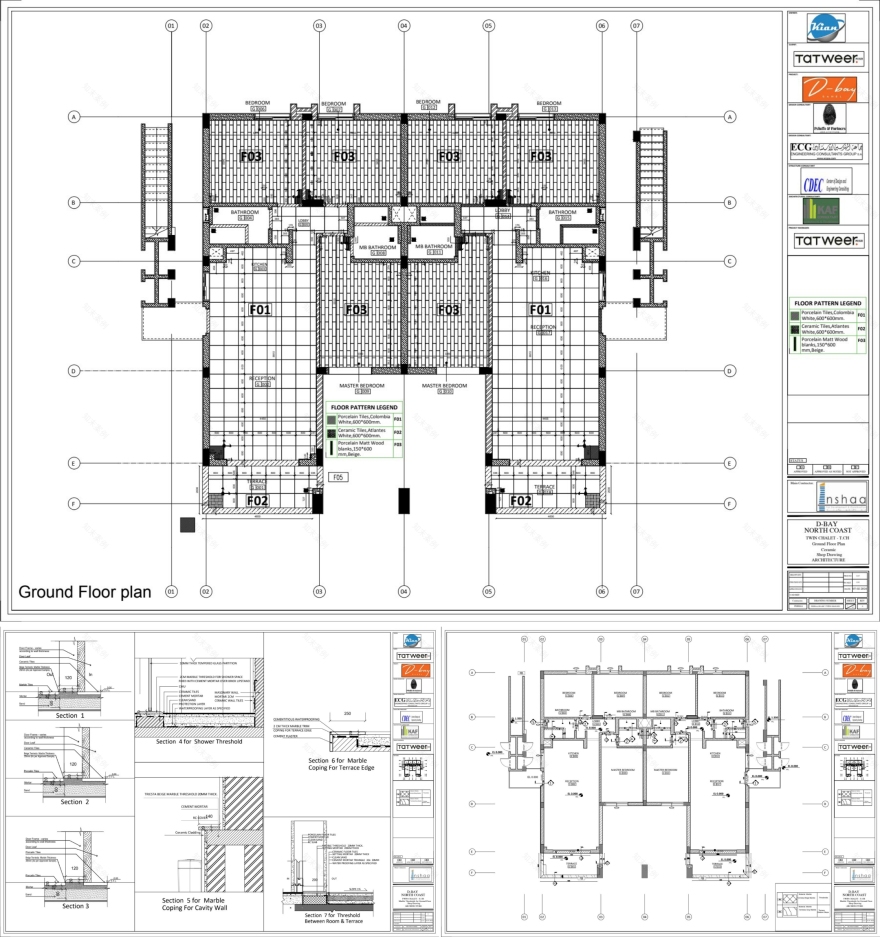

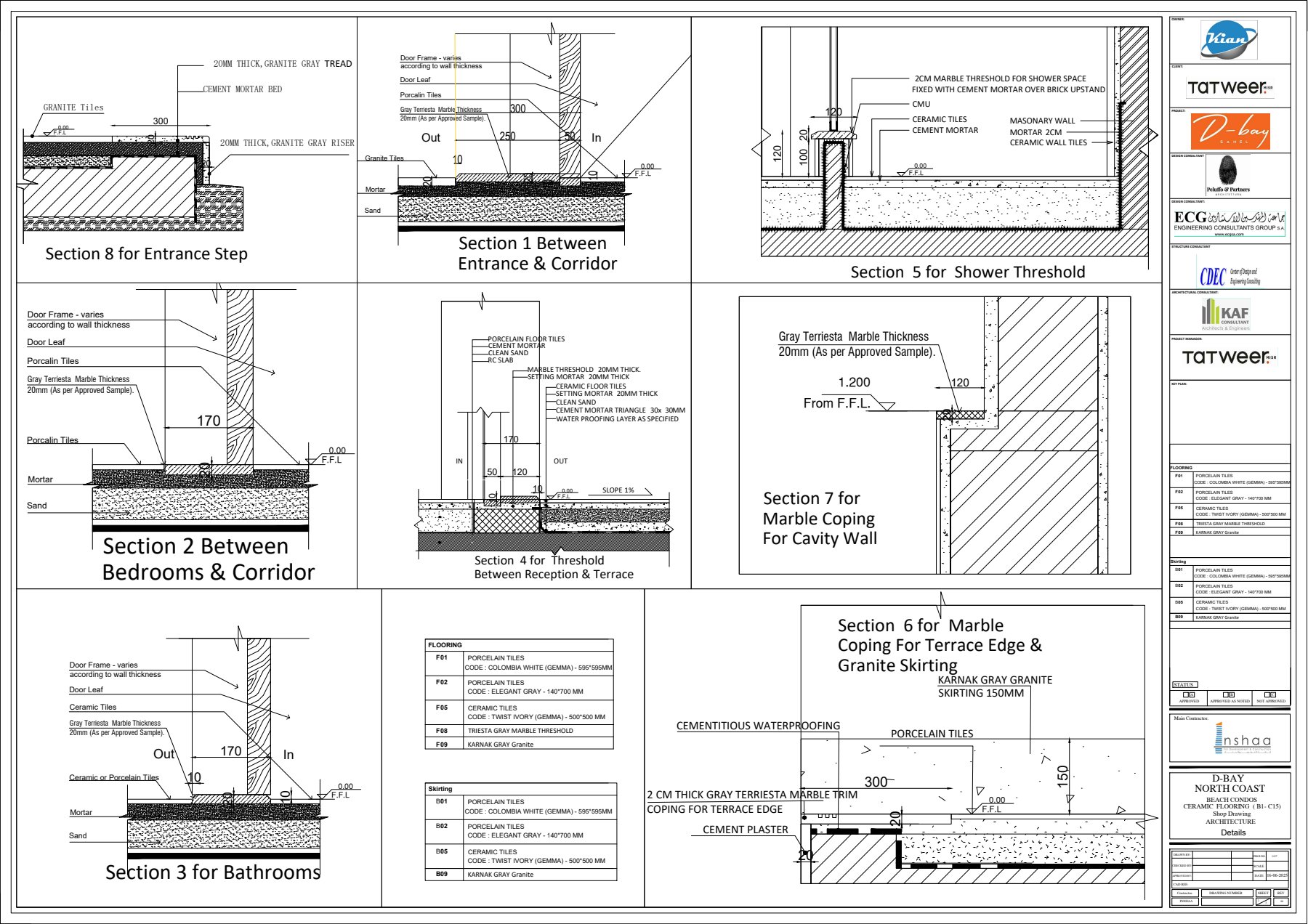

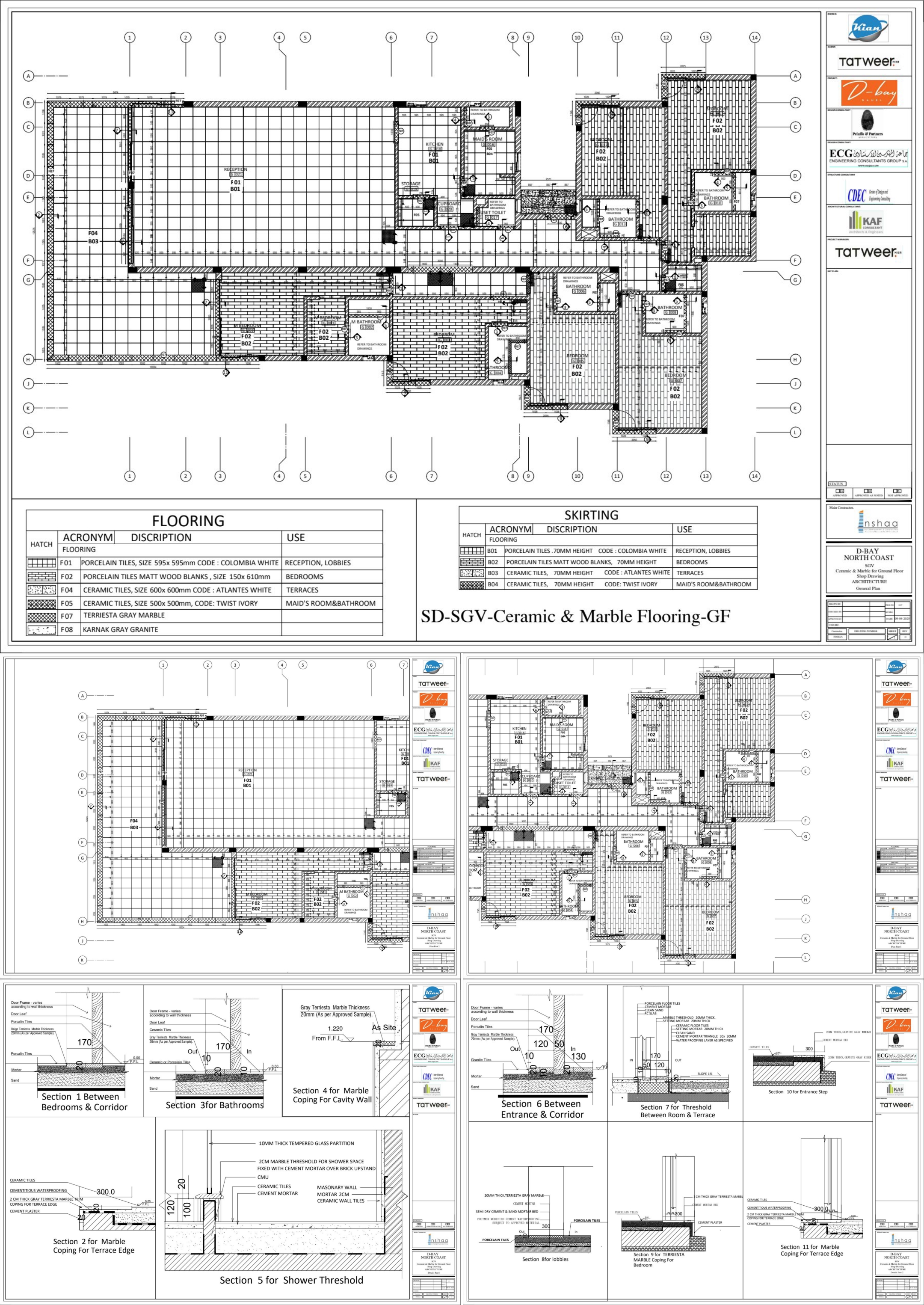

Creating a professional shop drawing for ground floor finishes involves a series of thoughtful steps to ensure both design accuracy and execution efficiency. The submittal typically includes a general plan and detailed views, and it focuses on the following key aspects:

- Room Shape Adaptation: The layout is designed to match the unique shape and dimensions of each room, ensuring a balanced and visually appealing finish.- Material Optimization: The drawing incorporates ceramic, porcelain, marble, and granite, selected based on design requirements and availability in the local market.- Waste Reduction: Tile placement is carefully planned to minimize unnecessary cuts and rework. Cut pieces are reused wherever possible to reduce material waste.- Market Availability: All materials used in the drawing are chosen based on what is readily available in the market, ensuring practicality and cost-efficiency.- Detailed Documentation: The shop drawing includes a general plan, enlarged views, and detailed sections showing tile patterns, expansion joints, slopes, and decorative elements.Execution Guidance: Clear specifications and annotations are provided to support accurate and high-quality installation on site.
