罗马尼亚多瑙河电动单体客船设计

Design of an electric monohull passenger vessel for Danube river operations in Romania

3D View of the Vessel

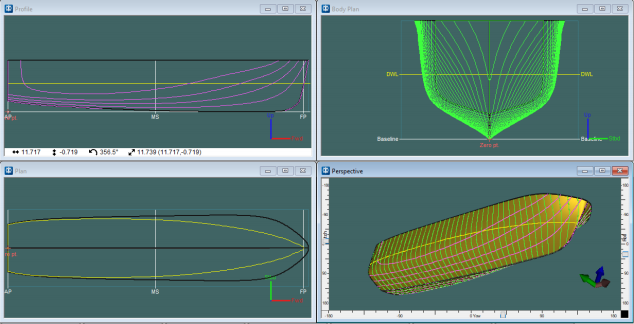

Hull Form

Passengers Room

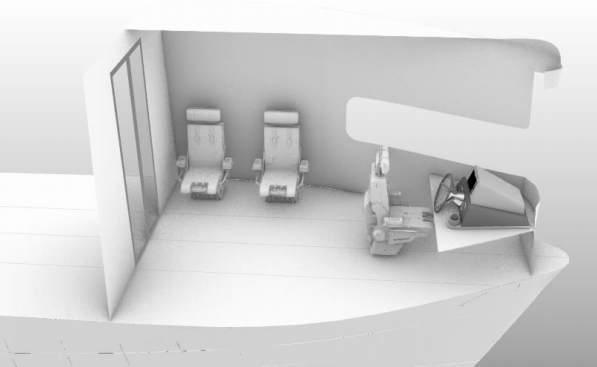

Crew Cabin

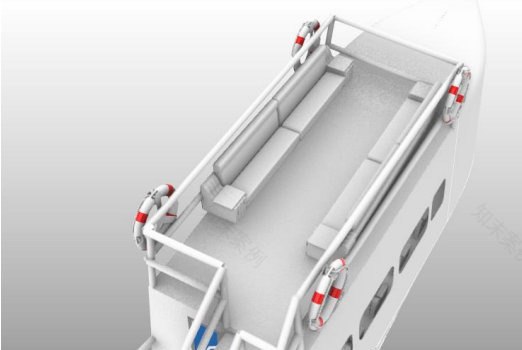

Sunroof

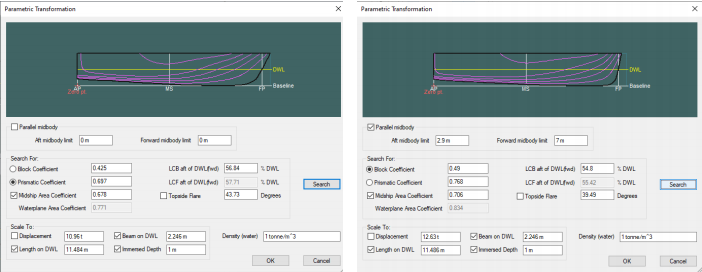

to left design point 1 to right design point 2.2 increased Cb

the decision was to increase draft instead of Cb

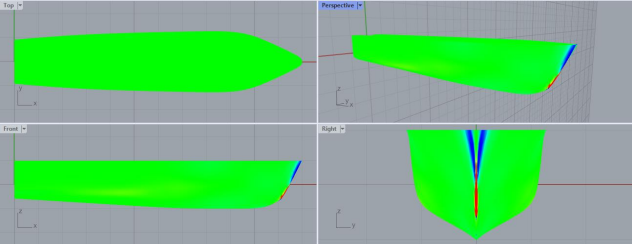

Hull Curvature analysis

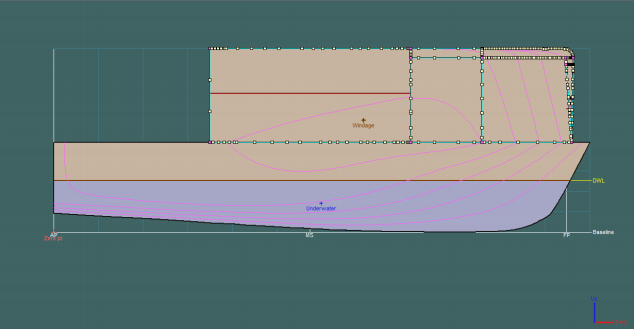

underwater and windage areas for the criterias of GZ

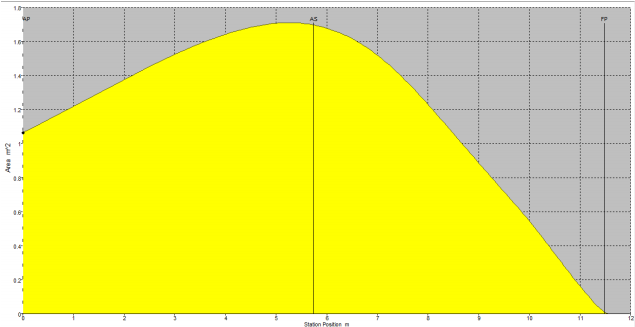

Sectional Area Curve

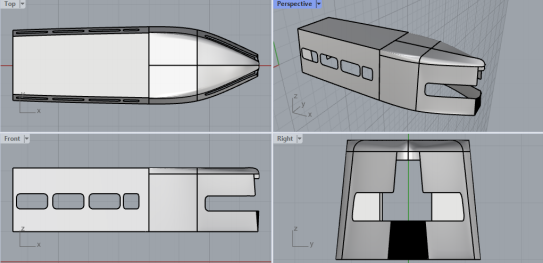

Superstructure Design

Visibility Radius

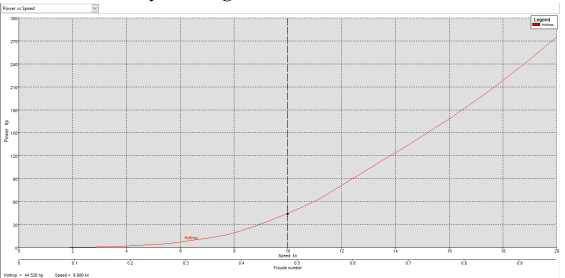

preliminary Resistance Estimation using holtrop

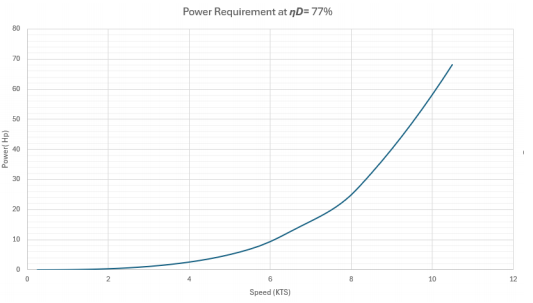

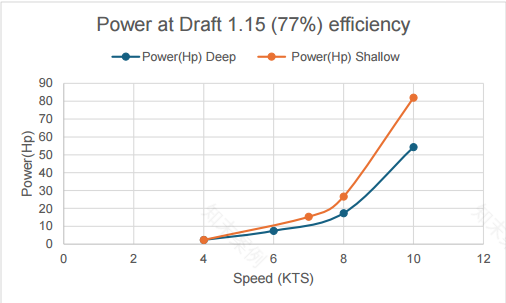

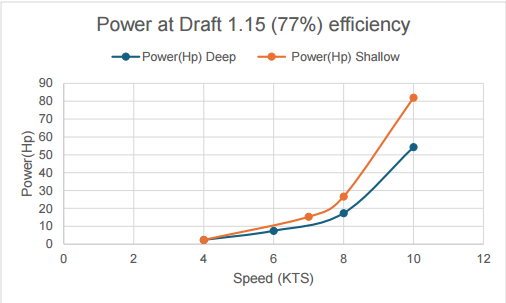

Power requirments using CFD " Numeca Finemarine" Shallow water(4m) and Deep water Power Requirements for the Boat

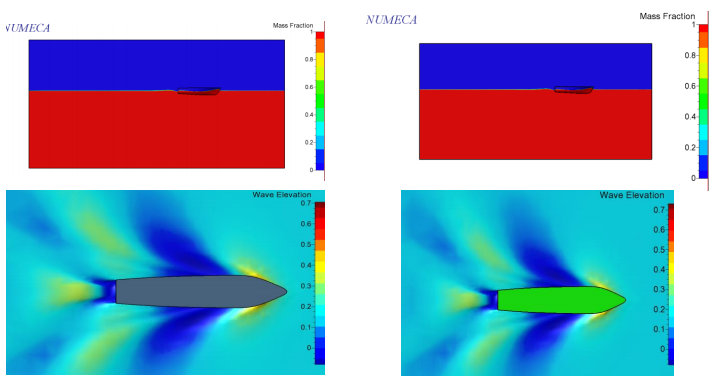

Wave elevation at speed 8 knots draft 1.15m to left deep water to right deep water

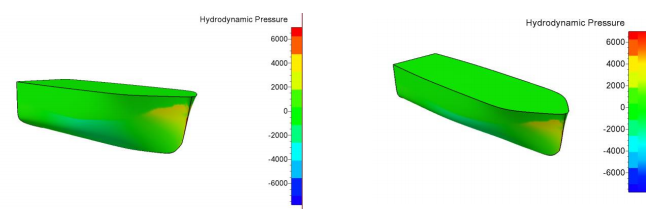

hydrodynamic pressure

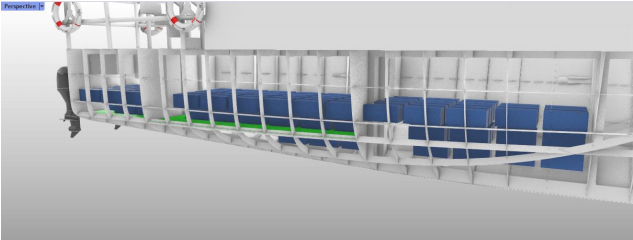

Batteries distributed in the hull

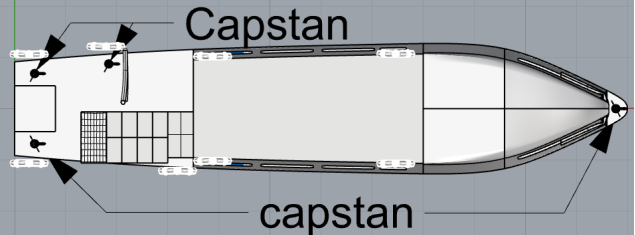

Capstans Locations

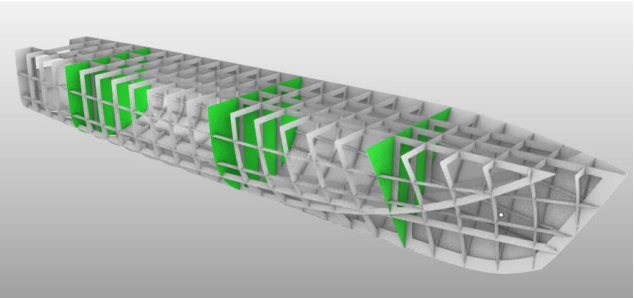

:Transverse Bulkheads Locations

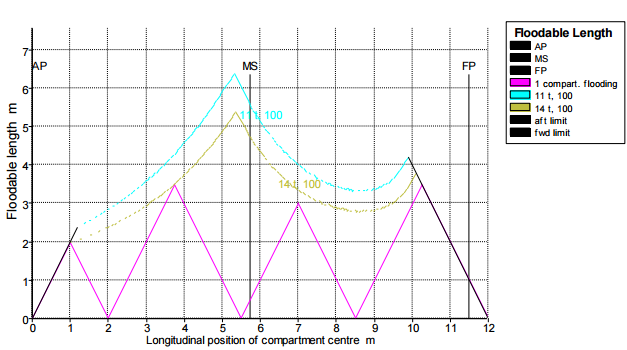

Floodable length Analysis Graph

FEM

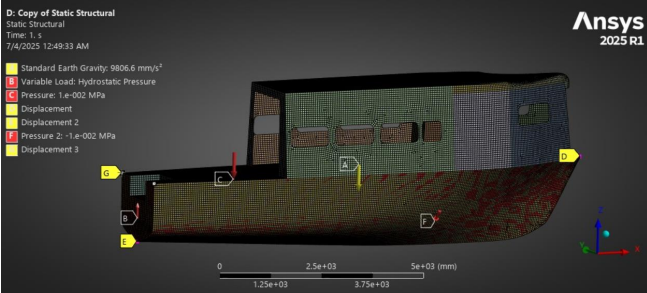

FEM Boundary Conditions

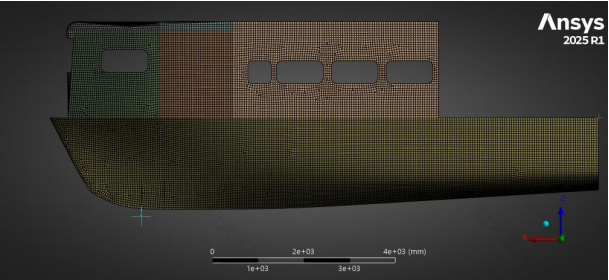

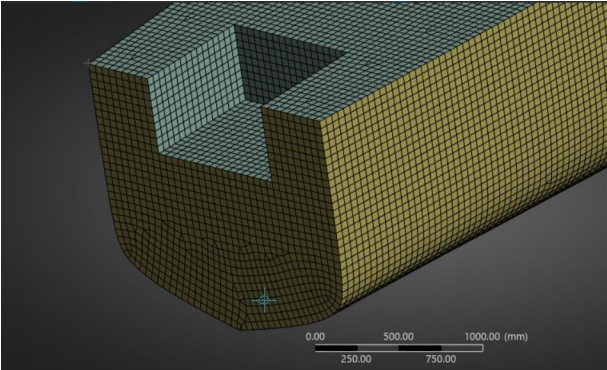

Fem Mesh Details

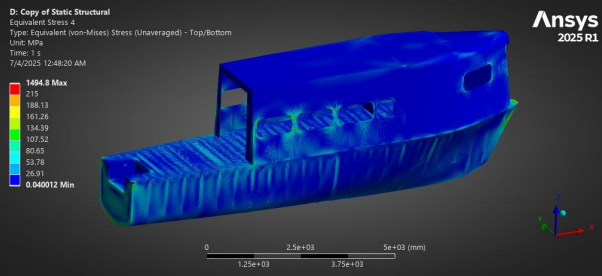

Von mises stress

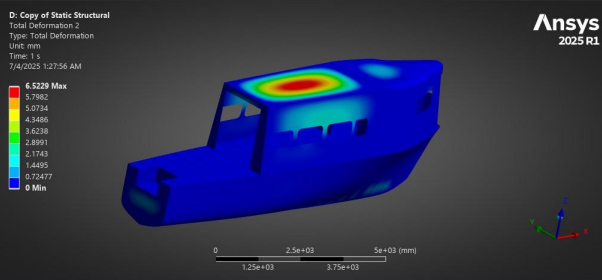

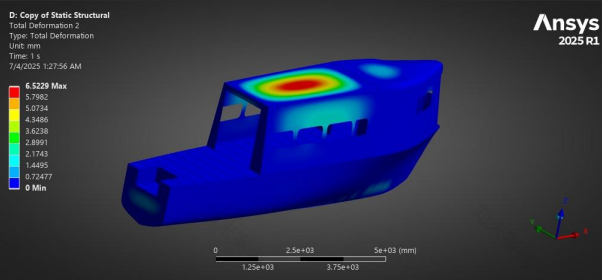

Deformation

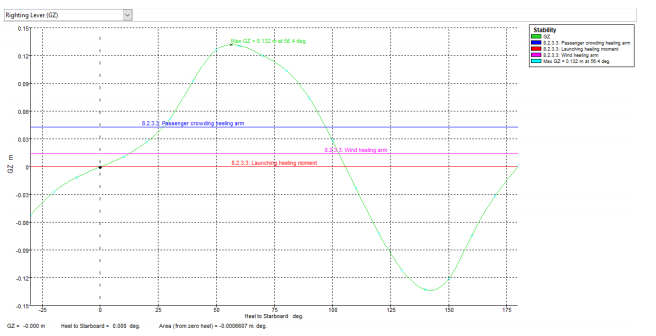

GZ Curve

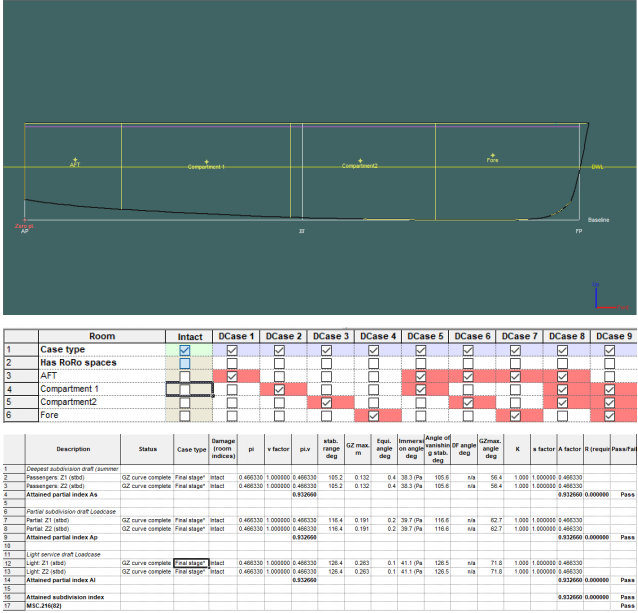

Damage stability analysis

Seakeeping Analysis

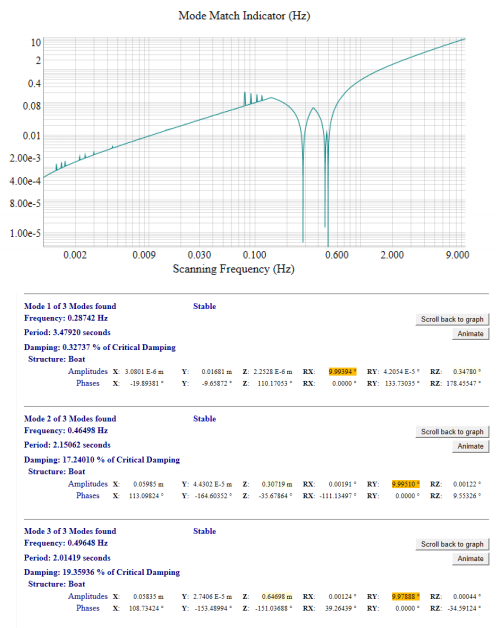

Natural Modes

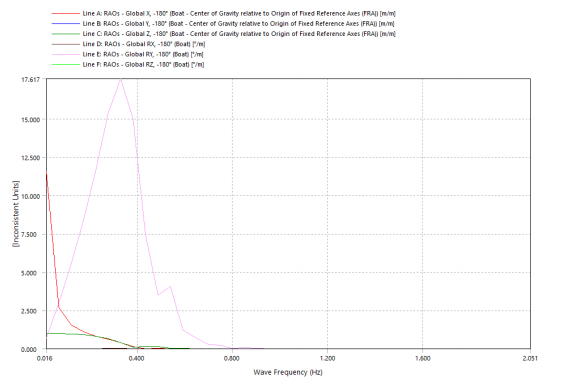

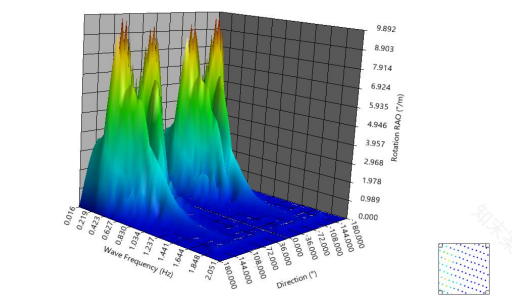

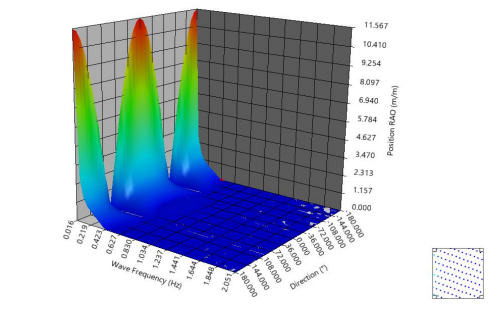

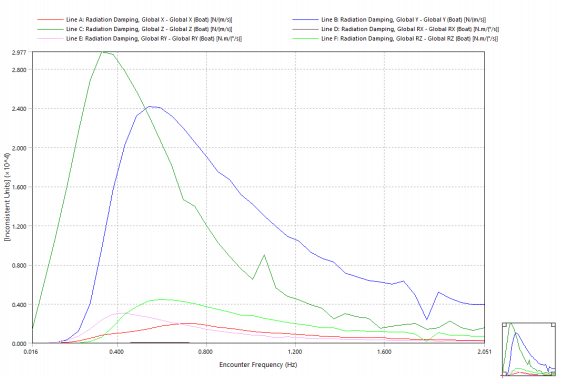

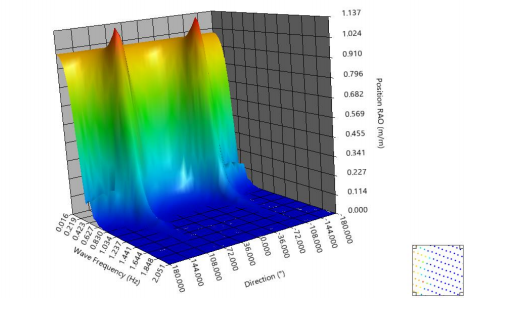

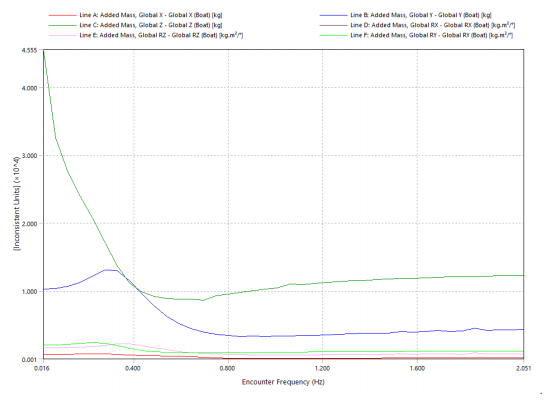

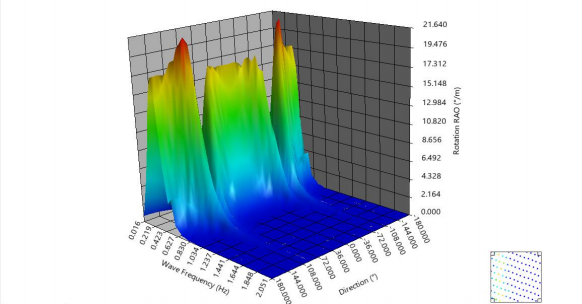

Added Mass, Damping and RAOs

Vessel Mooring from stern

Vessel Mooring from bow

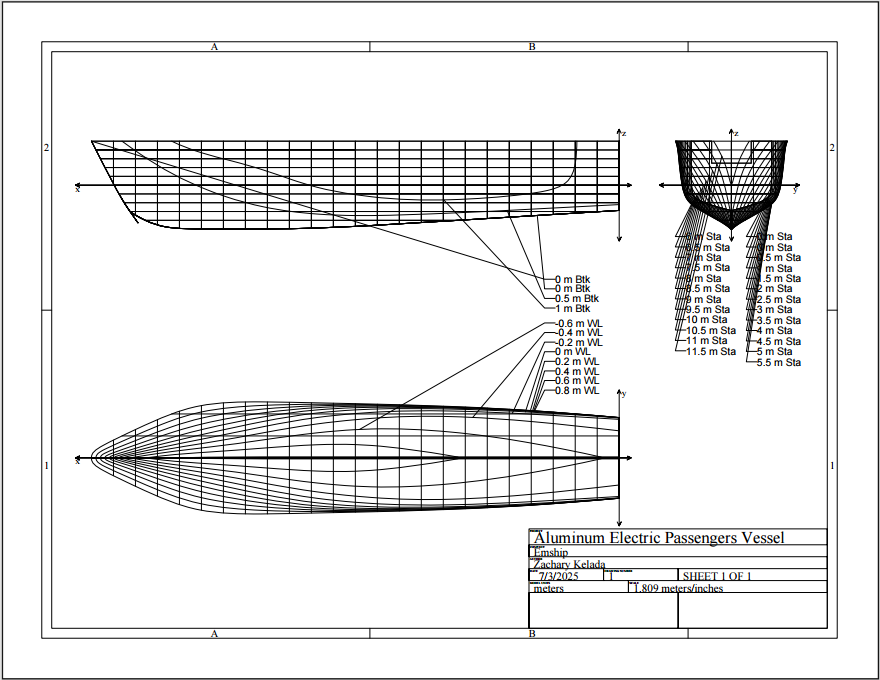

Lines Plan

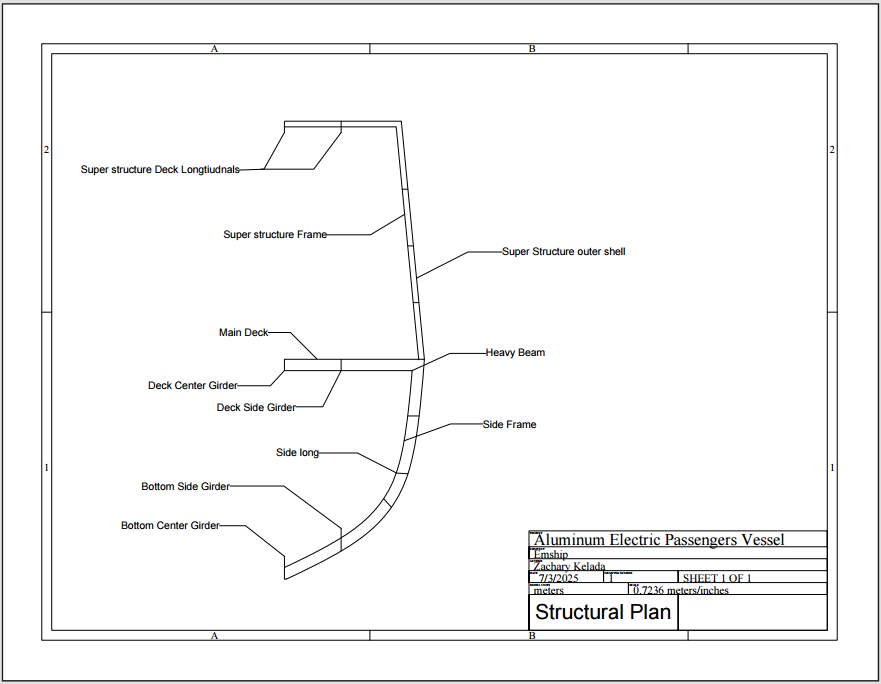

Structural plan

General Arrangment
