NCKU Art Lounges Da Hsin Yuan / MAYU architects

Architects:MAYU architects

Area:854m²

Year:2022

Photographs:Yu-Chen Chao

Lead Architects:Ma-Lone Chang / Yu-lin Chen

Category:University

Design Team:Ma-Lone Chang, Yu-lin Chen, Che-Kang Liu, Crosis Wang, Yun Chen, Juiying Tung, Alex Cheung, Wei-Ying Lu, Yi-Rou Lin

Technical Team:Wei-Cheng Li, Ya-Tie Yu, Yong-Xian Fang

Architecture Offices:MAYU architects

Engineering & Consulting > Structural:Galaxy Engineering Consultants, Inc.

Engineering & Consulting > Mep:Yun Cheng, Ltd.

Engineering & Consulting > Lighting:MAYU architects

Landscape Architecture:MAYU architects

Interior Design:MAYU architects

City:Tainan

Country:Taiwan

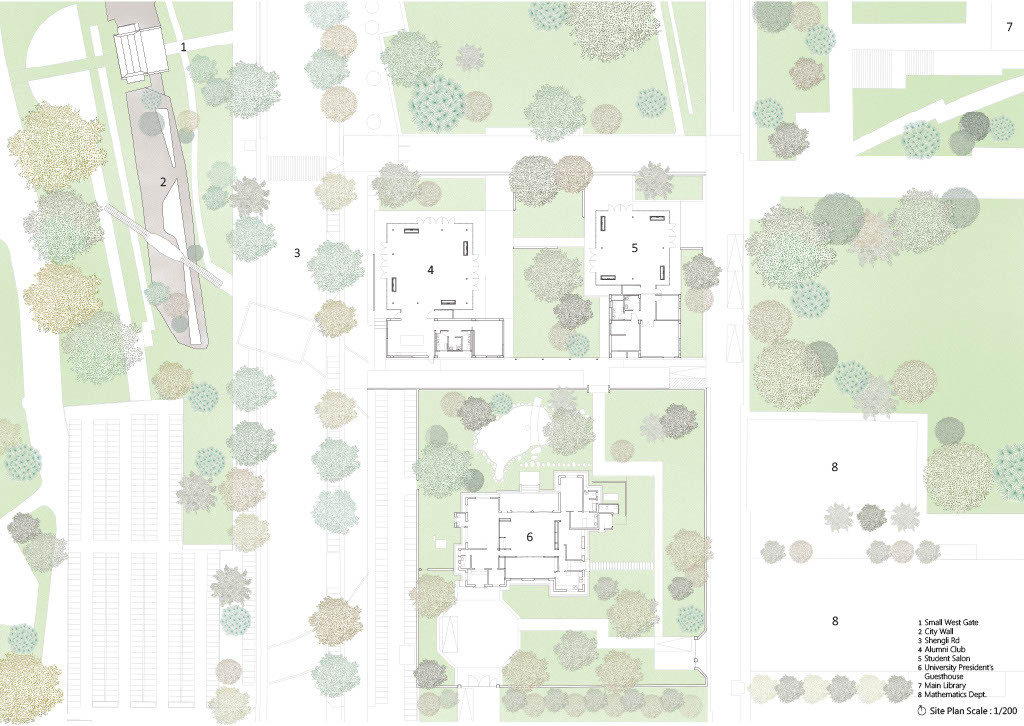

Text description provided by the architects. NCKU Art Lounges is situated at the heart of National Cheng Kung University, facing the remnants of the Tainan City Wall and its West Gate through a tree-lined avenue. It neighbors the University President's Residence and lies along the primary green belt and student activities within the campus. Originally used as a kindergarten, the site has been transformed into a novel type of public space within the university, made possible by this project, welcoming students, faculty, residents, and alumni to visit at any time.

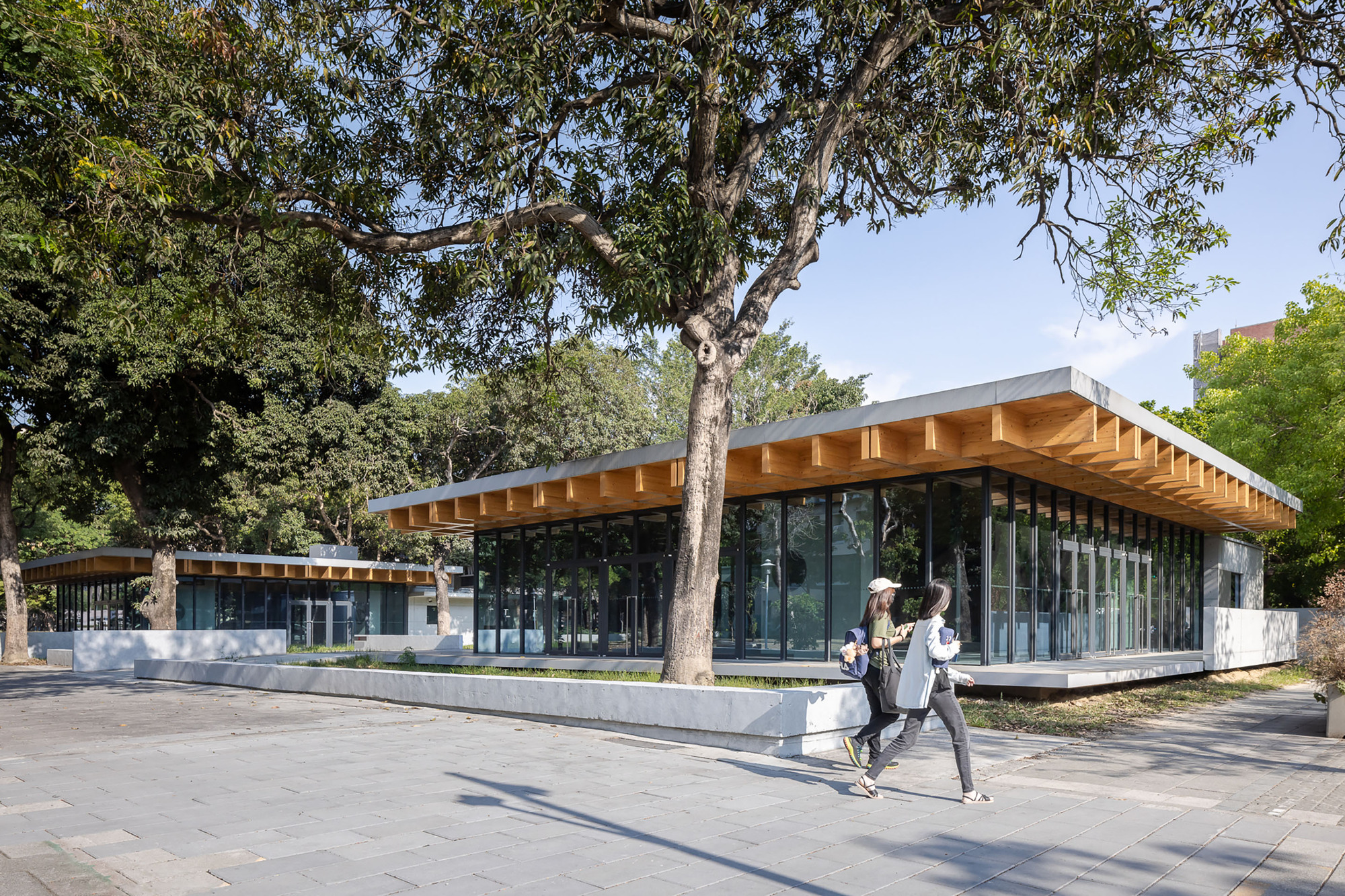

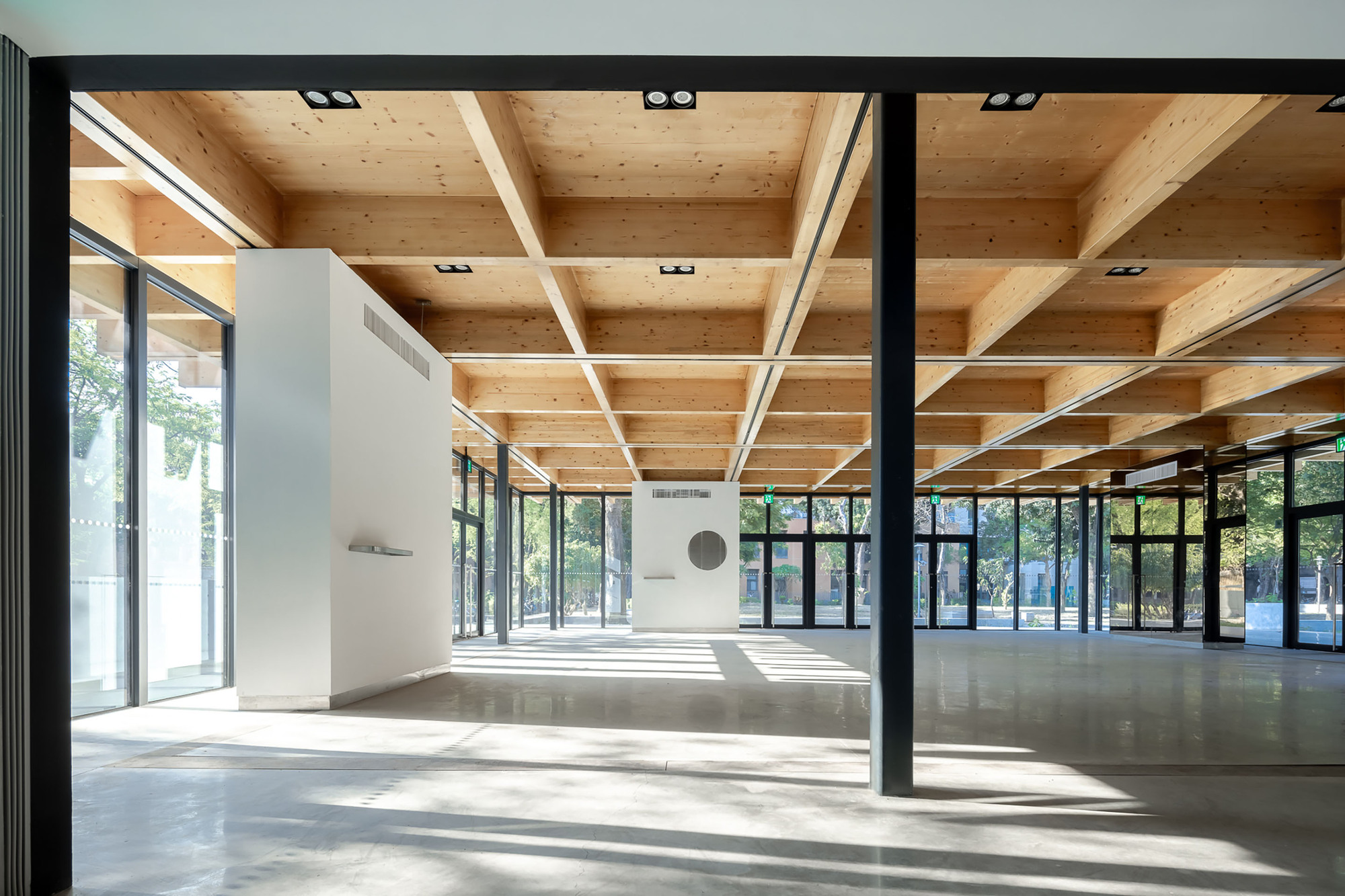

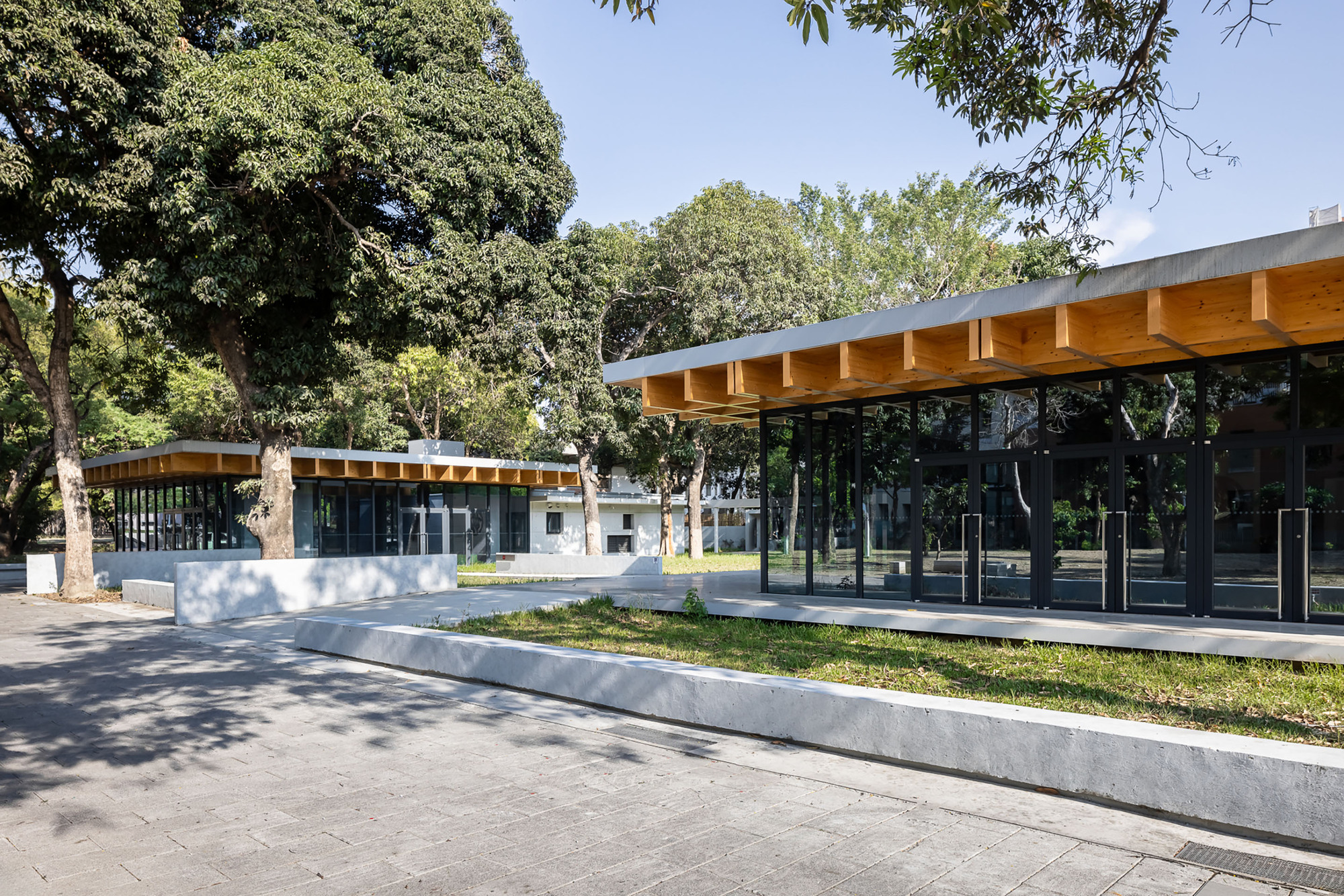

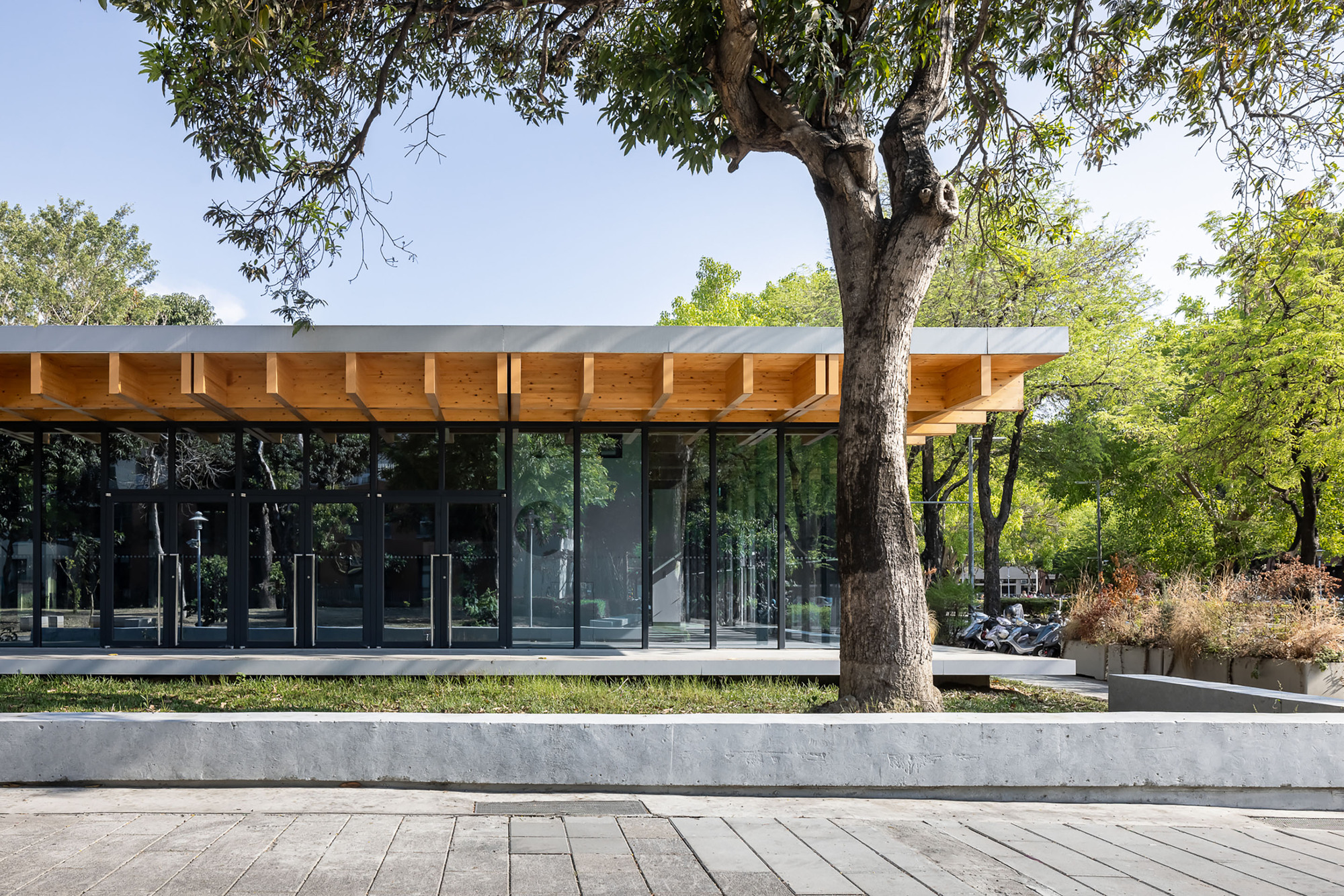

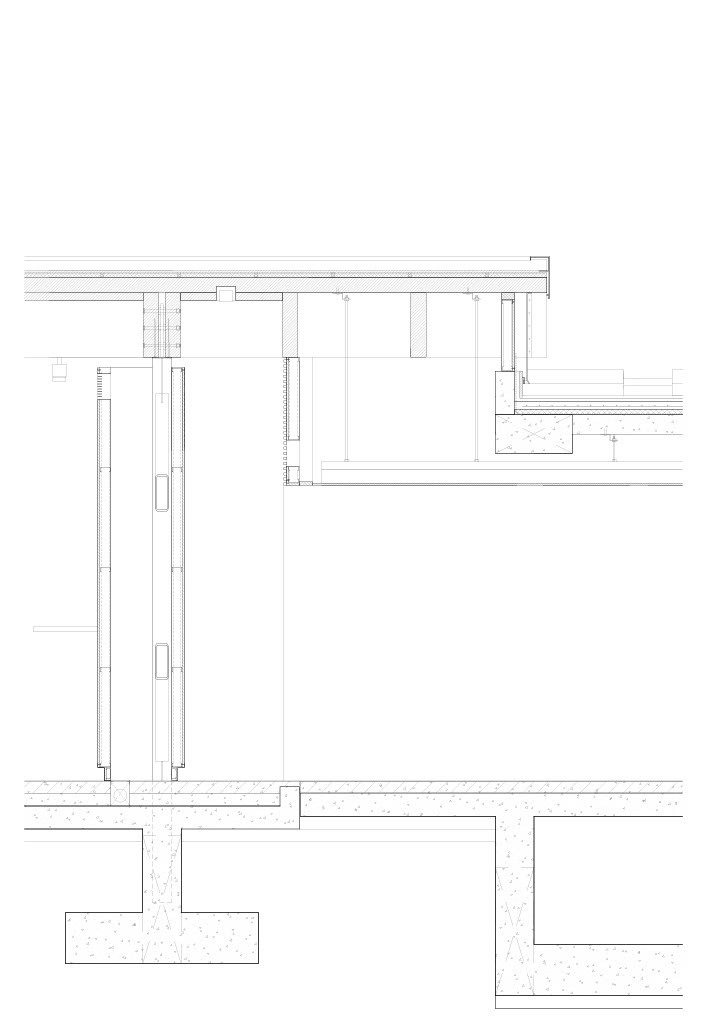

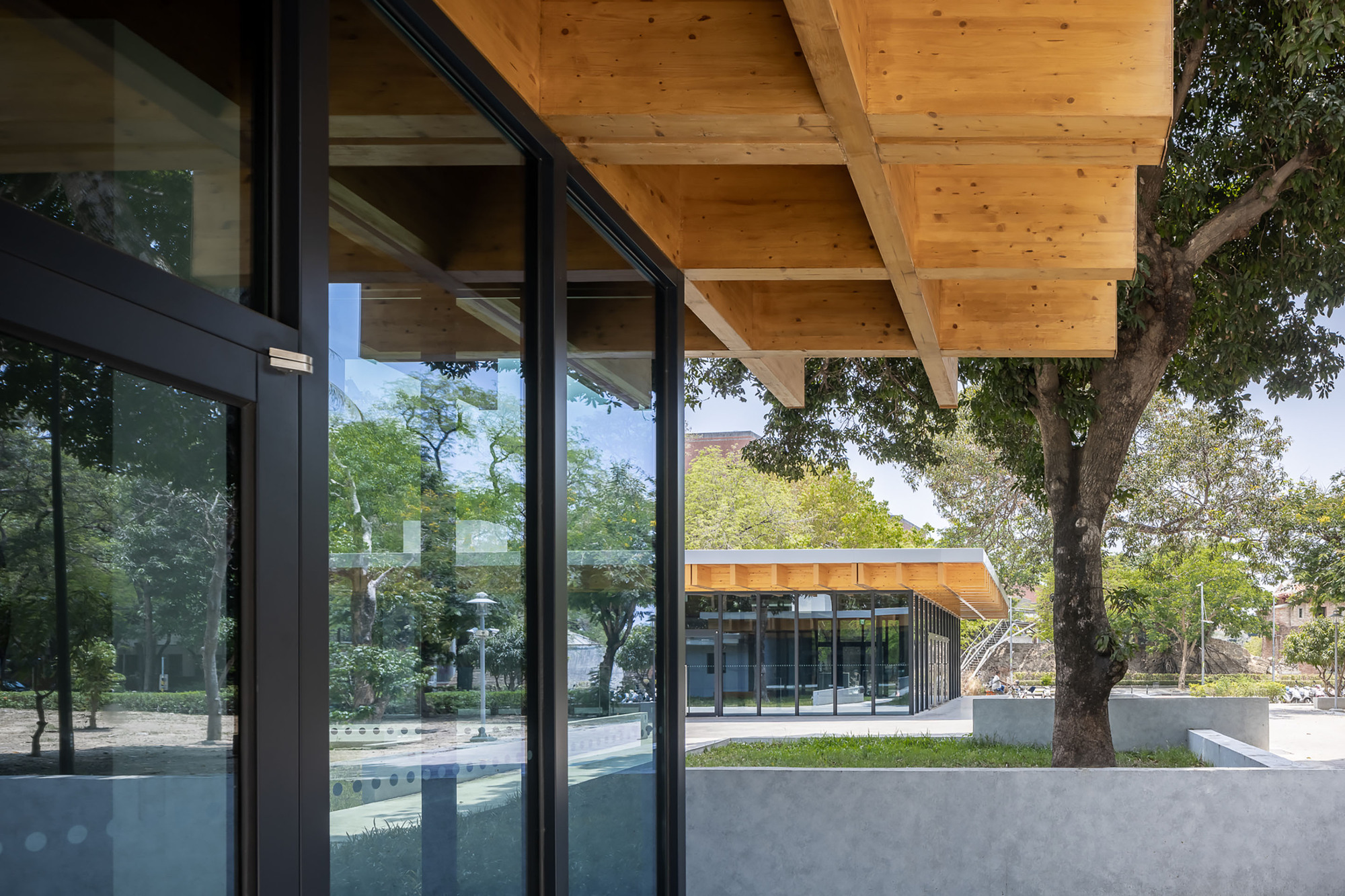

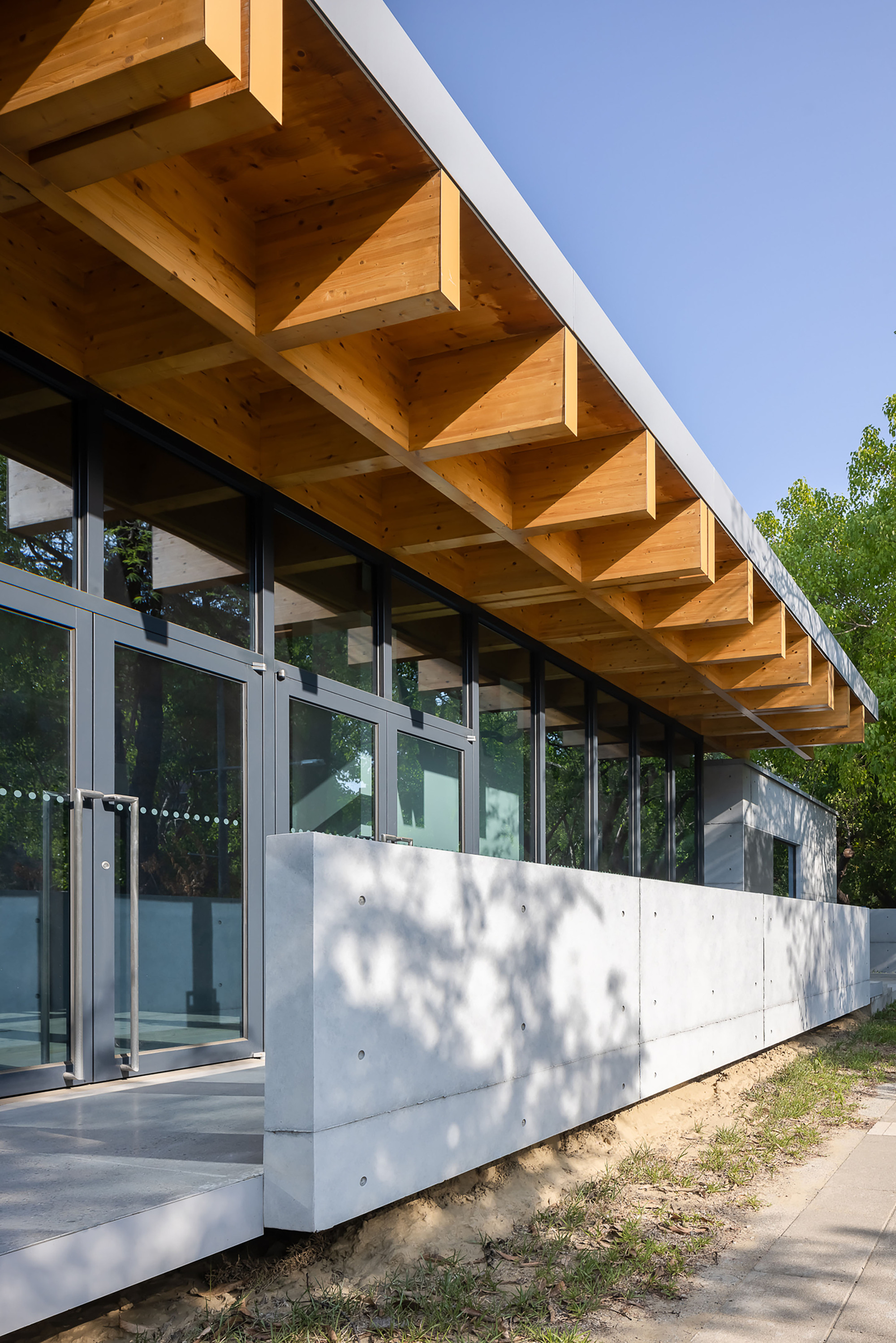

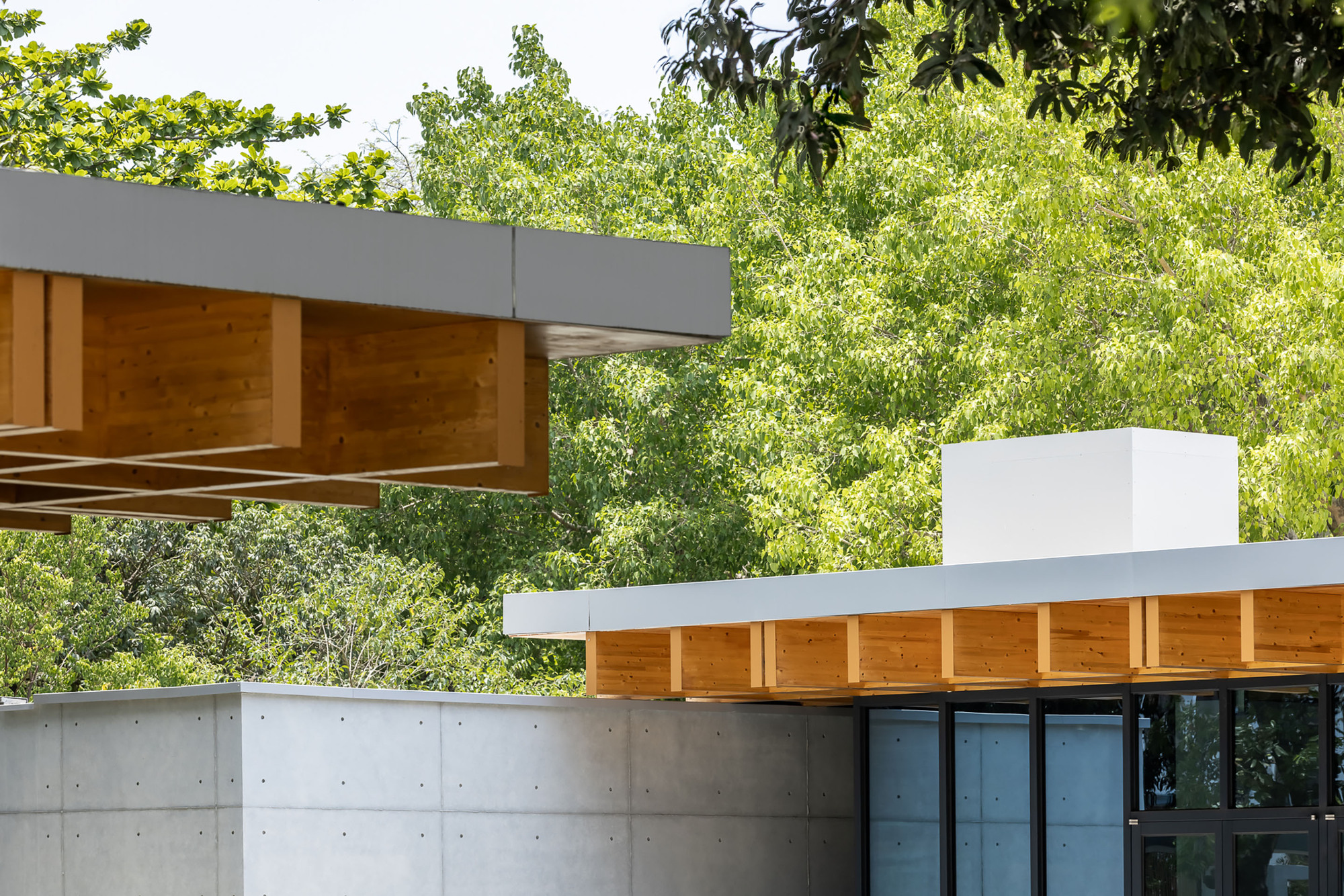

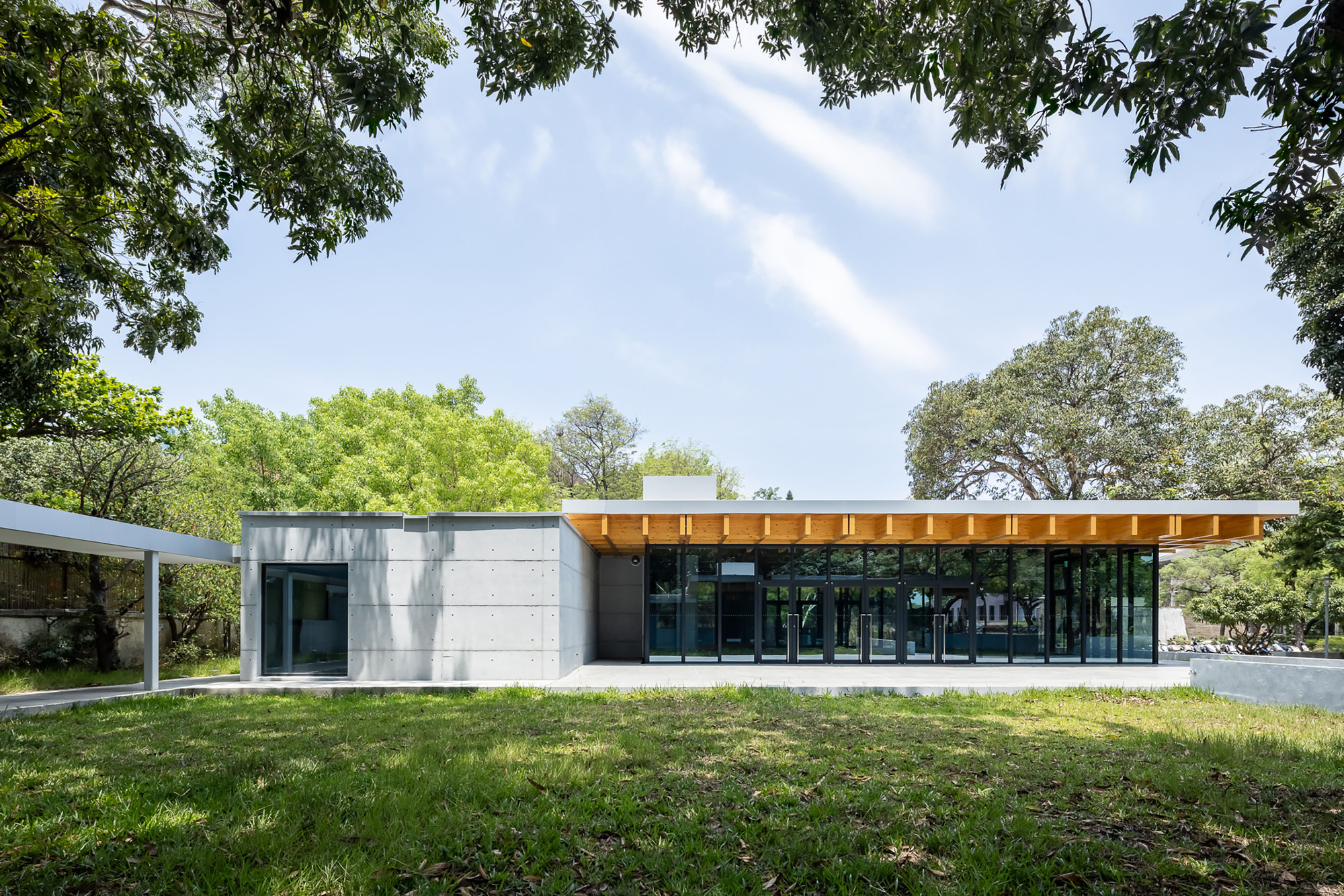

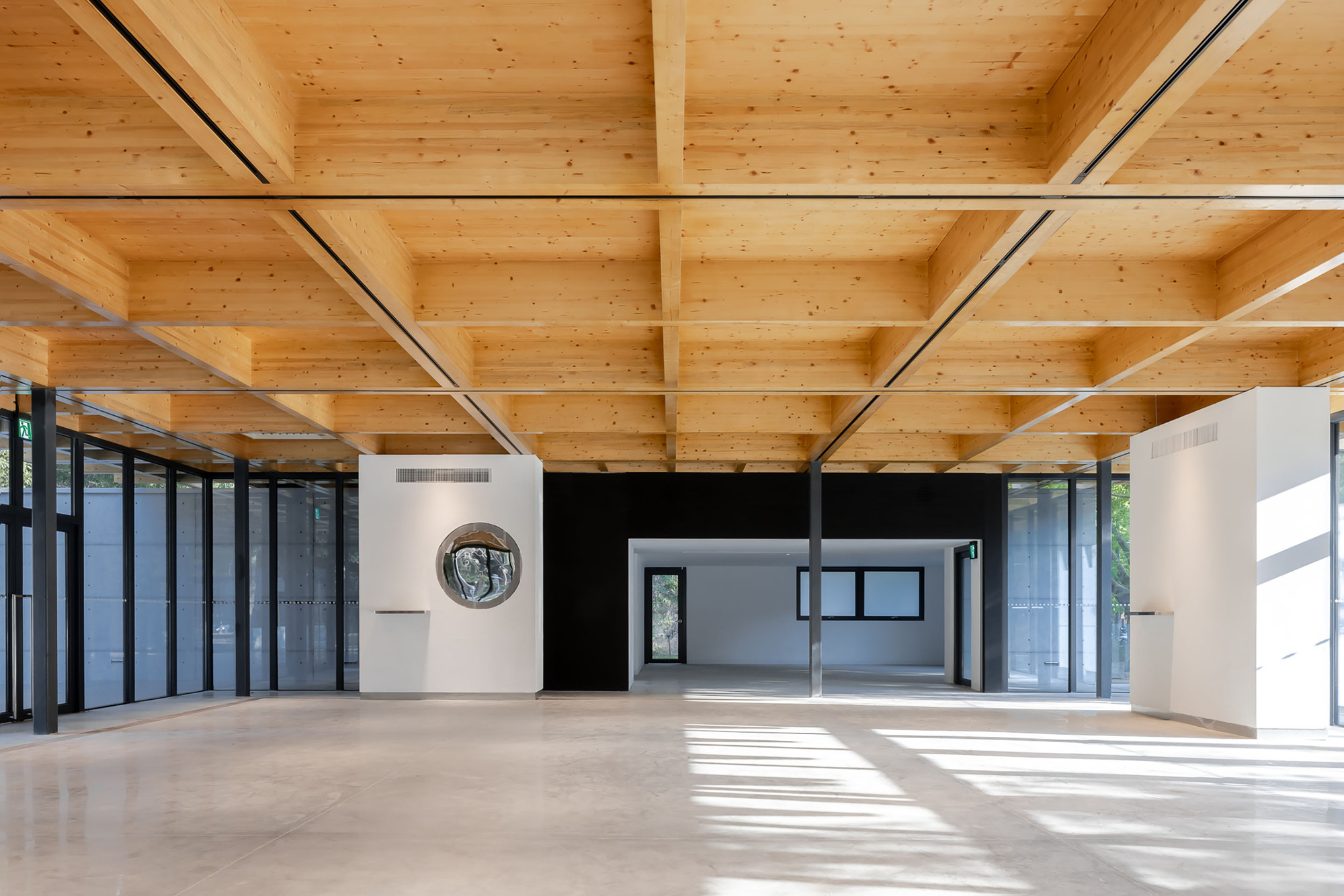

This project primarily serves as the "Alumni Club" and the "Student Arts and Culture Salon." The architectural design features two glass boxes of different scales, nestled within the natural spaces created by the removal of kindergarten buildings. This arrangement ensures the preservation and growth of the existing trees that surround the indoor spaces. The roof, constructed using a CLT wooden grid beam system supported by slender steel columns, defines a visually unobstructed horizontal space, allowing the greenery to serve as the backdrop of the indoor space.

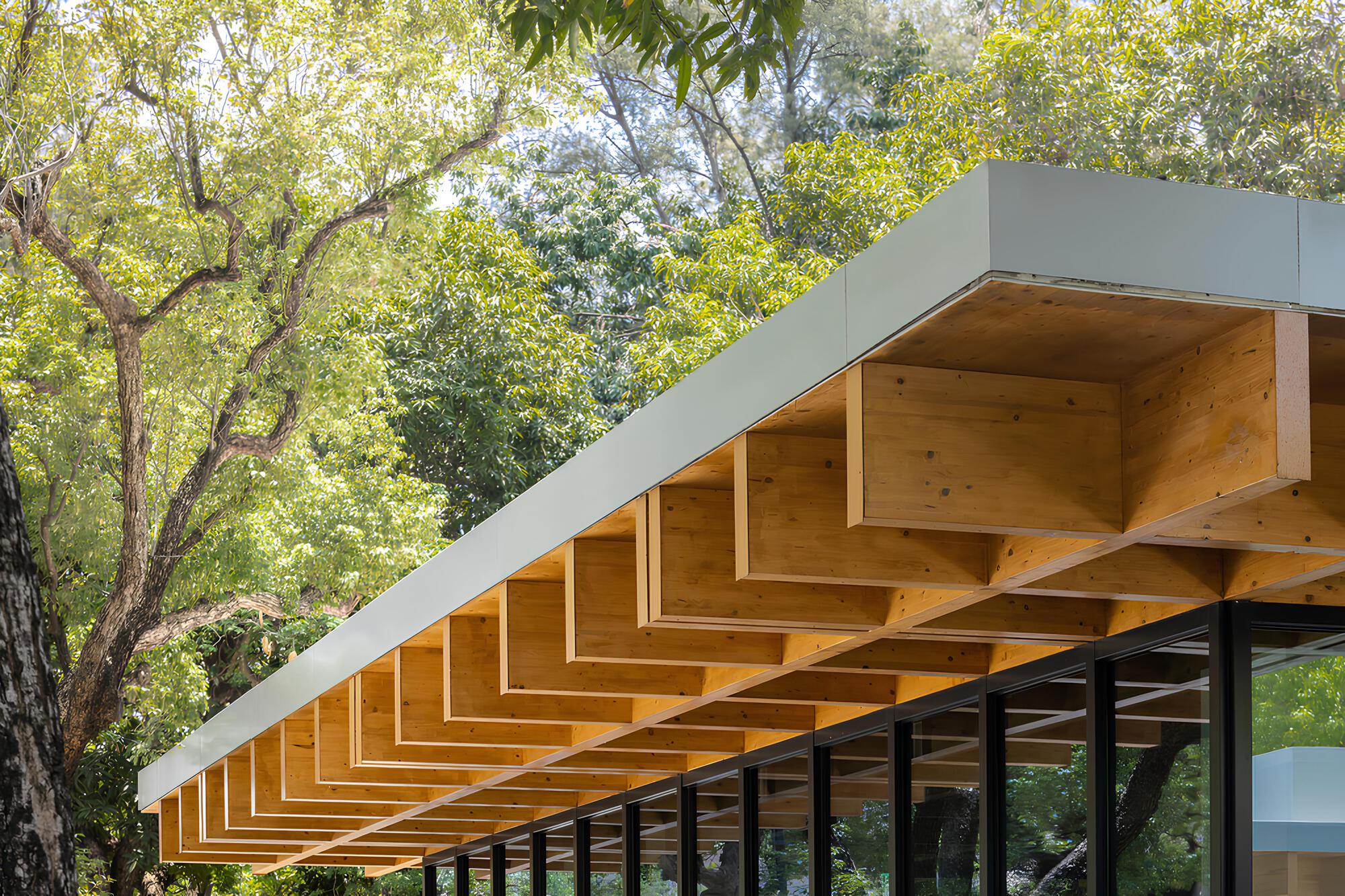

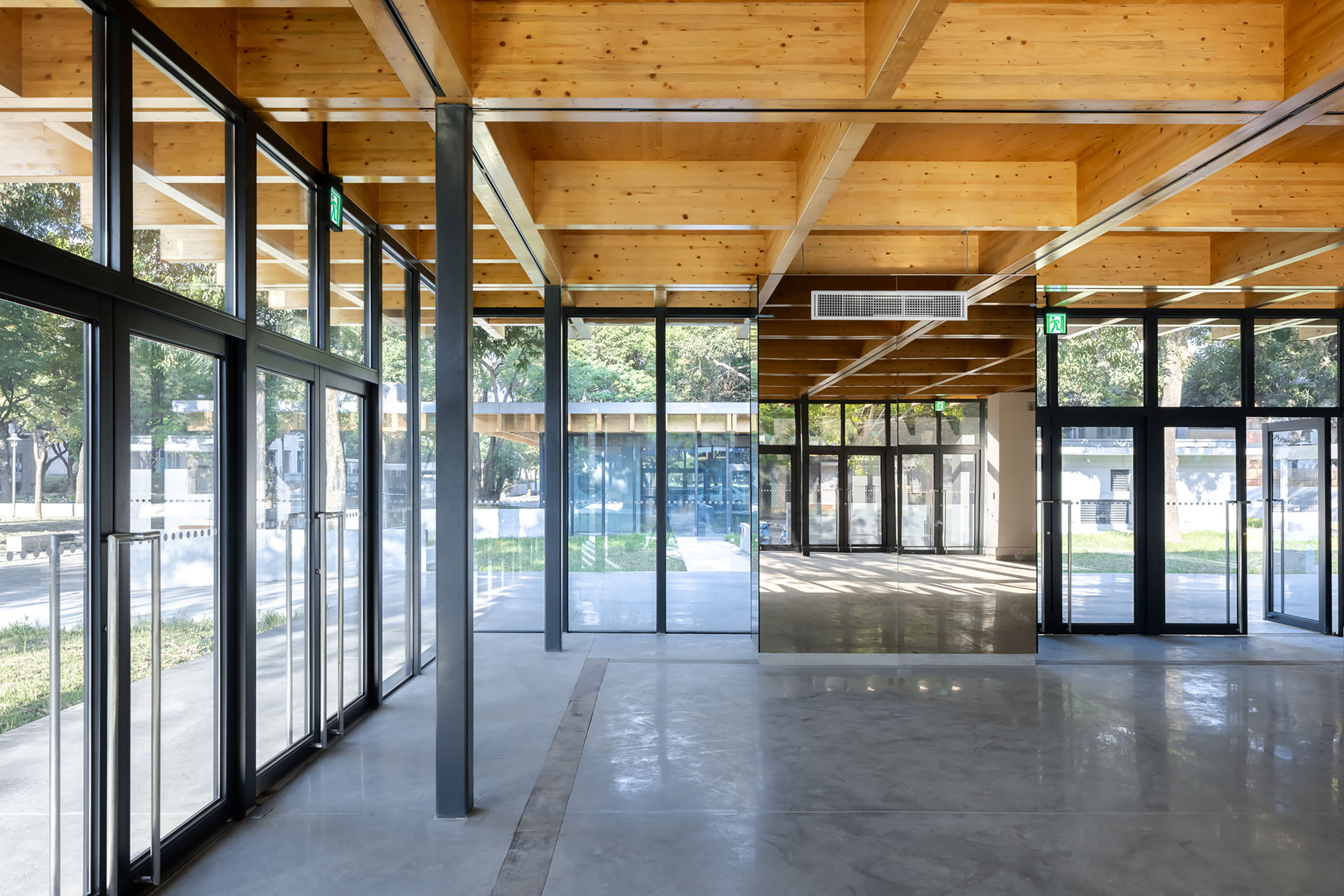

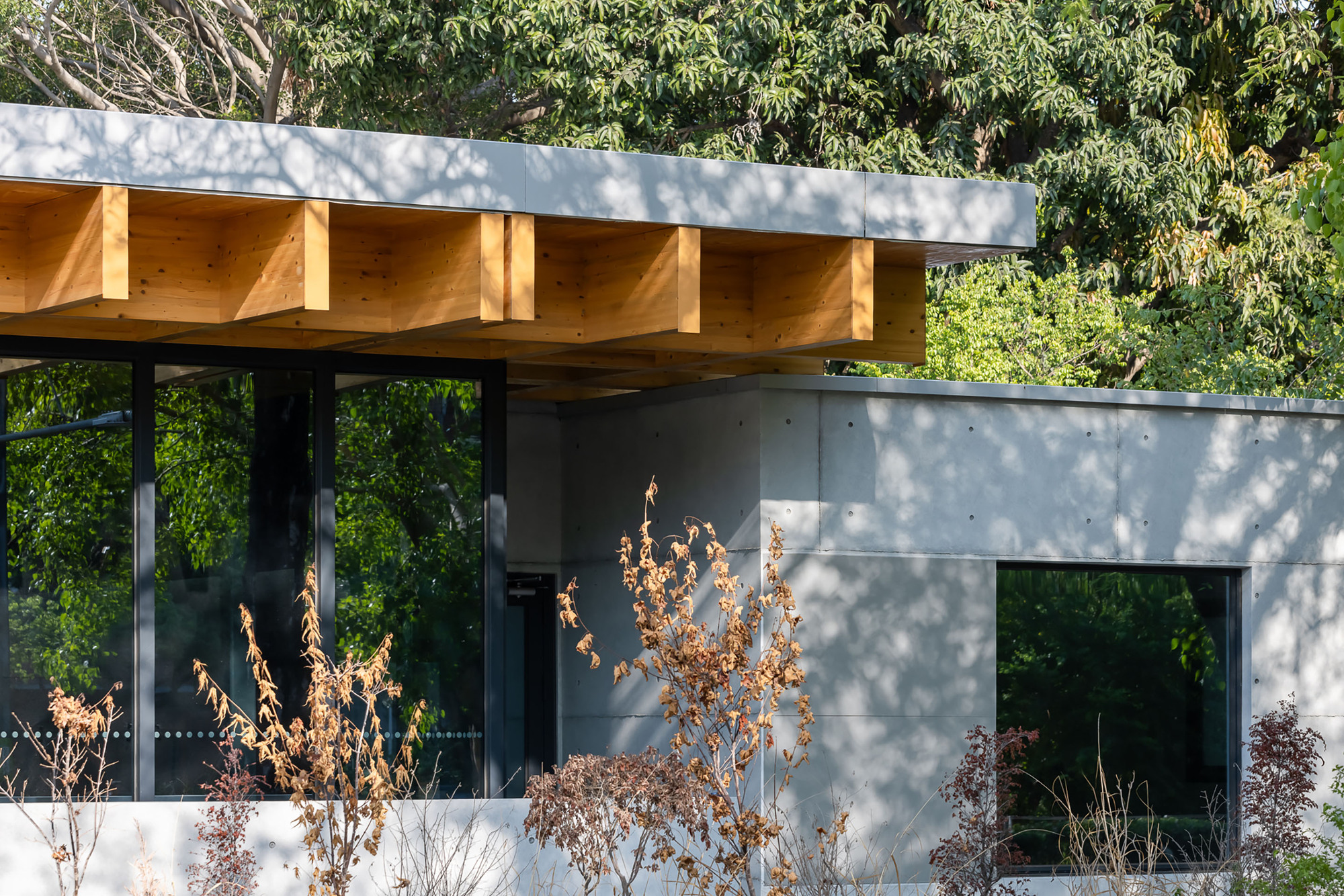

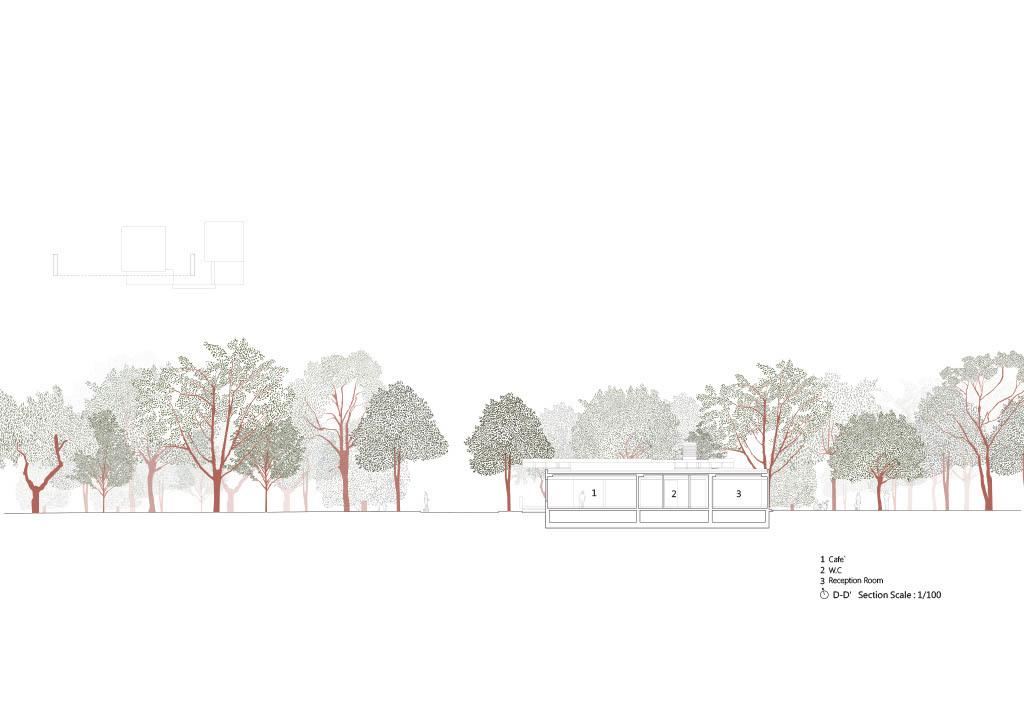

The roof extends outward, and the glass walls recess inward from the boundaries, forming a semi-outdoor interstitial space, expected to facilitate diverse activities, especially in the rainy or hot weather of Tainan. Over half of the glass box facades consist of glass doors that can be flexibly adjusted to enhance the connection and ventilation between the interior and exterior. Service facilities such as a cafe, meeting rooms, and bathroom facilities are integrated within the concrete structure.

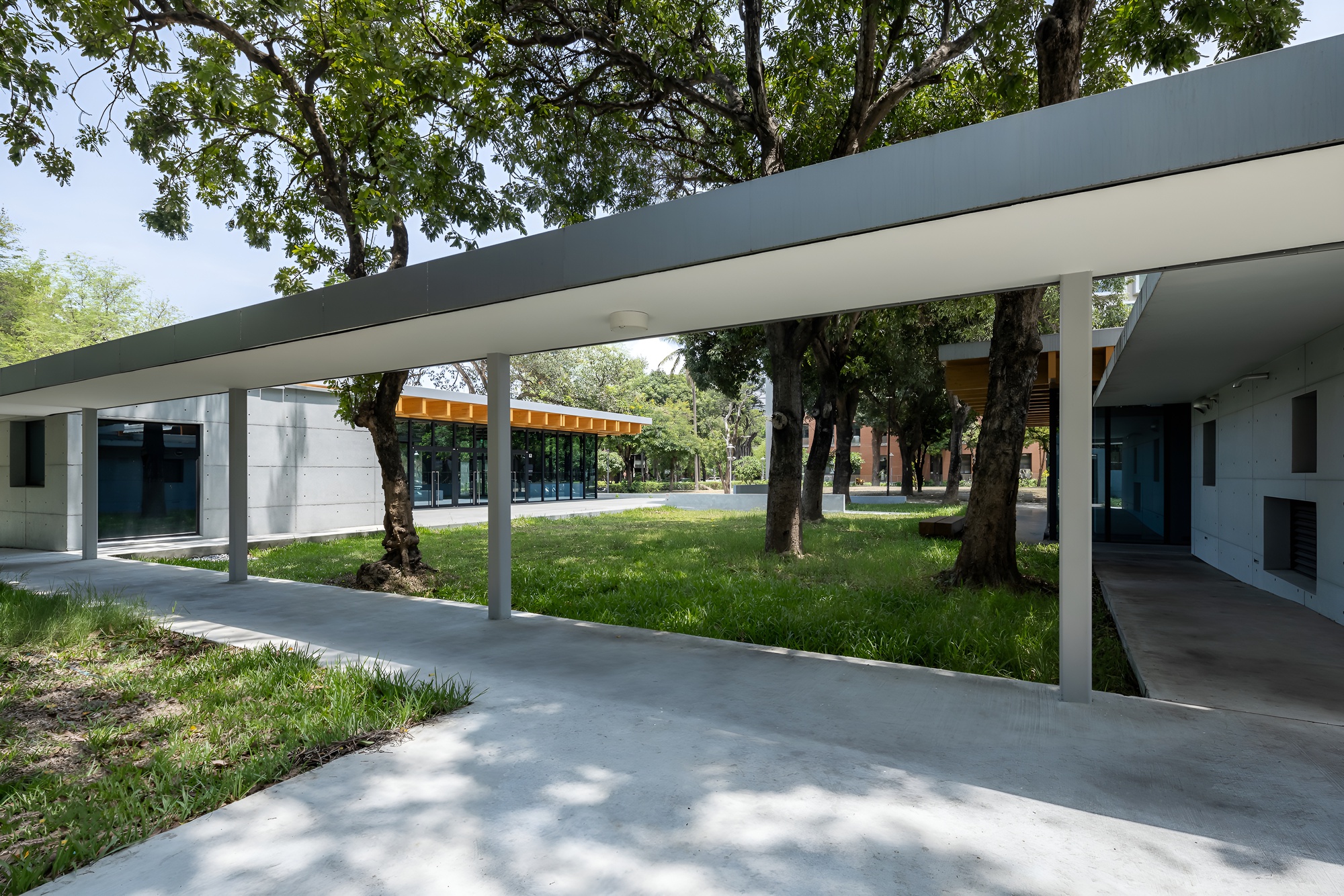

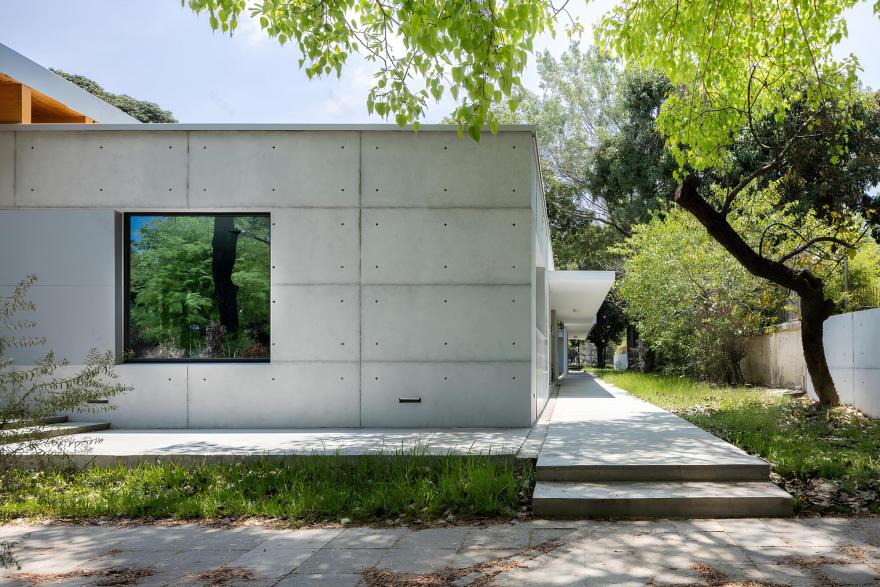

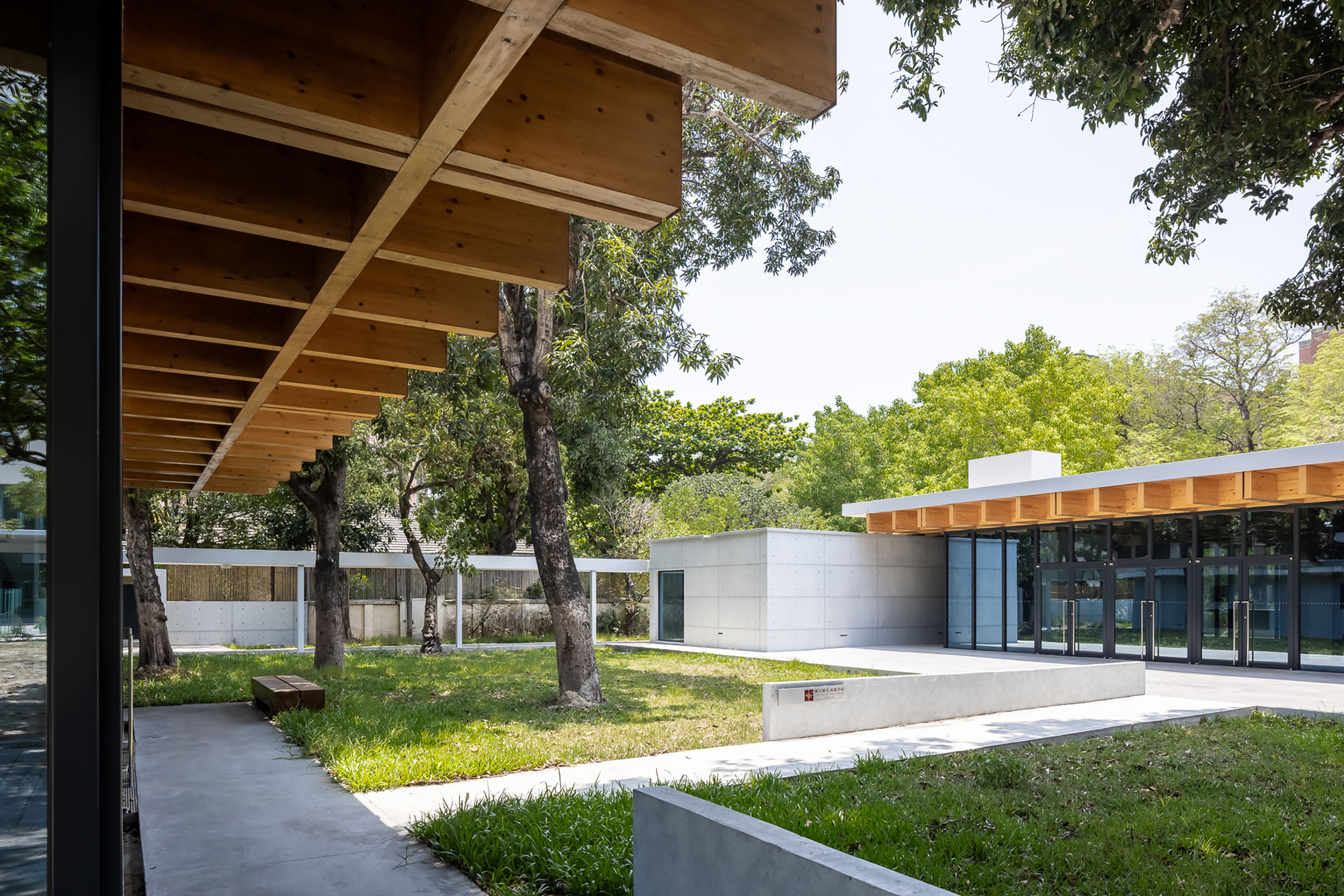

The entire outdoor area surrounding the building is defined by landscaping features, including grassy lawns, metal pergolas supported by single columns, low walls, and concrete pathways. This design ensures a seamless integration with the surrounding campus and fosters a natural flow of campus activities both within and beyond the NCKU Art Lounges.
