室内空间技术立面设计

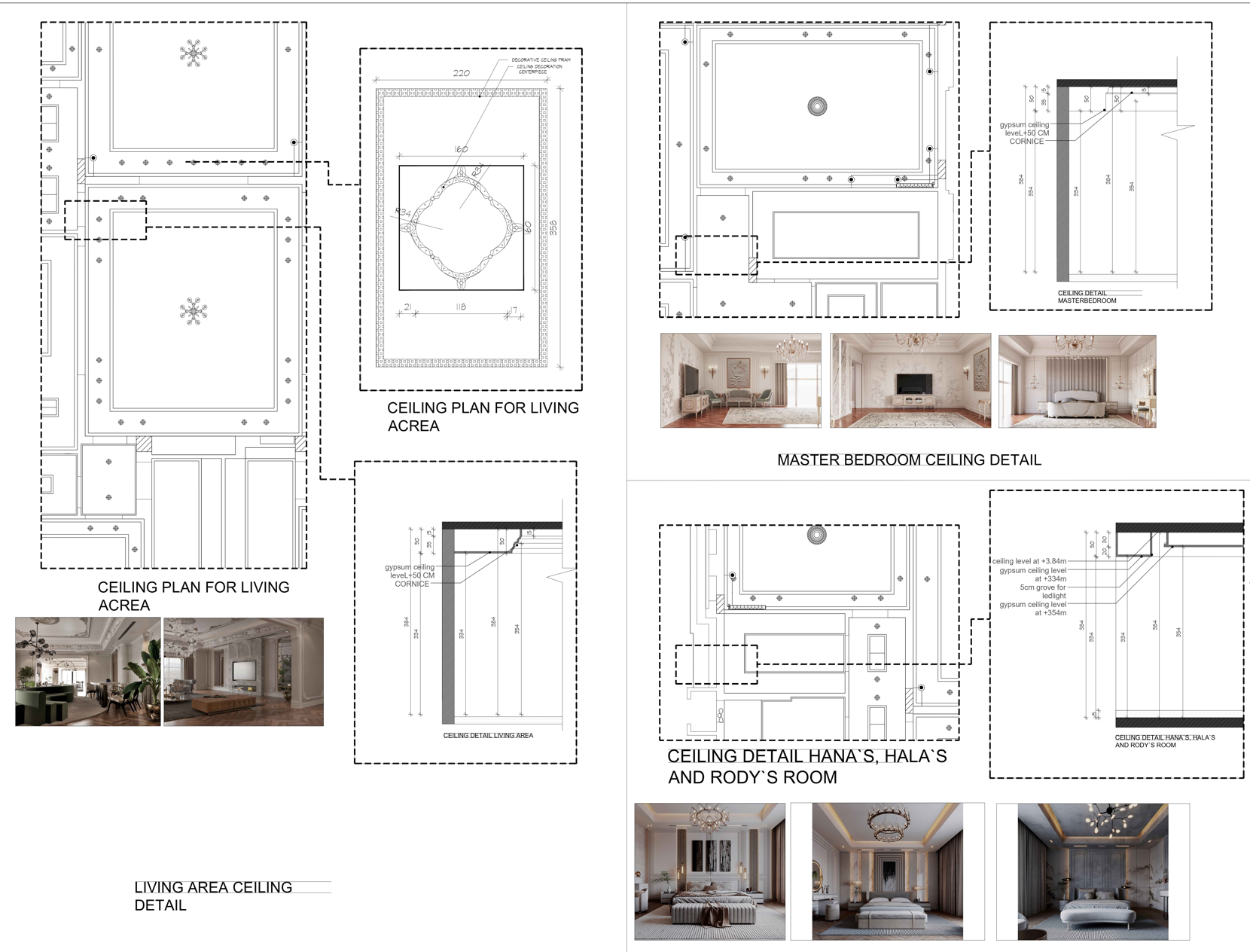

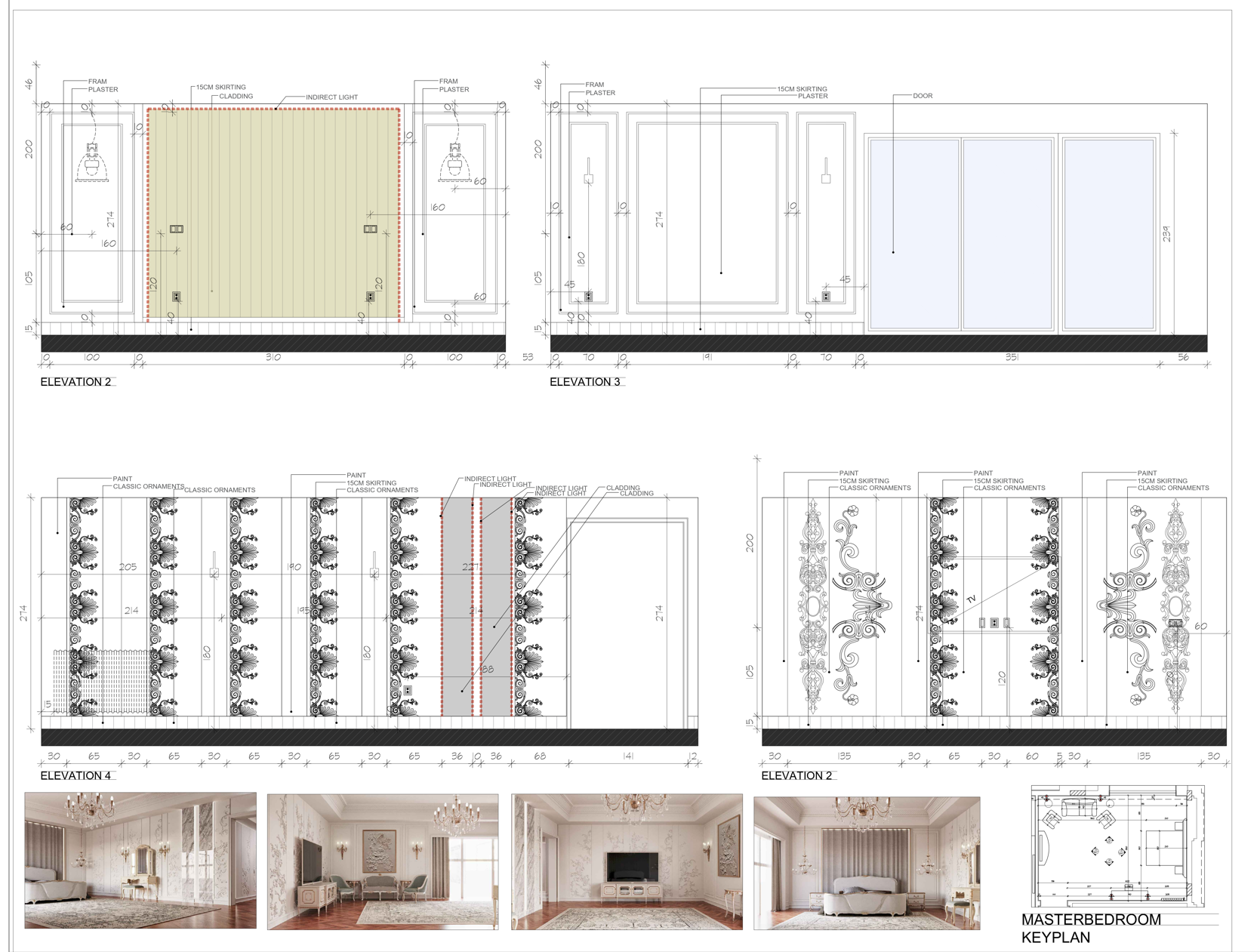

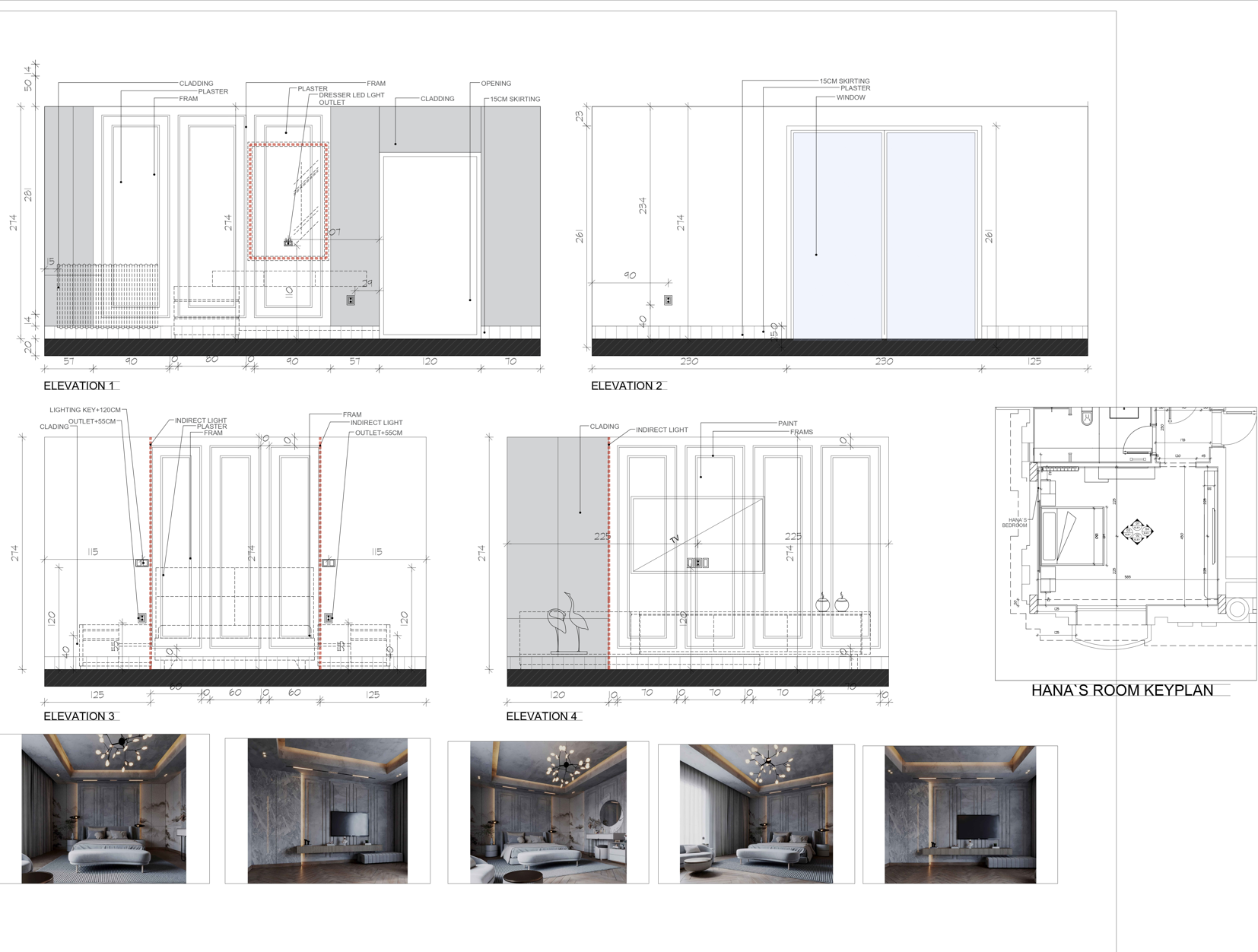

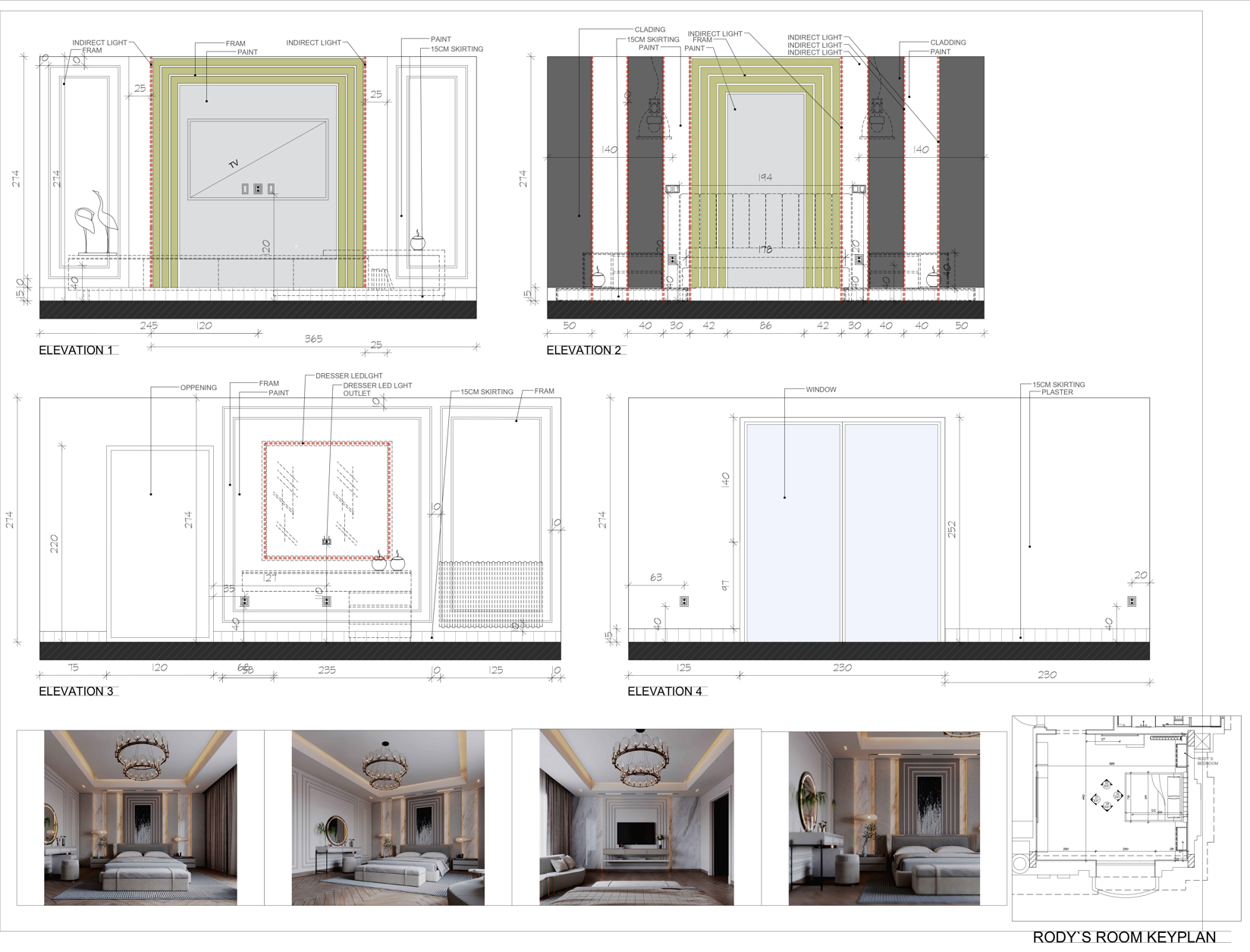

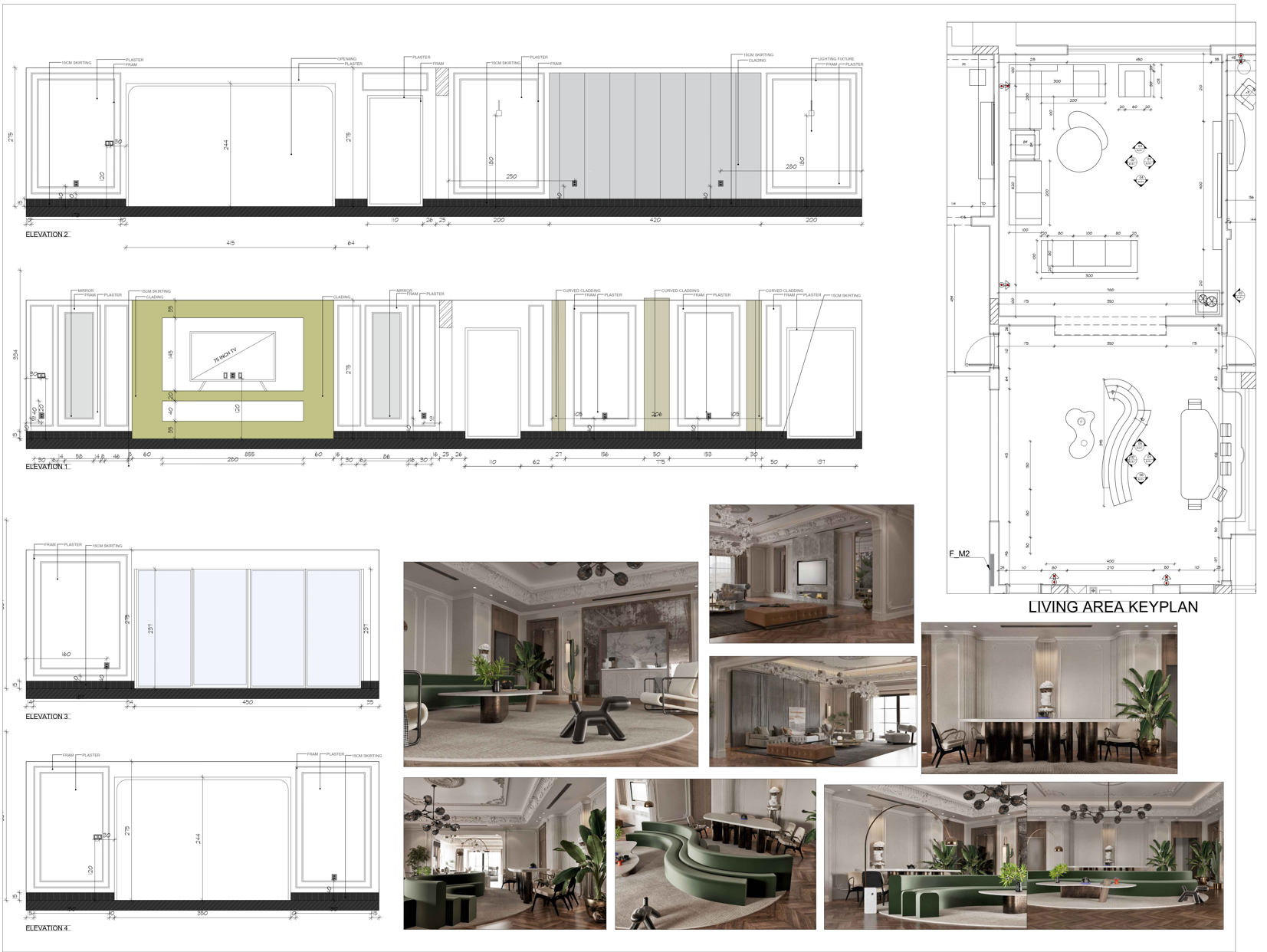

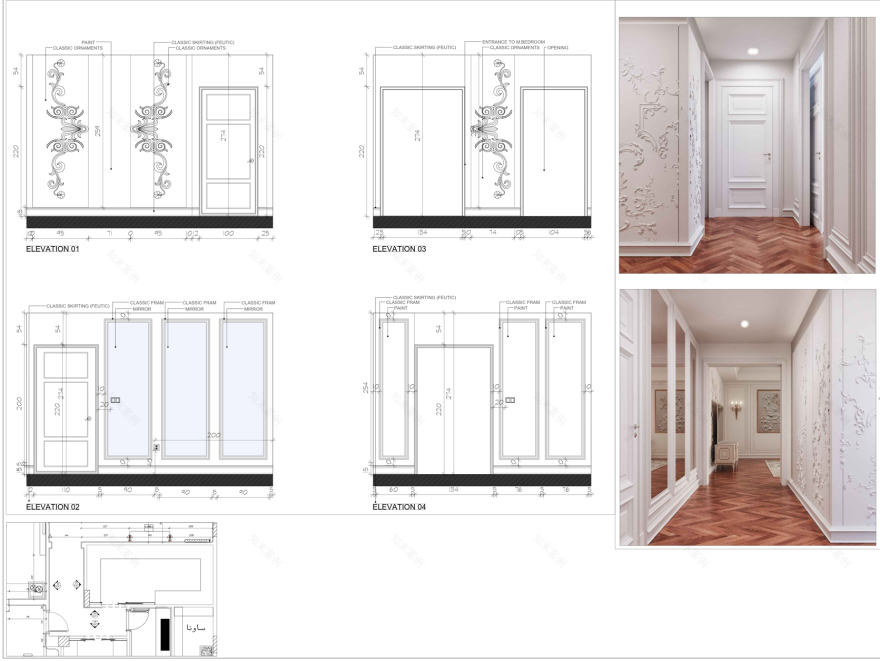

Project DescriptionDetailed 2D technical elevations for reception and bedroom interiors, developed in AutoCAD. The drawings include accurate wall elevations, joinery, fixtures, and material indications, providing a clear guide for construction and interior execution. Designed to ensure precision and seamless coordination between design and implementation teams.

Tools & Skills

Software: AutoCAD

Service: 2D Drafting & Technical Documentation

Focus: Reception & Bedroom Elevations | Fixtures & Joinery Detailing
