随州市城市公共活动中心位于随州市城南新区，北临府河及白云大道，东临星光大道，南靠白鹤山，西侧为编钟音乐展示厅，背山面水，视野开阔，环境条件优越。规划总用地面积11.19公顷，总建筑面积107168平方米，其中地上建筑面积约79847平方米，地下建筑面积27321平方米。

The Suizhou Urban Public Activity Center Complex is located in the southern new district of Suizhou City, bordered by the Fuchuan River and Baiyun Avenue to the north, Xingguang Avenue to the east, Baihe Mountain to the south, and the Chime Bell Music Exhibition Hall to the west. Embraced by mountains and water, the site enjoys expansive views and excellent environmental conditions. The project covers a total site area of 11.19 hectares, with a gross floor area of 107,168 square meters, including approximately 79,847 square meters above ground and 27,321 square meters underground.

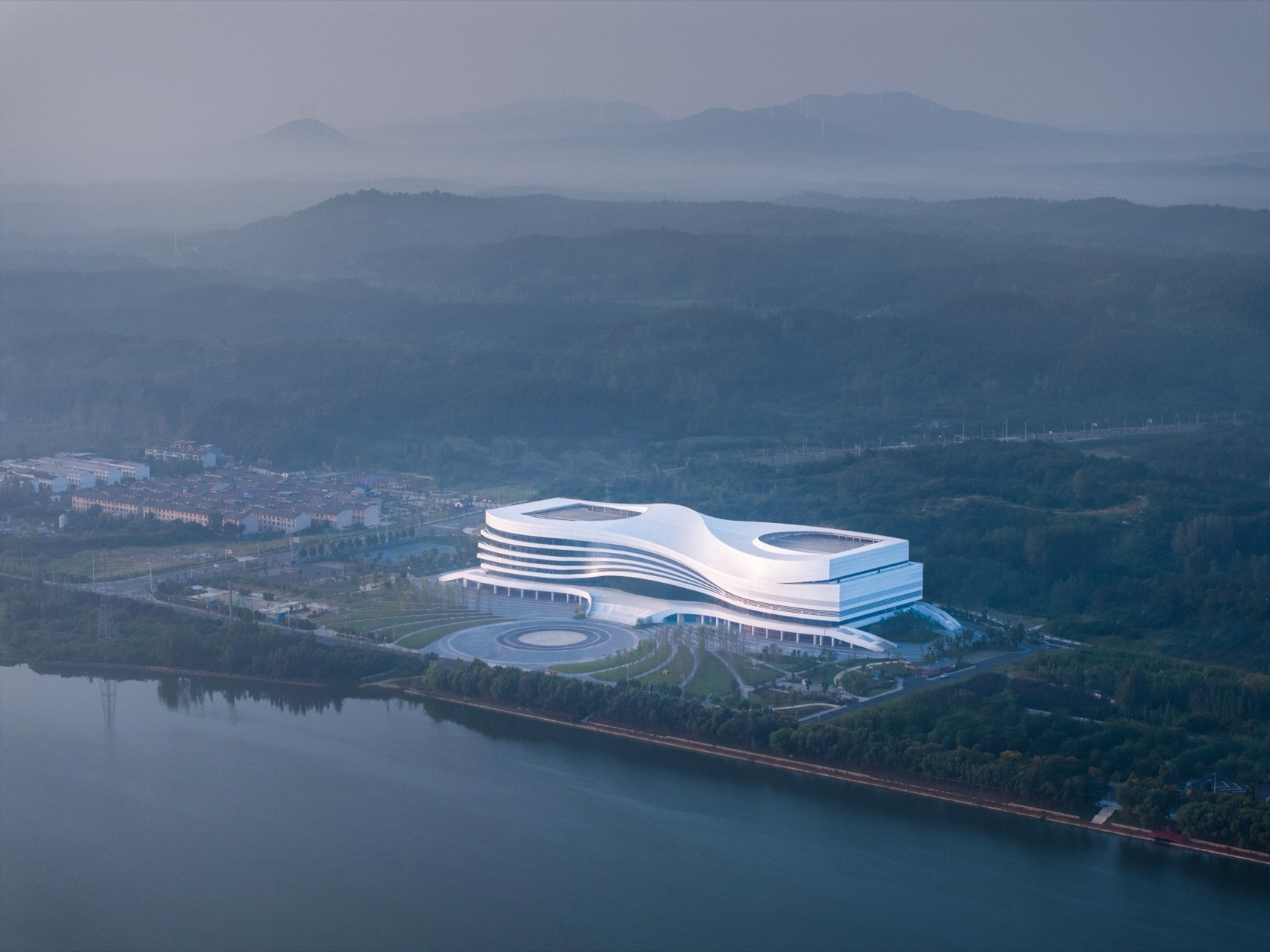

▼项目远观，Distant view© 赵奕龙

1.设计理念

Design Concept

随州市城市公共活动中心，不仅是城市文化的展示窗口，更是绿色发展的典范。秉承“行云流水·羽振随州”的设计理念，汲取荆山楚水的灵秀气韵，将随州的自然山水、人文历史与现代建筑技术完美融合，集文化、科技、艺术、休闲于一体，在建筑形态、空间体验和技术哲学三重维度实现在地性表达，打造出既承载随州历史文脉又彰显现代创新精神的公共文化地标。

The Complex serves not only as a cultural showcase for Suizhou but also as a model for green development. Guided by the concept of “Flowing Clouds and Soaring Wings”, the design draws inspiration from the landscapes of Jing Mountains and Chu Rivers, merging Suizhou’s natural scenery, cultural traditions, and modern building technologies. Integrating culture, technology, art, and leisure, the Complex embodies local identity through architectural form, spatial experience, and technical philosophy. It is envisioned as a cultural landmark that bridges Suizhou’s historical legacy and contemporary innovation.

▼西侧鸟瞰，Bird’s eye view© 赵奕龙

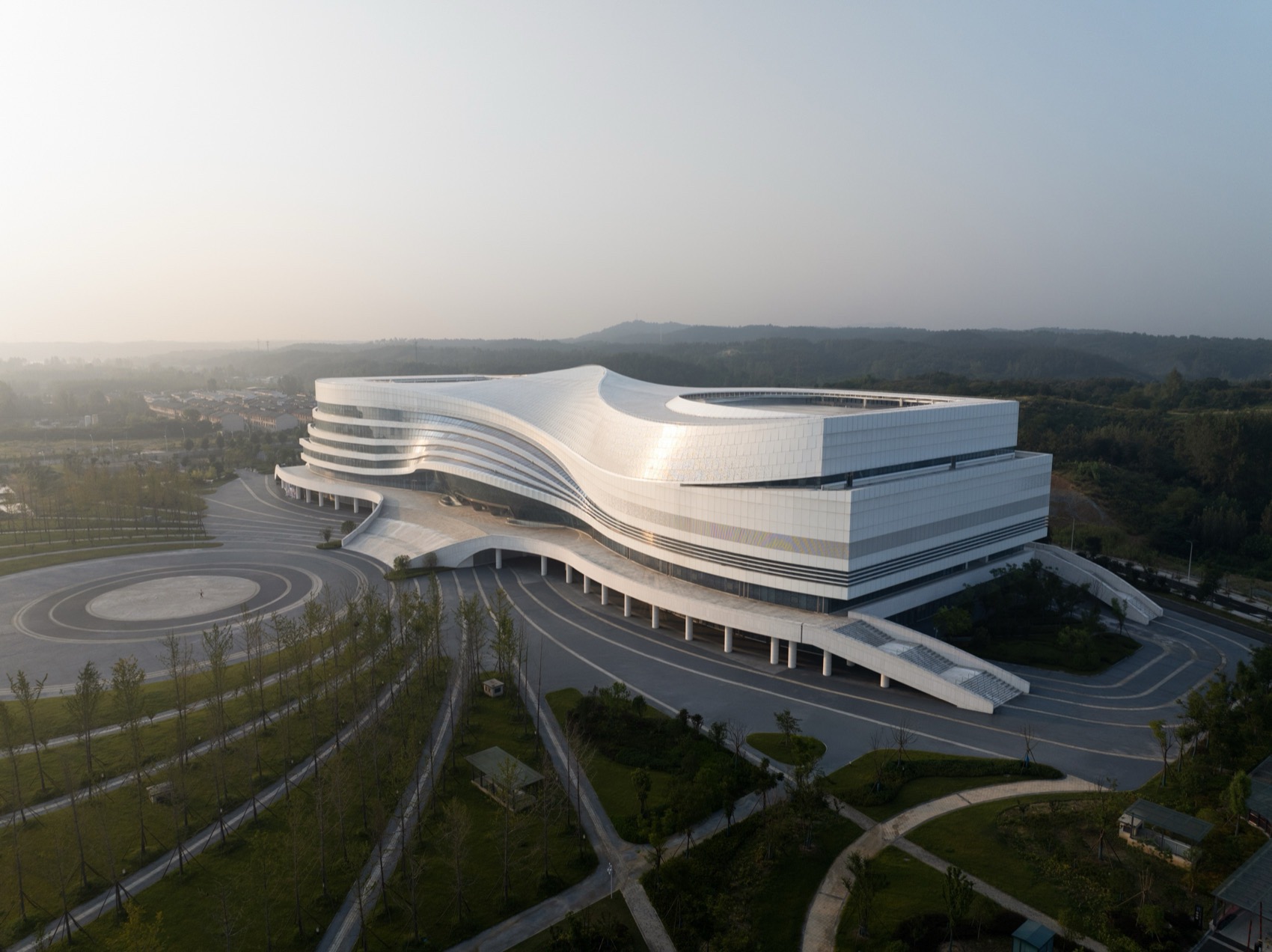

▼西北侧鸟瞰，Bird’s eye view © 赵奕龙

1.1融于山水，打造视觉通廊

Integration with Nature: Creating a Visual Corridor

方案取荆楚营造传统，依山就势筑高台基座，东西两侧悬挑、退台，建筑主体充分后退，巧妙地将水体景观引入文化广场内部，形成了“悬浮”于“自然地形”之上的文化综合体。简洁而完整的形态，在白云大道形成整体的城市空间界面，实现了建筑与自然的和谐共生。

Inspired by traditional Chu construction techniques, the scheme builds a raised platform base following the terrain. Cantilevered and terraced forms on the east and west, together with a recessed main volume, draw the water landscape into the cultural plaza, creating the effect of a cultural complex “floating” above natural landforms. Its clean and unified form establishes a strong urban interface along Baiyun Avenue, achieving harmonious coexistence between architecture and nature.

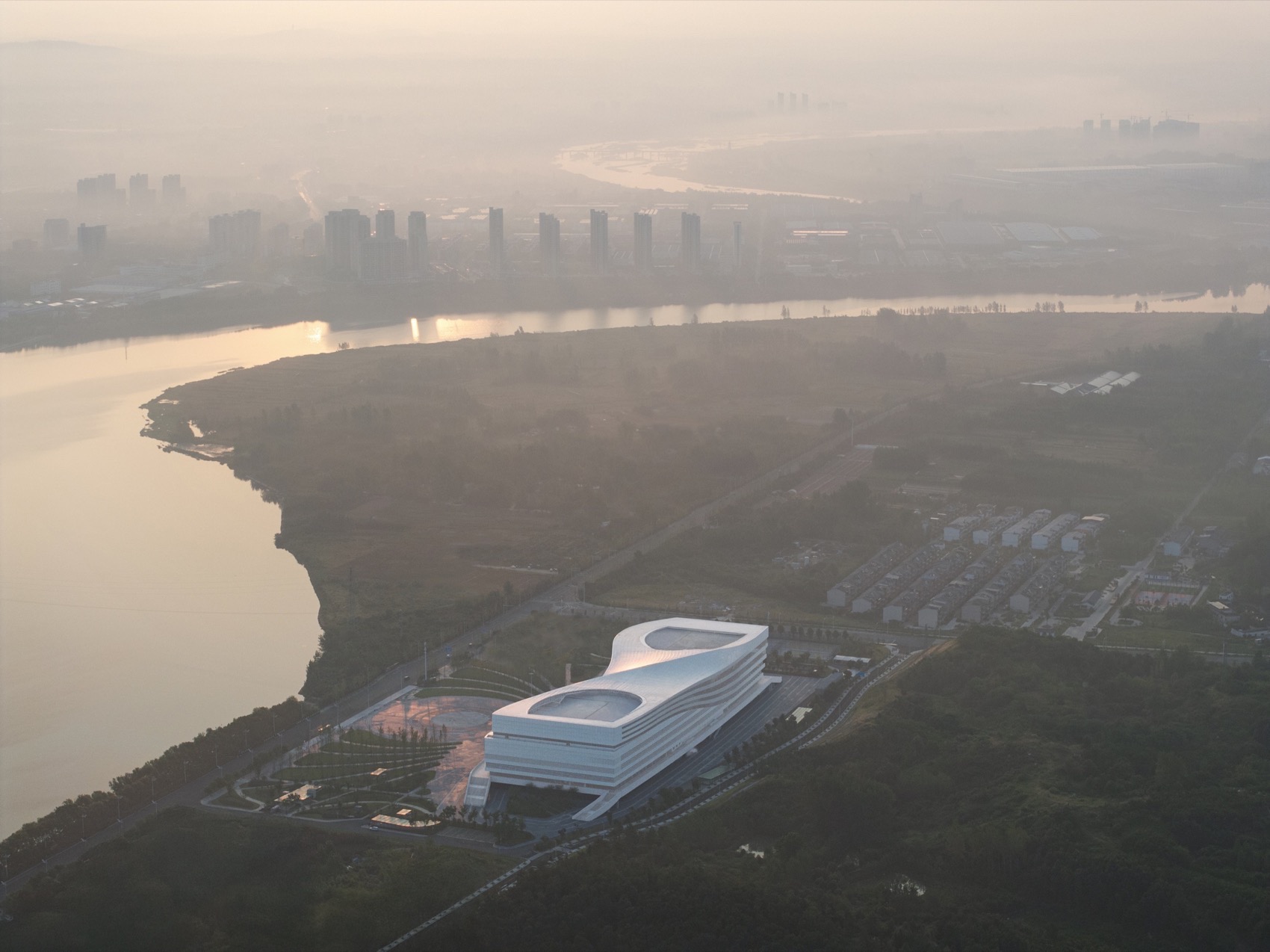

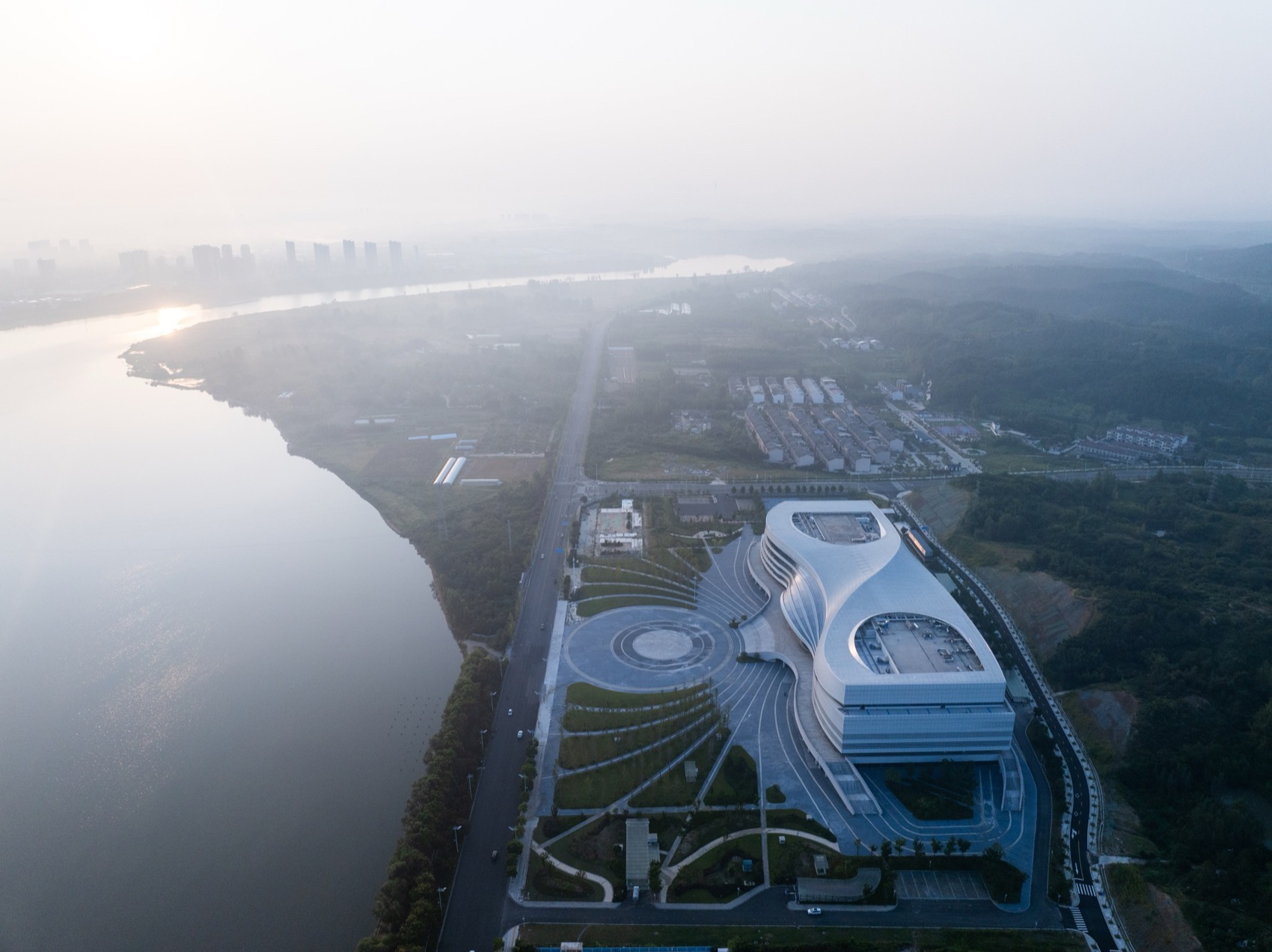

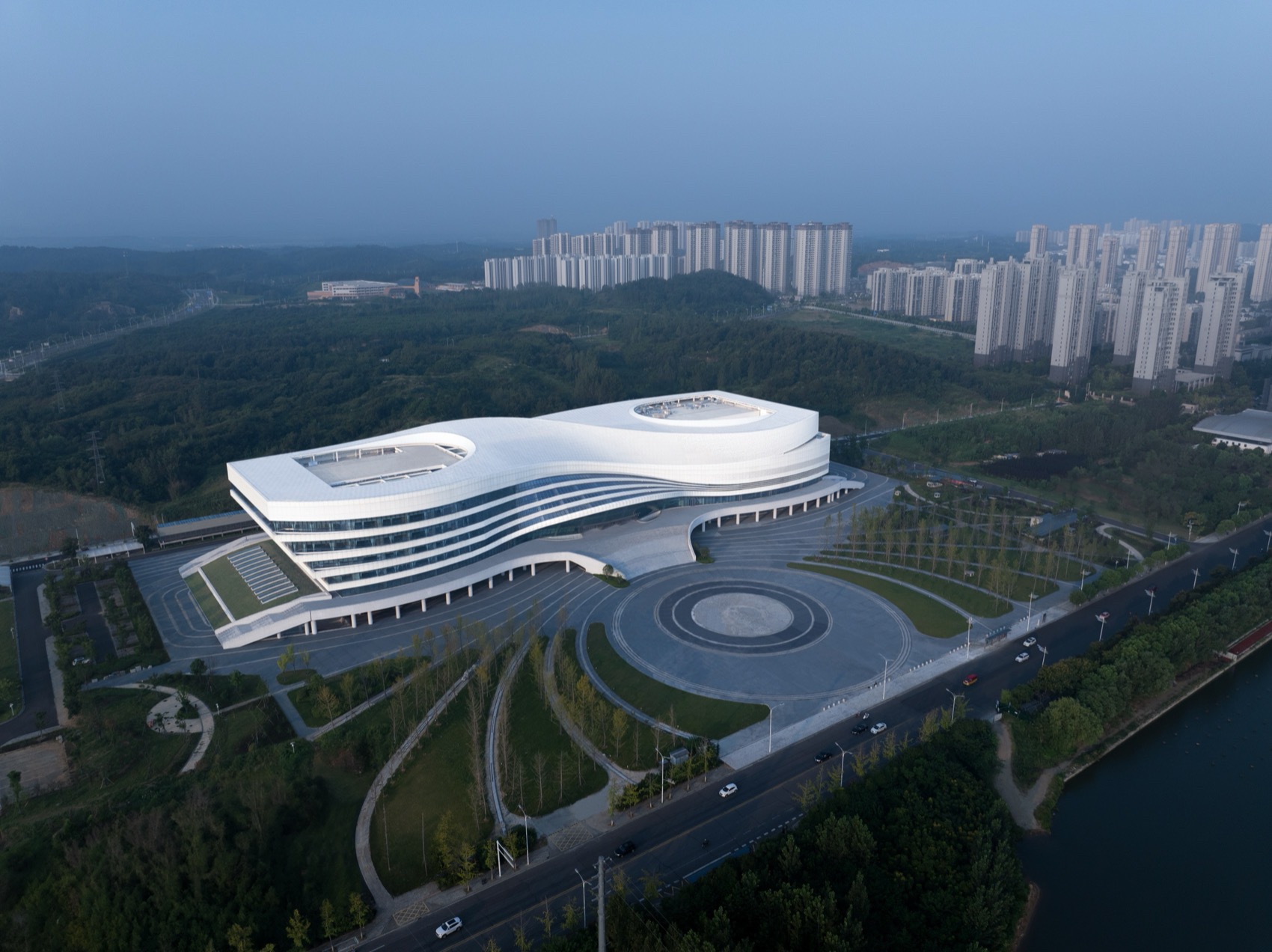

▼鸟瞰周边环境，Surrounding context© 赵奕龙

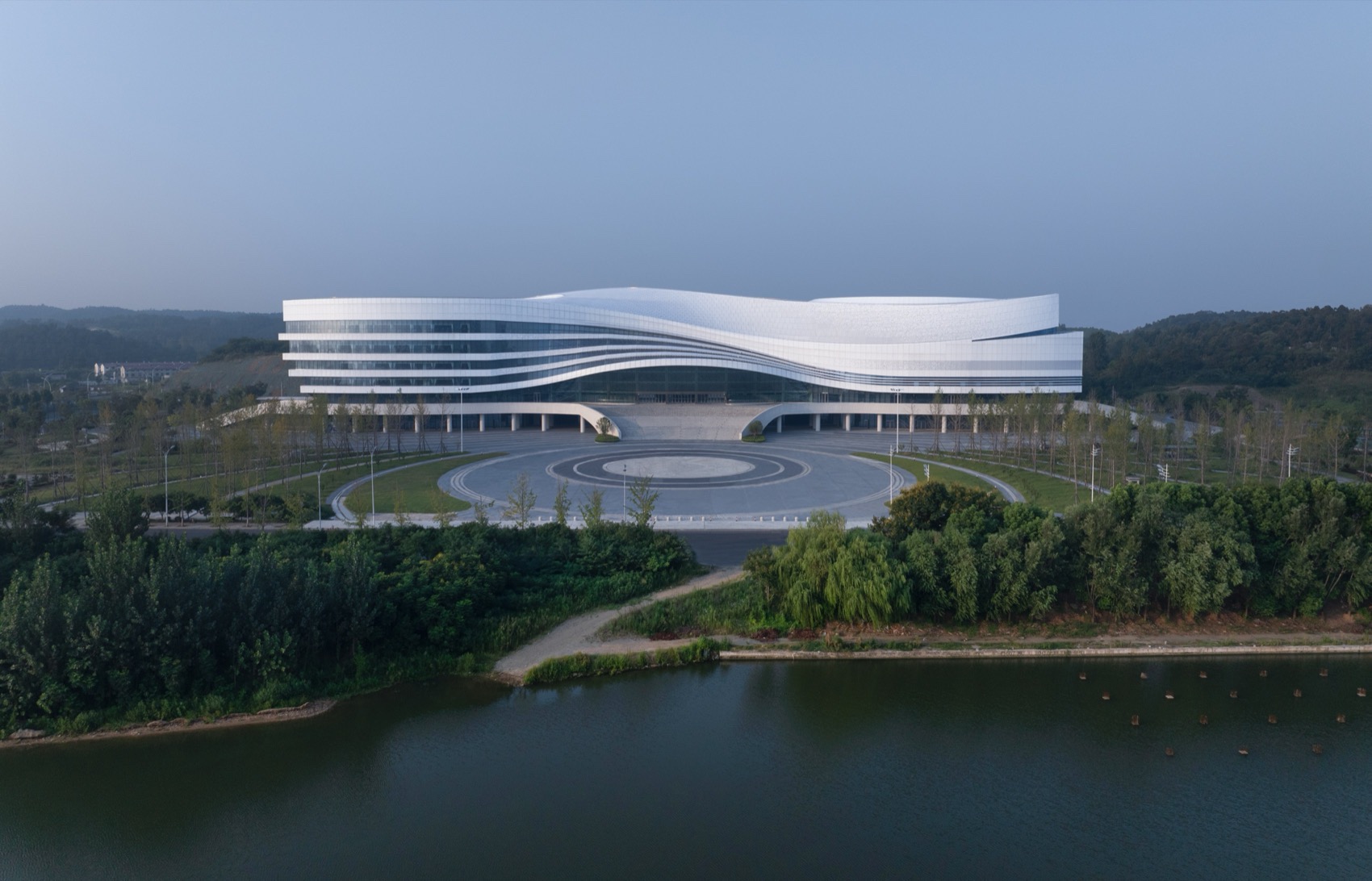

▼临湖视角，View from the lake side © 赵奕龙

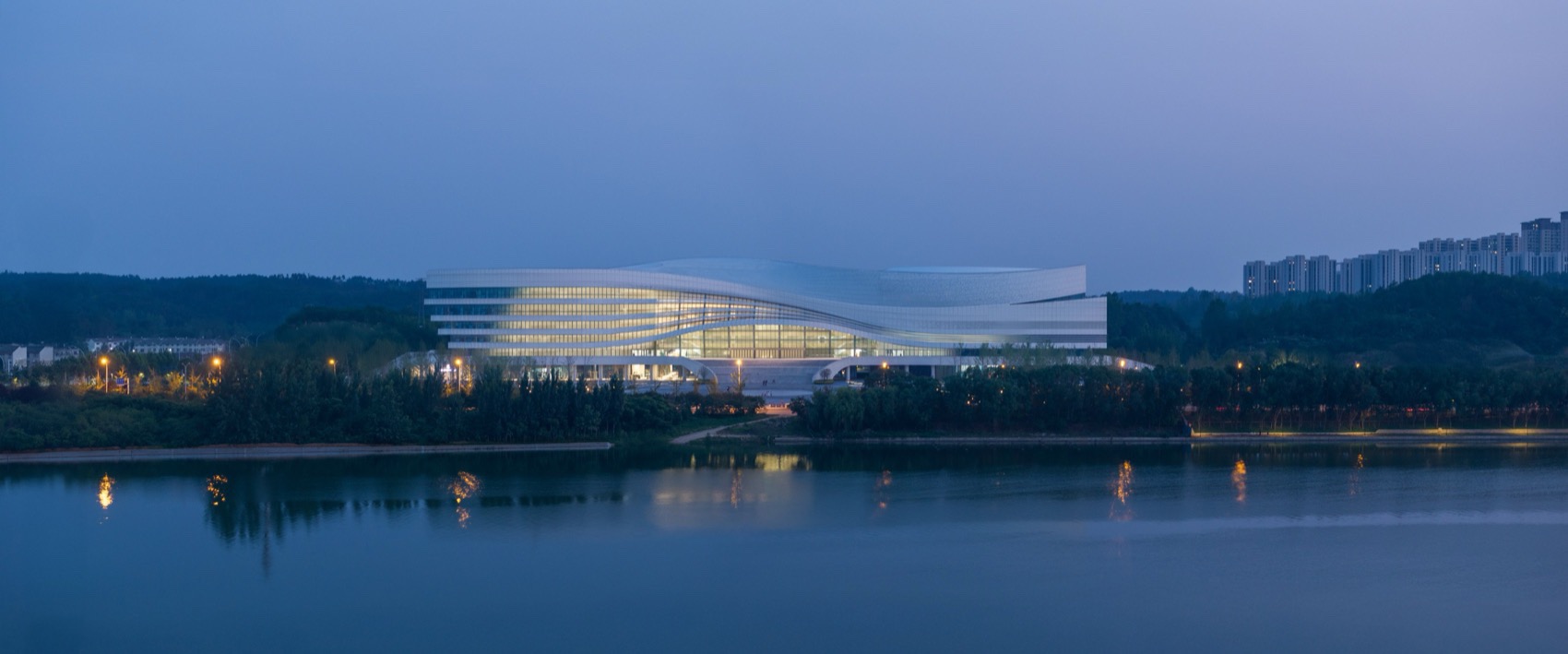

▼临湖夜览，Night view from the lake side © 赵奕龙

1.2行云流水，彰显几何之美

Flowing Forms and Geometric Elegance

中央共享大厅作为建筑的核心枢纽，联系起其余所有的子功能板块。屋顶与立面的界限由流转变换的穿孔板表皮打破、融合，为城市水岸增添了一抹亮丽的色彩。精心设计的渐变穿孔率铝板幕墙系统，结合悬挑、退台等建筑语言，强化了形体的虚实对比关系，使建筑在完整的形体内增加了耐看的细节。

At the heart of the Complex, a central shared hall connects all functional zones. The boundary between roof and façade dissolves through a dynamic perforated metal skin, adding vibrancy to the city’s waterfront. The carefully designed curtain wall system, featuring aluminum panels with gradient perforations, combined with cantilevering and terracing, strengthens the contrast between solidity and transparency, enriching the overall simplicity with refined details.

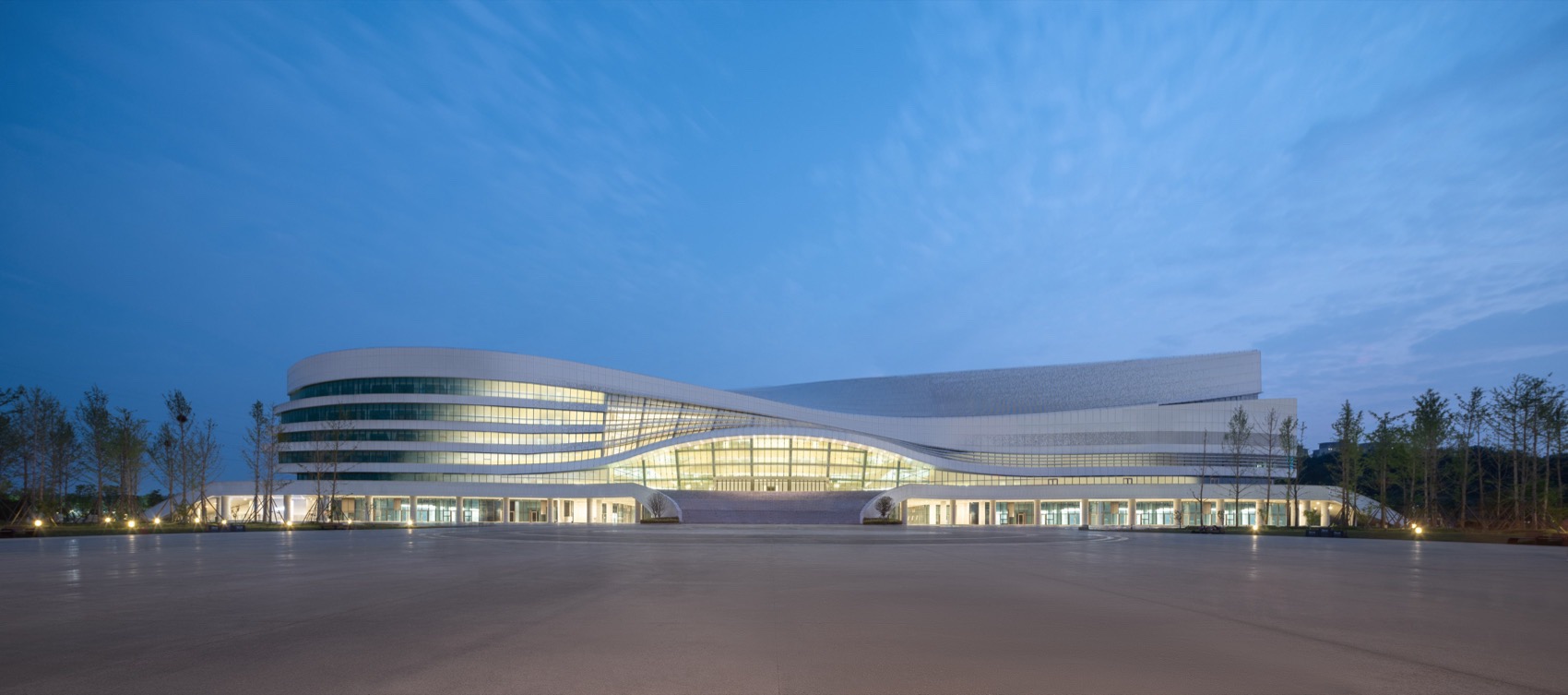

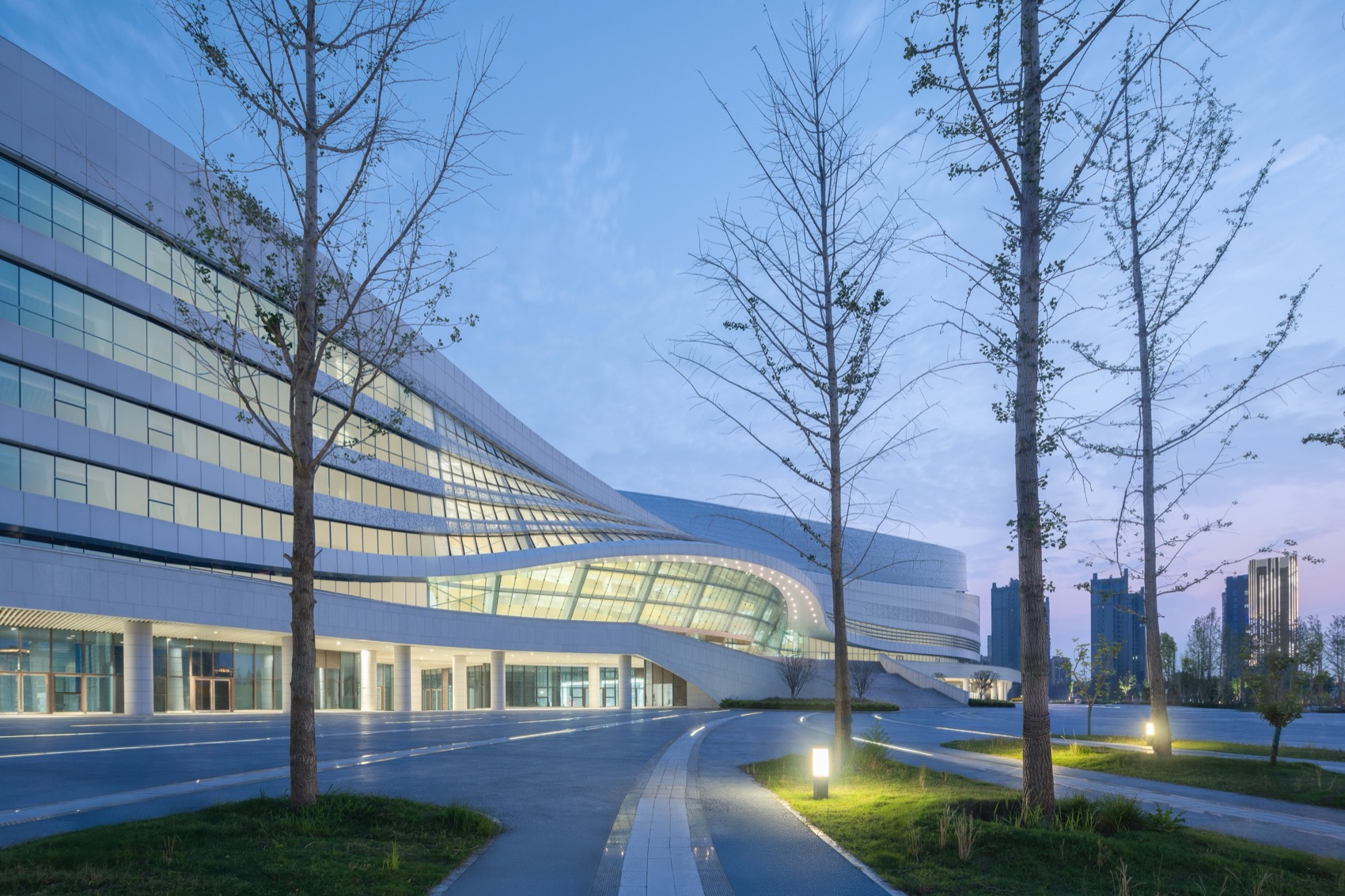

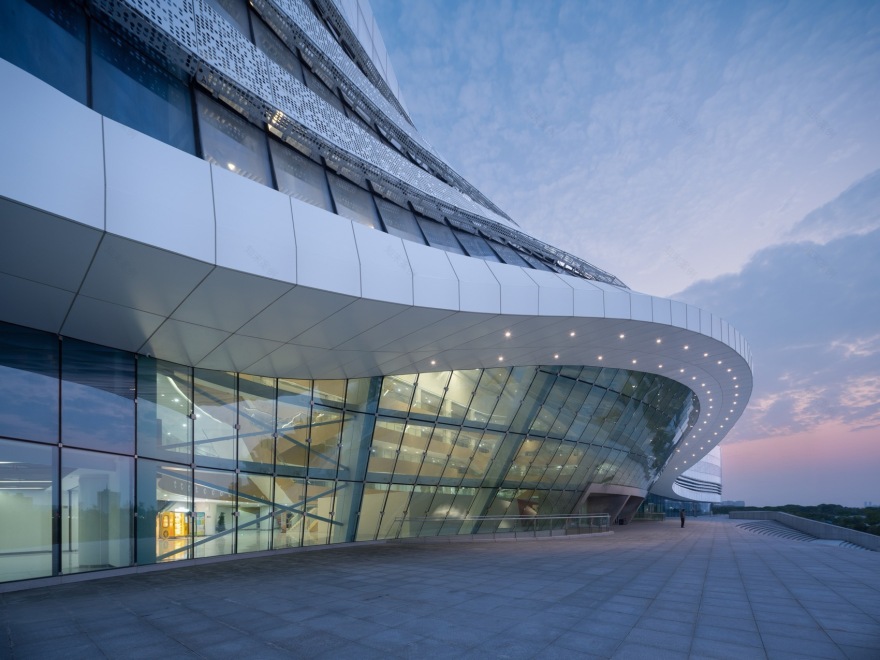

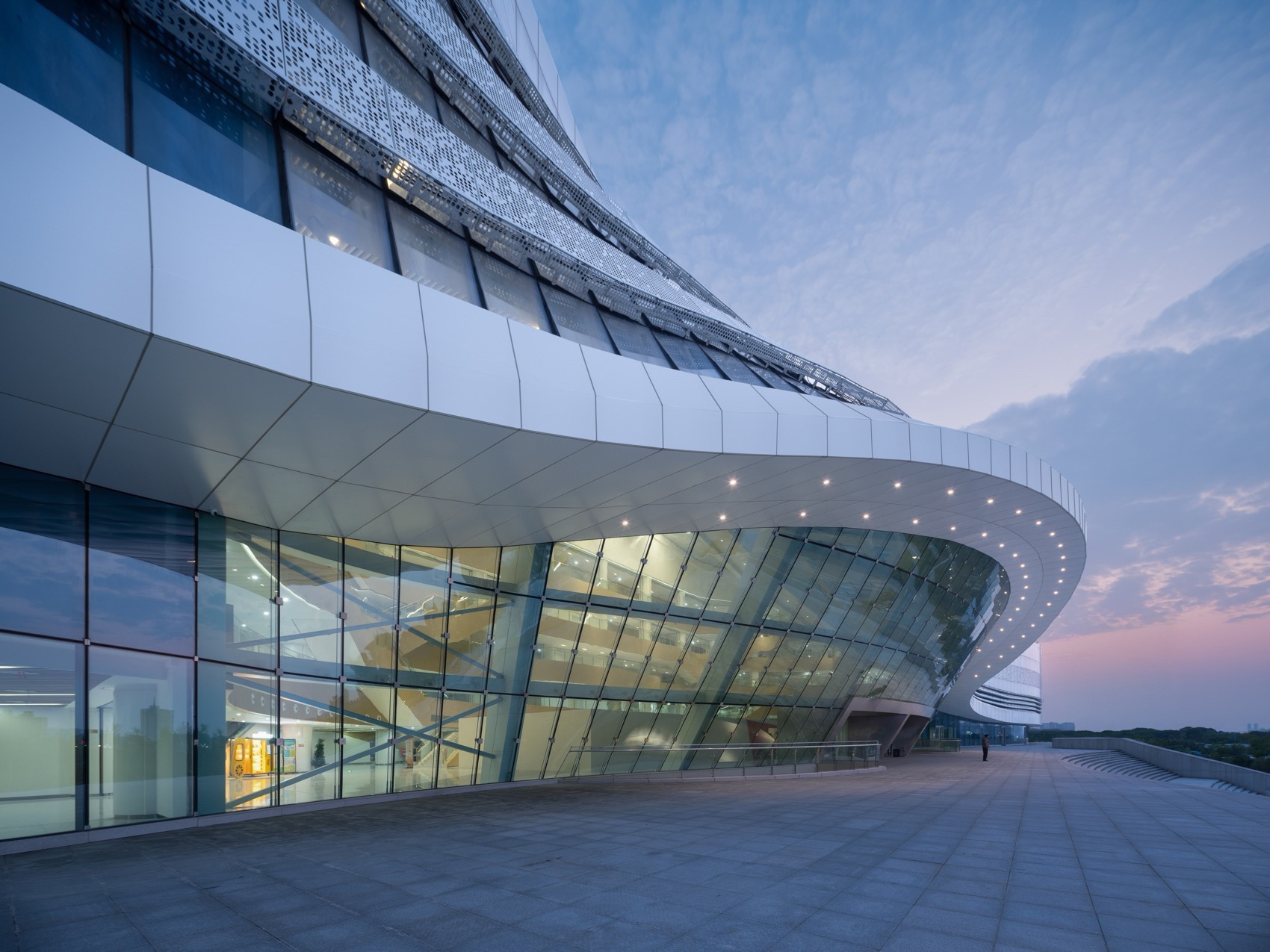

▼室外环境，Exterior view© 赵奕龙

1.3集约共享，共创多元文化

Shared Resources for a Multifunctional Hub

项目集图书馆、科技馆、美术馆、档案馆、城建档案馆、老年大学、妇女儿童活动中心、青少年活动中心于一体，共享建筑中部的大厅、报告厅、运动馆等设施设备，减少了重复建设，提高了使用舒适度与建设标准。

The Complex integrates a library, science and technology museum, art museum, archives, urban planning archives, university for the elderly, women and children’s activity center, and youth activity center. It shares the facilities and equipment such as the central hall, lecture hall, and gymnasium in the middle of the building, reducing repetitive construction and improving user comfort and overall building standards.

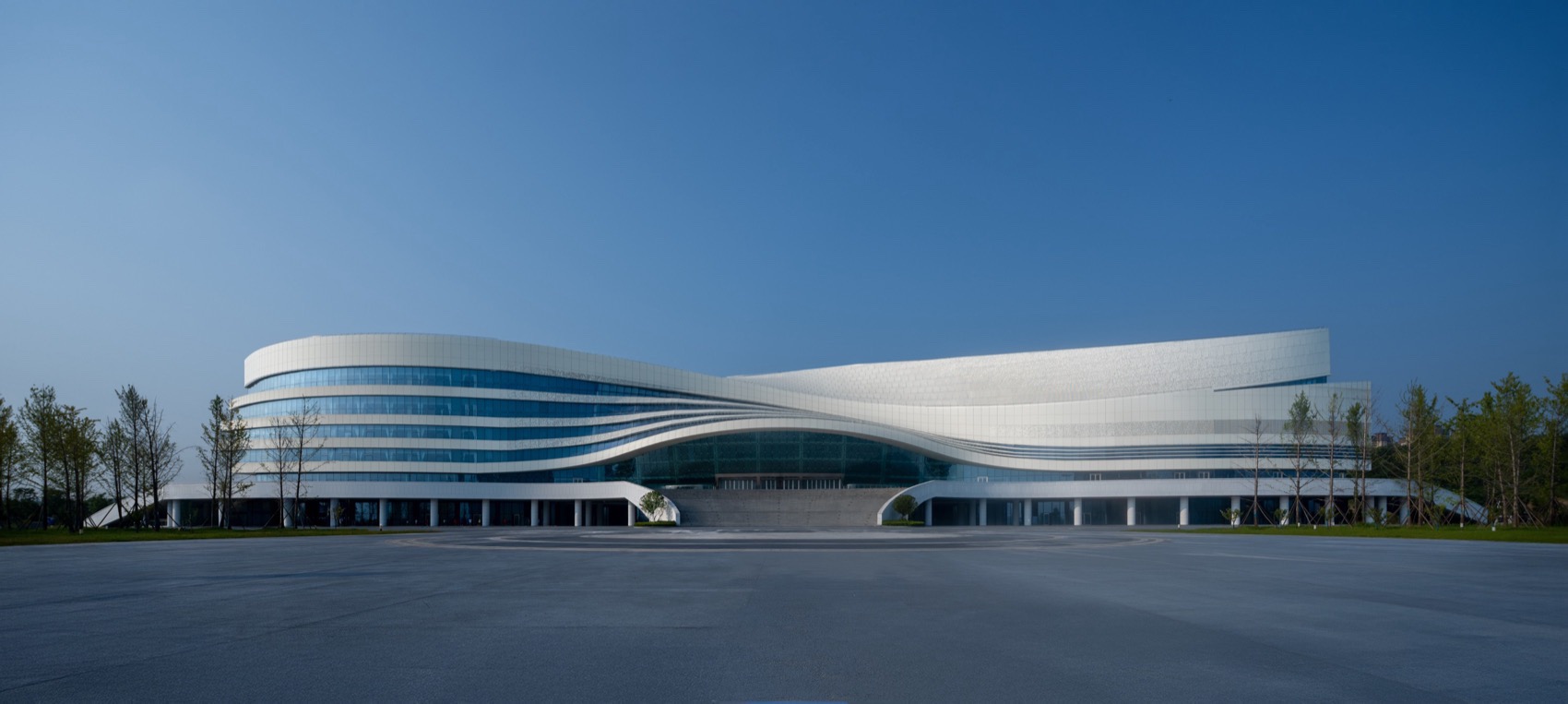

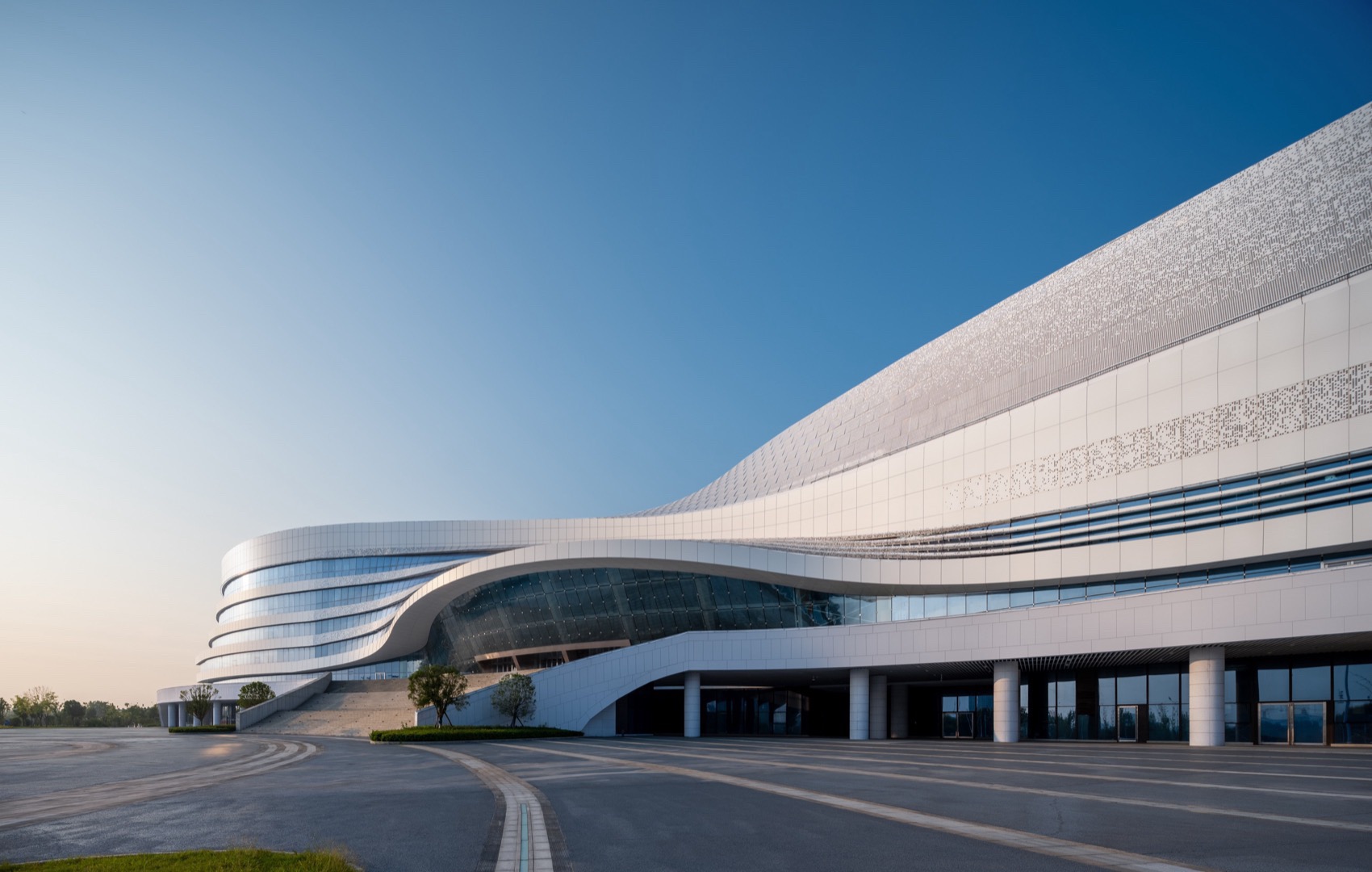

▼北侧人视，View from the north at human eye level © 赵奕龙

2.总体规划与空间布局

Master Plan and Spatial Layout

项目选址于随州城南片区的重要节点空间，是打造一河两岸的重要标志性建筑。总体规划以“两轴四区”为空间布局，即文化轴与共享轴，以及文化广场区、中心建筑区、室外运动区、后勤区。这一布局既体现了随州的文化特色，又满足了现代城市公共活动的多元化需求。

Situated at a key node in Suizhou’s southern district, the Complex is designed as a landmark within the “one river, two banks” urban development framework. The master plan adopts a “two axes, four zones” structure, composed of a cultural axis, a shared axis, and four functional zones: the cultural plaza, central building zone, outdoor sports zone, and logistics zone. This layout reflects Suizhou’s cultural identity while accommodating the diversified needs of modern public life.

▼立面近景，Facade close view© 赵奕龙

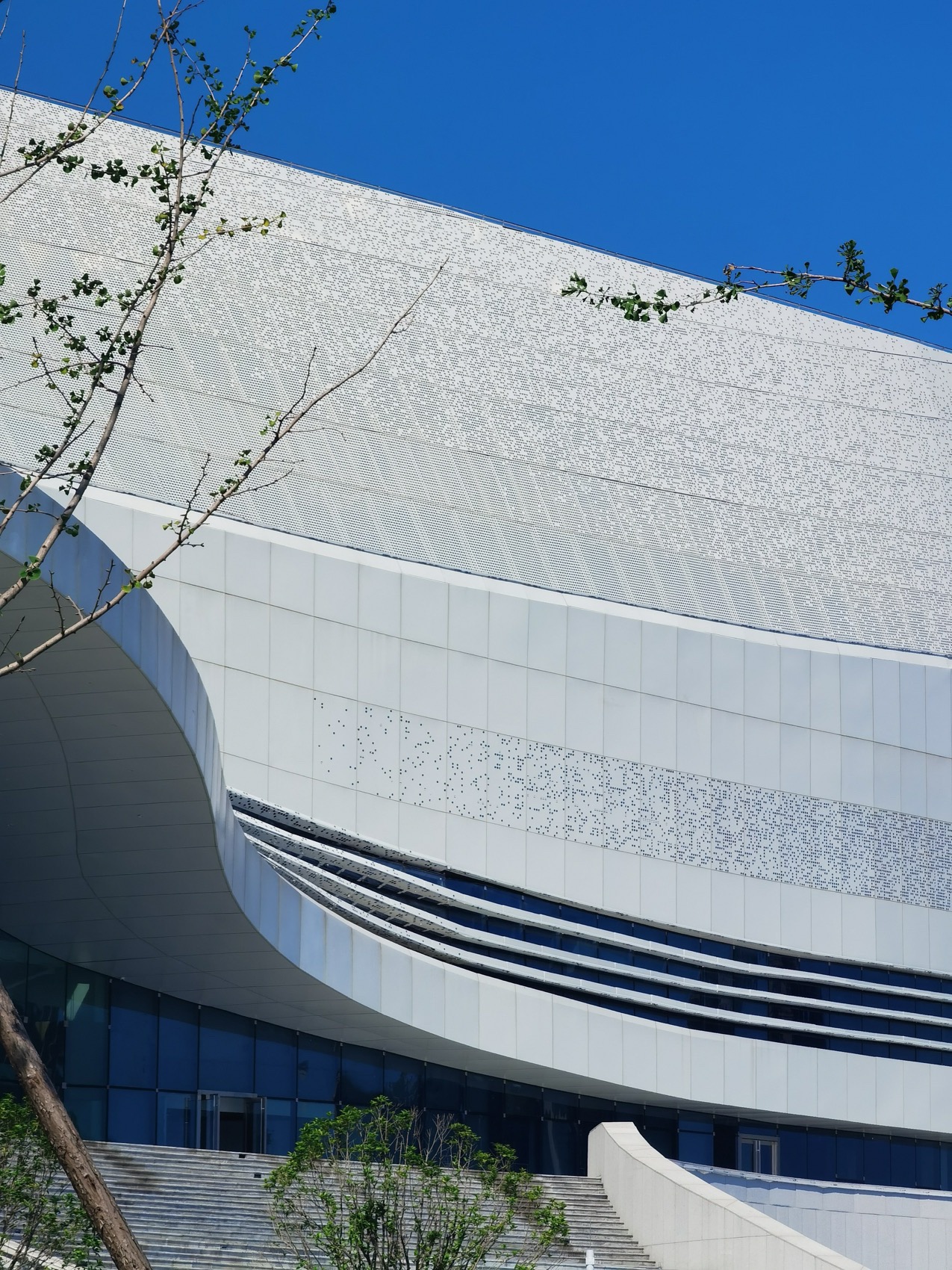

▼立面细部，Facade details© 赵奕龙

3.建筑设计

Architectural Design

3.1造型设计

Form and Expression

设计以“白云、波浪、银杏”为特色意象元素，构建建筑整体形态，以涢水的灵秀凝练为建筑肌理，通过现代建筑手法写意随州“自然”文化，将活动中心简洁、流动的形态完美嵌入到随州市的城市肌理之中，使建筑成为耀眼的城市地标。

The design incorporates the imagery of “clouds, waves, and ginkgo leaves” to define the architectural form. The texture of the Yun River is abstracted into the building’s surface, expressing Suizhou’s natural culture through contemporary techniques. The flowing and concise form is seamlessly embedded into the city’s fabric, establishing the Complex as a prominent urban landmark.

▼入口空间，Entrance space© 赵奕龙

3.2功能组织

Functional Organization

建筑共有六层，分为地下车库及库房区、配套服务功能区和主体功能区。地下车库及库房区主要功能为配套停车库、设备用房等；配套服务功能区整合商业、会议展览等对外服务功能；主体功能区以主入口门厅为中心，划分为科技馆组团、综合活动中心组团和图书馆-档案馆组团，各功能组团既分且合，形成整体。

The building has six levels, organized into underground parking and storage, supporting service areas, and main functional zones. The underground parking and storage zone primarily accommodates parking garages, equipment rooms, and related facilities. The supporting service zone integrates commercial, conference, and exhibition functions to provide external services. The primary functional zone, centered around the main entrance hall, is divided into the Science and Technology Museum Cluster, the Comprehensive Activity Center Cluster, and the Library-Archives Cluster. These clusters are distinct yet interconnected, together forming a cohesive whole.

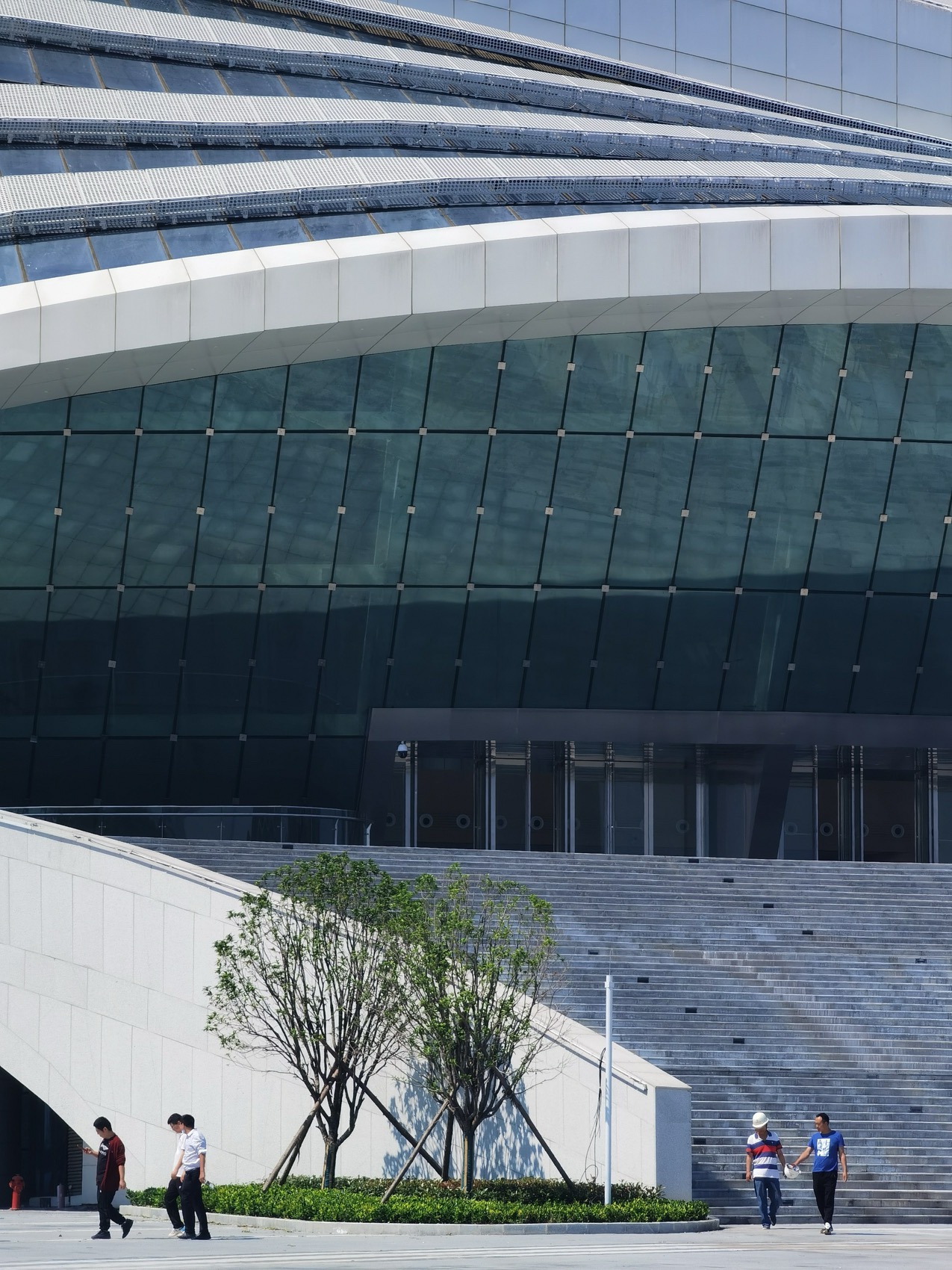

▼入口近景，Entrance close view© 赵奕龙

(1)科技馆组团：位于西侧，以共享中庭的垂直交通串联各层展区，流线清晰。

(2)综合活动中心组团：位于南侧中部，包括工人文化宫、老年人活动中心、青少年活动中心、妇女儿童活动中心等，二、三、六层分布共享空间，适应性强。

(3)图书馆—档案馆组团：位于东侧，融合档案馆与城建档案馆，图书馆采用大开间、一站式、自助化服务设施，构建24小时智能化图书馆。

(1)Science and Technology Museum Cluster: located on the western side, vertically connected by the shared atrium and clear circulation routes across exhibition levels.

(2)Comprehensive Activity Center Cluster: positioned at the central-southern part, consisting of the Workers’ Cultural Palace, Senior Citizens’ Center, Youth Center, and Women & Children’s Center. Shared spaces are distributed across the 2nd, 3rd, and 6th floors, offering strong adaptability.

(3)Library-Archives Cluster: situated on the eastern side, integrating both municipal and urban planning archives. The library features large-span layouts, one-stop and self-service facilities, and a 24-hour smart library system.

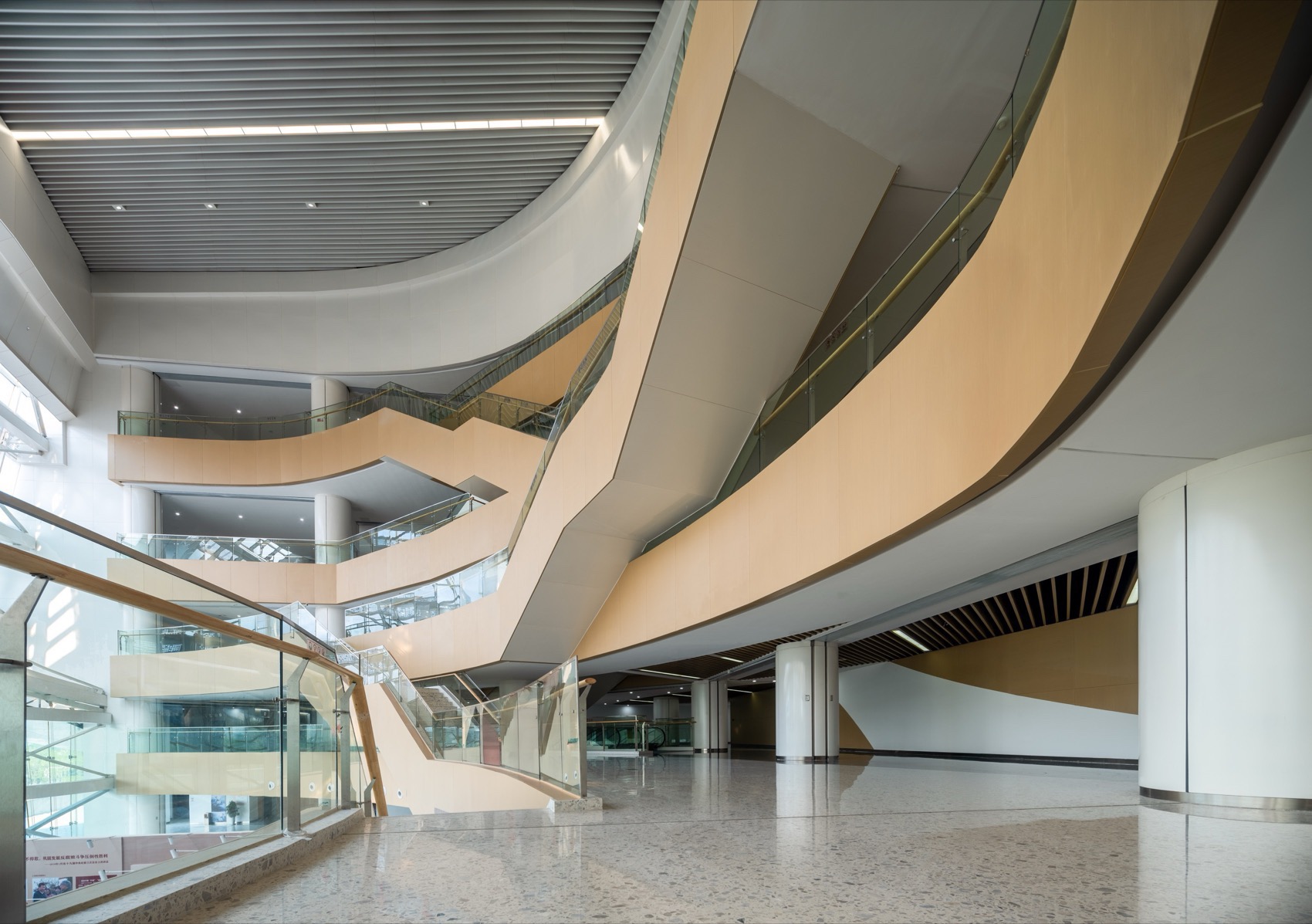

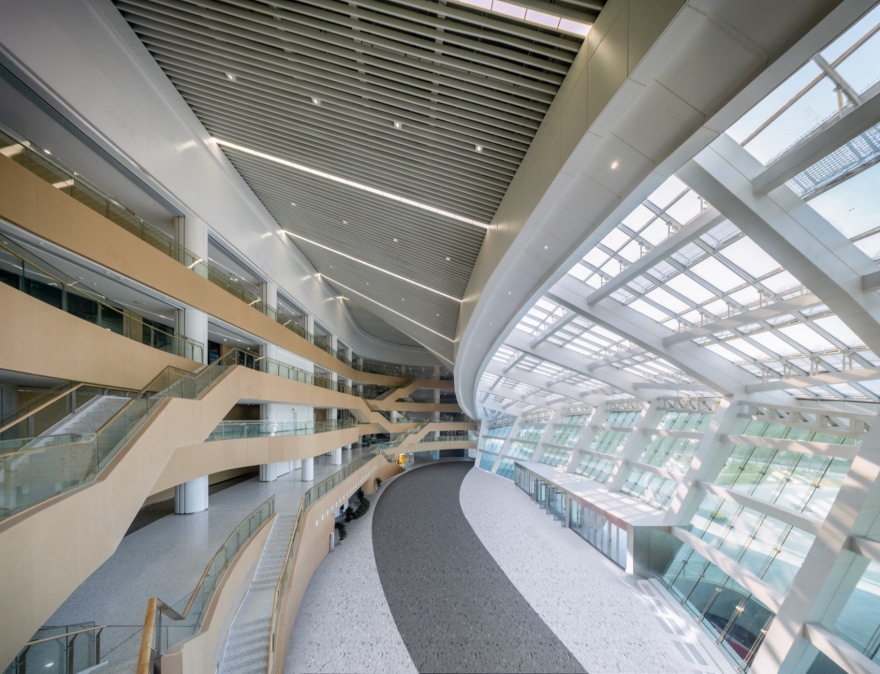

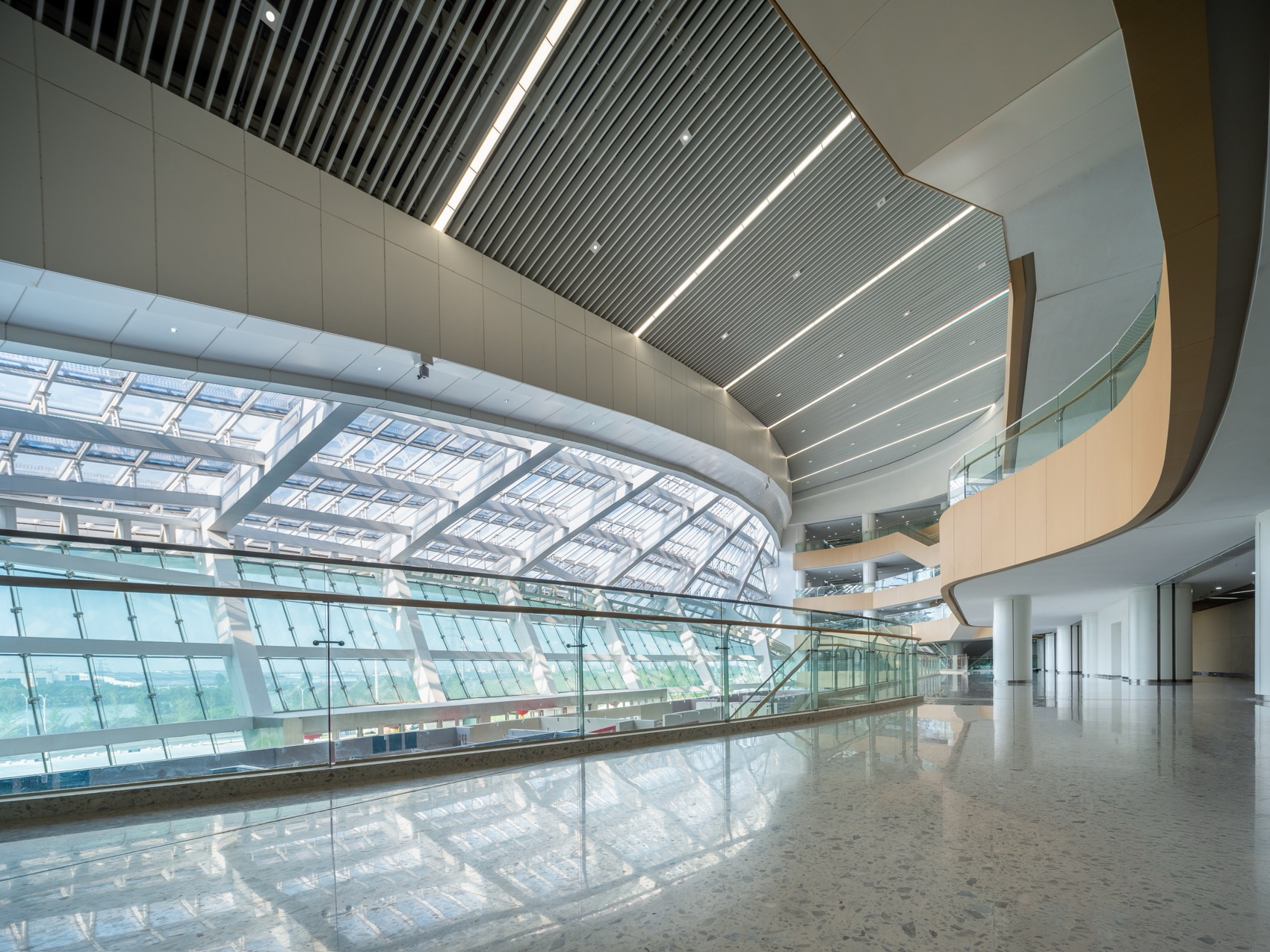

▼大跨度空间，Large-span space © 赵奕龙

3.3交通接驳

Transportation and Accessibility

结合周边道路与总平面布局，项目采用各功能区分流的方式，设置四个车行出入口，合理组织各功能动线。车行流线与人行流线清晰简明，消防环道满足消防设计要求，确保人员疏散安全便捷。

Based on surrounding roads and the master plan, four vehicular entrances are arranged to distribute traffic among functional areas. Circulation for vehicles and pedestrians is clearly separated. A continuous fire lane meets safety codes, ensuring efficient evacuation and accessibility.

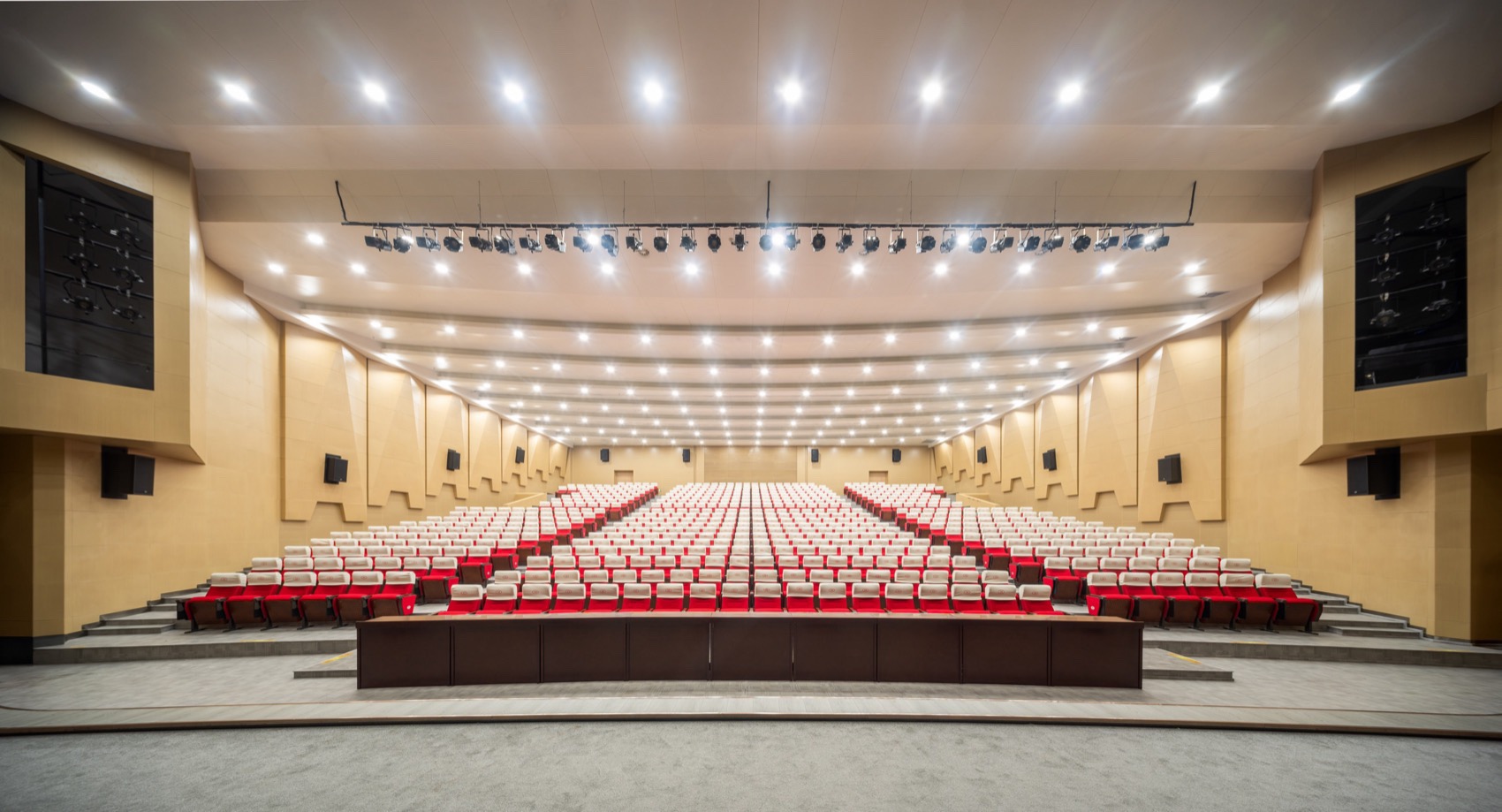

▼报告厅，Auditorium © 赵奕龙

3.4景观植物 Landscape Design

景观设计强调空间与景观的交融渗透，以灌木、乔木为主要景观要素，辅以休息平台、长廊等，为使用者提供开阔的活动空间与观景平台，享受四周水景山色。

The landscape emphasizes the integration of space and nature. Planting strategies highlight shrubs and trees, supplemented by rest platforms and corridors, providing open activity areas and terraces with panoramic views of surrounding water and mountains.

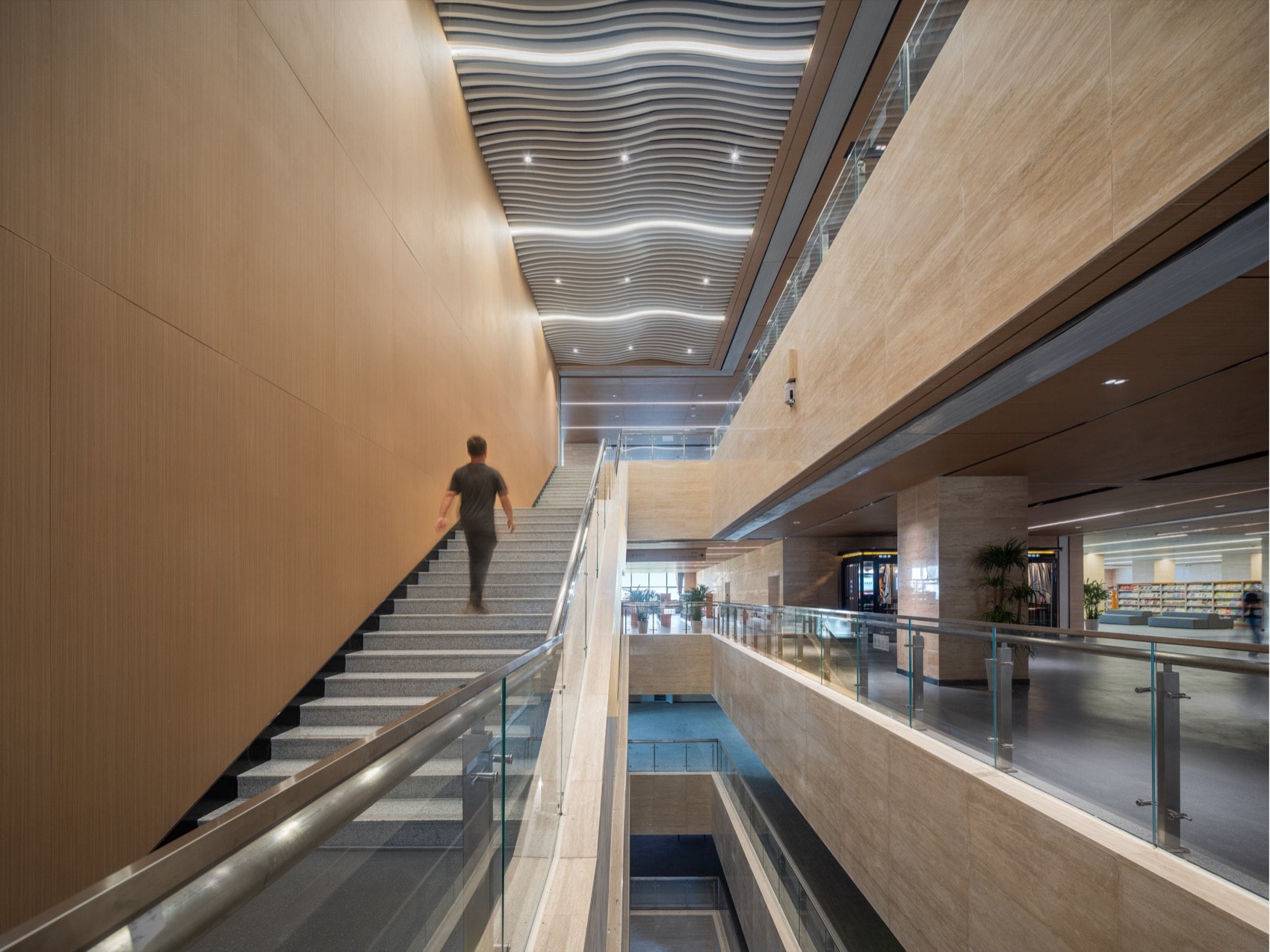

▼交通空间，Stairs© 赵奕龙

4.绿色节能设计

Green and Energy-Efficient Strategies

项目致力于成为“绿色随州”的窗口，通过控制建筑朝向、优化内部空间与外部形体、选择节能材料与构造，以及运用自然采光通风、智能电动遮阳百叶、水循环利用、智能化控制等技术，实现节能节材，打造符合国家绿色三星标准的节能建筑。

The Complex aspires to serve as a showcase of “Green Suizhou”. Strategies include optimizing orientation, refining interior and exterior spatial design, and selecting sustainable materials. Passive design measures, such as natural lighting and ventilation, are complemented by active technologies, including automated shading systems, water recycling, and intelligent management systems. The project targets compliance with China’s Three-Star Green Building Standard.

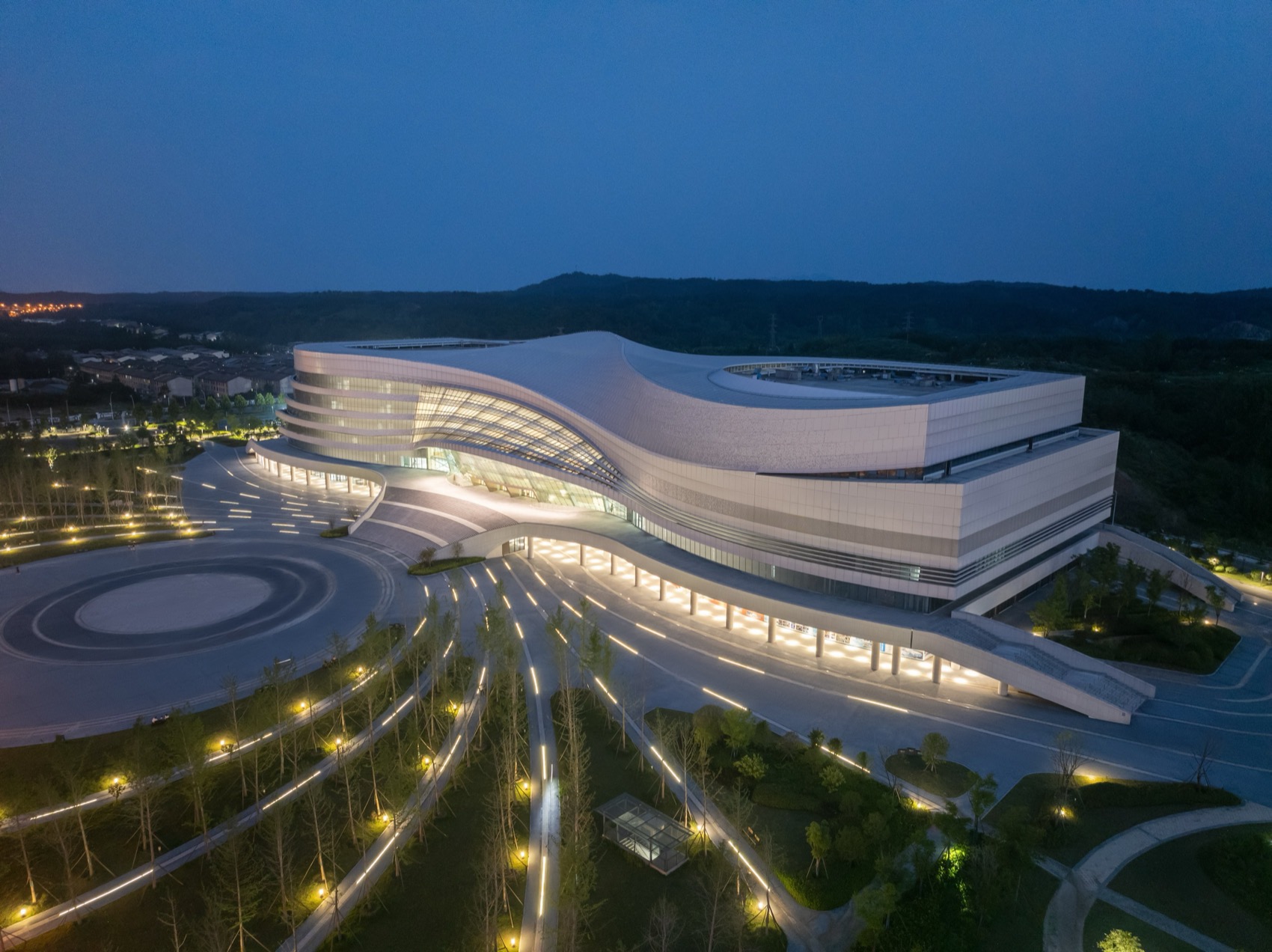

▼鸟瞰夜景，Night view© 赵奕龙

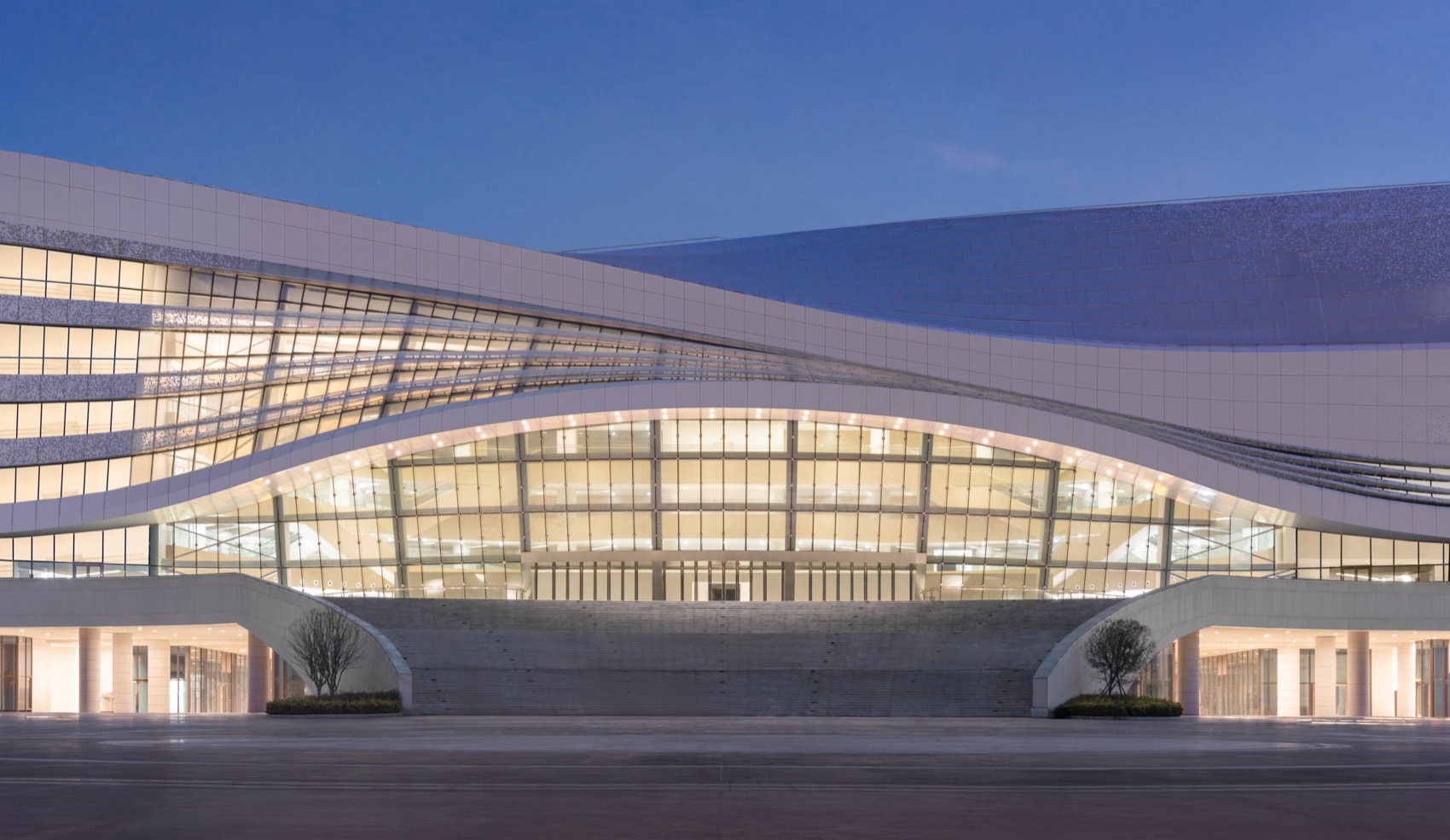

▼鸟瞰入口空间，Night view © 赵奕龙

5.展望未来

Vision

“水流心不竞，云在意俱迟”，随州市城市公共活动中心的设计，既是对荆楚浪漫水文化“智者乐水”精神的现代转译，更是随州在传承与创新中振翅高飞的生动注脚。这座建筑以数字时代的匠心重释荆楚美学，既承载着庄重气韵，又流淌着诗意灵动，必将成为荆风楚韵与现代文明交响共鸣的文化地标，助力随州在传承与创新中振翅高飞。

“Water flows without haste, clouds drift with ease.” The Suizhou Urban Public Activity Center Complex reinterprets Chu’s romantic water culture and the philosophy of “the wise find joy in water.” It symbolizes Suizhou’s aspiration to soar through both heritage and innovation. Recasting Jingchu aesthetics through the lens of the digital era, the Complex embodies solemnity and poetic vitality. It is destined to become a cultural landmark where ancient Chu heritage and modern civilization resonate in harmony, propelling Suizhou toward a future of cultural vibrancy and innovation.

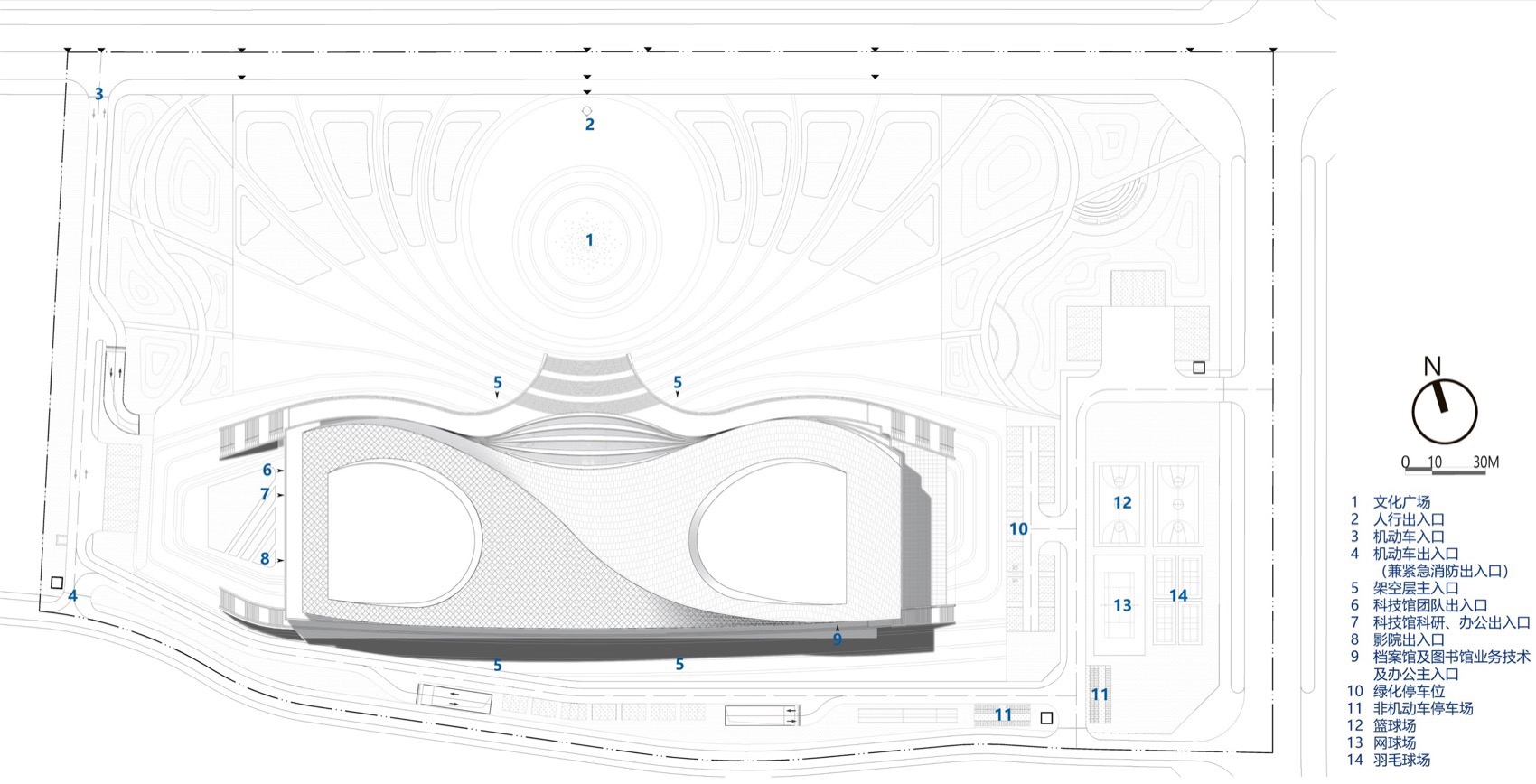

▼总平面图，masterplan© 中南建筑设计院股份有限公司

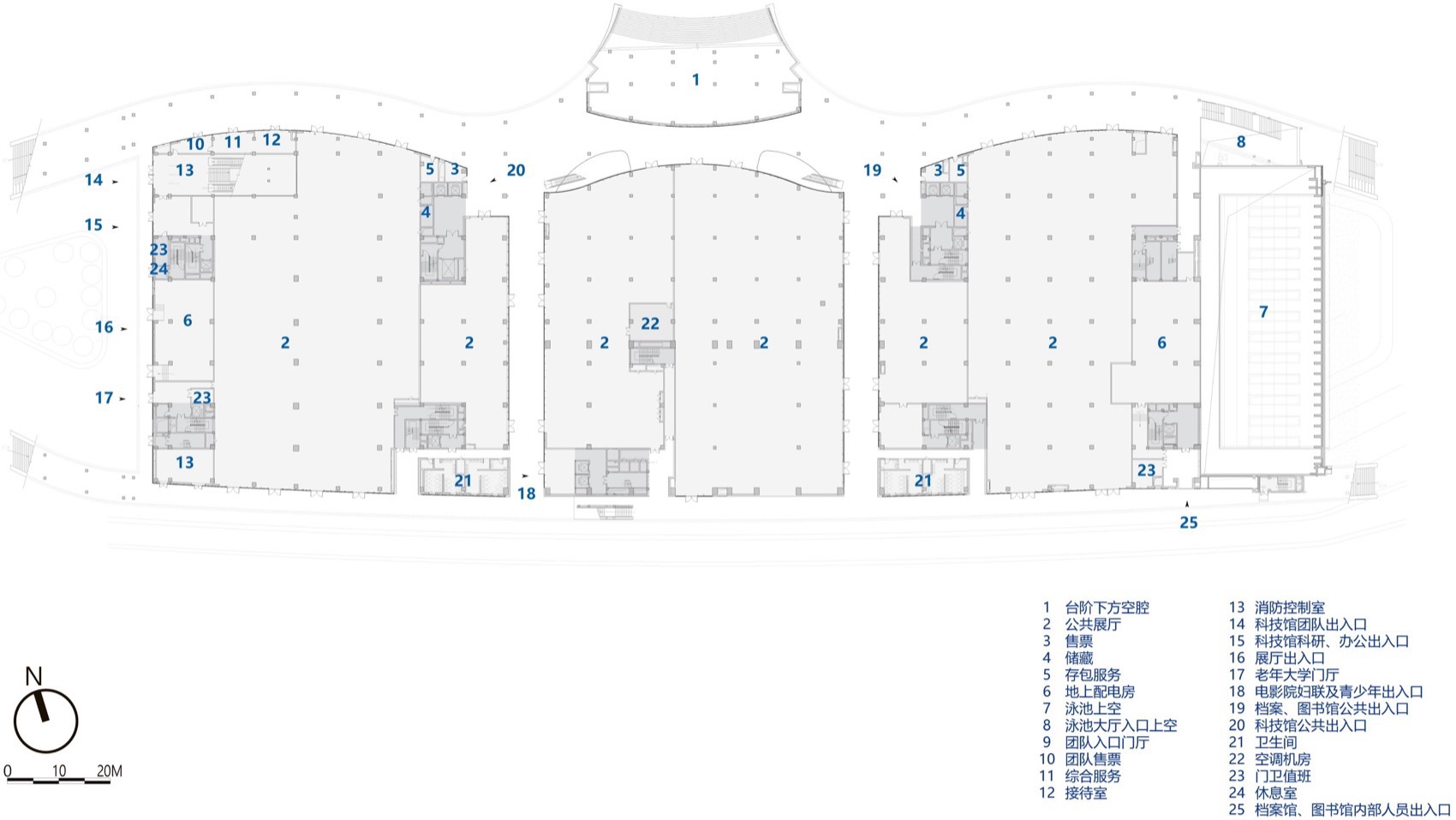

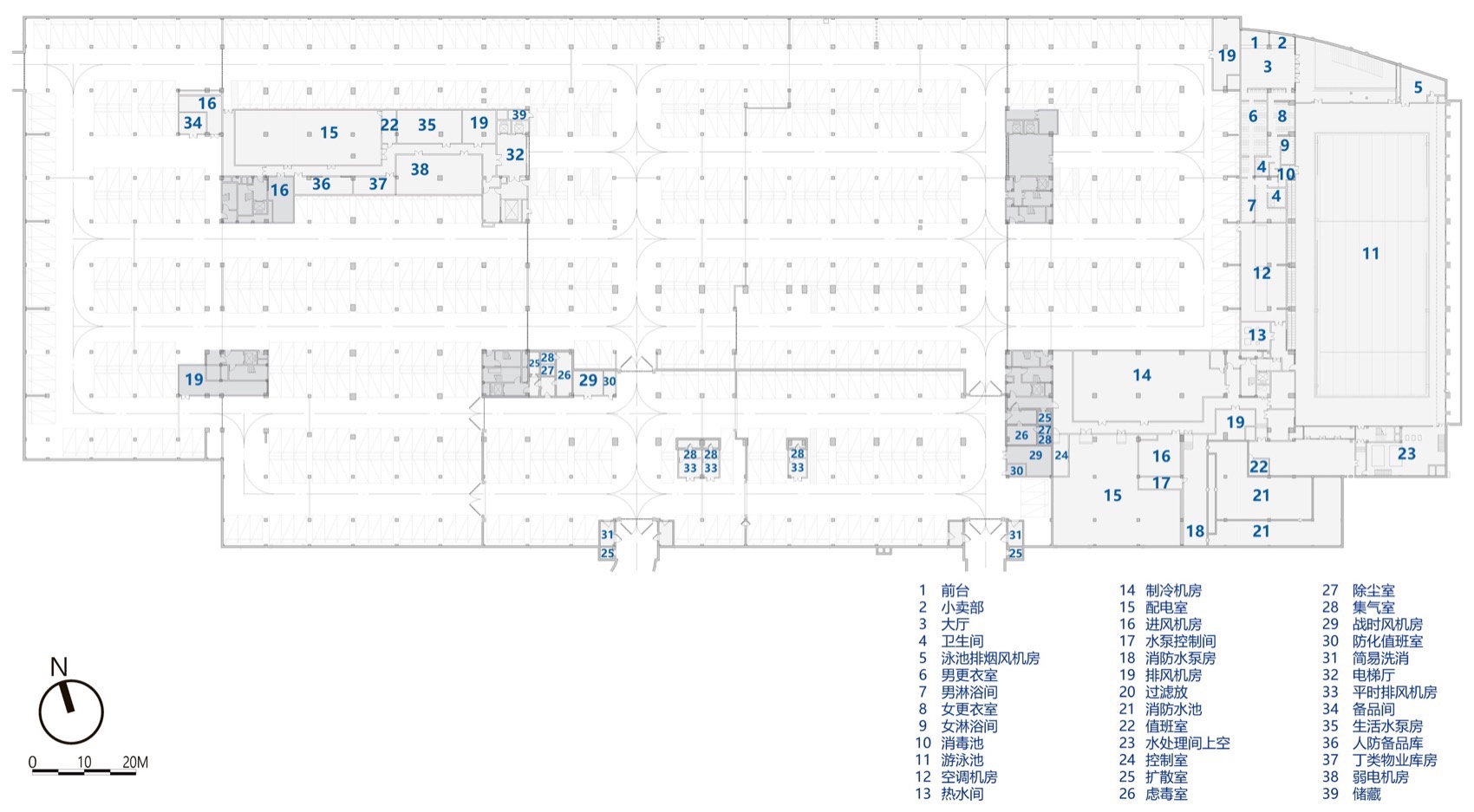

▼地库平面图，underground floor plan© 中南建筑设计院股份有限公司

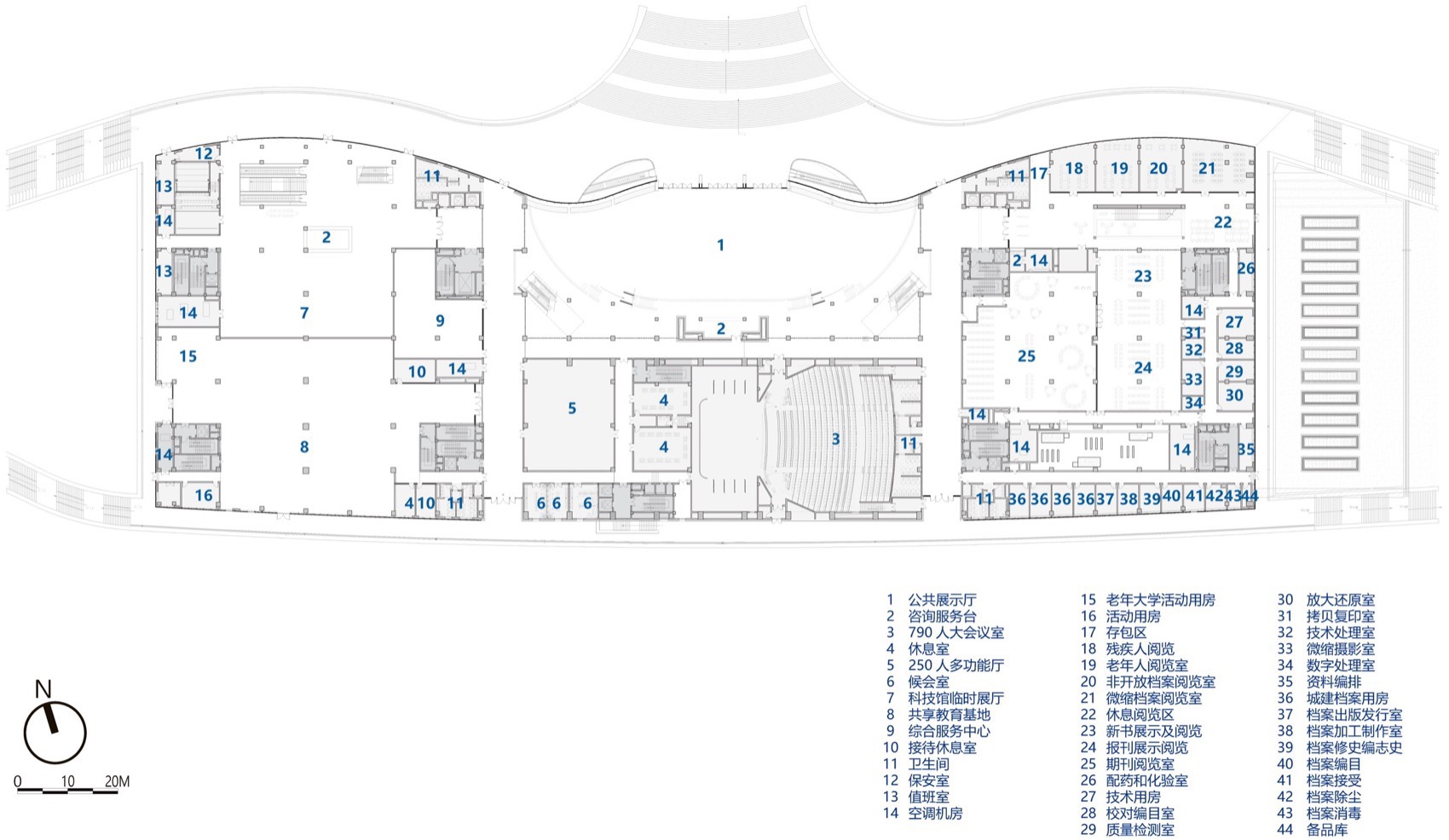

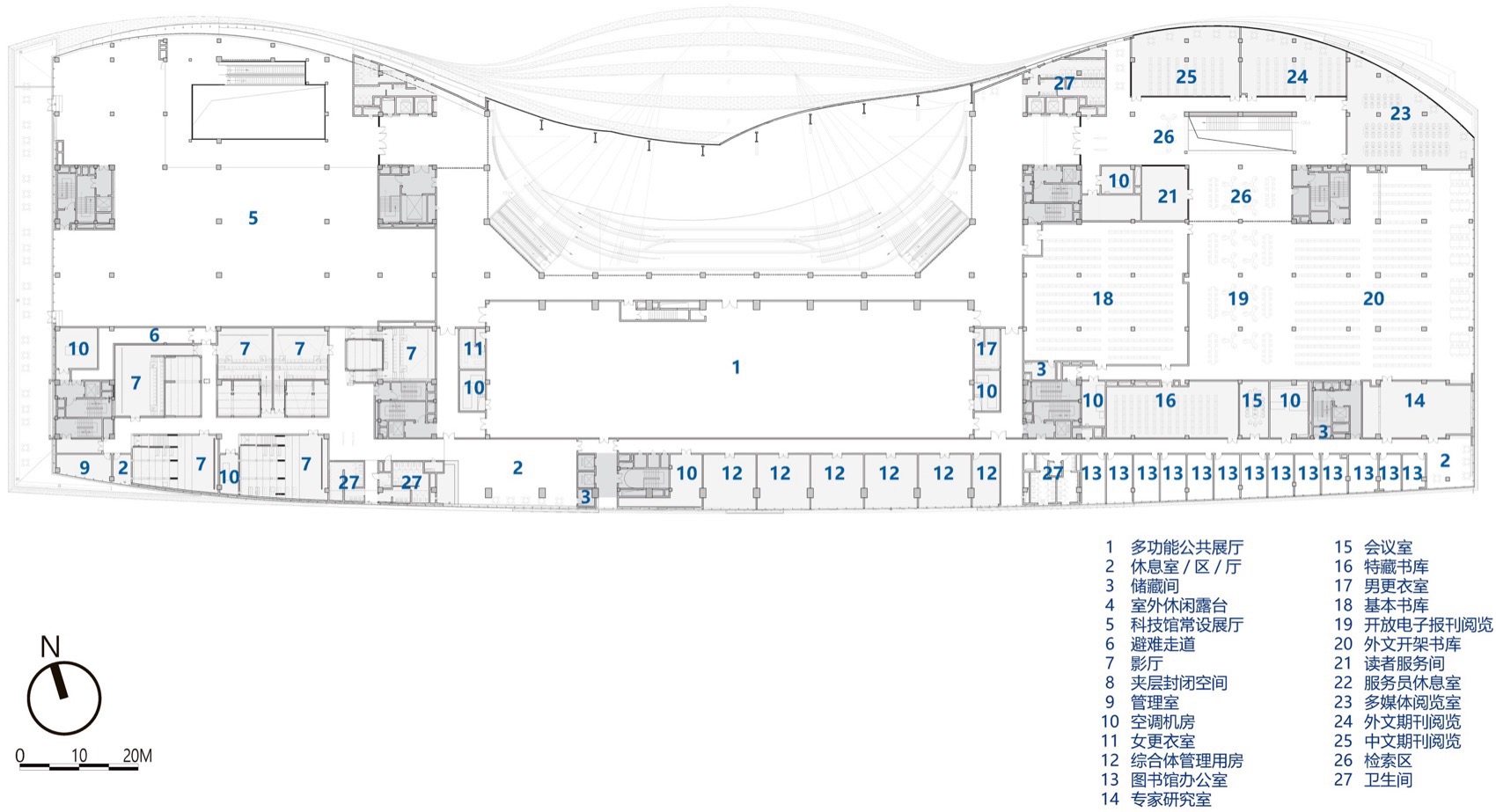

▼一层平面图，first floor plan© 中南建筑设计院股份有限公司

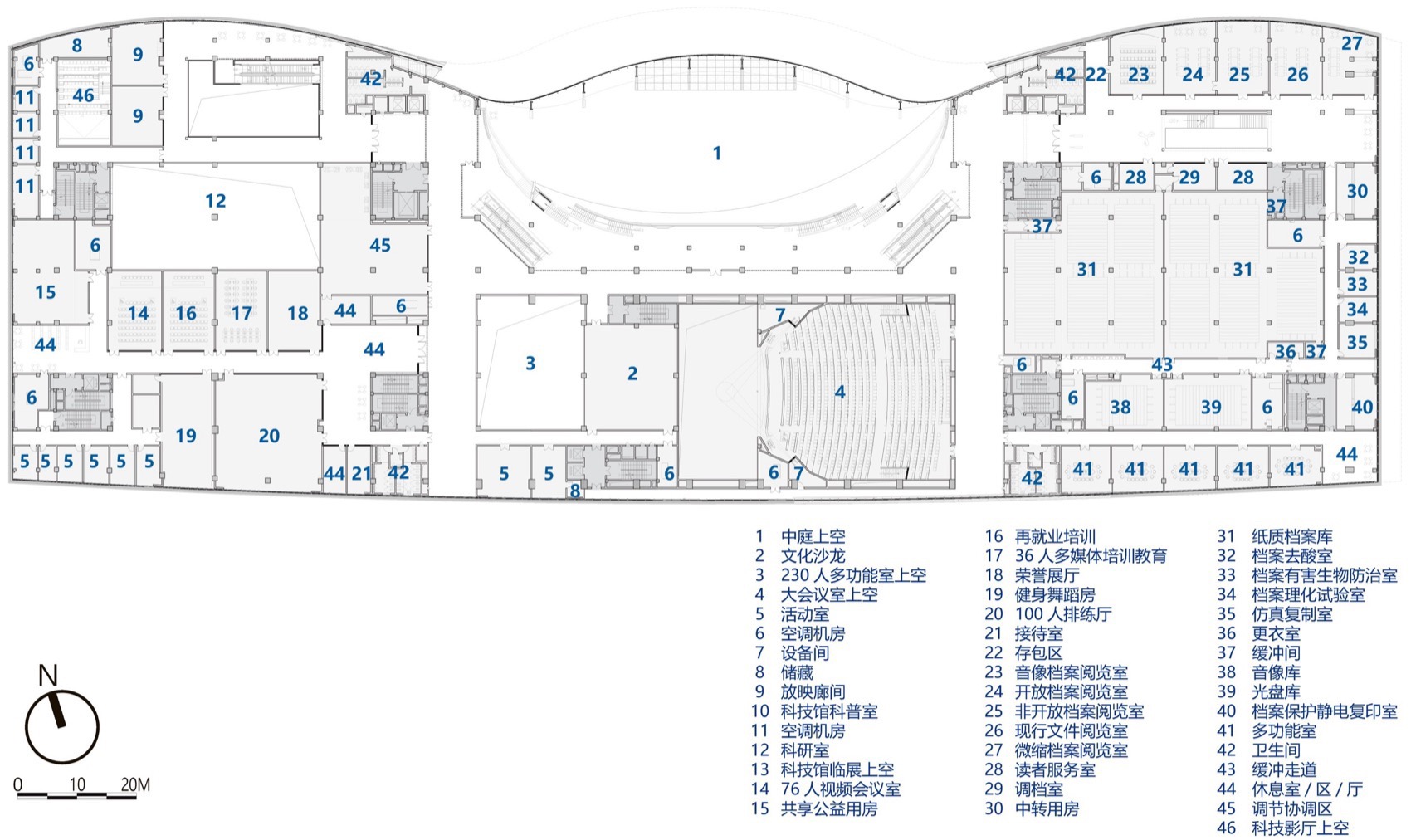

▼二层平面图，second floor plan© 中南建筑设计院股份有限公司

▼三层平面图，third floor plan© 中南建筑设计院股份有限公司

▼四层平面图，forth floor plan© 中南建筑设计院股份有限公司

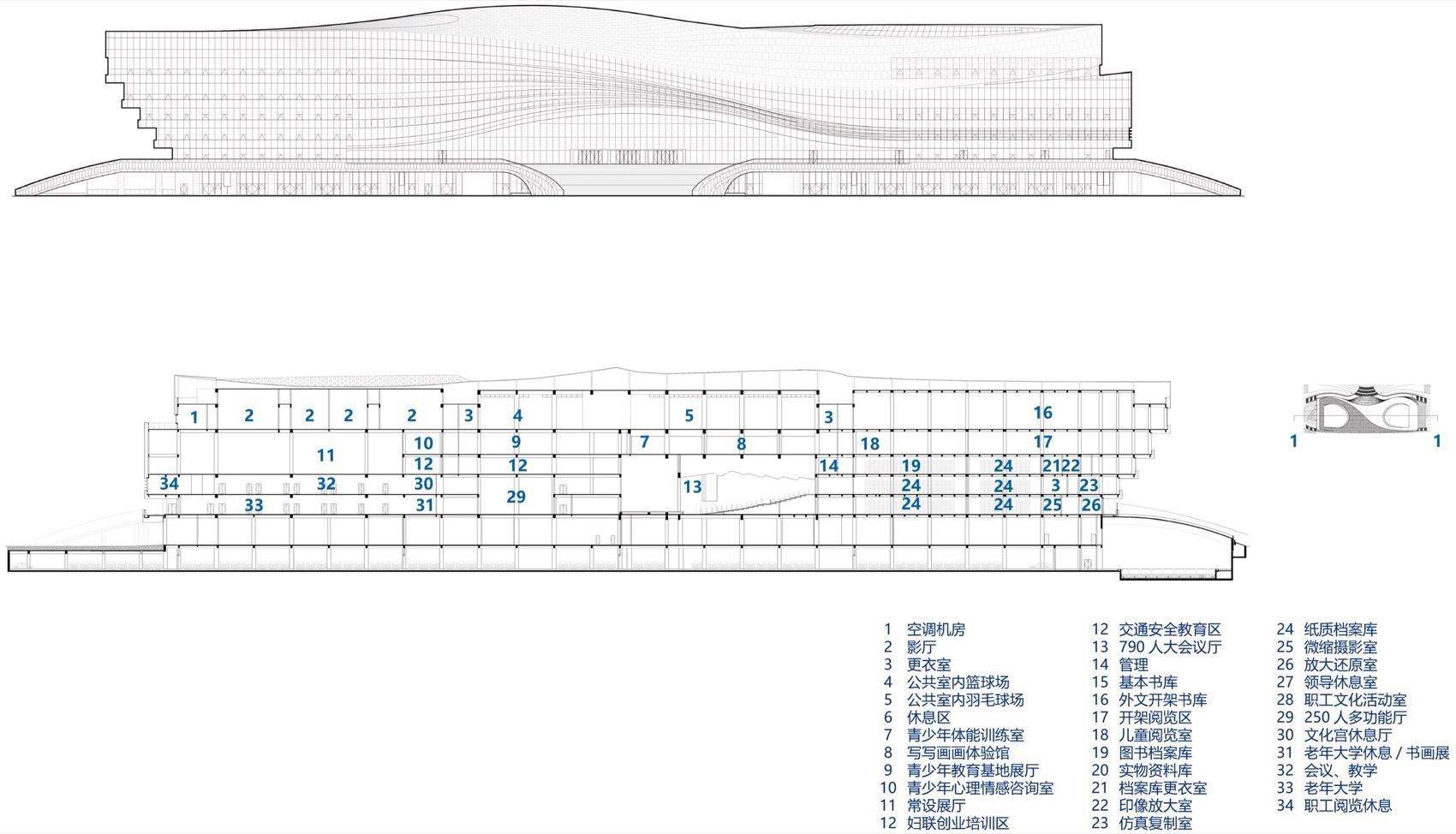

▼北立面、1-1剖面图，north elevation and section© 中南建筑设计院股份有限公司

▼南立面、西立面、2-2剖面图，north and west elevation, section© 中南建筑设计院股份有限公司

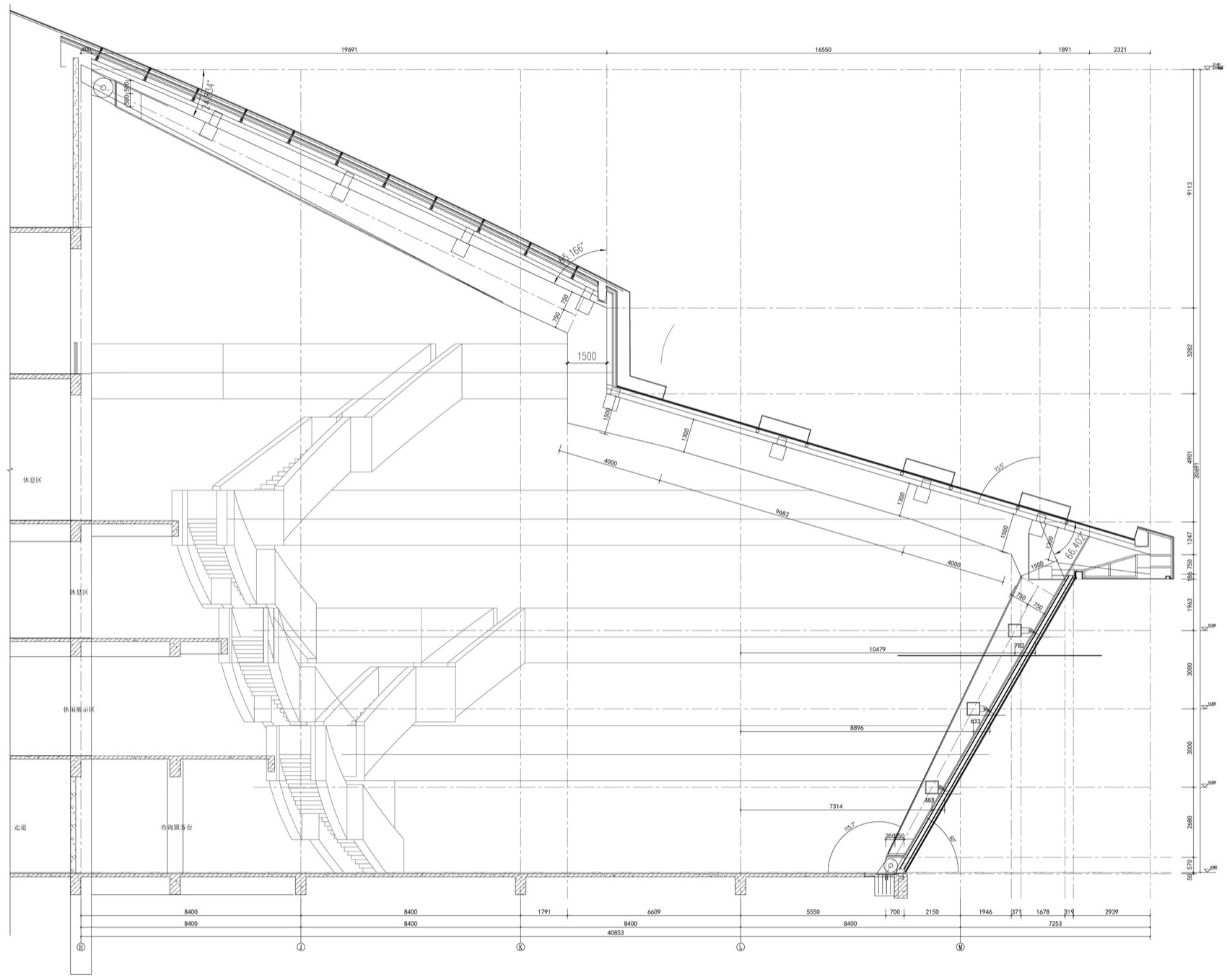

▼墙身大样，details© 中南建筑设计院股份有限公司

项目名称：随州城市公共活动中心综合体

项目类型：文化馆、活动中心、少年宫

设计方：中南建筑设计院股份有限公司

项目地址：随州市城南新区白云大道与星光大道交叉口西南角

建筑面积：107,168㎡

用地面积：111,900㎡

项目设计：2016.06-2021.02

完成年份：2024.02

主创设计师：邱文航

设计团队：邱文航，包若一，邢宏柏，汤鹏，曾真，陶兰洁，张建波

结构设计：李宏胜，纪晗，陈晓强，徐必兵，景文俊，彭检，张威，童菊仙，毛鹏，薛飞，王颢，孙兆民，高帅

设备专业：何苏伟，杨睿，钱邦伦，马轩，曹晓庆，姜毅

景观专业：刘菁，洪锋，陈晚群，汪沛

暖通专业：曹晓庆，姜毅，任中杰，余柄宪，辛悦，刘磊

电气专业：钱邦伦，马轩，祁卫

给排水专业：何苏伟，杨睿，赵伟骋

幕墙专业：王书华，张婧，杨旭辰，杨佳坤，柳春，杨昇，童超华

泛光照明：邓世超，汪特，荣新春，蒋光明，张炜晨，高鹏

室内装饰：陈欣，韩松，熊梦腾，马诚诚，赵洪，王泽军

绿色建筑：程娜，徐龙瑞，张曼怡，史芳源，吴国骏，吴银光

摄影版权：赵奕龙

施工方：中建科工集团有限公司

业主单位：随州市发展实业有限公司

Project Name: Suizhou Urban Public Activity Center Complex

Project Type: Cultural Center, Activity Center, Youth Palace

Design: Central-South Architectural Design Institute Co., Ltd. (CSADI)

Project Location: Southwest corner of the intersection of Baiyun Avenue and Xingguang Avenue, Southern New District, Suizhou City

Gross Built Area: 107,168㎡

Site Area: 111,900㎡

Design year: June 2016–February 2021

Completion Year: February 2024

Leader Designer: Qiu Wenhang

Leader Designer Email:

Design Team: Qiu Wenhang, Bao Ruoyi, Xing Hongbai, Tang Peng, Zeng Zhen, Tao Lanjie, Zhang Jianbo

Structural Design: Li Hongsheng, Ji Han, Chen Xiaoqiang, Xu Bibing, Jing Wenjun, Peng Jian, Zhang Wei, Tong Juxian, Mao Peng, Xue Fei, Wang Hao, Sun Zhaomin, Gao Shuai

Mechanical & Equipment Engineering: He Suwei, Yang Rui, Qian Banglun, Ma Xuan, Cao Xiaoqing, Jiang Yi

Landscape Design: Liu Jing, Hong Feng, Chen Wanqun, Wang Pei

HVAC Engineering: Cao Xiaoqing, Jiang Yi, Ren Zhongjie, Yu Bingxian, Xin Yue, Liu Lei

Electrical Engineering: Qian Banglun, Ma Xuan, Qi Wei

Water Supply & Drainage Engineering: He Suwei, Yang Rui, Zhao Weicheng

Curtain Wall Engineering: Wang Shuhua, Zhang Jing, Yang Xuchen, Yang Jiakun, Liu Chun, Yang Sheng, Tong Chaohua

Architectural Lighting Design: Deng Shichao, Wang Te, Rong Xinchun, Jiang Guangming, Zhang Weichen, Gao Peng

Interior Design: Chen Xin, Han Song, Xiong Mengteng, Ma Chengcheng, Zhao Hong, Wang Zejun

Green Building Design: Cheng Na, Xu Longrui, Zhang Manyi, Shi Fangyuan, Wu Guojun, Wu Yinguang

Photo Credit: Zhao Yilong

Construction Contractor: China Construction Science And Industry Corporation LTD.

Clients: Suizhou Urban Development Industrial Co., Ltd.
