停车 公园:日常景观基础设施城市停车公园设计丨中国南京丨东南大学建筑学院,正中国际项目管理集团有限公司

项目处于南京江宁区东新南路东侧，设计以“停车-公园”一体化的设计理念，在解决城市基本停车需求短缺问题的基础上，建设与地下停车场整合的城市社区公园，为周边的住区老人，孩童等居民，提供日常活动休闲的场所。

© 单帧映画

The project is located in Jiangning District, Nanjing. Based on the integrated design concept of “parking – park”, the project aims to address the shortage of basic parking needs in the city by constructing a community park integrated with the underground parking lot. It provides a place for daily activities and leisure for the elderly and children in the surrounding residential areas.

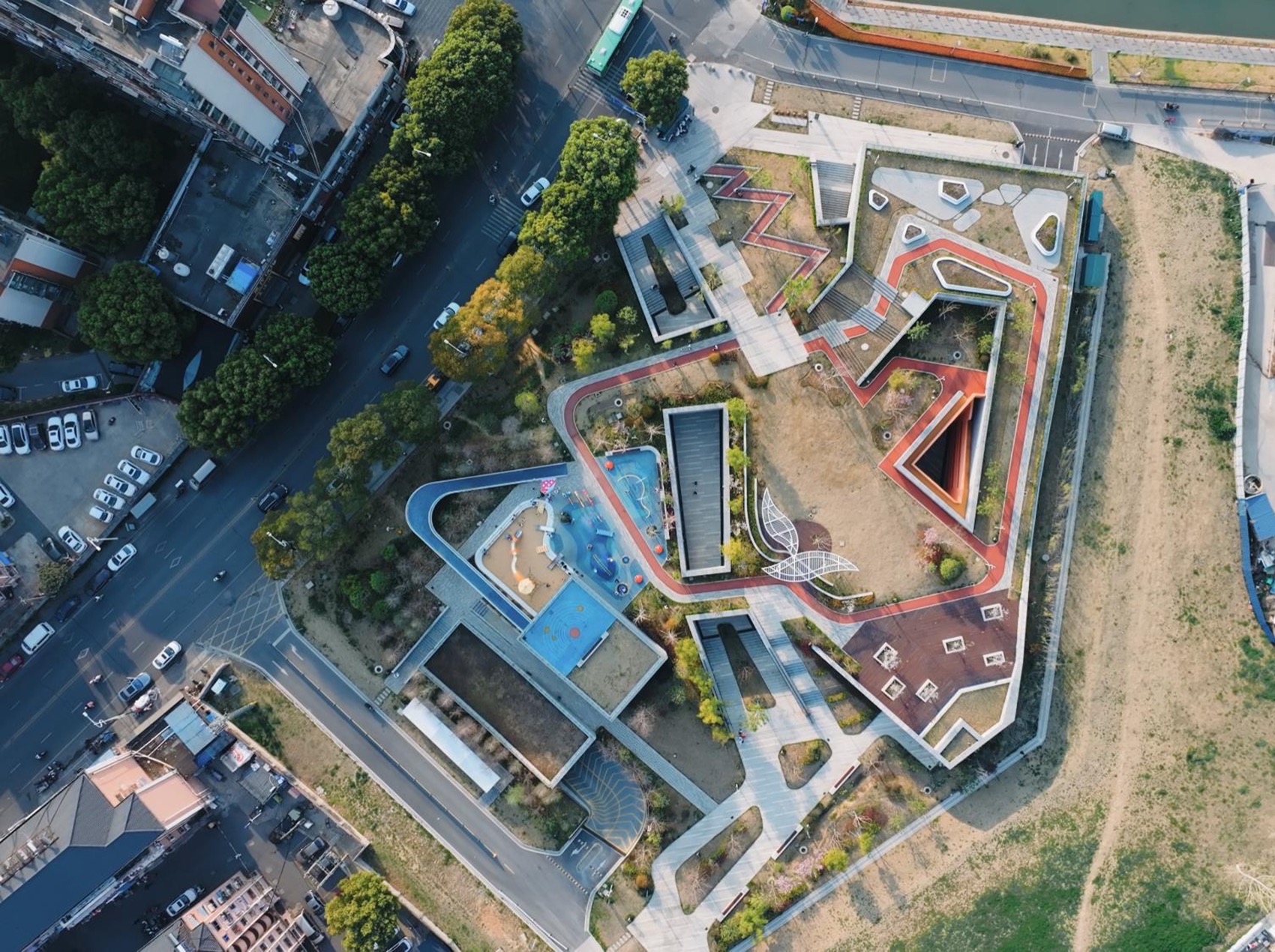

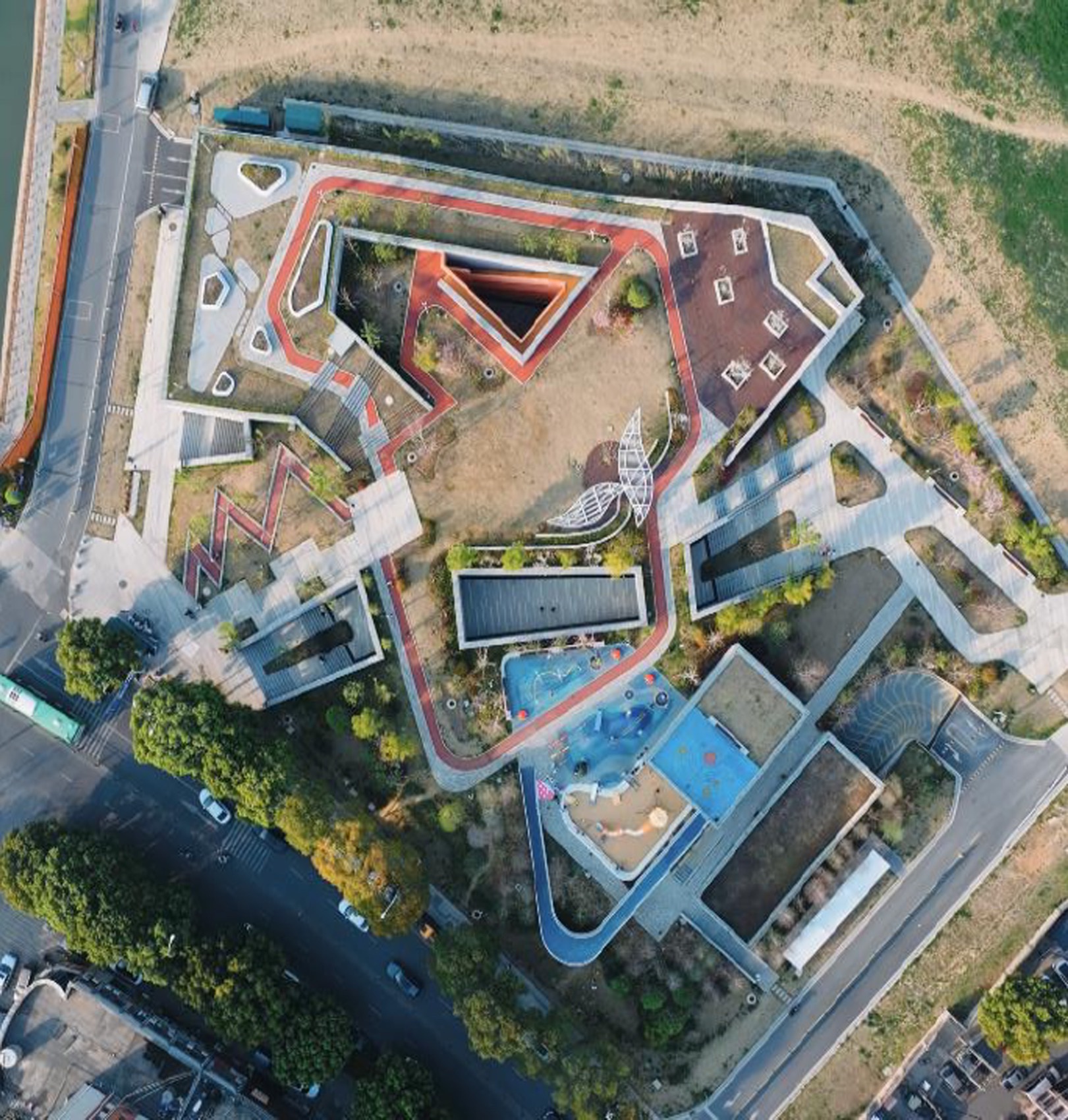

▼项目鸟瞰，Aerial view © 单帧映画

▼项目总图，General plan © 单帧映画

▼活动场地，Activity venues © 单帧映画

1、立体公园-功能共享

Three-dimensional Park – Function Sharing

通过地上地下复合一体化的方式，实现城市绿地空间高效利用与城市空间共享，以停车、绿地、商业、公园等功能整合布局，为周边社区居民日常休闲服务提供空间场所，为城市绿地的建设革新提供复合样本。

▼基地区位，location © 东南大学建筑学院

▼空间结构，space structure © 东南大学建筑学院

By adopting a combined and integrated approach of above-ground and underground spaces, we achieve efficient utilization of urban green space and sharing of urban space. Through the integration of functions such as parking, greenery, commerce, and parks, we provide space and venues for the daily leisure needs of surrounding community residents, and offer a composite sample for the construction and innovation of urban green spaces.

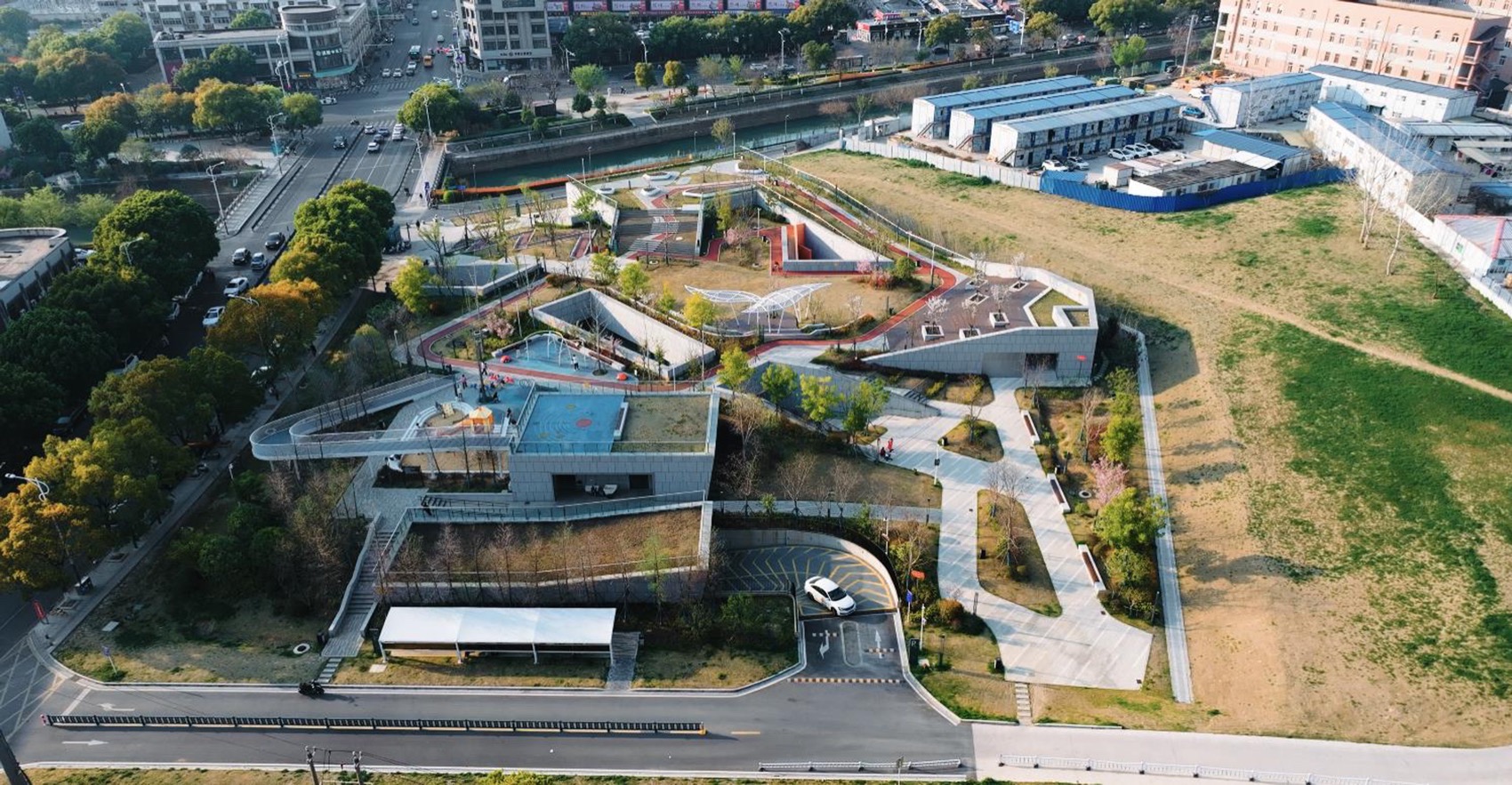

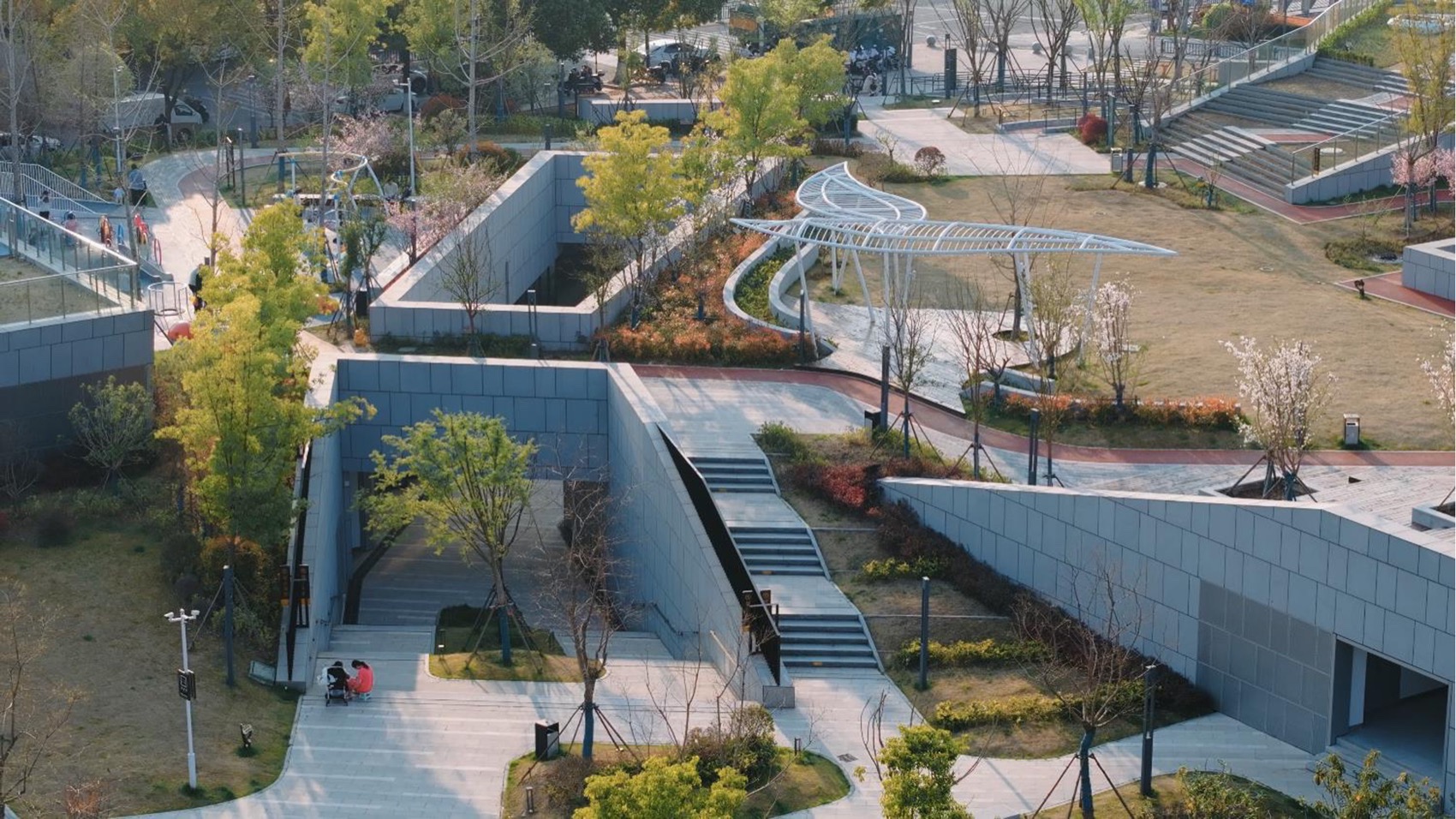

▼项目半鸟瞰，Semi-aerial view © 单帧映画

▼项目半鸟瞰，Semi-aerial view © 时差影像

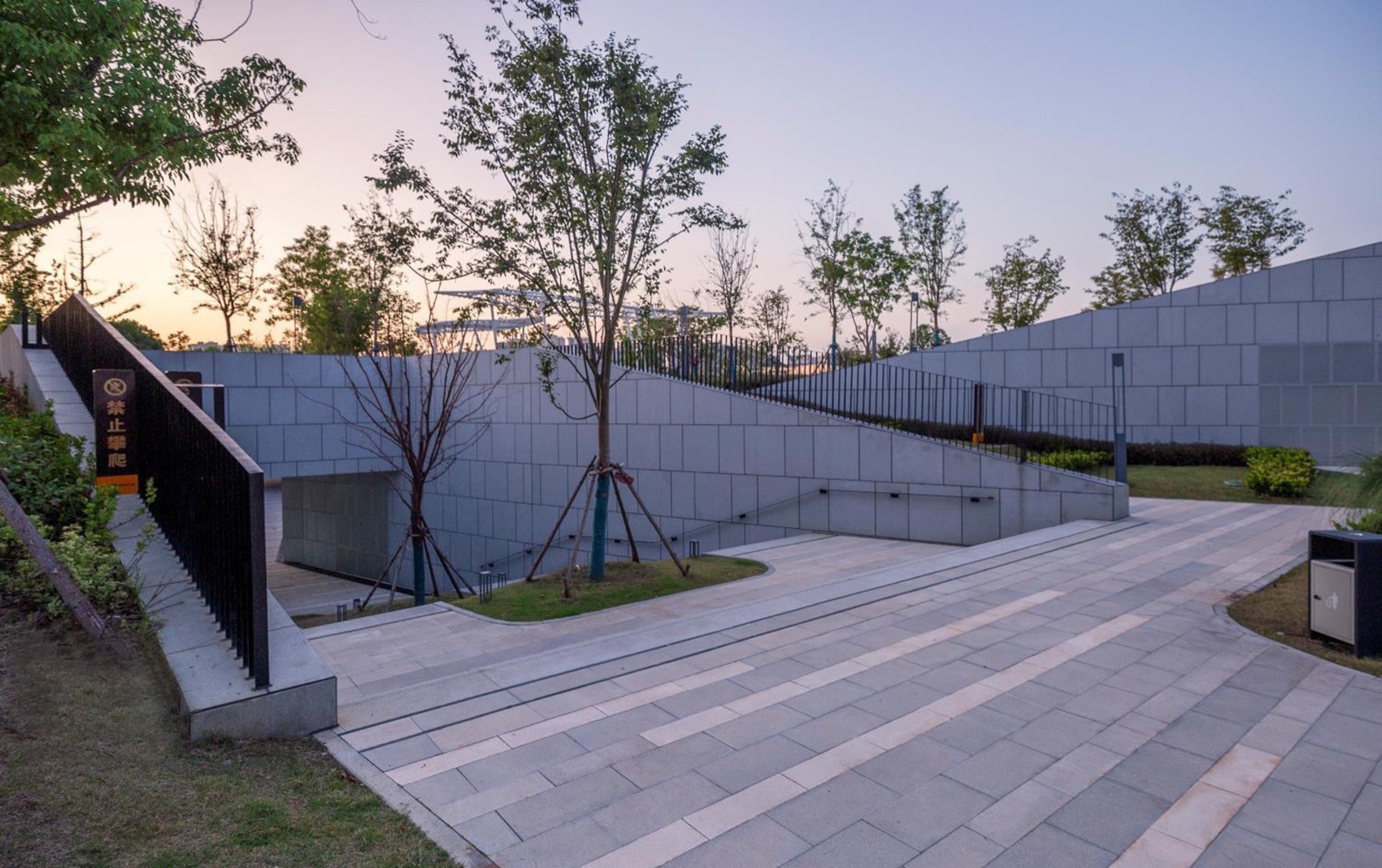

▼下沉式人行通道，Submerged pedestrian passage © 时差影像

2、日常设施-社区关爱

Everyday Facilities – Community Care

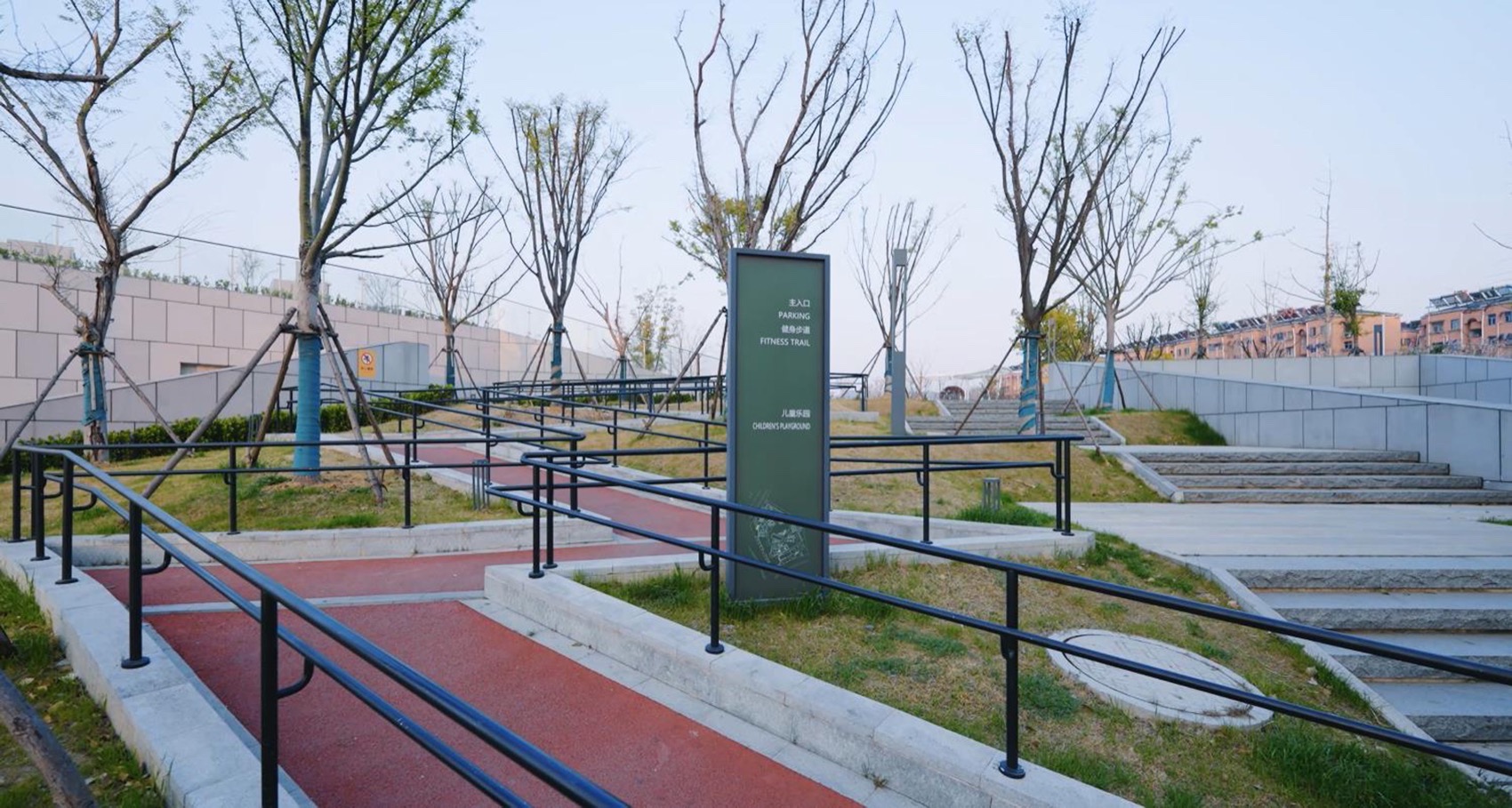

在进行城市公园景观塑造的基础上，为周边的老人、孩童等居民提供跑道、爬梯、步道、休憩台阶、无障碍设施等多样的日常娱乐设施，也为城市提供公共卫生间等城市基础设施，塑造具有日常活力的城市景观。

Based on the urban park landscape design, various daily recreational facilities such as running tracks, climbing ladders, walkways, rest steps, and barrier-free facilities are provided for the elderly and children and other residents in the surrounding area. At the same time, public restrooms and other urban infrastructure are also provided to shape a vibrant urban landscape.

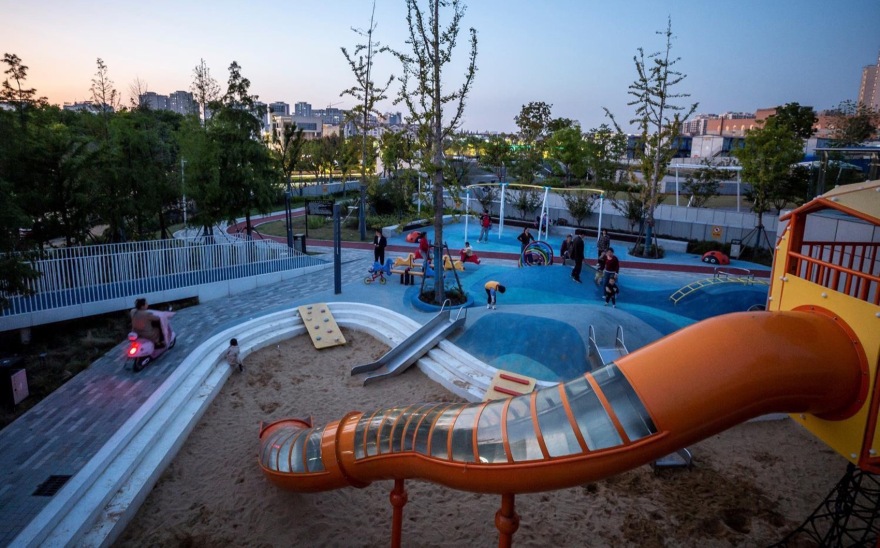

▼儿童活动区鸟瞰，Children playing space © 时差影像

▼儿童活动区，Children playing space © 时差影像

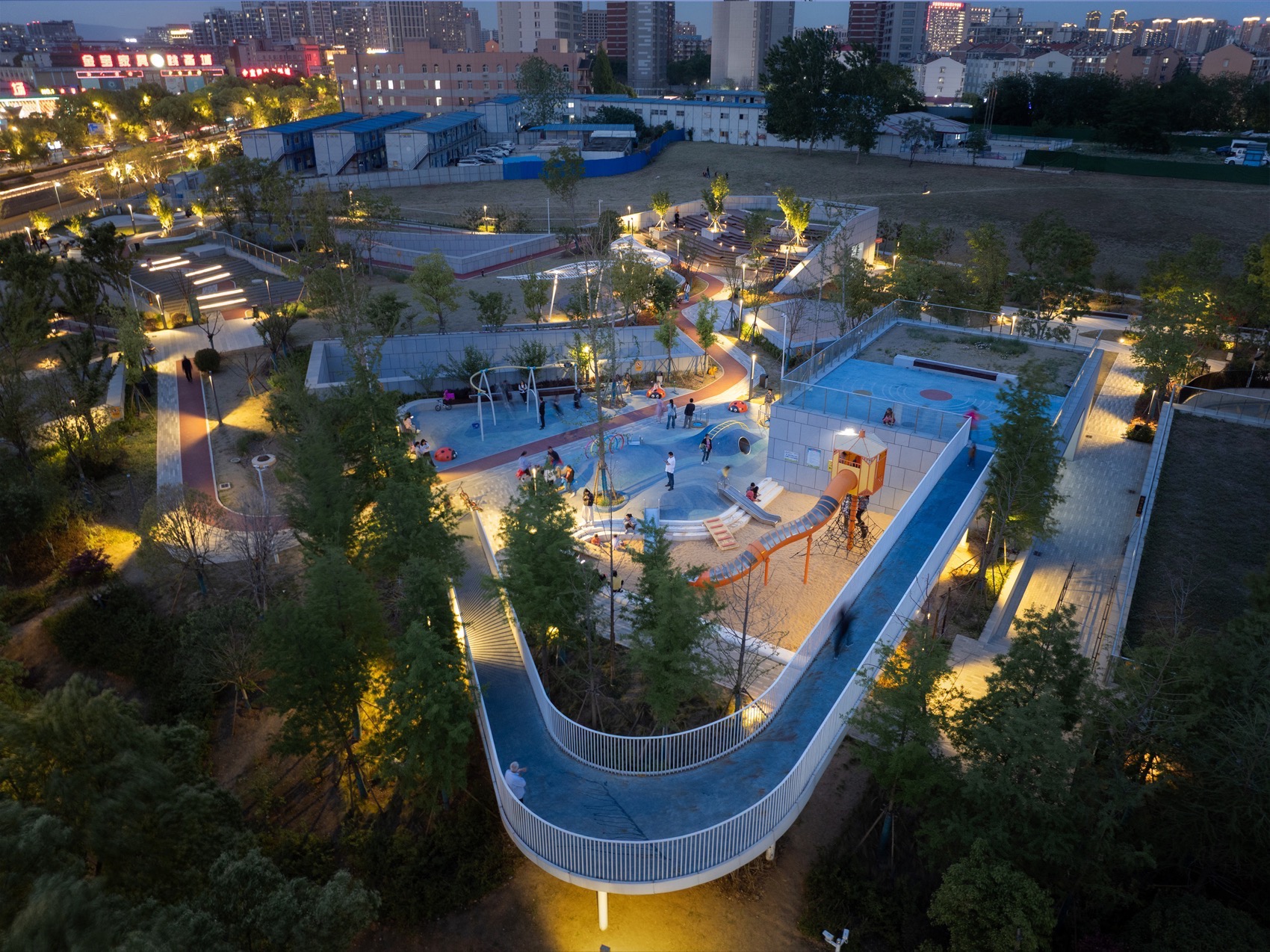

▼儿童活动区傍晚，Children playing space © 时差影像

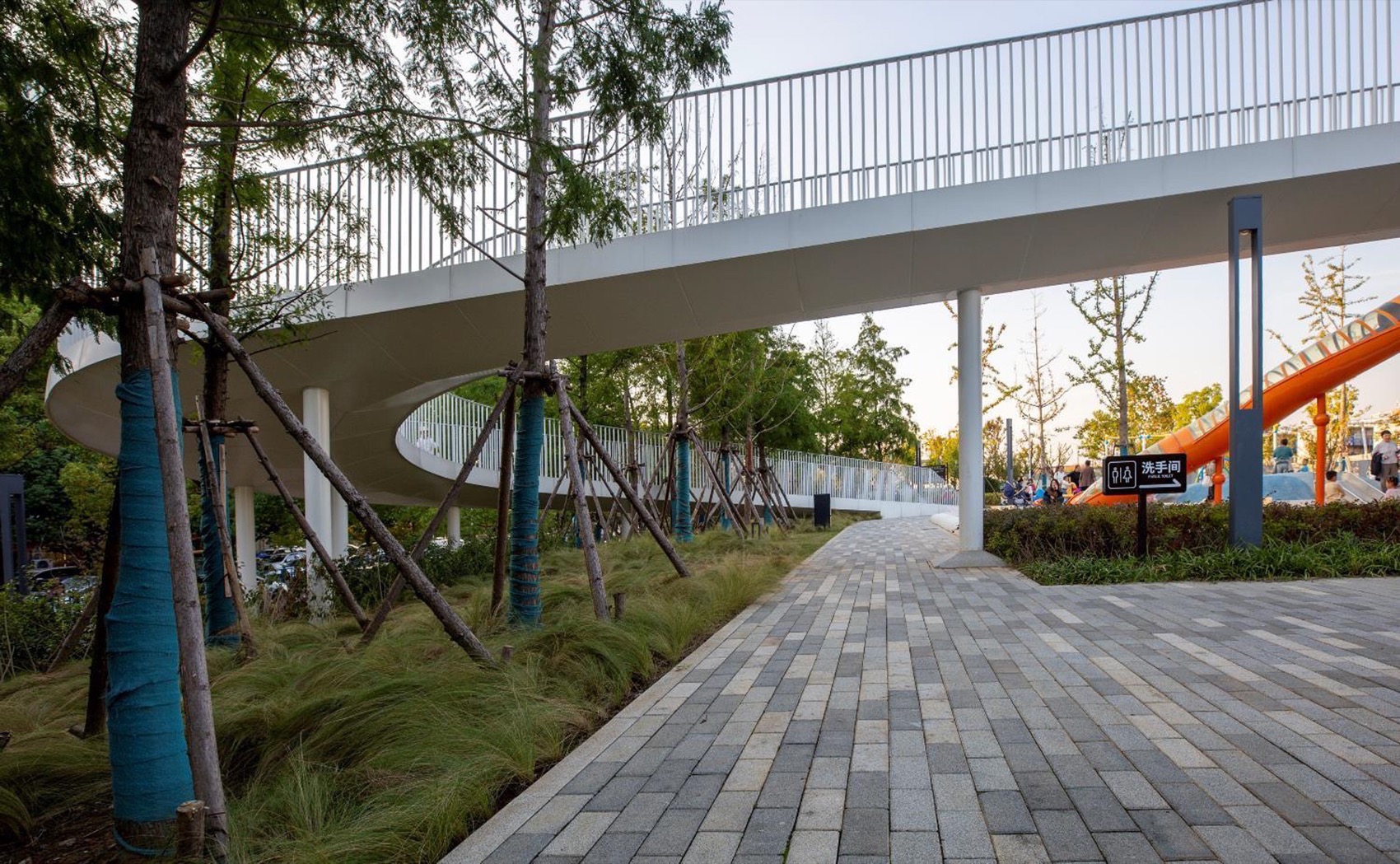

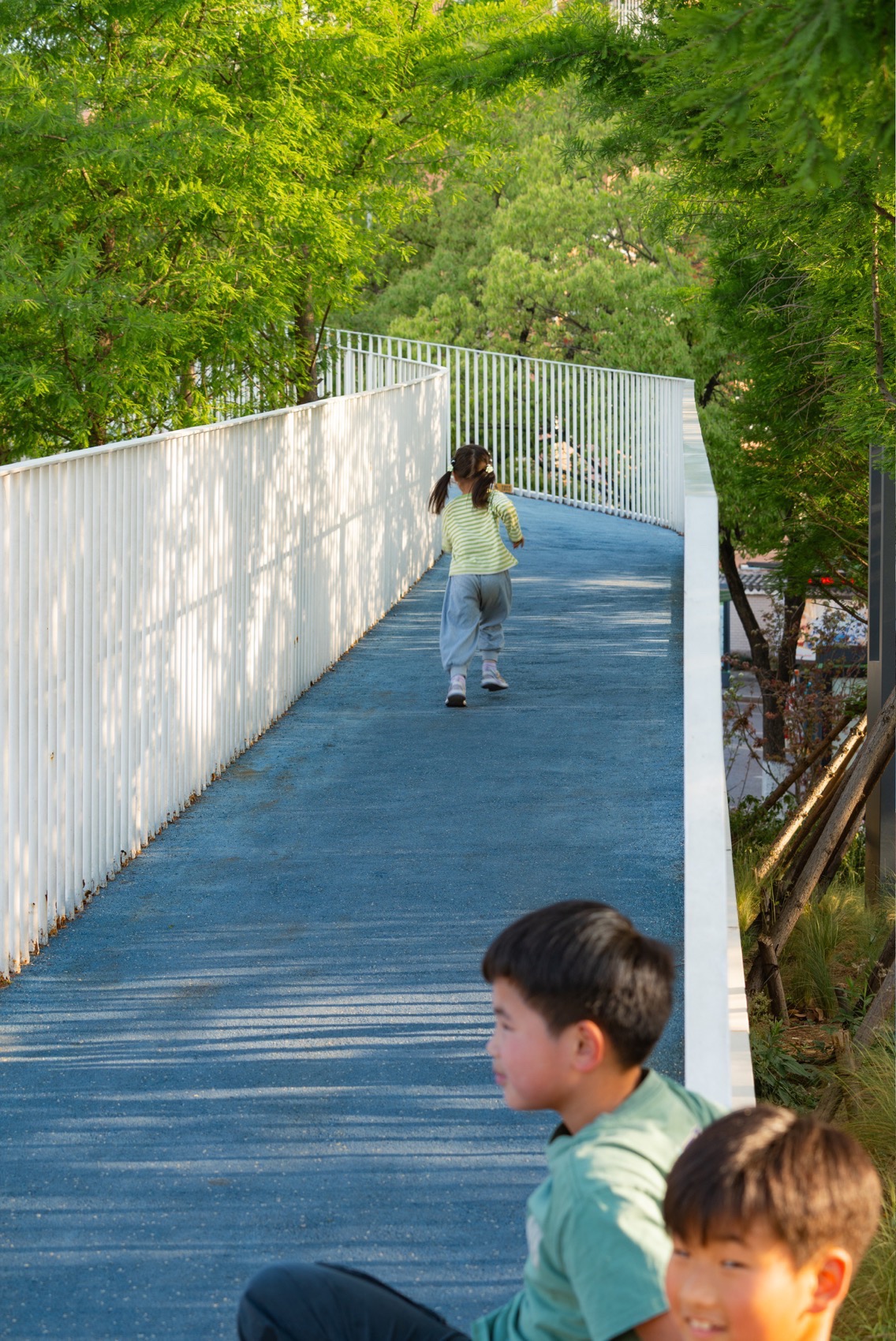

▼架空游戏坡道，Game slope © 时差影像

▼架空游戏坡道，Game slope © 时差影像

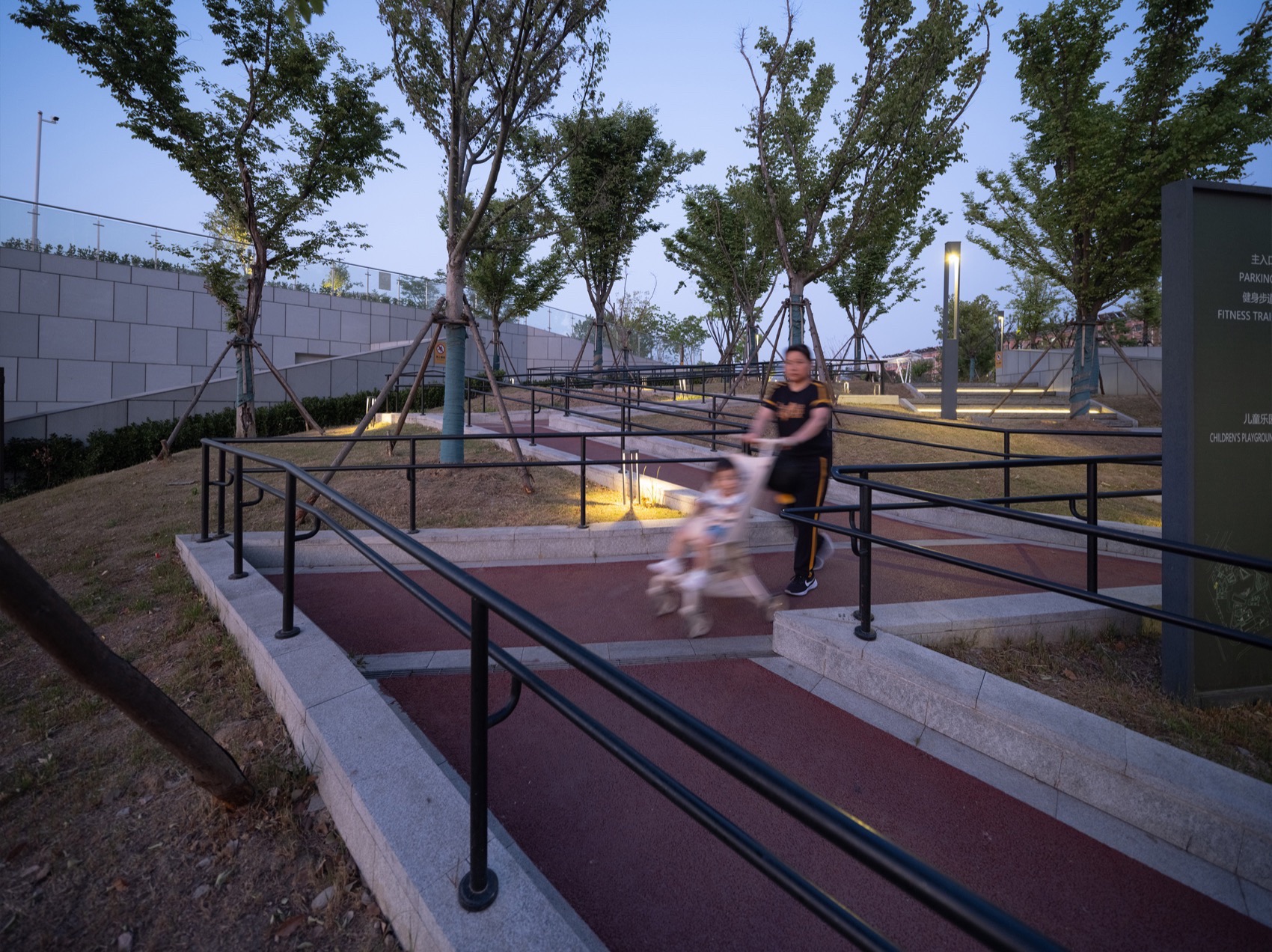

▼坡地，Sloping fields © 时差影像

▼观景台，Landscape view platform © 时差影像

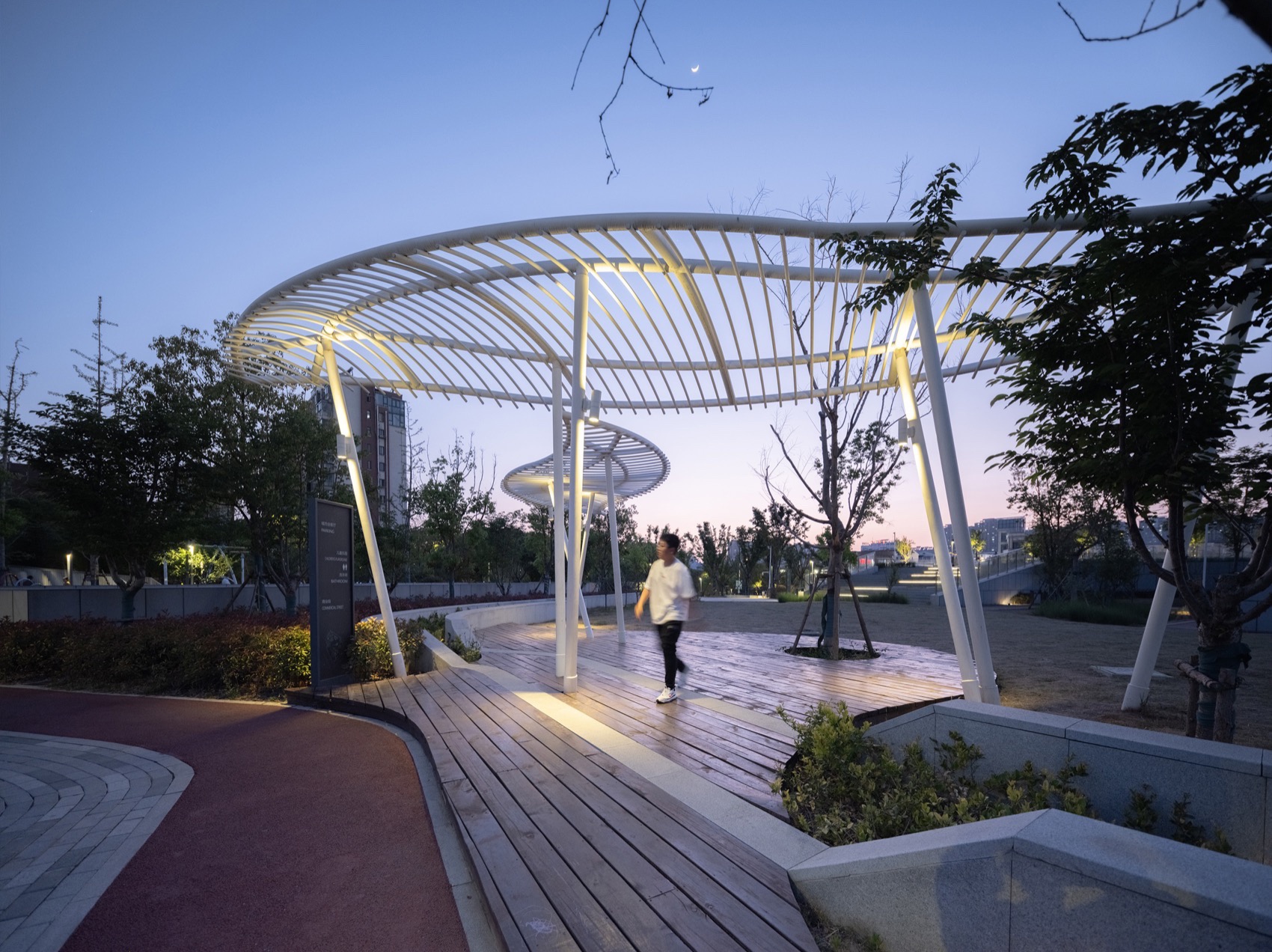

▼观景台，休闲设施，Park Leisure Facilities © 时差影像

3、环境友好-性能优化

Environmentally Friendly – Performance Optimization

结合地形与功能需求的特点，重塑活动场地地形，通过流线引导下的三维空间整体营造，结合下沉通道和三角庭院，以良好的自然通风采光，优化地下空间物理性能，提升人的空间感知品质。在环境友好的基础上，为公共设施地下公共空间能源消耗最小提供运行基础。

Taking into account the characteristics of the terrain and functional requirements, the terrain of the activity area is reshaped. Through the overall creation of a three-dimensional space guided by the flow lines, combined with sunken passages and triangular courtyards, with excellent natural ventilation and lighting, the physical performance of the underground space is optimized, and the quality of people’s spatial perception is enhanced. On the basis of being environmentally friendly, it provides a foundation for minimizing the energy consumption of the underground public space of public facilities for operation.

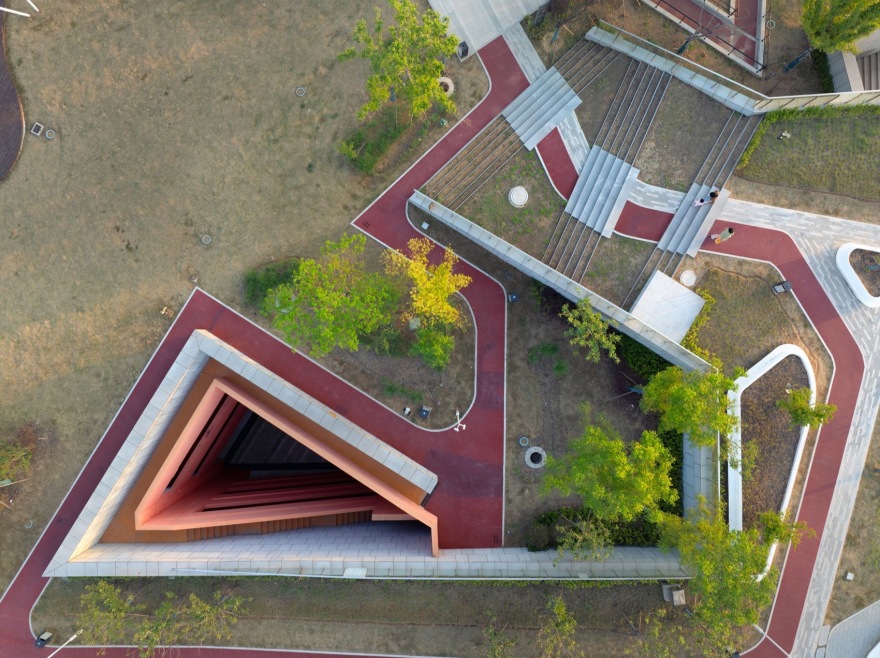

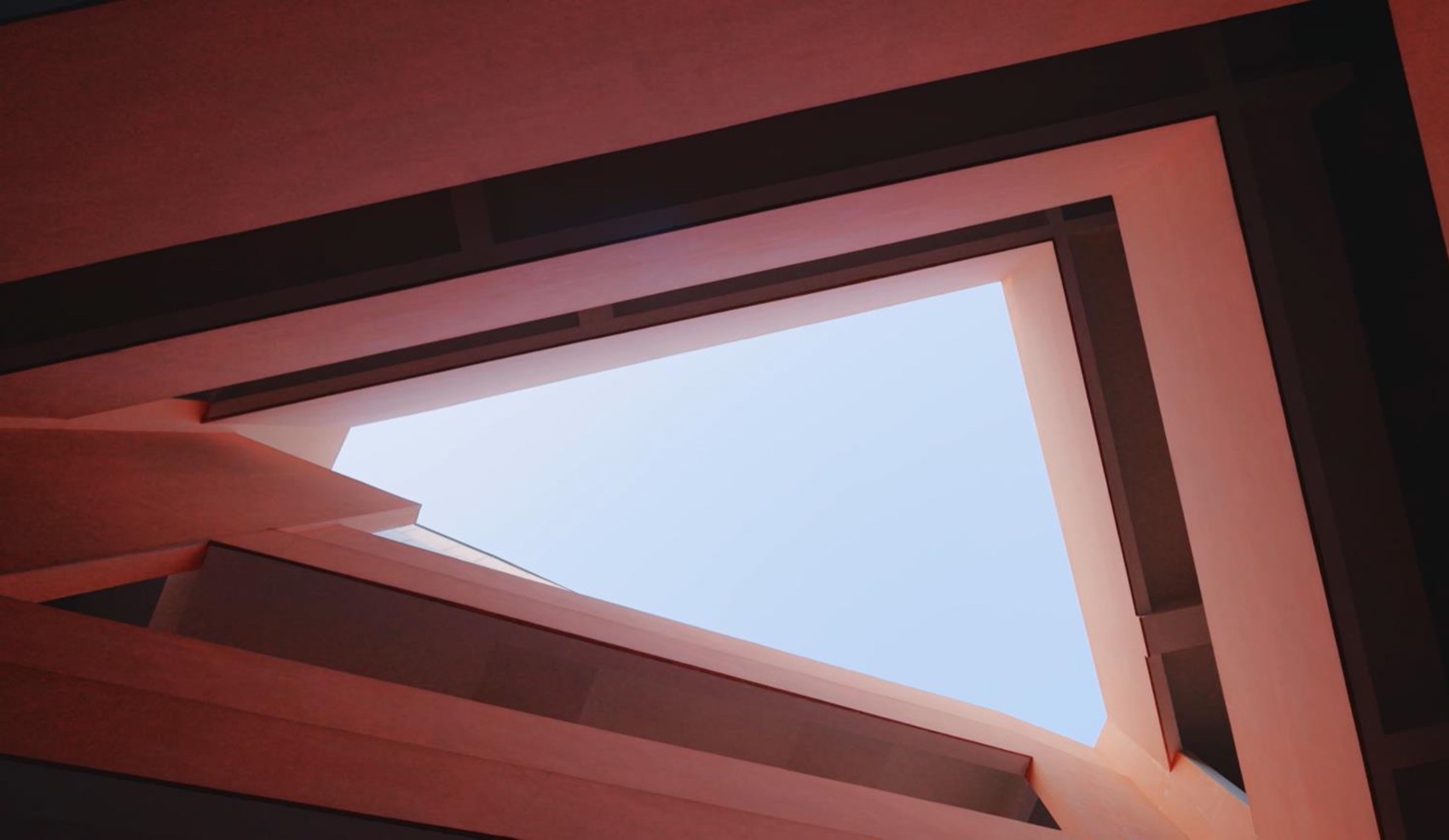

▼下沉式采光天井，Submerged daylighting atrium © 时差影像

▼下沉式采光天井，Submerged daylighting atrium © 许念飞

▼下沉式采光天井通道，Submerged daylighting atrium © 许念飞

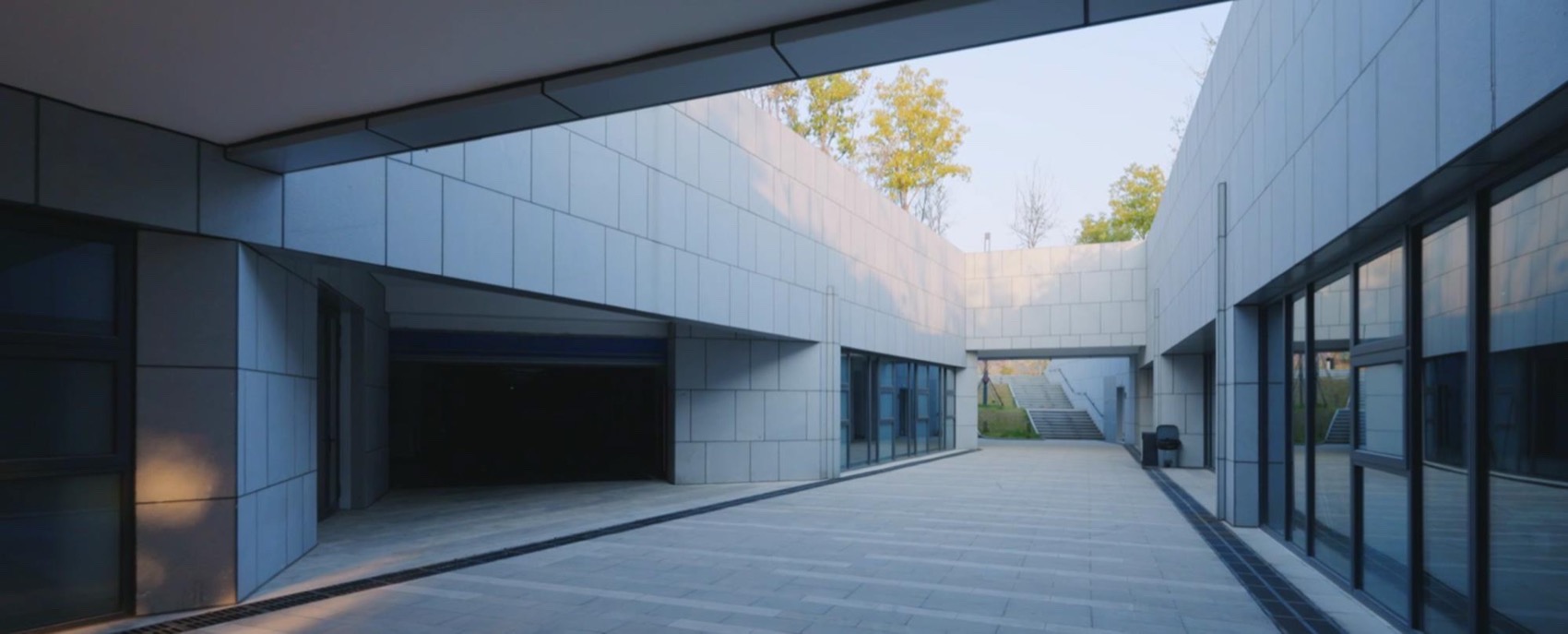

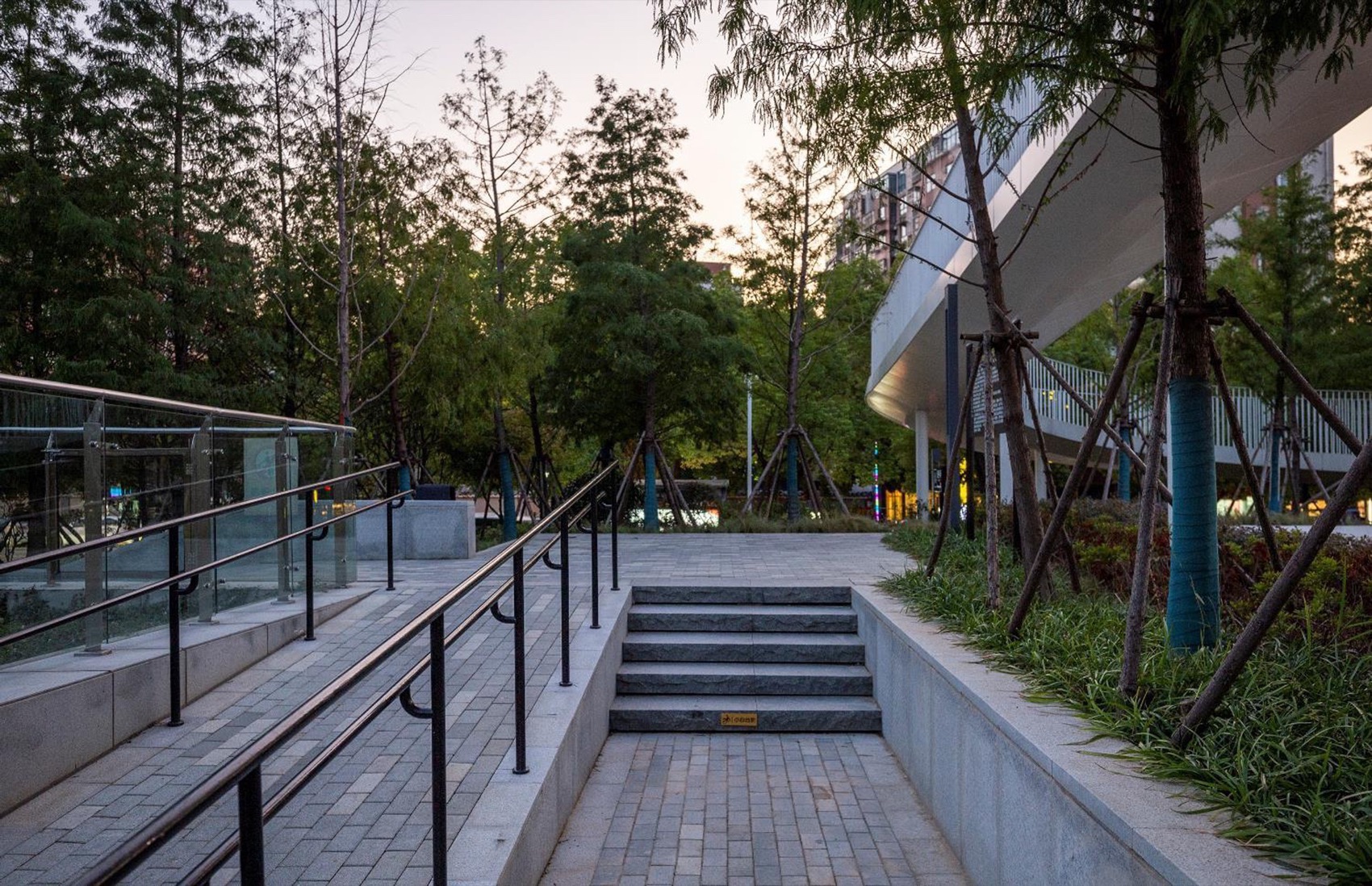

▼下沉式人行通道，Submerged pedestrian passage © 许念飞

▼下沉式人行通道，Submerged pedestrian passage © 时差影像

如今改造的公园绿地在不同的时间，成为周边居民、孩童聚集和休闲的场所，在日常生活与假日成为居民和游客的共享公园，为城市绿地的复合利用带来全新模式，也为城市公共社区生活带来了全新活力。

The renovated park green spaces have become gathering and leisure areas for local residents and children at different times. During daily life and holidays, they have become shared parks for both residents and tourists, bringing a new model for the integrated utilization of urban green spaces and bringing new vitality to urban public community life.

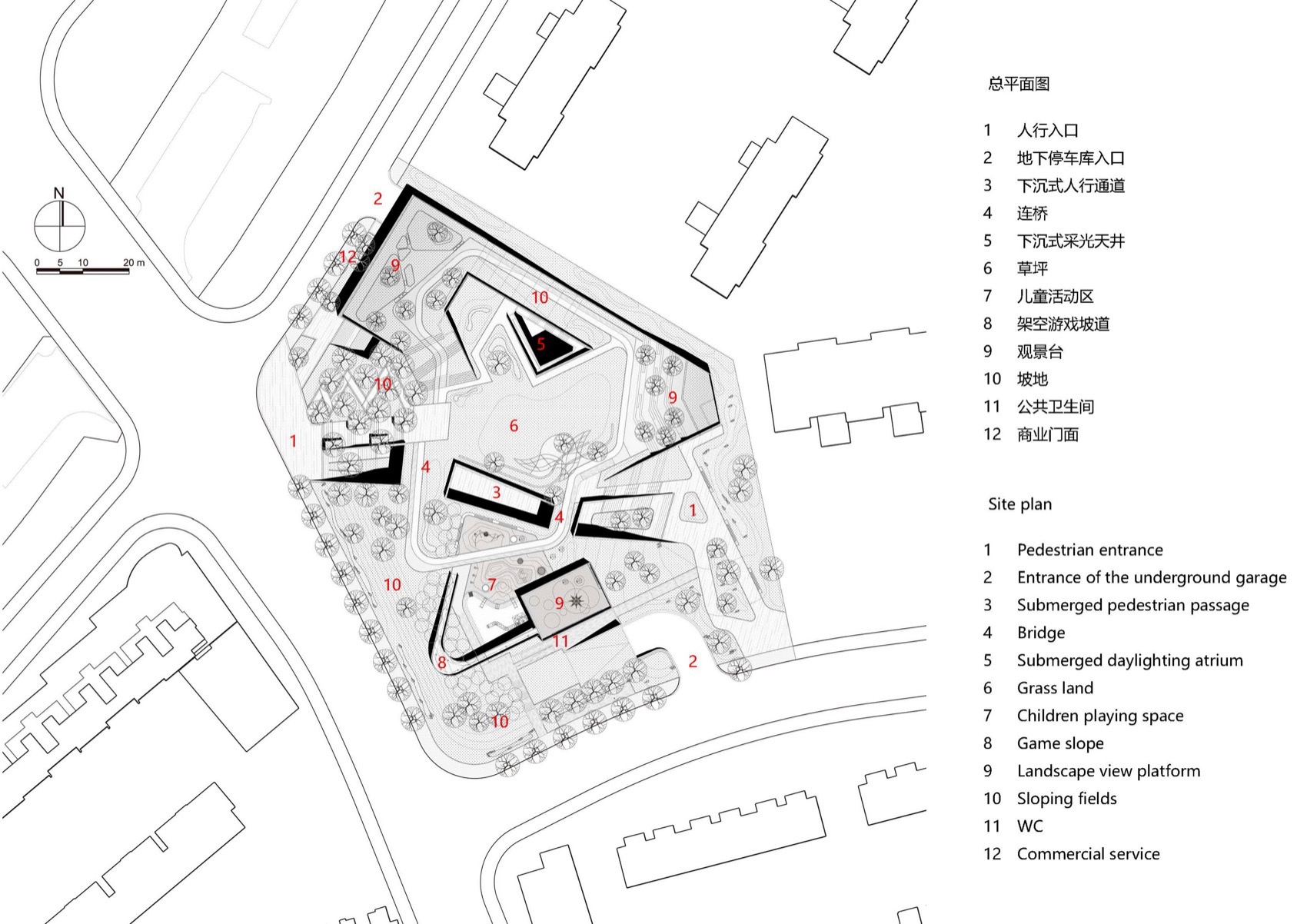

▼总平面图，general plan © 东南大学建筑学院

▼地下一层平面图，first basement plan © 东南大学建筑学院

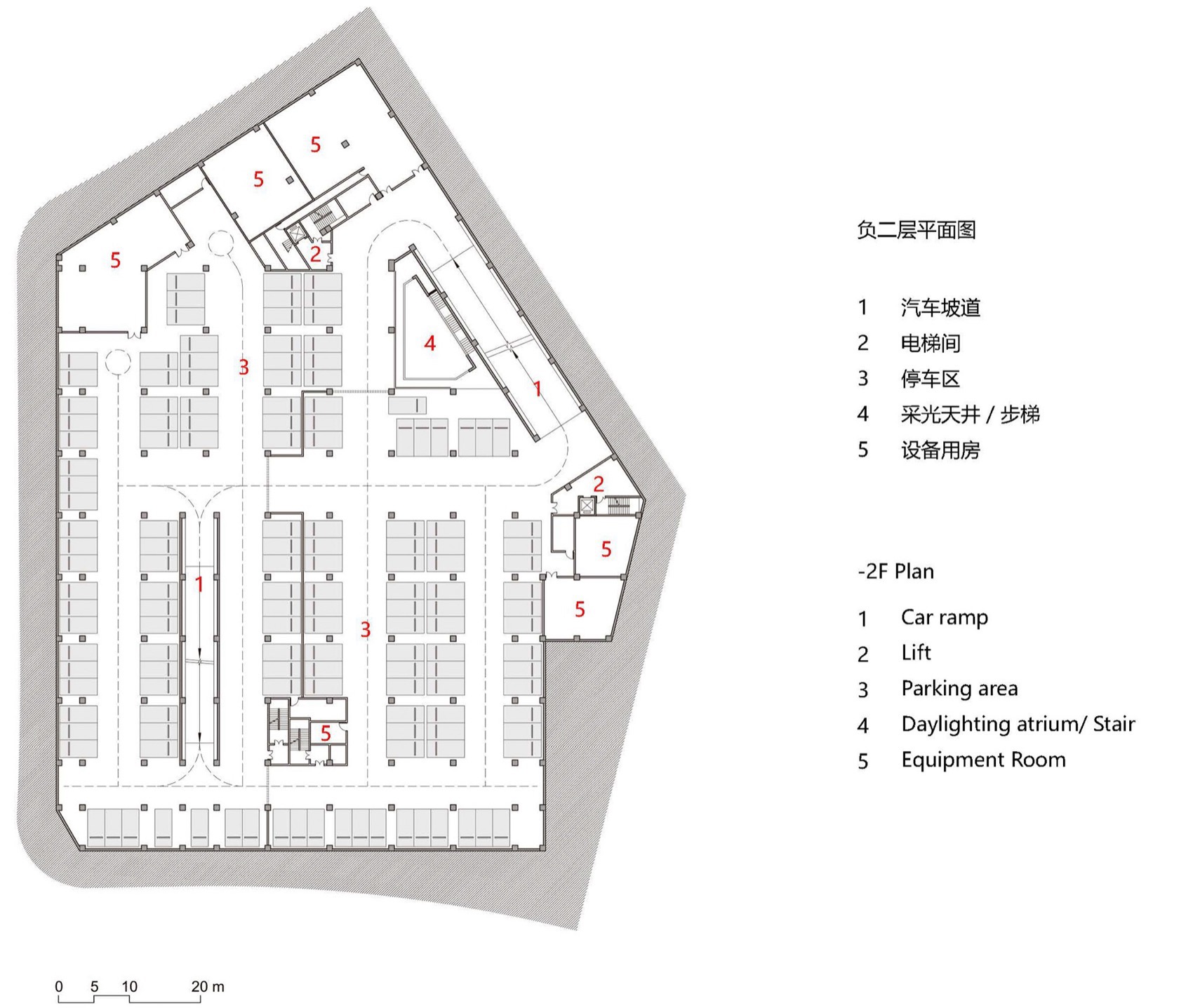

▼地下二层平面图，second basement plan © 东南大学建筑学院

▼地下三层平面图，third basement plan © 东南大学建筑学院

▼结构顶板布置图，structural roof layout plan © 东南大学建筑学院

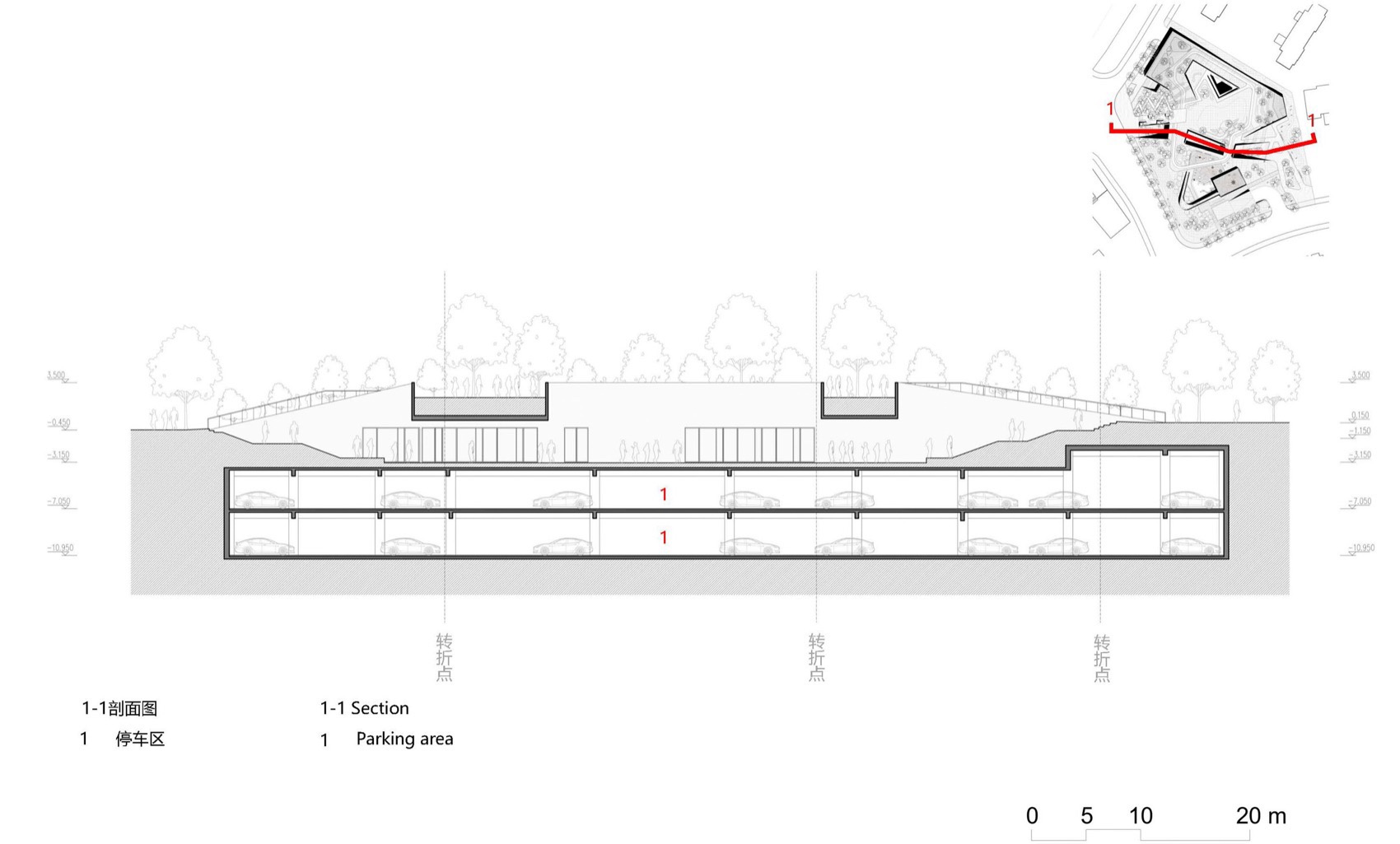

▼1-1剖面图，1-1 section © 东南大学建筑学院

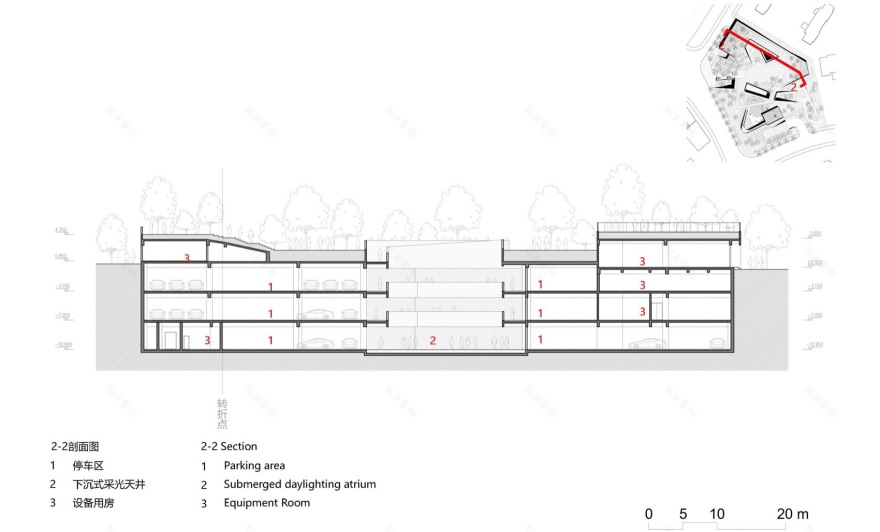

▼2-2剖面图，2-2 section © 东南大学建筑学院

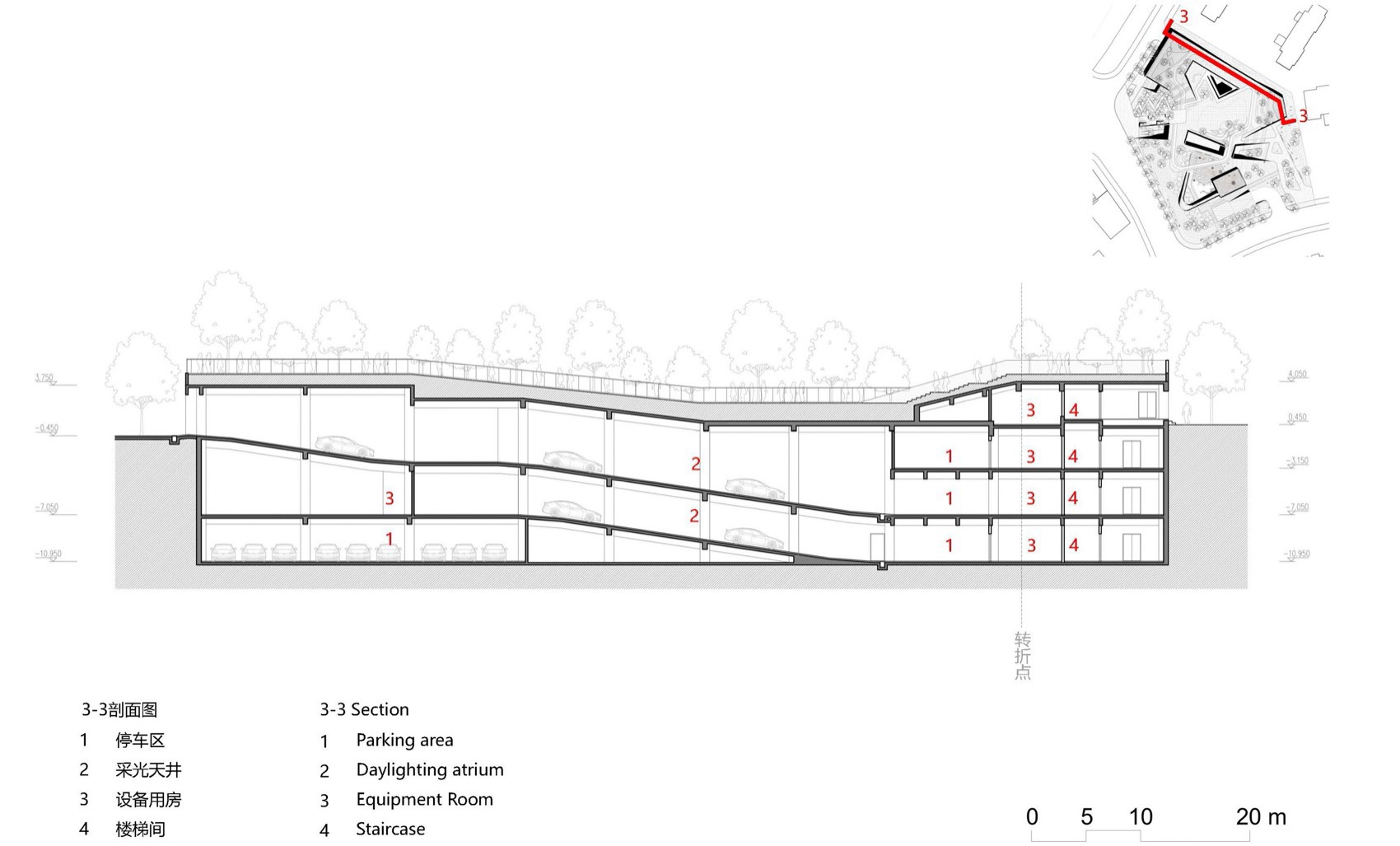

▼3-3剖面图，3-3 section © 东南大学建筑学院

项目名称：停车-公园：日常景观基础设施城市停车公园设计

项目类型：工业建筑与基础设施、场景观建筑

设计方：东南大学建筑学院、正中国际项目管理集团有限公司

项目设计：2022年12月

完成年份：2024年12月

设计团队：朱渊，许念飞，范诚，魏枫，周顺云，梁璧选

项目地址：江苏省南京市江宁区

建筑面积：16289㎡

摄影版权：时差影像、单帧映画、许念飞

合作方：南京宏亚建设集团有限公司

客户：南京江宁停车产业发展有限公司

材料：玻璃、木材、钢材

Project name: Parking – Park: Everyday Landscape Infrastructure Urban Parking Park Design

Design: School of Architecture, Southeast University ,Centric Construction Project Management, CCPM

Design year: December 2022

Completion Year: December 2024

Leader designer & Team: ZHU Yuan, XU Nianfei, FAN Chen, WEI Feng, ZHOU Shunyun，LIANG Bixuan

Project location: Jiangning District, Nanjing, Jiangsu Province

Gross built area: 16289㎡

Photo credit: Time Raw、FPStuido、XU Nianfei

Partner: Nanjing Hongya Construction Group Co., Ltd.

Clients: Nanjing Jiangning Parking Development Co., Ltd.

Materials: Glass、Wood、Steel
