隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron

2025/09/10 12:39:03
查看完整案例
微信扫一扫
收藏
下载
位于日内瓦湖畔,隆奥银行(Lombard Odier)全新的“One Roof”(同一屋檐)总部,将此前分散在日内瓦六处的2000名员工汇聚一处,并可容纳多达2600人。新总部的设计遵循两个核心原则:最大化对自然环境的感知,以及营造促进协作的室内空间,从而实现透明与灵活性的平衡。
Located on the shore of Lake Geneva, the new Lombard Odier ‘One Roof’ headquarters brings together 2,000 employees previously dispersed across six sites in Geneva, while offering capacity for up to 2,600. The new building embraces transparency and flexibility through a design guided by two main principles: maximizing the perception of the natural surroundings and creating interior spaces that foster collaboration.
▼项目概览,overview of the project©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-3

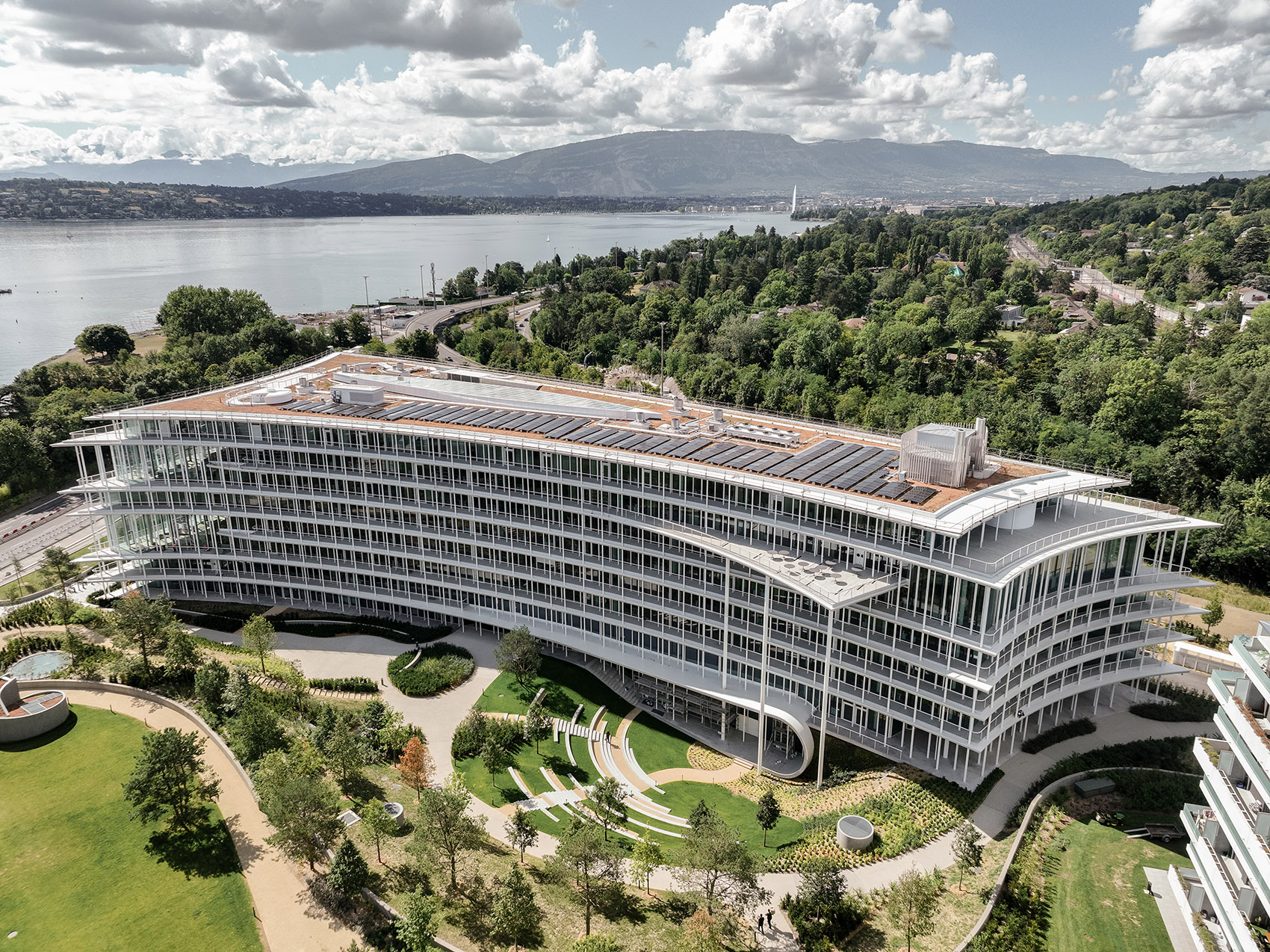

▼项目鸟瞰,aerial view of the project© TBD
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-5
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-6
“One Roof”坐落于日内瓦市中心以北的Bellevue地区,属于2017年“Champ-du-Château”总体规划的一部分。该规划还包含大型住宅区、公园以及地下汽车与自行车停车设施。周边区域以居住属性和丰富的绿地为特征,临近植物园与国际机构聚集的Nations片区。场地通过公共交通与广泛的自行车网络实现了便捷连接。
One Roof is situated in Bellevue, north of Geneva’s city center, as part of the 2017 Champ-du-Château masterplan which includes a large housing complex, a park, and underground car and bike parking. The surrounding area is characterized by its residential nature and abundant green spaces, with proximity to both the botanical gardens and the Quartier des Nations, home to several international organizations. The site offers excellent connectivity through public transportation and links to an extensive bicycle network.
▼透明而开放的全玻璃立面,The transparent, open building, with its fully glazed façades©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-10
最大化自然与日光的感知
Maximizing perception of nature and daylight
建筑的立面处理方式一致,没有明确的正背面。透明而开放的全玻璃立面最大限度地引入“Grand Paysage”——湖泊、群山与绿色景观。峡谷般的中央中庭两侧布置了会议室,使自然光能够渗透至建筑的最深处。
The façades are treated identically, with no distinct front or back. The transparent, open building, with its fully glazed façades, maximizes the perception of le Grand Paysage – the lake, the mountains, and the green surroundings. Through a canyon-like central atrium lined with meeting rooms, natural light reaches even the deepest parts of the building.
▼透明而开放的全玻璃立面,The transparent, open building, with its fully glazed façades©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-16
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-17
协作与社区
Collaboration and community
多样化的工作环境兼顾了私密与专注需求,同时支持协作活动。面向日内瓦湖的双层通高协作空间与餐厅,形成共享的员工公共区,任何人都可以在此开会、工作或仅仅欣赏景色。这些开放空间与客户专属区域交织,包括分布在两层、可眺望湖景的会客厅。
Diverse work environments balance privacy and individual focus with collaborative activities. Communal employee areas such as two double-height collaborative spaces and the restaurant face Lake Geneva, offering uninterrupted views that can be enjoyed by anyone in the building for meetings, work, or simple appreciation. These open spaces are intertwined with client-dedicated areas, including client salons that span two floors and overlook the lake.

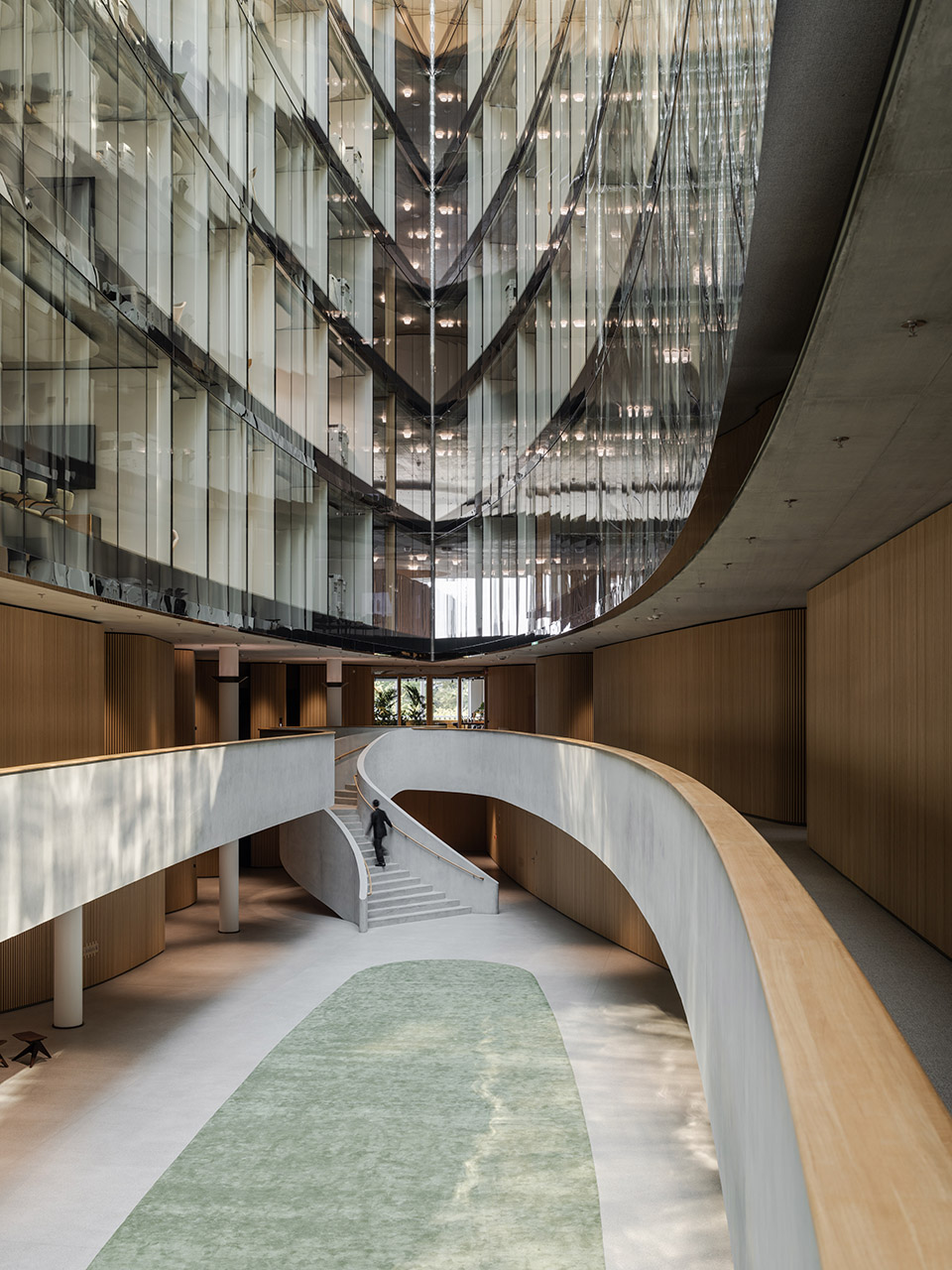

▼流动的层间联系,allowing fluid connections between levels©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-23
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-24

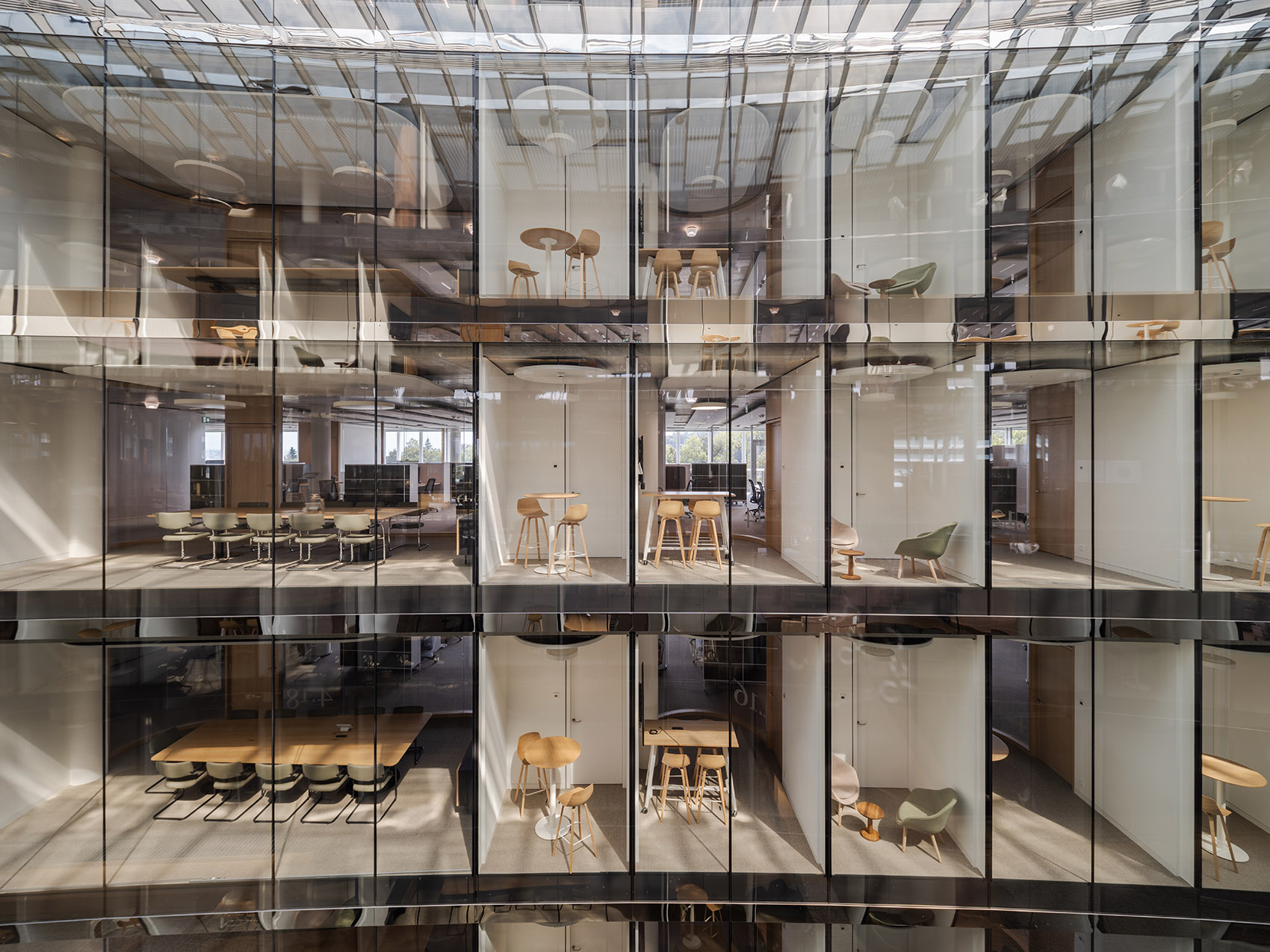

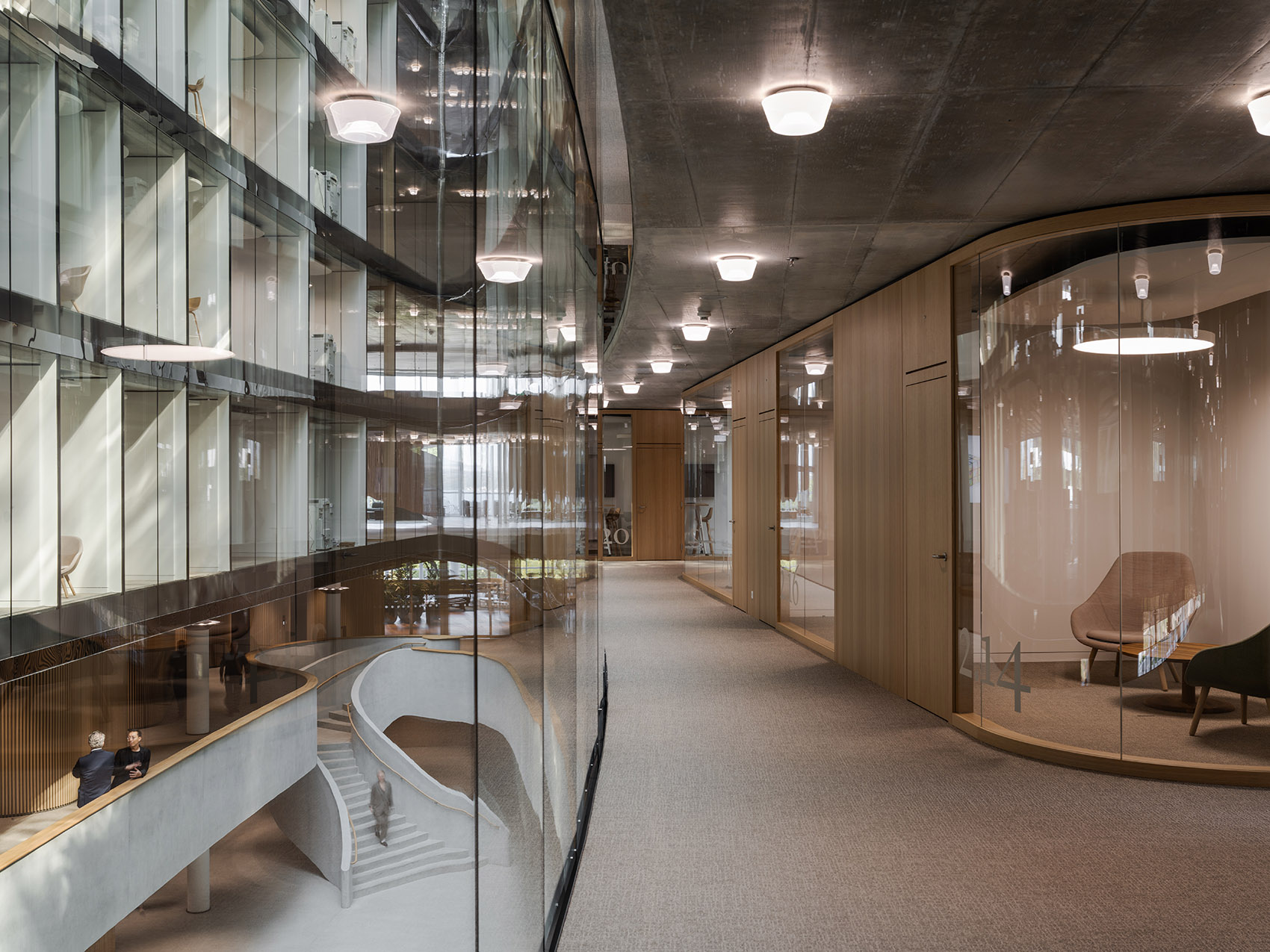

▼全玻璃立面包裹的内廊,The inner corridor wrapped in an all-glass facade©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-26
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-27

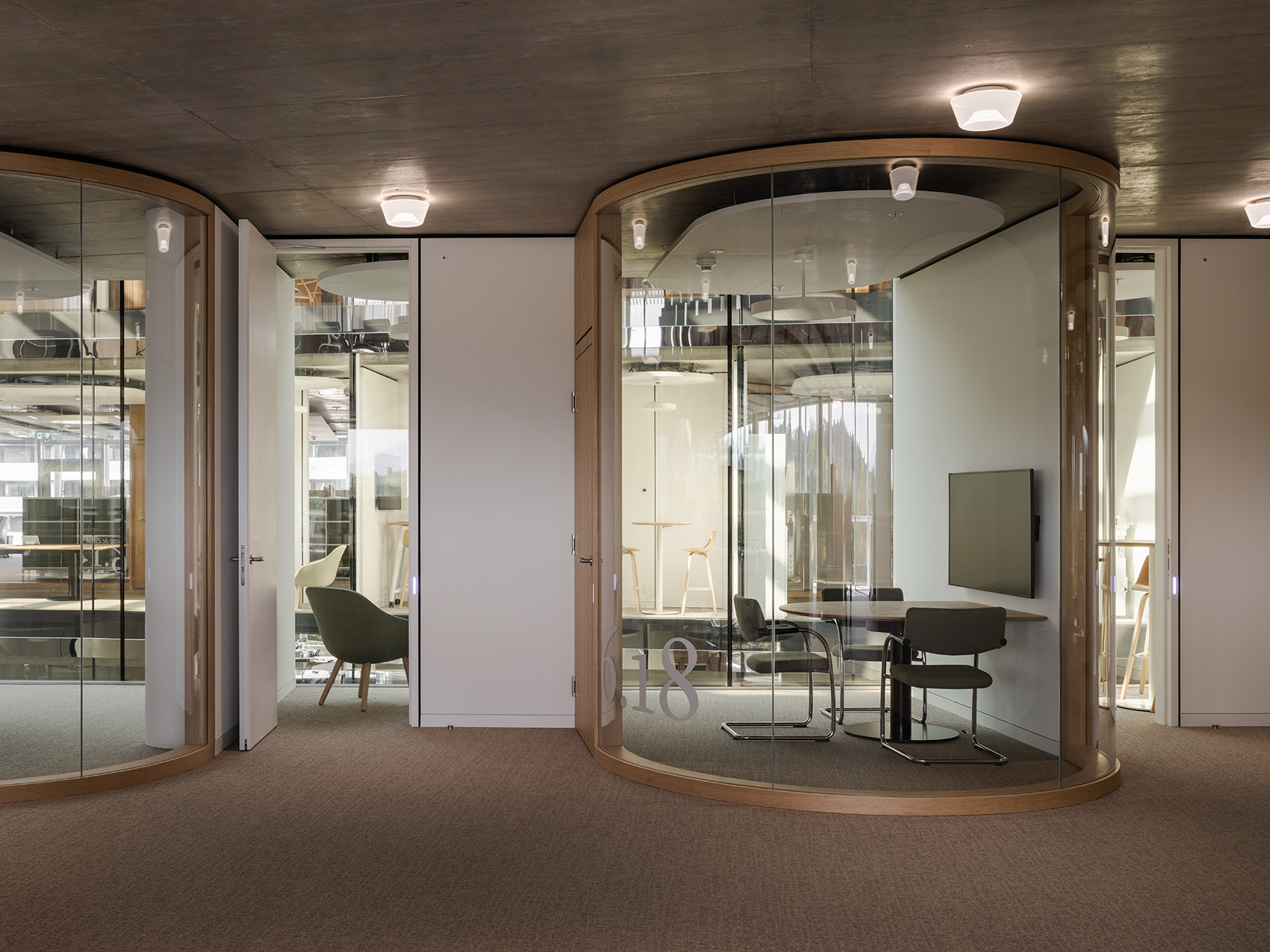

▼不规则性意在唤起自然元素的联想,The building’s irregularities are designed to evoke elements found in nature©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-29
如同希腊圆形剧场般,充满自然光的礼堂向花园敞开,可容纳500多位访客。前排采用独立座椅,逐渐过渡到后区的内置长凳与零散桌面,形成更为轻松的布局。当礼堂不举办大型活动时,后区可作为灵活的空间,用于即兴聚会或小型会议。
Like a Greek amphitheater, the daylit auditorium opens to the garden. The space accommodates more than 500 guests, with individual seating arranged in the front section, gradually transitioning to a more casual arrangement of built-in benches and integrated occasional tables at the back. This design allows the back zone to function as a flexible area for impromptu gatherings and small meetings when the auditorium is not hosting larger events.

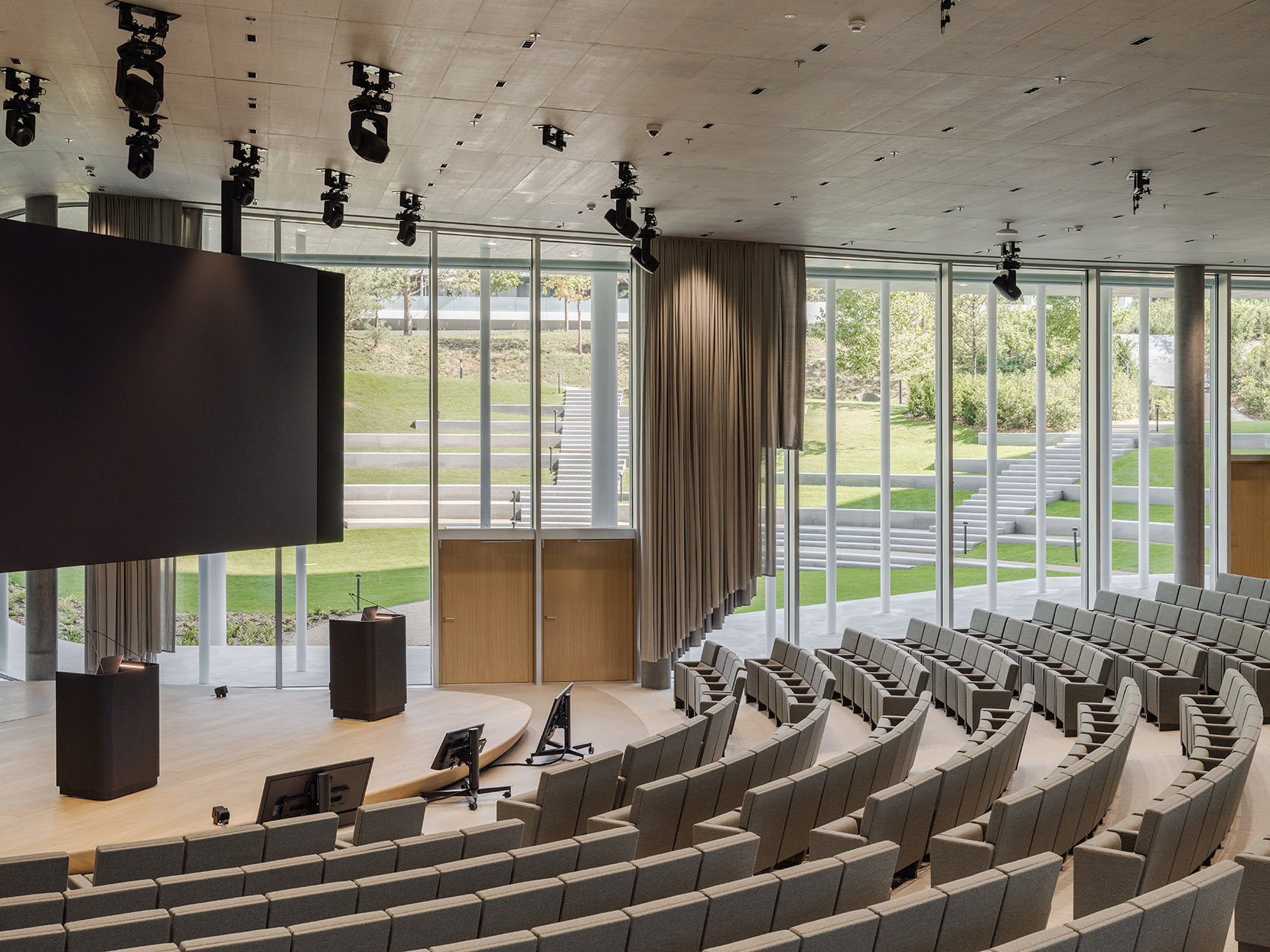

▼充满自然光的礼堂向花园敞开,the daylit auditorium opens to the garden©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-33
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-34
此外,健身区域为员工提供了在工作日中恢复身心的场所,并可开展瑜伽课程与训练。员工在餐饮方面也有多样选择:入口区的小酒馆、一层的餐厅以及六层带有宽阔露台的咖啡厅提供正餐;协作空间的角落则设有小食补给点。两间专业厨房也享有湖景——这是通常被隐藏在后台空间中罕见的意外亮点。
Additionally, a fitness area provides employees with a space to recharge both physically and mentally during the workday, with opportunities for yoga classes and training.
Staff members have a variety of options for meals and coffee breaks. A bistro in the entrance area, a restaurant on the first floor and a sixth - floor cafeteria with wide terraces provide lunch options, while snack corners in the collaborative spaces serve as convenient refreshment points. Food is prepared in two kitchens by professionals that also enjoy lake views – an unexpected feature for a typically back - of - house space.

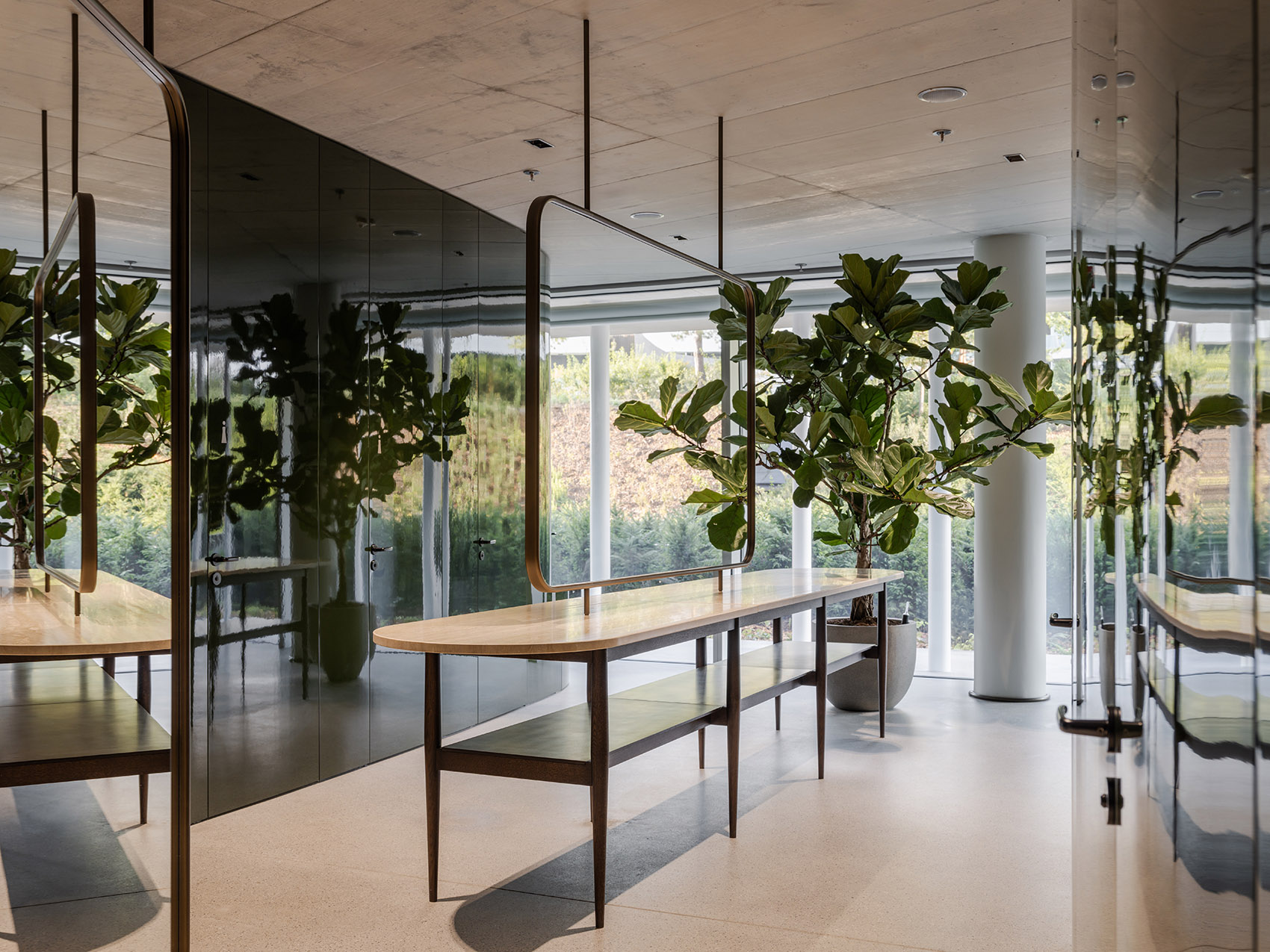

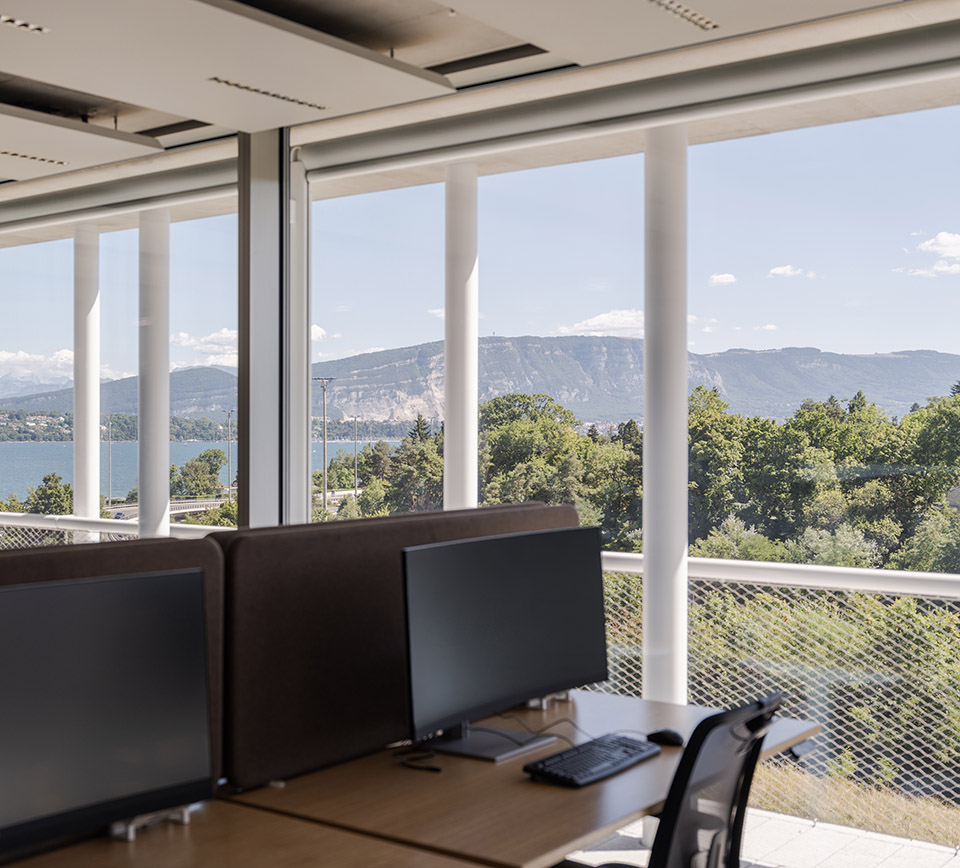

▼享有自然景观的办公区域,the office area facing the natural landscape©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-39
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-40
会“呼吸”的建筑
A building that breathes
建筑以纤薄的弧形楼板为特征,向外悬挑,形成对玻璃立面的被动遮阳,同时为员工与客户提供可进入的半室外空间。弧线并非层层叠加,而是随着功能的变化而调整轮廓,露台的方向与尺度各异,使建筑仿佛在“呼吸”。纤细的白色柱子支撑着露台,并与雨水管及纺织遮阳帘导轨等垂直元素融为一体。悬挑楼板减少了玻璃反射,与退台式的边缘共同增强了建筑的轻盈感。
The building is characterized by thin, curved slabs that cantilever out, providing passive sun shading for the glazed façades and offering accessible, covered outdoor spacesfor staff and clients. The curves are not always superimposed, the contours vary, and the terraces differ in orientation and size according to adjacent programs— the building breathes. Slender, white columns support the terraces and blend with other vertical elements such as rainwater pipes and guides for the textile sun shading. The cantilevering slabs reduce reflections on the glazing, and together with stepped slab edges enhance the airiness of the building.
▼纤细的白色柱子支撑着露台,Slender, white columns support the terraces©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-46
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-47
内部地形
An inner topography
室内空间通过楼板的坡道或楼梯自然过渡,形成流动的层间联系。这种“内部地形”在大型礼堂内外尤为明显:弧形看台向下延伸至下沉花园,构成户外剧场。在一些区域,楼板被切割,创造出多层通高空间,例如北侧的主入口或面向湖景的协作区。建筑的不规则性意在唤起自然元素的联想。
Inside, slabs transition to become ramps or stairs, allowing fluid connections between levels. This inner topography is particularly evident in and around the large auditorium, where the curved stands project out to the sunken garden becoming an outdoor theatre. In specific areas, floor plates are cut to create multi-story spaces, such as the main entrance in the north or the collaborative spaces facing the lake. The building’s irregularities are designed to evoke elements found in nature.

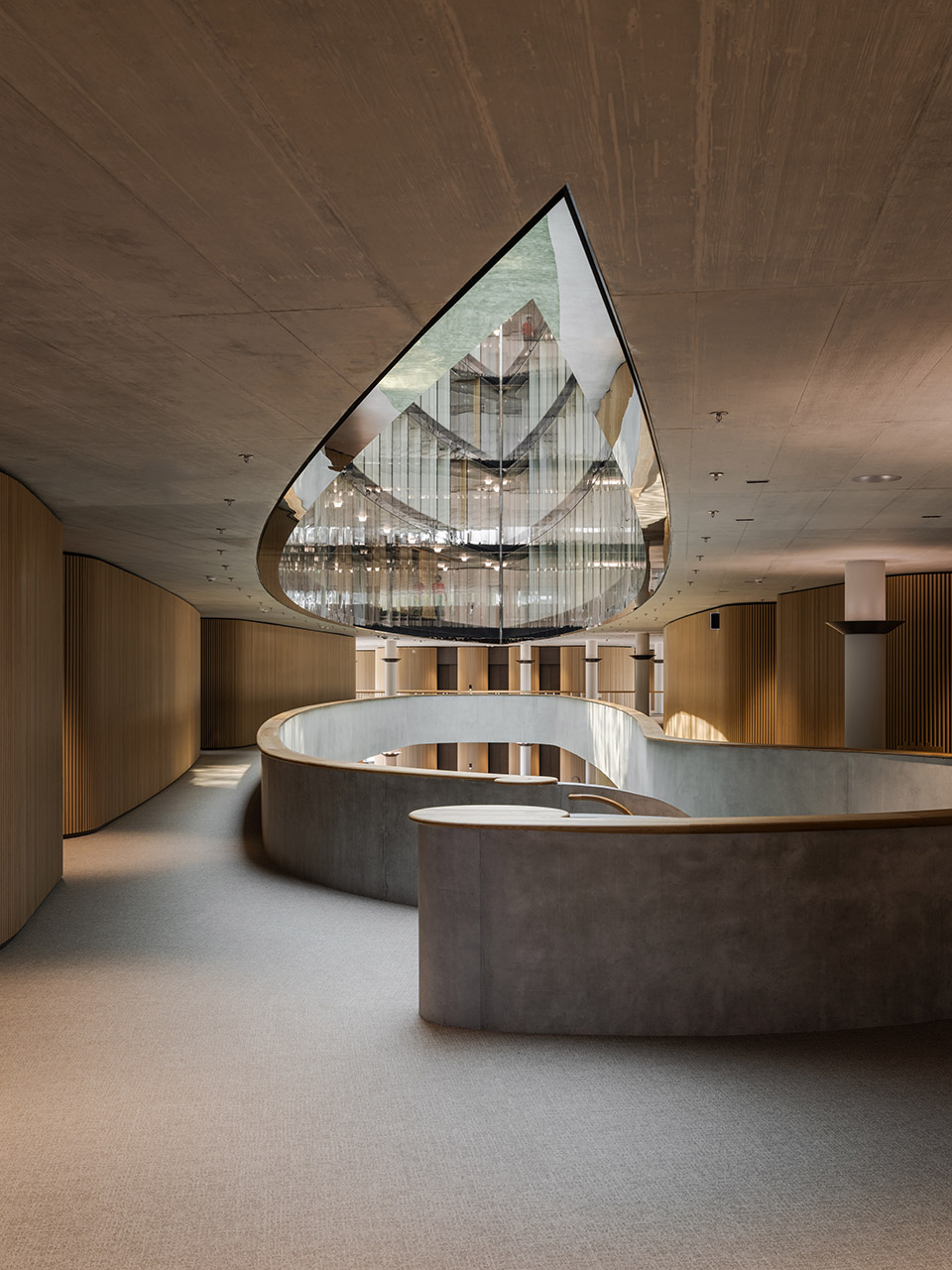

▼室内空间通过坡道或楼梯自然过渡,slabs transition to become ramps or stairs©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-53

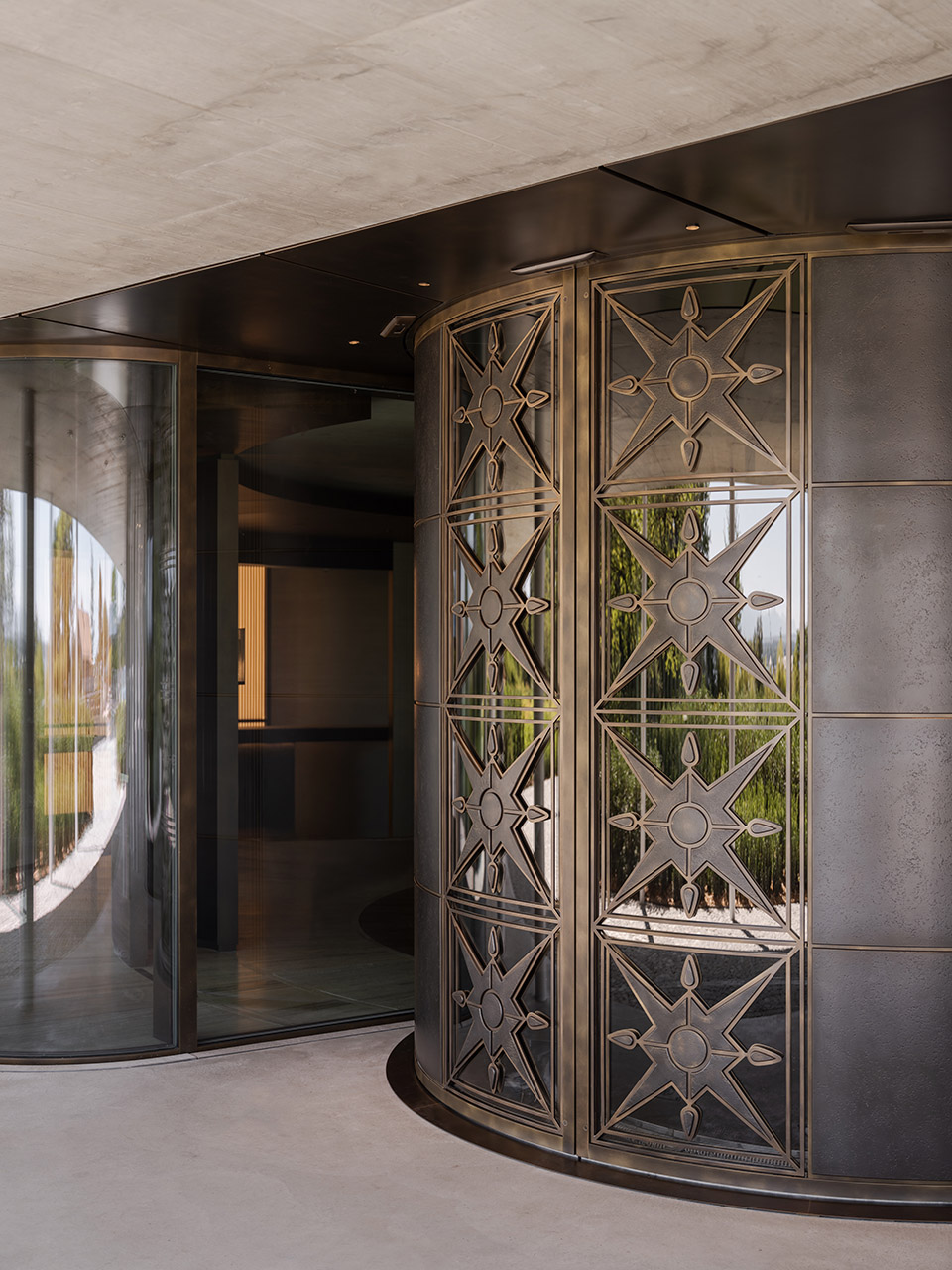

▼不规则细部唤起对自然元素的联想,irregularities are designed to evoke elements found in nature©Maris Mezulis
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-55
可持续性
Sustainability
可持续性在“One Roof”的设计中是核心要素。环境方面,采用本地材料、在筏板基础中使用再生混凝土、雨水收集用于冲厕与灌溉,并在屋顶布置超过700平方米的太阳能板。深悬挑可减少阳光直射,降低冷却需求;GeniLac系统则利用日内瓦湖水进行供暖与制冷。建筑毗邻火车站,配备完善的自行车设施与电动车充电桩,共同构成可持续出行方案。经济可持续性通过灵活设计实现:规则的柱网与竖向交通核心使室内布局能够随公司发展灵活调整,甚至适应多租户使用。社会可持续性则以员工福祉为核心:充足的自然光与四面全景视野创造理想的工作环境,多样化的交流与互动机会提升协作;健身中心与湖泊的临近鼓励运动;丰富的餐饮选择与花园进一步强化新总部的社会属性。将日内瓦的所有办公地点整合于一处,“One Roof”优化了运营的碳足迹,强化了组织的认同感与凝聚力,并营造出兼具协作与户外体验的理想工作环境。该建筑目标获取三项认证:瑞士可持续建筑标准(SNBS)“白金级”、Minergie - P,以及BREEAM®“杰出级”。
Sustainability, in all its dimensions, is integral to design of One Roof. On the environmental side, key features include locally sourced materials, recycled concrete for the raft foundation, rainwater collection for toilets and vegetation, and over 700 square meters of rooftop solar panels. Deep cantilevers protect windows from excessive direct sunlight, reducing cooling requirements, while the GeniLac system uses water from Lake Geneva for heating and cooling. The building’s location adjacent to a train station, comprehensive bicycle facilities, electric vehicle charging stations are part of a sustainable mobility concept. Economic sustainability is achieved through a flexible design – a regular column grid and vertical circulation allow for versatile interior arrangements as the company evolves, or for the accommodation of multiple tenants. Social sustainability centers on people’s wellbeing. An abundance of natural light on all floors and panoramic views from all sides create an ideal working environment, while various opportunities for exchange and interaction enhance collaboration. The fitness center and proximity to the lake encourage sports activities, which, combined with the variety of dining options and the garden, enrich the social dimension of the new headquarters. By bringing all of Lombard Odier’s Geneva sites together, ‘One Roof’ optimizes the carbon footprint of operations, strengthens the organizational identity and unity, and creates an attractive work environment with abundant collaborative and outdoor spaces. The building aims for three certifications: SNBS (Standard Nachhaltiges Bauen Schweiz) “Platine”, Minergie-P, and BREEAM® “Outstanding”.

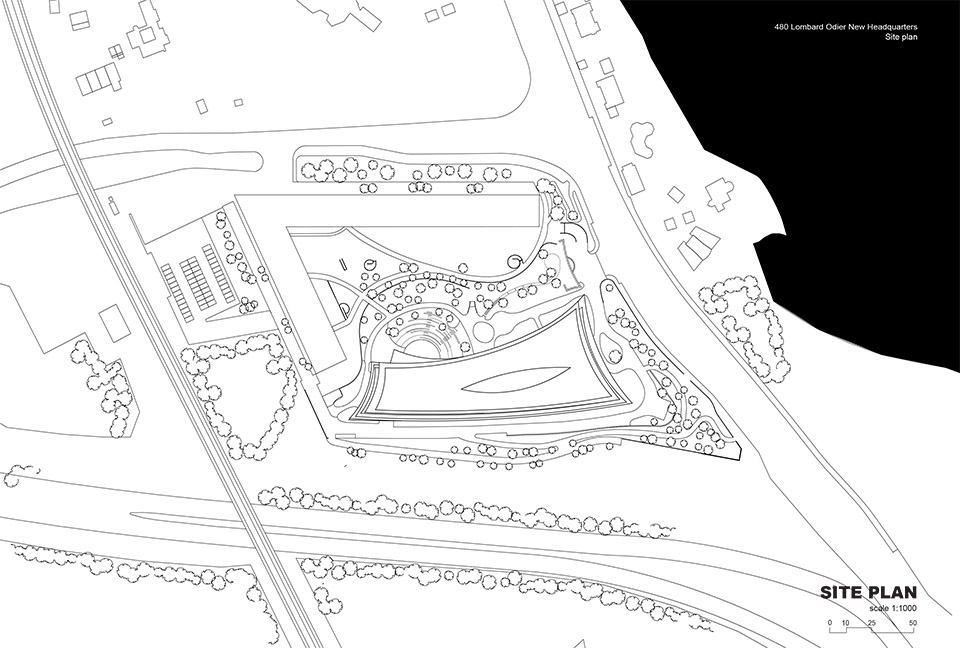

▼场地平面,site plan©Herzog & de Meuron
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-61

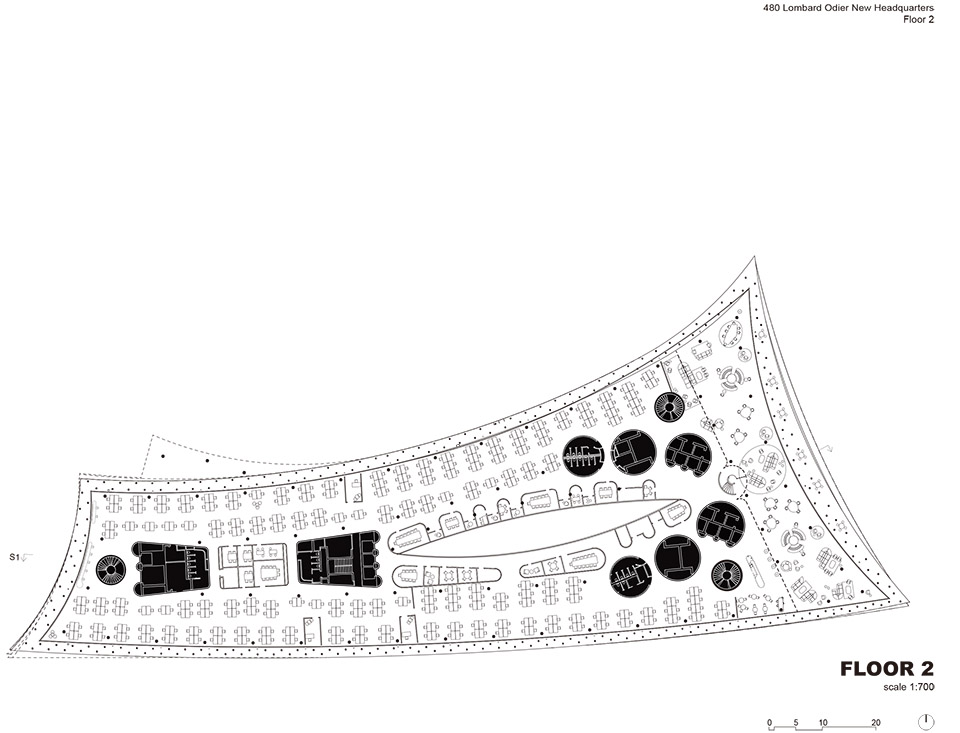

▼二层平面,second floor plan©Herzog & de Meuron
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-63

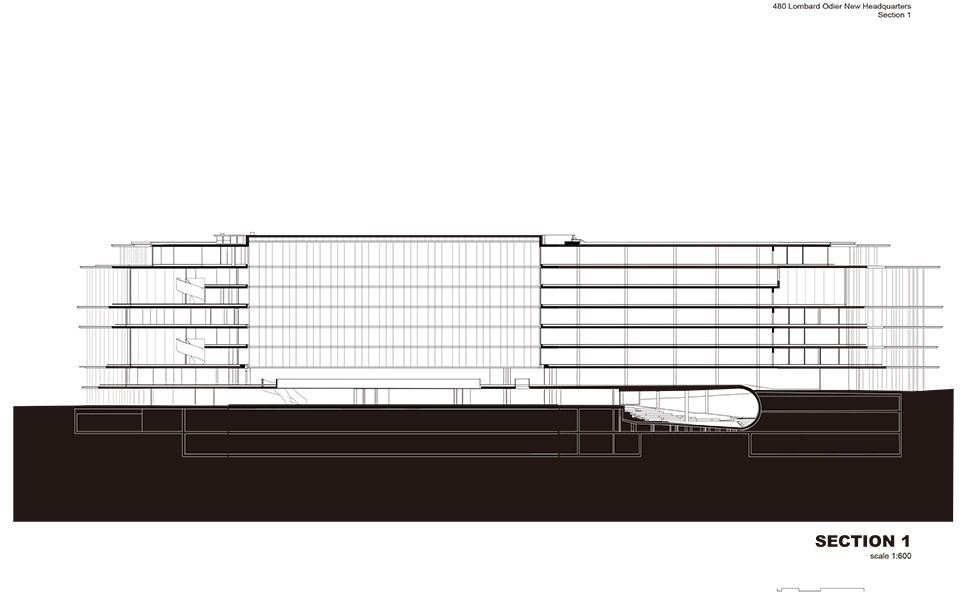

▼剖面,section©Herzog & de Meuron
隆奥银行全新“One Roof”总部丨瑞士日内瓦丨Herzog & de Meuron-65
Project Number 480
Project Official Name Lombard Odier New Headquarters
Location Bellevue, Geneva, Switzerland
Project Phases
Concept Study Jul 2017 – Sep 2017
Schematic Design Nov 2017 – Sep 2018
Design Development Oct 2018 – Feb 2020
Construction Documents Feb 2020 – May 2025
Construction Services Oct 2020 – Oct 2025
Milestones
Topping-out 21 June 2022
Cornerstone 28 Oct 2020
Building authorisation 26 Jul 2020
Banque Lombard Odier & Cie SA, Geneva-Bellevue, Switzerland
Herzog & de Meuron Project Team
Partners: Jacques Herzog, Pierre de Meuron, Christine Binswanger (Partner in Charge)
Project Team: Jean-Claude Cadalbert (Project Director, since 2018), Sebastian Hefti (Project Manager, until 2020), Philipp Schaefle (Project Architect, until 2019), Raymond Gaëtan (Associate, Project Director, until 2018), Sidney Bollag (Project Manager, since 2024) Roman Aebi (Workshop), Emmanuelle Agustoni, Rui Alves, Maël Barbe, Mélanie Bauer, Michal Baurycza (Visualizations), Aglaia Beer, Maxime Beljansky, Alexander Berger (Legal), Matteo Berti, Brigitte Coremans (Interiors), Morgan Delvaux, Natalie Donat-Cattin, Alan Farquharson, Ciarán Grogan, Emmanuel Guilloux, Salomé Hirsch, Mirjam Imgrüth, Adi Krainer, Sahng O Lee (Design Technologies), Louise Lemoine, Eytan Levi, Gia My Long (Design Technologies), Cristina Moldes Andres, Neda Mostafavi, Benjamin Muller (Design Technologies), Léonore Nemec, Raneen Nosh, Albert Palazón, Arnaud Paquier, Alois Rosenfeld, Sandra Sarkunaite, Claire Sarrazin, Günter Schwob (Workshop), Hugh Scott Moncrieff, Iris Séné, Elisa Siffredi, Christian Szalay, Thomas de Vries (Associate), Martin Zizka
