ToTbar&snax酒吧室内改造，上海｜TUO建筑设计事务所+有余建筑

© half.half.photography

ToT bar&snax

旨在为上海提供具有深度、技术和细节的鸡尾酒体验。因此，

TUO

建筑设计事务所和有余建筑希望空间设计能够延续其专业性，从场地现状出发，打造一个以鸡尾酒和调酒师为核心的专业酒吧。

ToT bar & snax aims to create a cocktail experience in Shanghai that is defined by sophistication, expertise, and precision. Therefore, atelier TUO and Studio YO-U aim for the spatial design to reflect this professionalism, starting from the existing site conditions to create a professional bar centered around cocktails and mixologists.

© half.half.photography

酒吧位于街道转角处的台阶之上。场地原为餐厅，业主希望厨房部分保持不变，以支持酒吧的供餐需求，同时保留空调等设备。

The bar is located on a set of steps at the corner of a street. The site was formerly a restaurant, and the existing kitchen has been retained to support the bar’s food service needs, along with equipment such as the air conditioning.

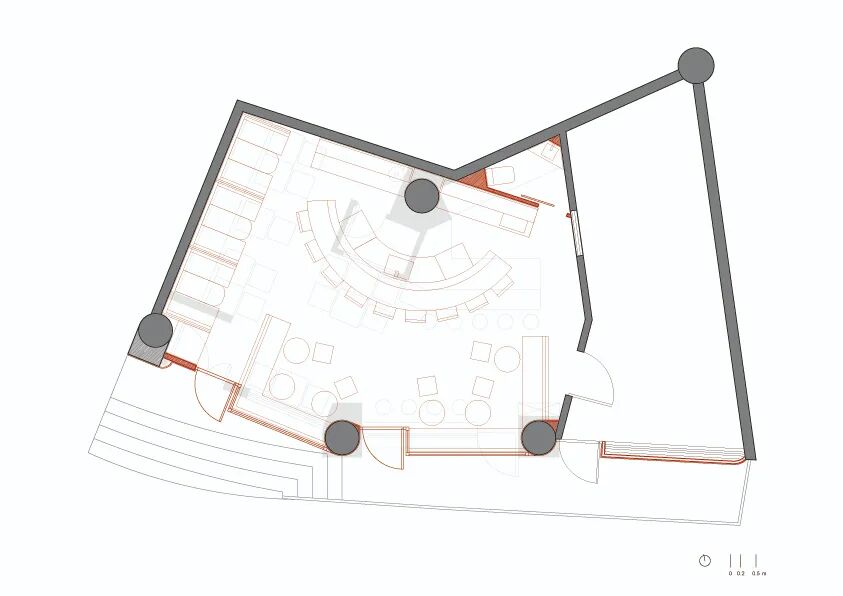

平面图

Floor Plan

前后平面对比图

Floor Plan Comparison

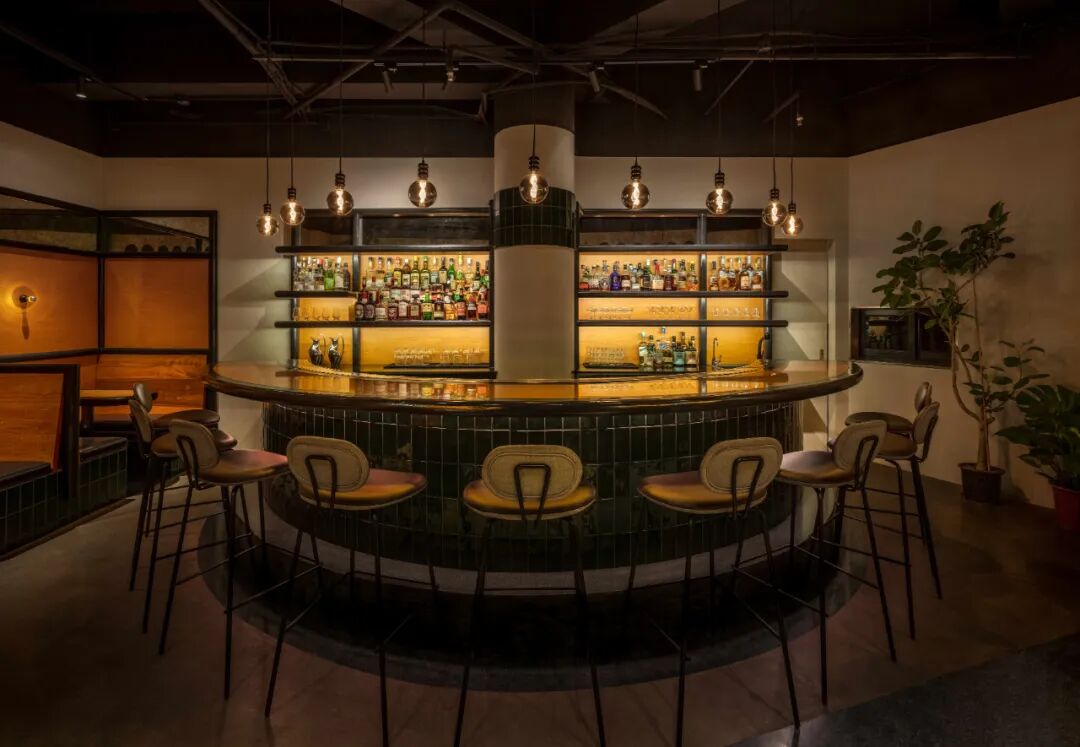

拆除旧墙体后，一根柱子呈现在场地中央，并向四周发散出几道梁，形成类扇形空间。平面方案围绕这根

“

核心

”

柱子展开，以柱子为中心规划酒吧的核心

——

调酒吧台，并围绕调酒师设置了

9

个吧台座位。剩余空间一侧设有三组卡座区，另一侧则为灵活布置的散座区。

After the demolition of the old walls, a column was revealed at the center of the space, with several beams radiating outward from it, forming a fan-like layout. The floor plan is organized around this

“

core

”

 column, with the bar

’

s centerpiece

—

the cocktail bar counter

—

planned at its heart. Nine bar seats are arranged around the bartender. On one side of the remaining space are three booth seating areas, while the other side features a more flexible arrangement of loose tables and chairs.

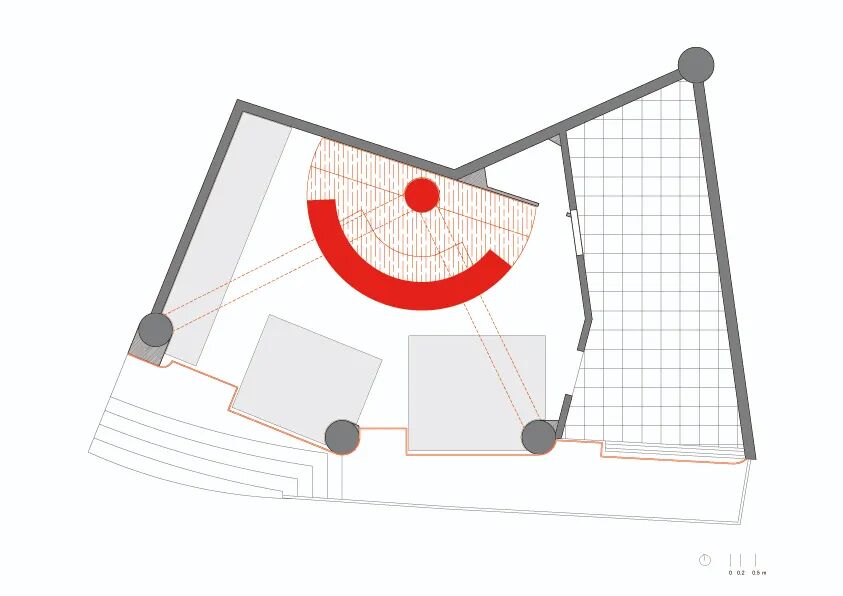

平面概念图

Concept Floor Plan

© half.half.photography

设计希望在细节上体现酒吧的自我定位。方案从材料和构造出发，克制地使用装饰手法，以呈现每种材料的必要性。设计如下：

黑色石材

用于

地面材料和吧台脚

踏，便于清洁和抗磨损。

小尺寸瓷砖

用于吧台侧面和卡座基座，便于施工以适应弧线和小尺寸的卡座。

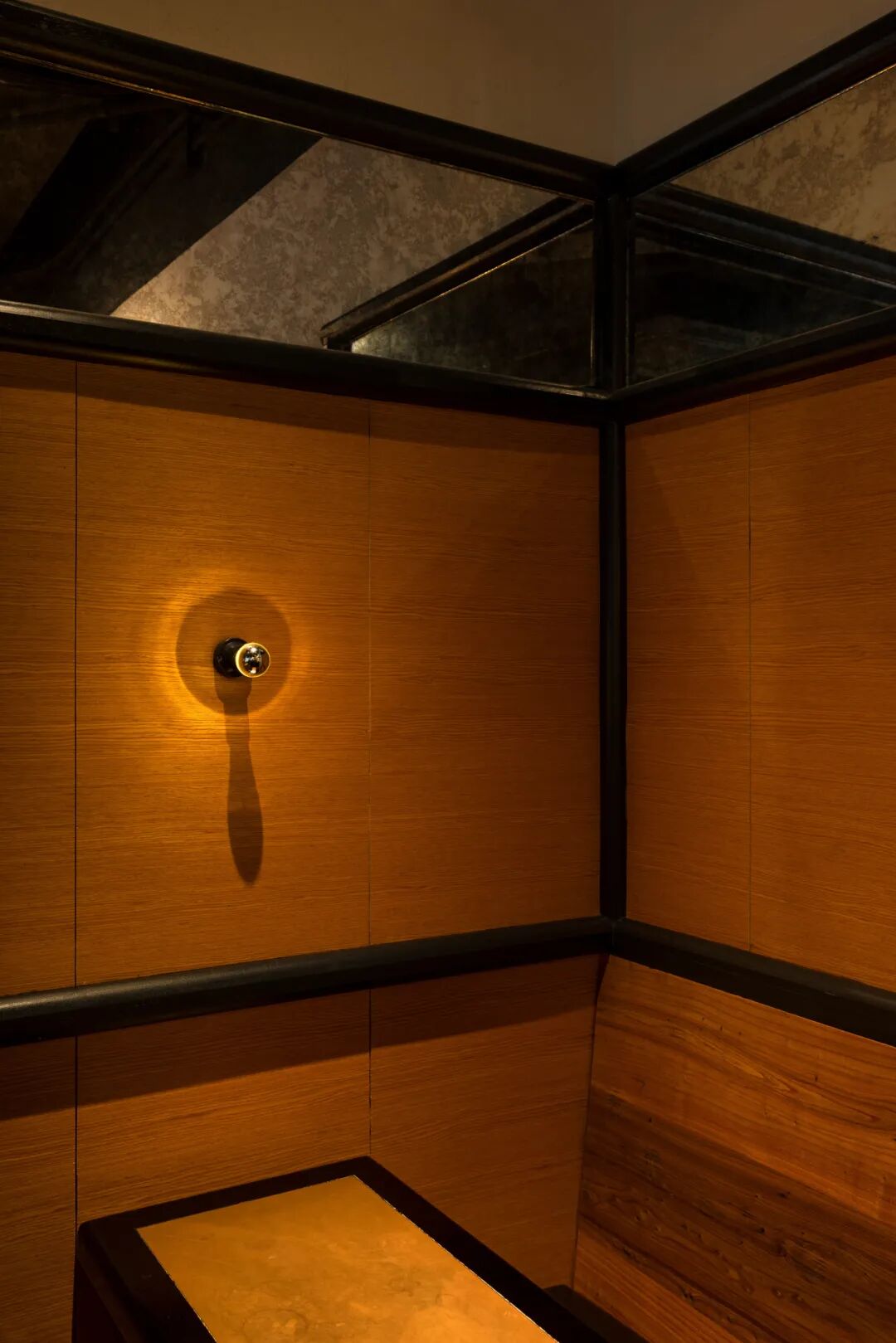

原色木材

贴近客人，用于座椅和墙面护墙板，表面贴以软包，提升舒适度。

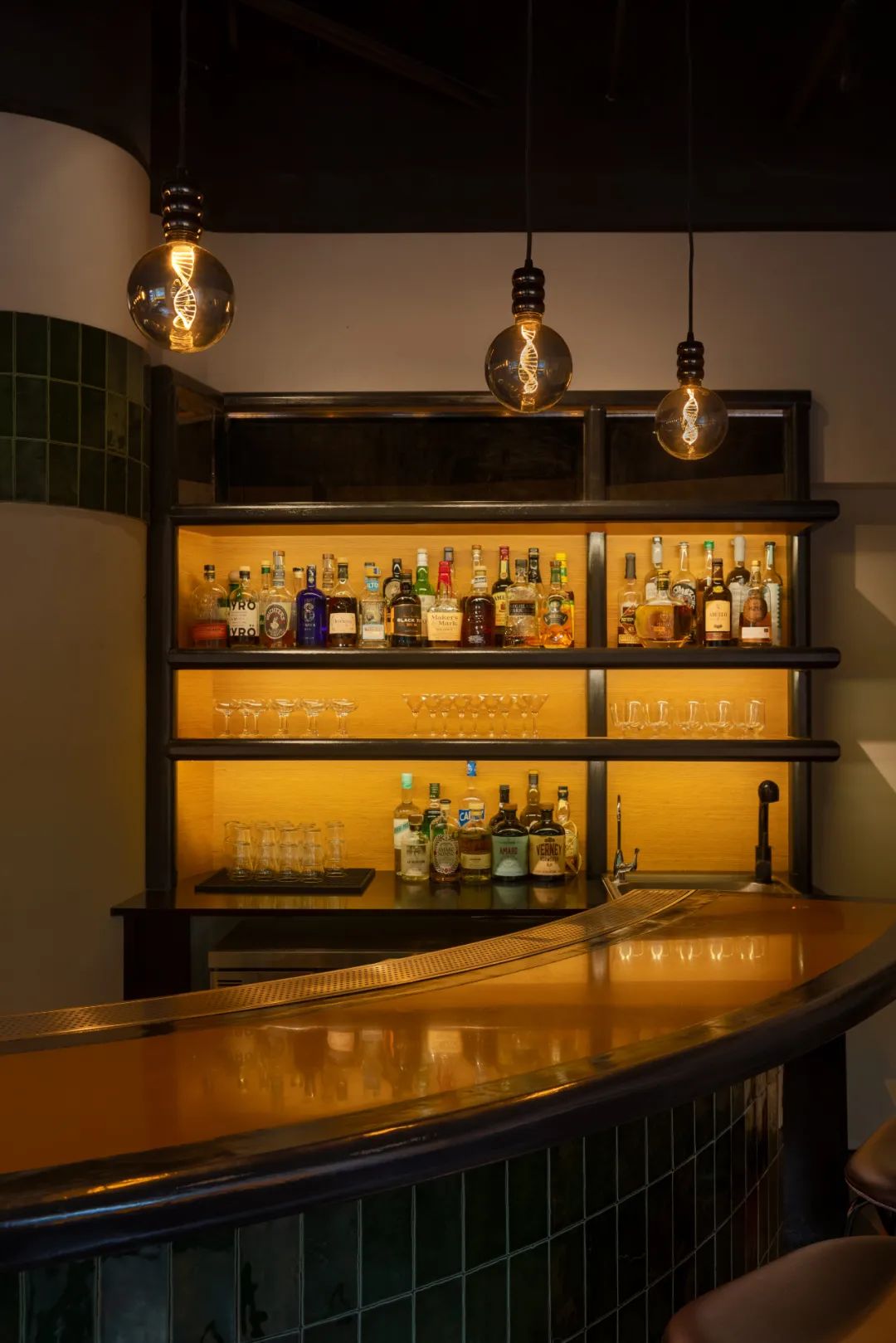

黑色亮漆实木

用于木材收边，吧台面采用紫铜，展现一定的经典气质。

© half.half.photography

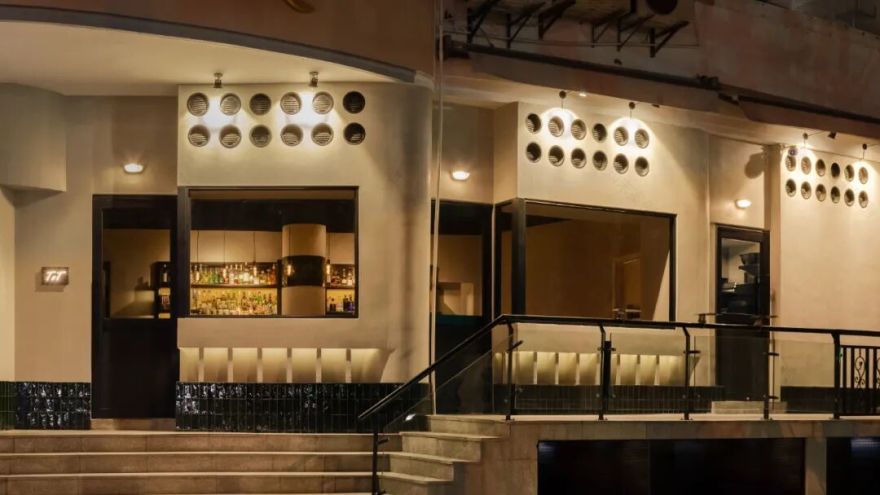

在门头设计上，我们将室内座椅内部构造直接

“

暴露

”

于室外，结合向内缩进的门，自然形成三段立面。每段立面上方进行局部吊顶，圆形风口内布置排风和新风设备。

For the façade design, the internal structure of the indoor seating is intentionally “exposed” to the exterior. Combined with a recessed doorway, this naturally forms a three-part facade. Above each part, partial dropped ceilings are added, with round vents housing both exhaust and fresh air systems.

© half.half.photography

立面图

Elevation

项目名称：ToT bar&snax酒吧室内设计

项目类型：酒吧室内设计

项目地址：上海

室内面积：60㎡

设计时间：2023.09-2023.10

施工时间：2023.11-2024.01

设计单位：TUO建筑设计事务所+ 有余建筑

设计团队：林拓，余紫芝，吕欣田，陈乔

摄影摄像：胡彦昀, 余舒扬 @half.half.photography

主要材料：实木，瓷砖，紫铜 ，仿古镜

Project Name:ToT bar&snax, Shanghai

Project Type: Bar Interior

Project location: Shanghai

Usable Floor Area: 60㎡

Design Period: 2023.09-2023.10

Construction Period: 2023.11-2024.01

Architects: atelier TUO, Studio YO-U

Design Team: Tuo Lin, Zizhi Yu, Xintian Lyu, Ami Chen

Photo Credit: Hu Yanyun, Yu Shuyang @half.half.photographyMaterials: Wood, Ceramic tile, Copper, Mirror
