新作|西华大学宜宾产教融合实训基地XihuaUniversityYibinCampus,PhaseⅡ

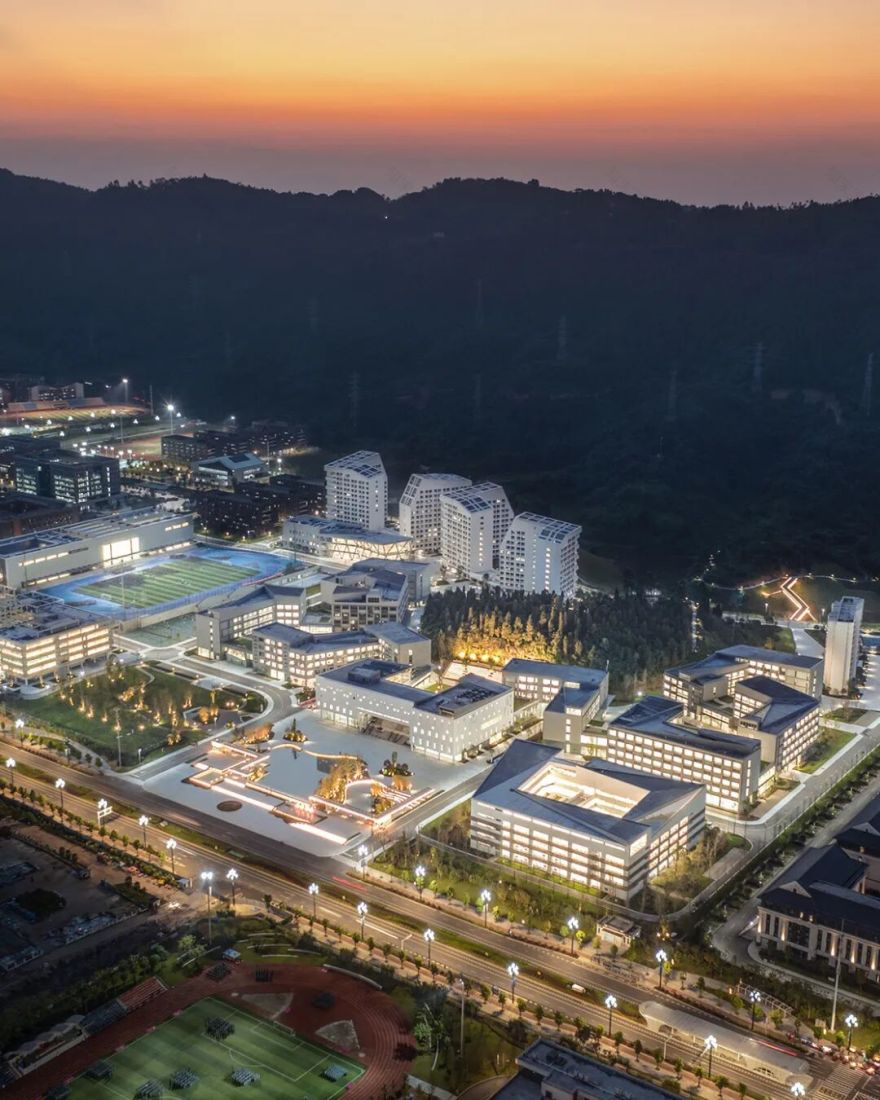

夜景 Night view [摄影：马元]

基 地

SITE

西华大学宜宾产教融合实训基地项目

位于四川省宜宾市临港经济开发区，是大学城和科技创新城

“

双城

”

规划的重要组成部分，为西华大学宜宾校园的二期工程。

基地西北接临观斗山，形成优美的丘陵背景。但由于基地内坡度较陡，不适宜建设，开发难度较大；山脚下又有深

20

米的排洪沟，因此红线内的可建设用地限制在排洪沟的东南部，较为平整的区域。其中，场地中部约

30

米高的小山丘作为校园核心景观予以保留

。

The Phase II of Xihua University's Yibin Campus is located in Lingang Economic Development Zone, Yibin City, Sichuan Province. It forms part of the 12 km² masterplan for the first phase of the "Twin-cities" initiative—a University Town and Sci-Tech Innovation Hub.

Phase II site area spans approximately 390,000 m² including reserved land from Phase I. The site adjoins ‌

Guandou Mountain

‌ to the northwest, forming an undulating mountainous backdrop. The significant gradient of the terrain within the site post substantial challenges to construction.

A 20m-deep ‌

stormwater drainage ditch

‌ at the mountain's base further restricts ‌

developable areas

‌ within the ‌

site

‌ to a relatively flat southeastern zone. A 30m-high ‌

hill

 in the centre is preserved and celebrated as the campus's ‌

core landscape feature

‌.

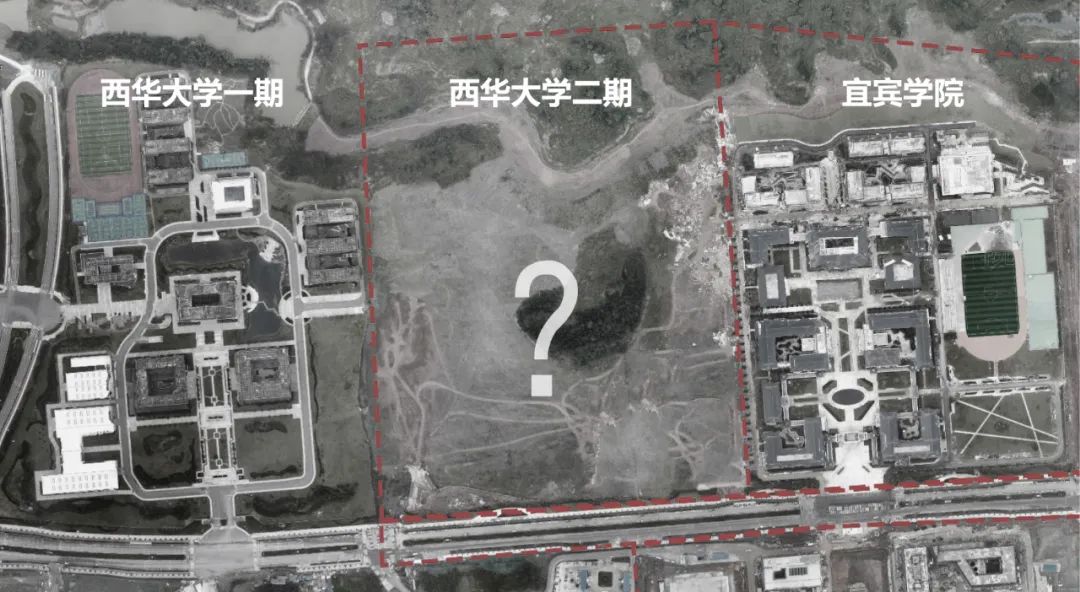

基地原状鸟瞰

Bird's eye view of the original state of the site

场地原状全景

Panoramic view of the original state of the site

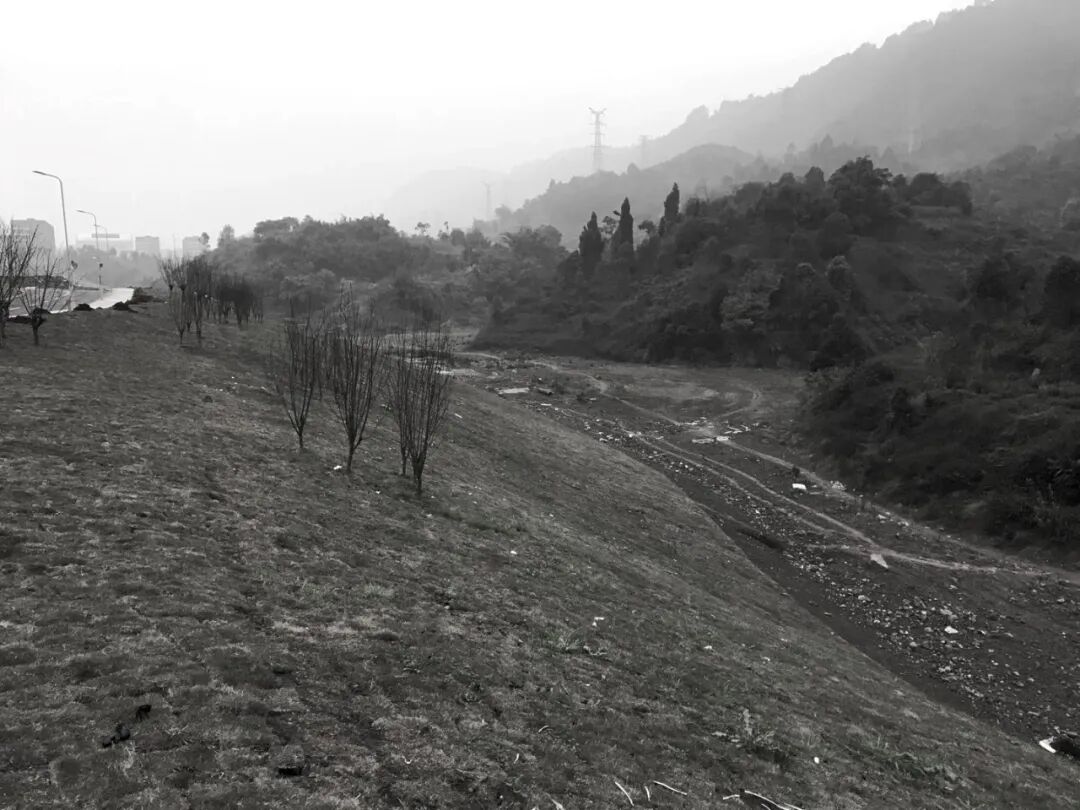

L: 排洪沟西侧 West side of the flood drainage ditch

R: 排洪沟北侧 North side of the flood drainage ditch

二期用地约

390,000

平方米（含部分一期预留用地）。总建筑面积为

261558

平方米，其中地上总建筑面积为

152353

平方米，地下总建筑面积

10305

平方米。容纳学生总

数

6200

人。

Total floor area is 261,558 m², with 152,353 m² above ground, and 10,305 m² below ground. The campus accommodates 6,200 students.

规 划

PLANNING & DESIGN

规划上因地制宜，巧借山势，以

“

环形布局、 形态自由、景观优先、开门见山、架空穿行、风雨校园

”

的设计理念，建设面向未来的人性化、生态化校园。

The design provides a topographical solution to the site challenge – it comprises a circular layout that is free in configuration, landscape centric, pivot around the preserved hill, and penetrated by canopied walkways – strategies leading toward the vision of a school campus that is both human-centric and ecological.

从山上鸟瞰校区 [摄影：马元]

Overlook the campus from the mountain

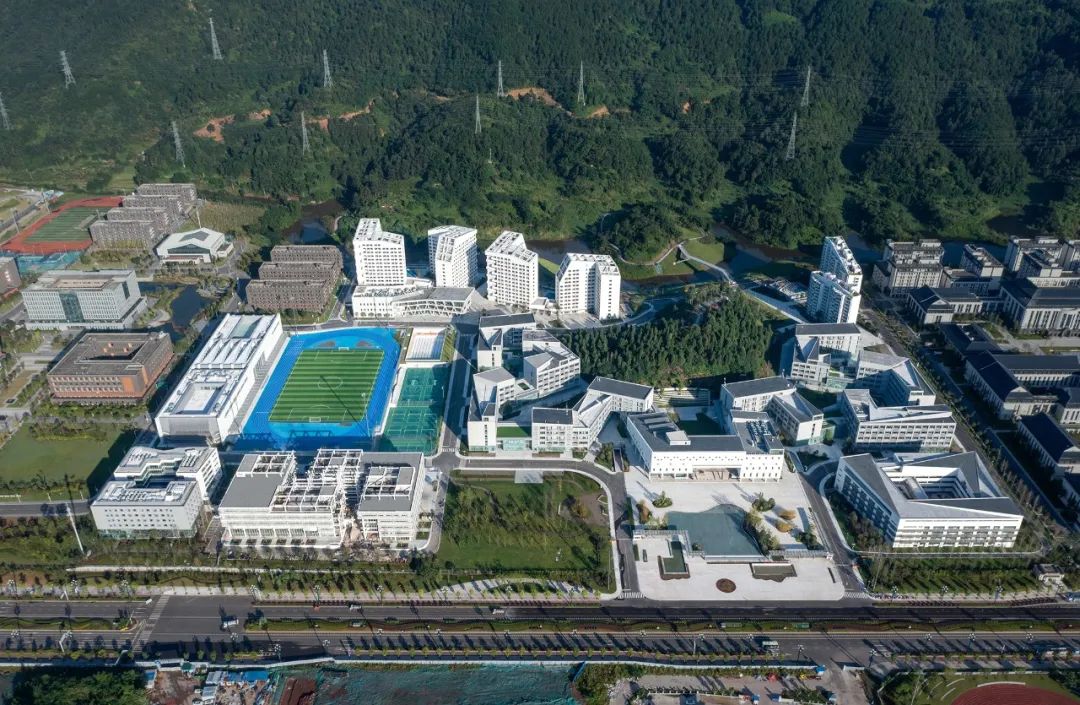

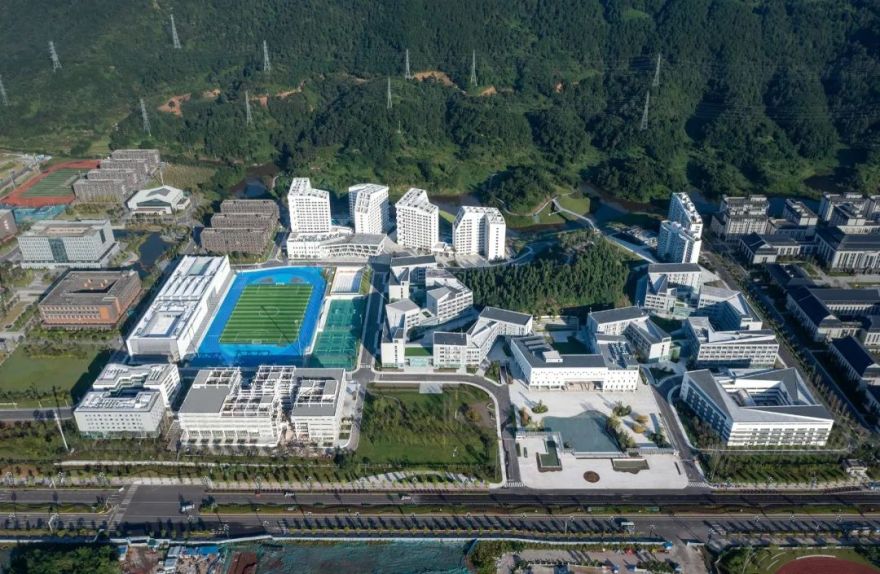

二期校园整体鸟瞰 [摄影：马元]

Bird's-eye view of the Phase II campus

1.

环形布局的教学功能链

1. The Teaching Cluster

The Teaching Cluster is a series of interconnected, chained buildings revolving around the preserved hill in a sinuous form, with the library at the center and surrounded by teaching/laboratory buildings as the wings. Offices, classrooms, workshops, and laboratories for each department connect though public platform and canopied corridors to form an integrated cluster that fosters crossdisciplinarity collaboration and academic innovation.

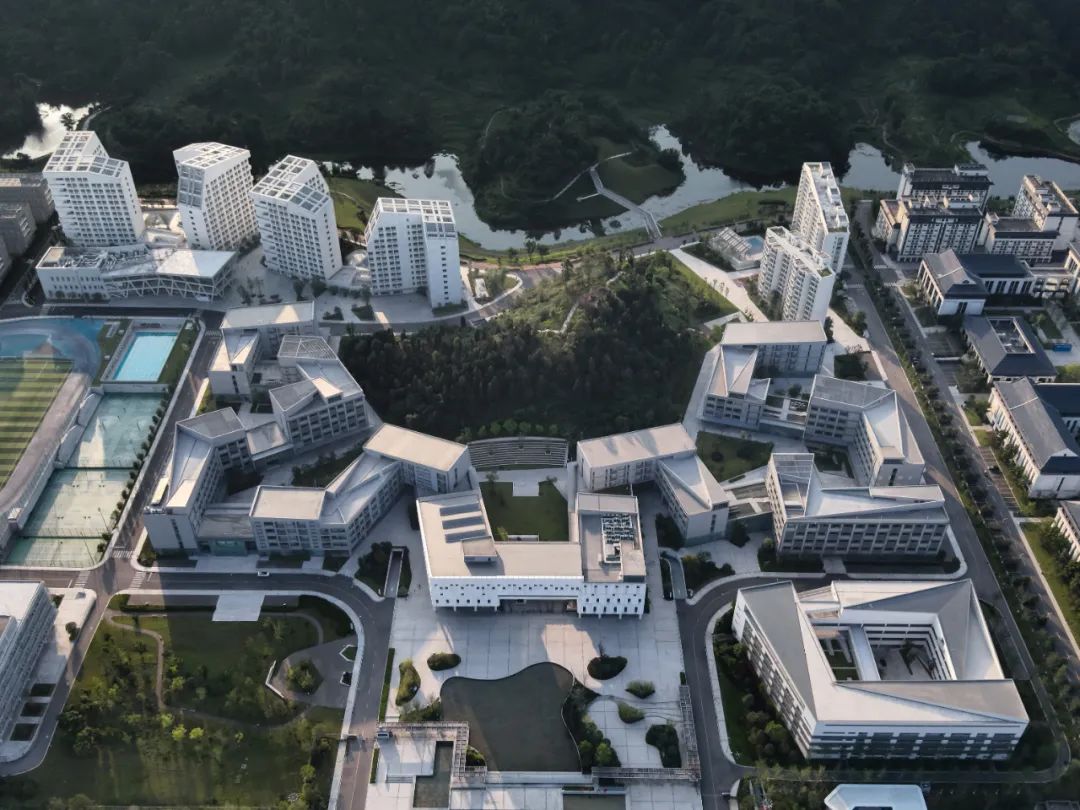

图书馆与教学楼首尾相接，组成环形布局的校园核心区 [摄影：马元]

The Teaching Cluster, formed by the Library, Teaching's Buildings and Laboratory Buildings are interconnected, forming a ring-

shaped core of

the campus

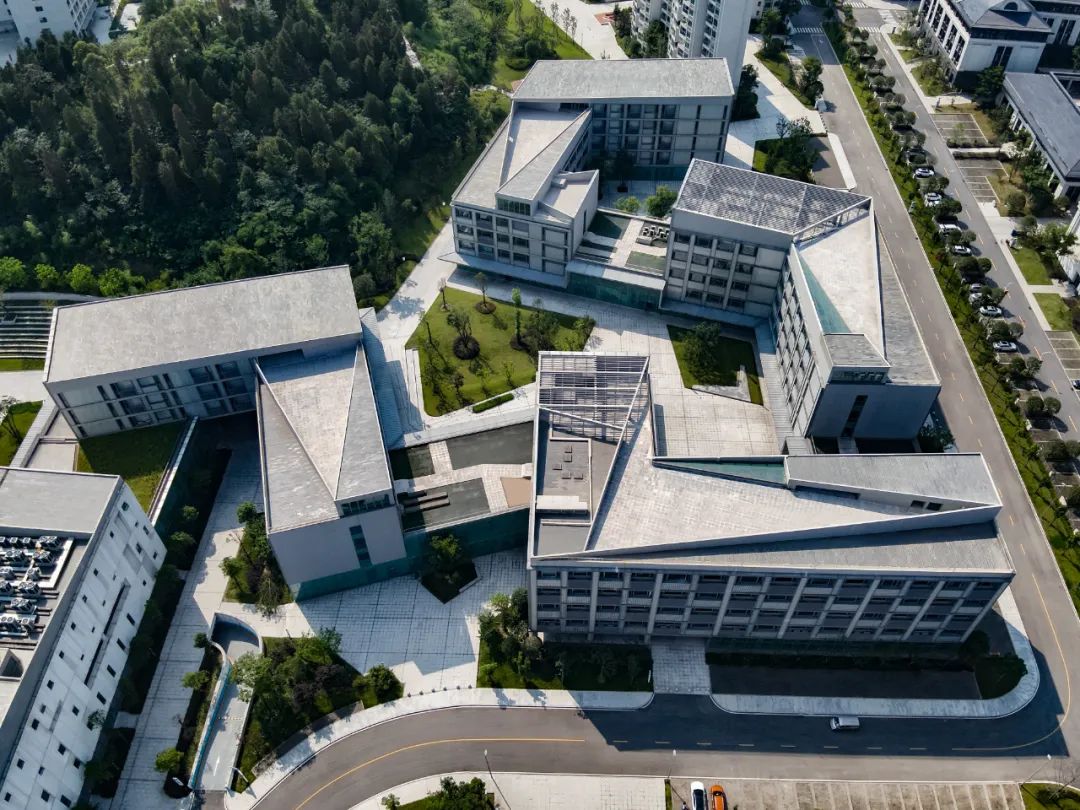

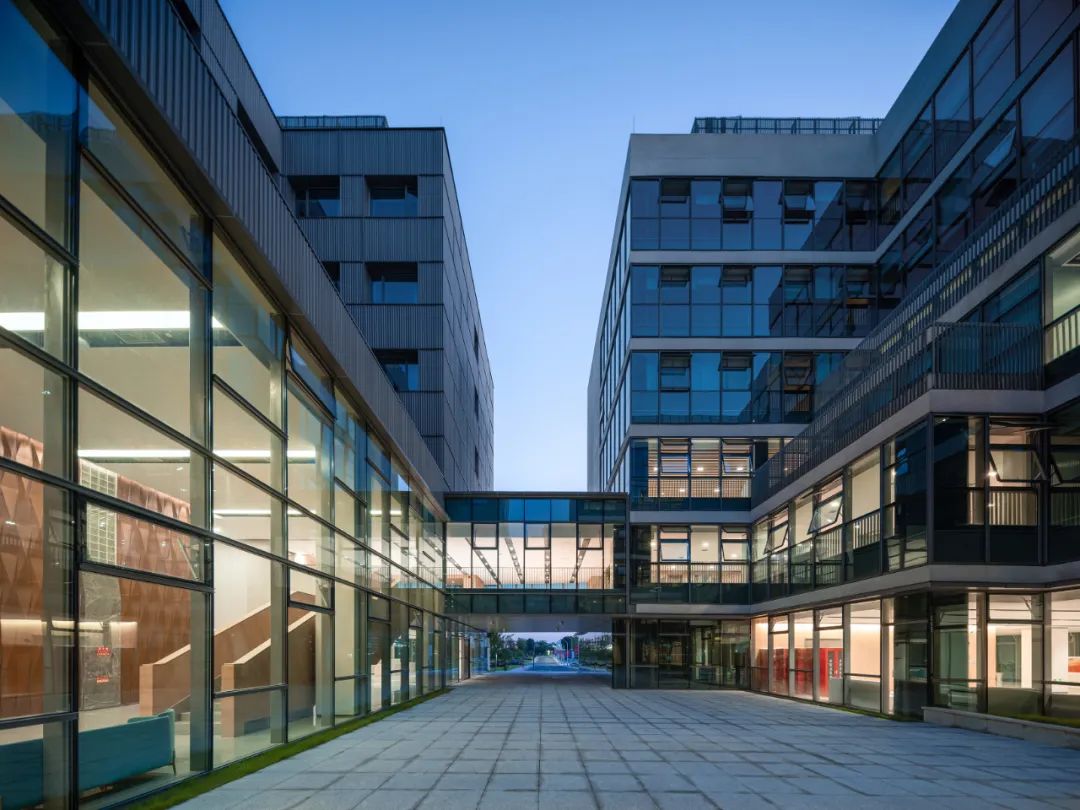

L型的教学楼间通过连廊和公共平台串联 [摄影：吴清山]

The L-shaped buildings in the Teaching Cluster are linked in sequence via connecting corridors and shared terraces

2.

景观优先的生态校园

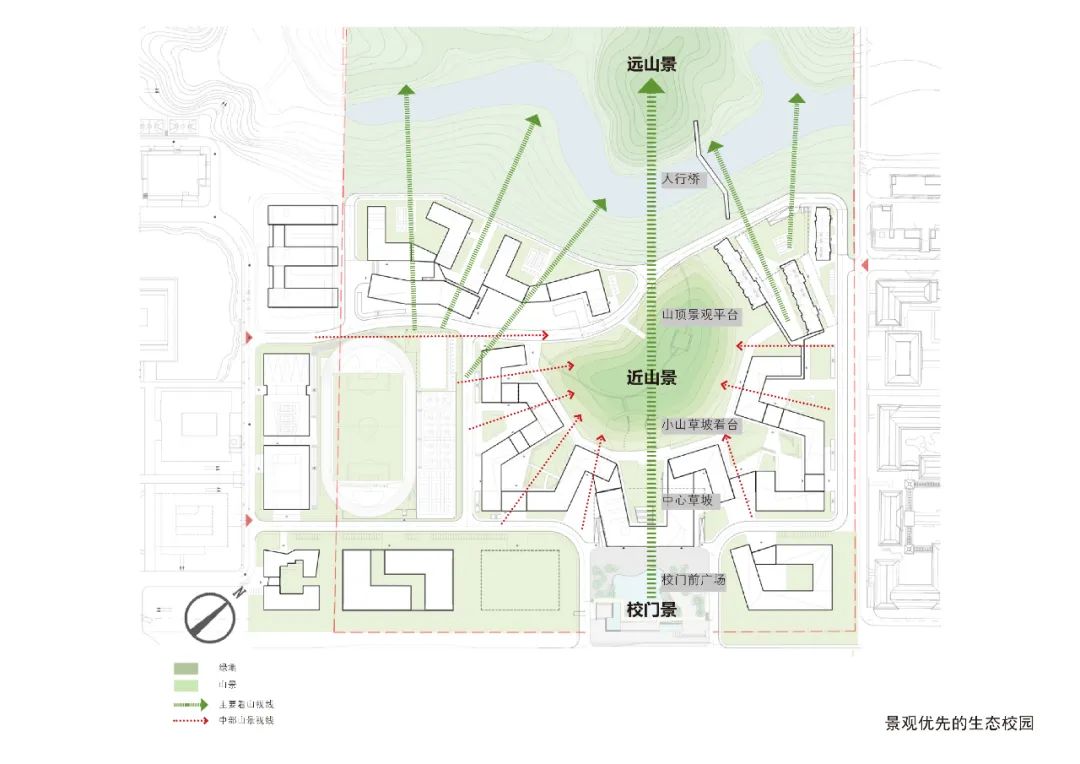

新校区的整体景观围绕保留的小山丘展开，小山丘作为校园的

“

绿心

”

，向围绕四周的庭院发散和渗透，形成处处有景，开门见绿，步移景异的山水画卷。院落也吸取了川南传统建筑特色和优点，尺度宜人，不仅有小气候调节功能，而且营造了一个无顶的公共活动空间。视线穿过校门前广场和图书馆巨型门洞，跨过大台阶

“

开门见山

”

，近观小山丘，观远观斗山，形成一条含蓄的景观

“

精神中轴线

”

。

2. The

Landscape-Centric Campus

‌

Green spaces in the new campus pivots around the preserved hill as the heart and radiate into the courtyards of the surrounding buildings to create scenic views across the campus. Courtyard design incorporates Southern Sichuan architectural traditions, offering microclimate moderation to these exterior gathering spaces. Portal-shaped library allows the preserved hill in the back to be seen through its grand stairways and large-span reading spaces, creating an imaginary axis with the campus buildings and the preserved hill as the foreground and the Guandou Mountains as the backdrop.

围绕保留小山布局、向景观开放的校园 ‌[摄影：吴清山]

Campus layout embracing the preserved hill with outward-oriented landscape

从校门前广场看向近山和远山 [摄影：吴清山]

View of the preserved hill and distant mountains from the square in front of the school gate

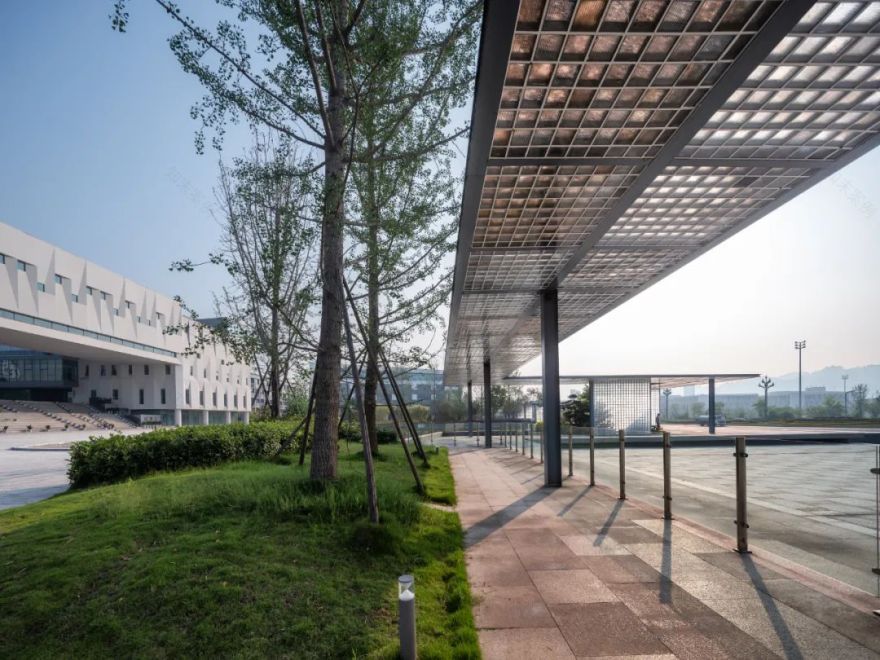

入口广场玻璃砖长廊 [摄影：吴清山]

The glass brick corridor in the Entrance Square

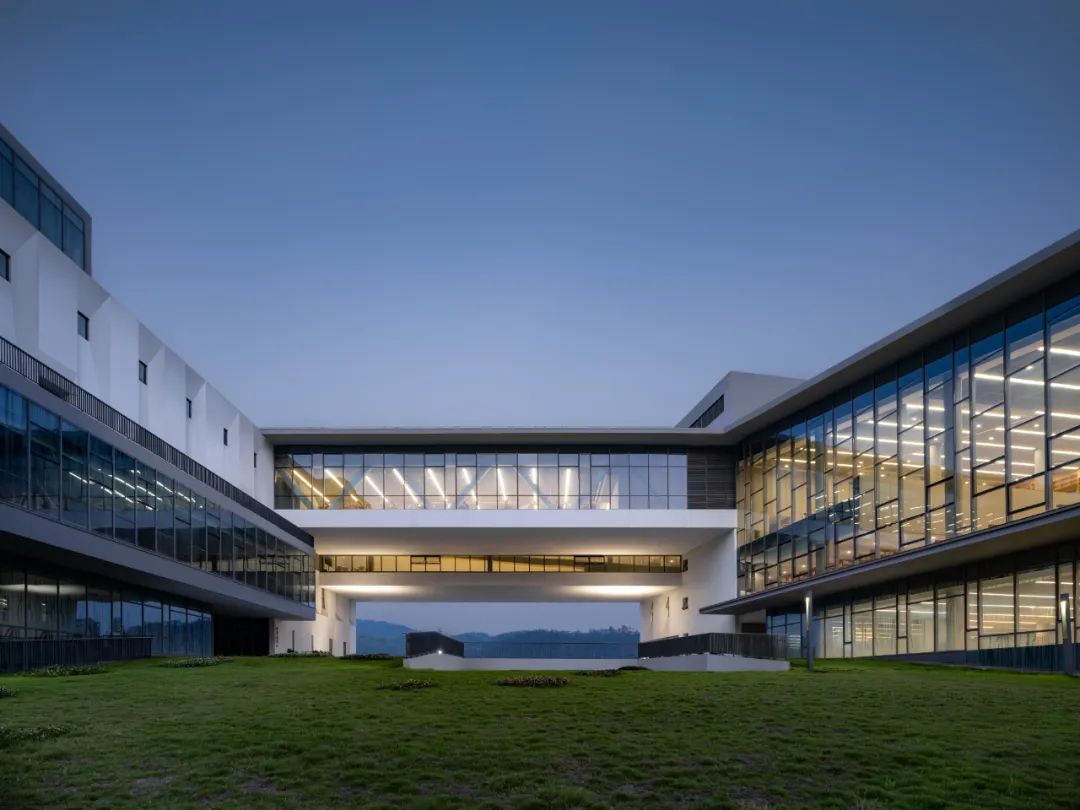

从图书馆门洞“开门见山” [摄影：吴清山]

View of the preserved hill through the portal-shaped Library

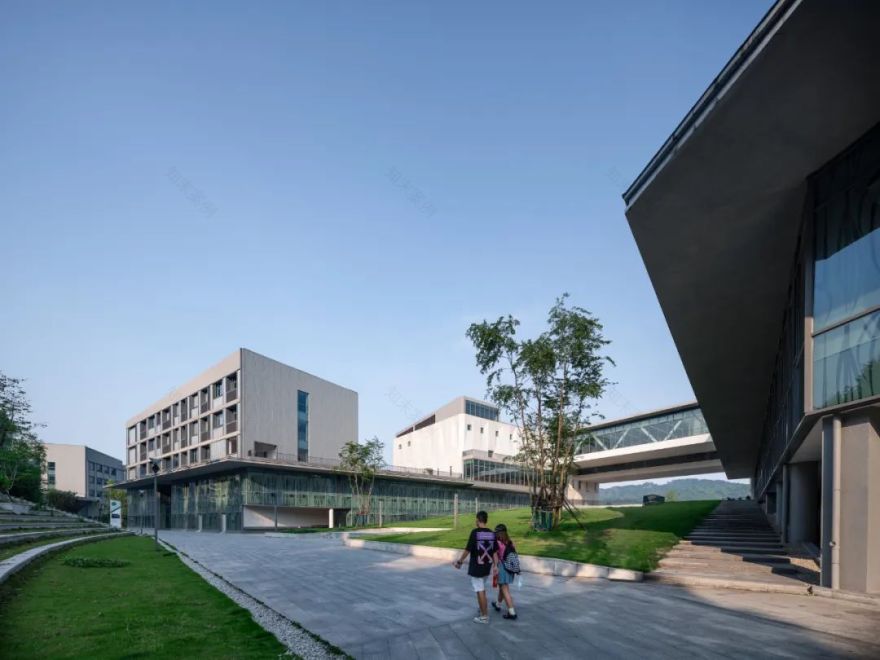

图书馆门洞与大台阶 [摄影：吴清山]

The arched entrance and terraced steps of the Library

图书馆半围合形成草坡舞台与小山看台 [摄影：吴清山]

The grandstand on the preserved hill (left) with the sloped lawn-stage enclosed by the Library (right)

从小山回望图书馆门洞 [摄影：吴清山]

Looking back at the arched entrance of the Library from the hill

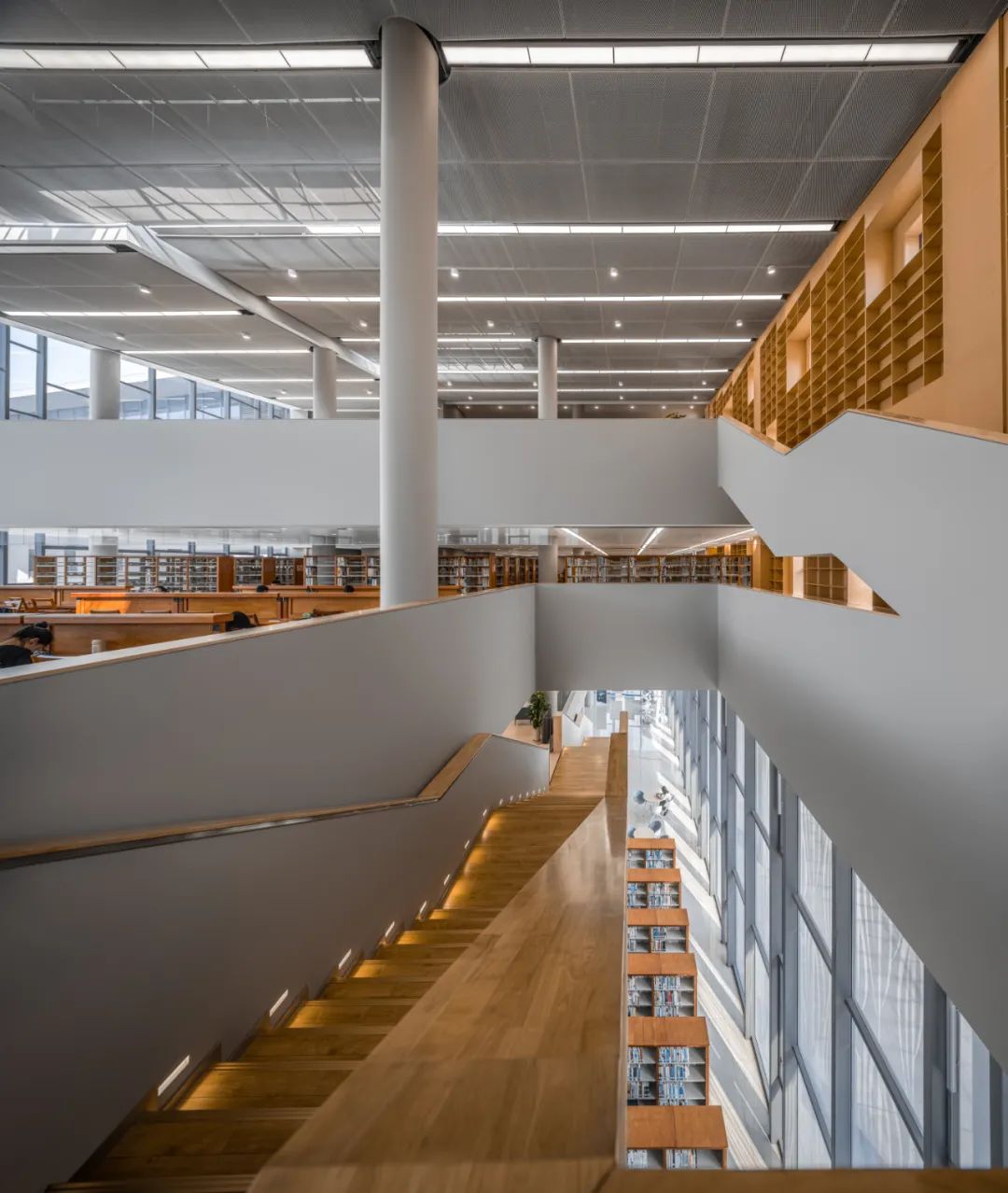

图书馆内楼梯 [摄影：吴清山]

The staircase in the Library

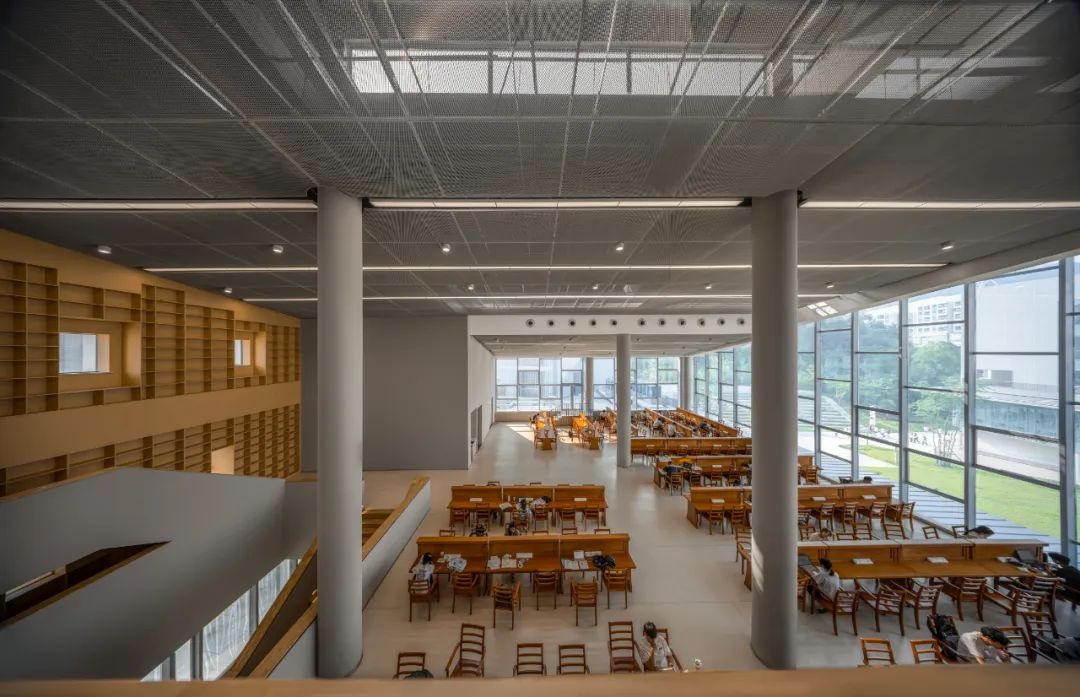

图书馆内部阅览空间 [摄影：吴清山]

The reading space in the Library

人行桥 [摄影：吴清山]

Pedestrian bridge

从人行桥上看远山 [摄影：吴清山]

View the distant mountains from the pedestrian bridge

3.

架空穿行的人文关怀

校园的交通组织与一期校园路网整体衔接。 教学区内部通过多处底层架空，穿插形成丰富的步行道路系统，并与环中部小山的步行道连接。风雨连廊串联起整个教学区，无论日晒还是下雨，师生们都可以漫步校园，有了便捷的步行交通，避免了常规校园的人车冲突、广场和道路使用率不高、校园乱停车等问题。连廊作为校园活力纽带，激发更多的校园交流活动，并在行进之中体验美丽的生态景观长卷。

3.

The Walkway System

‌

Elevated first floors at certain locations in the Teaching Cluster allow for the placement of a complete, uninterrupted pedestrian network that bridge the buildings – in the form of canopied walkways that made possible for all-weather travels – with the preserved hill in the centre. Serving as scenic viewing routes and catalysts for communication, these convenient walkways help to reduce problems such as vehicle-pedestrian conflicts, low usage on school squares and roads, and unauthorized parking. The traffic system of Phase II joins the road network of Phase I.

教学实验楼屋面设计为一角抬起的坡屋顶，设置不同朝向的高窗“取景器”，同时与屋顶楼梯或设备间结合 [摄影：吴清山]

The roof of the Teaching and Laboratory Building is designed as a pitched roof with one corner raised, equipped with high window

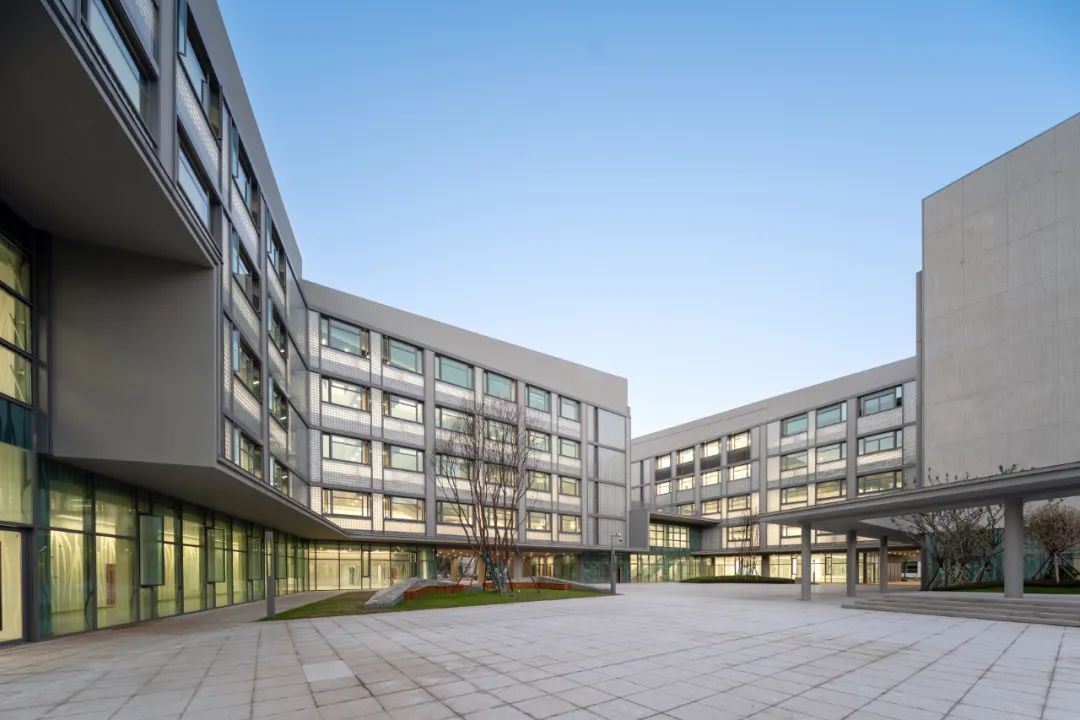

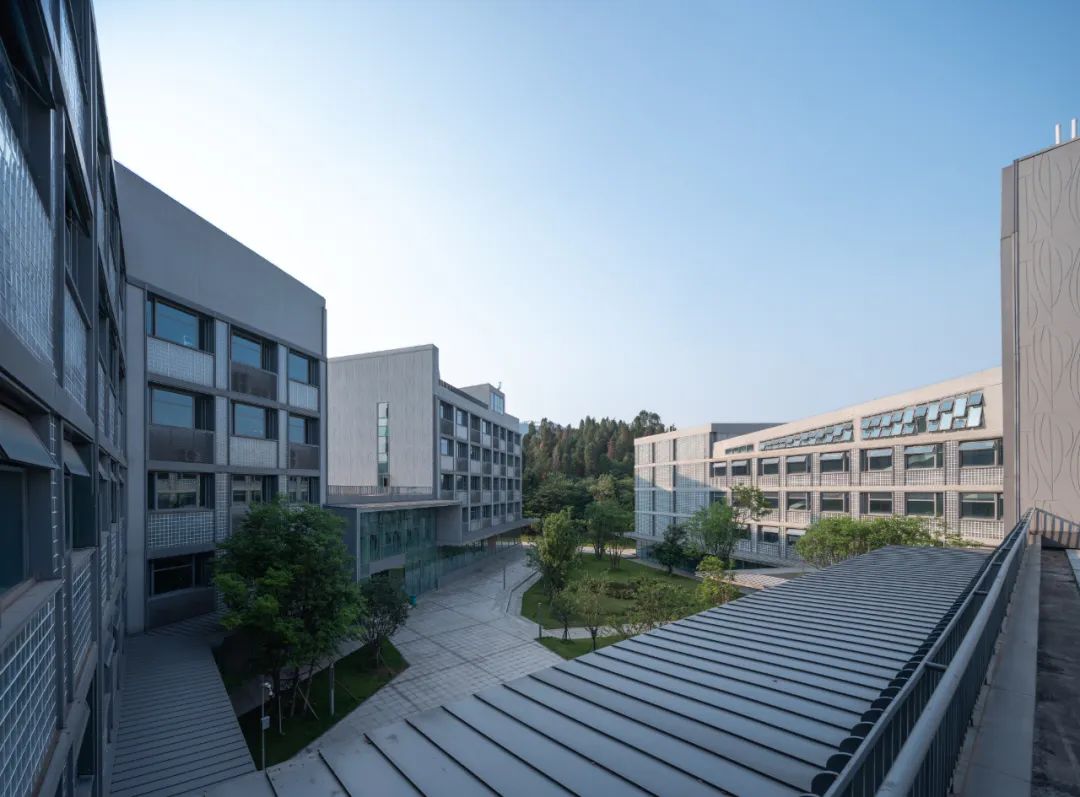

教学区内庭院及小山 [摄影：吴清山]

View of a courtyard in the Teaching Cluster with the preserved hill in the back

教学区内由架空和挑檐形成风雨连廊 [摄影：马元]

Continuous, canopied walkway in the Teaching Cluster encourage all-weather travel

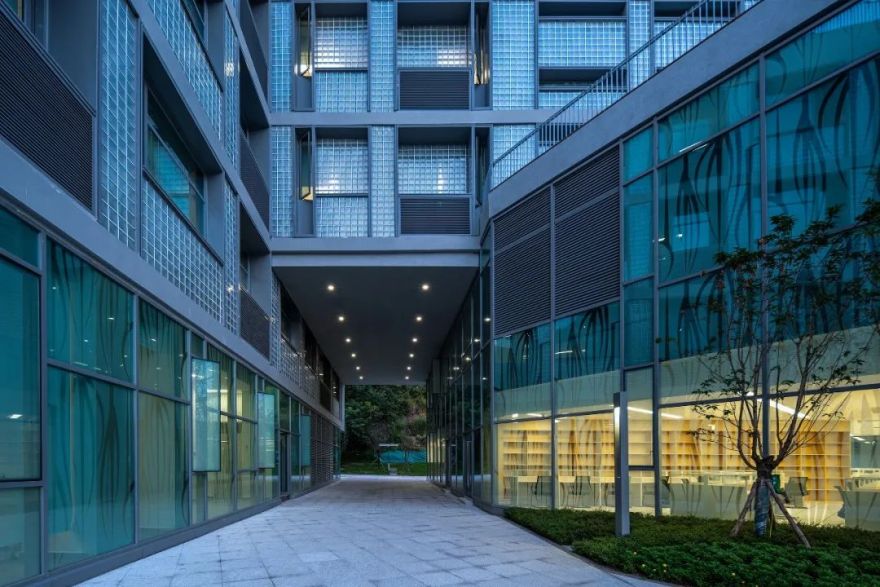

教学区过街楼夜景，玻璃砖与油樟叶图案丝网印玻璃的立面组合 [摄影：马元]

The night view of the overpass building in the Teaching Cluster features facade materials of glass brick blocks and silk-screened glass with camphor tree leaf pattern

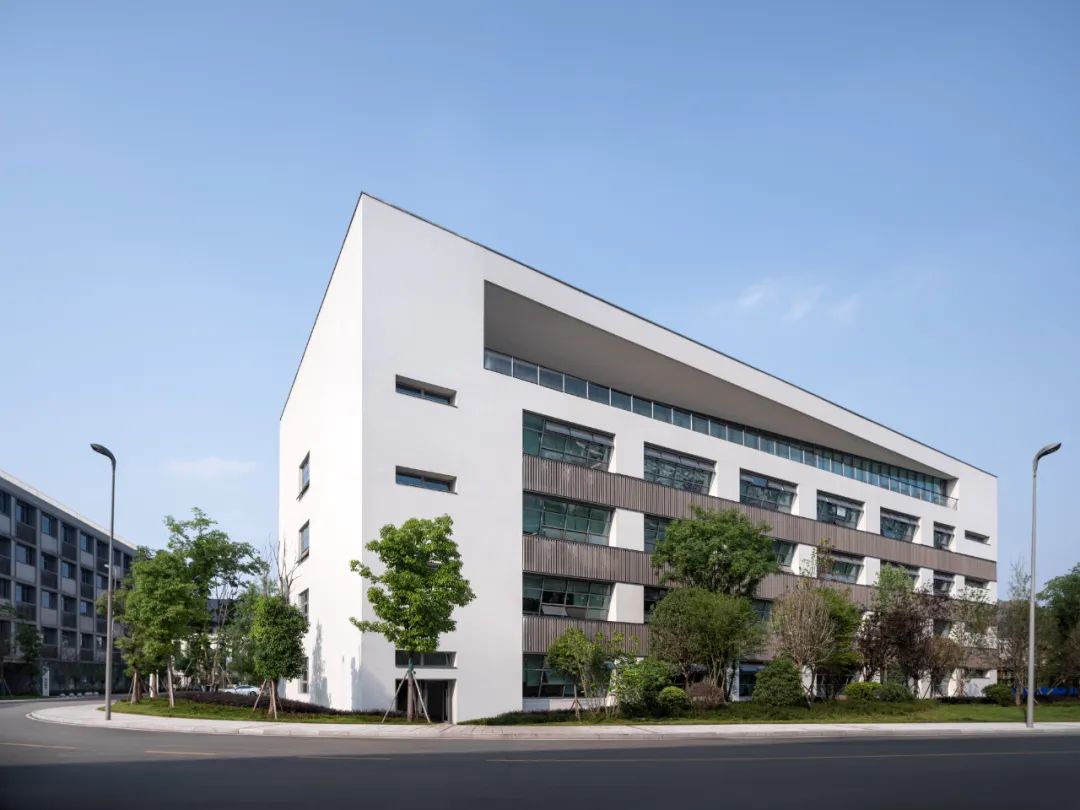

教学实验楼外侧挑檐 [摄影：吴清山]

The overhanging eaves of buildings in the Teaching Cluser

4.

科技建筑的历史情怀

建筑采用雕塑感的自由坡型屋顶，既呼应自然山地背景，又能改善日照条件，高低组合形成校园整体起伏的特征。单体建筑设计着重突出

“

现代工艺感

”

。西华大学前身为四川工业学院，一直立足于时代最先进的工业技术研究和教育。二期校园内的五大学科设置（汽车、材料、机械、土木、电气）是制造业的基石，因此在建筑材料上我们选择了精细化的现代工业制造成果，选取了玻璃砖、丝网印刷玻璃、浅灰色印花

GRC

板、

铝合金波纹板和水包砂仿石漆

作为主要外墙材料。立面图案因地制宜的选择宜宾特有的市树

——

油樟的图案进行雕刻和印花。在绿化树木的掩映下，真实与象征图案若隐若现，虚实相生，方整简洁的建筑更好地融入校园的自然美景中。

4.

Technological Architecture with Historical Sensibility

‌

The sculptural, sloping roof of the buildings in the campus echo the mountainous context while optimizing sunlight exposure. Architectural form of the buildings reflects "modern industrial aesthetics" in honor of the school's pioneering research in industrial technology. Since the major departments in Phase II (Automobile, Material Science, Mechanical Engineering, Civil Engineering, and Electrical Engineering) are considered cornerstones of modern manufacturing, the buildings' façade materials are also designed to feature precision-engineered elements: glass blocks, screen-printed glass, faux stone coating, corrugated aluminum plates, and light gray patterned GRC (Glassfibre Reinforced Concrete) panels. Façade GRC panels with patterns derived from the camphor tree (Yibin's city tree) are displayed among the vegetated landscape, softening the buildings appearance into natural environment.

礼堂入口 [摄影：吴清山]

Entrance to the Auditorium

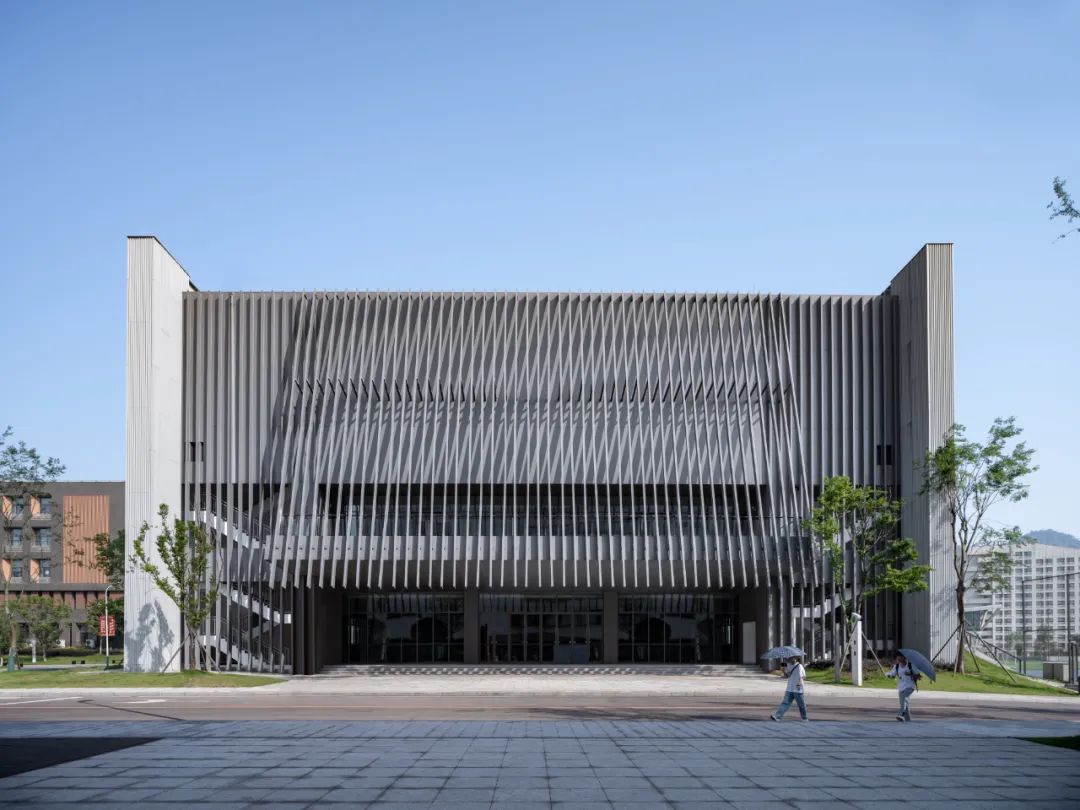

礼堂体育馆立面采用金属长城板 [摄影：吴清山]

The façade of the Auditorium/Gymnasium Building is consisted of metal decking

礼堂二层平台 [摄影：吴清山]

The second floor platform of the Auditorium

体育馆 [摄影：马元]

Gymnasium

体育馆室内 [摄影：吴清山]

Interior view of the Gymnasium

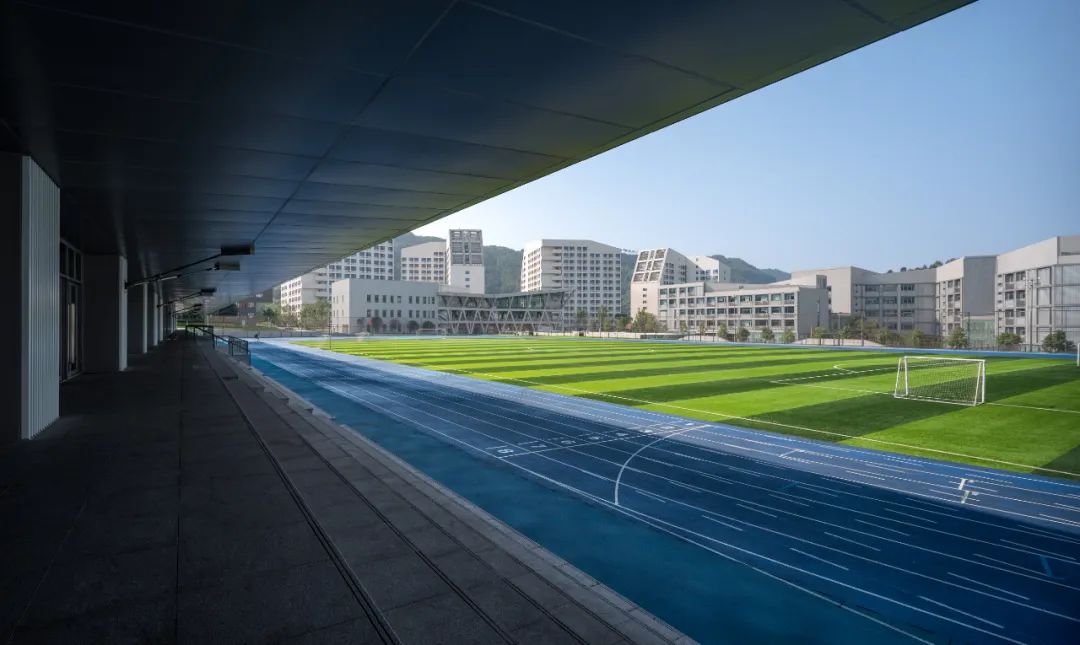

从体育馆挑檐下看教学区和生活区组合形成校园，整体起伏的轮廓特征，呼应山形背景 [摄影：吴清山]

View under the eaves of the Gymnasium, with the Teaching Cluster, Living Quarter, and mountains in the back

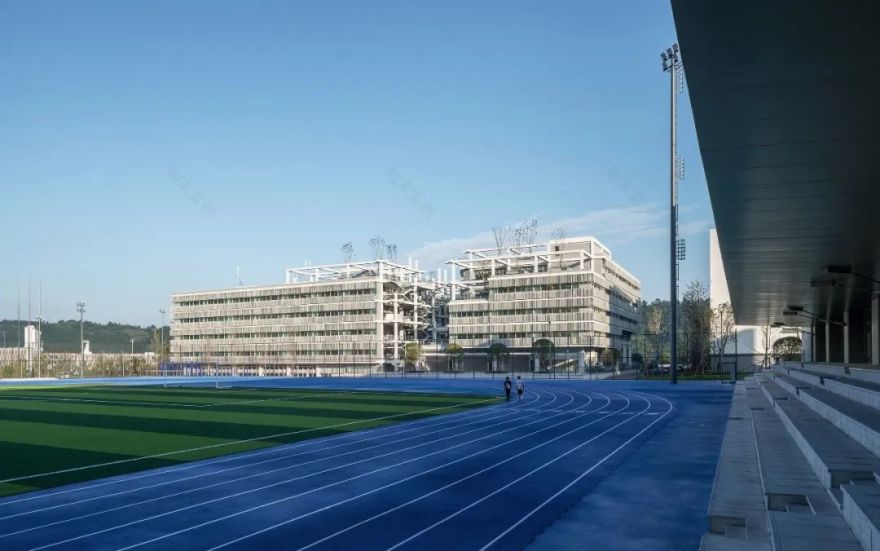

从操场看科创楼 [摄影：马元]

View of the Science and Technology Innovation Building from the sports field

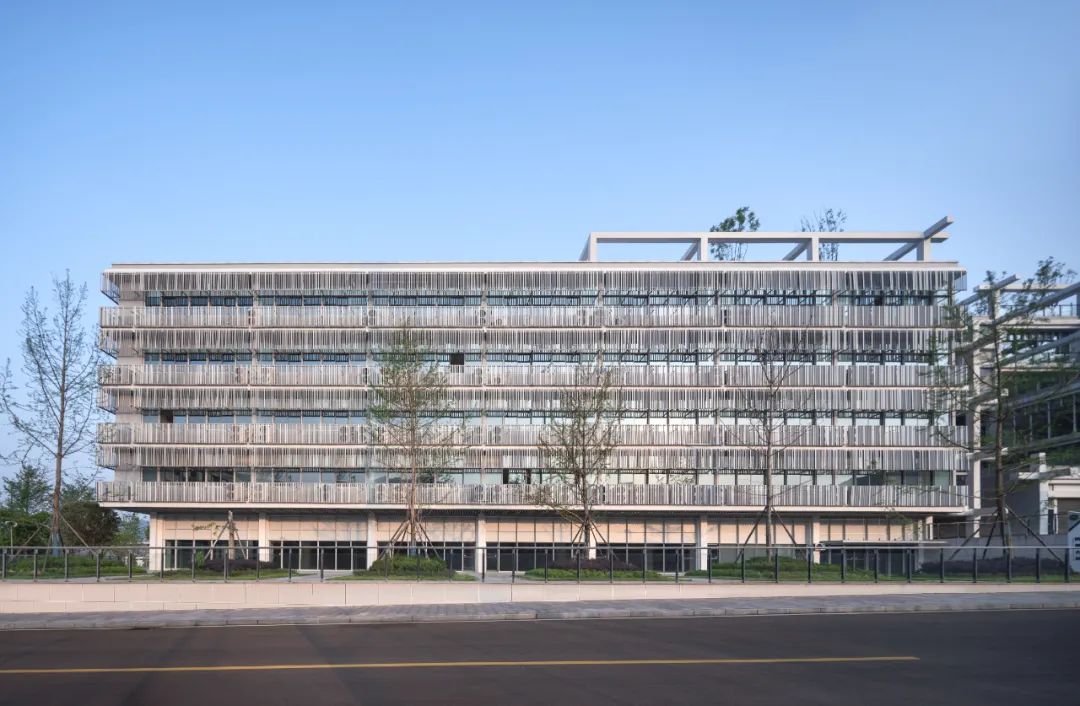

科创楼采用L型铝合金格栅立面 [摄影：吴清山]

The Science and Technology Innovation Building adopts an L-shaped aluminum alloy grille façade

科创楼内院入口 [摄影：吴清山]

The entrance to the courtyard of the Science and Technology Innovation Building

食堂的清水混凝土V型柱 [摄影：马元]

The V-shaped columns in exposed concrete surround the Cafeteria

食堂北侧立面 [摄影：吴清山]

North façade of the Cafeteria

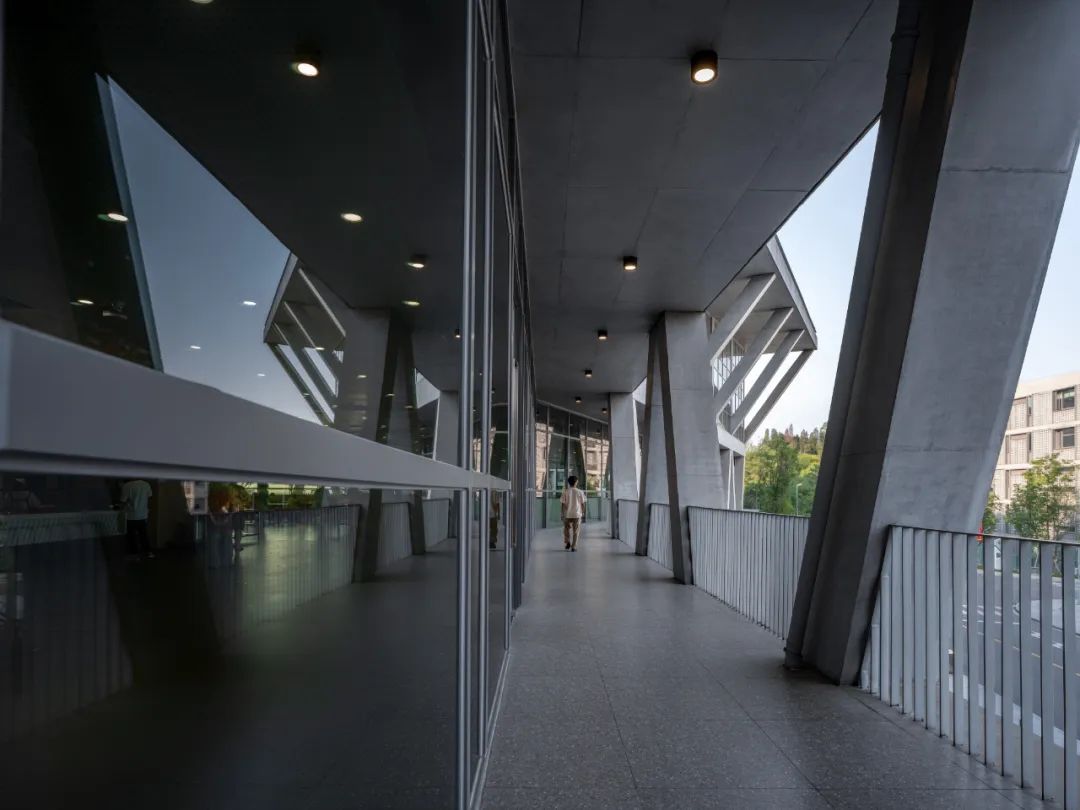

食堂外廊 [摄影：吴清山]

Semi-outdoor corridor of the Cafeteria

四栋L型高层宿舍通过坡顶和退台减少长边的遮挡，改善日照条件 [摄影：吴清山]

The back-set terraces on the sloped roofs of the four L-shaped High-rise Dormitories improve condition of natural light

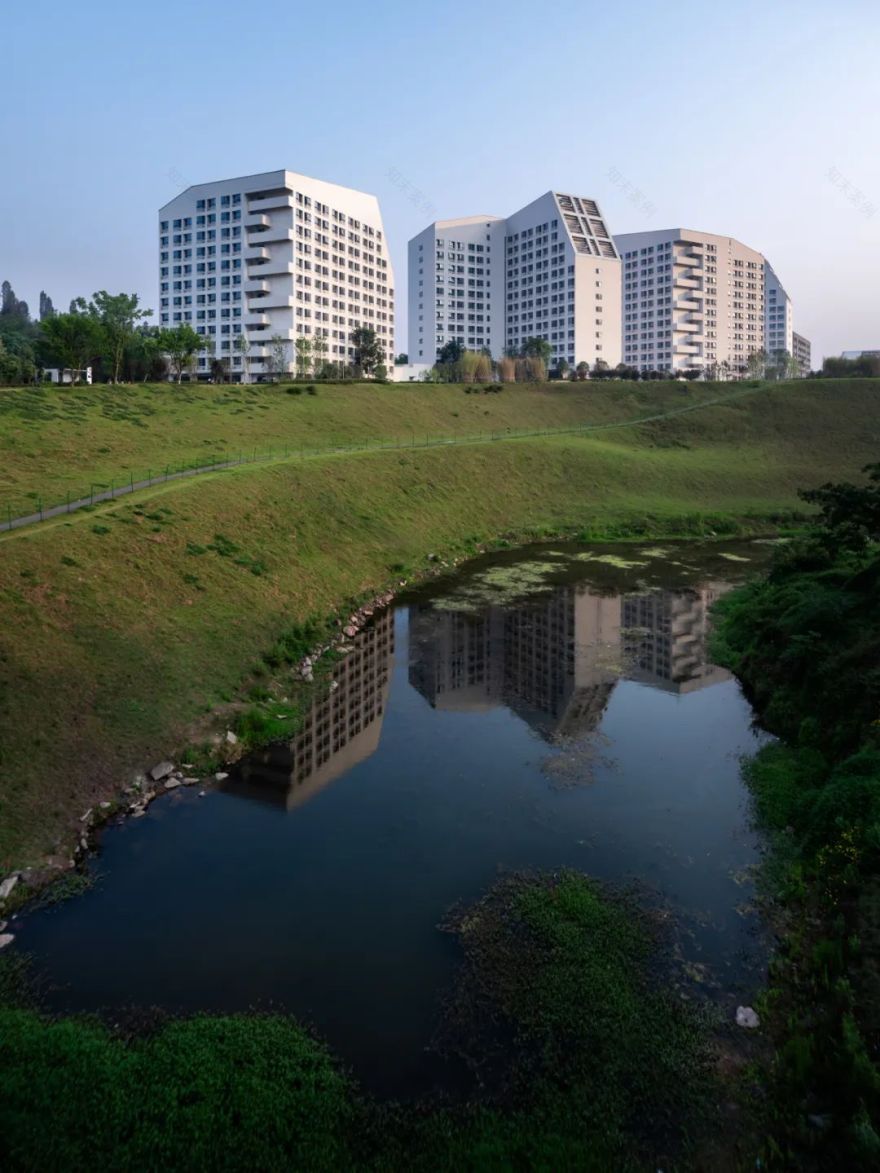

从山脚下看高层宿舍楼 [摄影：吴清山]

View the High-rise Dormitory Building from the foot of the mountain

行政楼 [摄影：吴清山]

Administrative Building

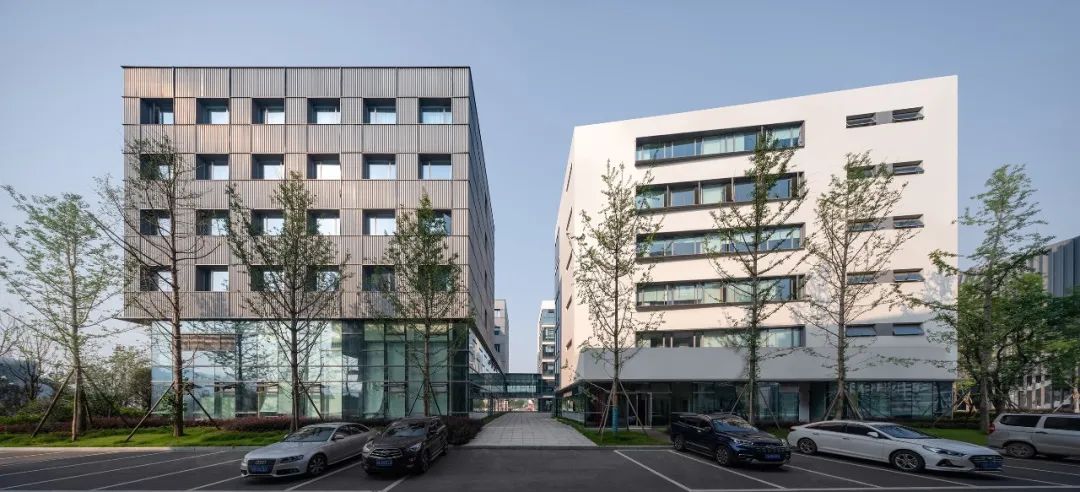

行政楼（右）及交流中心（左) [摄影：吴清山]

Administrative Building (right) and Exchange Center (left)

行政楼及交流中心内院夜景 [摄影：马元]

Night view of the courtyard of the Administrative Building and the Exchange Center

国际教育学院 [摄影：吴清山]

International Education College

国际教育学院外墙采用涂料和灰色陶棍百叶 [摄影：吴清山]

The exterior walls of the International Education College are consisted of paint and grey terra cotta louvers

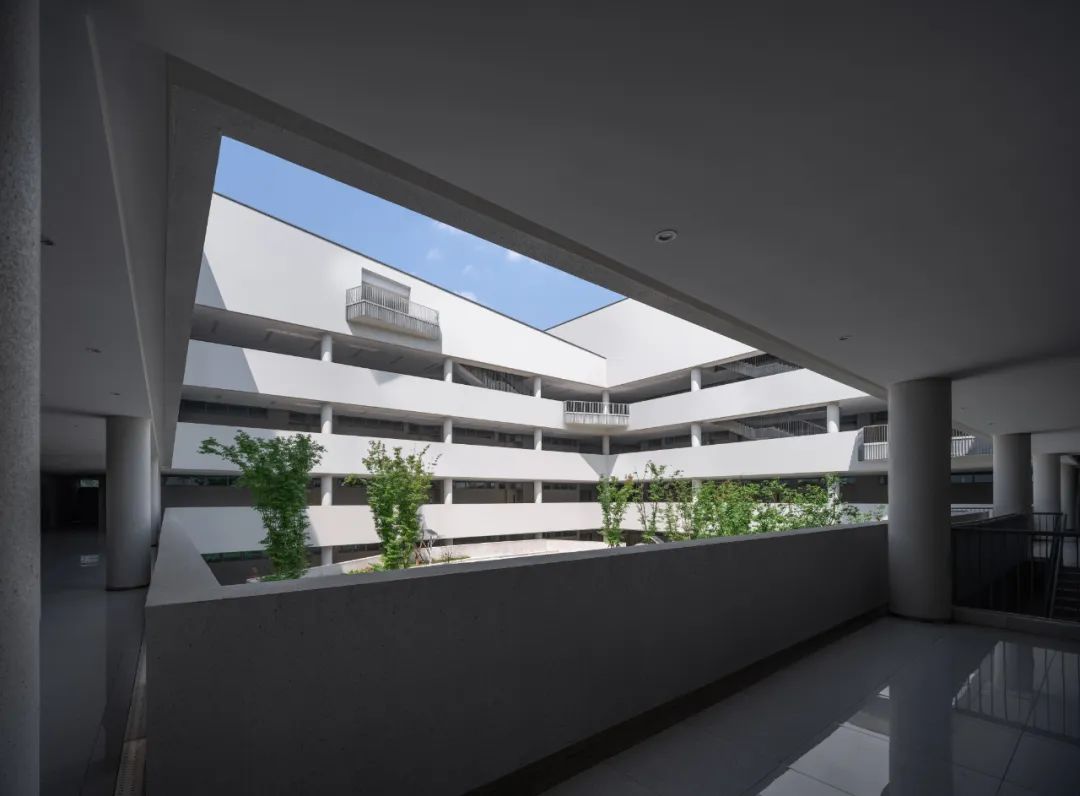

国际教育学院回廊 [摄影：吴清山]

Corridor of the International Education College

————————   图  纸   ————————

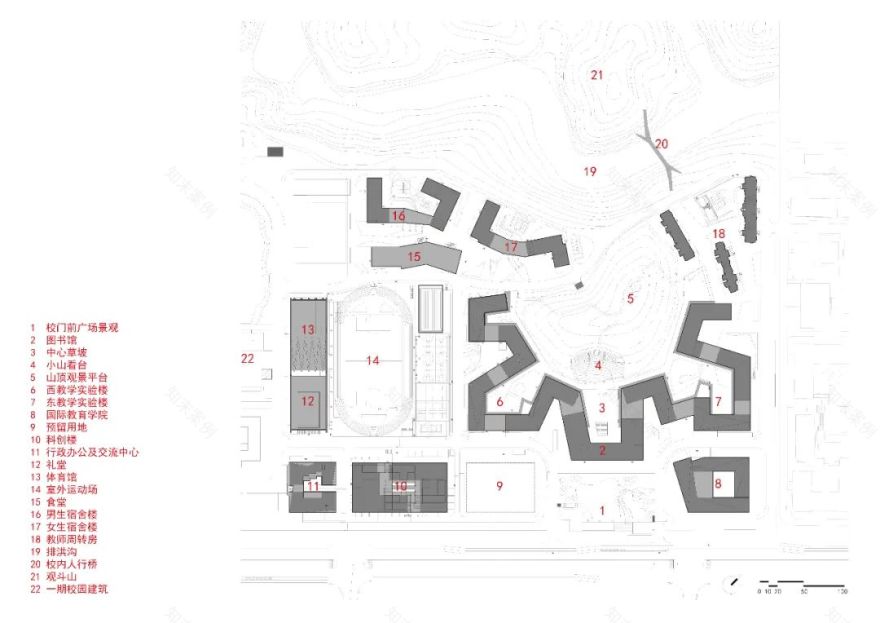

总平面 Site plan ©FCJZ

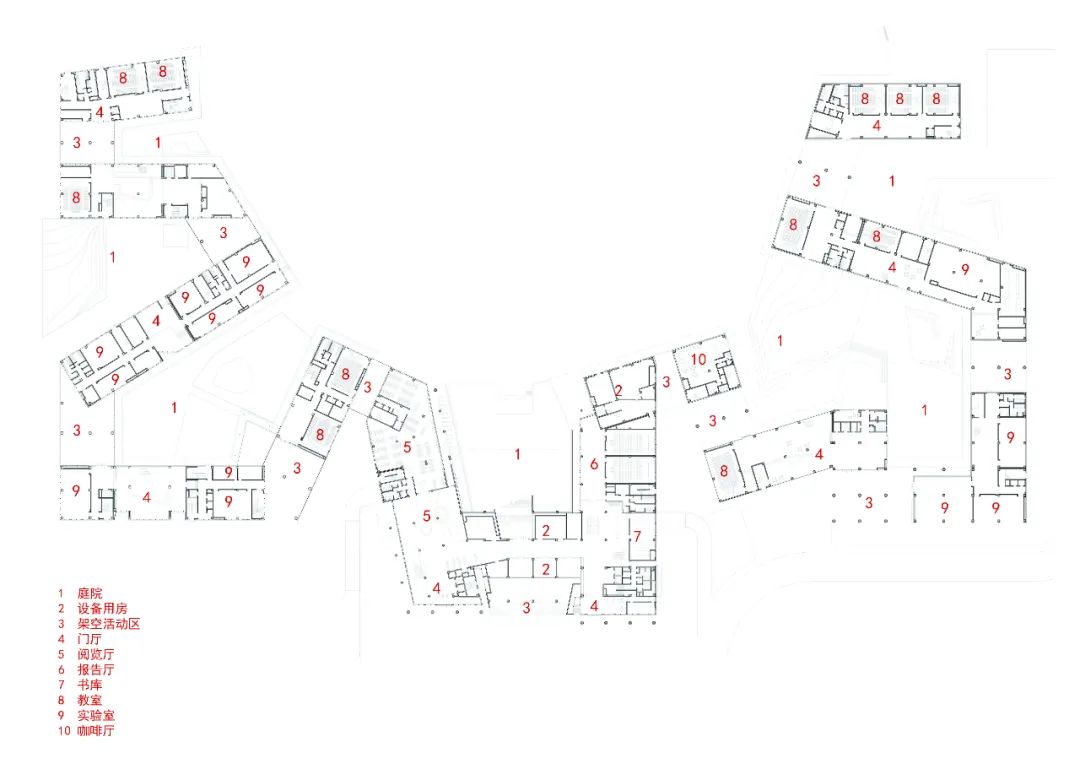

教学区一层平面 Teaching Cluster 1st floor plan

©FCJZ

教学区三层平面 Teaching

Cluster

 3rd floor plan

©FCJZ

项目信息

/

Project Info

业主

/Client：

宜宾市科教产业投资集团有限公司

/Yibin Science and Education Industry Investment Group Co., Ltd.

地点

/Location：

宜宾大学城，宜宾市，四川省

/Yibin University Town, Yibin City, Sichuan Province

, China

建筑设计

/

Architectural Design：

非常

建筑

/Atelier

 FC

JZ

主持建筑师

/Principal Architect：

张永和

/Yung Ho Chang

非常建筑设计团队

/

Atelier FCJZ Design Team：

黄舒怡、程艺石、张鹤、梁小宁、焦慧敏、龙彬、柳超、何泽林、孟瑶、李启悠

/Huang Shuyi, Cheng Yishi, Zhang He, Liang Xiaoning, Jiao Huimin, Long Bin, Liu Chao, He Zelin, Meng Yao, Simon Lee

施工图设计

/

Construction Documents Design

：

同济大学建筑设计研究院（集团）有限公司 建

筑设计三院

/No.3 Architectural Design Institute of Tongji Architectural Design (Group) Co., Ltd.

建筑

/Architectur

e

：

王文胜、史巍、赵承宏、钟强、陶匡义、汤亚捷、张帆、唐璐、何凌芳

/

Wang Wensheng, Shi Wei, Zhao Chenghong, Zhong Qiang, Tao Kuangyi, Tang Yajie, Zhang Fan, Tang Lu, He Lingfang

结构

/Structure

：

阮林旺、

金刚

、

孟春光、耿耀明、居炜、郭洋、马东亚、李继国、周游、文超、王松铄、顾峰、周超君、田春阳

/Ruan Linwang,

Jin Gang

,

Meng Chunguang, Geng Yaoming, Ju Wei, Guo Yang, Ma Dongya, Li Jiguo, Zhou You, Wen Chao, Wang Songshuo, Gu Feng, Zhou Chaojun, Tian Chunyang

给排水

/

PE

：

冯玮、黄倍蓉、王恒、沈嘉钰、汪润

/ Feng Wei, Huang Beirong, Wang Heng, Shen Jiayu, Wang Run

暖通

/HVAC

：

曾刚、姚赛、祁栋盛、徐桓、周鹏、宋媛、袁寅

/

 Zeng Gang, Yao Sai, Qi Dongsheng, Xu Huan, Zhou Peng, Song Yuan, Yuan Yin

电

气

/EE

：

王坚、程青、陈义清、汪晴、刘龙、付明民、陈伟、刘永强、孙立安、吴亦凡、屈磊、郑剑锋、麻伟男、邵启臻、顾巍、刘曦圆

/

 Wang Jian, Cheng Qing, Chen Yiqing, Wang Qing, Liu Long, Fu Mingmin, Chen Wei, Liu Yongqiang, Sun Li'an,

Wu Yifan

, Qu Lei, Zheng Jianfeng, Ma Weinan, Shao Qizhen, Gu Wei, Liu Xiyuan

景观

/

Landscape

：

陆伟宏、

王准、翟立娜、颜晓

文

/

Lu Weihong,

Wang Zhun, Zhai Lina, Yan Xiaowen

市政

/

CE

：

沈禹、汪洋、谭瑜、林英、乔静宇、宋馨、段洪亮、

虞峰

/Shen Yu, Wang Yang, Tan Yu, Lin Ying, Qiao Jingyu, Song Xin, Duan Hongliang, Yu Feng

驻场代表

/

Site Rep

：

严旭东

/Yan Xudong

基地面积

/Site Area

：

367400

㎡

建筑面积

/Building Area

：

224648

㎡（二期新建部分

/newly-built part of Phase II

）、

26254

㎡（一期续建部分

/extension part of Phase I

）

设计周期

/Design Period

：

2020.01 – 2021.03

建造周期

/Construction Period

：

2020.09-2021.11

竣工时间

/Completion Time

：

2021.11
