Modular Bus Stops

Modular Bus Stops

Design

2021

Team

Anatoly Mosin, Pavel Kryuchkov, Natalya Raevskaya, Larisa Dvoinykh, Daria Gladkova, Maria Chebotareva

Collaborative project between AB «Project» and

Punto Group

Together with

Punto Group

* we have created modular public transportation complexes. Our bureau developed the concept of stops and then, together with Punto Group specialists, we finalized the line of complexes with various modules and additional options.

*Punto Group — company producing outdoor furniture, sports facilities and furniture for the HoReCa segment

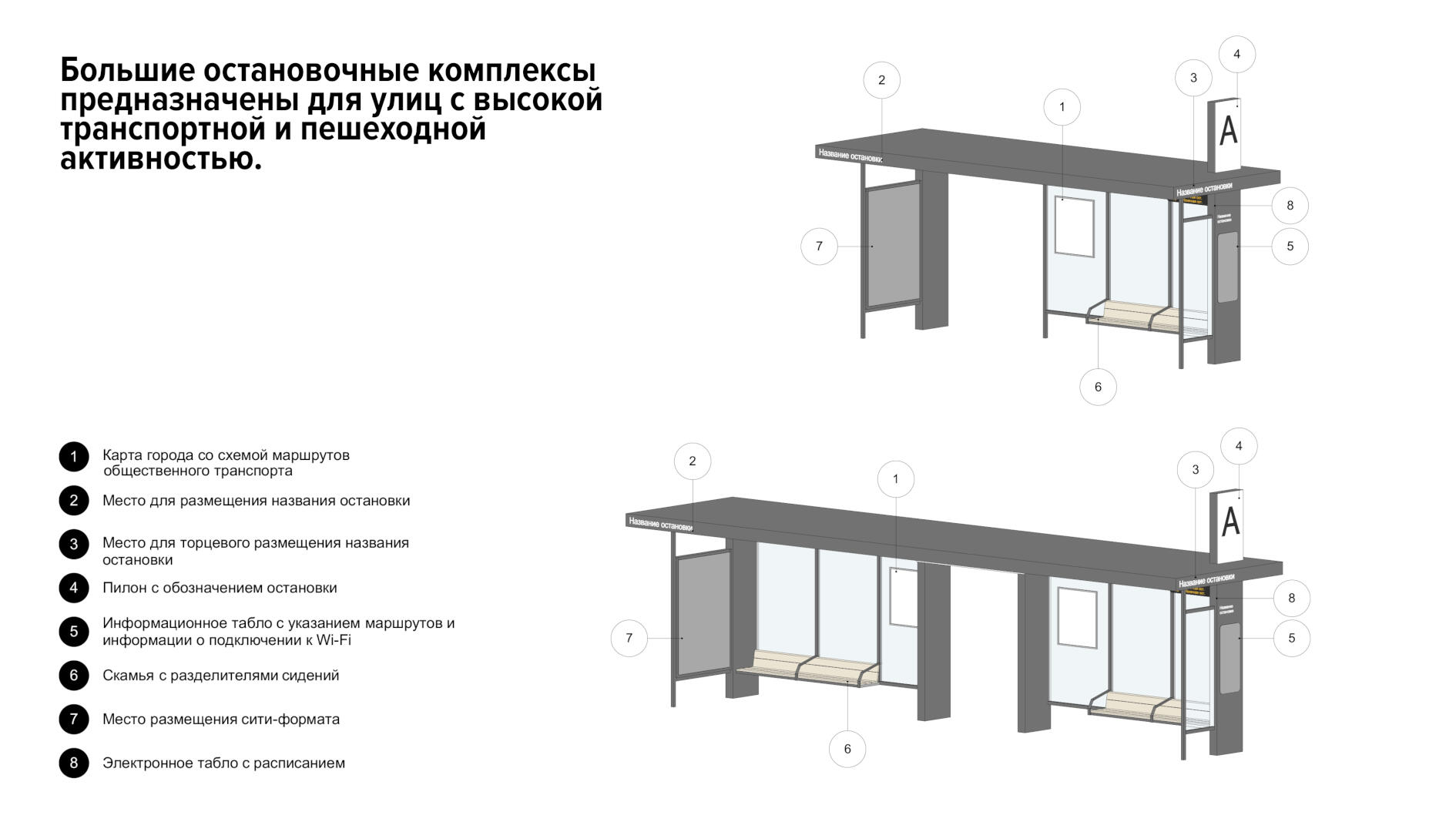

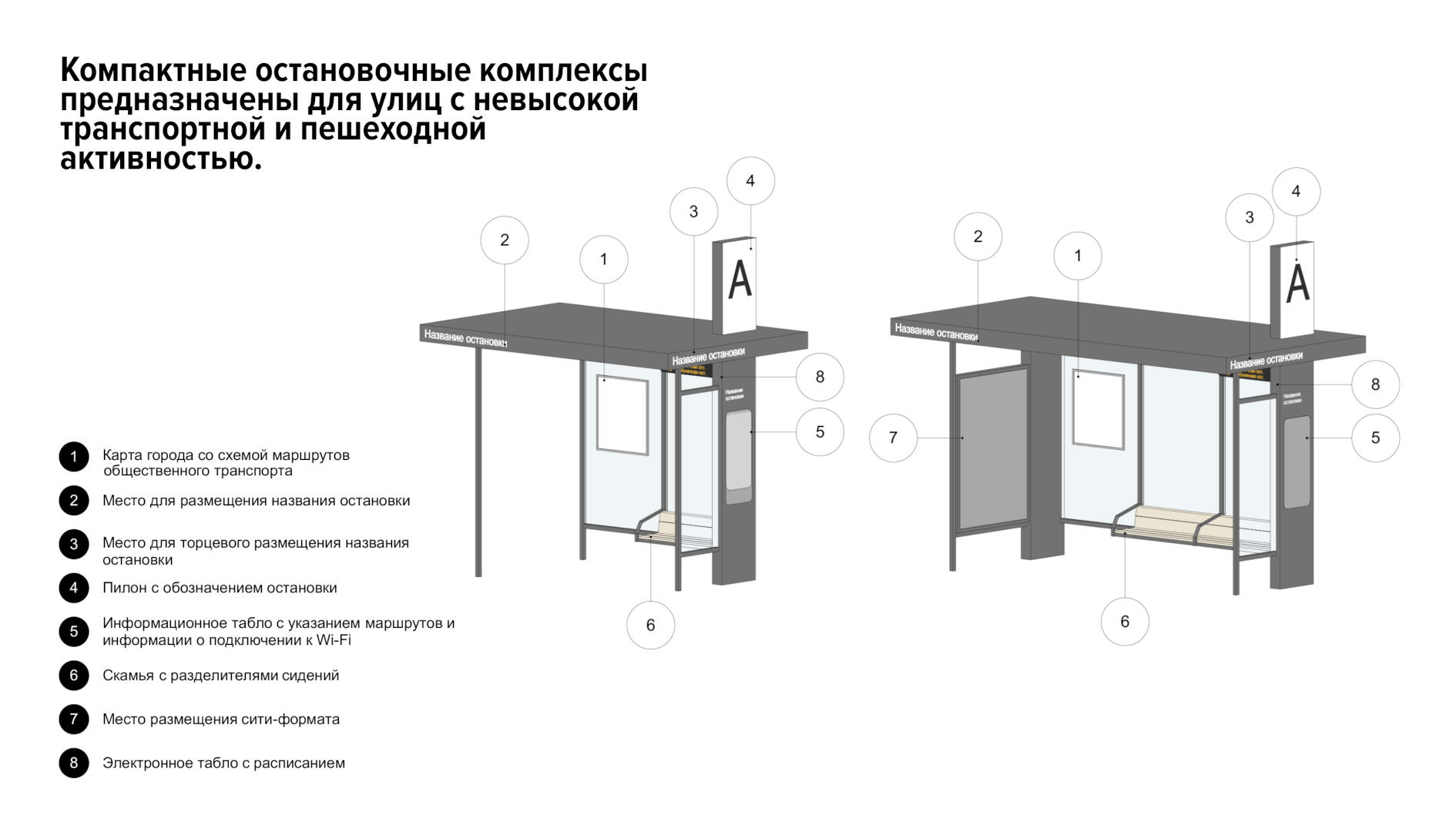

Our concept is based on 4 types of combinations that can be used as public transport stops, as a place to store personal mobility equipment and wheelchairs, as a smoking area, and etc. Modules differ in size and basic configuration. They, as well as additional options, are selected depending on the wishes of the customer and based on an analysis of the environment and traffic.

Additional options help to diversify the functionality of the bus stop complex:

green roof helps to reduce the temperature of transportation stop structures during the hot season. Also this type of roof has a positive effect on the environment

solar panels accumulate energy, which will be enough to provide the stopping module with light and electricity. Thus, it becomes almost completely autonomous

the module with a USB connector allows passengers to recharge their gadgets while they are waiting for the desired transport

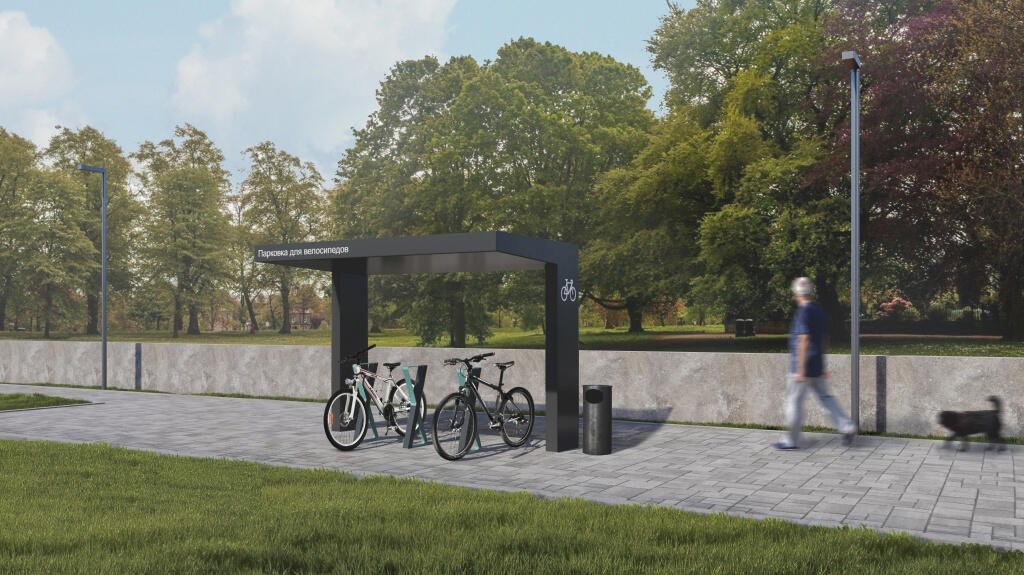

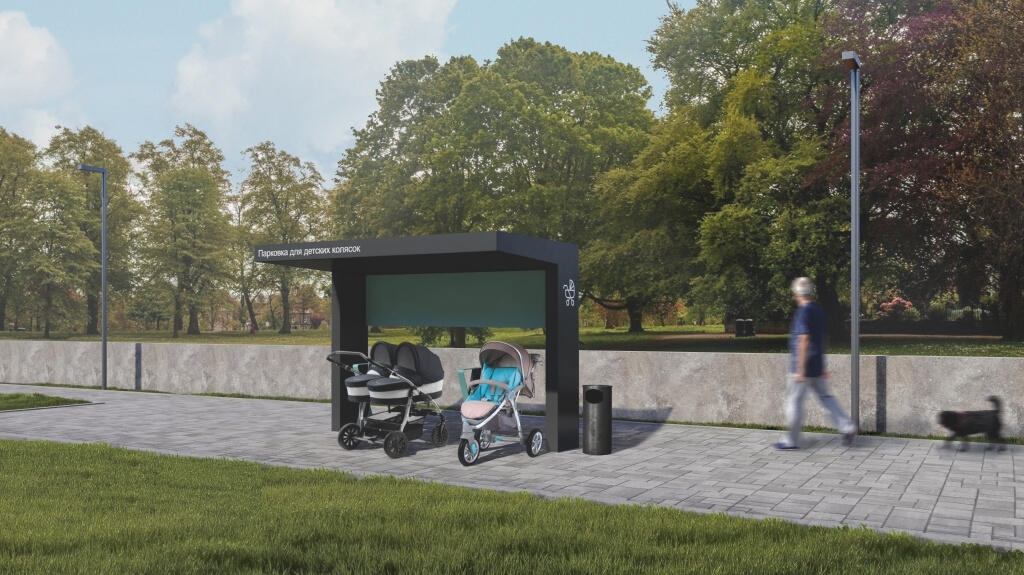

bike parking / wheelchair parking / micromobile parking

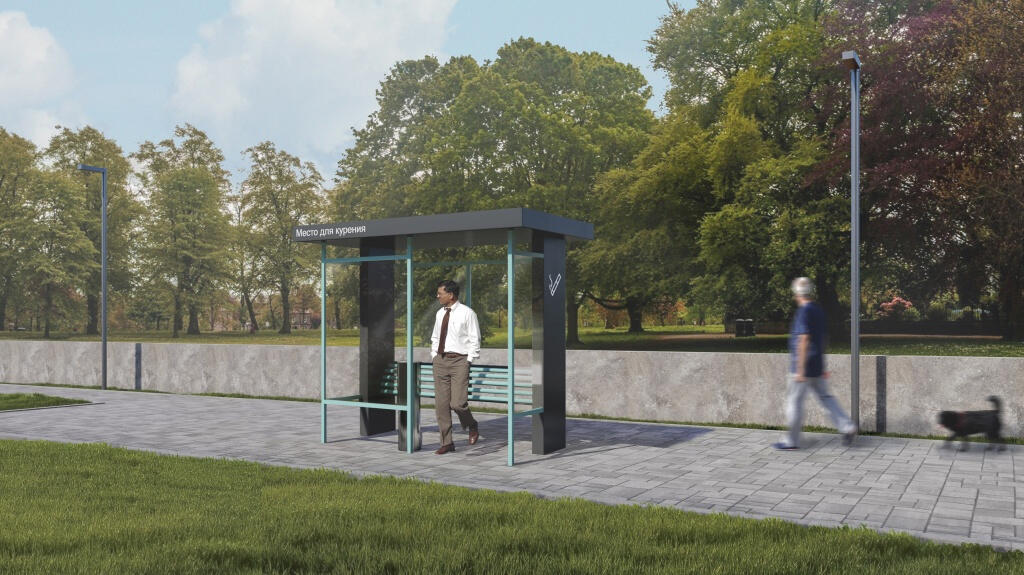

a smoking area isolated from non-smoking passengers by transparent tempered glass without perforations and openings
