architects Henley Halebrown

Baldry Gardens London 2004–2010

In this 3-storey centre, clinical rooms are located on the first floor to resolve the conflict between a daylit interior and a concern for patient dignity. The building plays on its simple massing, the quality of the brickwork and the scale and nature of the windows.

‘The practice portfolio is rich with civic buildings,…, often with a limited budget. The staircase is one of the highlights of this simple, inexpensive building.’ Rory Olcayto


Information

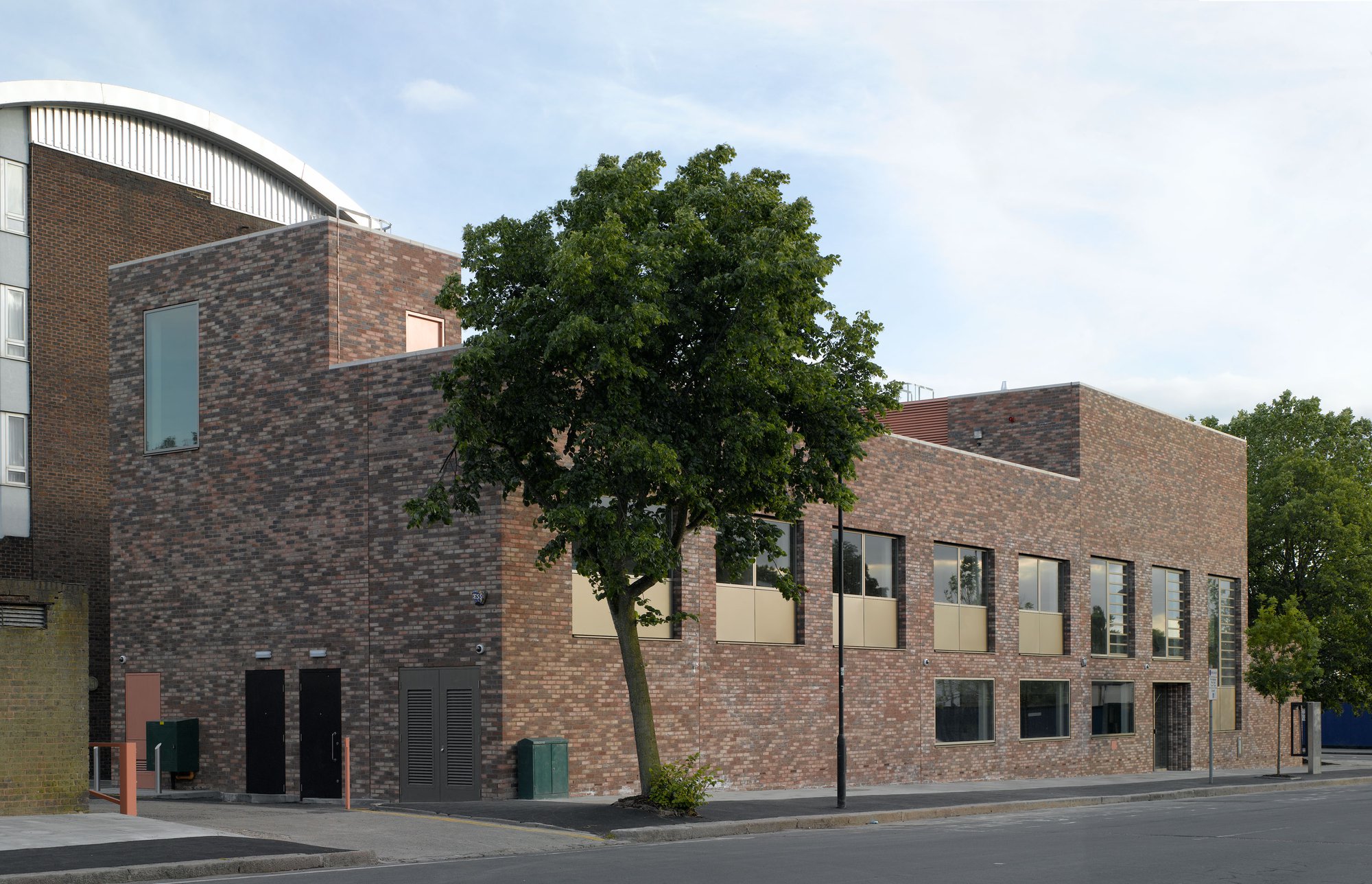

The entrance façade on Baldry Gardens is characterised by large structural openings on the first floor, framing windows to consulting rooms and waiting space

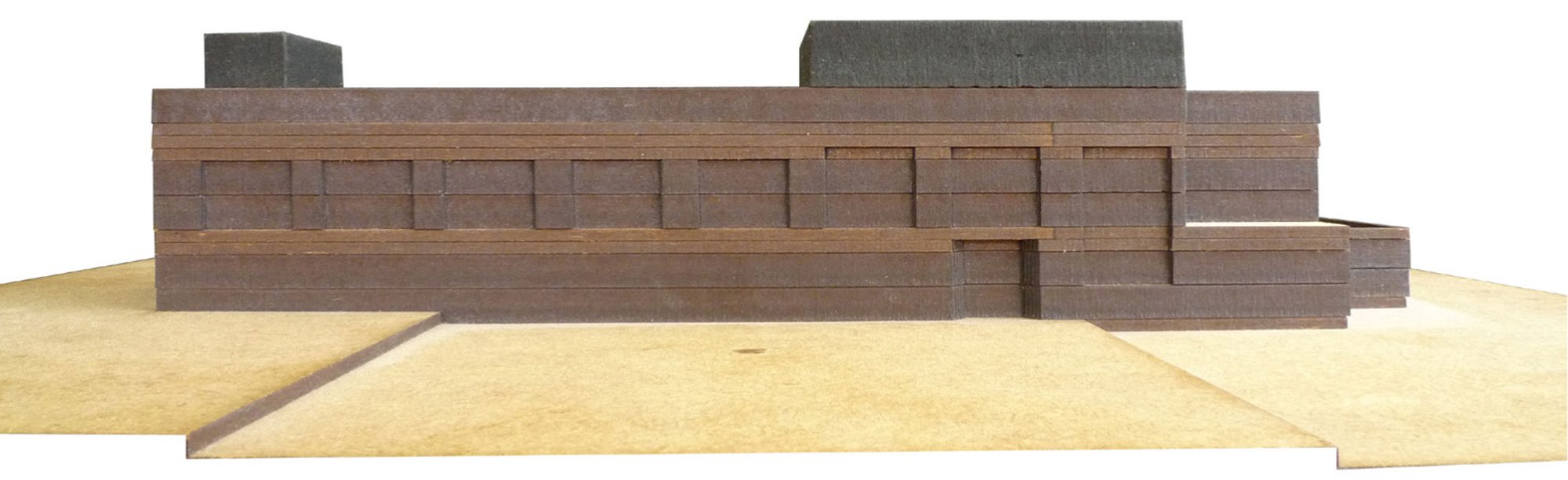

Study model used to develop designs for the entrance façade on Baldry Gardens

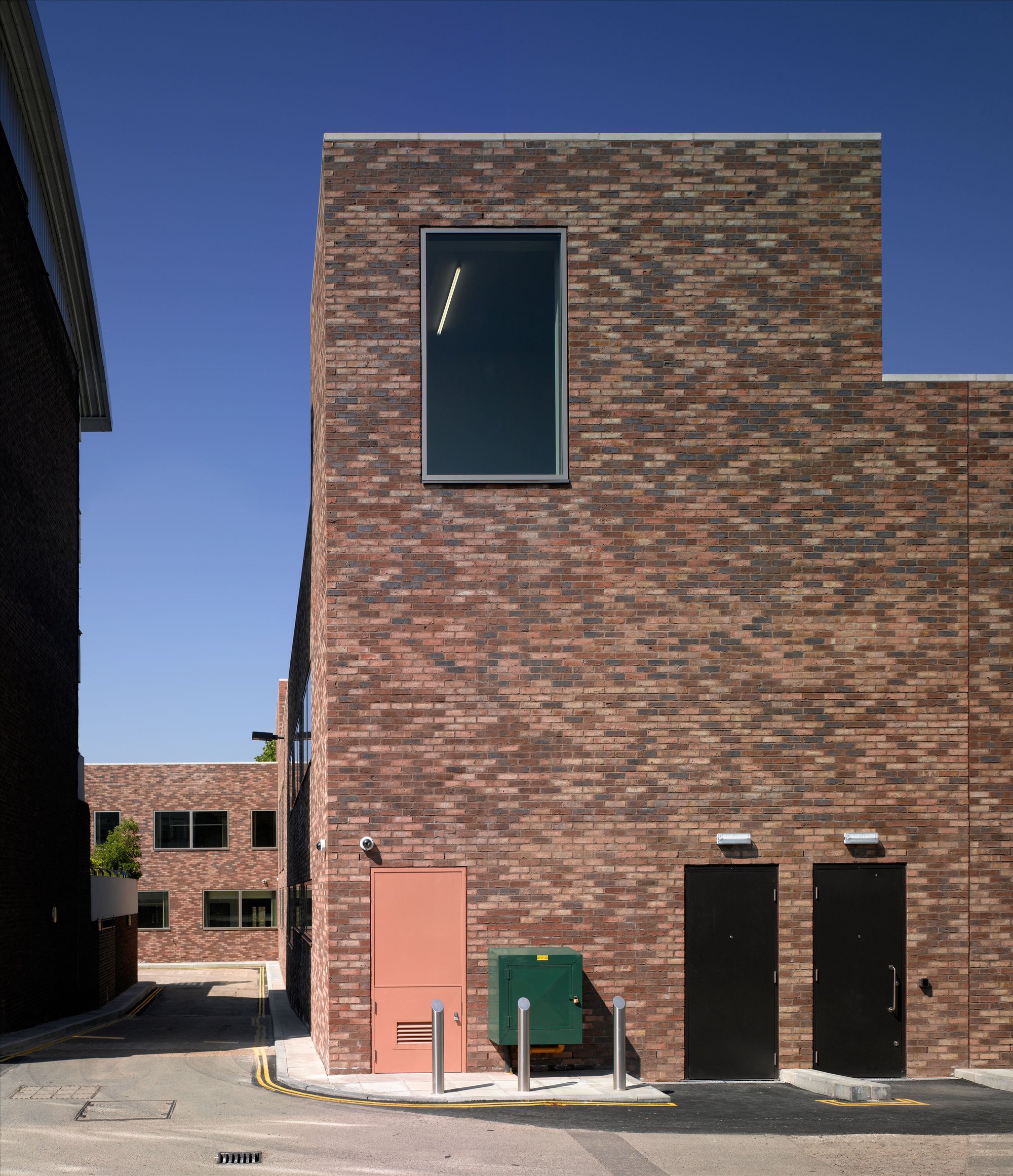

With windows set high up in a brick wall the design suggests a piano nobile or a large interior such as a hall

The facing brick is varied in both tone and hue and ranges from crème to pink to brown to reflect the range of stocks in the locality

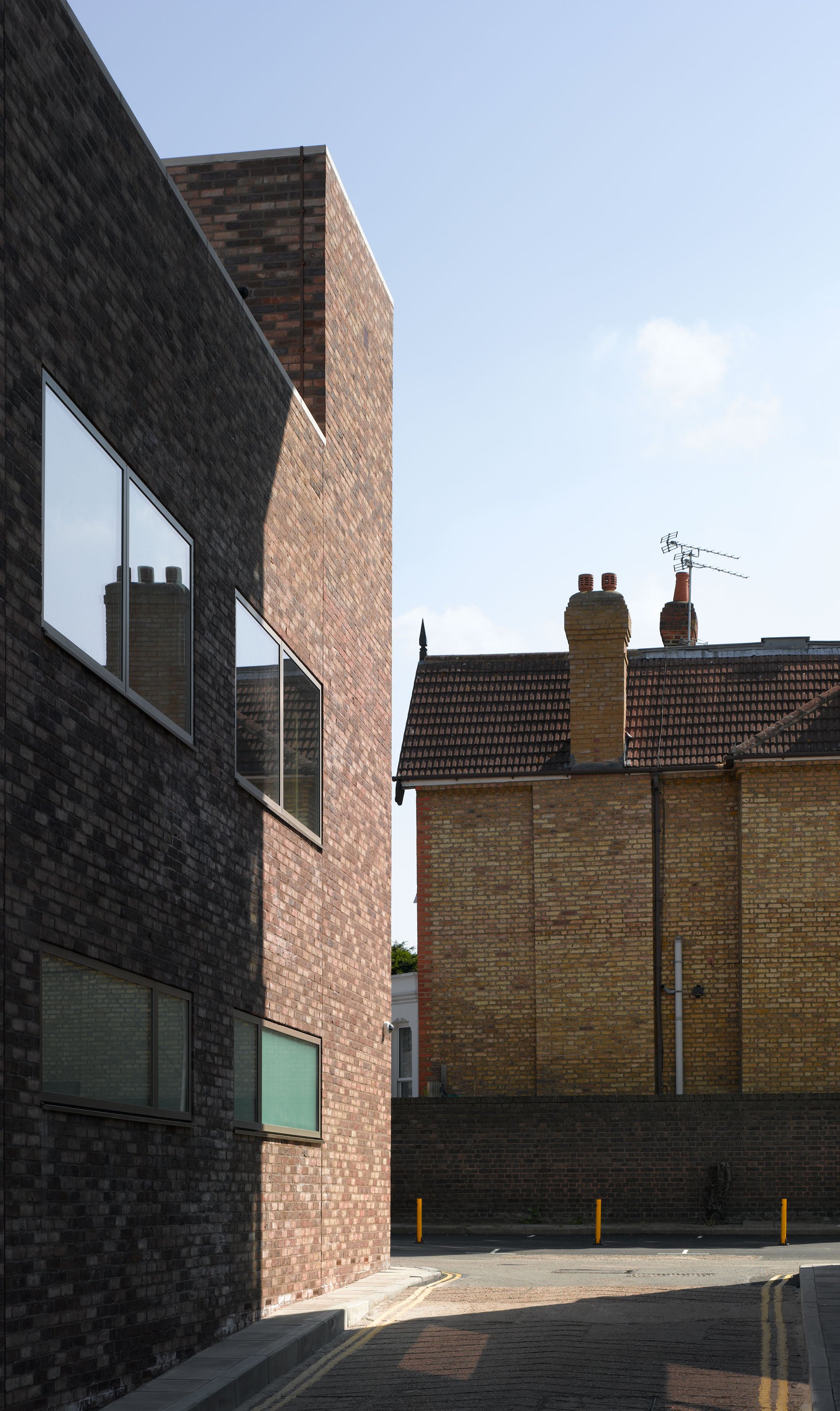

Detail of south façade

Detail of flush window, post box, weep holes and air bricks

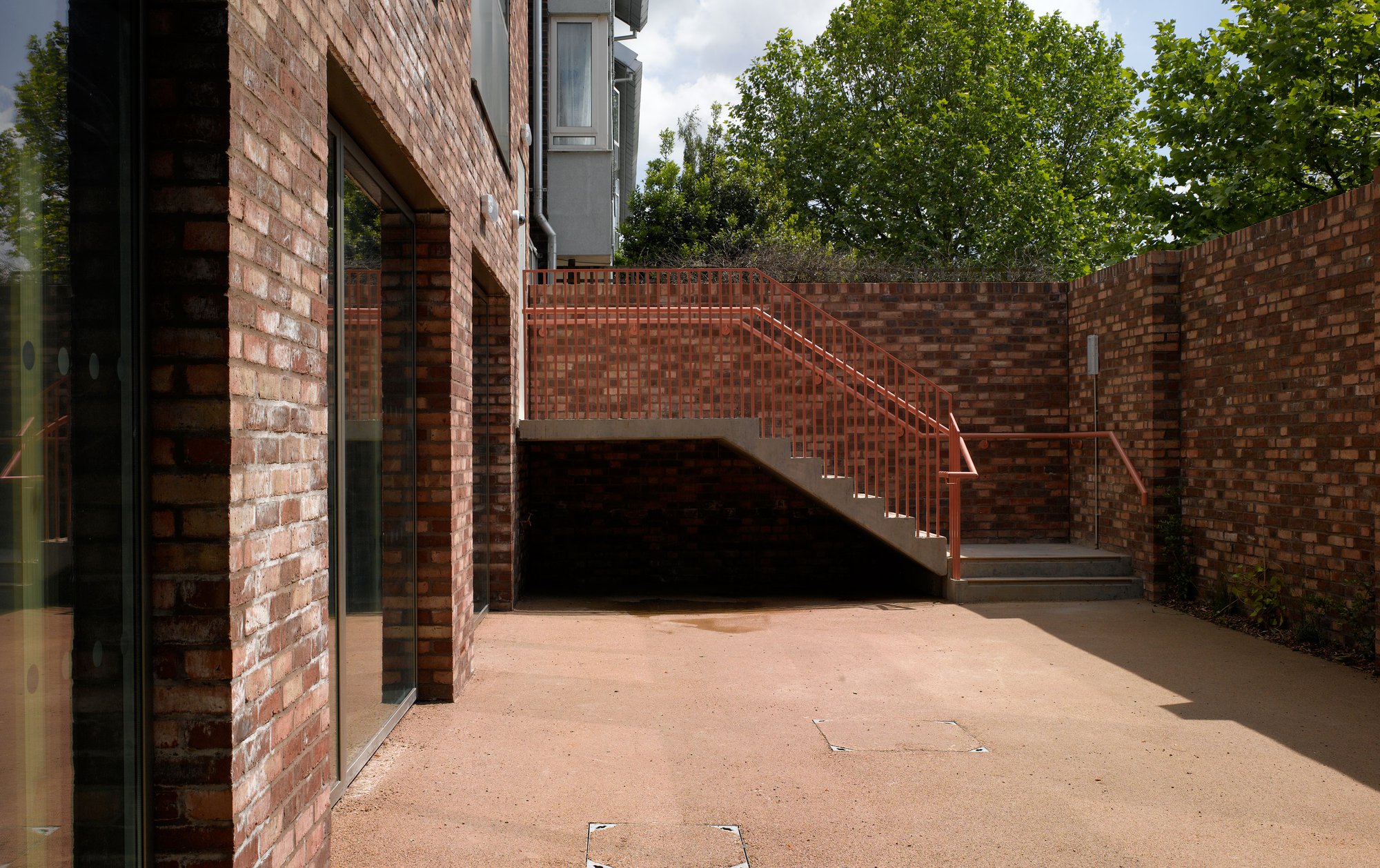

Precast concrete stair and courtyard garden

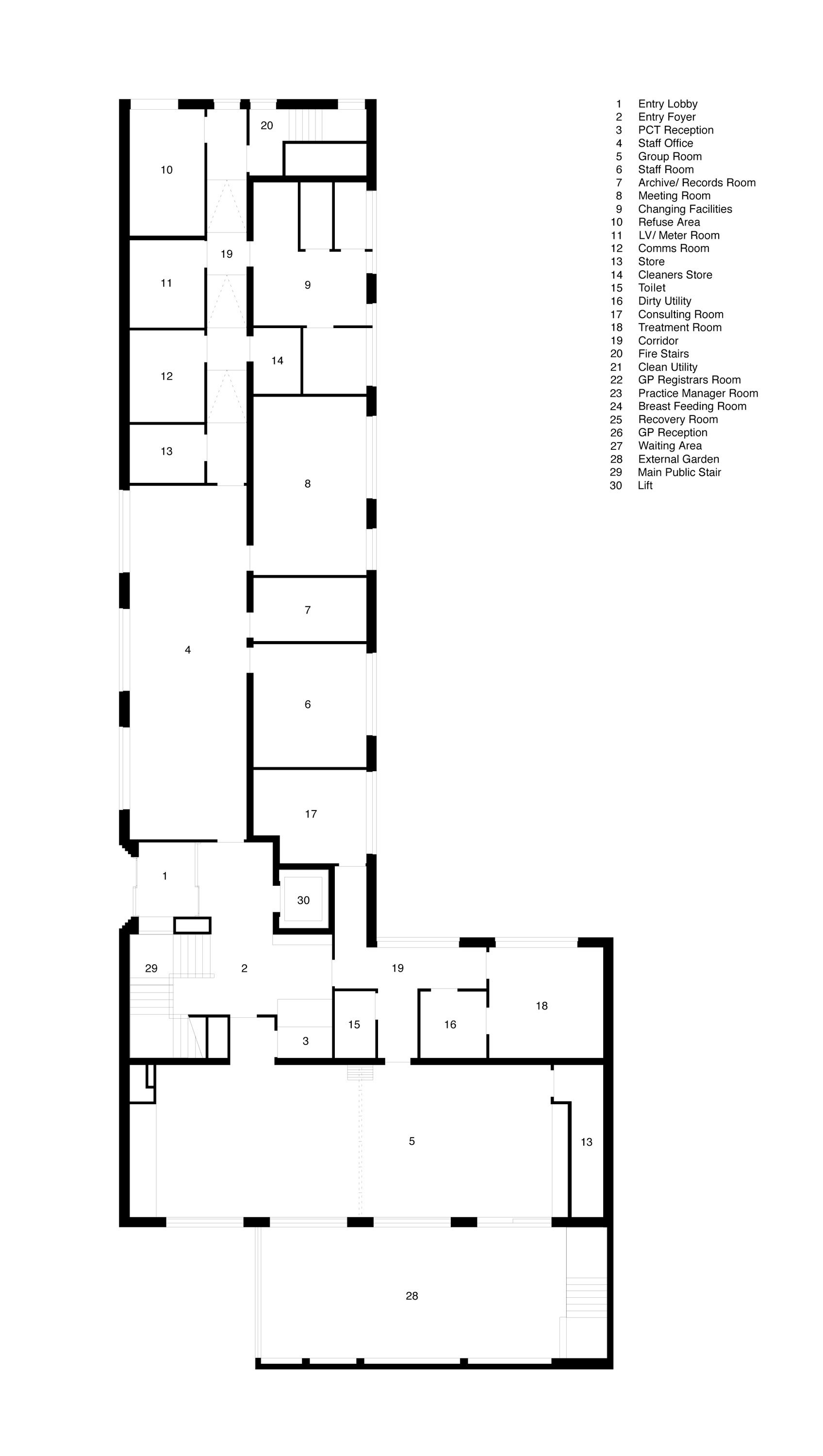

Ground floor plan

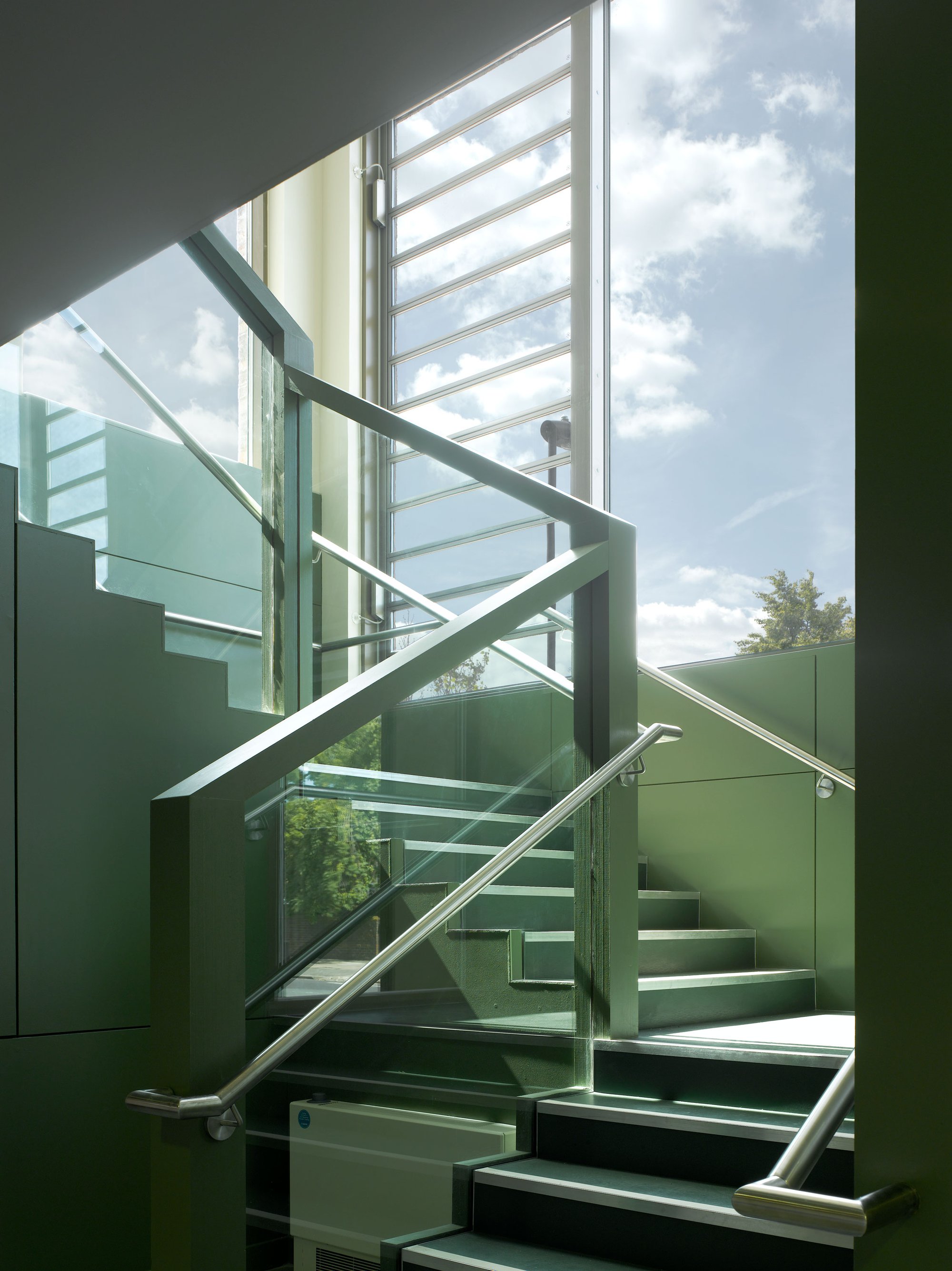

Stair up to reception, waiting and consulting rooms

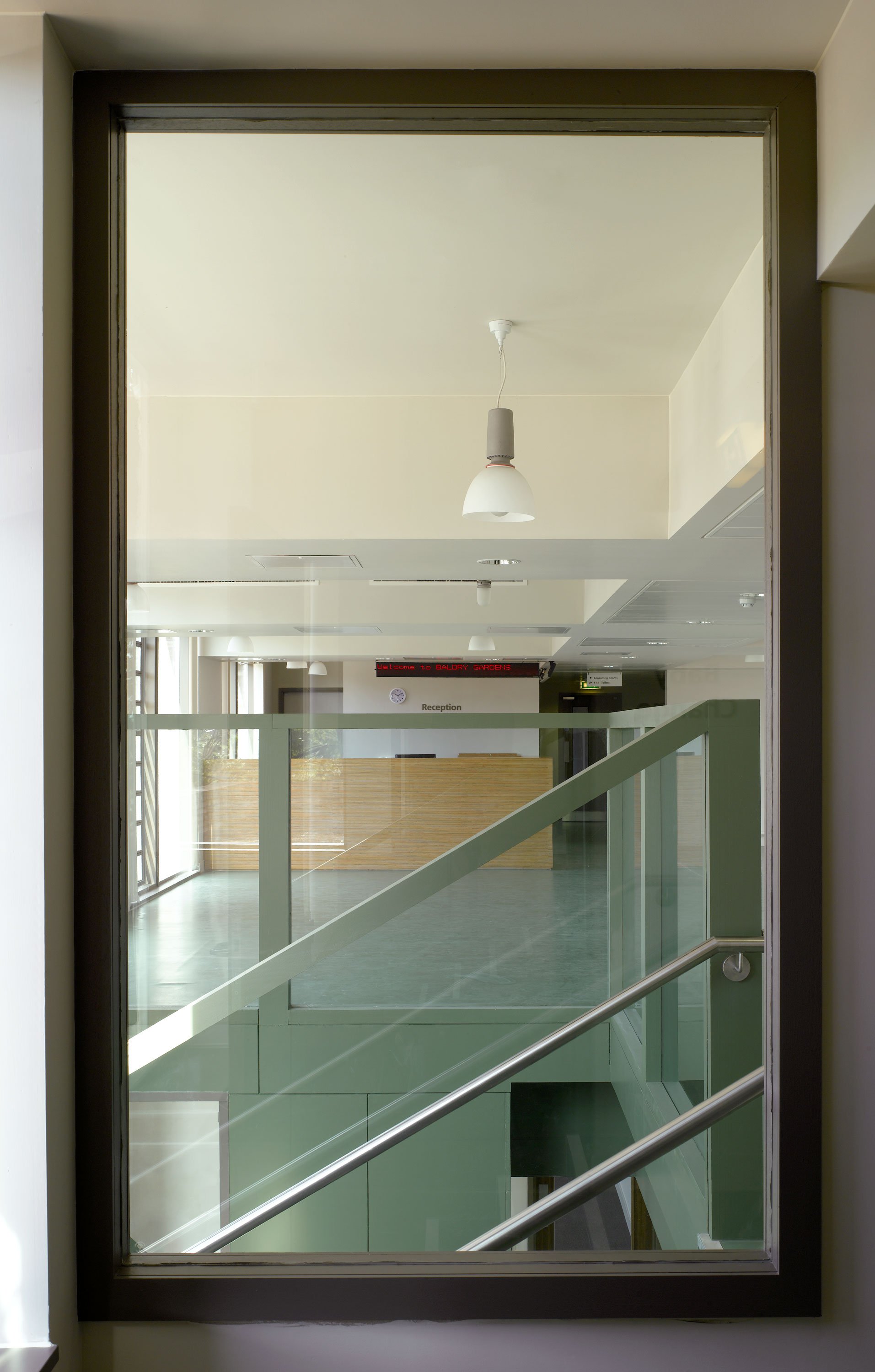

First floor reception and waiting area

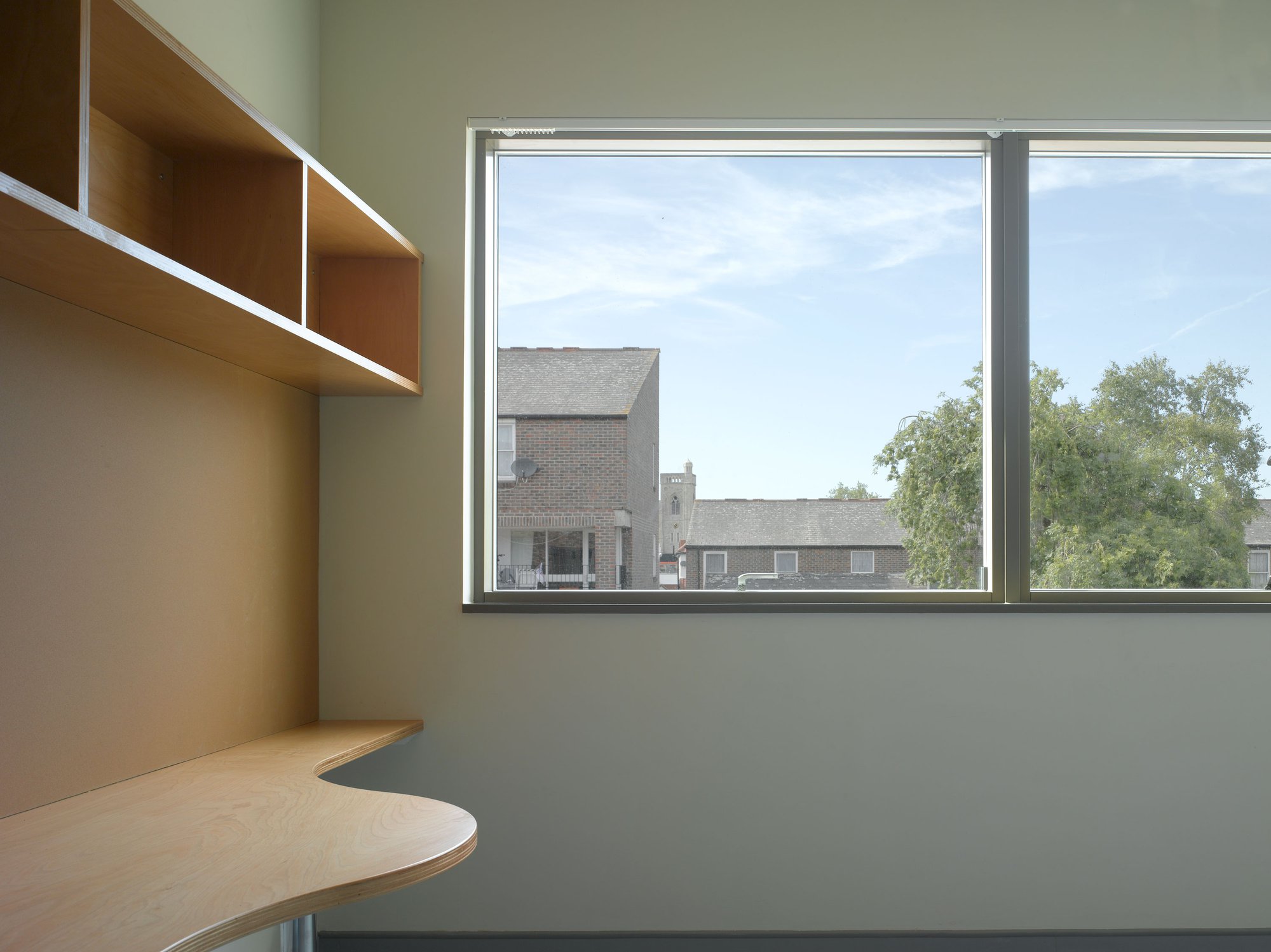

First floor consulting room

Technical

Appointment: 2004

Construction start: 2009

Completion: 2010

Area: 1030m

2

Budget: £3m

Sustainable credentials: CO2 emissions/m² treated floor area: 20.7kgCO2/m²; BREEAM Healthcare Very Good

Form of contract: Design & Build

Client: South London Health Partnership LIFT Co; Developer: Fulcrum; Public Sector: Lambeth PCT

Contractor: Willmott Dixon

Services Engineer: Cundall

Structural Engineer: Price & Myers

Quantity Surveyor: Davis Langdon

Project Management: Davis Langdon

Transport Consultant: Alan Baxter Associates

Planning Consultant: Urban Practitioners

Awards

Building Better Healthcare Awards, Best Communtiy Care, 2011

Building Better Healthcare Awards, Clinician's Choice, 2011
