丨英国伦敦丨Henley Halebrown

architects Henley Halebrown

Copper Lane, London, 2009–2014

London’s first co-housing scheme consists of six homes. The architecture supports an “intentional” community and, with its shared facilities, heralds radical changes in the urban home. It shows how architecture can respond to a new social need that has arisen through changes in both lifestyles and economics, making home ownership more affordable as well as shaping more convivial and sustainable neighbourhoods.

Image 1

Information 1

1-6 Copper Lane replaces a disused children’s nursery on a 1,000m2 backland site behind residential streets

The design strategy was to develop a building type that manifests the idea of “communality” and to maximise external space

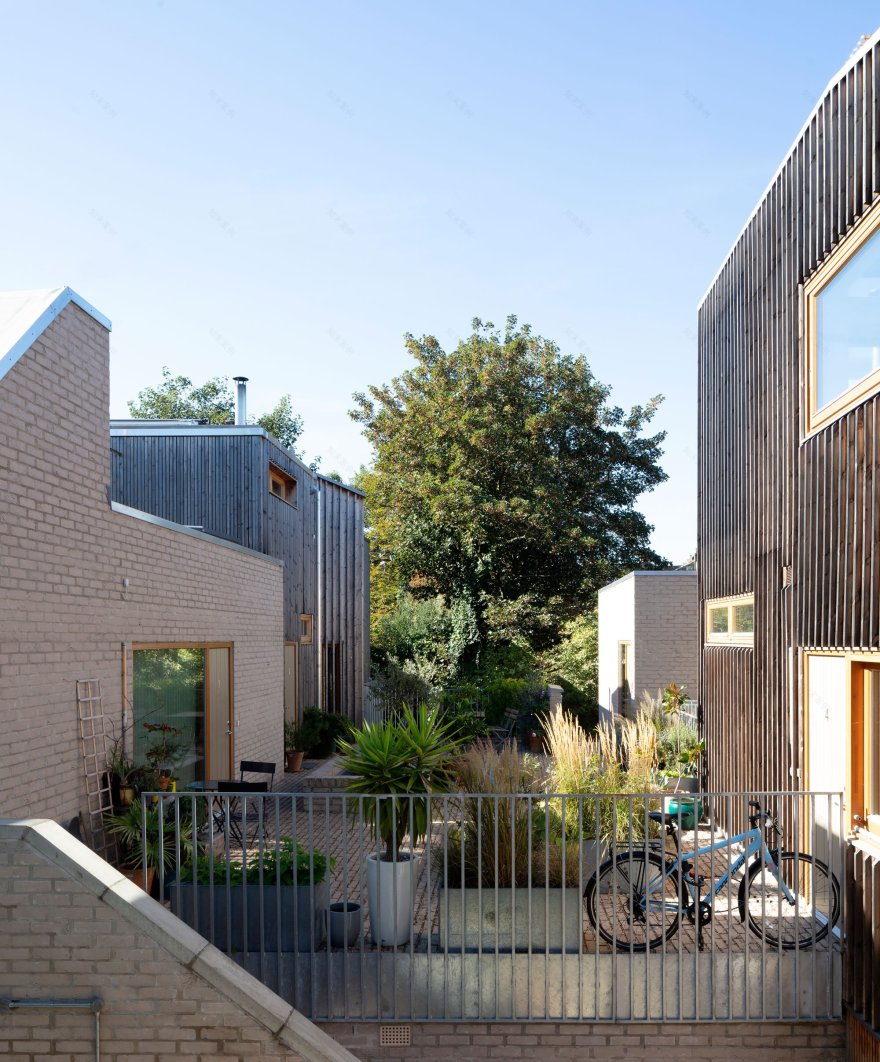

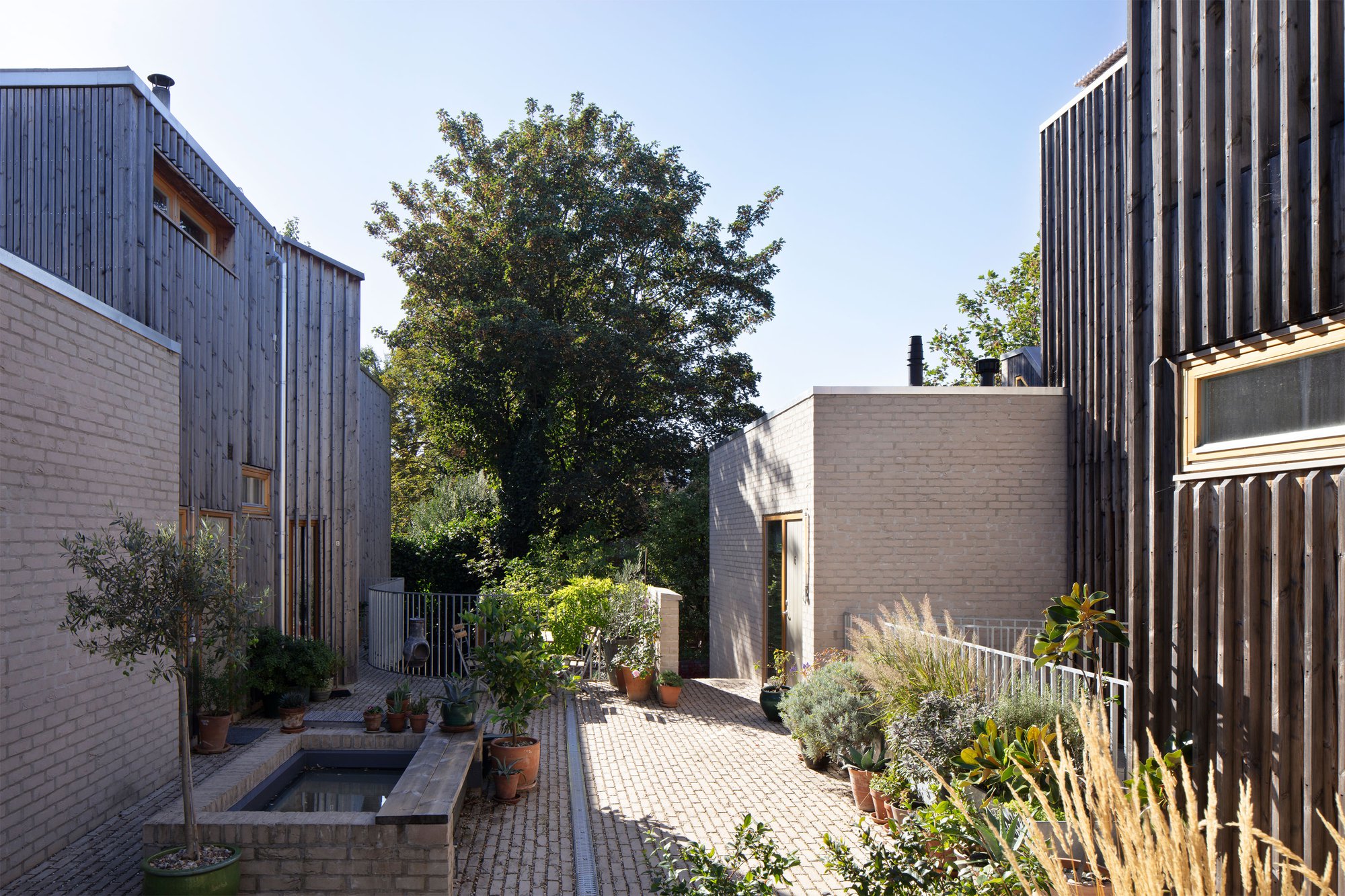

The “cluster” model places a court at the heart of the site

Compared to typical terraced houses where the public sphere ends at the front door, it is clear on entering 1-6 Copper Lane that, although defined, boundaries between public and private space have been extended beyond the norm

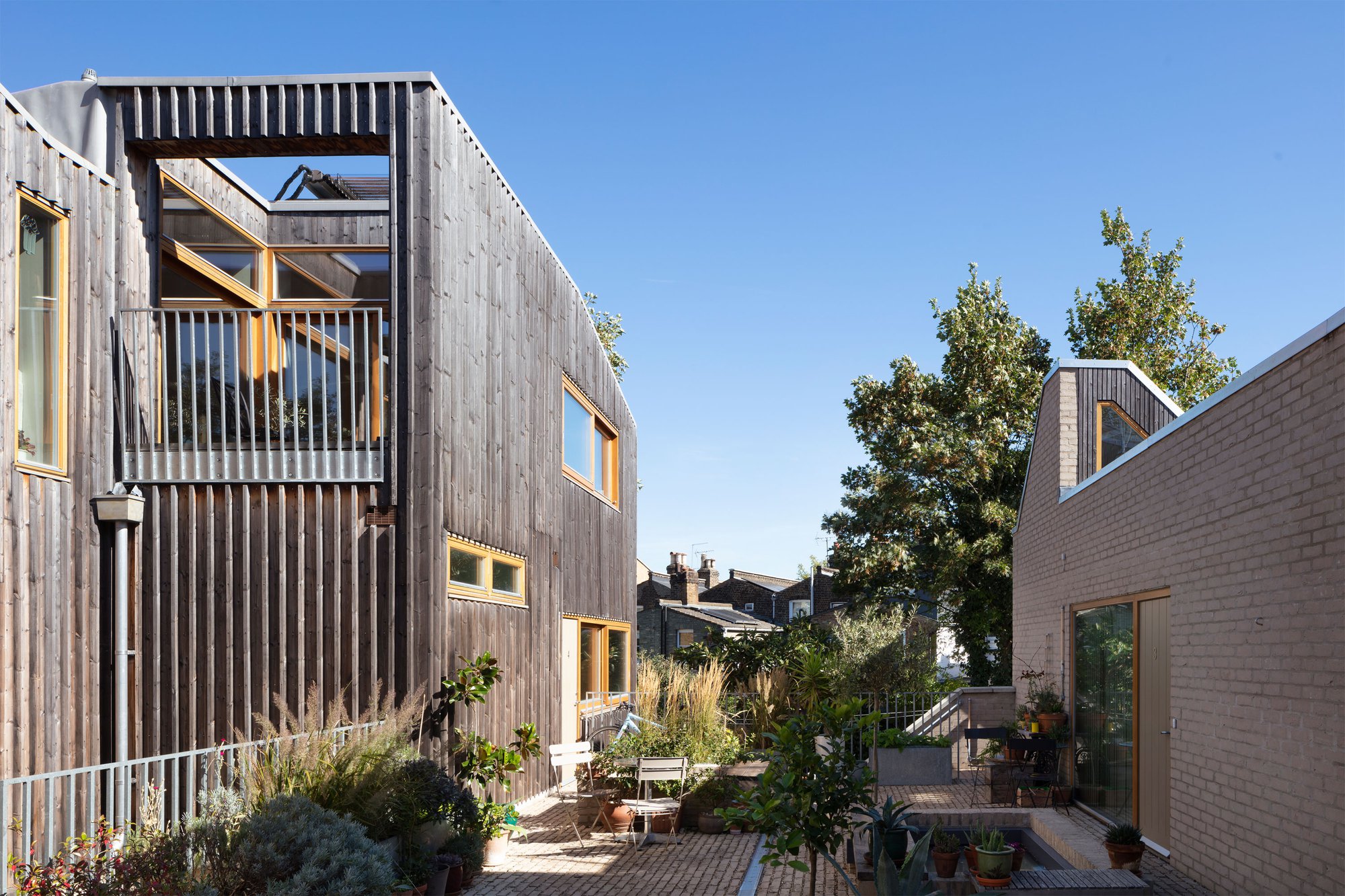

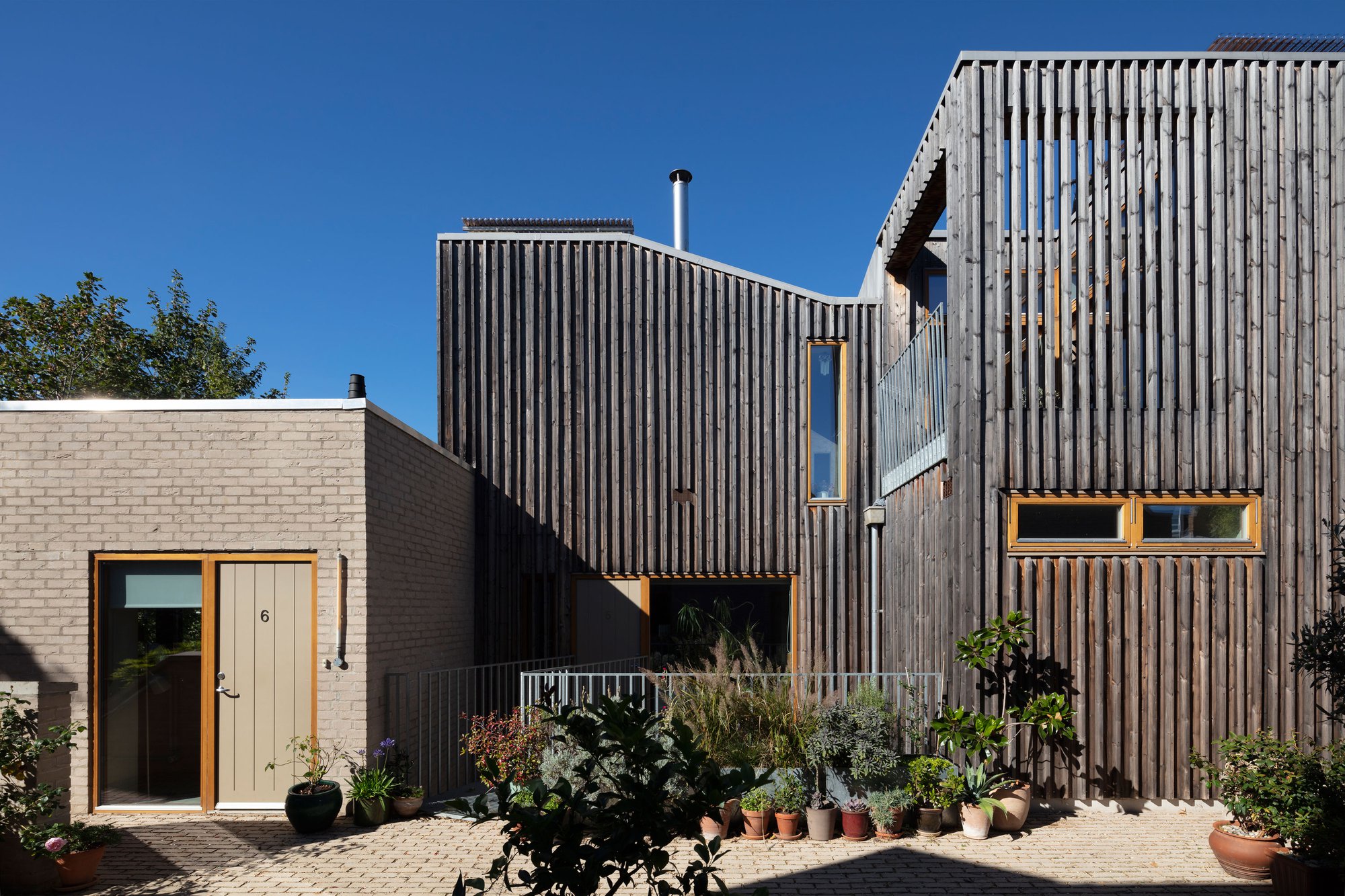

The timber elevations to the court use wider boards and planted battens. This, more rudimentary, detail castes strong shadows and is more tactile than the smoother outward elevations

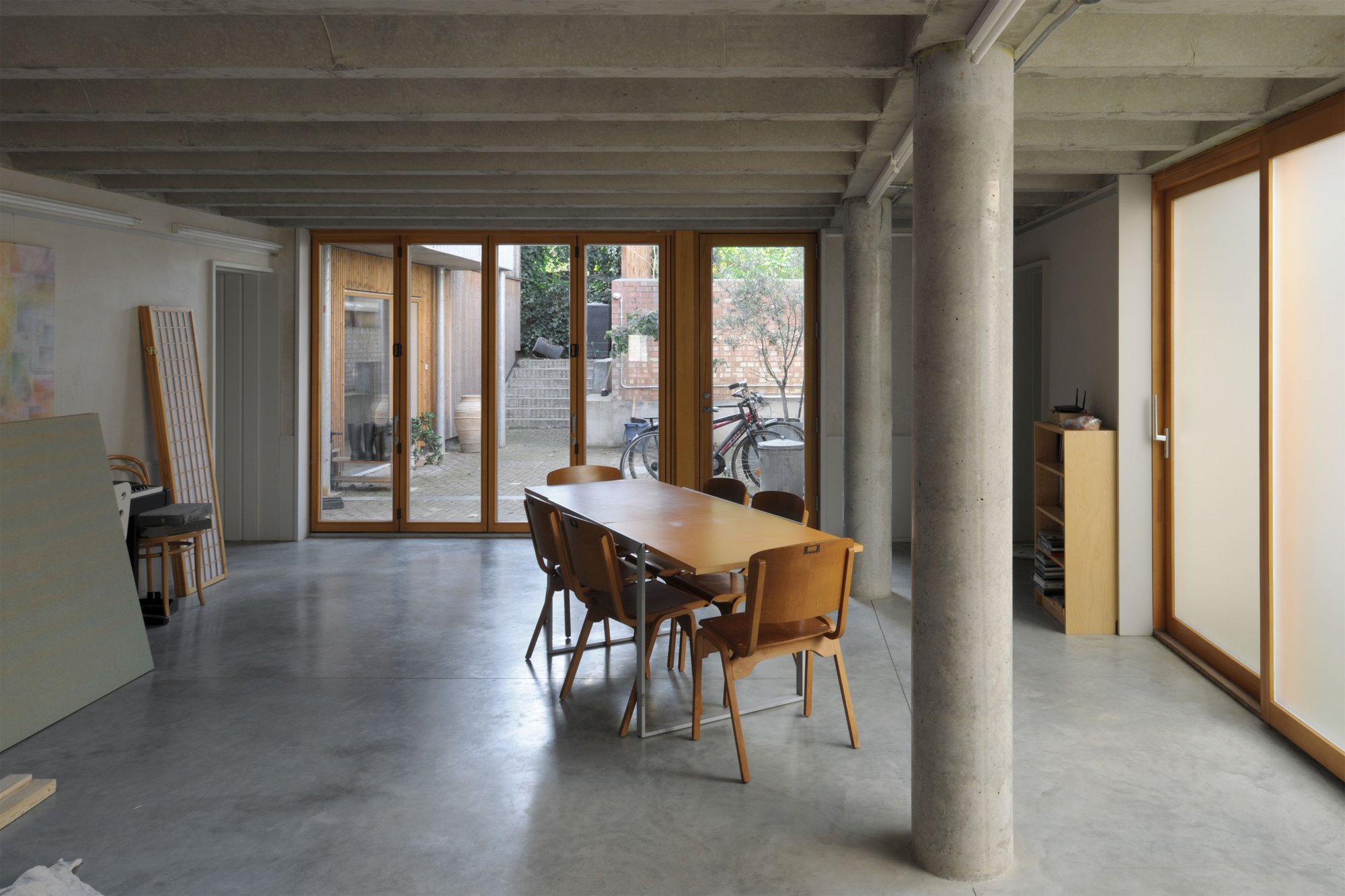

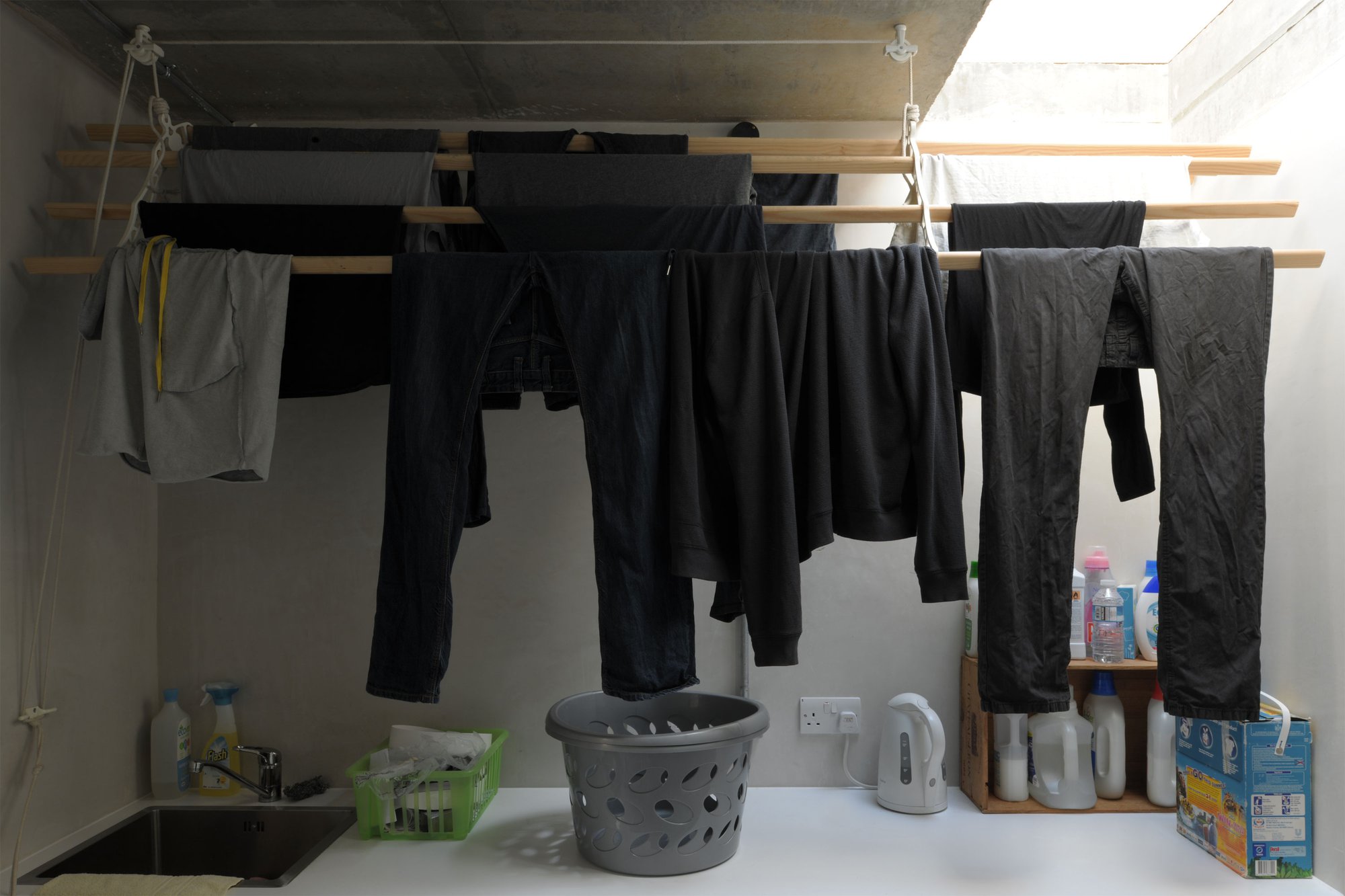

The communal facilities are located beneath the court at the heart of the scheme

The houses share a palette of simple and robust materials

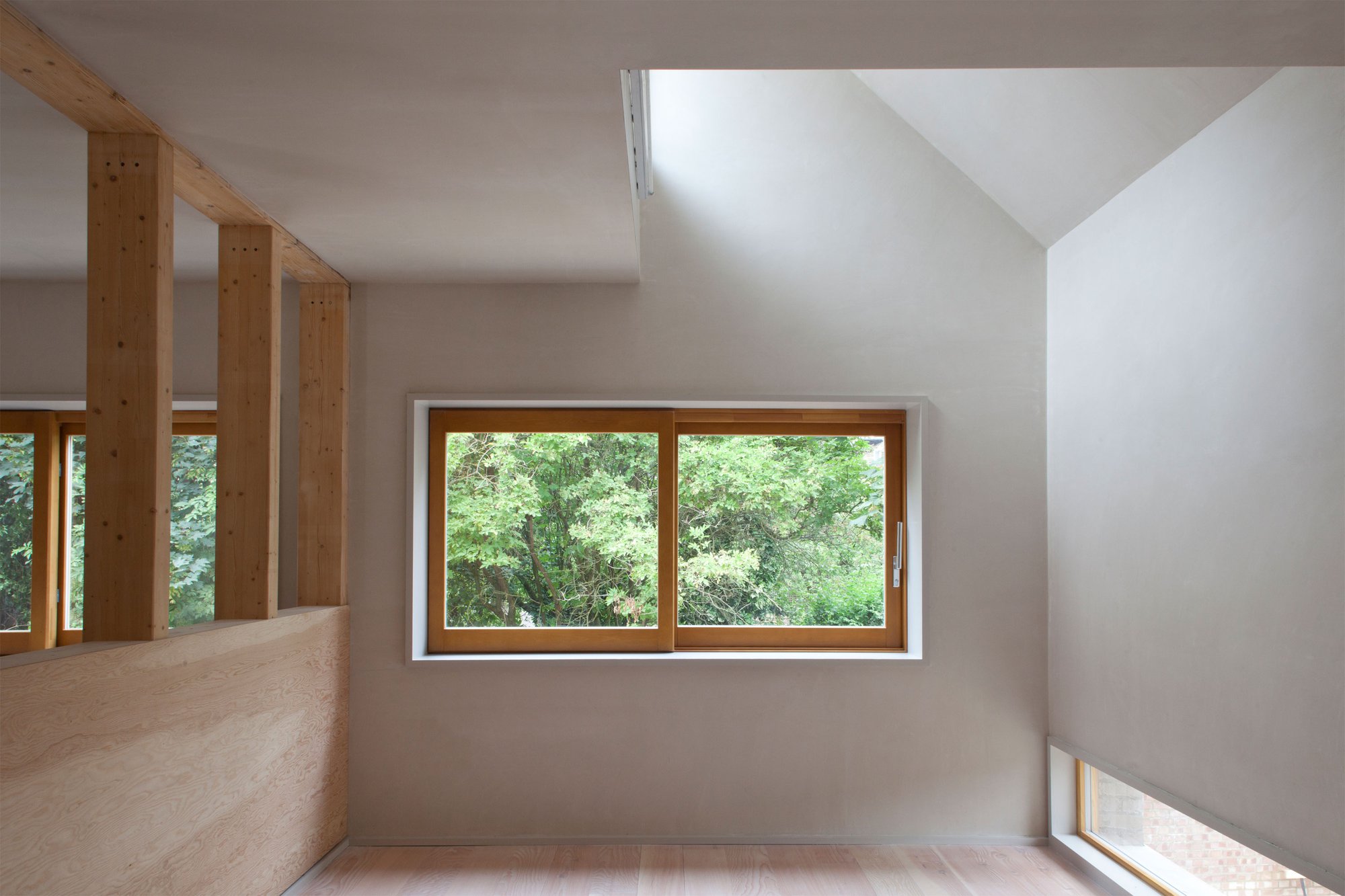

Inside walls and ceilings are unpainted natural white plaster, the upper floors and staircases are white-oiled Douglas Fir timber and the lower ground floor is screeded

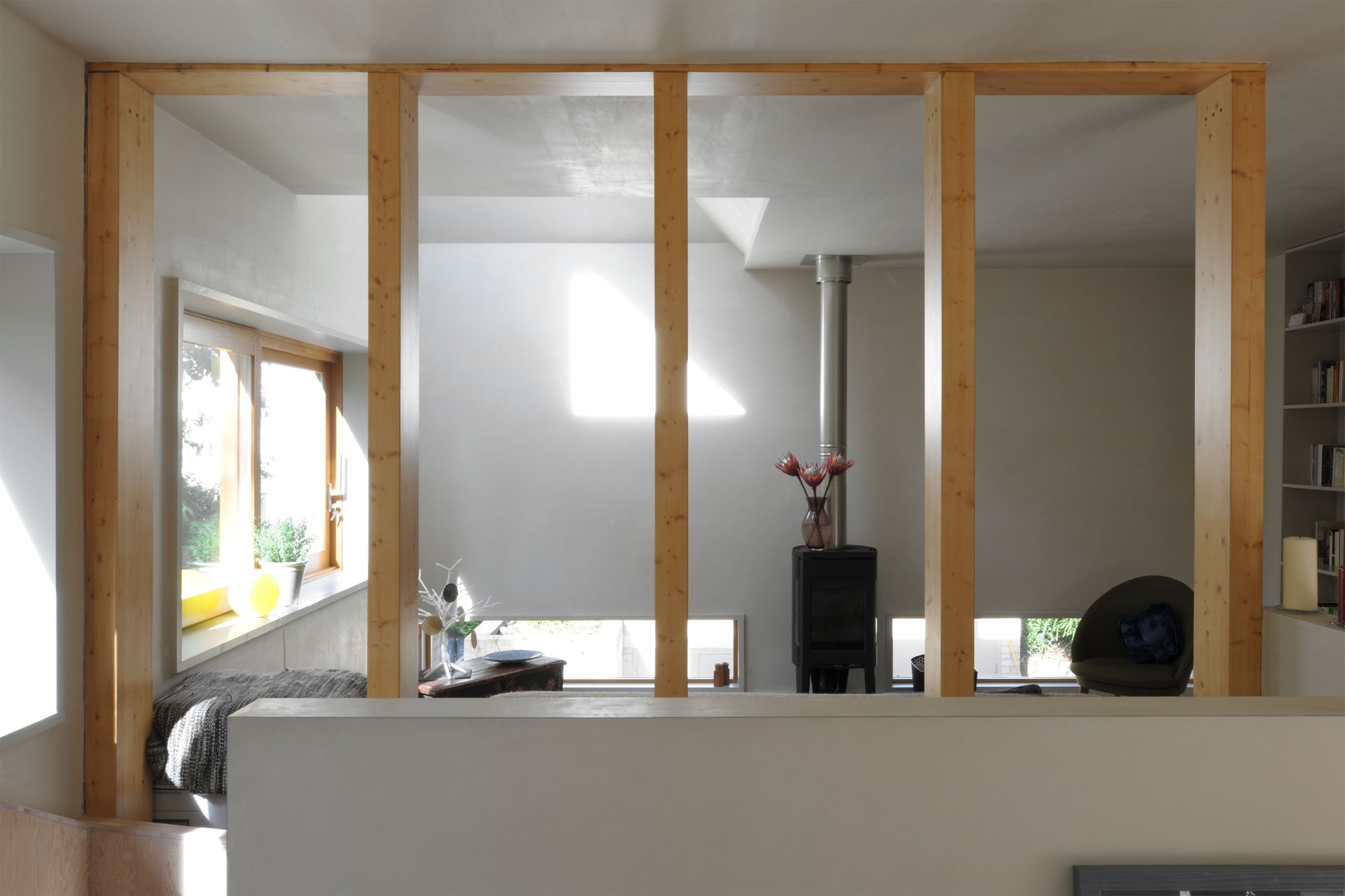

Here, morning light floods into a south west-facing living space

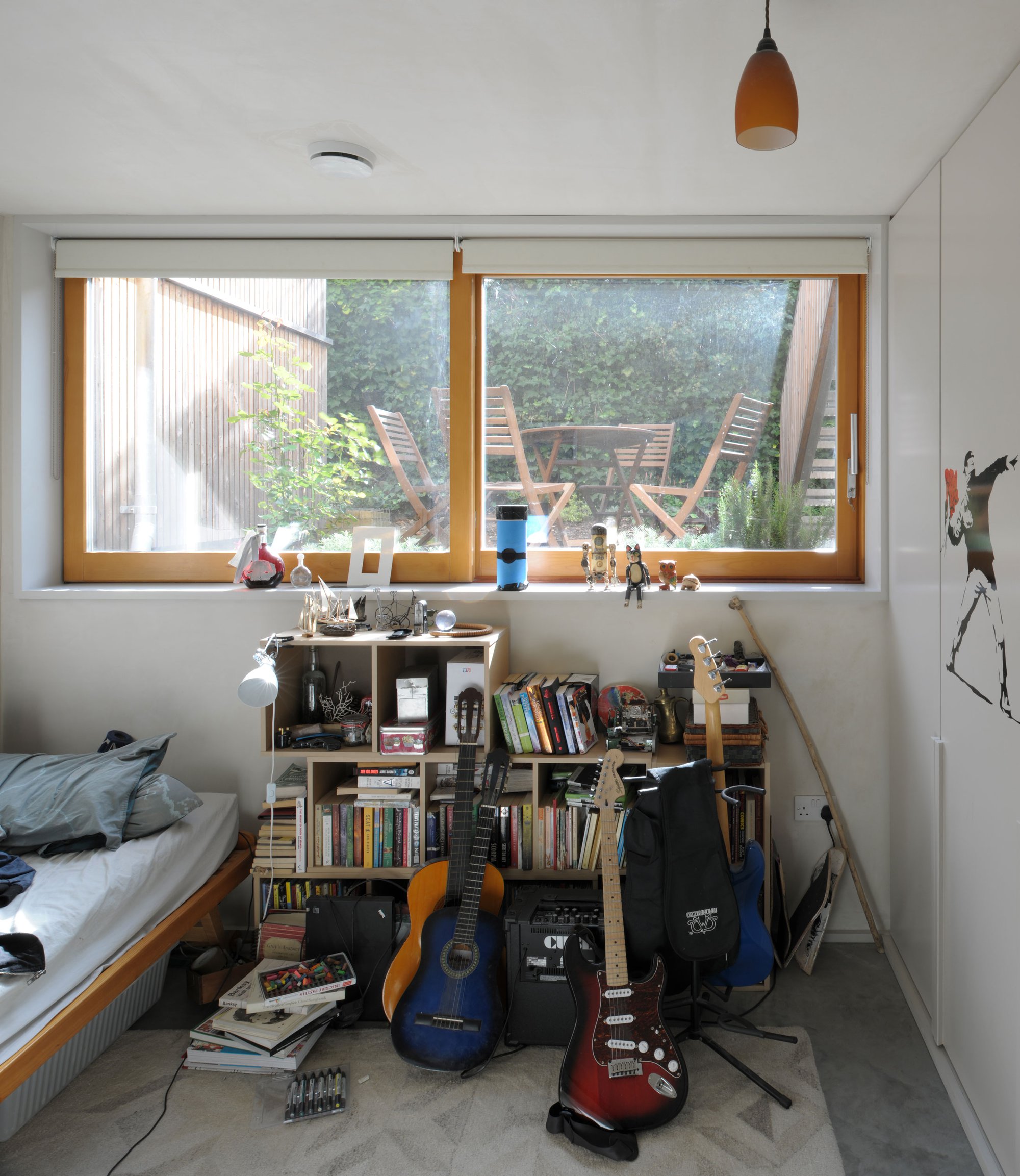

“Landscape” timber framed windows allow oblique views within the site

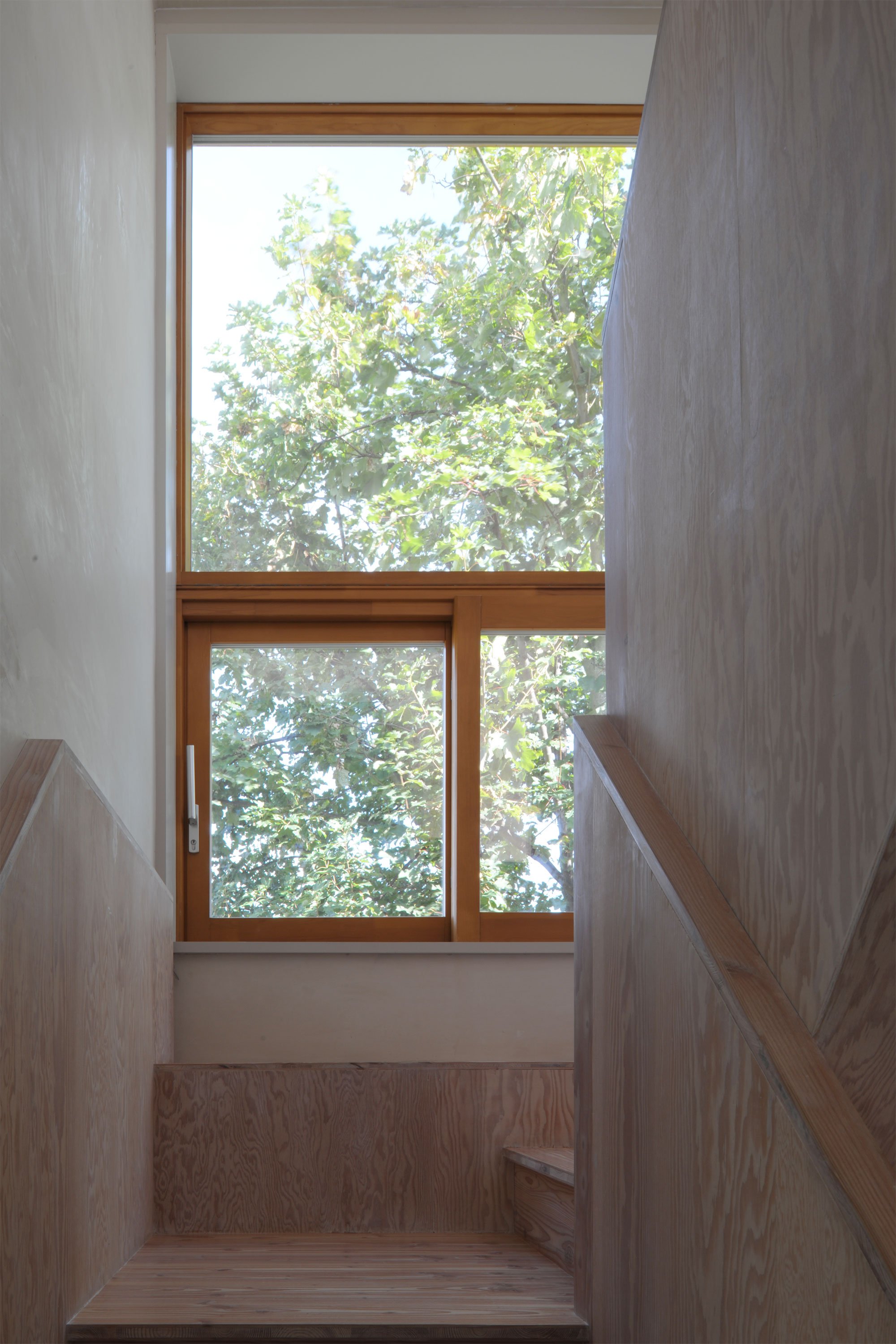

A family of staircase "types" are employed. In one house the stair incorporates a window seat

The philosophy reduces the households’ collective impact on the environment in the construction of their homes and in their daily lives

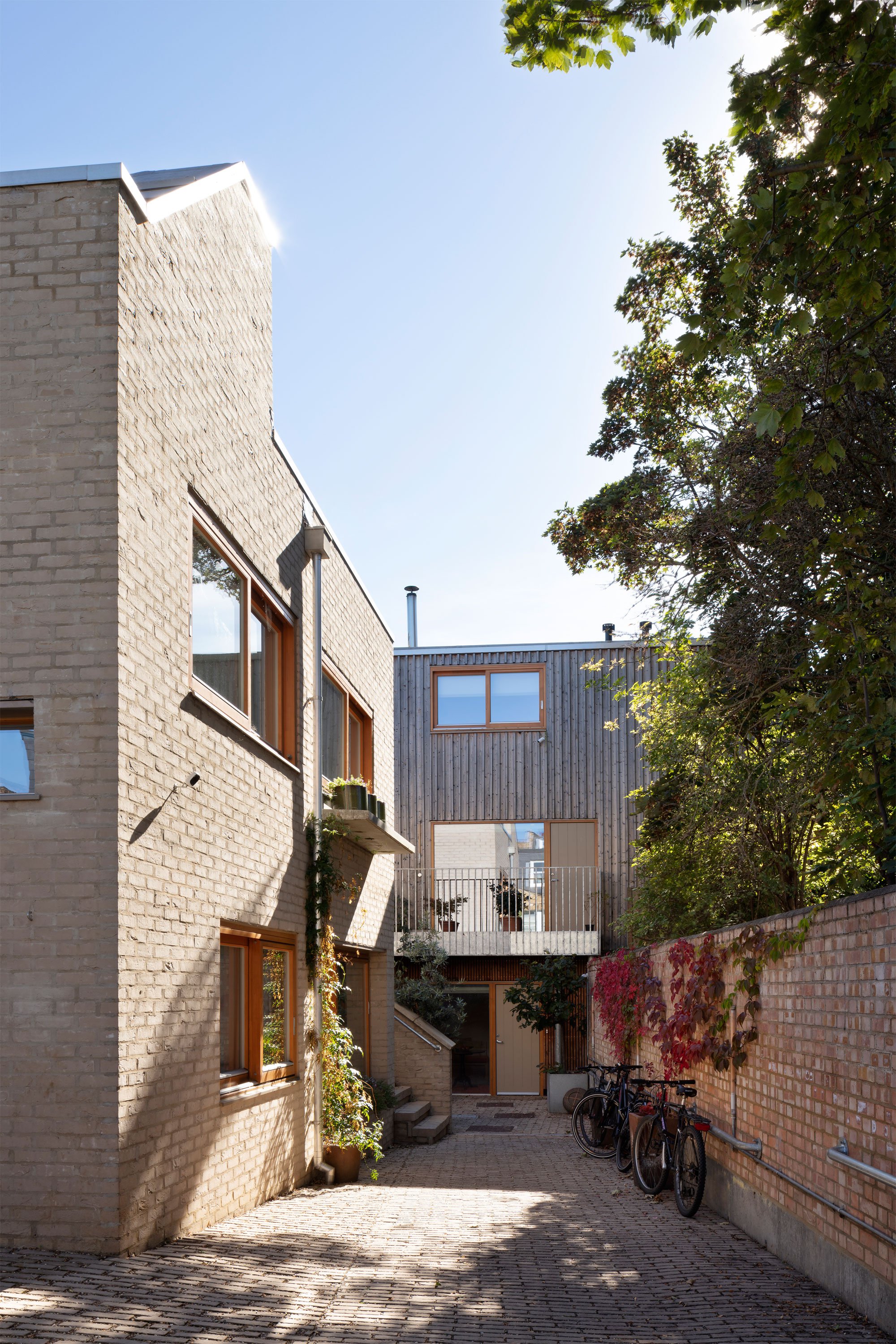

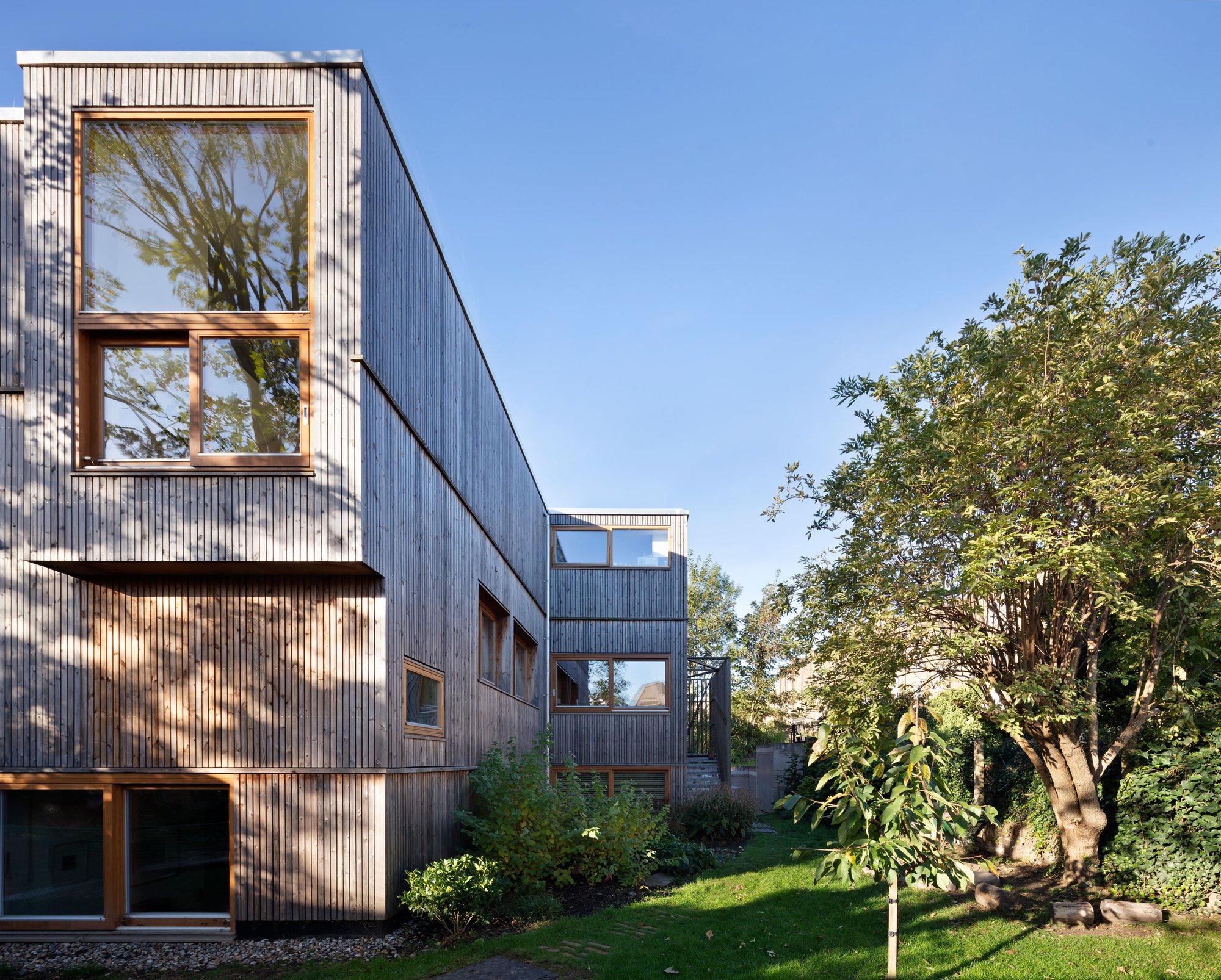

The four 3-storey houses are clad in untreated vertical timber boards, the two 2-storey houses in brick

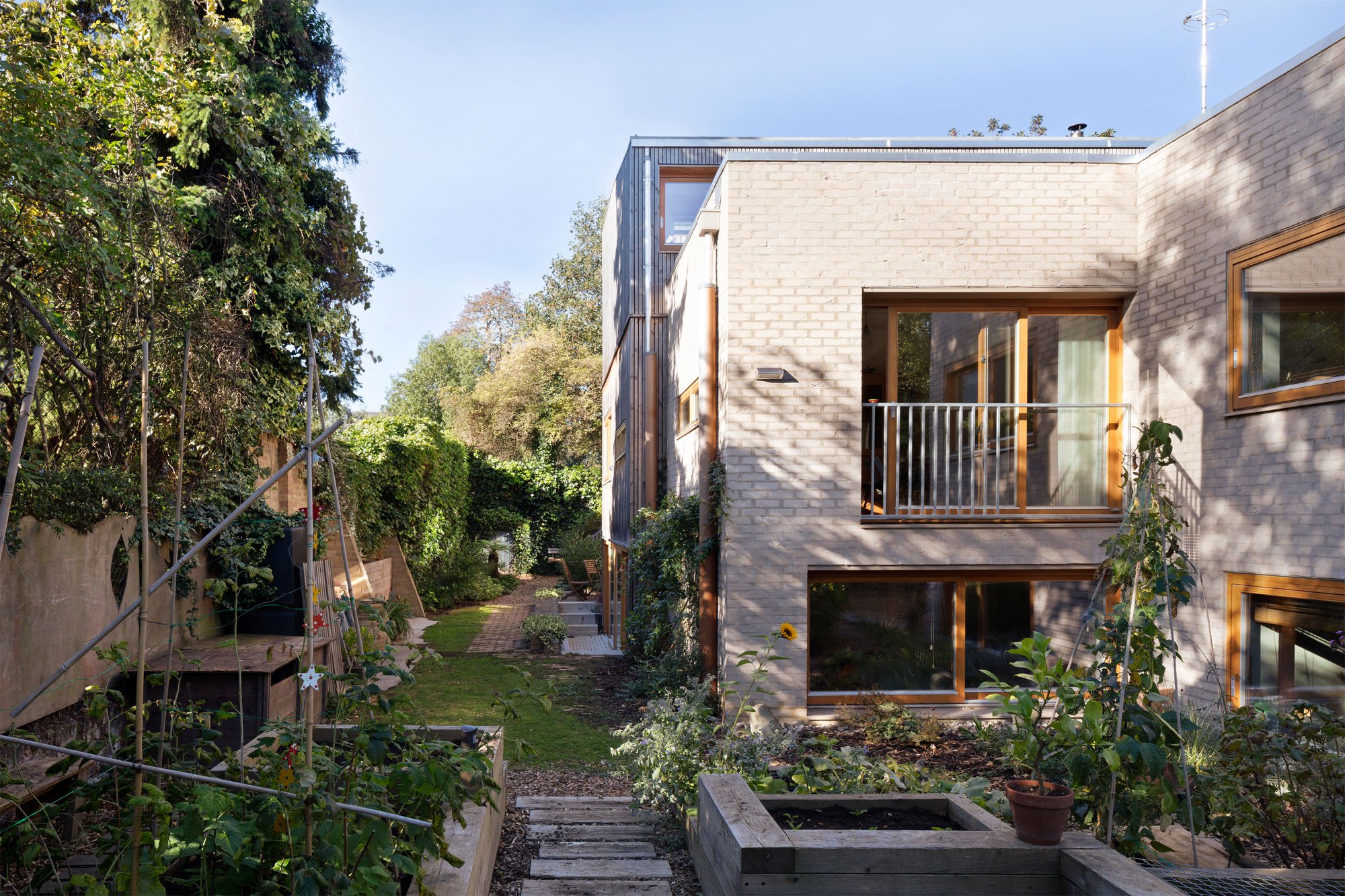

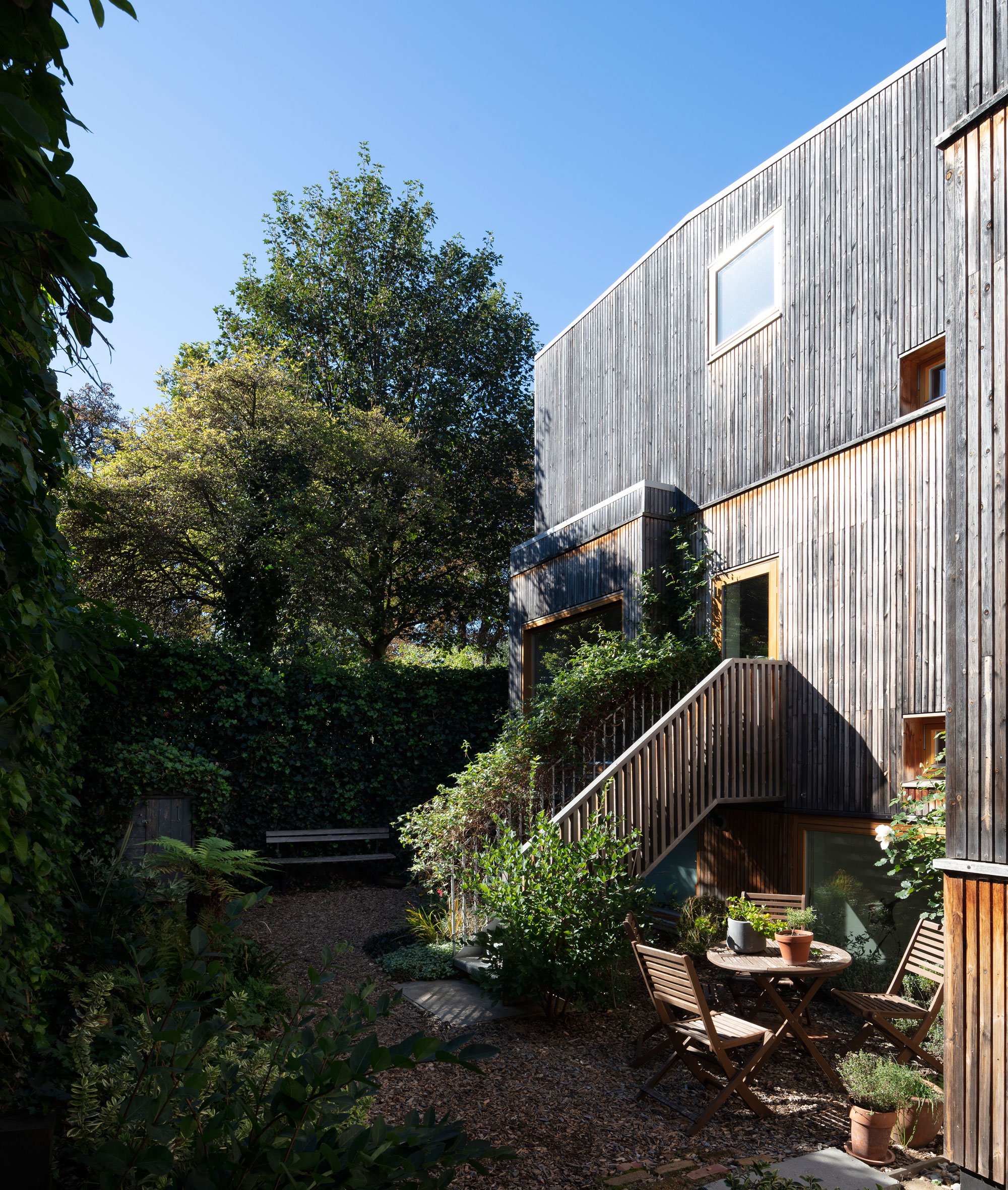

The scheme allows for a continuous perimeter of communal gardens which offer varied growing conditions and atmospheres. As a result, there is a strong feeling of the project being intrinsically linked to its land

Both the perimeter gardens and the inner court emphasise this bond to the site

The performance of the building fabric - insulation, air tightness, and heat recovery ventilation - plays a vital role instead of expensive and unproven technology

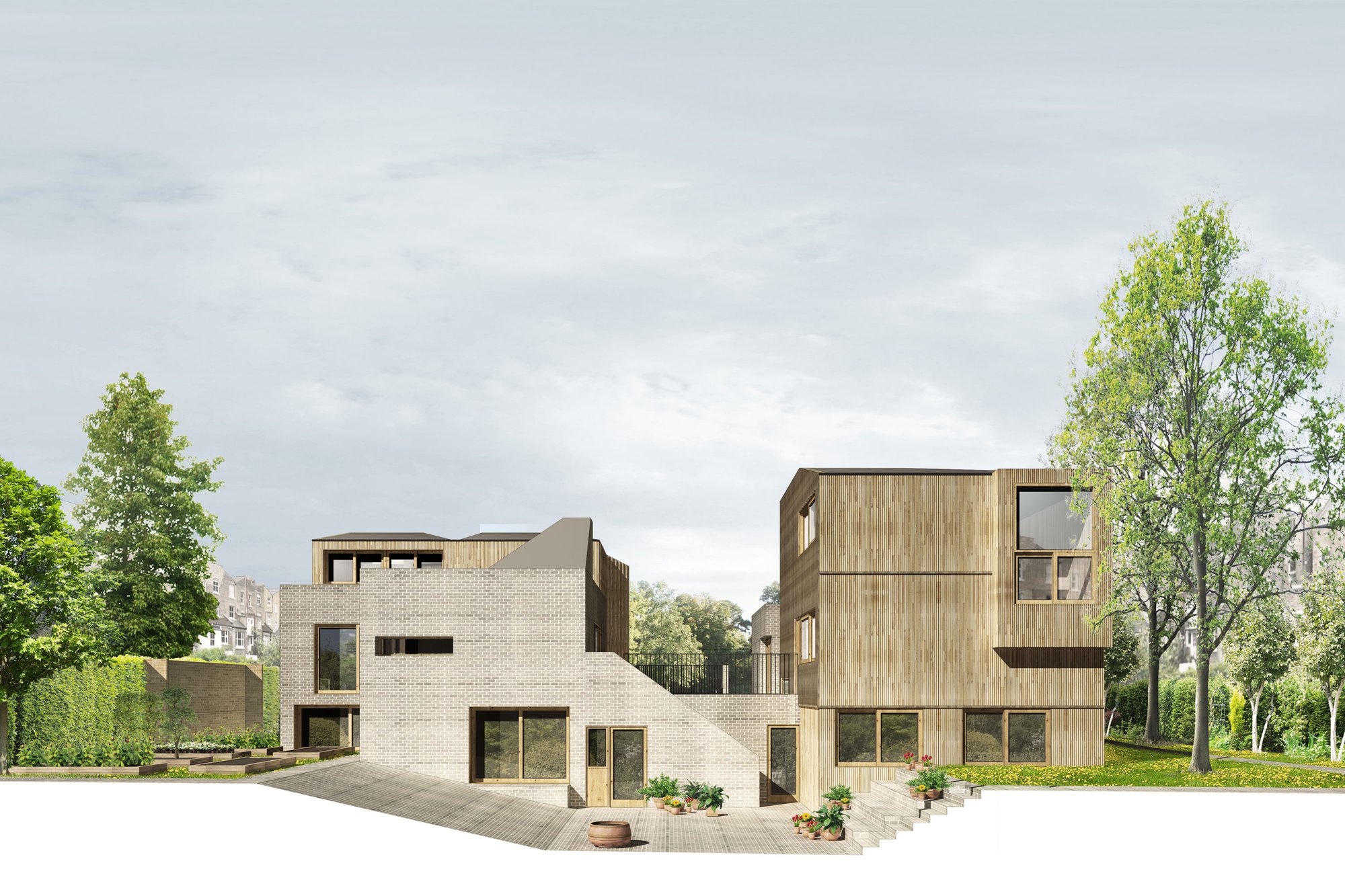

Perspective from north east: the embodied energy of construction has been considered in every respect: recycling waste material from the demolition; timber superstructure; timber cladding; timber fenestration and partial green roofs

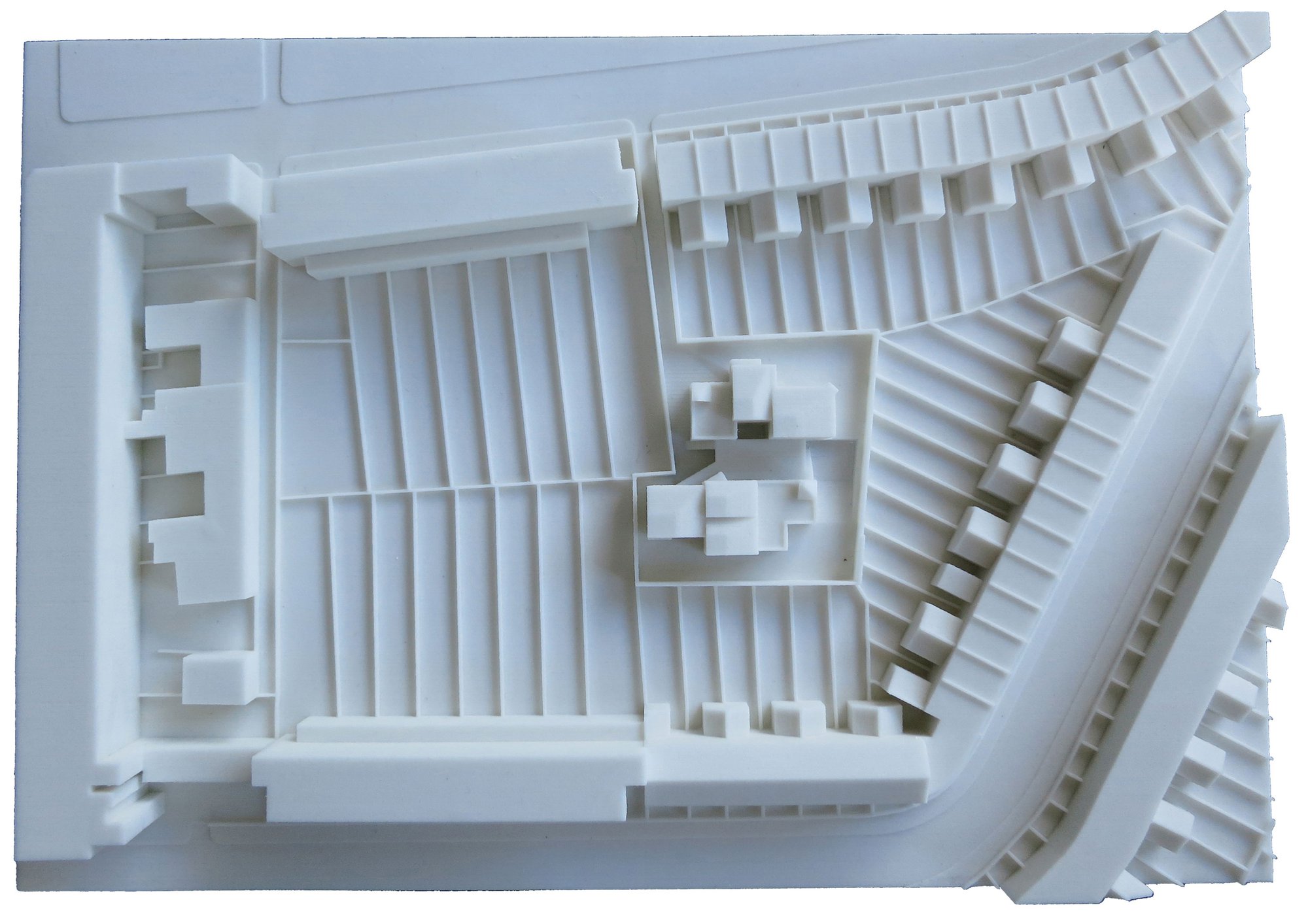

Site model

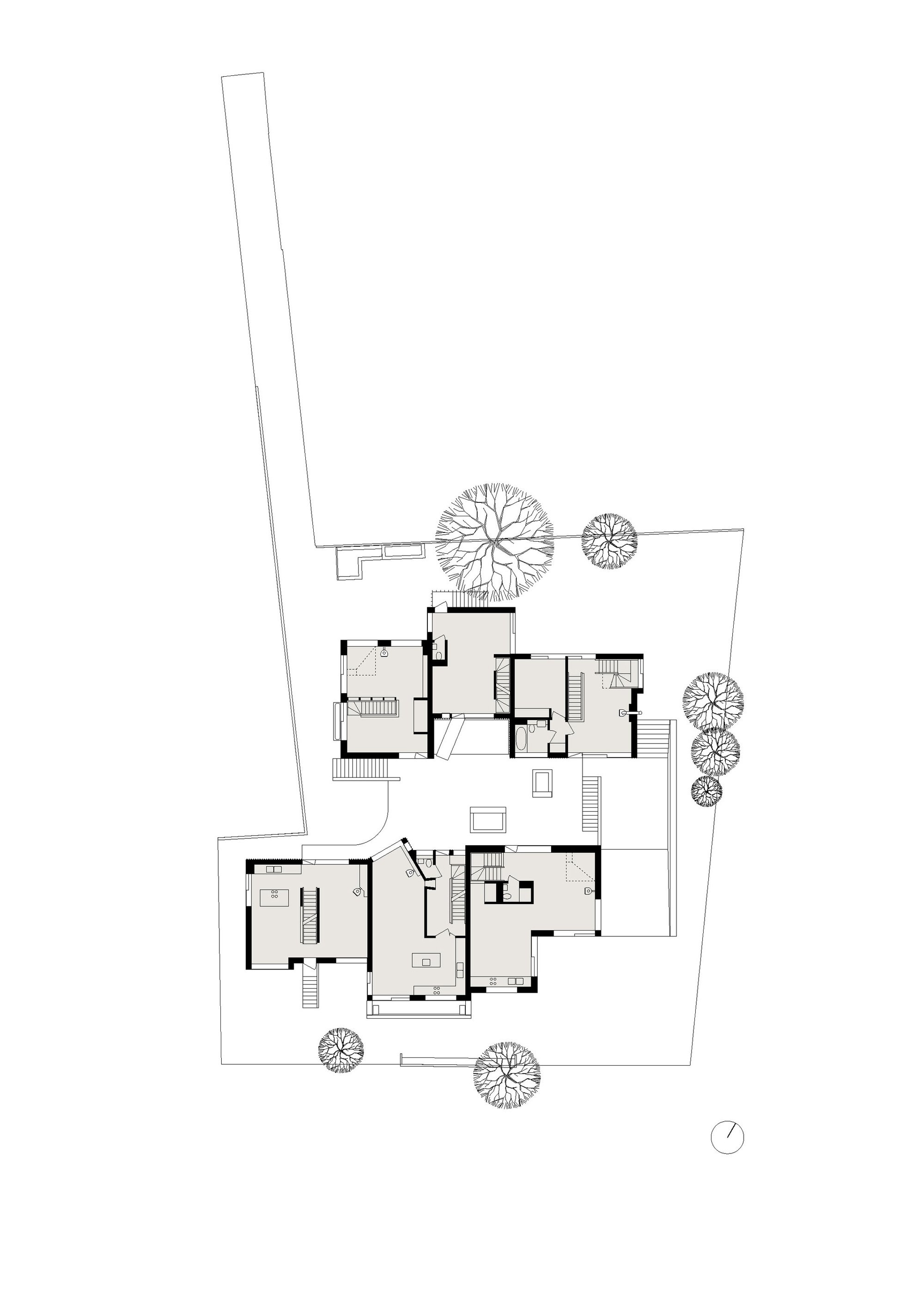

Lower ground floor plan: the main outlook of the houses is outwards into the gardens, rather than facing inwards around the court

Upper ground floor plan: the six households are planned around a shared communal hall, workshop and laundry

First floor plan

Technical

Appointment: 2009

Construction start: 2013

Completion: 2014

Area: 795m2

Budget: £1.8m

Sustainable credentials: Annual CO2 Emissions: 7,300kgCO2

Form of contract: JCT Intermediate

Client: Six Families

Contractor: Sandwood Construction

Services Engineer: AJ Energy

Structural Engineer: Rodrigues Associates

Quantity Surveyor: MPA Ltd

Planning Consultant: CMA Planning

Bibliography

Tom Greenall and Jane Wong, ‘Why residents must, must, must have a say in the design of their communities’, in: Big Issue (Online, 7 January 2024)

‘Copper Lane’, in: Architecture Today, issue 328 (Built Environment and Architecture Media, London, November 2023), p.19

, ‘Finalists unveiled for Architecture Today Awards 2023’, in: Architecture Today (Online, 7 July 2023)

Auguste van Oppen, Kirsten Hannema and Anouk Reintjens, ‘Copper Lane’, in: Meer Generatie Wonen (BETA office for architecture and the city, Amsterdam, 2023), pp.158–159

‘Co-Housing: taking co-living a step further’, in: Estates Gazette (2 July 2016), p.27

Rosamund Diamond, ‘Gestaltung der Dichte’, in: werk bauen + wohnen (December 2015), pp.79–83

Ben Derbyshire and Jessica Drew, ‘The gold standard of housing: forget standardisation’, in: The Journal of The London Society, Autumn/Winter (2015), pp.22–27

New London Architecture, New Ideas for Housing, Autumn (2015), p.32

Jason Orme, ‘Better Together’, in: Homebuilding & Renovating (May 2015), pp.90–97

Jay Merrick, ‘Building Study Copper Lane’, in: The Architects’ Journal (27 March 2015), pp.30–42

Mimari Tasarim, Yapi (Turkey) (April 2015), pp.142–146

Philippa Stockley, ‘Communal pick ’n’ mix is showing the way’, in: The Evening Standard (25 February 2015), pp.28–29

Jay Merrick, ‘Excellent Ordinary’, in: The Architects’ Journal (9 January 2015), pp.51–52

Robert Bevan, ‘Designs for (affordable) living’, in: Evening Standard (7 January 2015), pp.34–35

Jonathan Bell, ‘Shaping Space’, in: Design Anthology (January 2015), pp.174–183

Luke Tebbutt, ‘How we will live in 2015’, in: Grand Designs (January 2015), p.47

ArchDaily (26 December 2014)

Archello (19 December 2014)

Luke Tebbutt, ‘Henley Halebrown Rorrison uses timber and brick for London’s first co-housing development’, in: Dezeen (21 September 2014)

Matt Alagiah, ‘Communal Life’, in: Monocle Magazine

, vol.8, issue 76 (September 2014), p.76

Rowan Moore, ‘Meet you in the laundry room...’, in: The Observer (31 August 2014), p.37

Pierre d’Avoine, ‘Building together: co-housing’, in: Architecture Today (4 August 2014), pp.24–33

Rob Sharp, The Independent Magazine (26 April 2014), pp.14–19

Richard Waite, ‘London co-housing designs revealed’, in: Architects’ Journal (7 February 2013), pp.20–21

‘1-6 Copper Lane’, in: Divisare (Online, 8 April 2020)

Awards

Architecture Today Awards, Residential, (Shortlisted) 2023

Hackney Design Awards, 2016

Civic Trust Awards, (Commendation) 2015

Housing Design Awards, Custom Build, 2015

Blueprint Awards, Best Non-Public Project, (Commendation) 2014

Daily Telegraph Homebuilding & Renovation Award, Best Custom Build Project, 2014
