丨德国丨arch22（建筑设计）,str.ucture（结构设计）

VILOTEL

Oberkochen, DE

Client

InvestCo Gbr

Architecture

arch22

Collaboration

transsolar

Image credits

arch22, str.ucture

Scope

Structural design phase 1 - 6 & 8

Materials

Reinforced concrete

Gross floor area

4000 m²

Planning period

2015 - 2018

Completion

2018

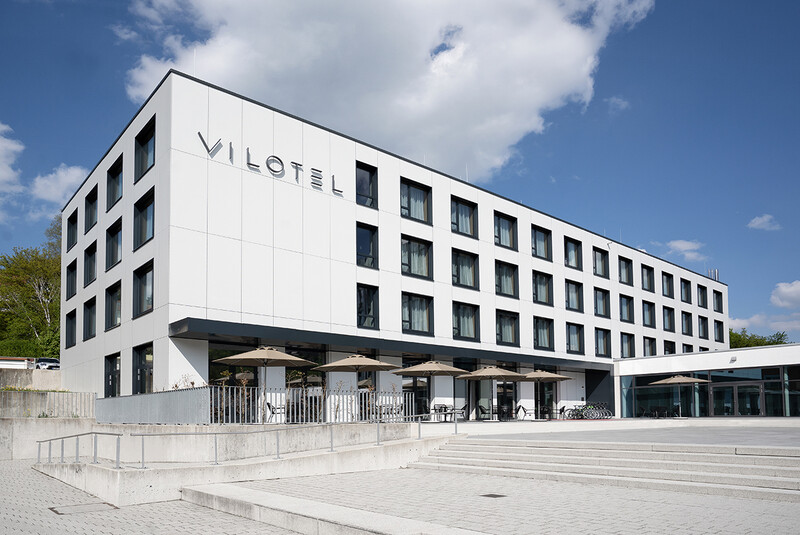

By the new construction of the Hotel emerges a building which exists respectfully but self-confident in relation to adjacent structures and forms a new collective

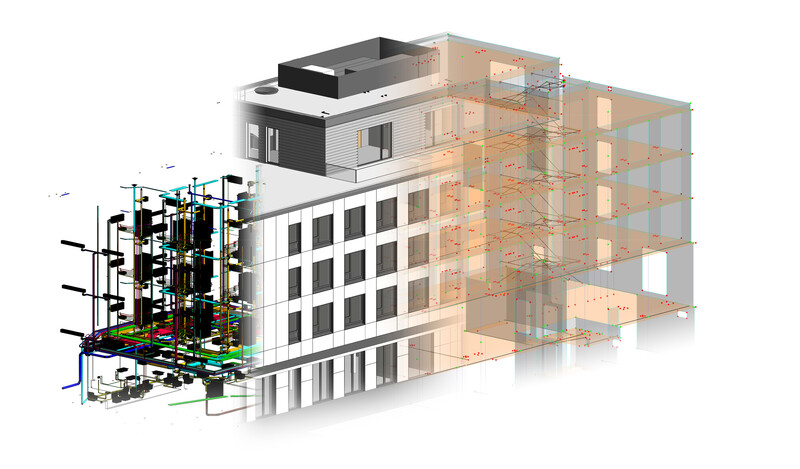

Starting from SD a shared Revit Building Information Model (BIM) was set up, to keep both architectural and structural model up to date at the same time. Str.ucture supports the architects in this project not only as a structural engineer but also in the development of the shared model and BIM administration. A structural hybrid of concrete frame and solid brick construction allows for high flexibility in the future. Furthermore the structural design is focused on economic efficiency. The underground parking is realized without a solid slab to save elaborate coating and the slope stabilization is utilized as foundation.
