RADIANCE

RADIANCE

Sanepa, Lalitpur

2020 - Ongoing

Project Type: Commercial | Geography: Nepal

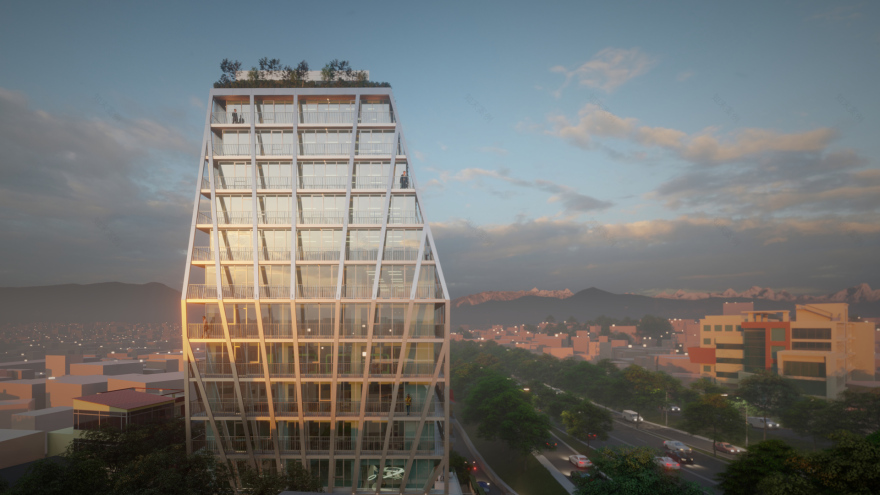

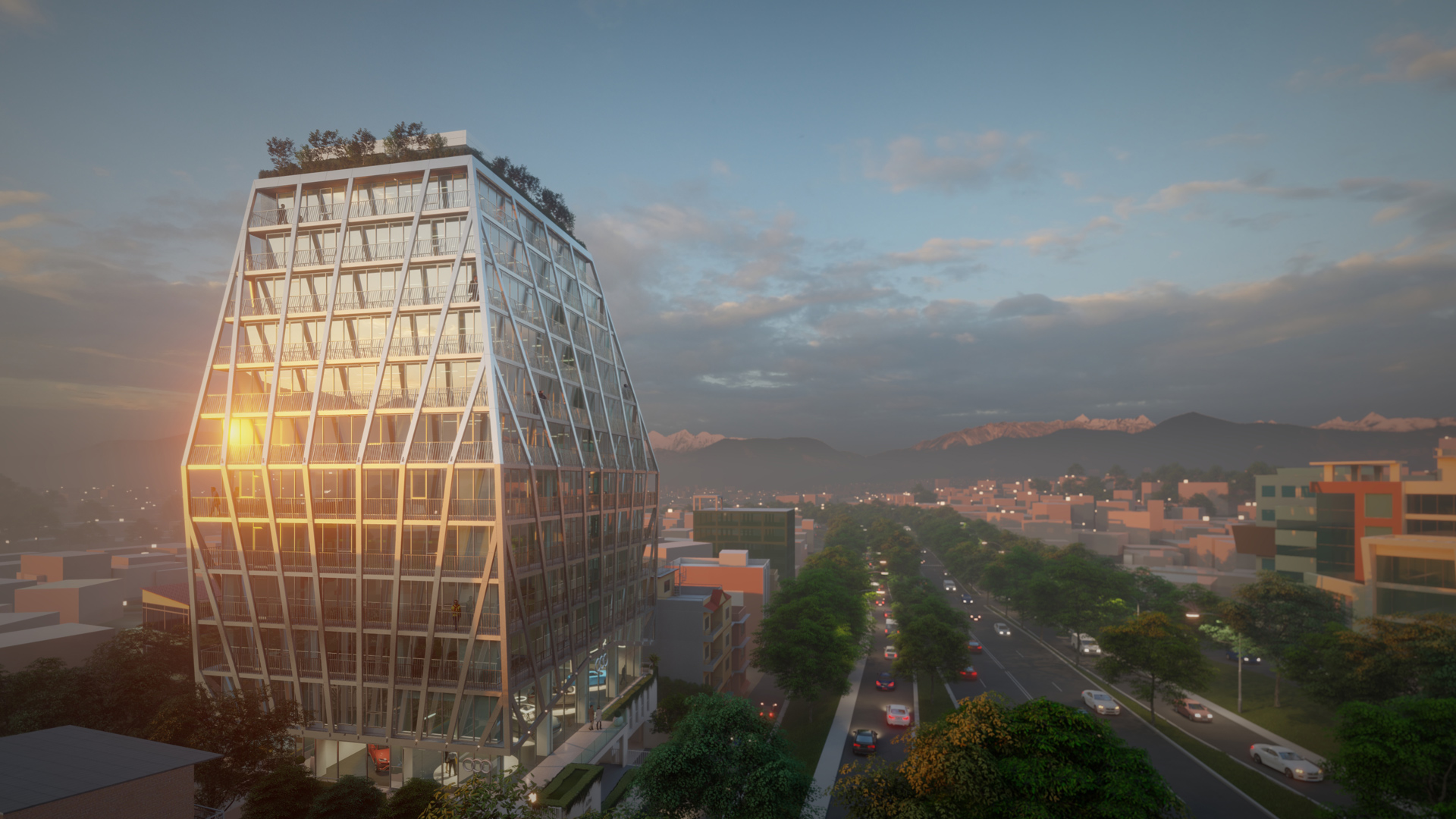

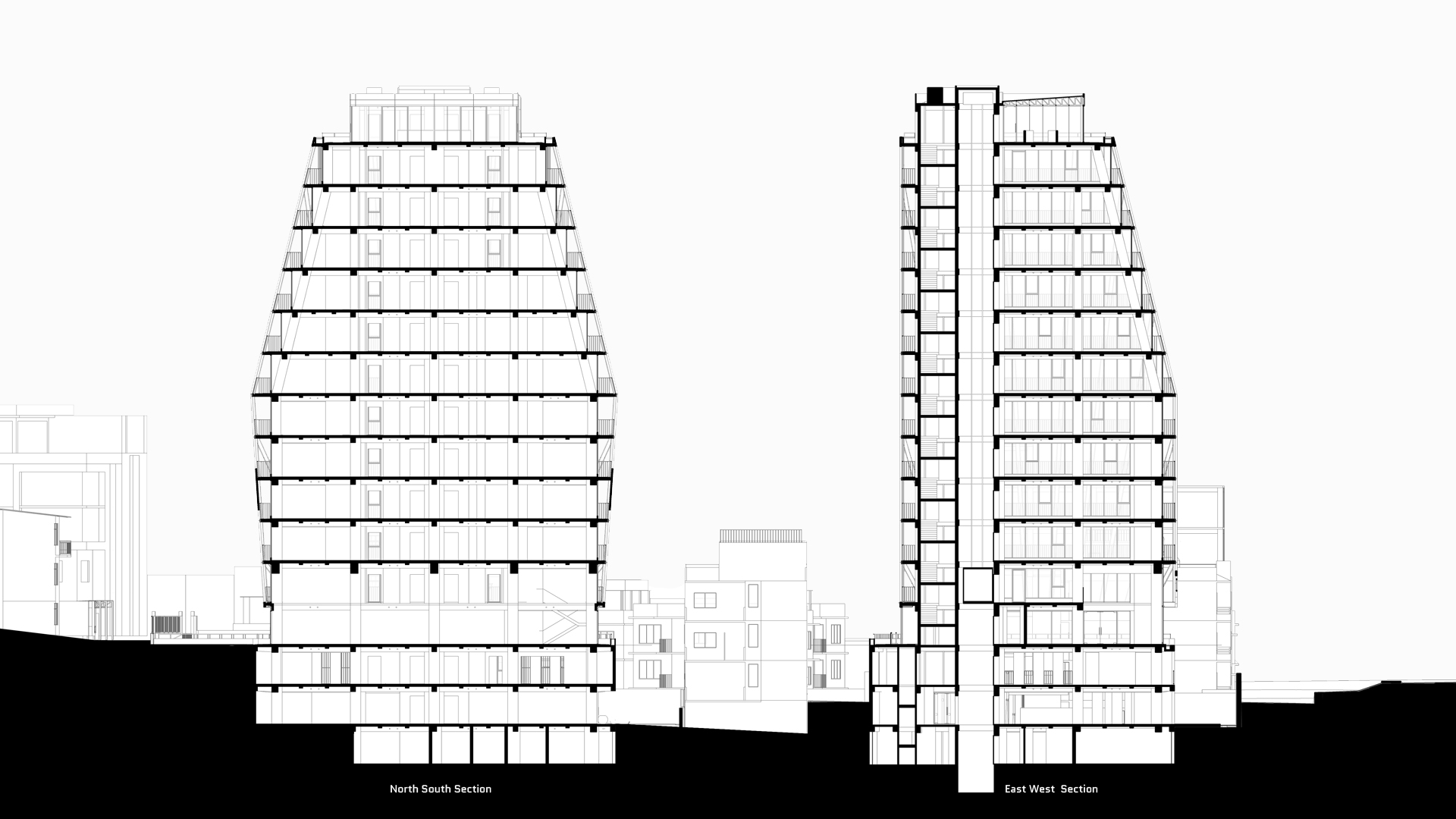

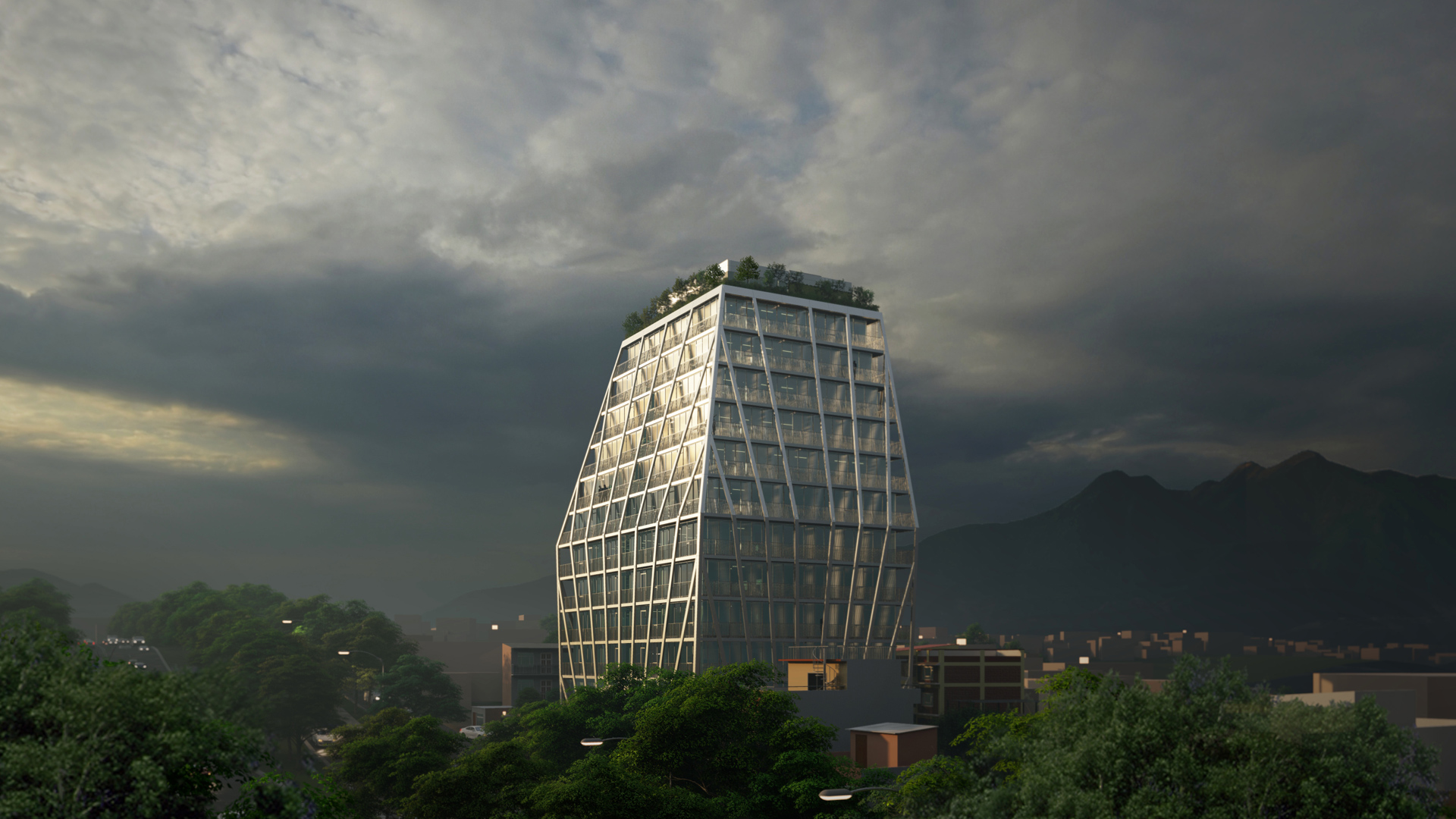

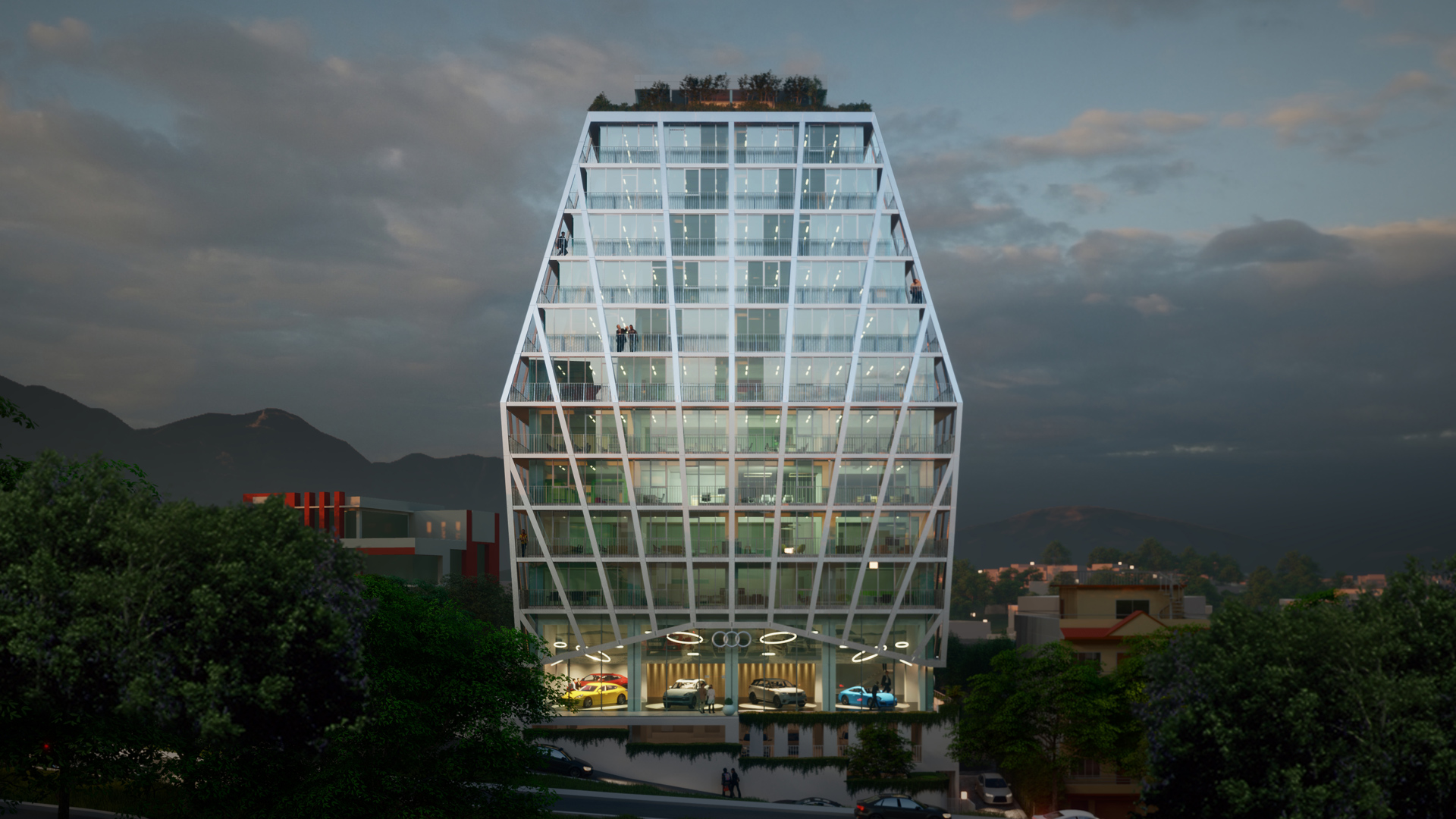

The form of the building is a direct translation of the local zoning ordinance that requires the floors to step back at 4:1 ratio above 20m from the plinth. As a result, the floor plates start decreasing in size from the seventh floor and above.

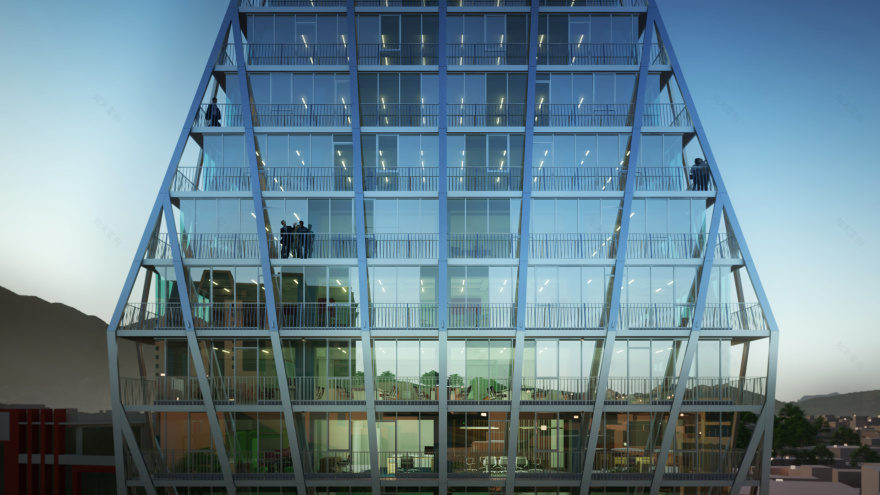

Being a speculative office building, the fully glazed exterior walls maximize daylighting and the views outside. Each floor plate has a perimeter balcony that besides functioning as a spill-out could also be used for cleaning the exterior glazing. In addition, the balcony serves as a shading device.

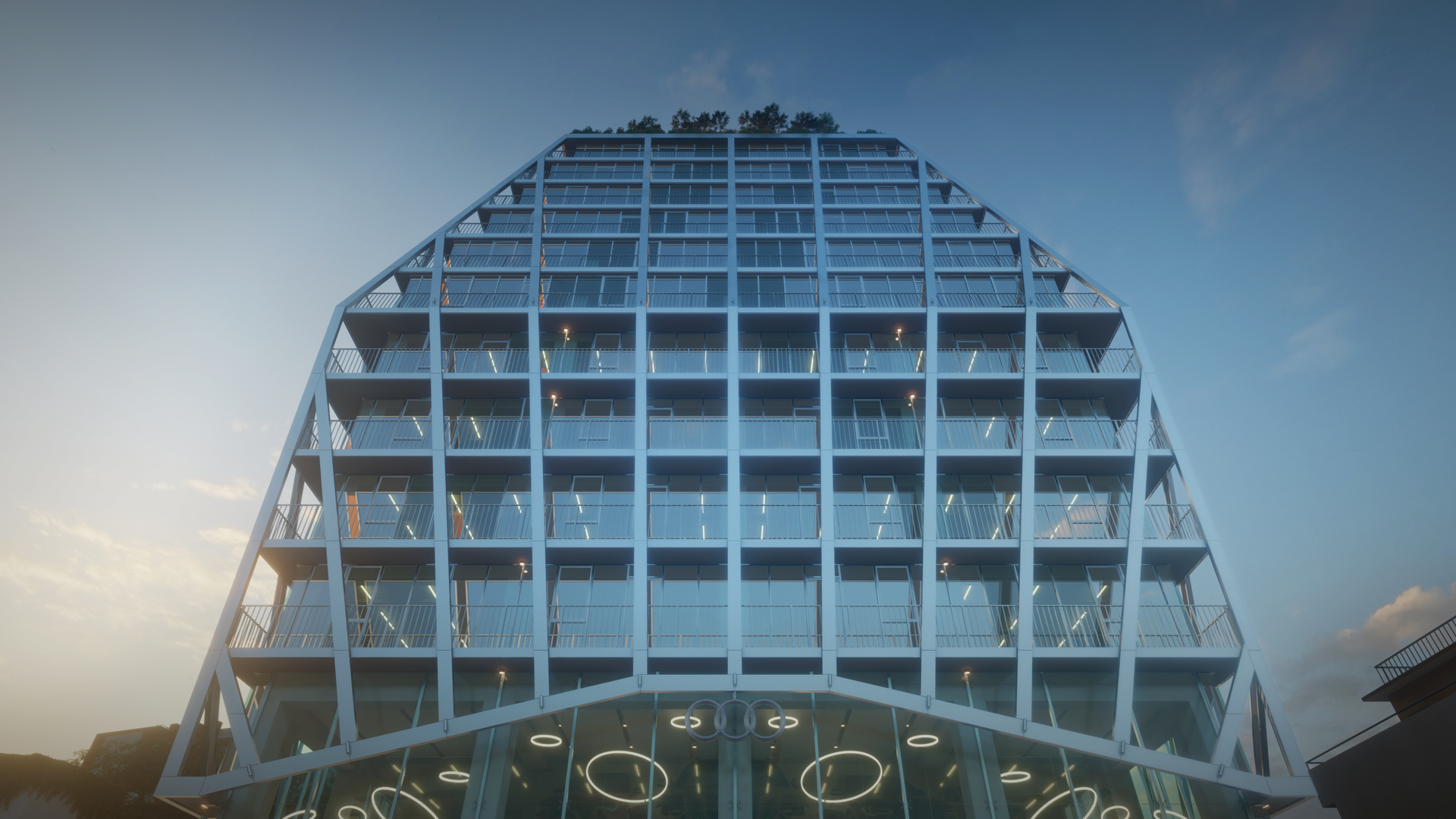

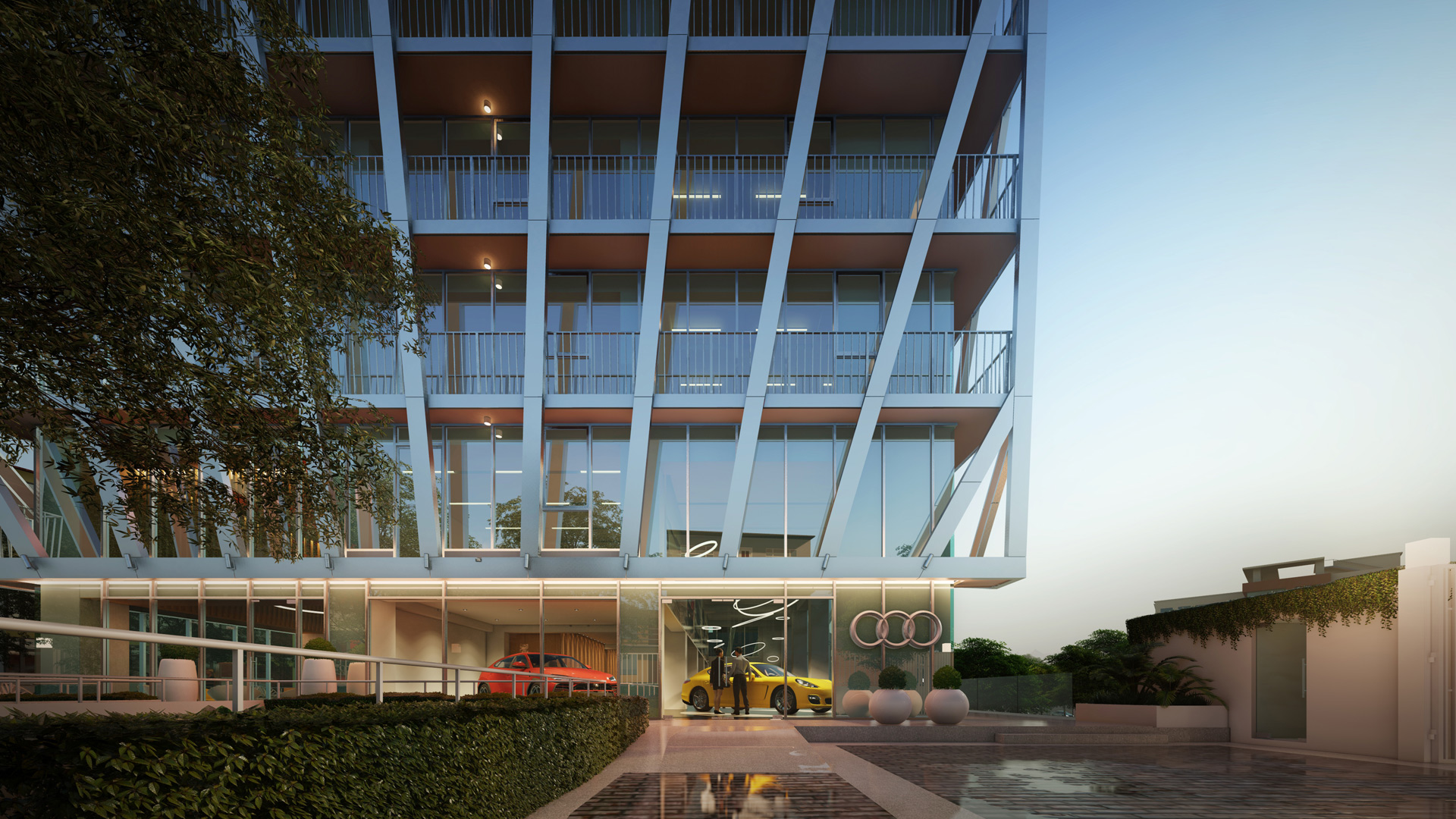

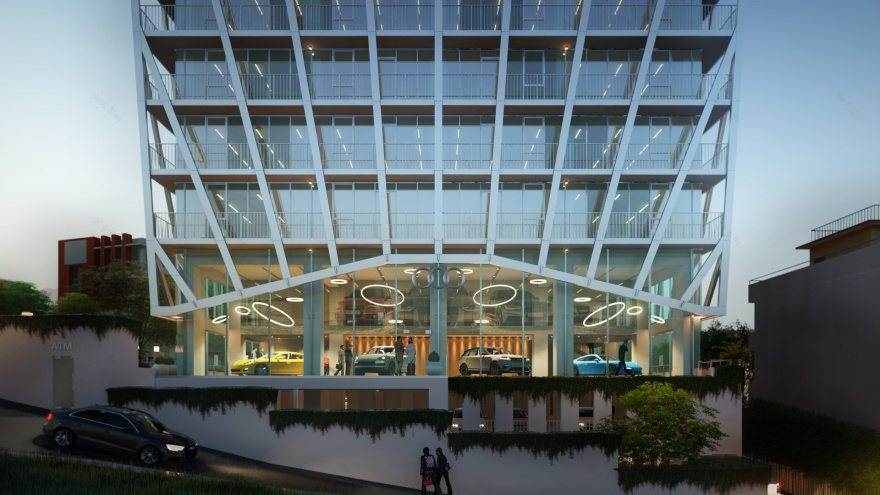

To avoid blocking the views from inside, the balcony railing is designed to be indiscernible – requiring the members to be extremely slender. Array of vertical supports provide necessary rigidity to the delicate railing system. These vertical supports fan upwards to open up the higher floors to better views – resulting in the facade with radiating exoskeletal members.

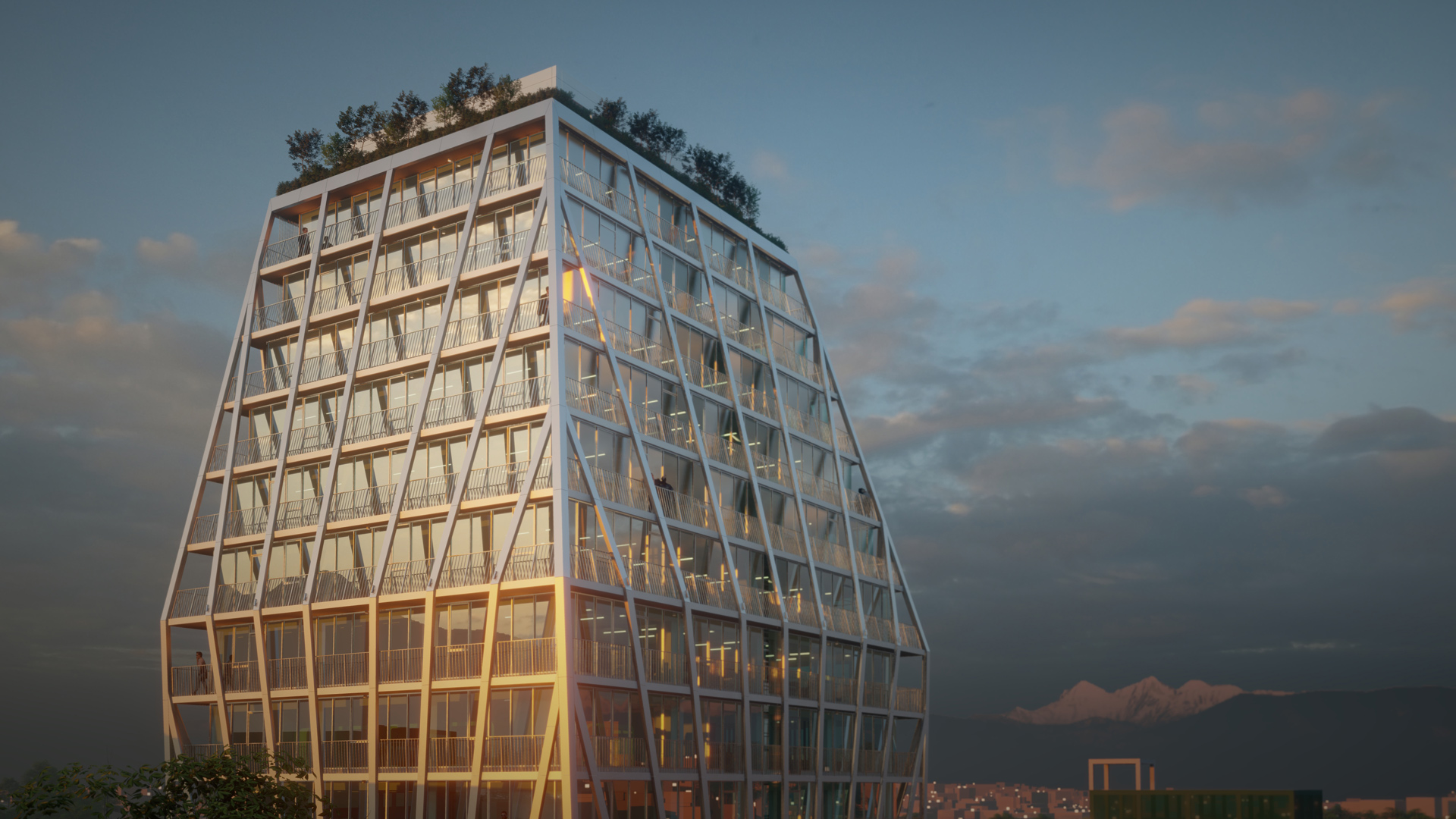

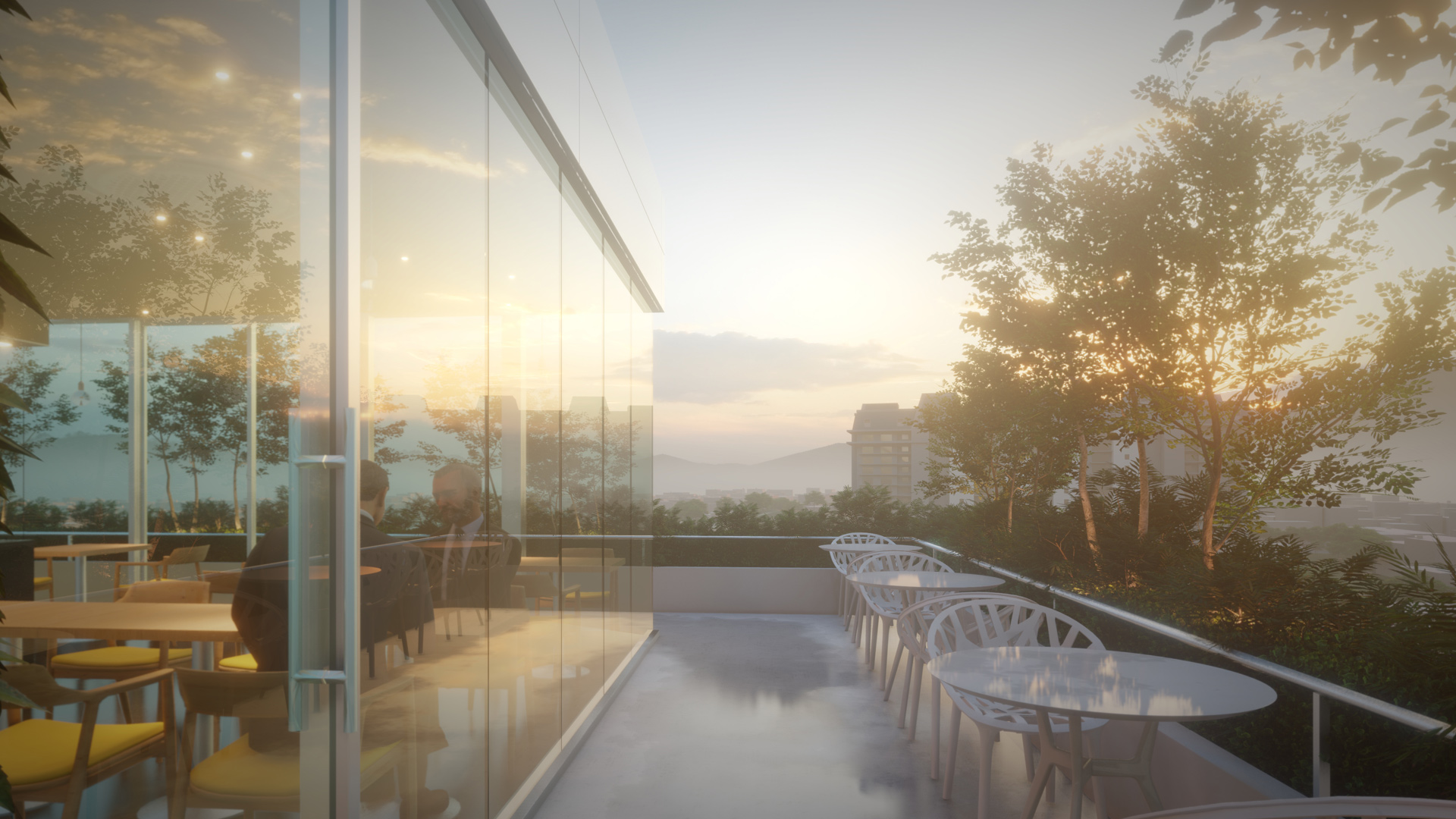

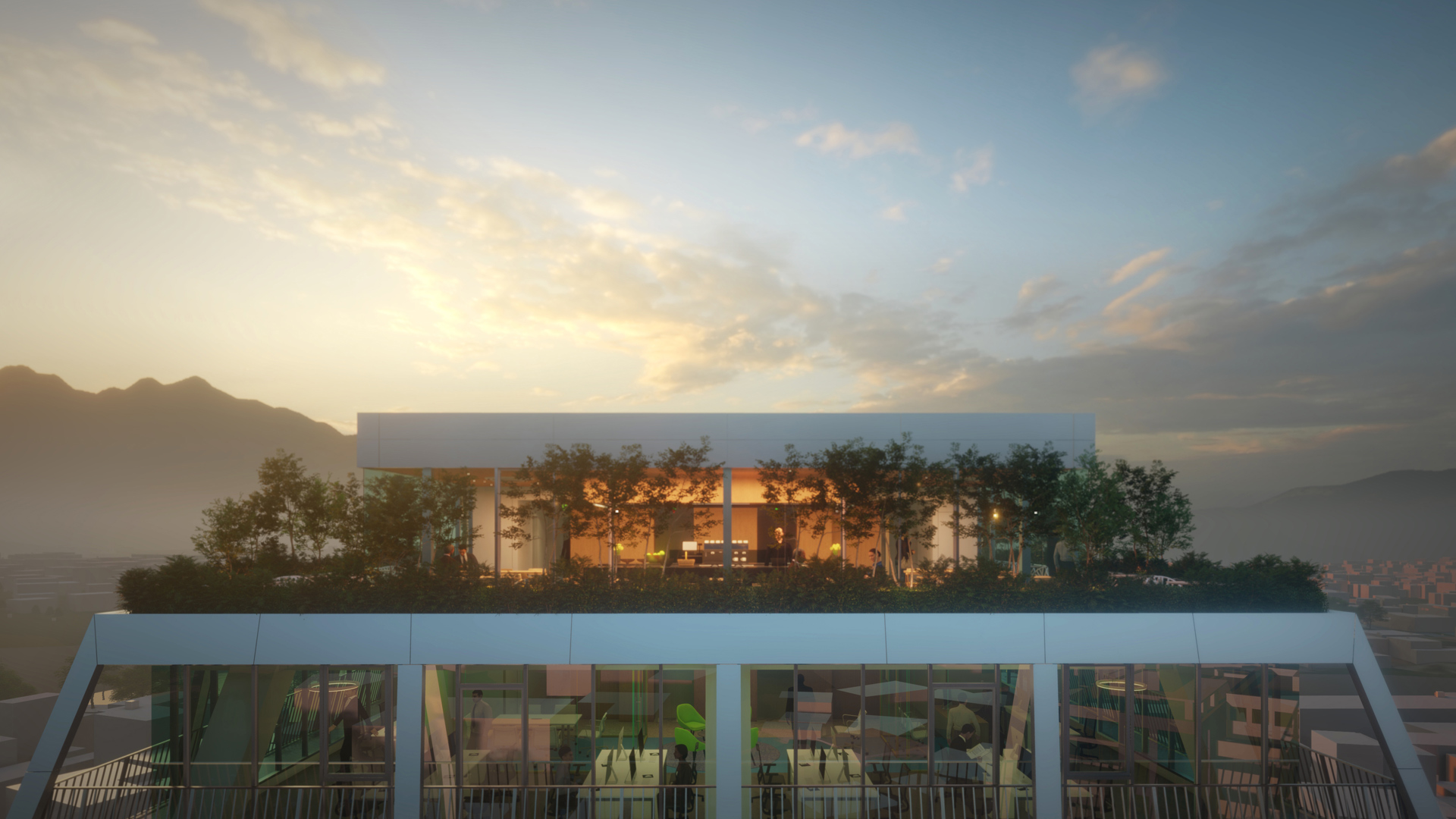

The top floor of the building is dedicated to a common Café that commands the best views of the city and the mountains beyond. The outdoor area of the café is landscaped to provide shade and block the wind, literally crowning the building with greenery.

FACTS

Site area: 15,400 SF

Landscape area: 8,500 SF

FAR: 3.0

Super Built-up: 87,500 SF

Retail I Showroom: 4,000 SF

Office: 42,200SF

Substructure: 19,400 SF

Design Director:

Kiran Mathema

Consultant Team:

Ajaya Mathema, Dipesh Shrestha, Bipin Niraula, Bibek Shrestha, Anu Maharjan, Aastha Shrestha, Sareena Manandhar, Umesh Agrawal, Ram Shah, Laxmi Sundar Libi
