窄屋方案二

House Design Exercise: Narrow House Scheme Two

Different cooks can interpret the same ingredients in different ways; the same is true for architectural design. Though the client’s requirements and the lot may be the same, the interpretation and execution of the design will vary from designer to designer.

This is an example of our efforts to foster creativity and showcase our capabilities through a concept design. This house designated Narrow House Scheme Two is an example our efforts.

A house is a place where people have a freedom to do what they want to do, and a shelter that gives warmth and protection in times of uncertainty. This house is located on a large lot with an area of 403. 57 Sq.m.

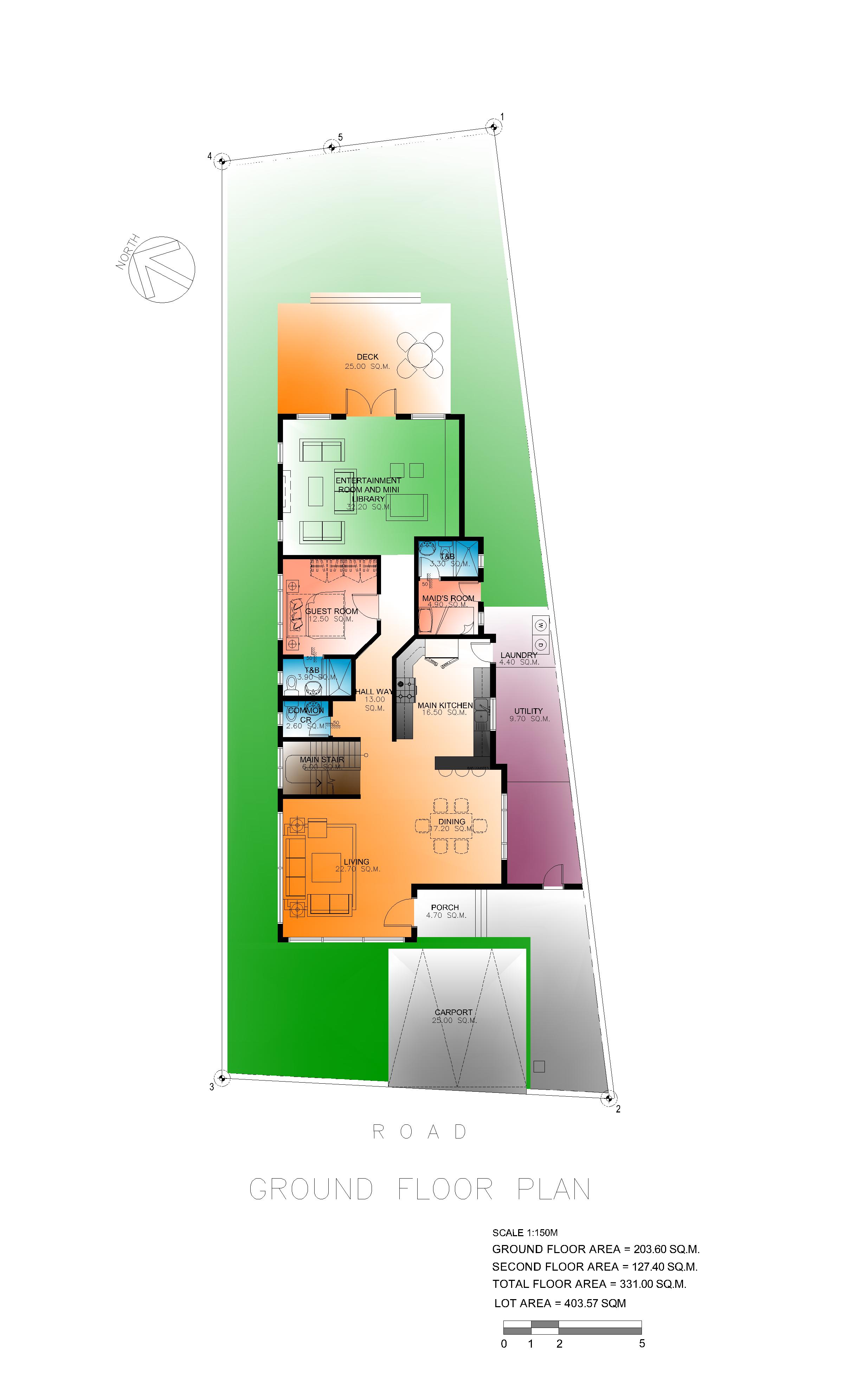

Ground Floor Plan

The living and dining room are located first to accommodate visitors directly. An open kitchen is adjacent to dining so that the owner can see through dining and living area. The entertainment and mini library joined into one spacious room beside an outdoor elevated deck was composed for a calming ambiance next to the garden.

The two-car garage near porch and utility are located close together for direct access and convenience.

Second Floor Plan

Bedrooms are located in the second floor except the guest room so that the owners have privacy.  The Masters bedroom is located to the west and has a commanding view to the front of the property. The two bedrooms to the rear have access to a deck that looks out into the garden to the rear.

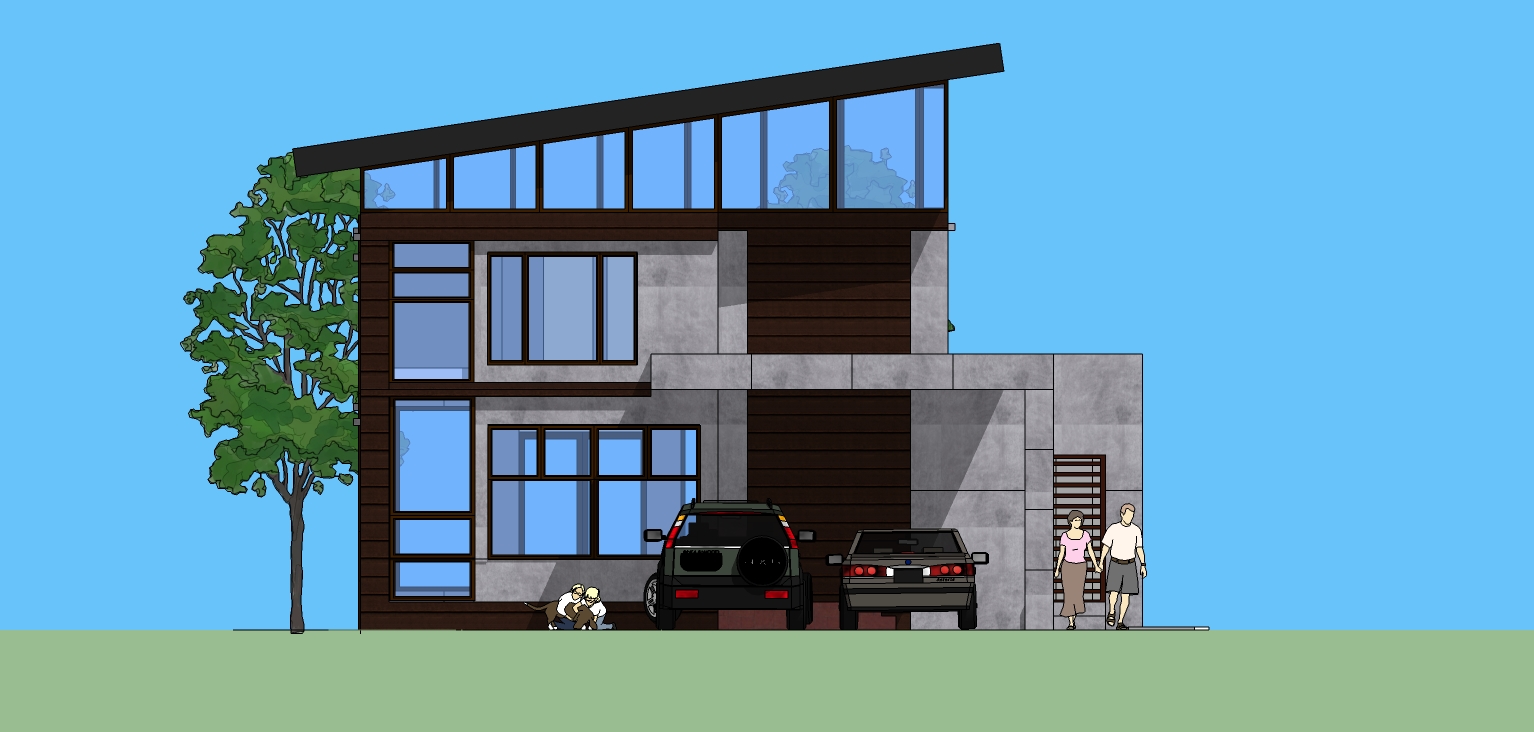

Front Elevation

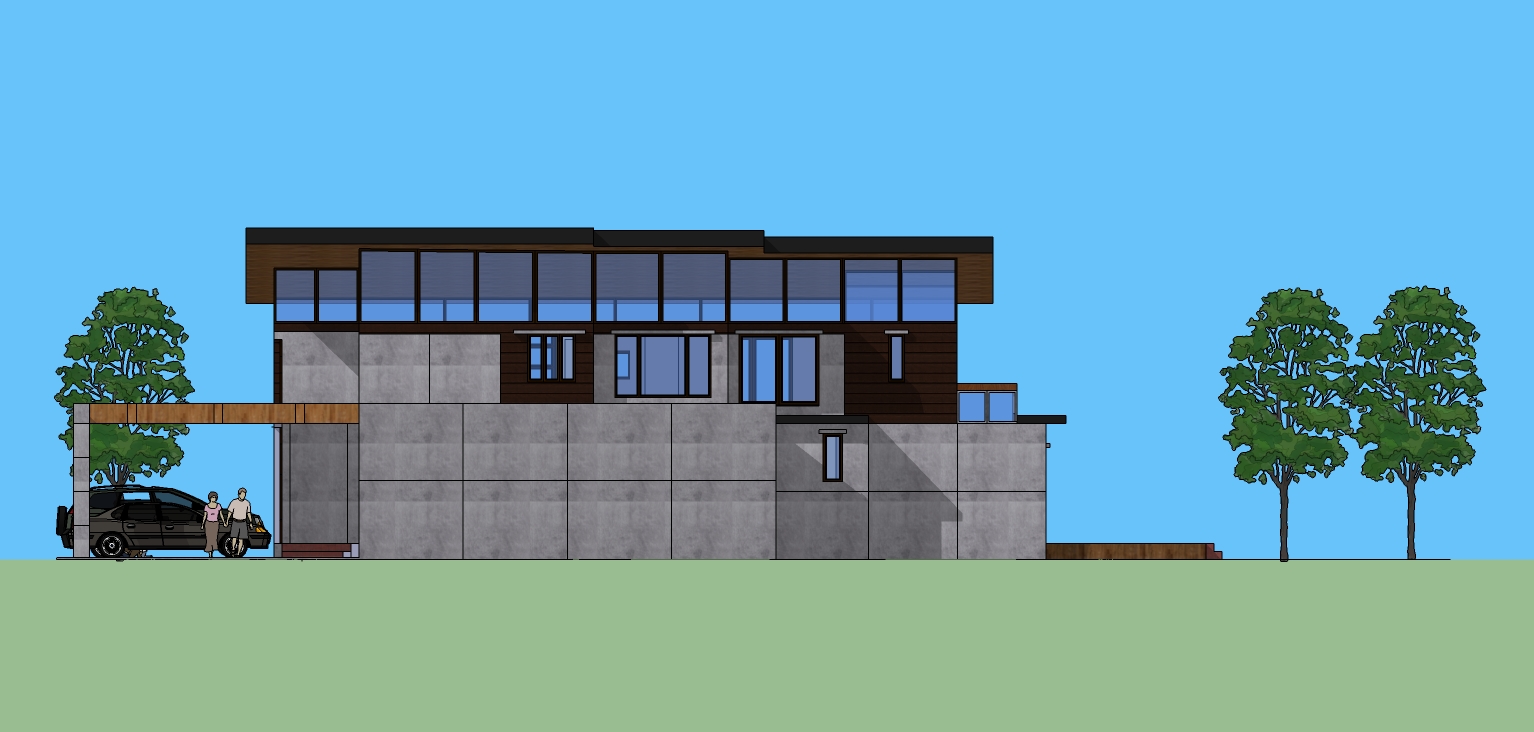

Left Elevation

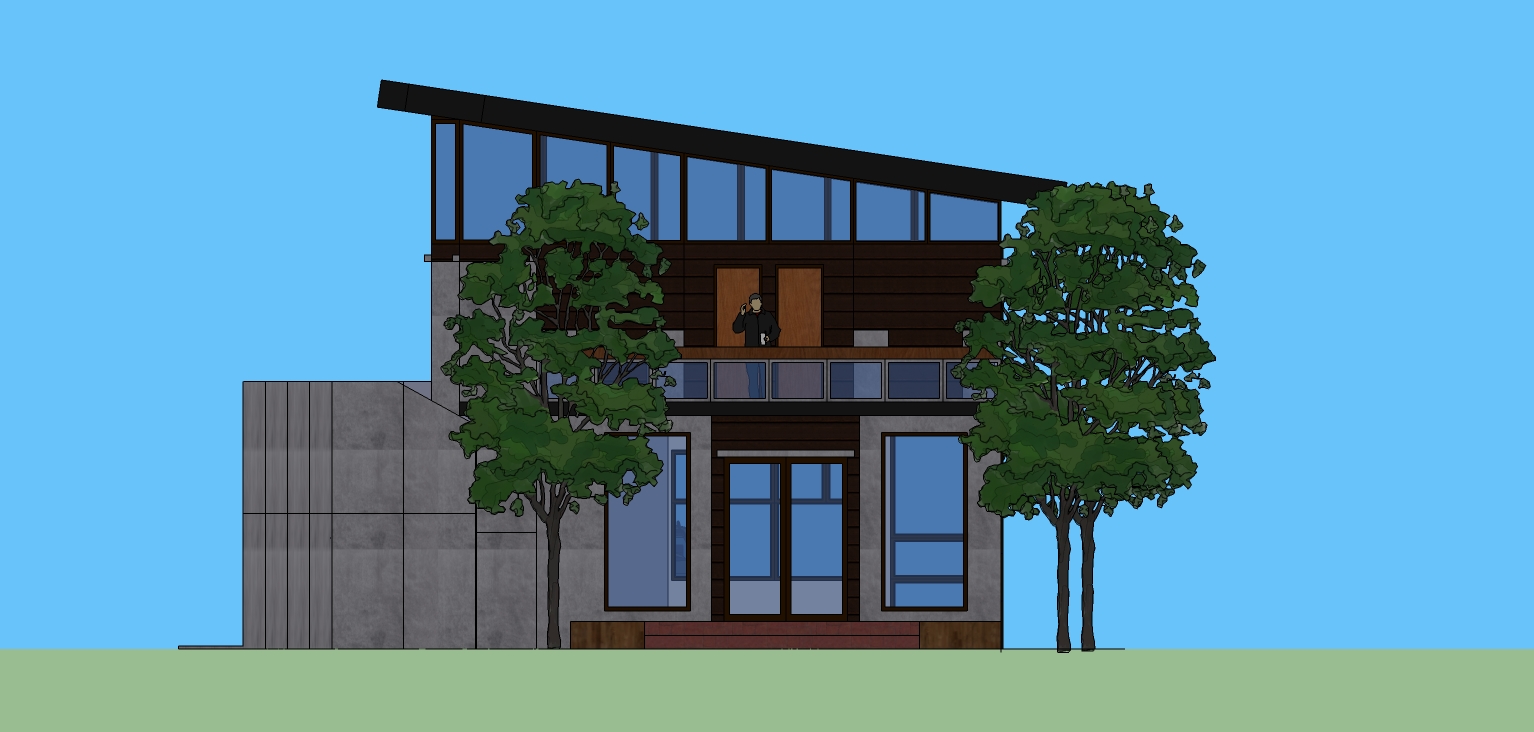

Rear Elevation

Right Elevation

This plan is done with a modern straightforward design. It’s accented by concrete, wood and bricks maximizing the beauty of natural materials

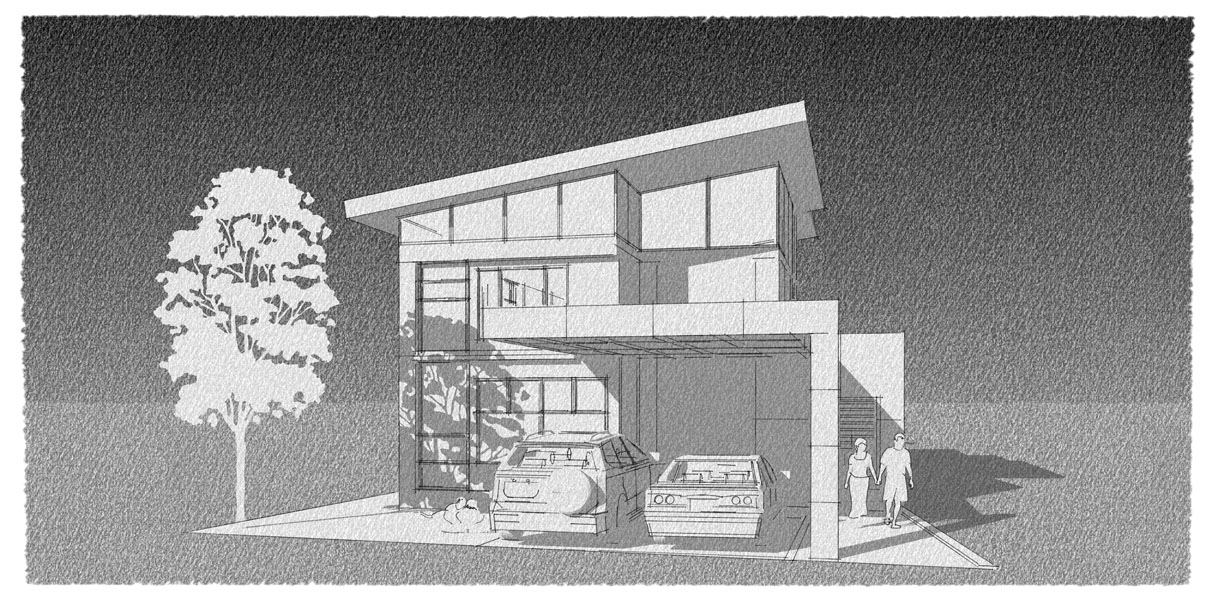

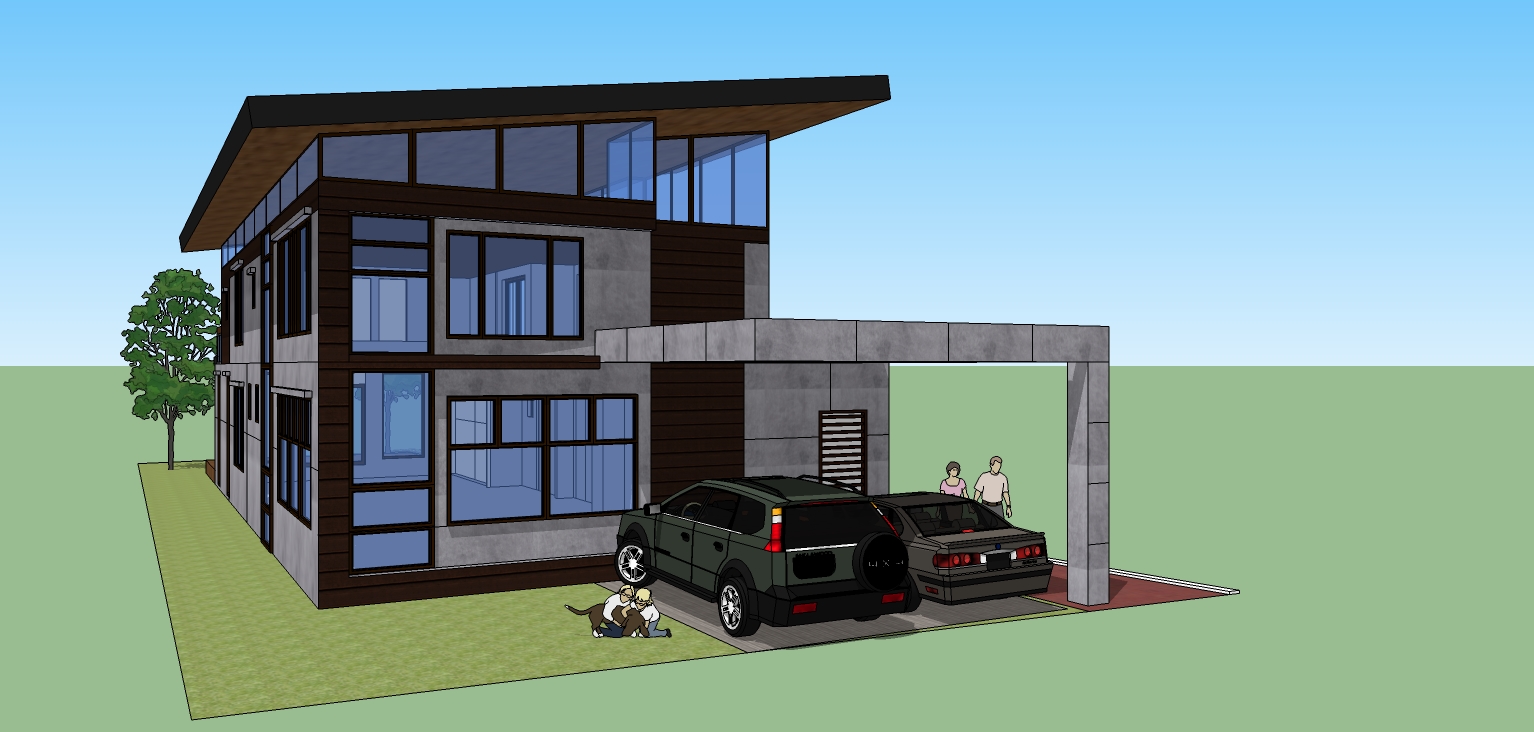

Front Perspective

Front Perspective
