Appreciations towards Snøhetta + Architecture49 for providing the following description:

这一占地 25 万平方米的综合体城市更新项目，将城市景观与生态基础设施融为一体，为东南亚城市未来的气候适应性设计树立了典范。斯诺赫塔事务所（Snøhetta）与 A49 Architects 合作，为 Magnolia Quality Development Corporation (MQDC) 推出了其在亚洲规模最大的城市更新项目。Cloud 11 坐落于曼谷最富活力的文化与创新高地之一——南素坤逸区。该多功能综合体以中央庭院为核心，既是生态基底，也是文化公园。设计充分发挥景观的力量，打造出一片致力于提升环境韧性与社区福祉的城市绿洲。

With a civic landscape doubling as ecological infrastructure, the 250,000 m² mixed-use urban regeneration project sets a precedent for future climate adaptation in Southeast Asian cities. Snøhetta, in collaboration with A49 Architects, has unveiled its most extensive urban regeneration project in Asia for Magnolia Quality Development Corporation (MQDC). Located in the South Sukhumvit — one of Bangkok’s most vibrant cultural and innovation hubs — Cloud 11 is a mixed-use development defined by a central courtyard that serves as both ecological infrastructure and cultural park. The design harnesses the power of landscape to create an urban oasis that champions environmental resilience and community wellbeing.

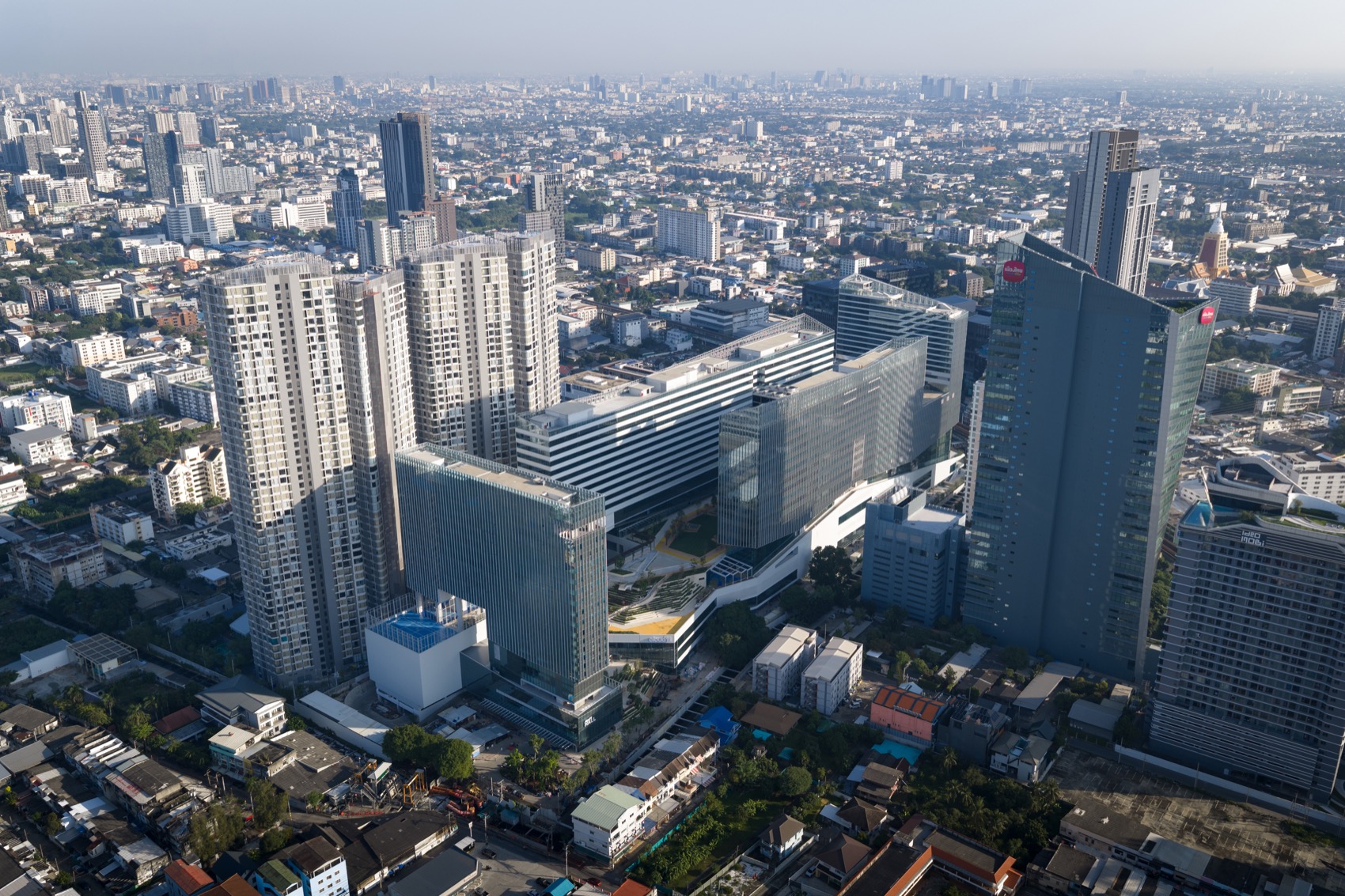

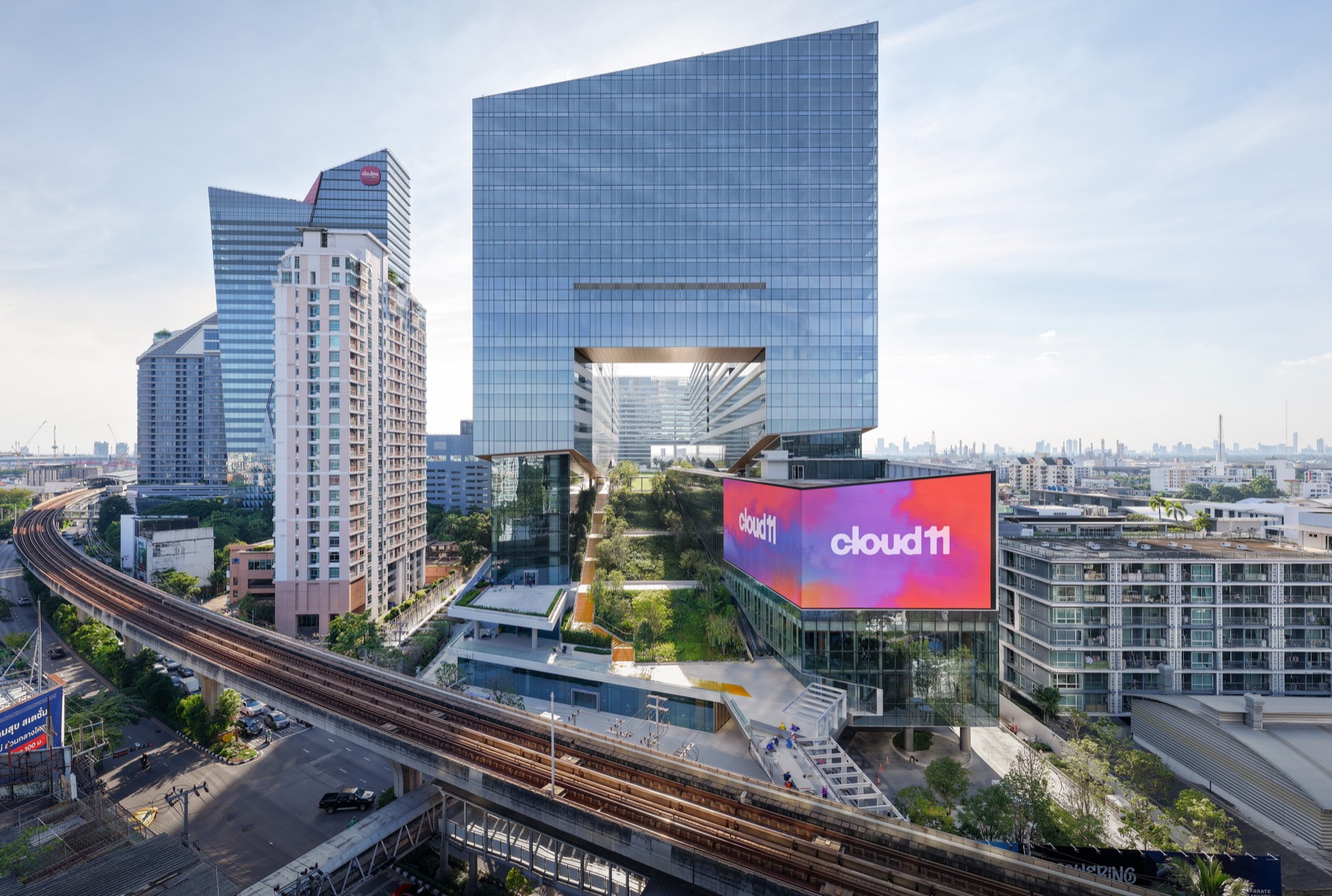

▼项目鸟瞰，Aerial view of the project © Justin Szeremeta | StudioSZ

该项目植根于周边环境，灵感源自曼谷层叠交错的城市特质：传统的沿街店屋、高架轻轨线以及新兴的高层建筑。通过在这些层级之间的空间进行建筑塑形，Cloud 11 构筑了一个全新的“中间地带”。其结果是创造了尺度宜人的公共景观，在跨越不同空间尺度的同时，重新连接了周边社区，为公众提供了一个充满活力的城市空间。“Cloud 11 的愿景是成为亚洲新兴的创意枢纽，让才华、灵感与文化在此繁荣发展，”项目创始人兼项目开发首席执行官 Onza Janyaprasert 表示，“我们深感有责任回馈曼谷。这座高架公园便体现了这一信念：它为社区提供了一片宽广的绿地，旨在凝聚人群，并带来舒适感、灵感与无限可能。”

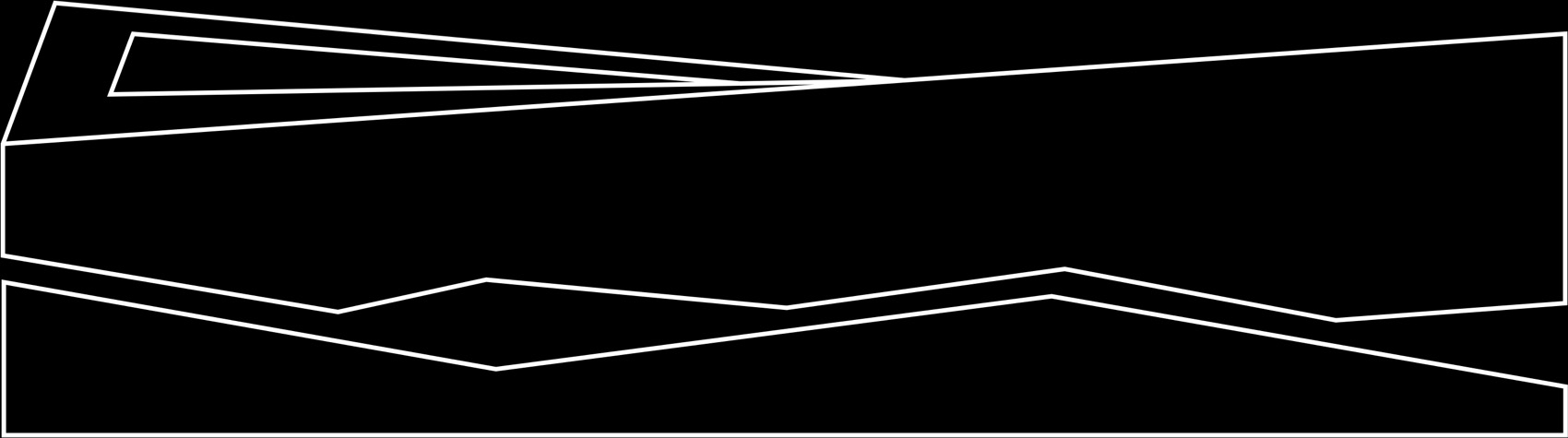

▼最终形体，Final geometry ©Snøhetta+A49 Architects

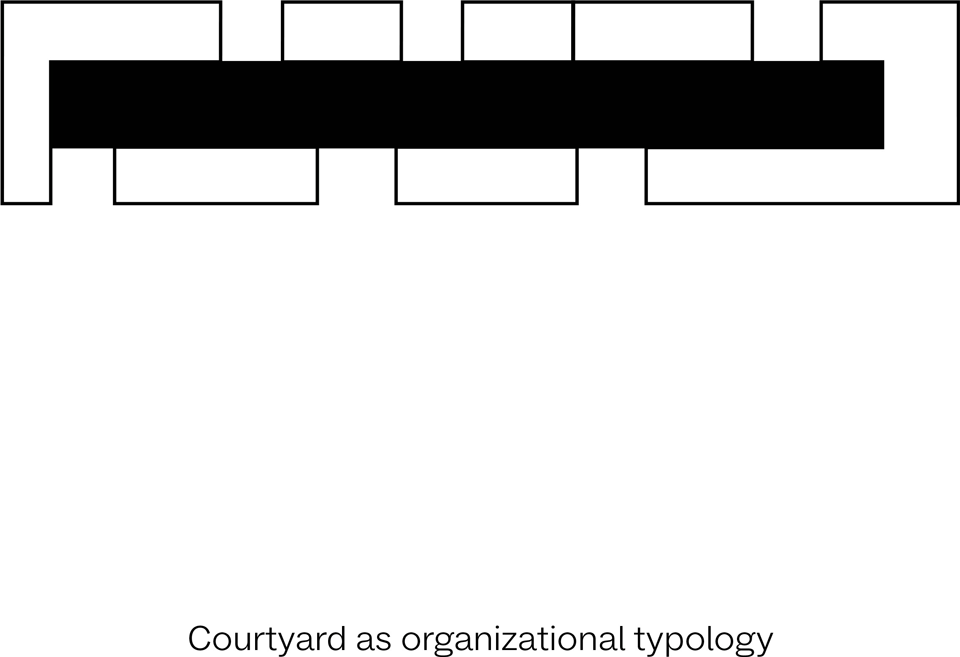

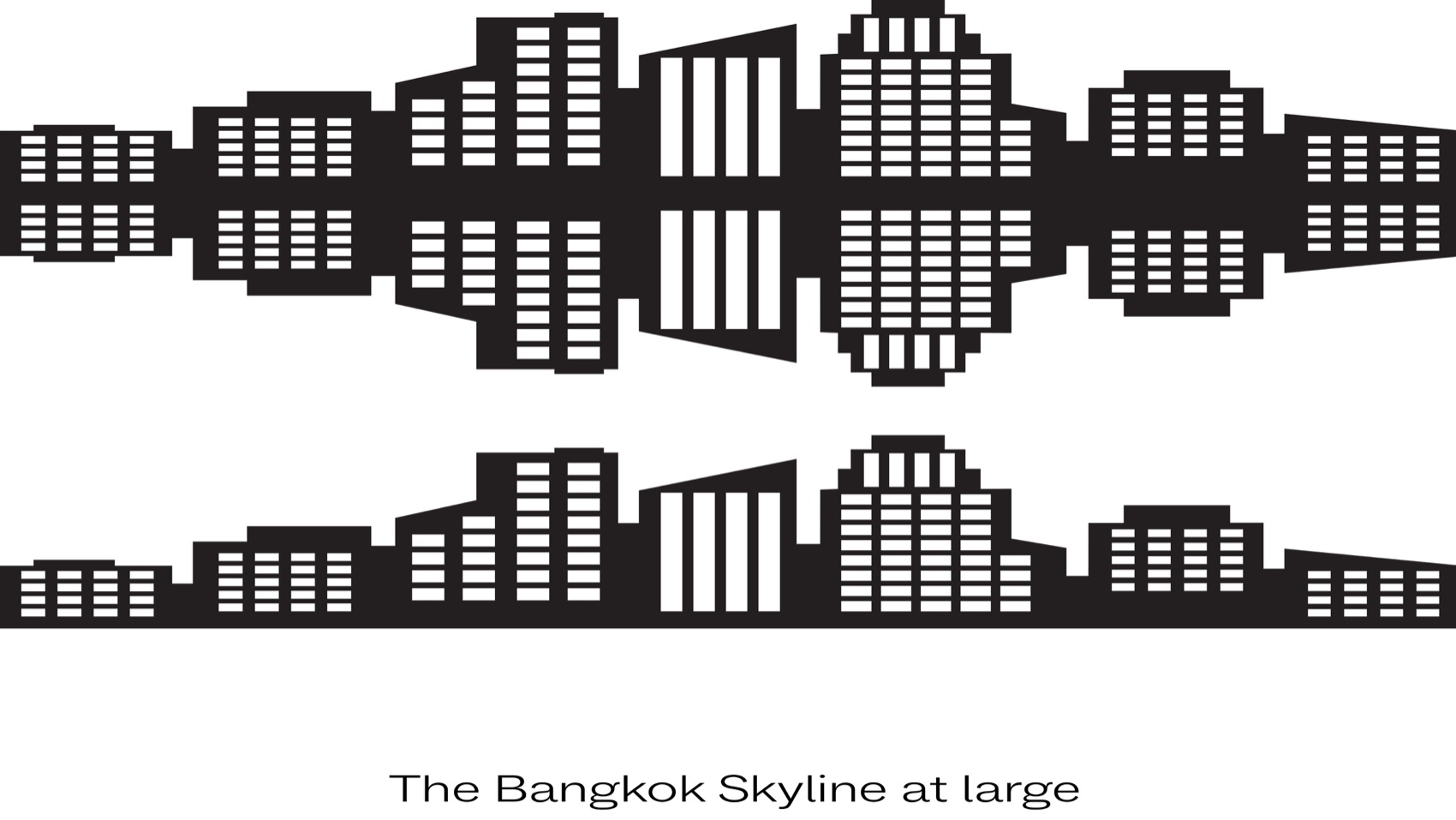

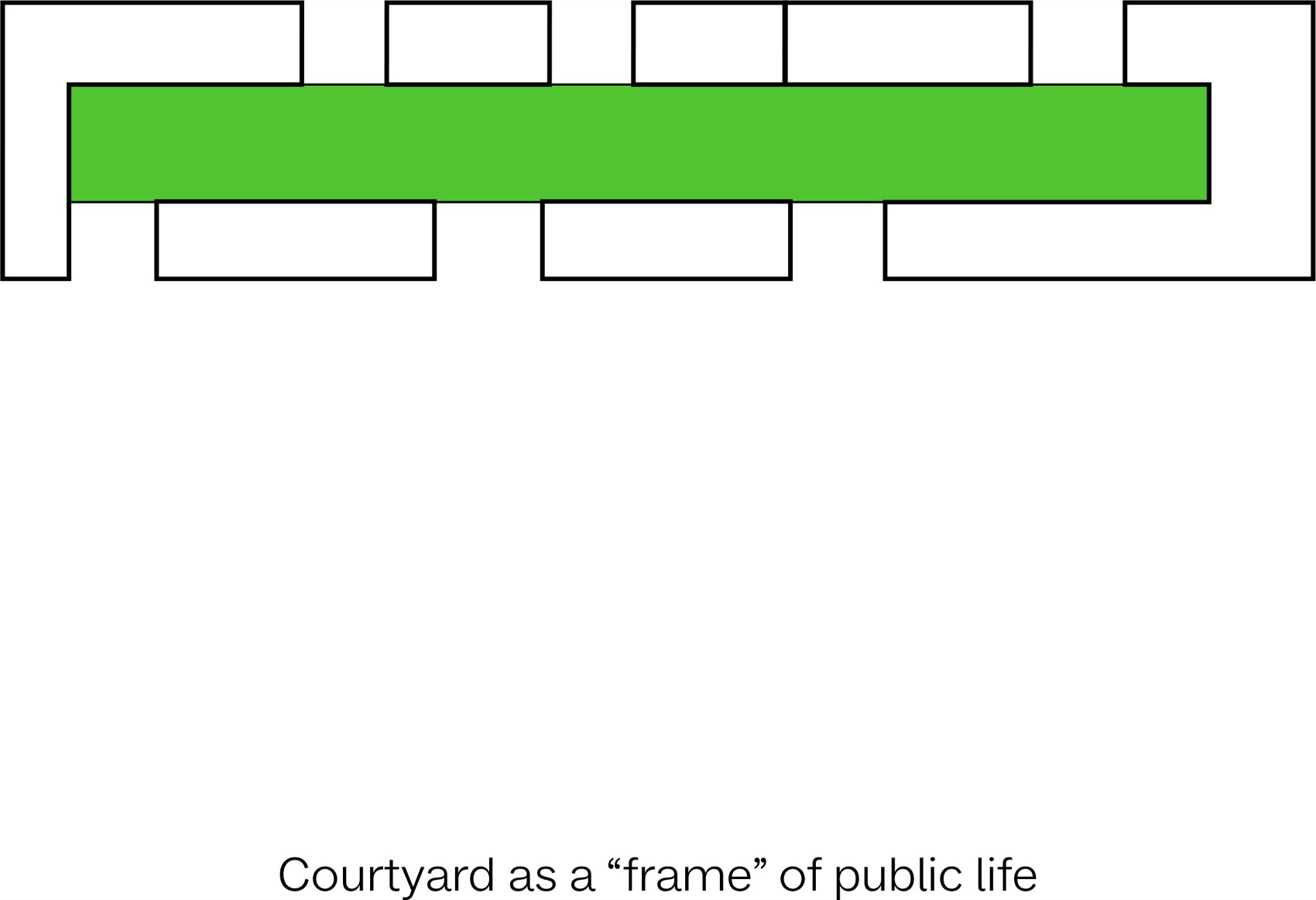

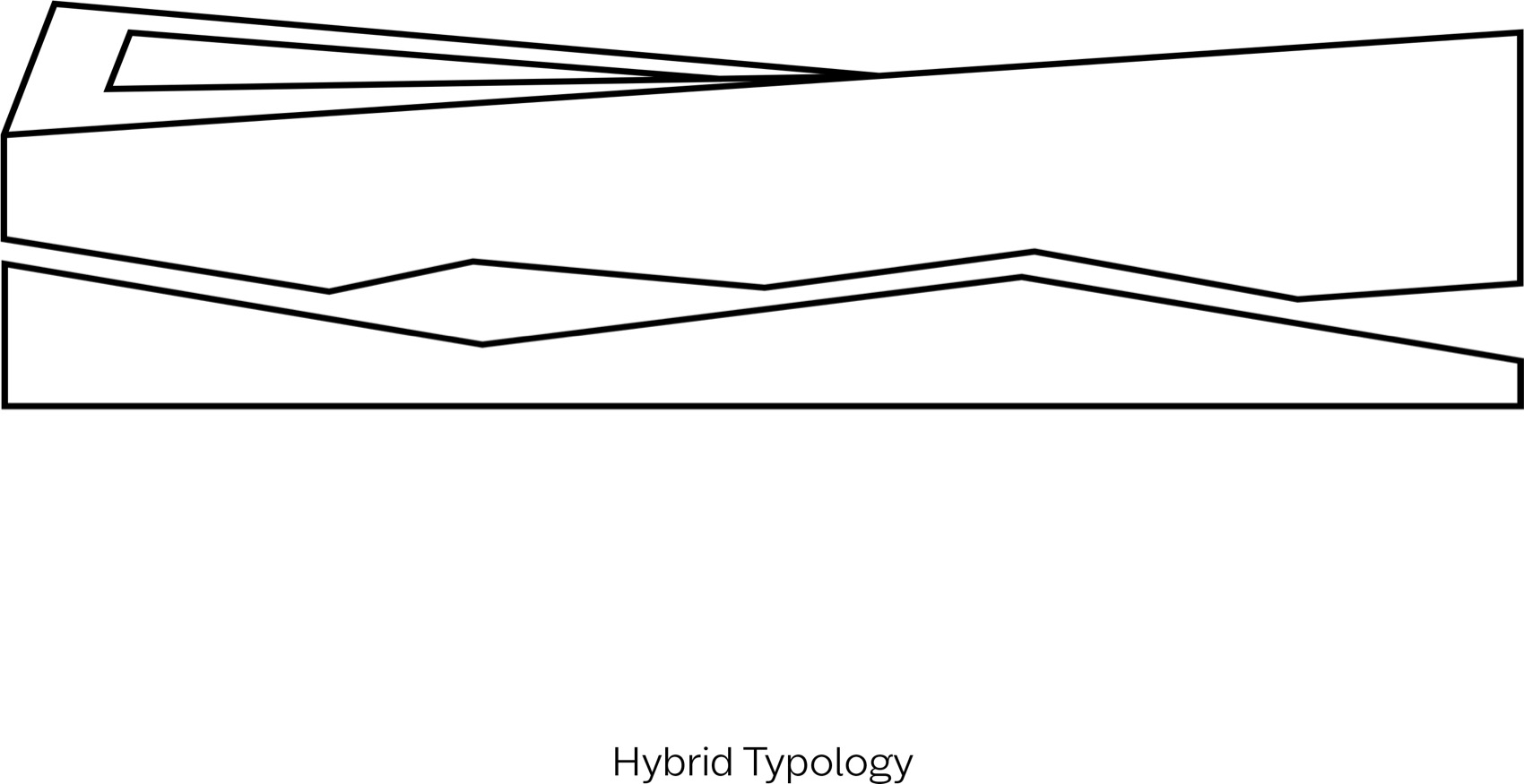

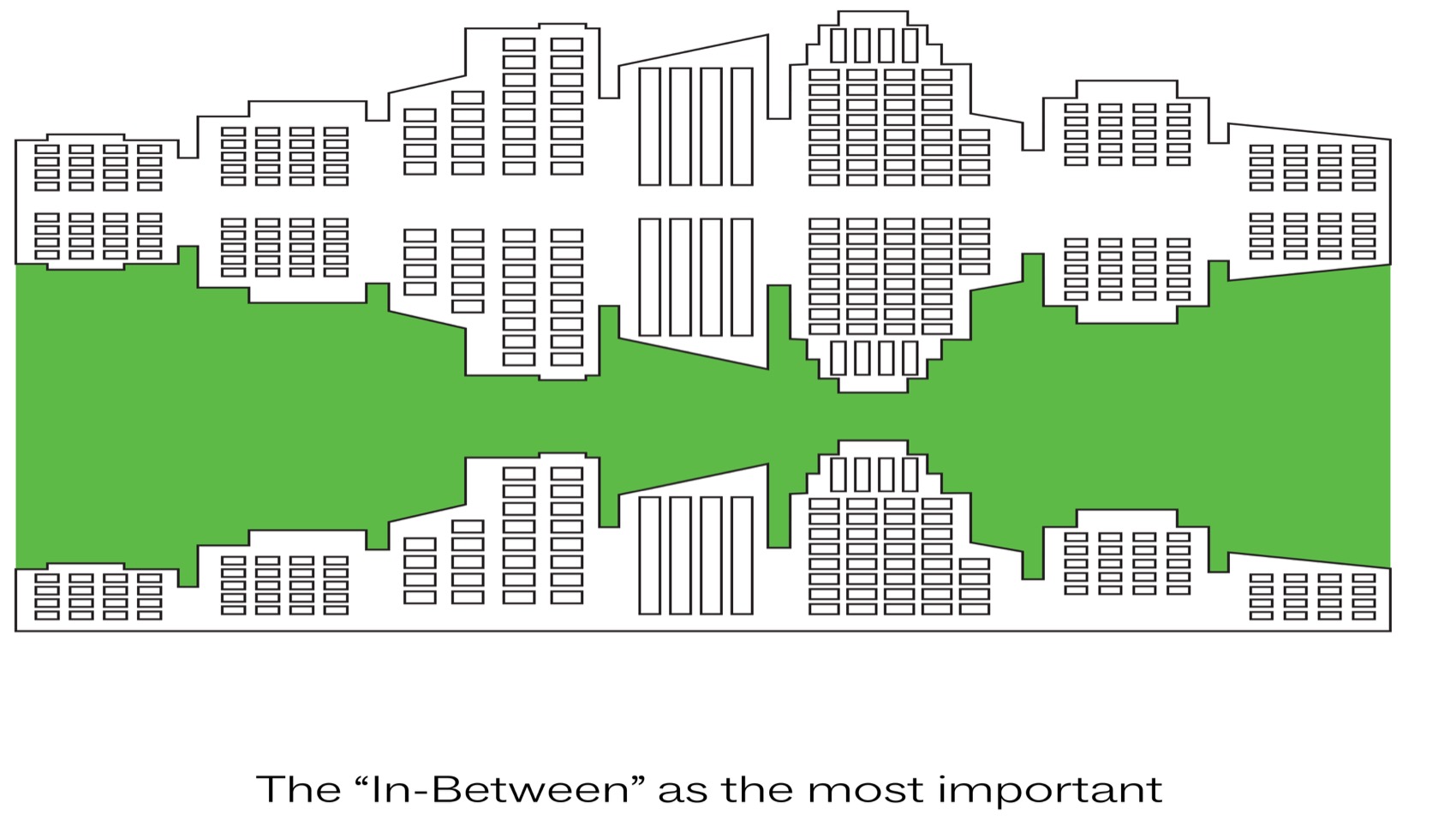

▼概念生成，Concept generation ©Snøhetta+A49 Architects

Rooted in its surrounding context, the project is inspired by the layered conditions of Bangkok’s shophouse streets, elevated skytrain lines, and emerging high-rise towers. By sculpting the architecture from the space between these layers, Cloud 11 forms a new “in-between” realm. The result is a generous public landscape that bridges scales, reconnecting the neighborhoods, offering a vibrant civic space for all.“Cloud 11 is envisioned as a new creative hub for Asia — a place where talent, ideas, and culture can thrive,” says Onza Janyaprasert, Project Founder and CEO Project Development of Cloud 11. “We feel a deep responsibility to give something back to Bangkok. The elevated park reflects that belief: a generous green space for the community, designed to bring people together and offer comfort, inspiration, and possibility.”

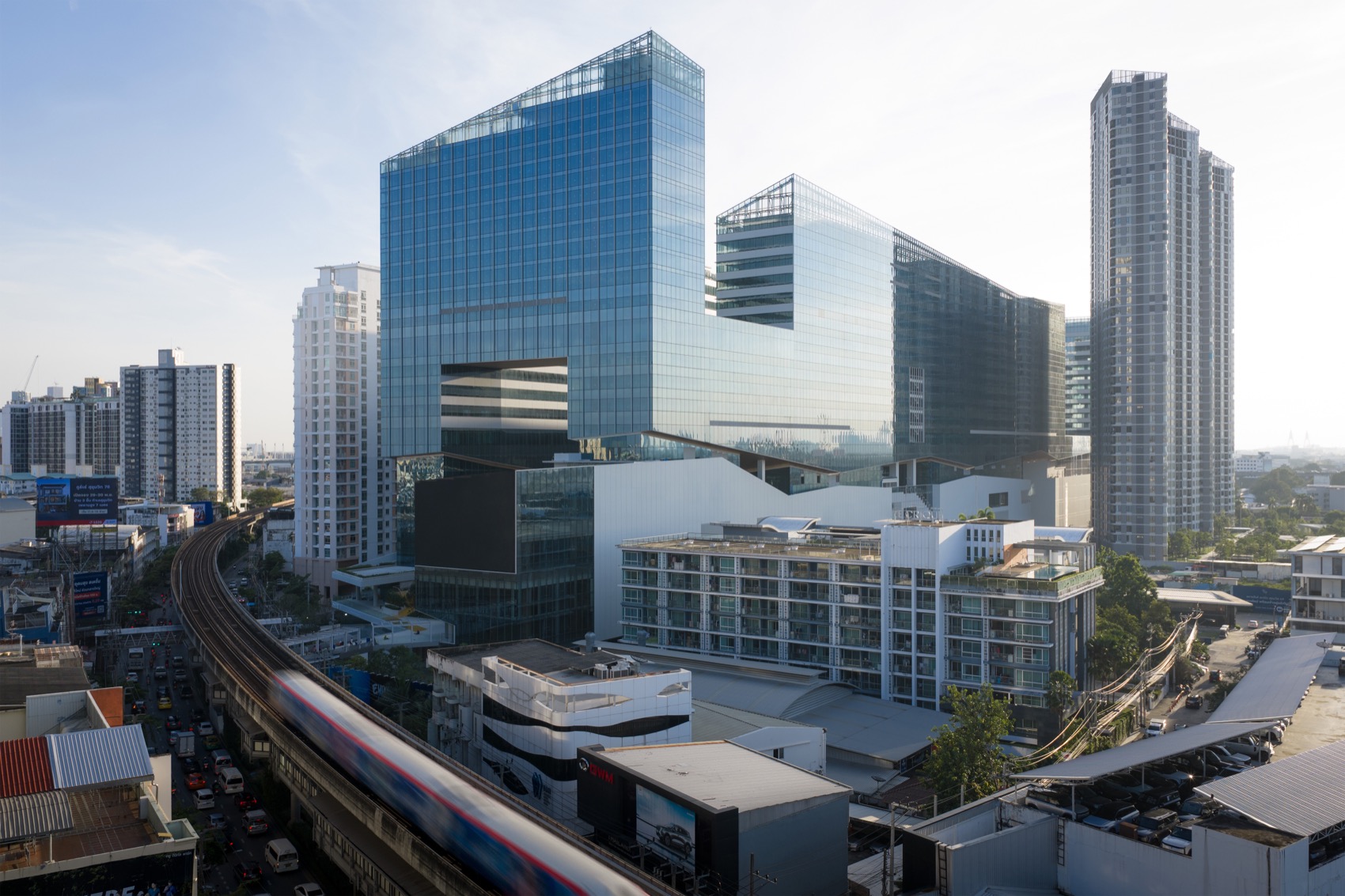

▼建筑外景，Exterior of the Building © Justin Szeremeta | StudioSZ

曼谷正面临严峻的城市挑战，包括气温升高、空气污染、频繁水患，以及亚洲最低的公共绿地率之一——人均绿地不足 7 平方米，远低于 39 平方米的地区平均水平。斯诺赫塔事务所的解决方案是采用一种基于景观的可持续策略，通过打造“水平地标”和抬升式景观，优先保障空间的开放性、可达性、适应性与社区属性。“Cloud 11 代表了可持续城市更新的变革性愿景，”斯诺赫塔事务所亚洲区董事总经理 Richard Wood 表示，“它为曼谷及该地区的其他城市提供了一种创新的适应模式，通过一座包容性的文化公园将环境韧性嵌入城市肌理，从而孕育社会与生态的协同效应。”作为一个集创新、创意与可持续城市生活于一体的新平台，Cloud 11 交通便捷，将汇聚创意公司、艺术家和创业者。同时，它还为居民和游客提供 24 小时开放的文化场馆、零售空间、酒店及广阔的绿地。该项目计划于 2026 年 3 月正式对公众开放。

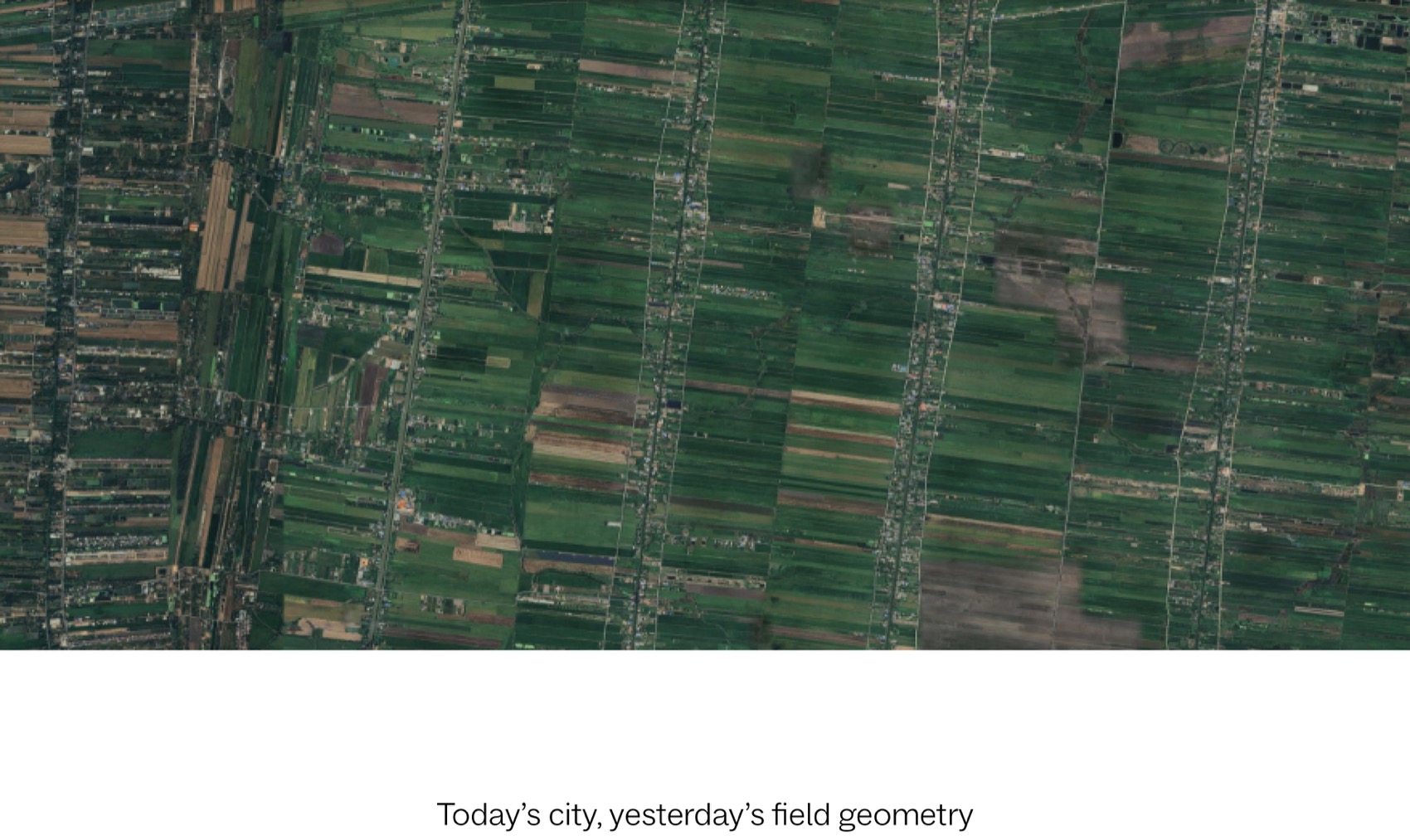

▼城市肌理图，Urban Grain Diagram ©Snøhetta+A49 Architects

Bangkok faces significant urban challenges, including rising heat, air pollution, recurrent flooding, and one of the lowest public green space ratios in Asia – less than 7 m² per resident, compared to a regional average of 39 m². Snøhetta’s solution to these issues is a sustainable, landscape-based approach with a horizontal landmark and a raised landscape to prioritize openness, accessibility, adaptability, and community.“Cloud 11 represents a transformative vision for sustainable urban regeneration,” says Richard Wood, Managing Director Asia at Snøhetta. “It presents an innovative adaptation model designed for Bangkok and other cities in the region, where environmental resilience is embedded into the urban fabric through an inclusive cultural park that will nurture both social and ecological synergy.”Invented as a new platform for innovation, creativity, and sustainable urban living with easy access to public transit, Cloud 11 will bring together creative companies, artists, and entrepreneurs, while offering residents and visitors 24-hour access to cultural venues, retail, hotels, and generous green spaces.The project is set to open to the public in March 2026.

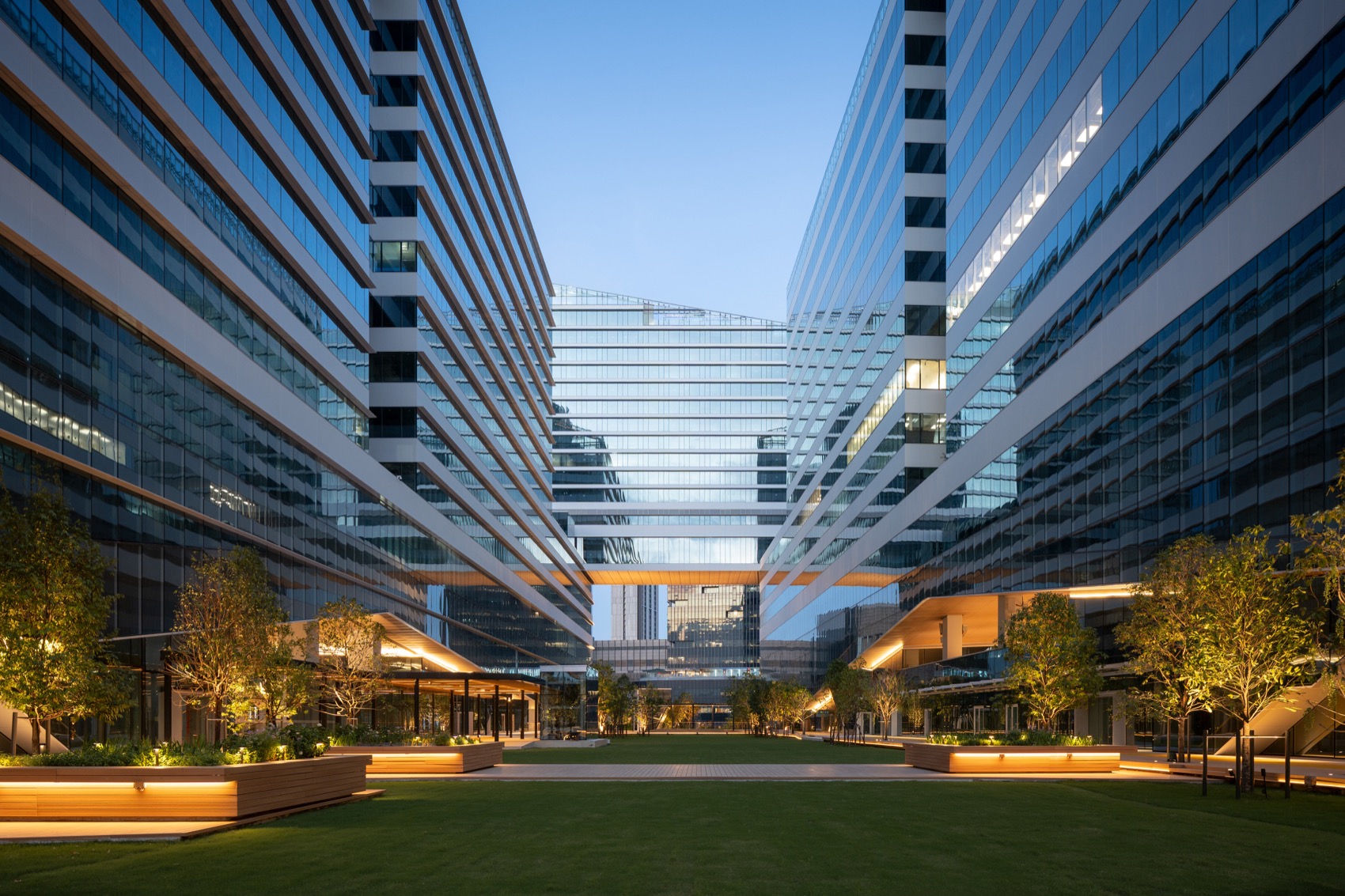

▼建筑街景，Street view of the building © Justin Szeremeta | StudioSZ

以景观驱动应对城市挑战

Landscape-Driven Response to Urban Challenges

Cloud 11 积极应对曼谷紧迫的城市挑战，契合“绿色曼谷 2030”和“走进曼谷 2050”倡议，体现了泰国在《联合国气候变化框架公约》（UNFCCC）和《巴黎协定》下的承诺。作为支持这些国家及全球目标的开发项目，该设计采用基于景观的可持续策略，以抵消大规模城市开发对环境的影响。设计借鉴了曼谷层叠的城市肌理，其体量通过反复的空气动力与日照环境模拟工程，以应对当地气候。与城市中随处可见的垂直塔楼不同，这个 250,000 平方米的开发项目被构思为一种“水平建筑”，模糊了建筑与都市主义的界限。多元的功能模块围绕着一个露天庭院展开——这里是项目的社会与气候核心。坐落在塔楼与裙楼之间的抬升庭院是对曼谷多涝、炎热气候的创新回应，提供了被动式遮阳和自然通风。

▼横向地标与绿化，Horizontal landmark and greening ©Snøhetta+A49 Architects

Cloud 11 responds to Bangkok’s pressing urban challenges, aligning with the Green Bangkok 2030 and Enter Bangkok 2050 initiatives that reflect Thailand’s commitments under the UN Framework Convention on Climate Change (UNFCCC) and the Paris Agreement. As a development supporting these national and global goals, the design employs a sustainable, landscape-based approach to offset the environmental impact of large-scale urban developments. The design takes cue from Bangkok’s layered urban fabric, with a massing that responds to local climate conditions through iterative environmental wind and solar engineering. In contrast to the city’s ubiquitous vertical towers, the 250,000 m² development was conceived as an architecture of horizontality, blurring the boundaries between architecture and urbanism. Its diverse programs are organized around an open-air courtyard – the social and climatic heart of the project. Nestled between the tower and podium, the elevated courtyard serves as an innovative response to Bangkok’s flood-prone, heat-intense climate, providing passive shading and natural ventilation.

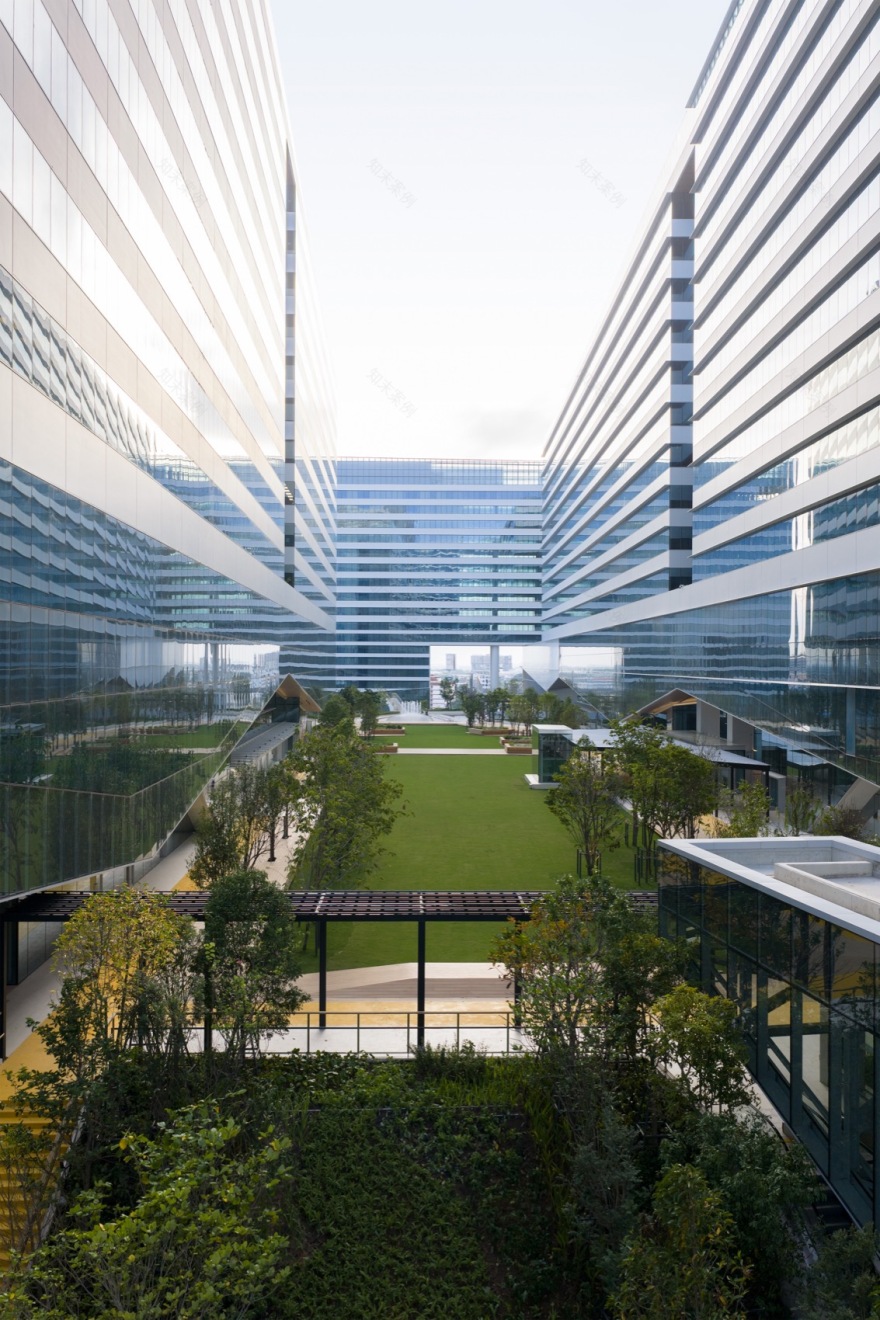

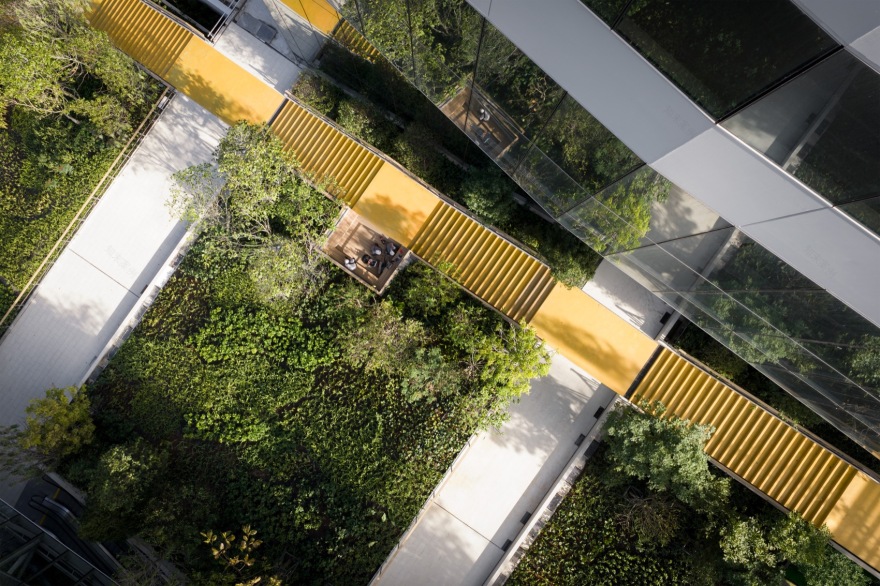

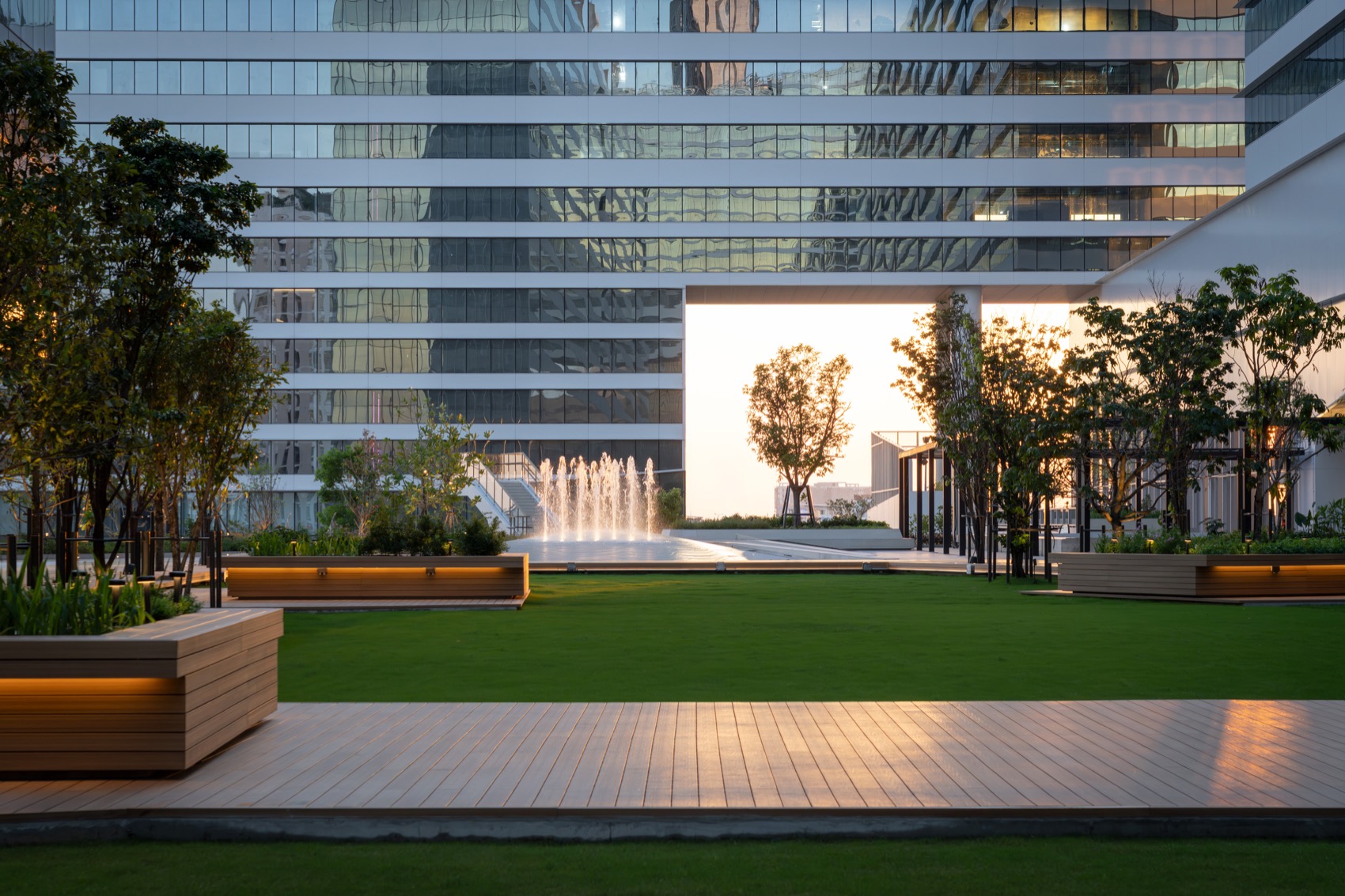

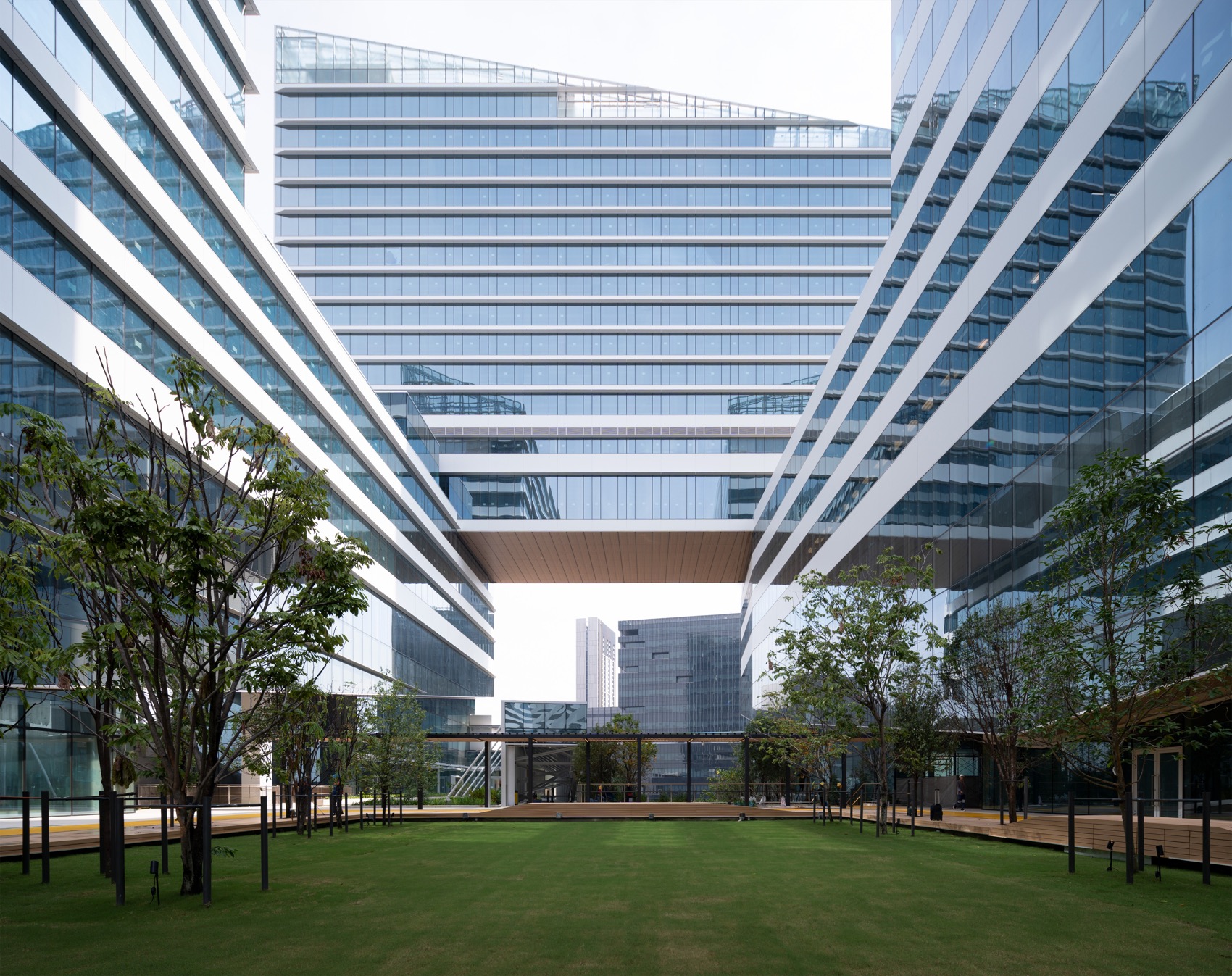

▼屋顶花园，Roof garden © Justin Szeremeta | StudioSZ

抬升的景观如同一座“城市之肺”，能够过滤空气、缓解炎热并支持生物多样性。精心策划的种植策略使绿地成为公共健康的积极贡献者。多层次的植被净化了空气，而浓密叶丛形成的遮阴廊道减少了城市热岛效应，营造出舒适的微气候。战略性分布的土壤和植被区块作为“生态踏脚石”，鼓励野生动物回归并增强城市生物多样性。

Acting as an urban lung, the elevated landscape filters air, mitigates heat, and supports biodiversity. The carefully curated planting strategies turn the green spaces into active contributors to public health. Layered with diverse species, the vegetation produces cleaner air, while shaded corridors with dense foliage reduce the urban heat island effect, creating a comfortable microclimate. Strategically distributed soil and planting patches serve as ecological stepping-stones, encouraging wildlife and enhancing urban biodiversity.

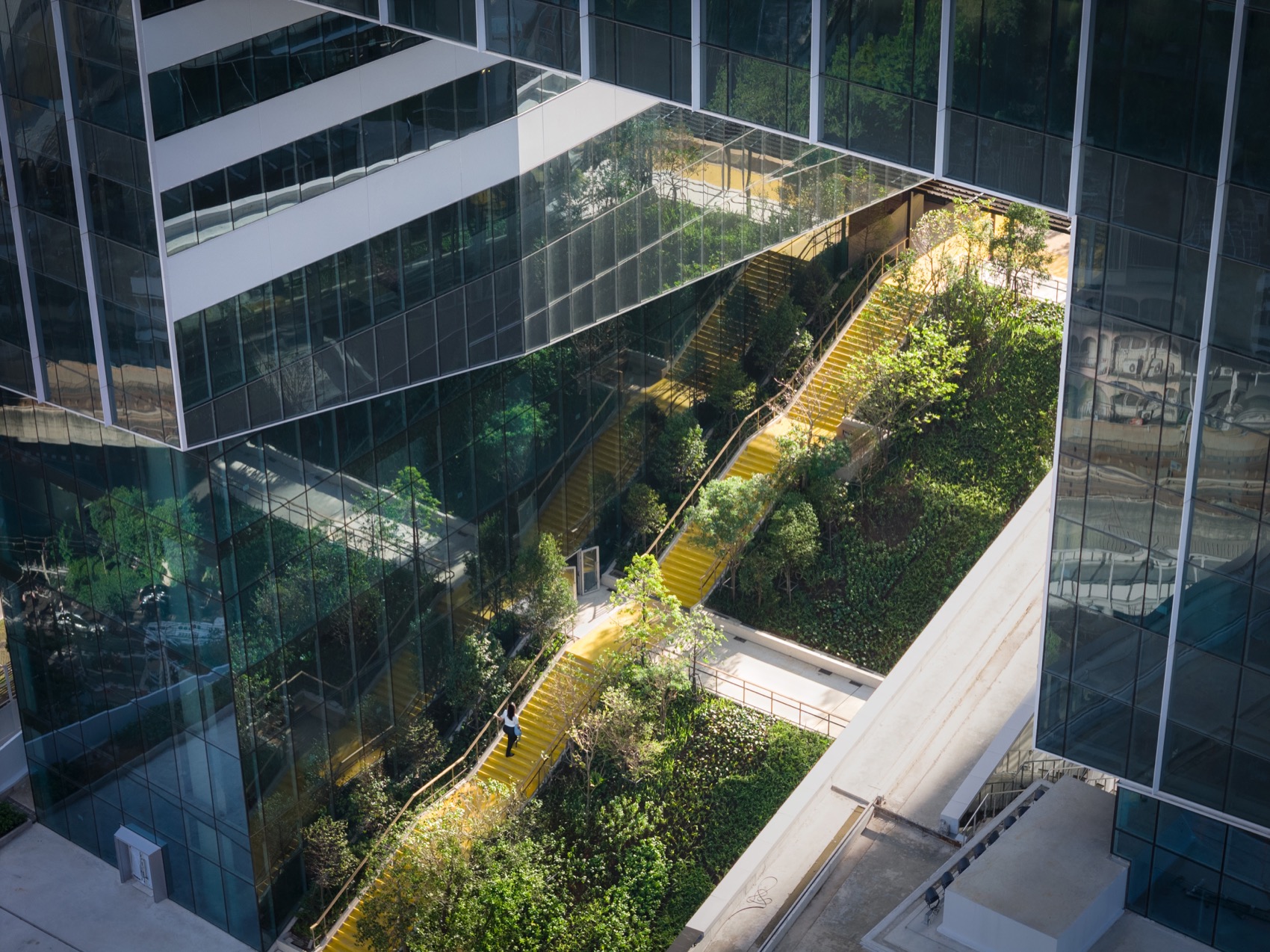

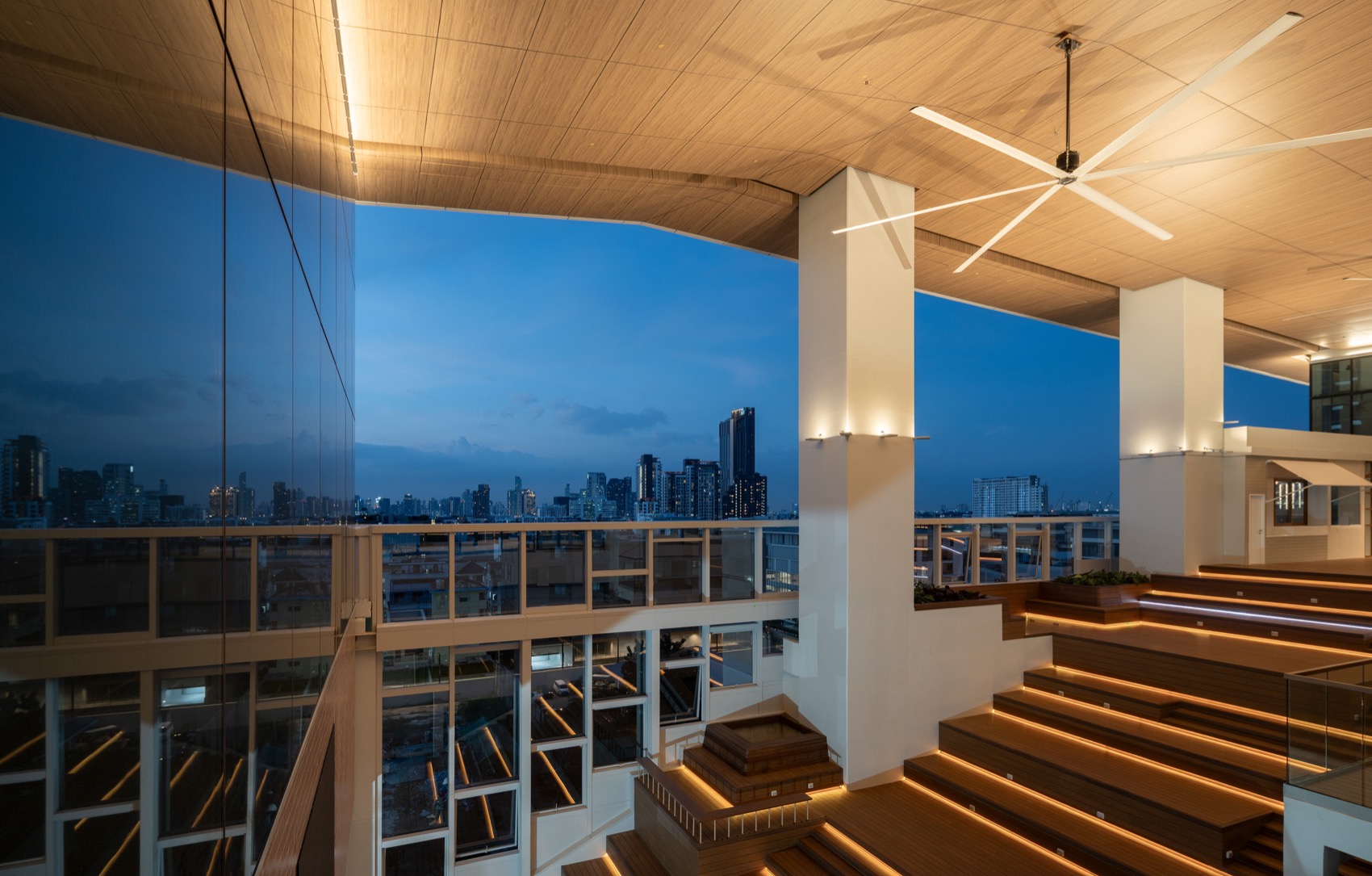

▼室外楼梯，Exterior staircas © Justin Szeremeta | StudioSZ

全民共享的创意公园

A Creative Park for All

Cloud 11 的核心是作为社会福祉和生态韧性关键基础设施的景观。该项目将广阔的绿地构思为一片“可适应高地”（Adaptable Highland），将其抬升至曼谷易受洪涝影响的地面之上，在舒适的微气候中创造出一个安全且受人欢迎的城市地形，供人们聚会、嬉戏和交流。其核心亮点是泰国最大的高架草坪——一个可举办节庆、演出、野餐和日常休闲的灵活平台。在中央庭院及口袋公园网络的环绕下，这片景观作为一个“社会凝聚器”，满足了每个人的需求。体育场和游乐场面向年轻人，而疗愈花园和休憩空间则服务于年长者。同时，文化空间为社区聚会和活动提供了舞台。通过将这些活力、娱乐和静修区域聚集在一起，设计促进了跨代际与跨文化的交流。

▼功能分析，Program analysis © Justin Szeremeta | StudioSZ

At the heart of Cloud 11 is a landscape that serves as vital infrastructure for social wellbeing and ecological resilience. Conceived as an “Adaptable Highland,” the vast green space is elevated above Bangkok’s flood-prone ground, creating a safe and welcoming civic topography within a comfortable microclimate where people can gather, play, and connect. The centerpiece is Thailand’s largest elevated lawn – a flexible plateau for festivals, performances, picnics, and everyday recreation.Framed by a central courtyard and complemented by a network of pocket parks, the landscape offers something for everyone as a social condenser. Sports courts and playgrounds cater to younger visitors, while therapy gardens and rest pockets serve older generations. Cultural spaces, meanwhile, provide a stage for community gatherings and events. By clustering these active, playful, and mindful zones, the design fosters intergenerational and intercultural exchange.

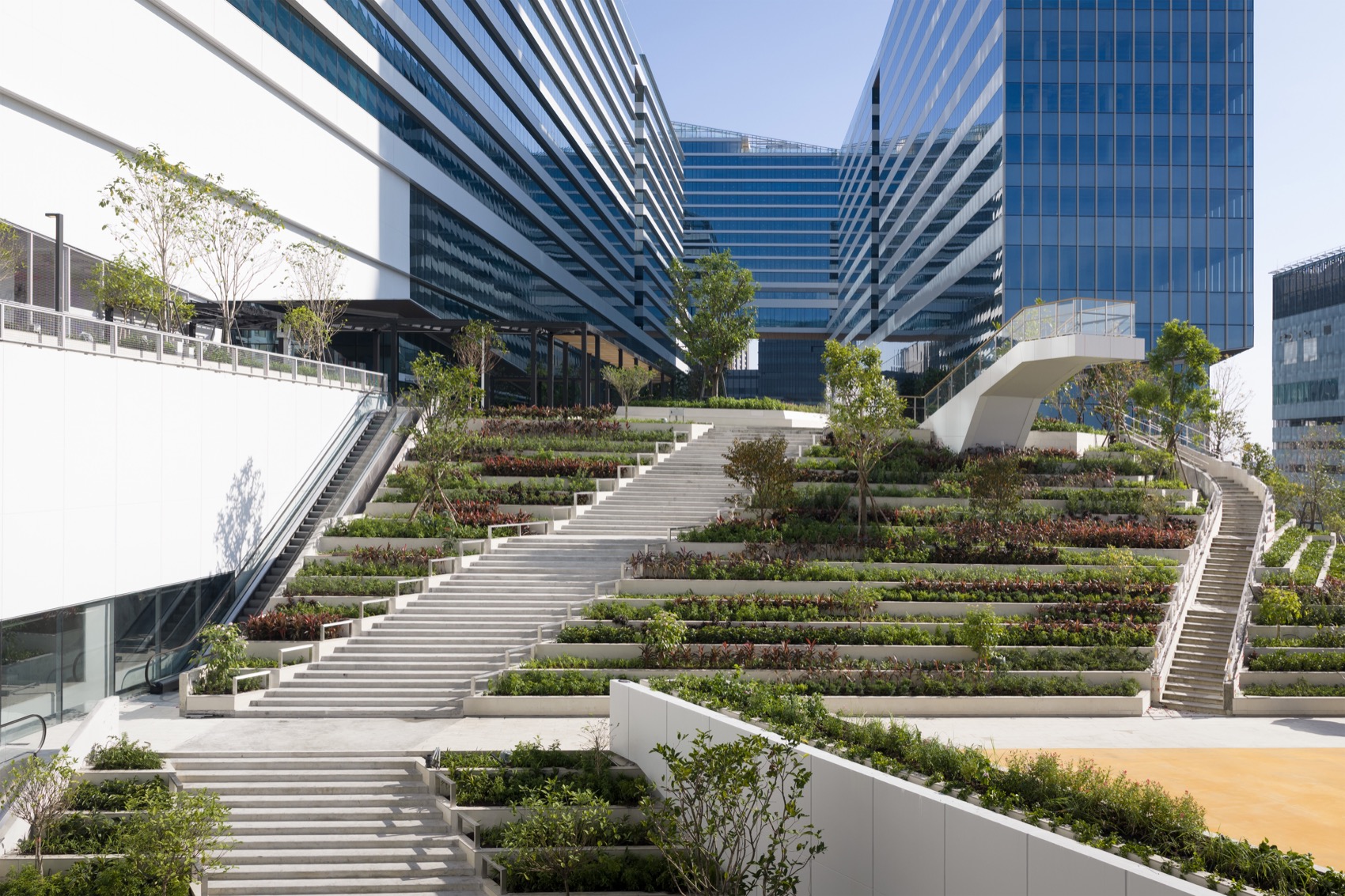

▼室外细节，Exterior detail © Justin Szeremeta | StudioSZ

为进一步发挥城市角色，社区农场、草药园和亲水游乐场邀请公众参与、学习并共同管理——将绿色基础设施转化为公民责任的平台。为确保包括儿童、父母、老人及残障人士在内的所有人的可达性，设计融入了通用坡道、室外电梯、遮荫步道以及由小巷、广场、扶梯和街道构成的细致流线网络。这些慷慨的公共空间全天候开放，让多元化的群体在任何时间都能与景观互动。

Expanding on this civic role, community farms, herbal gardens, and water playscapes invite participation, learning, and shared stewardship – transforming the green infrastructure into a platform for civic responsibility. To ensure accessibility to all, from children and parents to the elderly and those with disabilities, the design incorporates universal ramps, outdoor lifts, shaded walkways, and a fine-grained circulation network – from alleys and plazas to escalators and streets. The generous public spaces are open 24/7, enabling diverse communities to engage with the landscape at any time.

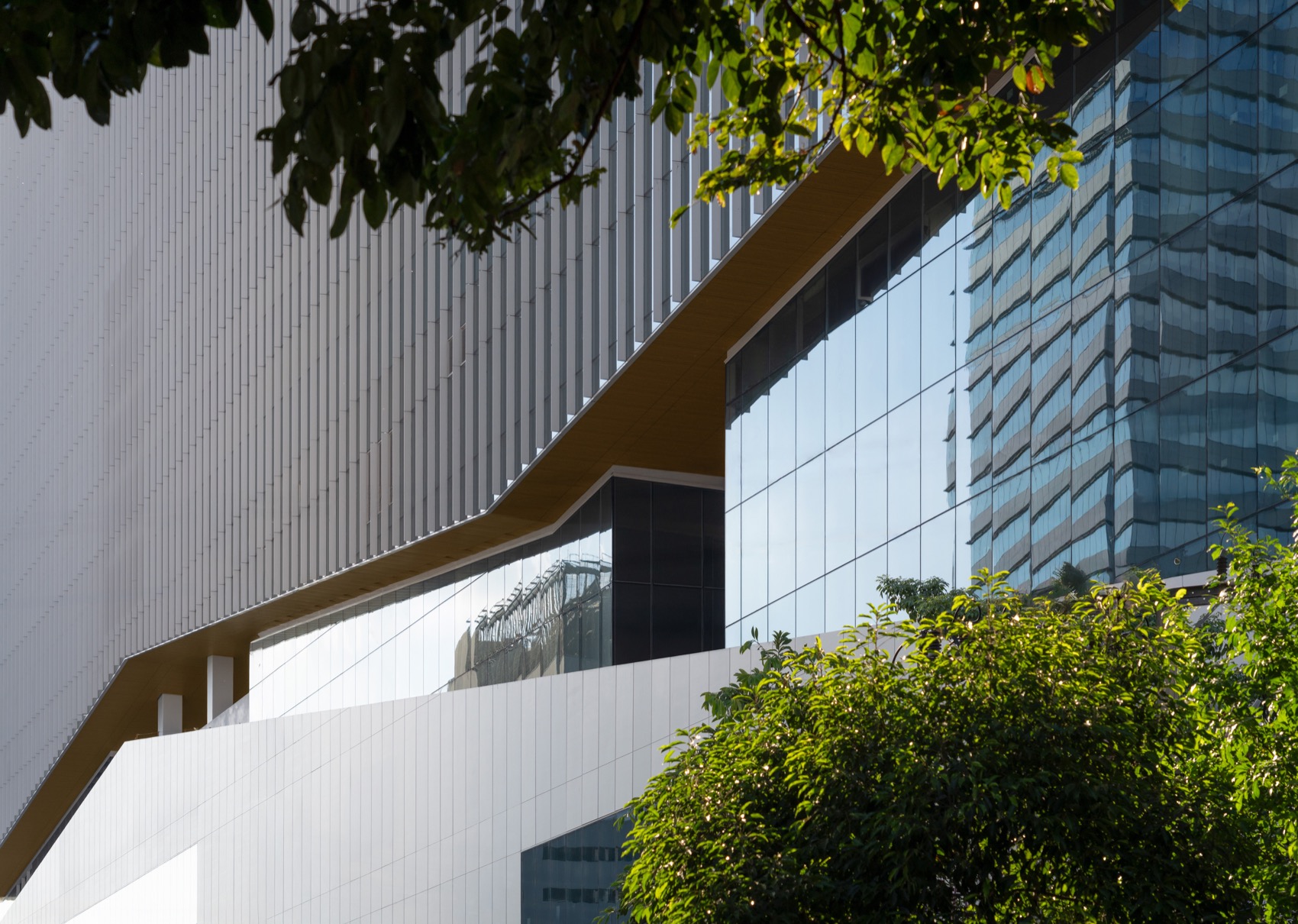

▼立面细节，Facade details © Justin Szeremeta | StudioSZ

可持续性集成与文化根基

Integrated Sustainability and Cultural Grounding

Cloud 11 致力于环境与社会的双重可持续性。绿化屋顶、遮荫立面和自然通风降低了能源需求；而透水铺装、生物滞留带、雨水花园和碎石过滤种植池则通过生态环保的基础设施管理雨水。由磨制木材和回收塑料制成的座椅在减少浪费的同时，打造出色彩缤纷、经久耐用的低碳社交家具。该项目的植物配置选用本地品种，增强了应对曼谷强降雨的蓄水能力，提升了环境韧性，同时也唤起了文化共鸣。设计将成年古树保留为集体记忆的锚点，并将其整合为“活地标”，使生态价值与历史传承紧密相连。通过将场地历史上曾有的果园、芦苇丛和稻田重新诠释为现代高架公园，在将社区与文化根源相连的同时，也为未来提供了充满活力的绿地空间。

Cloud 11 is dedicated to both environmental and social sustainability. Green roofs, shaded façades, and natural ventilation reduce energy demand, while porous pavements, bioswales, rain gardens, and gravel filtration planters manage stormwater through ecologically responsible infrastructure. Seating crafted from milled timber and recycled plastics reduces waste while creating colorful, durable low-carbon social furniture. The project’s planting palette draws on locally sourced flora, enhancing water retention for Bangkok’s heavy rainfall and bolstering environmental resilience, while also fostering cultural resonance. By preserving mature trees as anchors of collective memory and integrating them as living landmarks, the design ties ecological value to heritage. The reinterpretation of the site’s history of orchards, reed fields, and rice paddies into a contemporary elevated park connects the community to its cultural roots while offering vibrant green spaces for the future.

抬升的景观创造了一个将居住、工作和休闲功能无缝融合的平台，确保了社会的可持续性。创作者村落、先进的制作工作室、酒店、教育中心和市场大厅在一个连贯的城市框架内交织，流线网络将这些功能串联，既提升了可达性，也促进了人群间的自发性交流。其结果是打造出一个全天候的适应性街区，让城市生活在不同尺度和层面上为使用者、居民及访客徐徐展开。Cloud 11 不仅仅是一个建筑群，它是曼谷一个具有变革意义的新型创意公园。通过整合可持续景观策略，该开发项目培育了一个回馈周边的城市公共领域，增强了环境韧性、文化共鸣和社区纽带。在这里，可持续性通过嬉戏、休憩、庆典以及对周边环境的关怀，转化为一种社会连接纽带。

The elevated landscape creates a platform to seamlessly integrate living, working, and leisure functions, ensuring social sustainability. Creator villages, advanced production studios, hotels, educational centers, and market halls interlock within a coherent urban framework, with circulation networks weaving these programs together to enhance accessibility and foster spontaneous encounters. The result is an adaptable, 24-hour district where urban life unfolds across scales and levels for occupants, residents, and visitors alike.More than just a building complex, Cloud 11 is a transformative new creative park for Bangkok. By integrating sustainable landscaping strategies, the development cultivates a civic realm that gives back to its surroundings, fostering environmental resilience, cultural resonance, and community bonds. Here, sustainability is socially connective — through play, rest, celebration, and care for the environment around us.
