81套住房单元丨法国南特丨Ramdam Architectes,palast

Architects:Ramdam Architectes,palast

Area:5247m²

Year:2025

Photographs:Charles Bouchaib,Javier Callejas

Contractor:Batinantes et ICEO

Acoustics Engineering:SOLAB

Structural Engineering:Synergie Bois

Category:Houses,Apartments

Project Manager:Bénédicte Chevalier

Hempcrete Engineering:CAN-ia

Cost Of Works:14,5 M€ HT

Fluides:Quatuor,SOLAB,OPC et MOEX

City:Nantes

Country:France

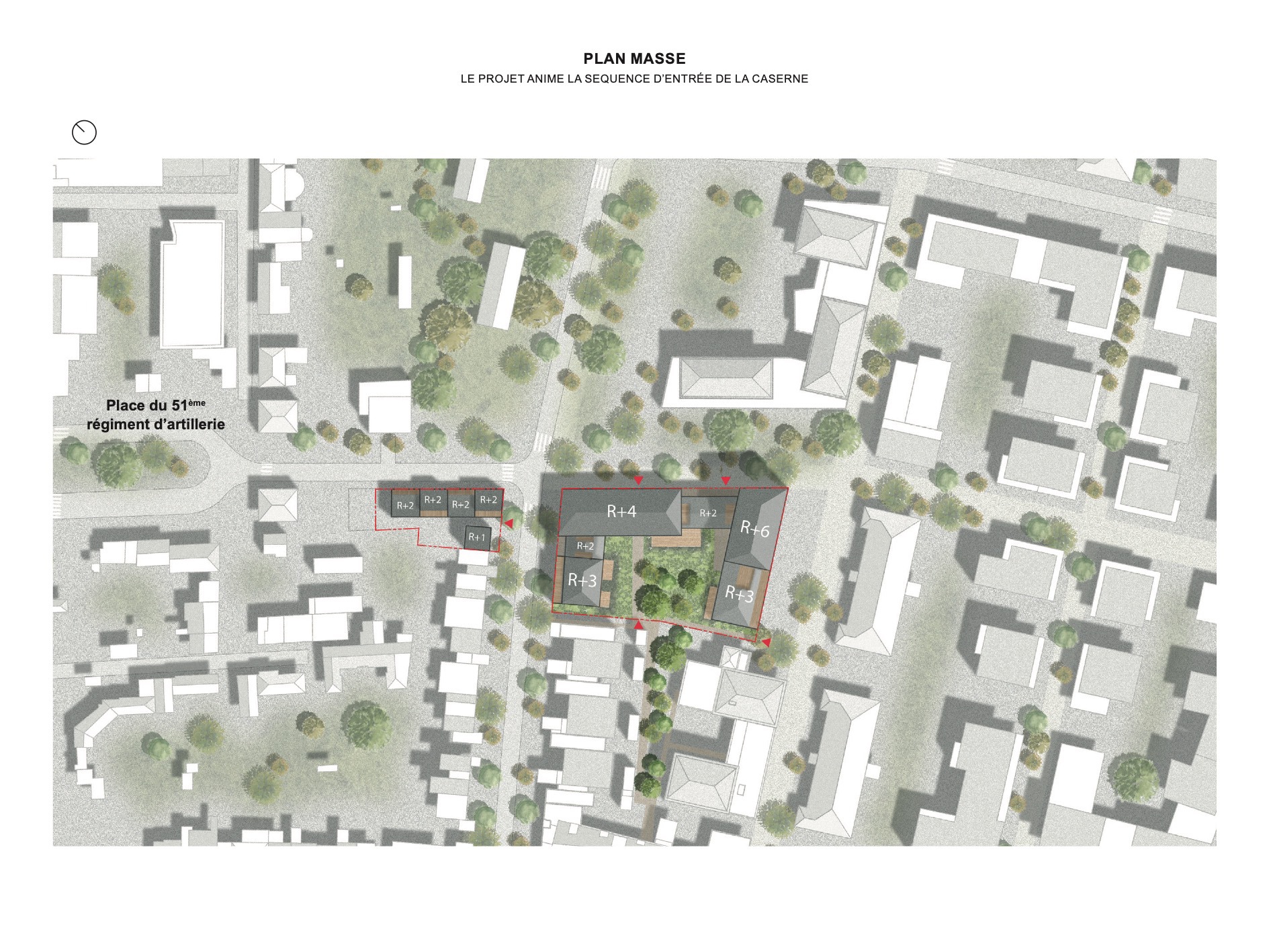

Text description provided by the architects. In the center of Nantes, the transformation of the former army barracks known as the Caserne Mellinet reflects contemporary urban challenges. Situated at the entrance of this neighborhood composed of six hamlets, the flats completed by Ramdam and Palast are part of the Chapus hamlet. This hamlet is the transitional urban feature linking the Saint-Donatien neighborhood and the heart of the barracks complex. Whilst respecting the intention of urban planners to create a coherent identity between the two areas, the project is first and foremost part of a powerful construction ambition of a wooden structure and mineral façades composed of plastered hempcrete.

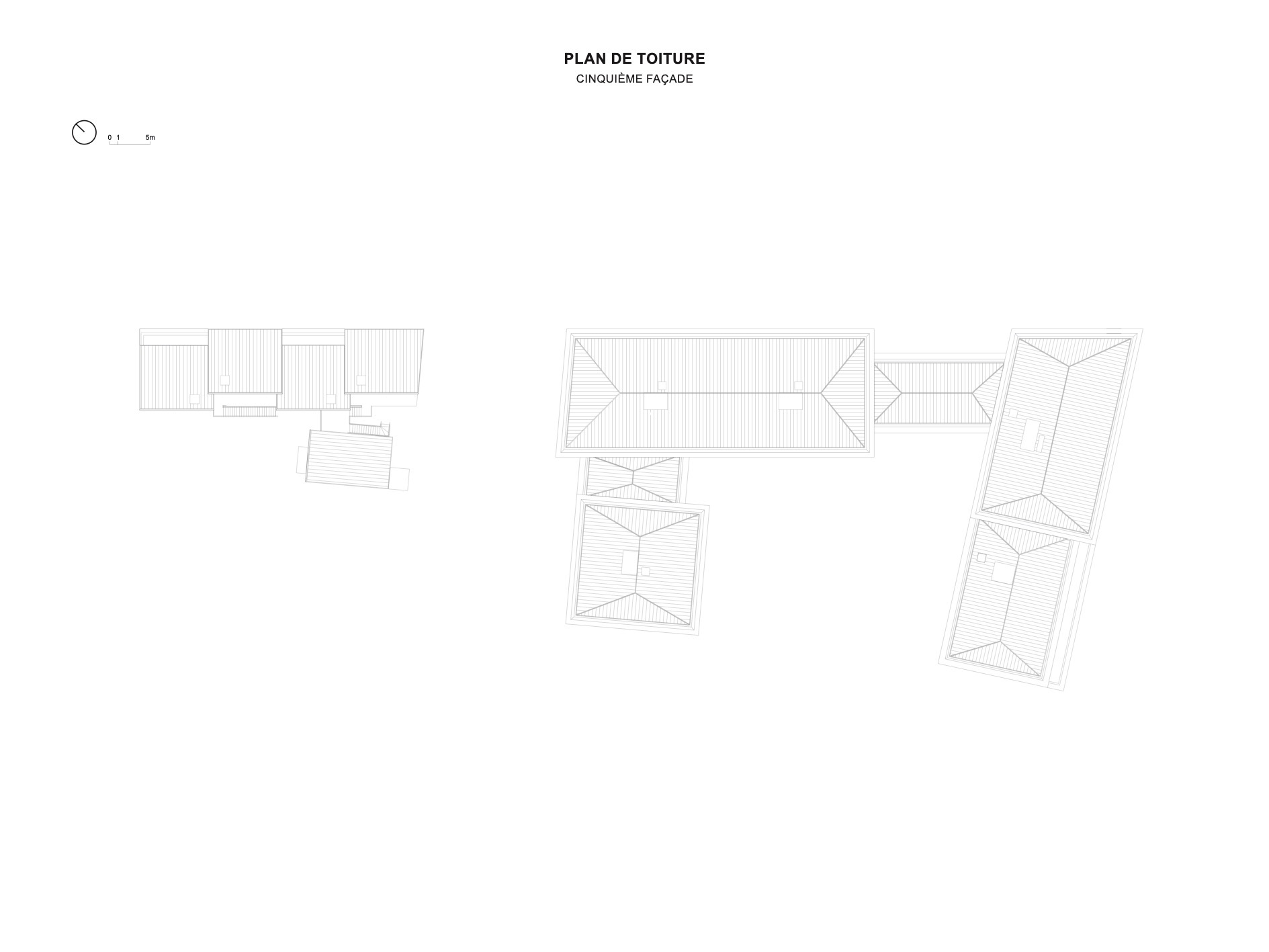

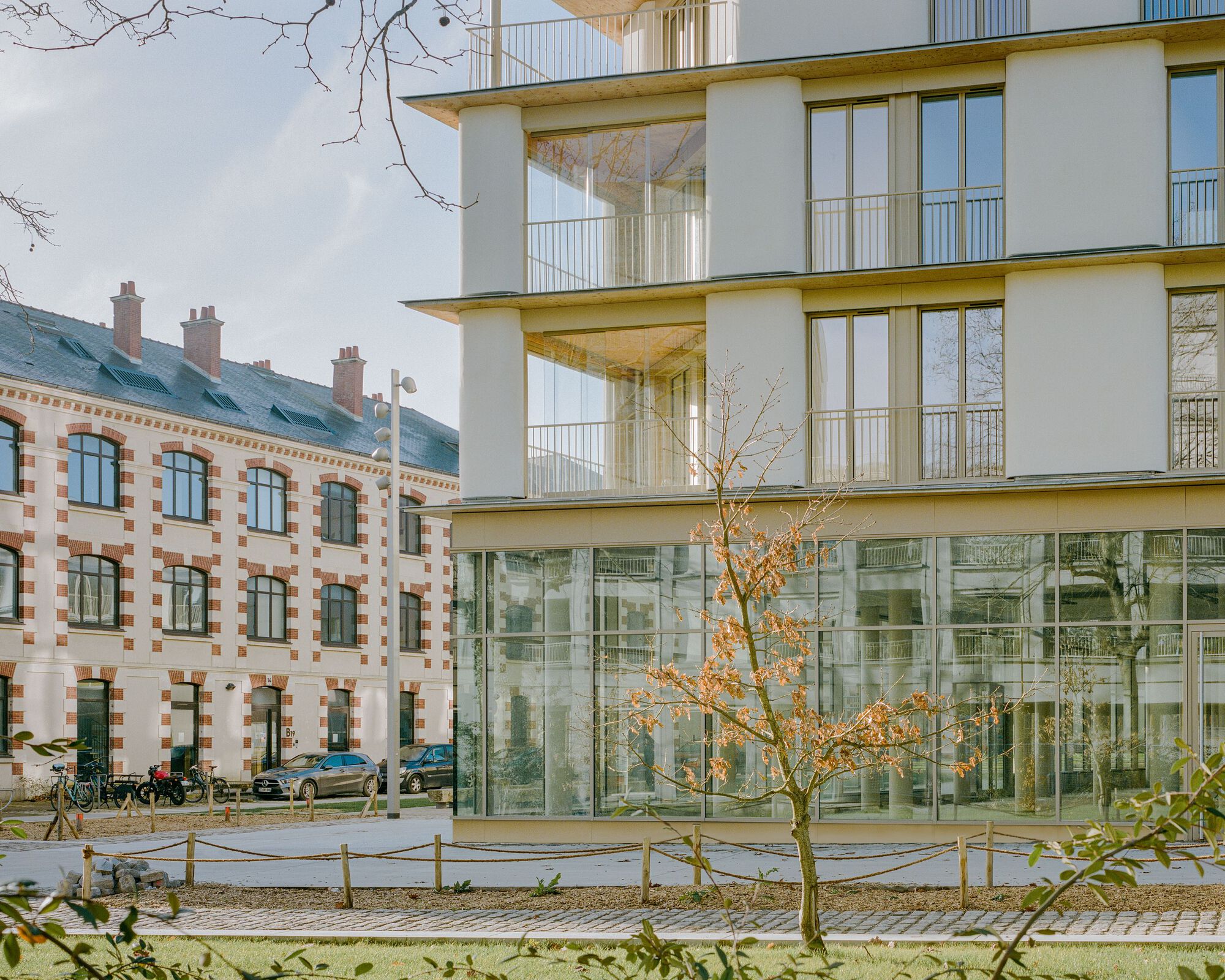

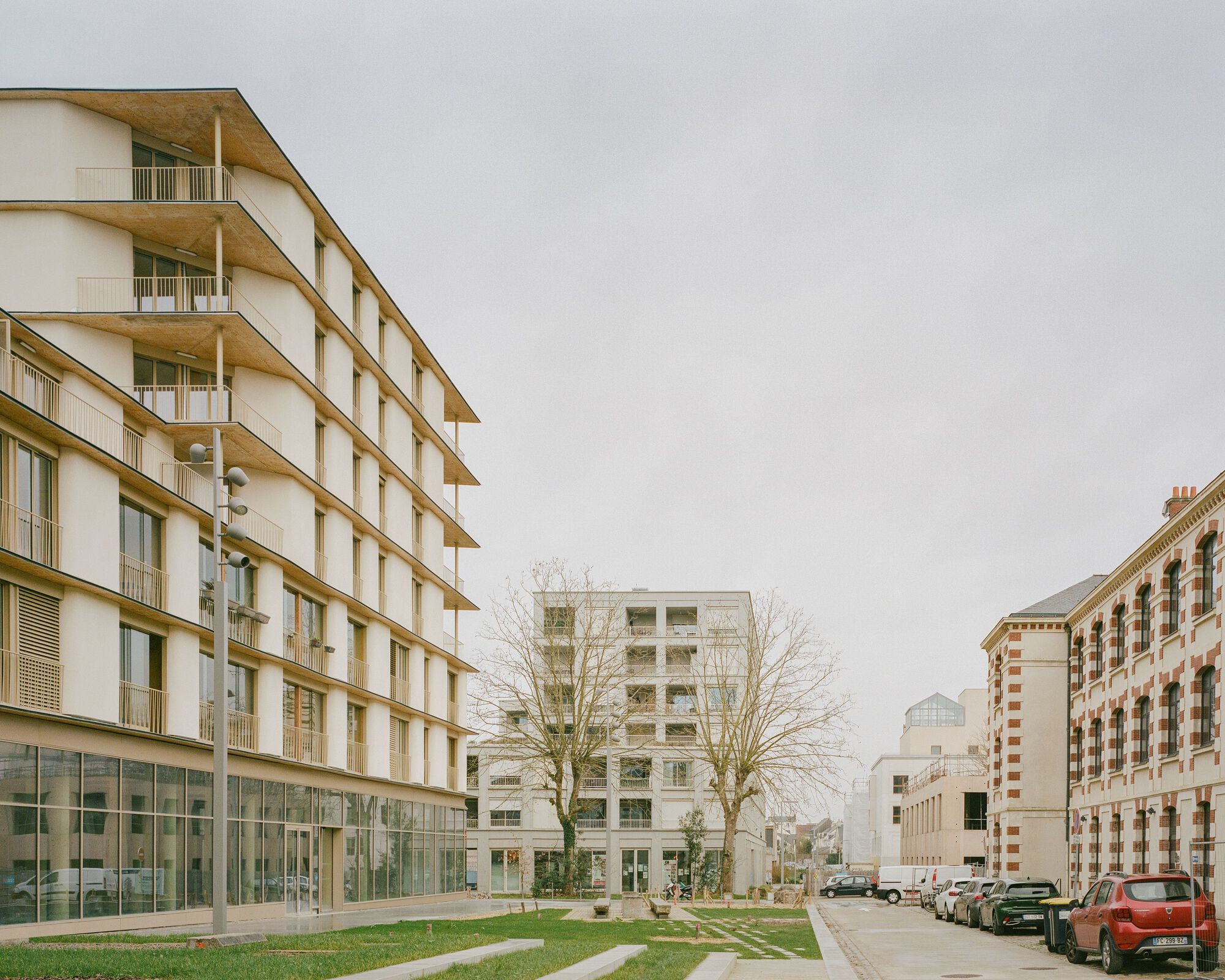

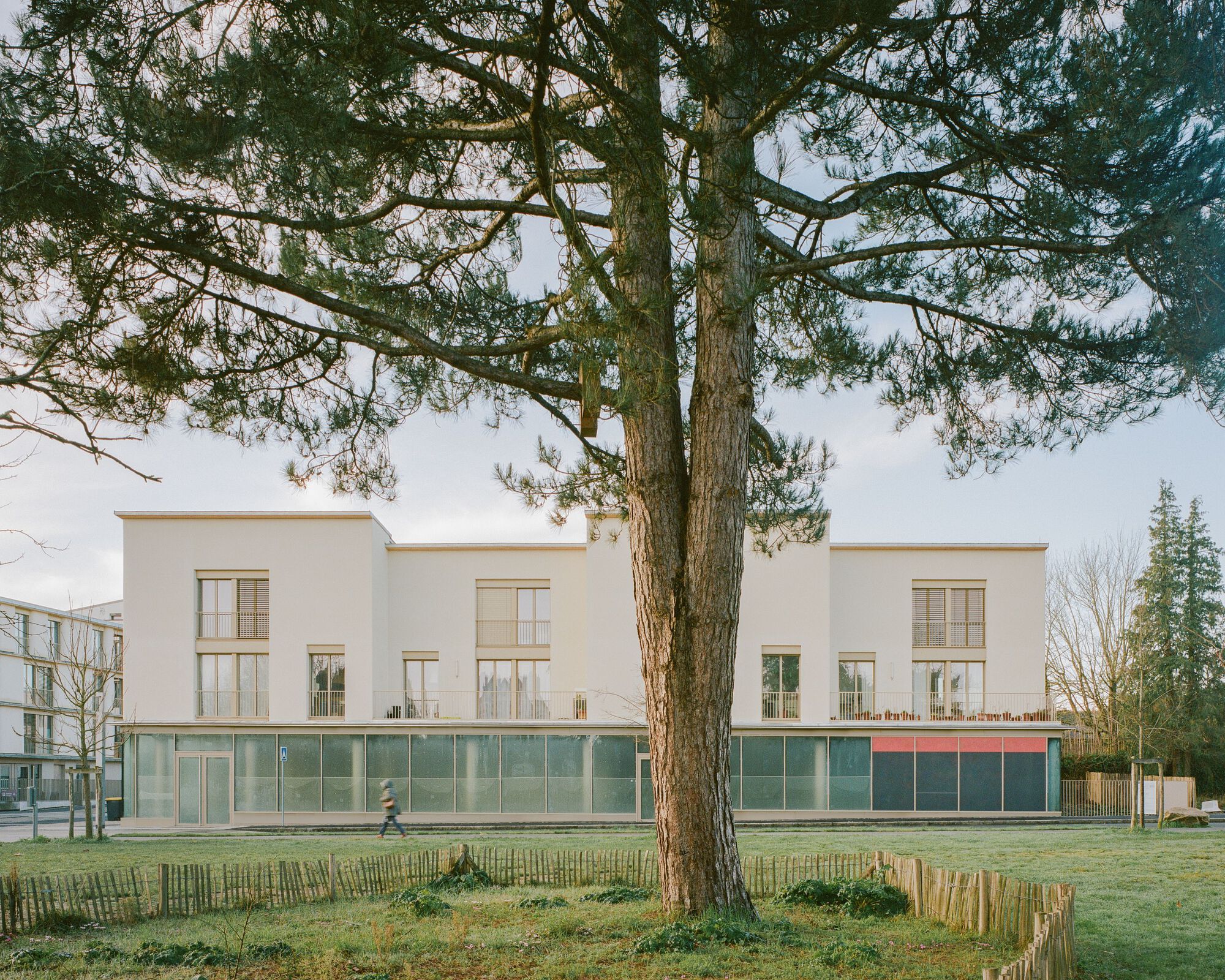

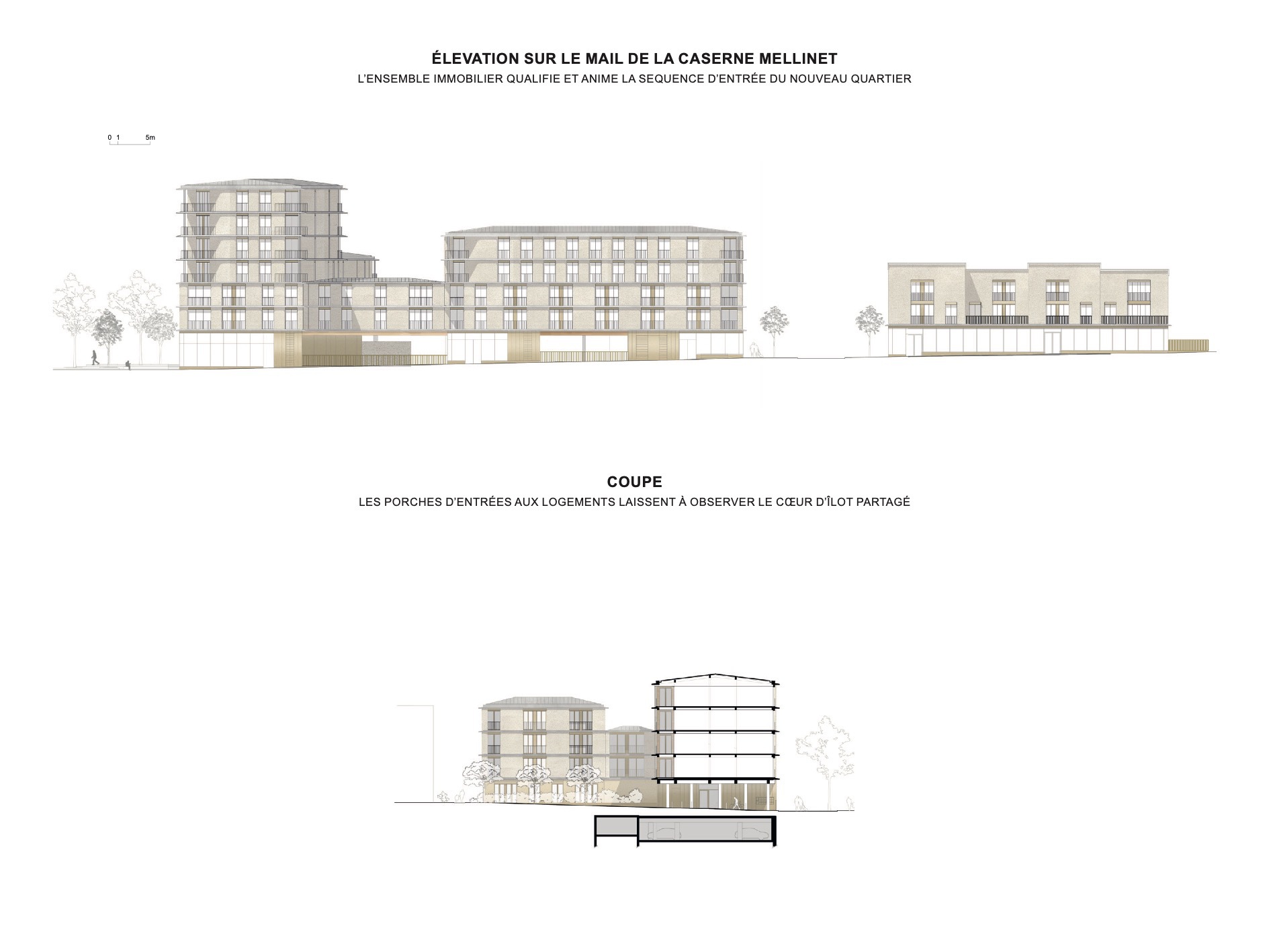

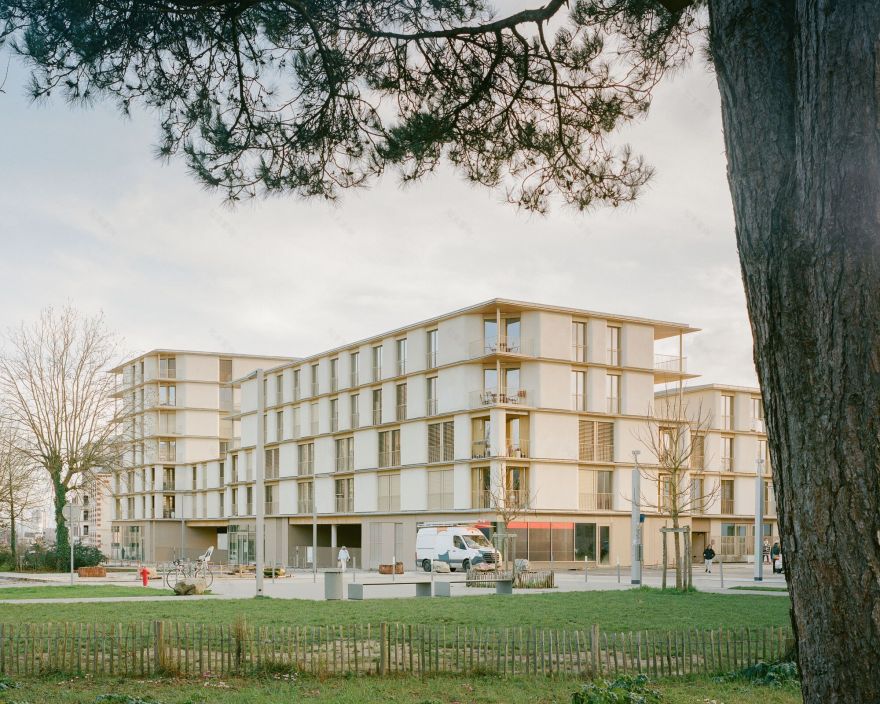

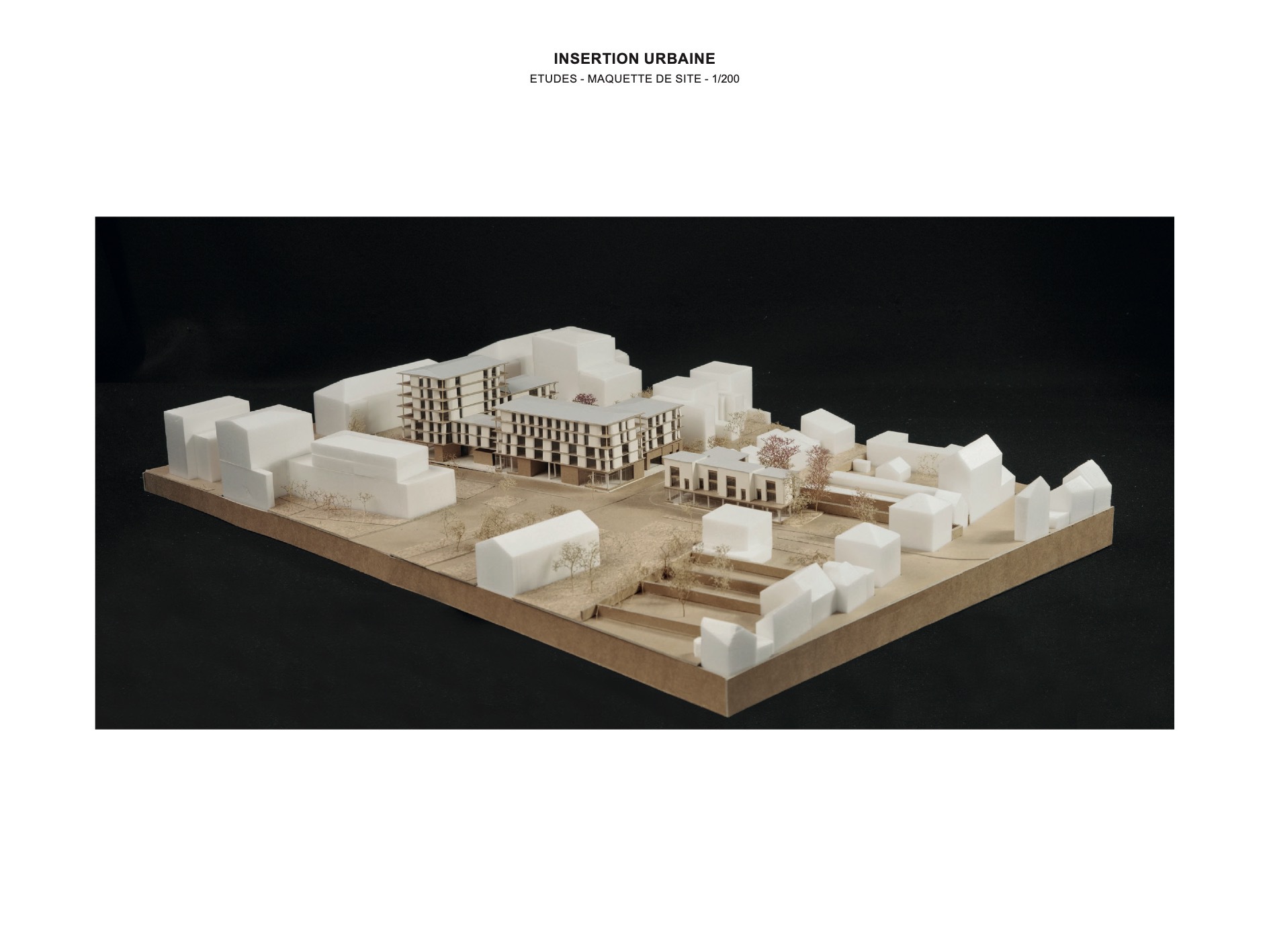

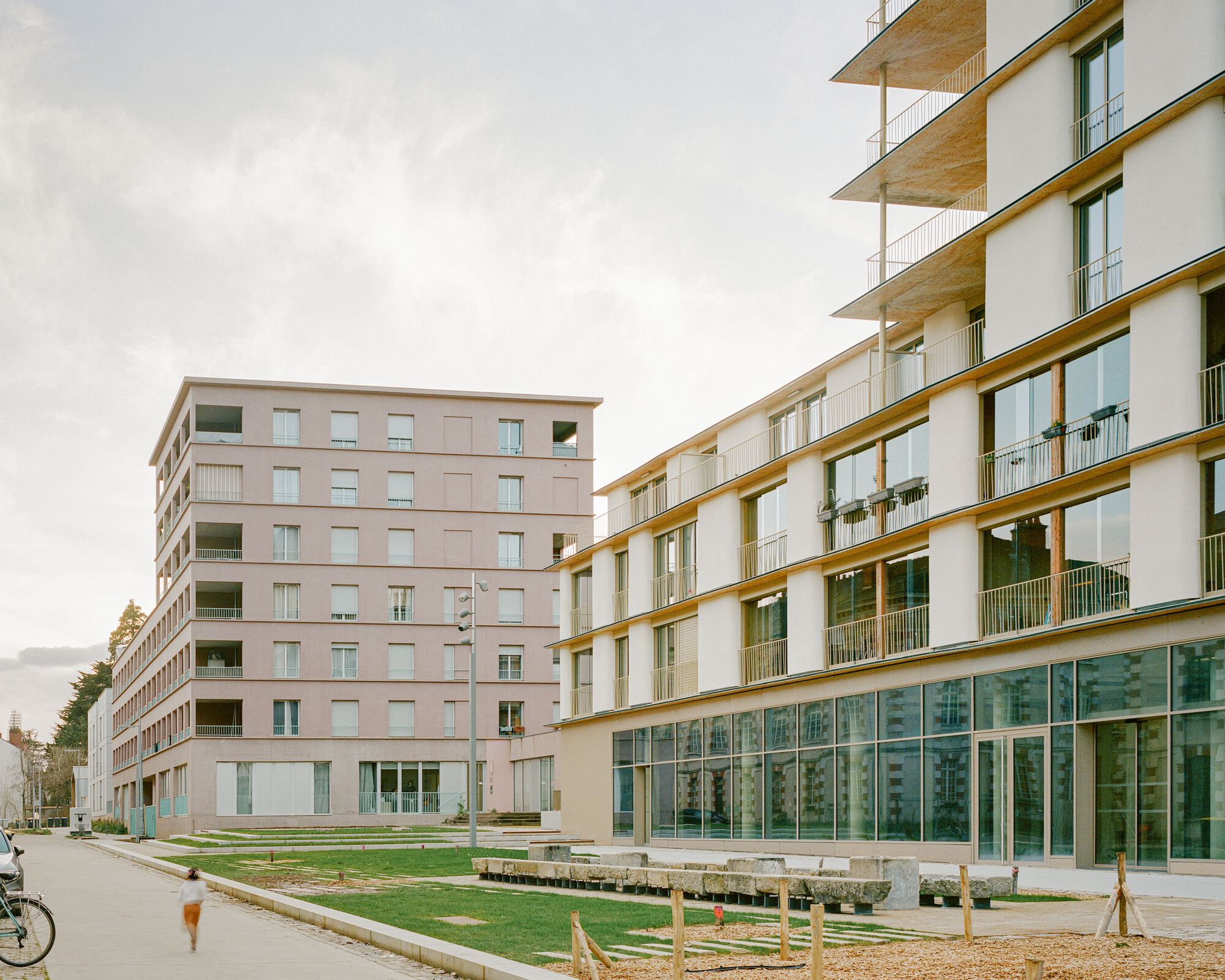

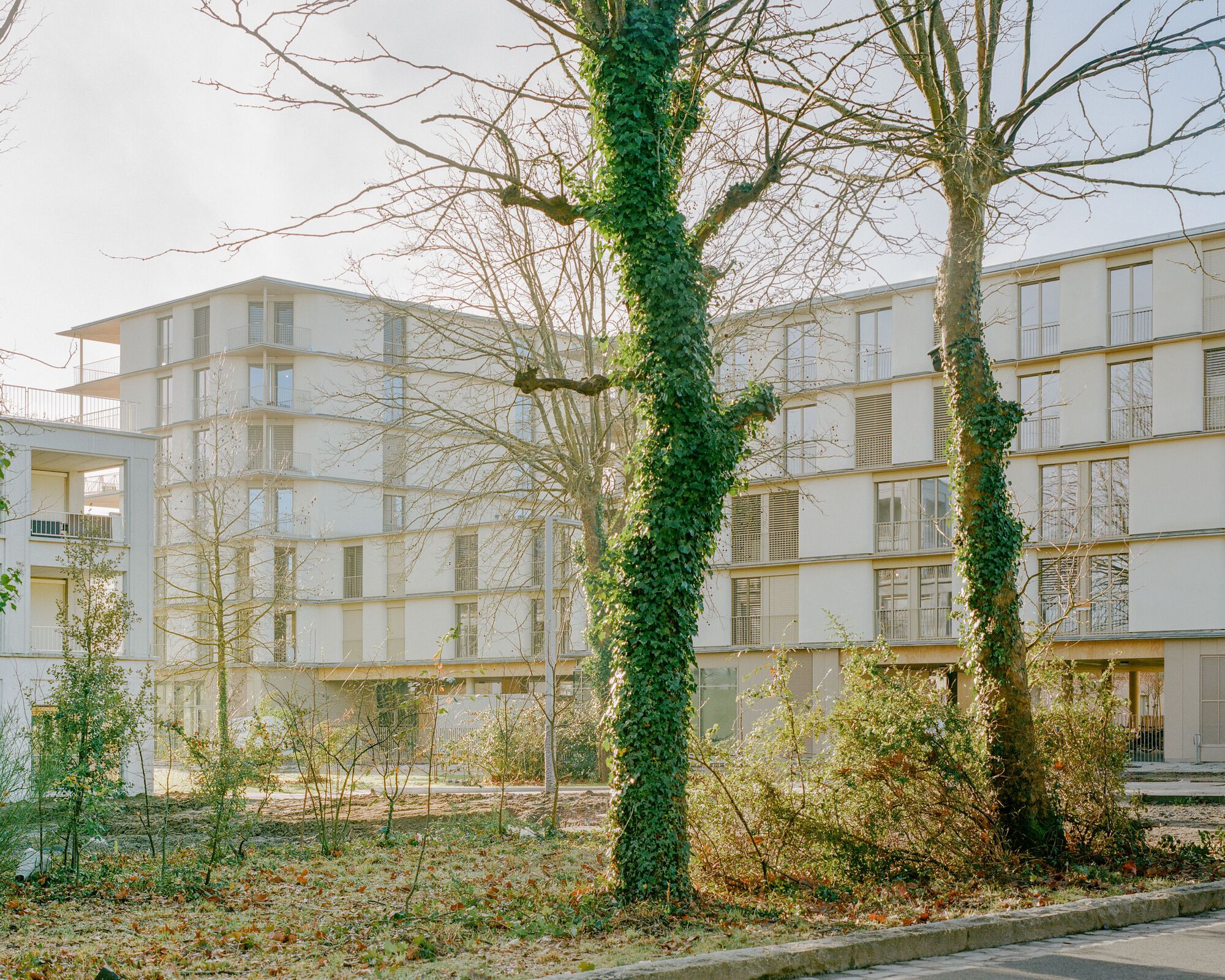

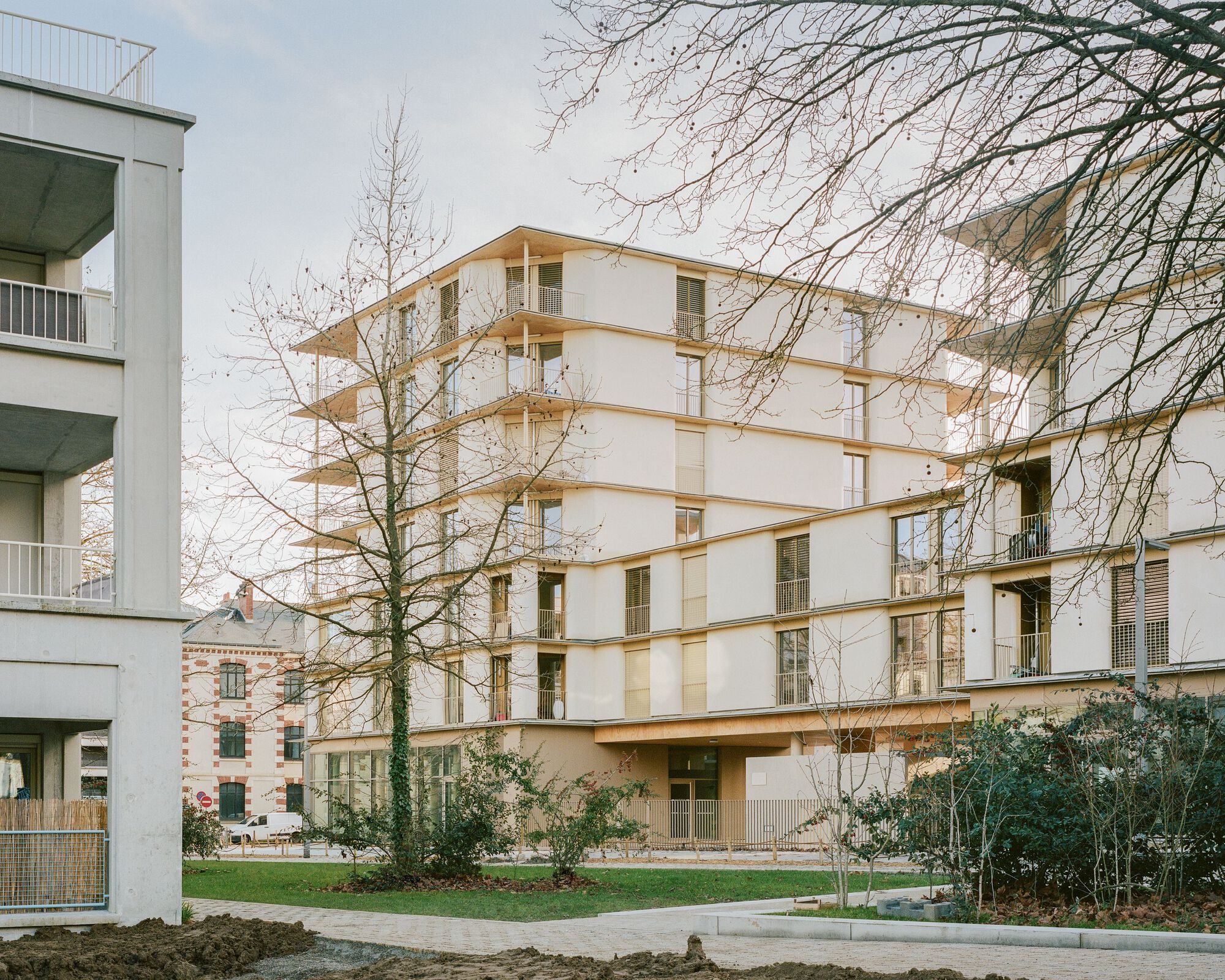

Lively Cityscape - The new blocks of flats form a built front along the broad pedestrian mall. This location made it possible to truly place them in a dialogue with what is already there, the existing heritage, and the trees of the mall. The design of variations in construction volumes helps enliven the ambiance of public areas and the subtle transition spaces between the older houses and the heart of the new, more monumental neighborhood.

A variation in the intensity of light casts shadows and reduces the mass effect generated on the promenade and within the parcel. Judicious cutouts shape the urban skyline of the project and the visual identity of the flats.

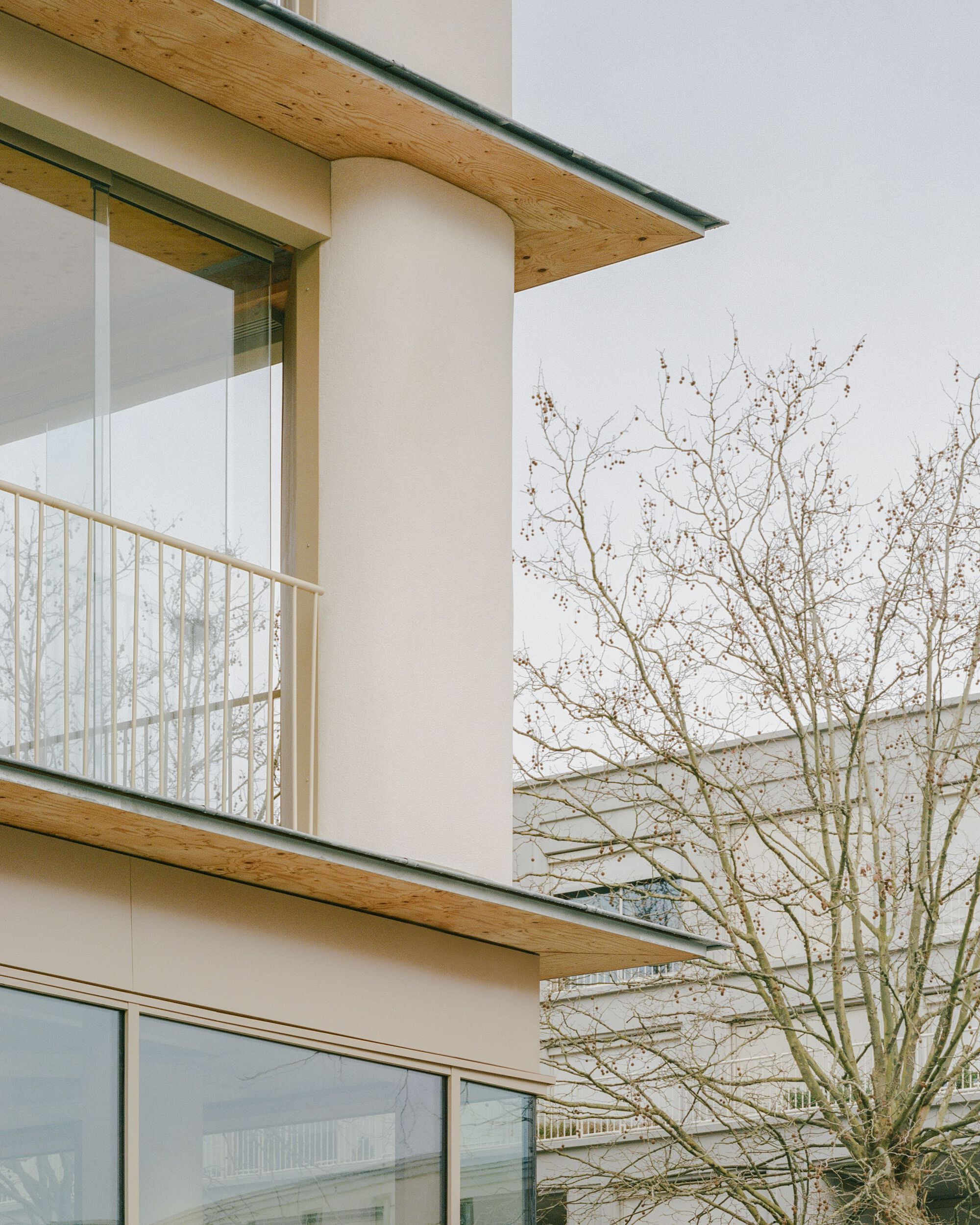

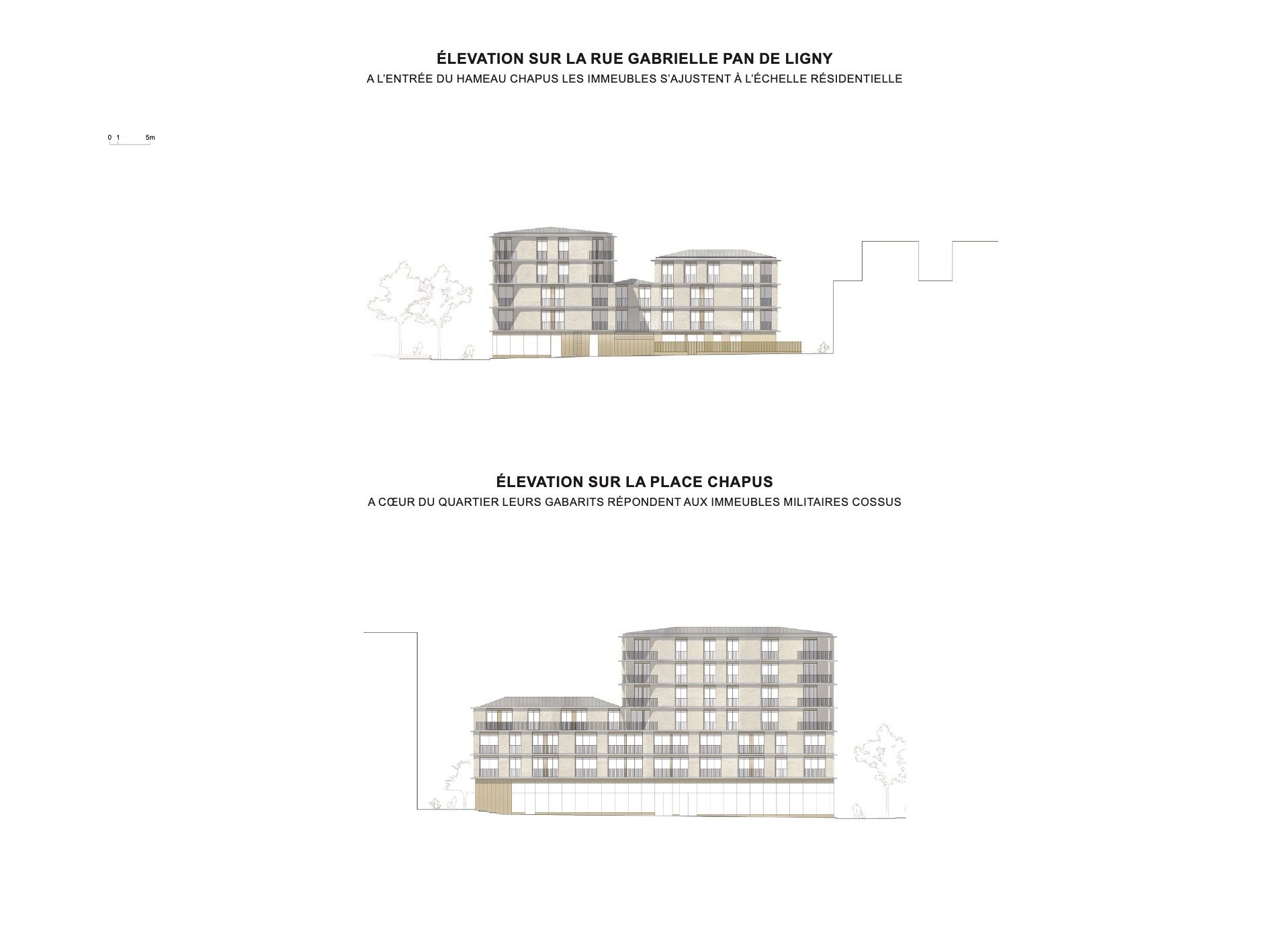

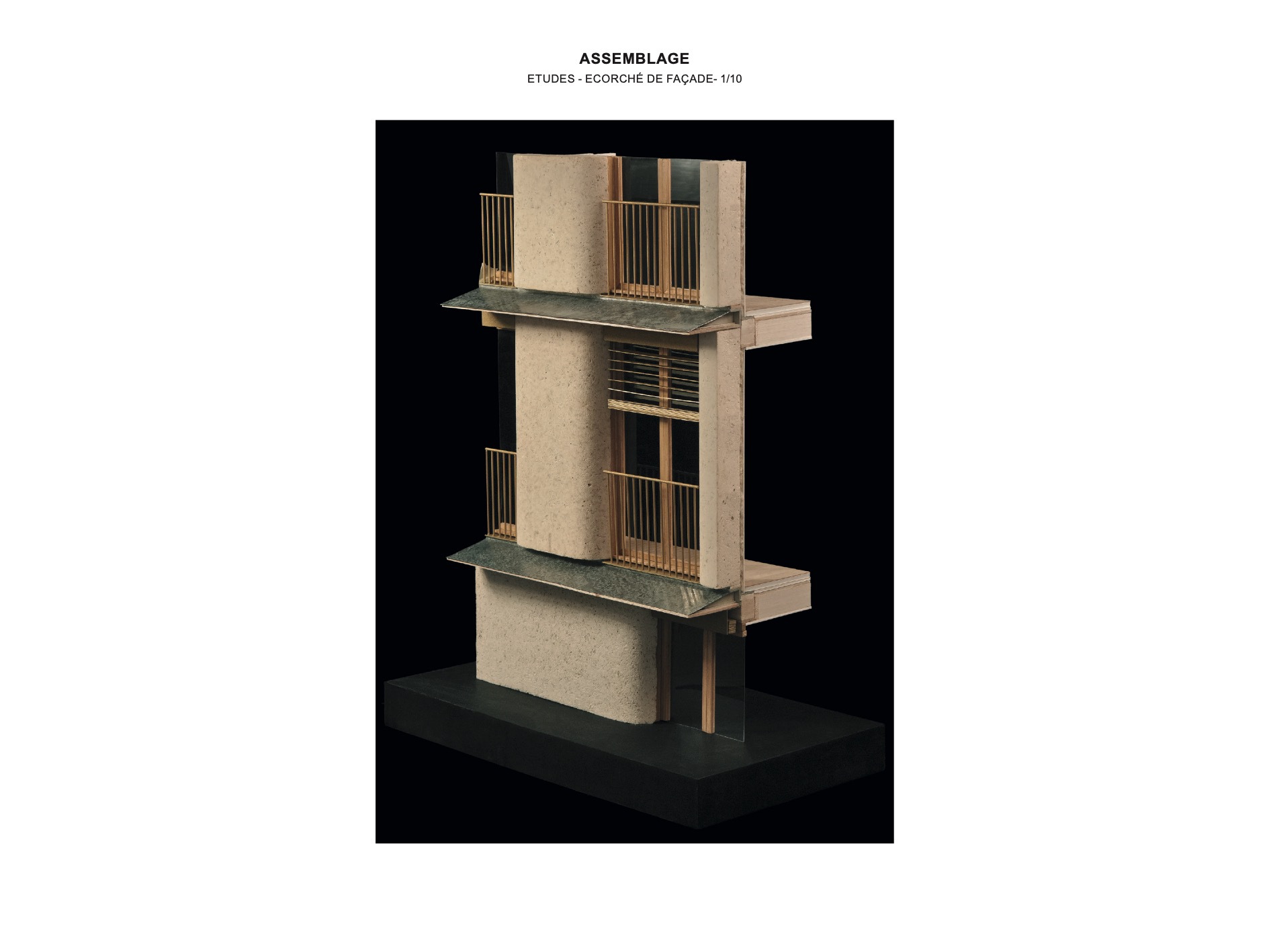

Minerality and Lightness - The sequencing of upper and lower levels and the scale of volumes echoes the retained characteristics of barracks architecture. The domesticity of the project is expressed in the scale of windows, in its proportion, and in its ornamentation. The rhythm of the façade reflects the arrangement of the flats, and makes it possible to sequence the volumes, thanks to alternating large bays and hempcrete trumeaux with rounded edges.

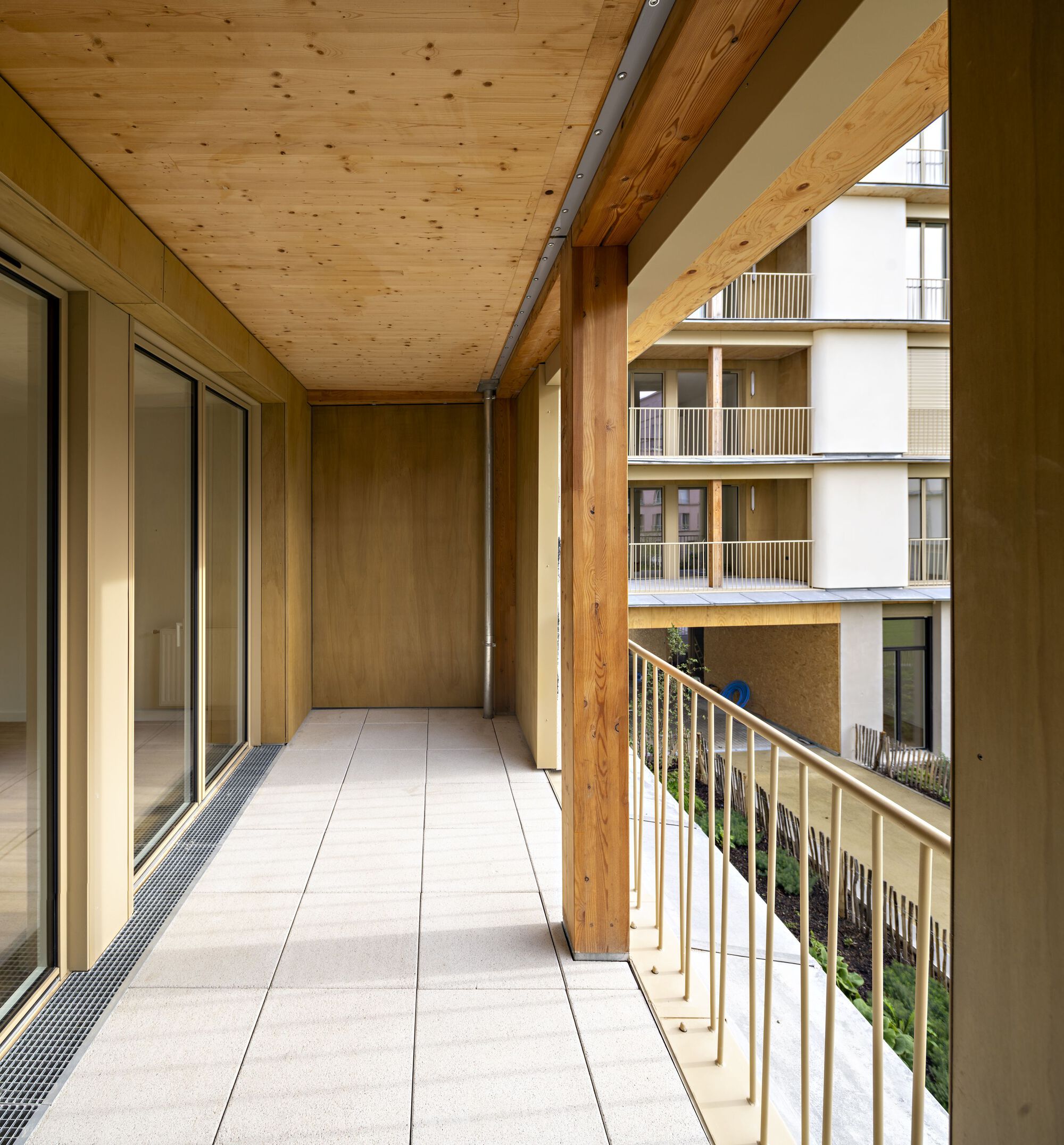

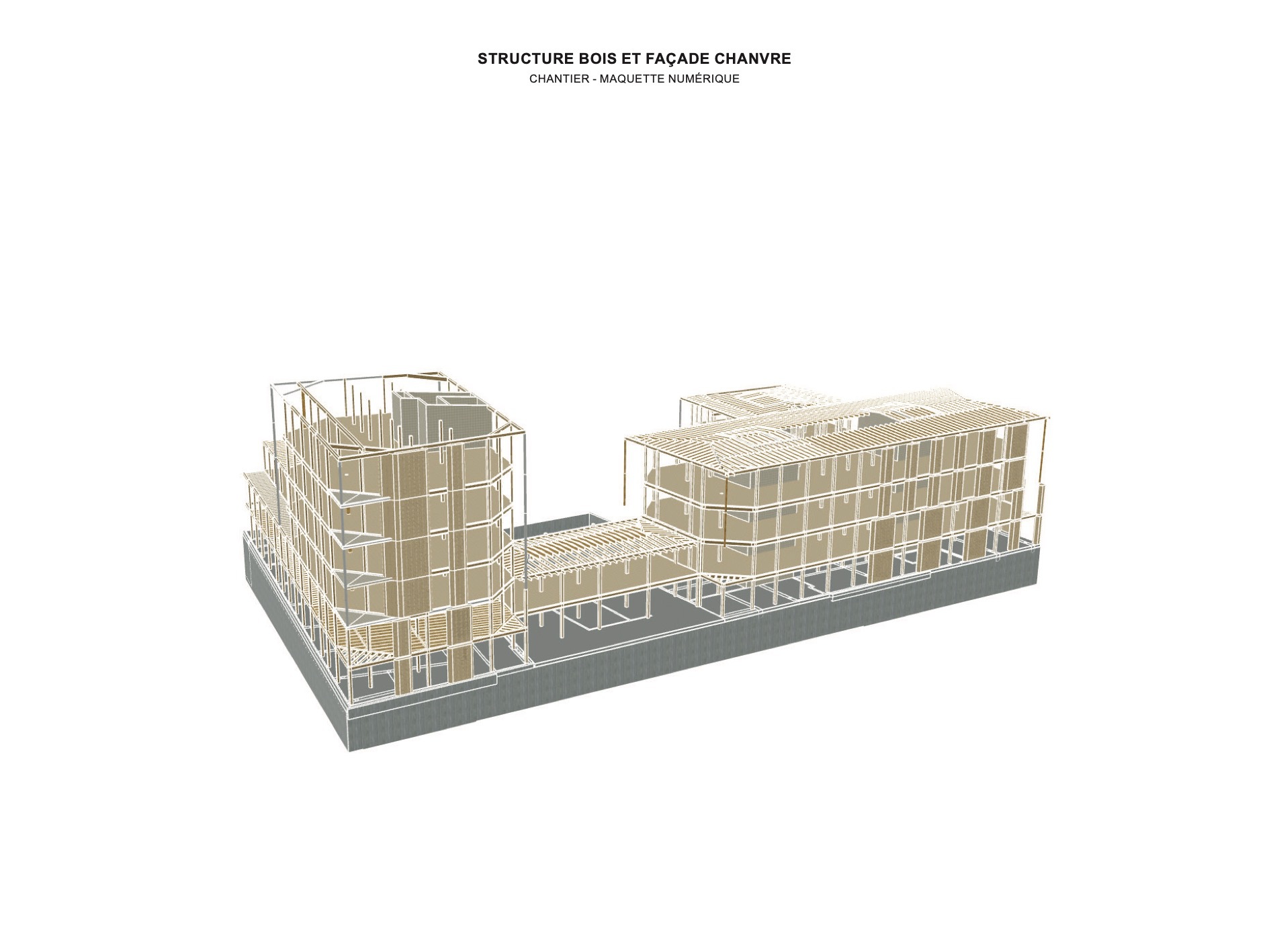

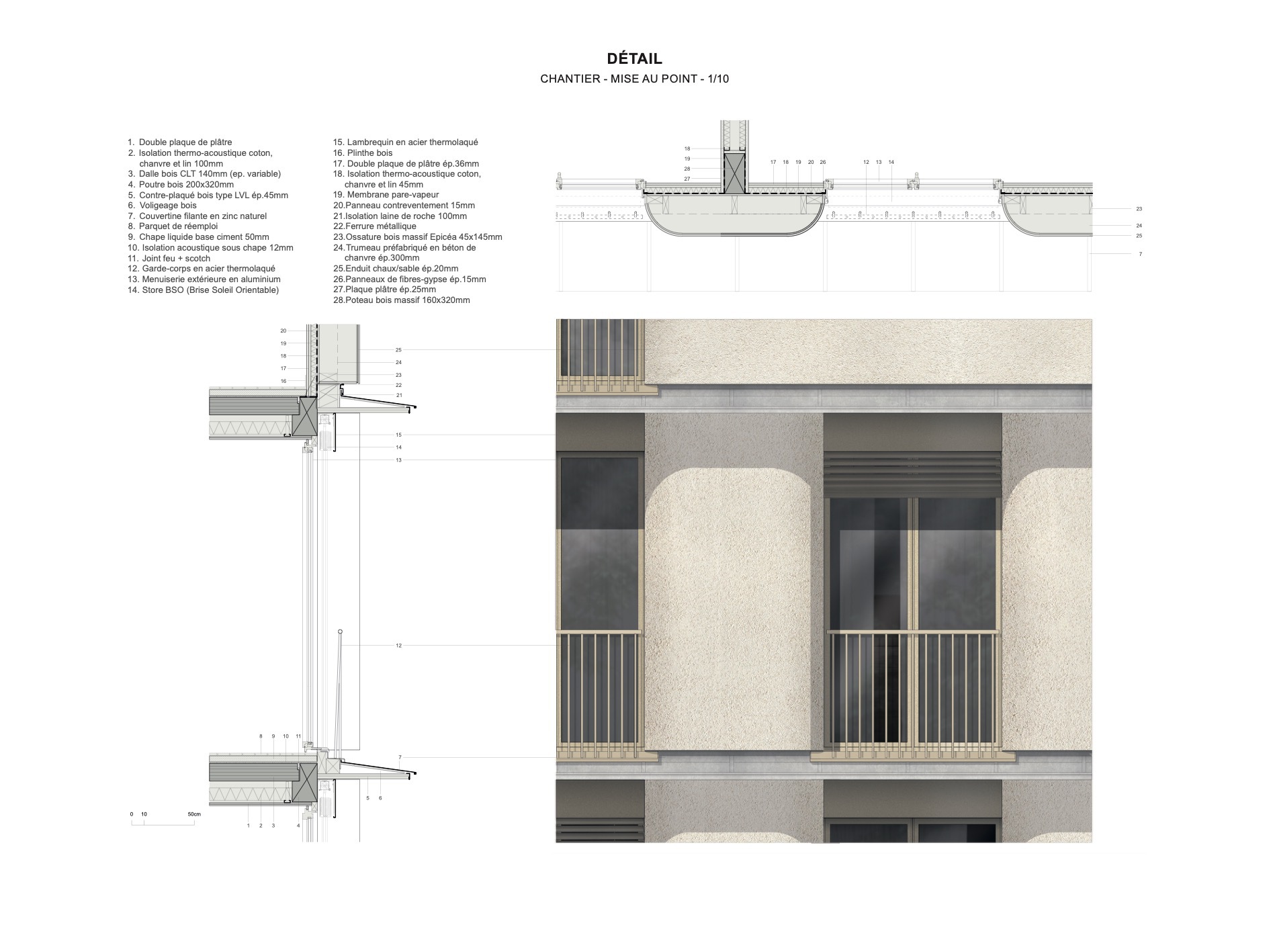

Natural Construction Materials - Hempcrete - hemp agglomerate (hemp shives), lime, and water – is usually sprayed or poured on site. Owing to the scale of this project, the prefabrication of hemp panels in the carpenter's workshop was advised. The curved trumeaux demonstrate the interest of a lime plaster coating and the plasticity of hempcrete whilst highlighting its inertial qualities and hygrometric regulation. The infrastructure, the ground floor, the staircases, and the lift shafts are made of concrete. The rest of the block of flats is built with a post/beam/ floor / wooden framework.

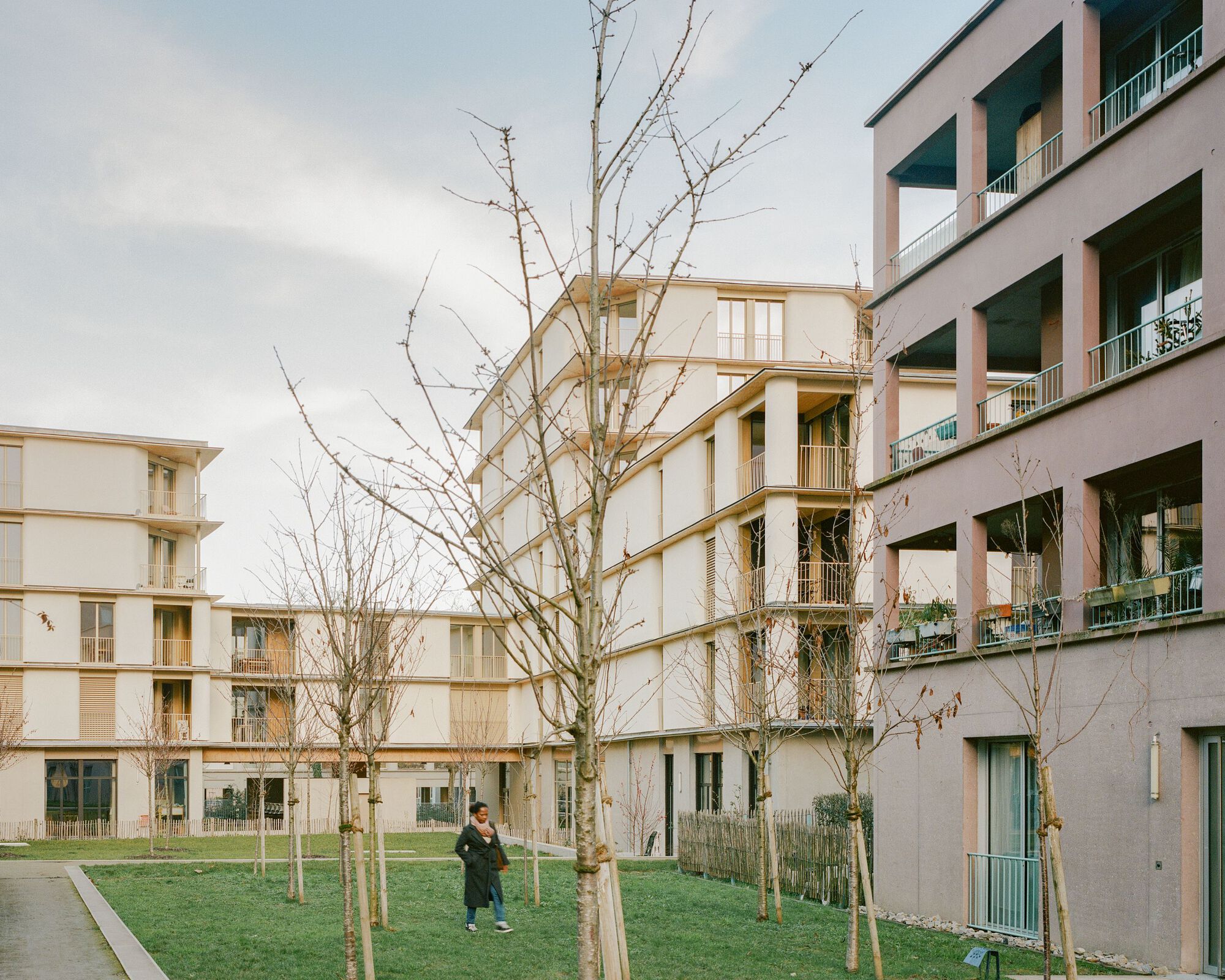

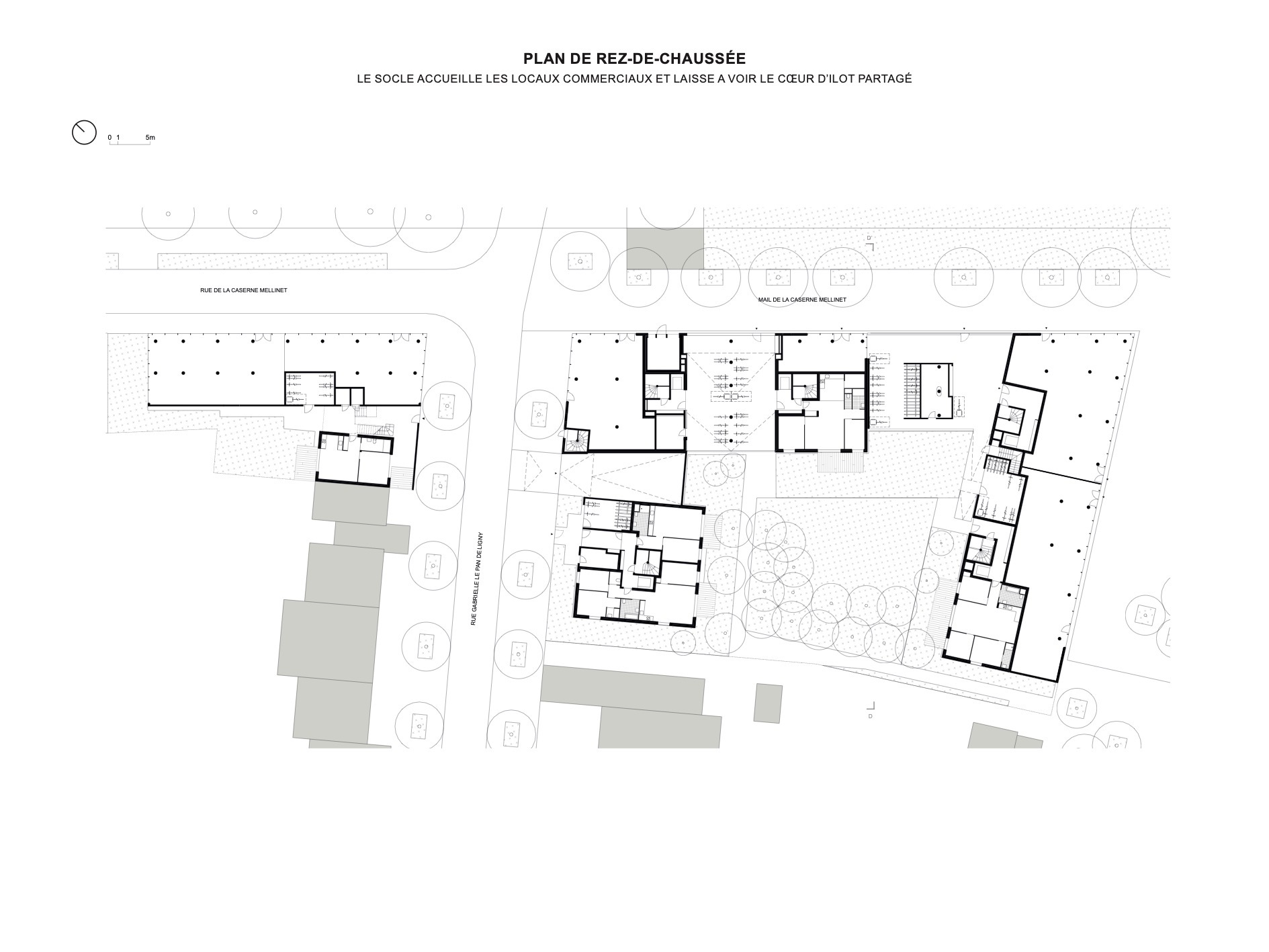

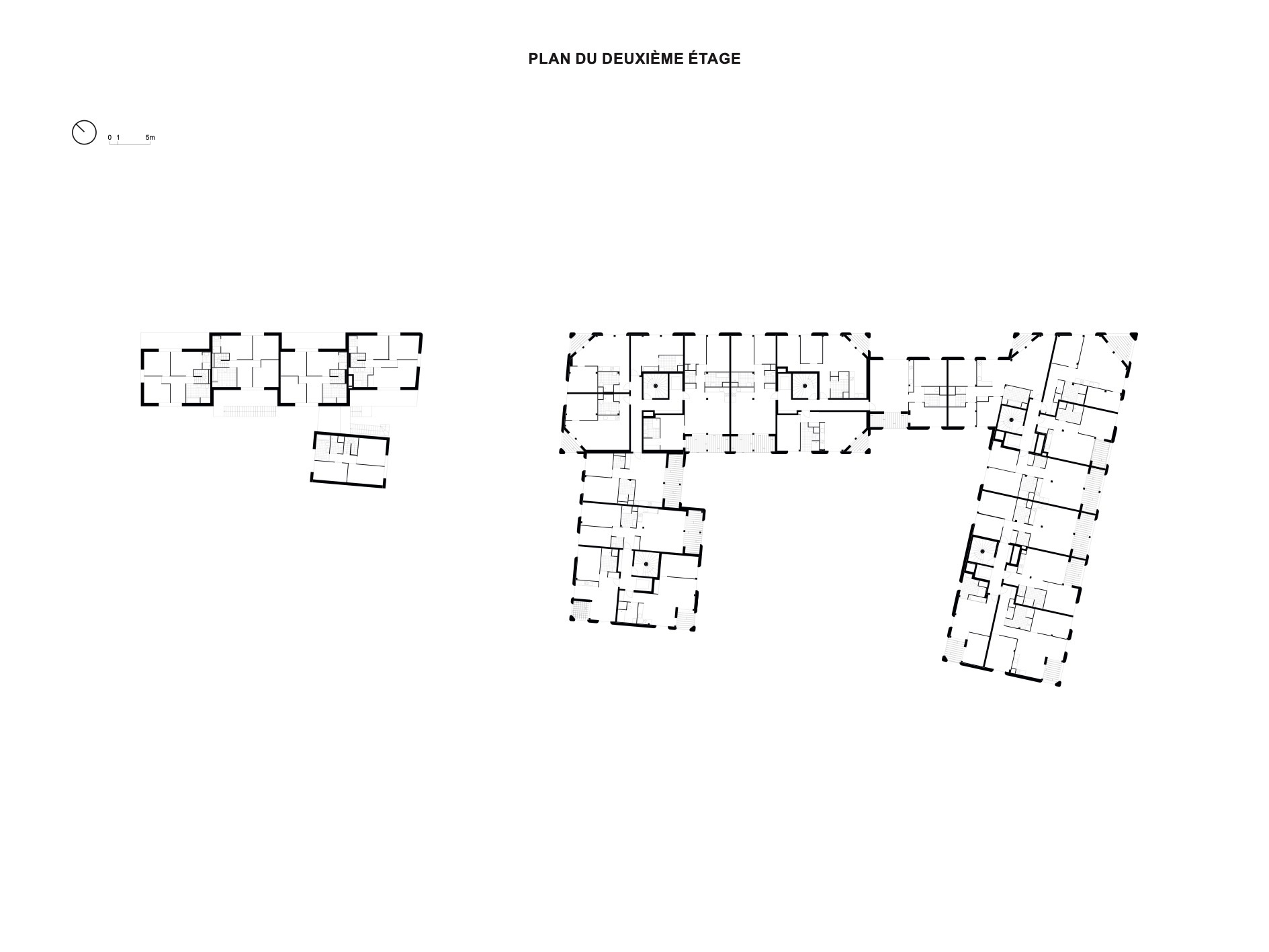

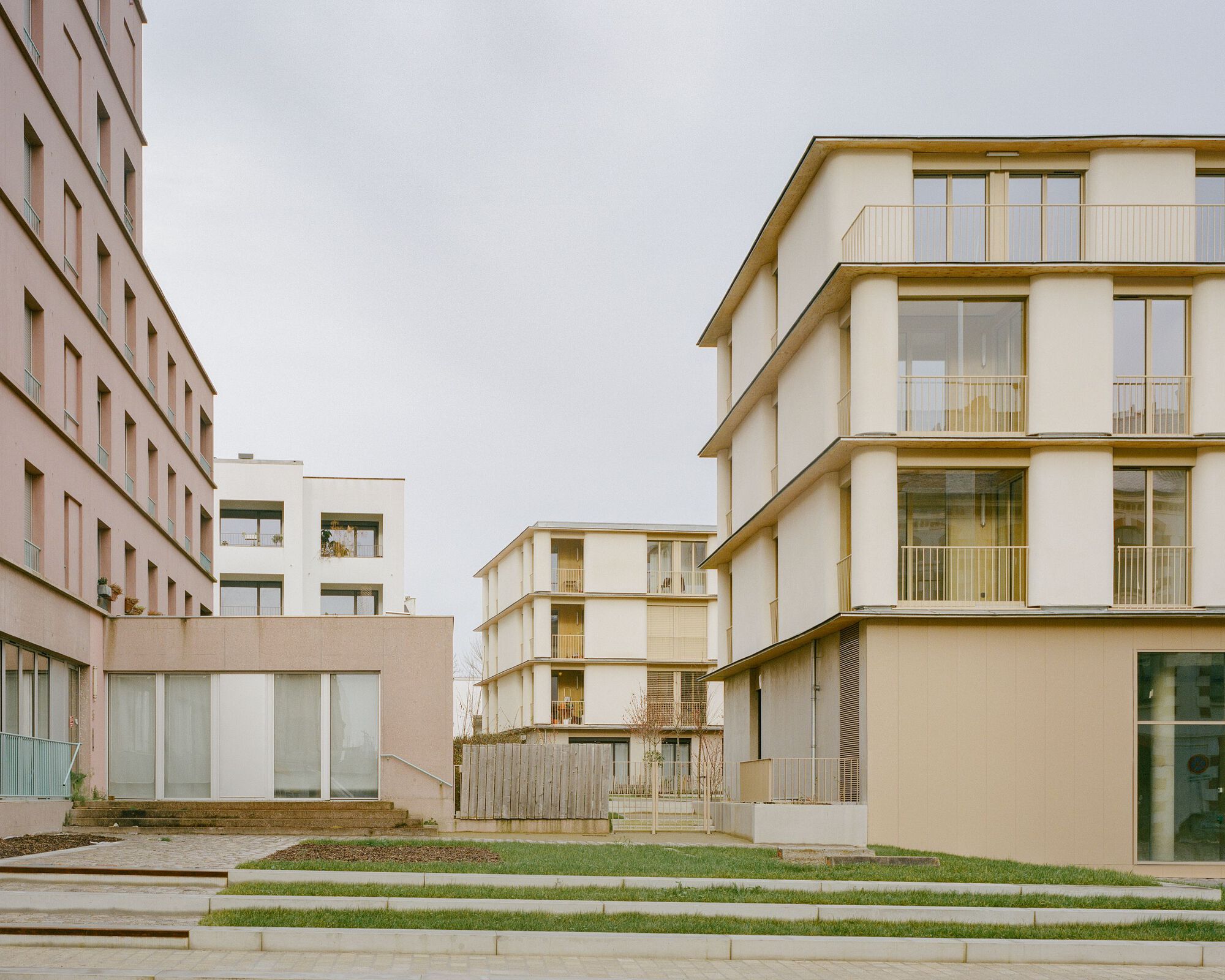

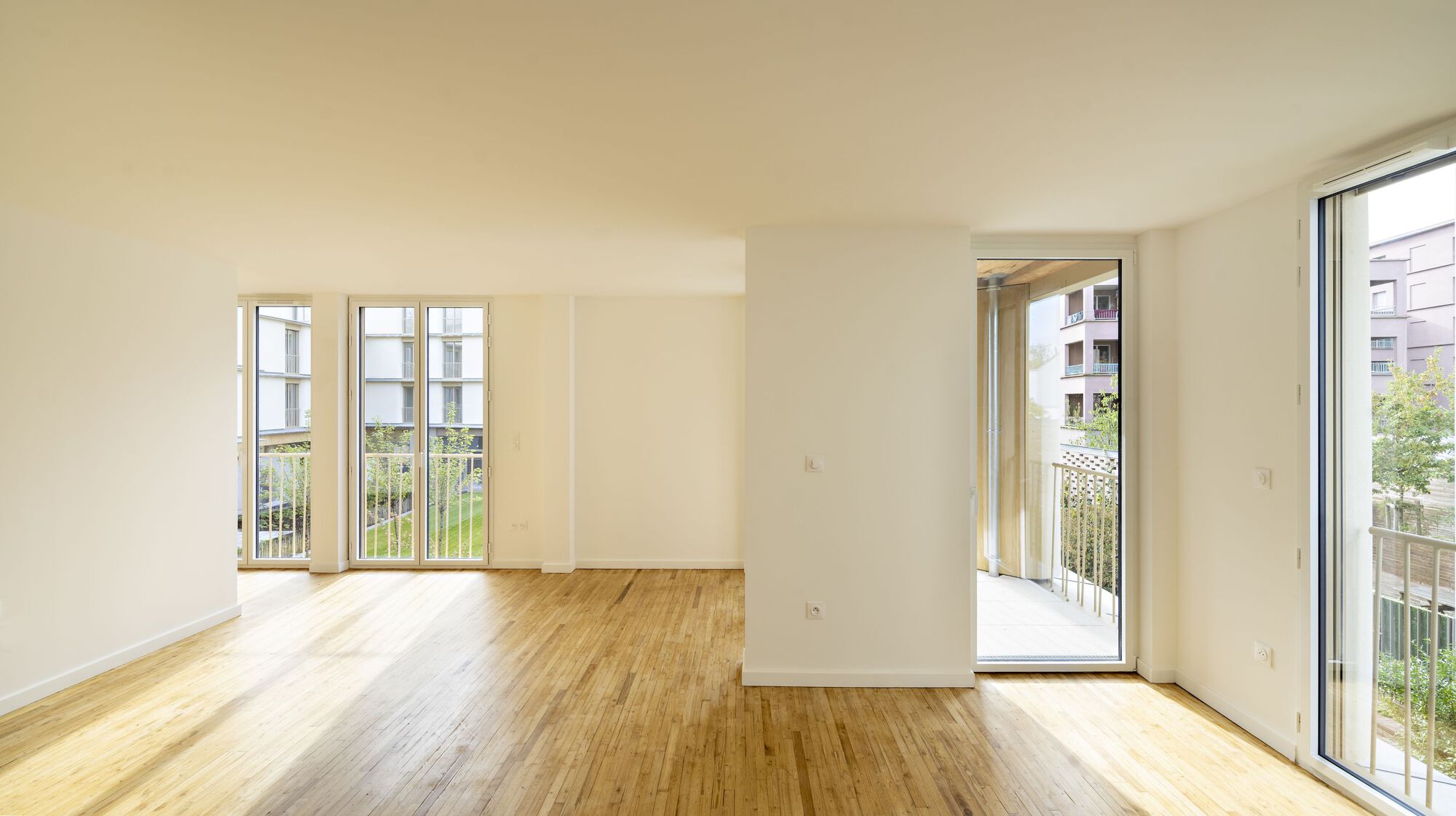

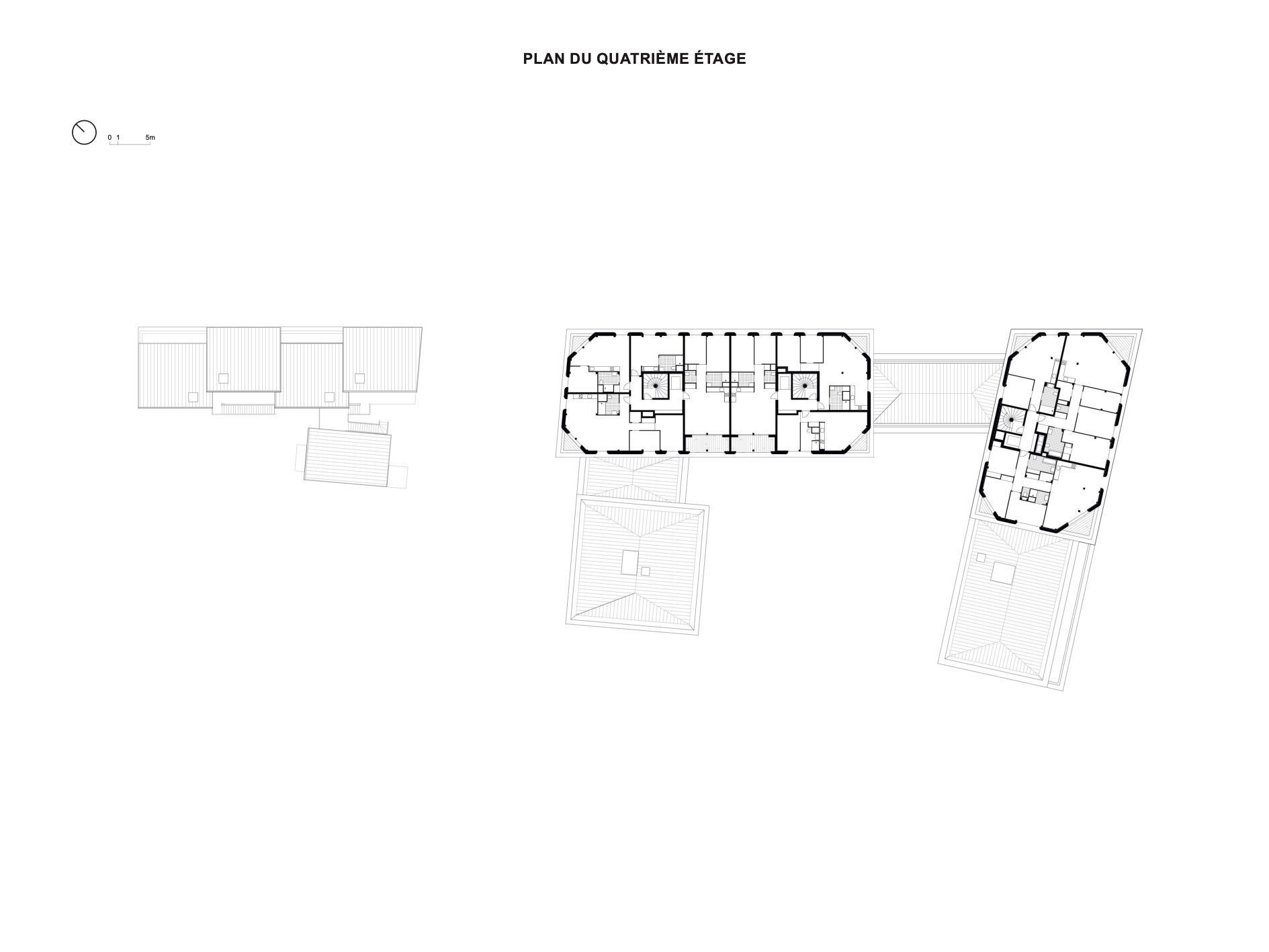

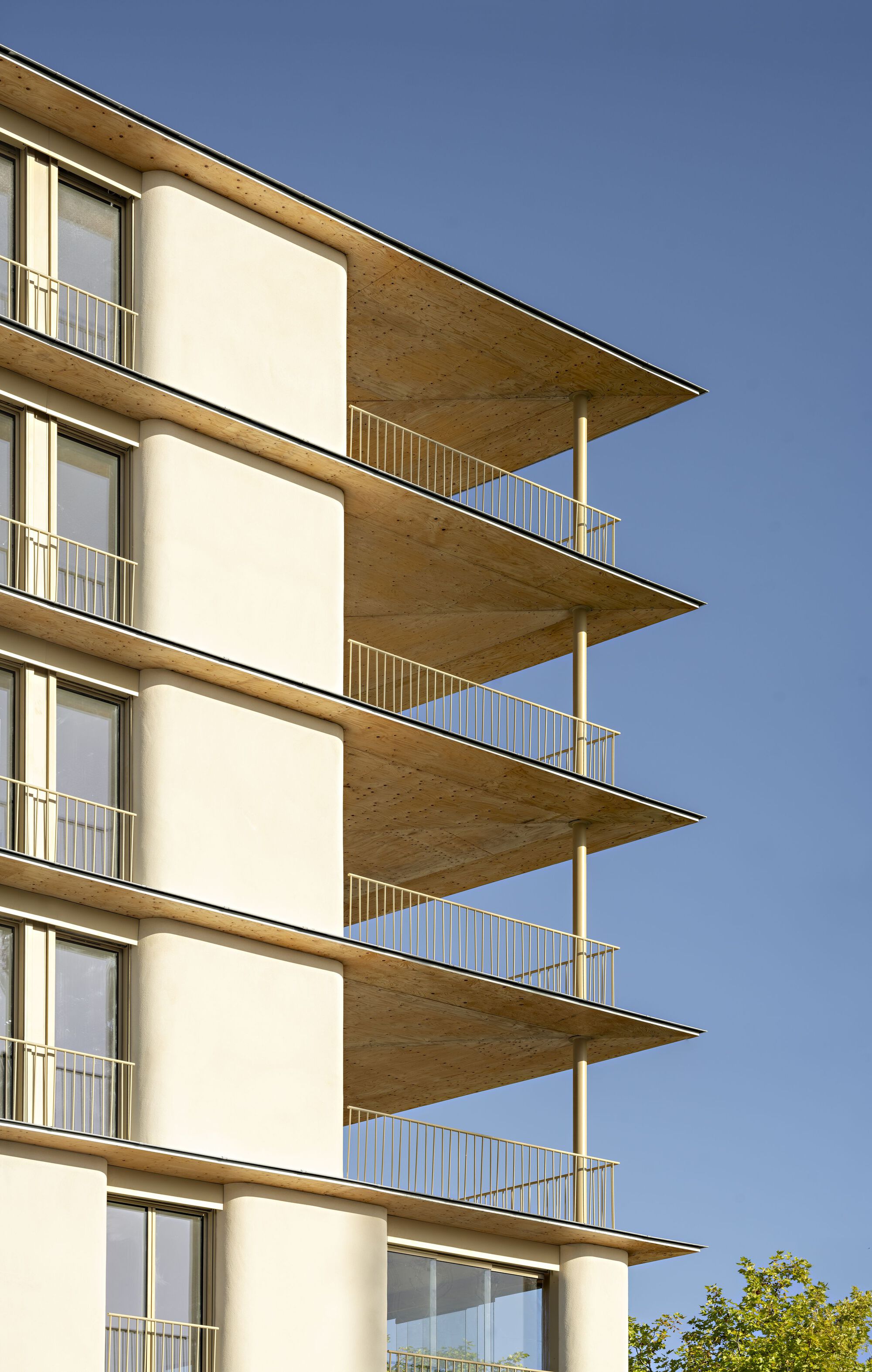

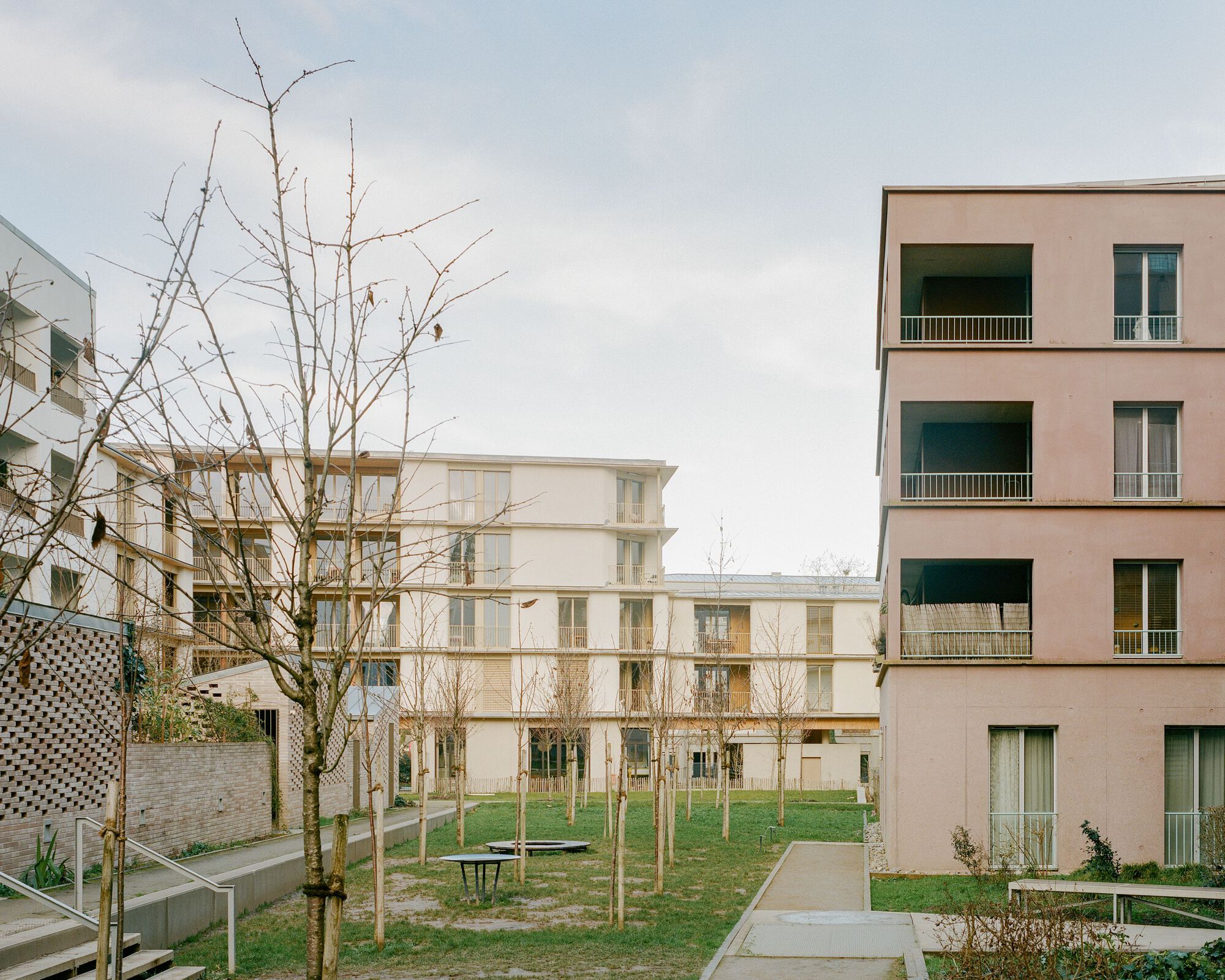

Sunbathed Flats - Flats benefit from varied, contextual qualities: the heart of the city block, the southerly oriented plaza with a view towards the neighborhood, the planted mall and its public spaces, as well as the residential street with its low volumes and gardens. The lower stratum is continuous and compact. It offers a maximum number of flats with double exposure, extended by the winter gardens. The quality of flats on the upper floors is achieved with large corner balconies, creating an atypical typology of exterior spaces in terms of their exposure to sunlight and range of uses.

The design of volumes made it possible to compose built masses in coherence with the neighboring solids and voids, whilst maximising the sunlight bathing flat interiors.
