小学扩建 新学校亭阁与多功能厅丨斯洛伐克丨Bakyta architekti

Architects:Bakyta architekti

Area:3986m²

Year:2024

Photographs:Matej Hakár

Manufacturers:AGROB BUCHTAL,Sto,AVG group,Aluplay,Knauf,Kovodružstvo,Leier,Obifon,Okno Final,Rakko,Tarkett

Lead Architects:Róbert Bakyta, Ľubomíra Blašková

Category:Elementary & Middle School,Extension

Design Team:Denis Zeman, Karina Humajová, Michal Pacher, Tatiana Kuva, Jaroslav Rell, Július Vass

Structural Engineer:Ján Majerník, Pavol Drha

Technical Solution Of Details:MIESTOR

Installations:Roman Kajan

Lighting Design:Marek Gešnábel

Fire Safety And Accessibility:SPRINKLER SYSTEMS

Graphic Design:Matúš Lelovský

Structural Engineering:MIESTOR, DRHA PROJEKT

Lighting Consutlant:EXTELI

City:Bernolákovo

Country:Slovakia

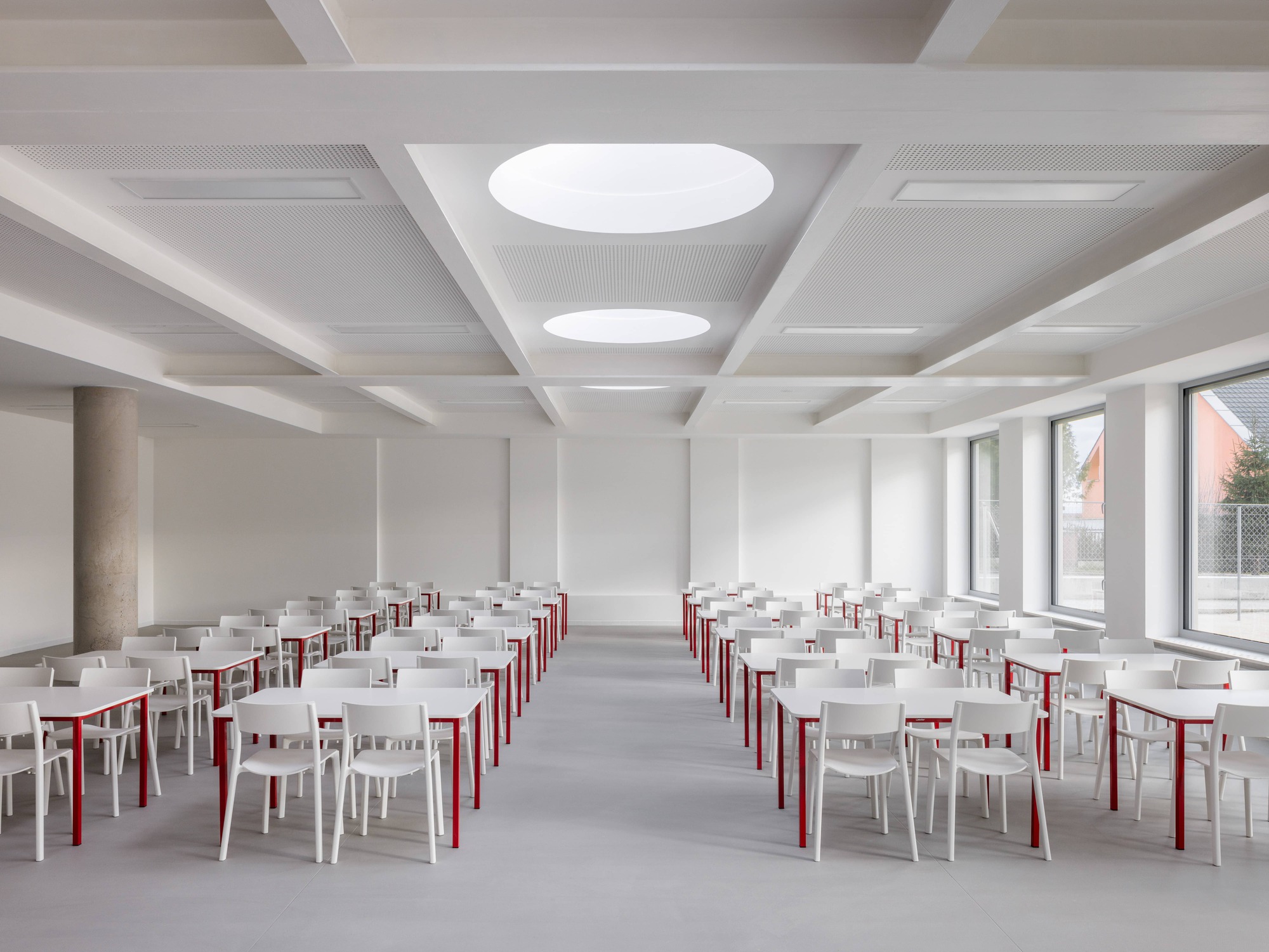

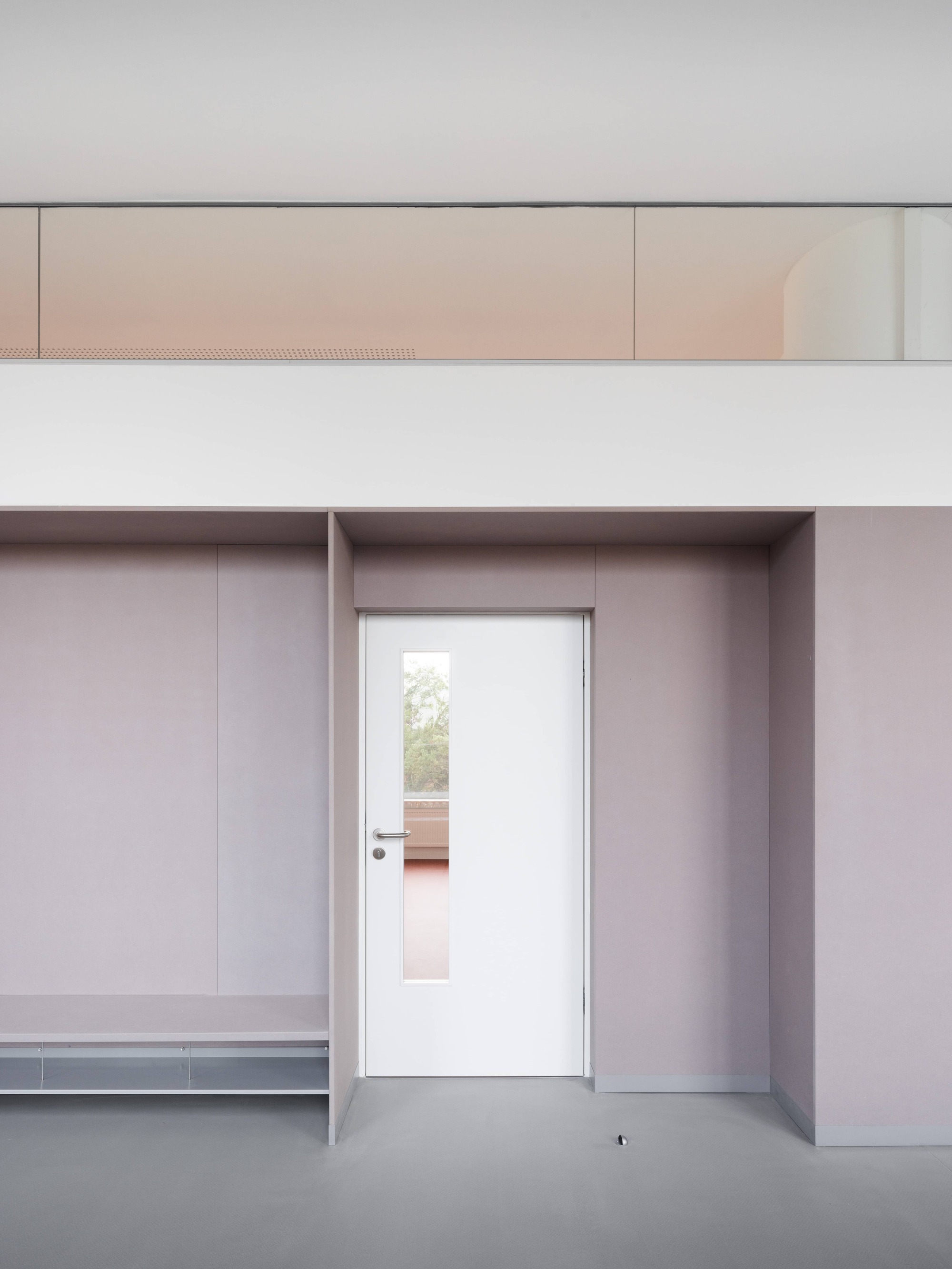

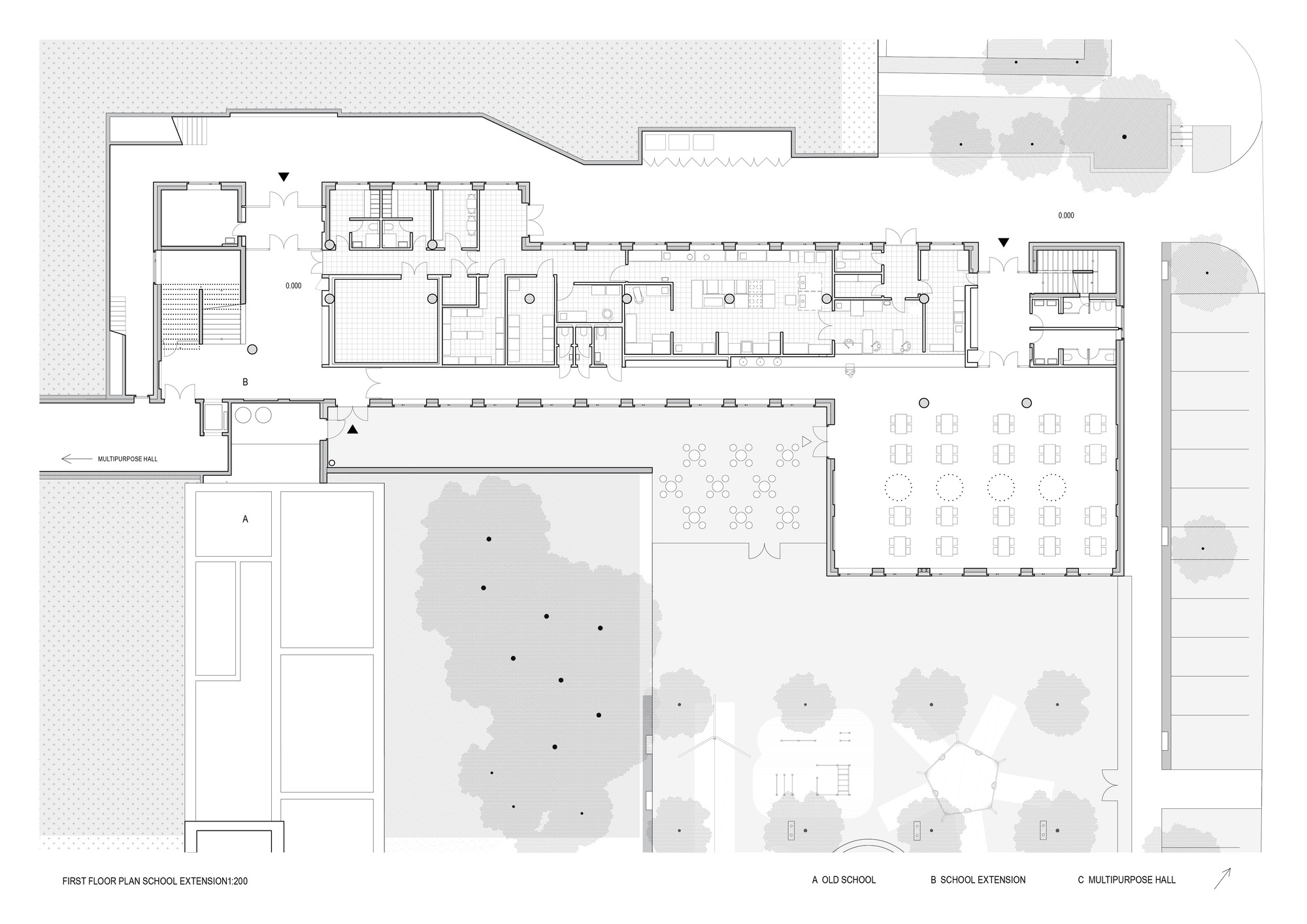

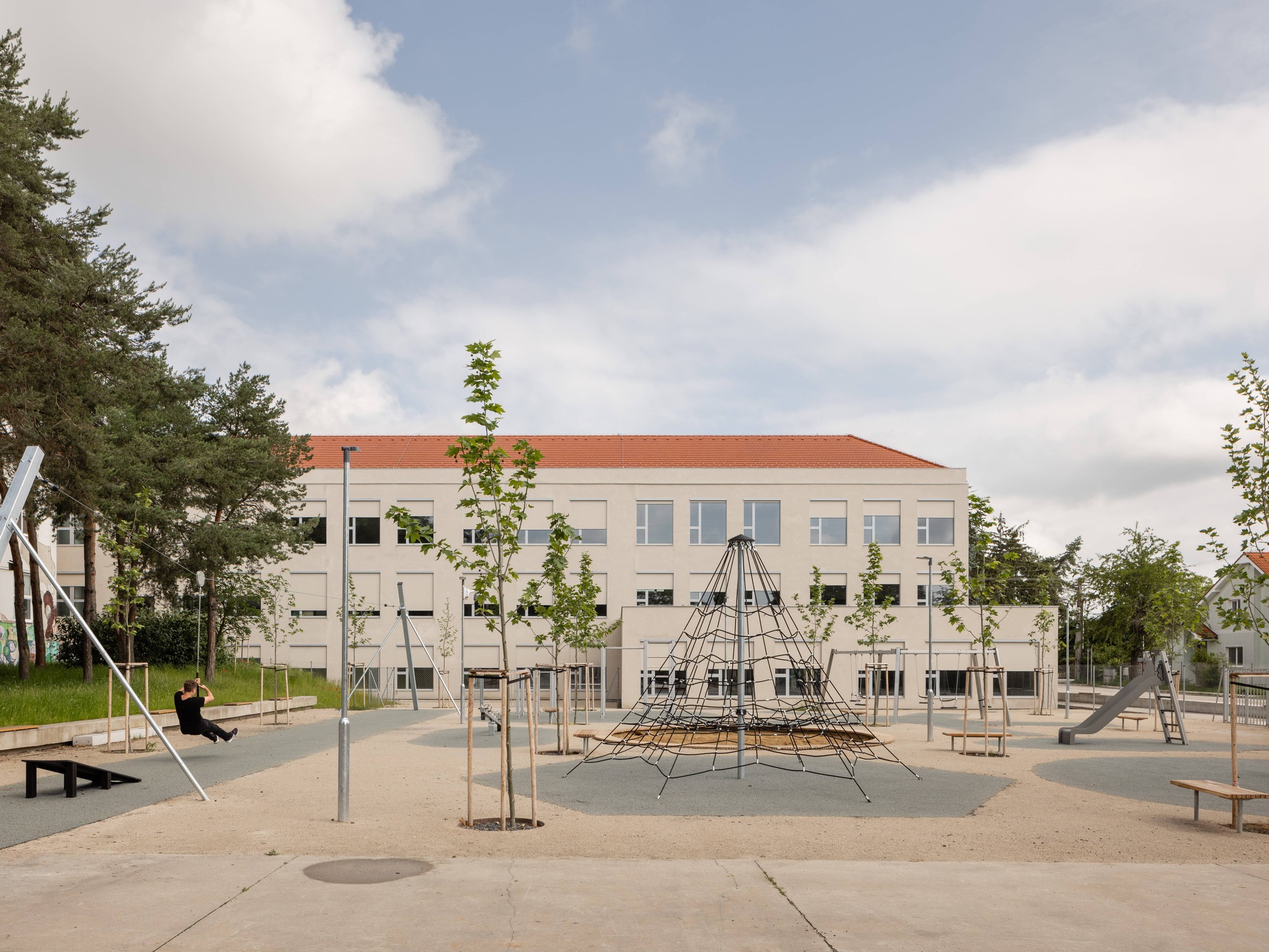

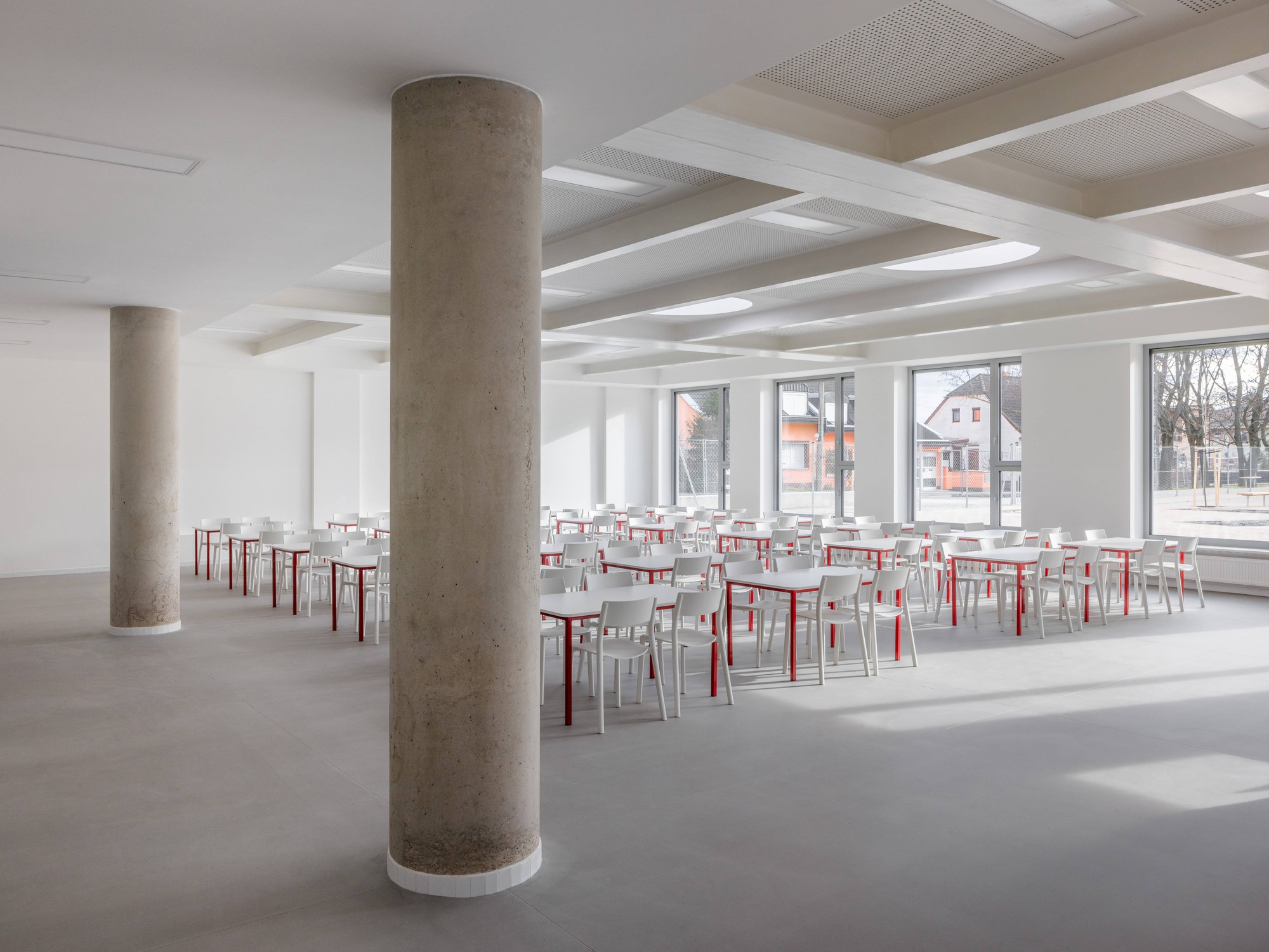

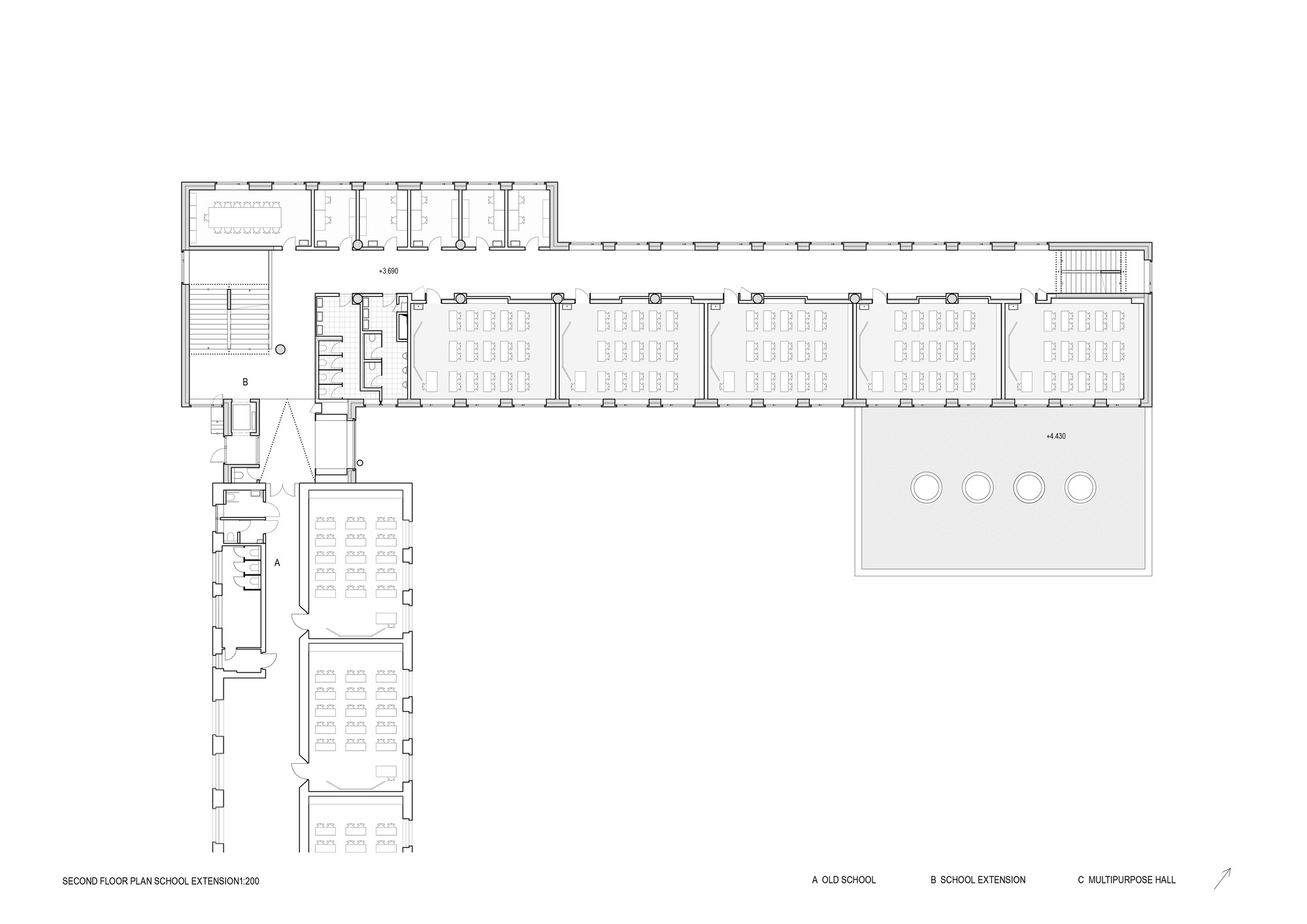

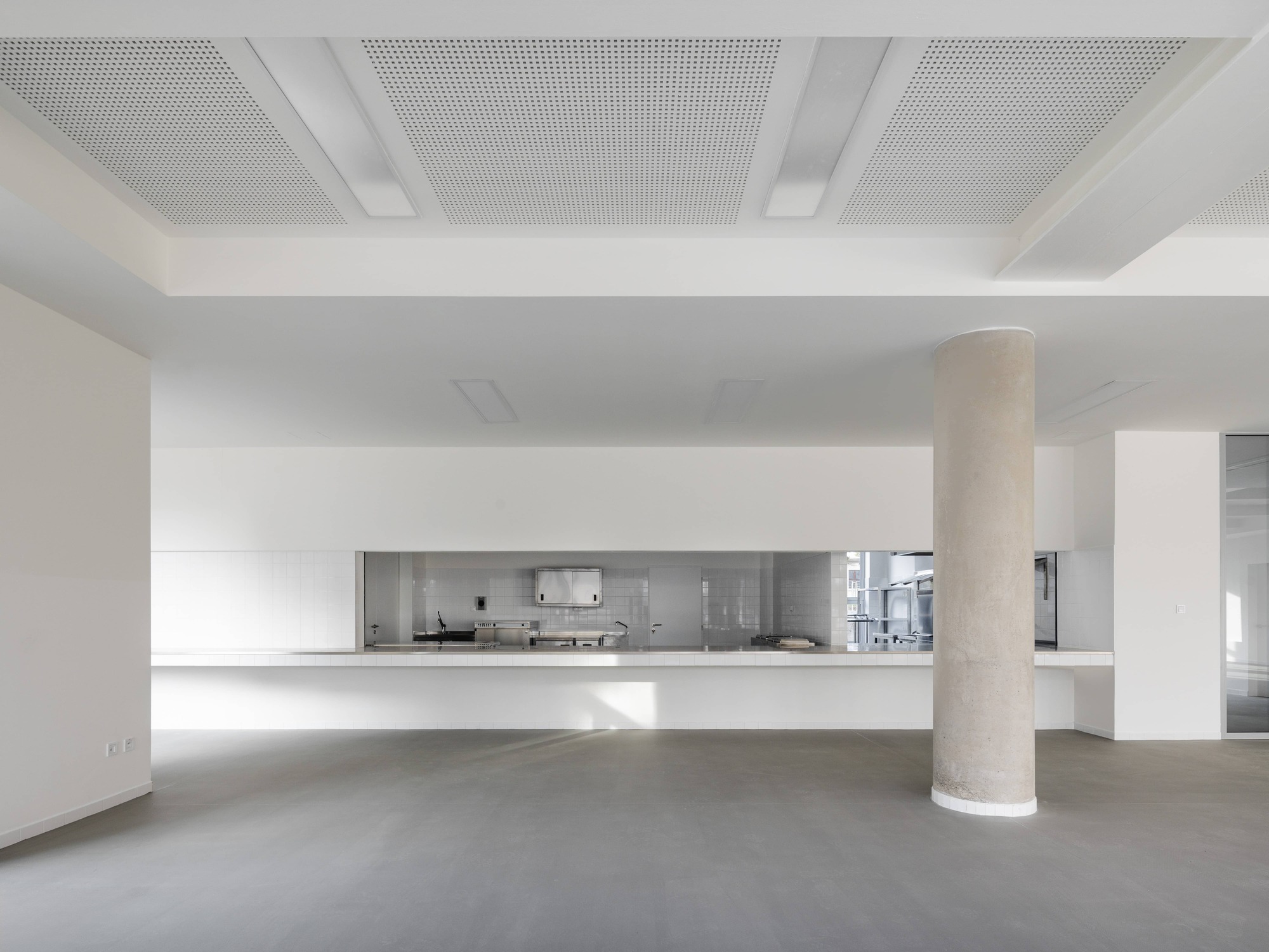

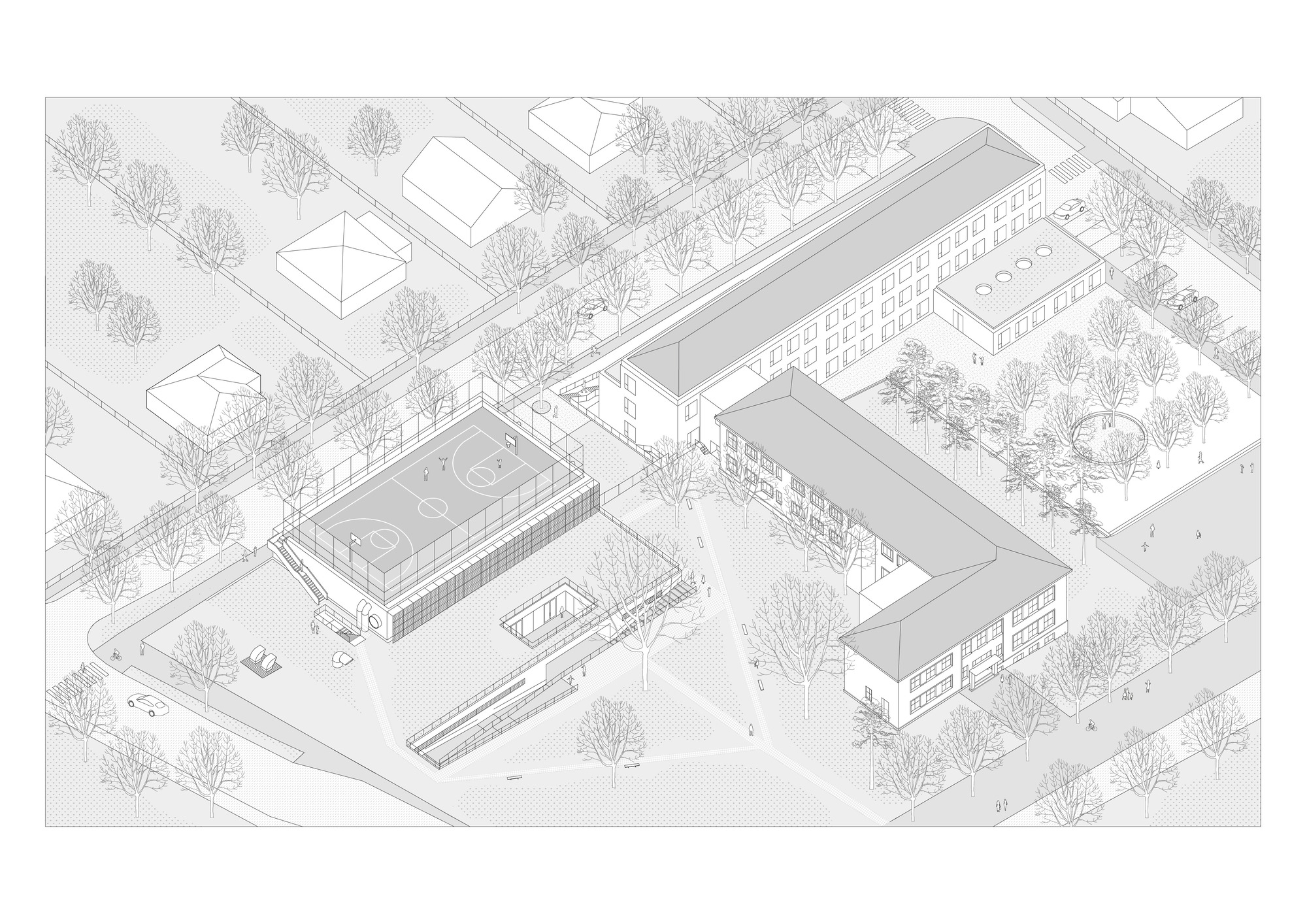

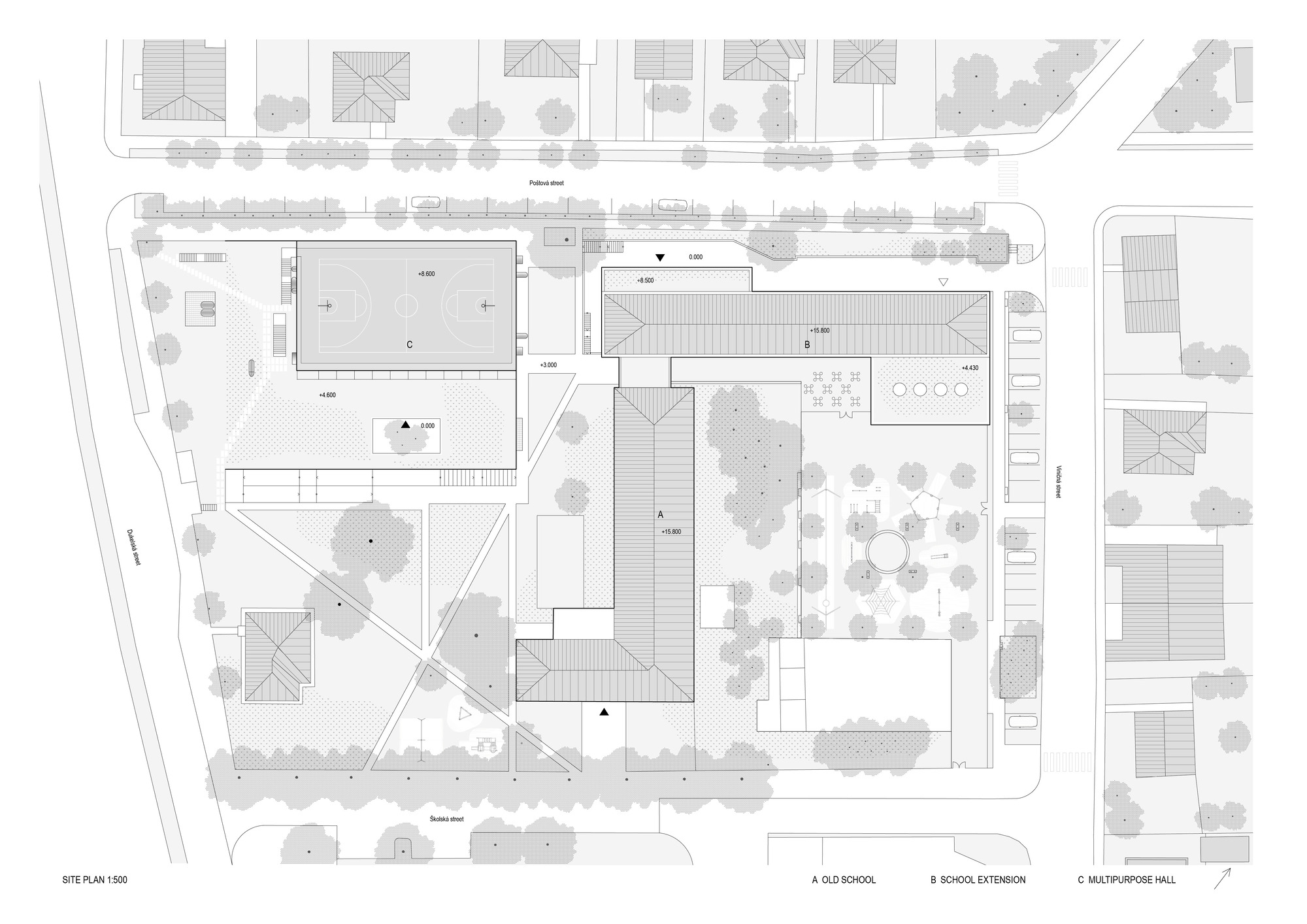

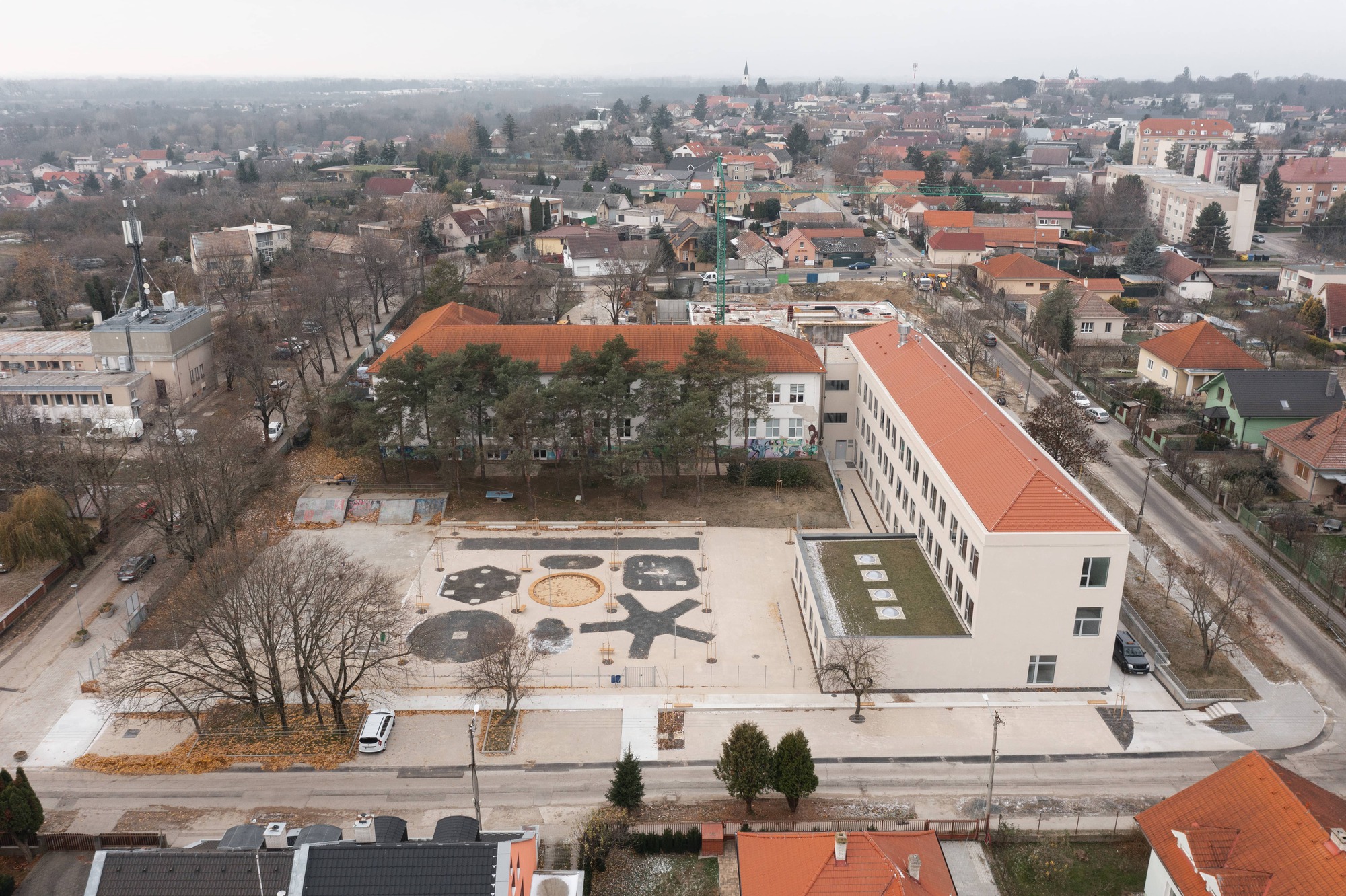

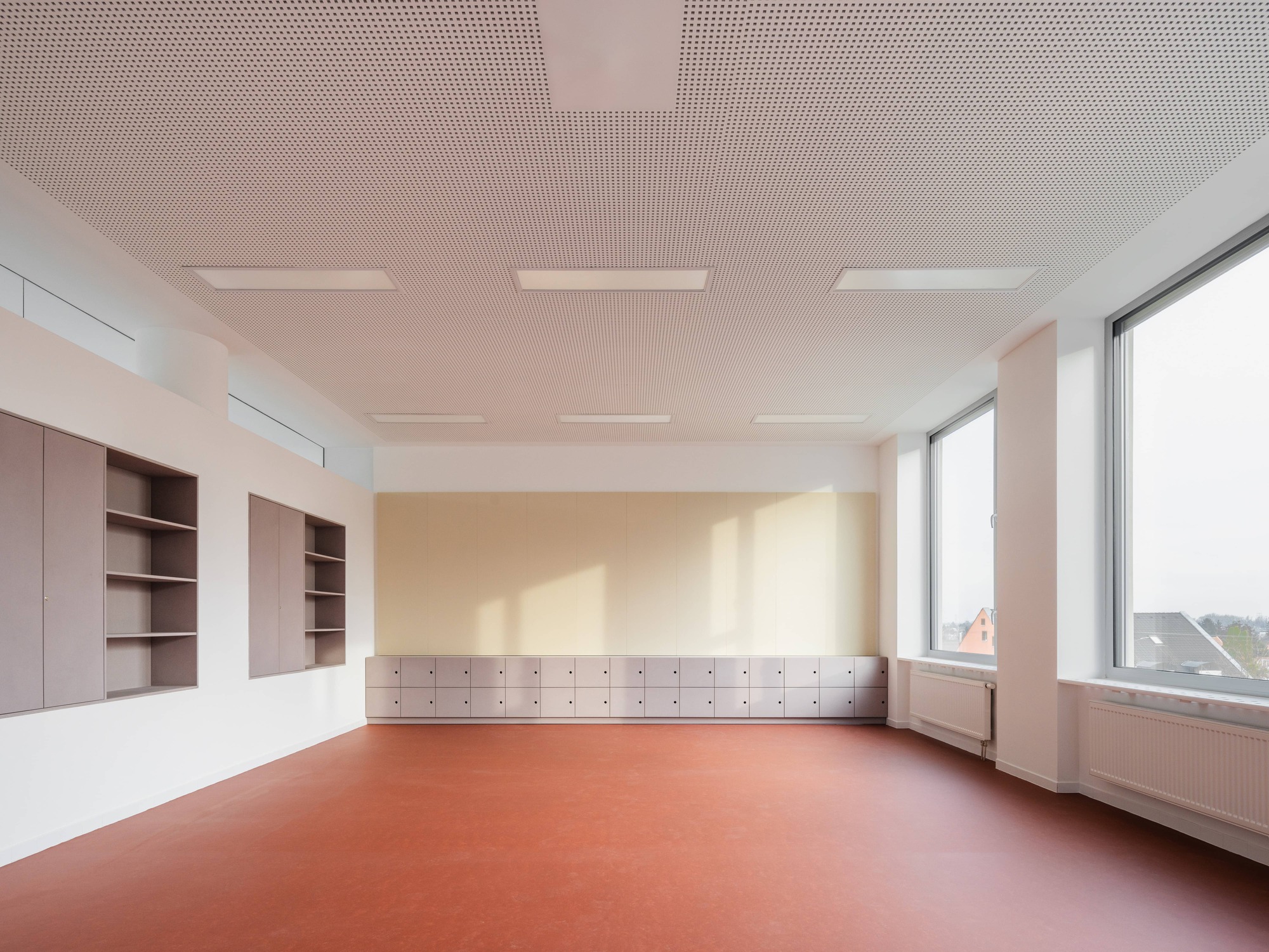

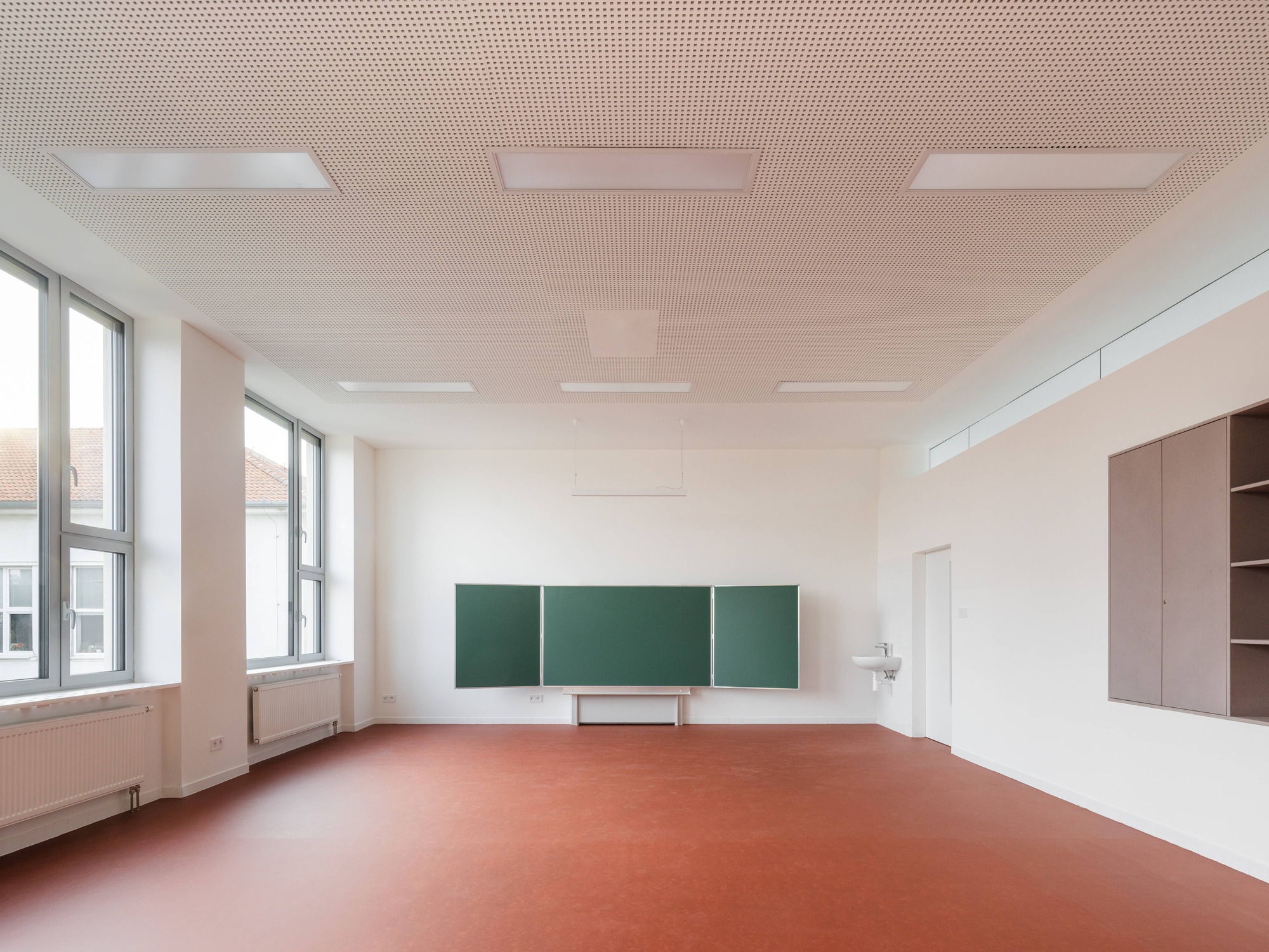

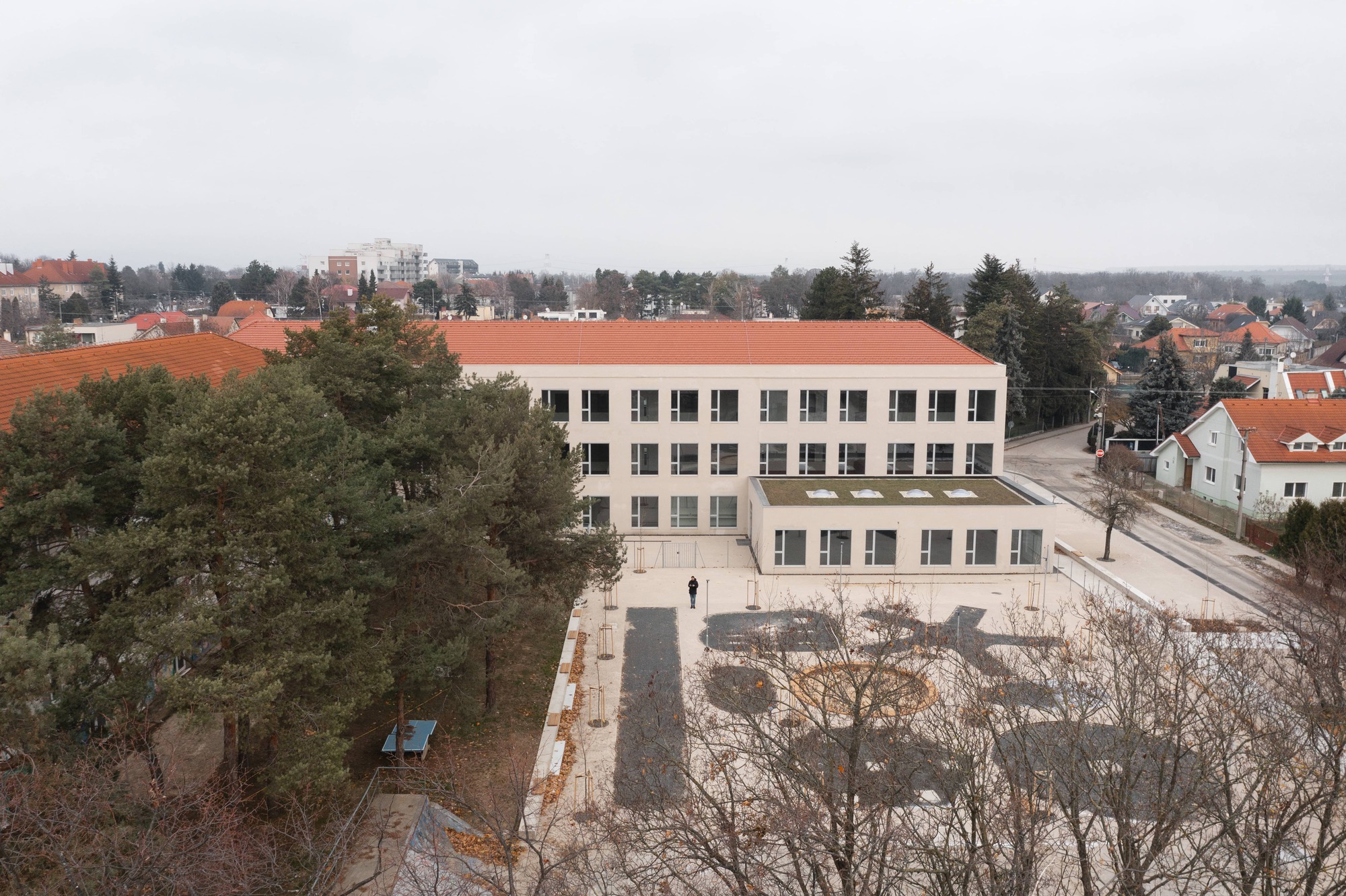

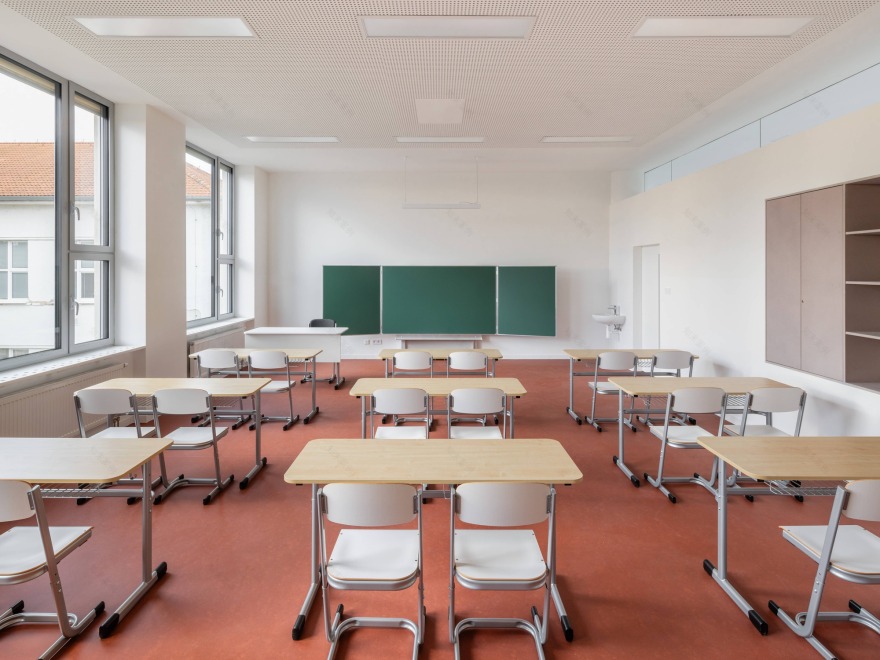

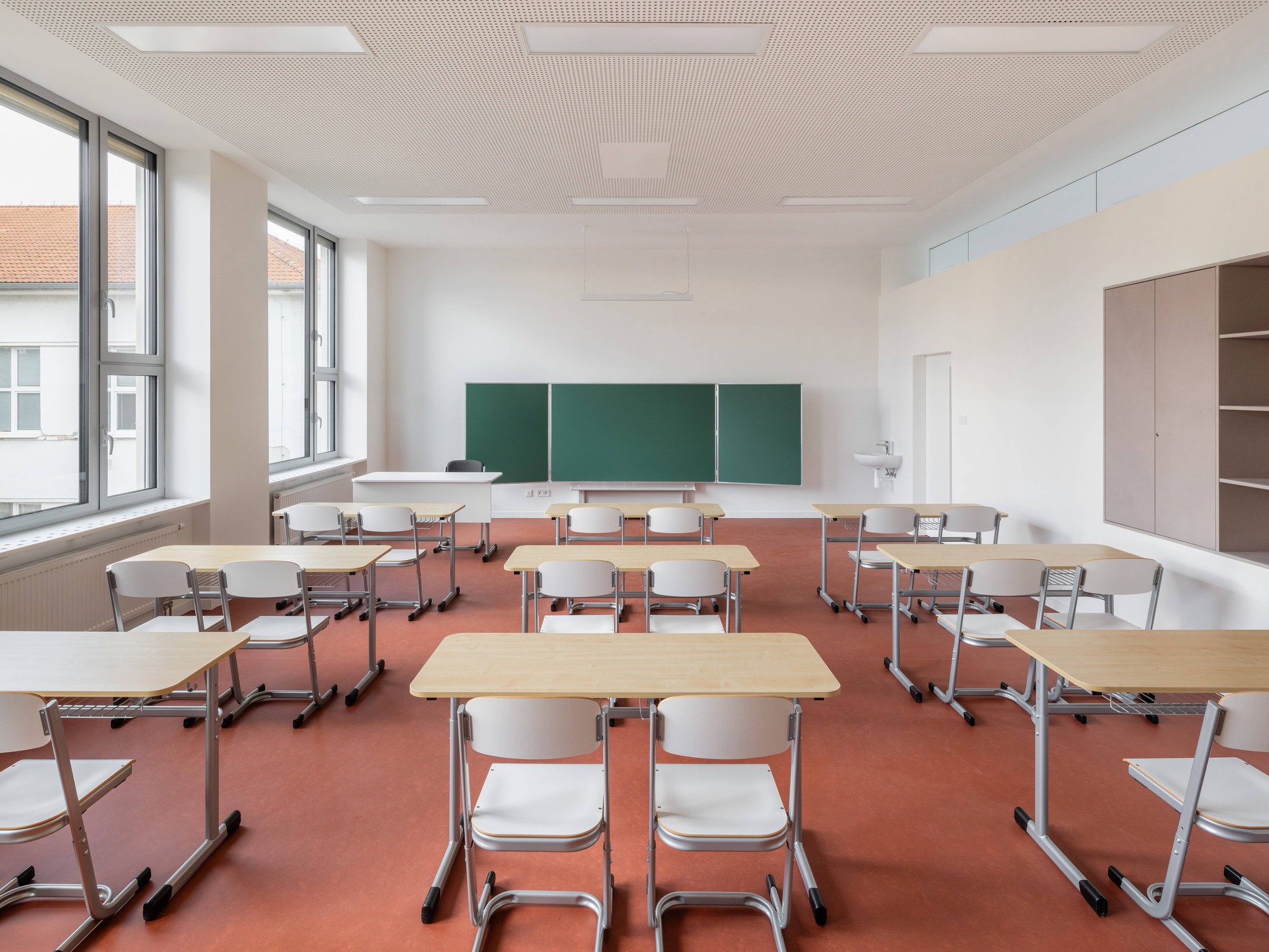

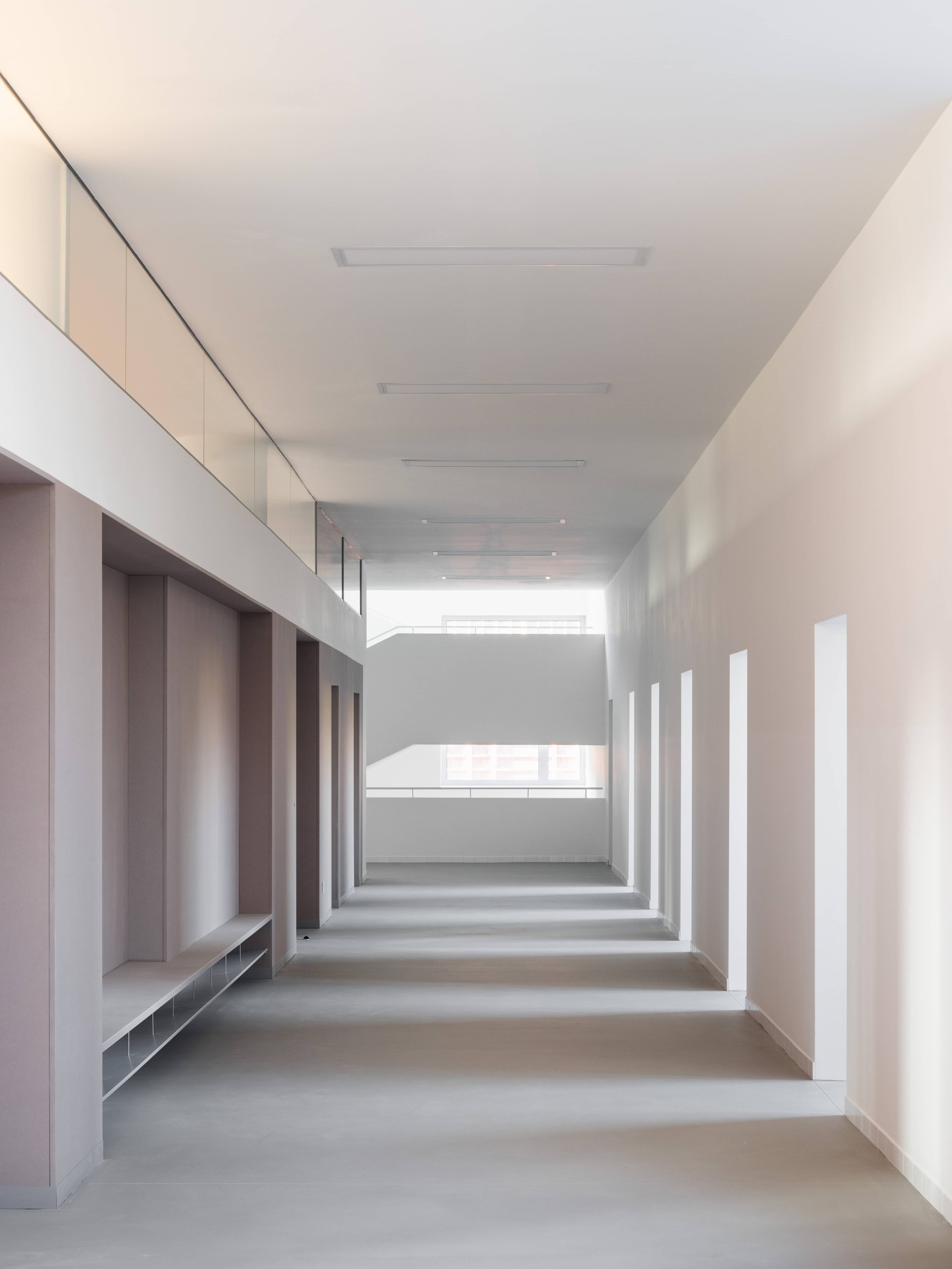

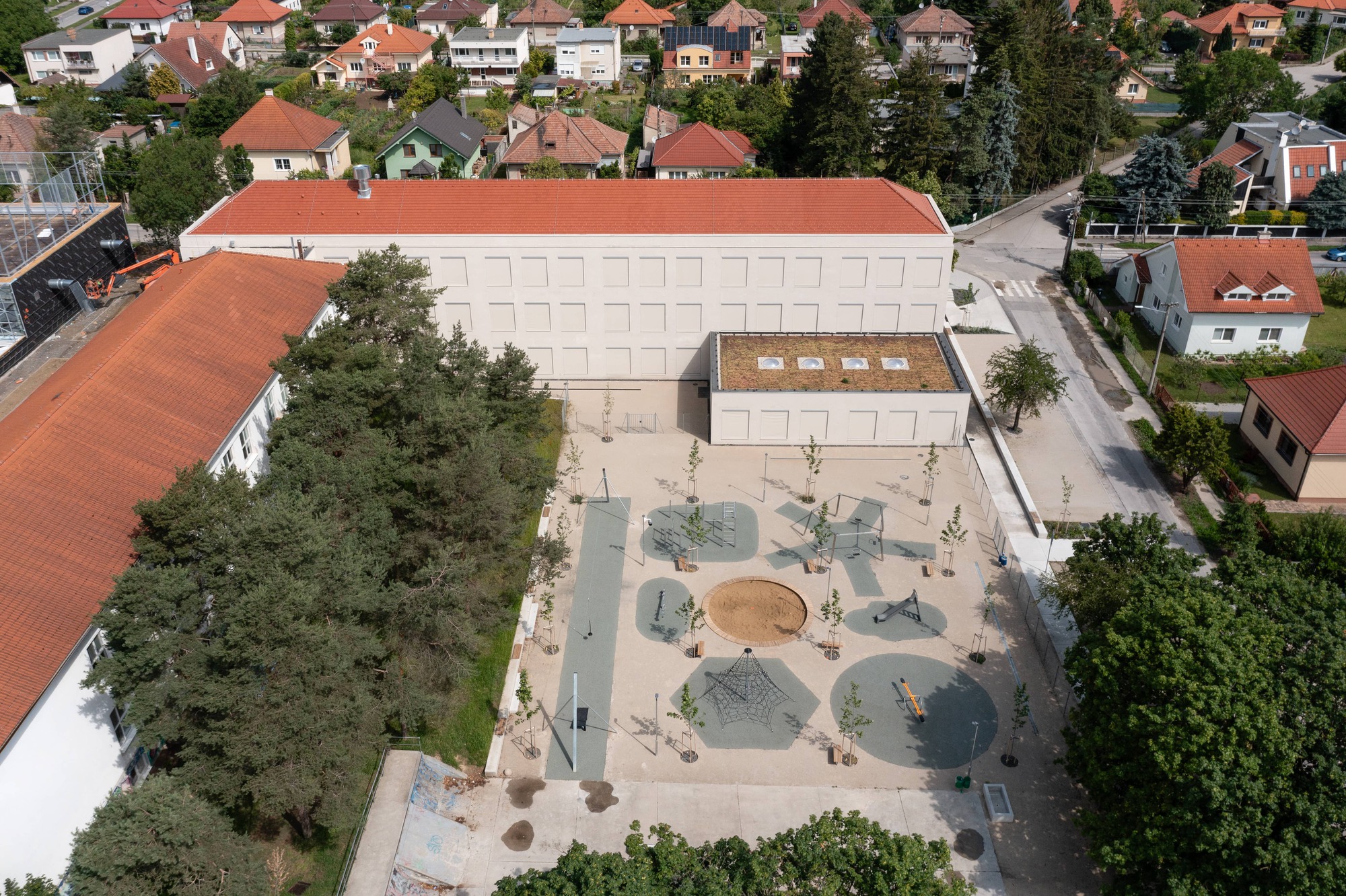

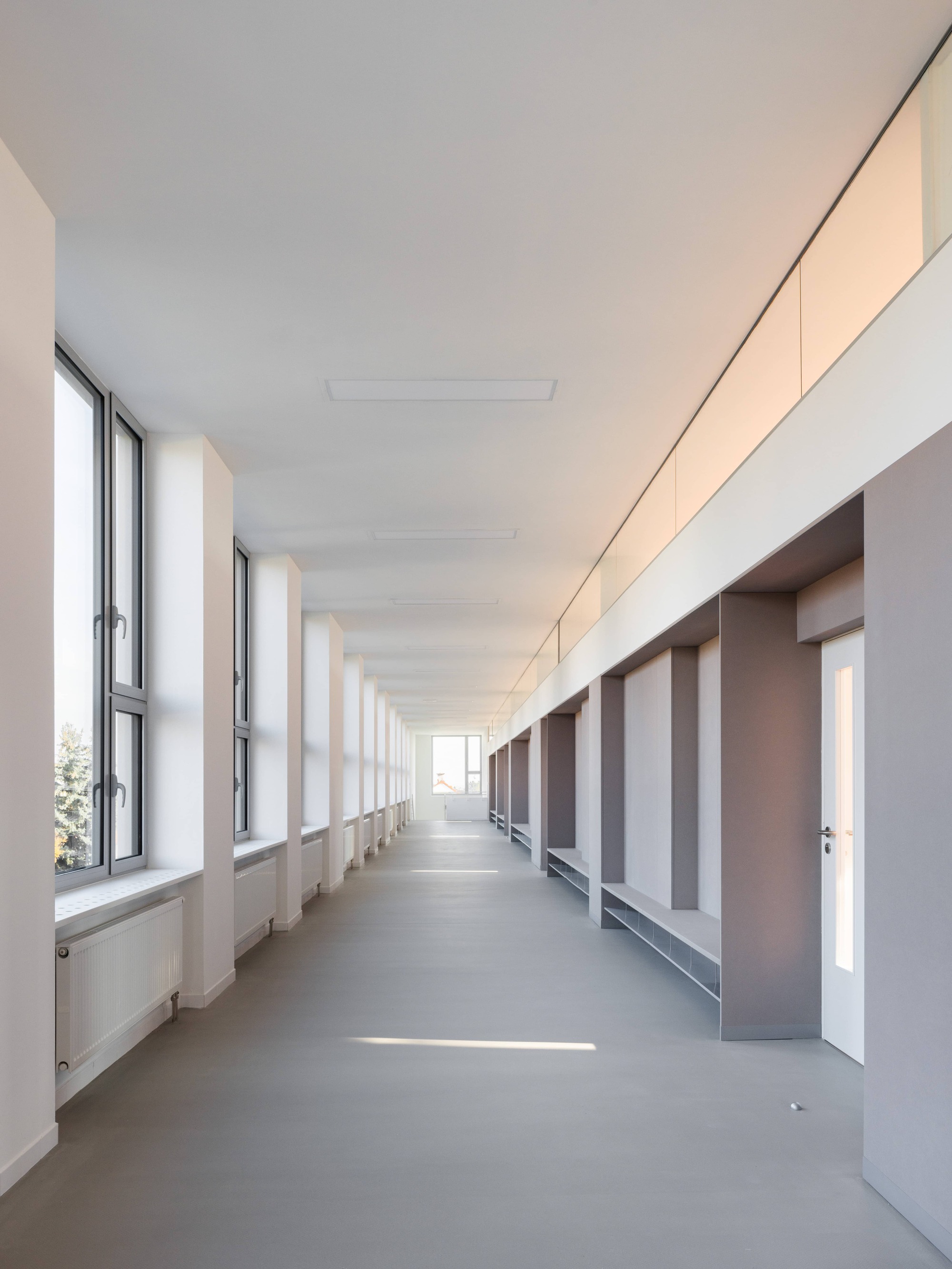

The L-shaped composition of a new space with the original school figure creates a new public space - a park with a playground. The figure of the new pavilion has a simple layout formed by a generous corridor and classrooms. Two smaller volumes, the canteen and teachers' offices, are added to the basic prism. The corridor serves as a living space for students during breaks and also as a cloakroom. A horizontal skylight between the classroom and the corridor allows afternoon winter light to penetrate into the classrooms.

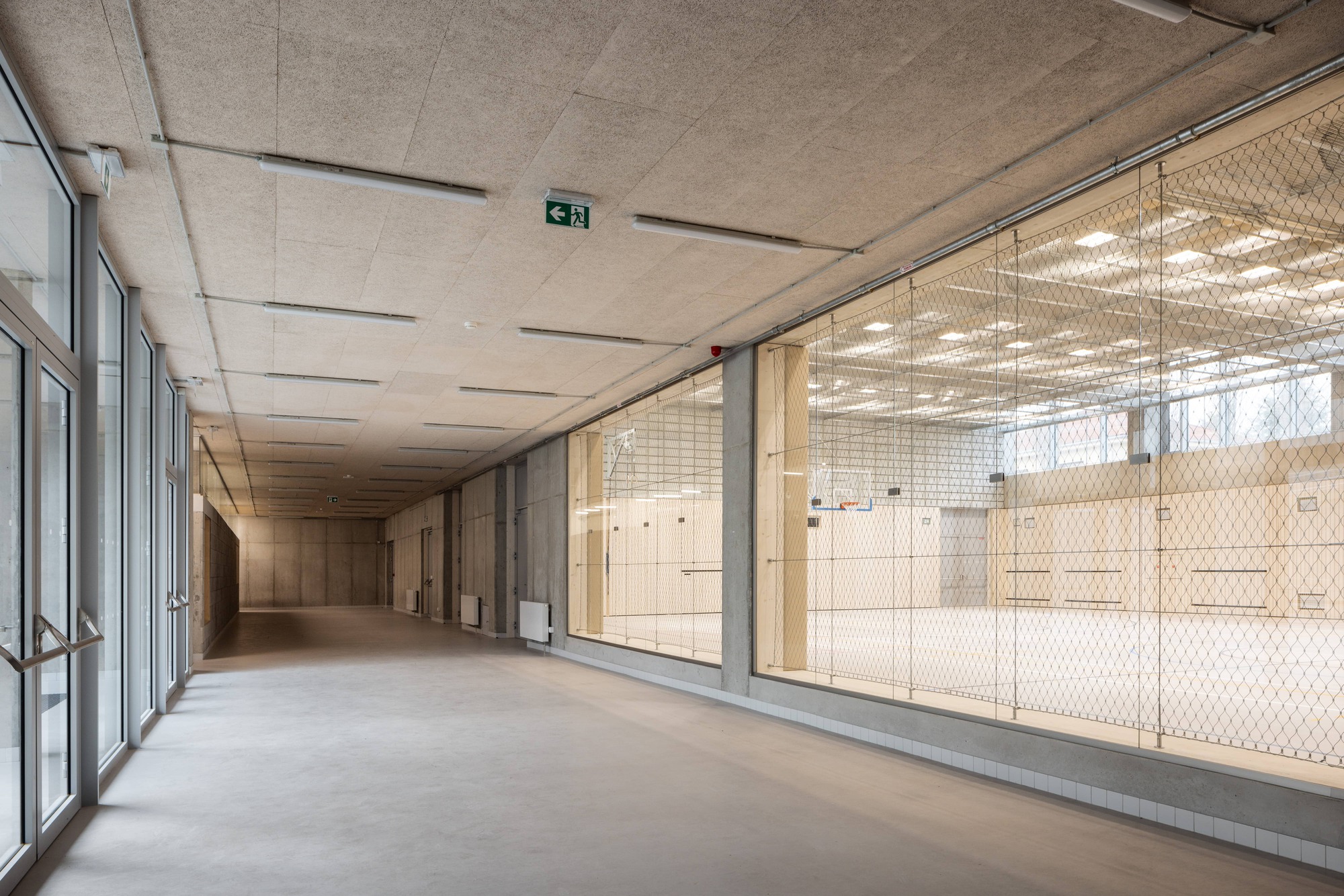

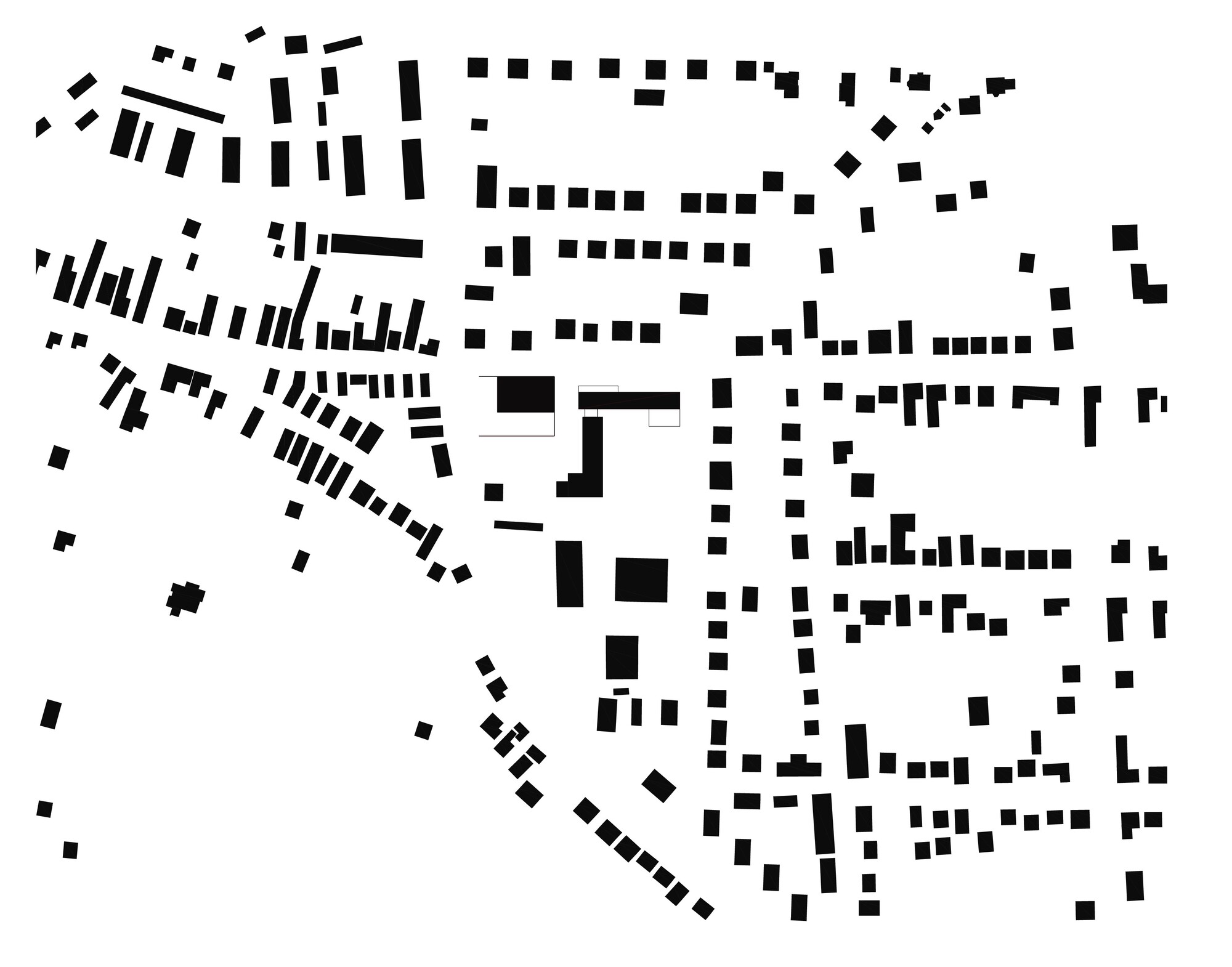

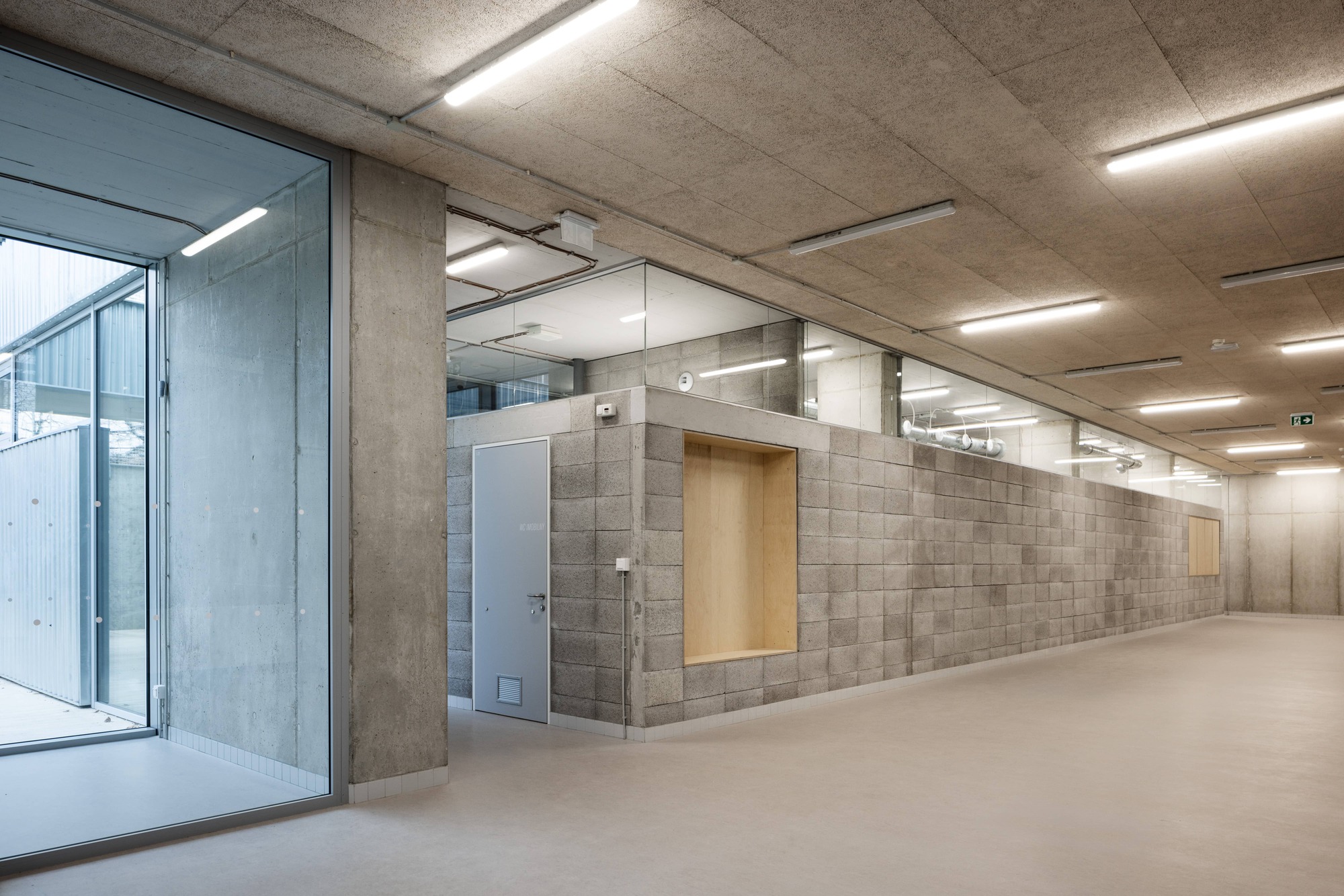

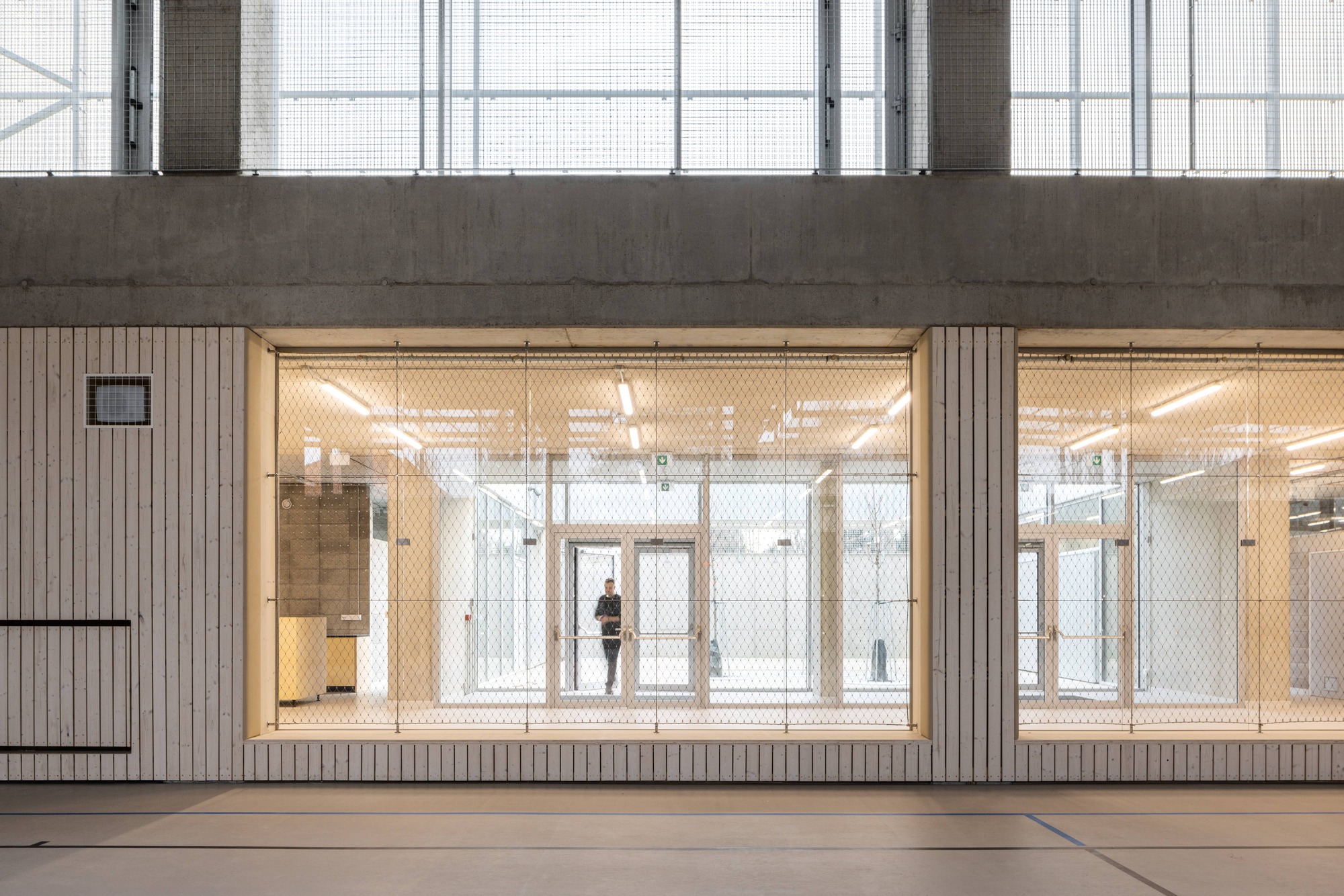

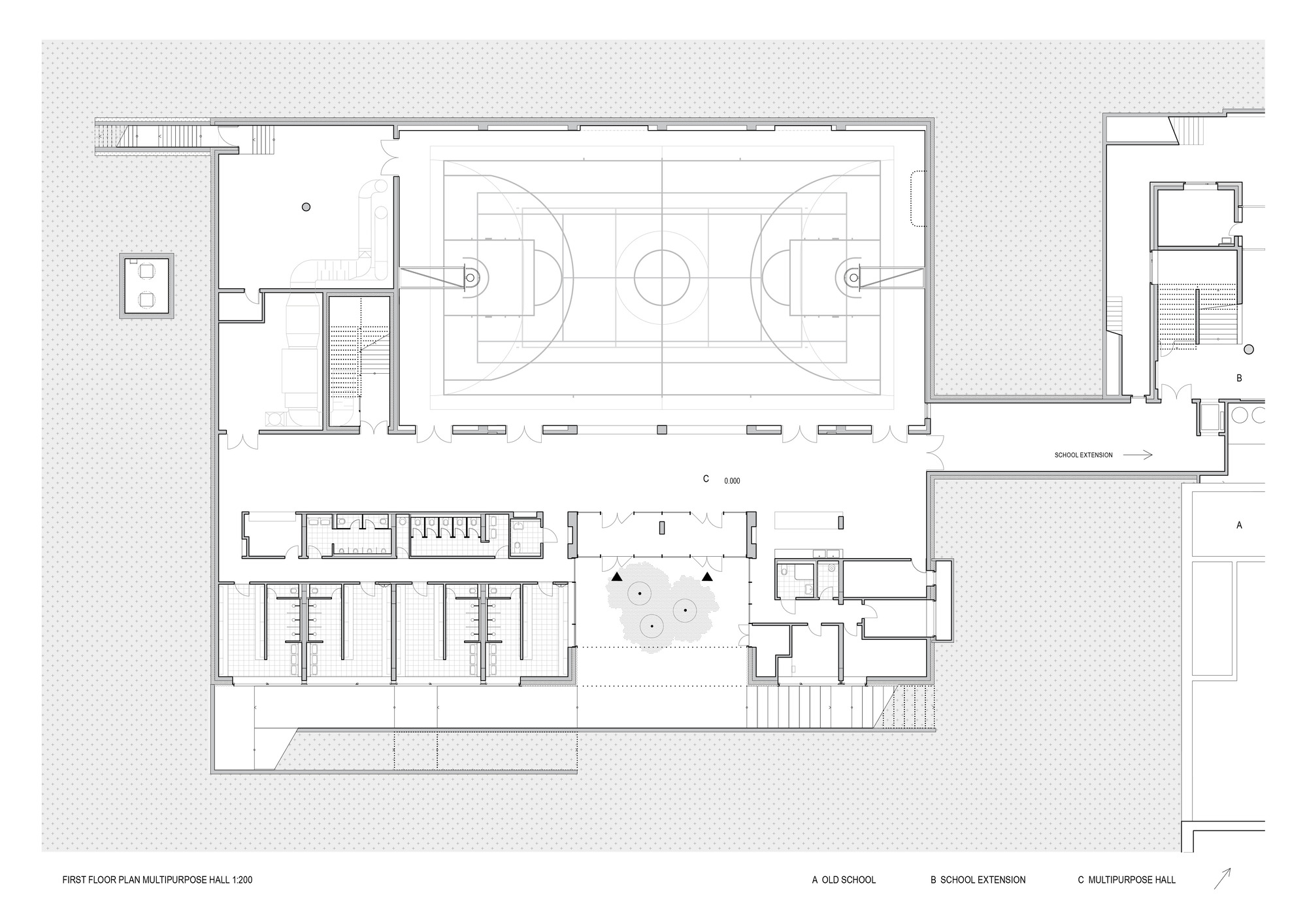

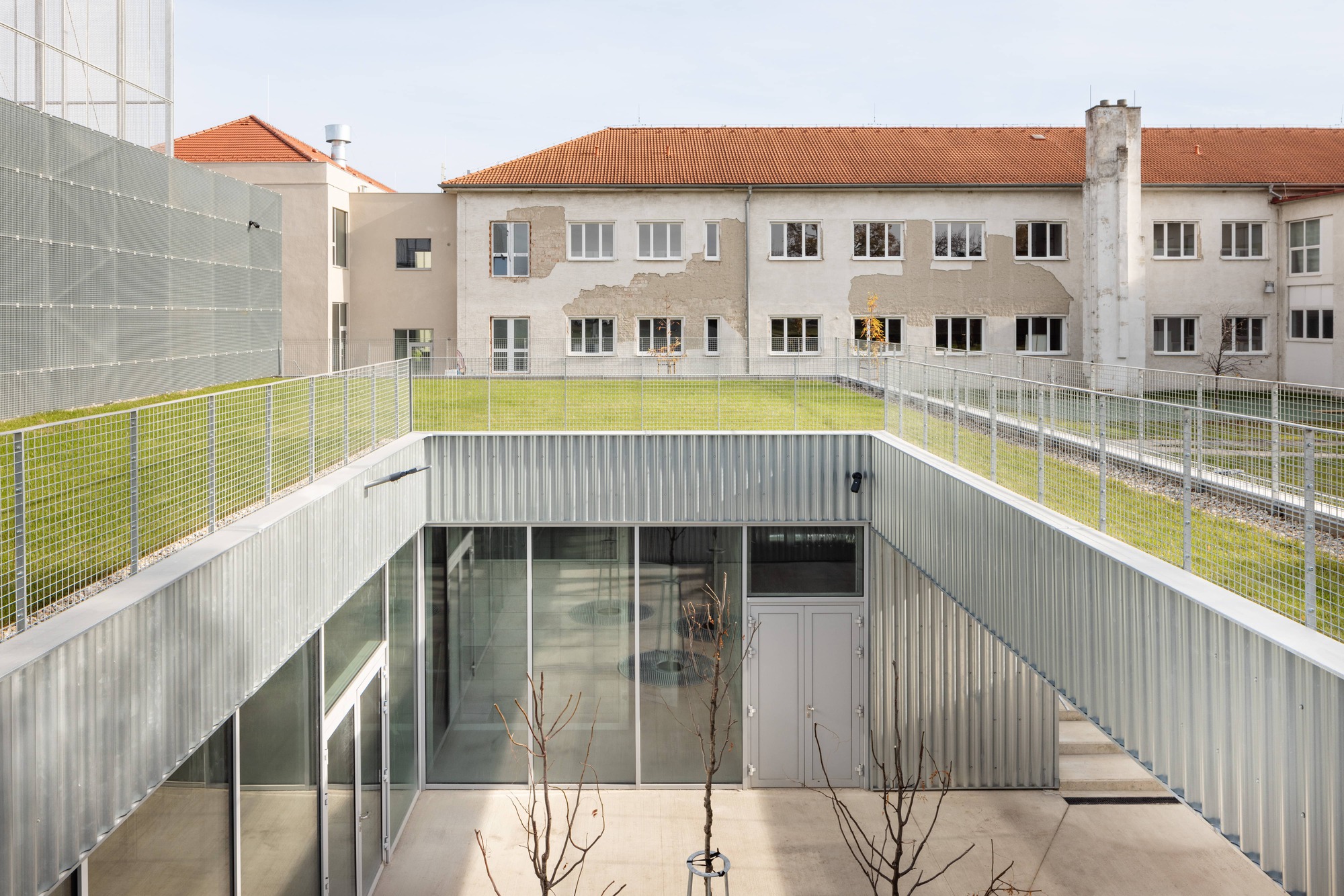

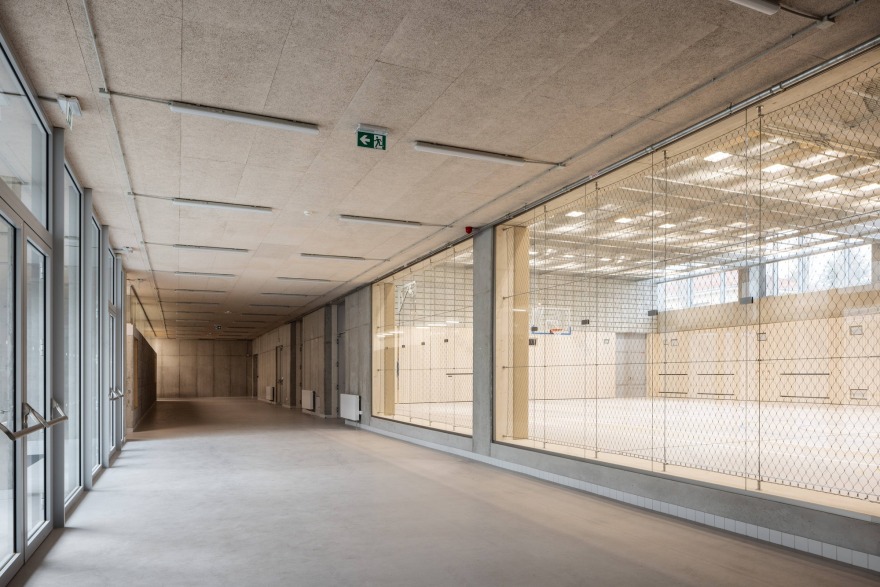

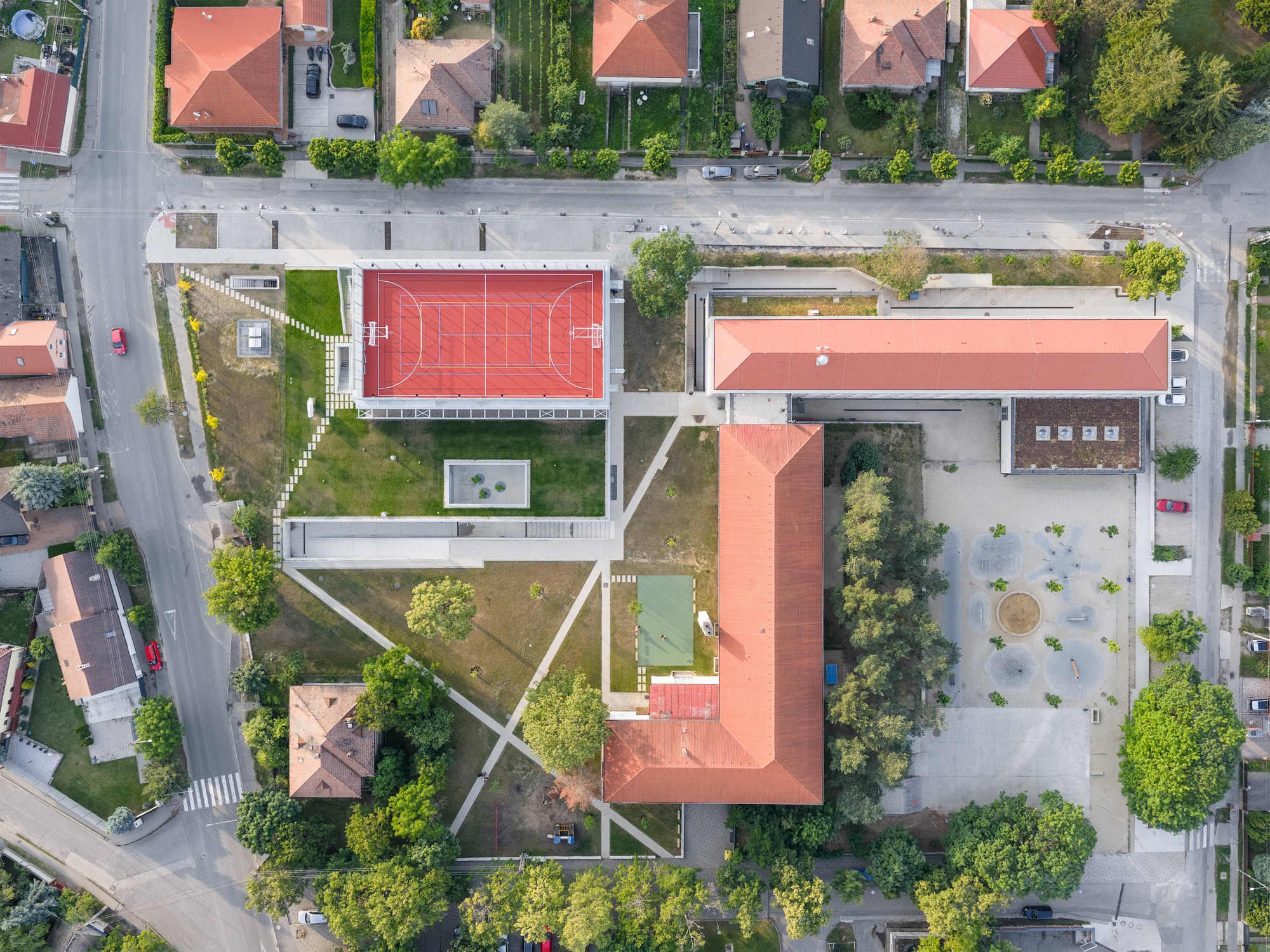

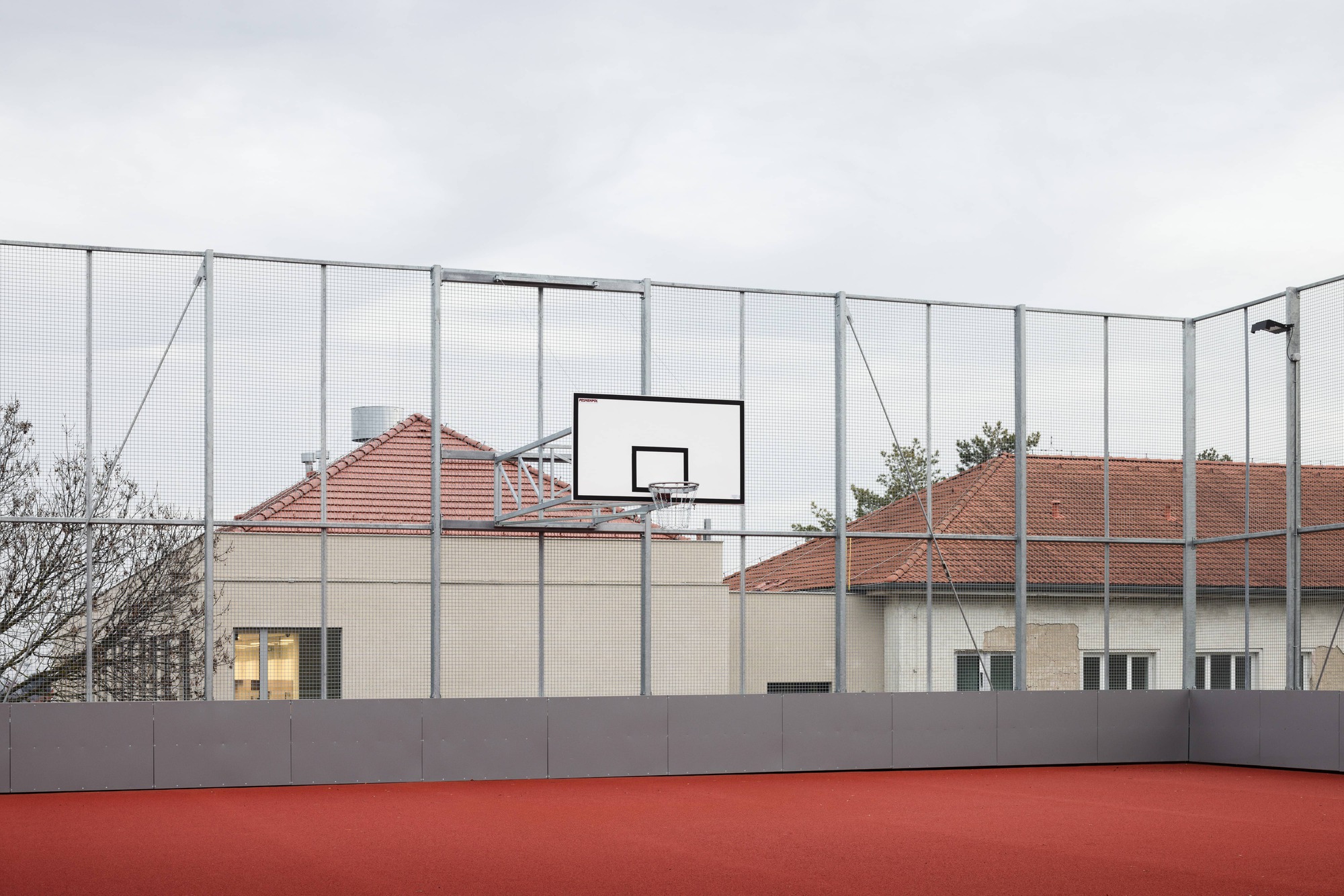

The multipurpose hall is located on the northern part of the plot as well, so the southern part is left free for greenery. The newly created public space is clearly defined. The hall is connected with school pavilions by an underground corridor, so there is no barrier on the ground, and the cluster is fully open to the public and permeable. A green roof and rooftop playground are also available for residents. New pavilions define the northern boundary of the village center.

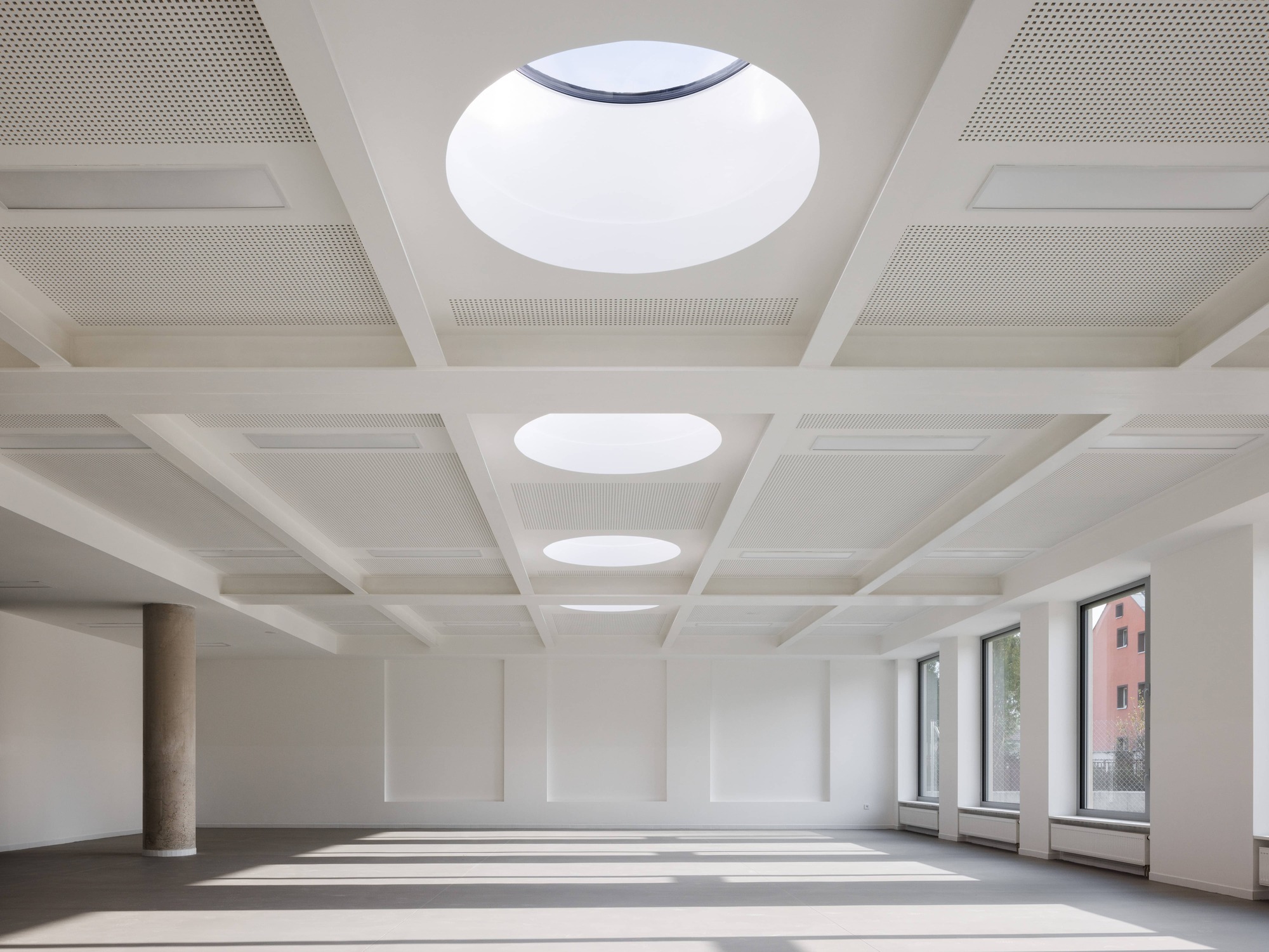

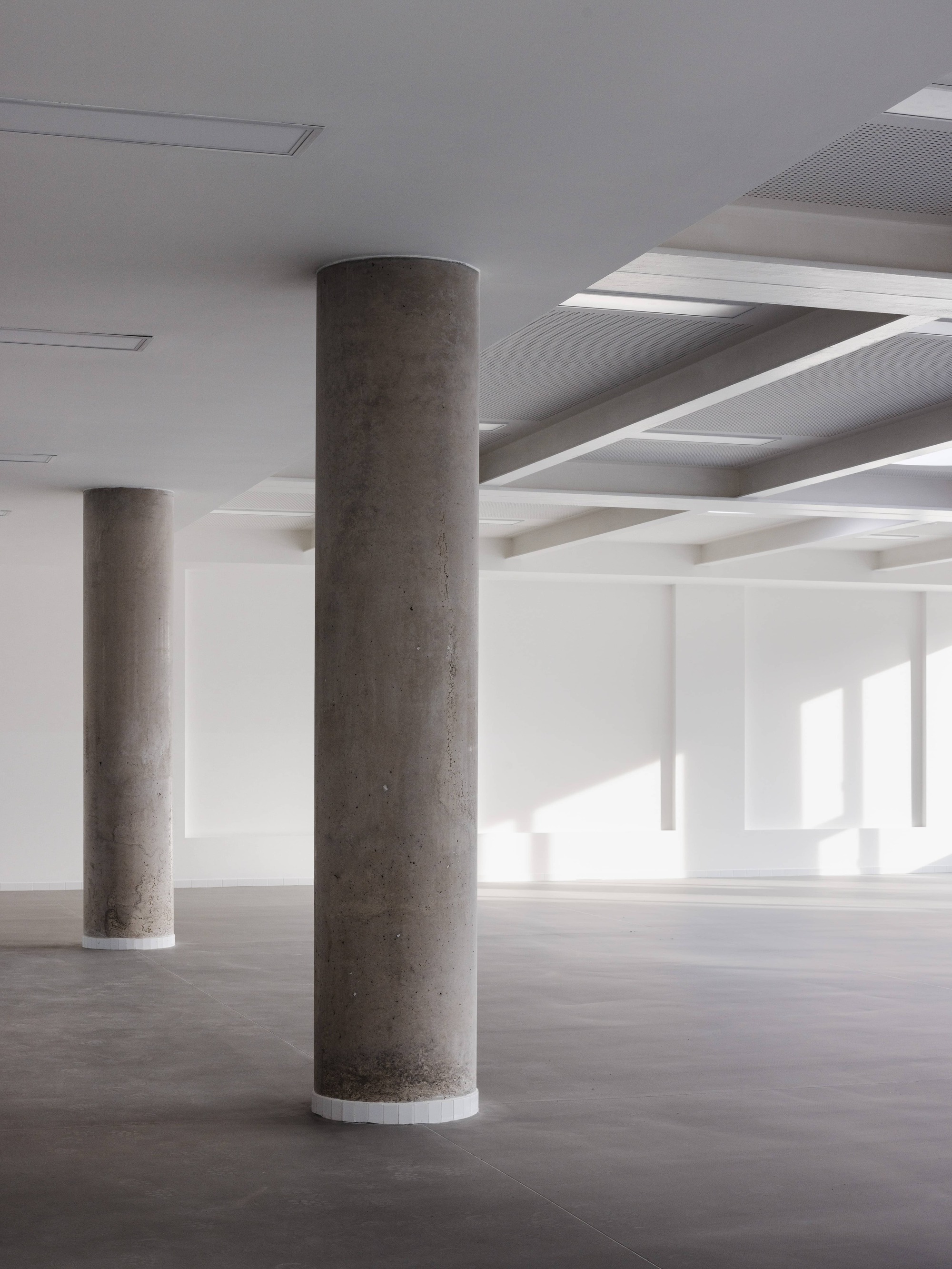

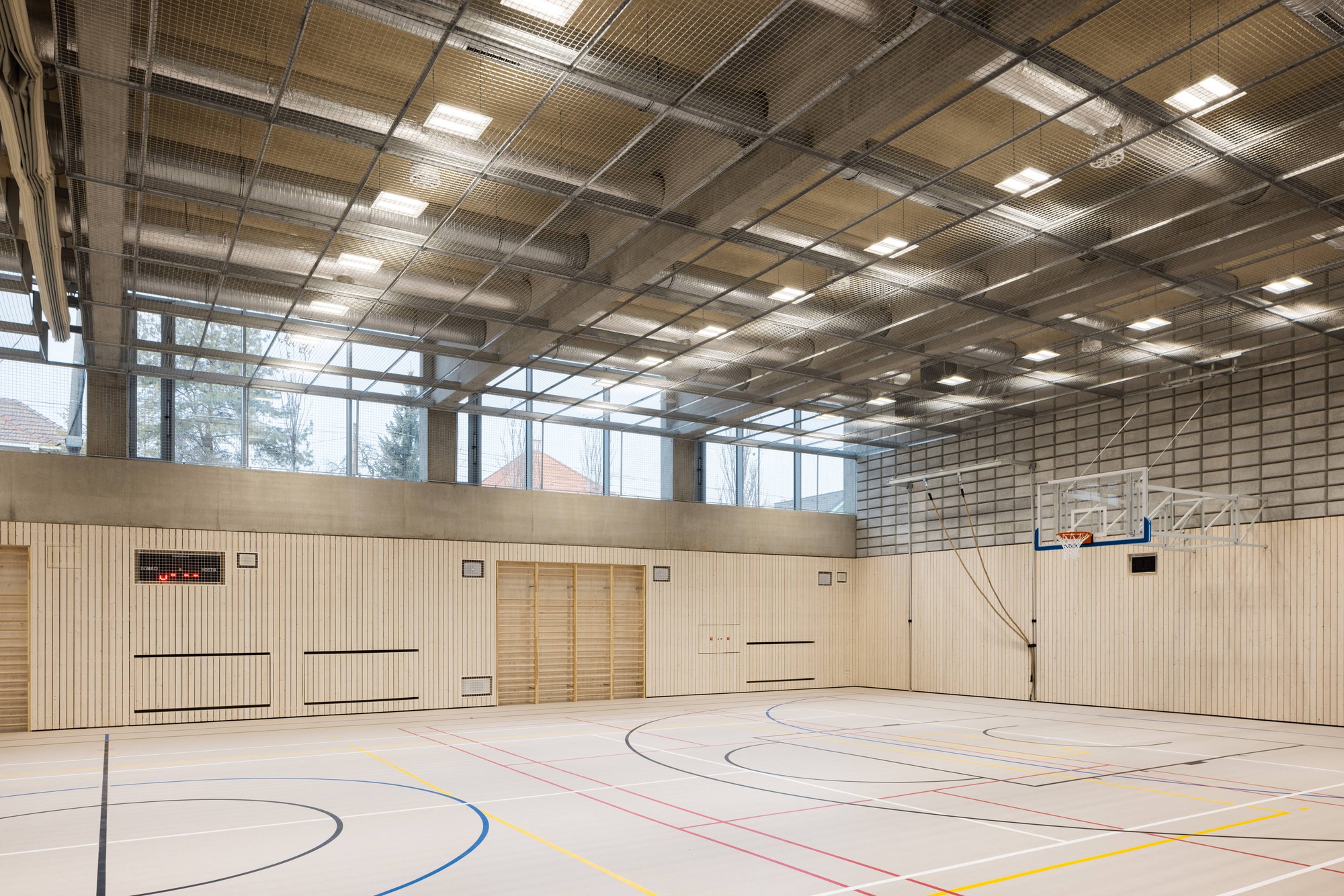

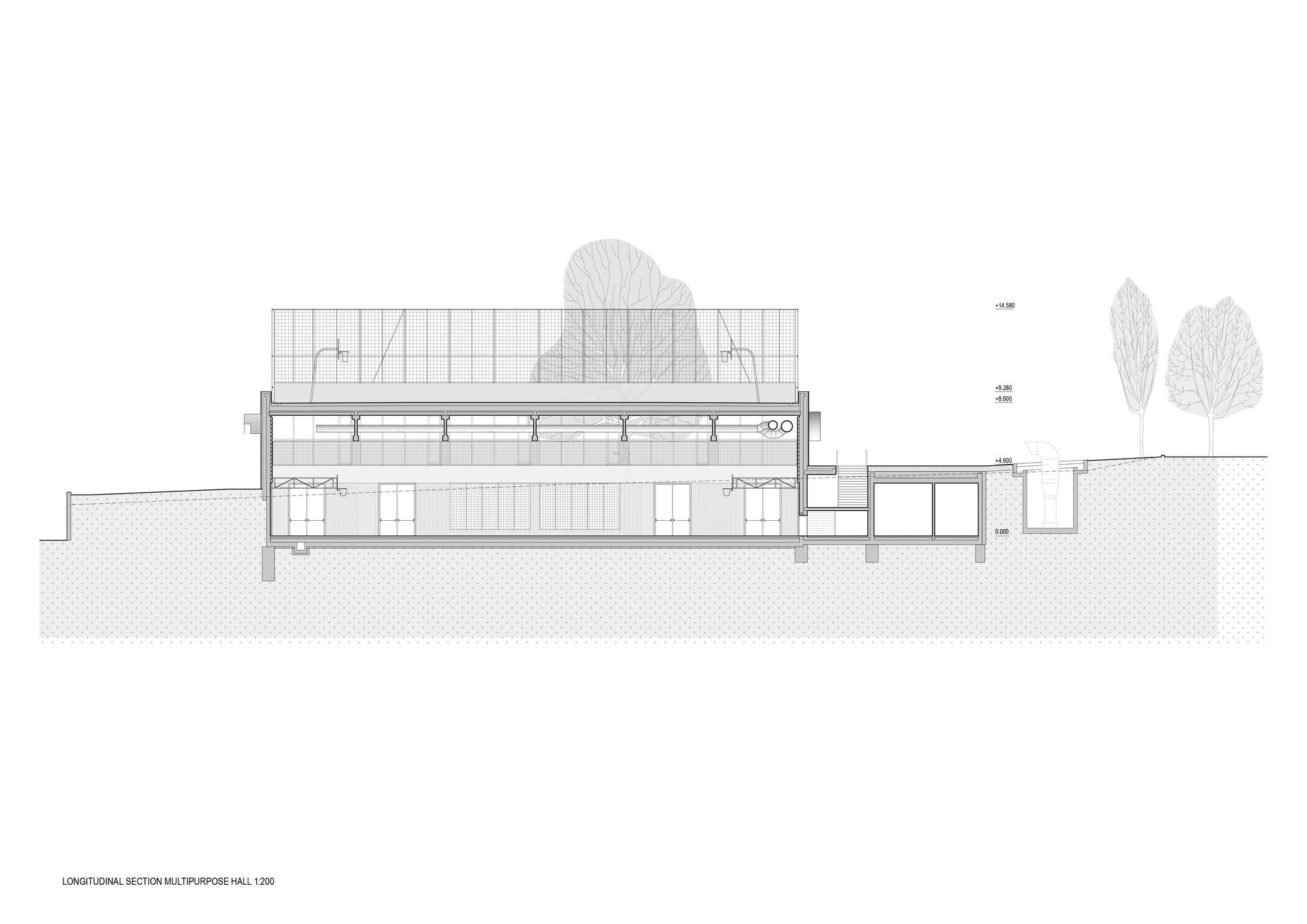

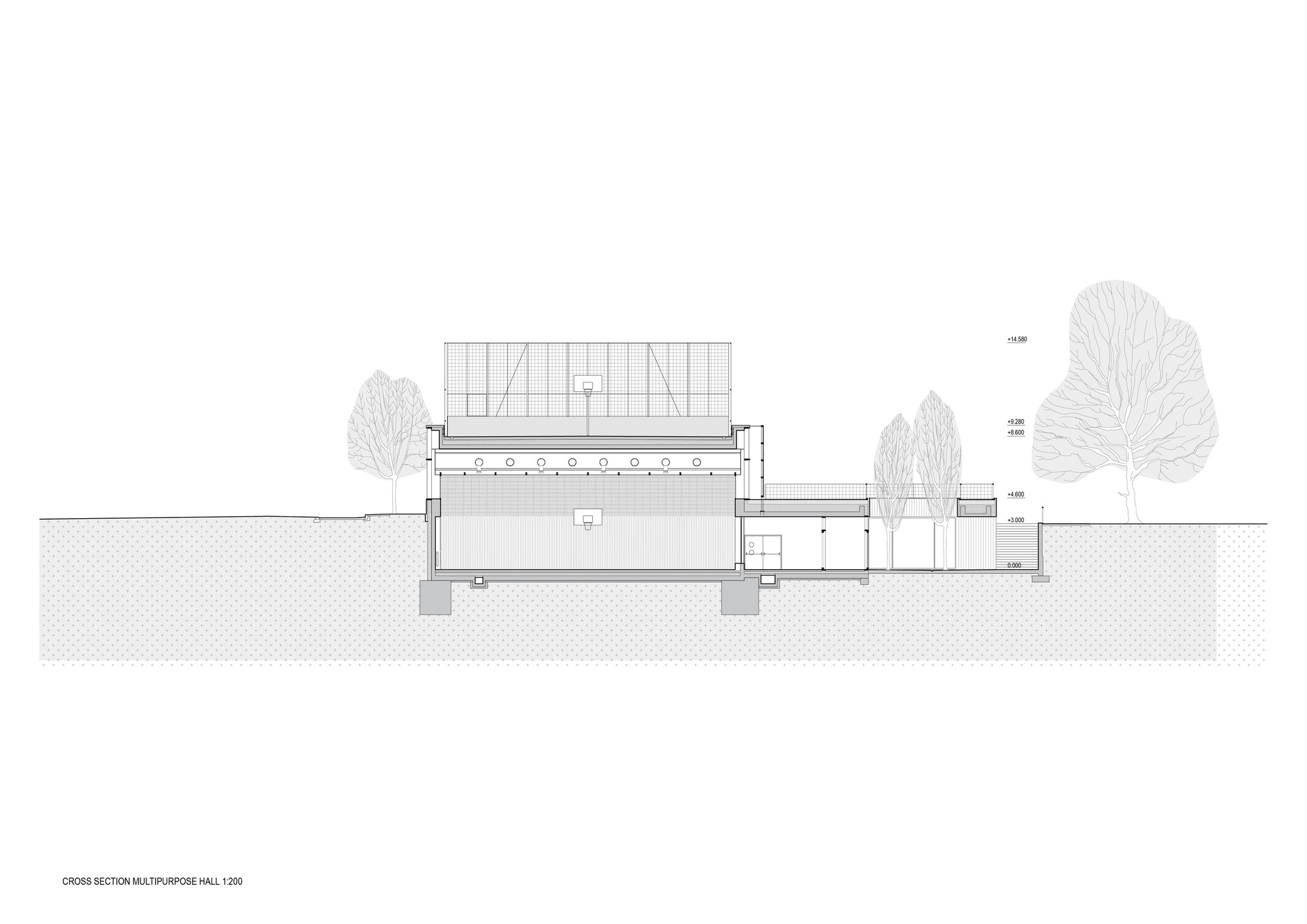

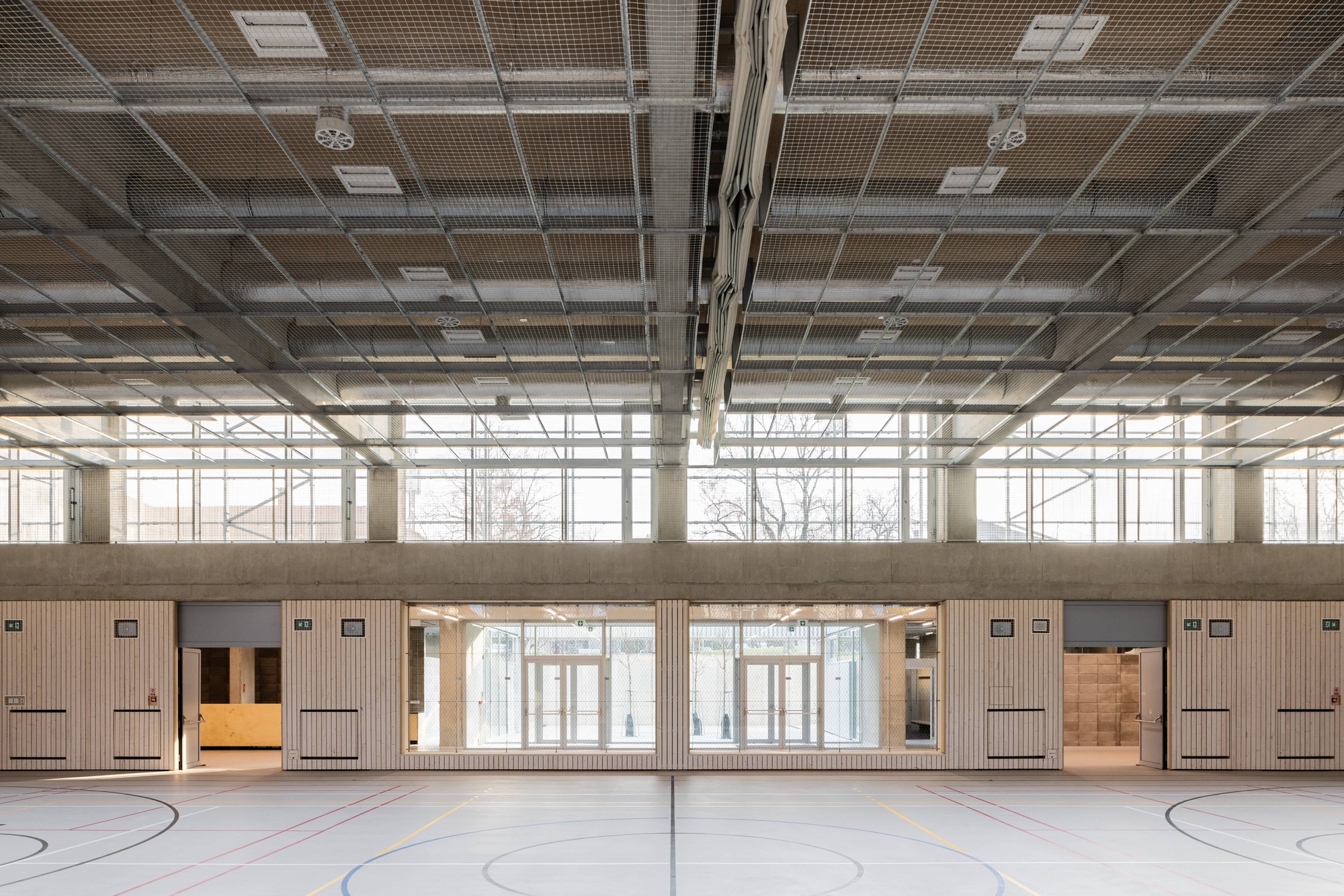

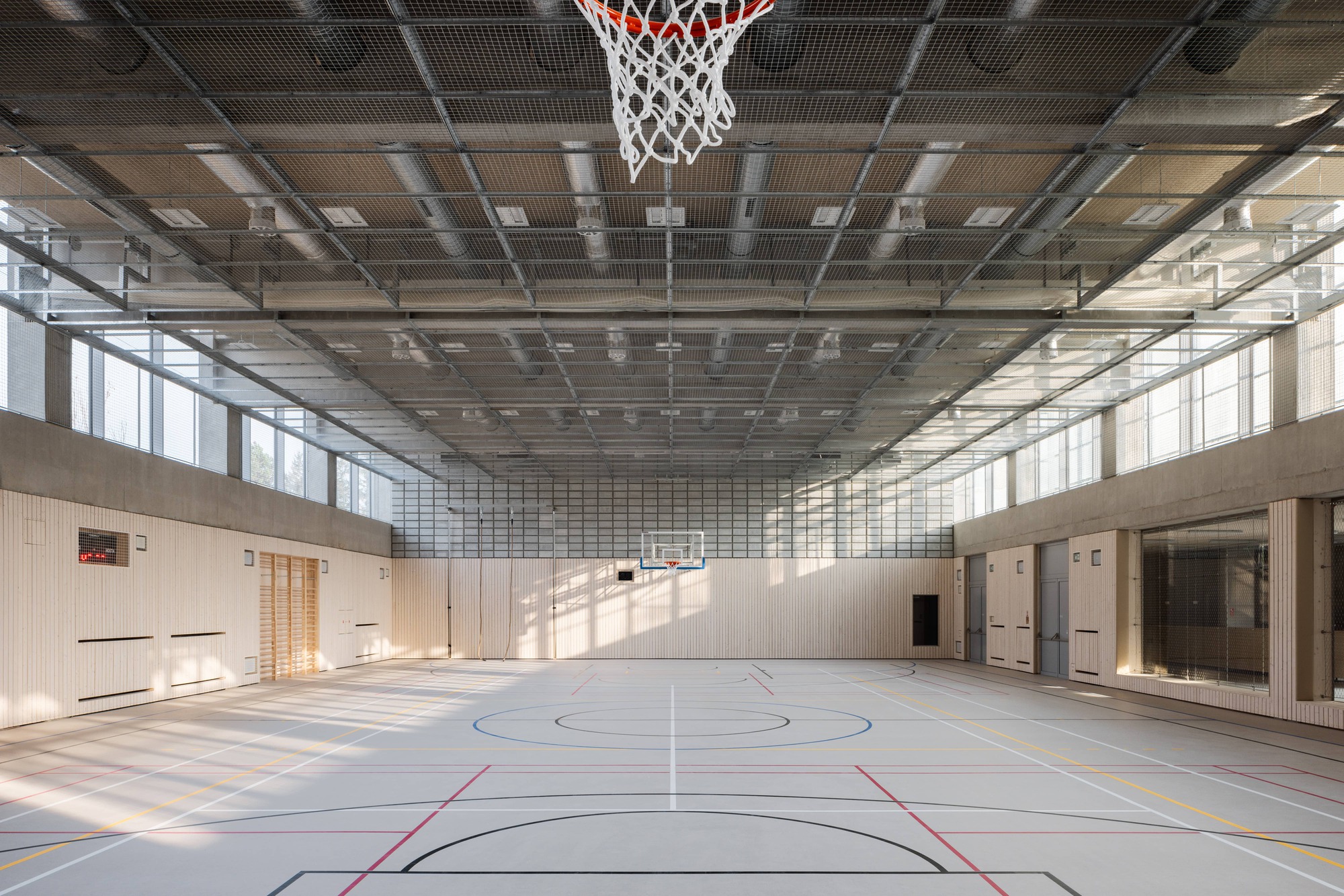

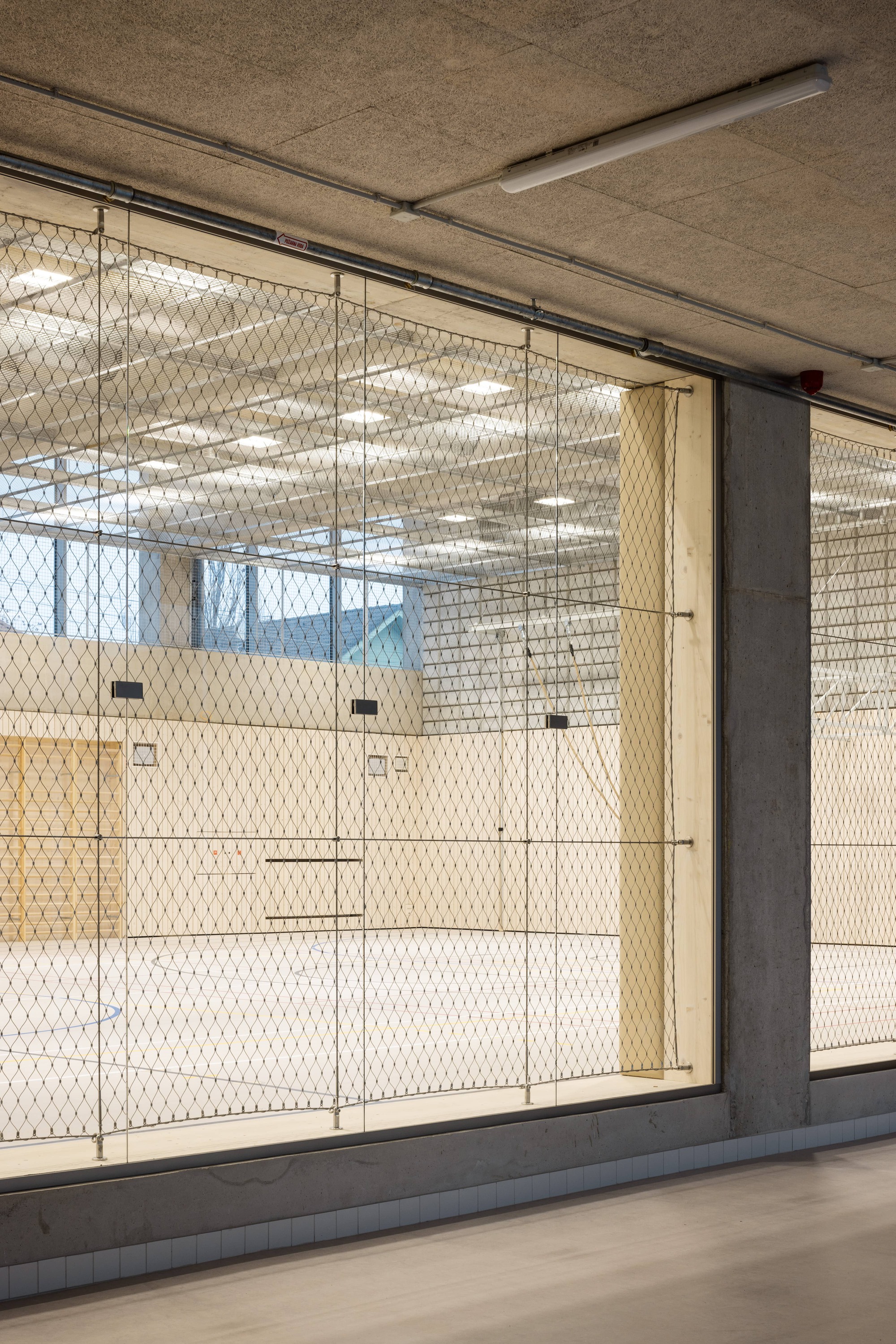

Both new buildings are built of reinforced concrete skeletons, which are flexible. The internal partitions are non-load-bearing, which is practical, especially for a school. The hall is roofed with prestressed concrete beams that are stiff enough to handle the function of the playground.

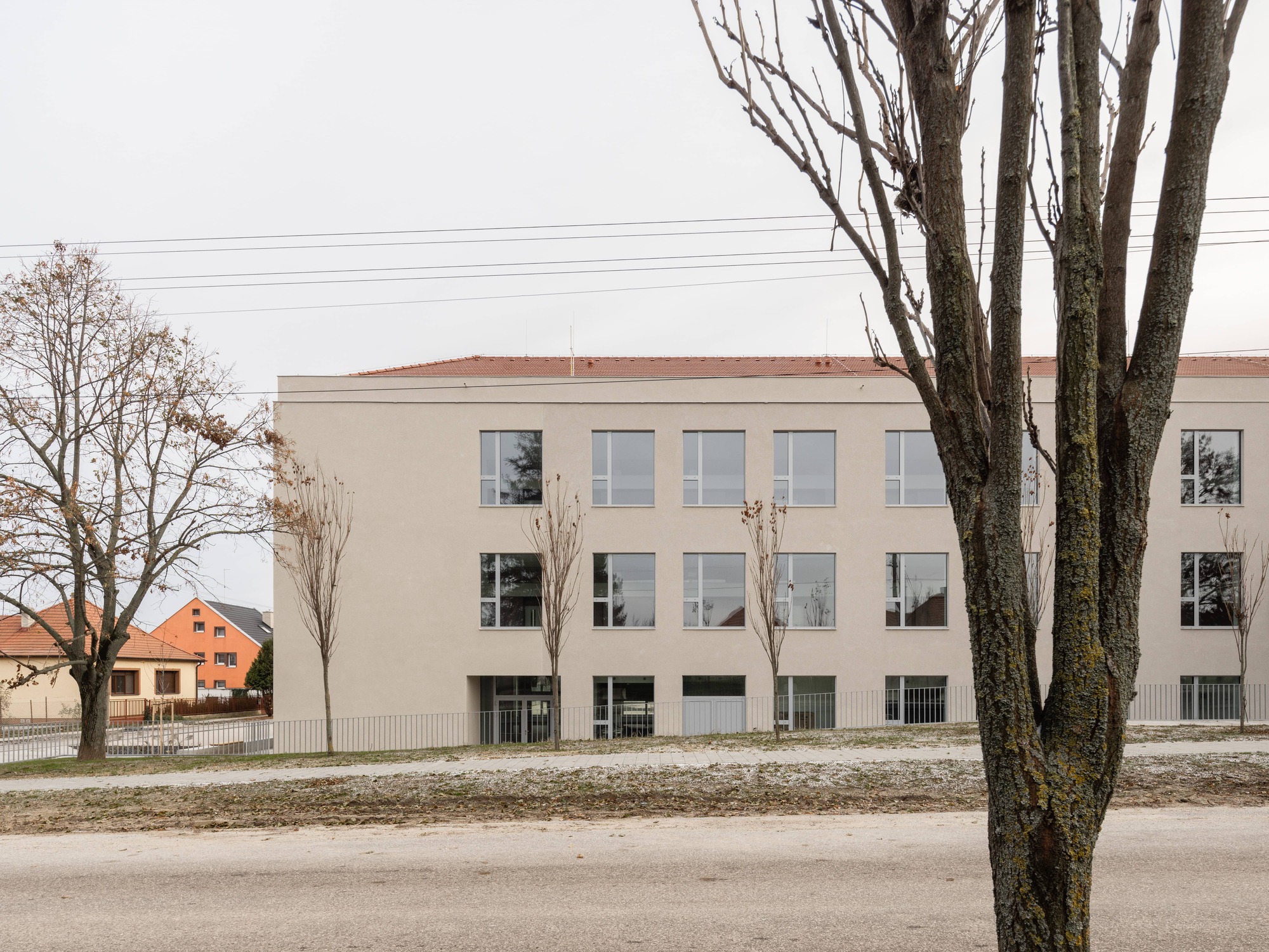

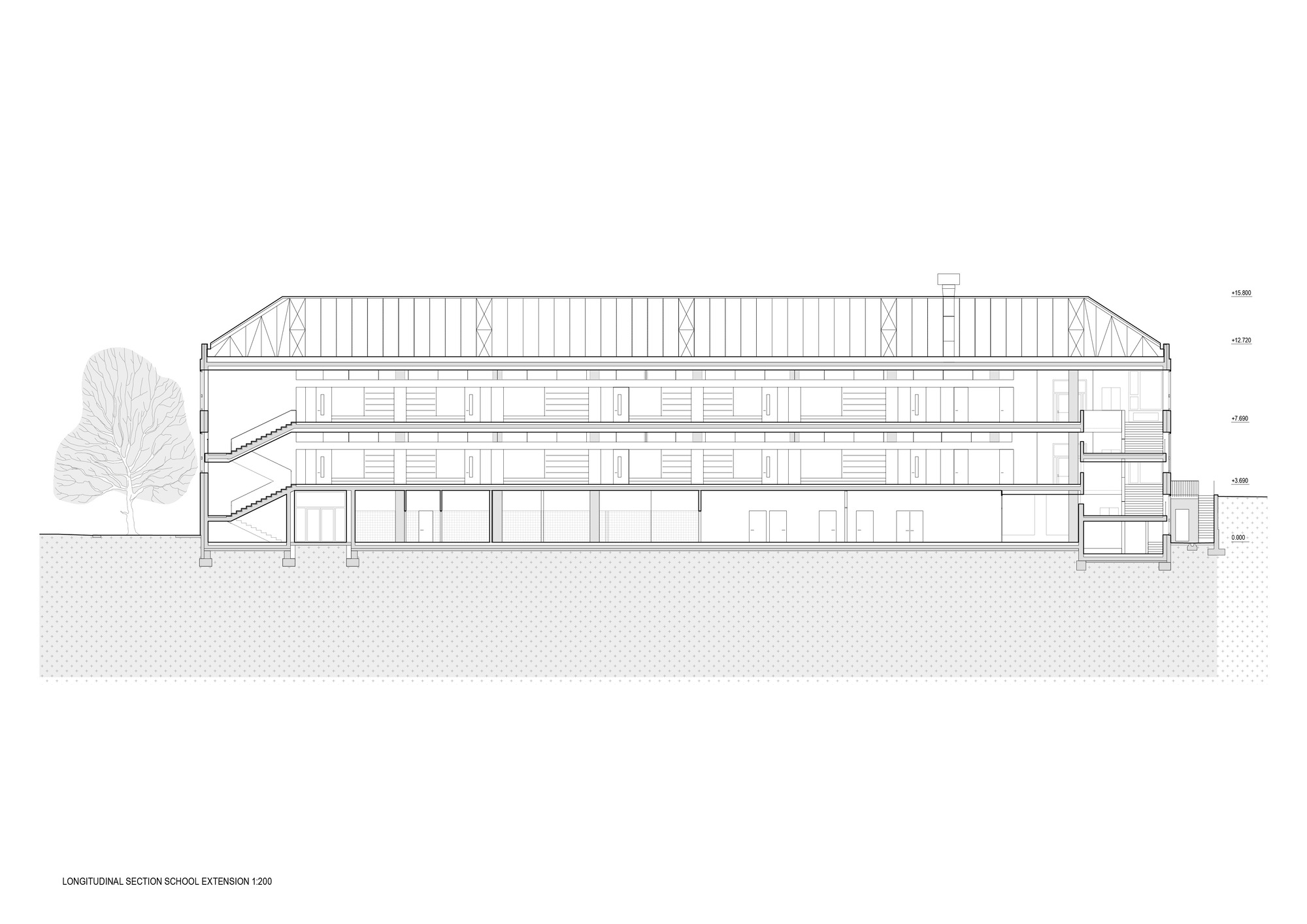

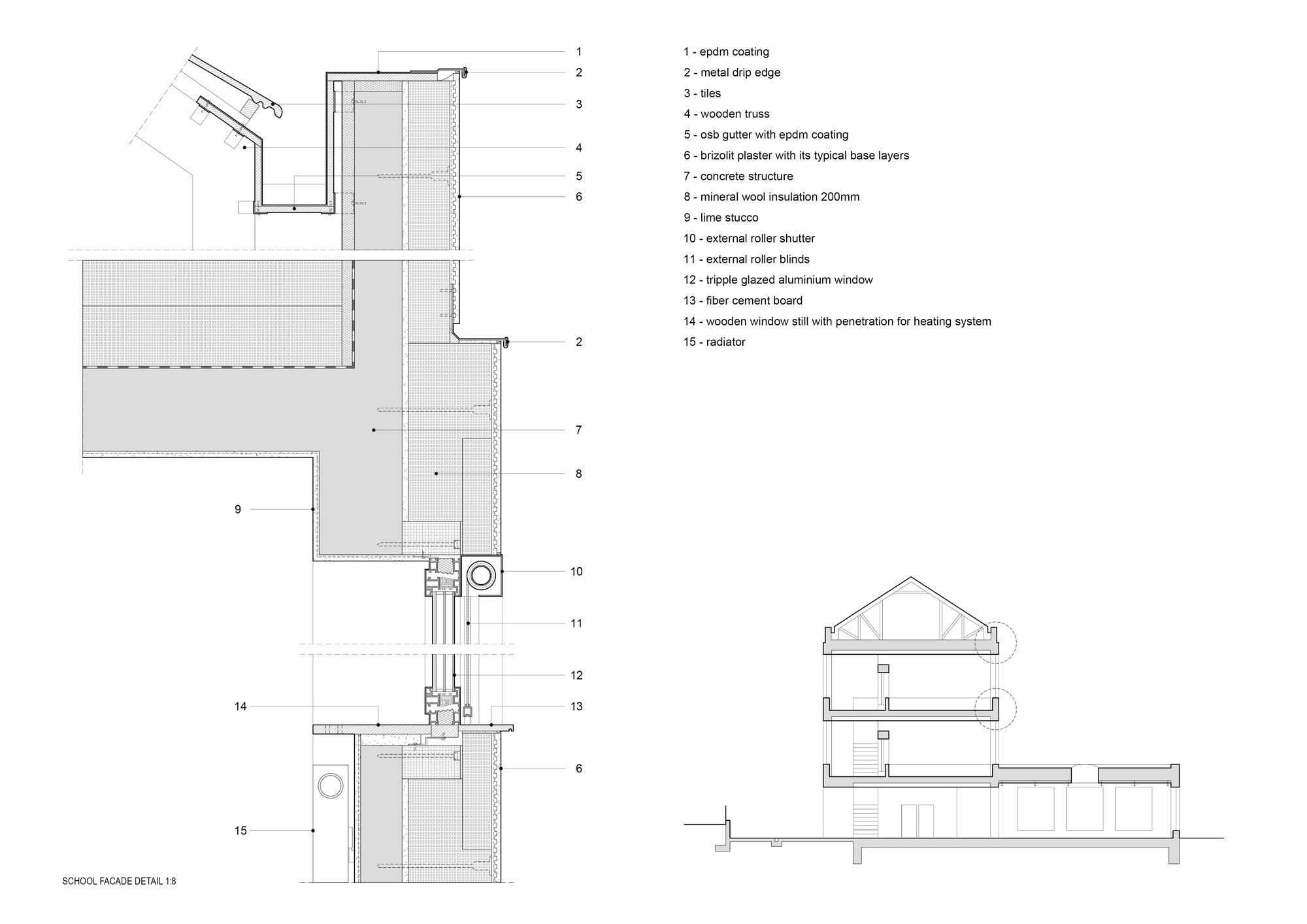

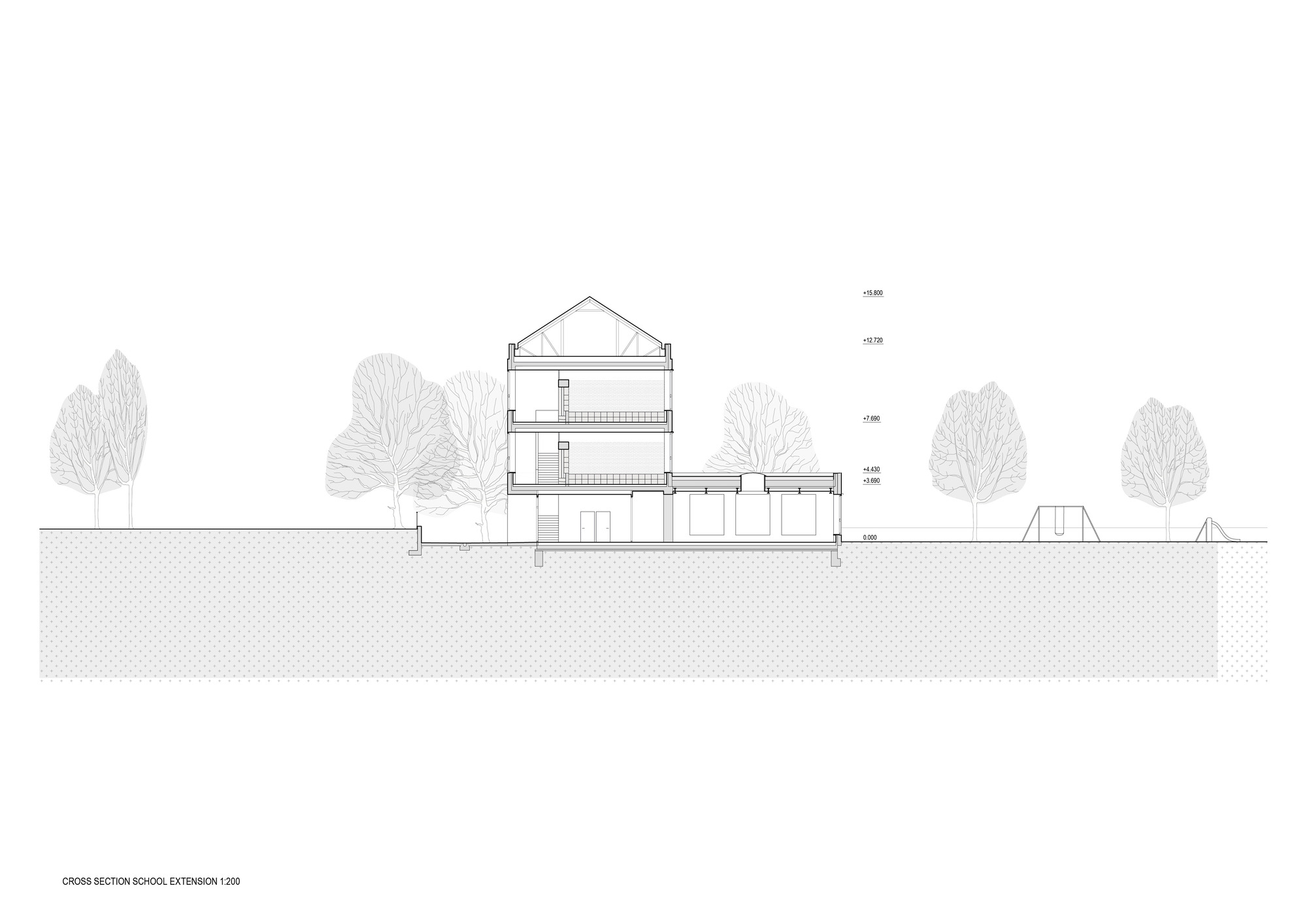

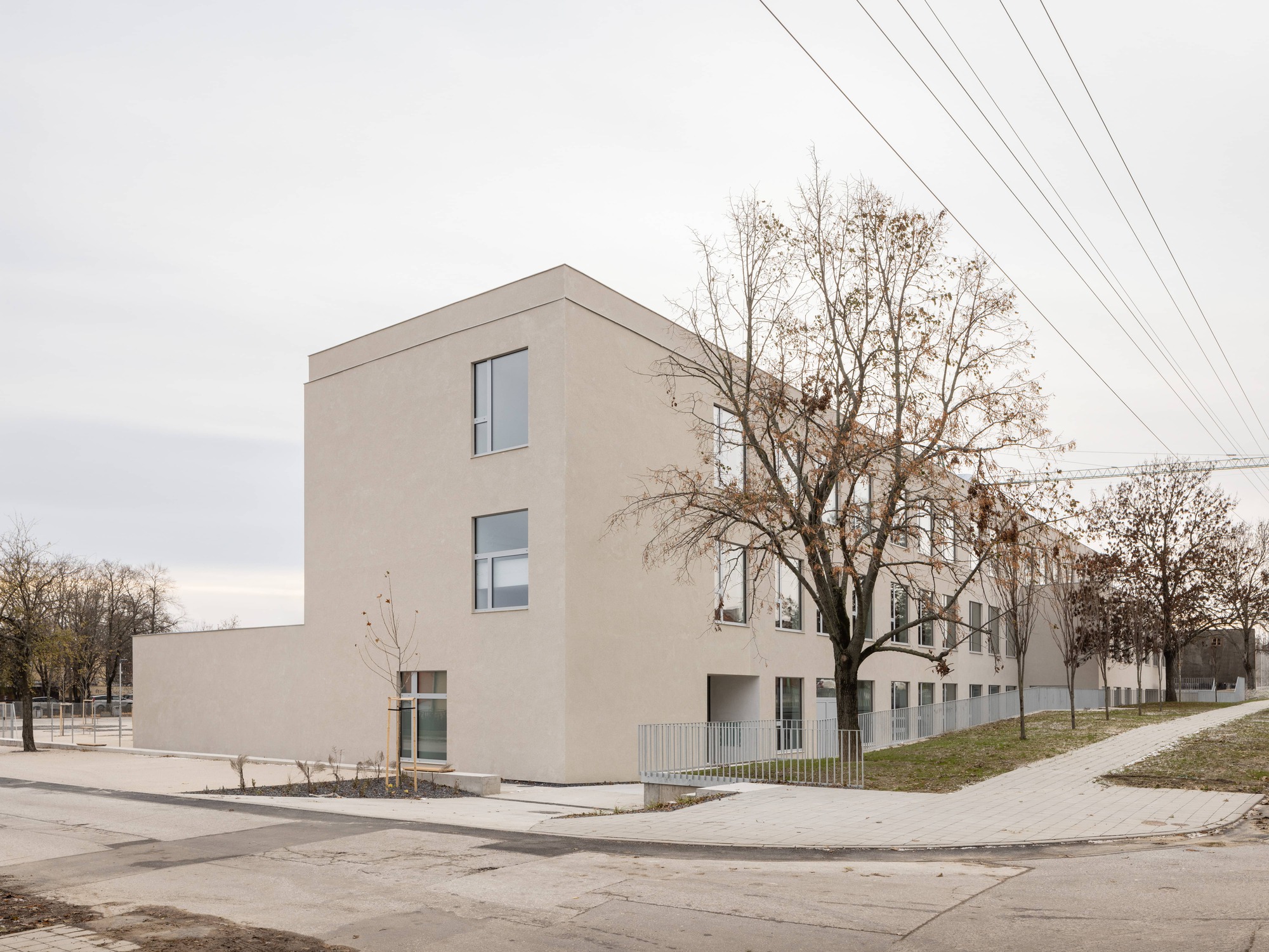

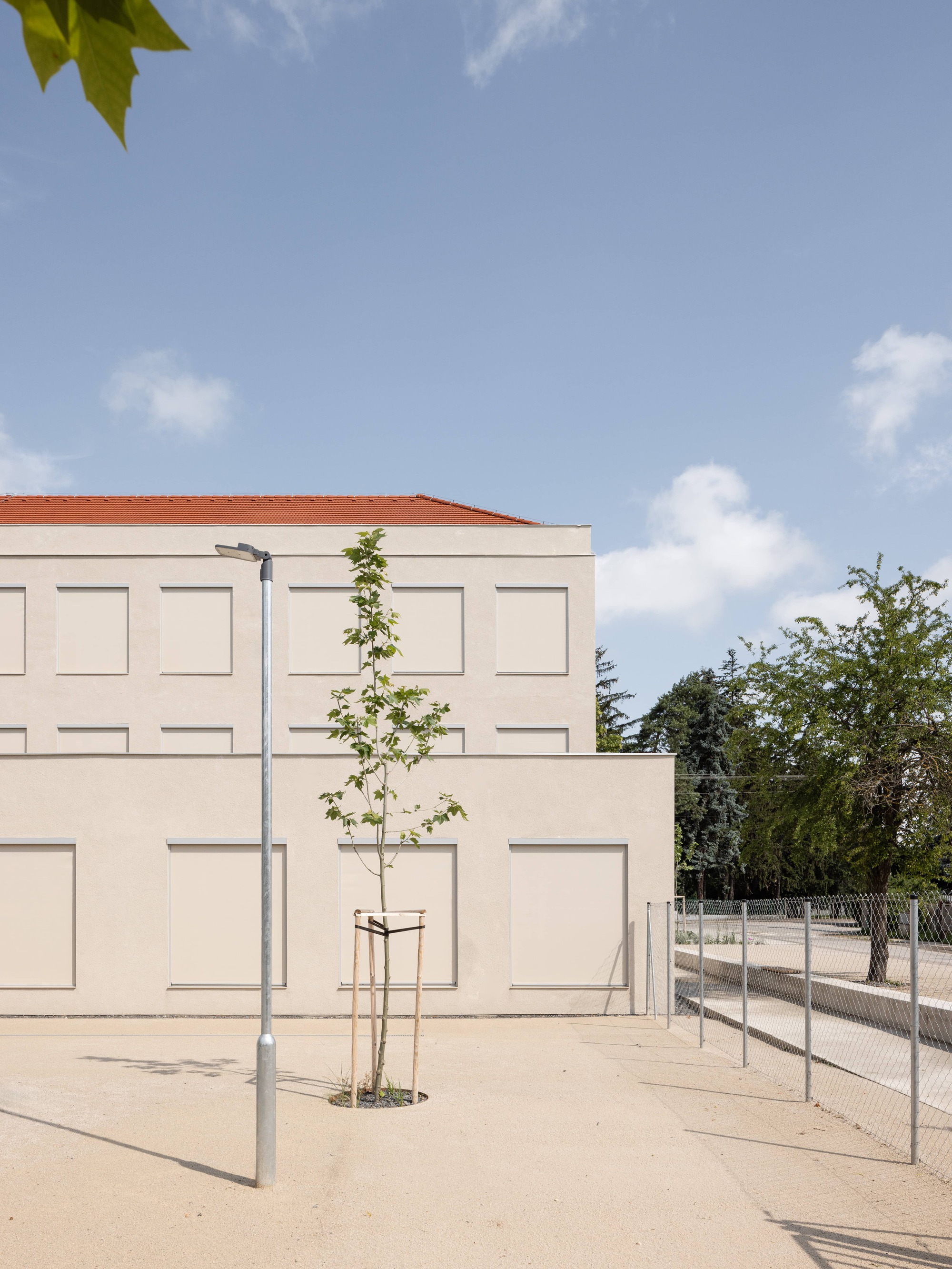

The new school roof is constructed by wooden trusses covered with tiles, just like the original building, whose figurative and material features it takes over - especially the group of three windows and traditional plaster (on mineral wool insulation) called Brizolit. The intention with school design was to appear quiet - similar to old building, without fashionable manners, while the period of its construction is evident from the nature of the contemporary details.

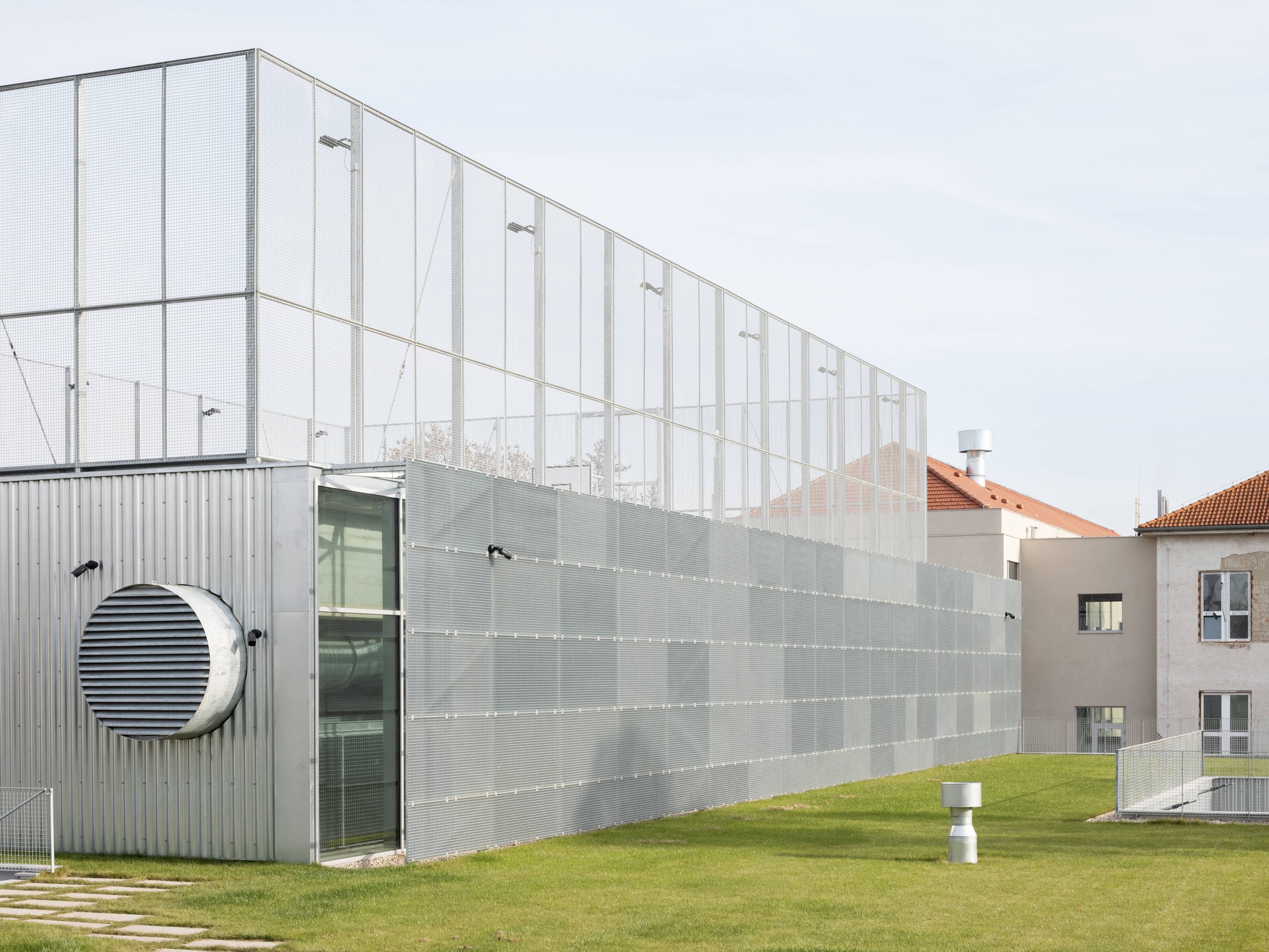

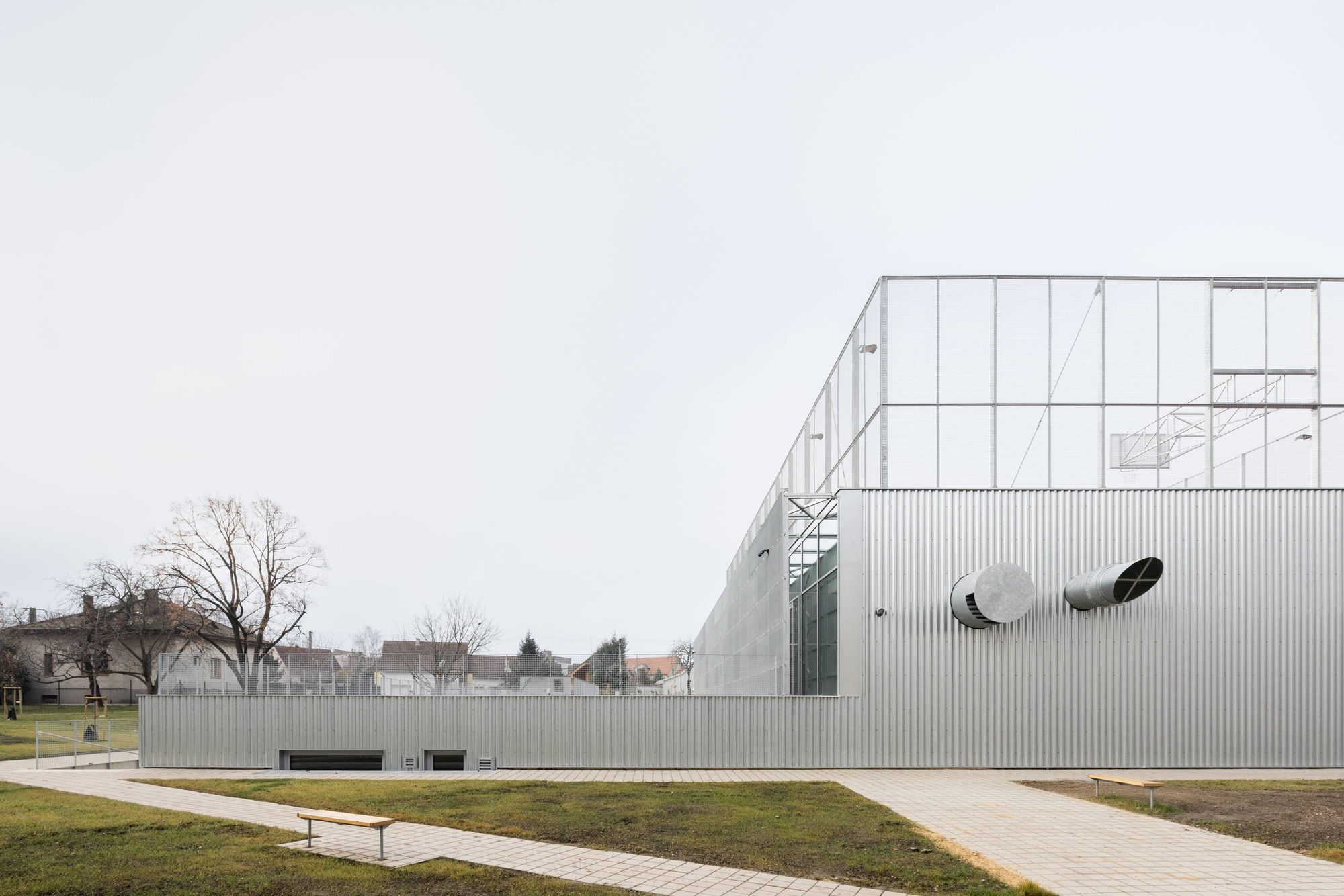

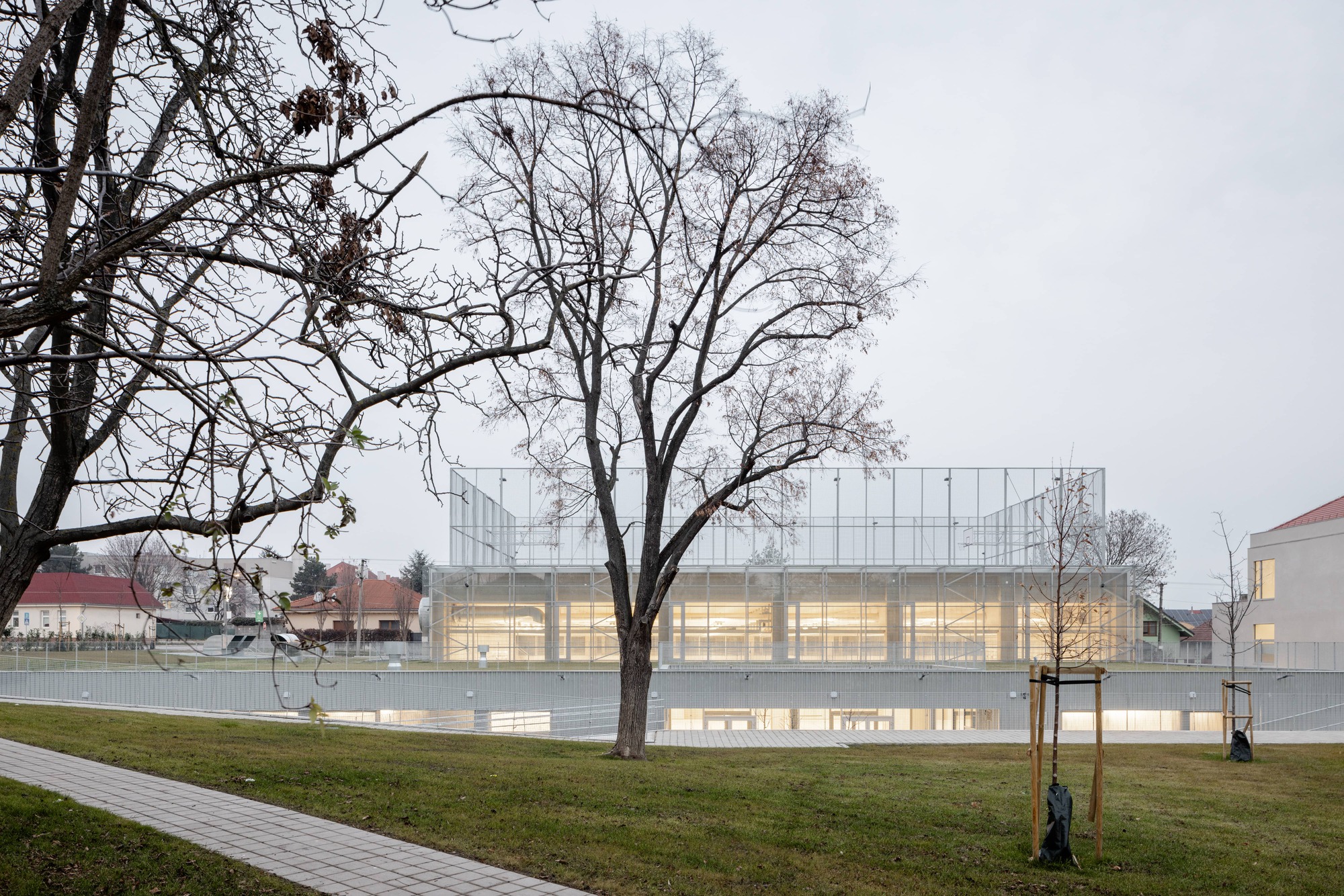

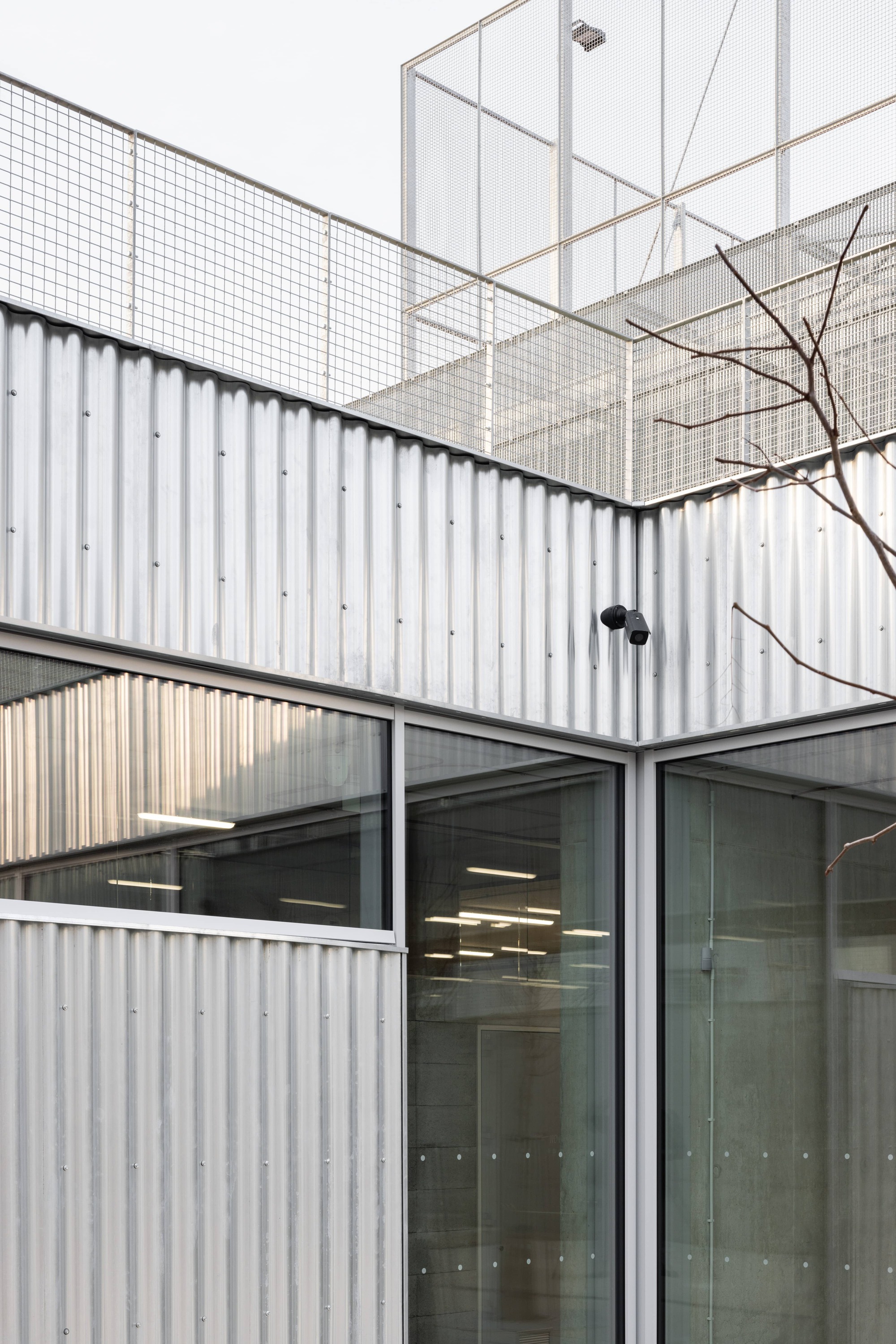

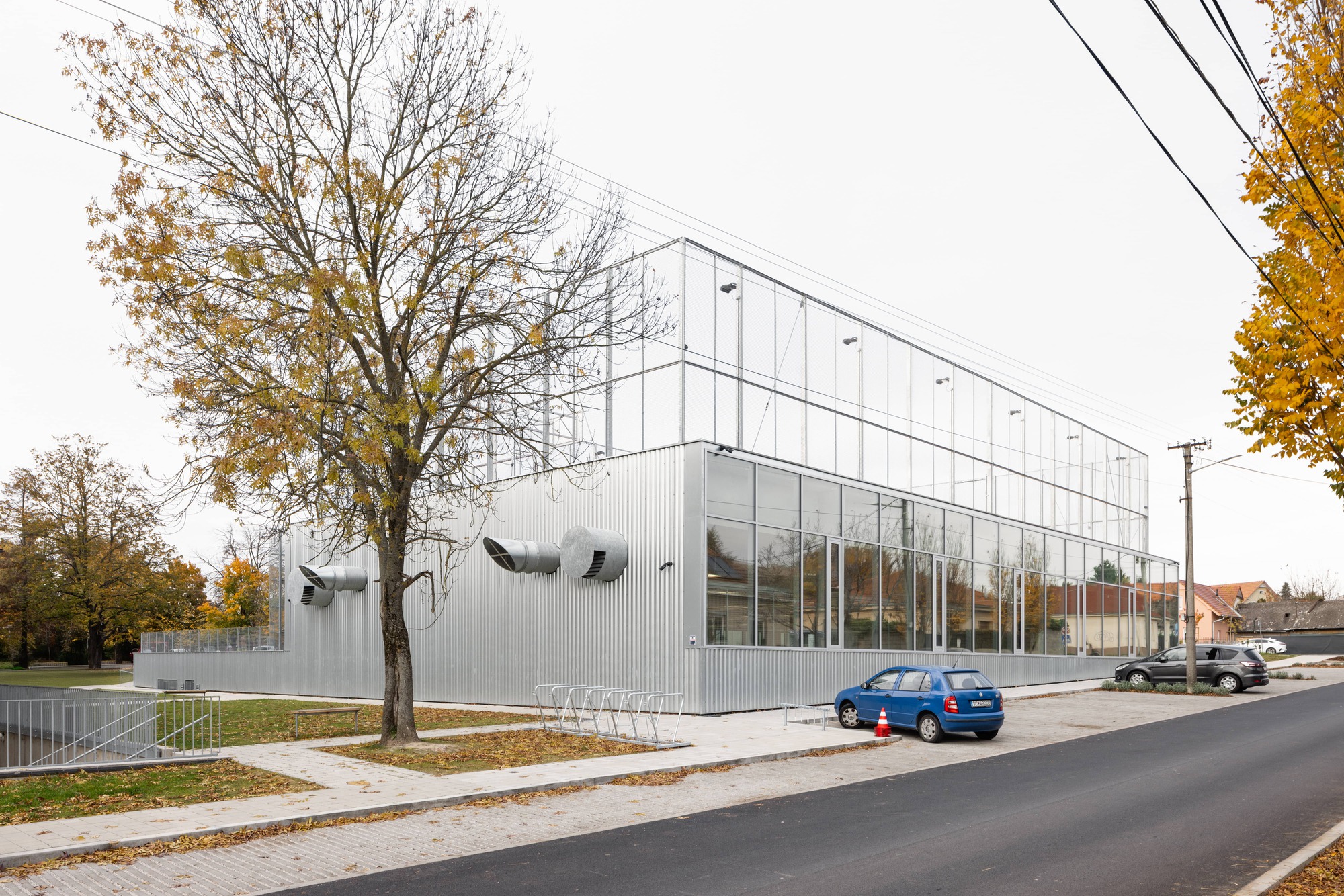

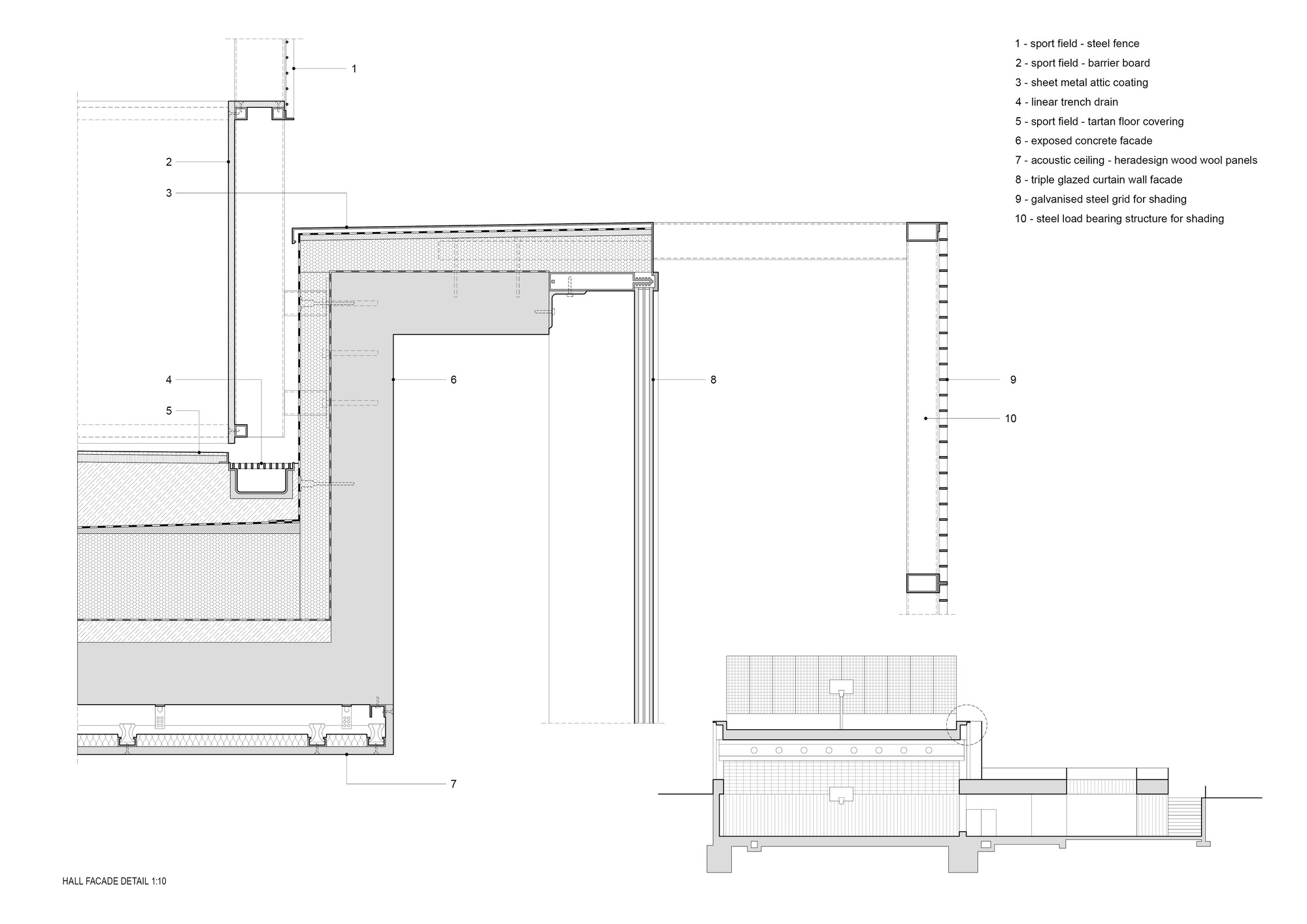

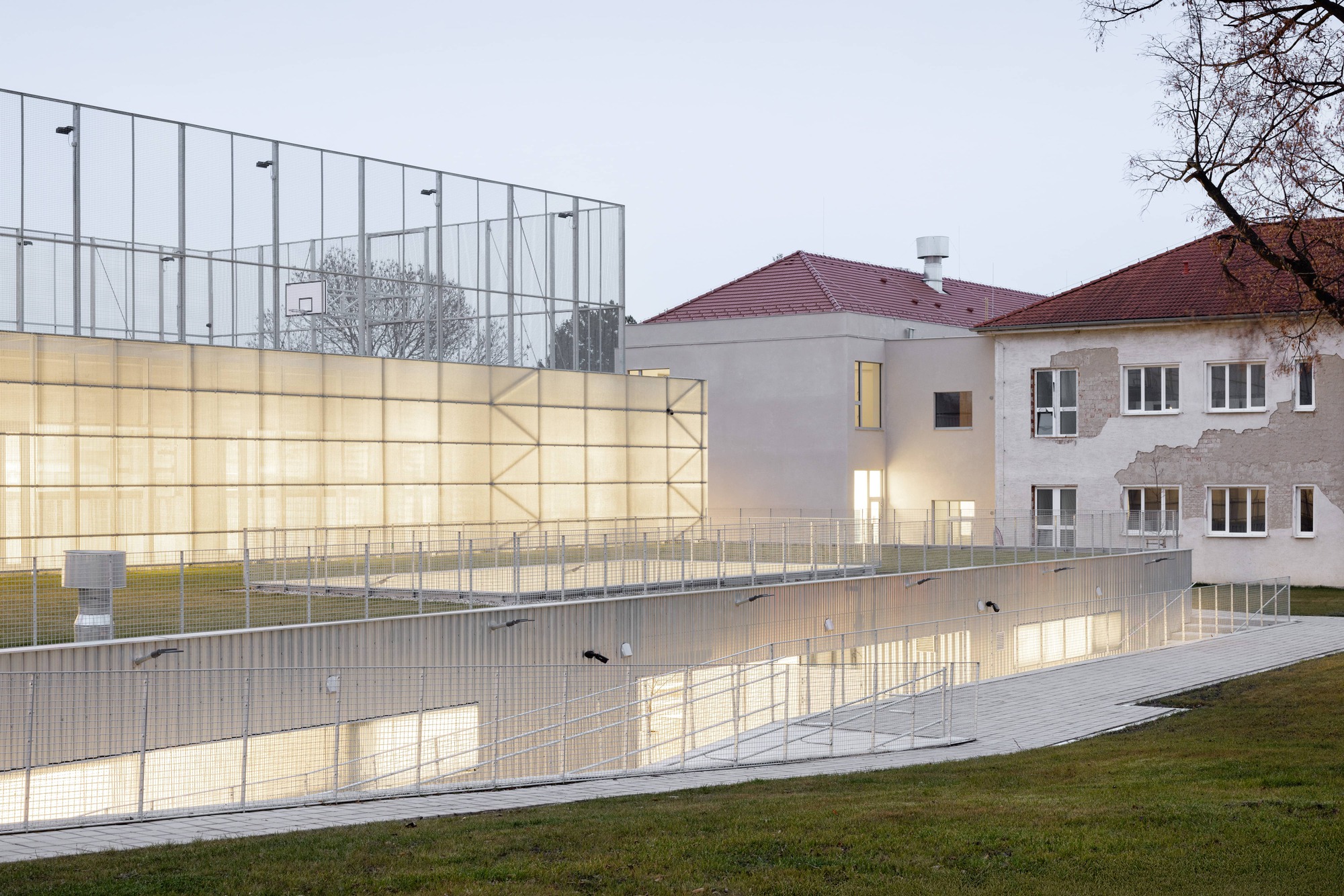

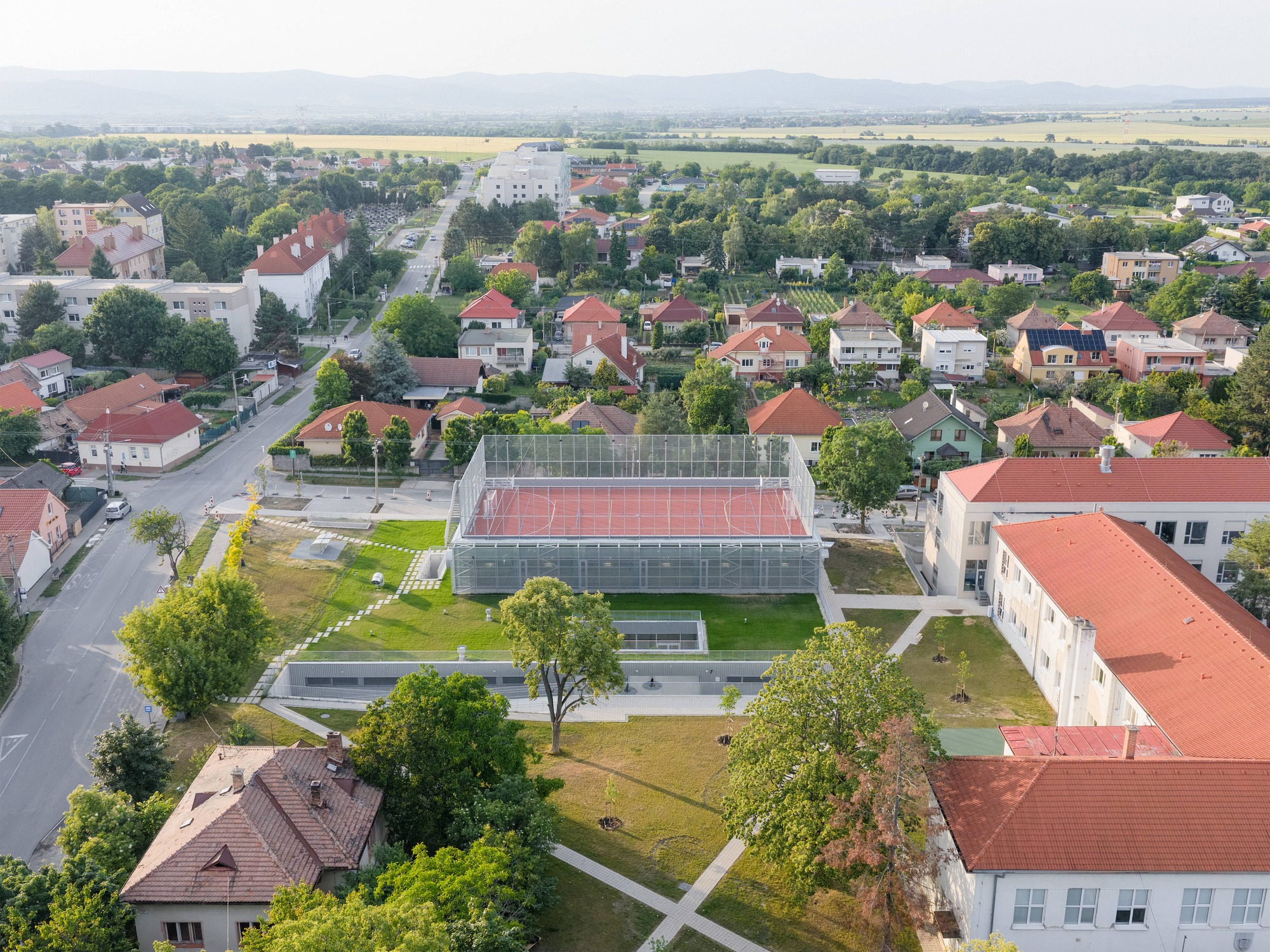

The hall figure is separated, and therefore its facade is different - industrial - made of corrugated sheet metal. All materials of the hall are left in their natural color and texture. Its green roof is irrigated with collected rainwater.
