梦幻体育场度假村

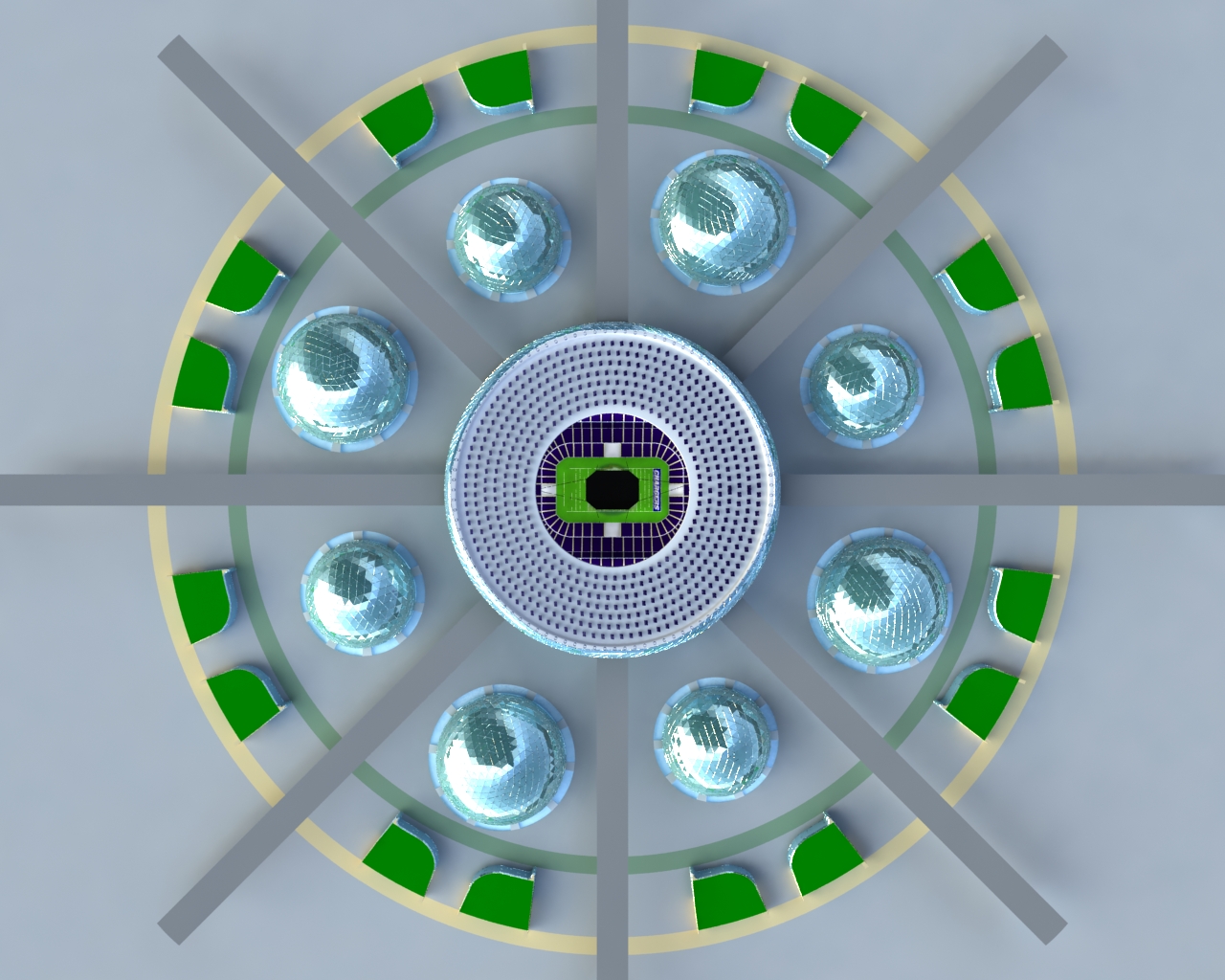

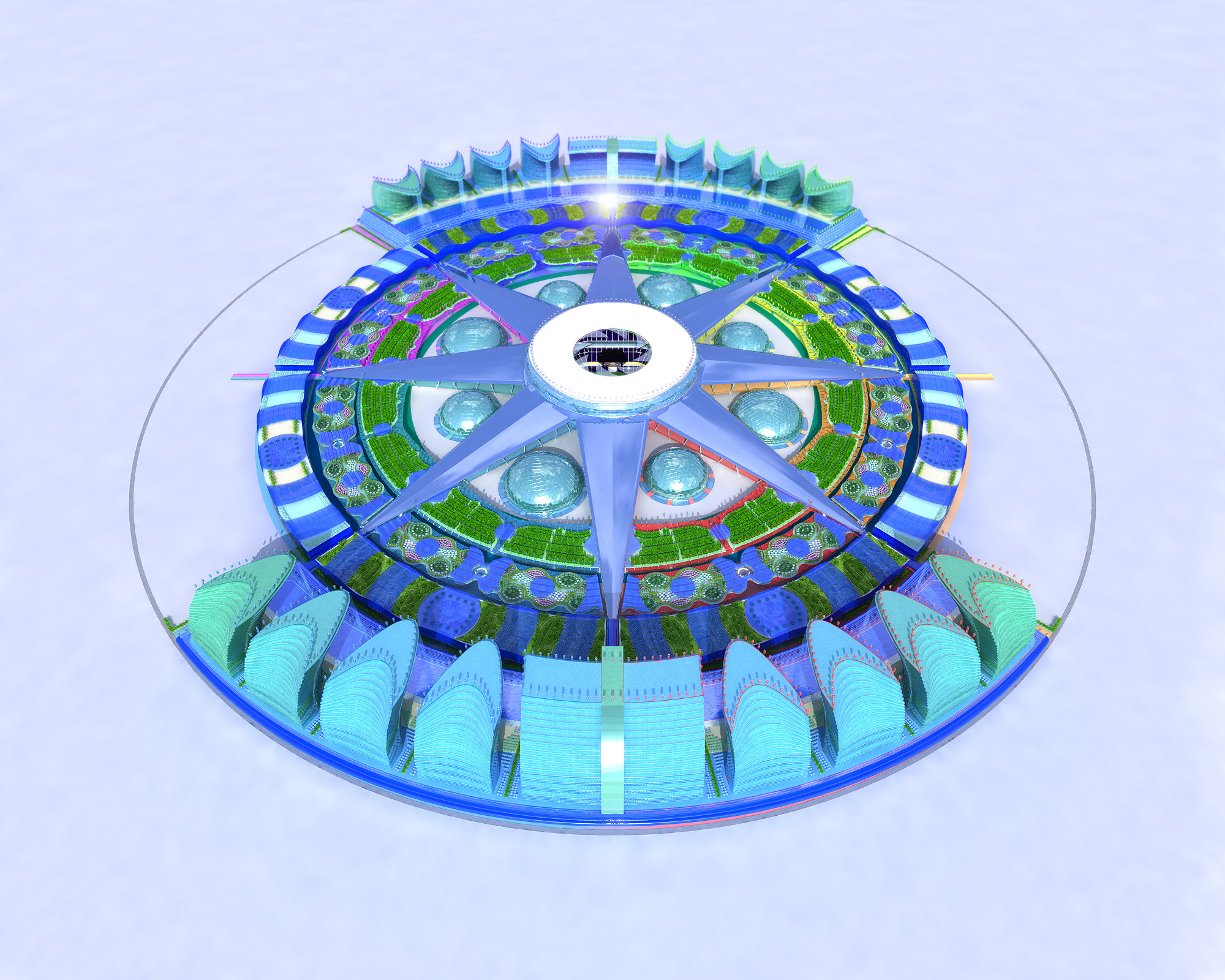

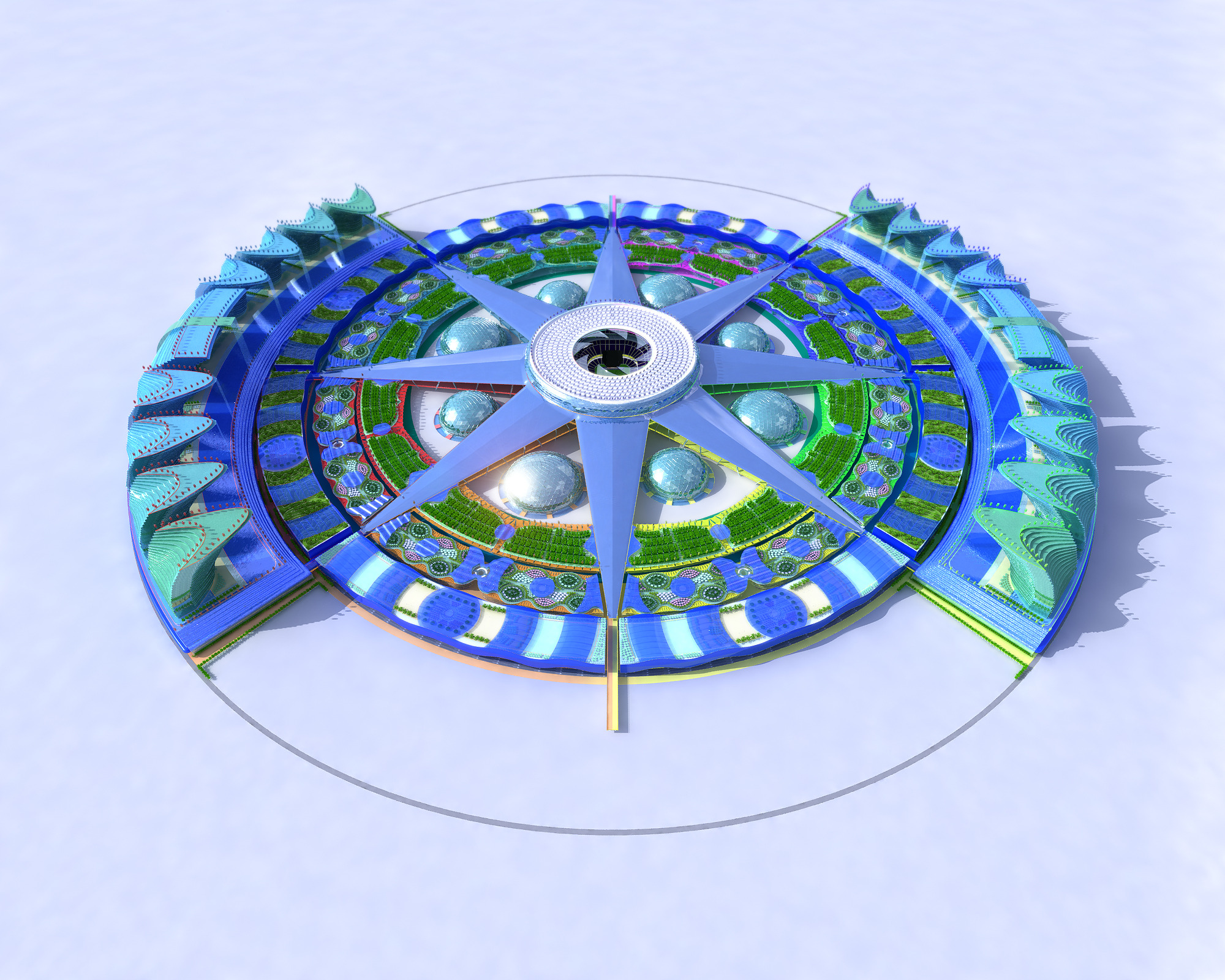

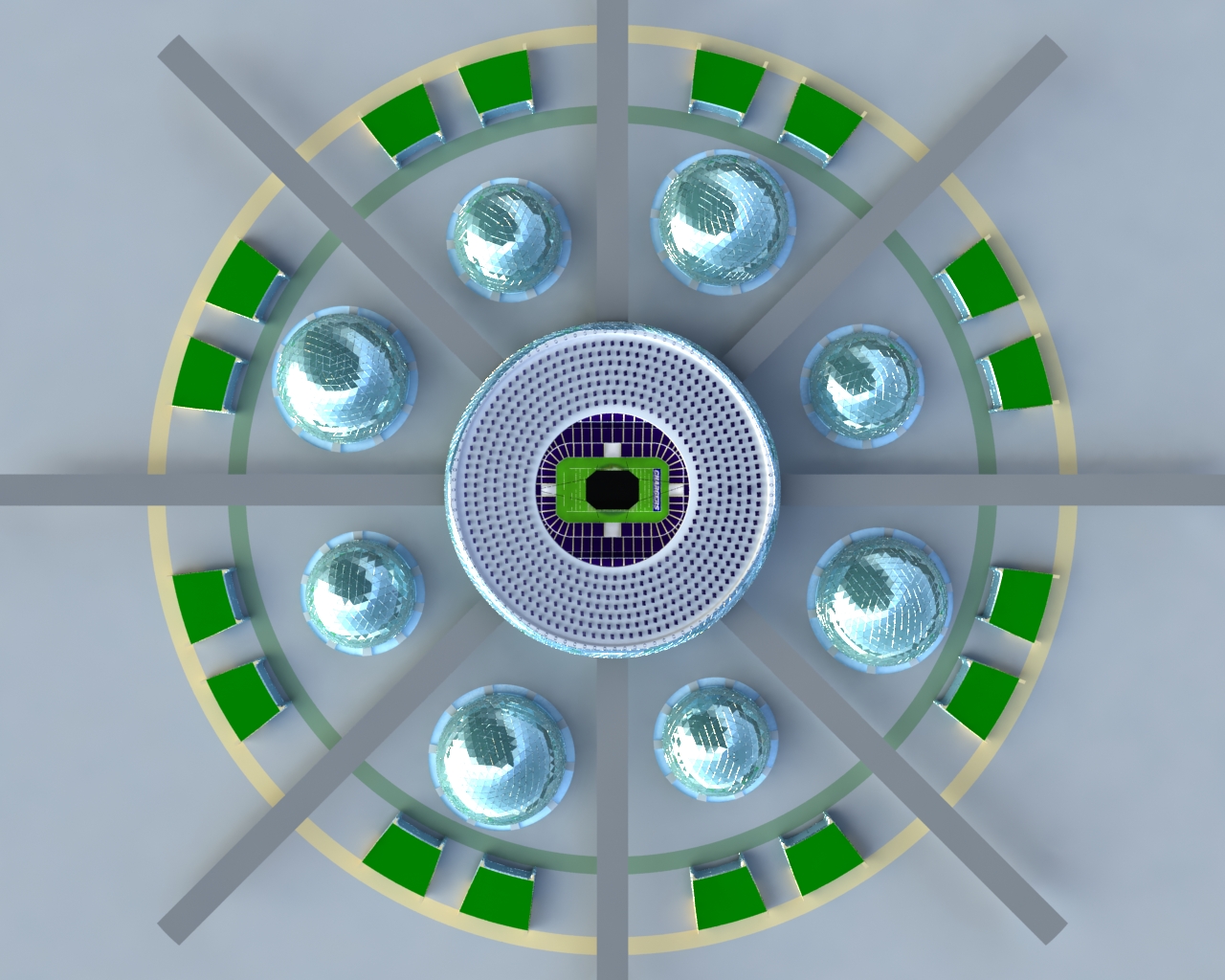

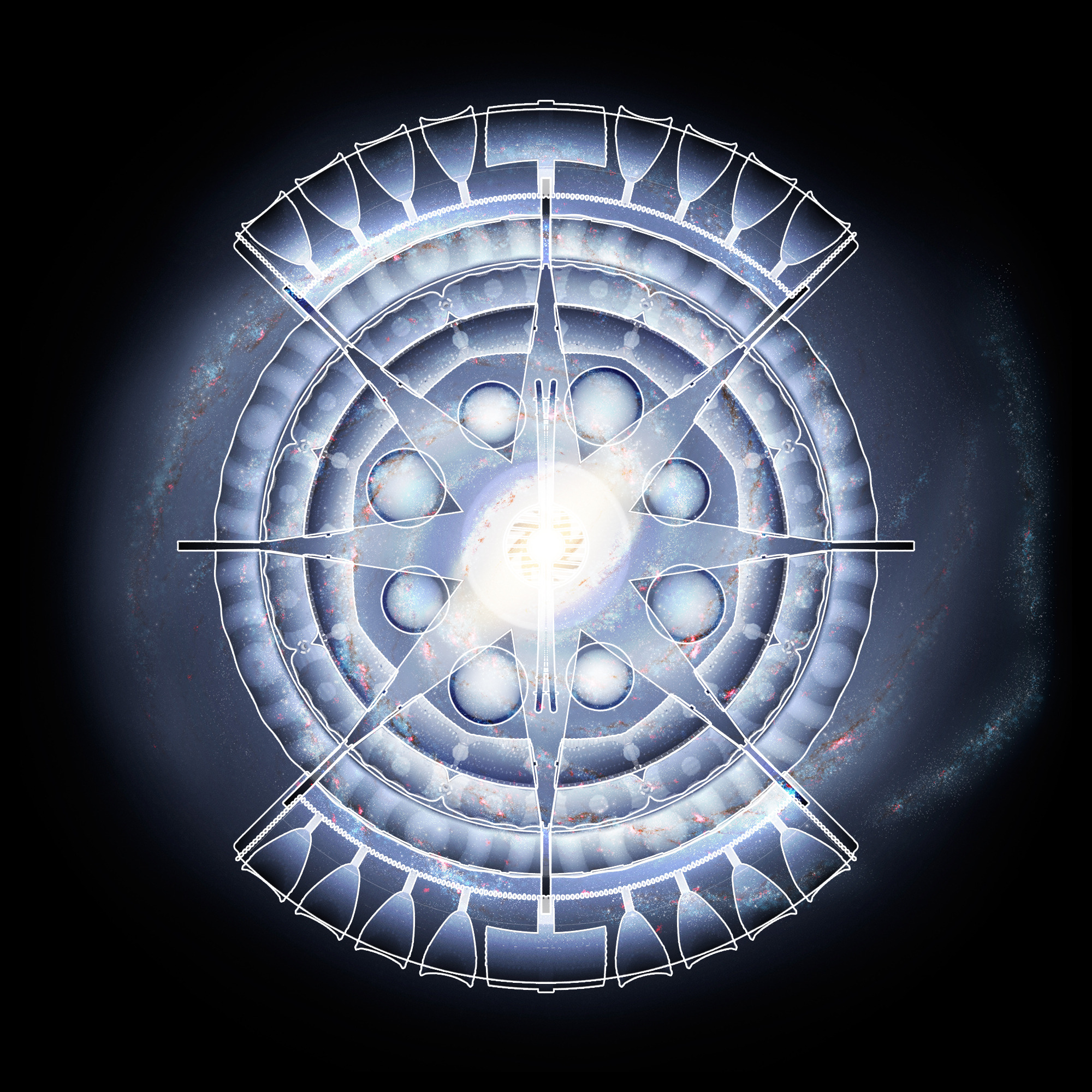

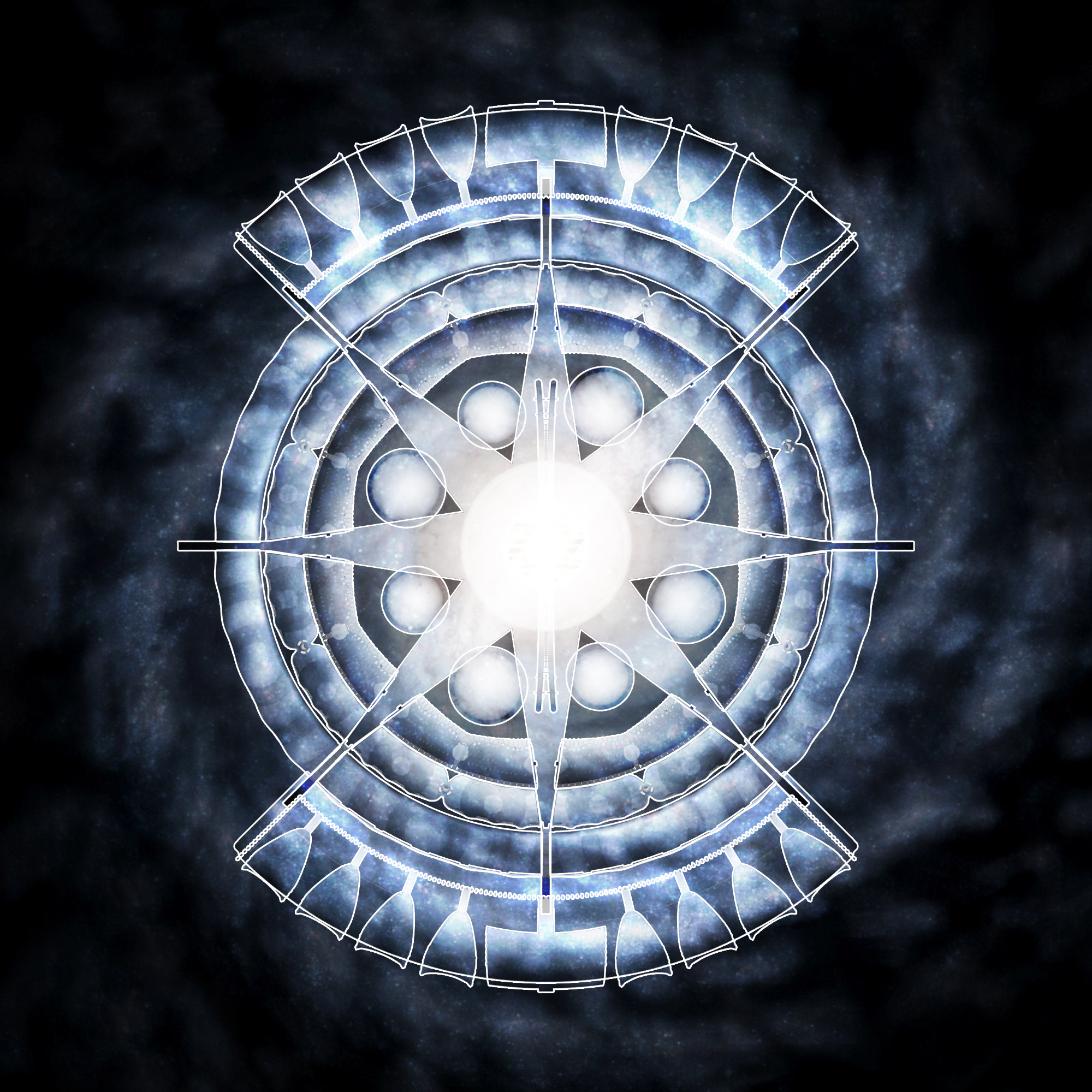

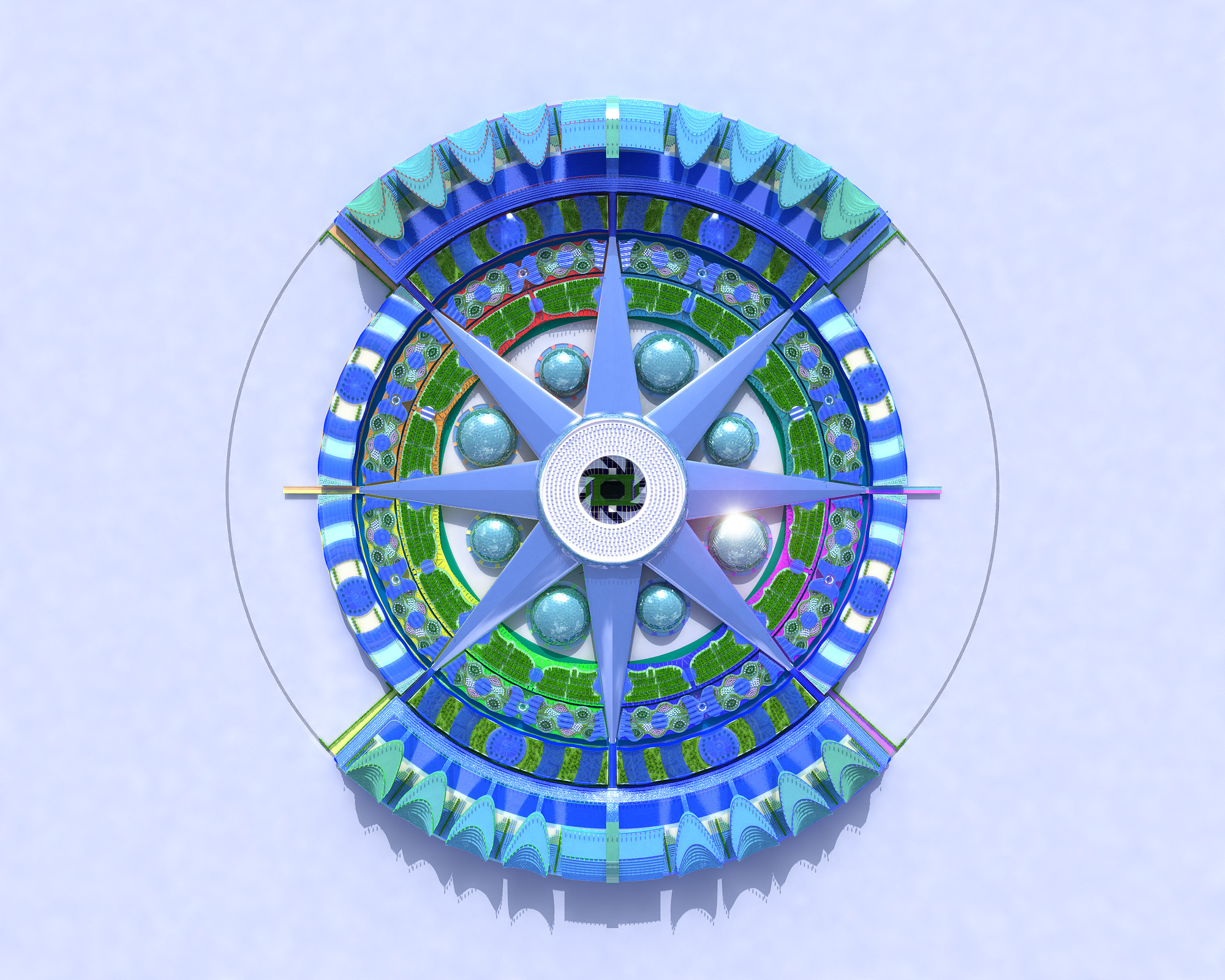

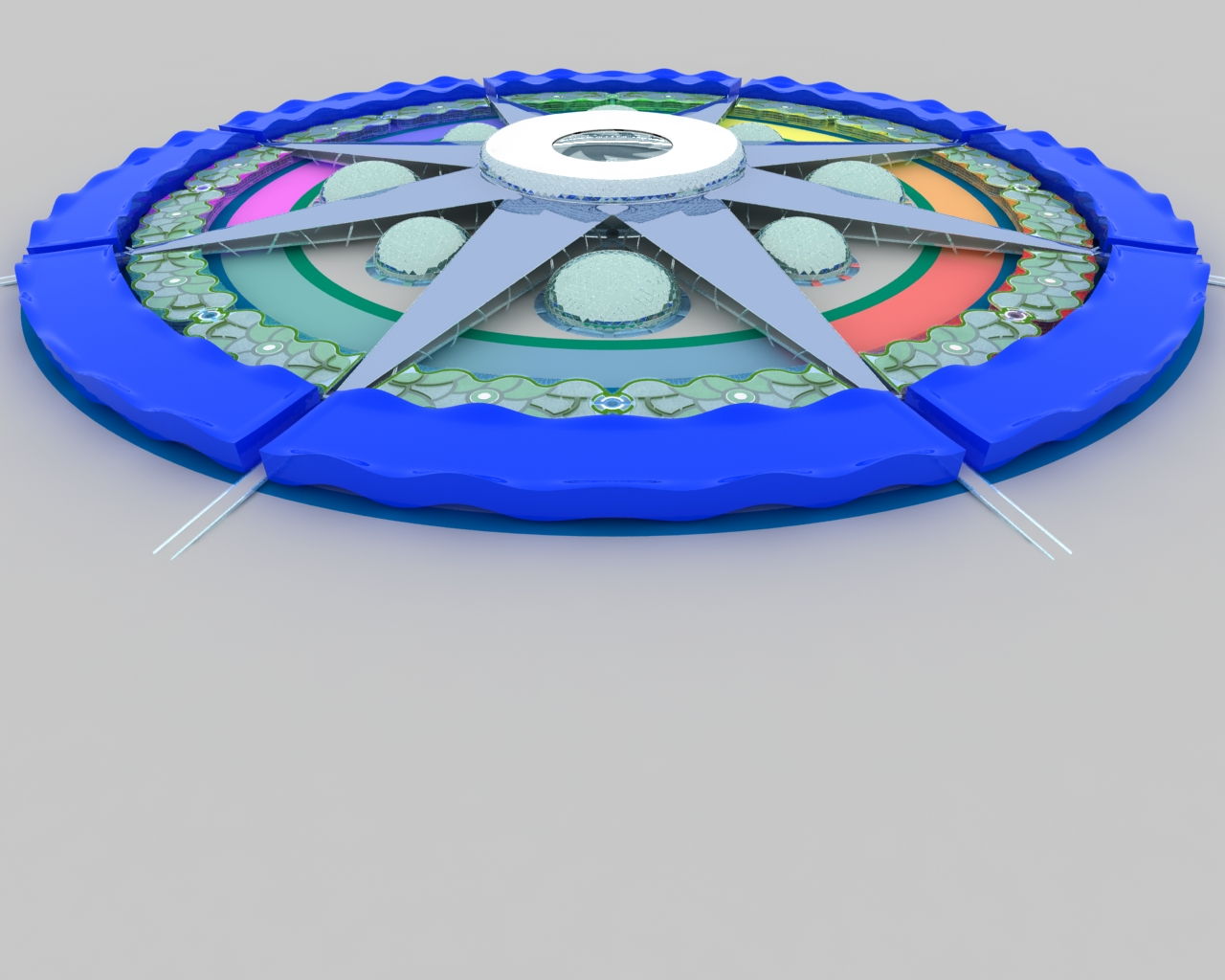

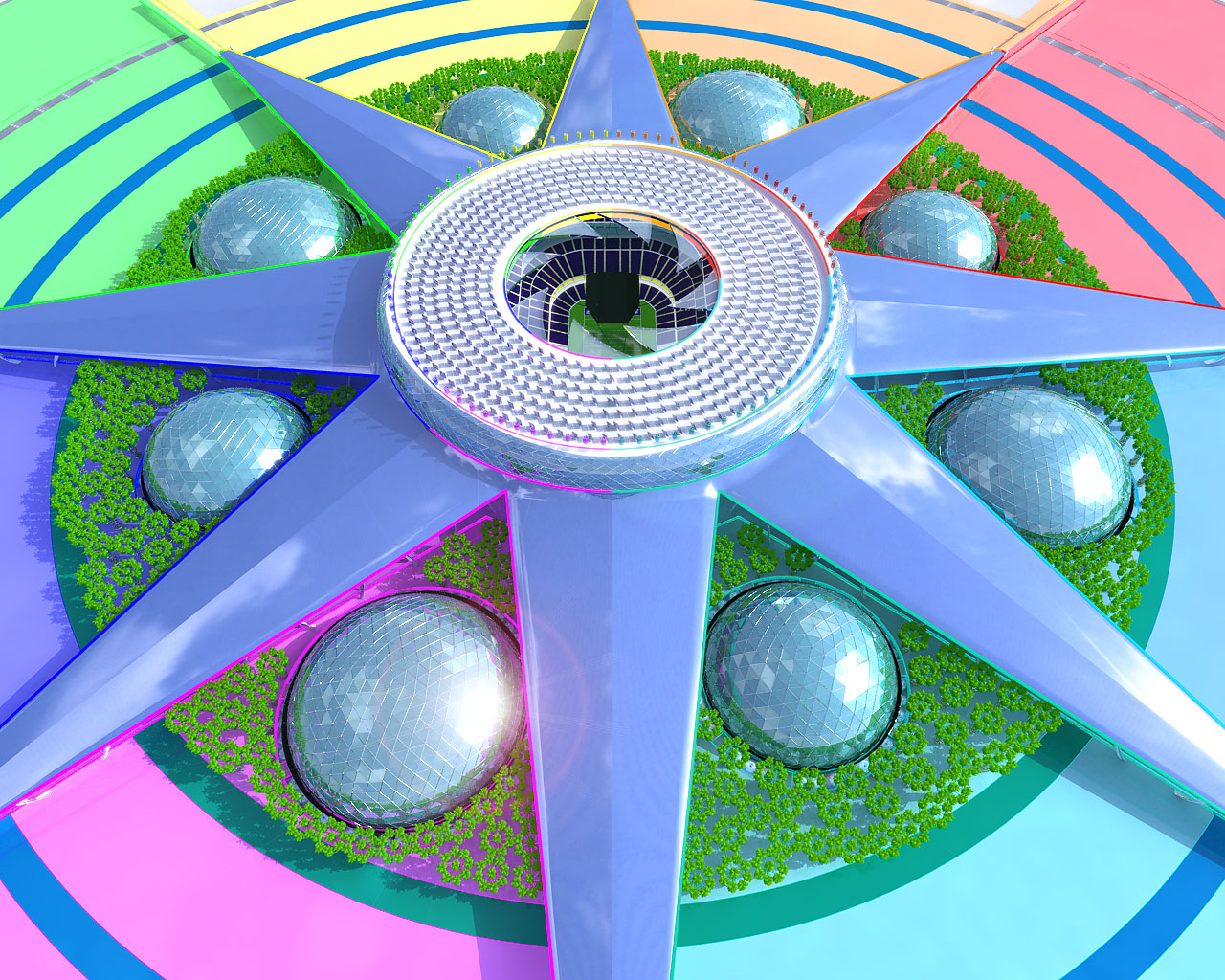

Masterplan.

Stadium massive ’Shutter’ glass roof, Solar panels and Wind turbines. Arch will be added at a later design stages to help support the roof.

Bridges connects with a Stadium. Waterfalls around the Stadium go through the Bridges. Stadium itself stands in a huge pool/lake. Fresh breath from the water. Huge circular curved screen will be added onto the Stadium between the Bridges and the Roof.

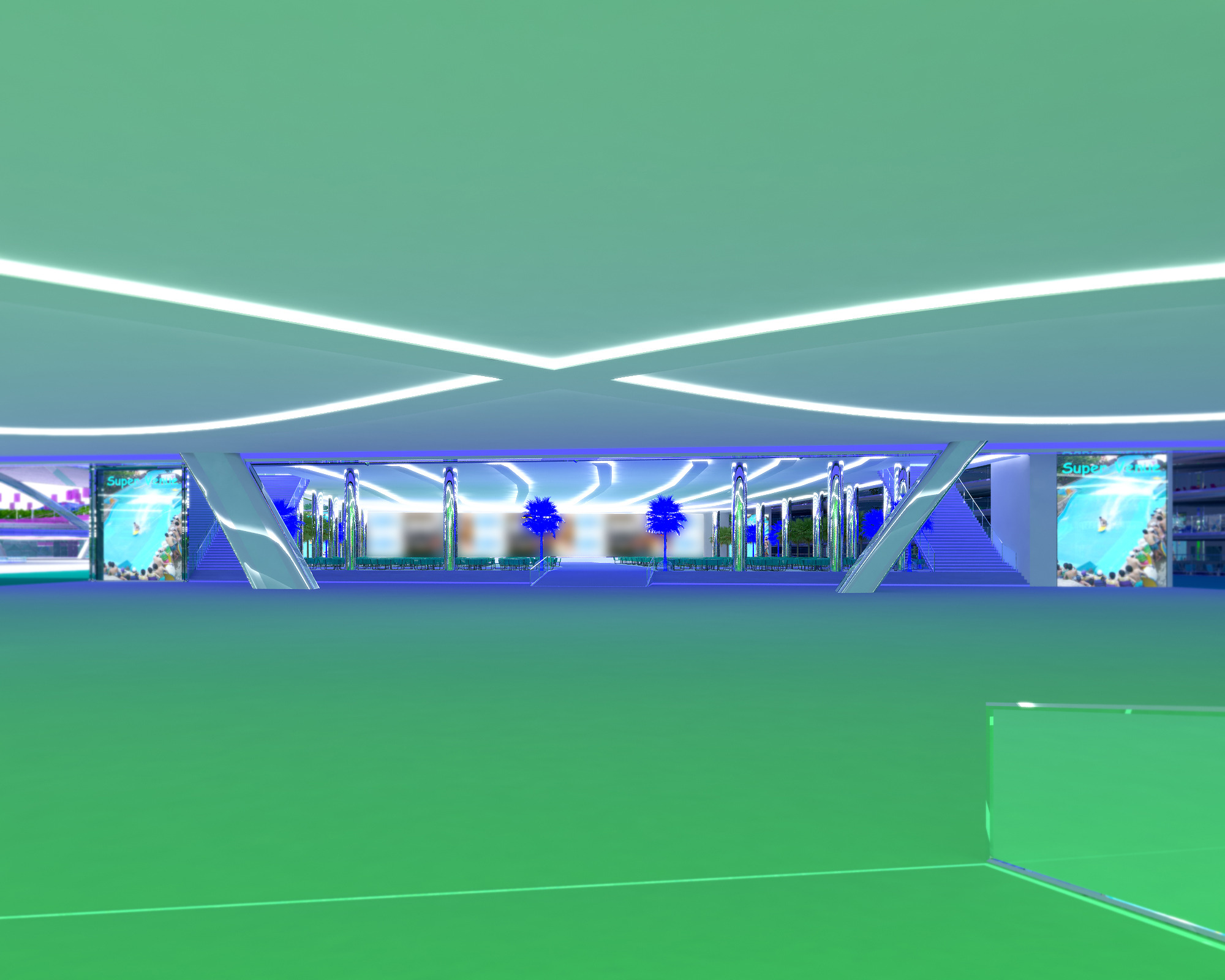

Stadium Interior.

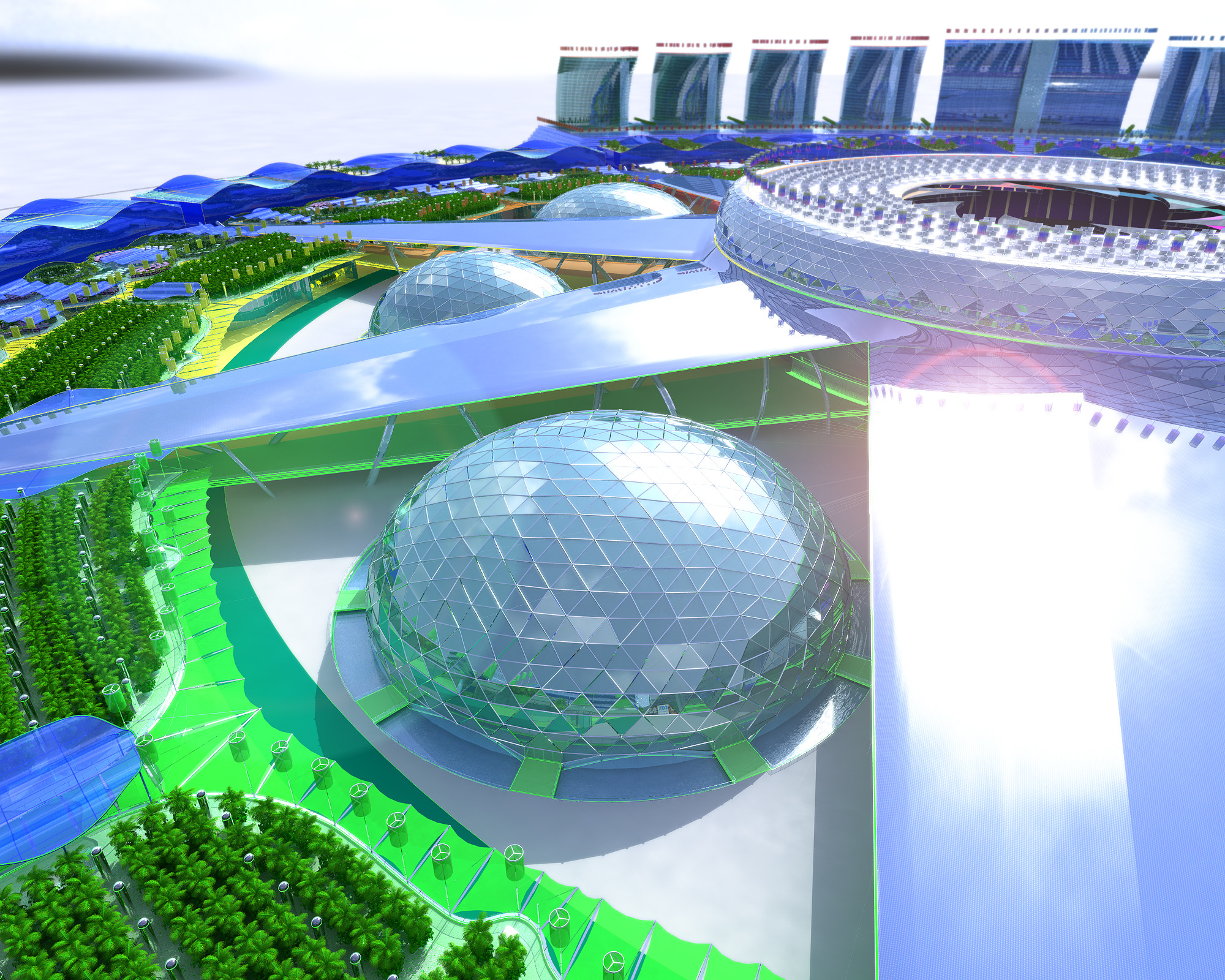

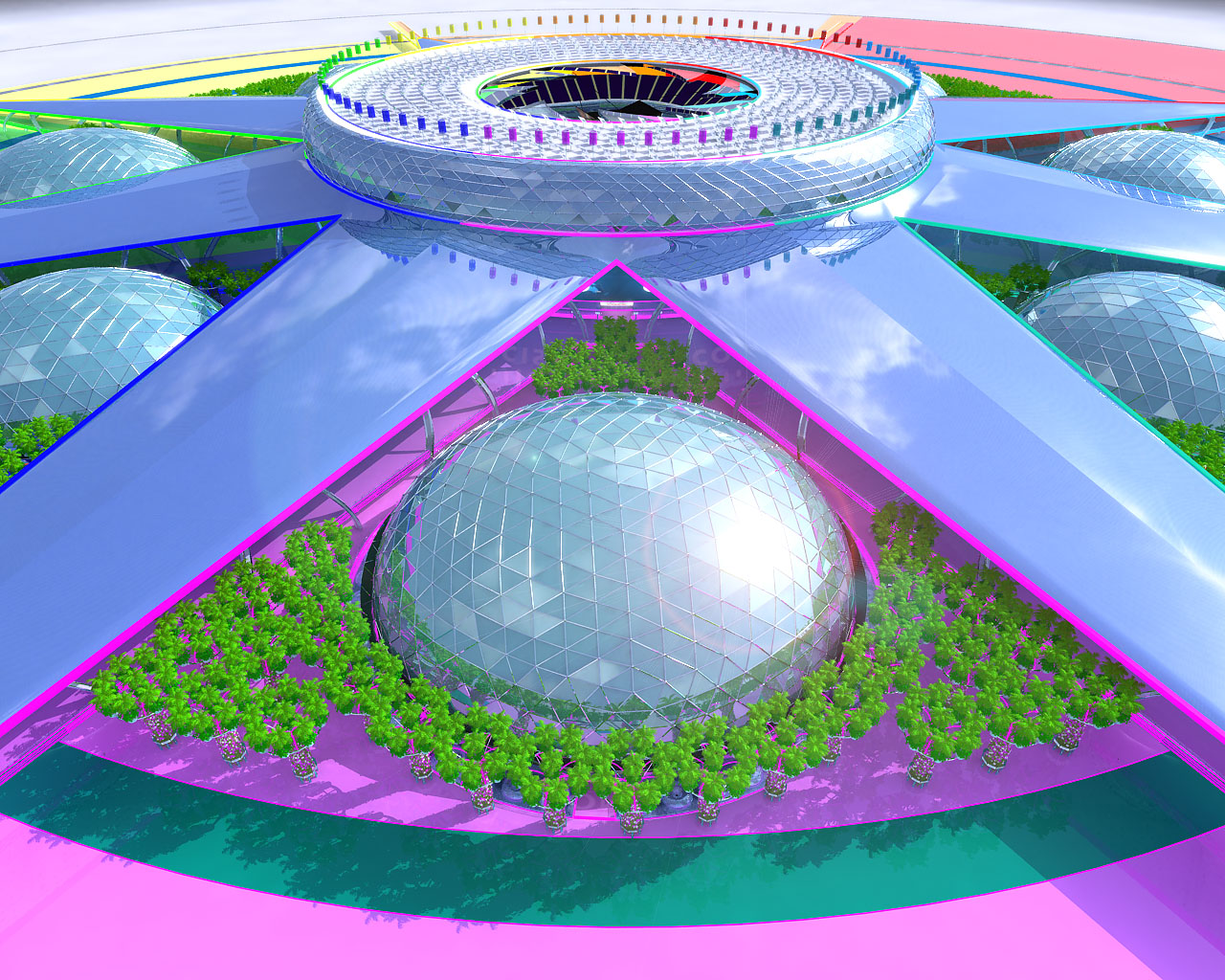

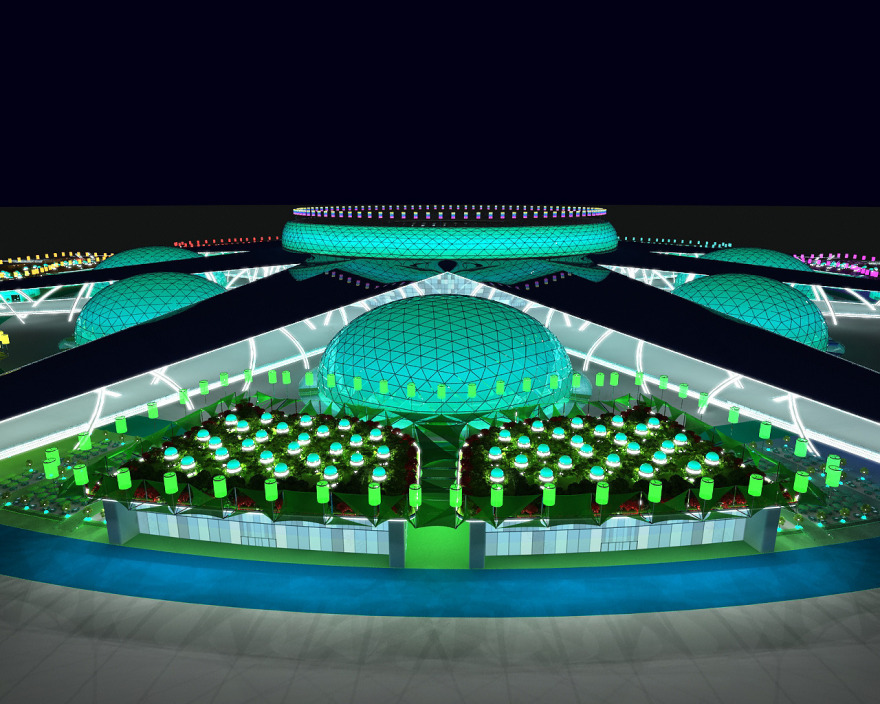

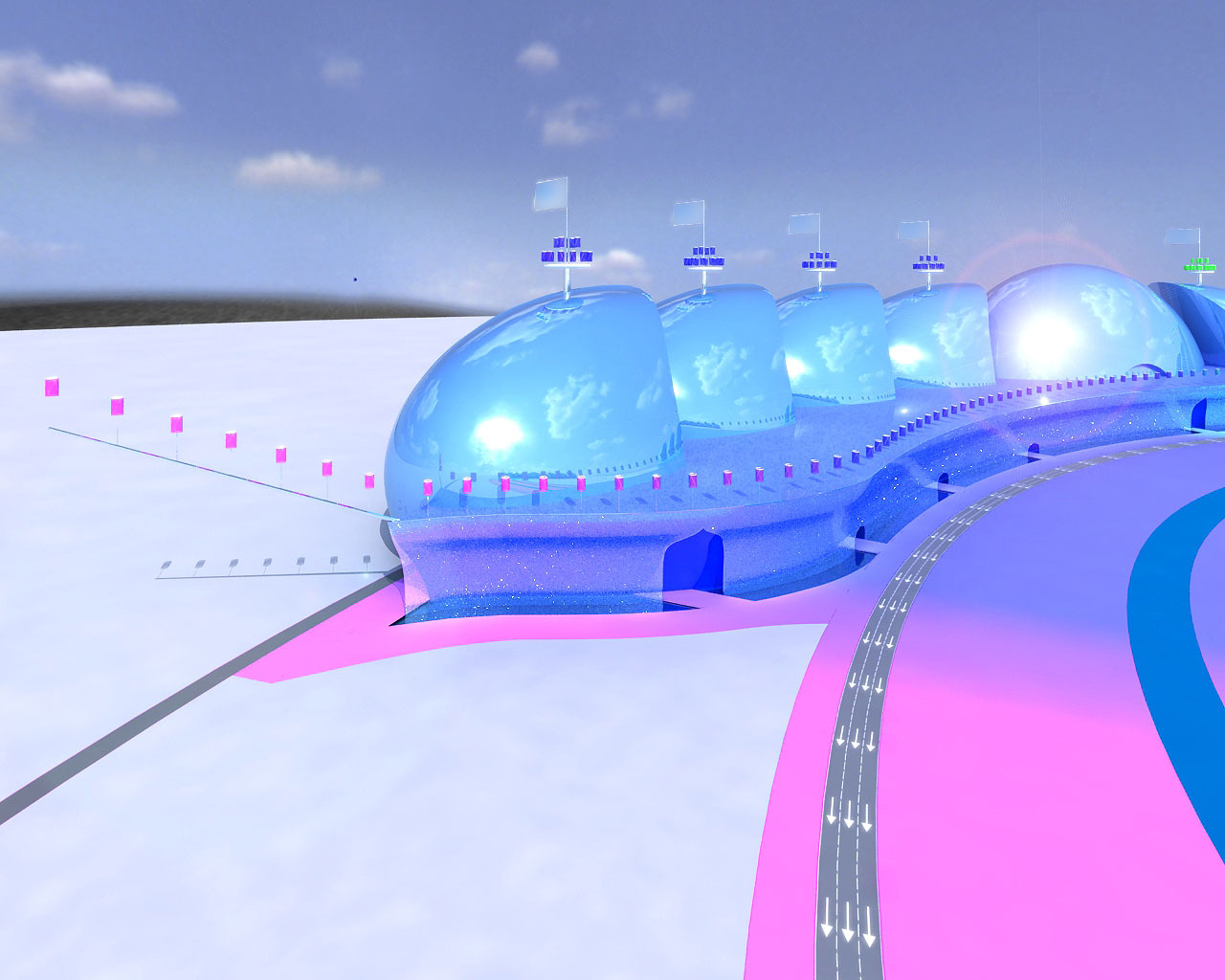

Sport Arenas with pool, bridges and waterfalls around. ’Column Trees’ were added at a later design stages.

View from Sport Venue.

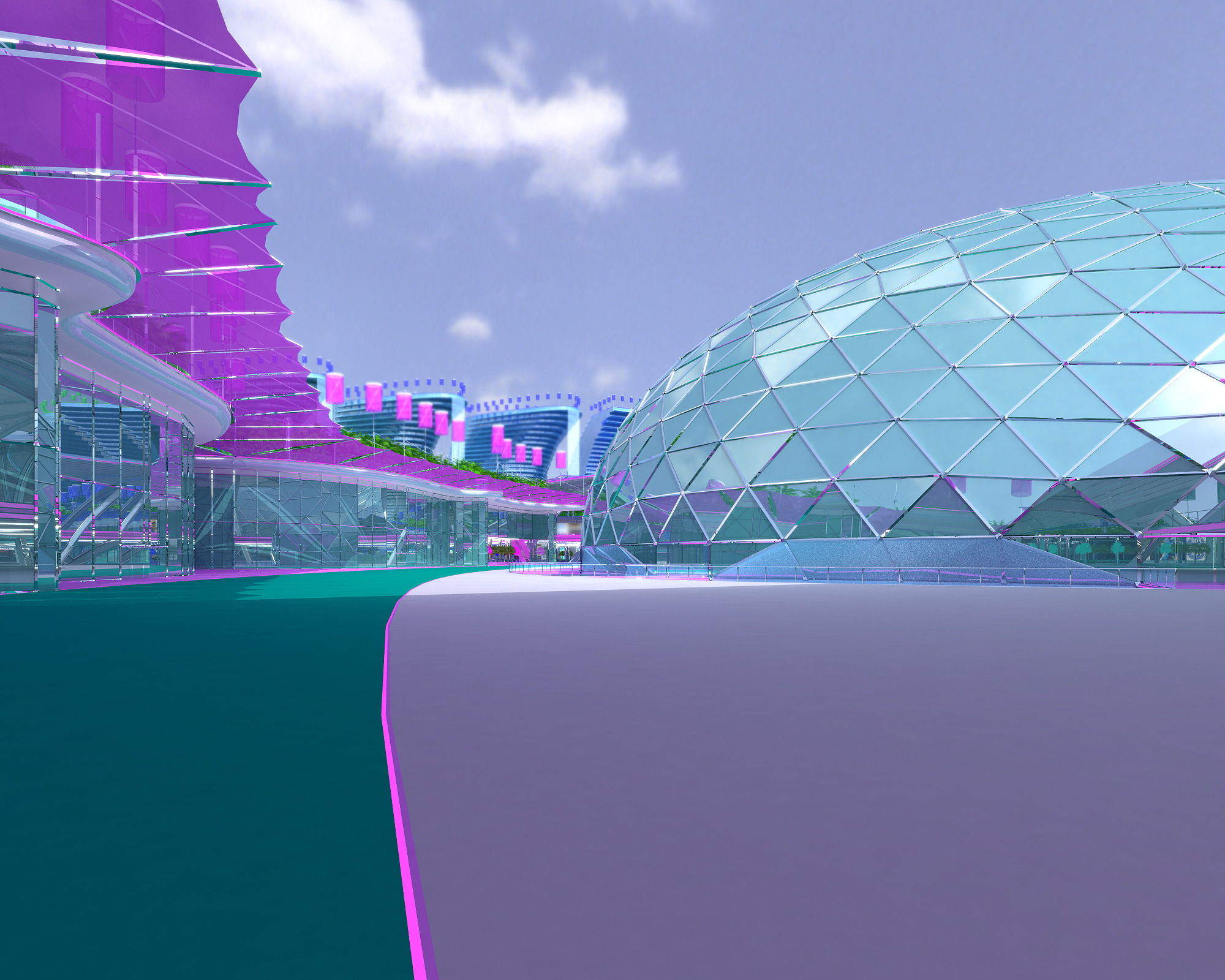

Between Arenas and Venues.

Sport Venue.

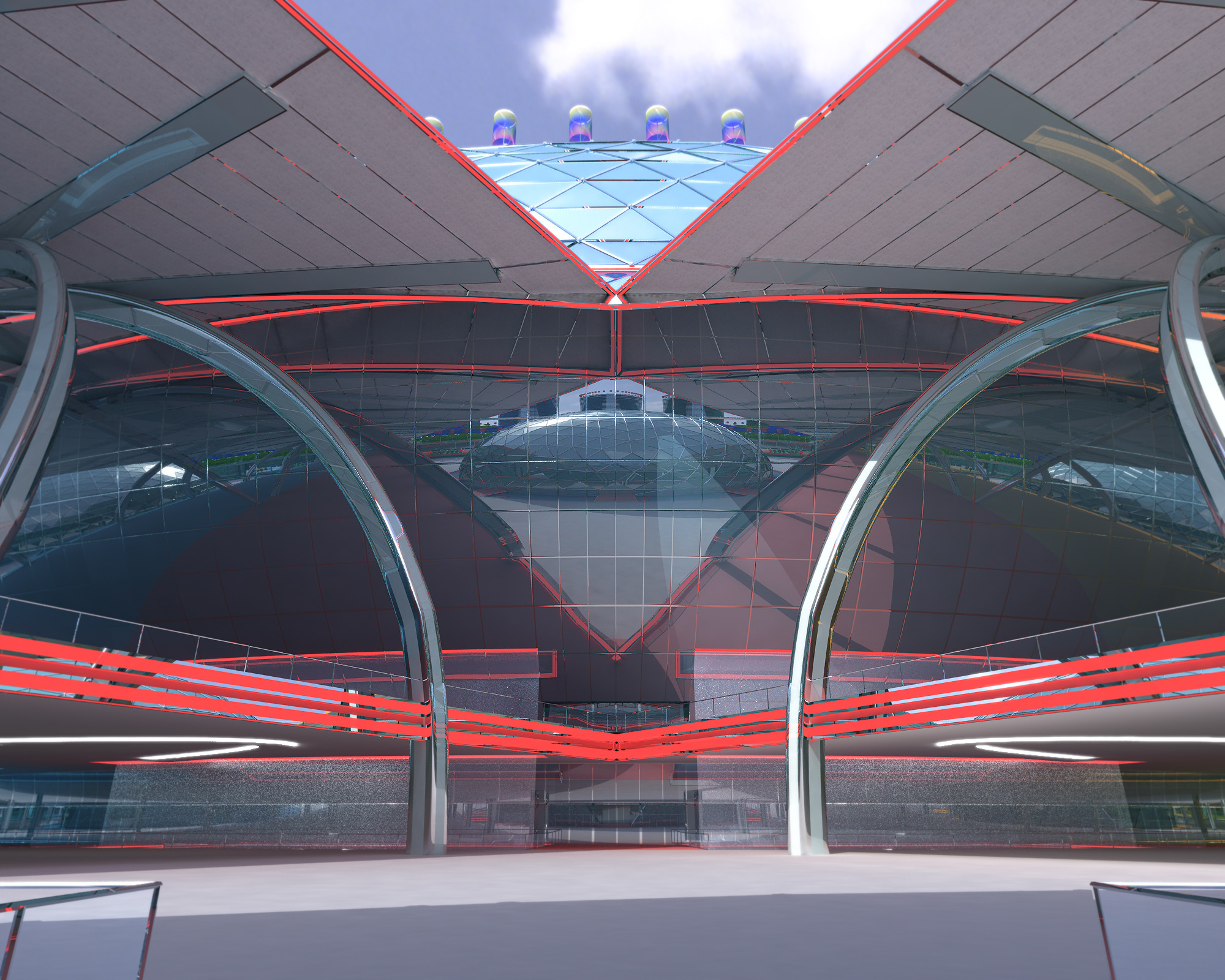

View from beneath a Bridge.

View from one Sport Venue on another, Bridge above.

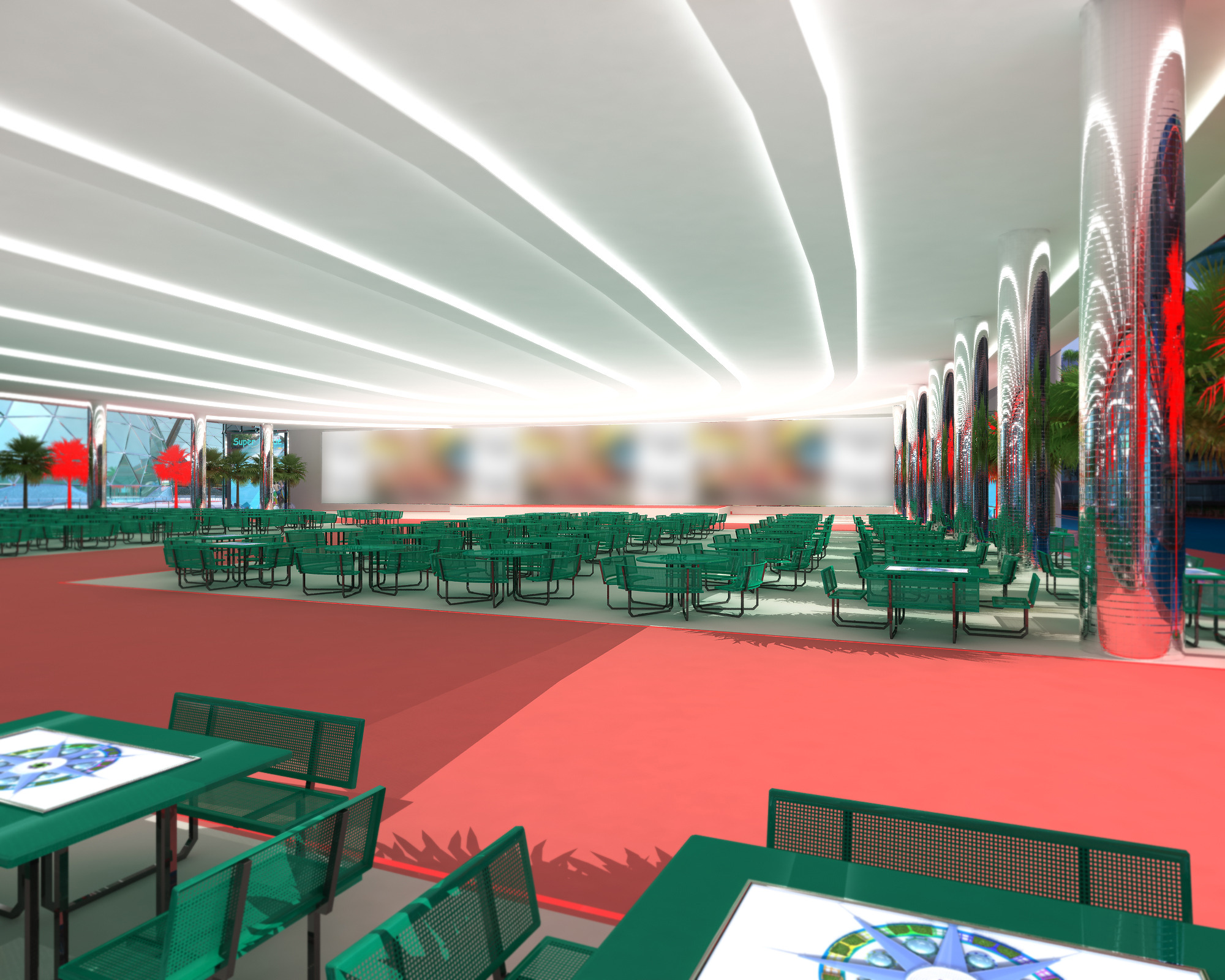

Sport Venue ground seating area.

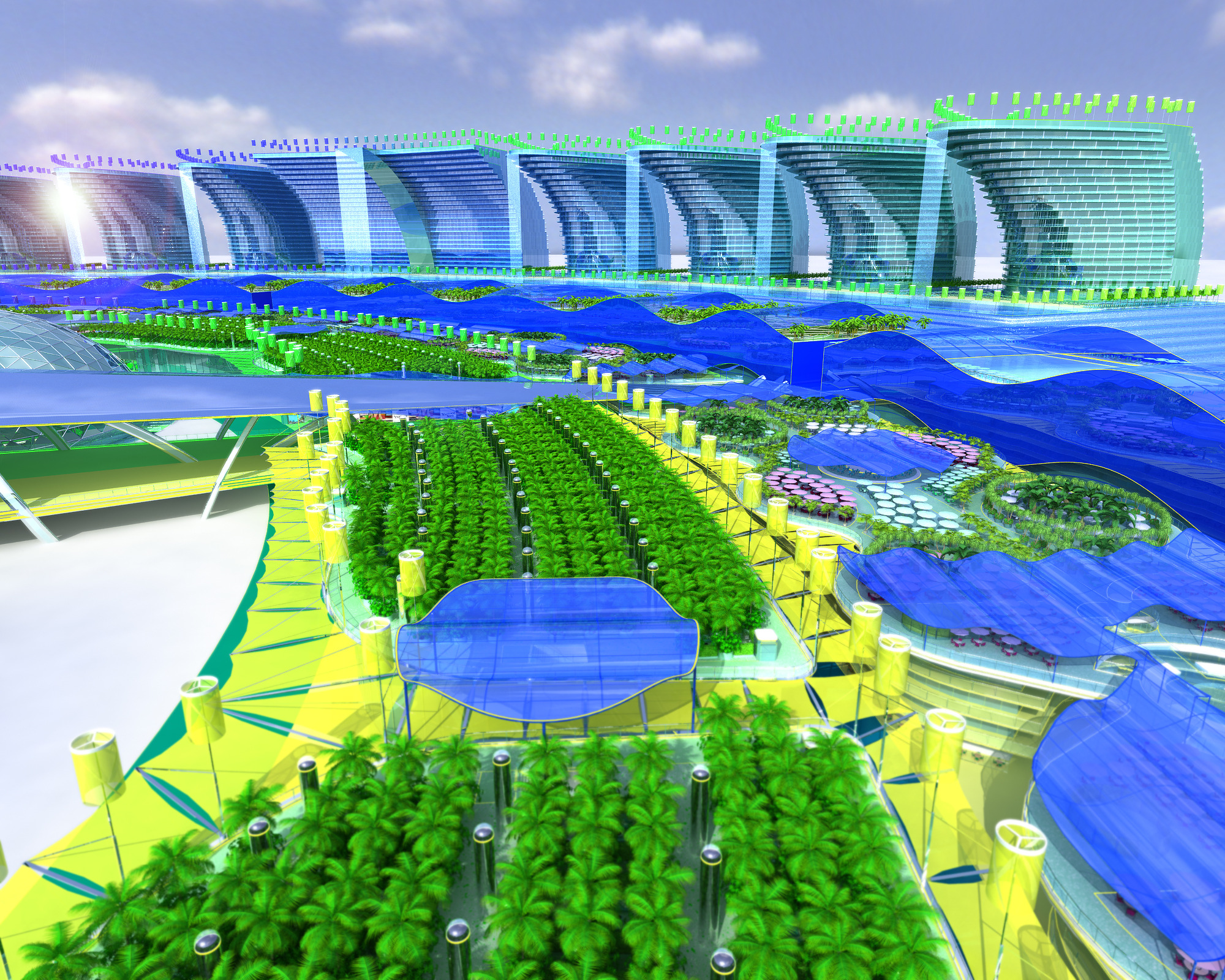

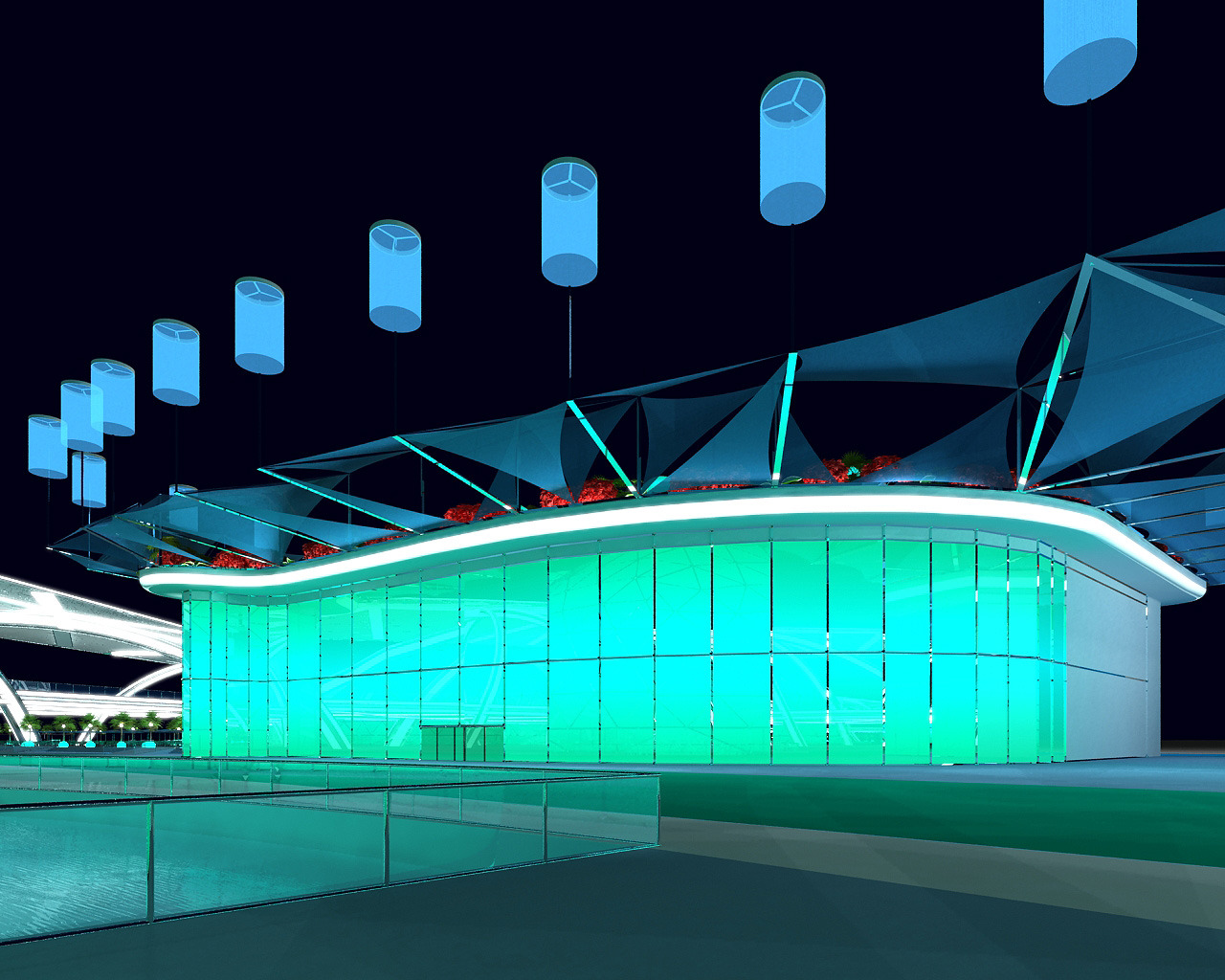

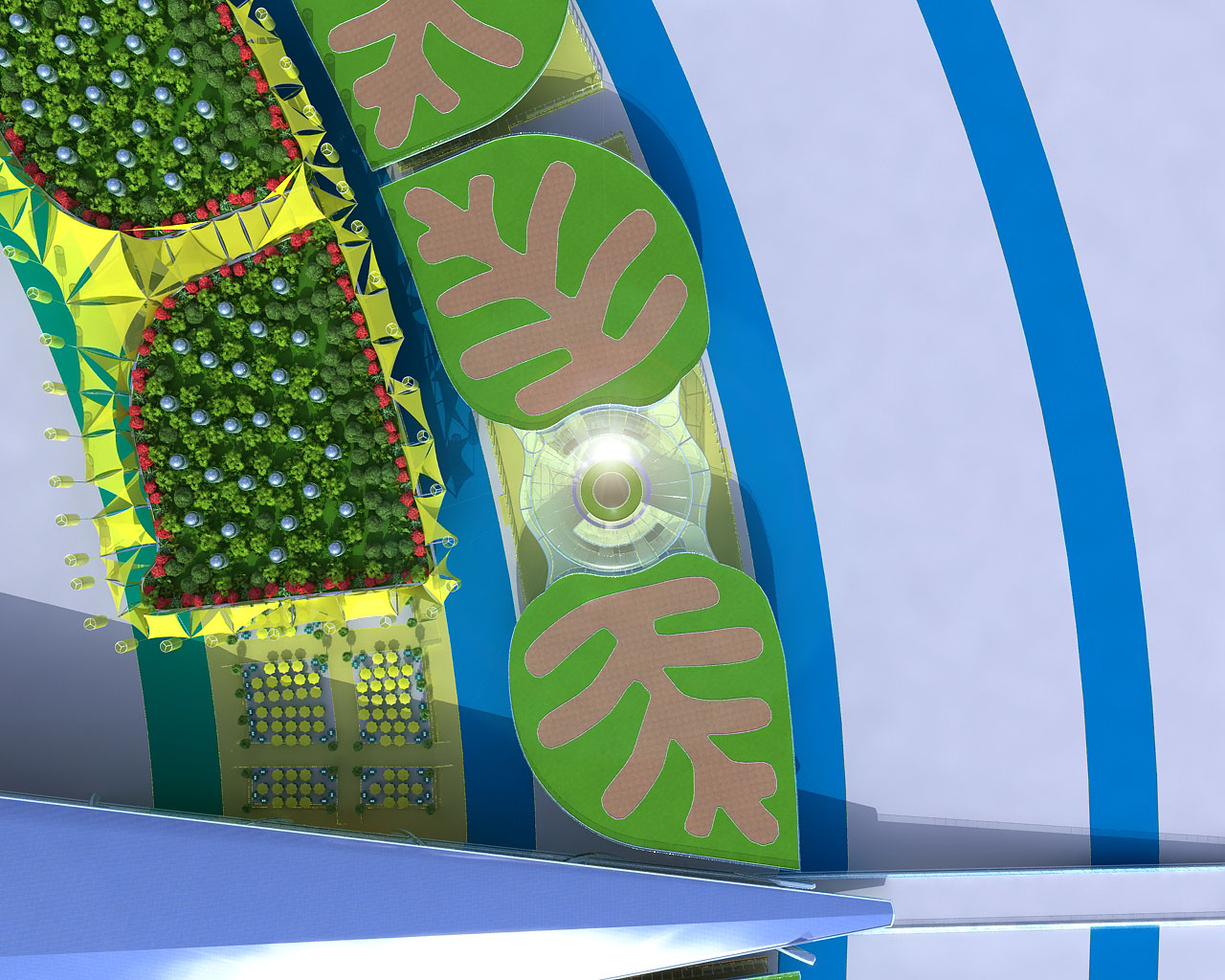

Sport Venues green roofs. Silent wind turbines around.

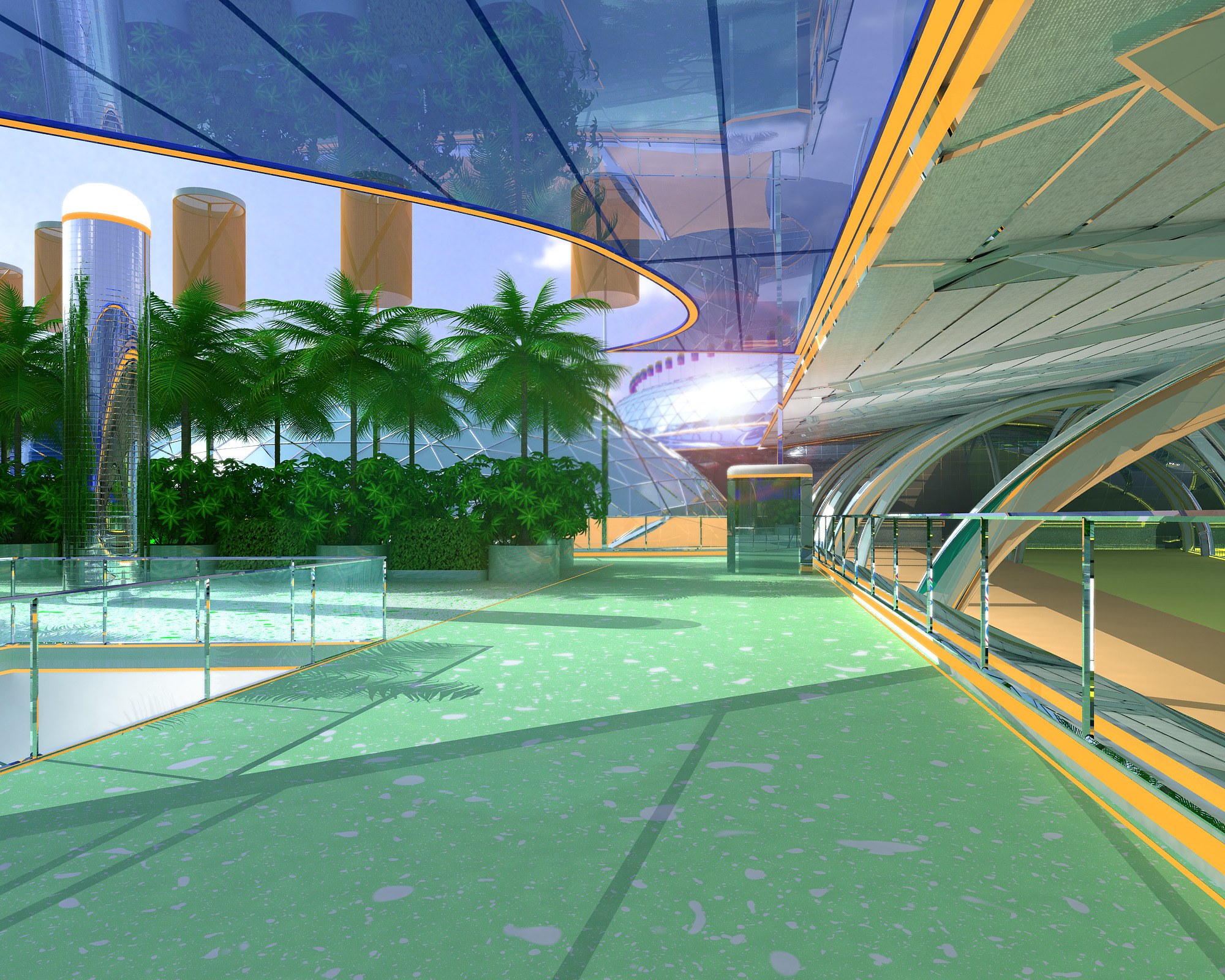

Between Sport Venues and Villages.

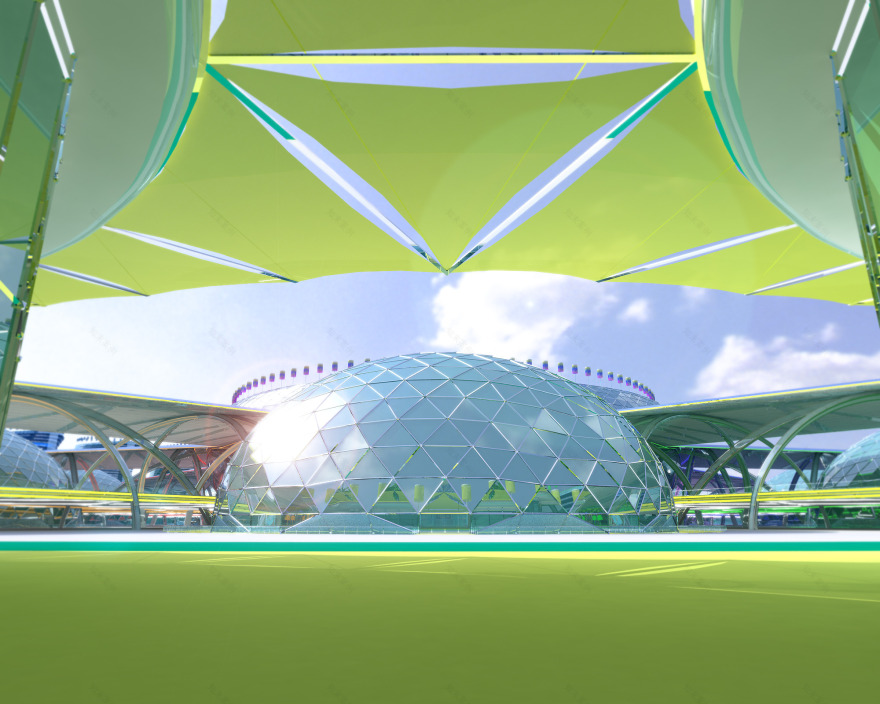

Venues and Villages semi-transparent fabric roof extensions provide shade and light at the same time.

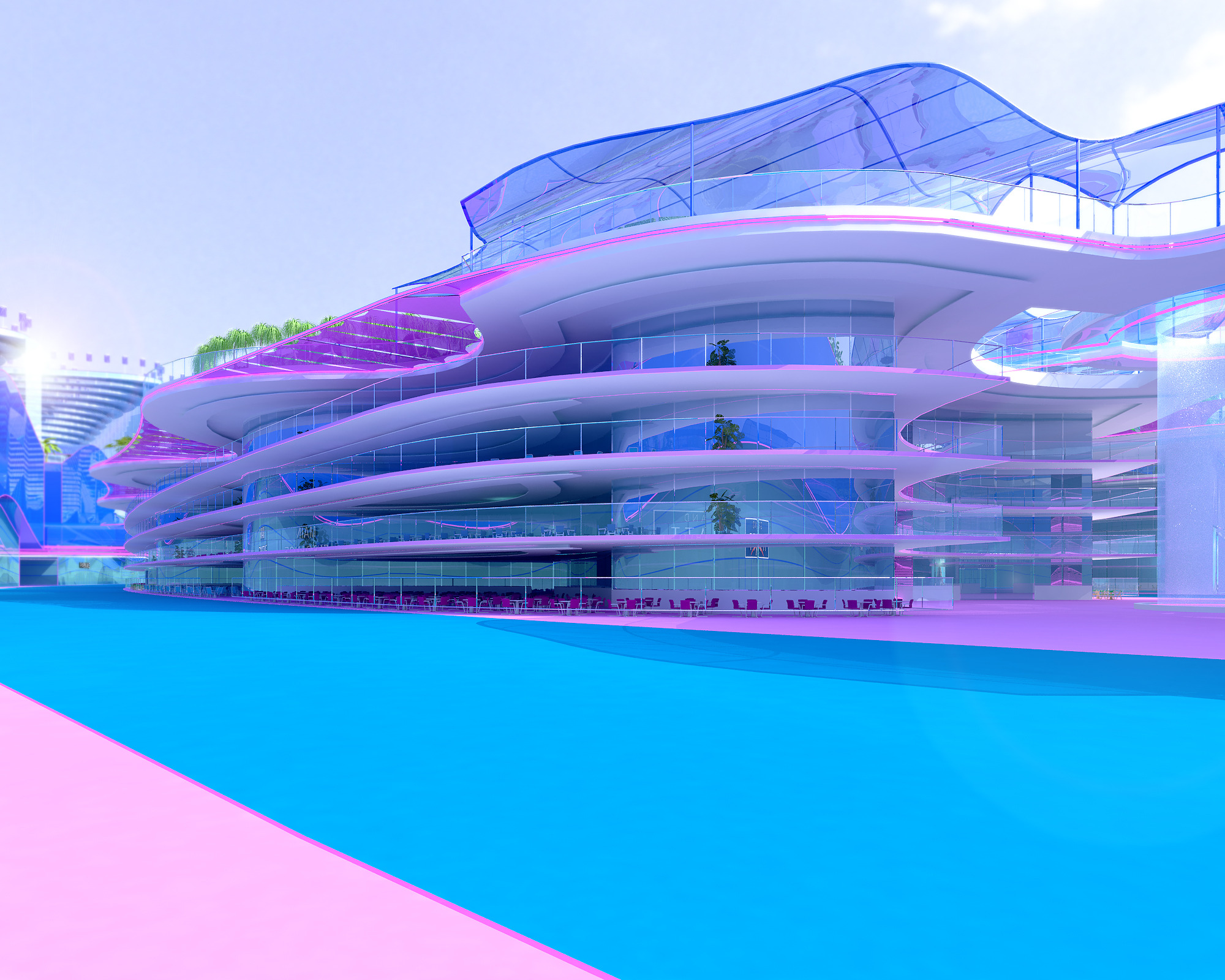

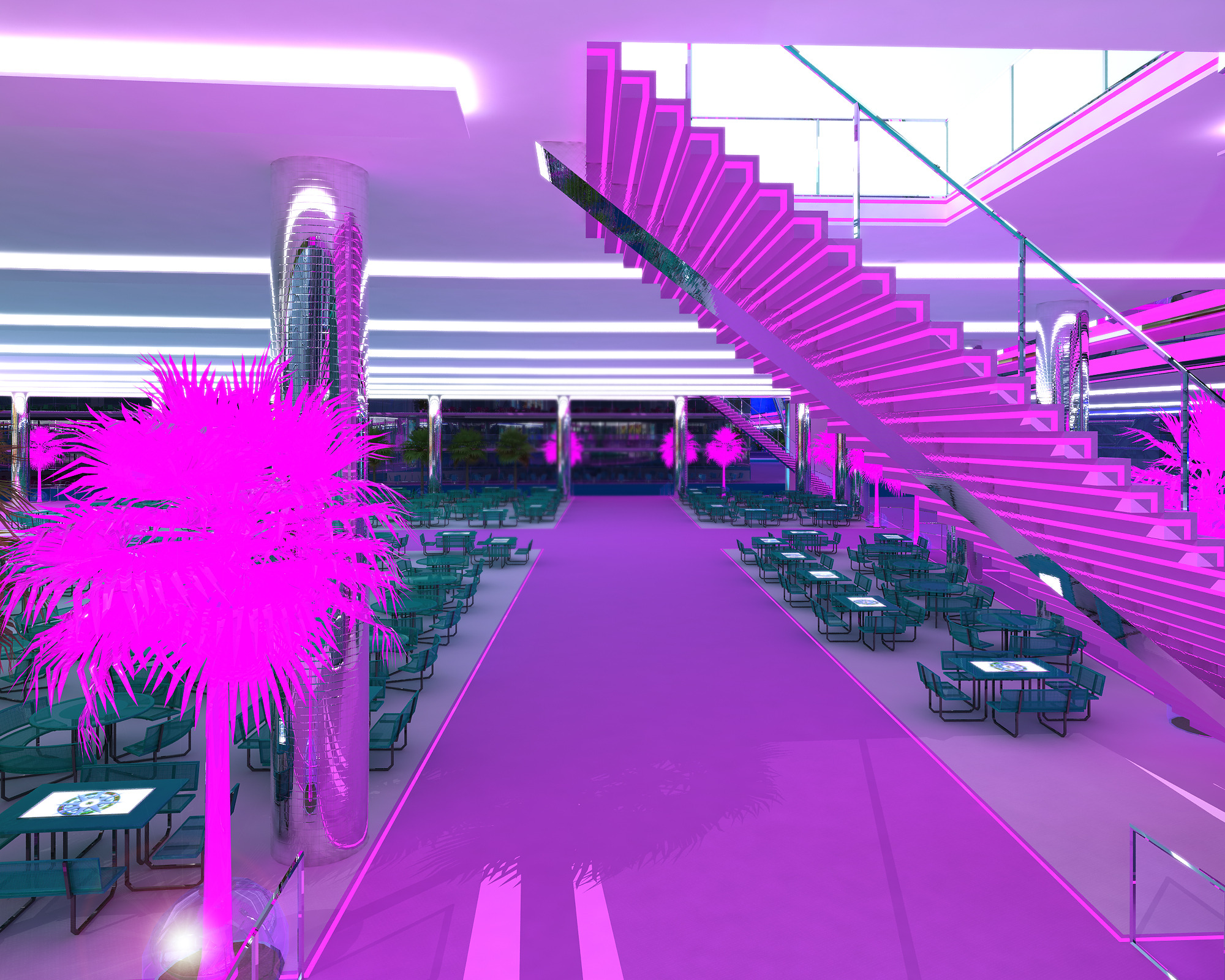

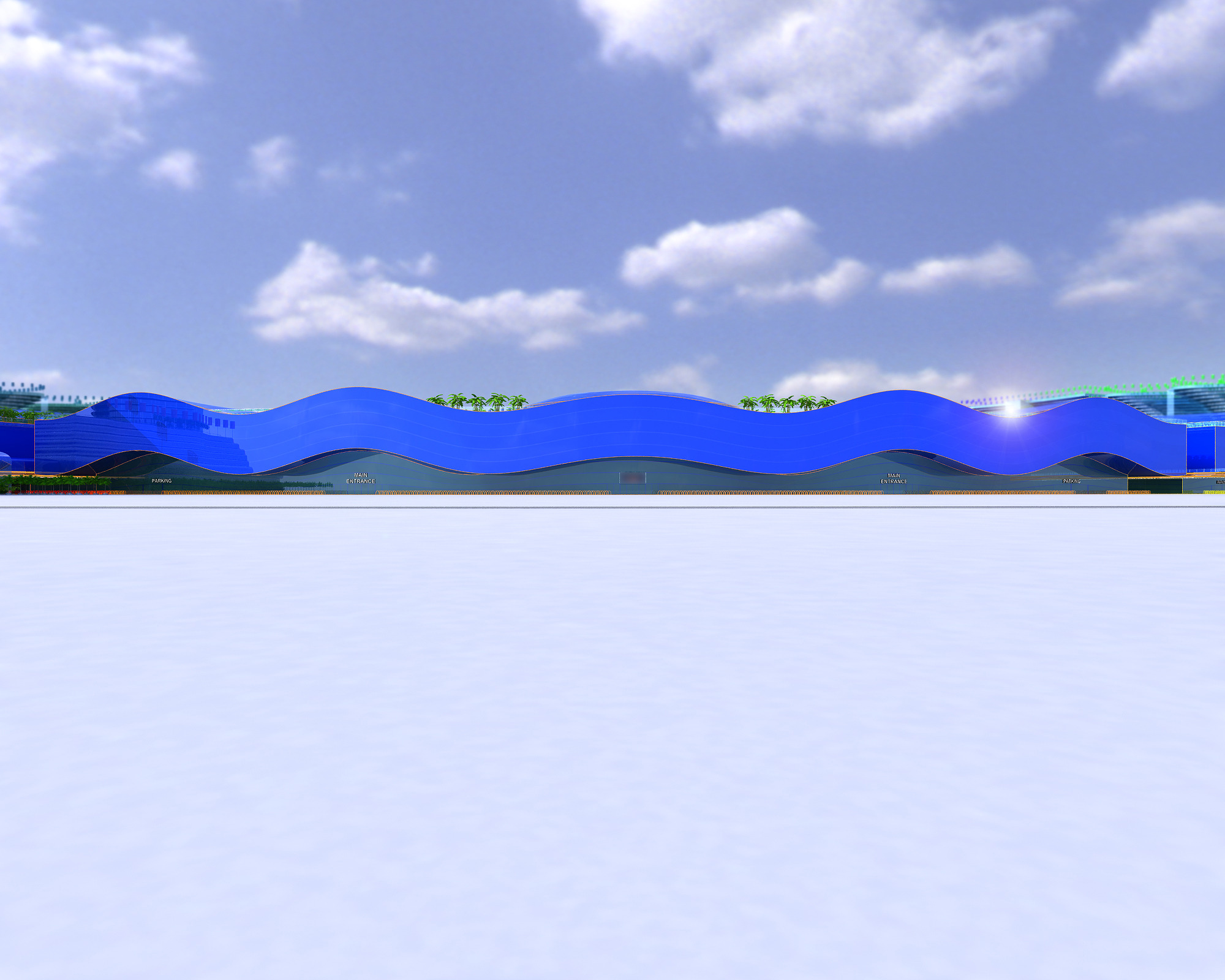

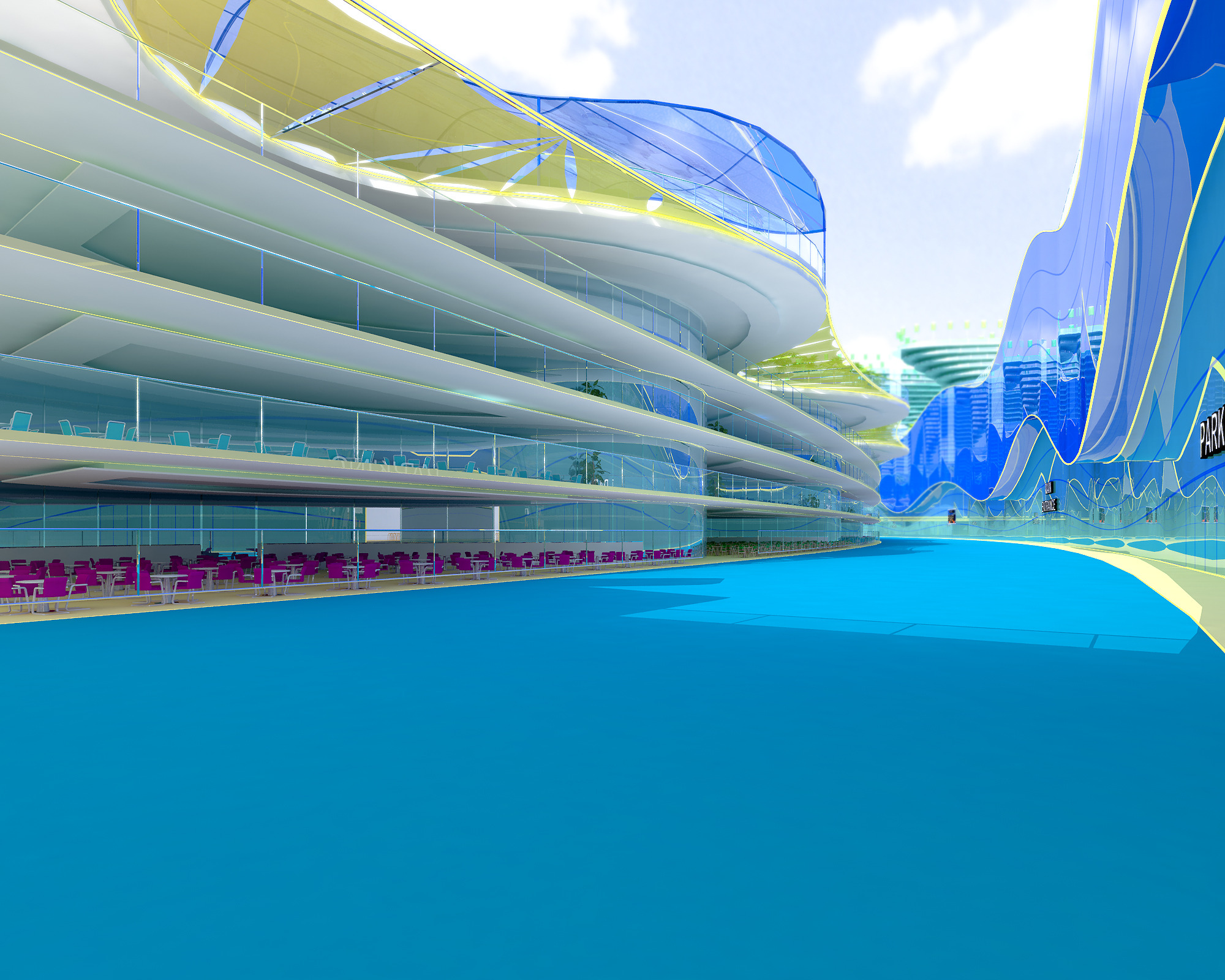

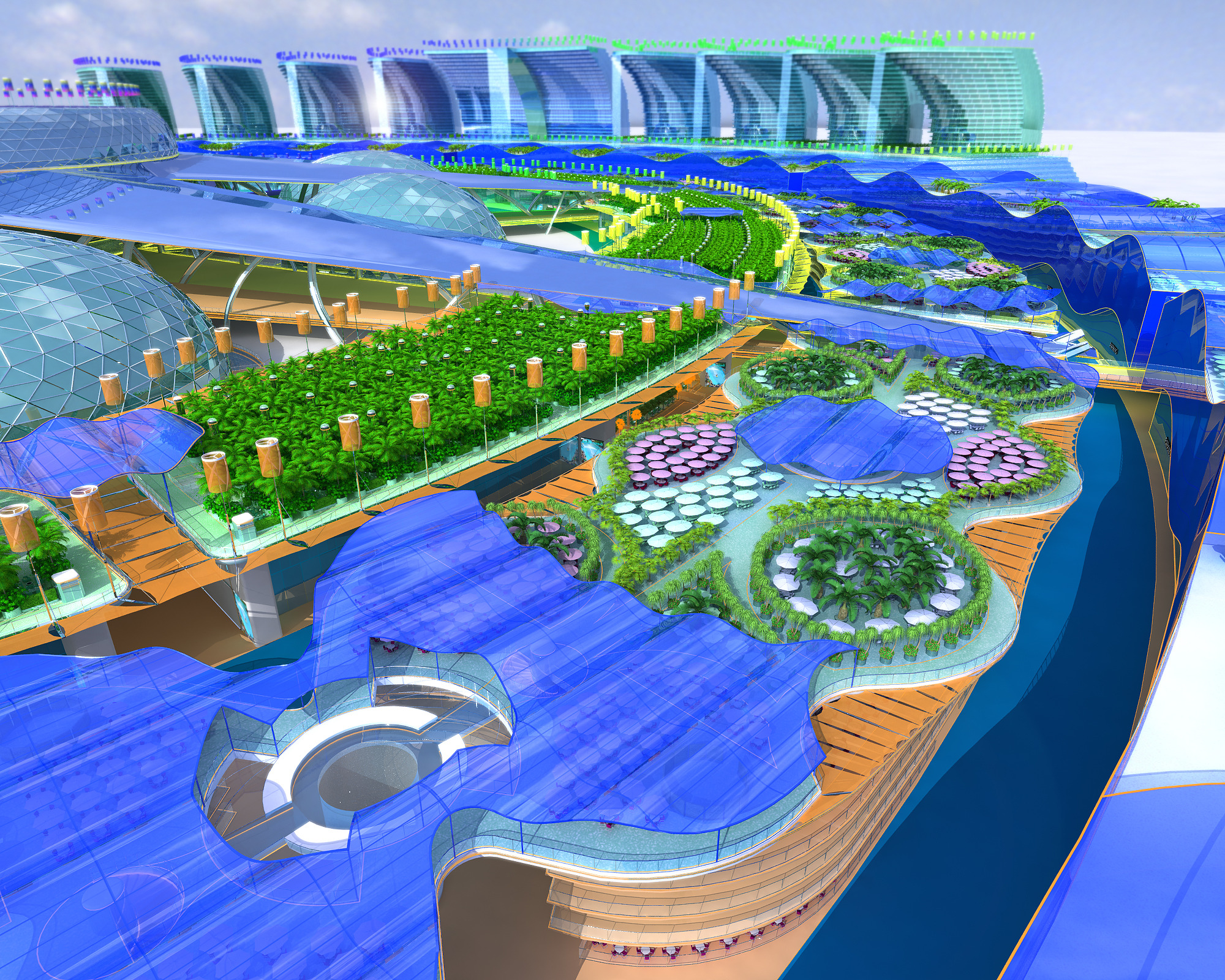

Villages horizontal wave design provides spacious but private seating areas for restaurants and cafes.

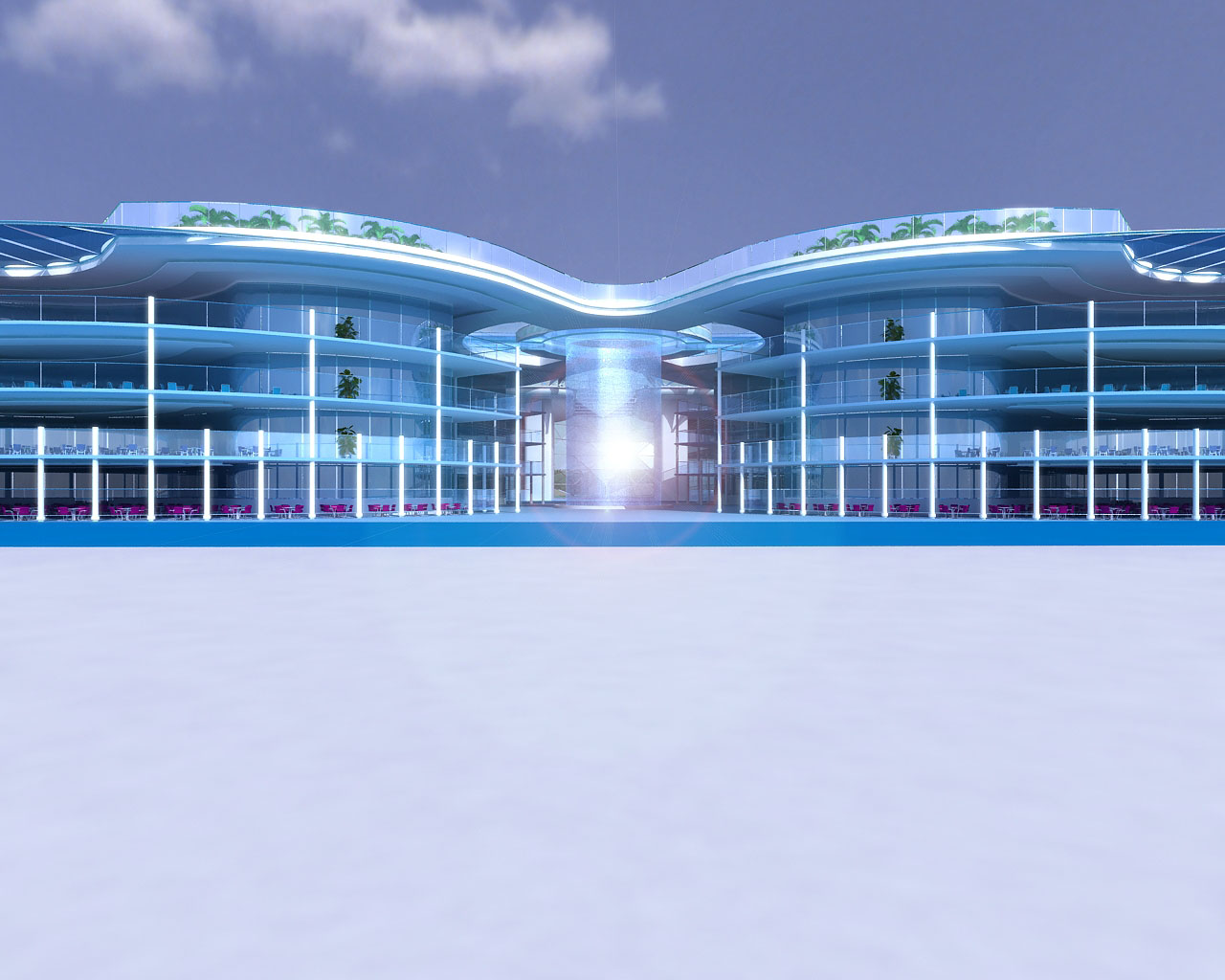

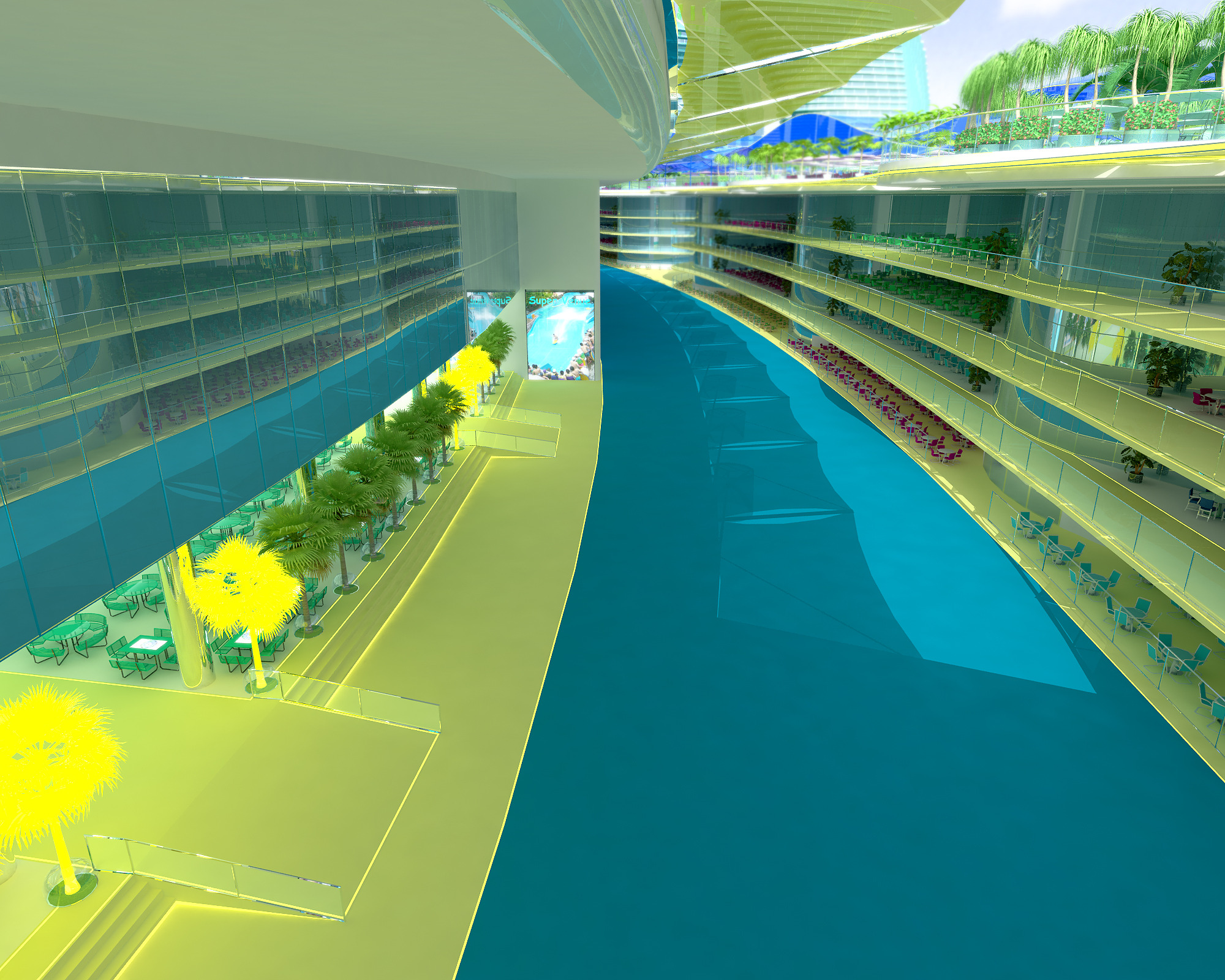

Villages spectacular waterfall in the middle goes from the roof down to the pool on a ground, refreshing breath for everyone around.

Villages green roofs.

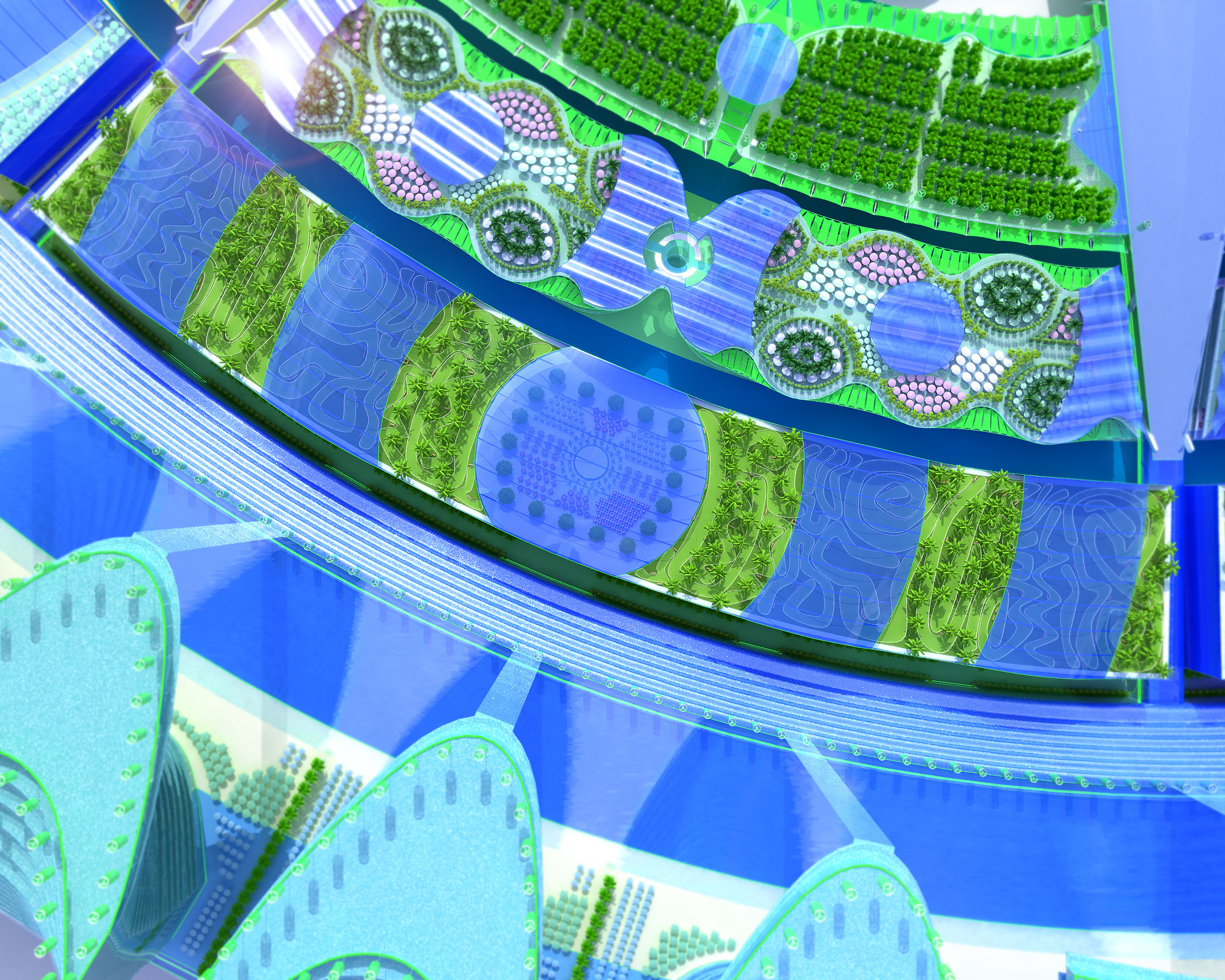

On a Villages roof.

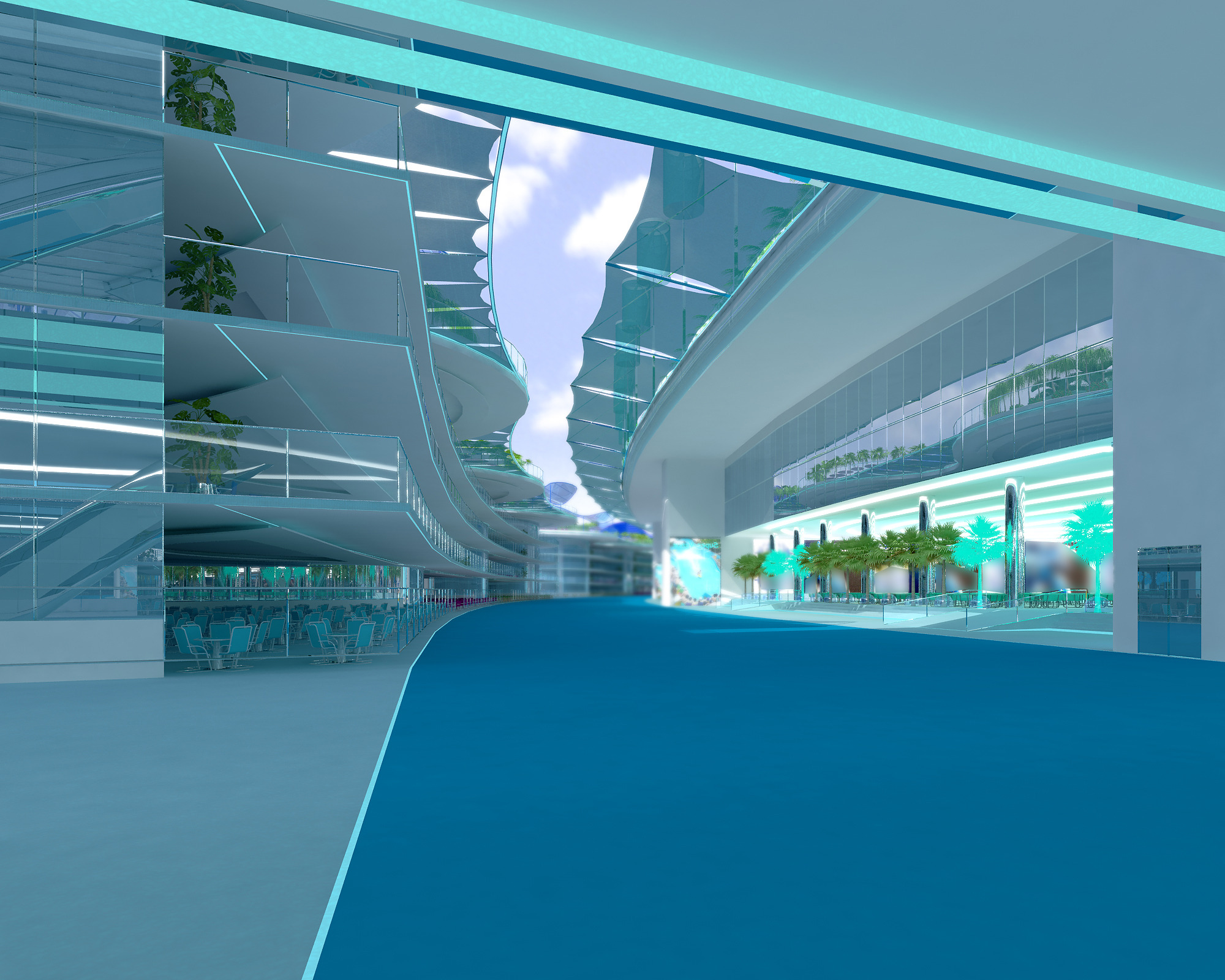

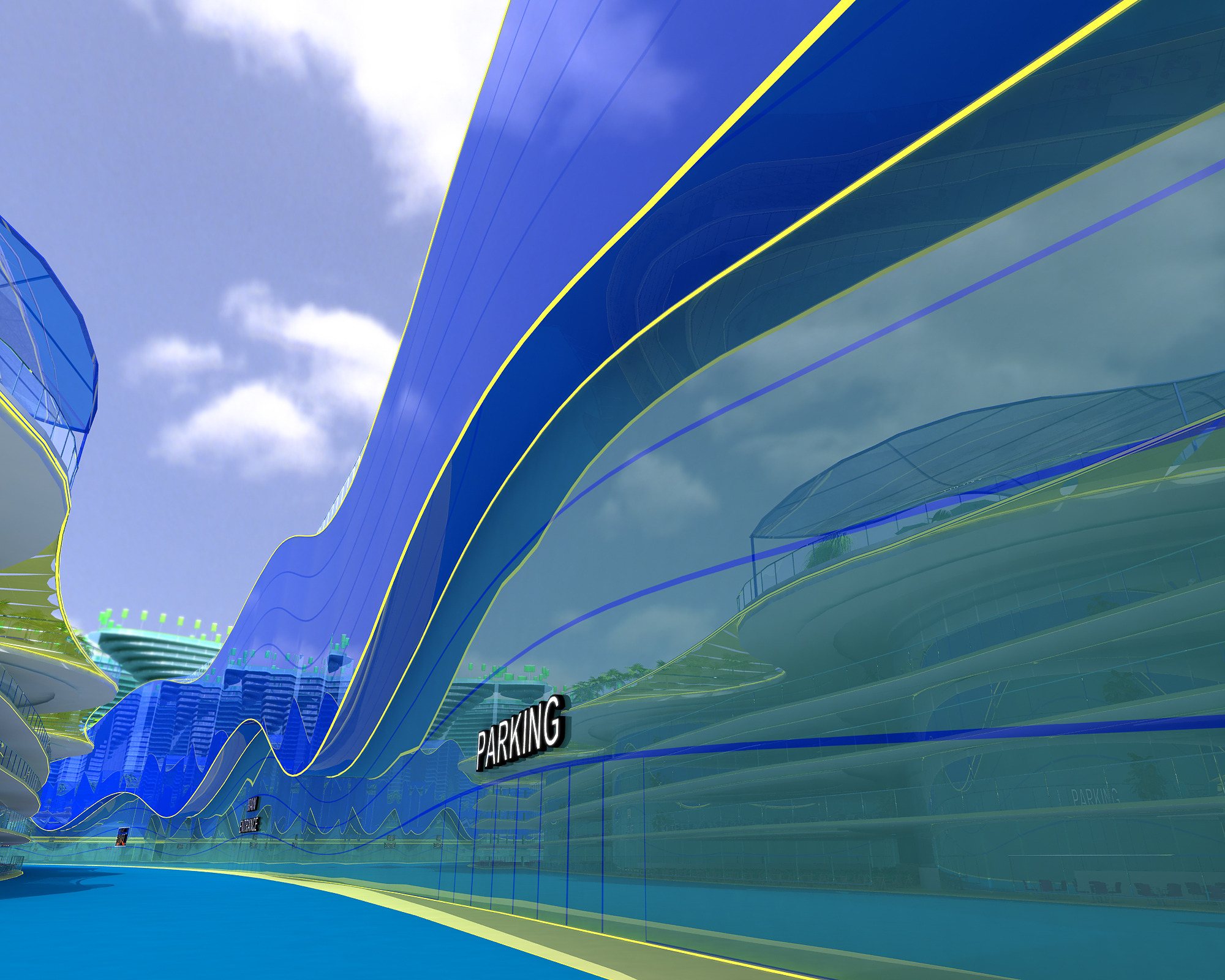

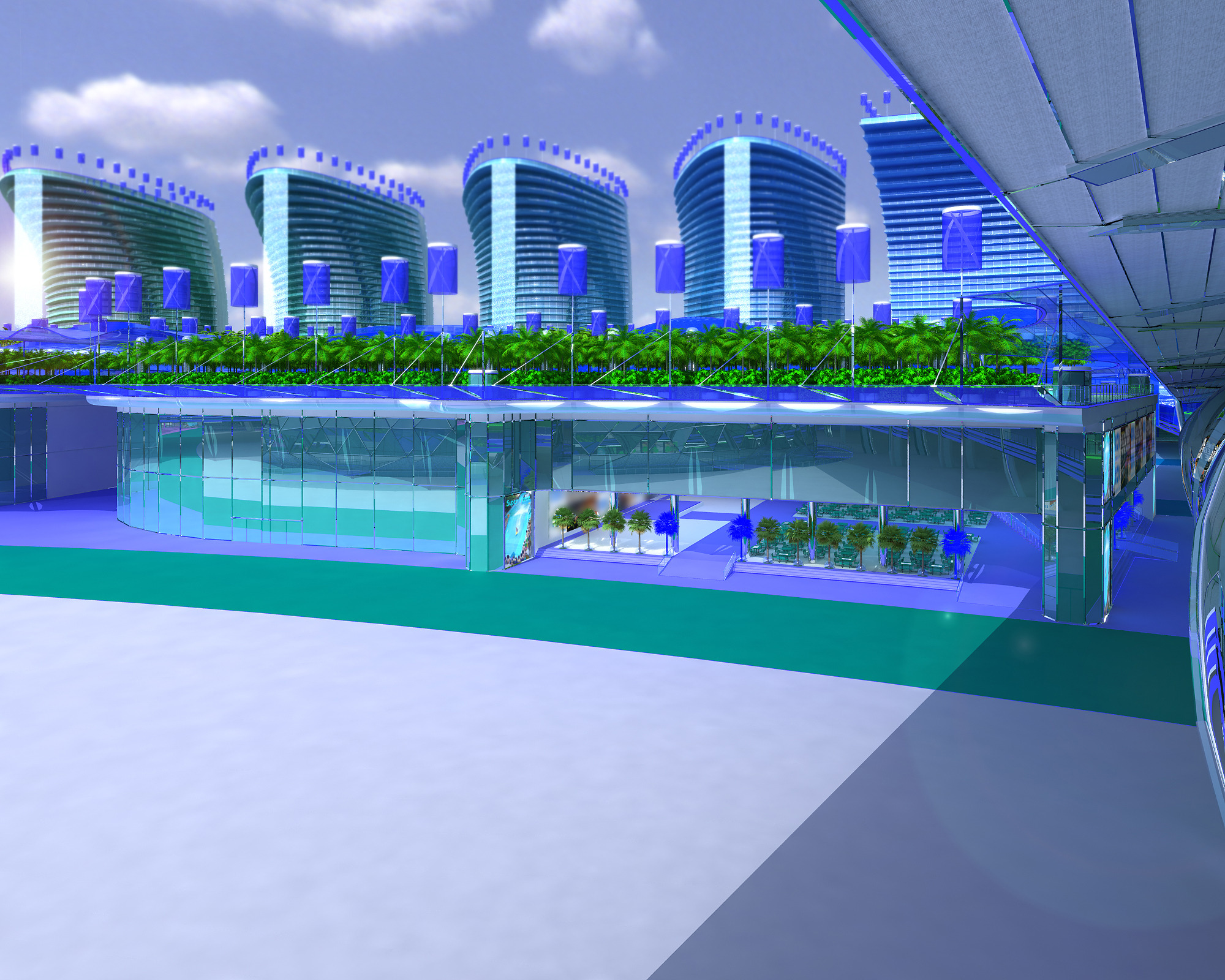

Between Villages and Offices/Malls/Parking.

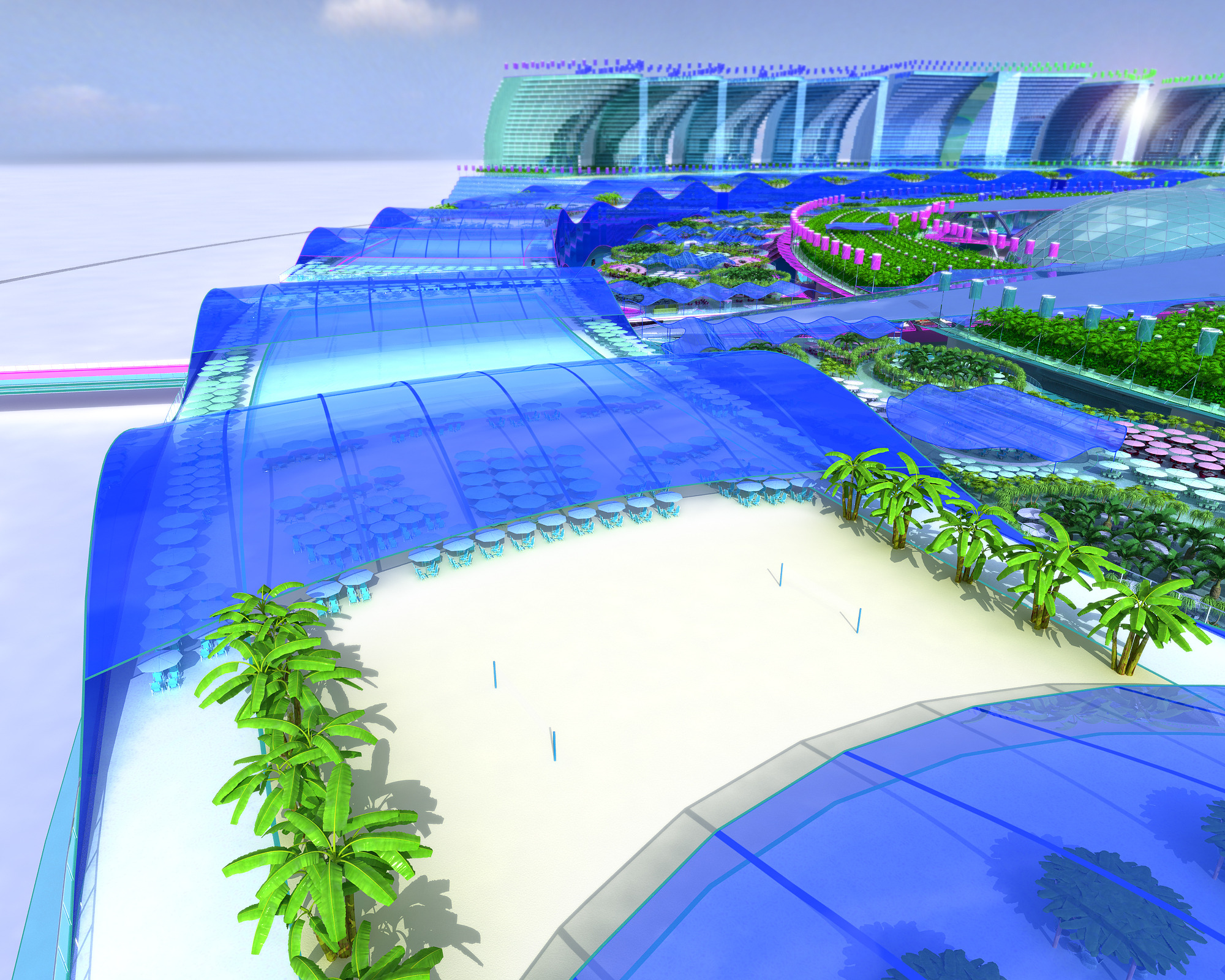

Four of the Office/Parking Buildings have golf courses on the roofs.

Another four - open pools.

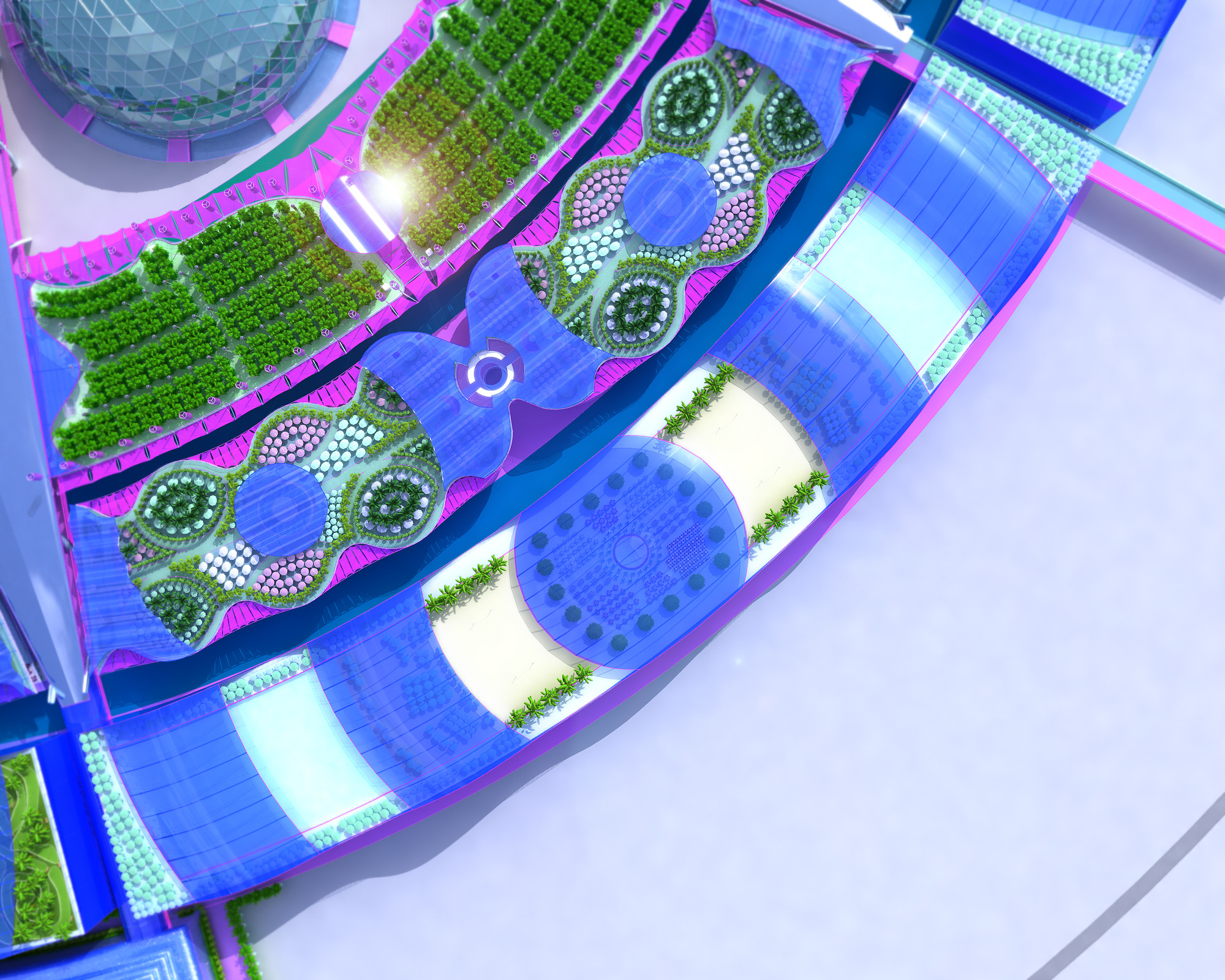

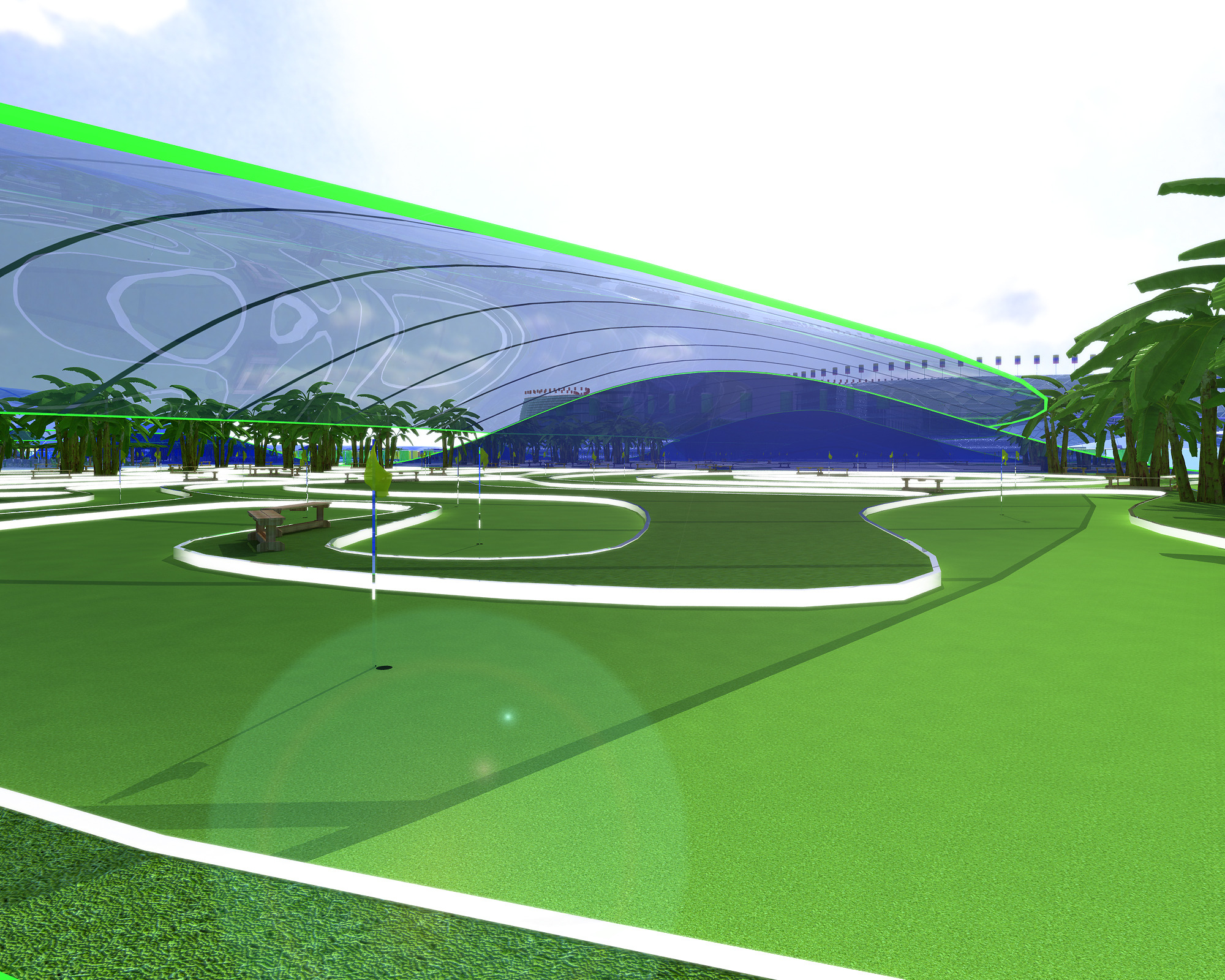

Office/Parking Buildings golf courses.

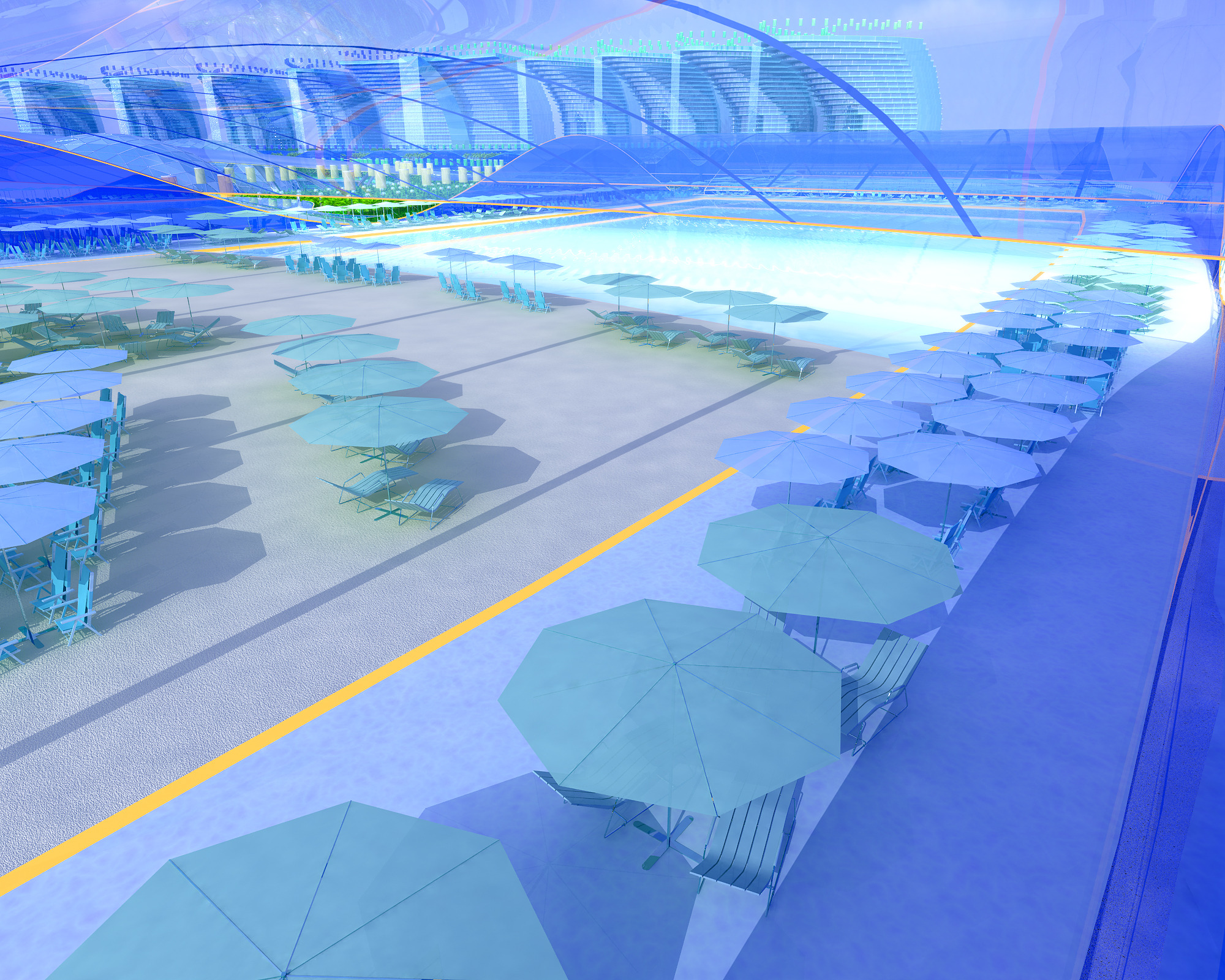

Office/Parking Buildings pools and sandy beaches.

Outside of the Resort.

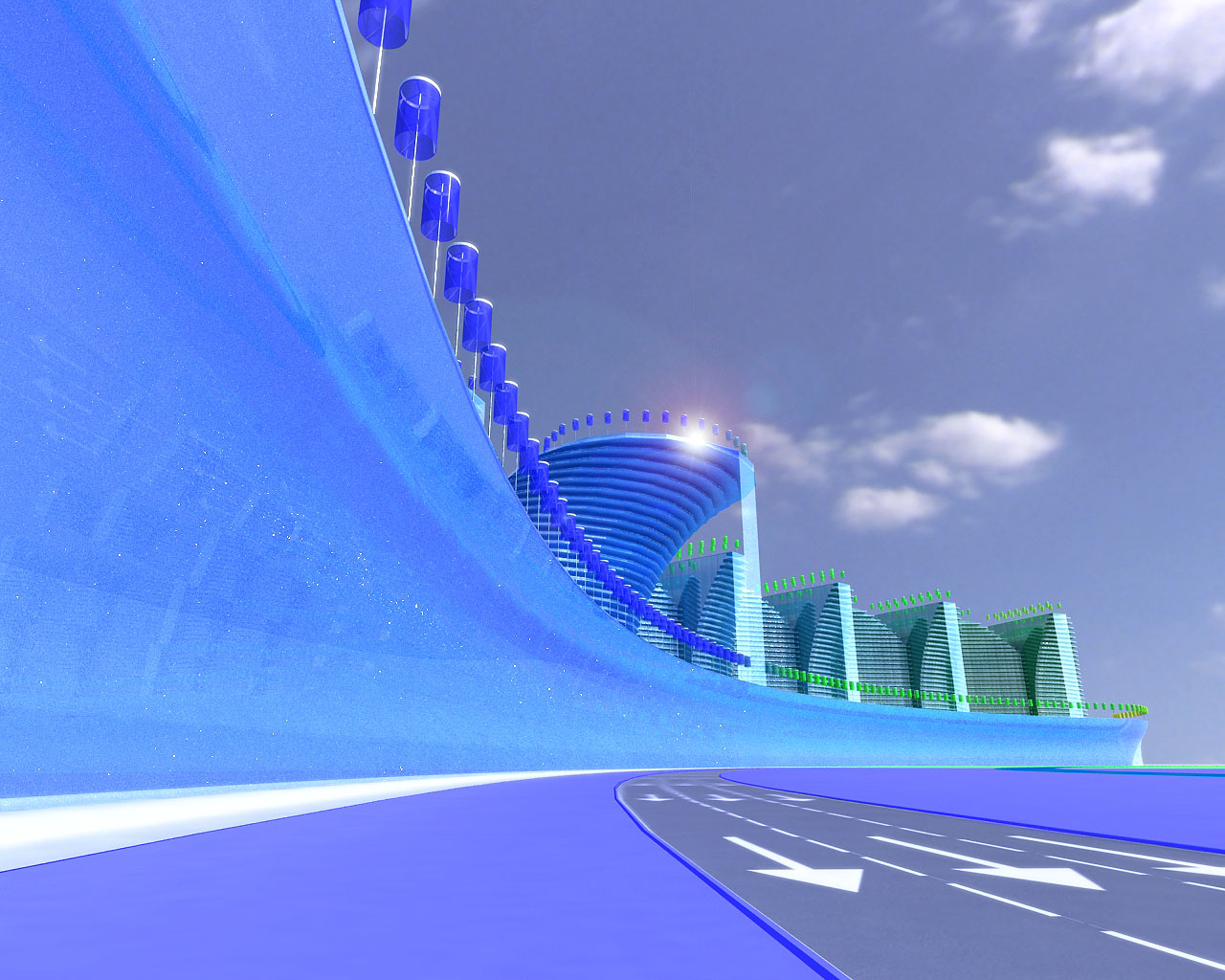

Three lane road around the Resort.

Huge hotel in the middle of Residential Complex. It’s the tallest structure in the Resort = 156,6m

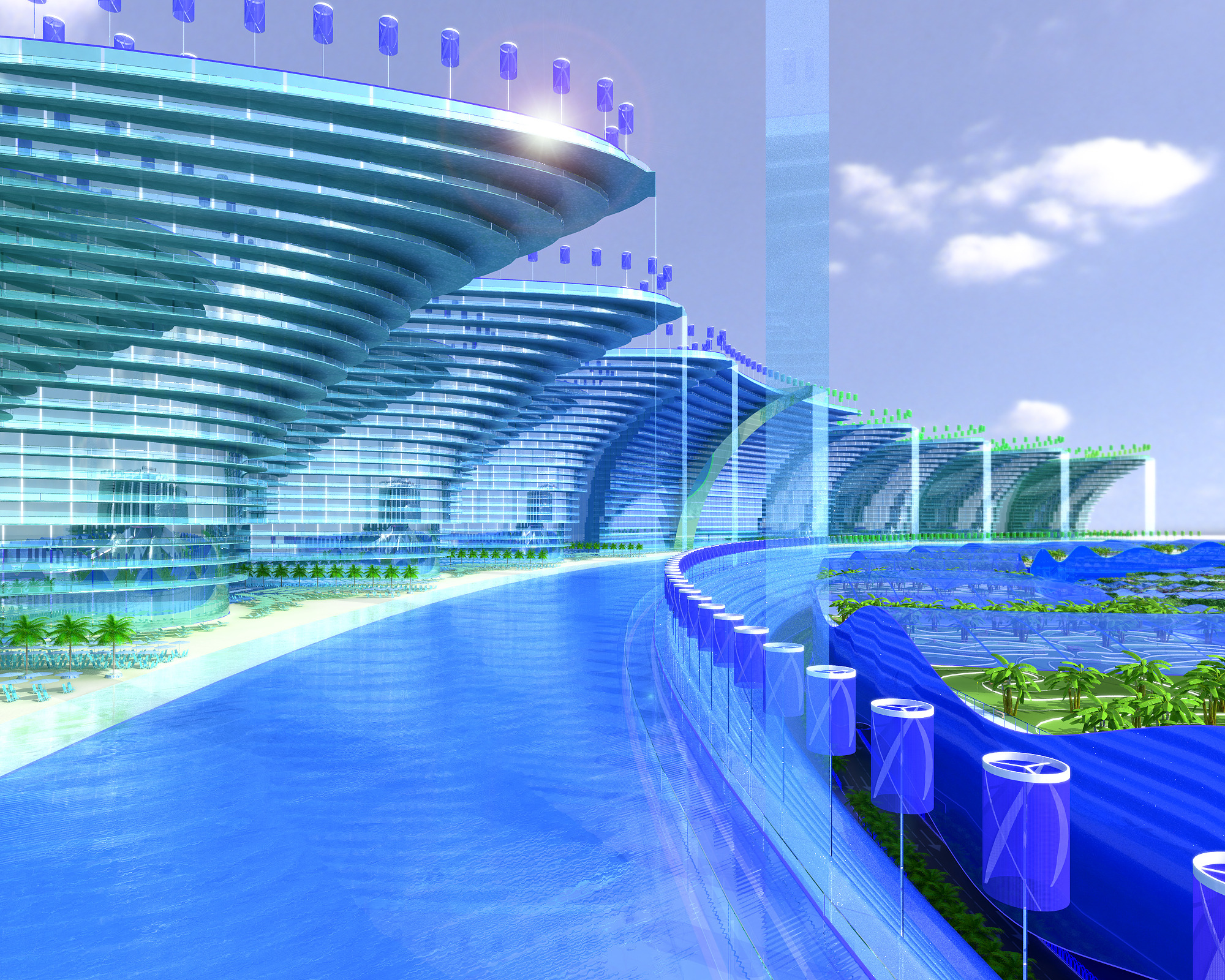

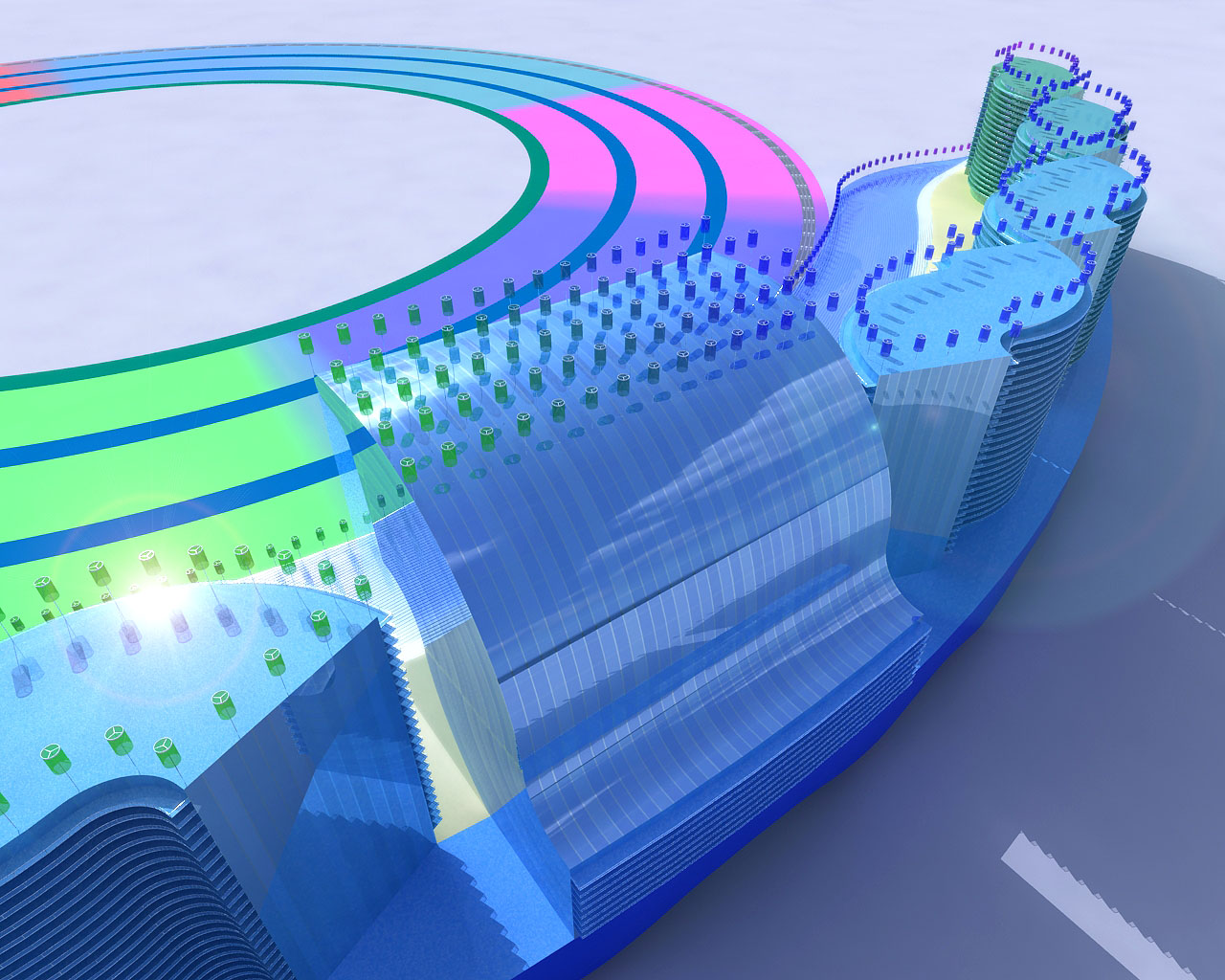

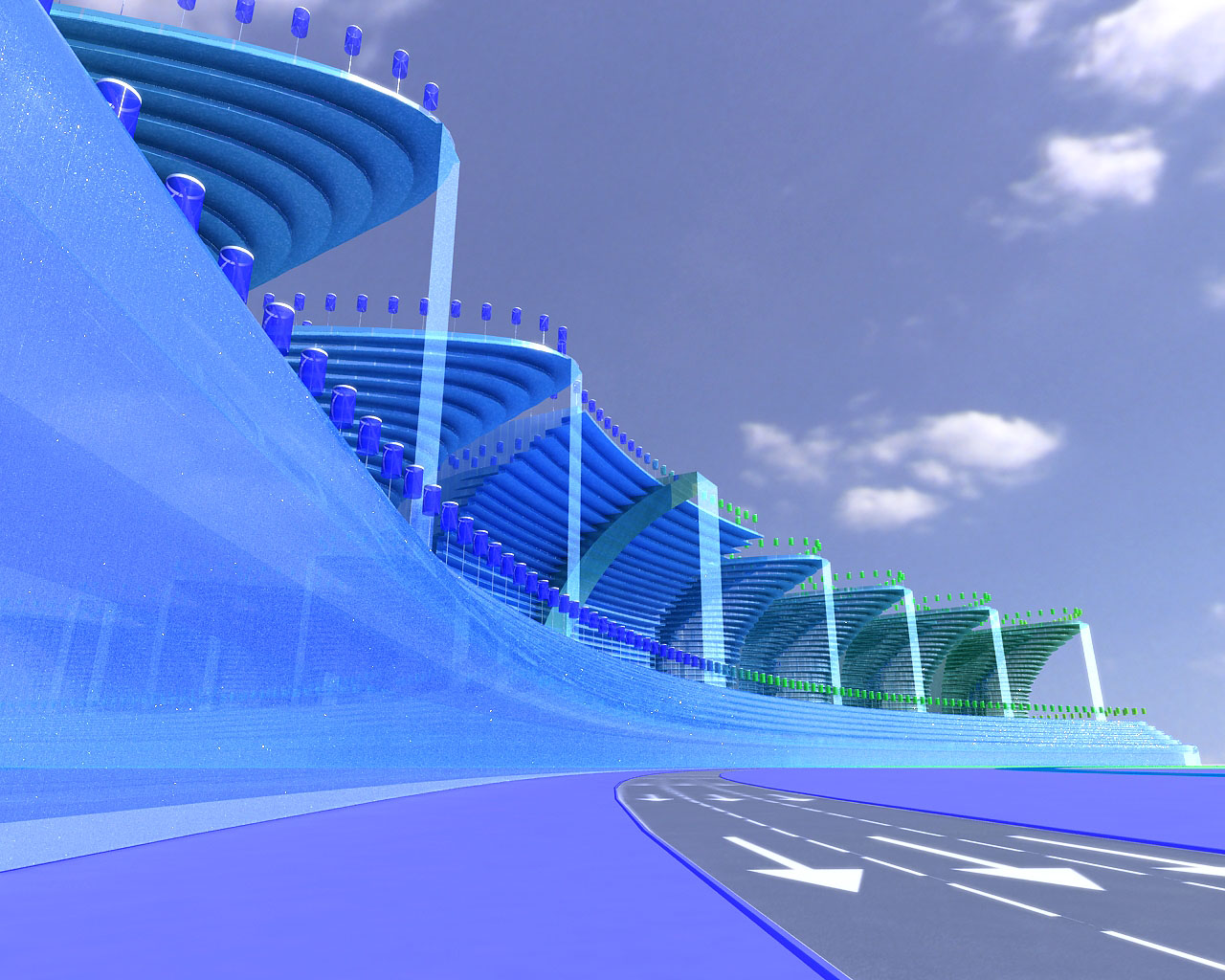

Infinite pool flow into a truly massive Niagara like ’stairs’ waterfalls around the front and both sides of the Residential Complex.

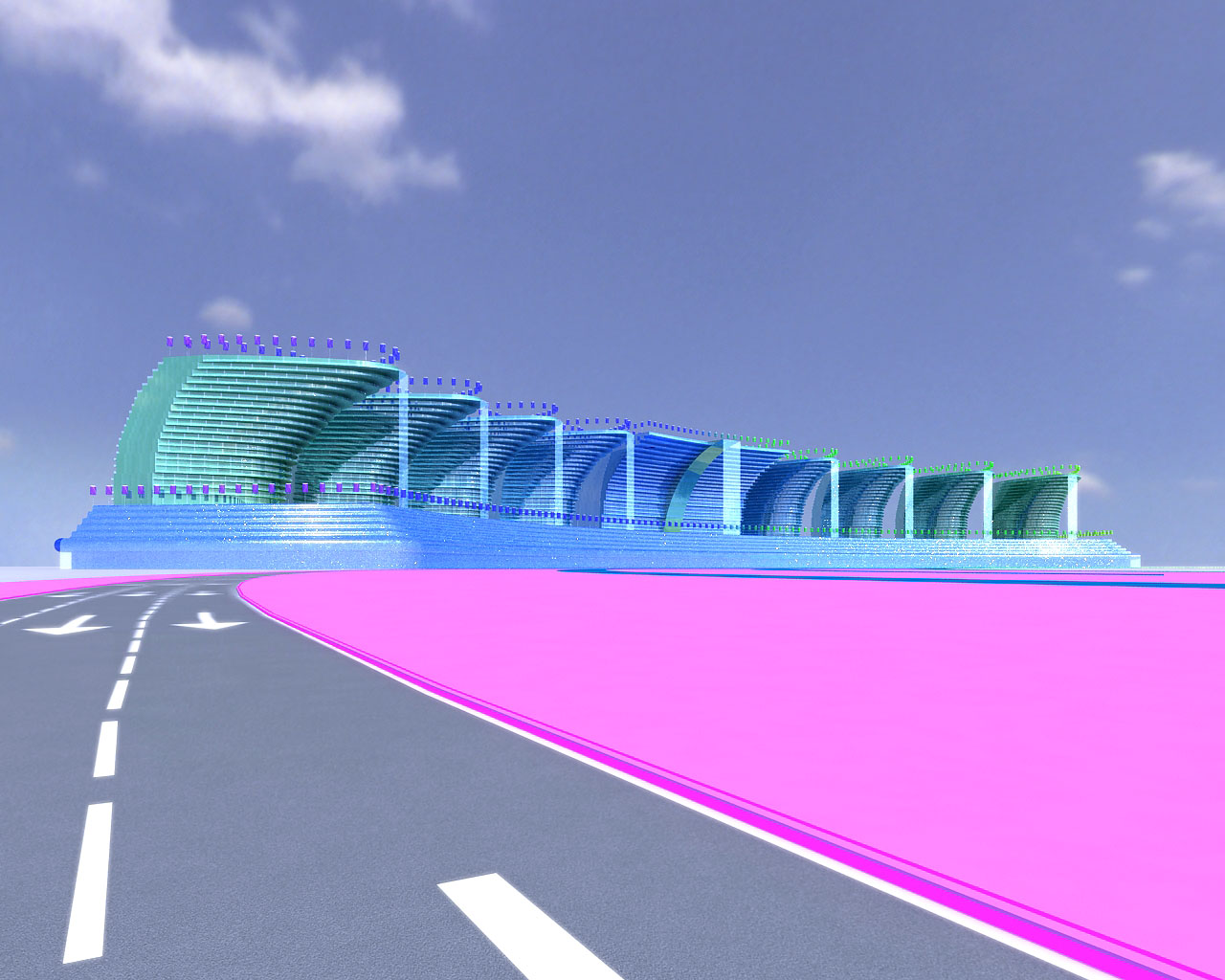

Back facade of the Residential Complex.

Between Offices/Parking and Residential Complex. Plenty of shade and freshness from the huge Niagara like waterfall.

Wind turbines on the roofs and around the pool of a Residential Complex.

Feel the views that open from Residential Complex.

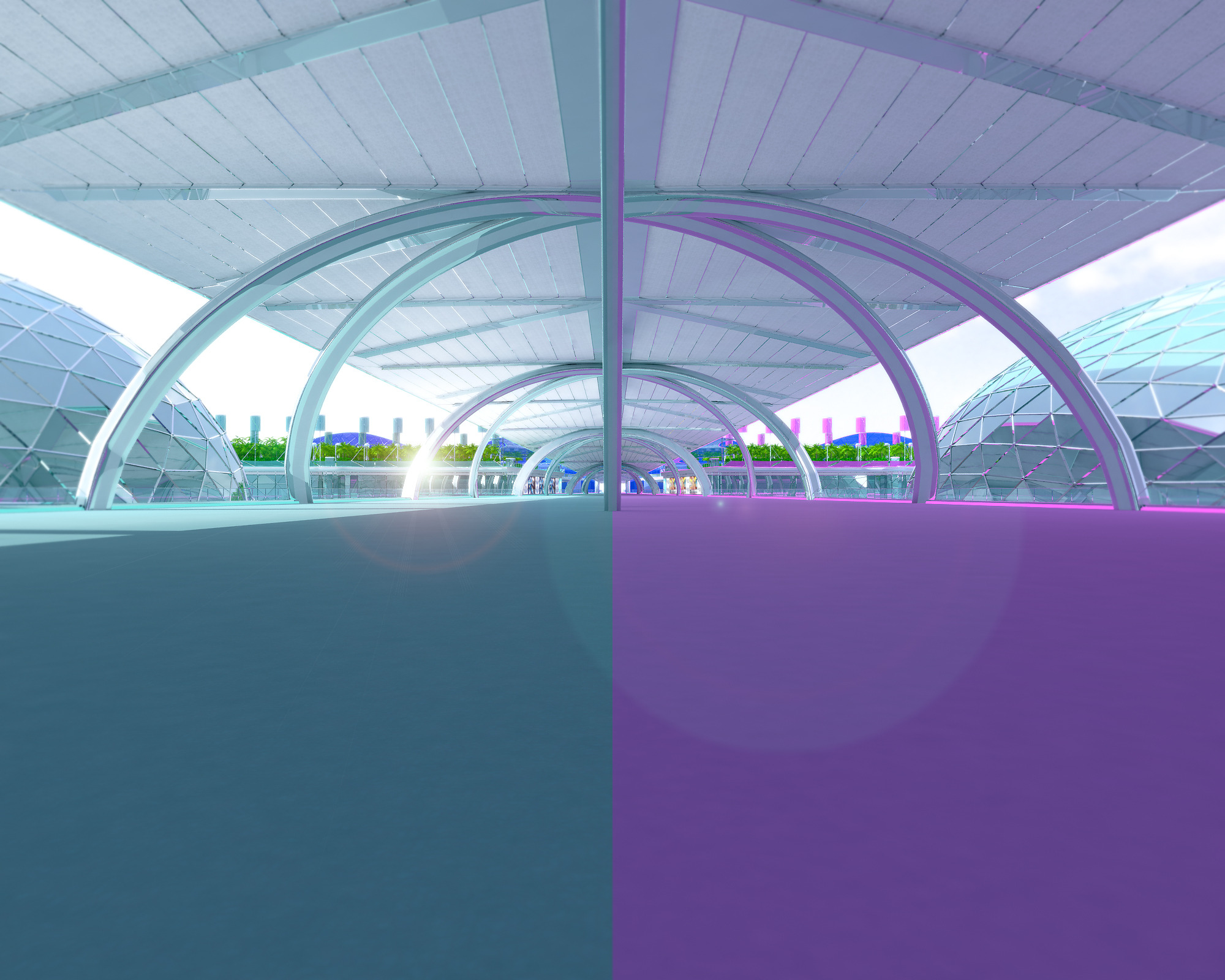

Bridges. Moving Walkways were added later.

Design Update. Gigantic circular curved screen added around the entire Stadium.

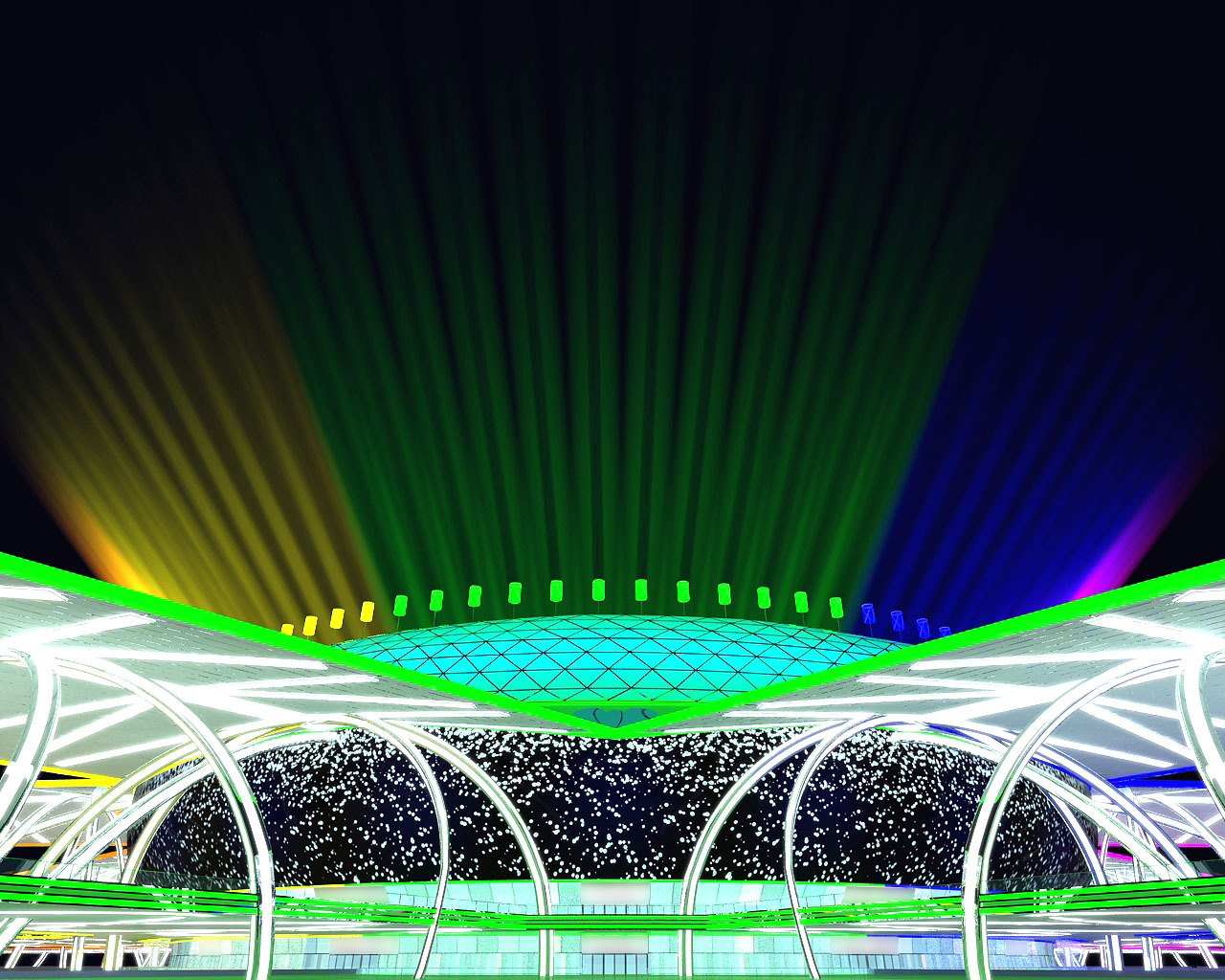

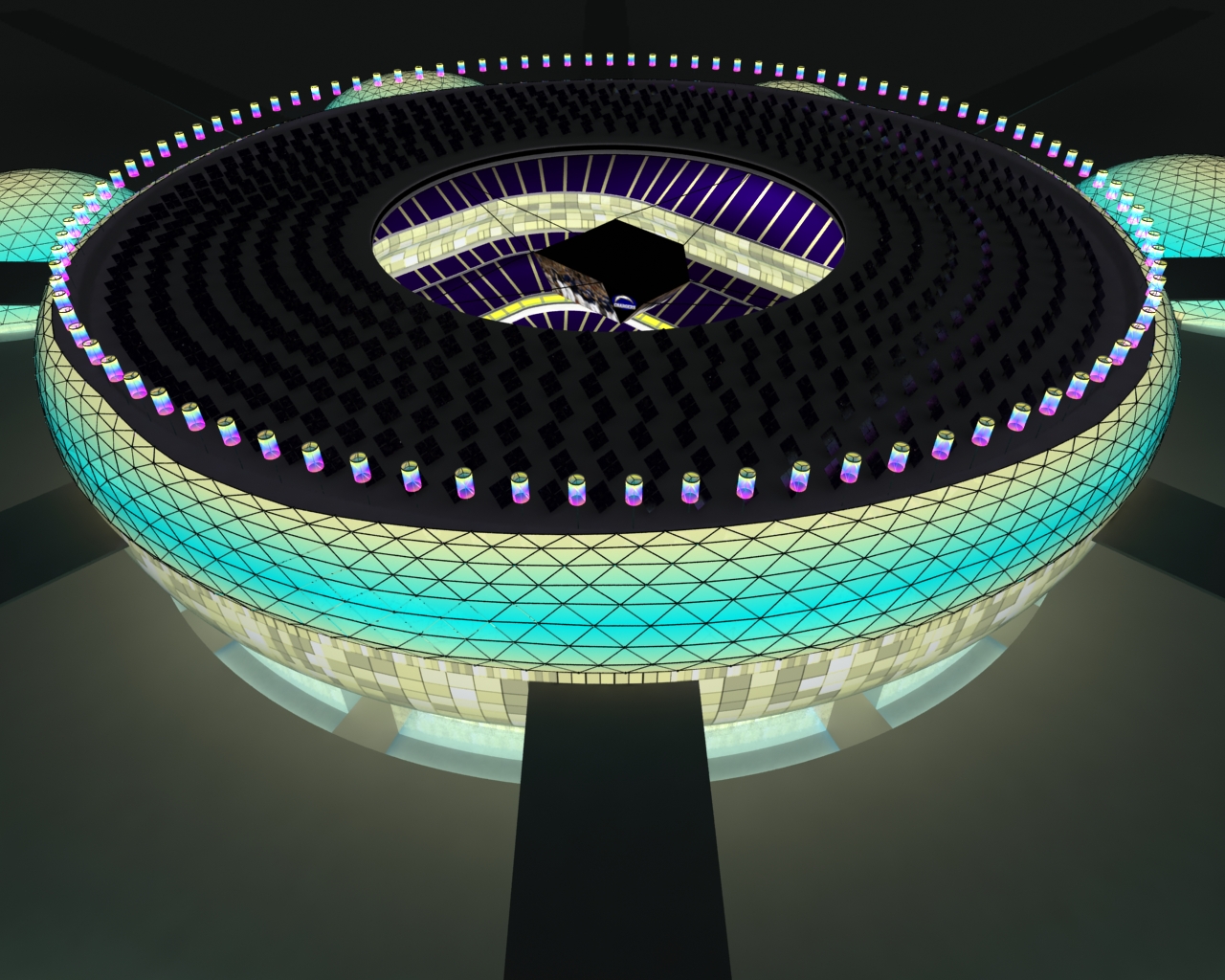

Design Update. Colorful searchlights added to the Stadium roof. Stadium in all its glory

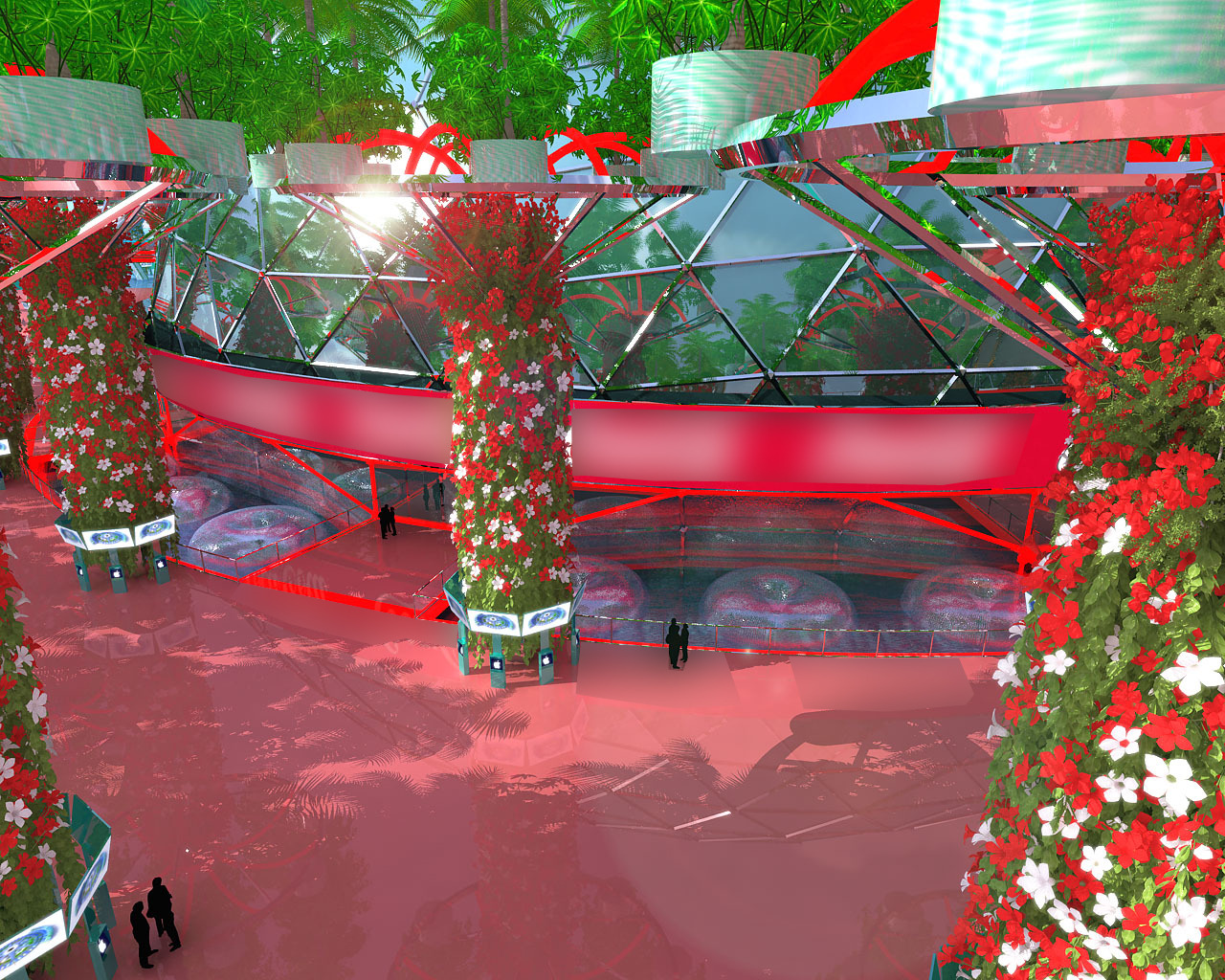

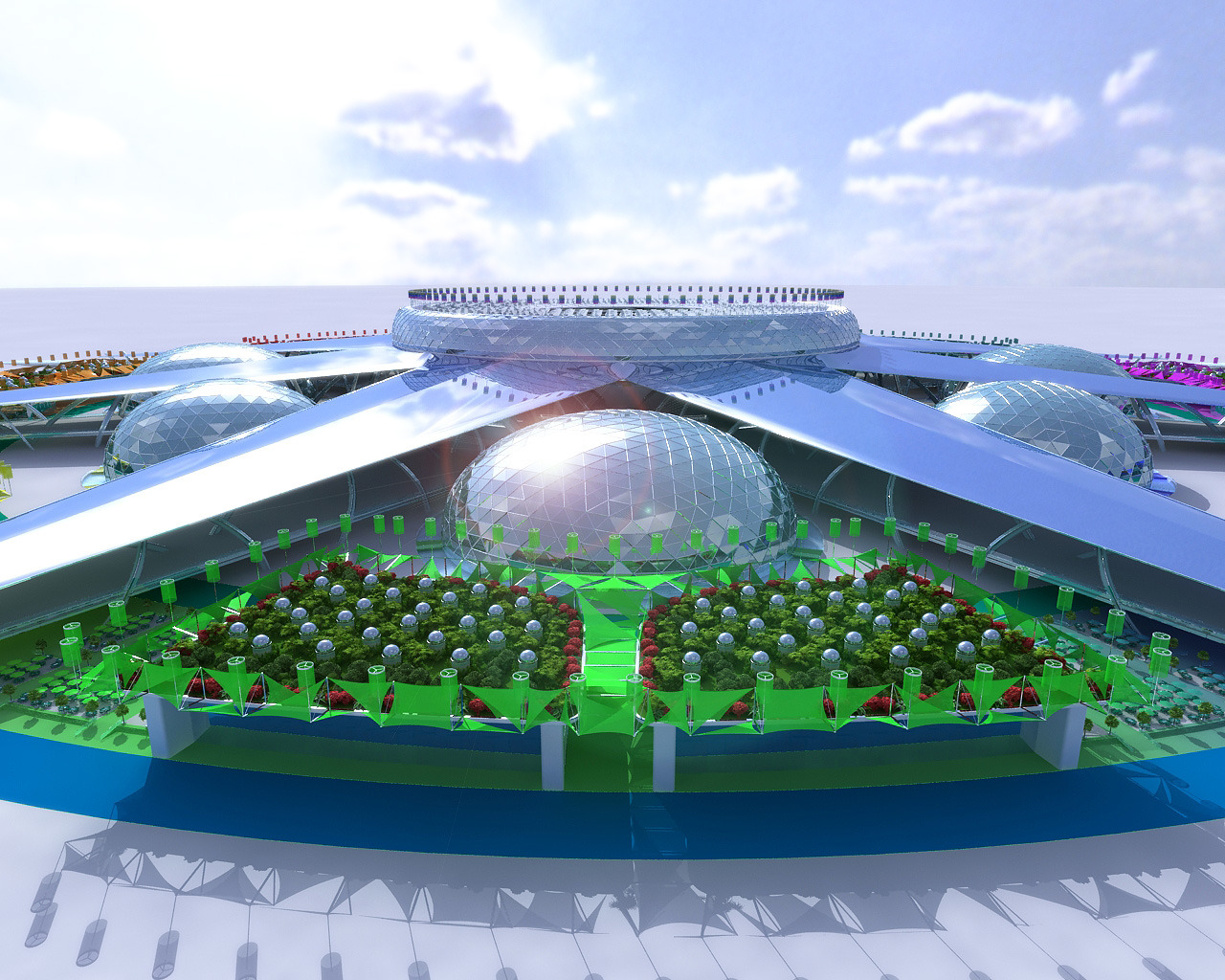

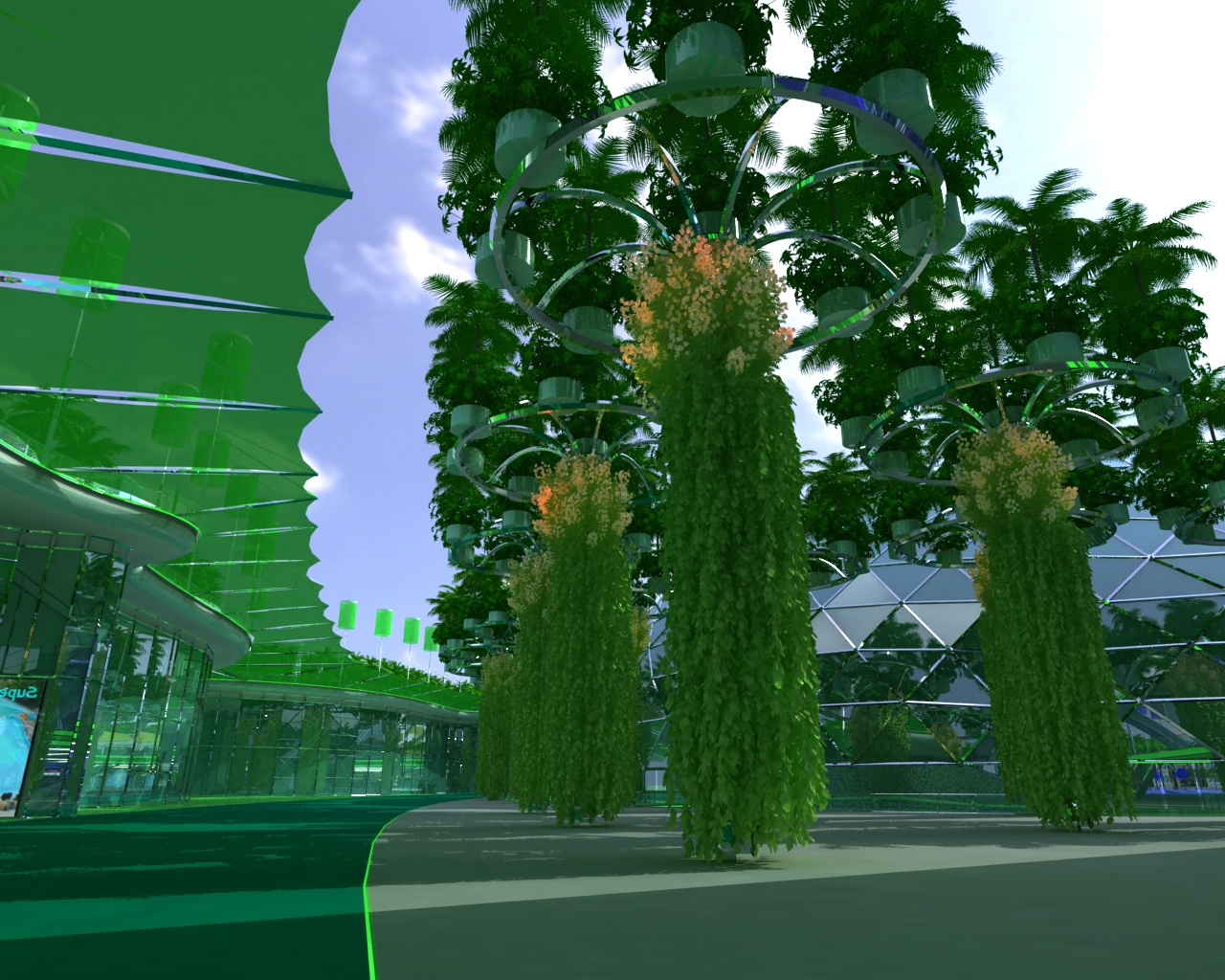

Design Update. ’Column Trees’ around Sport Arenas area. Tall broad trees provide shade and ’finalize’ the green roof (or green ceiling if you like) design of the whole Resort.

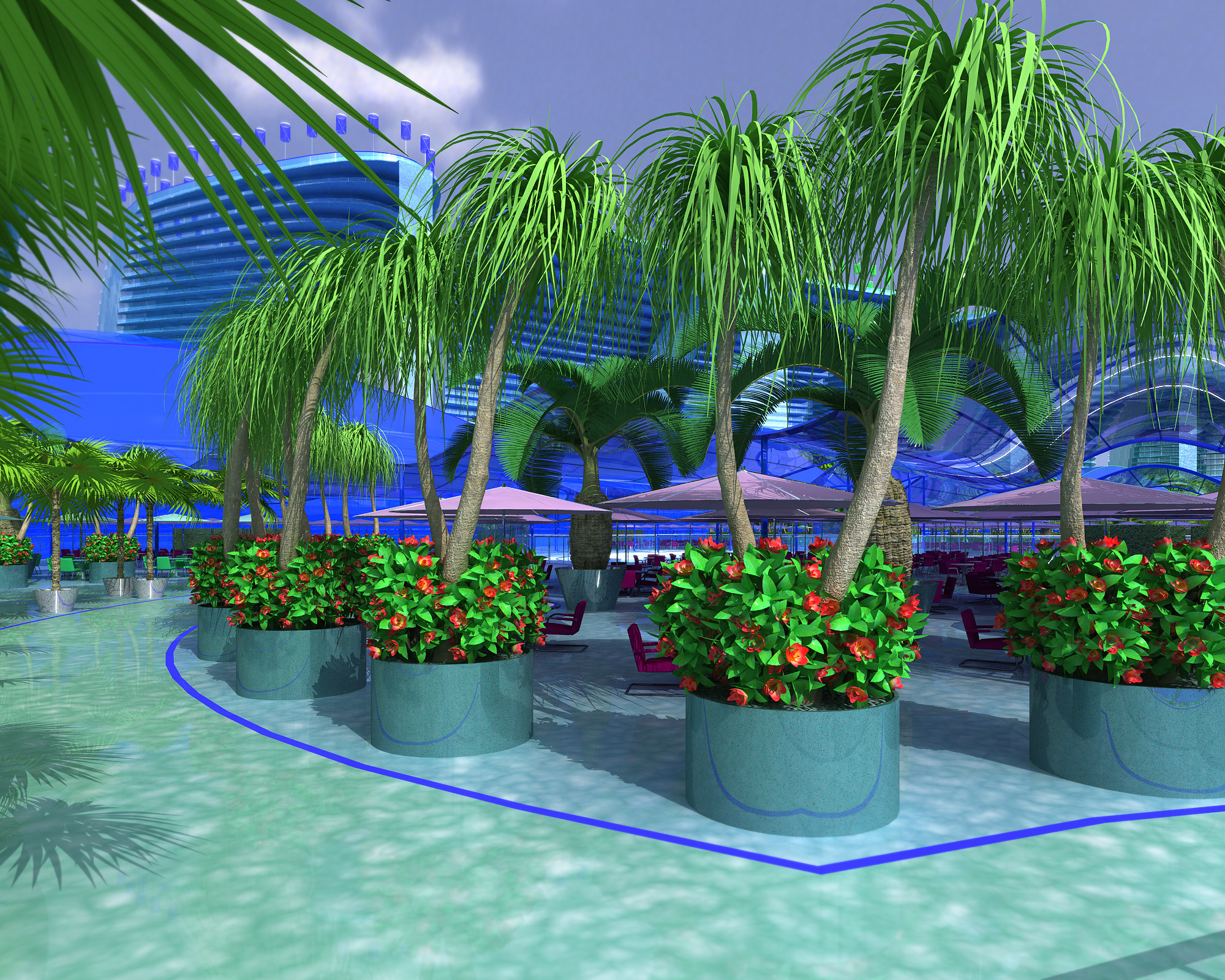

Fresh air everywhere

and shade.

Design Update. Circular screens added around the Sport Arenas.

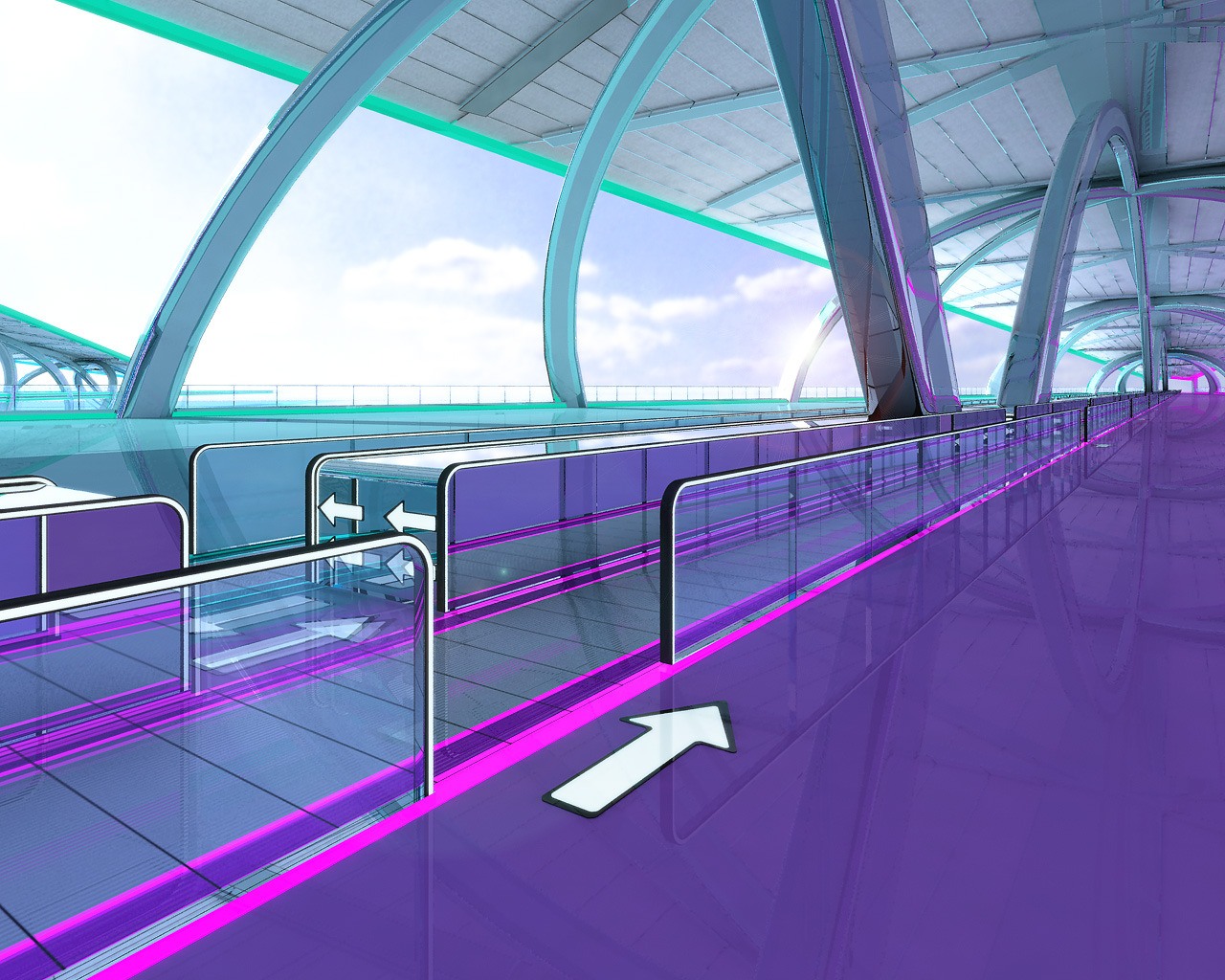

Design Update. Moving Walkways added to the Bridges.

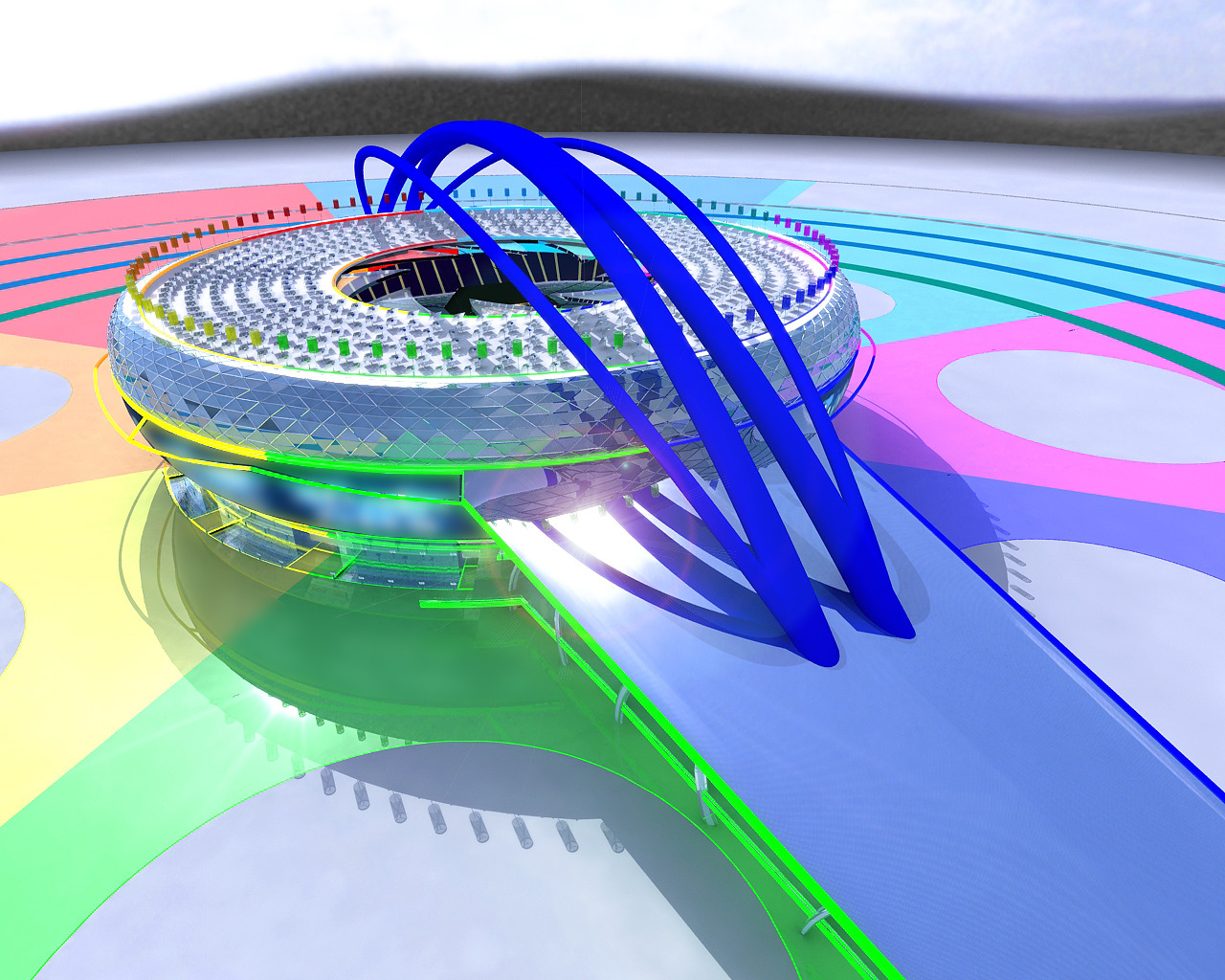

Design Update. Arch design A.

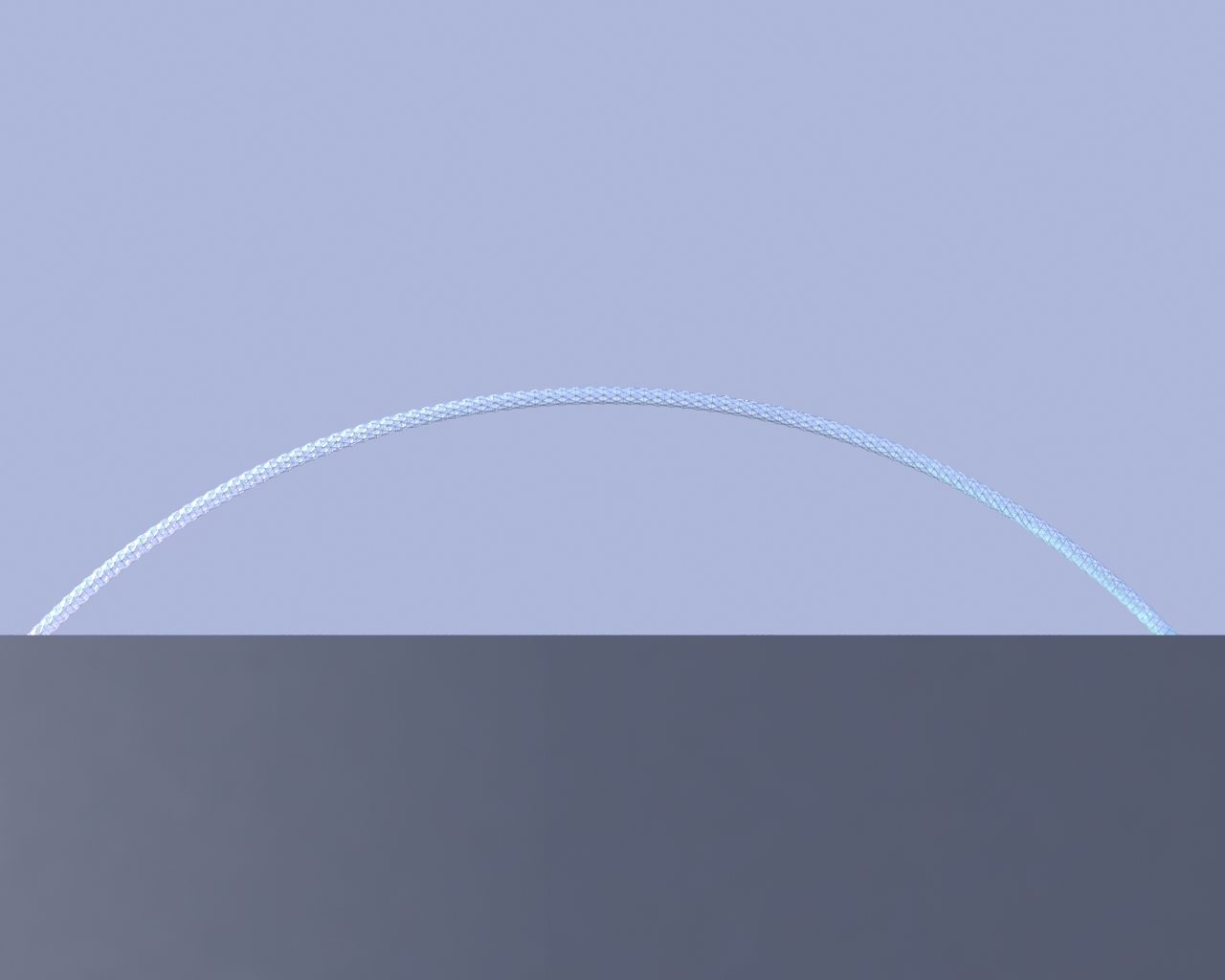

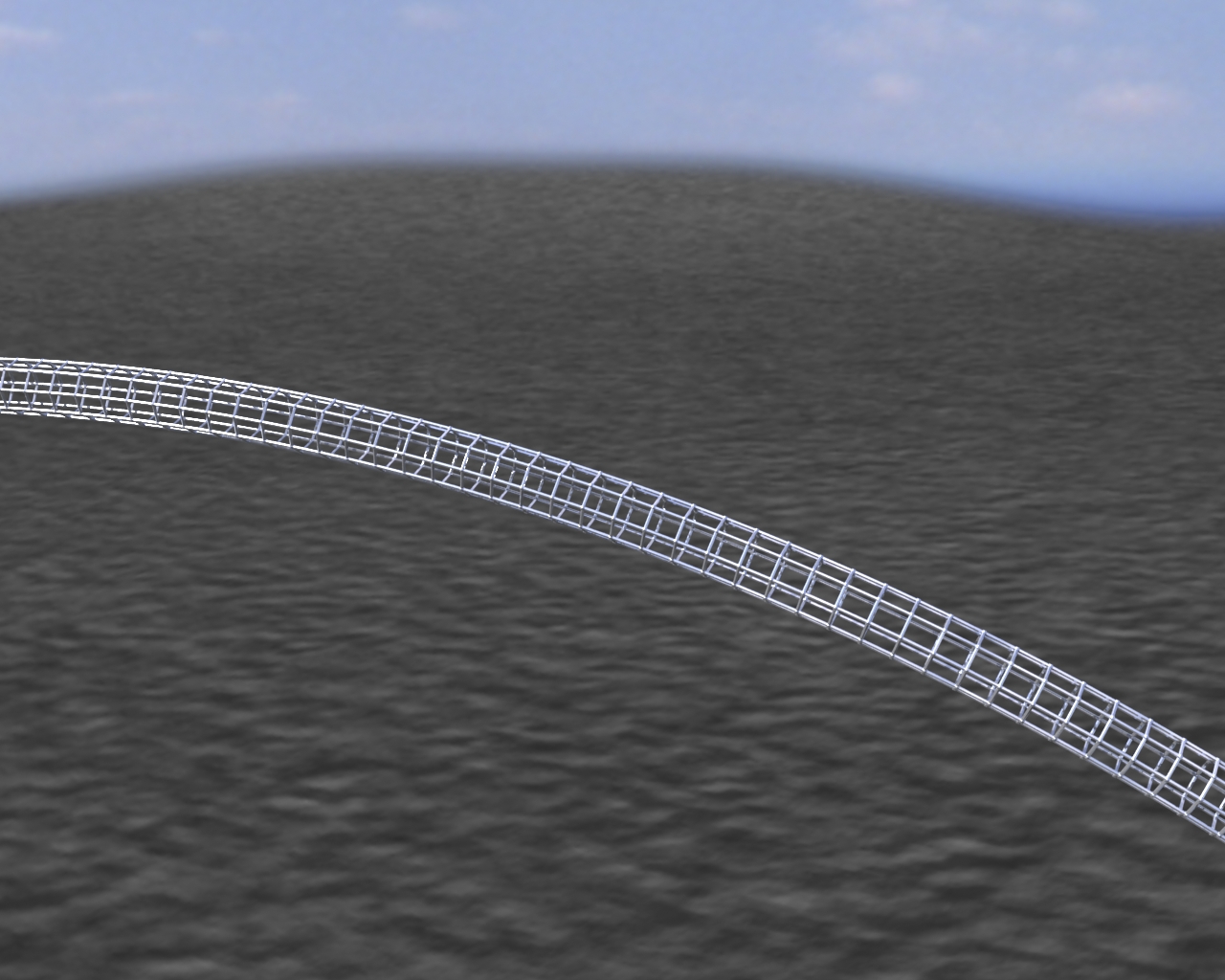

Design Update. Arch mesh design A.

Design Update. Arch mesh design B.

Design Update. Arch design B.

Design Update. Arch design B. Arch with elevator inside goes from the ground level

Through the Bridges

To the Bridges

Through the Bridges Roof

And to the Restaurant on top.

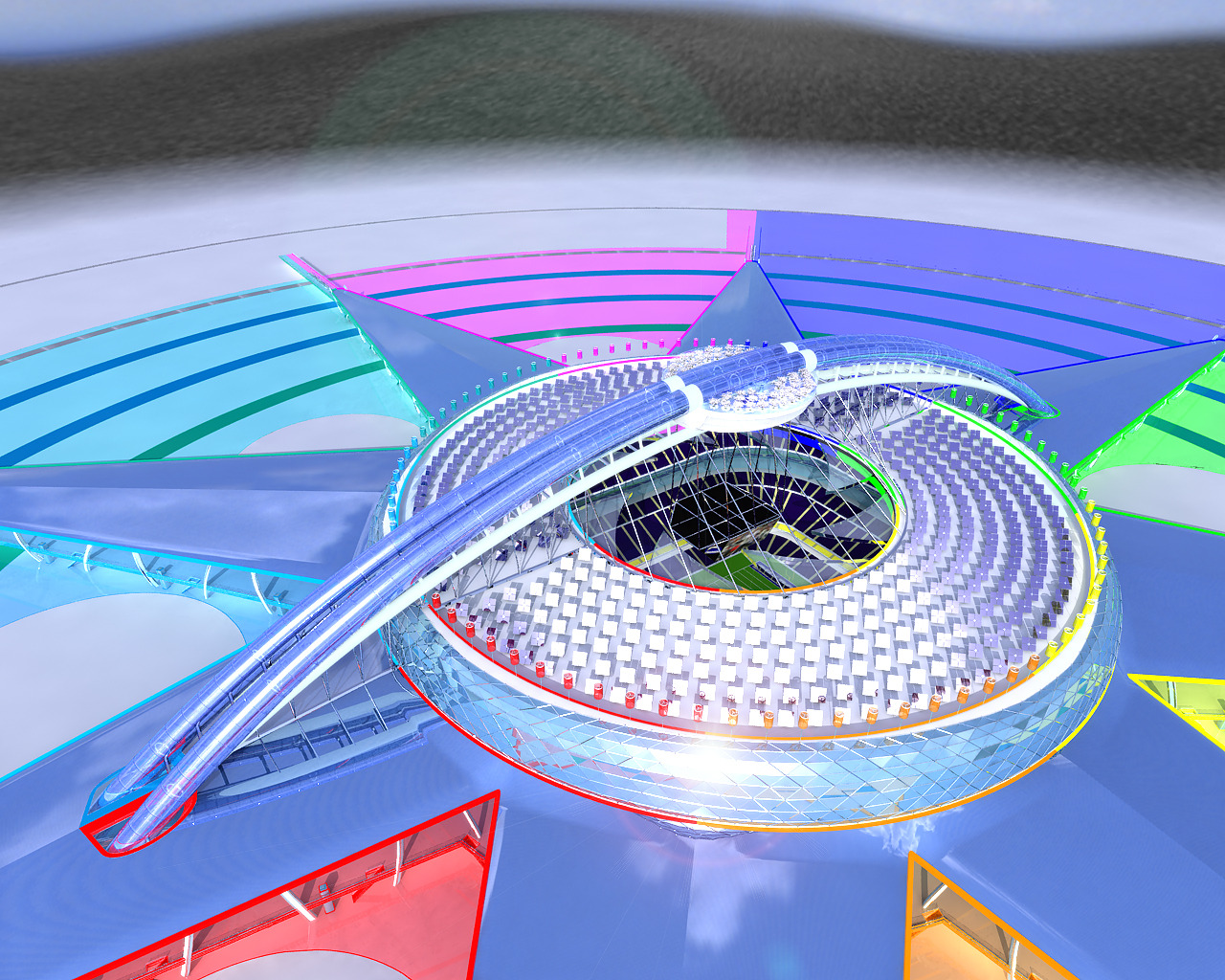

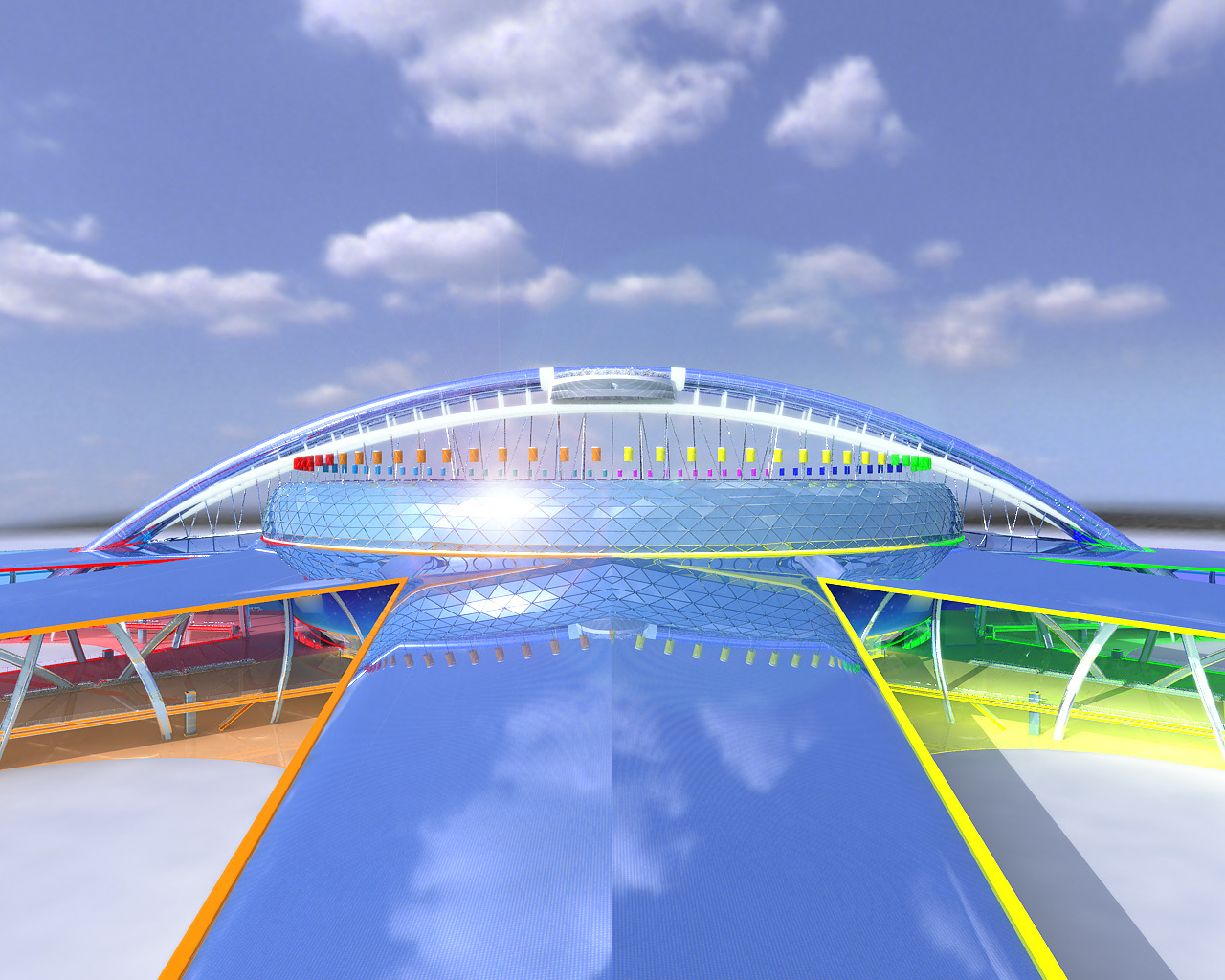

Design Update. Arch also helps support the Stadium roof and scoreboard.

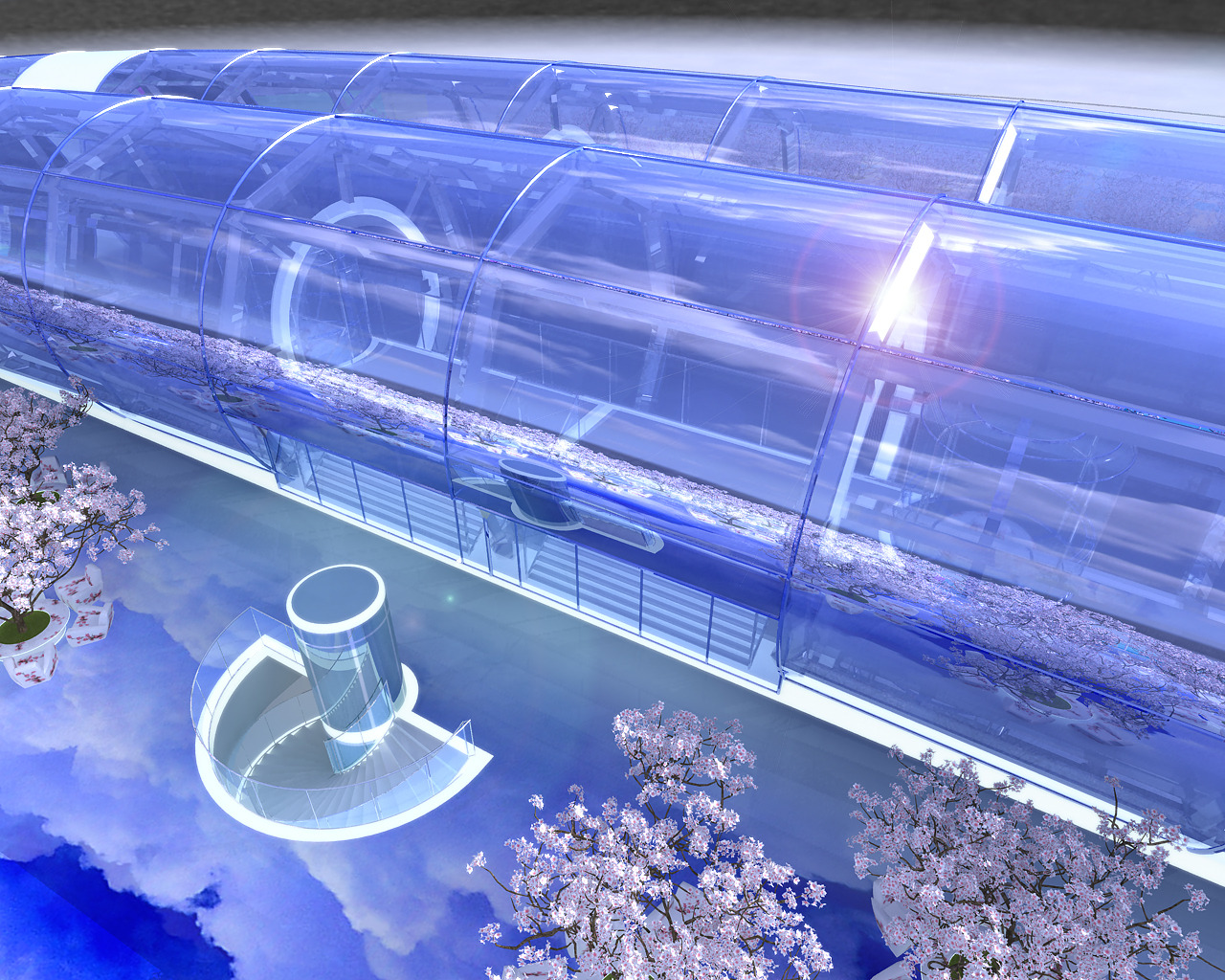

Design Update. Restaurant cloud - skies inspired design.

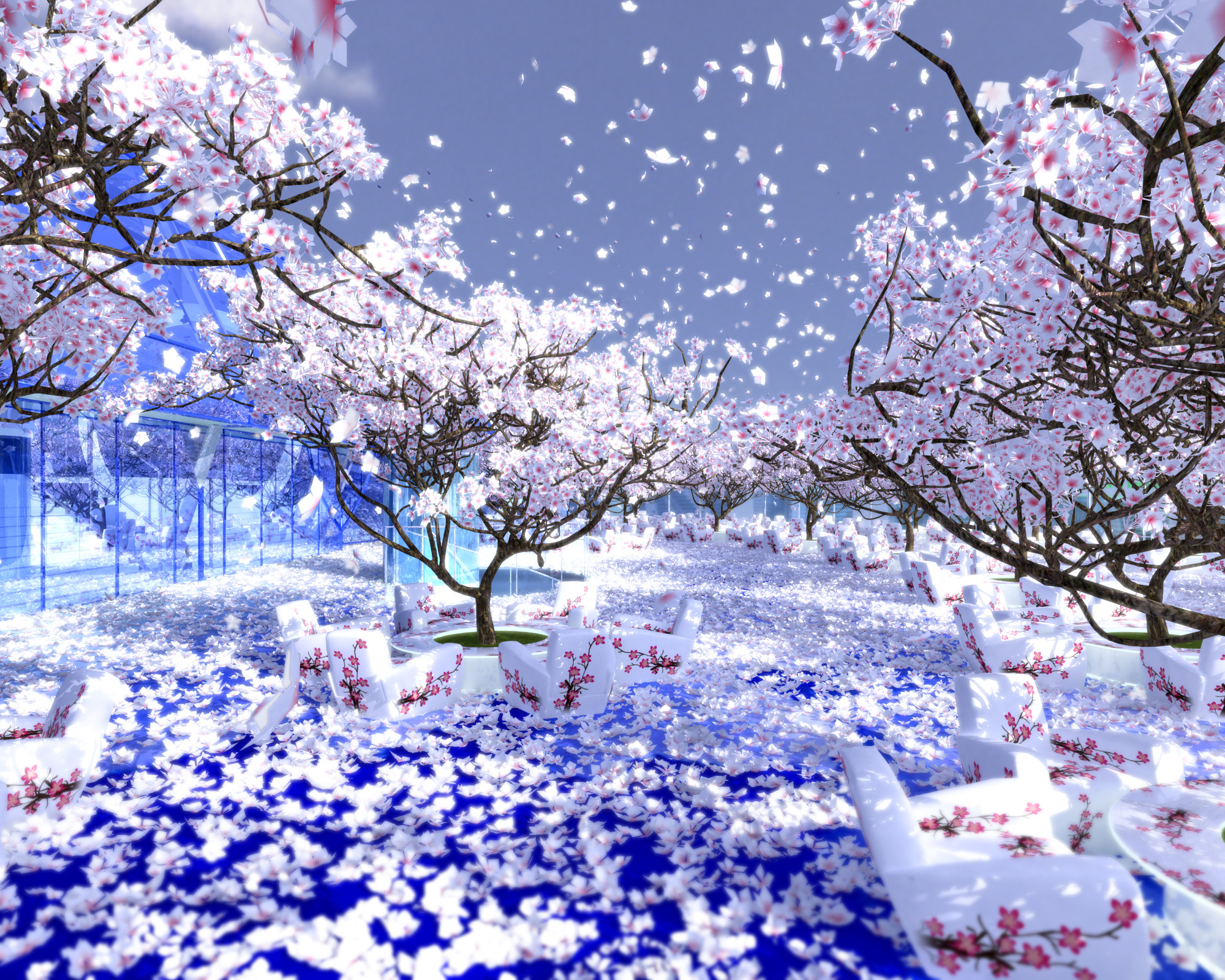

Design Update. Whiteness, Cleanness, Sakuras above the Skies.

Design Update. From the Arch to the Restaurant open roof.

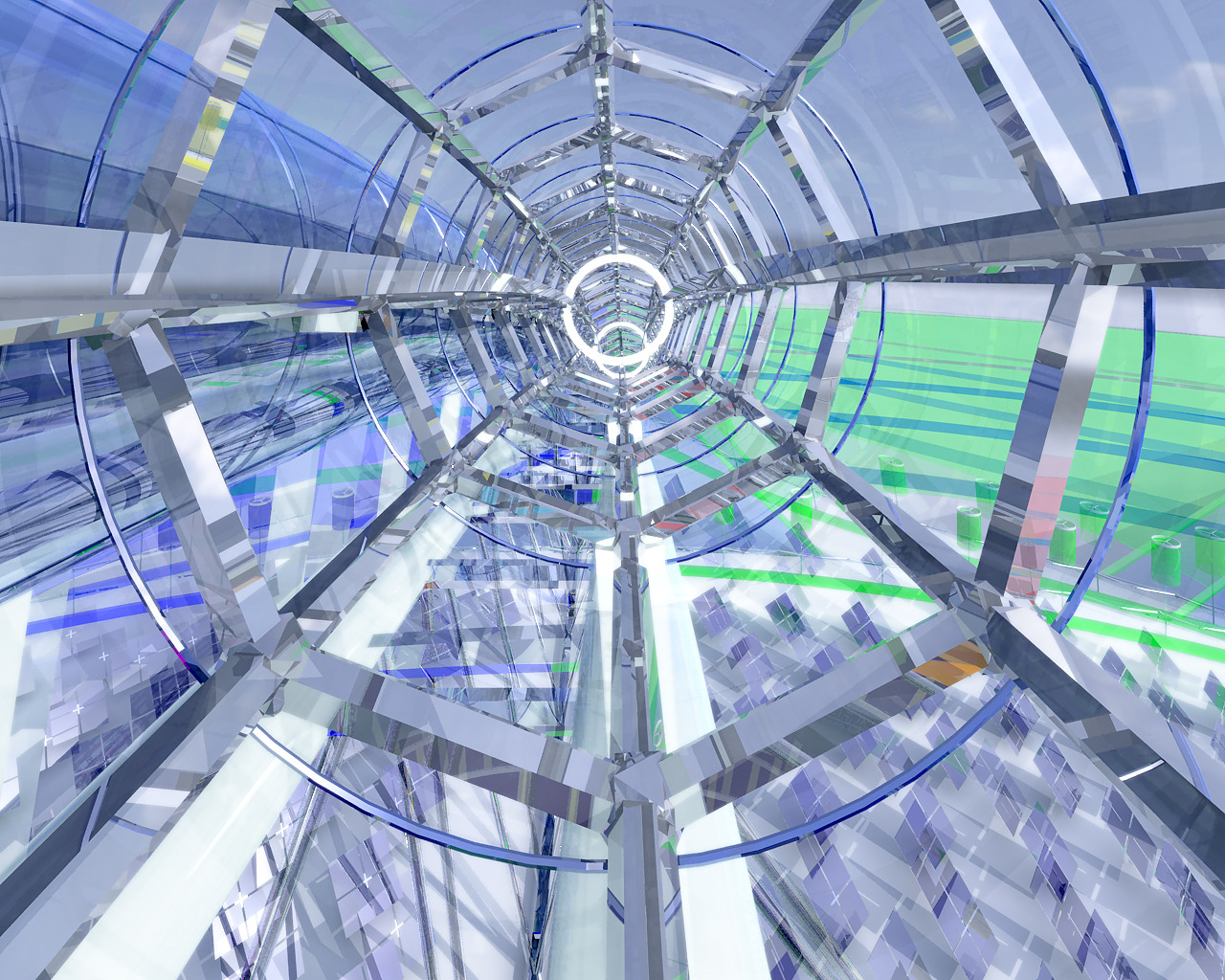

Design Update. View from the elevator inside the Arch. Note: Resort is not shown here, just a ground plane.

Design Update. A windy day on the Skies.

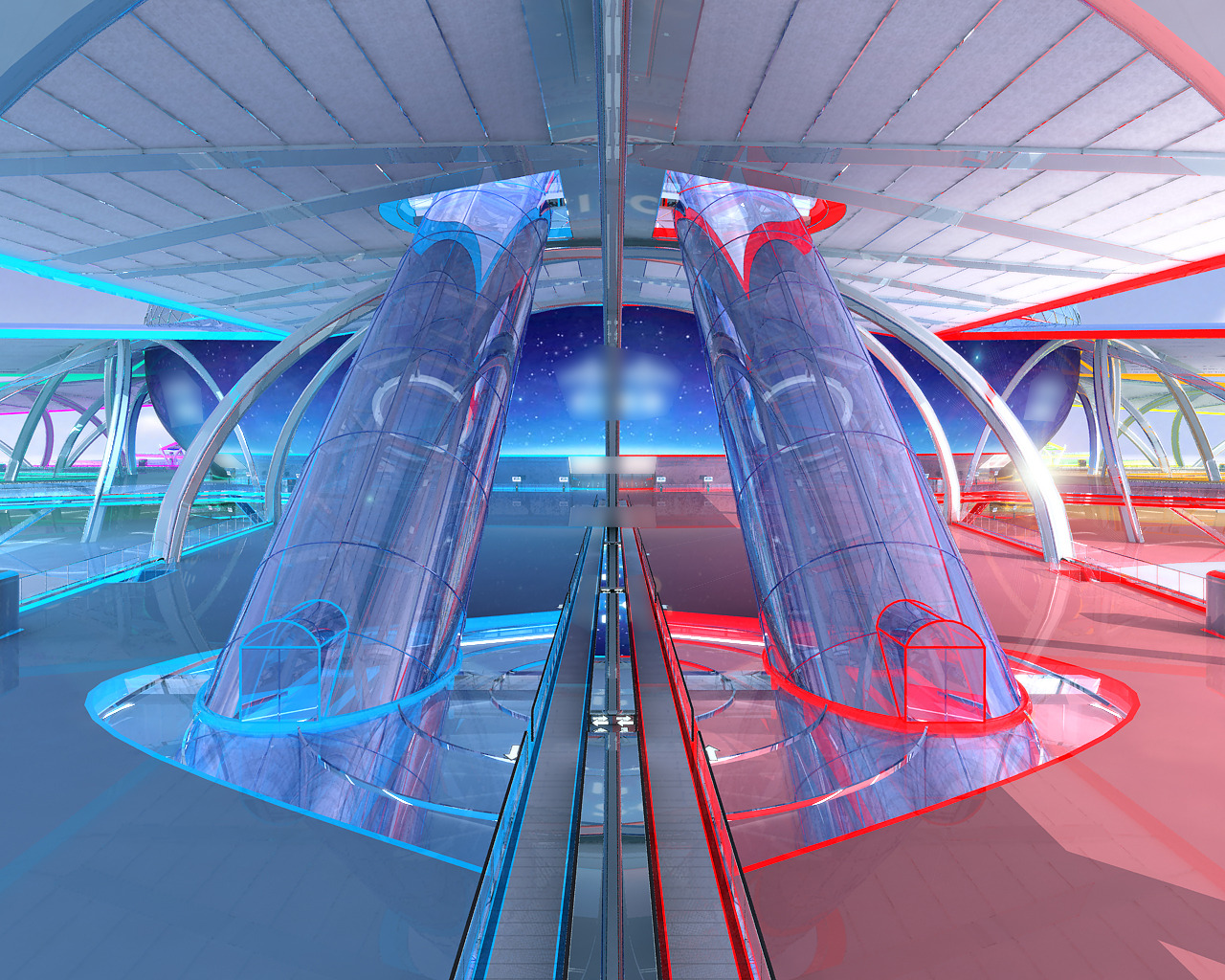

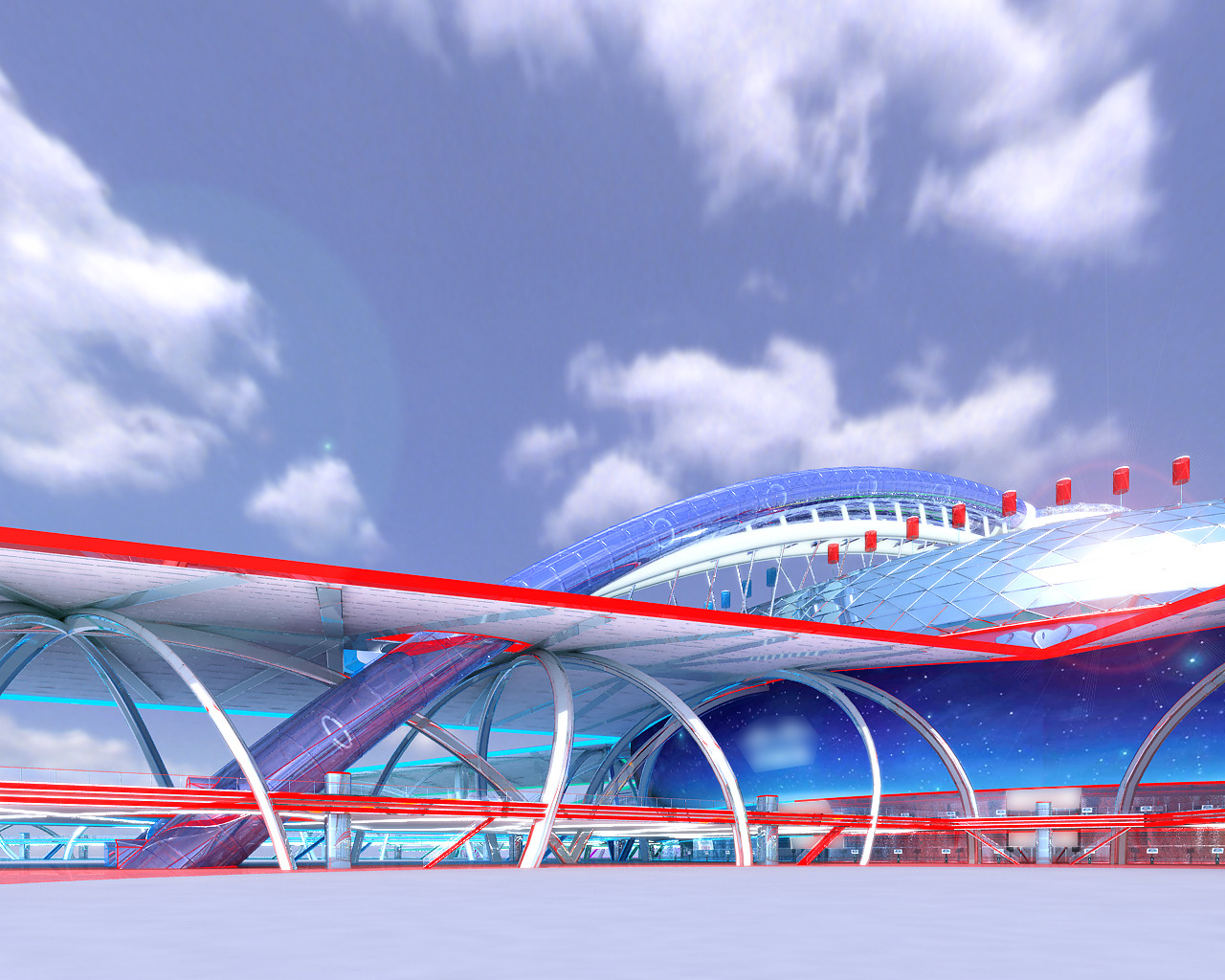

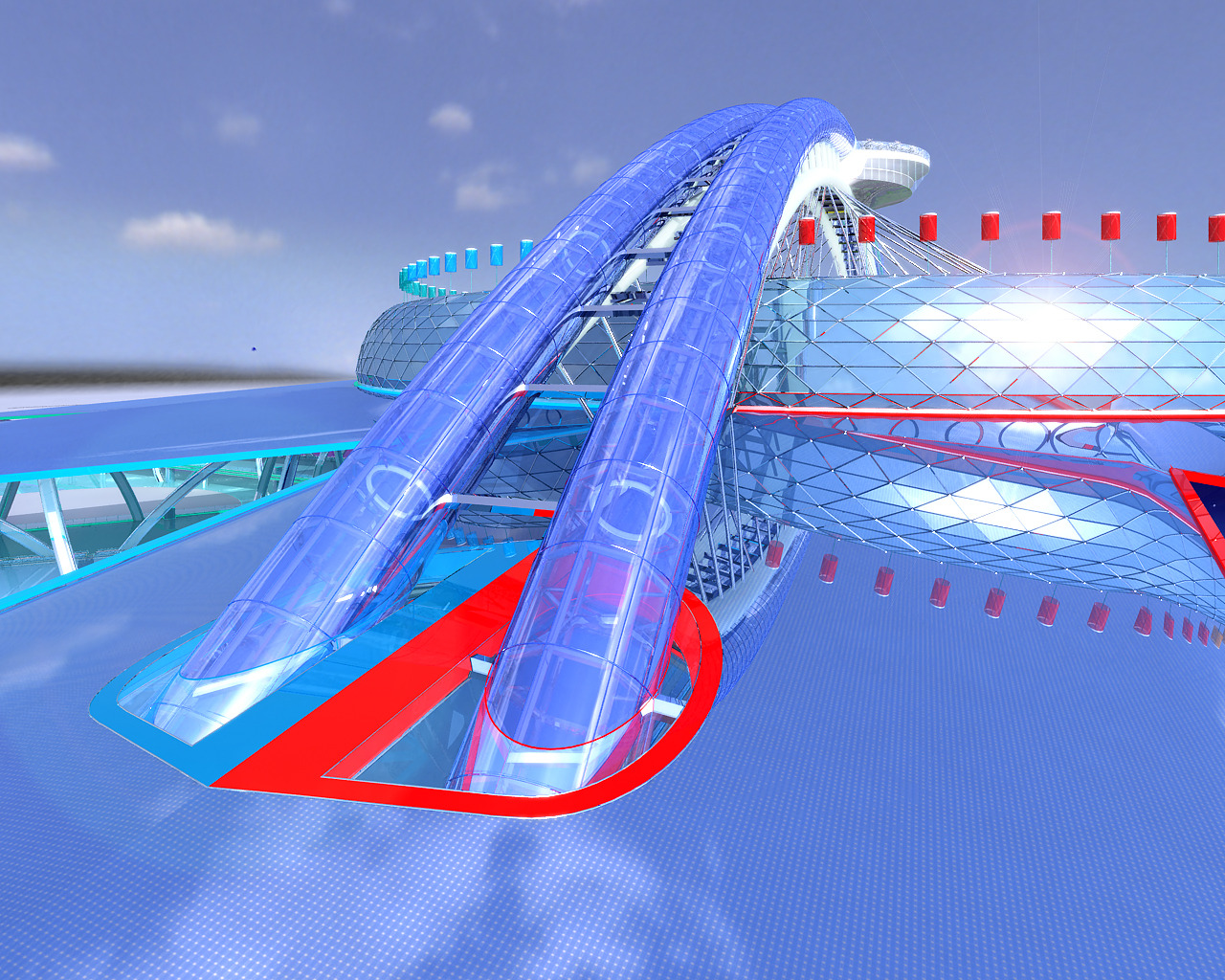

Design Update. Elevators and Stairs to the bridges were added.

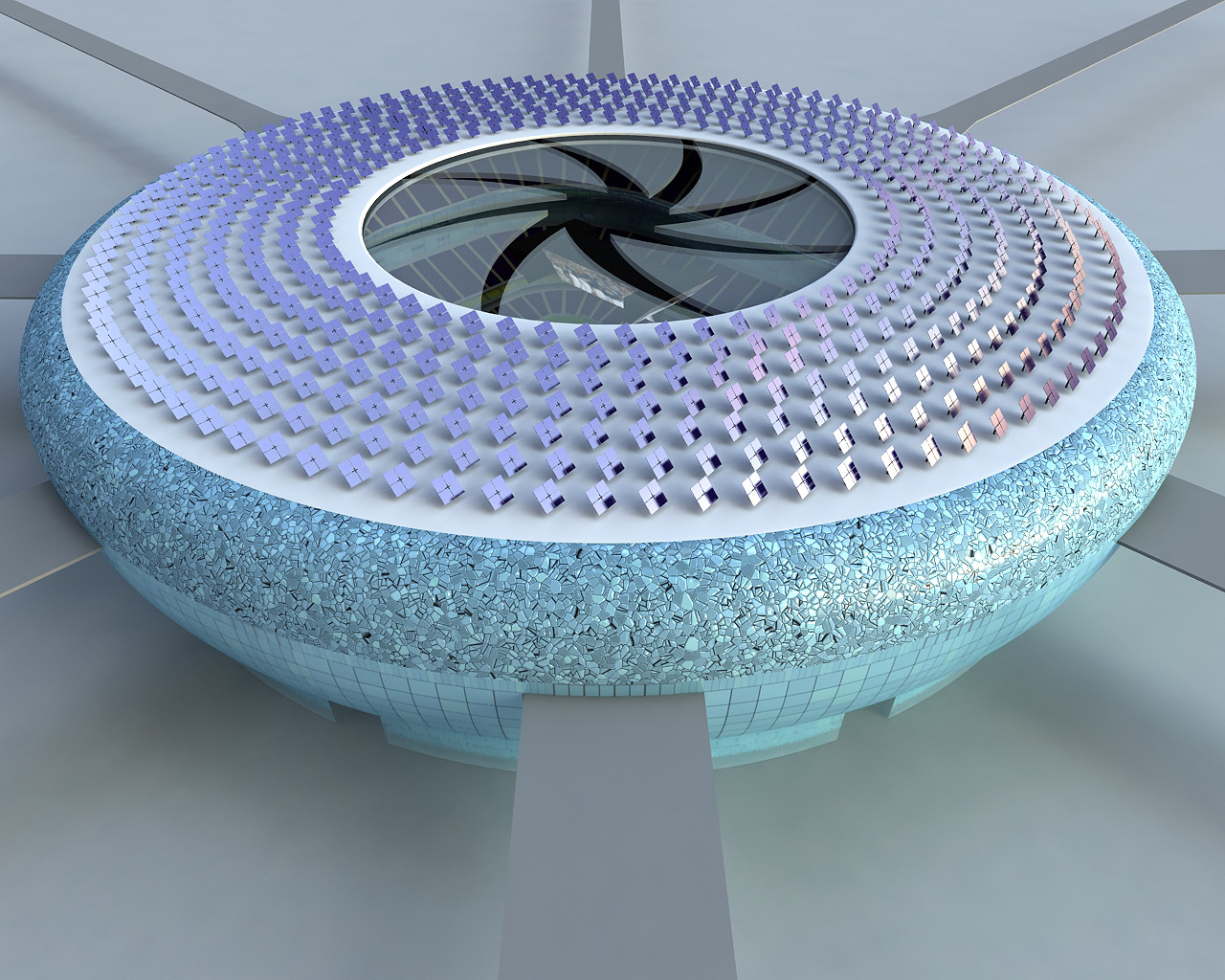

Concept Design. Stadium roof idea with waterfalls and open areas around the entire Stadium.

Some of the Resort Logo designs.

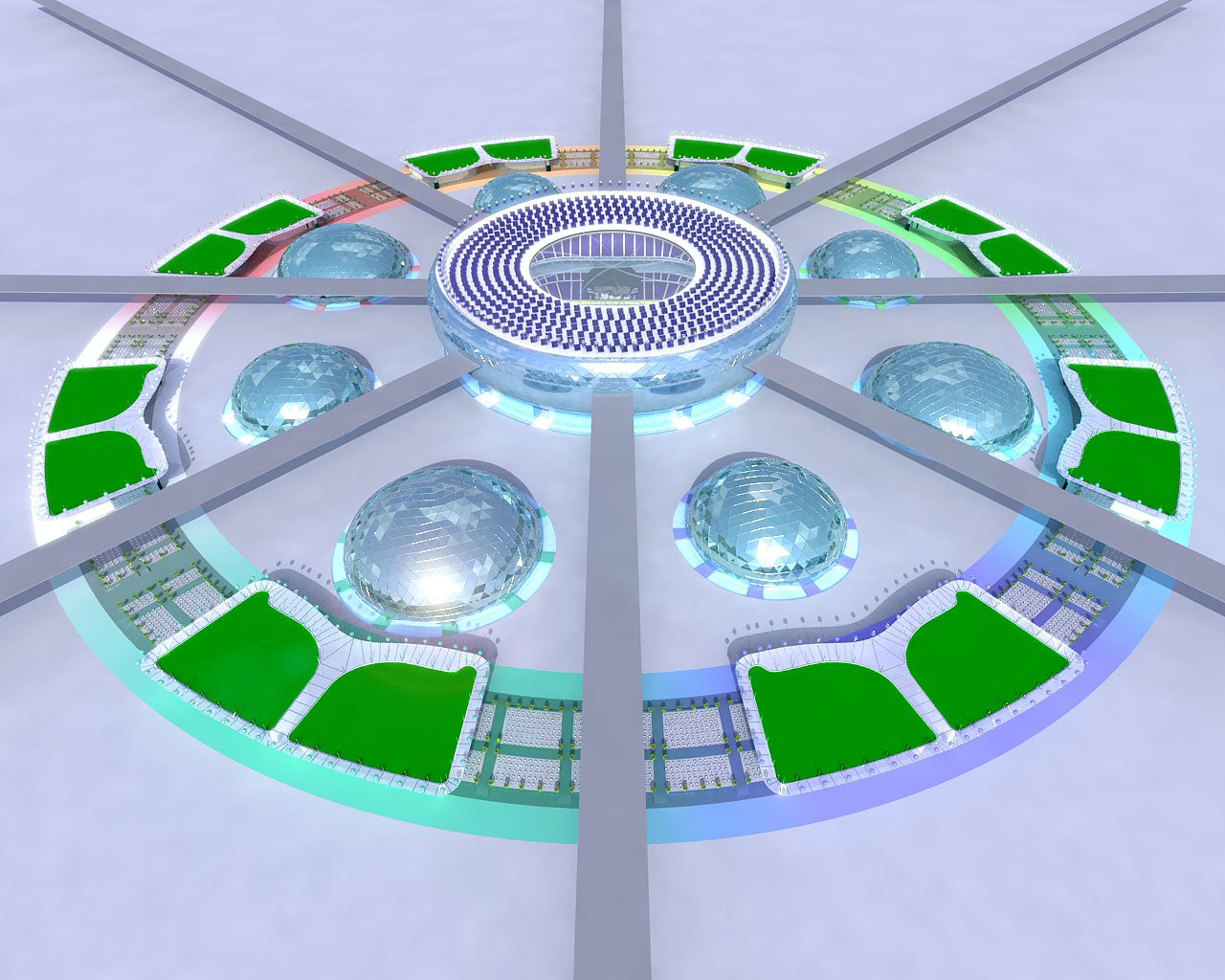

Design Iterations. Very early Stadium Interior design.

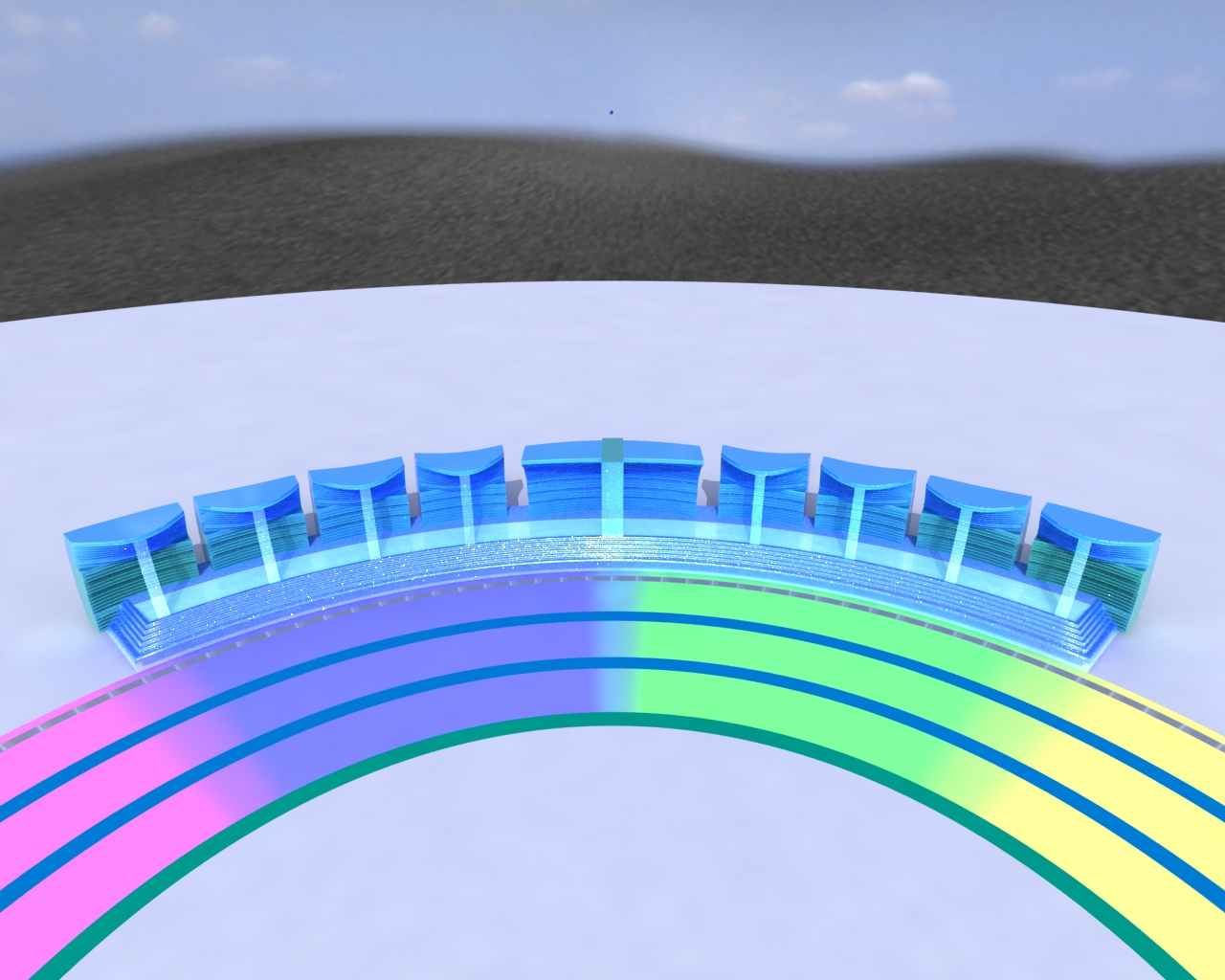

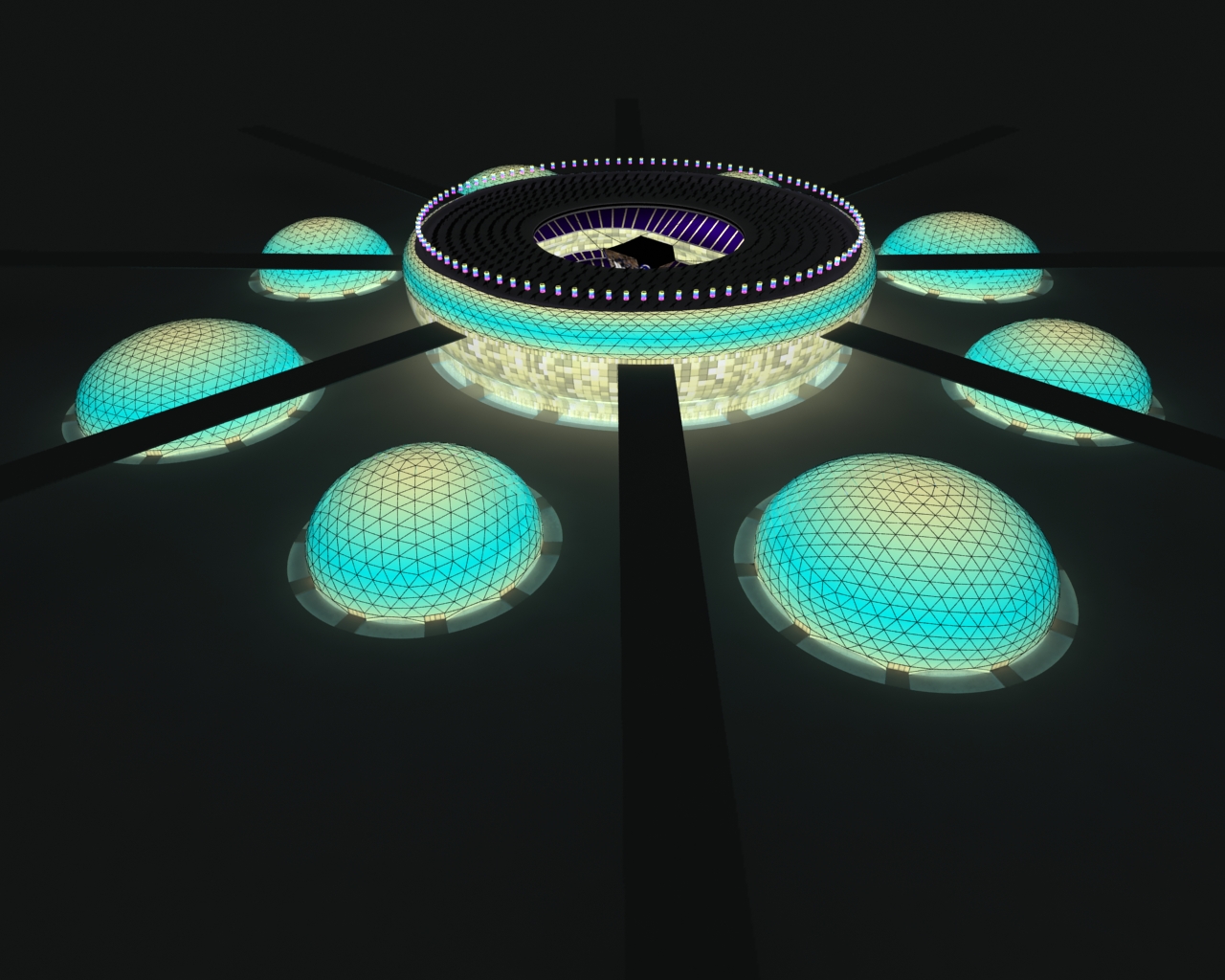

Design Iterations. Early Stadium design.

Sport Arenas walls ’disappear’ behind the waterfalls and then under the pool water.

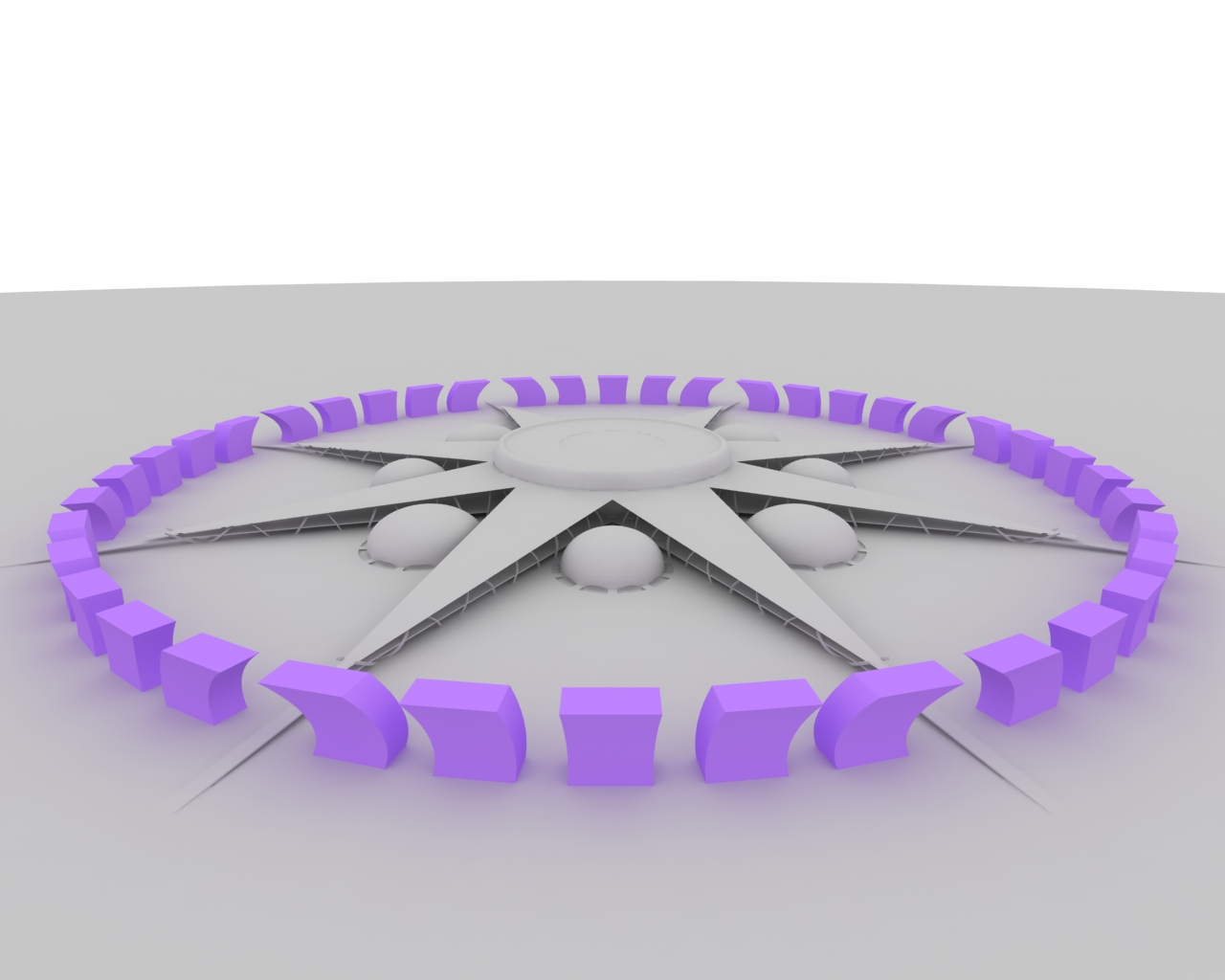

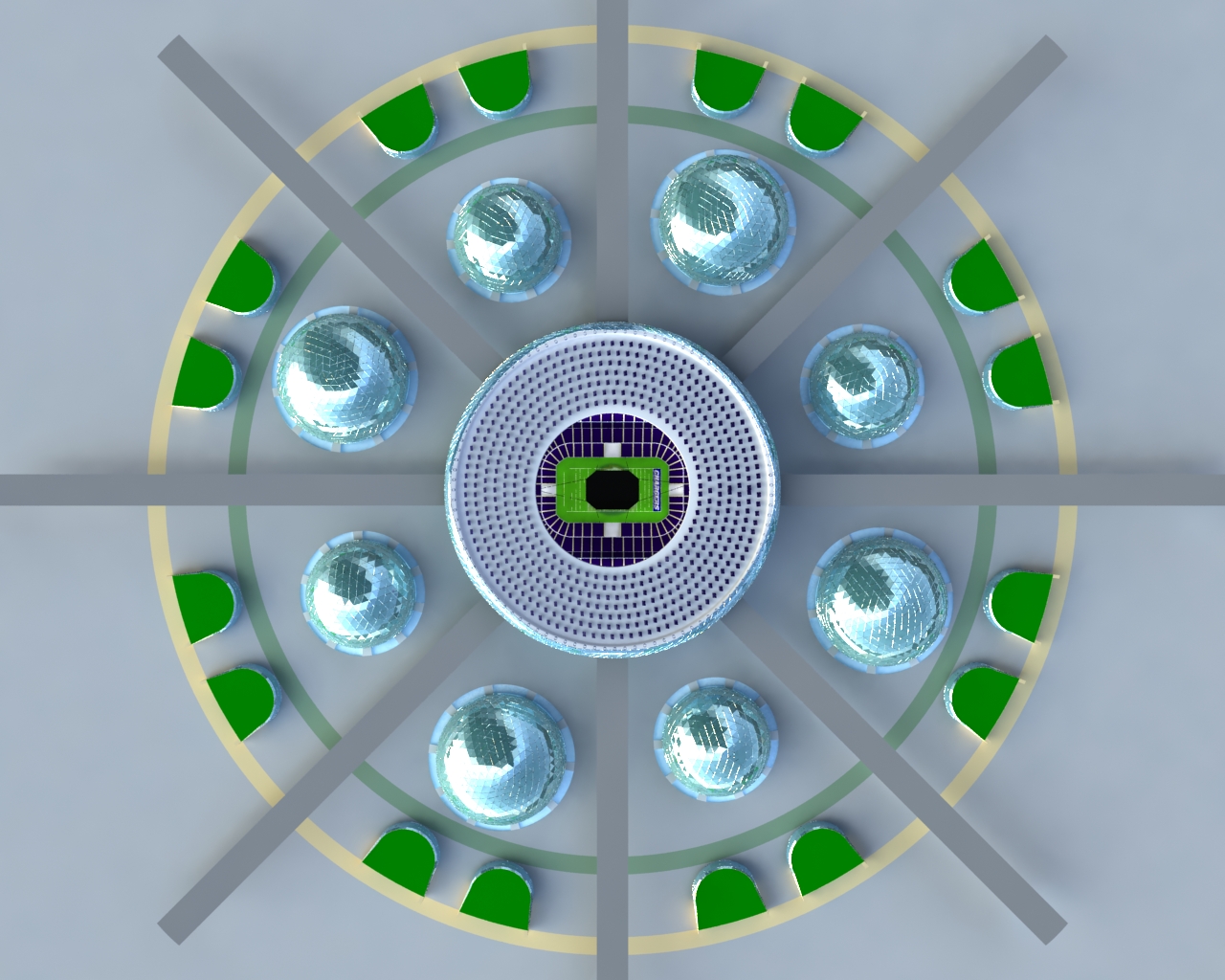

Design Iterations.

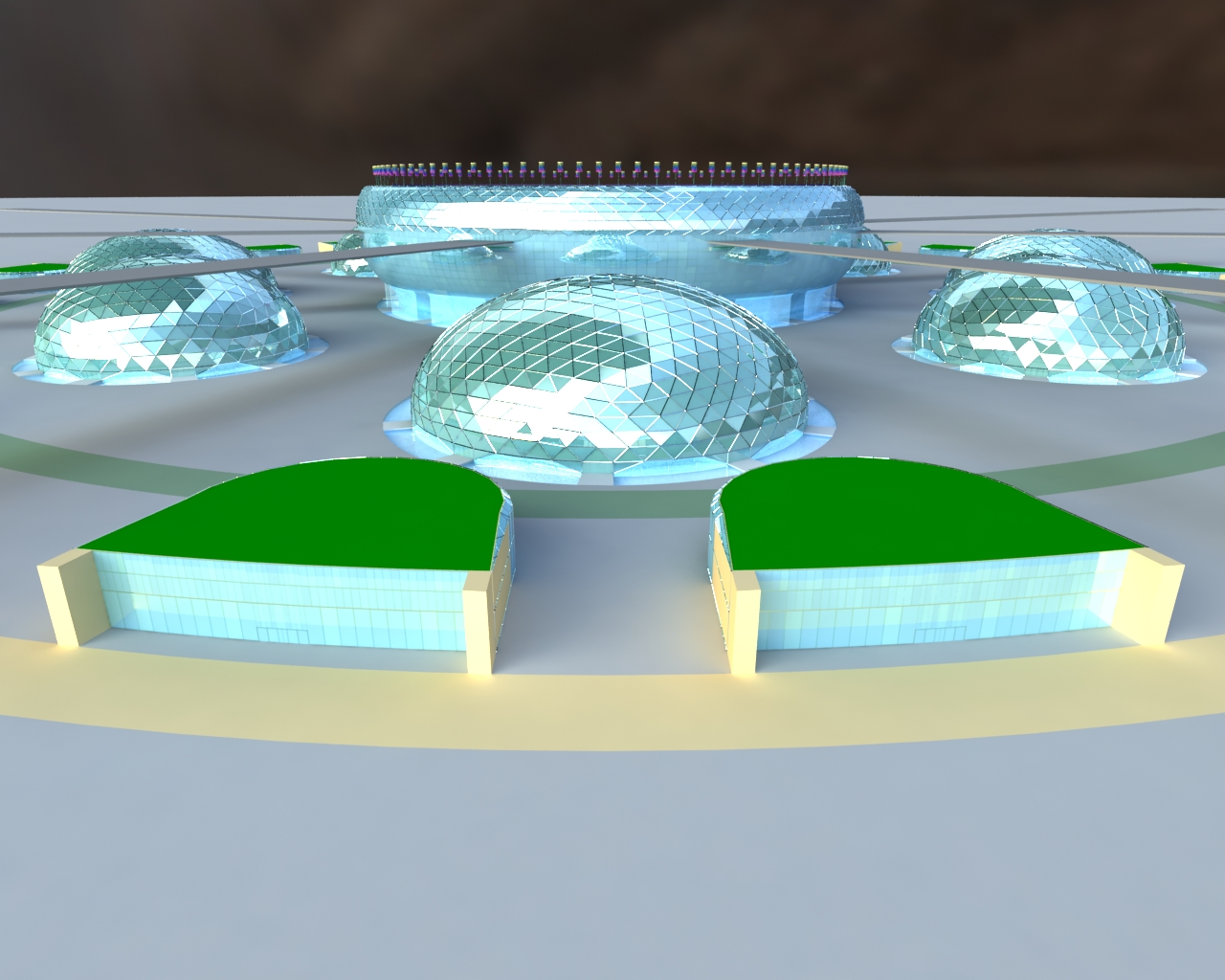

Design Iterations.

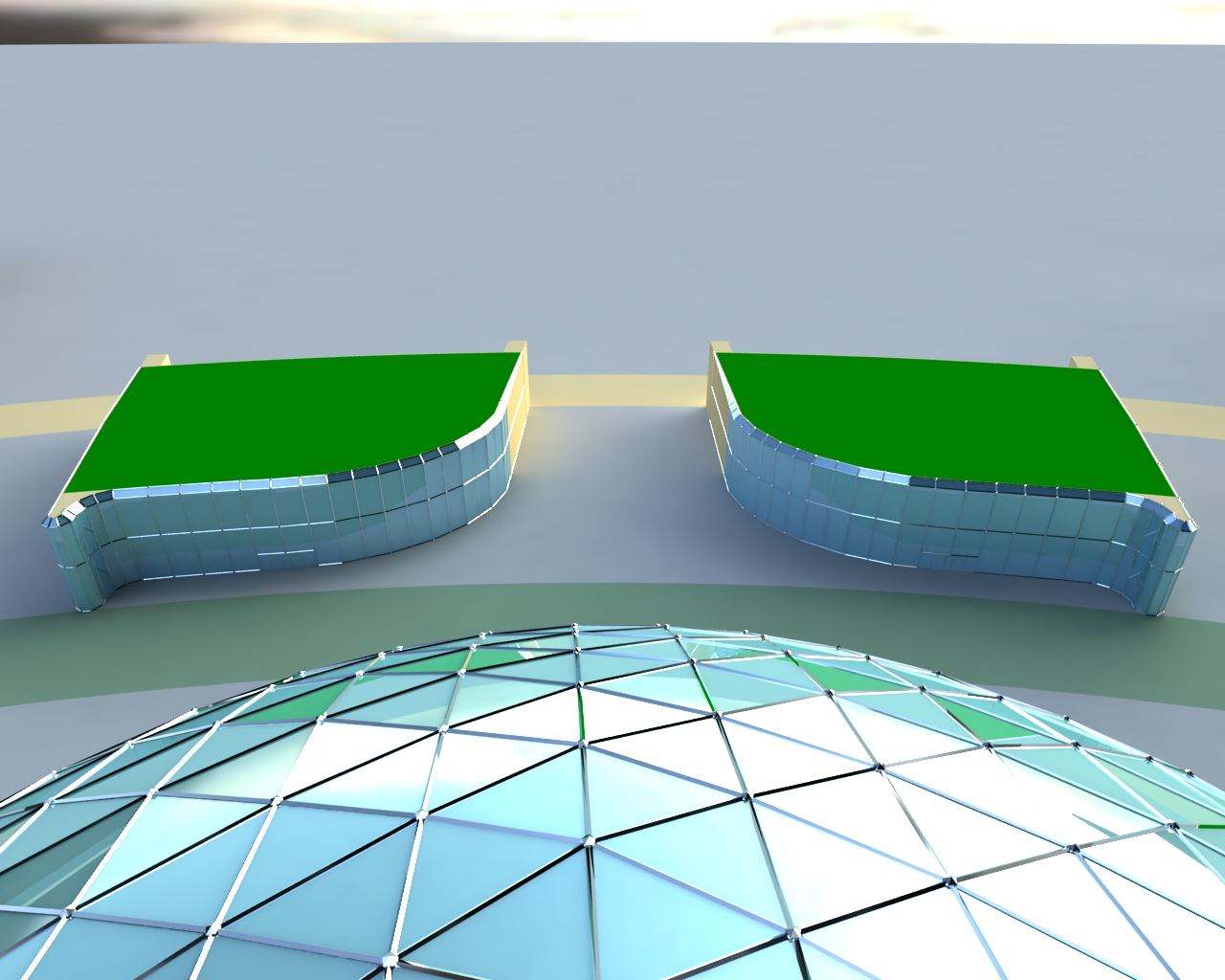

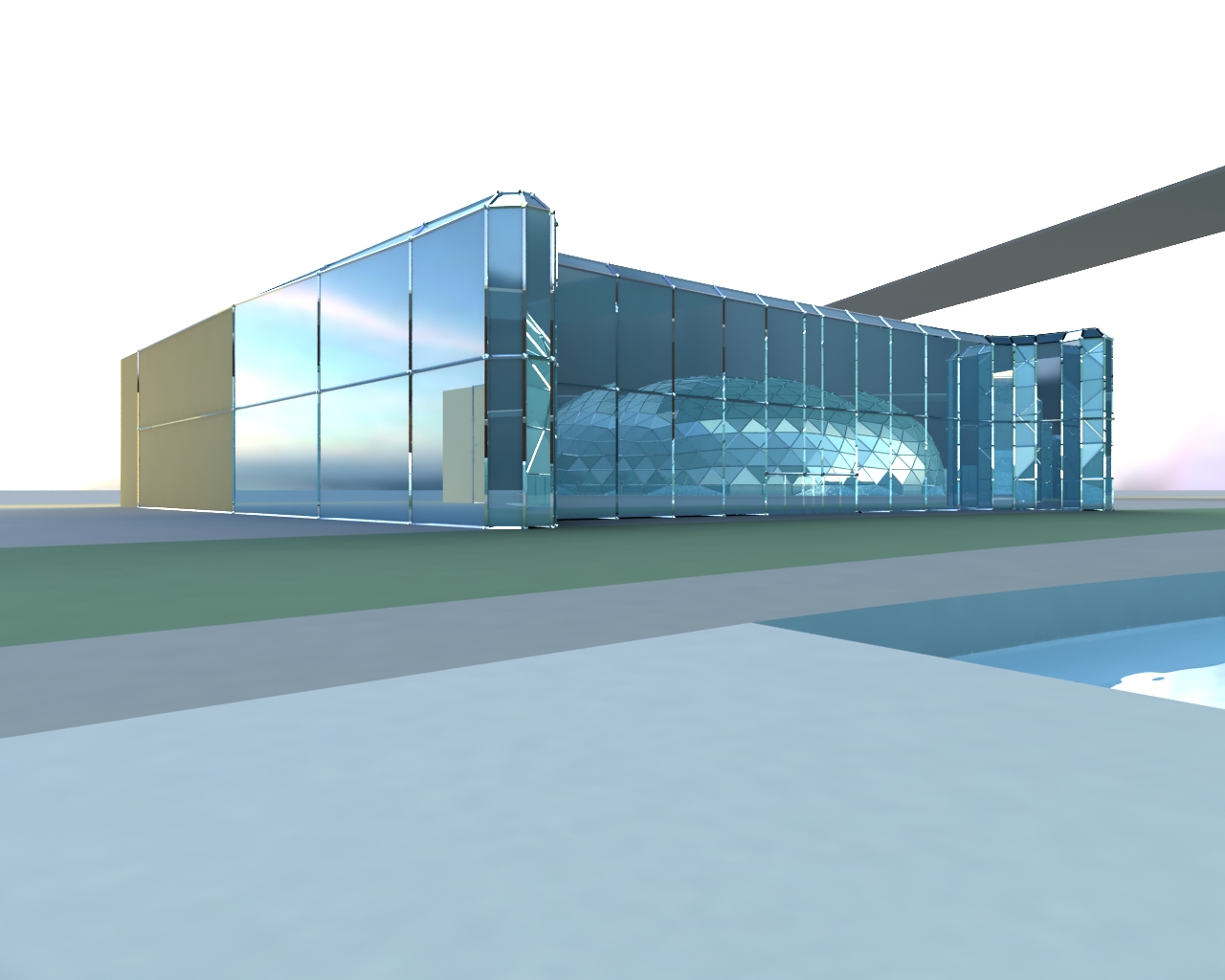

Sport Venues concept A.

Sport Venues concept B.

Sport Venues concept C.

Sport Venues concept D.

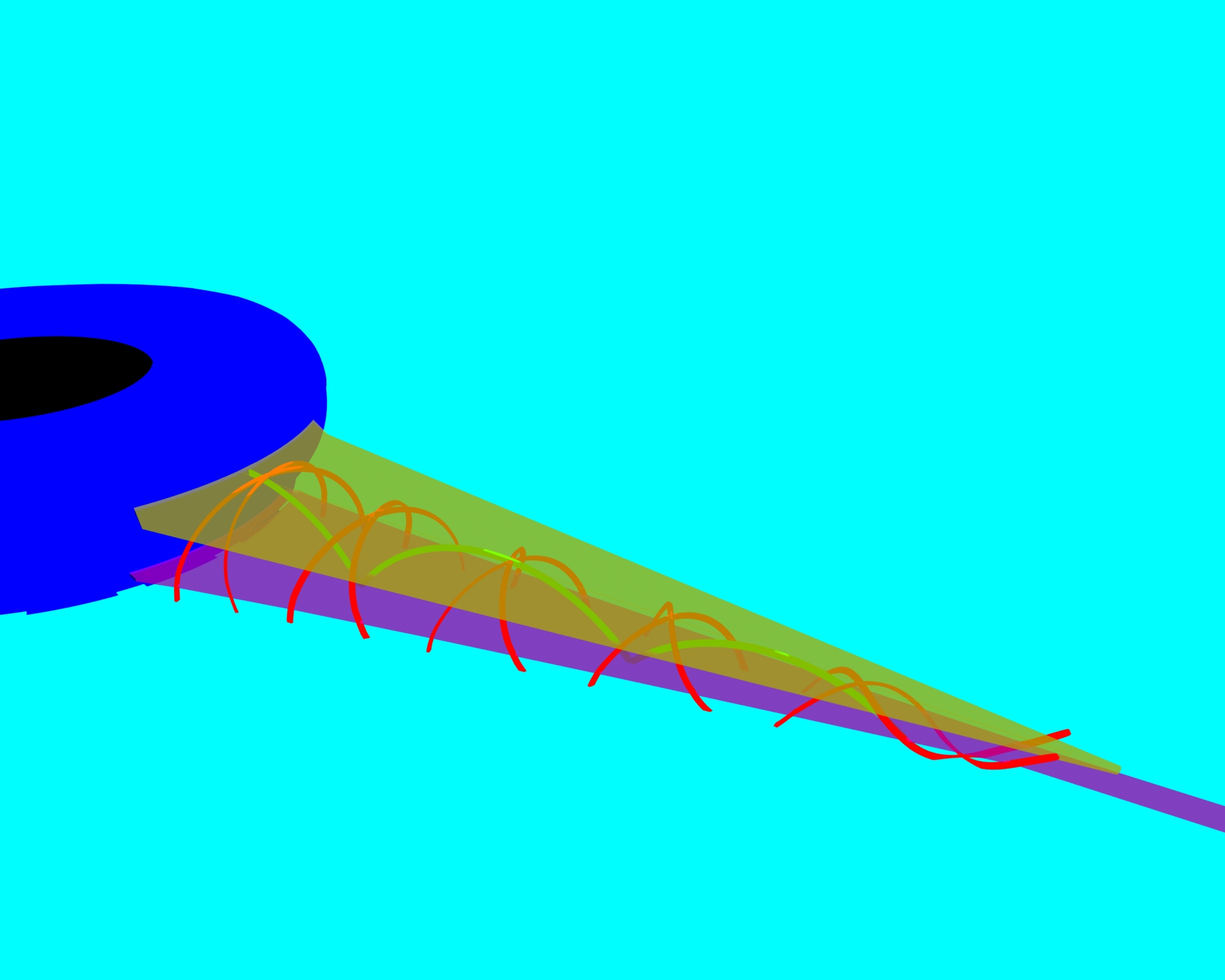

Bridges design explained.

Sport Venues concept E.

Design Iterations. Very early Condominiums concept.

Villages concept A.

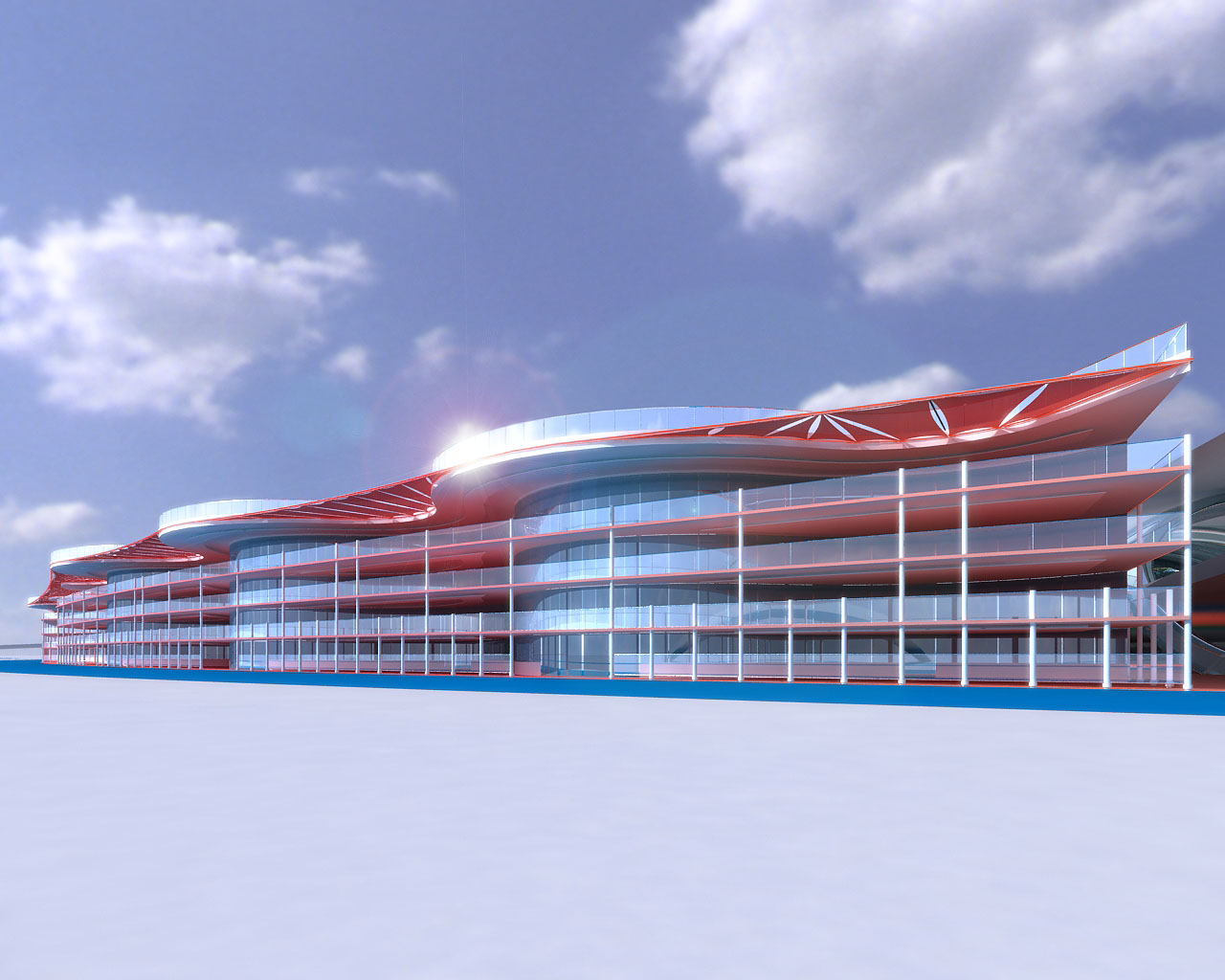

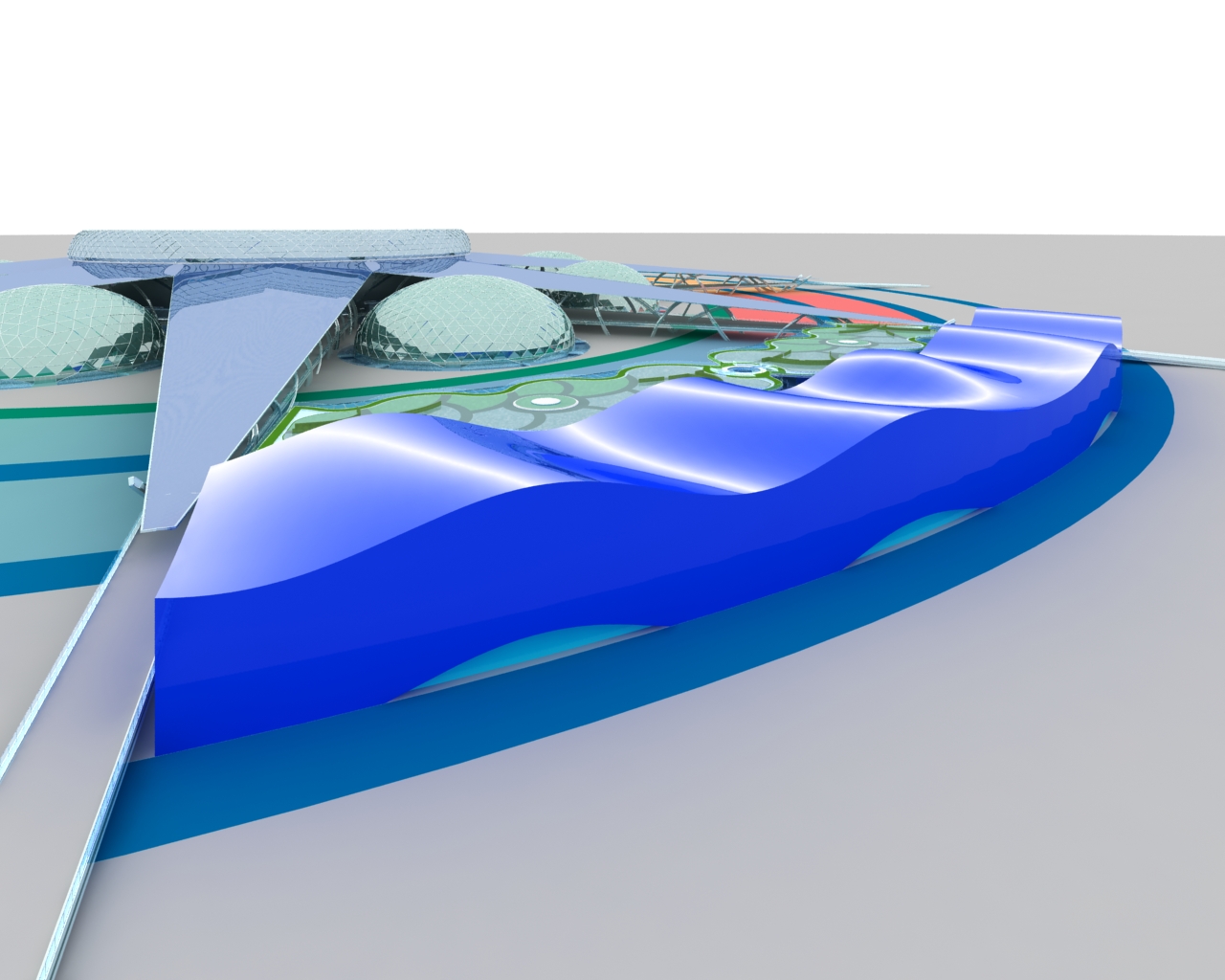

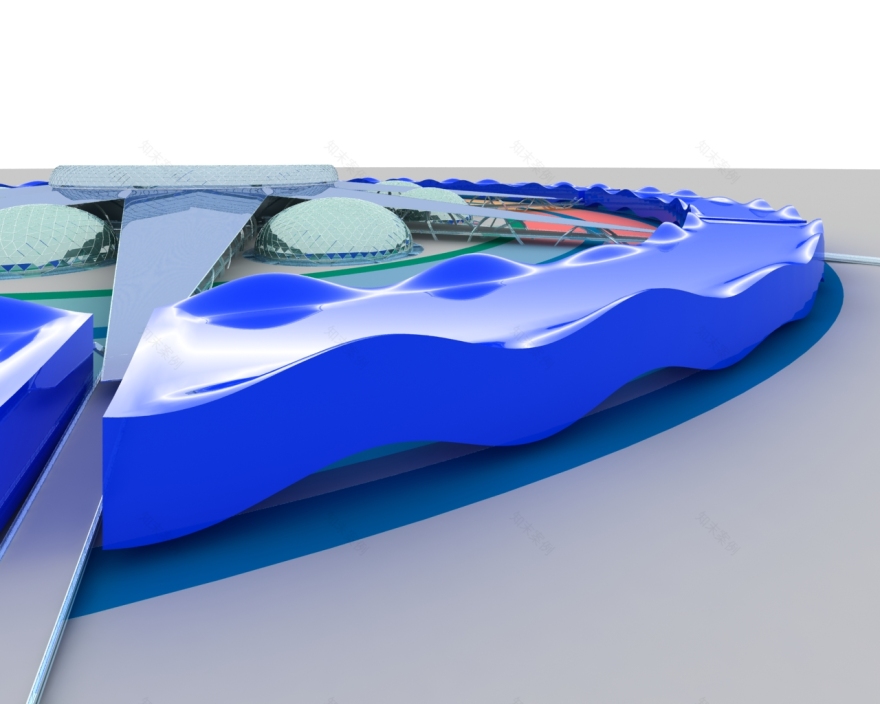

Villages concept B. Horizontal wave idea.

Villages concept C.

Villages concept B. Horizontal wave idea developing.

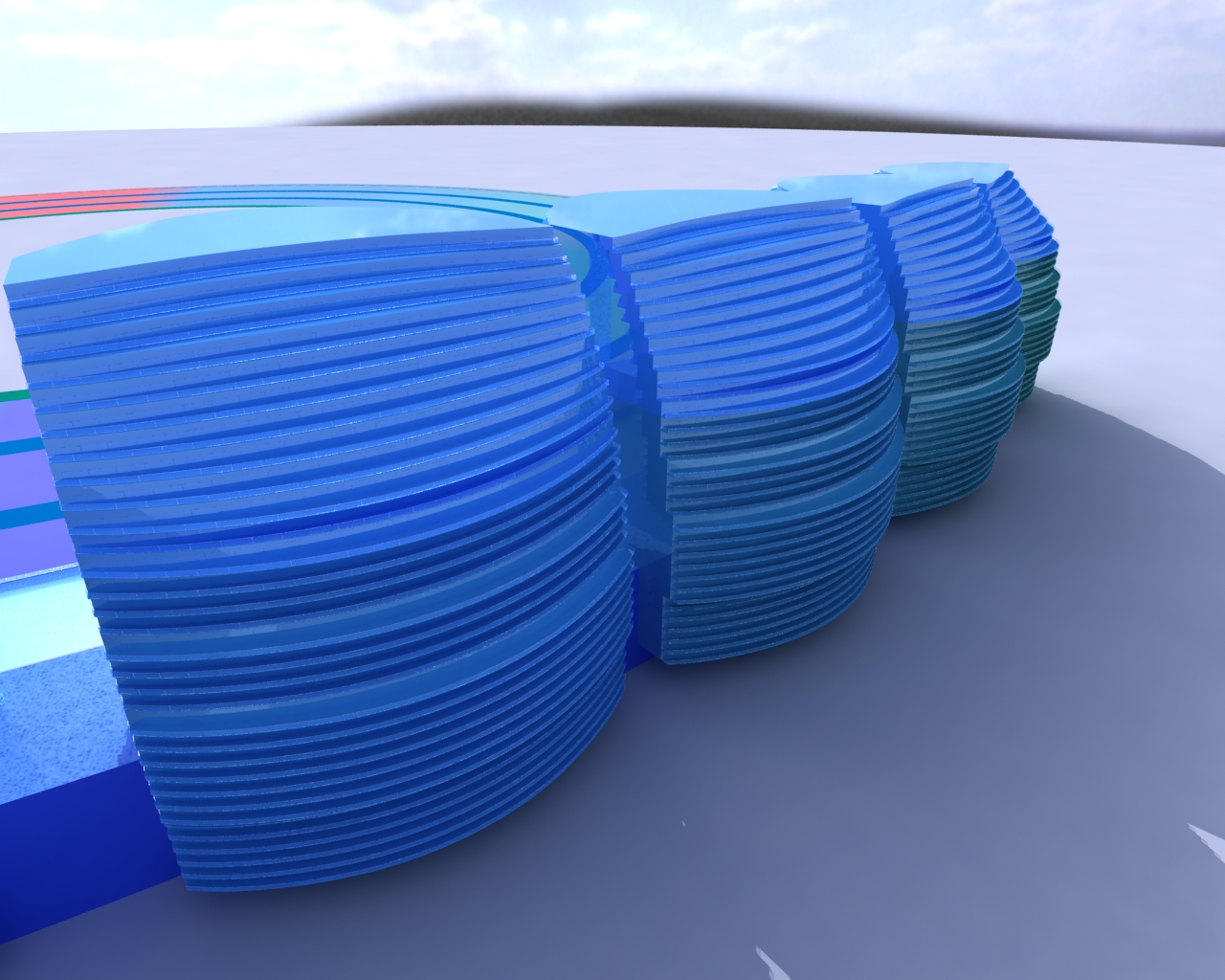

Offices/Parking Buildings concept A.

Offices/Parking Buildings concept B.

Offices/Parking Buildings concept C.

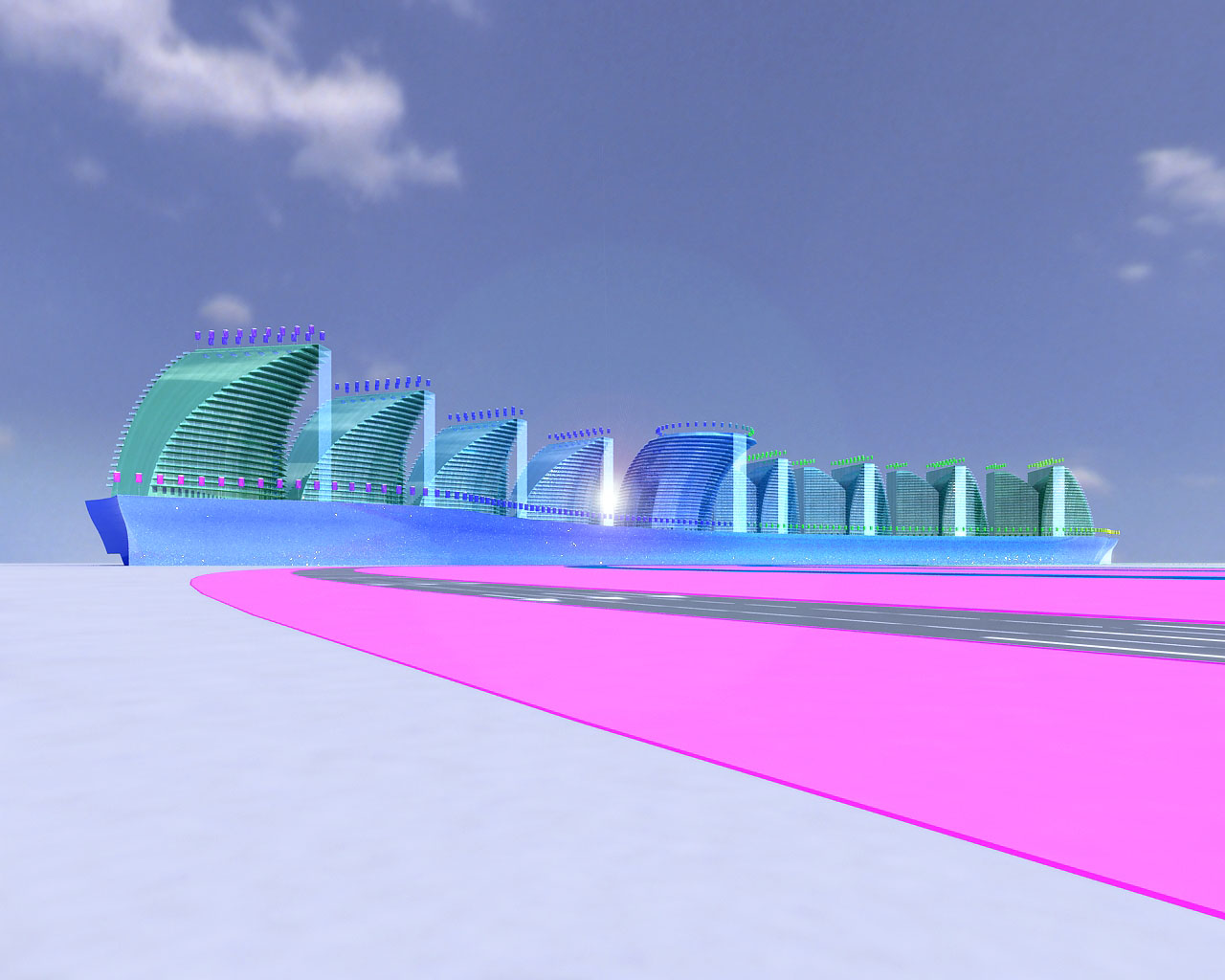

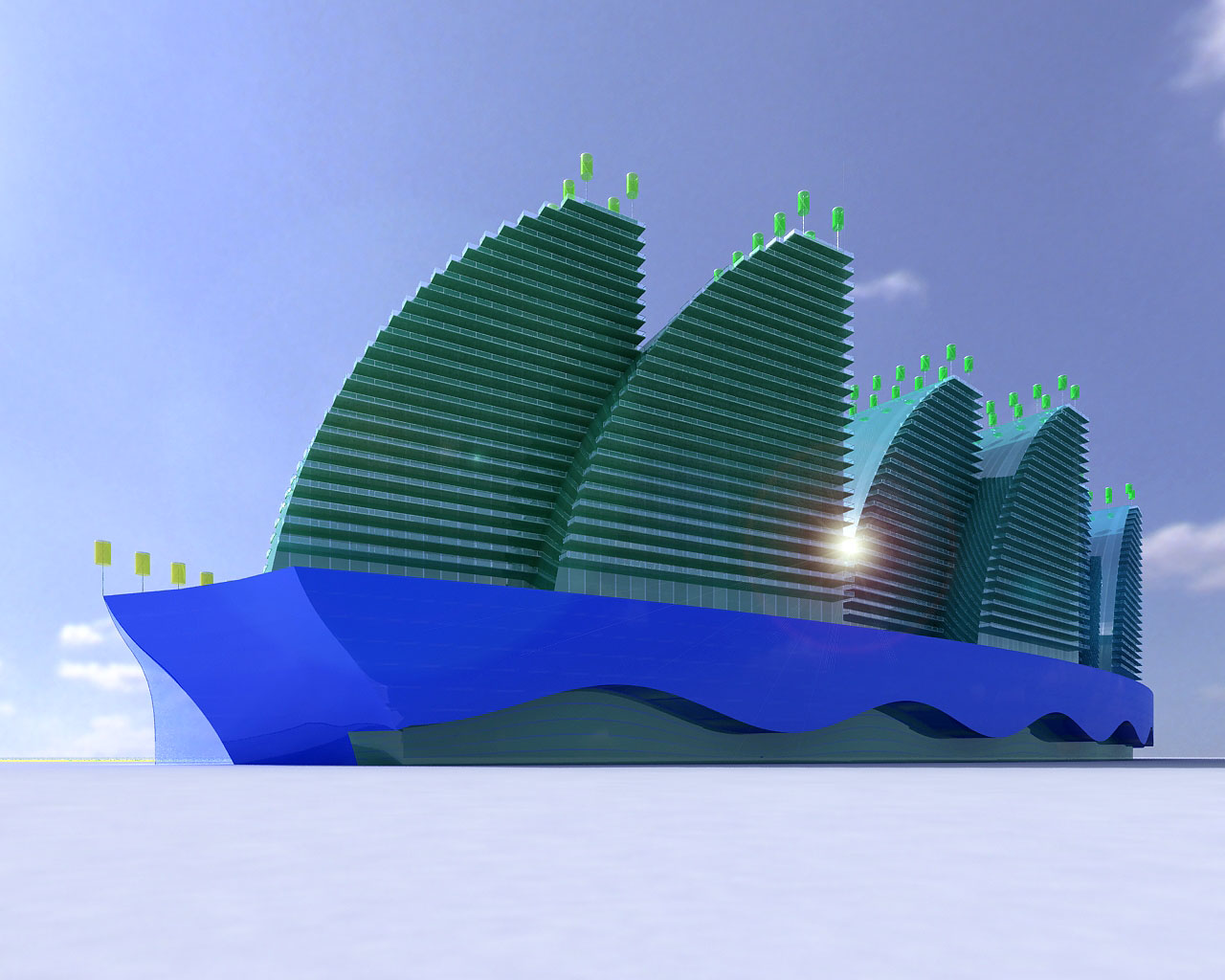

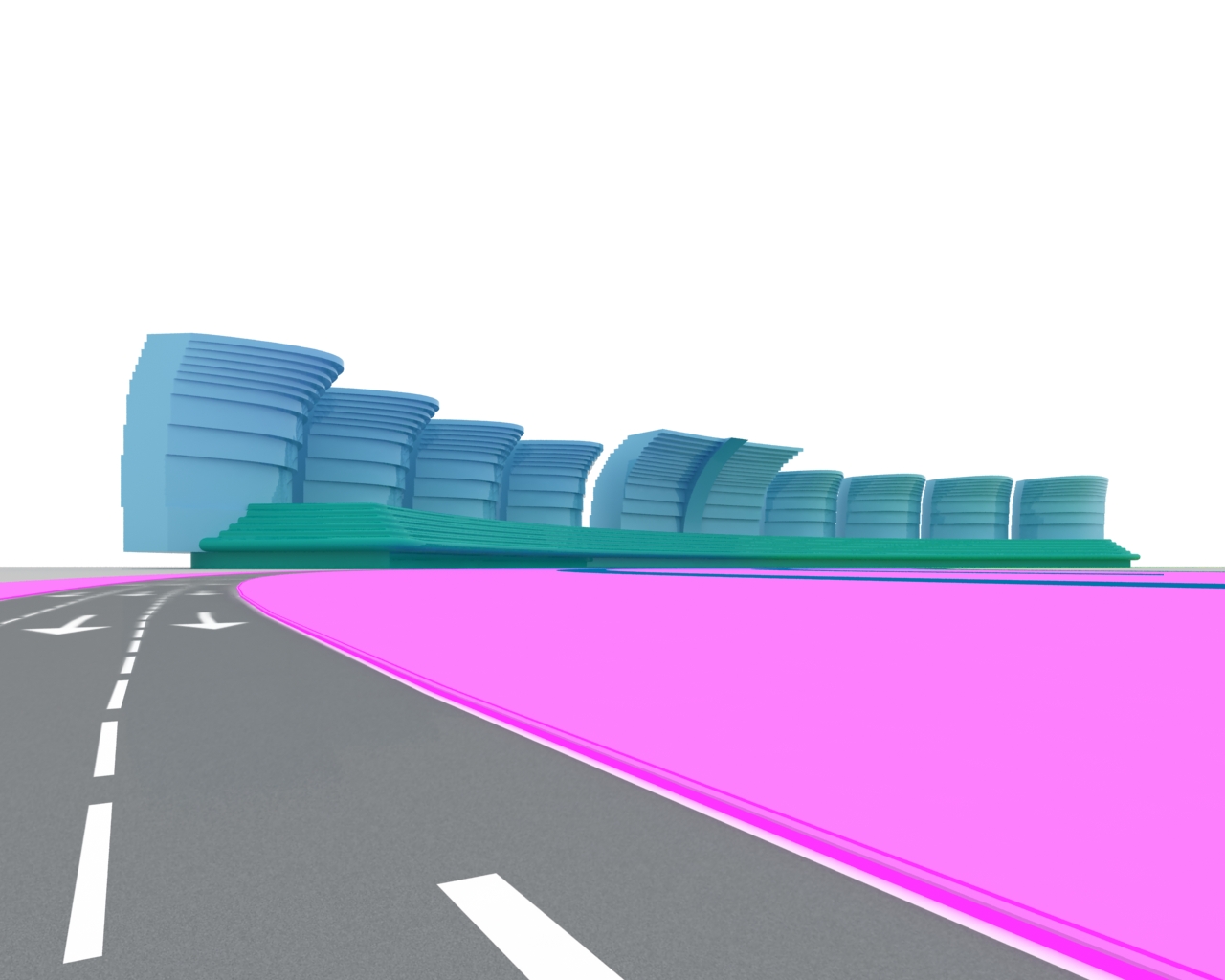

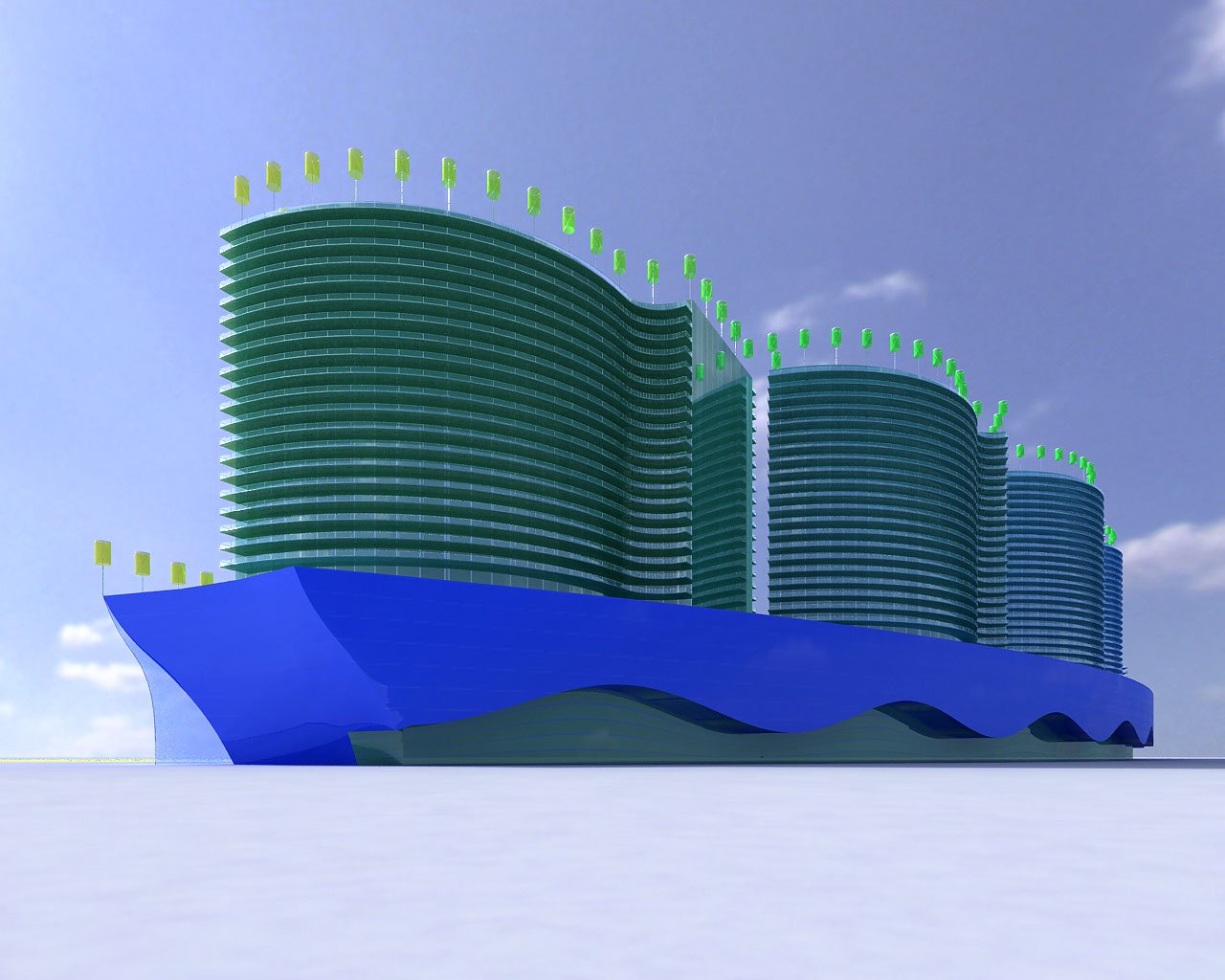

Residential Complex Concept A.

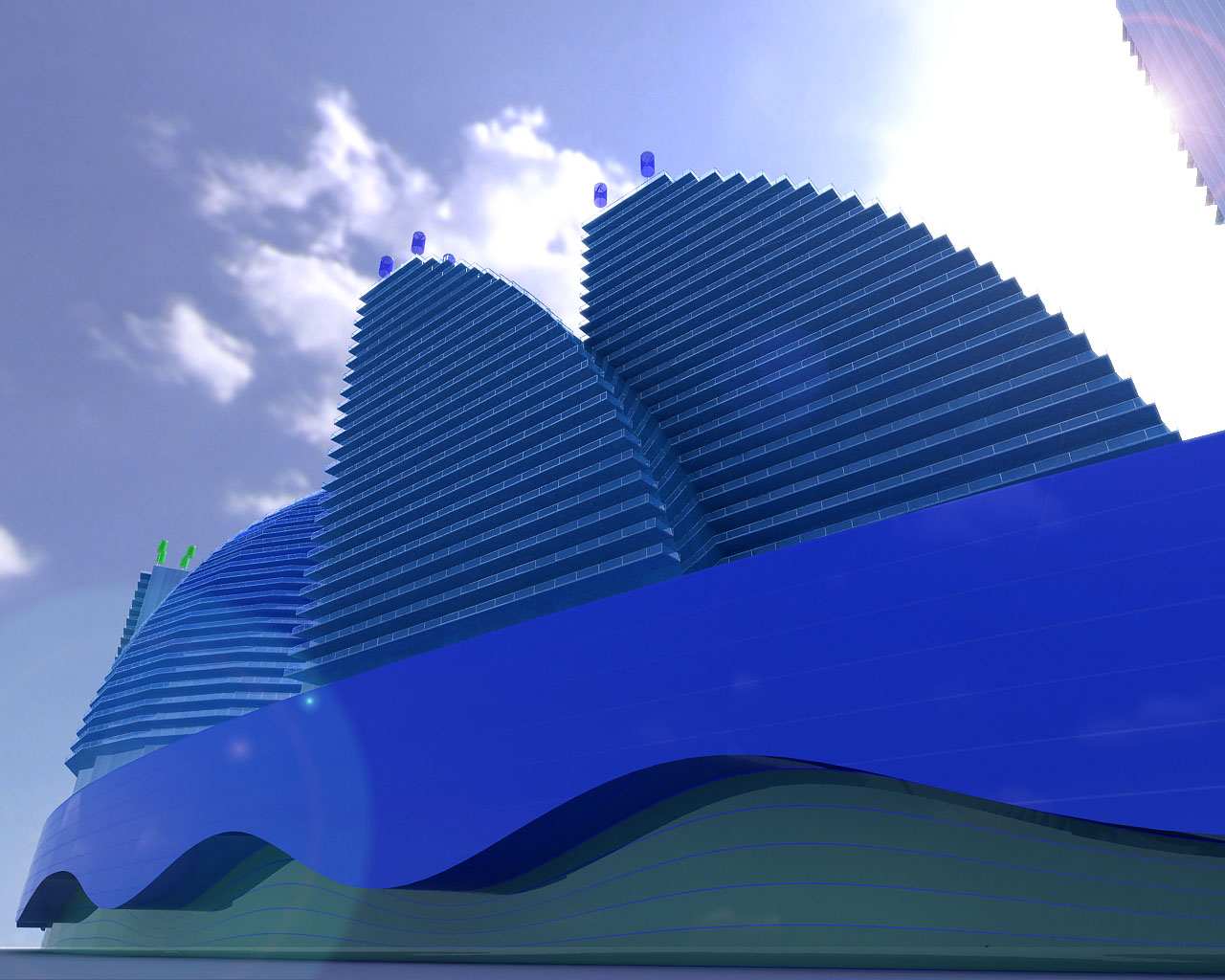

All Residential Complex designs have ocean - water - waves - ship - wind inspiration/theme.

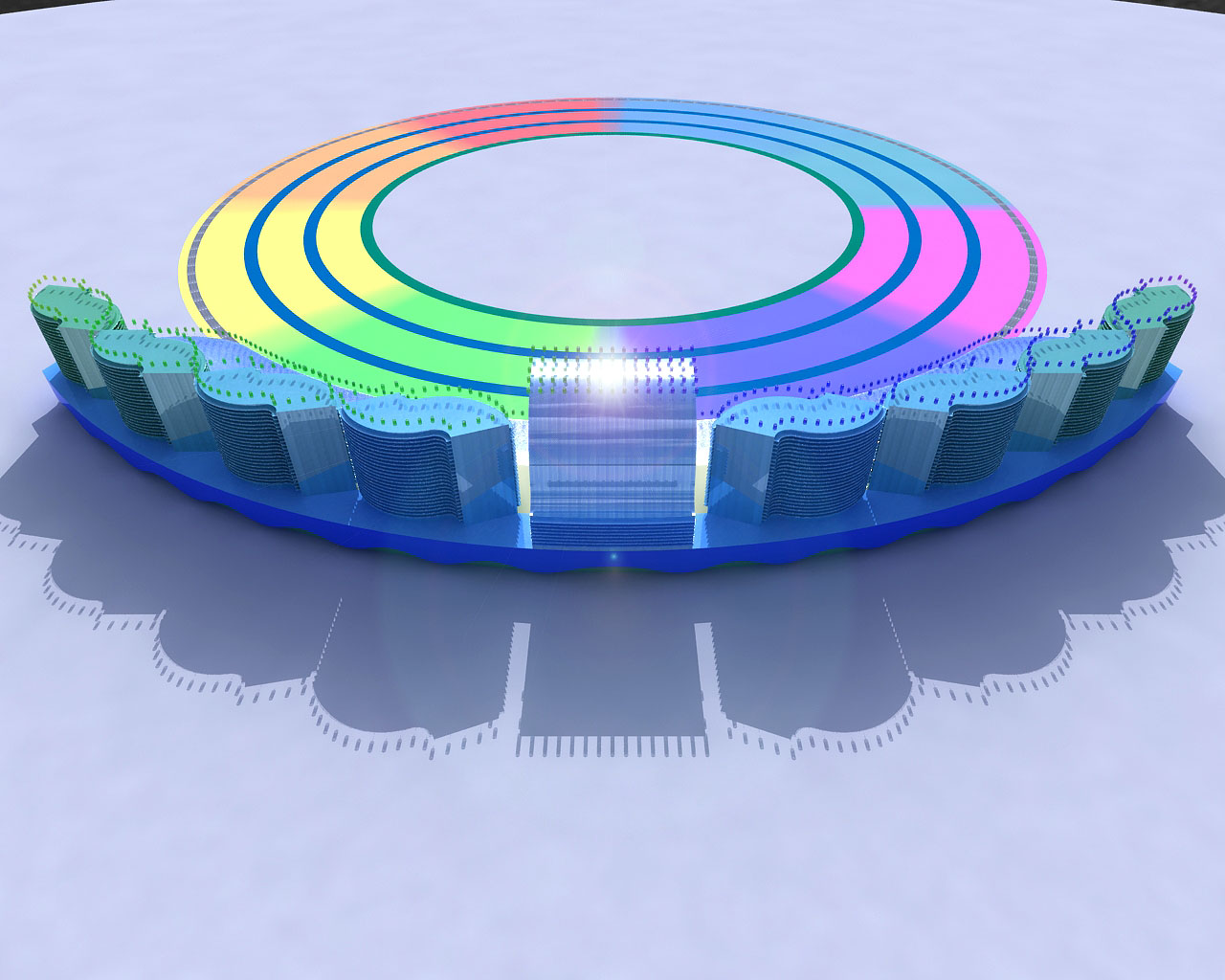

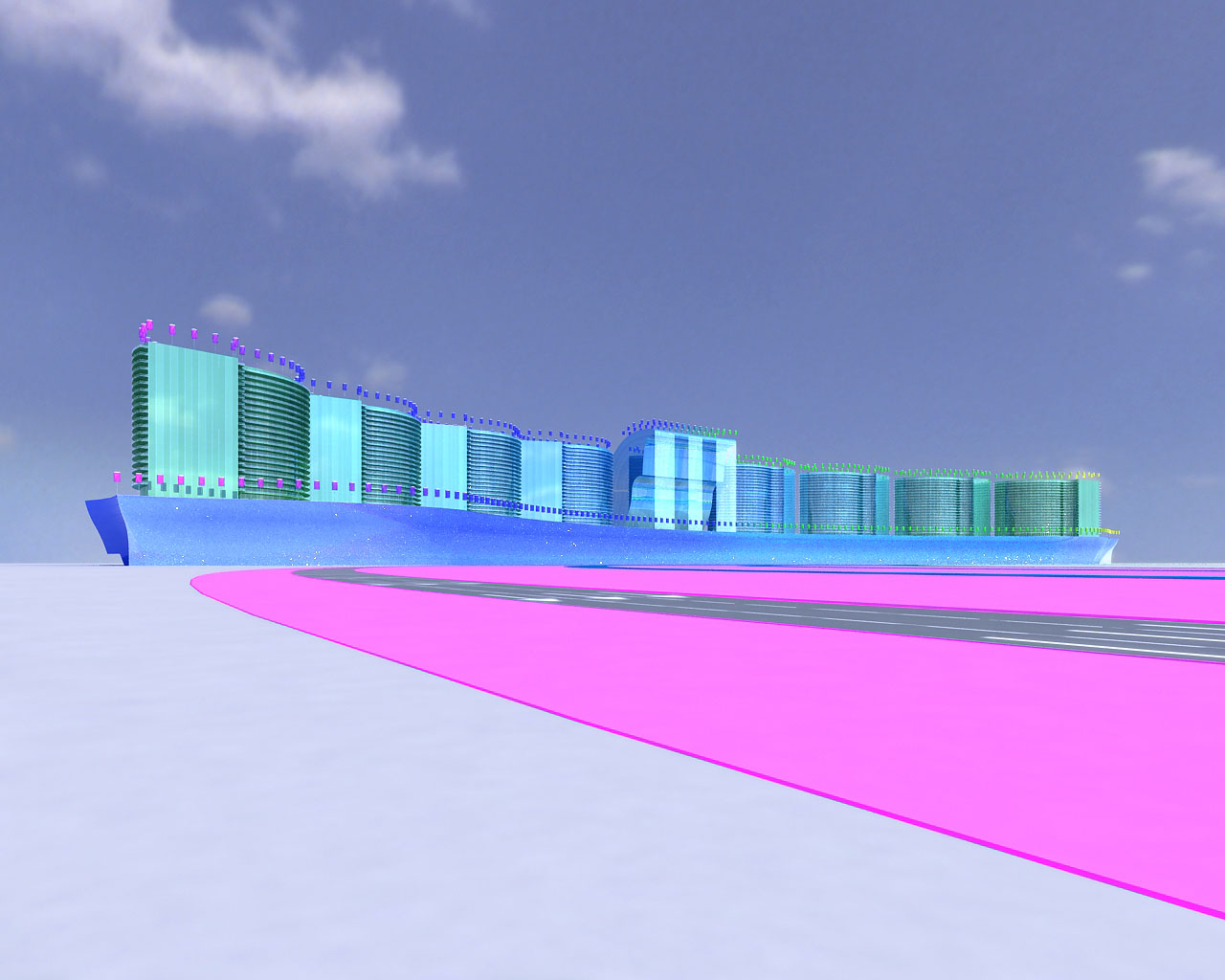

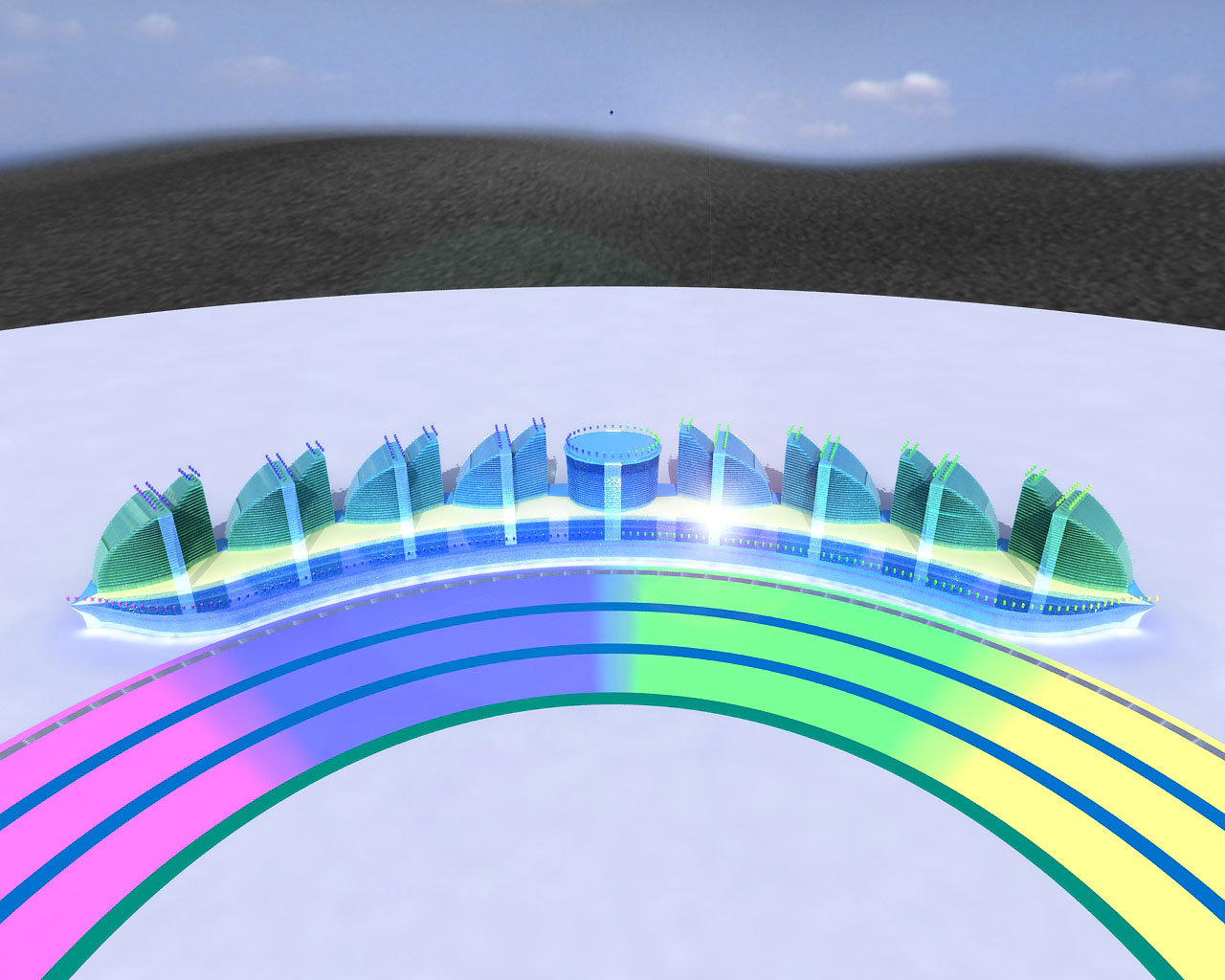

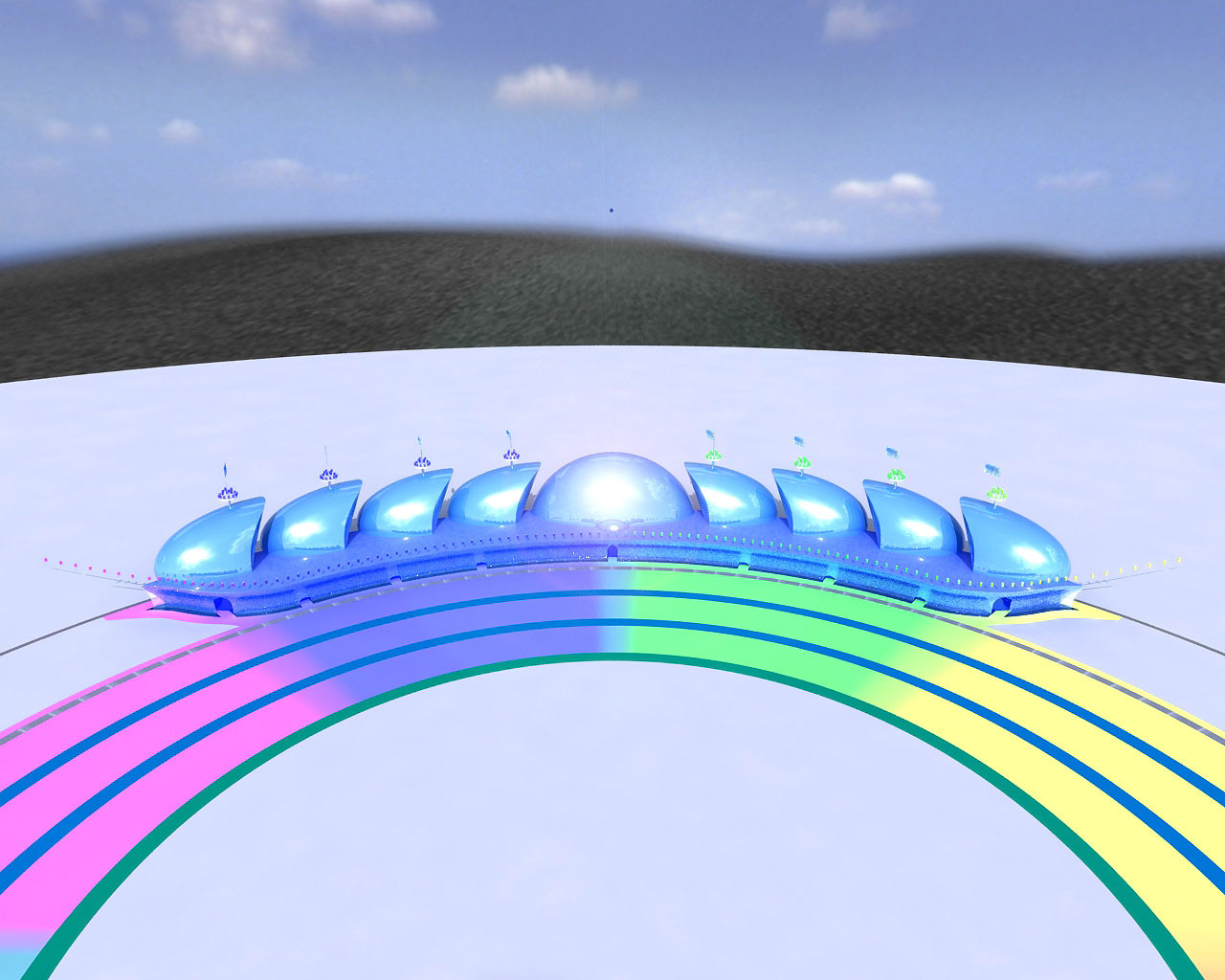

Residential Complex Concept B.

Residential Complex Concept C.

Residential Complex Concept D.

Residential Complex Concept E.

Residential Complex Concept F.

Design, 3D Modeling, R&D, Visualization

Preliminary design of a new stadium resort that includes:Huge stadium with "shutter" glass roof, solar panels and wind turbines on the roof, waterfalls, pools, massive curved circular screen around the perimeter of the entire stadium, spectacular glass+steel arch over the stadium with elevator inside and beautiful white restaurant on top (both screen and arch were added in the later updates) ;

Eight ’dome’ sport arenas with pools and waterfalls around, the bottom of the dome is sloped to the dome’s center, so it ’disappears’ behind the waterfalls and then under the pool water, ’column trees’ around the arenas area were added in the later design stages, a ’column tree’ is a column covered with beautiful flowers and a ’crown’ with palms on top, it’s a tall tree created from smaller plants, it provides shade and ’close’ the green roof design idea of the entire resort.

Sixteen sport venues with green roofs, silent wind turbines on the roof and plenty of seating areas;

Eight villages designed as horizontal waves, with restaurants, cafes, cinemas, galleries and other attractions, plenty of seating areas on the balconies around the building and on a green roof, tall waterfall in the middle of a building which goes from the roof to the pool on the ground;

Venues and Villages have semi-transparent fabric roof extensions to provide shade.

Eight office buildings designed as vertical waves - water ripple, with Parking, offices, hotels, malls, hospitals, banks, golf courses, pools and sandy beaches on the roofs;

Two huge residential complexes with condominiums, hotels, Parking, retail, massive infinite pools and sandy beaches, Niagara like ’stairs’ waterfalls, wind turbines on the roofs and around the pools;

Eight bridges that connects the whole resort together;

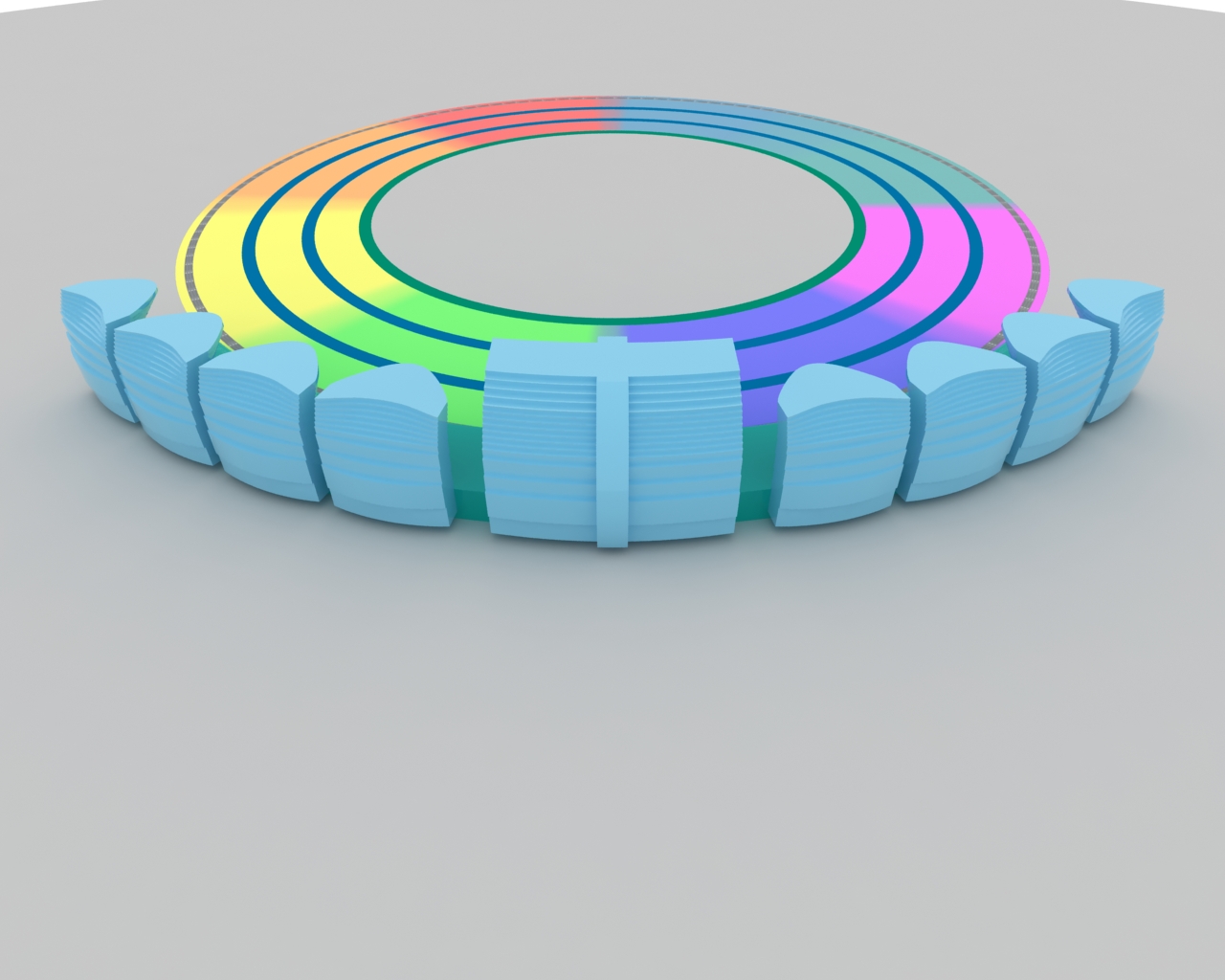

The whole project is divided into Eight color sections.

Maximum usage of solar panels and wind turbines.

Design updates and iterations were also uploaded.

Year 2009

Work started in 2008

Work finished in 2009

Status Research/Thesis
