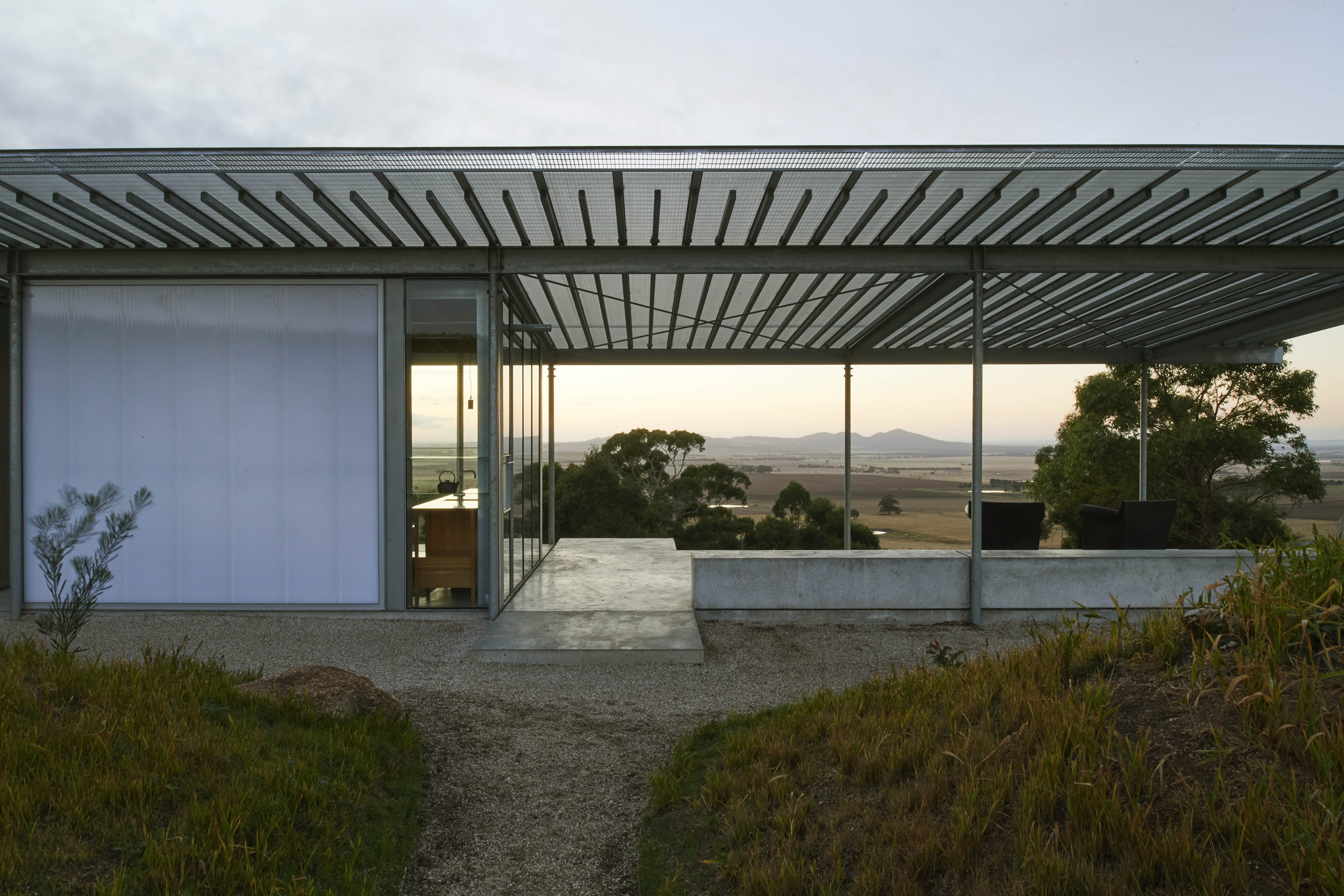

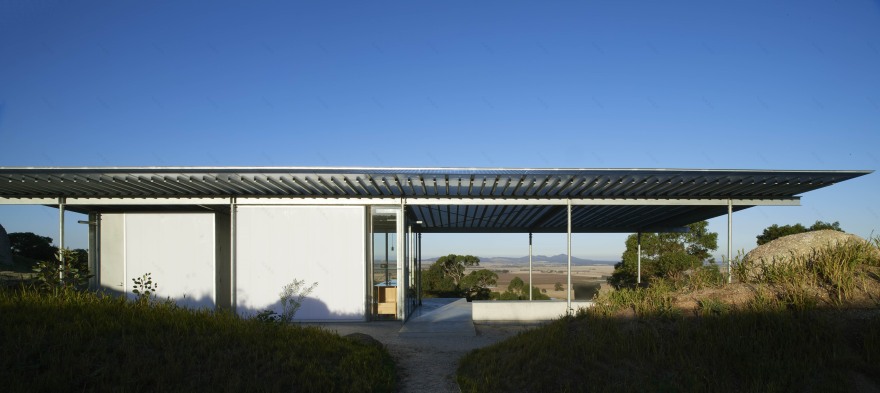

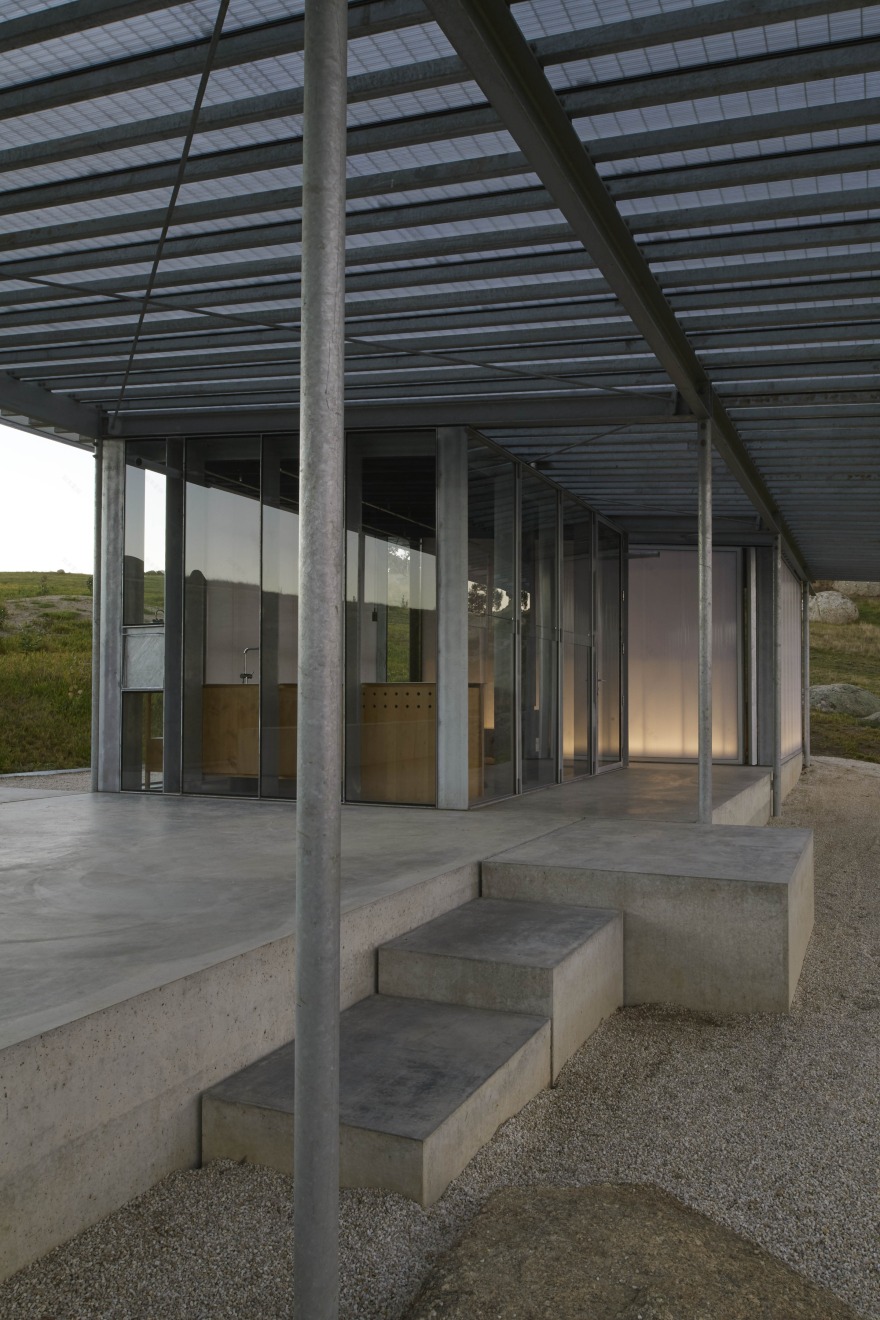

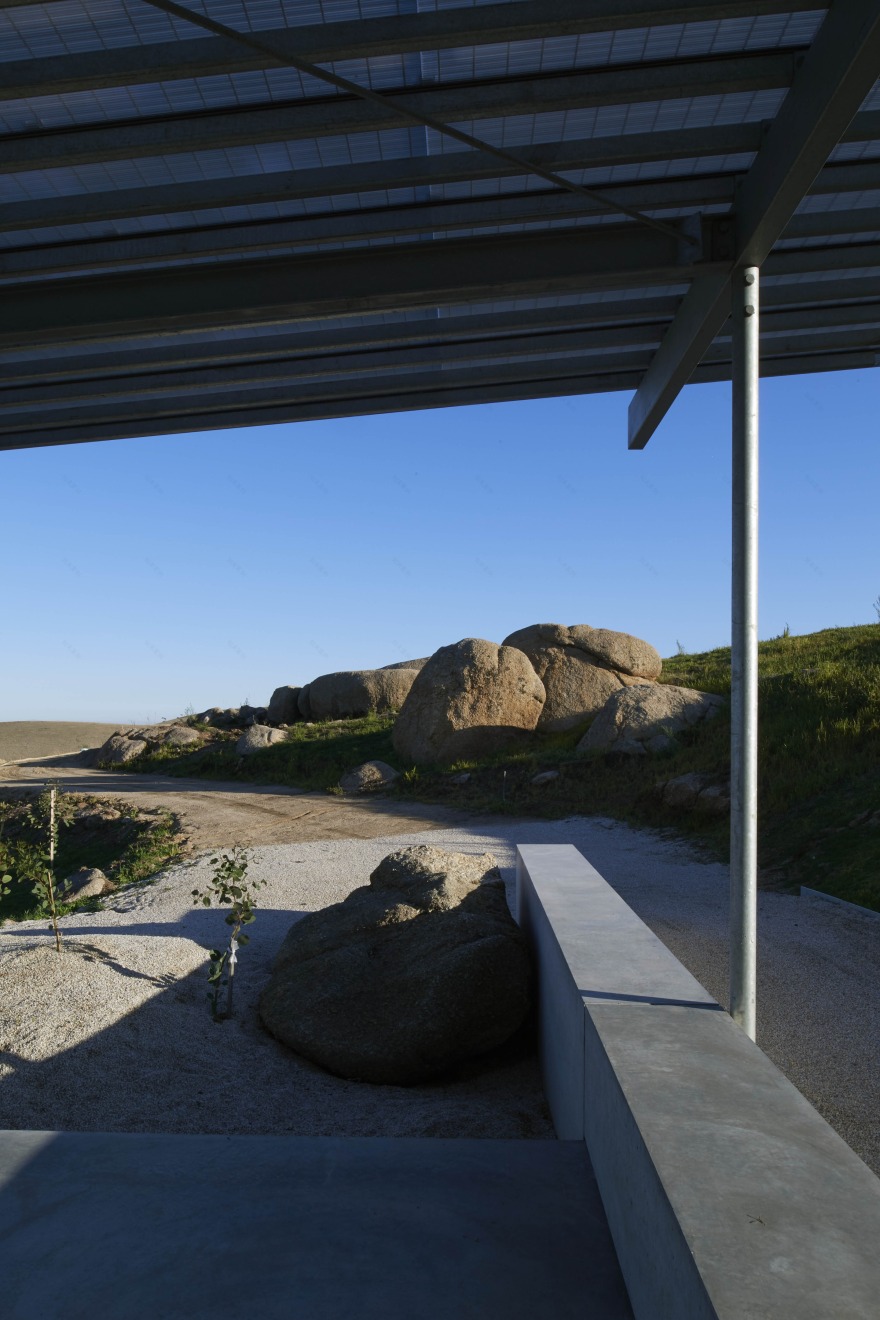

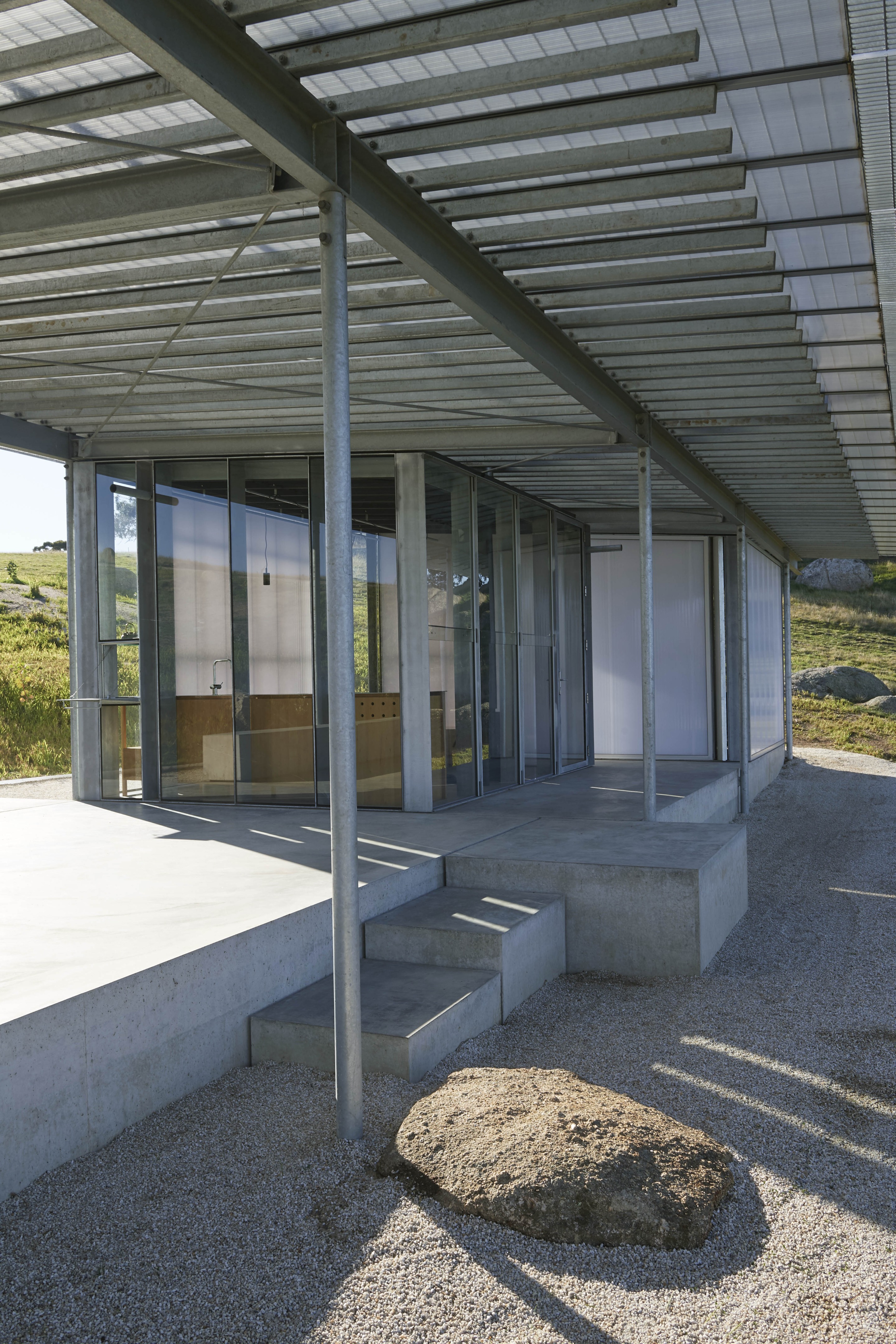

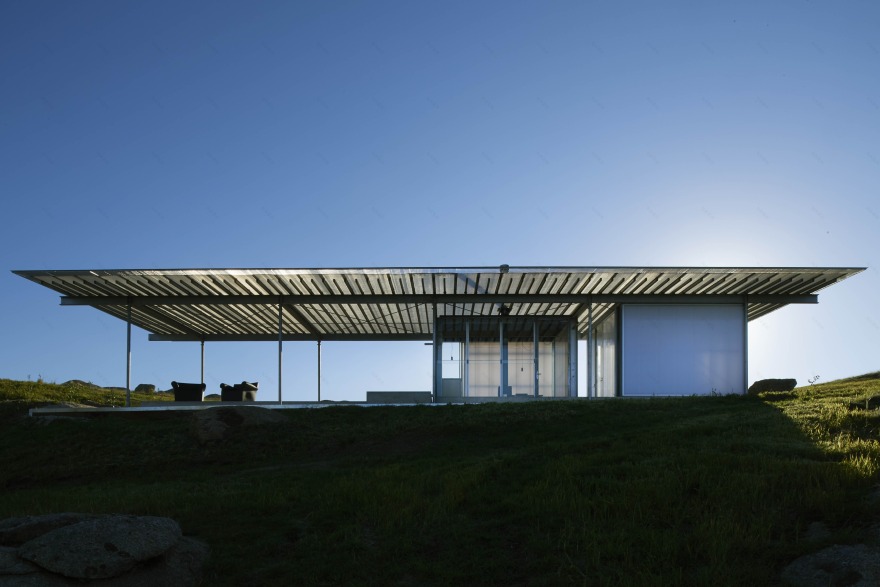

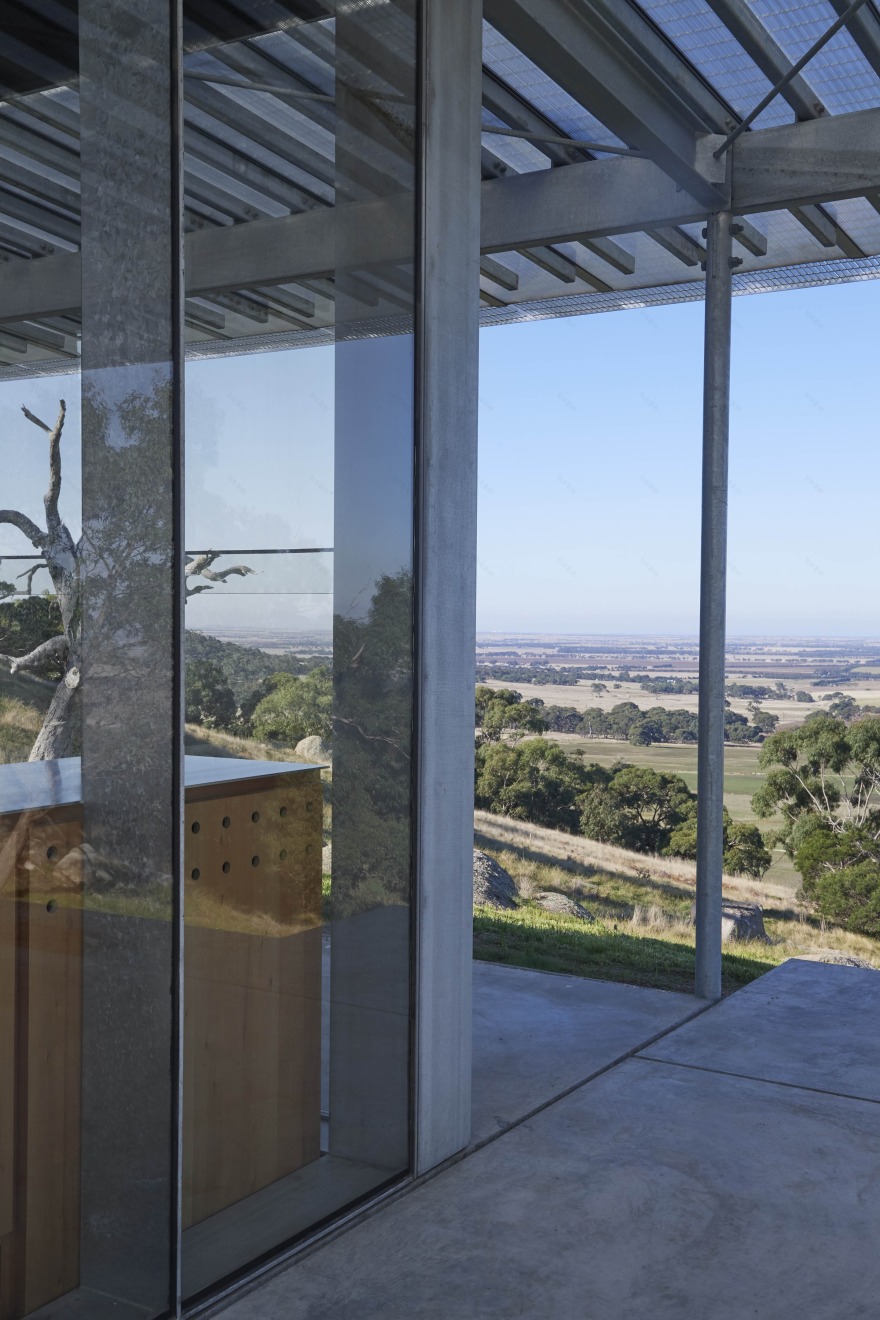

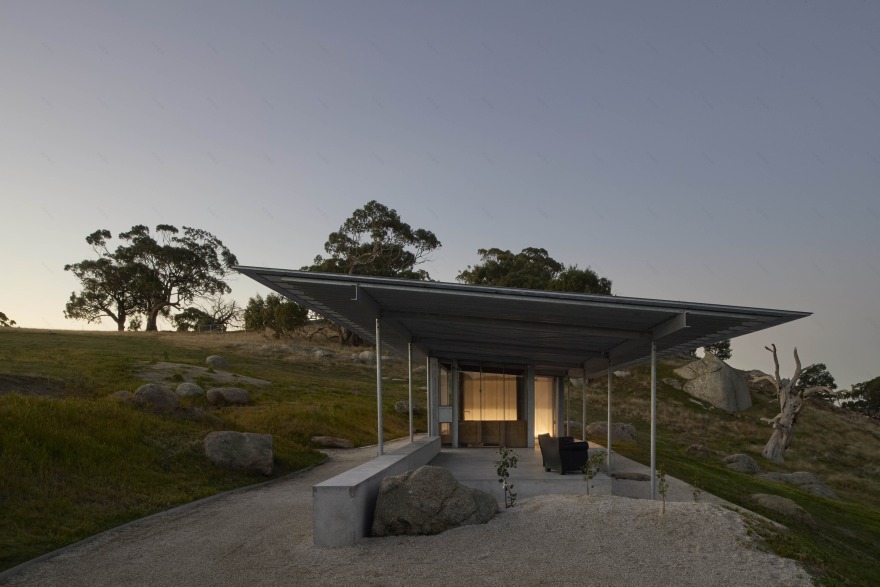

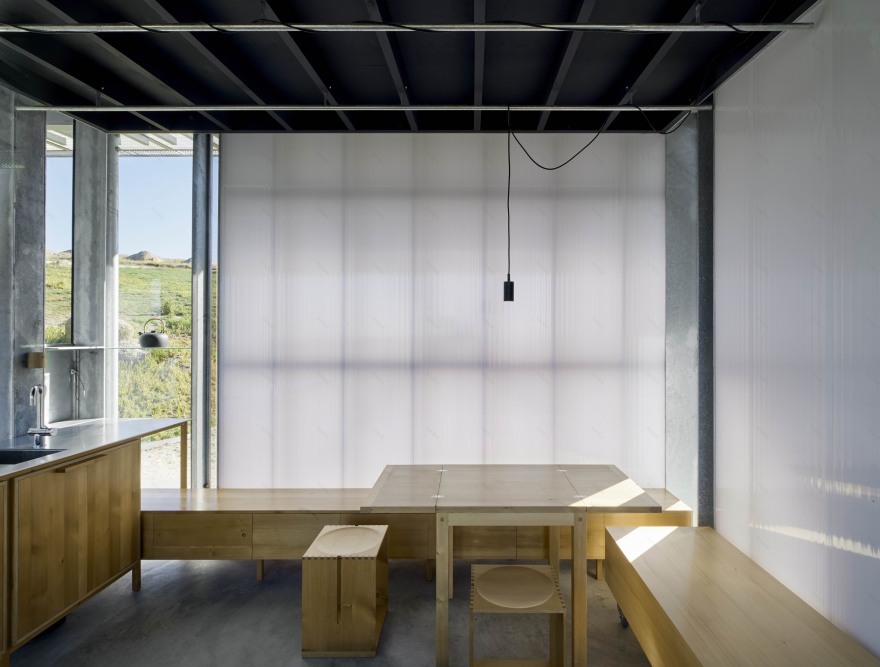

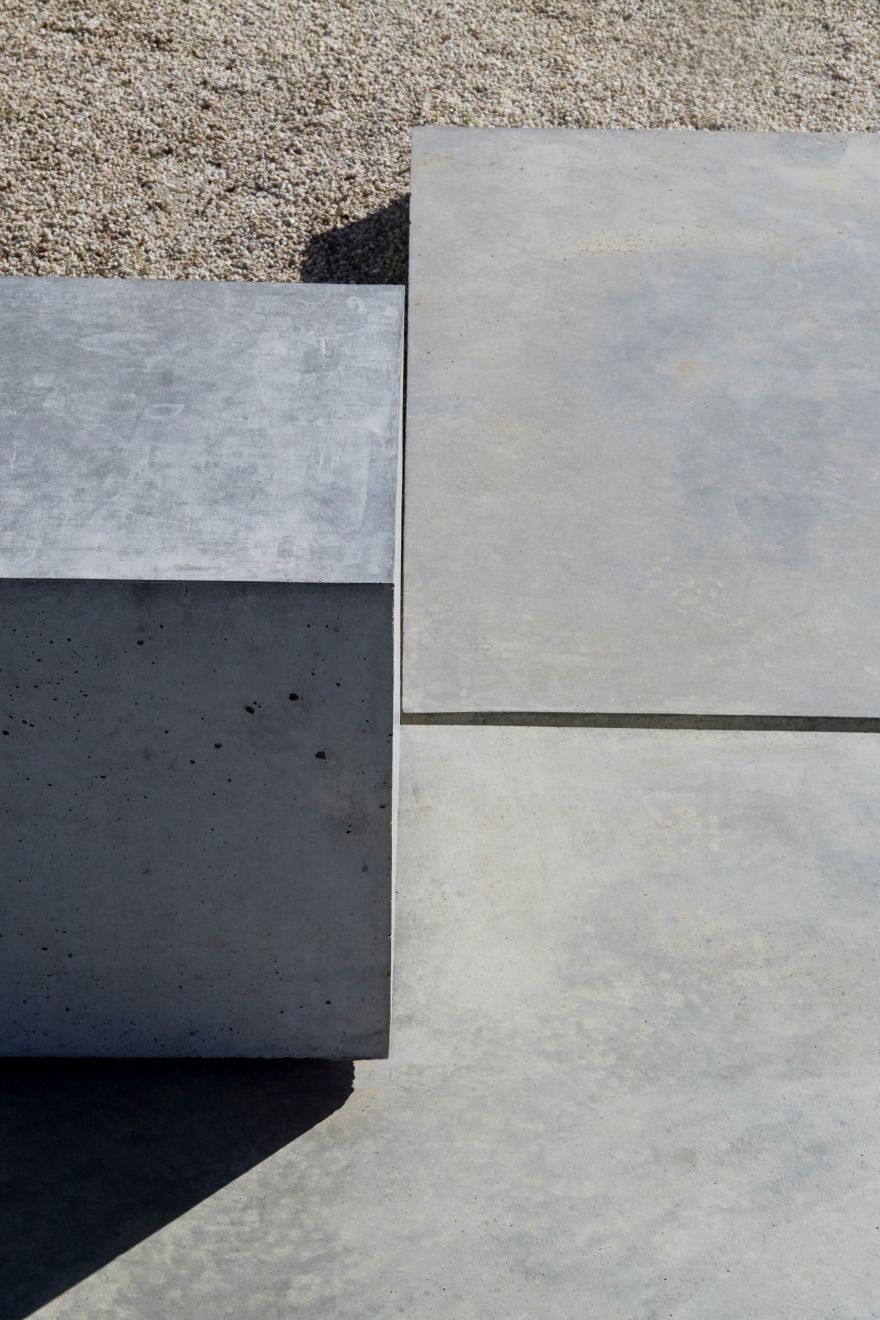

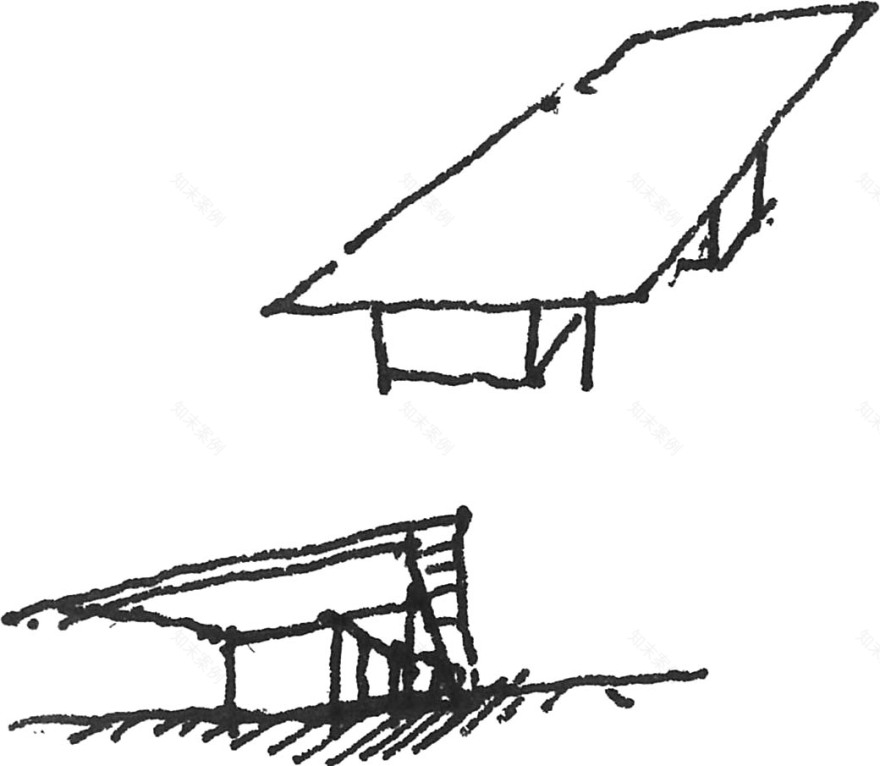

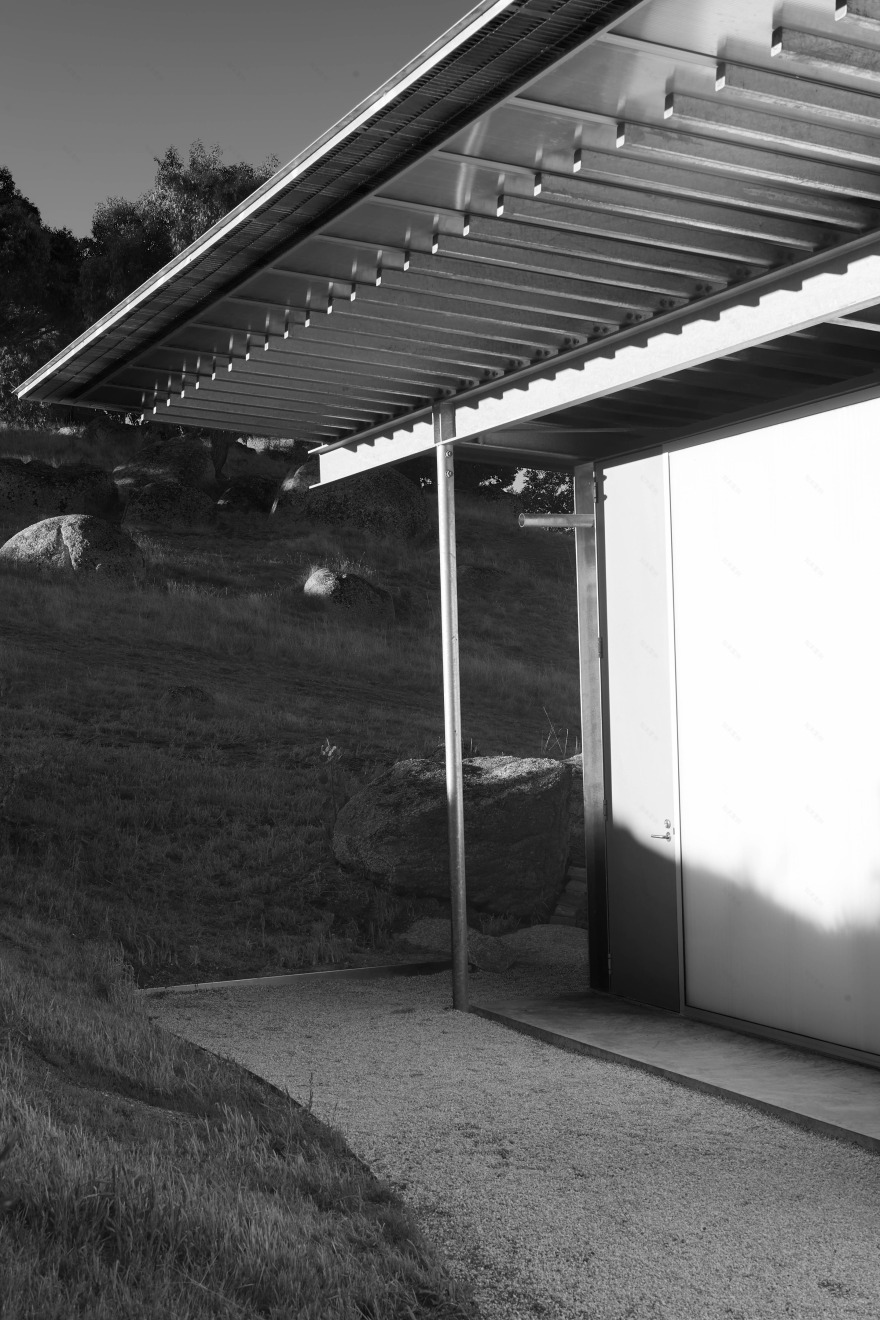

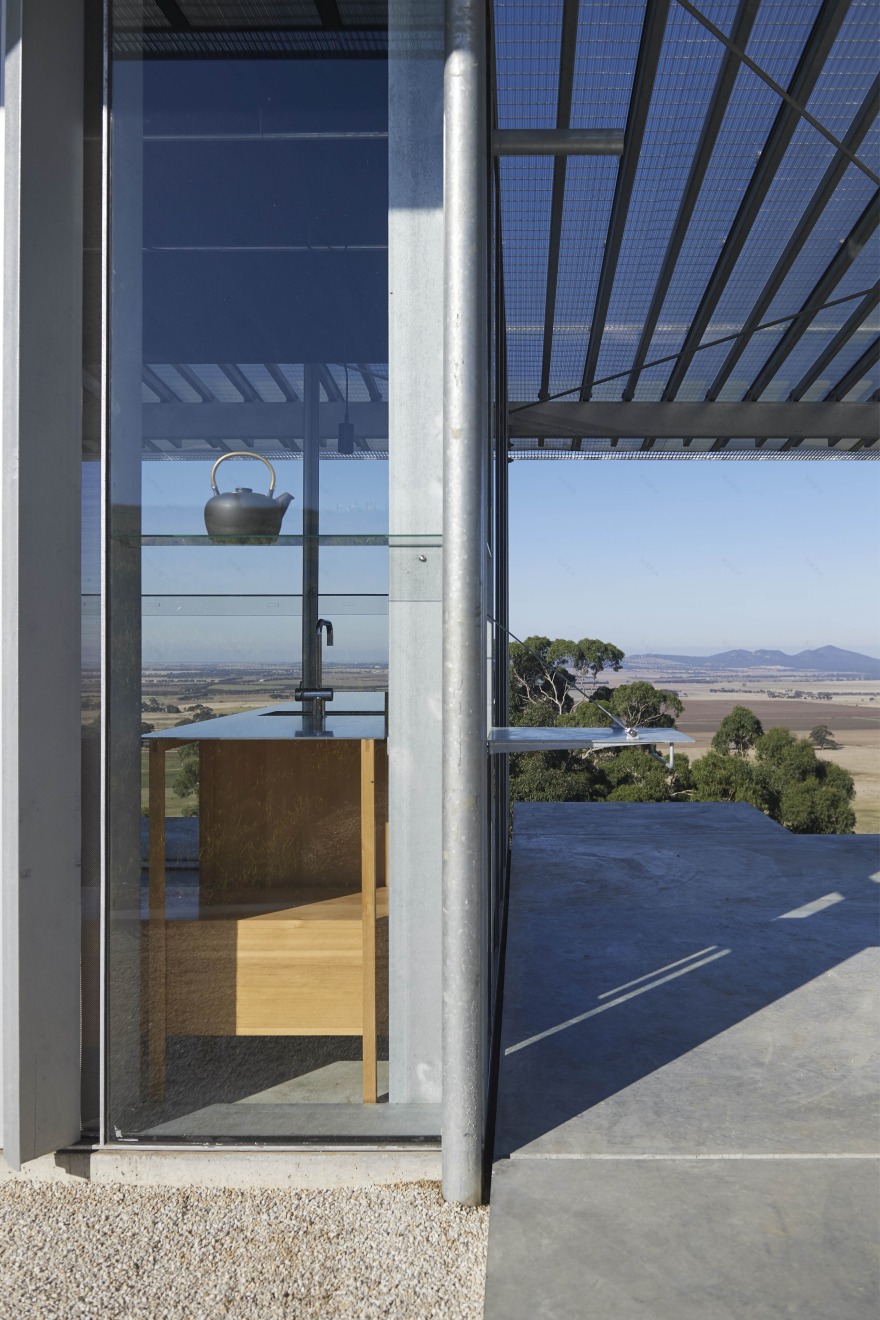

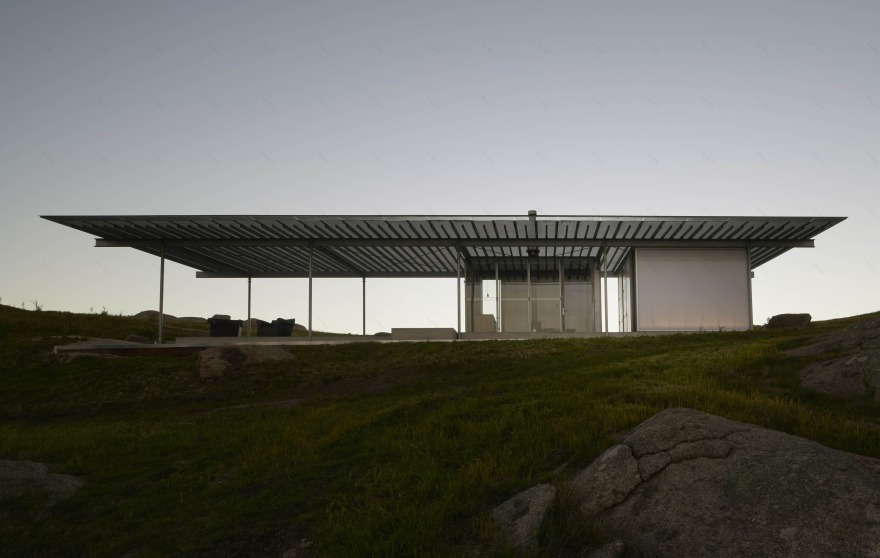

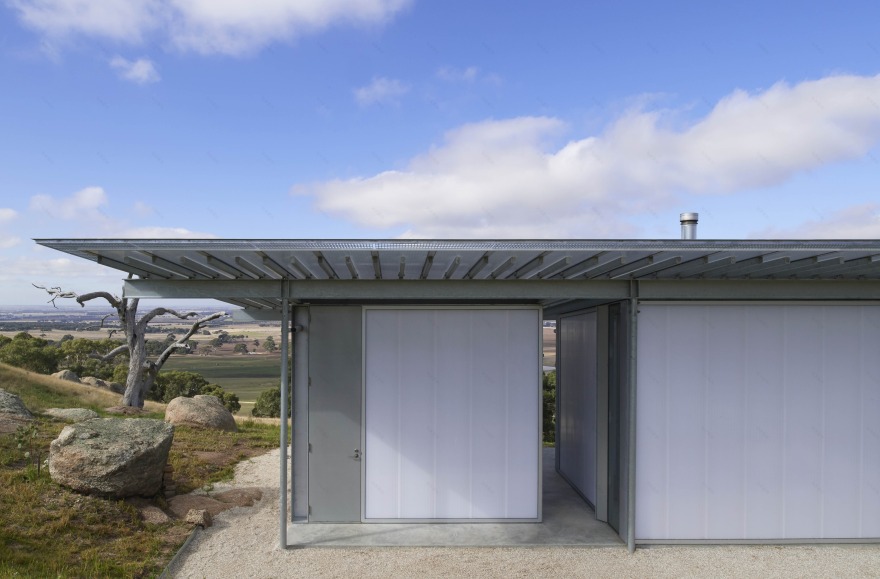

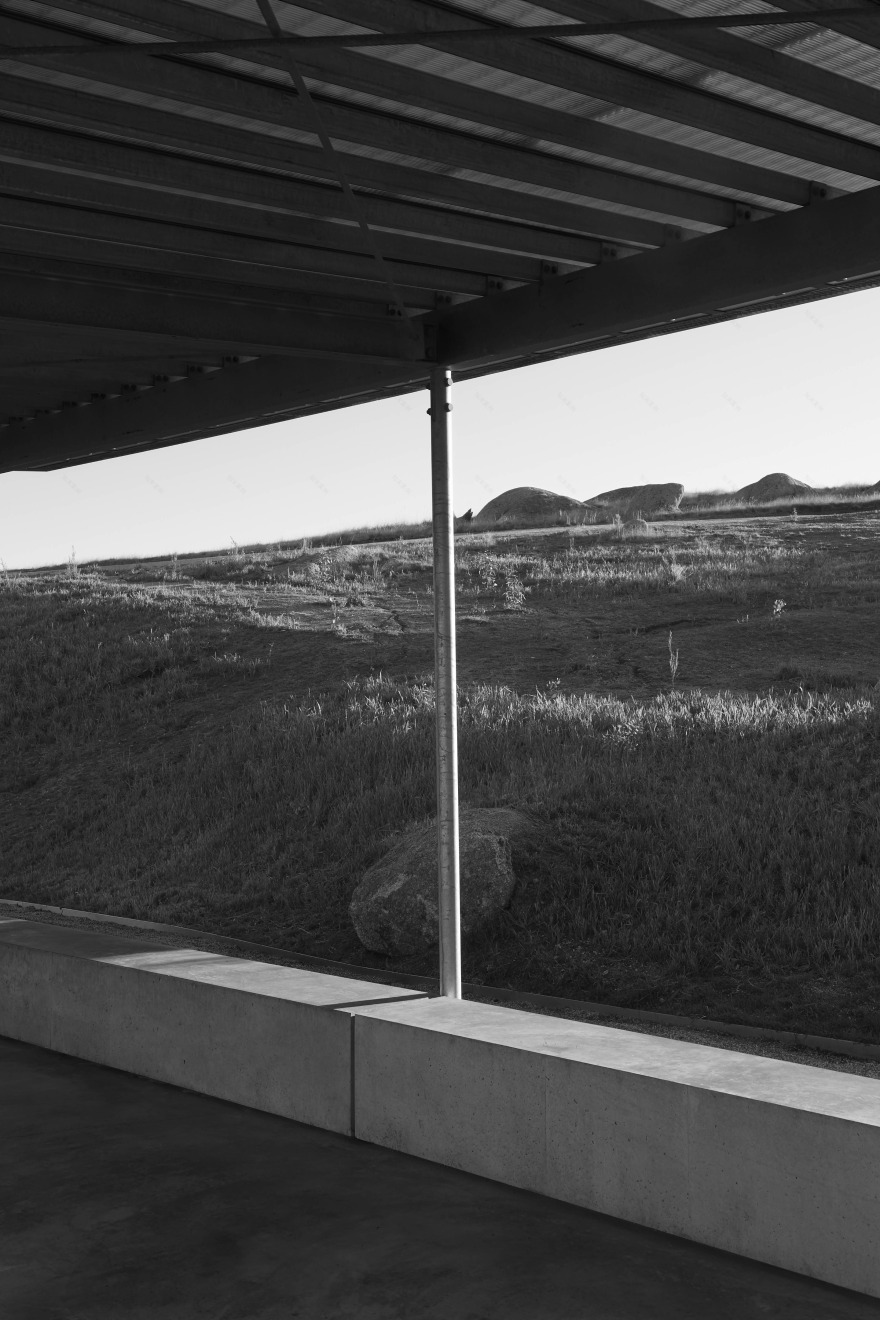

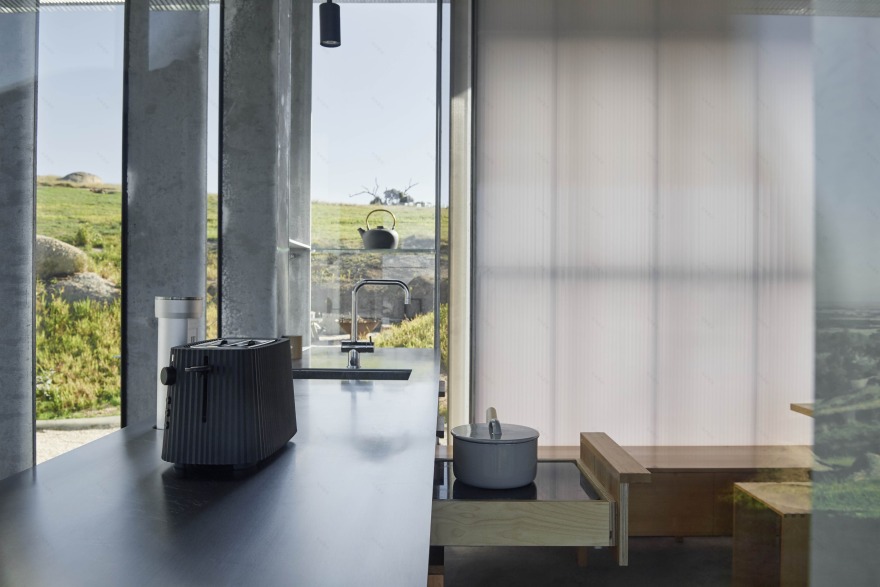

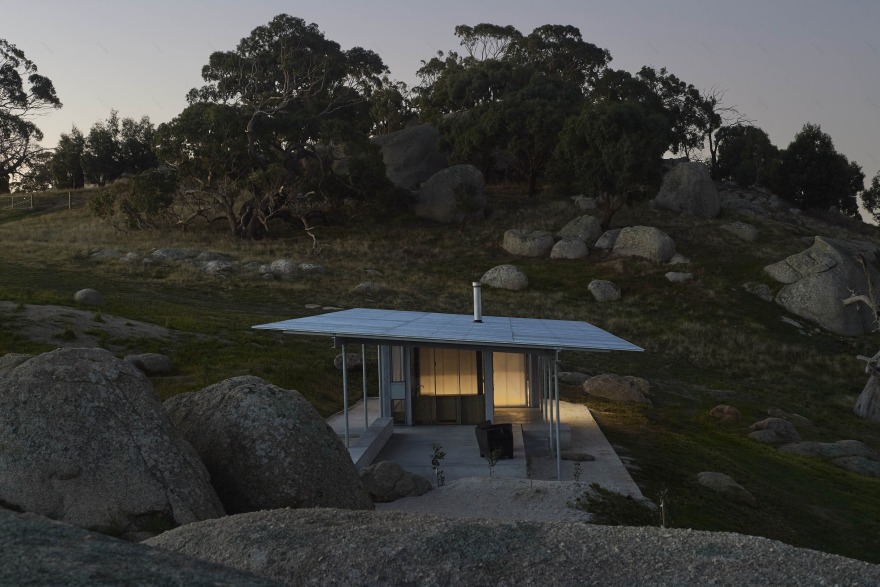

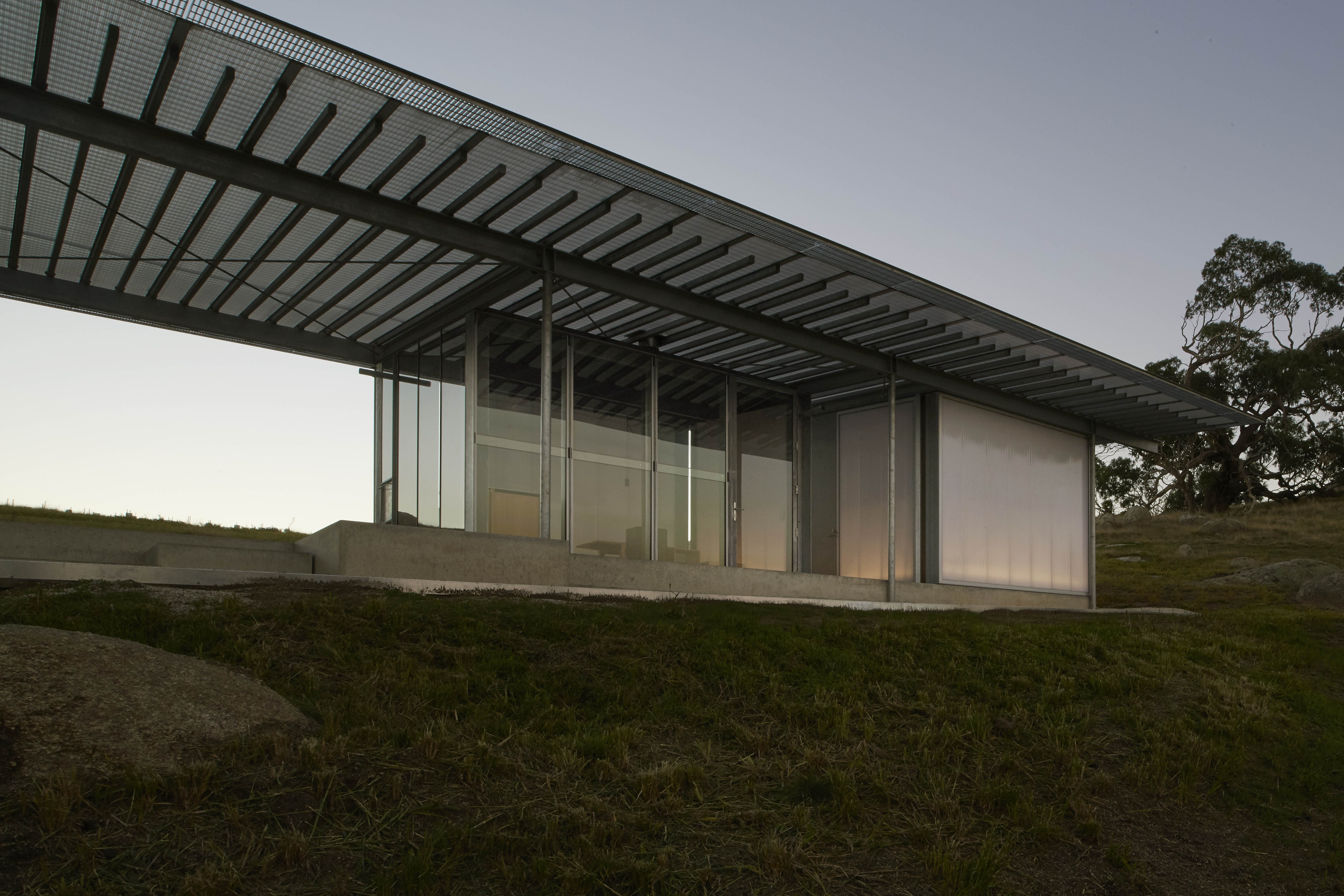

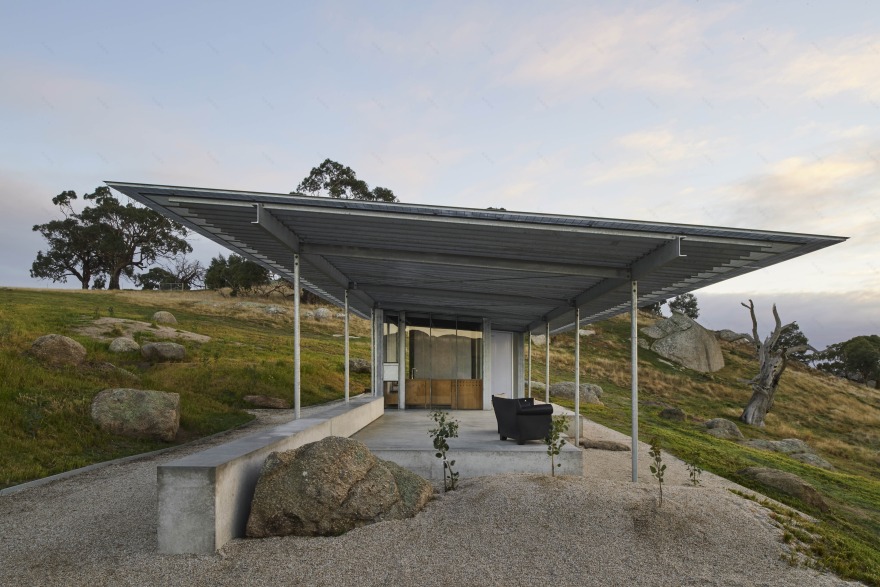

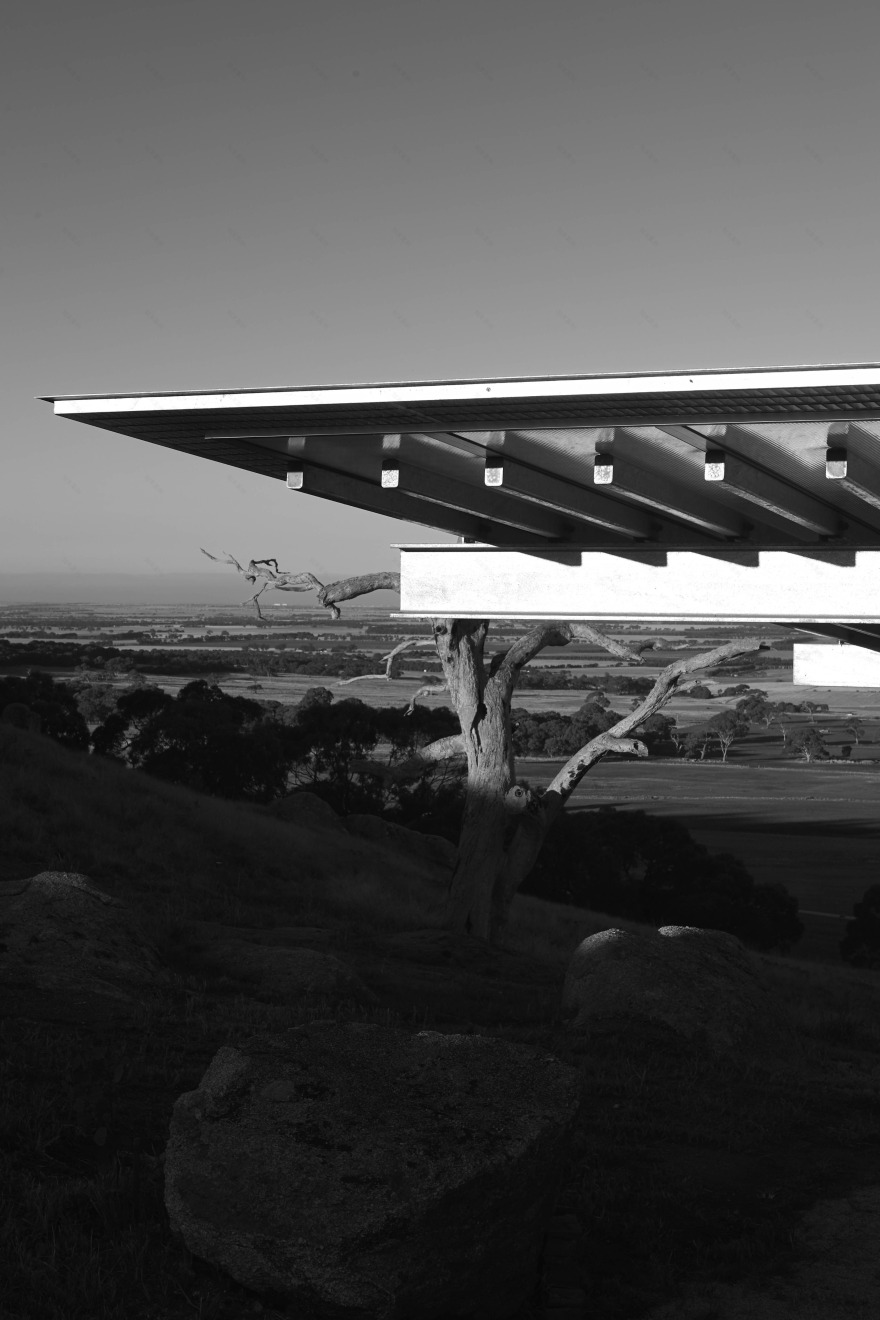

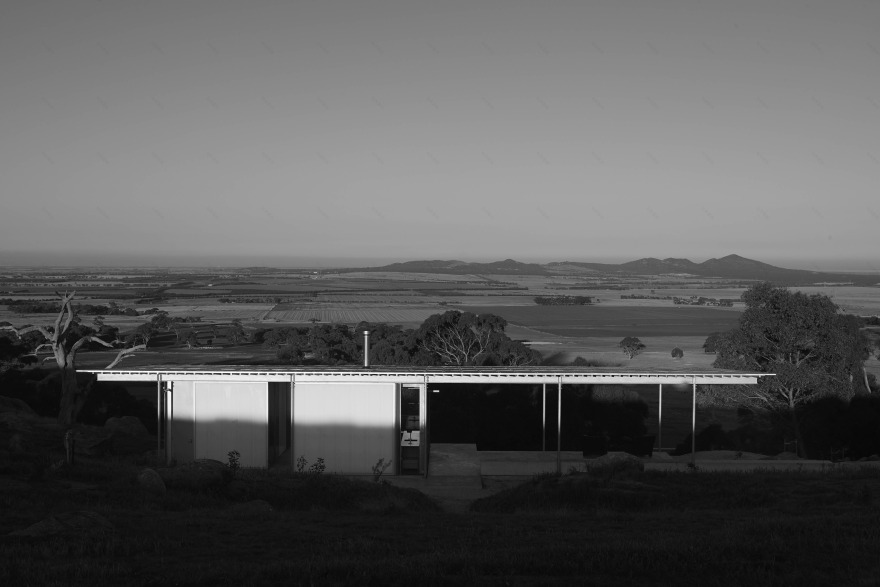

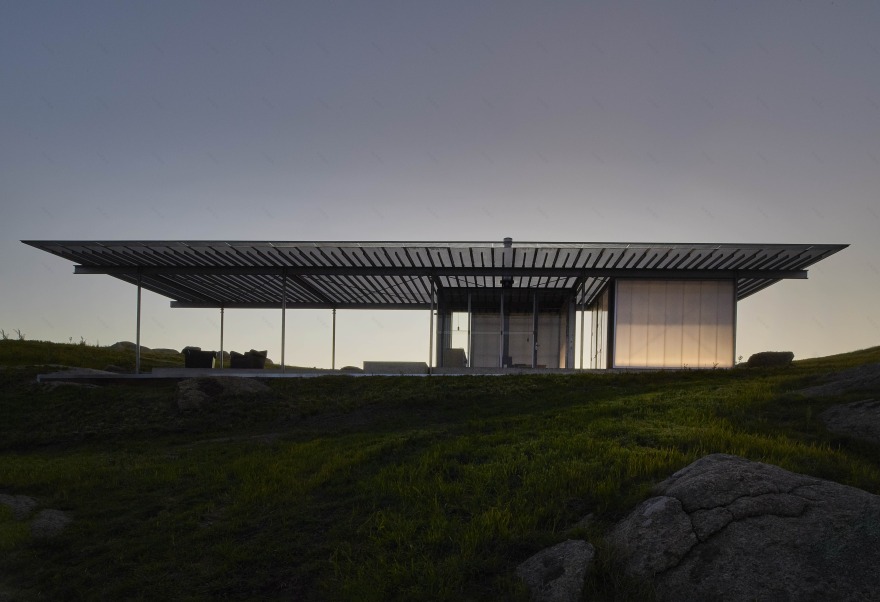

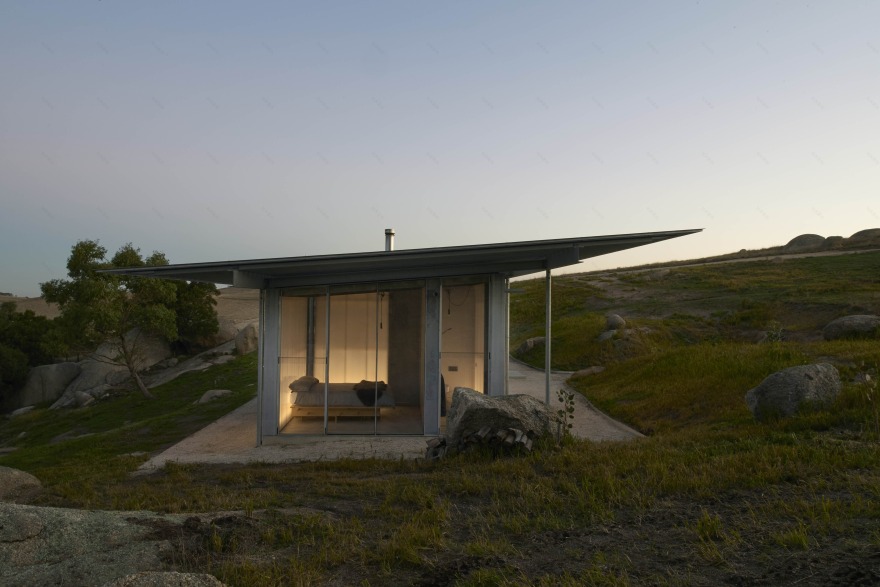

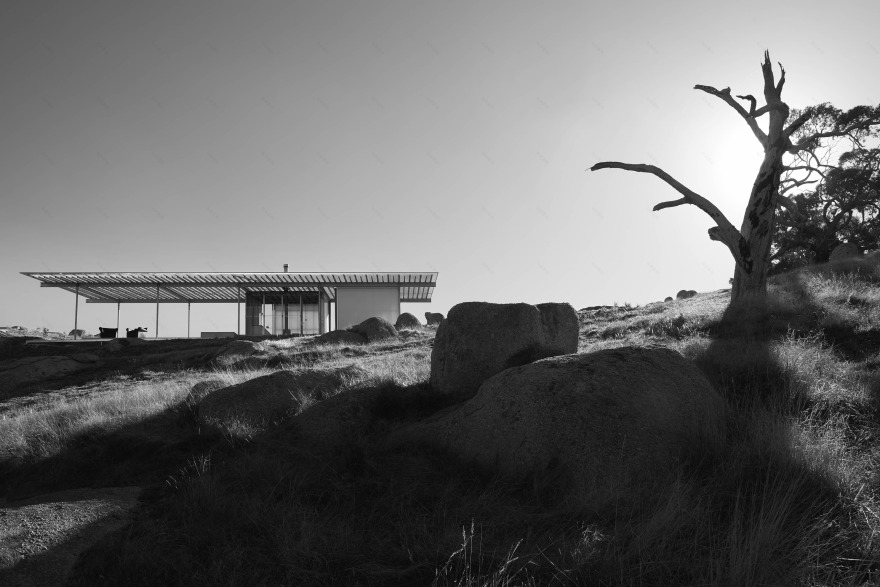

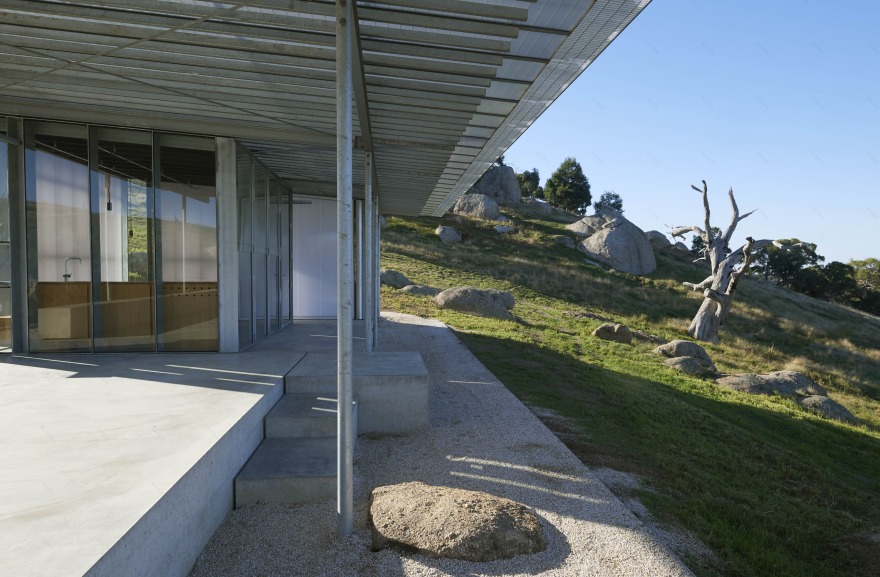

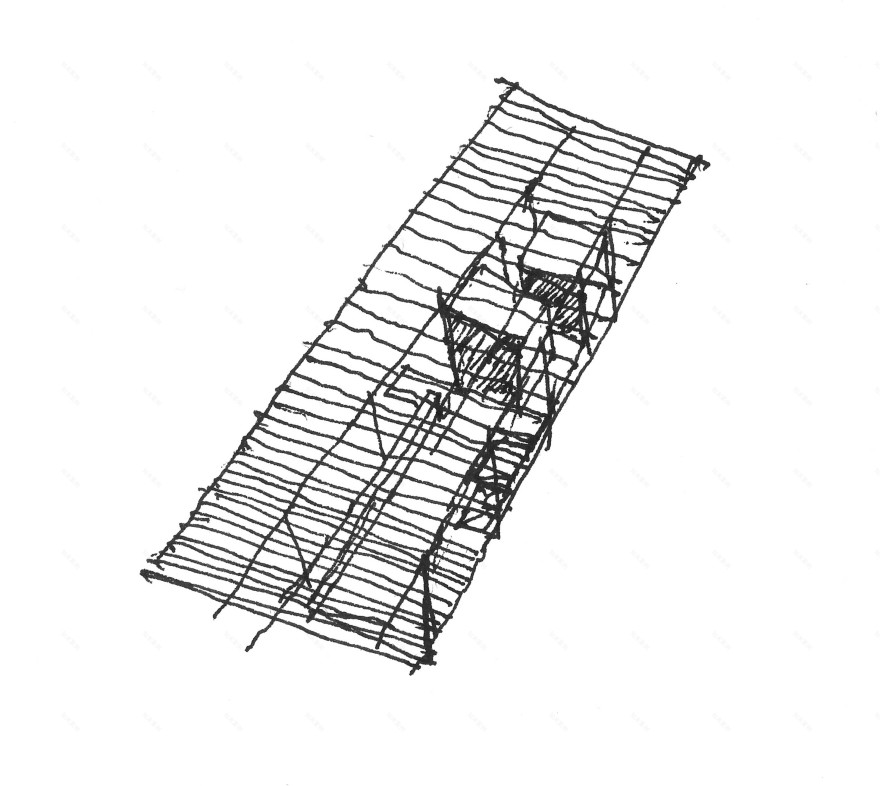

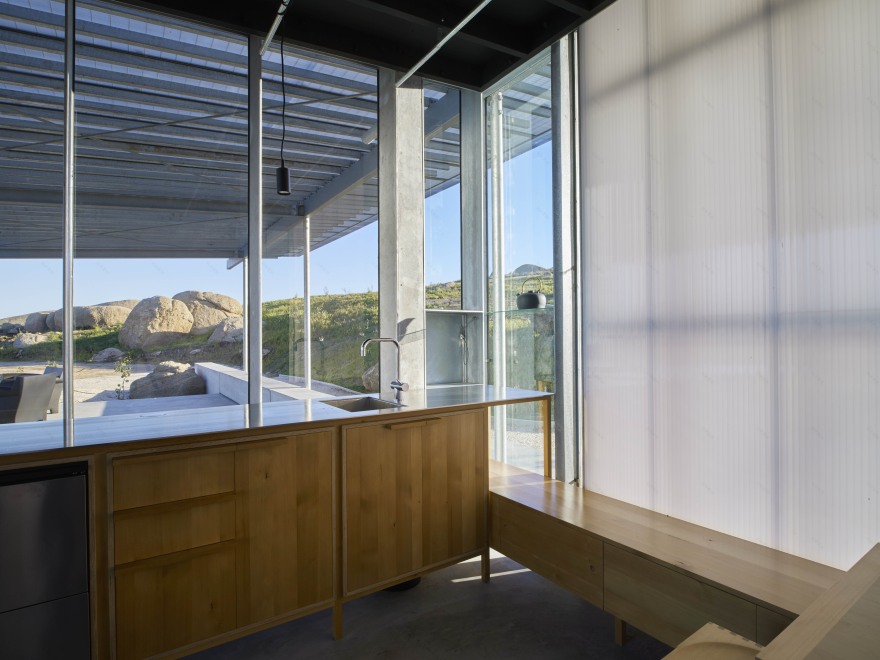

The site is in country Victoria approximately one hour’s drive west of Melbourne. A previous scheme for this site was shelved due to cost. In reappraising the problem we suggested to our client that they might consider a simple farm shed to provide rudimentary accommodation on a different part of the site from the previous scheme. They had already erected a large machinery shed with solar panels and rainwater collection tanks uphill from where we agreed a very simple adaptation of a hayshed might occur. In our discussions we noted the primary requirement in rural and outback Australia for shelter - a roof parasol that provides some shade and protection from the rain as well as a place to enjoy outdoor activities - cooking, eating and engaging with and framing the spectacular landscape that exists on this particular site. In the end we adapted a hayshed structure and modified it by including a translucent roofing material for light and adapting some industrial walkway grating to make a louvre for shade. Two translucent 'sheds' are positioned to the east end of a monolithic concrete plinth - one shed for cooking and eating and the other for sleeping and ablutions.
Two houses by Riken Yamamoto and Field Shop - Yamakawa Cottage (1976) and the Ishii house (1977) - disassemble conventional residential programmes and then reassemble them in a highly creative way. I remember being intrigued by these projects as a young architect. In the case of the Yamakawa Cottage the functional programme is distributed in an ordered and logical way across a single level timber platform. This highly poetic scattering of spaces is controlled by a large shallow gable roof which shelters not only the rooms but the outdoor or 'other' space in the building. This 'other' space is intriguing to me and I certainly had the Yamakawa Cottage in mind when I designed this shack in the rocks.
Location: Victoria, Australia
Design year(s): from 2015  to 2018
Construction year(s) from 2019 to 2021
Architect(s) or architectural firm(s): Sean Godsell Architects
Principal(s) in charge: Sean Godsell
Project team: Sean Godsell, Hayley Franklin
Client(s) : Earl Carter and Wanda Tucker
Consultants:
Structural engineer(s): OPS Engineers
Mechanical engineer(s): N/A
Interior designer(s): Sean Godsell Architects
Landscape architect(s): N/A
Building Surveyor: Nelson McDermott
Contractors:
General contractor:  R+B Kahle
Steel Contractor: Architectural Steel
Concrete Contractor: Surf to City Concreting
Furniture + Joinery: Fred Ganim
Landscaper: Brent Kahle
Program: Residential
Structural system: Steel Frame
Major materials: Steel, Concrete
Site area: 129.7 hectares
Building area (footprint area): 102 sqm
Total floor area: 32 sqm
