九拱住宅丨西班牙巴达霍斯丨José María Sánchez García

项目坐落于西班牙巴达霍斯省Villanueva de la Serena，建筑师José María Sánchez García根据业主对住宅功能的需求改造了室内的结构顺序，为室内创造出新的空间与功能。

The project inverts this structural order due to the functional requirements, allowing a new spatial and programmatic arrangement.

▼项目概览，overall of the project © Roland Halbe

新增的两个T形梁形成强而有力的中部支撑结构，释放了底层空间，为创造出开放的平面提供了条件。连续的砖拱与混凝土梁跨越了高度复杂的空间，形成由梁与拱顶构成的空间网格系统。根据空间与功能排布的逻辑，位于前侧的车库与客房被划分在沿街一侧。

▼分析图，diagram © José María Sánchez García

Two T-beams relieve the space of the need for intermediate supports, permitting the creation of a new open plan ground floor. The combination of brick arches and concrete beams generates a spatial grid of successive beams and vaults that span a highly complex space. Functional logic dictates the maintenance of the division of the first two rooms —garage and guest room— on the street side.

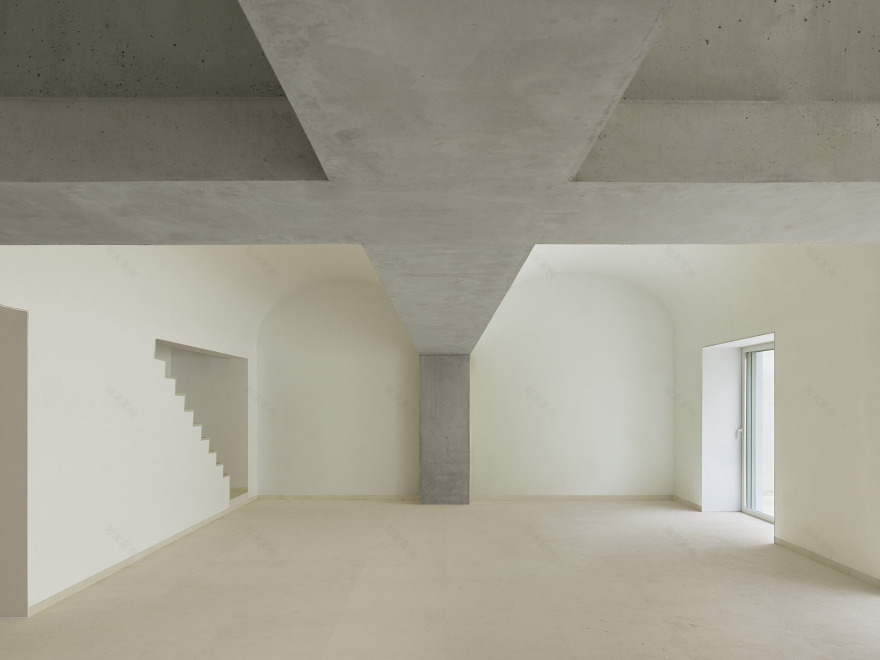

▼客厅顶部的十字交叉梁，Two crossed T-beams of the living room © Roland Halbe

▼强而有力的支撑结构释放了底层空间， The strong supporting structure frees up the ground floor © Roland Halbe

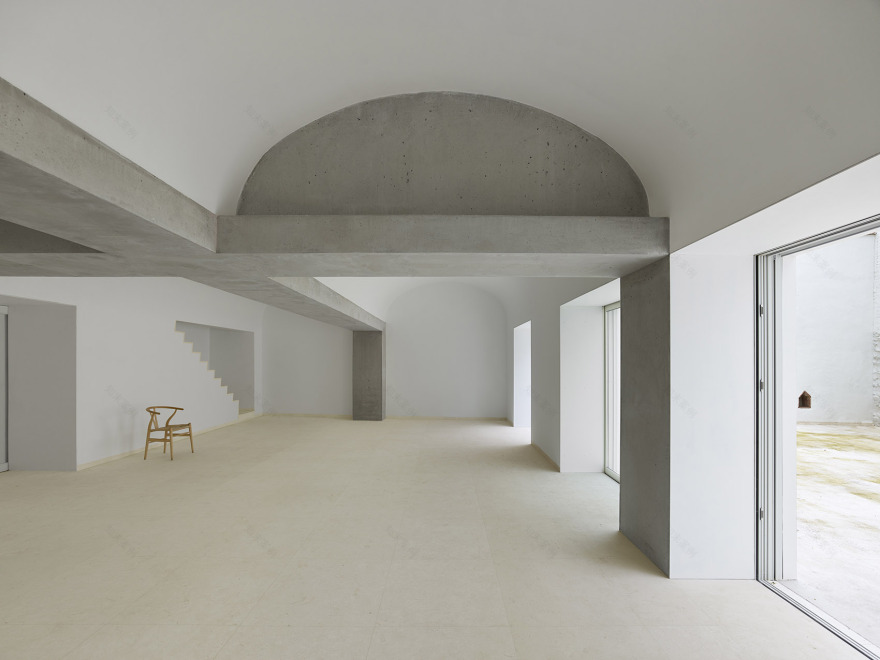

▼客厅面向室外花园开放， The living room opens to the outdoor garden © Roland Halbe

▼客厅楼梯细部， detail of the staircase in the living room © Roland Halbe

客厅上部由交叉的T形梁与六座穹棱拱顶支撑，从而形成通透流动的室内空间，面向室外花园开放。在连续的平面空间上方，拱顶自然形成空间的功能分区。

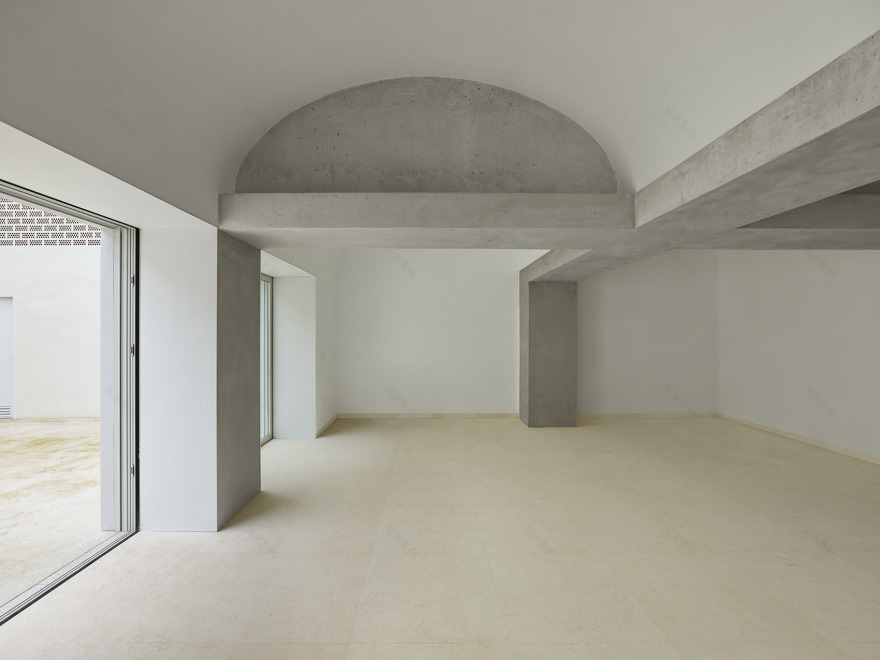

▼天花板上的拱顶与连续的平面空间， vault on the ceiling with continuous plane space © Roland Halbe

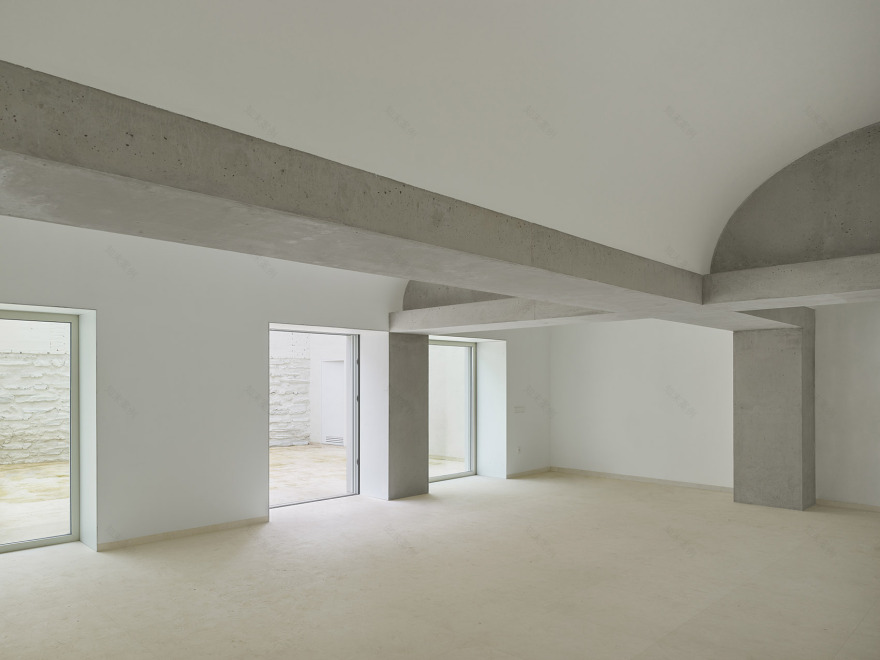

▼拱顶自然划分出不同空间区域， these vaulted ceilings create partitions within it © Roland Halbe

The living room becomes a diaphanous space that opens horizontally onto the interior garden, protected vertically by the structural cross and the six groin vaults. While the floor plan generates a continuous space, these vaulted ceilings create partitions within it.

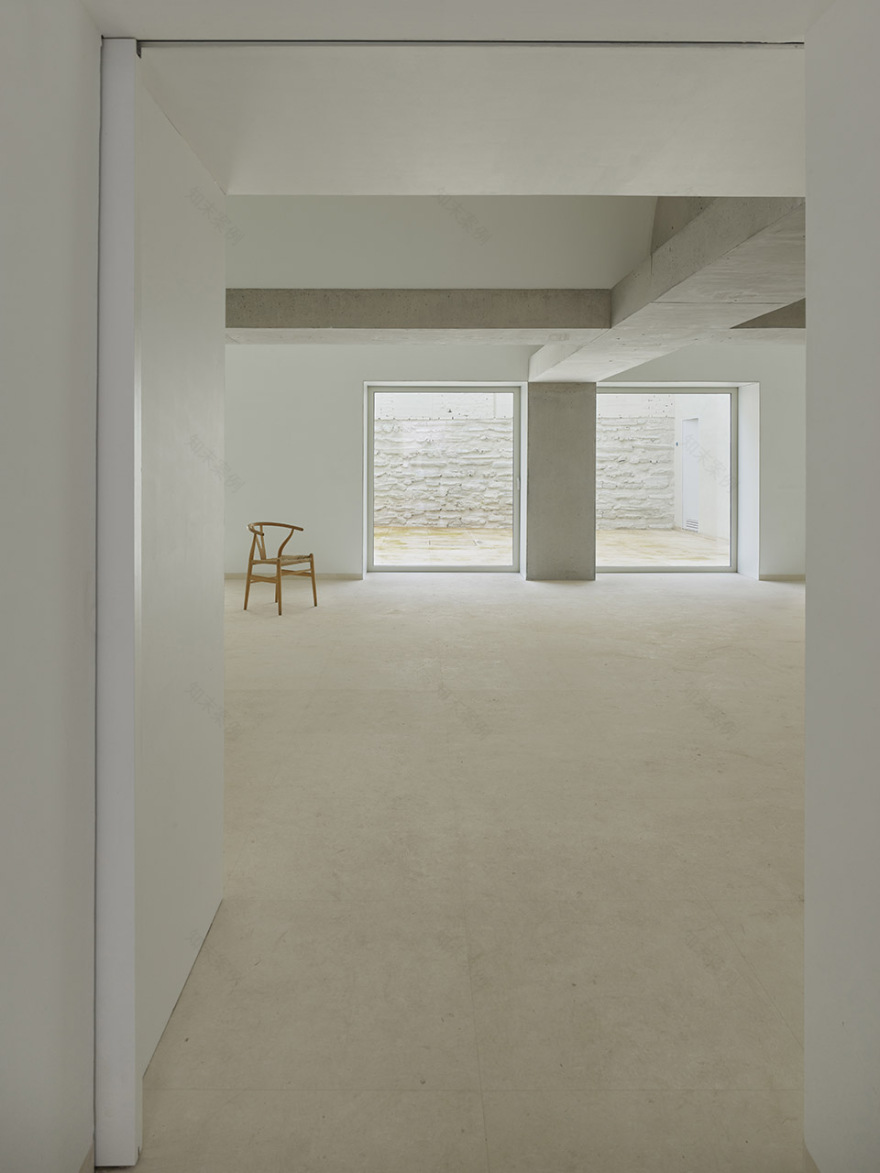

▼由入口玄关看客厅， viewing the living room from the entrance © Roland Halbe

▼区位图，site plan © José María Sánchez García

▼底层平面图， ground floor plan © José María Sánchez García

▼二层平面图， upper floor plan © José María Sánchez García

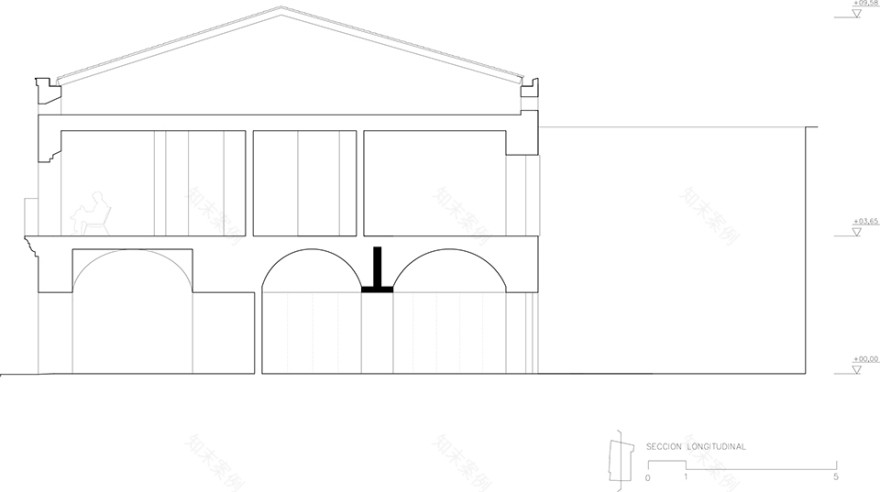

▼剖面图， section © José María Sánchez García

Architect: José María Sánchez García Location: Villanueva de la Serena, Badajoz, Spain. Year: 2021 Collaborators: Mariló Sánchez, Javier Fernández, Ignacio Hornillos, Sofía Romeo, Cristina Lorenzo, Adrián Paterna Structure: Juan Pedro Cortés Mep engineering: Enrique García-Margallo (ARO Consultores)
