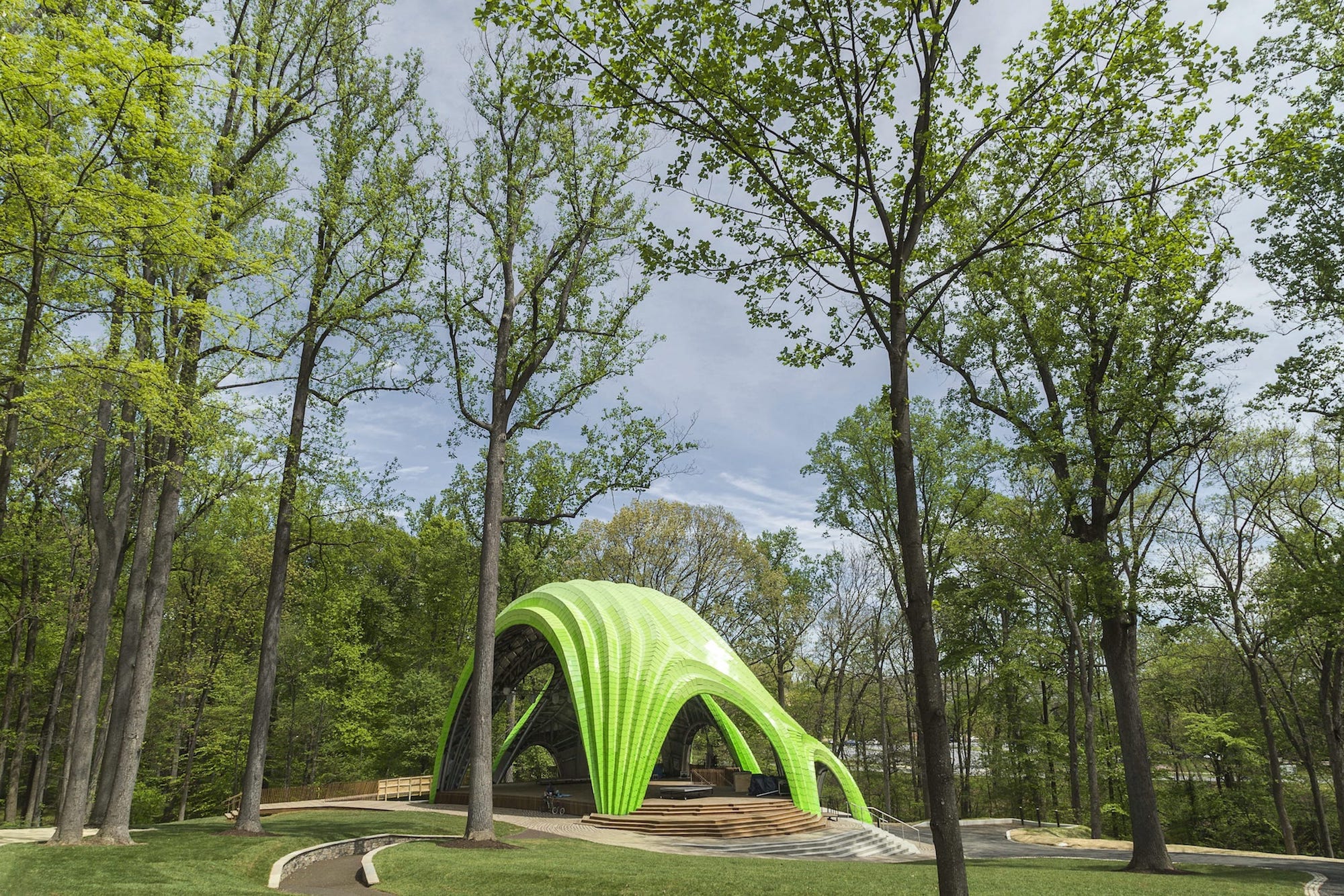

MARC FORNES / THEVERYMANY: The Chrysalis是位于马里兰州哥伦比亚市中心的 Symphony Woods 的 Merriweather 公园的表演舞台，公园亭和雕塑。作为公园亭，它主要面向公众开放，同时也是与邻近剧场合作的开展大型表演和庆祝节日的舞台。

MARC FORNES / THEVERYMANY: The Chrysalis is the stage, pavilion and sculpture of meriweather park in symphony Woods in downtown Columbia, Maryland. As a park pavilion, Chryseris mainly serves the public as a destination within the park. It is also a stage for large-scale performances and festivals in cooperation with the nearby meriweather park pavilion amphitheater.

位于马里兰州哥伦比亚梅里韦瑟公园的新的圆形剧场没有活动。该项目通过提供全天候体验的设计，最大限度地发挥场地自身的潜力。

“我们的目标不仅仅是提供一个目的地，而是为早晨的慢跑者、周末的步行者、下午的婴儿车以及任何真正参与活动的人提供的体验。这是一个露天剧场，但它首先是公园内的一个展馆、一个建筑结构、一个树屋和一个公共艺术品，随时都可以参与和被激活。”

95% of the time, the new Chrysalis Amphitheater in Merriweather Park of Columbia, Maryland is not programmed. Rather than waiting for official events, the project maximizes potential with a design that provides an experience around the clock.

The goal is to provide not just a destination, but an experience for the morning jogger, the Sunday walker, the afternoon stroller, as well as anyone who is actually there for a show. It is an amphitheater, yet it is first a pavilion in the park, an architectural structure, a tree house and a public artwork, ready to be engaged and activated at any given moment.

赋予拱形功能

该项目的主要设计机会是在满足剧院类型所要求的标准盒子尺寸的同时，创造一种象征性和体验性的设计。作为一系列级联拱门所开发，这些拱门不仅在尺寸和功能上有所不同，并且还提供了一个结构系统。

Every Arch A Function

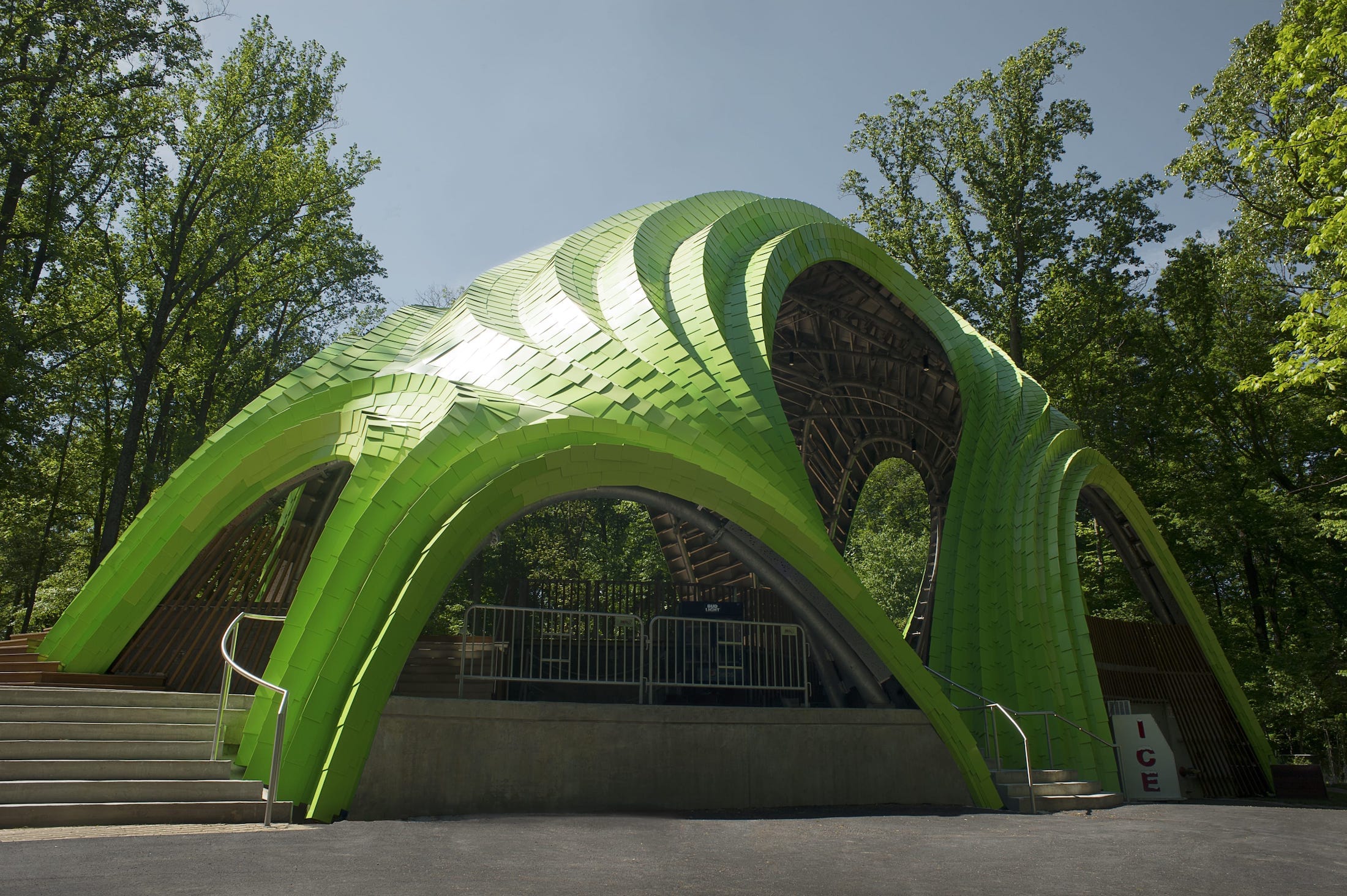

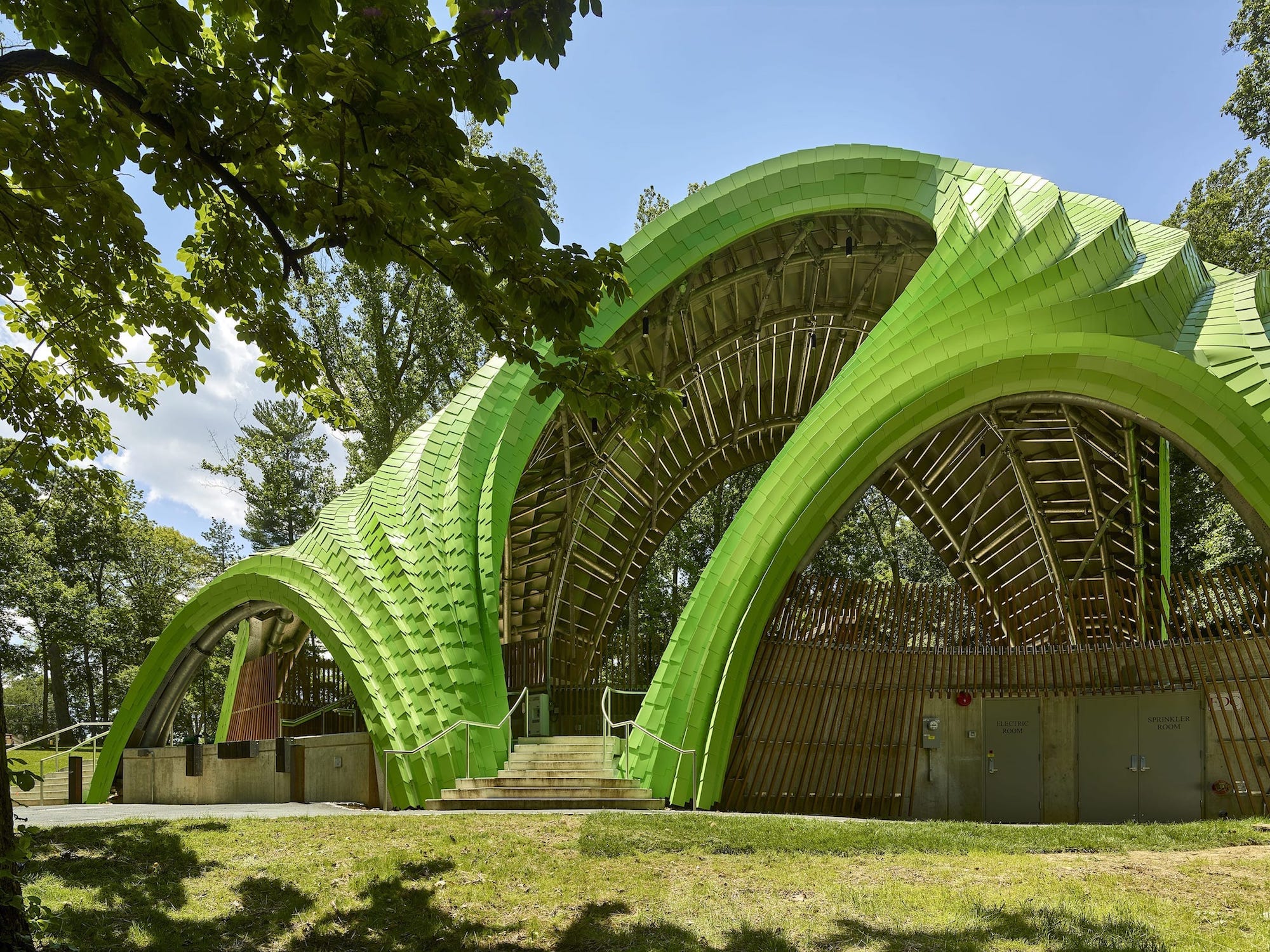

What emerged as the major design opportunity of the project was to create an emblematic and experiential design while satisfying the standard box dimensions required by a theater typology. The answer was developed as a collection of cascading arches that vary not only in size but function, and also provide a structural system.

最大的拱形舞台的尺寸和结构可以支持各类公共活动，包括音乐家的表演以及他们的设备和照明设备的要求。紧邻主舞台的是 Beta 舞台，这是一个举办小型和更多社区活动的场所，它仍然提供平台、照明设施和休息区，但其实这更适合少数人群。公园的游客可以在 Beta 舞台上远眺和玩耍，同时也可以把舞台看作一个更随意的“交流角”来激励自己，与人交流闲谈。

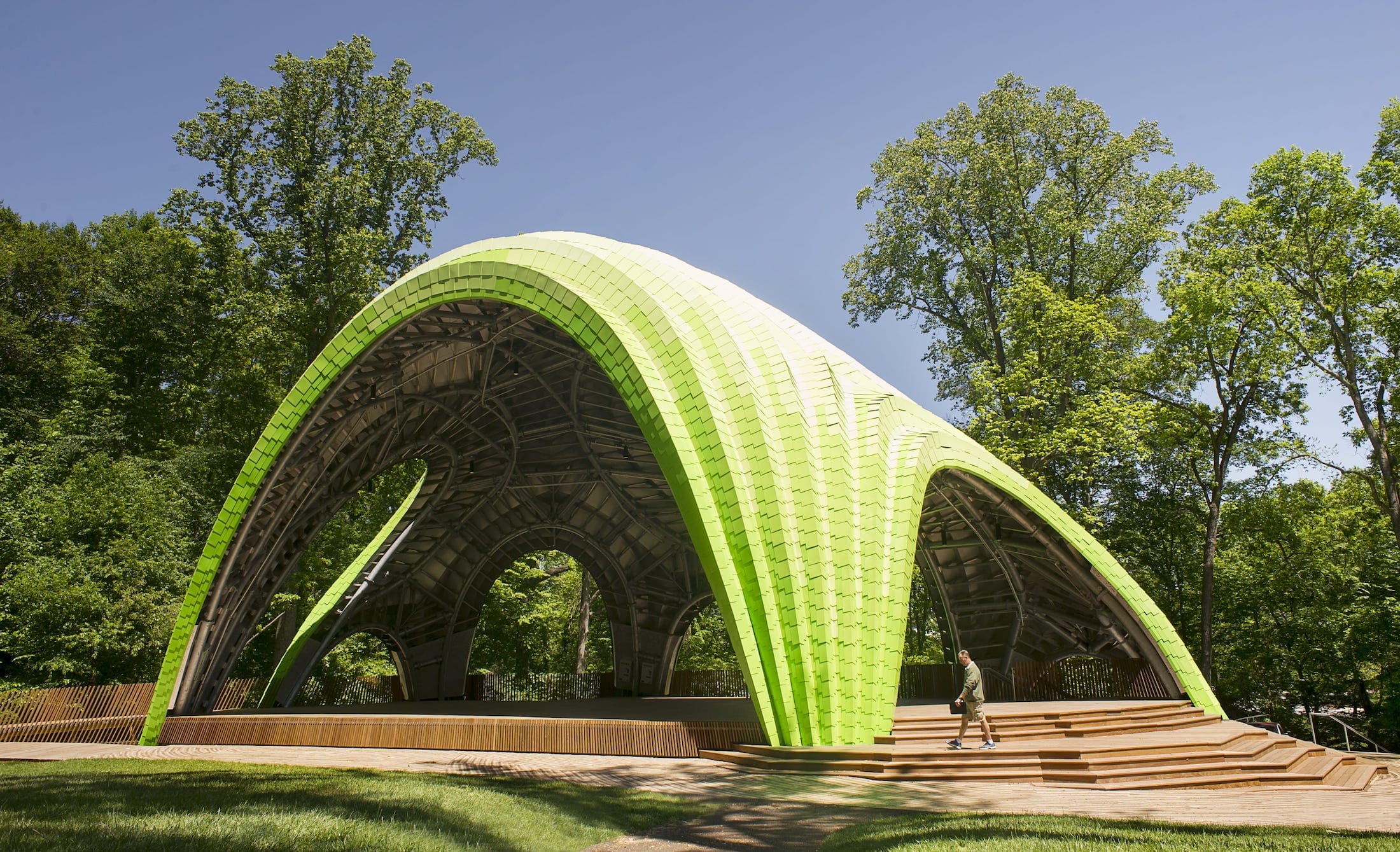

The largest arch frames Stage Alpha, dimensioned and structured for official events, including the performances of musicians and the requirements of their equipment and lighting rigs.

Immediately adjacent to the main stage is Stage Beta, a venue for smaller and more community-based events, and which still provides a platform, equipment/lighting rigs, and seating area, yet is more appropriate for less of a crowd.

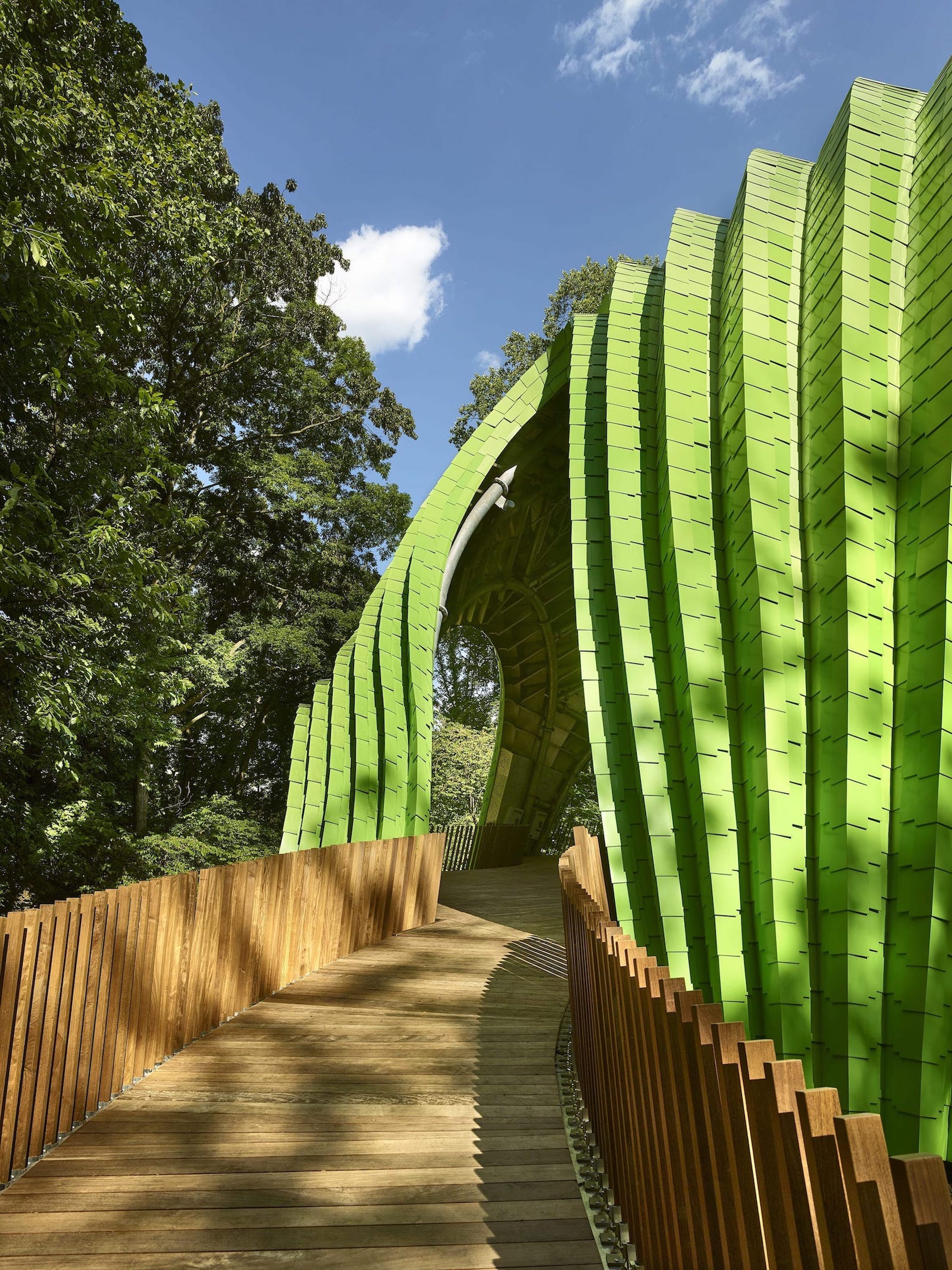

The engineered terrain ascending to Stage Beta provides an architectural topography on which park visitors can sit, stand and play, and which can be activated itself as a more casual “Speakers Corners” stage set-up.

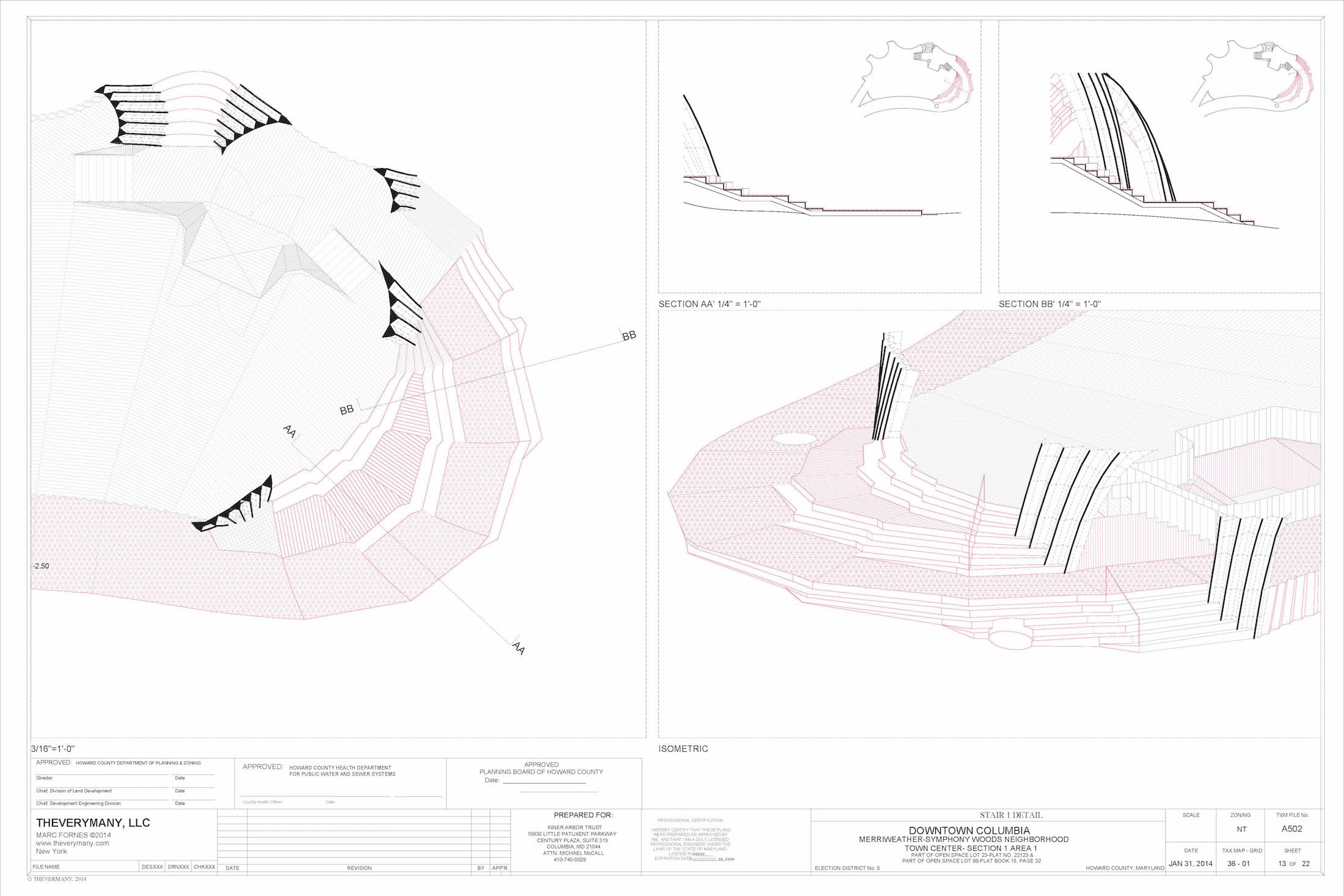

围绕构筑的后面，大多数的拱门是卡车装卸位置、大型楼梯入口和视野开阔的阳台的位置，在演出期间作为艺术家的后台区域。

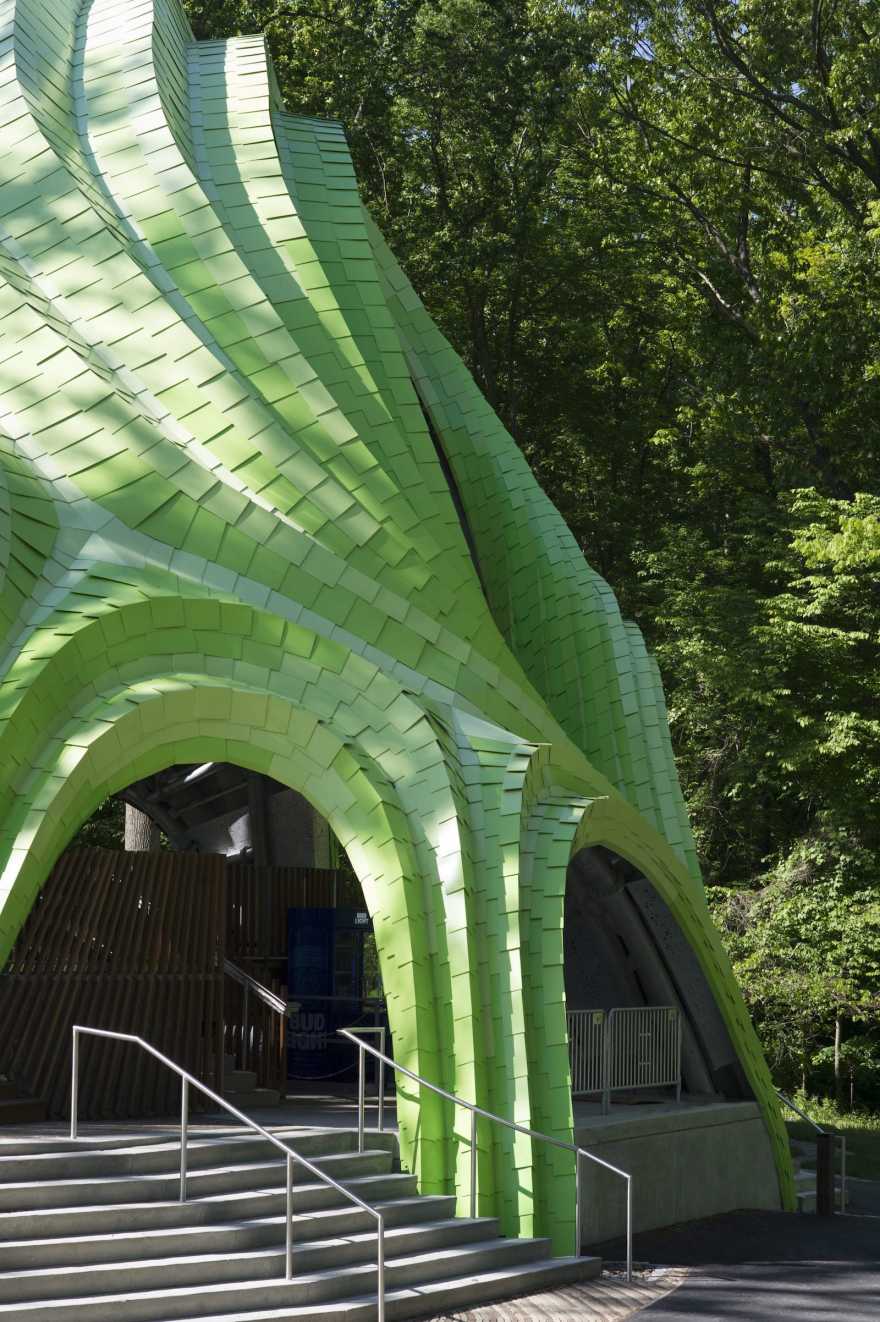

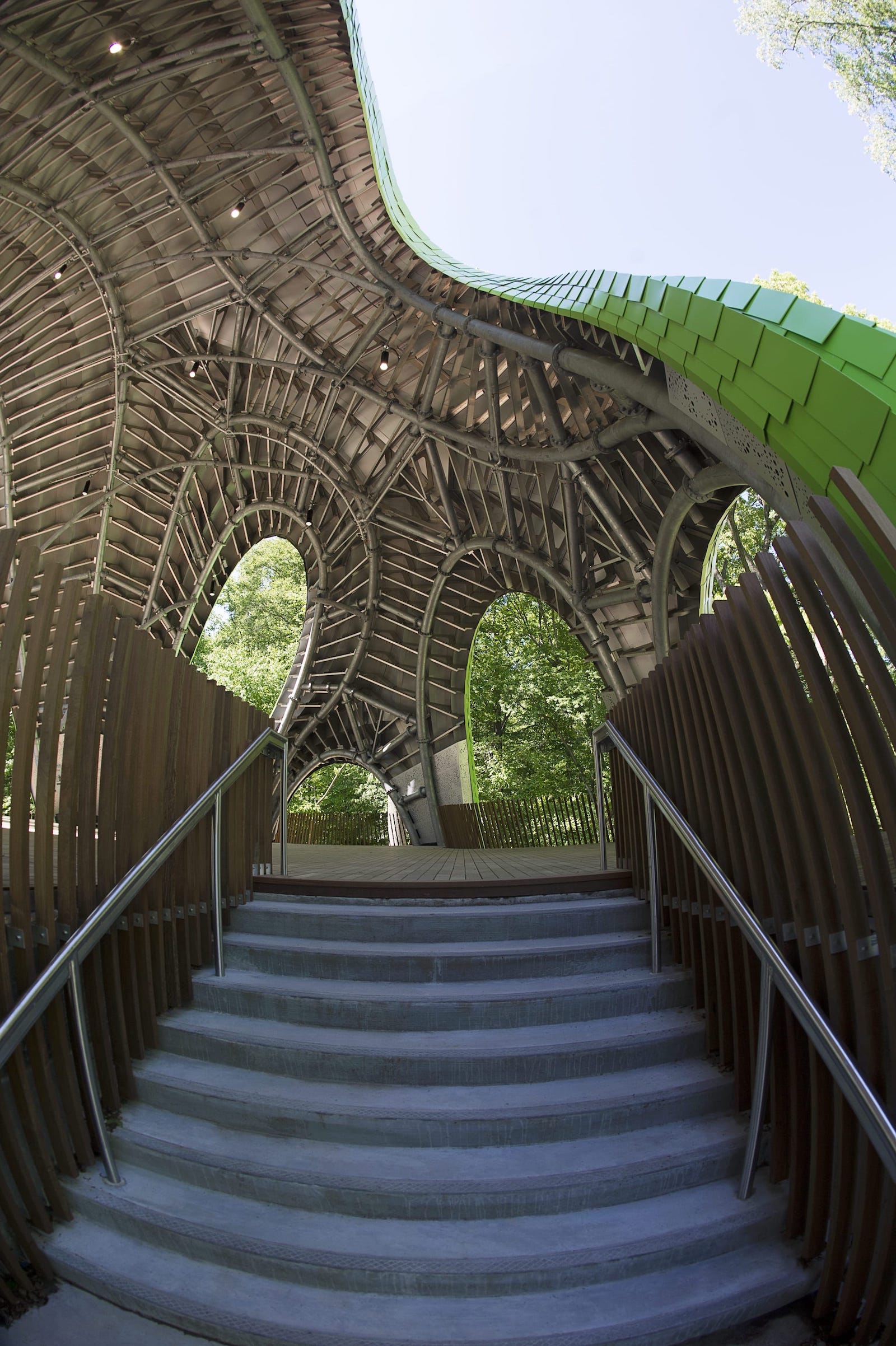

Wrapping around the back of the structure, further arches are locations for a truck loading dock, a grand staircase entrance, and balconies with views beyond, which during performances serve as the artist backstage area.

灯光在脚边

为了达到适合茂密树木公园环境的轻盈和有机效果，该工作室采用了结构导向的方法，建立在十多年的轻质结构壳的研究和开发基础上，将形式、支撑和经验统一到一个有凝聚力的系统中。特别是 The Chrysalis 进一步发展了其“小兄弟”先例中的原则，即 Pleated Inflation，由 2015 年法国 Argeles 的工作室完成。

Light On Its Feet

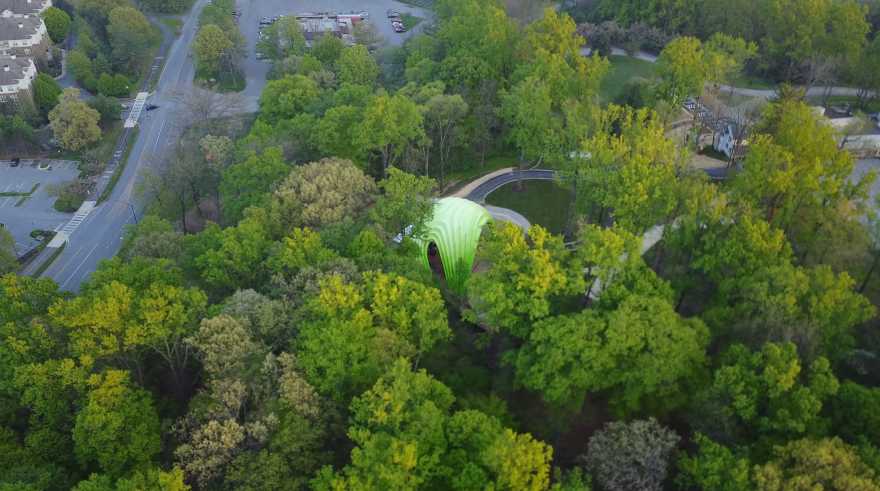

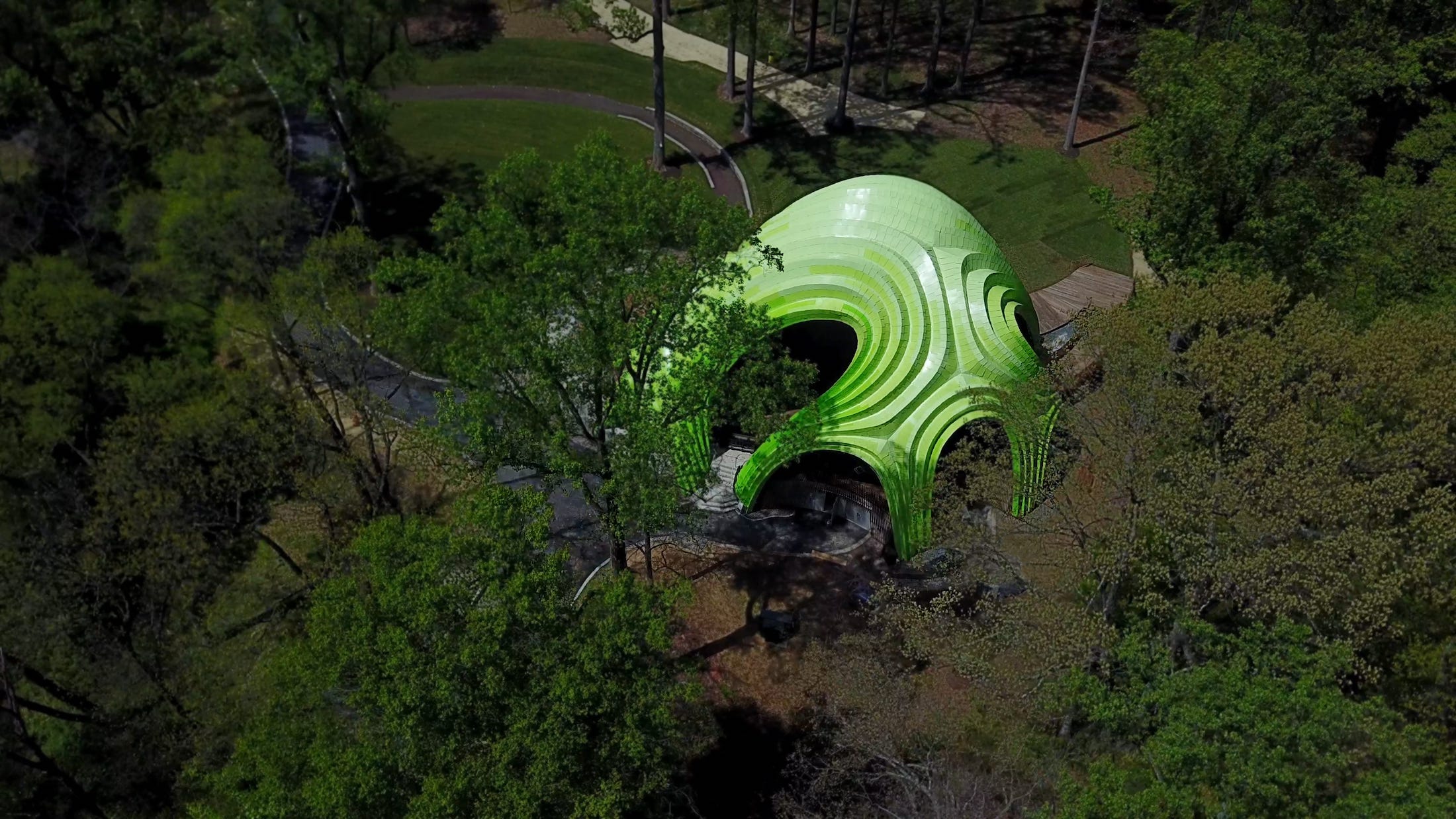

To achieve a light and organic effect that suits the context of a dense wooded park, the studio took a structurally-oriented approach, building upon over a decade of research and development of lightweight structural shells that unify form, support and experience into a cohesive system. In particular, The Chrysalis further develops principles explored in its “little brother” precedent, Pleated Inflation, completed by the studio in Argeles, France in 2015.

©Images by Jeffrey Totaro

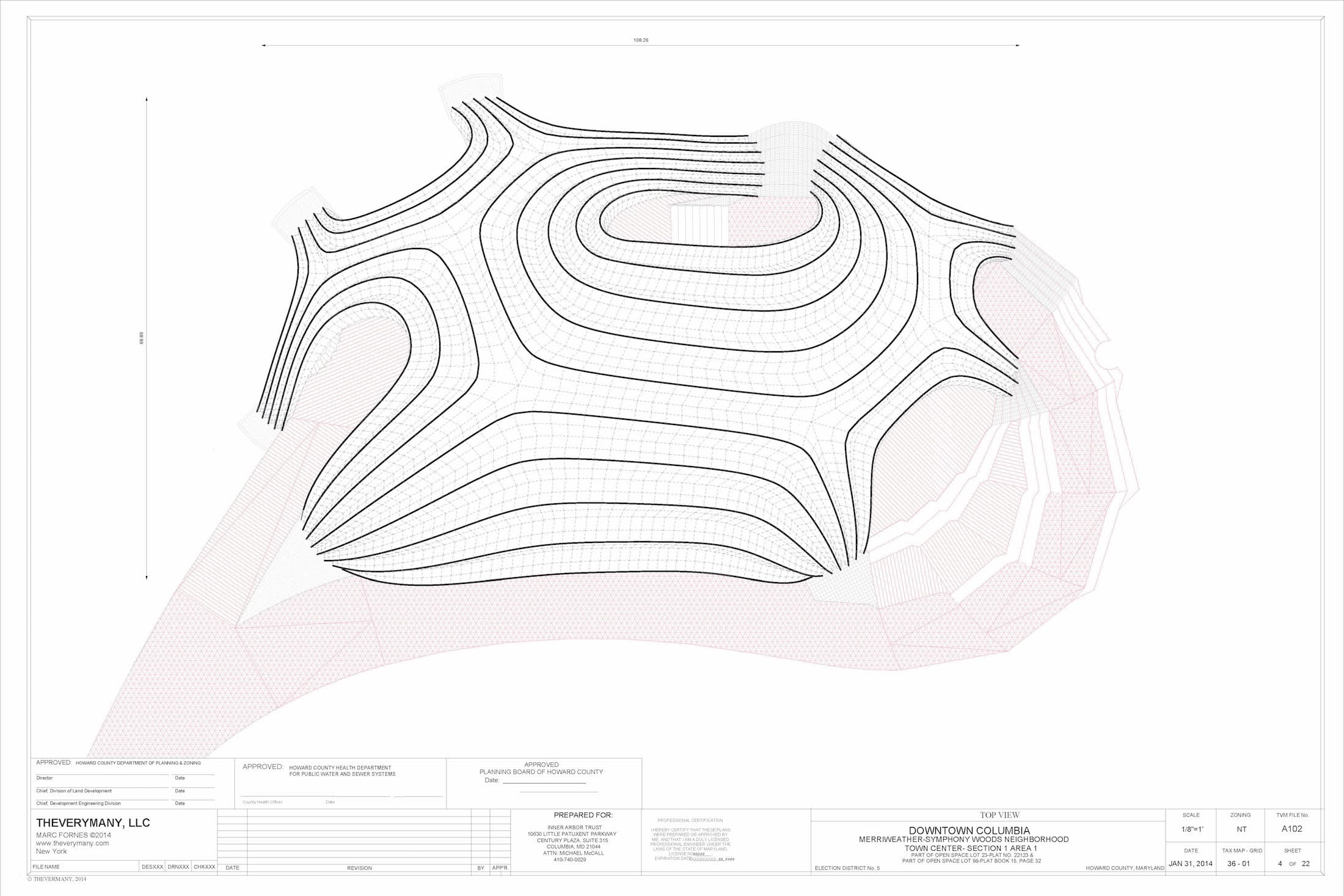

The Chrysalis 同样是通过将数字网格绘制成平面的过程生成的，并且其所有区段被转换为一系列差异化的弹簧系统，然后膨胀，褶皱的约束被添加到膨胀协议中以提供额外的结构深度。

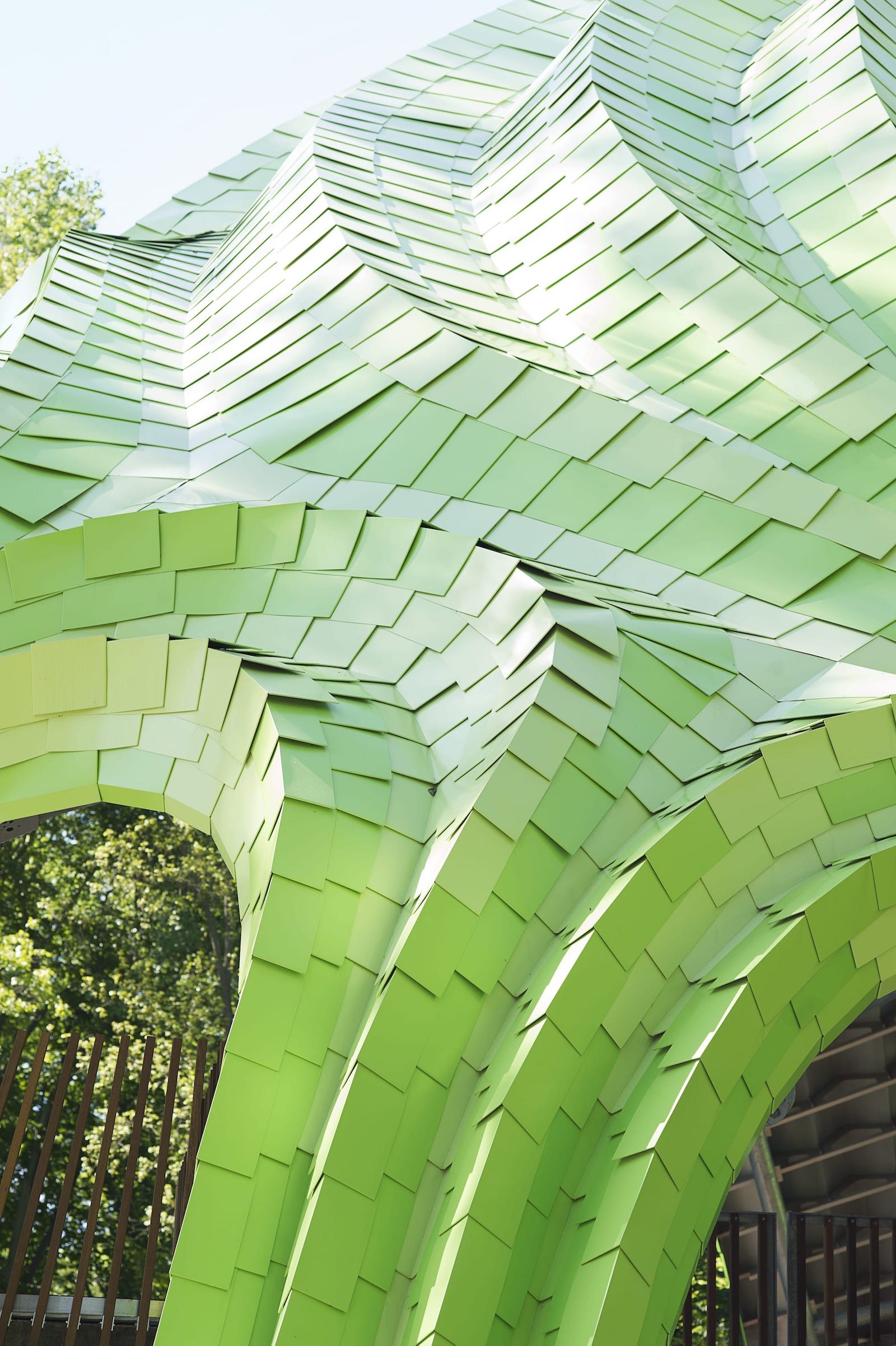

The Chrysalis is similarly generated from a process in which a digital mesh is drawn flat, and all of its segments are transformed into a series of differentiated spring systems, then inflated. Constraints for pleating are added to the inflation protocol to provide extra structural depth.

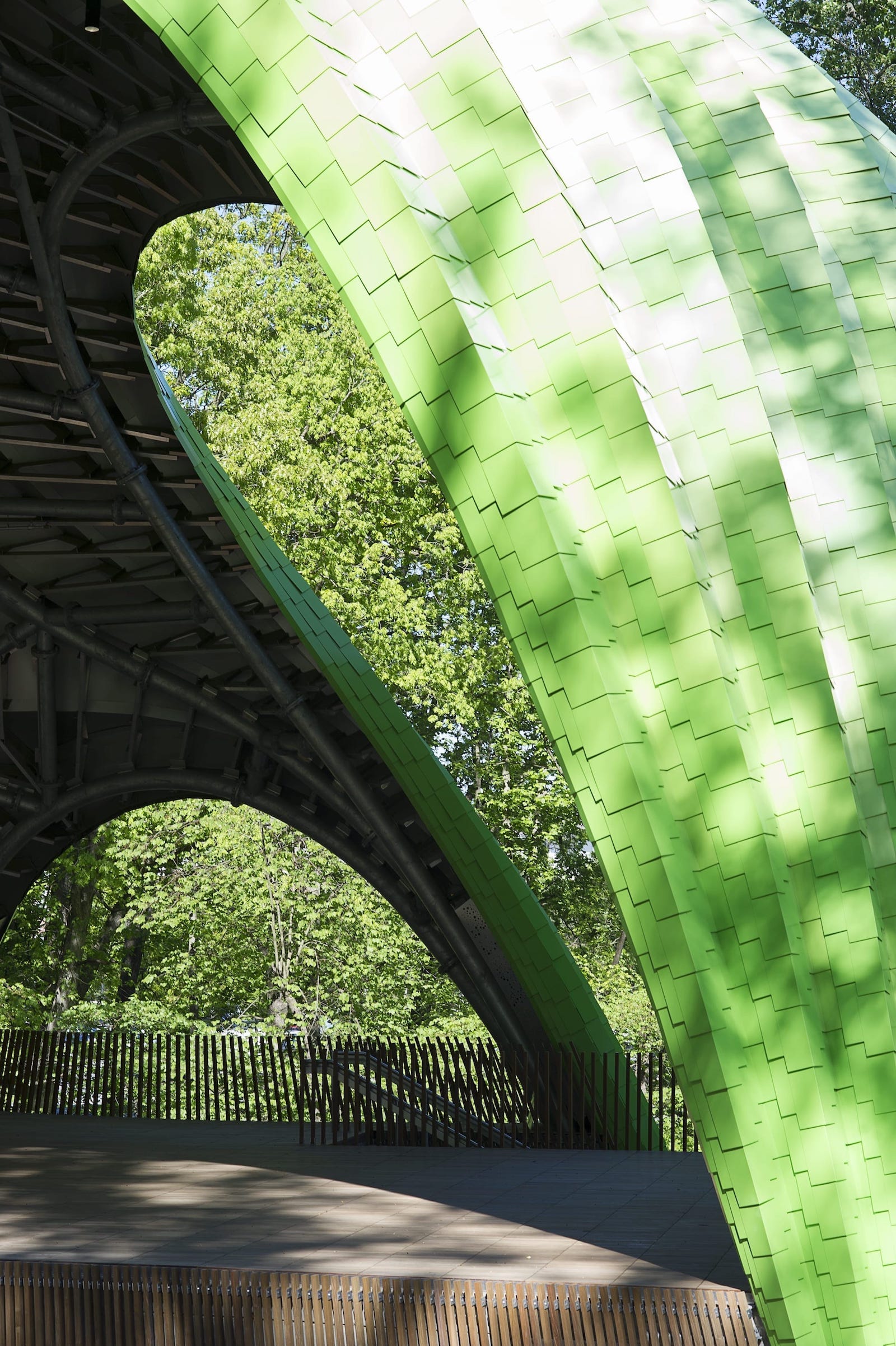

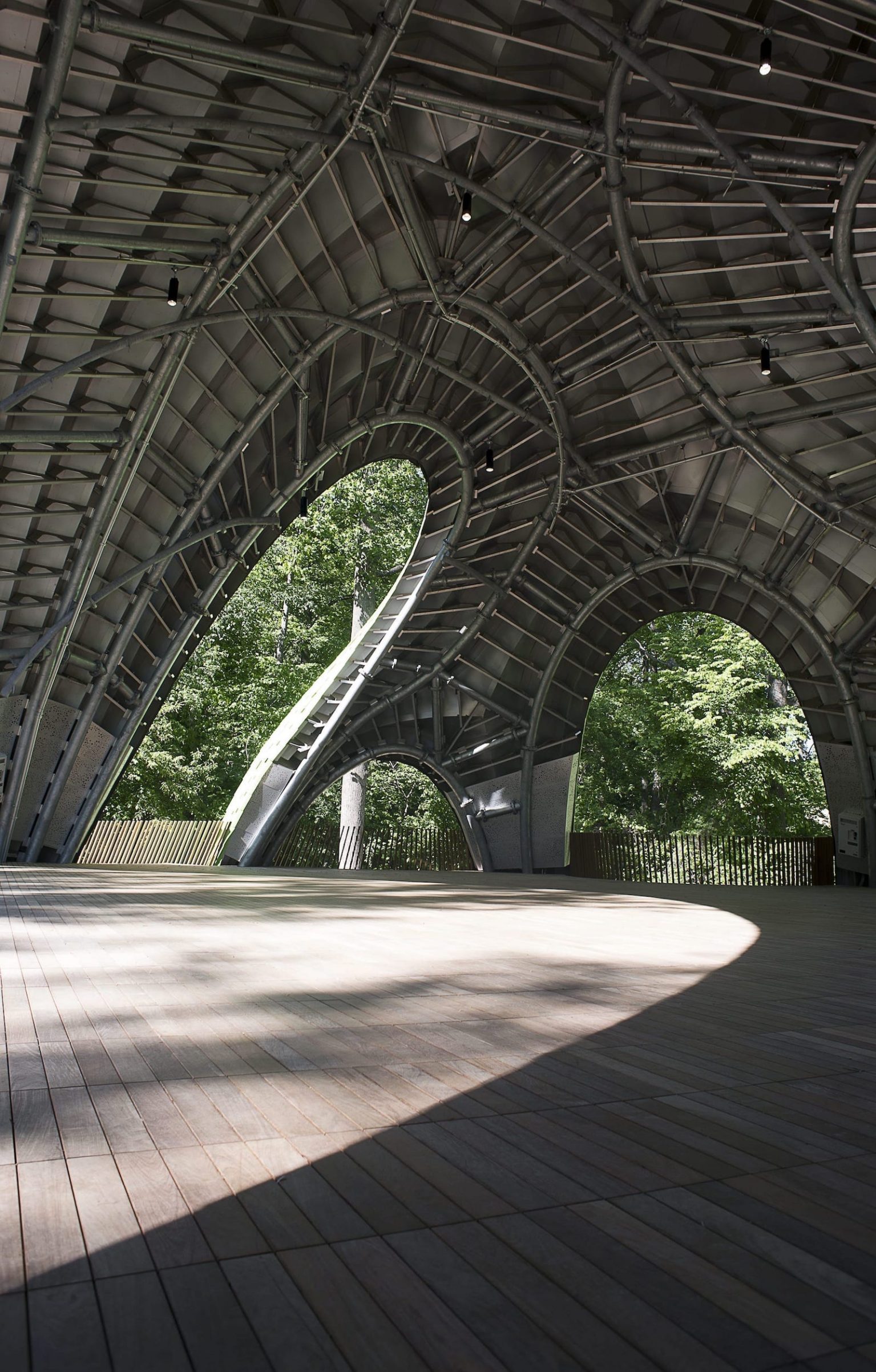

褶皱外壳分层，外骨骼设计用于支撑内部演出的负荷，如灯光和其他索具，由 Arup 设计成支持 70 点负载的钢管，每个负载可以承受 2000 磅重力。

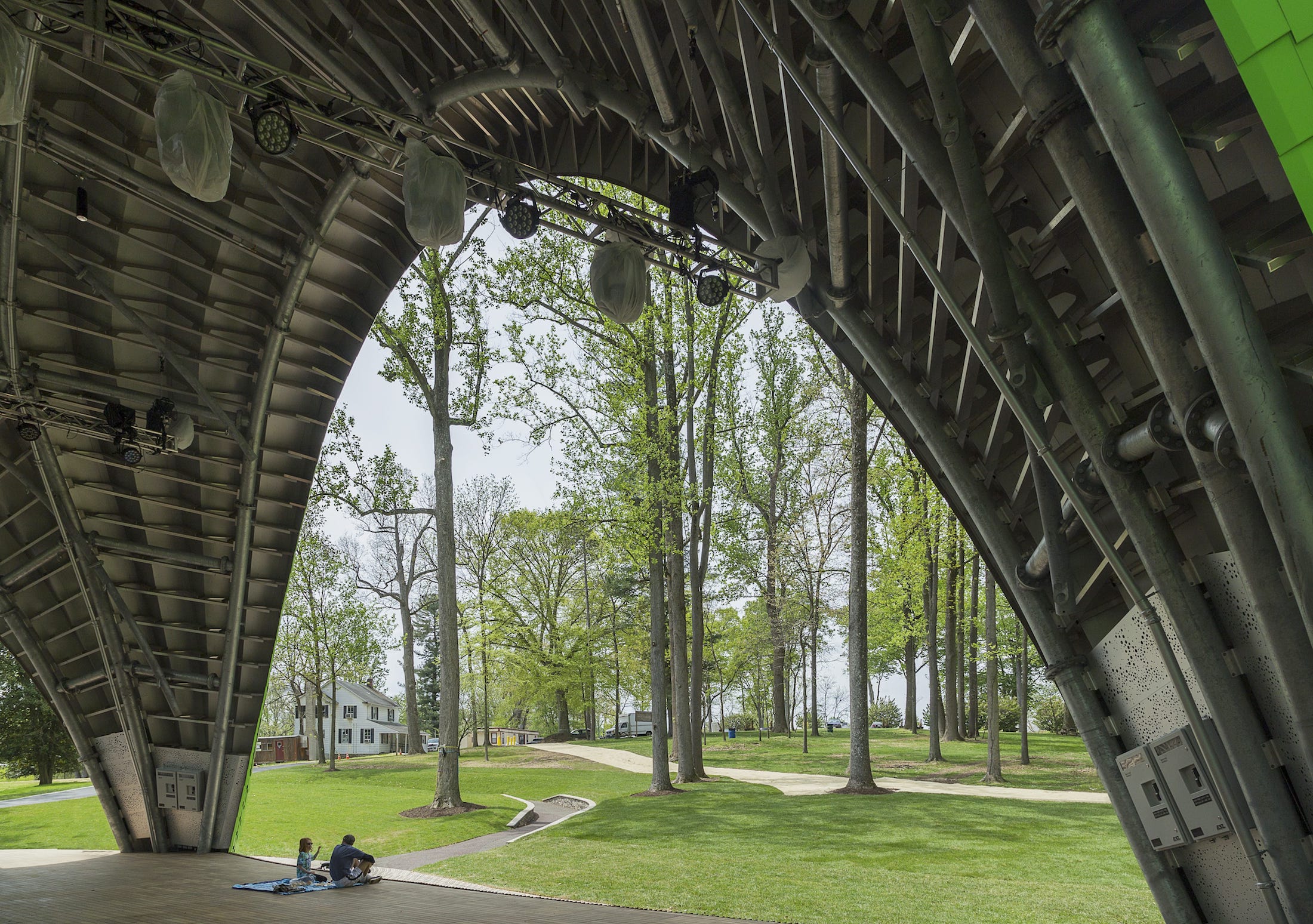

Layered within the pleated shell, an exoskeleton was designed to support the heavy loads for performances inside, such as lights and other rigging. Engineered into steel tubing by Arup, it supports 70 point loads that can each sustain 2,000 lbs.

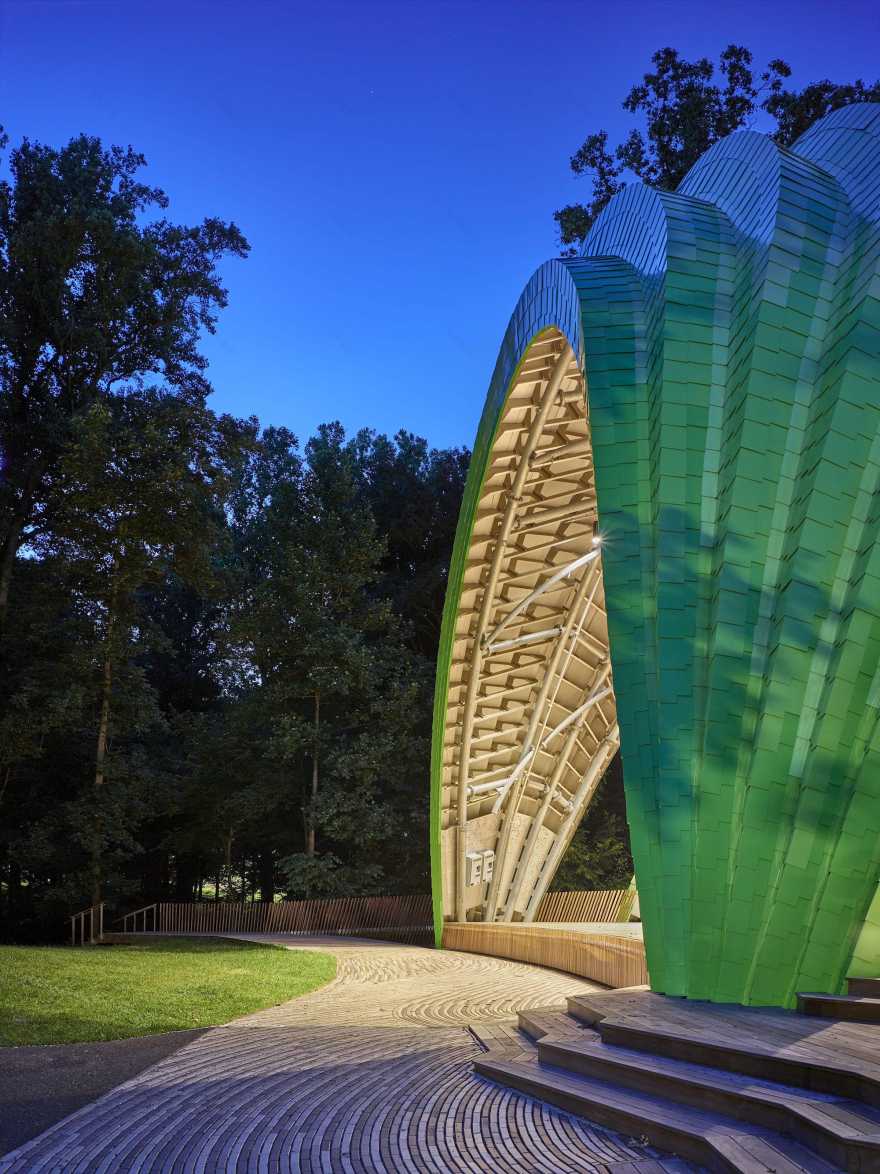

▼灯光效果 Lighting effects
