印度最大约会应用公司创意办公室设计

2016/01/04 19:00:00
查看完整案例
微信扫一扫
收藏
下载
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-2
架构师提供的文本描述。我们拥有60名员工,并在印度最大的约会应用程序中成长,我们设计了一个开放式的座席计划,没有分层结构。这个5000平方英尺的空间被分割成三个区域,一个是工作空间的“Unravel”区,一个是会议区的“UnSingle”区,另一个是地下室和自助餐厅的“放松”区。“在任何地方寻找爱”的概念出现在我们开始在布置图上工作时,考虑到一种户外的氛围。

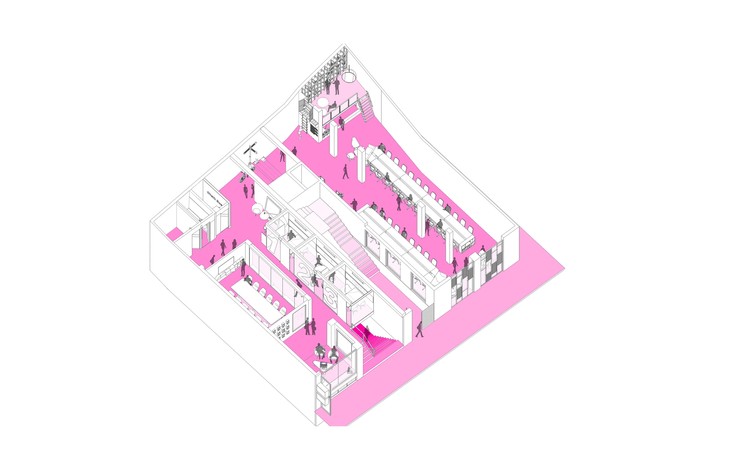

Text description provided by the architects. With 60 employees and growing at India’s largest dating app, we designed an open floor-seating plan with no hierarchical structures. The 5000 square foot space was segmented into three zones namely ‘UnRavel’ at the working space, ‘UnSingle’ at the conference area and ‘UnWind’ at the basement cum cafeteria. The concept of ‘finding love anywhere’ emerged as we started working on the layoutkeeping in mind an outdoorsy ambiance.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-7
当你进入大楼时,你会第一次看到一个街道式的景观,里面有绿色的,有标志的,还有一辆策略性停放的自行车。在向右拐的时候,你会发现自己面对的是一间双高的房间,墙上挂着一扇比喻性的窗户,墙上装饰着莎士比亚的英语单词。由于这个区域以前是一个艺术画廊,这个空间没有自然光,我们在两面墙上打开了全高的窗户,完全改变了空间的外观,带来了它所缺乏的能量。这片1800平方英尺的空间以线性的方式排列着办公桌,还有一个阁楼图书馆,现在光线充足。

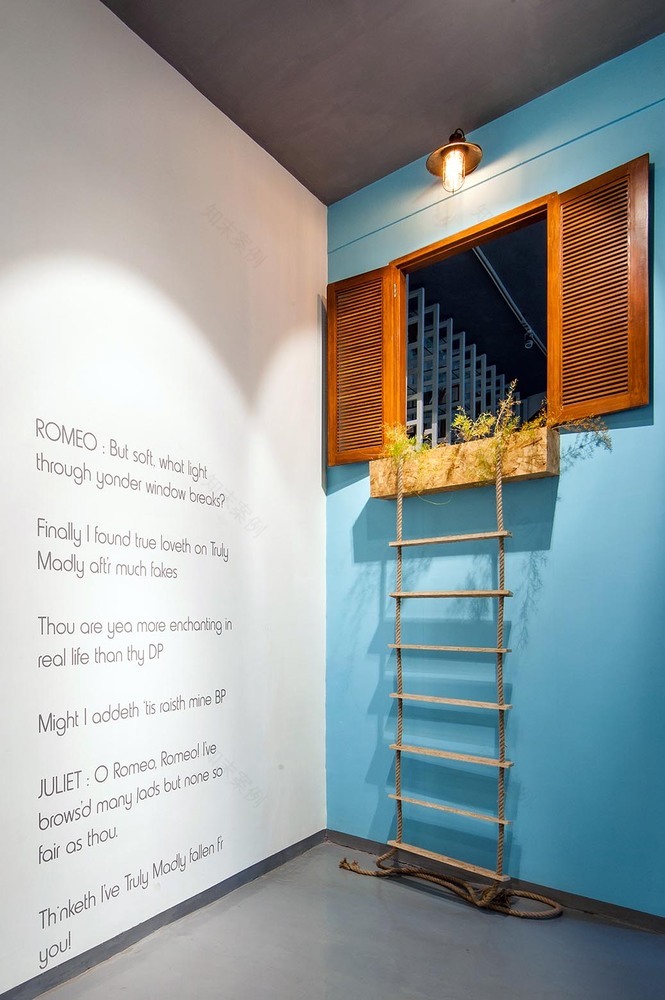

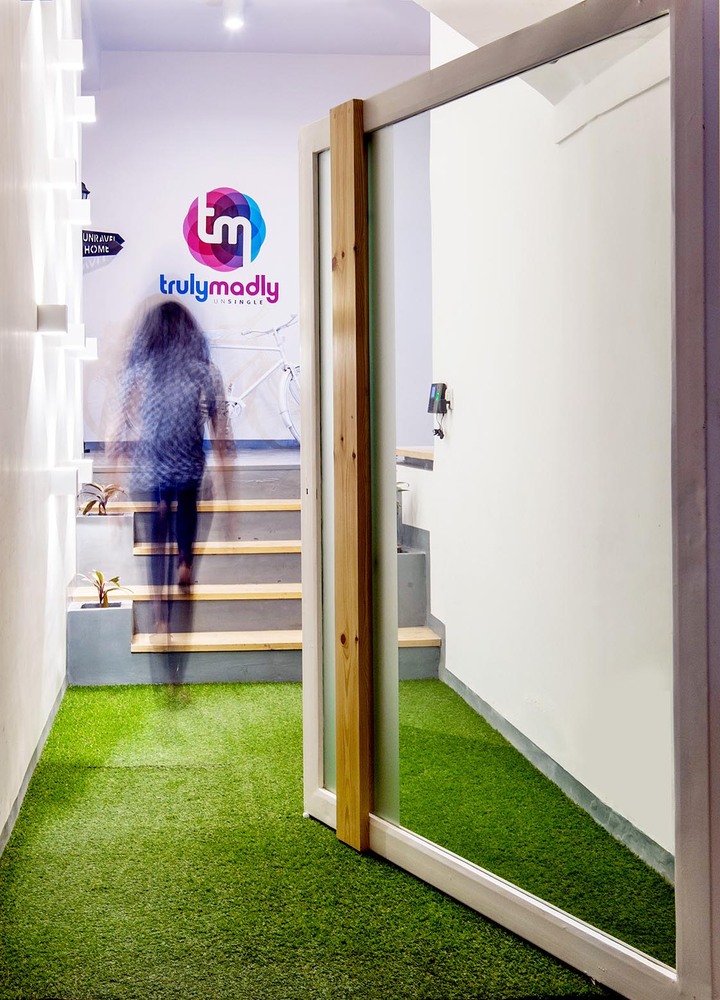

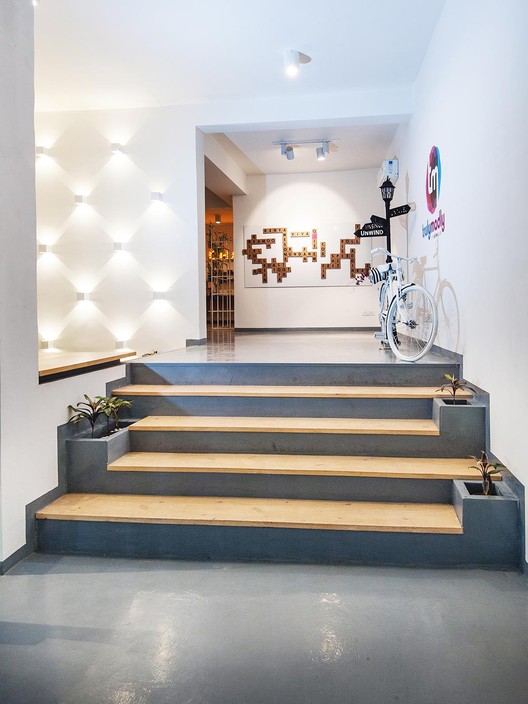

As you enter into the building, you get the first glimpse of a street-like view complete with greens, signages’ and a strategically parked bicycle. On turning right, you find yourself facing a double height room with a metaphorical window and words in Shakespearean English adorned on the wall. Since this area previously served as an art gallery, the space had no natural light, we opened up full height windows on two walls that completely changed the look of the space and brought in the energy it lacked. The 1800 square foot space is lined with work desks in a linear fashion, a mezzanine library and now ample light.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-12
我们建造了一个15x7英尺的阁楼,还挖进了2英尺深的地下空间。前者是图书馆和休息区,有一个定制的金属书架,而后者则有4人的账户和人力资源团队。整个角落的设计考虑到了空间内崇高的潜力。

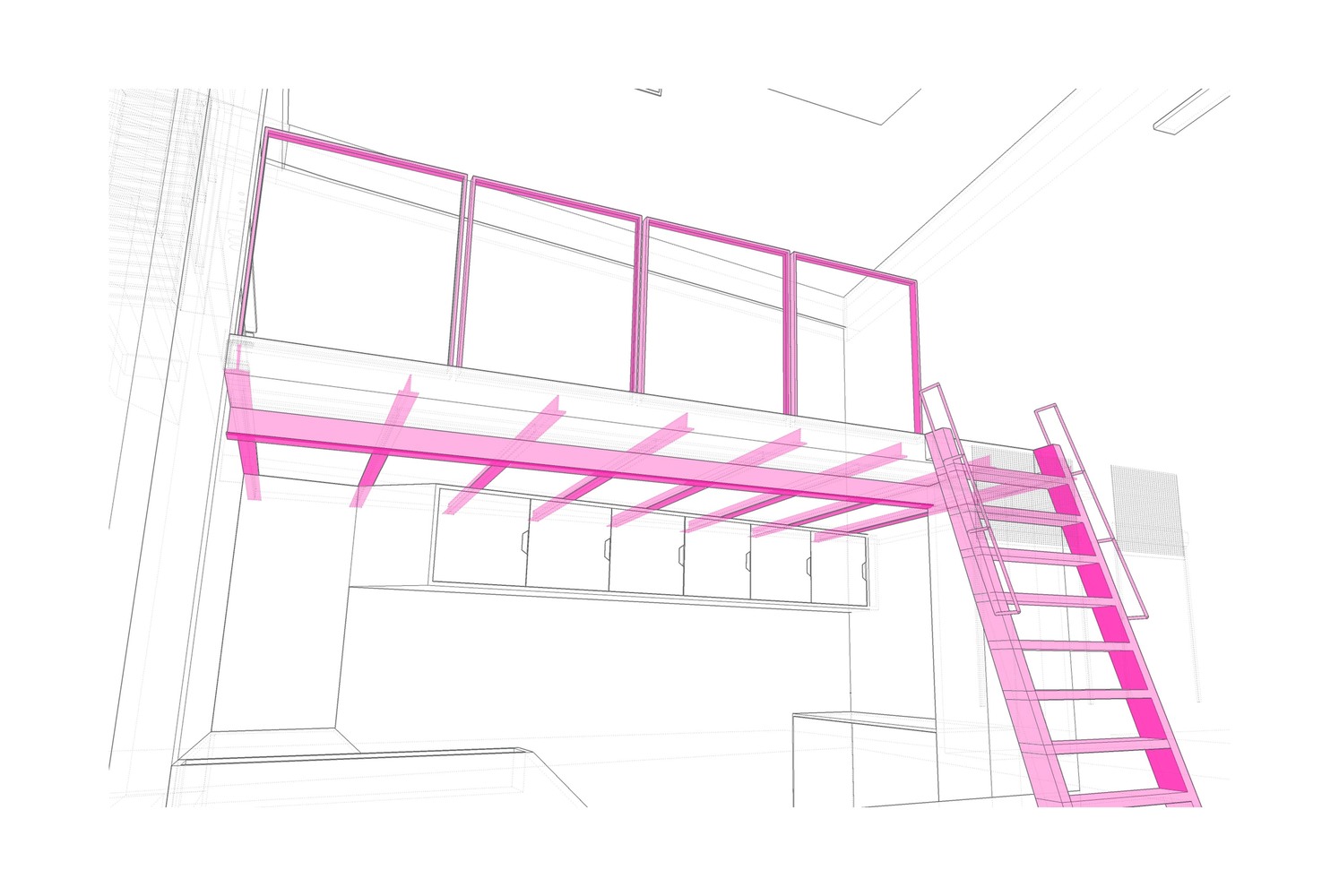

We constructed a 15 x 7 foot mezzanine and also dug 2 feet into the earth as a step down space. The former serves as a library cum break-out area with a custom designed metal bookshelf whereas the latter seats the accounts and HR team of 4 persons. This entire corner was designed keeping in mind the potential of loftiness within the space.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-17

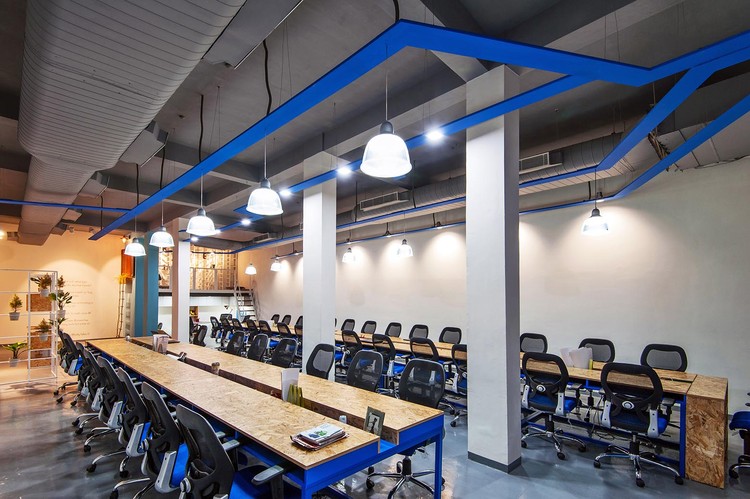

工作空间的usp位于天花板上;受一棵生长的树的启发,它描绘了约会应用程序的快速增长。亚克力吊灯,斑点和轨道都悬挂在这个皇家蓝色的结构。下面的办公桌是我们在印度新德里的单位根据相同的蓝色主题定制设计和制造的芯板,金属和层压板。

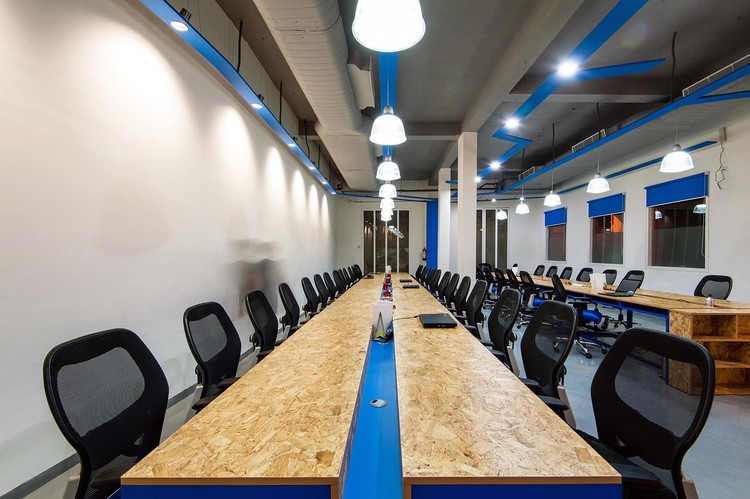

The USP of the workspace is in its ceiling-scape; inspired by a growing tree, it depicts the rapid growth of the dating app. The acrylic pendant lights, spots and tracks are all suspended from this royal blue structure. The work desks below were custom designed and manufactured at our unit in New Delhi, India in chipboard, metal and laminated board following the same blue color theme.
印度最大约会应用公司创意办公室设计-20
当你从工作区域走过接待处时,一个嘈杂的角落一定会吸引你的注意力;我们的涂鸦启发的墙壁是有趣的,互动性的,并且让客人在会议前后都能被占用。
As you walk from the work area through the reception, a noisy corner is bound to grab your attention; our scrabble inspired wall is playful, interactive and keeps the guests occupied before and after meetings.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-25

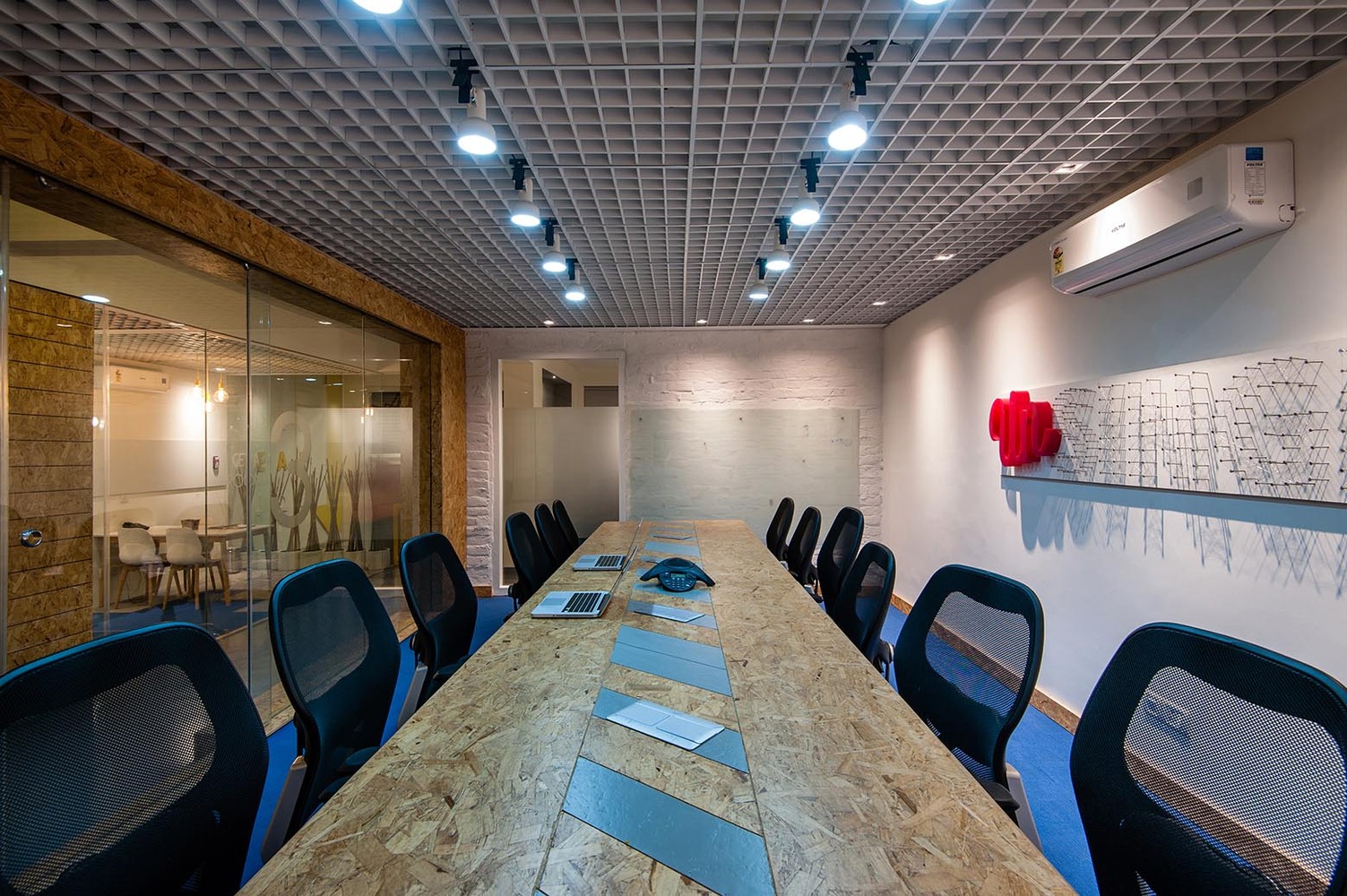

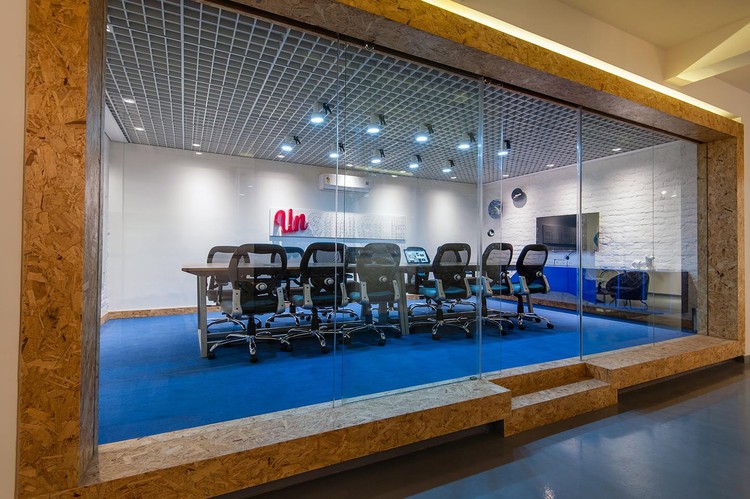

会议和突破空间是突出强调了一个浮动盒的芯板和玻璃,作为主板室的座位12-14人,我们定制了一个14英尺长的模块式会议桌完成金属,芯板和环氧空间。
The conference and break-out space is highlighted by a floating box constructed in chipboard and glass which serves as the main board room with seating for 12-14 persons, we customized a 14 foot long modular-conference table finished in metal, chipboard and epoxy for the space.

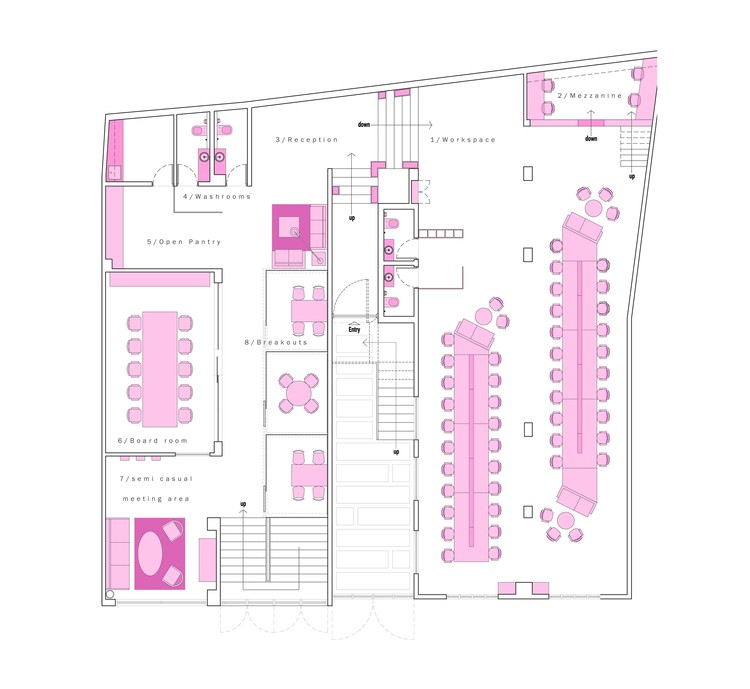

Ground Floor Plan
印度最大约会应用公司创意办公室设计-29

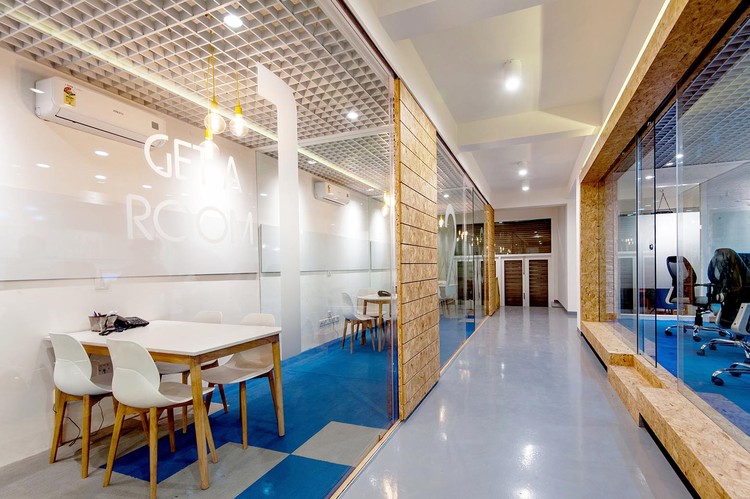

在浮动箱旁边是一个画廊,里面有三间较小的会议室或分店。这些房间的玻璃墙给人一种无缝感,这也反映在用双色地毯设计的地板图案上。
Alongside the floating box is a gallery lined by three smaller conference or breakout rooms. The glass walls in these rooms give a sense of seamlessness, which is also reflected in the flooring pattern designed using twin colored carpet tiles.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-34

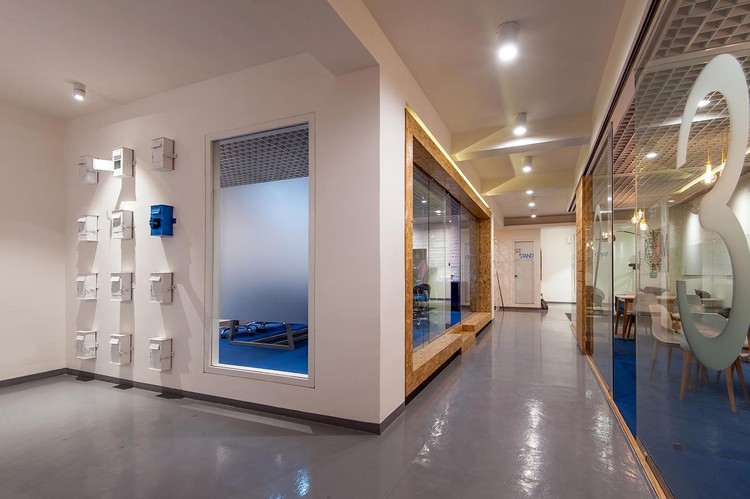

朝着会议空间里一个阳光明媚的角落,我们开辟了一个可容纳4至6人的半休闲会议区。这间客房的主要墙壁是强化的4x3格子信箱,在白色墙上涂白色,以微妙的设计经验。

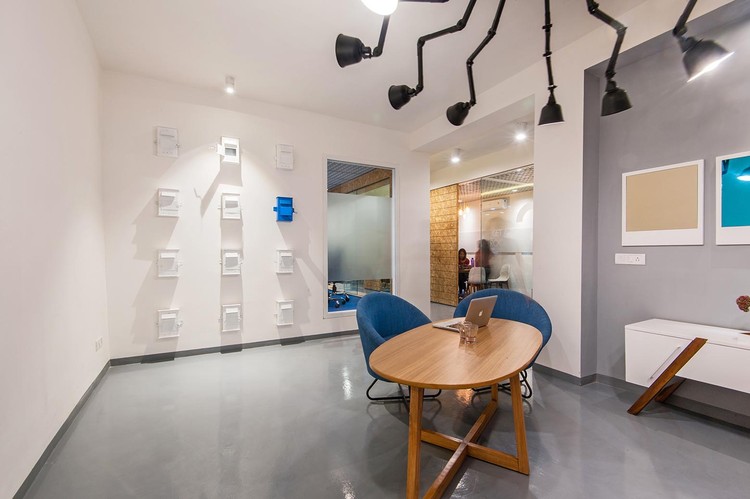

Towards a bright sunny corner in the conference space, we carved out a semi-casual meeting area for 4 to 6 persons. The main wall in this room is enhanced with 4x3 grid letterboxes painted in white on a white wall for a subtle design experience.
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-39

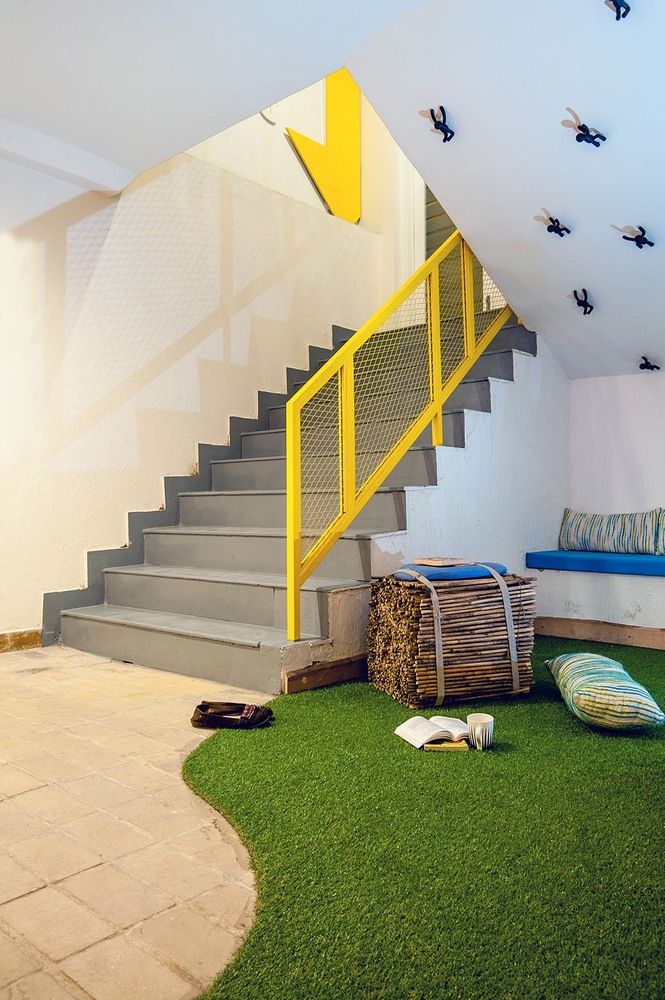

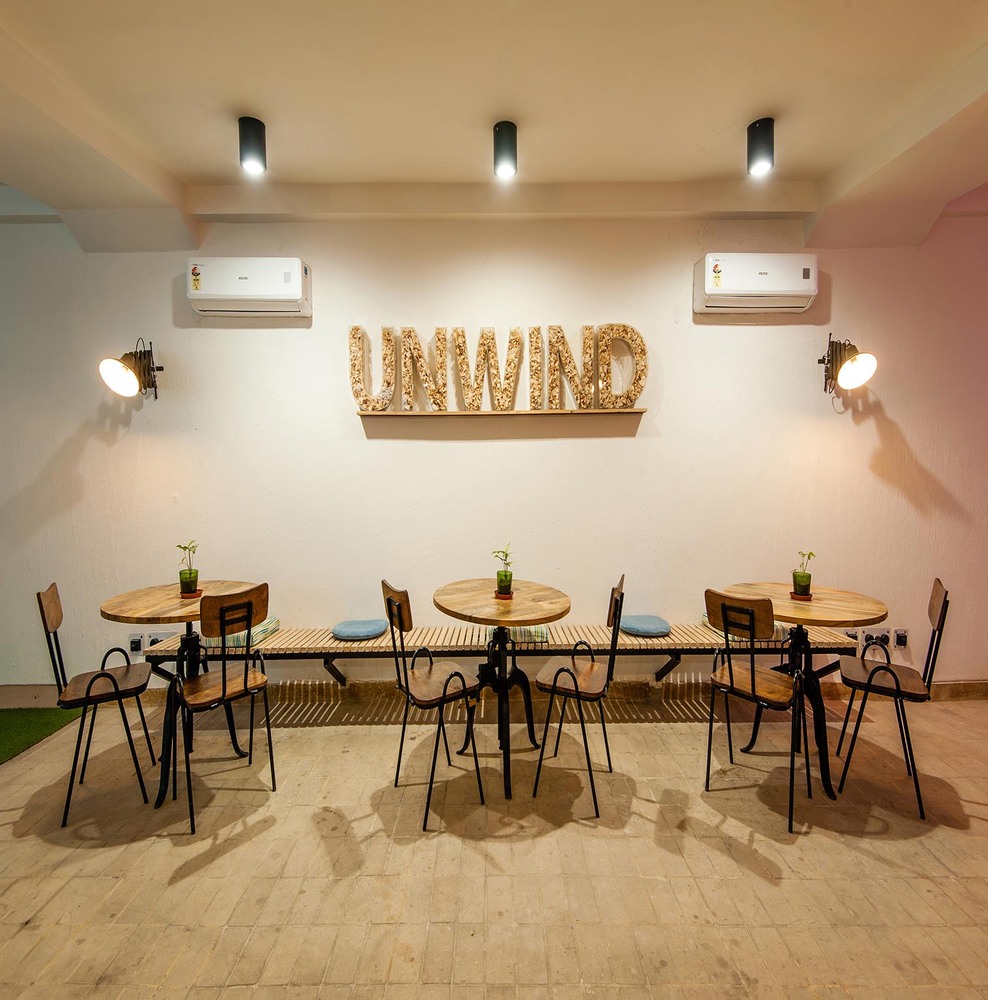

会议室尽头的明亮黄色楼梯带你去了一个1500平方英尺的自助餐厅,里面有一个小吃店,它用不同角度的180度和45度的砖瓦砌成,铺满鹅卵石的地板上铺着绿色的补丁和图形的框架灯。小吃店为员工提供午餐时间的自助柜台,周末也可以喝几杯啤酒!

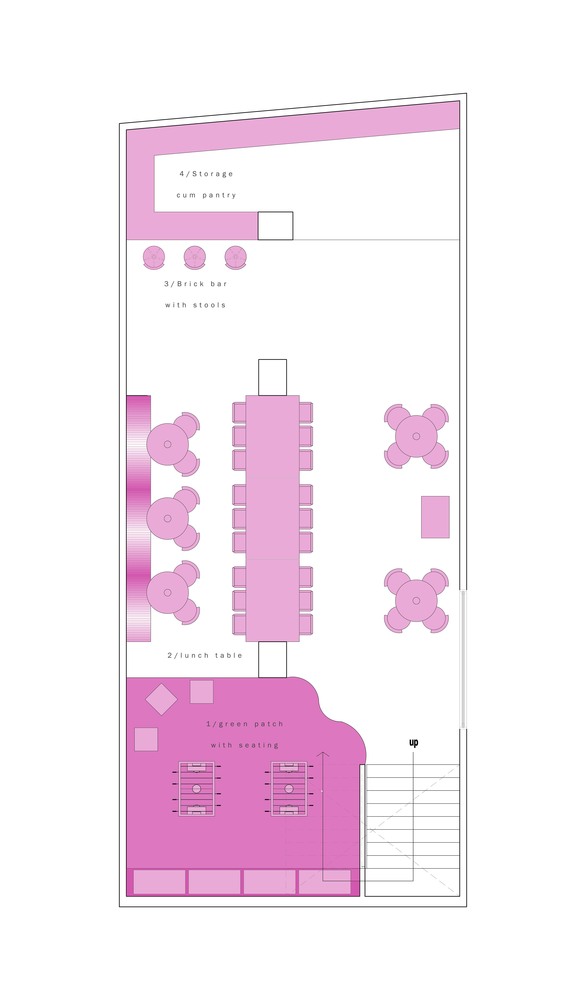

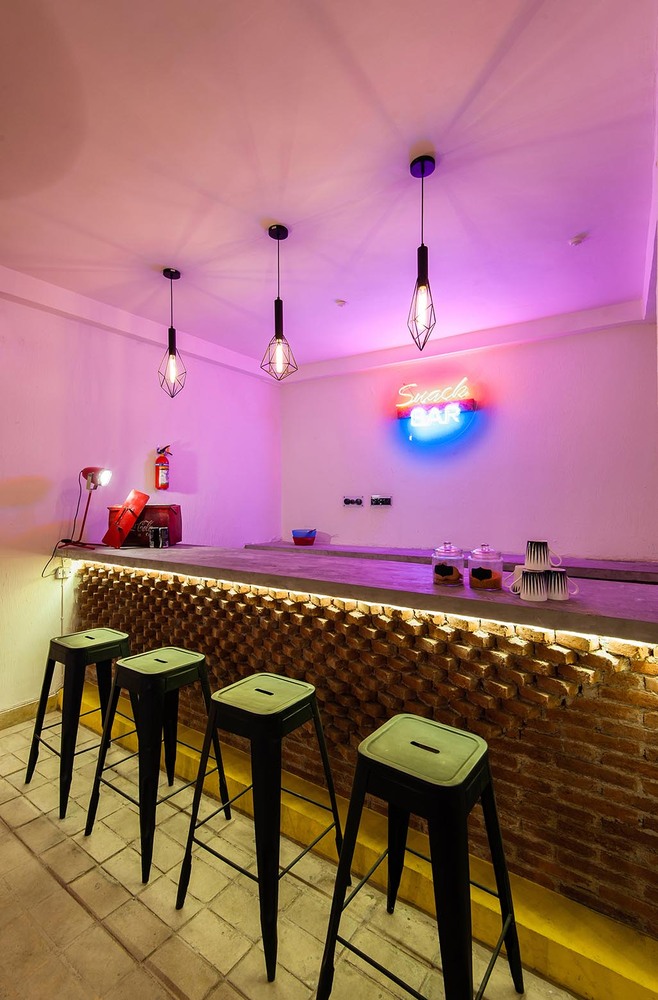

The bright yellow staircase at the end of the conference space leads you to a 1500 square foot cafeteria complete with a snack bar constructed in brick tiles bonded at different angles of 180 degrees and 45 degrees, cobbled floor with green patches and graphic framework lights. The snack bar doubles up as a buffet counter during lunch hours for the employees and for a few beers on the weekend too!
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-44
这个空间也是一个恢复活力的地方,或者是中午休息的地方,人们可以在草地上放松,或者坐在甘蔗干草堆上,这是为了给人一种类似公园的感觉而定制的。总之,我们的目标是在真正的Madly J公司为如此新鲜和精力充沛的团队创造一个非办公室的办公空间。
The space also serves as a rejuvenation spot or for mid-day breaks where one can relax in the grass or seat themselves on cane haystacks, which were customized to give a park-like feel. All in all, our aim was to create a non-office, office space for the ever so fresh and energetic team at Truly Madly J
© Arvind Hoon
.Arvind Hoon
印度最大约会应用公司创意办公室设计-49
印度最大约会应用公司创意办公室设计-50
印度最大约会应用公司创意办公室设计-51
印度最大约会应用公司创意办公室设计-52
印度最大约会应用公司创意办公室设计-53
印度最大约会应用公司创意办公室设计-54
印度最大约会应用公司创意办公室设计-55
印度最大约会应用公司创意办公室设计-56
印度最大约会应用公司创意办公室设计-57
印度最大约会应用公司创意办公室设计-58
印度最大约会应用公司创意办公室设计-59
印度最大约会应用公司创意办公室设计-60
印度最大约会应用公司创意办公室设计-61
印度最大约会应用公司创意办公室设计-62
印度最大约会应用公司创意办公室设计-63
印度最大约会应用公司创意办公室设计-64
印度最大约会应用公司创意办公室设计-65
印度最大约会应用公司创意办公室设计-66
印度最大约会应用公司创意办公室设计-67
印度最大约会应用公司创意办公室设计-68
印度最大约会应用公司创意办公室设计-69
印度最大约会应用公司创意办公室设计-70
印度最大约会应用公司创意办公室设计-71
印度最大约会应用公司创意办公室设计-72
印度最大约会应用公司创意办公室设计-73
印度最大约会应用公司创意办公室设计-74
Architects Studio Wood
Location New Delhi
Category Offices Interiors
Design Team Navya Aggarwal, Sahej Bhatia, Vrinda Mathur
Area 465.0 sqm
Project Year 2015
Photographs Arvind Hoon
