南向阳光小宅

© Didac Guxens

Didac Guxens

..一个非常小的面向南方的小区，朱迪丝的父母的房子隔离…的结果

... A really small facing South plot, the result of Judith’s parent’s house segregation…

这个简短的场地描述包含了解释项目战略的主要条件：面积解释了楼层的高度和数目(3)，以及可能的最低占用(40平方米)。父母是把自由空间集中起来的理由，把花园变成房子的入口和大厅。这个方向解释了为什么南面是光和视图的主要来源；它是不受任何限制的，使用一组大的回收窗。序曲由一个聚碳酸酯温室画廊补充，作为集热器和防晒器。只有北面的立面有其他窗户，以使良好的交叉通风。

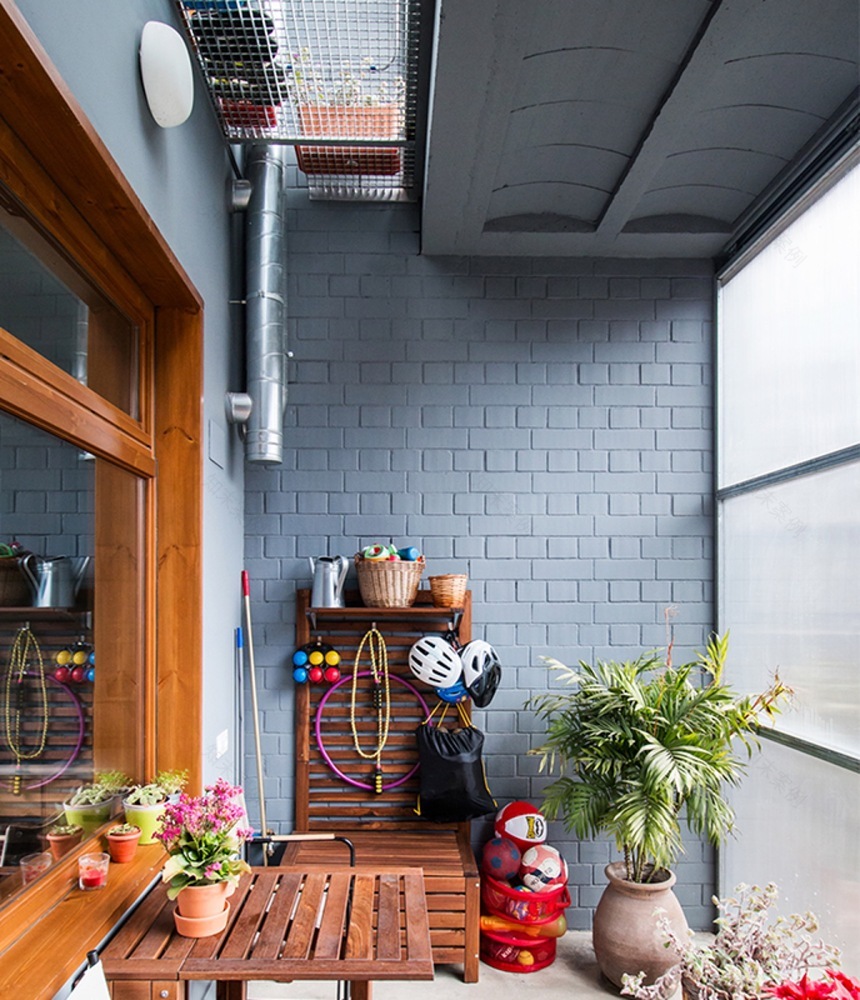

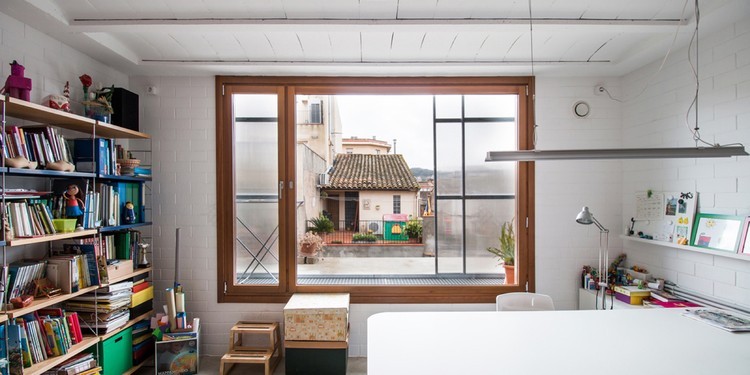

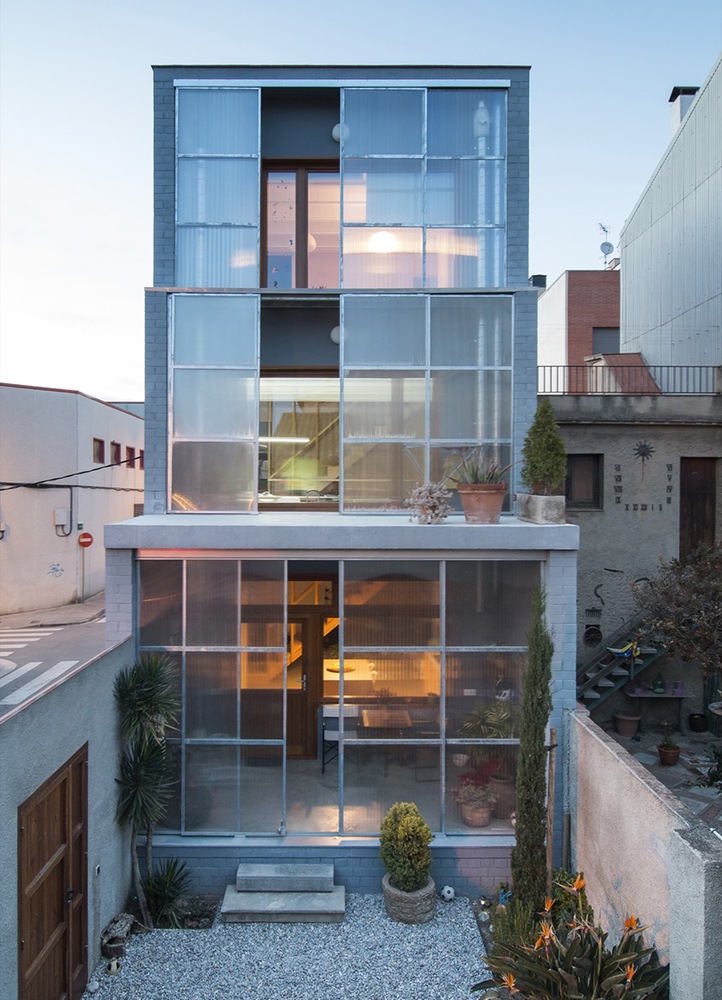

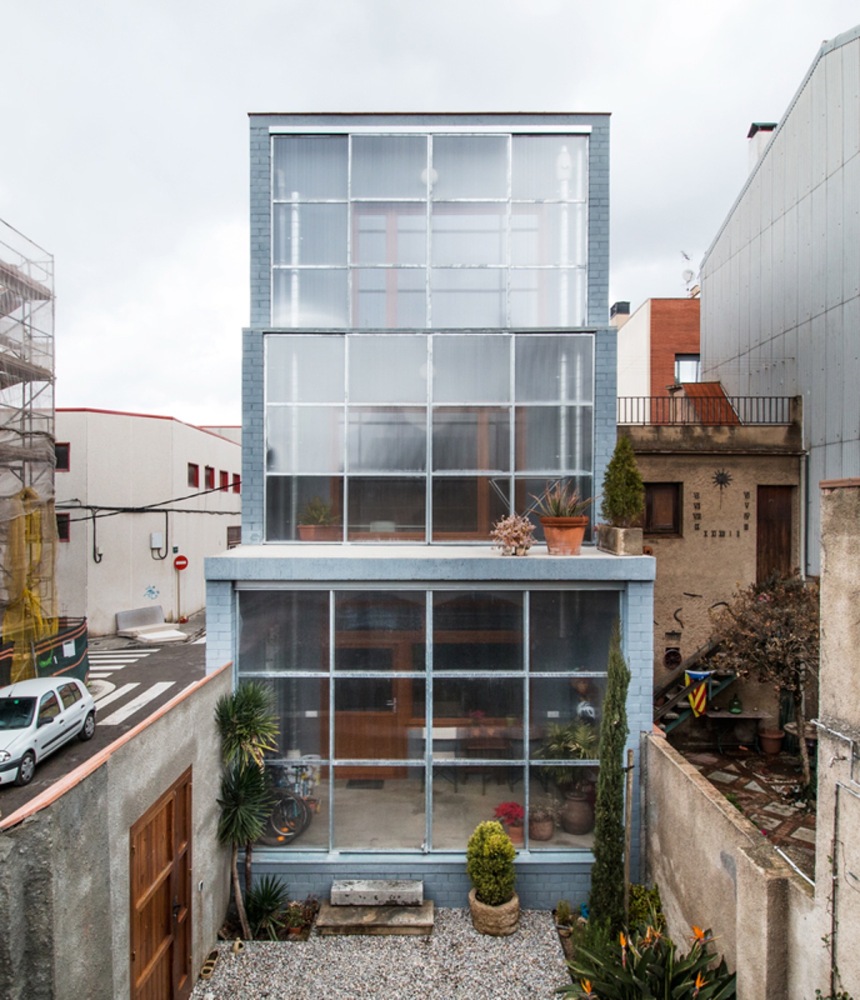

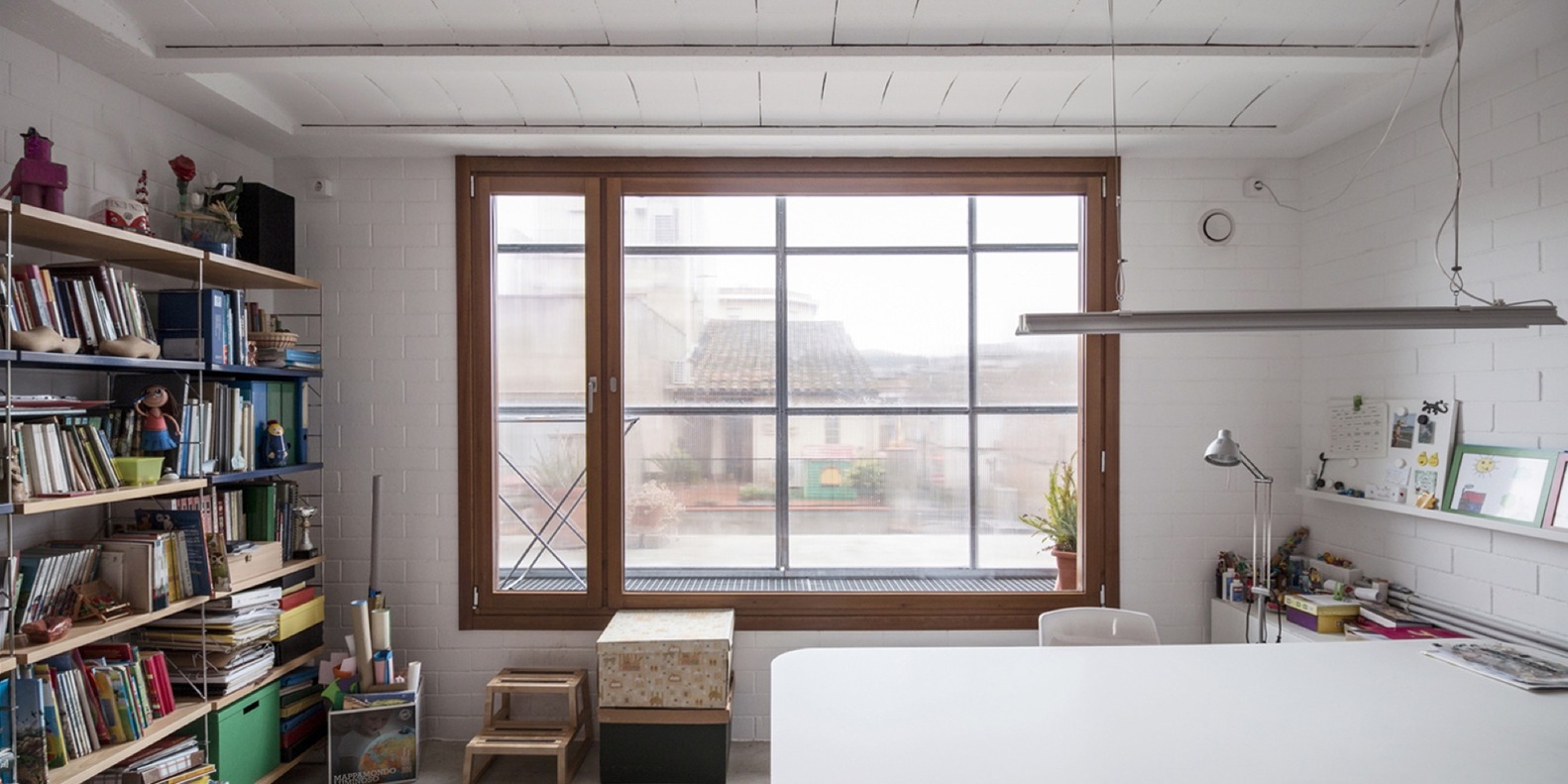

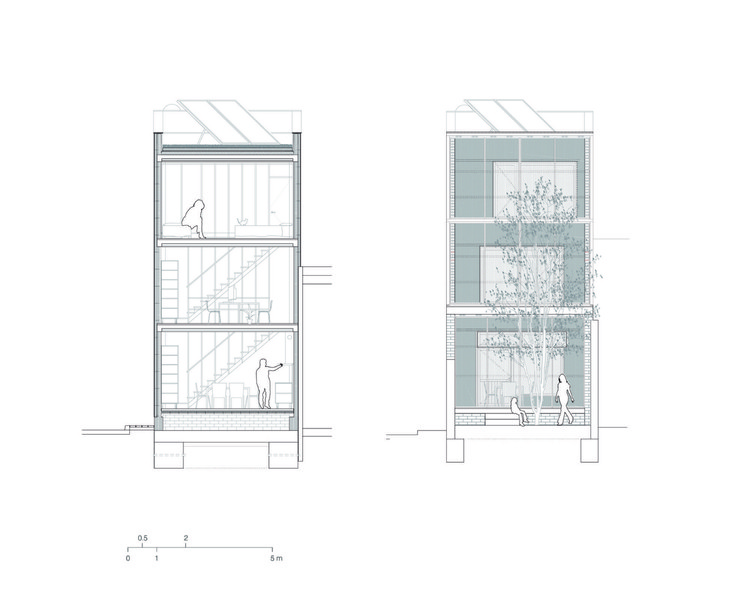

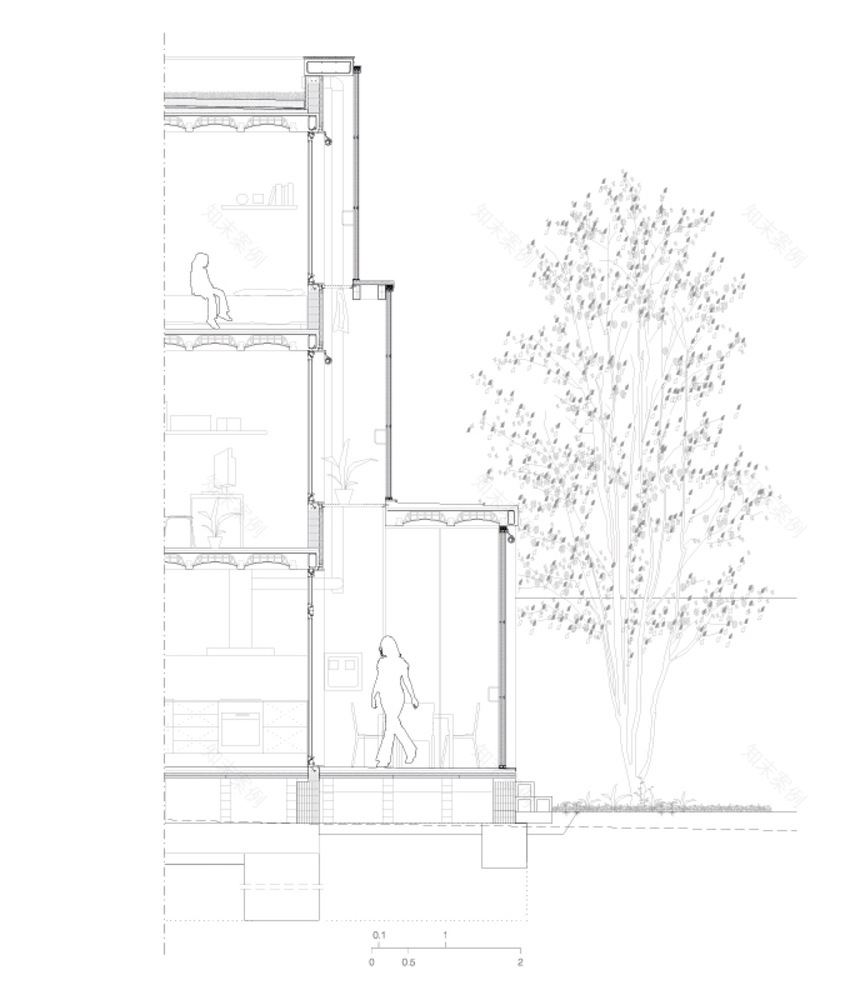

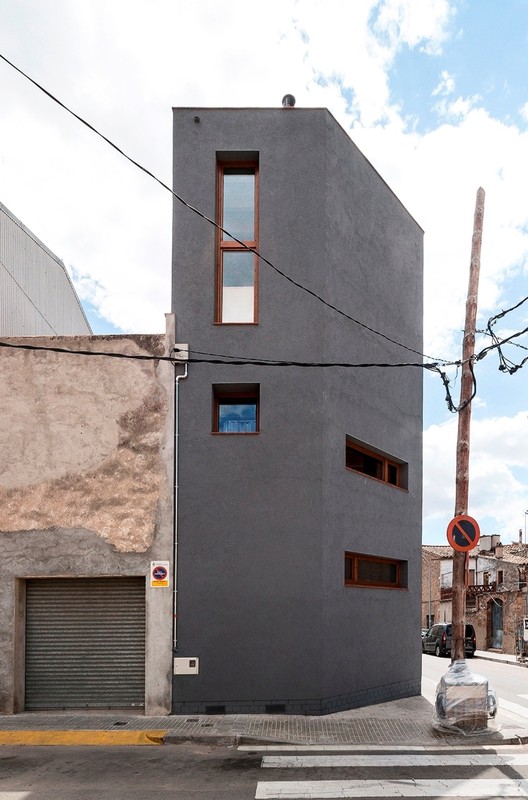

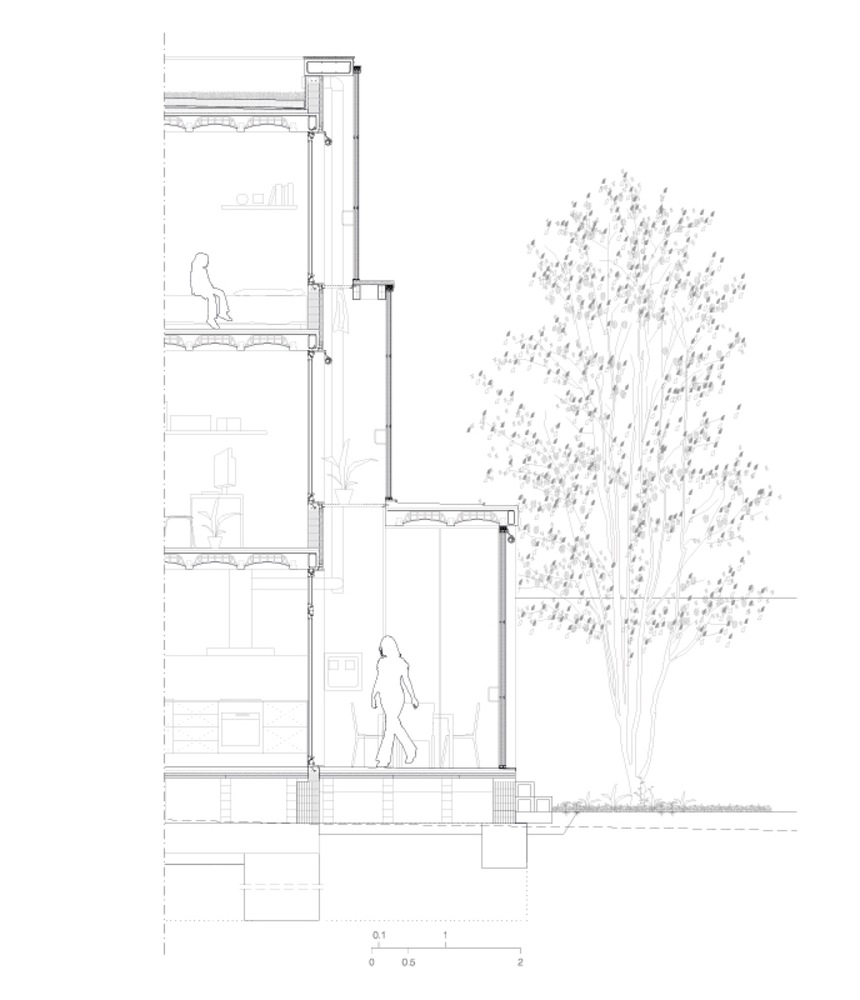

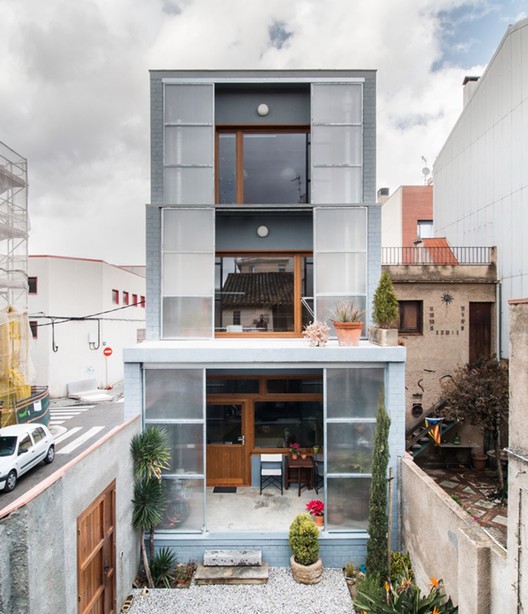

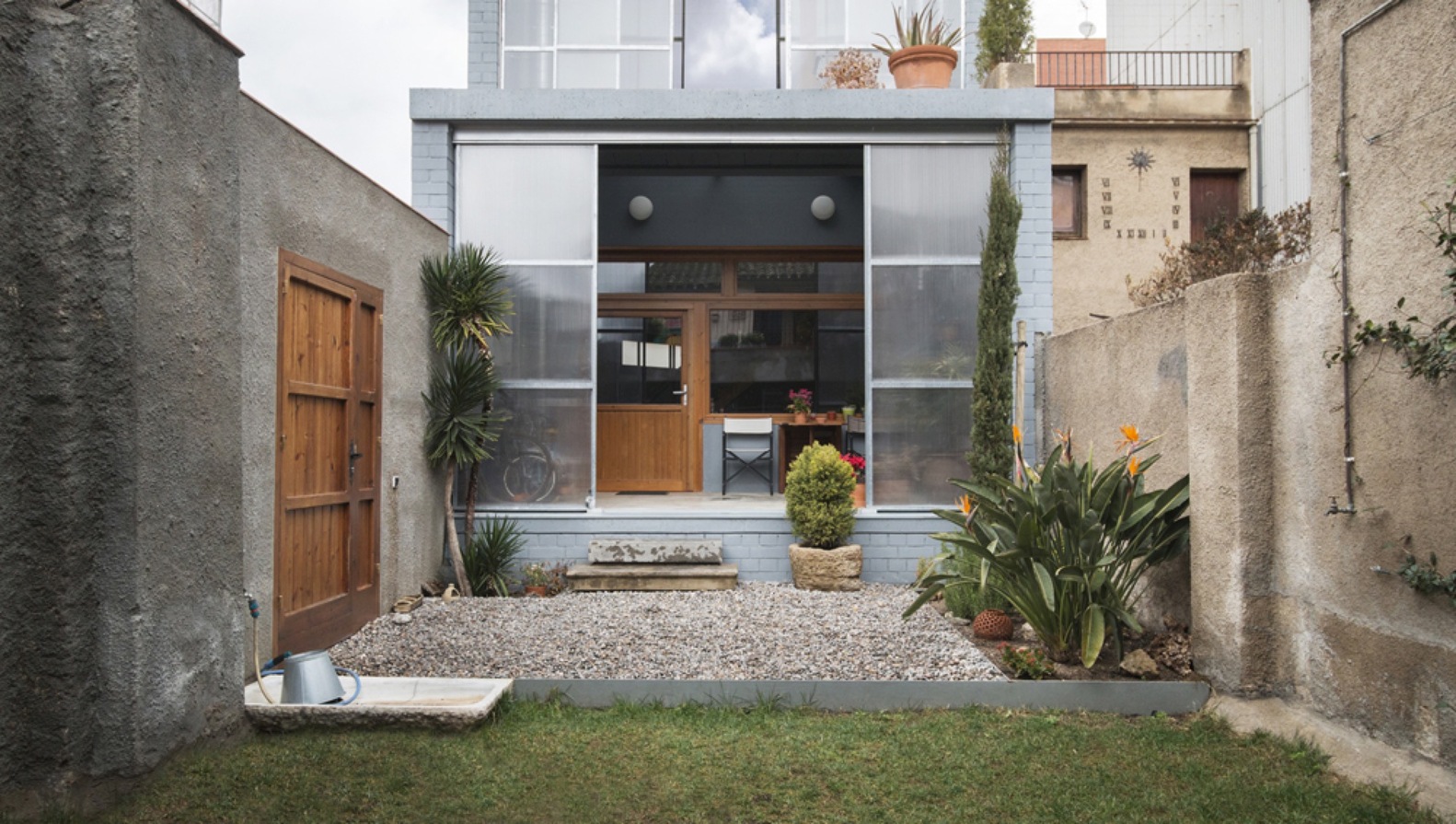

This brief site description contains the main conditions to explain the project strategy: The size explains the height and number of floors (3) and the minimum occupation possible (40 m2). Parents are the reason to concentrate the free space converting the garden into access and lobby of the house. The orientation explains how the south facade is the main source of light and views; it does so without any limit, using a set of large recycled windows. The overtures are complemented by a polycarbonate greenhouse gallery that performs as heat collector and sun protector. Only the north facade contains other windows to allow good cross ventilation.

© Didac Guxens

Didac Guxens

© Didac Guxens

Didac Guxens

© Didac Guxens

Didac Guxens

楼梯，单断面，横向和可逆，作为垂直循环和分配器的六个由此产生的空间，只有浴室和洗衣是其特有的功能，其余五个模棱两可的方式承担国内项目授予的最后由客户。这些空间在几何学、材料和舒适性方面有很高的特点，但在功能方面却很少。

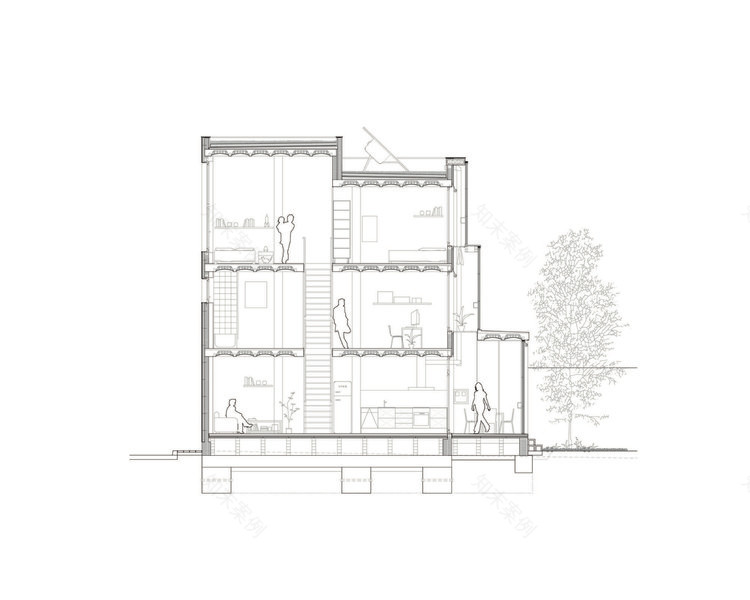

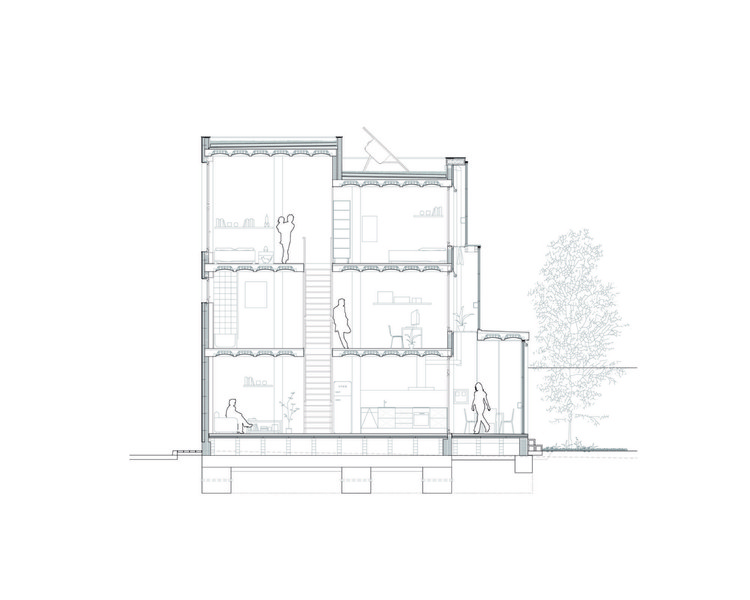

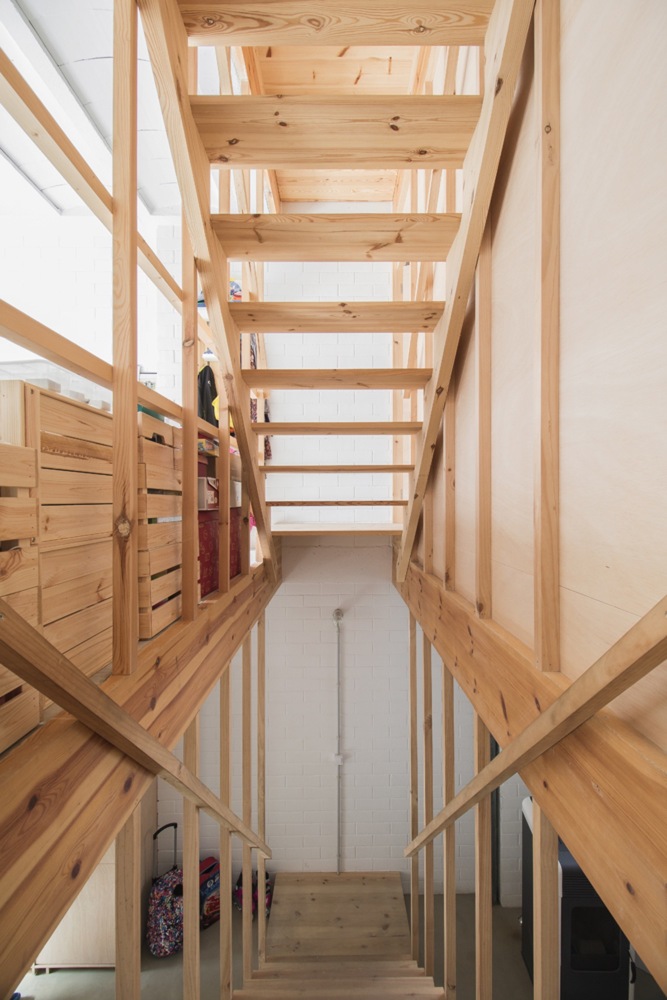

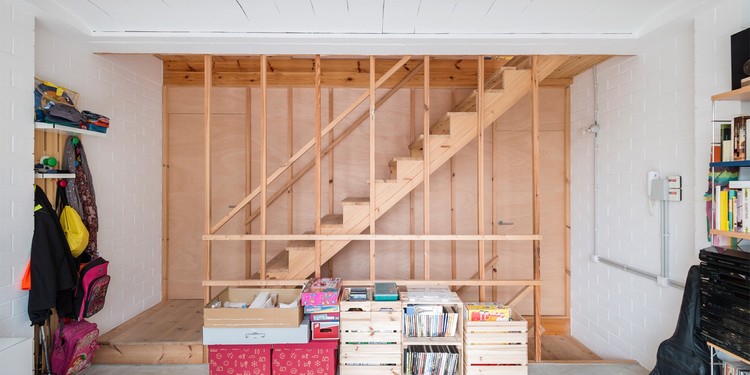

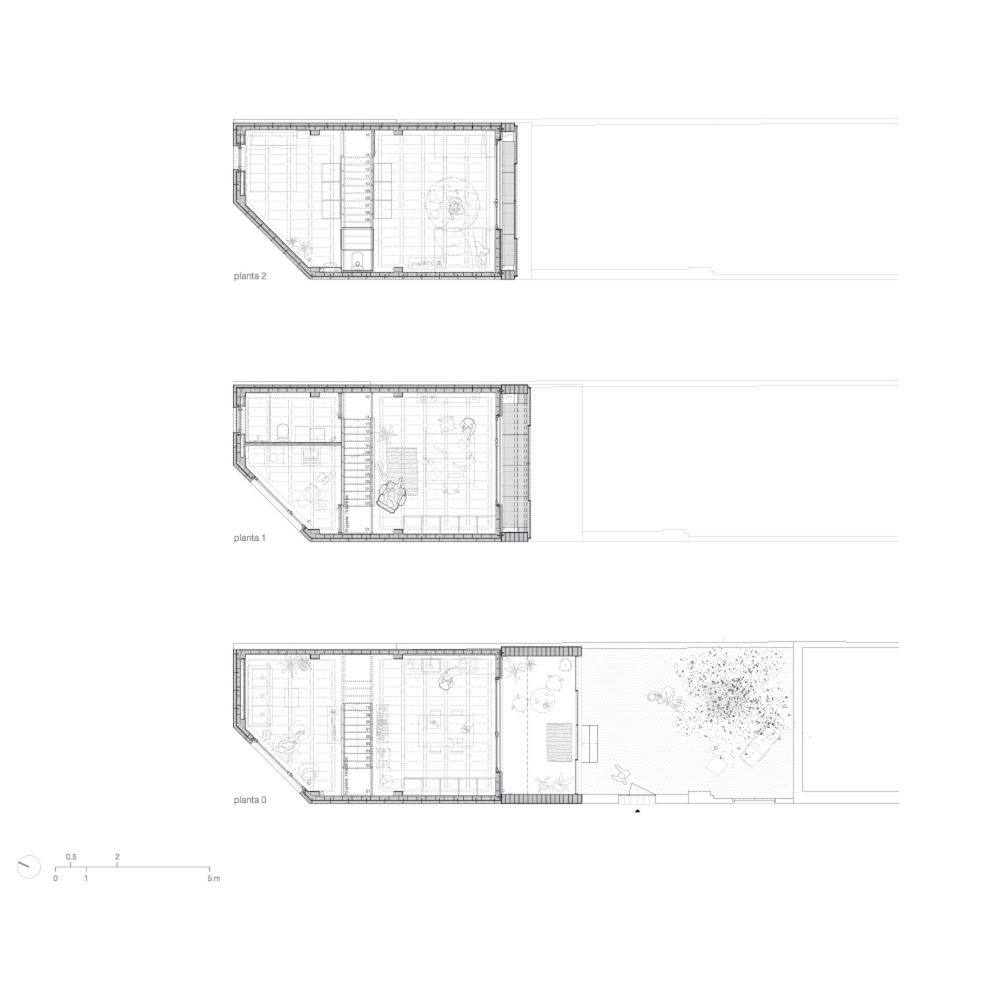

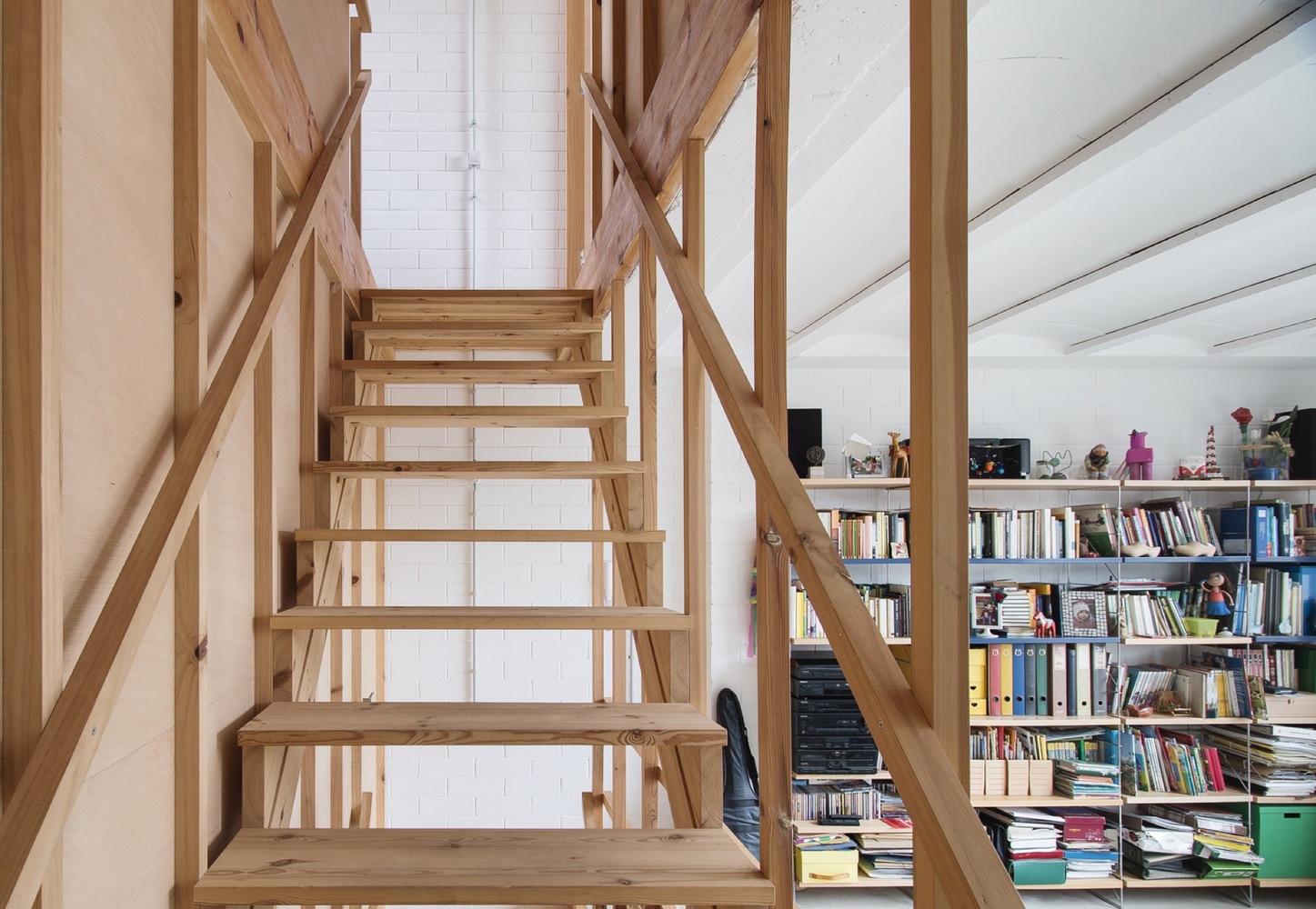

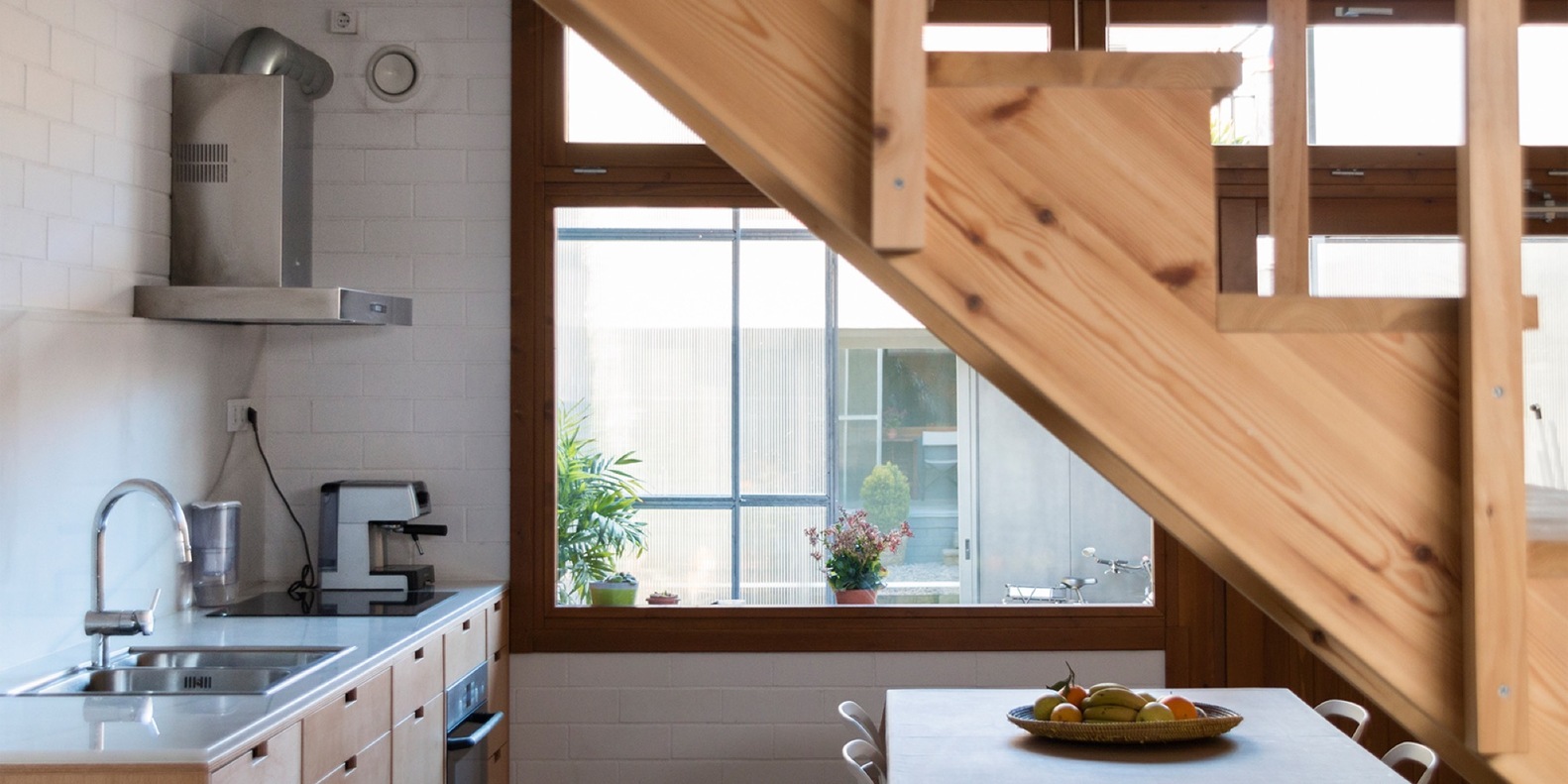

The stairs, single-section, transversal and reversible, acts as vertical circulation and distributor of the six resulting spaces, only the bathroom and laundry are specific to it’s function, the rest five assume in ambiguous way the domestic program awarded at the end by customers. The spaces are highly characterized in terms of geometry, material, and  comfort but little in terms of function.

© Didac Guxens

Didac Guxens

Architects H Arquitectes

Location Cerdanyola del Vallès, Spain

Category Houses

Design Team David Lorente, Josep Ricart, Xavier Ros, Roger Tudó

Area 120.0 sqm

Project Year 2015

Photographs Didac Guxens

Manufacturers Loading...
