洛杉矶历史建筑的现代改造

2017/07/11 17:00:00
查看完整案例
微信扫一扫
收藏
下载
项目经理Siddhartha Majumdar制造商装货.多规格少规格
Project Manager Siddhartha Majumdar Manufacturers Loading... More Specs Less Specs
© John Linden
约翰·林登
洛杉矶历史建筑的现代改造-4
架构师提供的文本描述。位于大洛杉矶的洛斯费利兹地区,这个项目是一个难得的机会来恢复和建设一个历史上指定的财产最初由华莱士内夫在20世纪20年代。
Text description provided by the architects. Located in the Los Feliz area of greater Los Angeles, this project was a rare opportunity to restore and build onto a historically designated property originally designed by Wallace Neff in the 1920s.
© Roland Halbe
罗兰·哈贝
洛杉矶历史建筑的现代改造-9
工程包括家庭房间的内部装修,修复天花板拱门,并拆除其北面墙作为一个新的入口。一个精心设计的硬景调色板引入了一个平衡的户外区域,还有一个游泳池加盖了历史悠久的杰克林屋(Jackling House)的瓷砖,这座房子由乔治·华盛顿·史密斯(George Washington Smith)设计,曾为史蒂夫·乔布斯(Steve Jobs)所拥有,

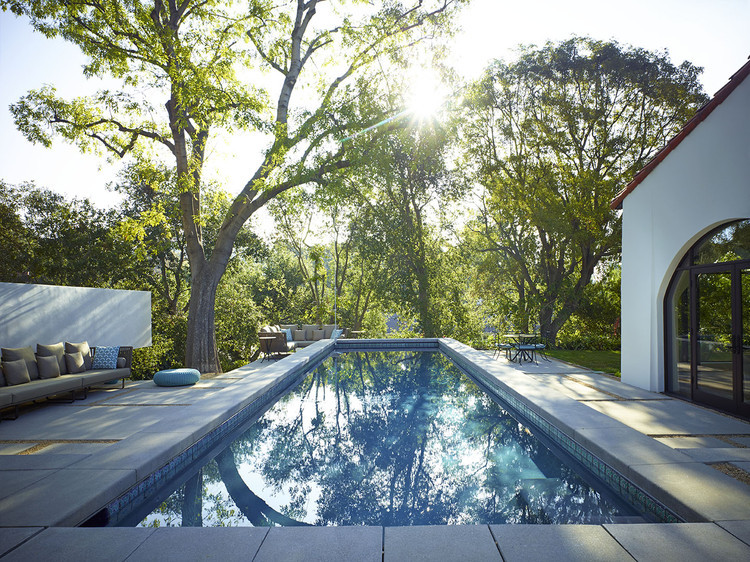

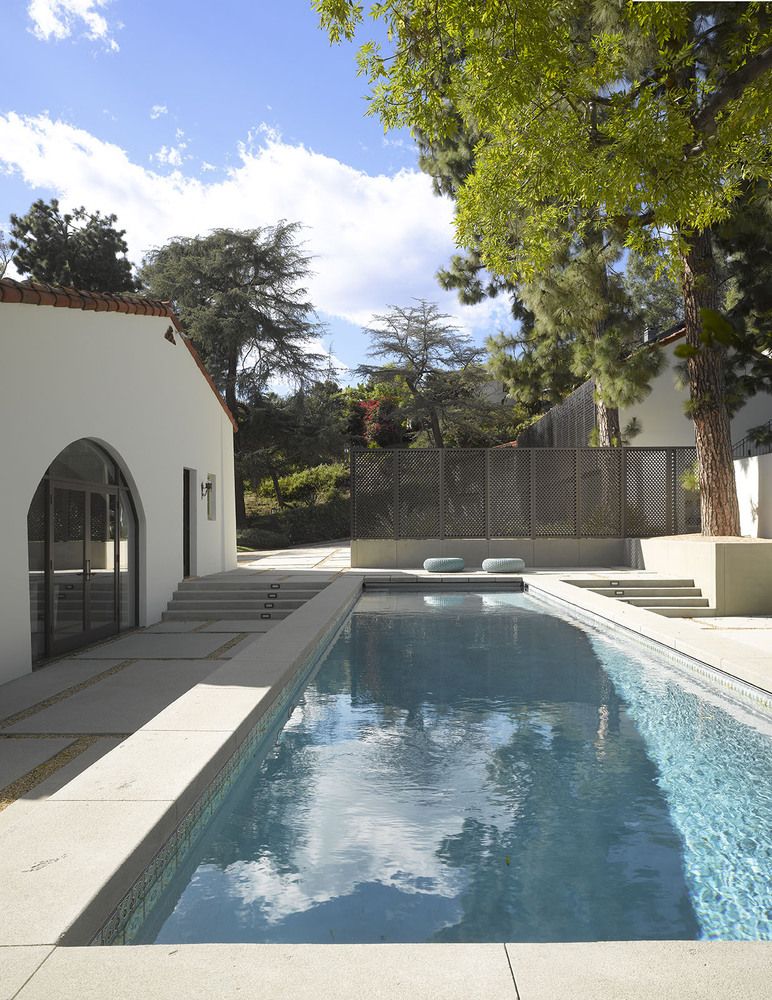

Work included the interior renovation of the family room, restoring the ceiling archways and demolishing its north facing wall for a new entry way. A carefully designed palette of hardscape introduced a balanced outdoor area, and a pool addition, lined with tiles from the historic Jackling House, designed by George Washington Smith and once owned by Steve Jobs, gave reason to further enjoy the southern California climate.
© Roland Halbe
罗兰·哈贝
洛杉矶历史建筑的现代改造-14

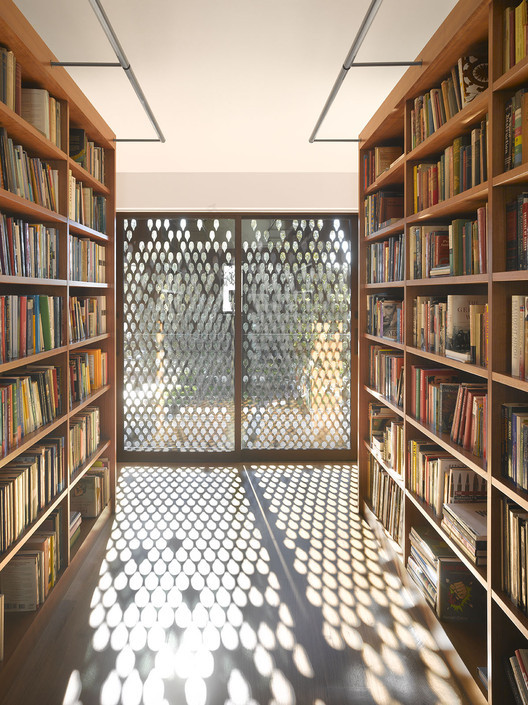

一座新的两层建筑,由一层的车库和二层的私人图书馆组成,包括储藏室、阅览室和化妆室。这座建筑最显著的特色是它的金属屏幕外观。屏幕像百叶窗一样打开,可以清晰地看到房产,关闭时,还可以保护隐私、遮阳和控制环境。

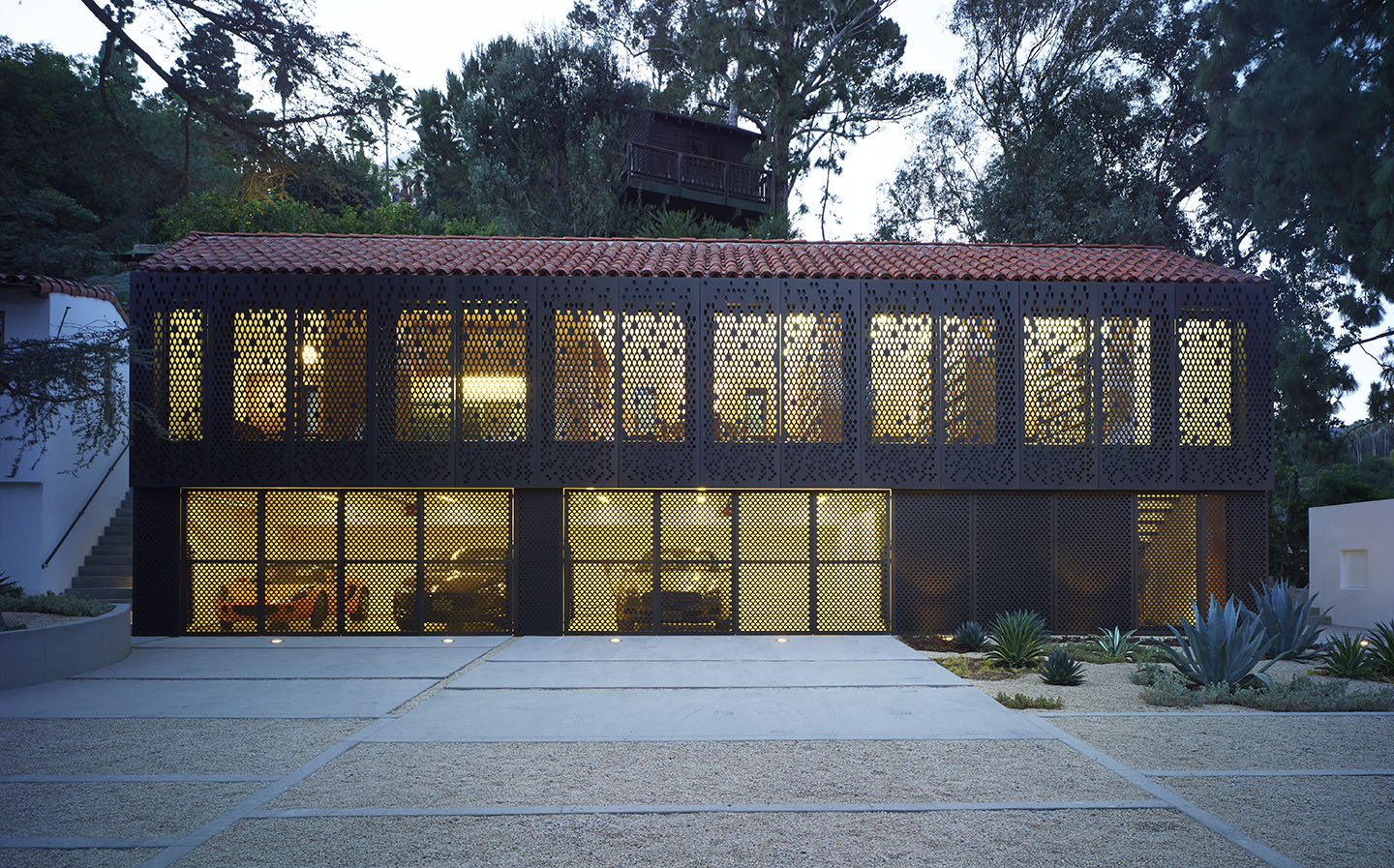

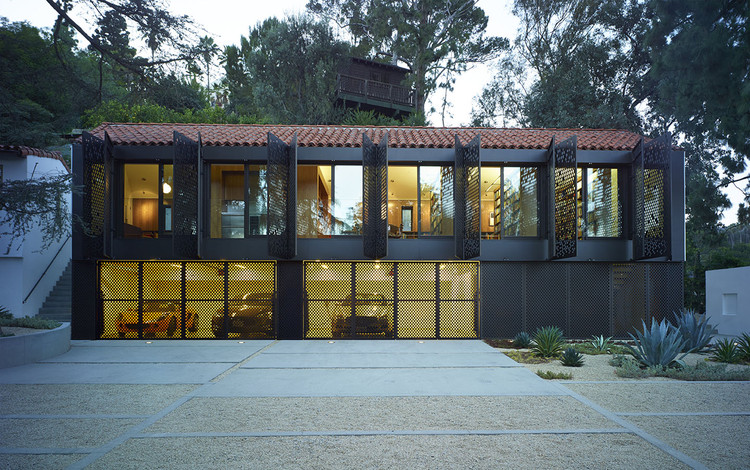

A new two-story building, consisting of a garage on its first level and a private library on the second level, includes storage, a reading area and a powder room. The building addition’s most distinct feature is its metal screen façade. The screens open like shutters for clear views of the property, and when shut, allows for privacy, sun shading and environmental control.

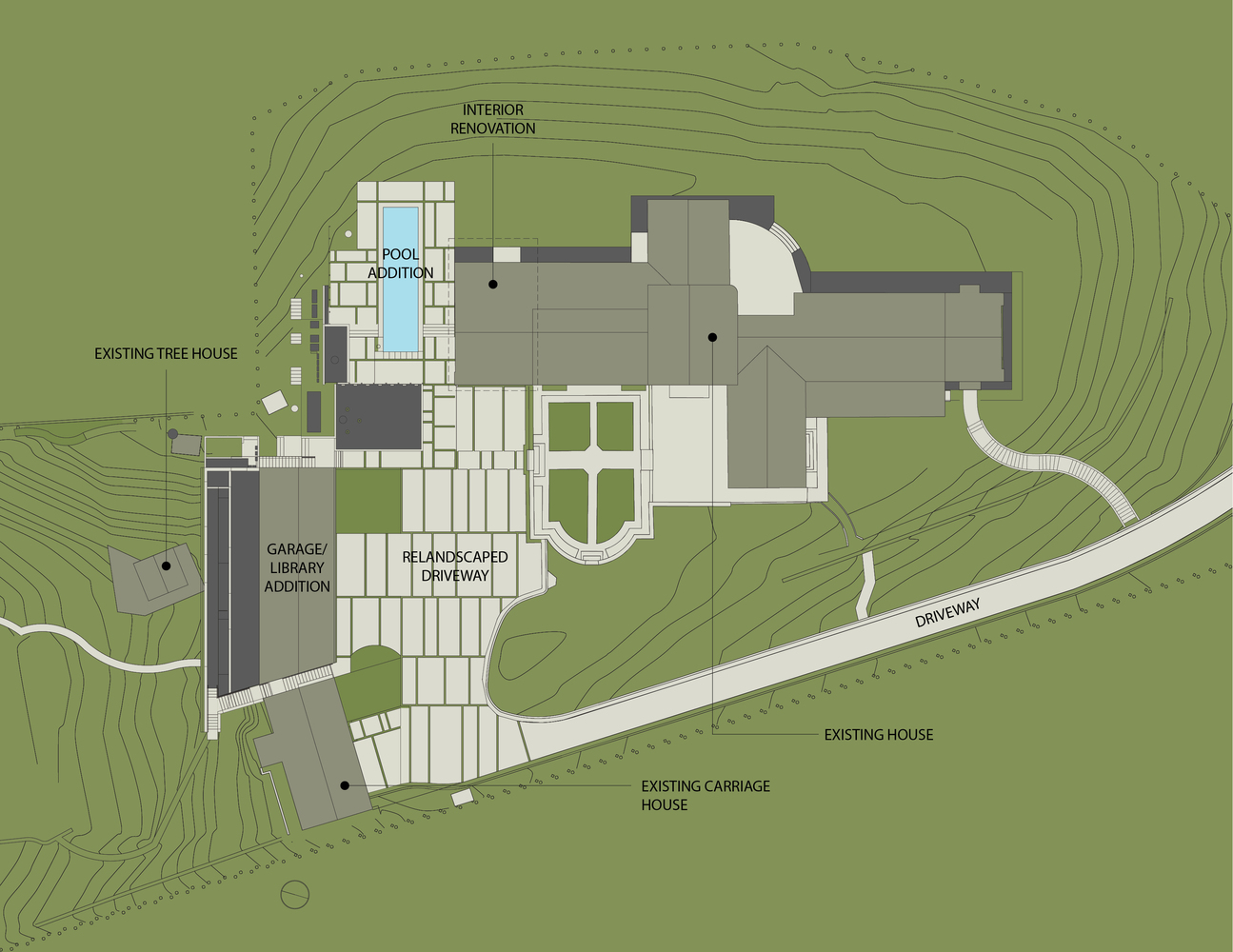

Plans / Section
计划/科
洛杉矶历史建筑的现代改造-19

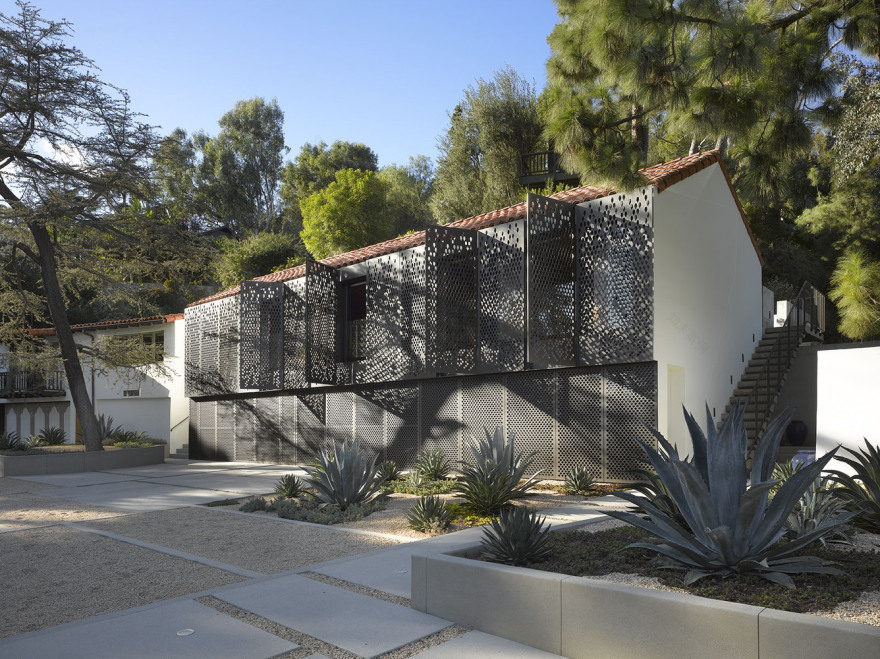

屏幕板是由青铜阳极化铝水射流切割为一个精确的和图案可变孔,参照原来的家庭预制混凝土窗玻璃。虽然这是一个现代设计的历史遗址,建筑的形式和外部材料符合历史家园。
The screen panels are made of bronze anodized aluminum – water jet cut for a precise and patterned variable apertures, referencing the original home’s precast concrete window grilles. Although this is a contemporary design for the historic site, the building’s form and exterior materials match the historic home.
© John Linden
约翰·林登
洛杉矶历史建筑的现代改造-24
洛杉矶历史建筑的现代改造-25
洛杉矶历史建筑的现代改造-26
洛杉矶历史建筑的现代改造-27
洛杉矶历史建筑的现代改造-28
洛杉矶历史建筑的现代改造-29
洛杉矶历史建筑的现代改造-30
洛杉矶历史建筑的现代改造-31
洛杉矶历史建筑的现代改造-32
洛杉矶历史建筑的现代改造-33
洛杉矶历史建筑的现代改造-34
Architects SPF: architects, Zoltan E. Pali
Location Los Angeles, United States
Category Refurbishment
Area 3300.0 ft2
Project Year 2015
Photographs Roland Halbe, John Linden
Manufacturers Loading...
