佛罗里达彭布罗克松城中心门户雕塑

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

架构师提供的文本描述。公共艺术不应该仅仅是装饰或经过思考，它应该提高用户体验，庆祝一个地方。作为新的彭布罗克松城中心的一部分，该中心包括一个公共广场、3500个座位的表演艺术大厅、市政厅和彭布罗克松林市的弗兰克艺术画廊，建筑师设计了门户雕塑，并参加了景观设计，以补充这些活动和项目。

Text description provided by the architects. Public art should not be merely decoration or after thought, it should enhance user experience and celebrate a place. As part of the new Pembroke Pines City Center that includes a public plaza, a 3,500 seat performing arts hall, the city hall and The Frank art gallery for the City of Pembroke Pines, the architect designed the Gateway Sculpture and attending landscape features to complement these activities and programs.

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

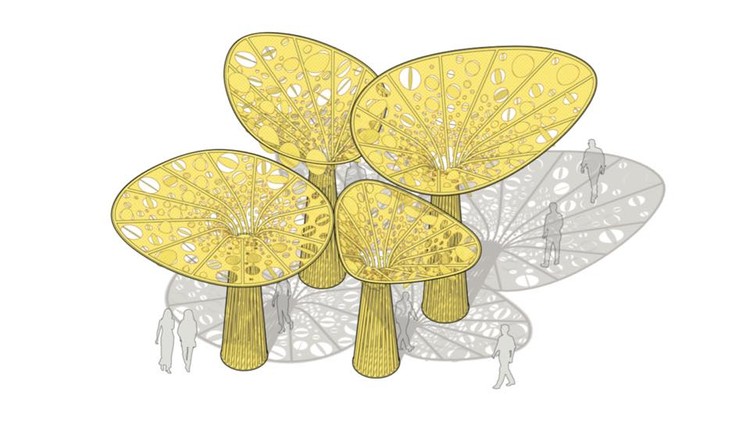

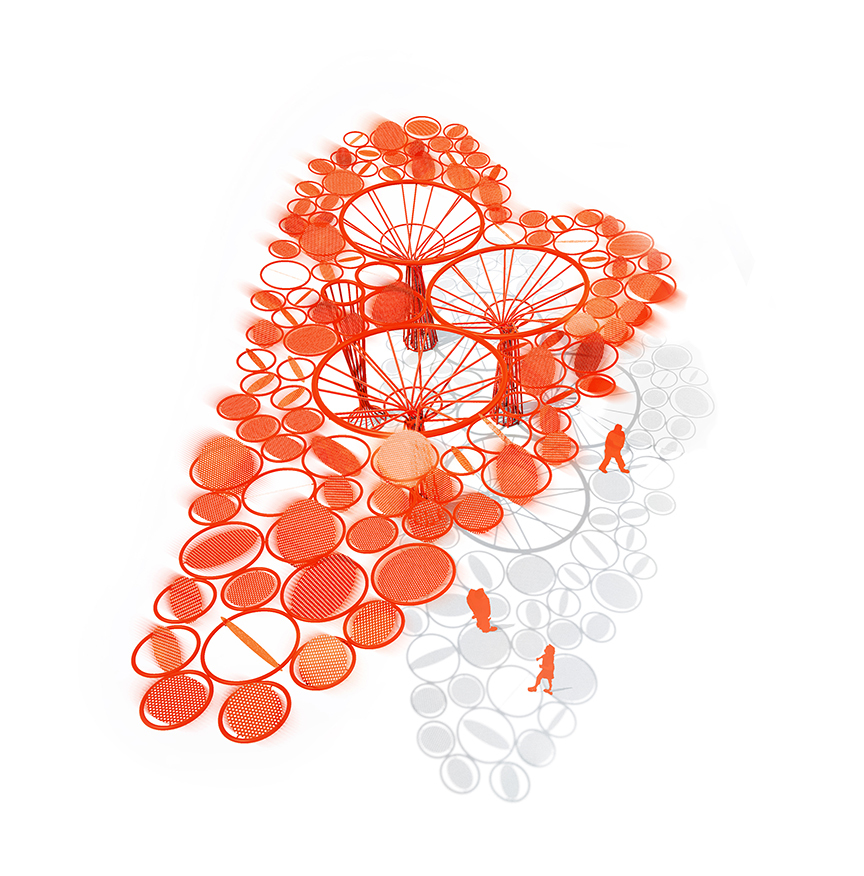

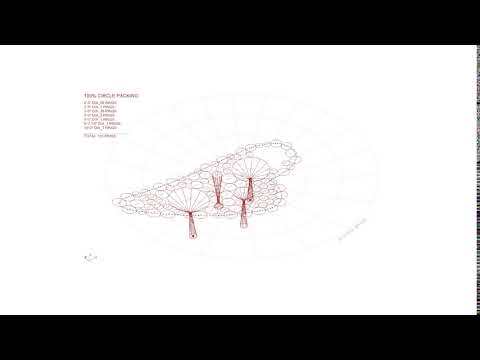

Axonometric

本质上，彭布罗克松树是一个城市，没有城市(没有市中心或社区空间)和新的城市中心和网关雕塑提供了一个社区锚之前不存在。在有限的预算下，建筑师与网关雕塑和景观元素合作，将一个行人通道设计成一个新的公共广场，提供道路寻找和锚定到达的感觉。

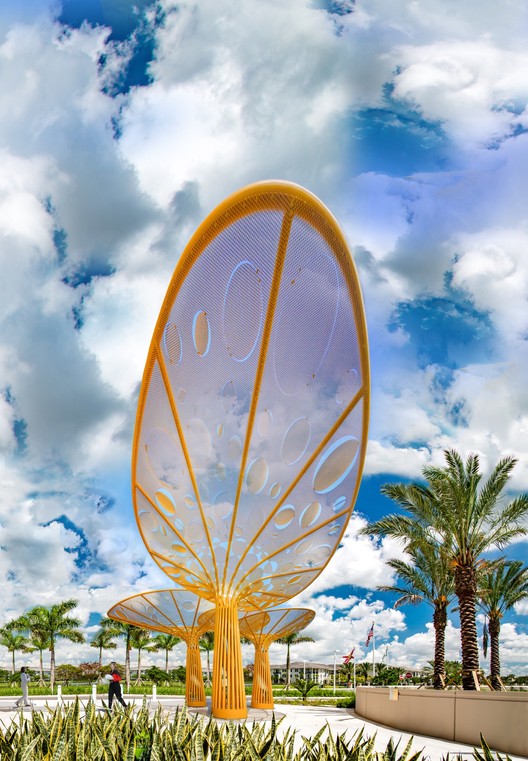

Essentially Pembroke Pines was a city, without a city (no downtown or community space) and the new City Center and Gateway Sculpture provide a community anchor that did not exist prior. With a limited budget, the architect worked with The Gateway Sculpture and landscape elements frame a pedestrian gateway into a new public plaza, providing way-finding and anchoring a sense of arrival

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

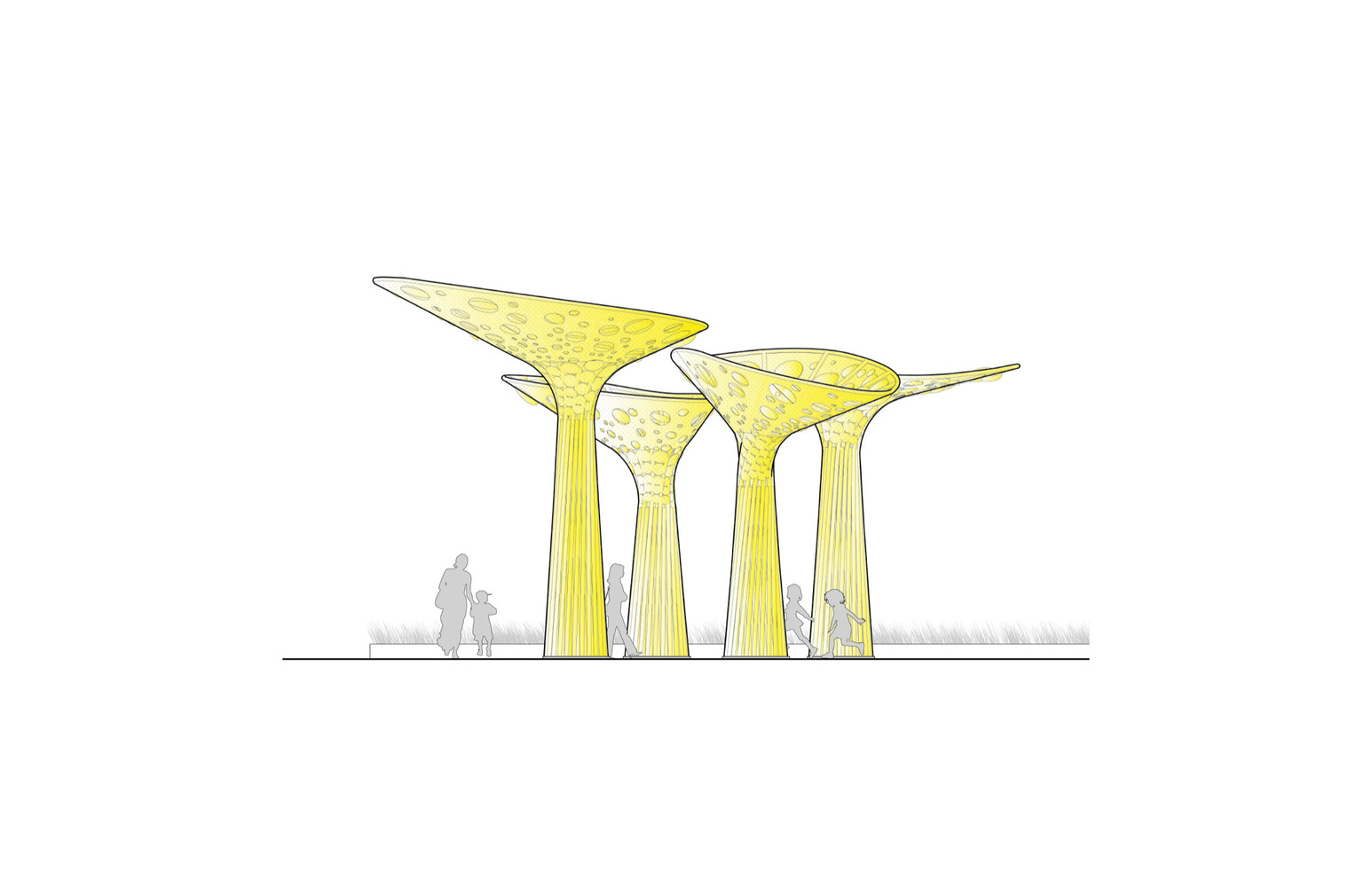

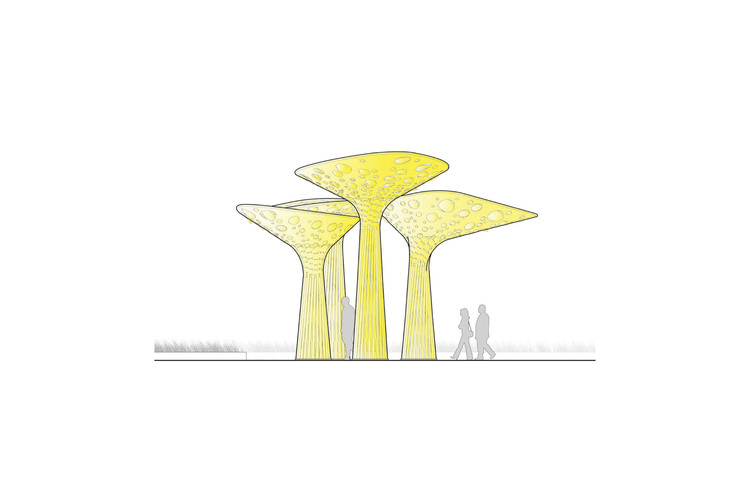

Elevation A

海拔A

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

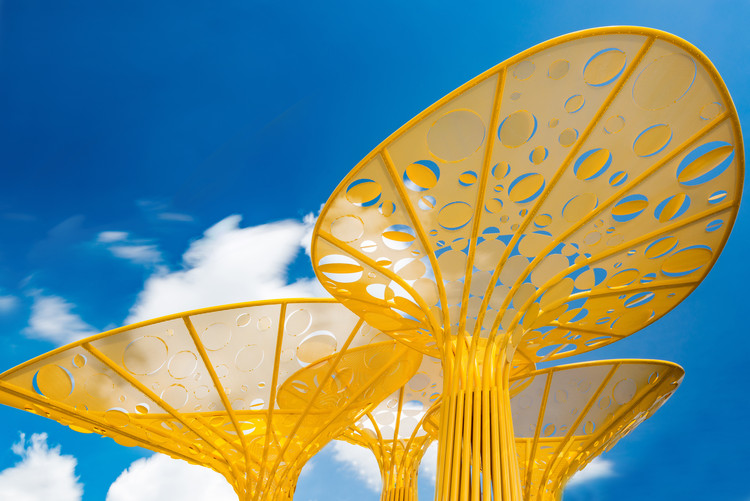

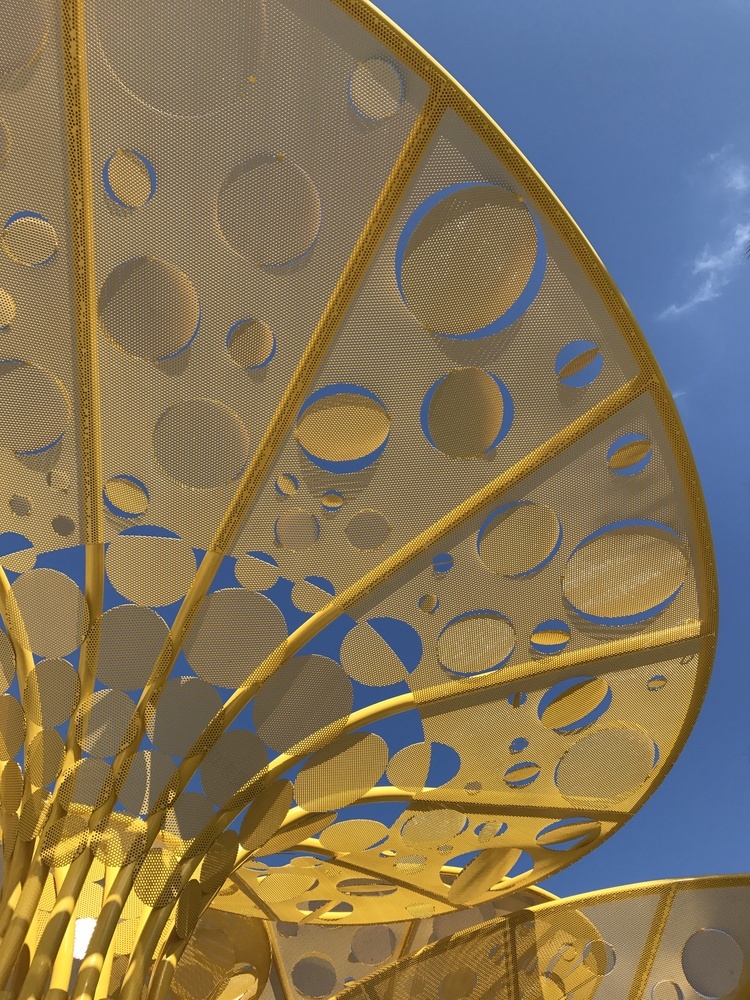

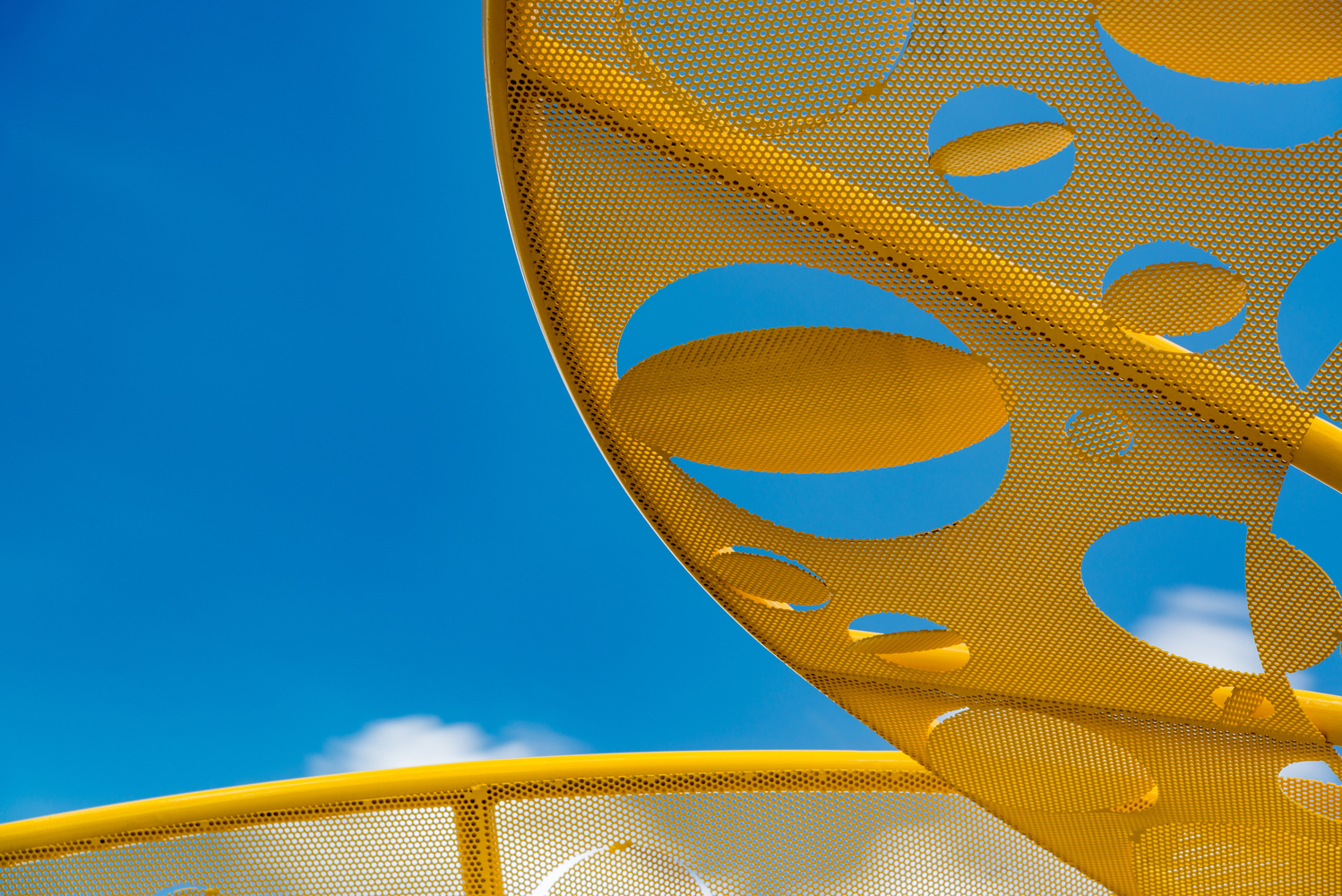

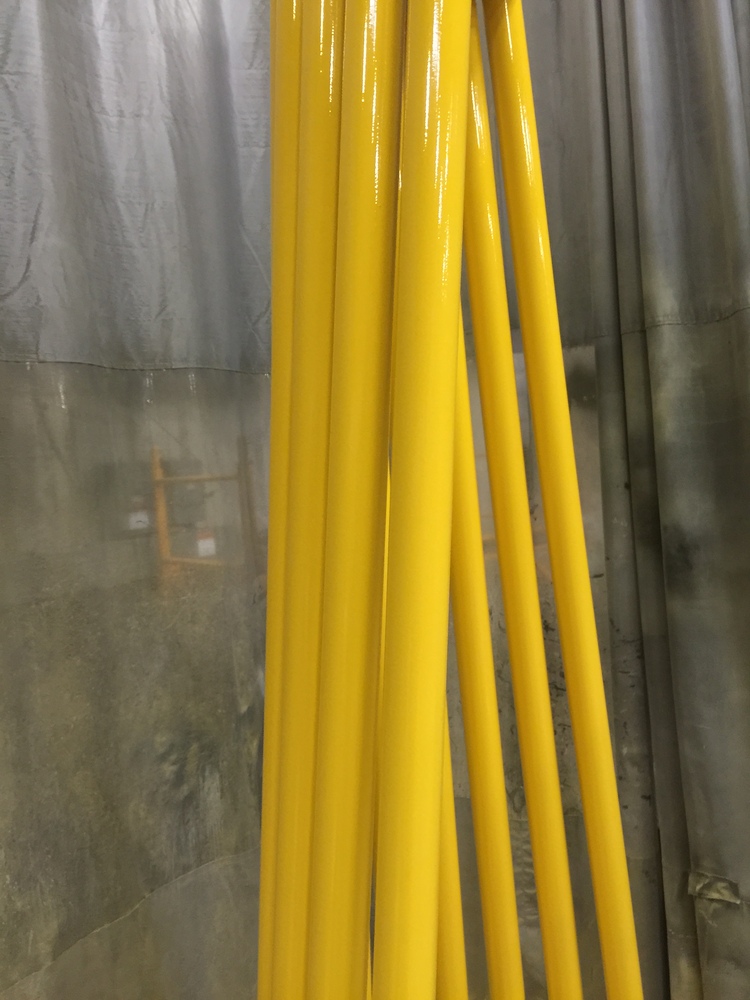

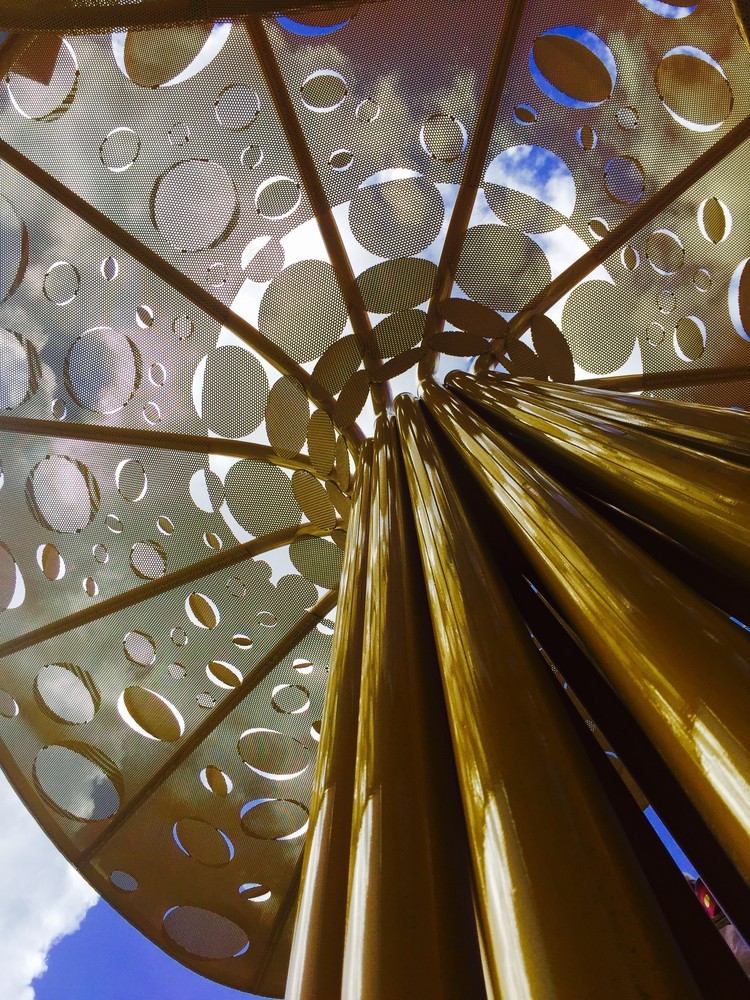

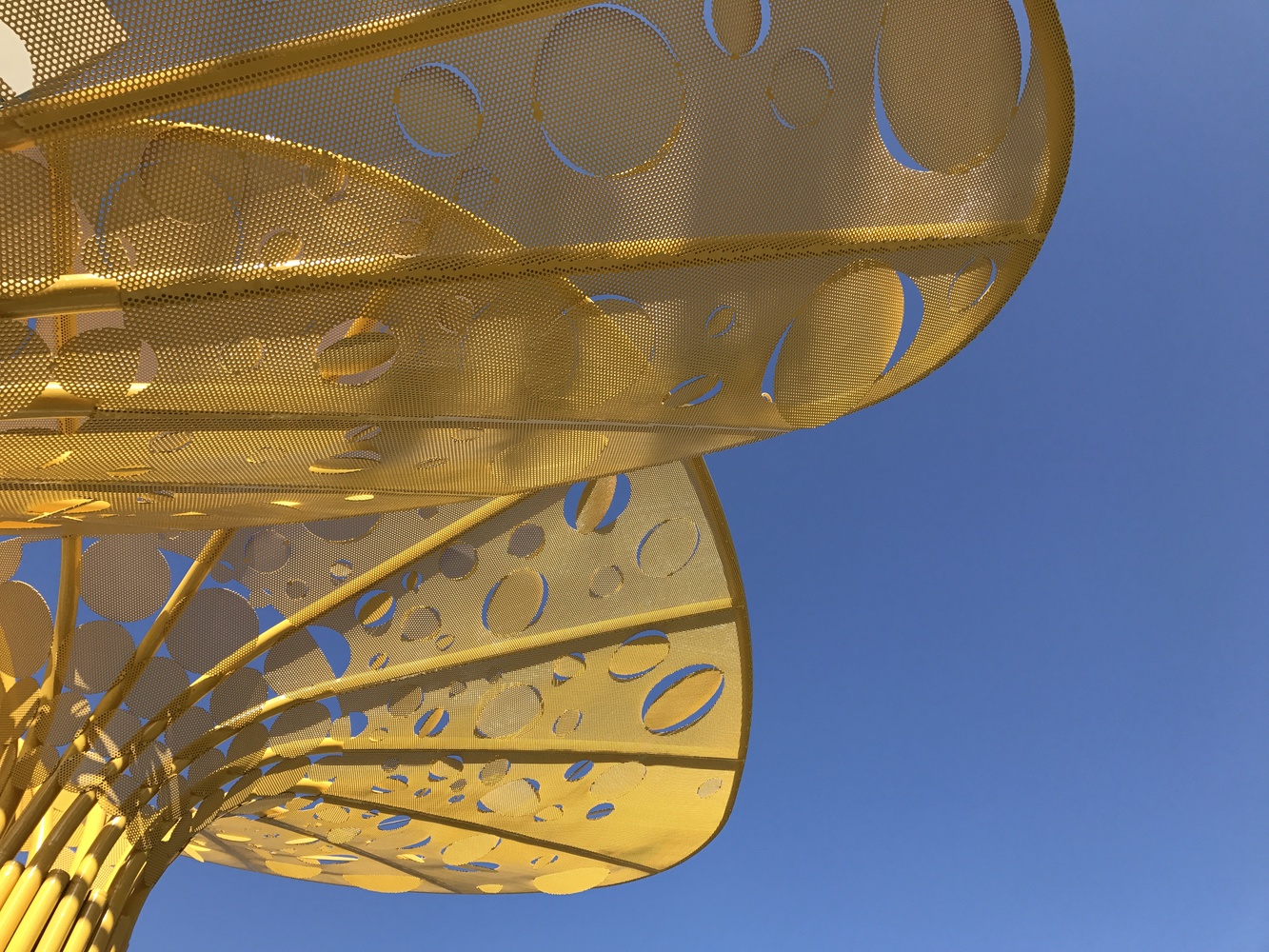

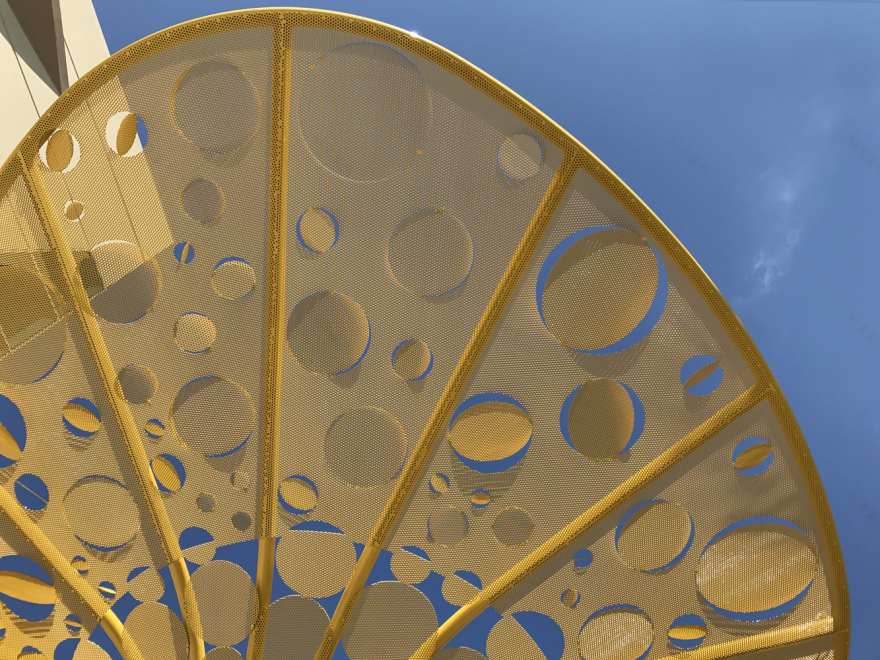

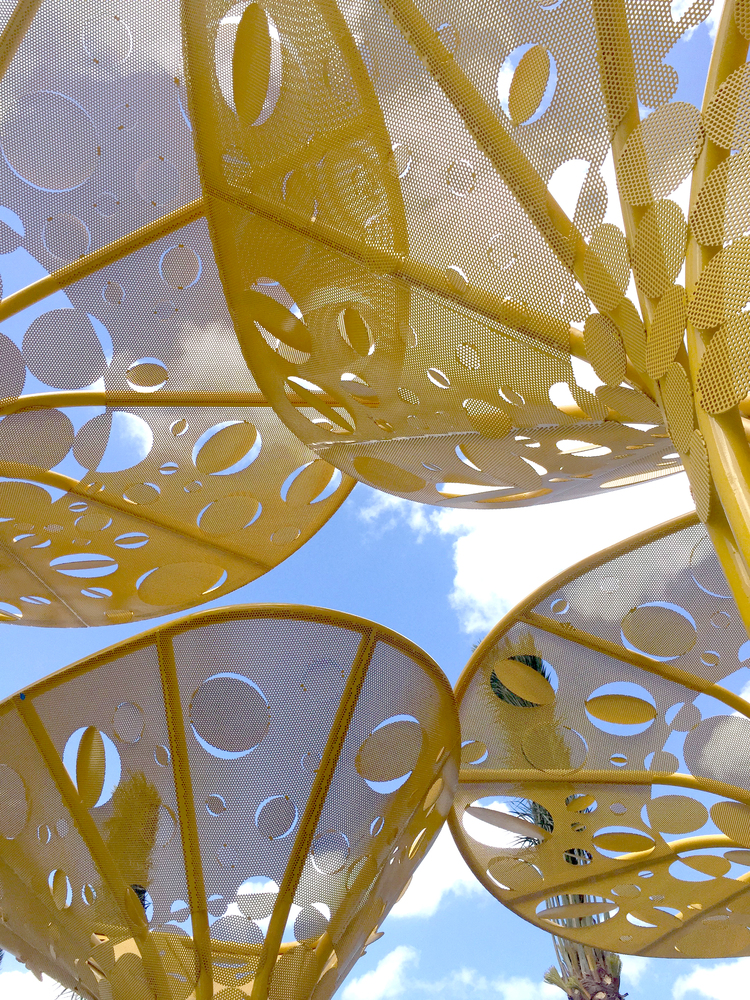

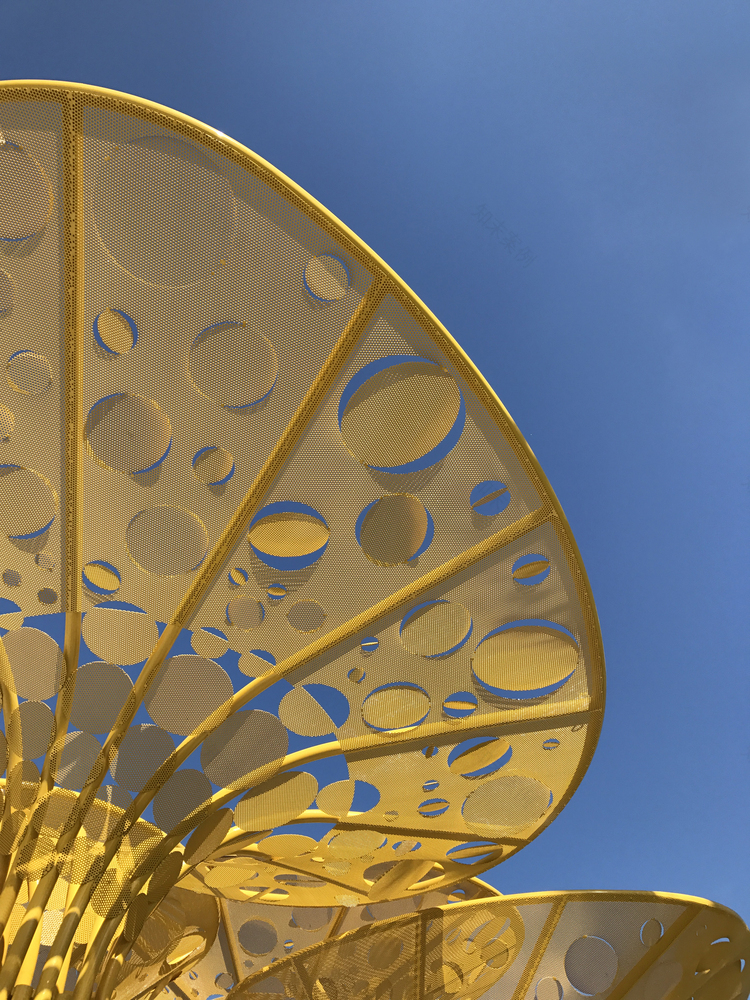

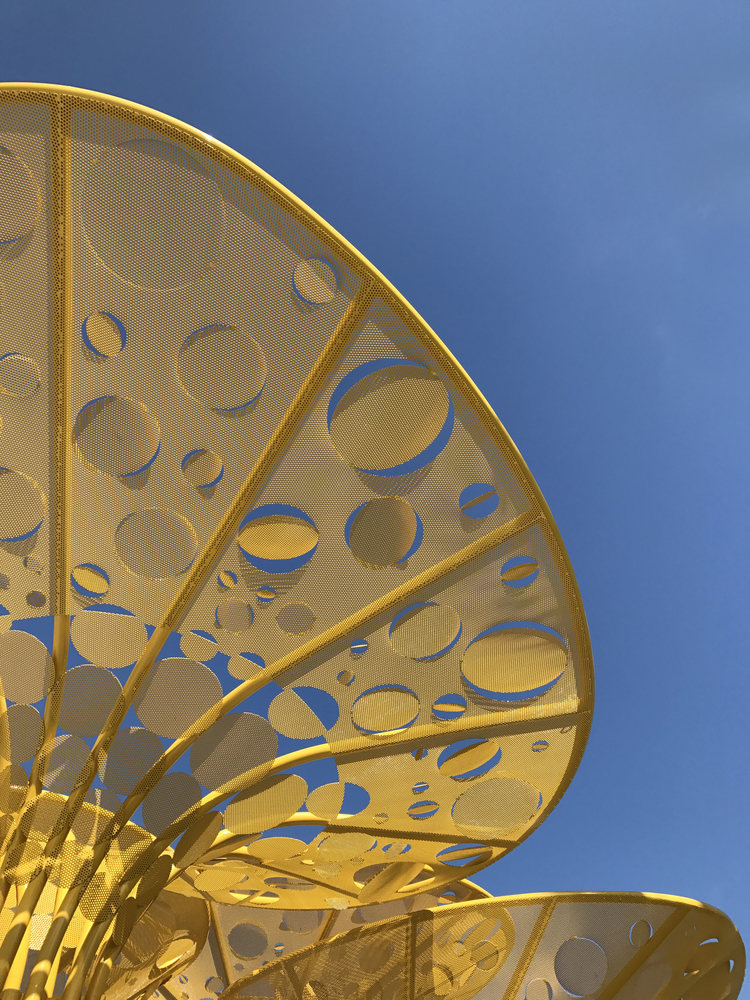

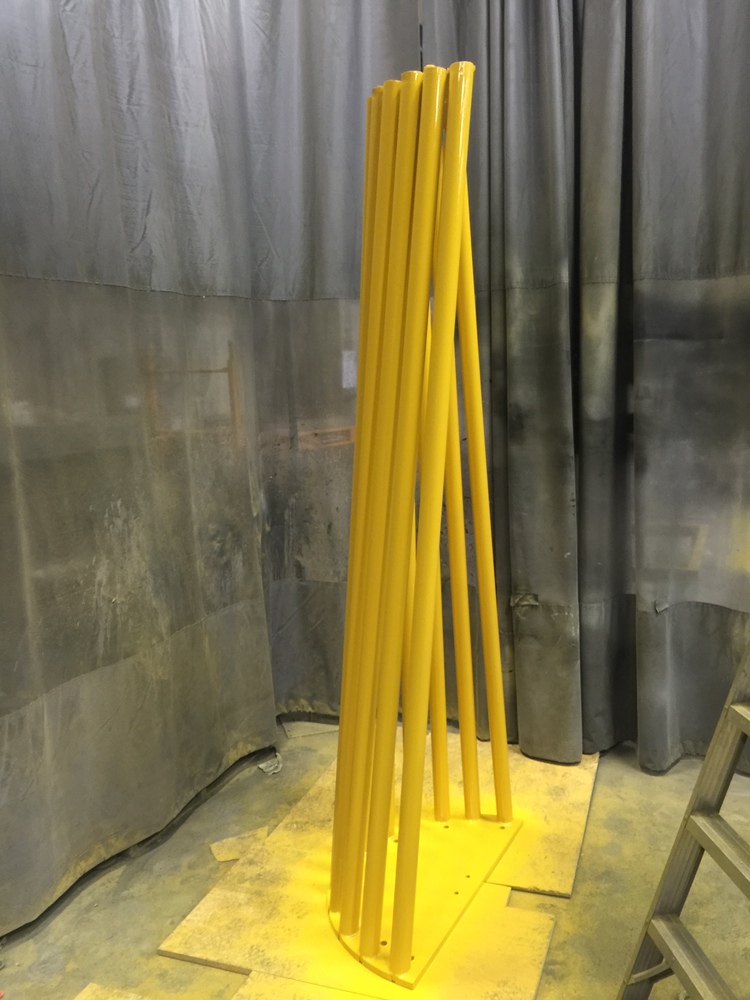

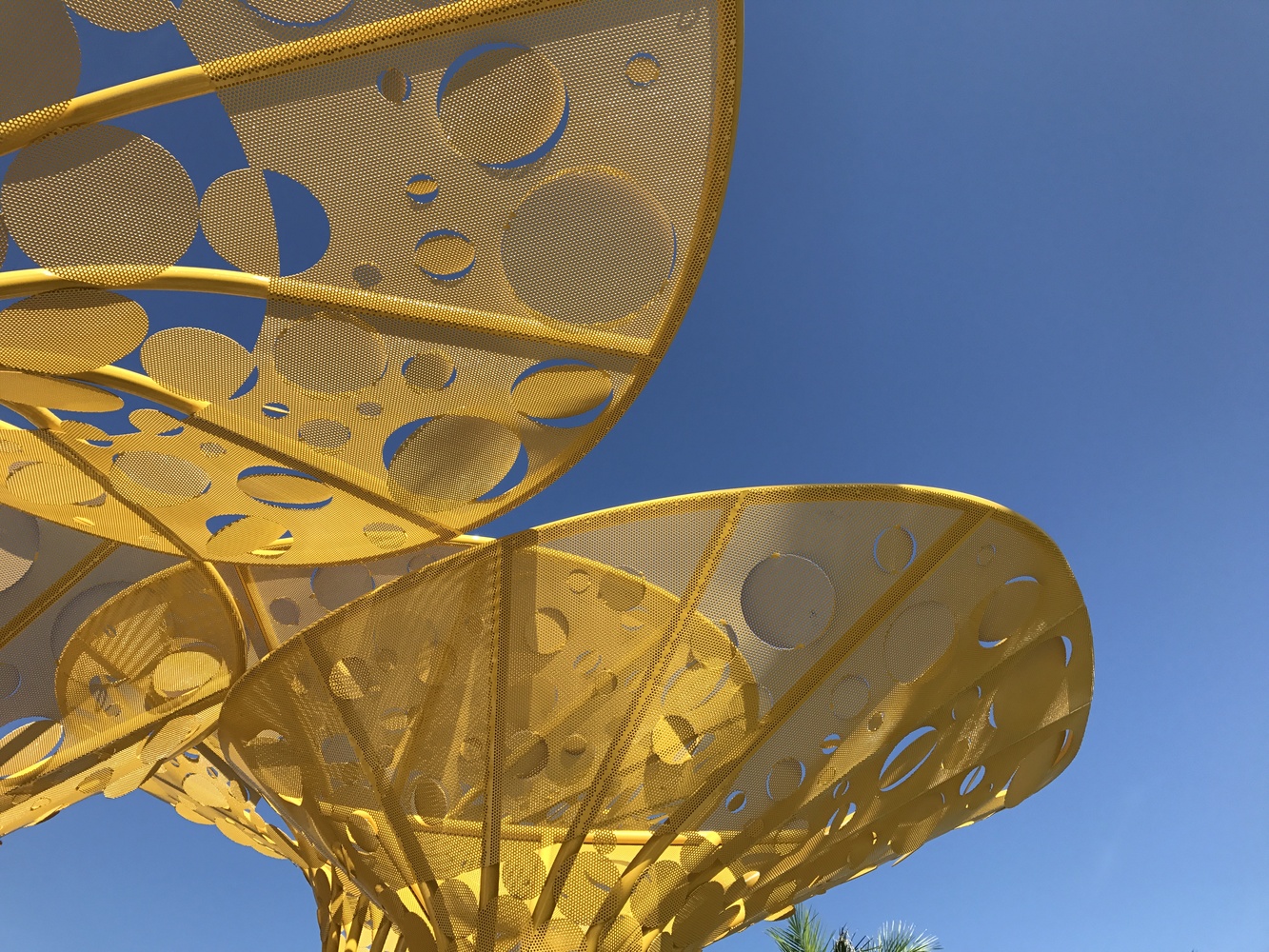

作为公共艺术的设计，不锈钢雕塑作为树柱出现，导致一系列穿孔板，似乎旋转在南佛罗里达的连续微风。在雕塑下的体验创造了一种斑驳的光效果，当你走在林荫丘之间-一种类似于亚热带硬木森林的体验。

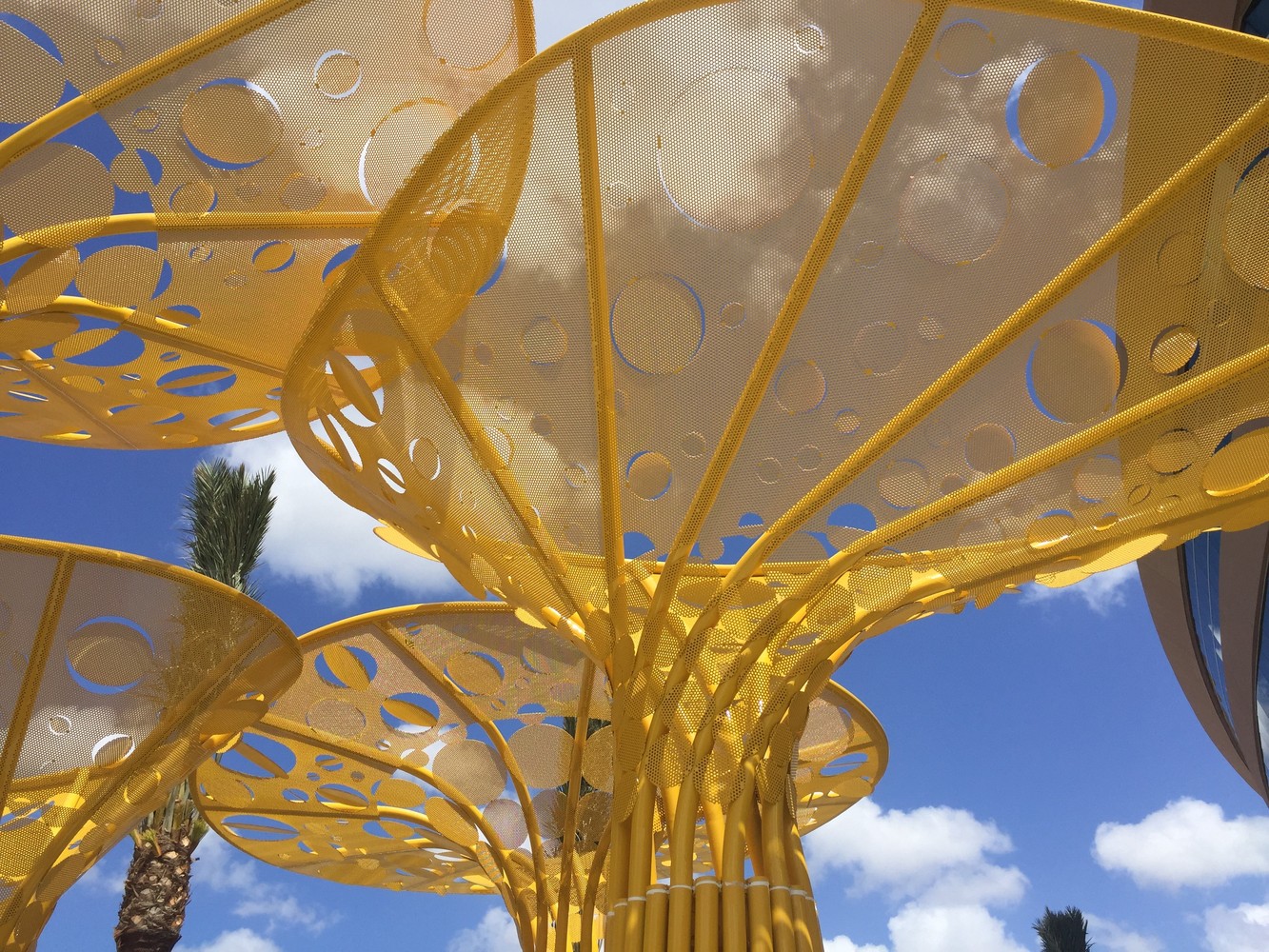

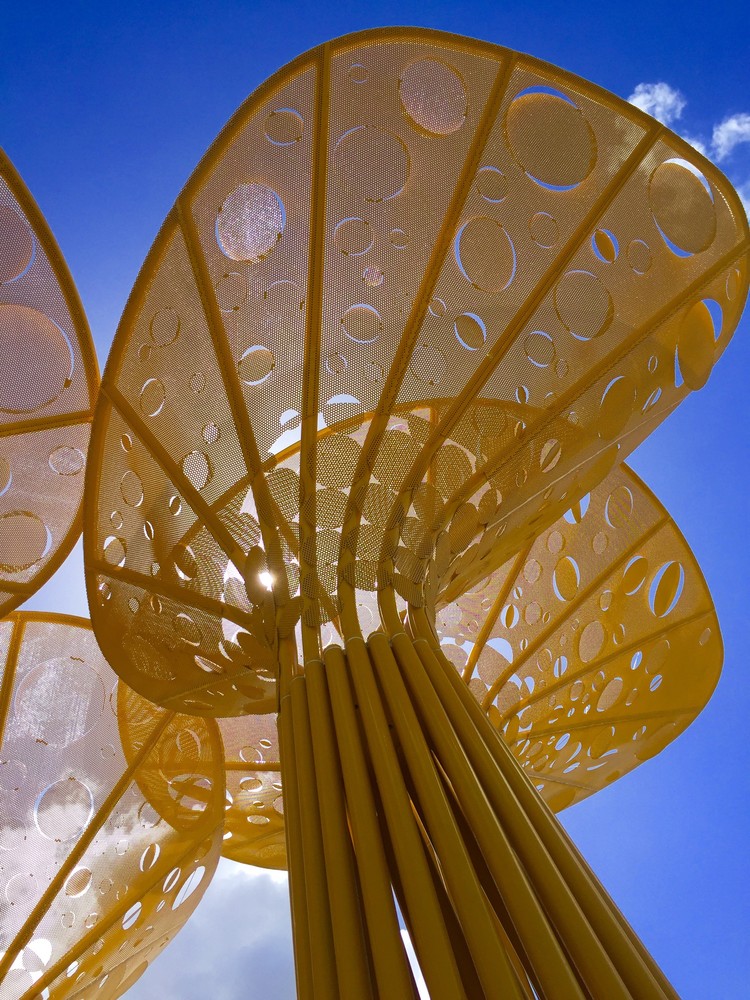

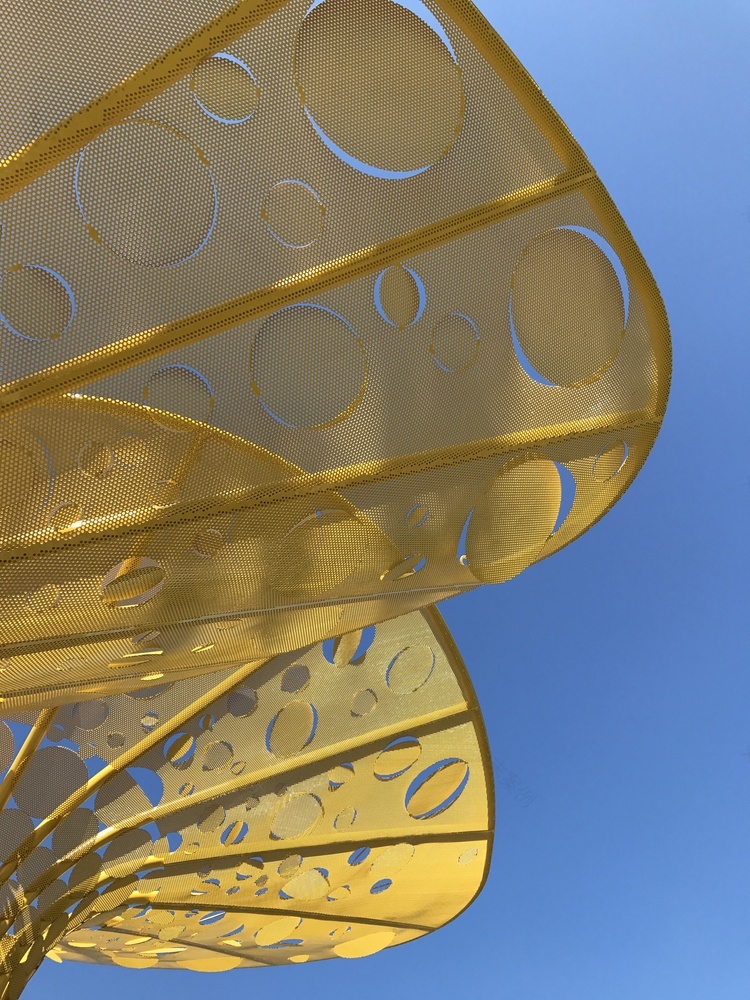

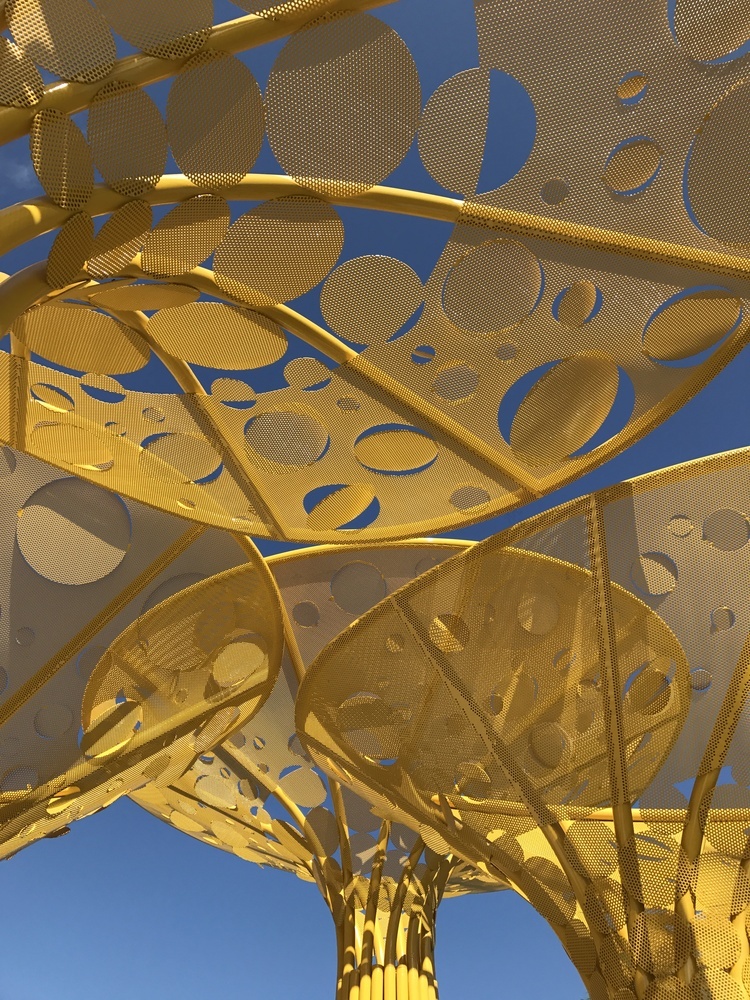

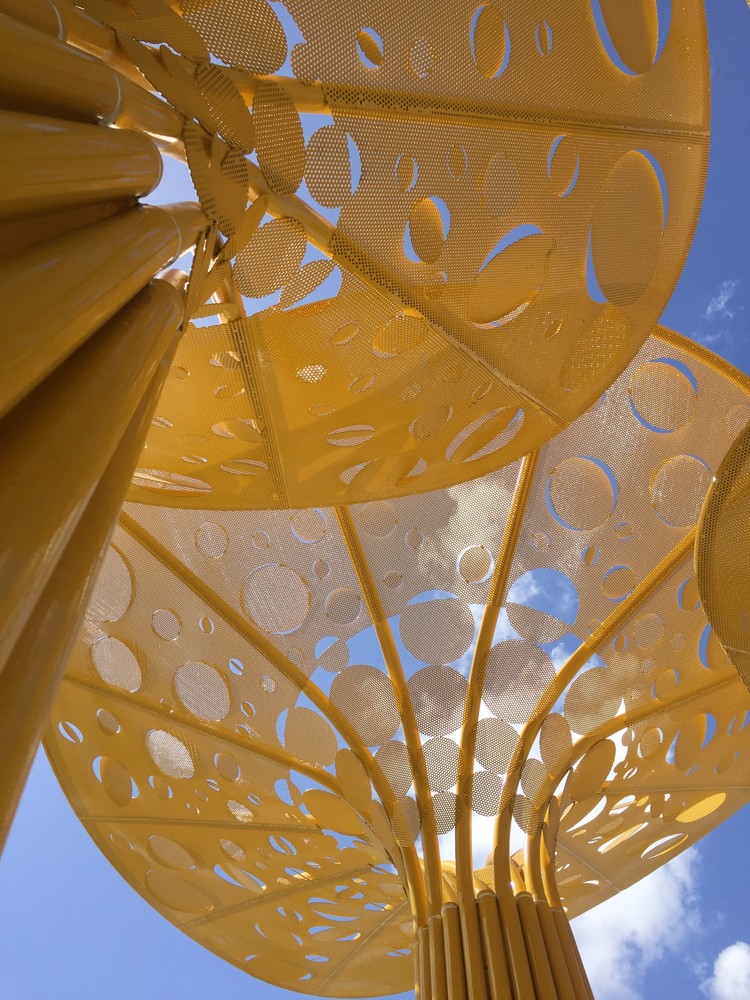

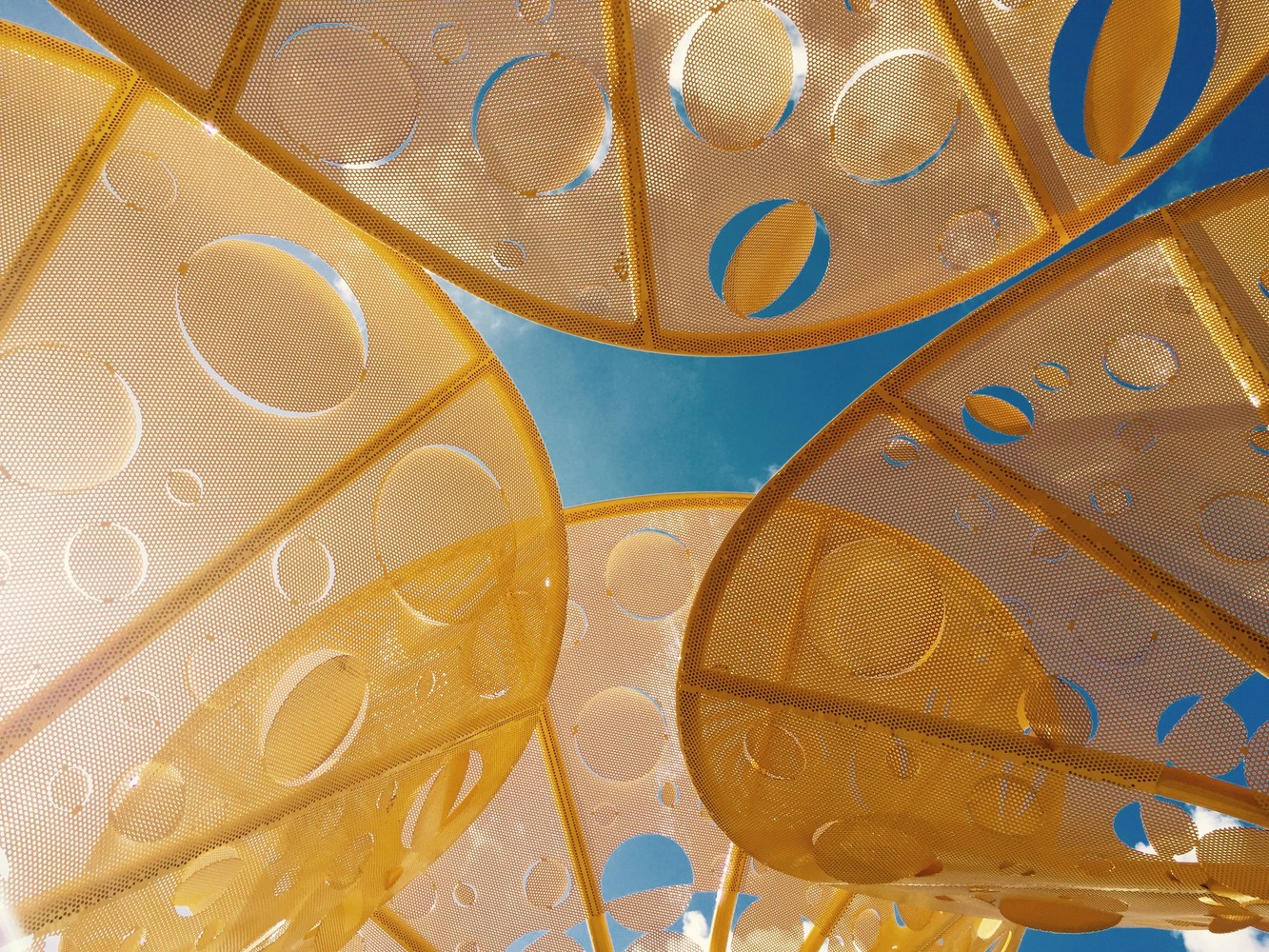

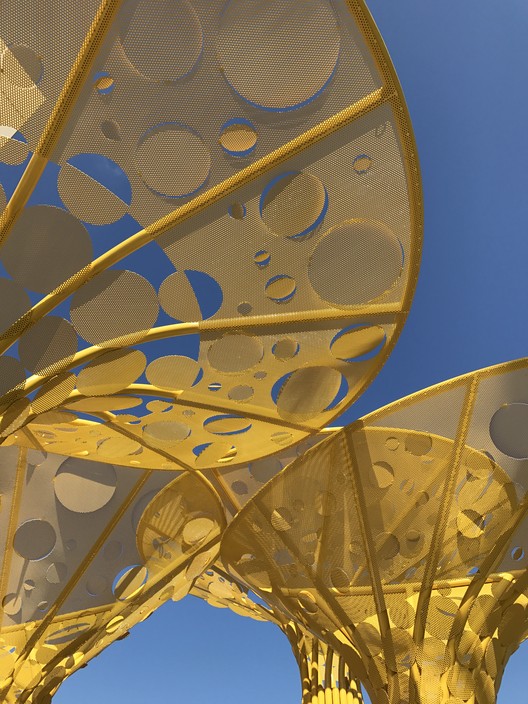

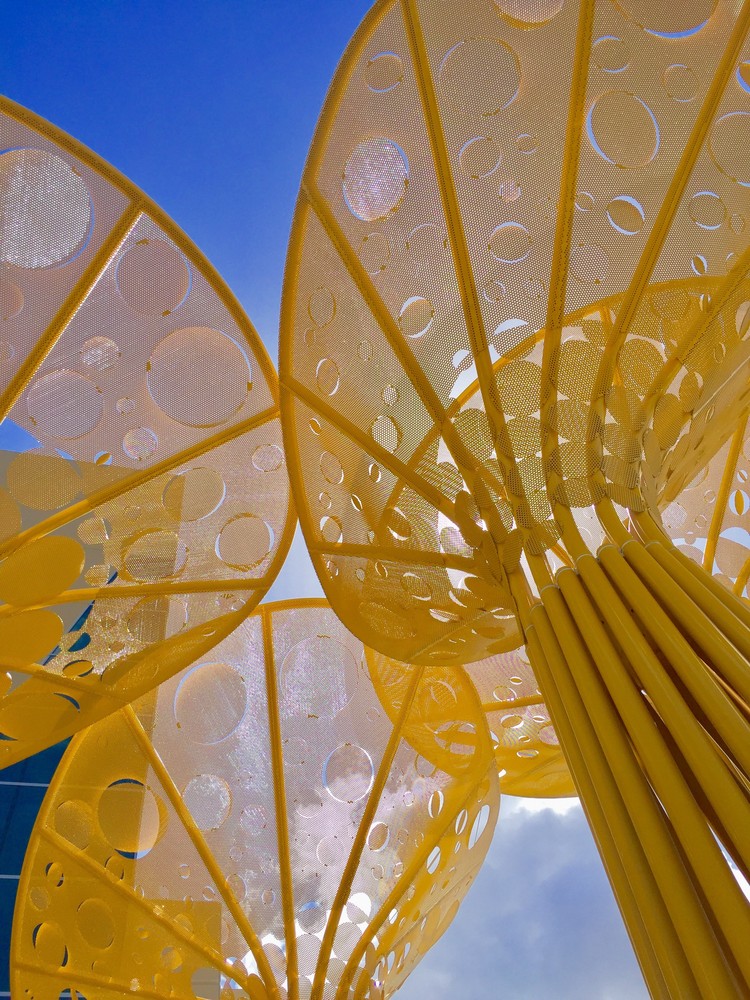

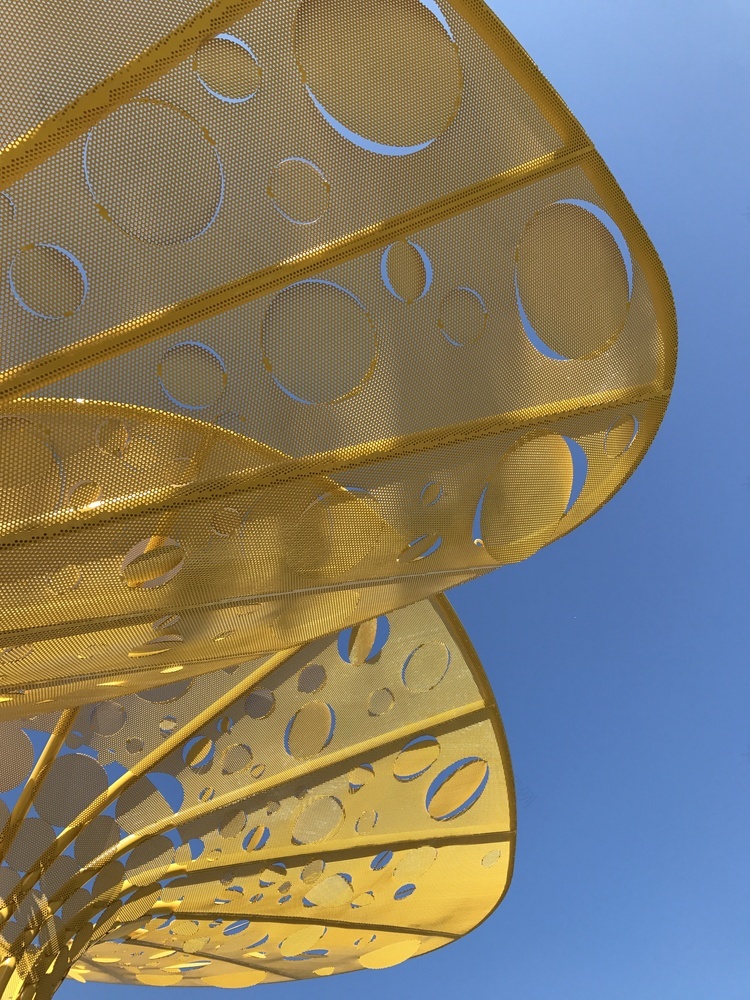

Designed as public art, the stainless steel sculpture emerges as tree columns that lead up to an array of perforated plates that appear to spin in the continuous breeze of south Florida. The experience under the sculpture creates a dappled light effect as you walk between bromeliad mounds—an experience like that of a subtropical hardwood forest.

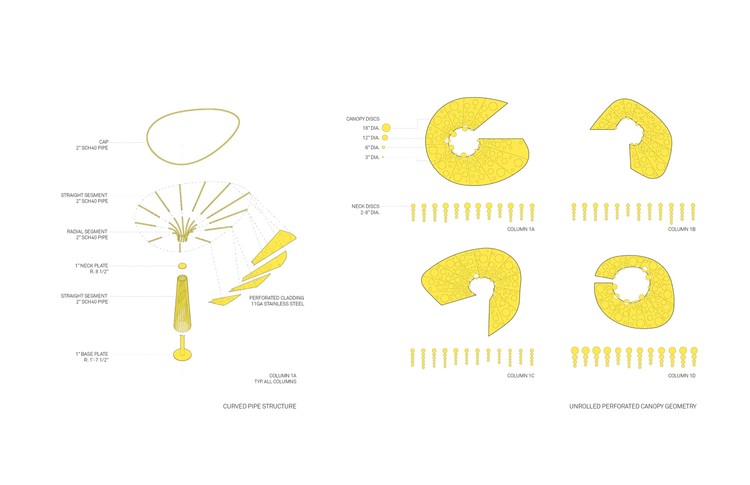

Assembly Diagram

该雕塑提供了一个阴影区域的座位，以及可编程的向上照明，提高用户体验白天或夜间。在表演和艺术活动期间，门户将成为演出前后活动的聚会场所，也是社区的聚会场所。

The sculpture provides a shaded area for seating, as well as programmable up lighting that enhances user experience day or night. During performance and art events the Gateway will be a meeting ground for pre and post-show activities, and a gathering place for the community.

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

可持续发展目标-尽管彭布罗克松树门户雕塑没有机械系统或其他组件，需要从公用电网中持续提供资源，但该结构的设计和建造，是为了能持续到未来，并保持不受南佛罗里达恶劣沿海条件影响的维护。

SUSTAINABILITY OBJECTIVES - While the Pembroke Pines Gateway Sculpture has no mechanical systems or other components that require continued resources from the utility grid the structure is designed and constructed to last well into the future and remain maintenance free from the harsh coastal conditions of south Florida.

Concept Detail

概念细节

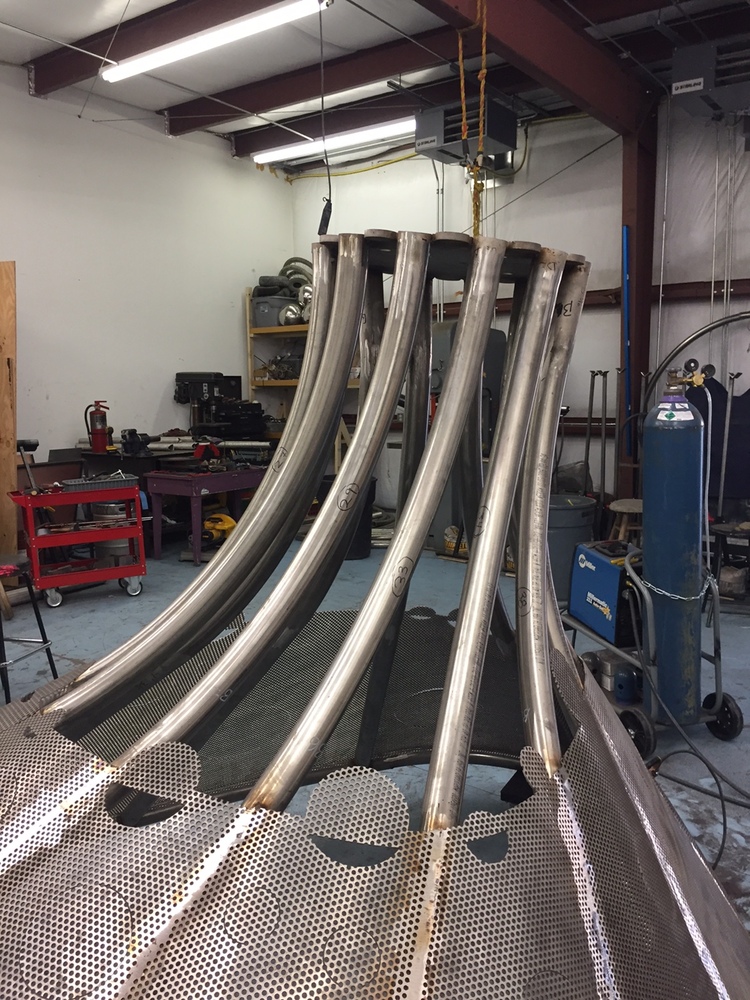

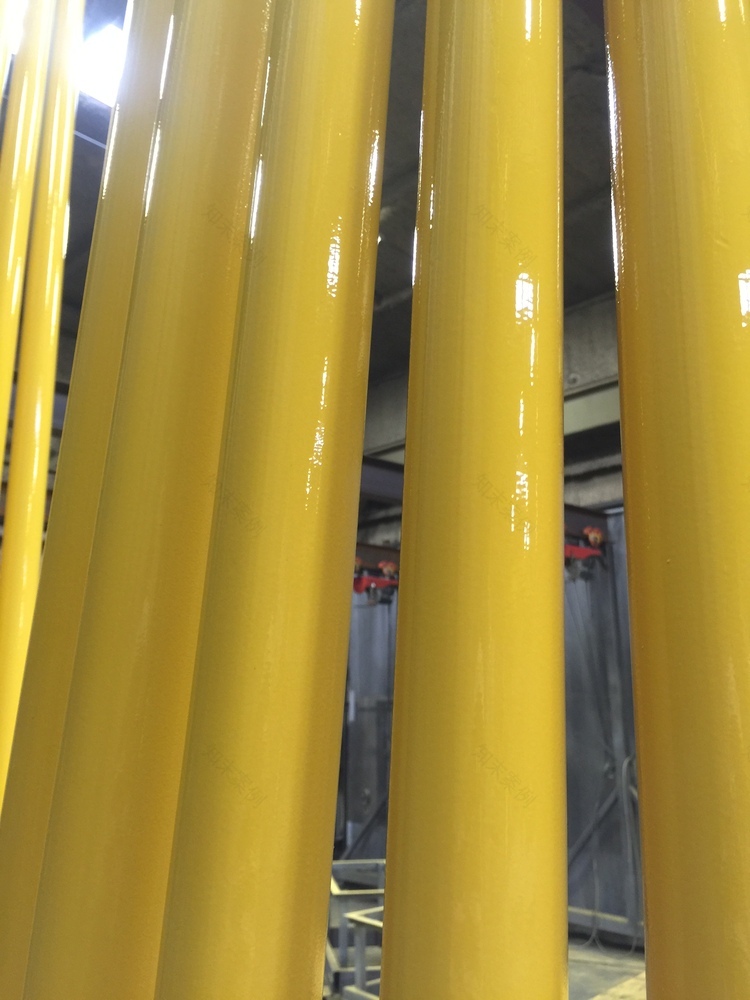

在客户的能力和预算范围内，设想了一种三重底线的方法。这是通过材料耐久性实现的，其中不锈钢被使用在低碳钢上，以确保结构的寿命。还使用了一种对环境敏感的耐用油漆。

A triple-bottom-line approach was conceived of that worked within the client's abilities and budget. This is achieved through material durability where stainless steel was used over mild steel to ensure the longevity of the structure. A durable paint that is environmentally sensitive was also employed.

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

了解该位置是在一个经常使用的行人路和聚集空间，传统的粉末涂料不能简单地用于维修时，可能出现划痕或其他问题。这使得城市工作人员能够在正常的维修制度下轻松地维护结构，并且是该结构经济可持续性的关键。

Understanding the location is within a heavily used pedestrian path and gathering space, traditional powder coating could not be used simply for the ease of maintenance where scratches or other issues may arise. This allows for city staff to easily maintain the structure under normal maintenance regimes and was key to the economic sustainability of the structure.

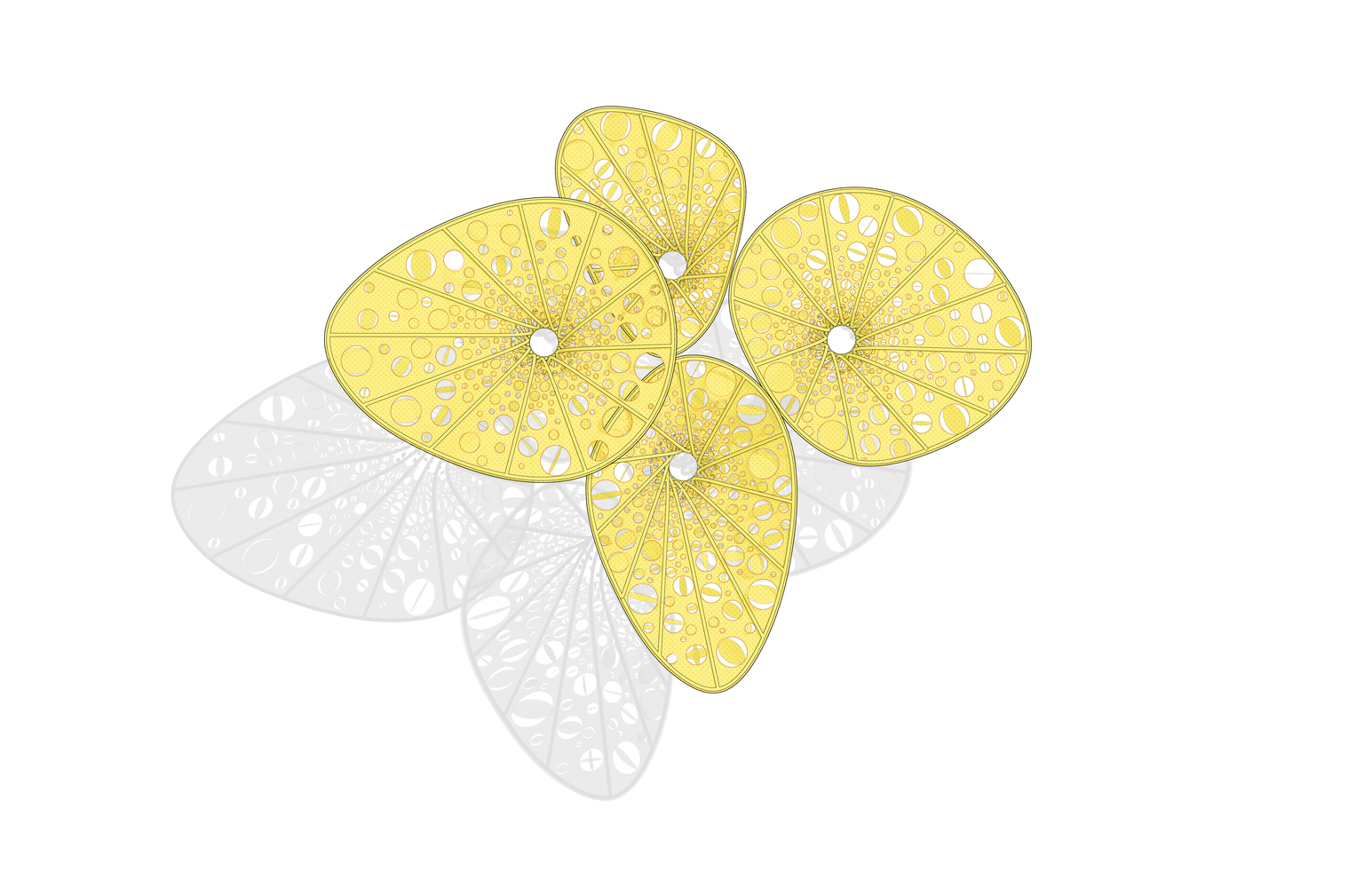

Linework View

线状视图

另一个主要目标是在南佛罗里达炎热潮湿的气候中提供阴凉处。公共广场有大量的硬景观和网关雕塑提供必要的阴影，以保持环境的舒适性。

Another primary objective was to provide shade in the hot-humid climate of south Florida. The public plaza has a tremendous amount of hardscape and the Gateway Sculpture provides essential shade in order to maintain environmental comfort.

Courtesy of Brooks + Scarpa Architects

布鲁克斯·斯卡帕建筑师

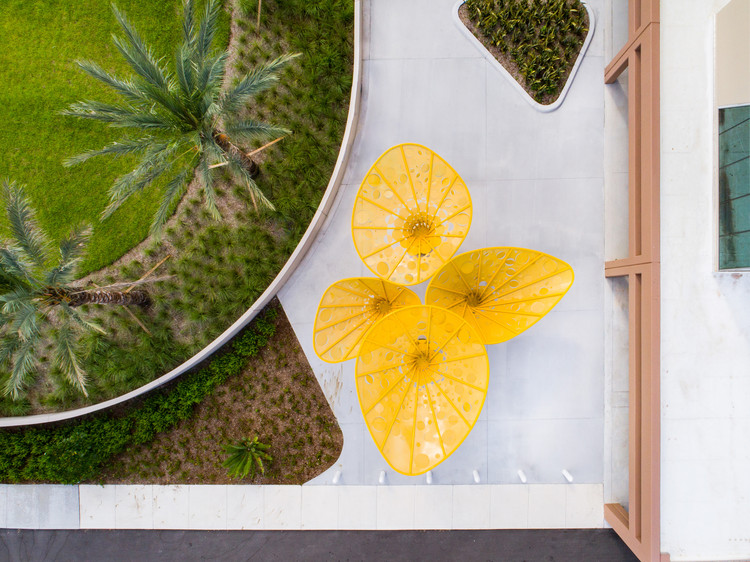

最后，大面积种植的建筑周围收集雨水从整个建筑物和不透水的硬景观广场。这些种植园本质上是雨花园，包括本地兼具景观材料，色彩鲜艳，以提高用户体验，并为当地野生动物提供重要的避难所和栖息地。

Lastly, large planting areas surround the structure collecting stormwater from the entire building and impervious hardscape of the plaza. Essentially rain gardens, these planters include native facultative landscape material with vibrant color to enhance user experience and provide critical refuge and habitat to native wildlife.

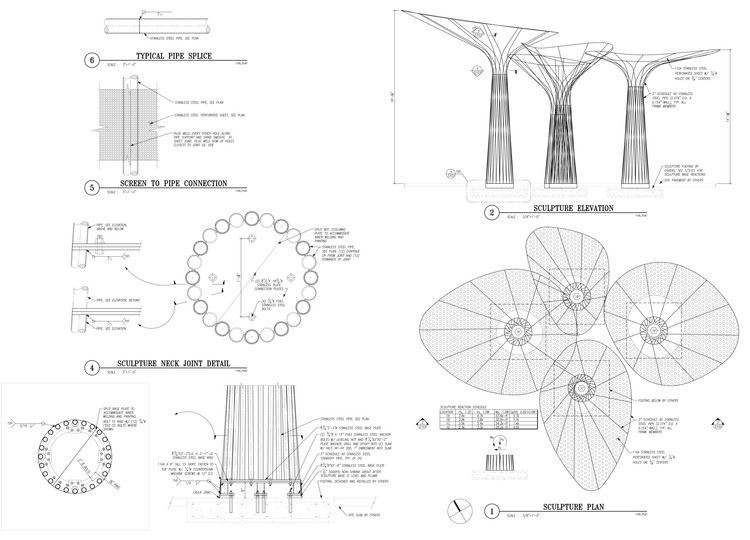

Elevation, Plan and Details

高程、图则及详情

Architects Brooks + Scarpa Architects

Location Pembroke Pines, Florida, United States

Project Year 2017

Photographs Courtesy of Brooks + Scarpa Architects

Category Other Structures
