翡翠山休闲中心 (Emerald Hills Leisure Centre)

© Shai Gil

(C)Shai Gil

架构师提供的文本描述。翡翠山休闲中心专为休闲、治疗和学习游泳节目服务.该设施与一所现有的天主教高中合作，建立一个共同的“社区中心”，并为学生提供水上编程服务。

Text description provided by the architects. The Emerald Hills Leisure Centre caters specifically to leisure, therapeutic, and learn-to-swim programming. The facility is co-joined to an existing Catholic High School with an operating partnership to create a shared ‘Community Centre’ as well as aquatic programming for students.

© Shai Gil

(C)Shai Gil

水上大厅和大厅被认为是一个独特的雕塑卷，确定了新的社会中心的社区。现有的体育馆、礼堂和教室与水上设施共享，为更大的社区创建一个充满活力的晚间社区中心。该县最大限度地利用了游泳池和学校，并签订了联合使用协议，有机会连接康复和治疗，因为它靠近一个新的医院综合体。

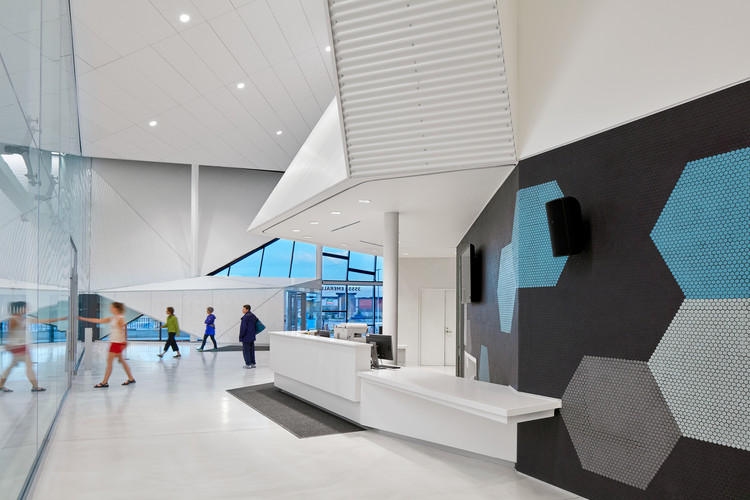

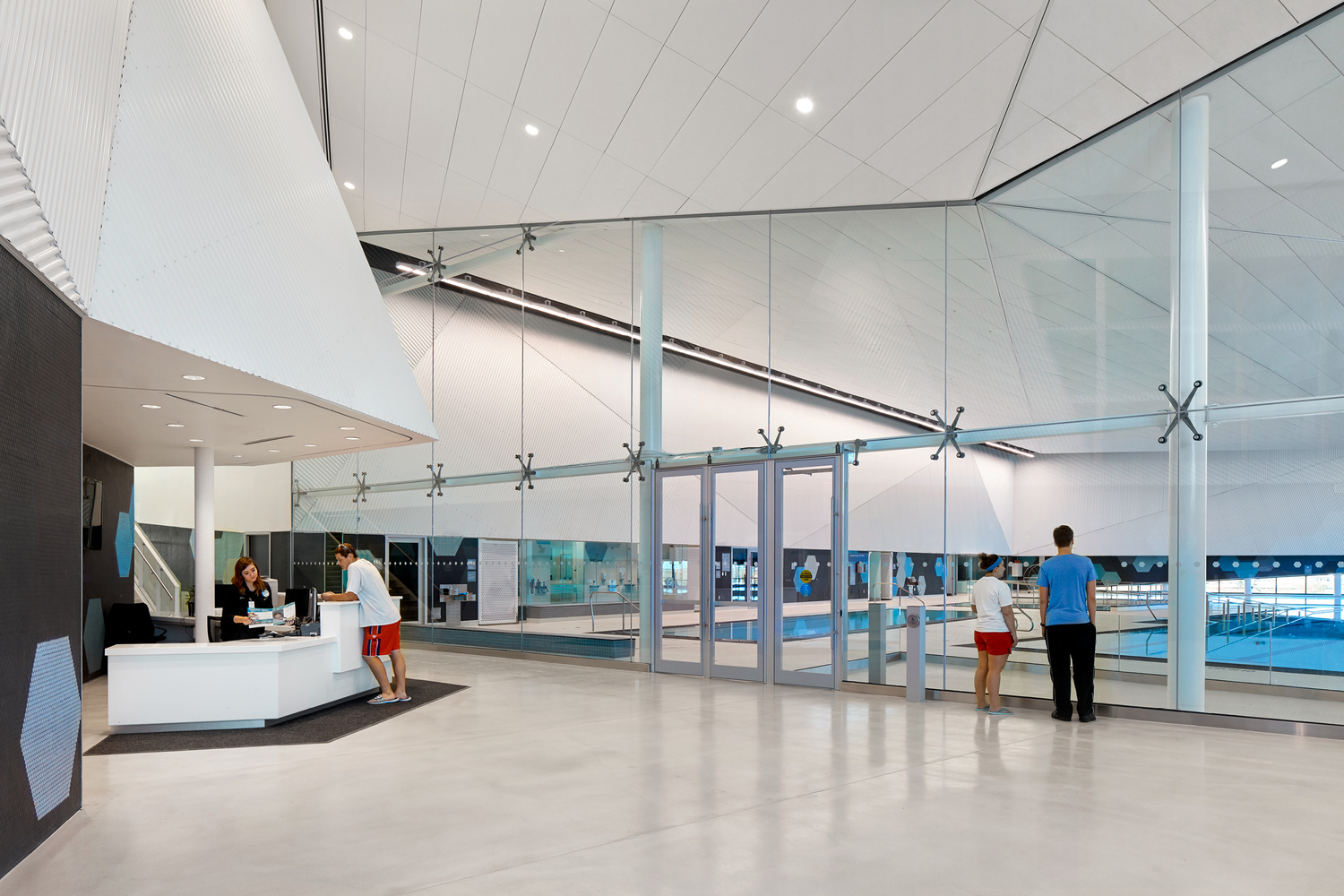

The aquatic hall and lobby are conceived of as a singular sculpted volume that defines the new social hub of the community. The existing gymnasium, auditorium, and classrooms are shared with the aquatic facility to create a vibrant evening community center for the greater community. The County maximizes utilization of both the pool and the school with joint use agreements with opportunities to connect for rehabilitation and therapy, given the proximity to a new hospital complex.

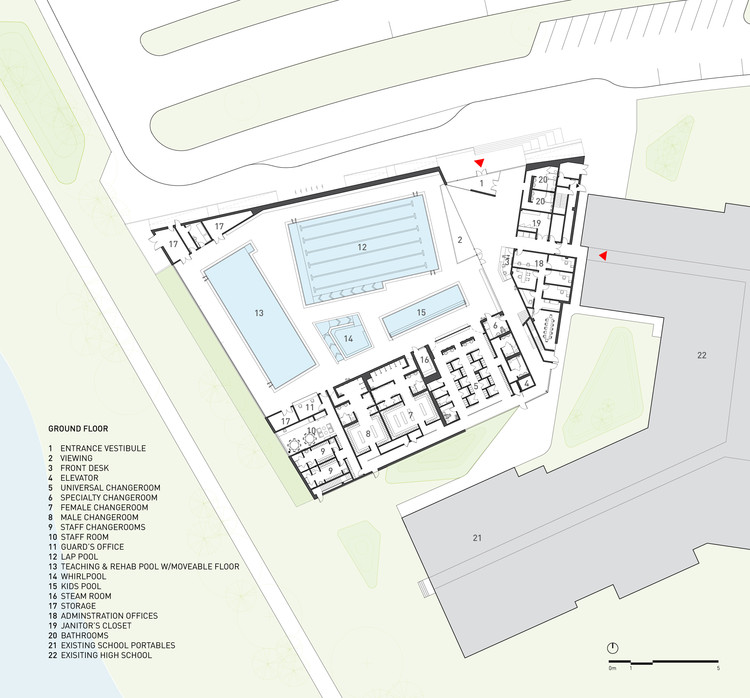

Ground Floor Plan

水上中心包括一个6车道的25米膝池、可调节的地面治疗池、TOT池、漩涡池和蒸汽室。该设施配备了一个完全透明、全性别的通用更衣室，可供所有人使用和包容。更衣室上方提供高层的“空壳空间”，作为未来的健身中心。

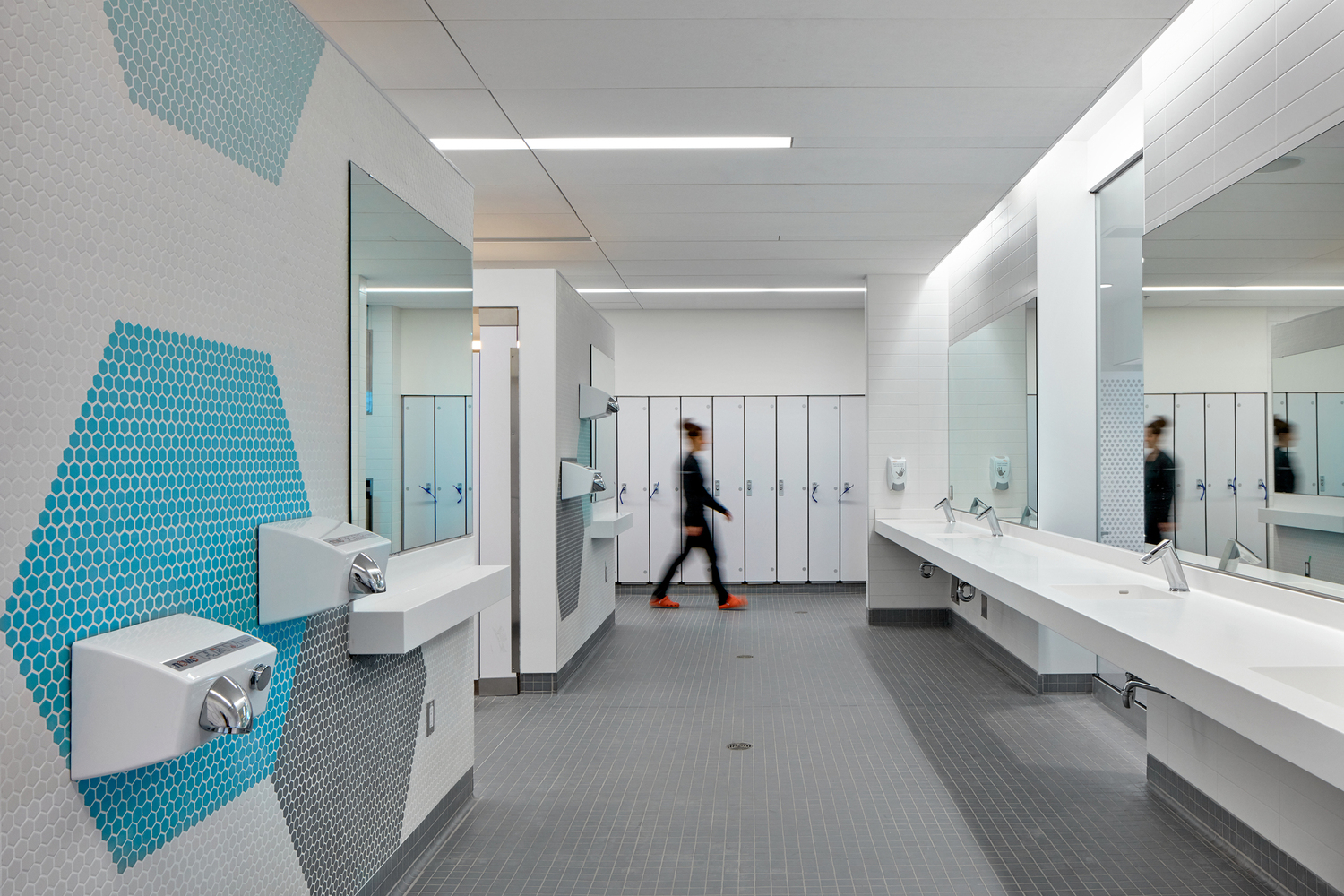

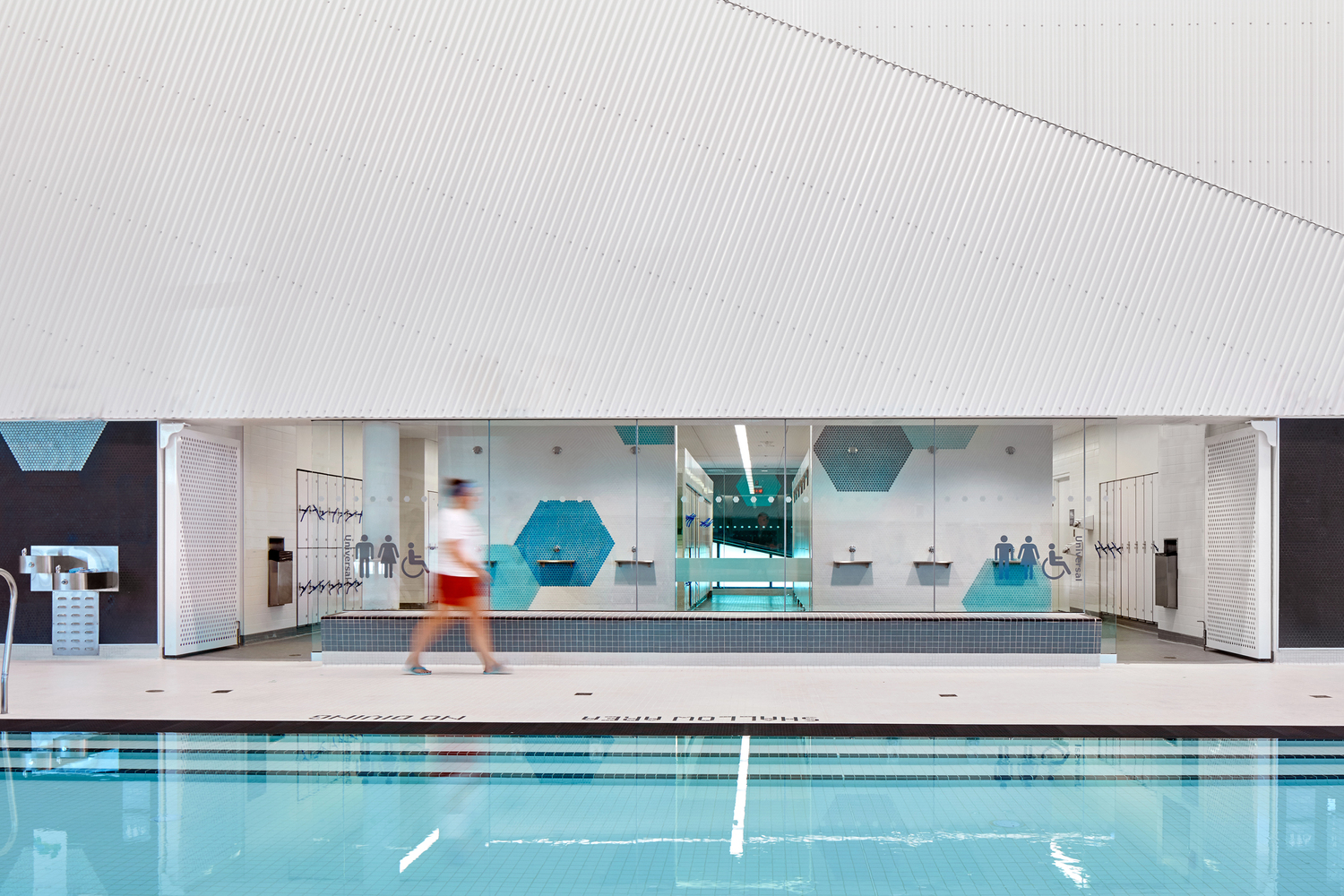

The aquatic center includes a 6-lane 25-metre lap pool, adjustable floor therapy pool, tot pool, whirl pool, and steam room. The facility features a fully transparent all-gender universal change room accessible and inclusive for all. An upper level ‘shell space’ is provided above the change rooms as a future fitness center.

© Shai Gil

(C)Shai Gil

从形式上讲，这座建筑是一个简单而经济实惠的“大盒子”体积，旨在有一种轻盈感和动感。该建筑的梯形计划是通过最大限度地扩大可建的足迹到现场挫折。单坡屋顶对角线排水，提供最大游泳馆容积，牧师采光较低高度到后院。

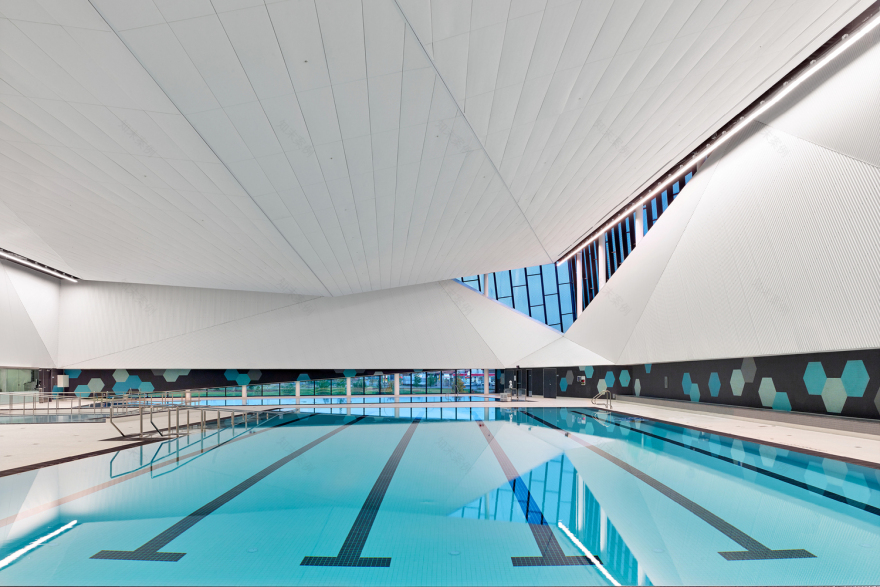

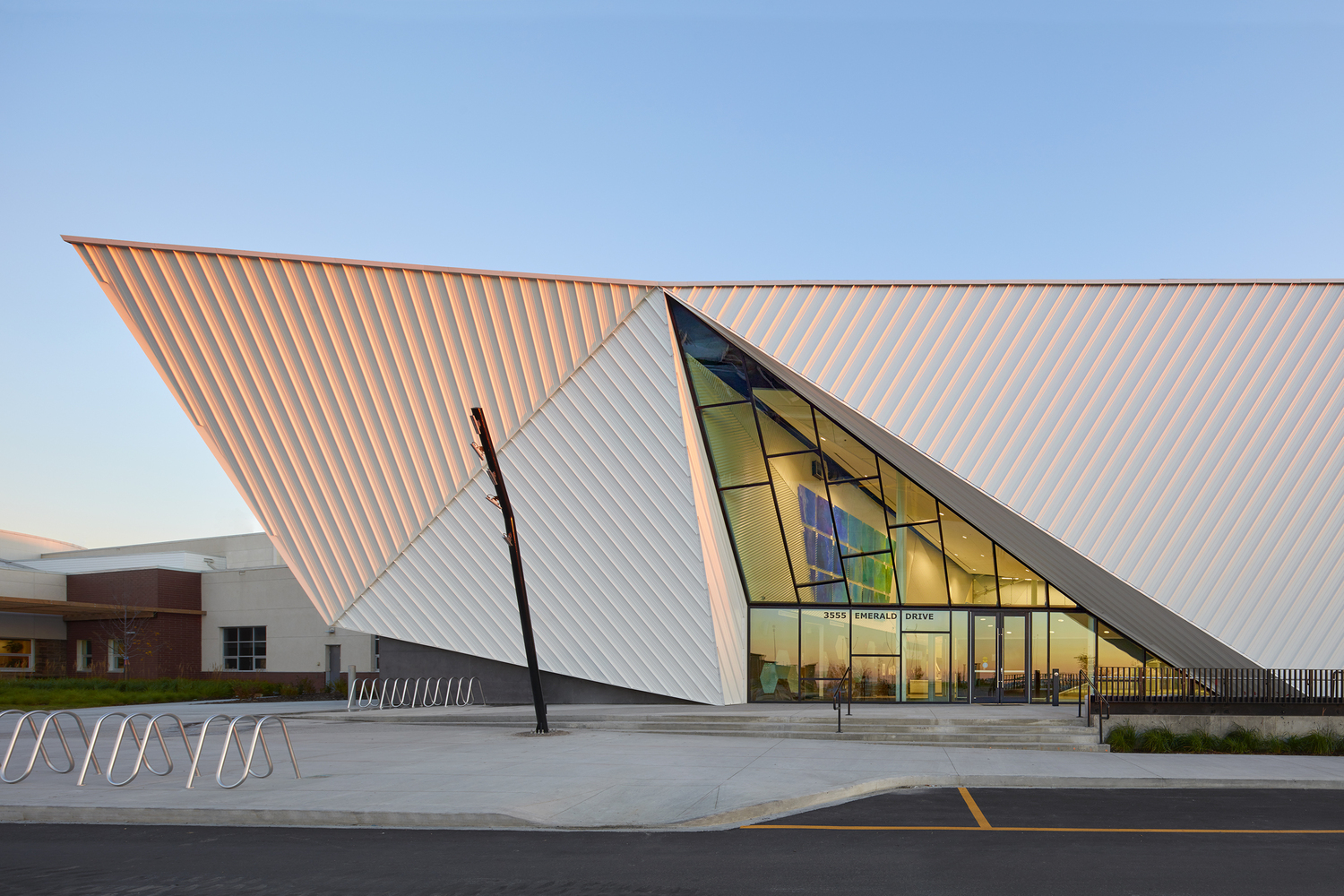

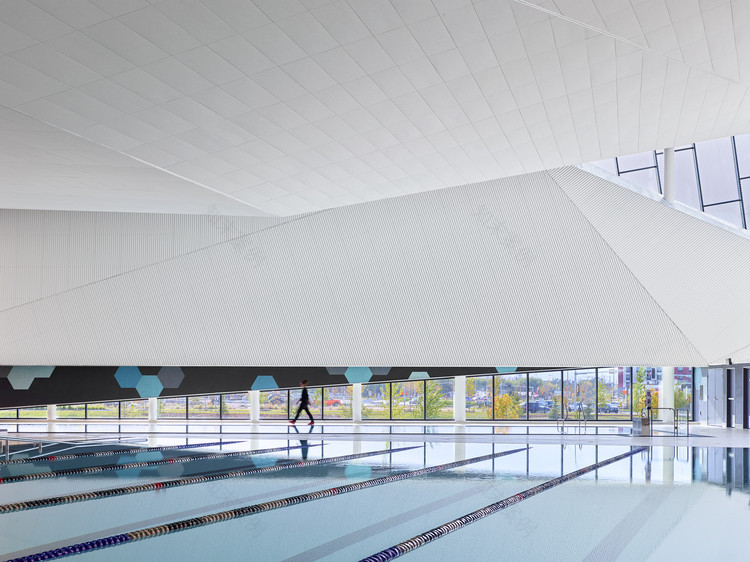

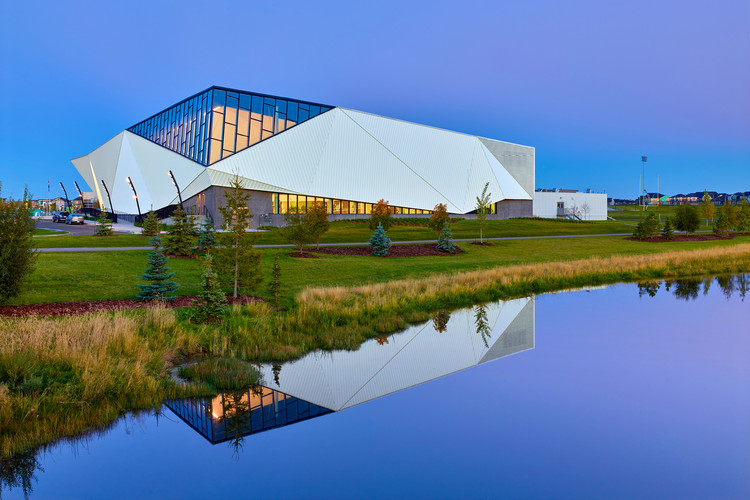

Formally the building is a simple and affordable ‘big box’ volume designed to have a sense of lightness and dynamic movement. The building’s trapezoidal plan is created by maximizing the buildable footprint to the site setbacks. The mono-slope roof drains diagonally to provide maximum natatorium volume, and clerestory daylighting with a low height to the rear courtyard.

© Shai Gil

(C)Shai Gil

白色三角形立式接缝板浮在黑色的预制底座之上，并包含四个三角形的玻璃位置。室内声学表面和天花板是在黑色六角瓦基座以上三角，以创造一个平静，统一和高质量的声波环境。

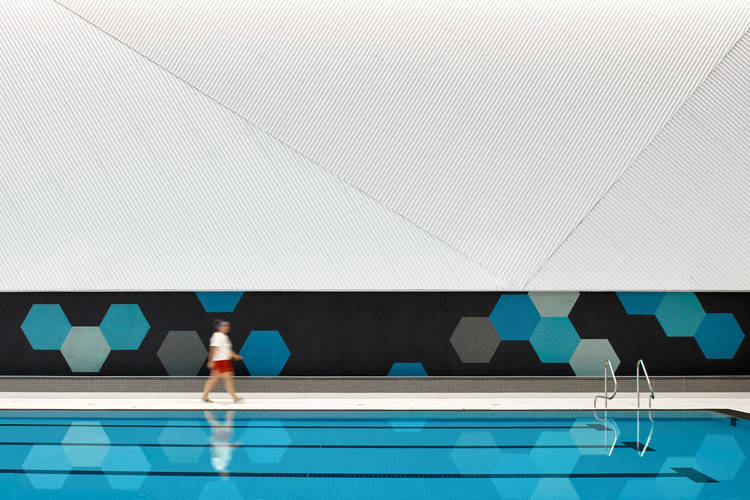

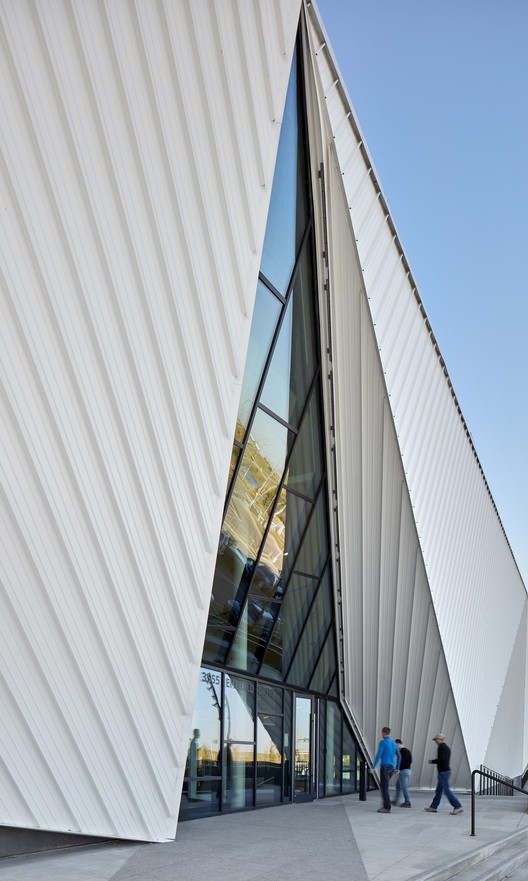

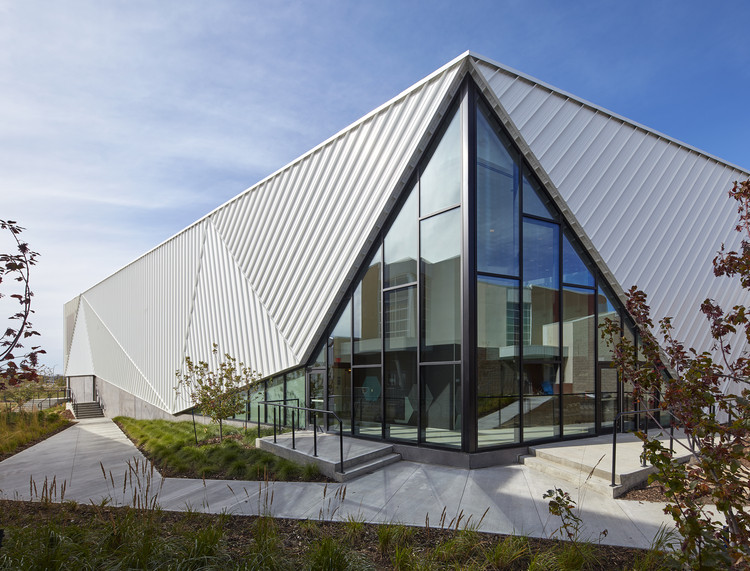

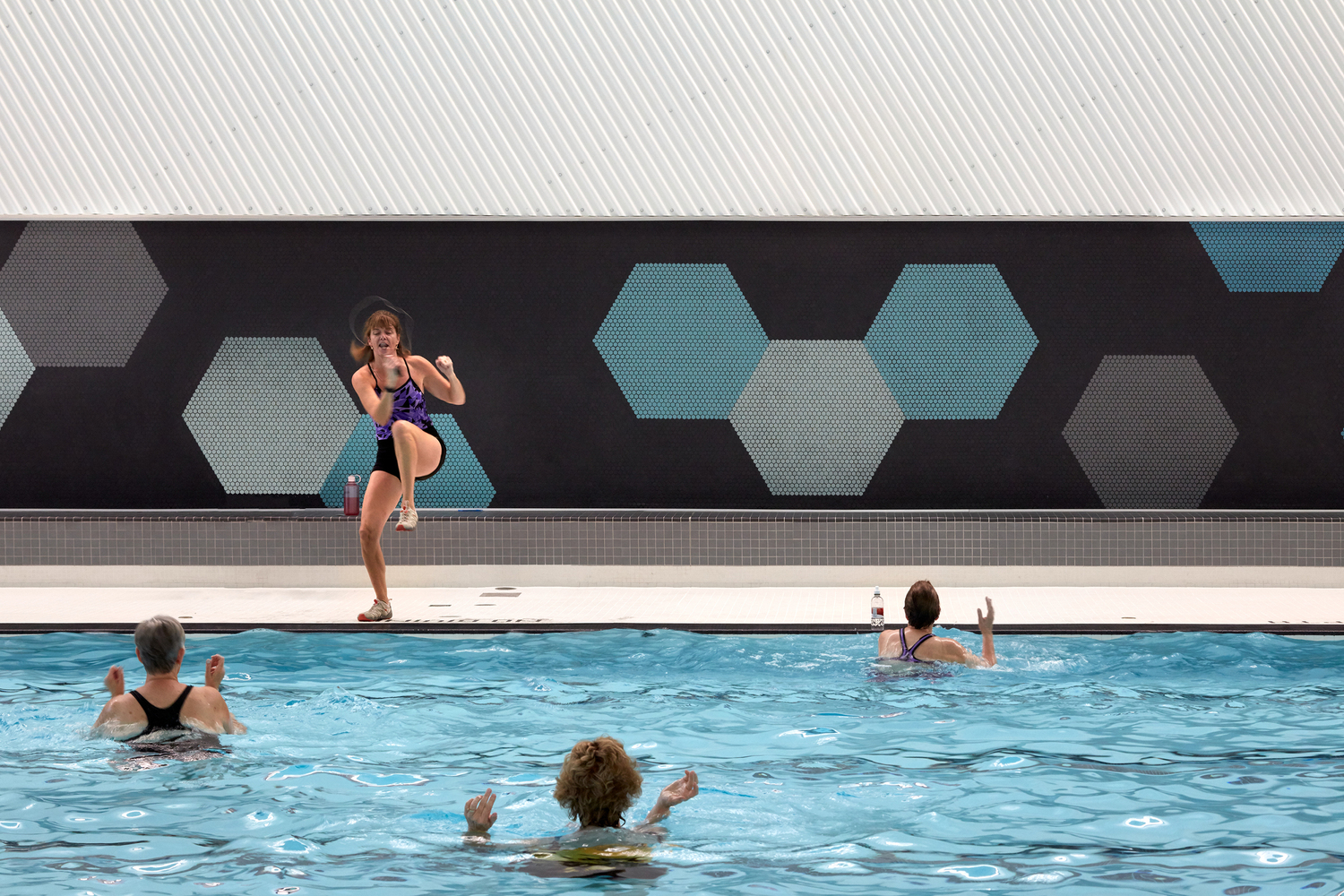

White triangulated standing seam panels float above a black pre cast base and incorporate four triangulated glazing locations. Interior acoustic surfaces and ceiling are triangulated above a black hexagonally tiled base to create a serene, unified and high-quality sonic environment.

© Shai Gil

(C)Shai Gil

针对阿尔伯塔省北部的气候，该建筑的三层玻璃开口被最小化到四个战略位置，并被塑造成最大限度地发挥它们的作用。玻璃的数量是专门定位在甲板水平较低的景观地区的西面和位于前面的高度，以反弹光天花板结构-导致最大的低眩光照明分布。

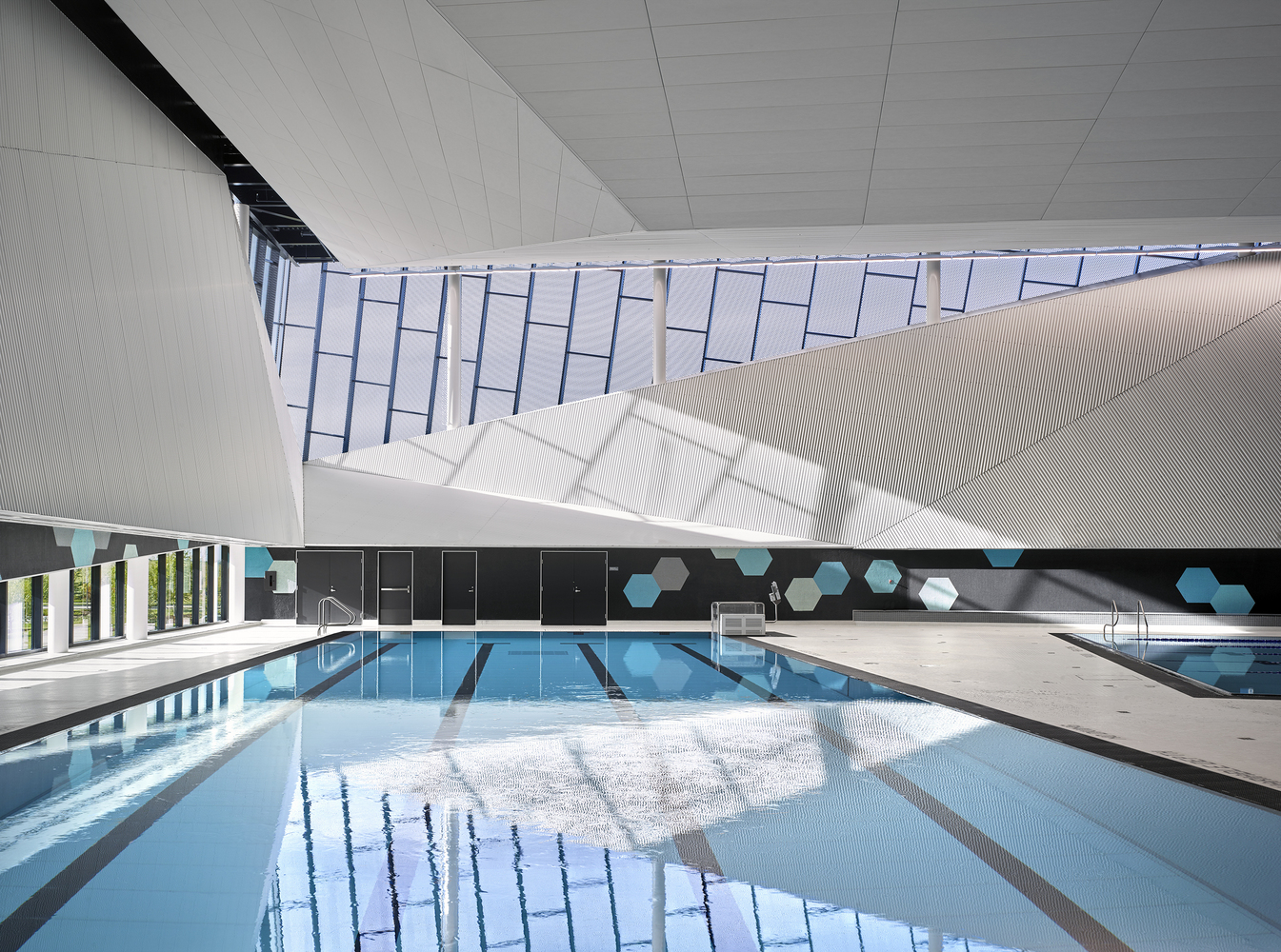

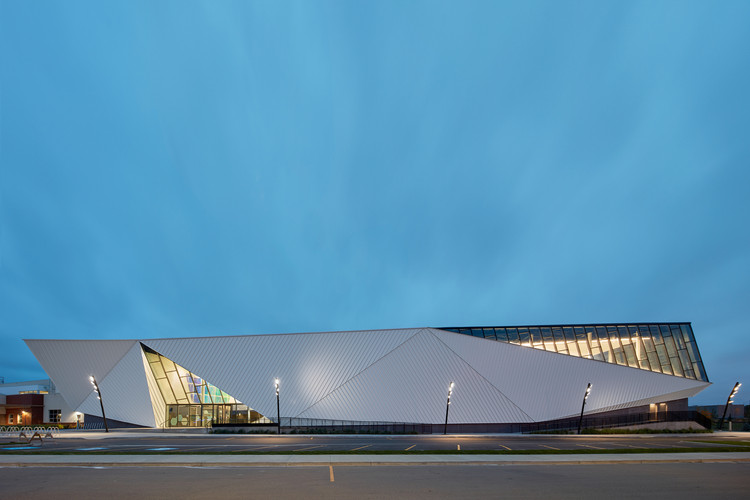

Responding to the Northern Alberta climate the building’s triple glazed openings are minimized to four strategic locations and shaped to maximize their effect. The amount of glazing is specifically located low at deck level for views to landscaped areas to the west and located high on the front elevation to bounce light off the ceiling structure — resulting in maximum low-glare lighting distribution.

© Shai Gil

(C)Shai Gil

© Shai Gil

(C)Shai Gil

Architects MJMA, MTa

Location Sherwood Park, Alberta, Canada

MJMA Team Ted Watson, Vitkors Jaunkalns, Andrew Filarski, Robert Allen, David Miller, Cathy McMahon, Tarisha Dolyniuk, Andrew Bramm, Jason Wah, Kenyon Jin, Katya Tunon-Marshall, Timothy Belanger, Amanda Chong

MTa Team Tom Tittemore, Bill Vance

Area 57000.0 m2

Project Year 2016

Photographs Shai Gil

Category Community Center
