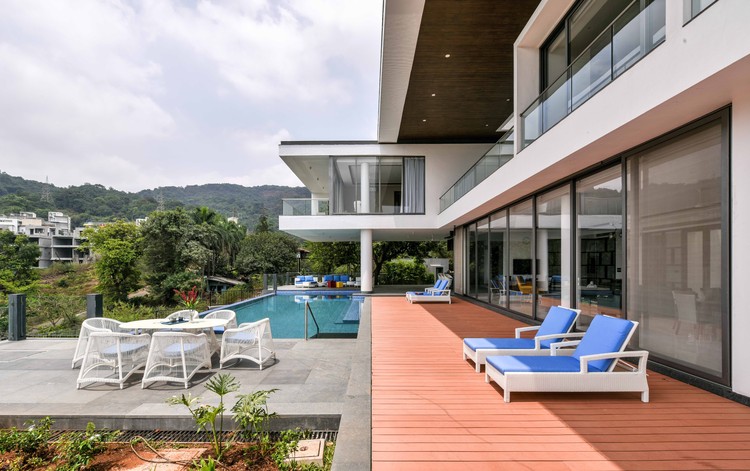

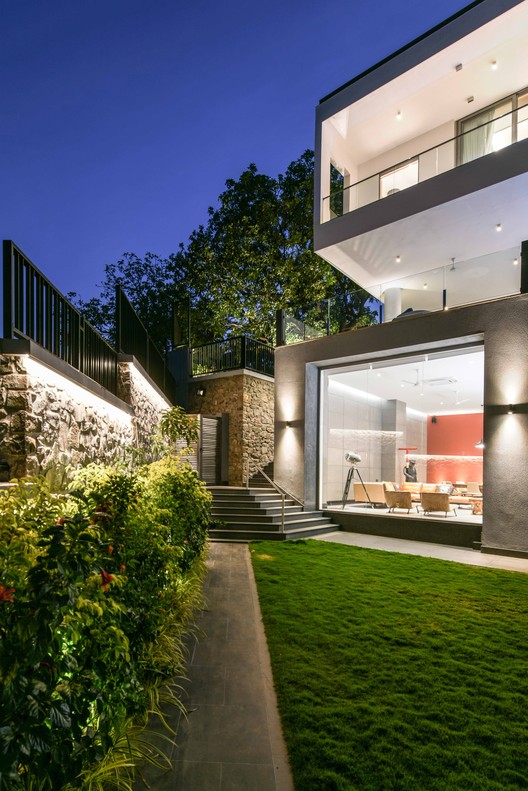

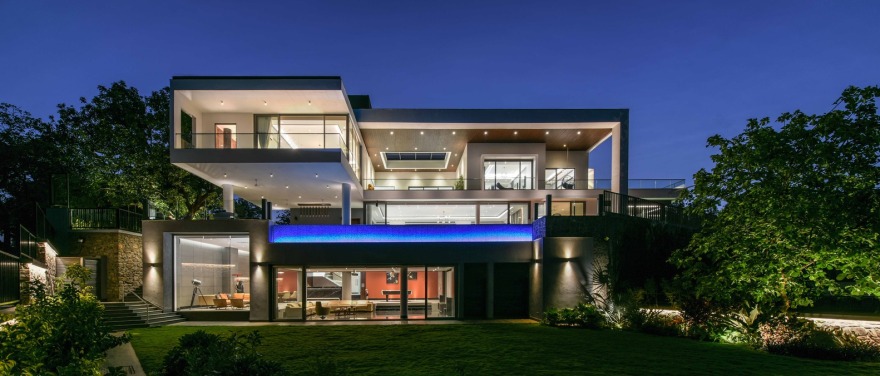

架构师提供的文本描述。为了尽量扩大对山谷的看法，使四口之家的别墅能够与环境联系起来，在一片土地上构思了这座别墅，该地块与通往山谷的陡坡形成了很深的等高线。这座别墅景色壮丽，地球、水和环境交融在一起，展现了大自然的现象。在规划别墅时，大多数房间都对景观进行了优化。在开发山景的同时，自然景观轮廓得到了有效利用，创造了一个以别墅为核心的无限大游泳池。游泳池下面的区域作为房子的休闲区，更多的半公共区域，游戏和娱乐区的功能位置，同时打开一个郁郁葱葱的绿色花园。

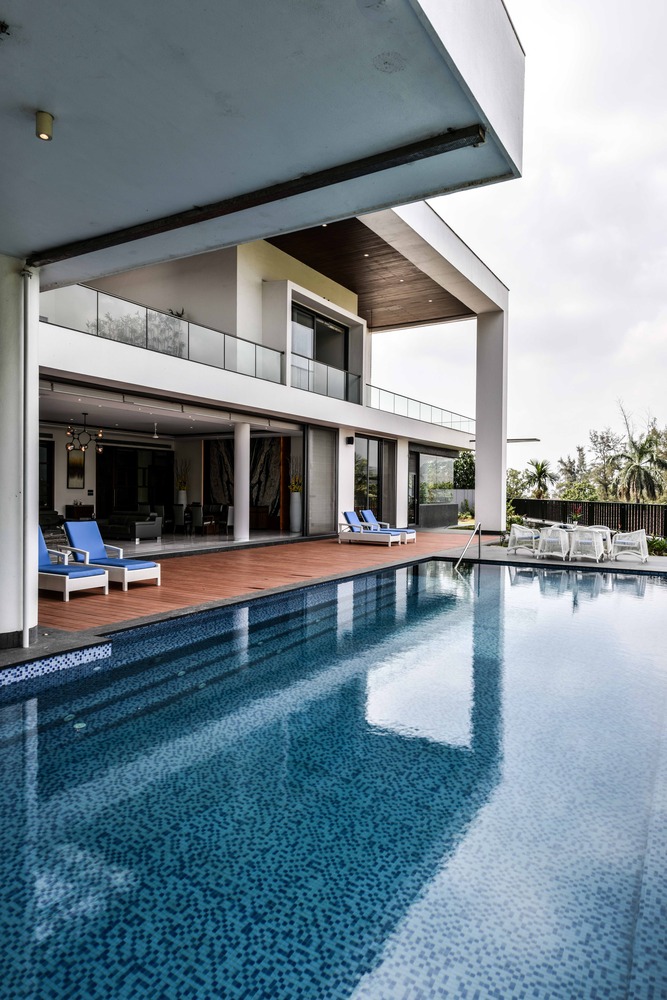

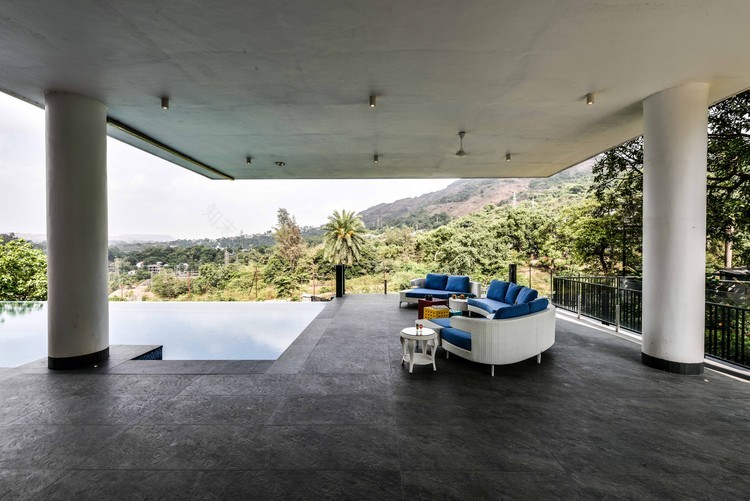

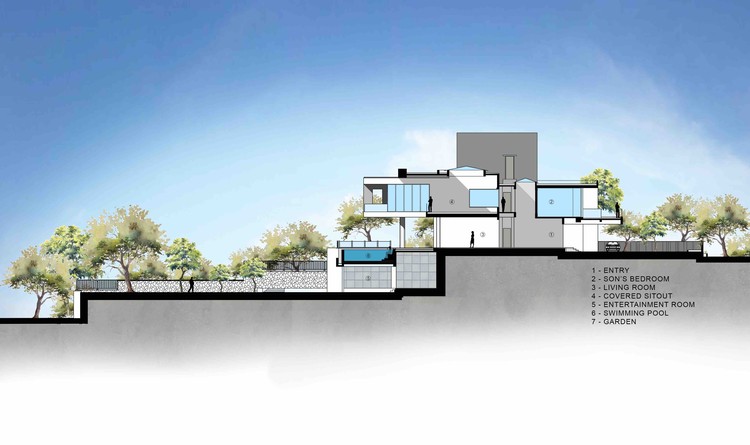

Text description provided by the architects. Planned with a brief of maximizing views of the valley and enabling a nexus with the environment, the villa for a family of four has been conceived on a plot of land that is deeply contoured with a steep slope towards the valley. With stupendous views, where earth, water and the environment amalgamate to demonstrate nature’s phenomenon, the villa has been planned with most of the rooms optimizing the views. The natural site contours have been used effectively while exploiting the views of the mountains to create an infinity swimming pool that manifests itself as the core of the villa. The area under the pool serves as a leisure zone of the house, the more semi-public zone where games and an entertainment area are functionally located, while opening out into a lush green garden.

(Prashant Bhat)

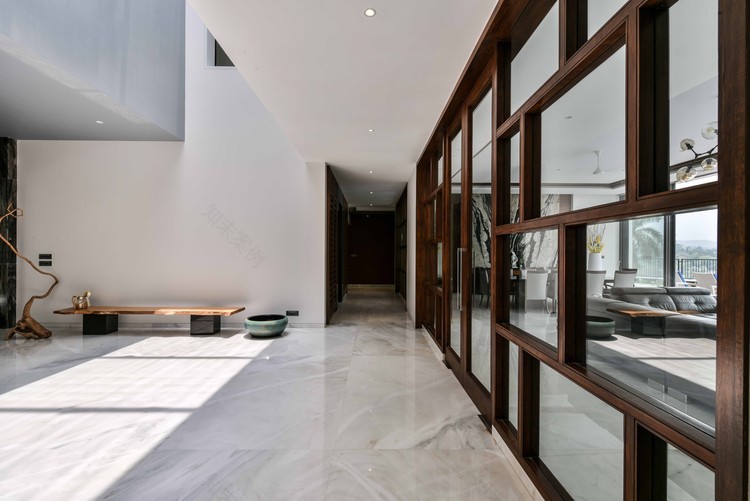

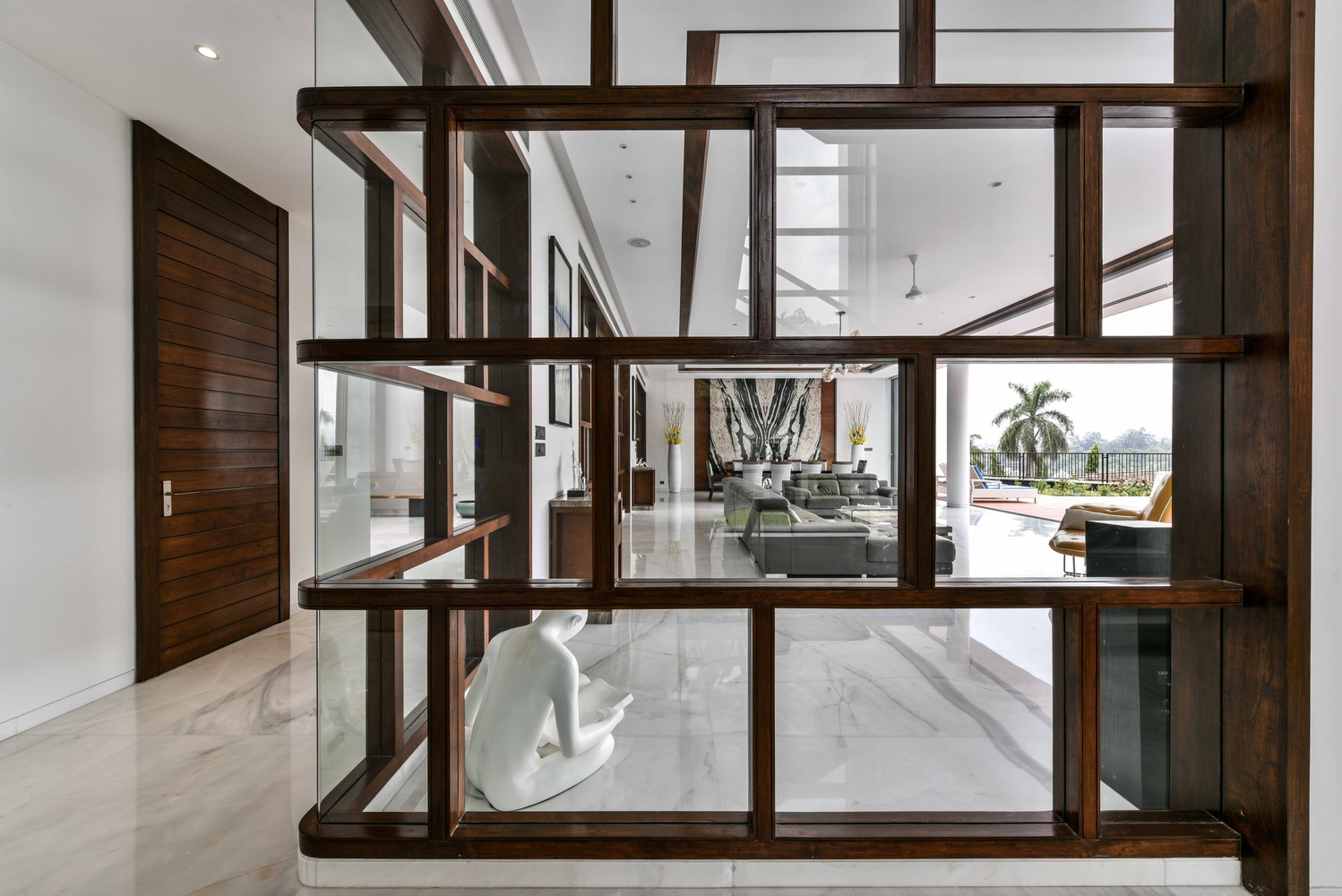

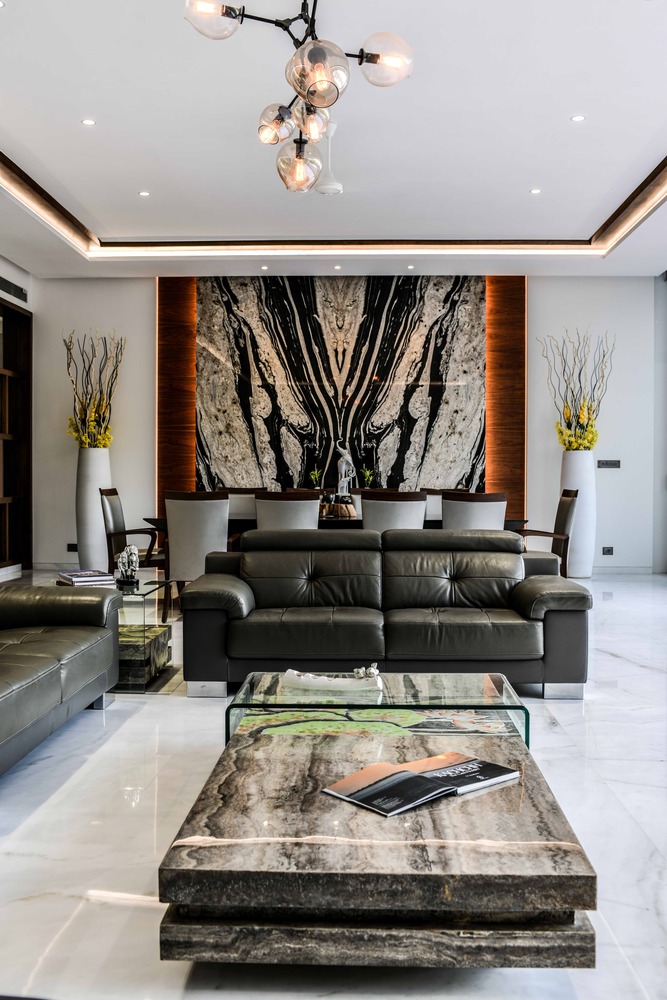

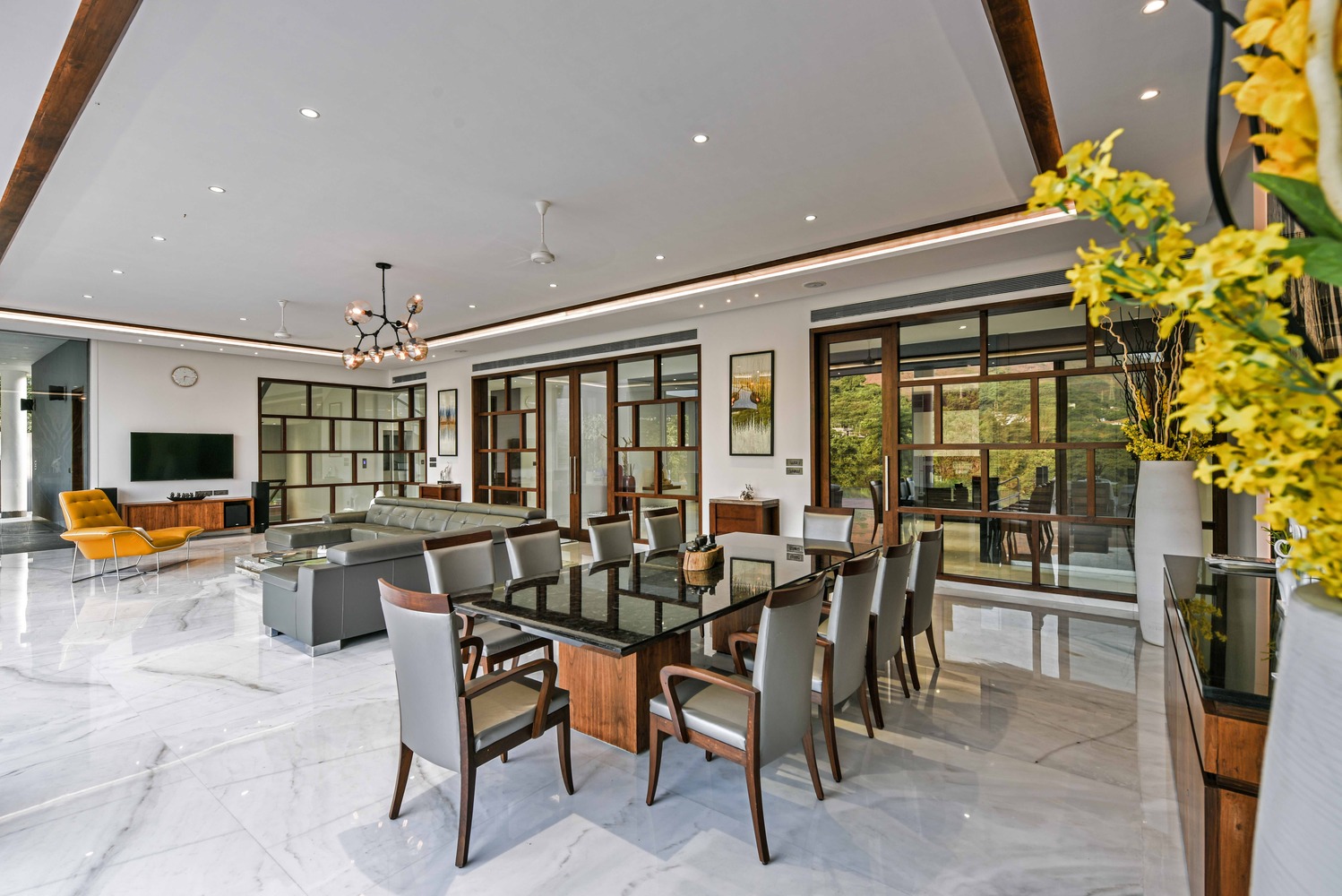

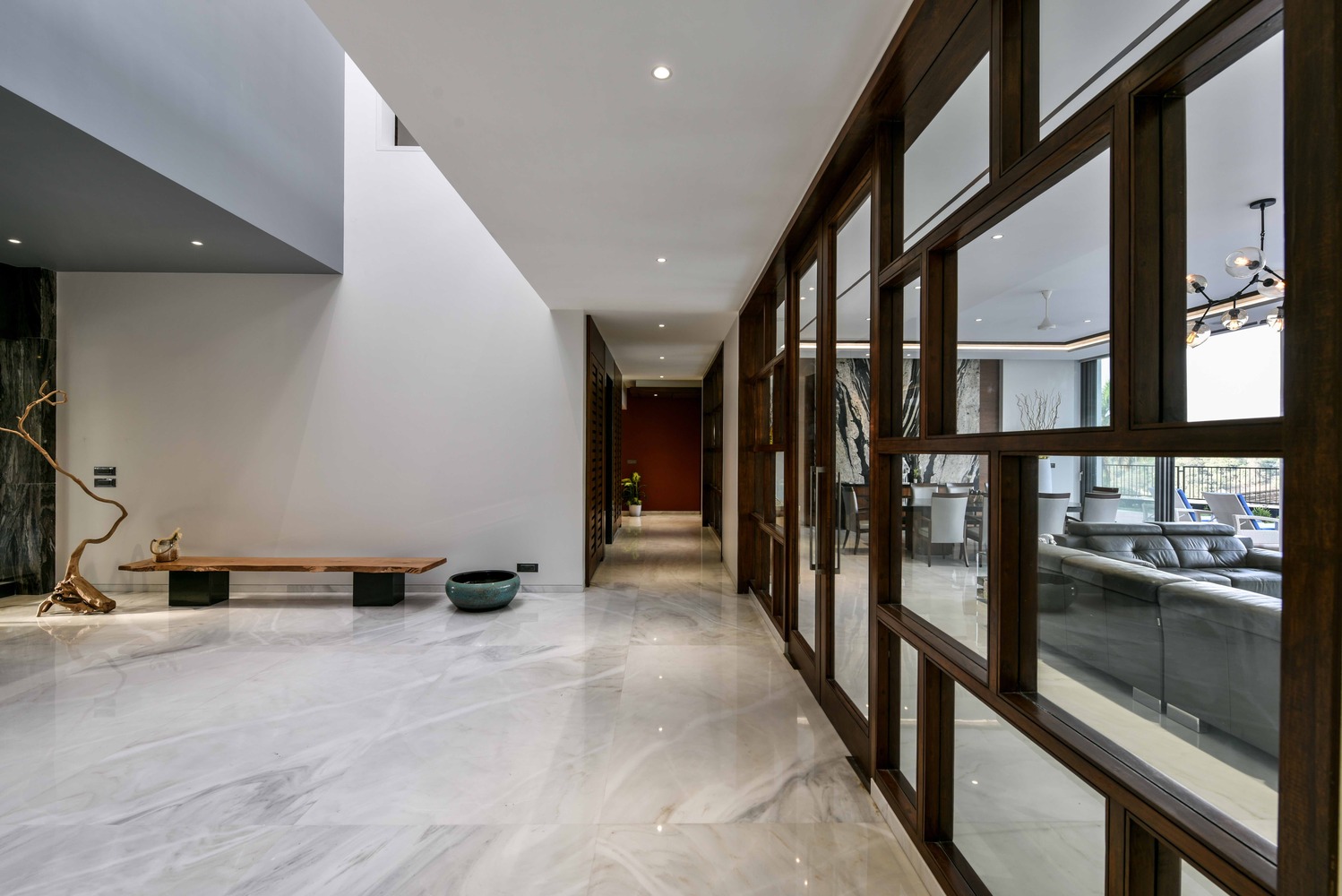

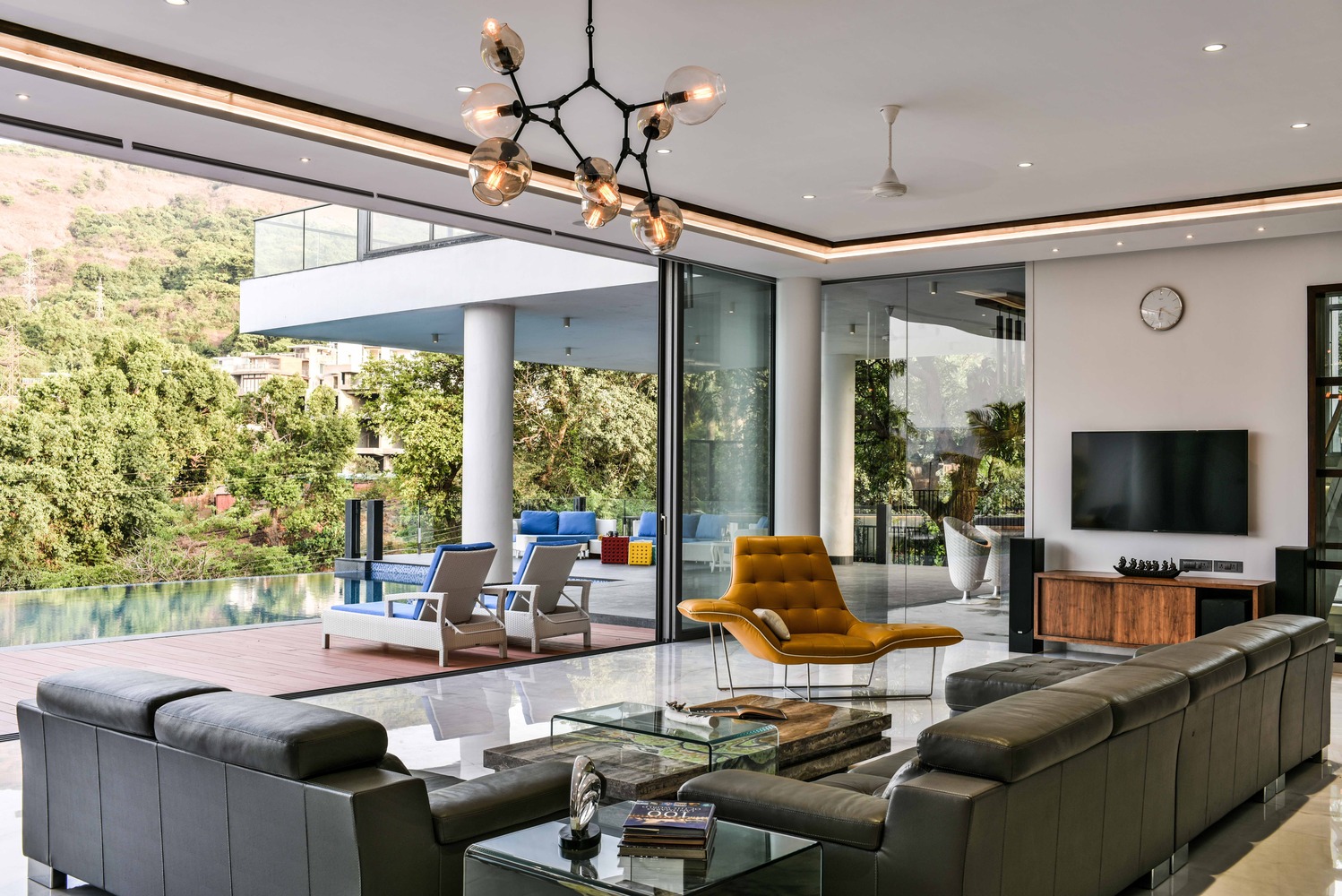

采用简单的家居设计分区原则，客厅、客房、厨房、普通客房、水疗中心和按摩浴缸等公共区域均位于底层。一楼有3间卧室，而底层是娱乐和游戏区。底层的房间和第一层的房间都是通过水平轴上的一条直线通道连接起来的，成为空间规划的核心，驱动着建筑形式的布局和体积。一个玻璃和木制的屏风隔开客厅的一边，另一边有40英尺的开放，面向山谷，为房子的公共区域创造了全景。这里的家具语言遵循现代调色板和皮革家具，石灰华大理石桌面和蓝色花岗岩餐桌上。一个有趣的异国情调巴西花岗岩形成了一个特色墙在客厅。主卧室有一个13英尺的悬臂突出，为下面的室外提供阴凉处。

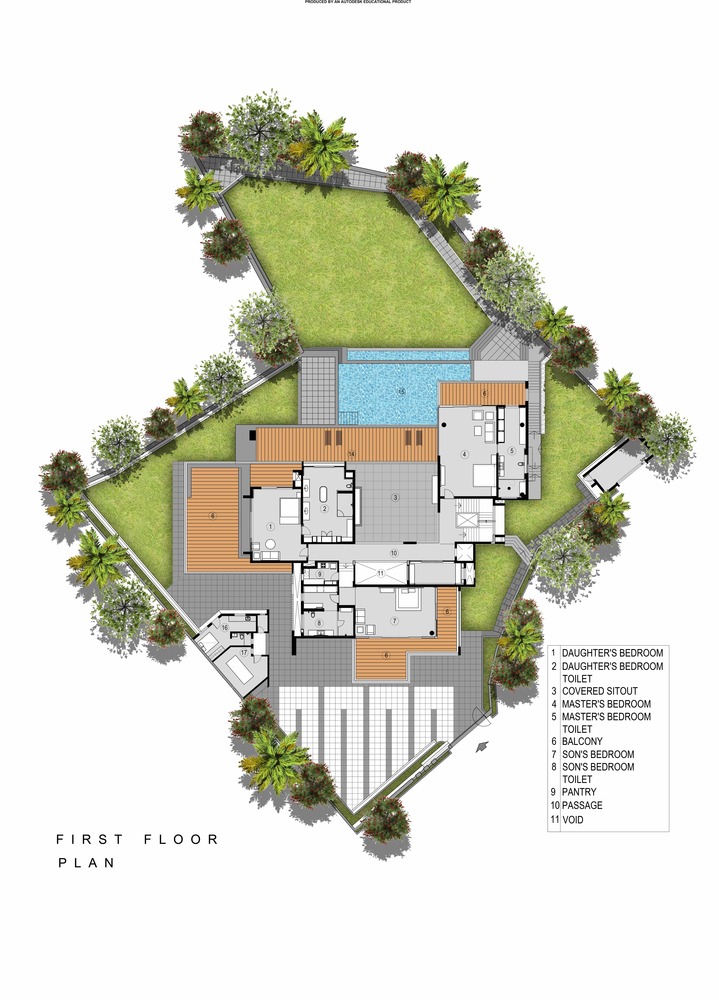

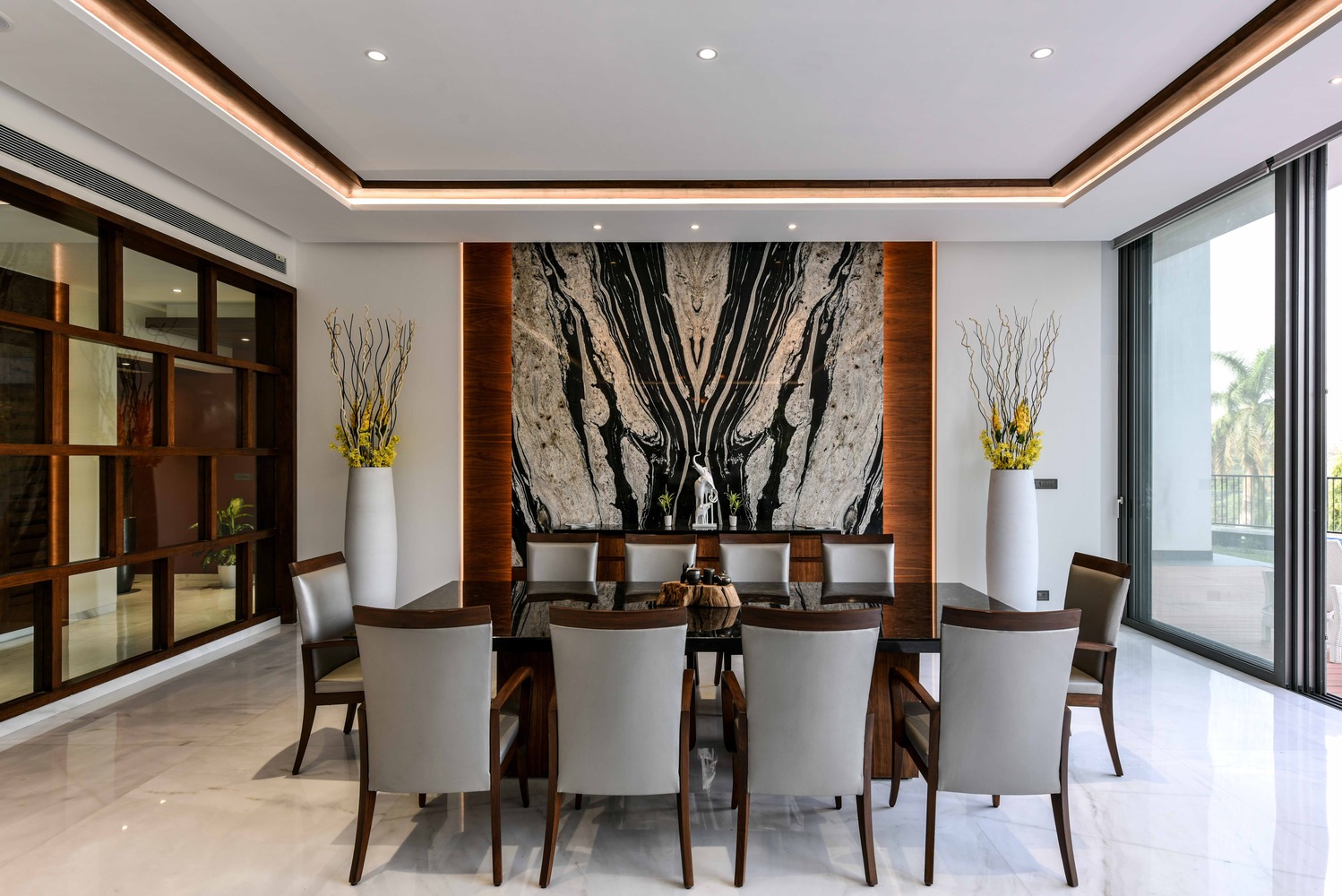

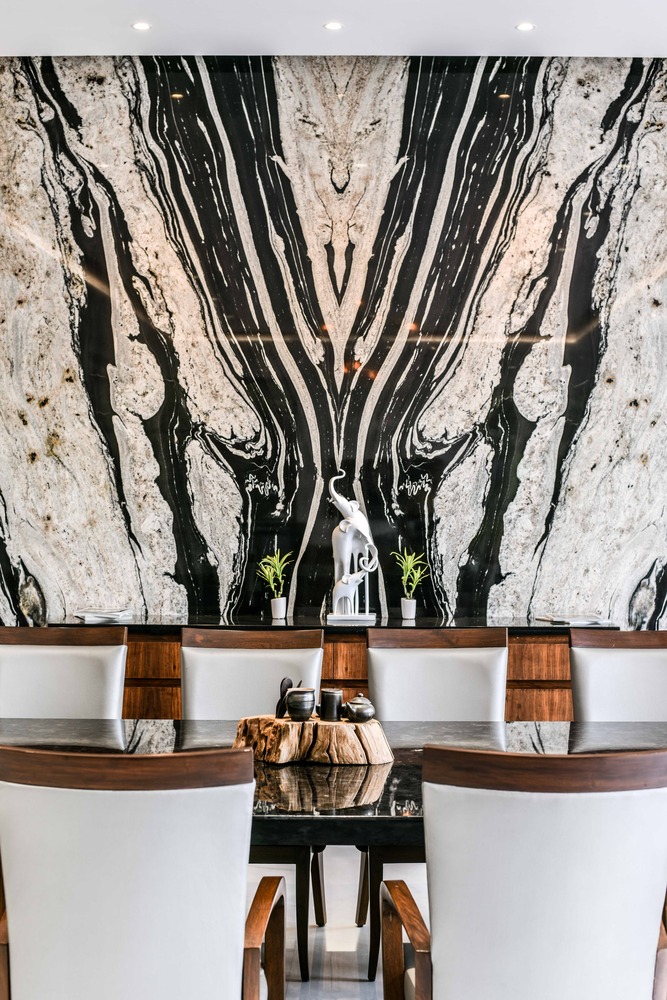

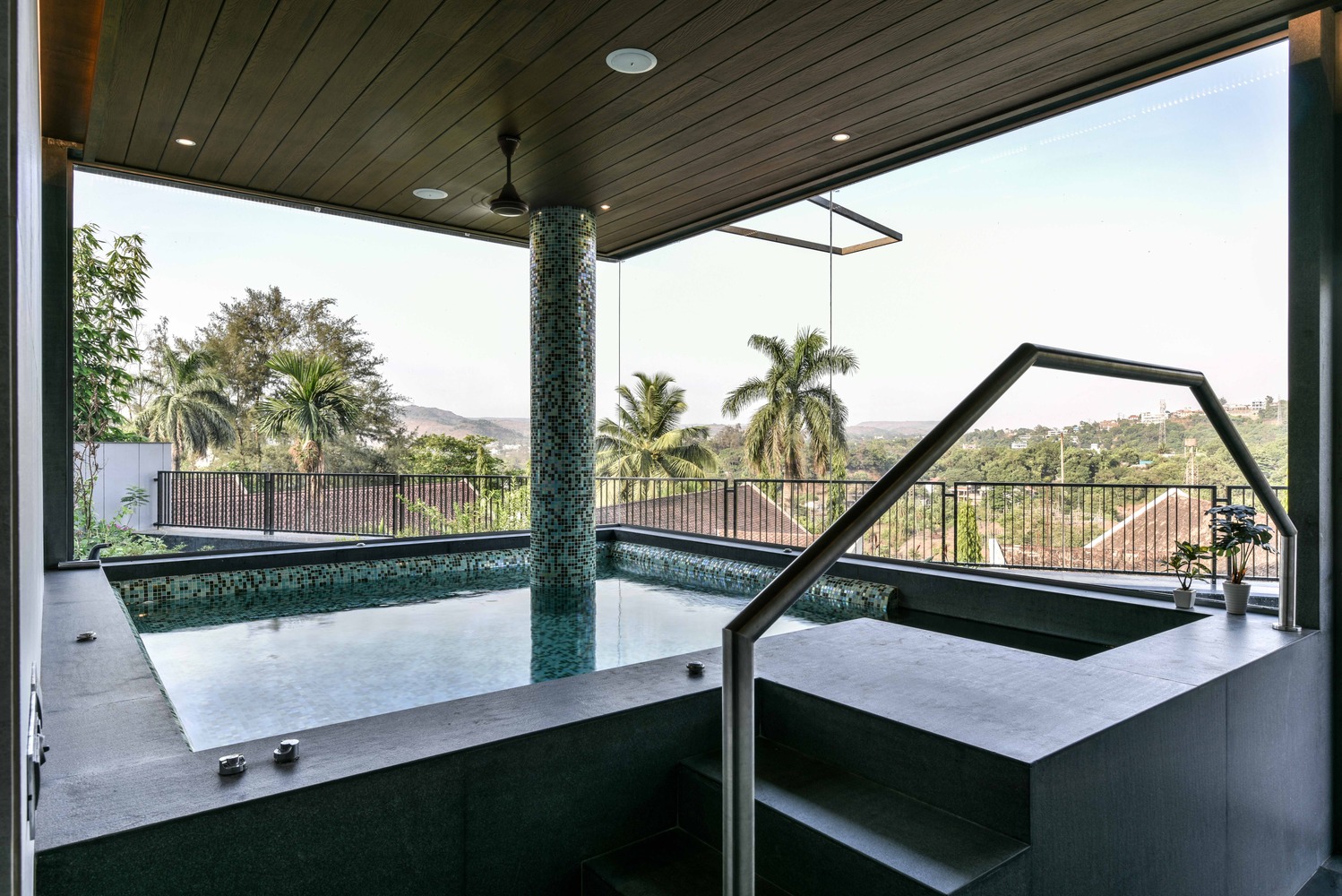

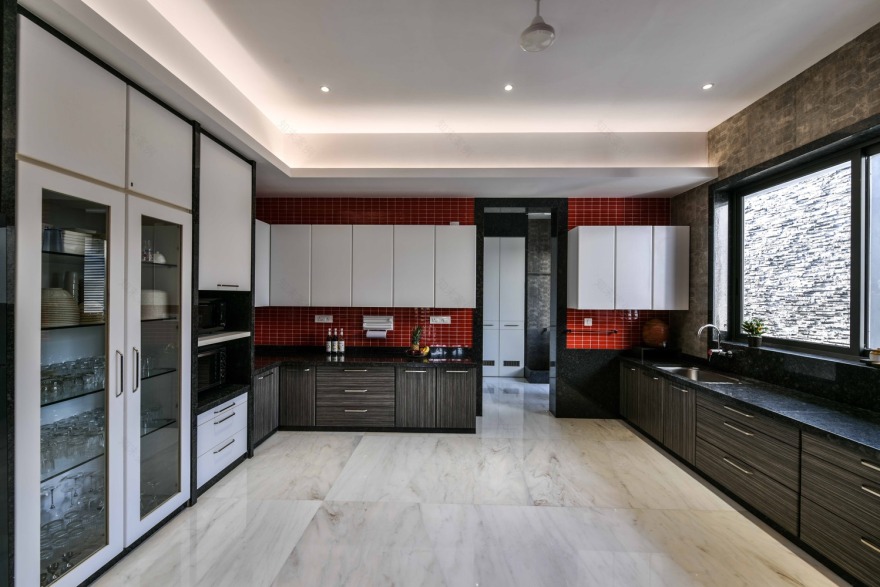

Molded with simplistic zonal principles of home design, the more public zones of the house such as the living area, guest room, kitchen, common guest room and the spa and Jacuzzi are all located on the ground floor. The first floor has 3 bedrooms, while the lower ground houses the entertainment and games area. The rooms on the ground floor and the first are all connected by a linear passage on the horizontal axis, which becomes the core of the spatial planning, driving the layout and the volumes of the built form. A glass and wooden screen separates the living room on one side and has 40 feet opening on the other facing the valley, creating panoramic views for the more public zone of the house. The language of the furniture here follows a modern palette with leather furniture, travertine marble table tops and a blue granite dining table top. An interesting exotic Brazilian granite forms a feature wall in the living room. The master bedroom has a 13 feet cantilever projecting out which provides shade to the outdoor sitting beneath.

(Prashant Bhat)

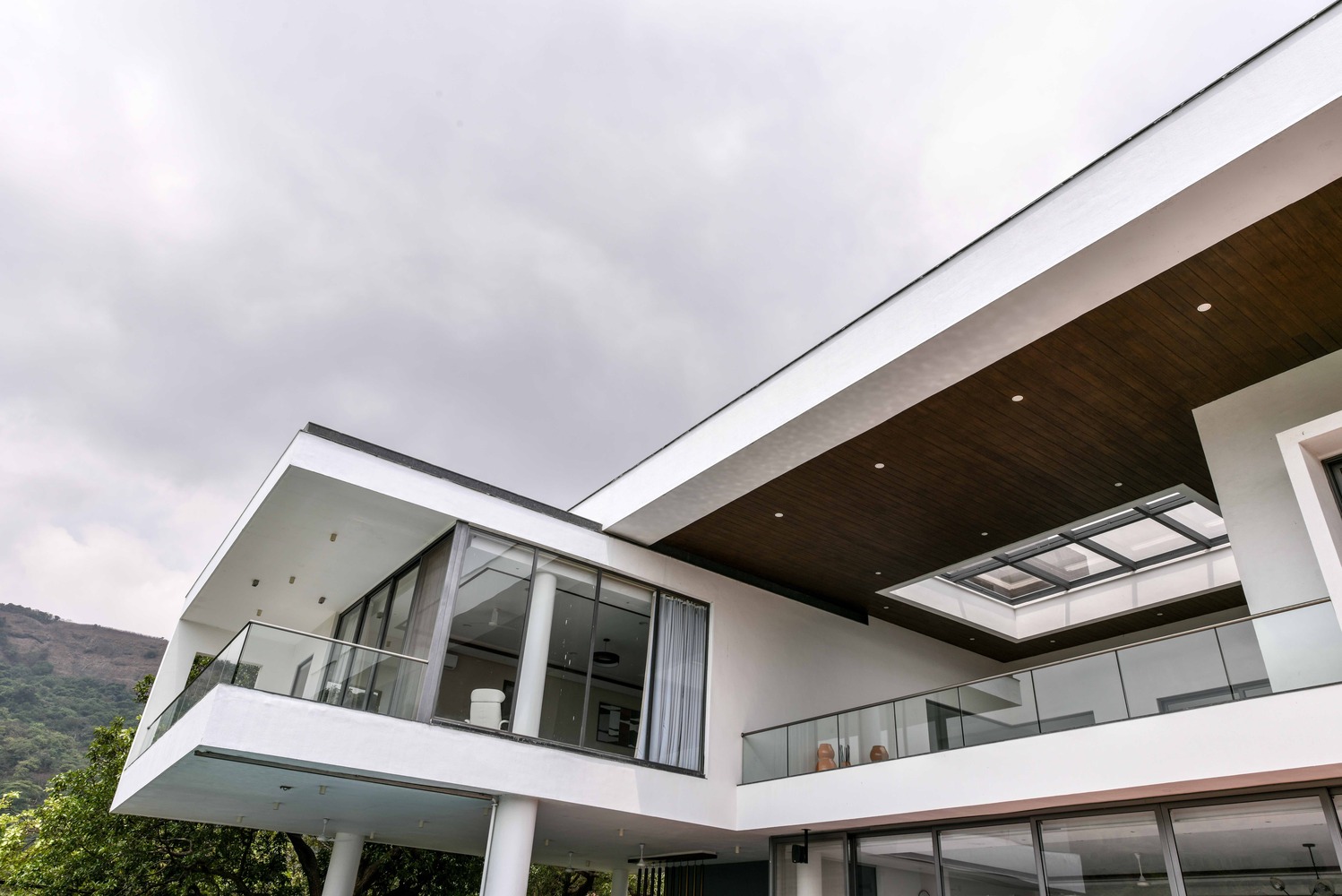

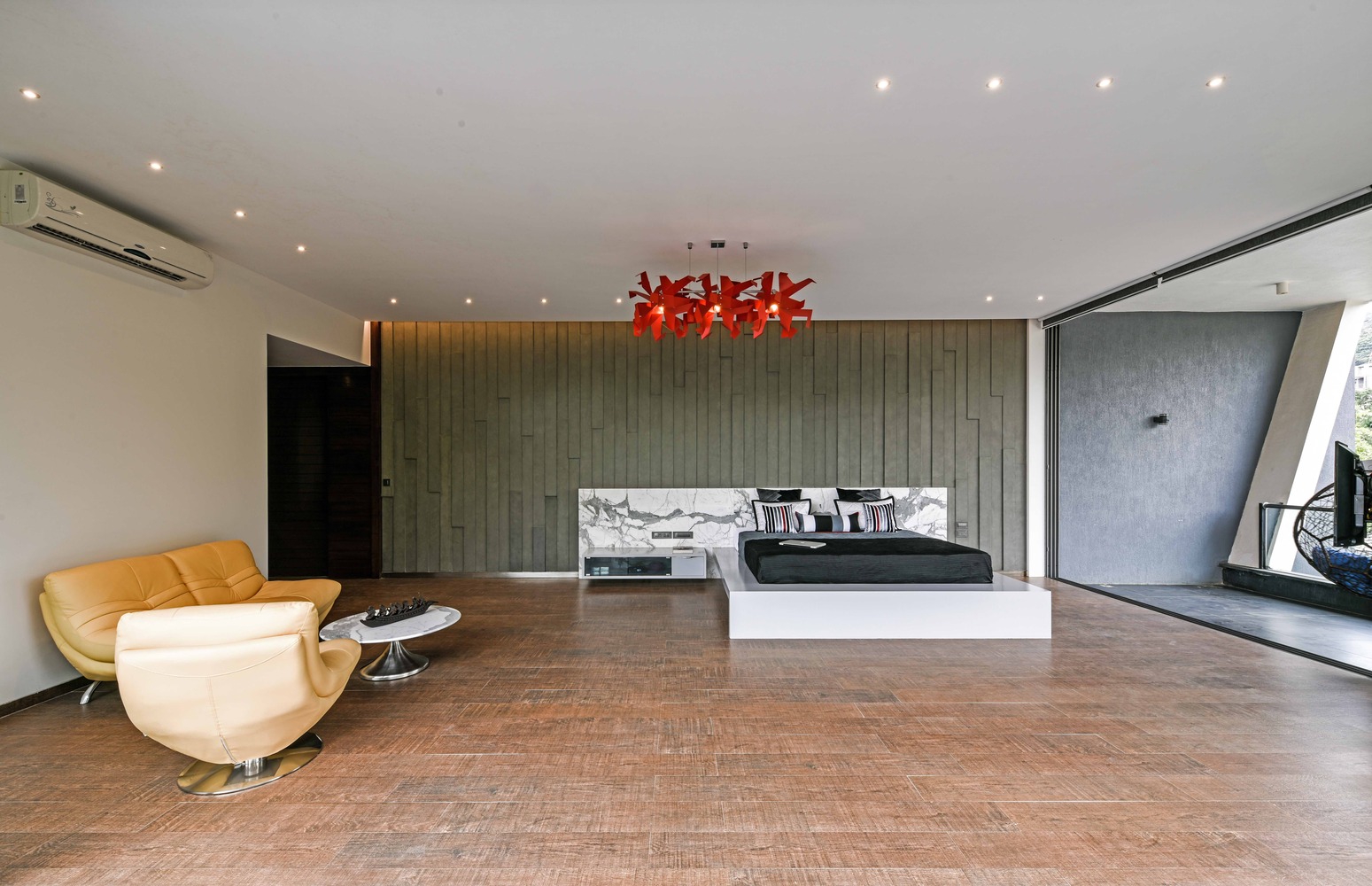

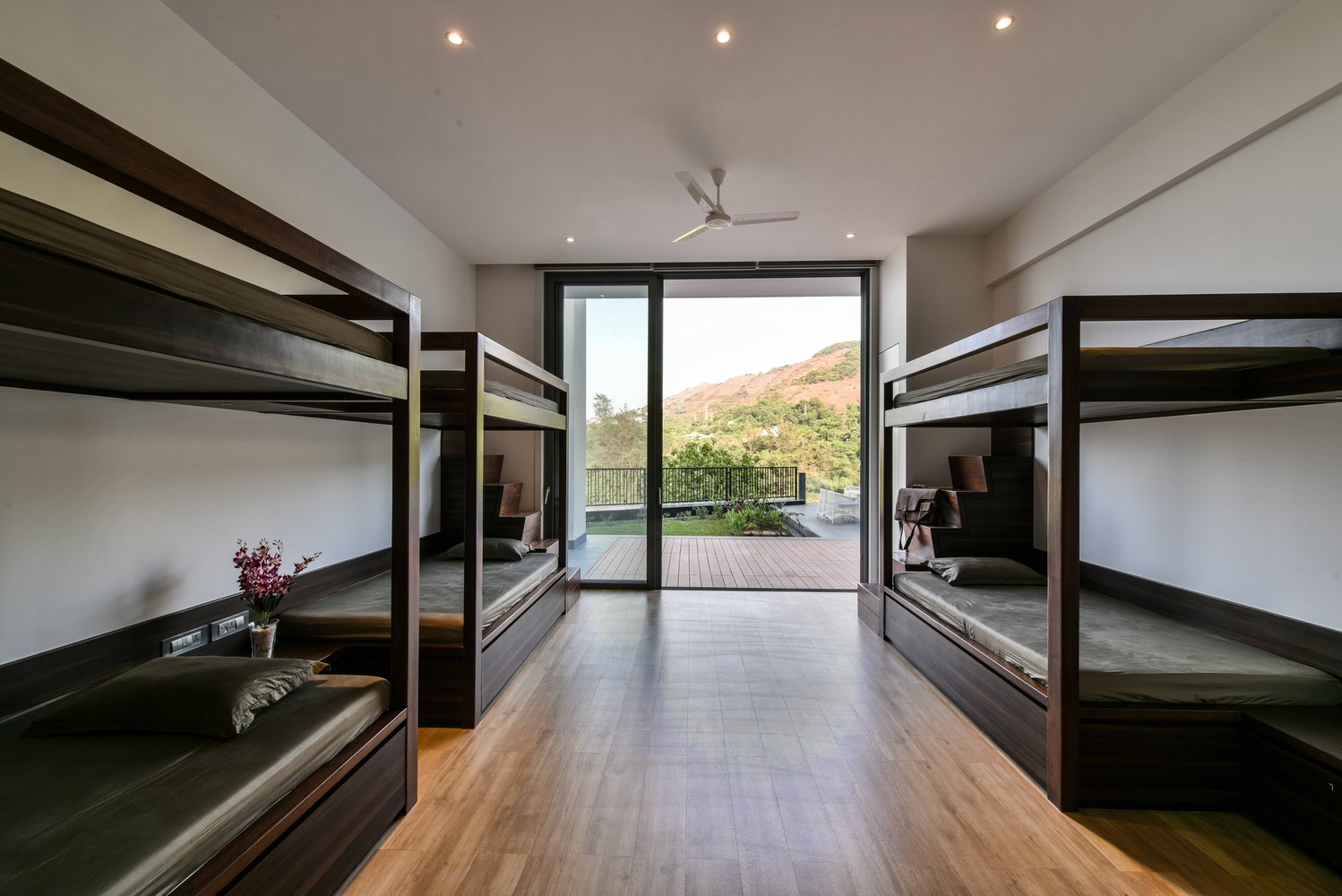

在一楼，主卧室是悬挑在游泳池下面的部分，并利用最好的景观。它被设计成一个悬臂式的块，它被一个门围起来，与它后面的起居室互相锁在一起，它的体积使整个设计充满活力。这三种几何图形的联锁创造了一种精力充沛的设计形式，进一步增强了旺盛的审美情趣。儿子的房间是一个鲜明的简约组合的图案混凝土墙，木地板和一张大床7‘x7’与一个萨多里奥大理石靠背。卧室的两面有11英尺高的窗户敞开在一个6‘到15英尺深的巨大甲板上，卧室周围绿树成荫。女儿的房间是在一个巨大的阳台上打开的，阳台对天空开放，可以看到风景优美的甘达拉山谷的风景线。一幅画构成天花板设计的一部分，而其余的卧室是简单的皮革平台床。浴室就在这间卧室旁边。它炫耀一个独立的浴缸，一个衣柜和一个豪华酒廊。只有在远离孟买的农村才能实现如此奢华的尺寸和美学。

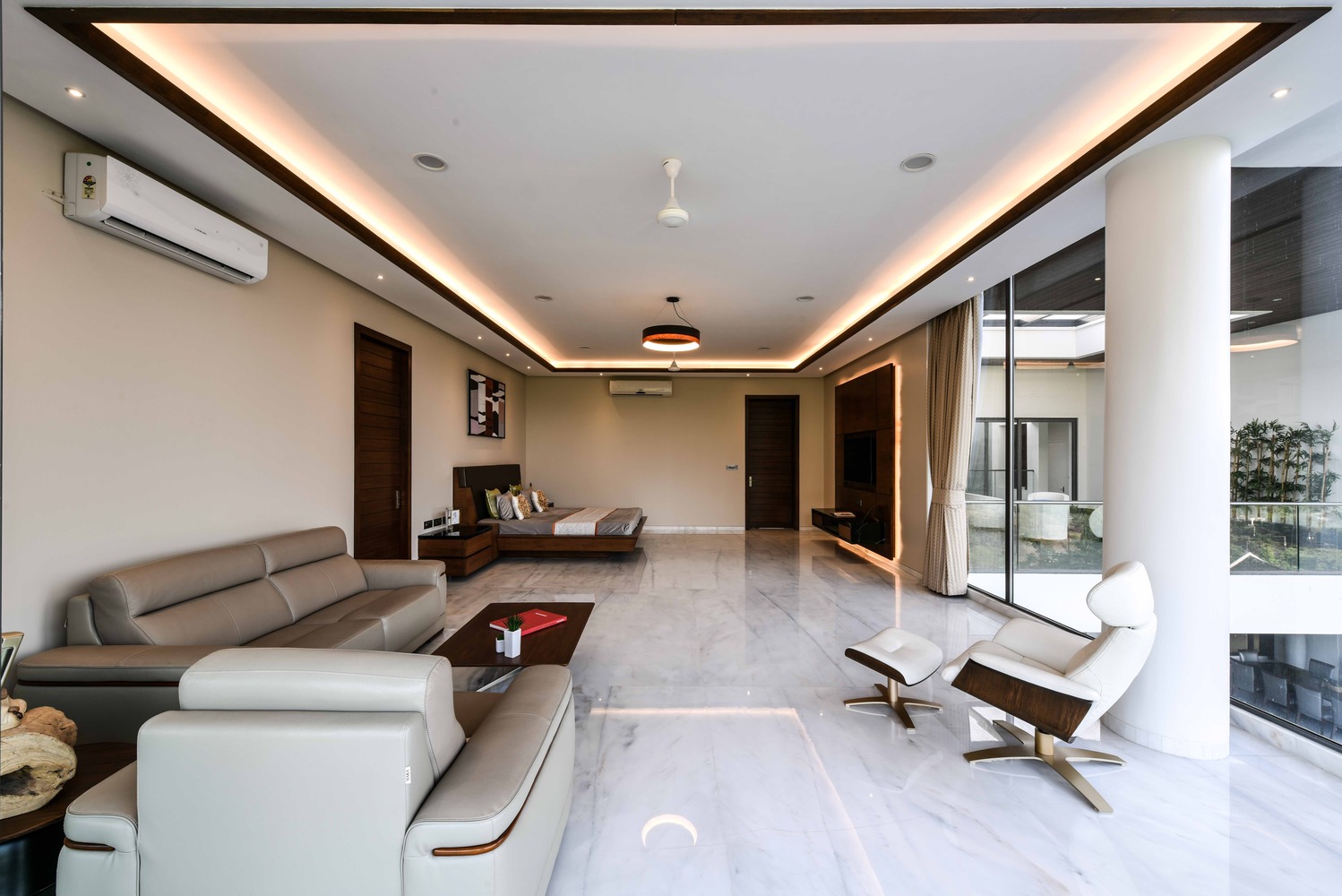

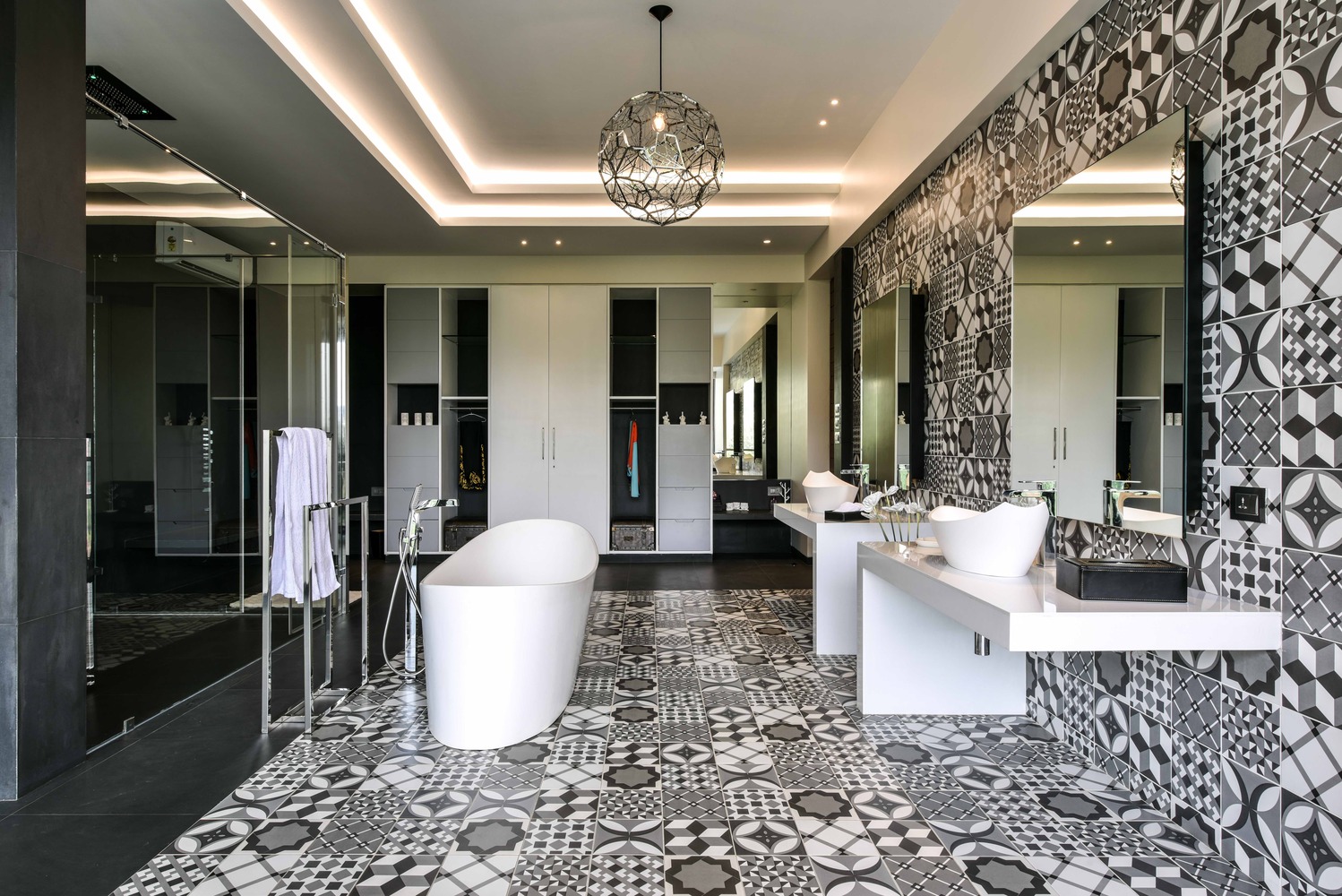

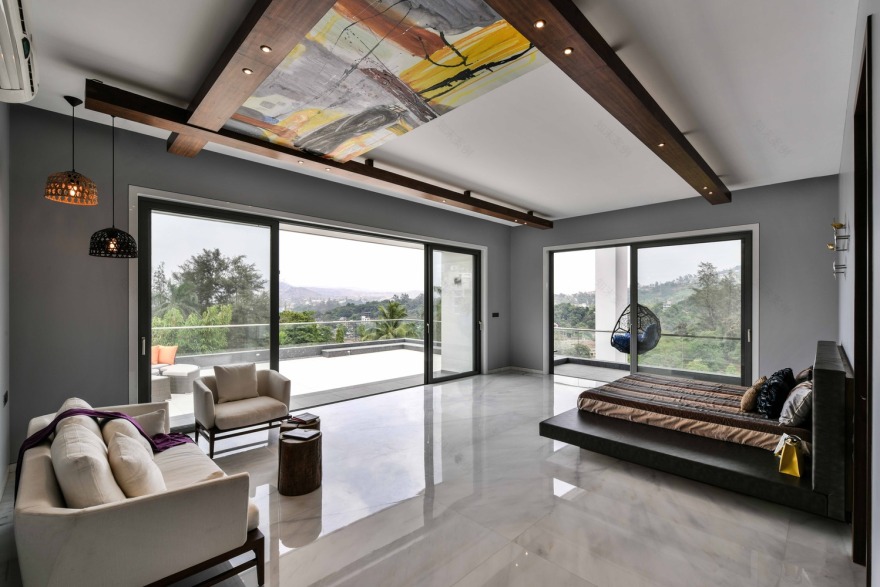

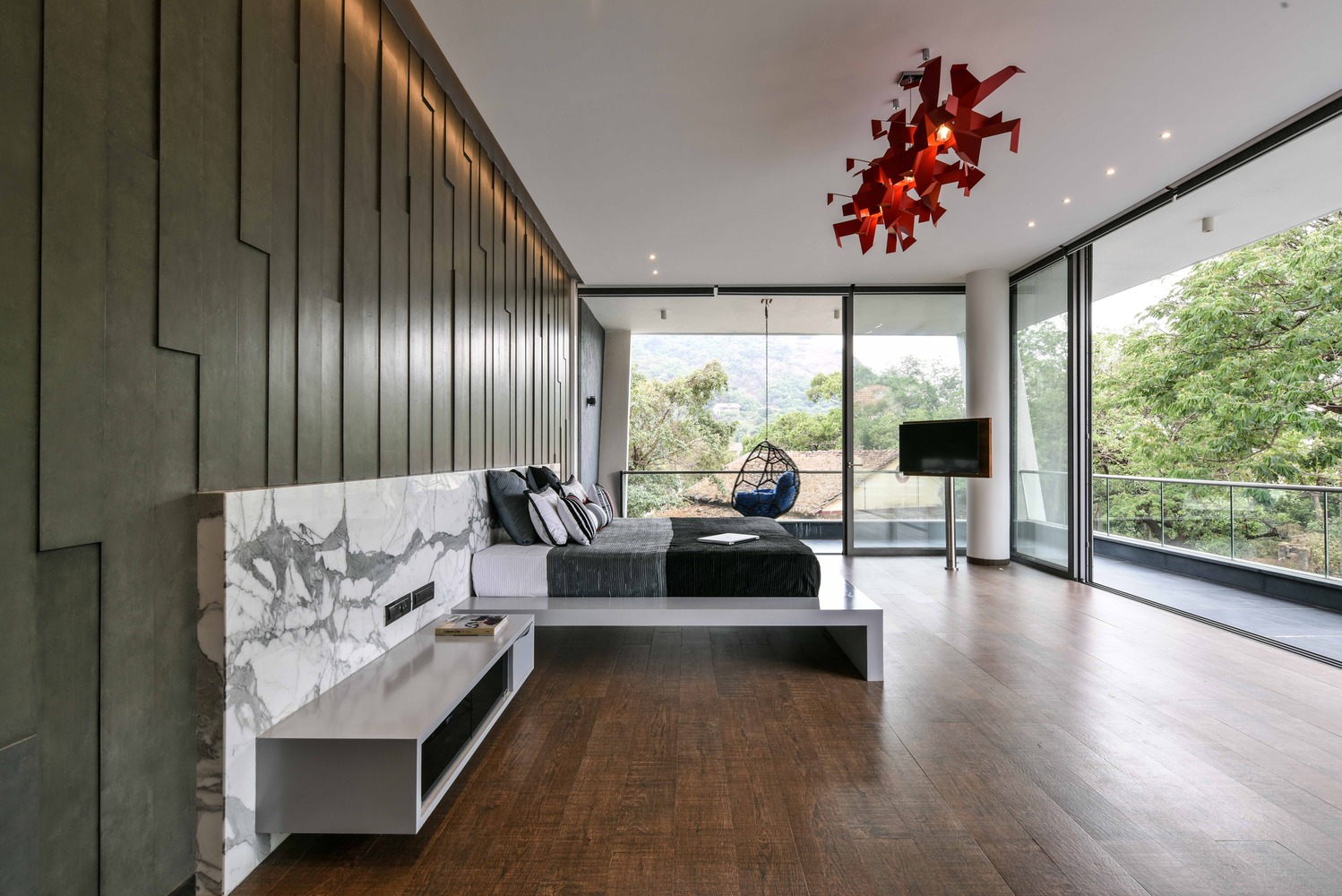

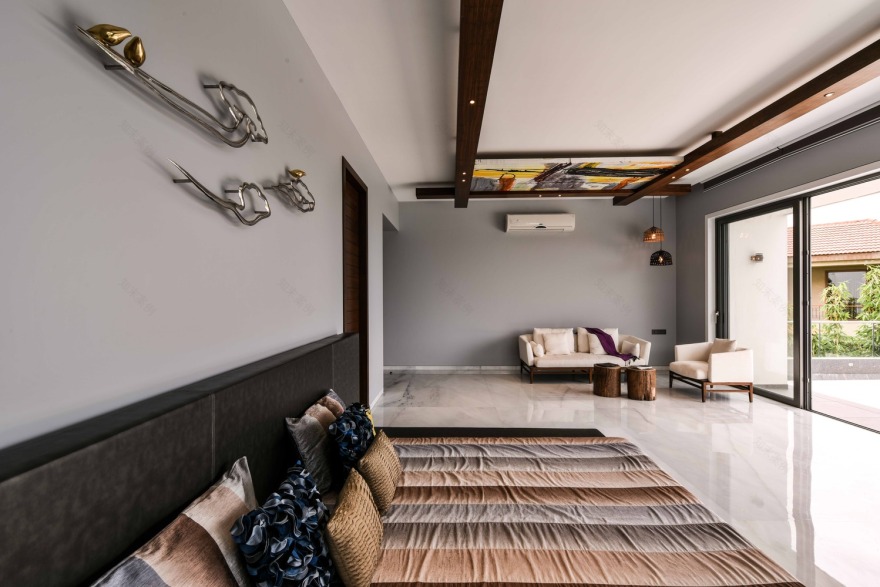

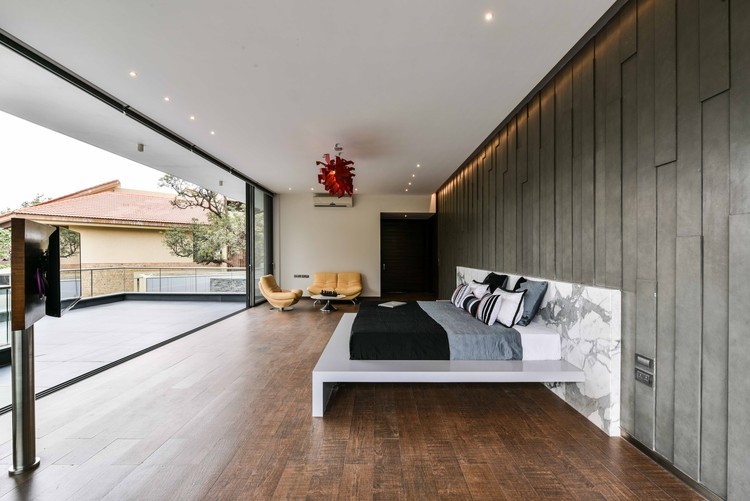

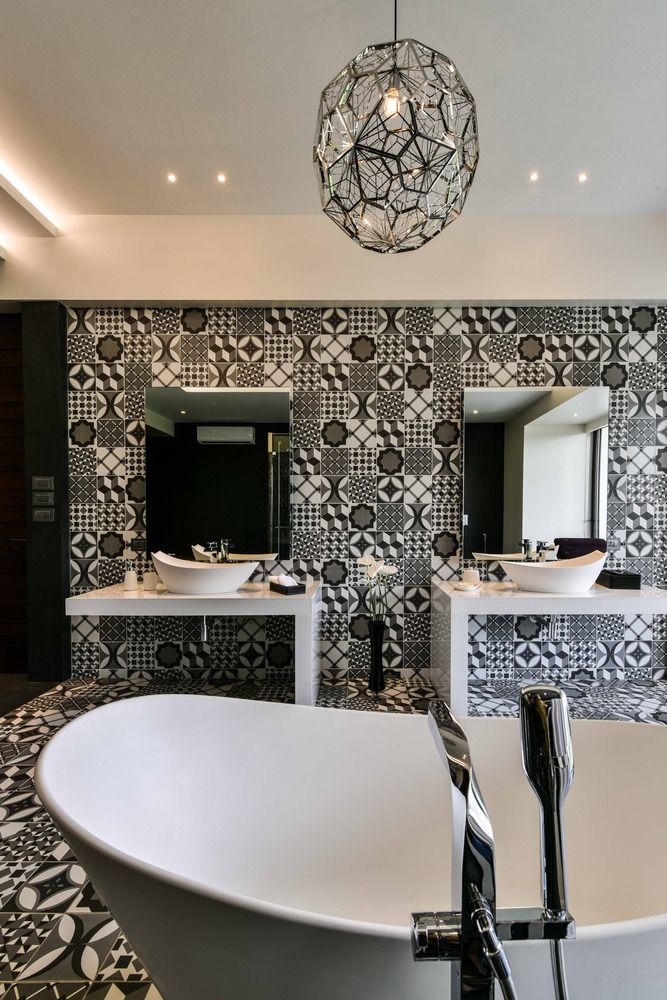

On the first floor, the Master Bedroom is cantilevered partially over the swimming pool below and exploits the best views. Conceived as a cantilevered block enclosed by a portal, which is interlocked with the living room extending beyond it, the volume enables the dynamism of the overall design. The interlocking of the three geometries creates an energetic design form, that further enhances the vigorous aesthetic. The son’s Room is a stark minimalistic combination of a patterned concrete wall, wooden floor and a large bed 7’ x 7’ with a satvario marble backrest. 2 sides of the bedroom have 11’ high windows opening out on a huge deck of 6’ to 15’ in depth, with lush green trees surrounding the bedroom. The daughter’s room opens out on a huge balcony which is open to sky and has a scenic corner view of the scenic Khandala valley. A painting forms part of the ceiling design, while the rest of the bedroom is simple with a leather platform bed. A bathroom sits next to this bedroom. It flaunts a free-standing bathtub, a wardrobe and a chaise lounge. Such luxury of size and aesthetics could only be achieved in the countryside, away from Mumbai.

(Prashant Bhat)

考虑到坎达拉是一个暴雨地区，建筑基本上是用砖块和混凝土完成的。这些墙有9英寸厚，以保护建筑物免受暴雨的侵袭。大型悬垂也可作为甲板，在夏季保护房屋内壁不受暴雨和烈日的影响。平板施工技术带来了无缝的美学效果，进一步增强了建筑的开放性，实现了与室外绿化的视觉连接。

Keeping in mind that Khandala is an area of heavy rainfall, the construction is essentially done in brick and concrete. The walls are 9 inches thick to protect the building from heavy rainfall. Large overhangs which also serve as decks protect the inner walls of the house from the heavy rains and the sharp sun during summers. A Flat slab construction technique has ensued the seamless aesthetic, which further augments the openness and results in a visual connect with the outside greens.

(Prashant Bhat)

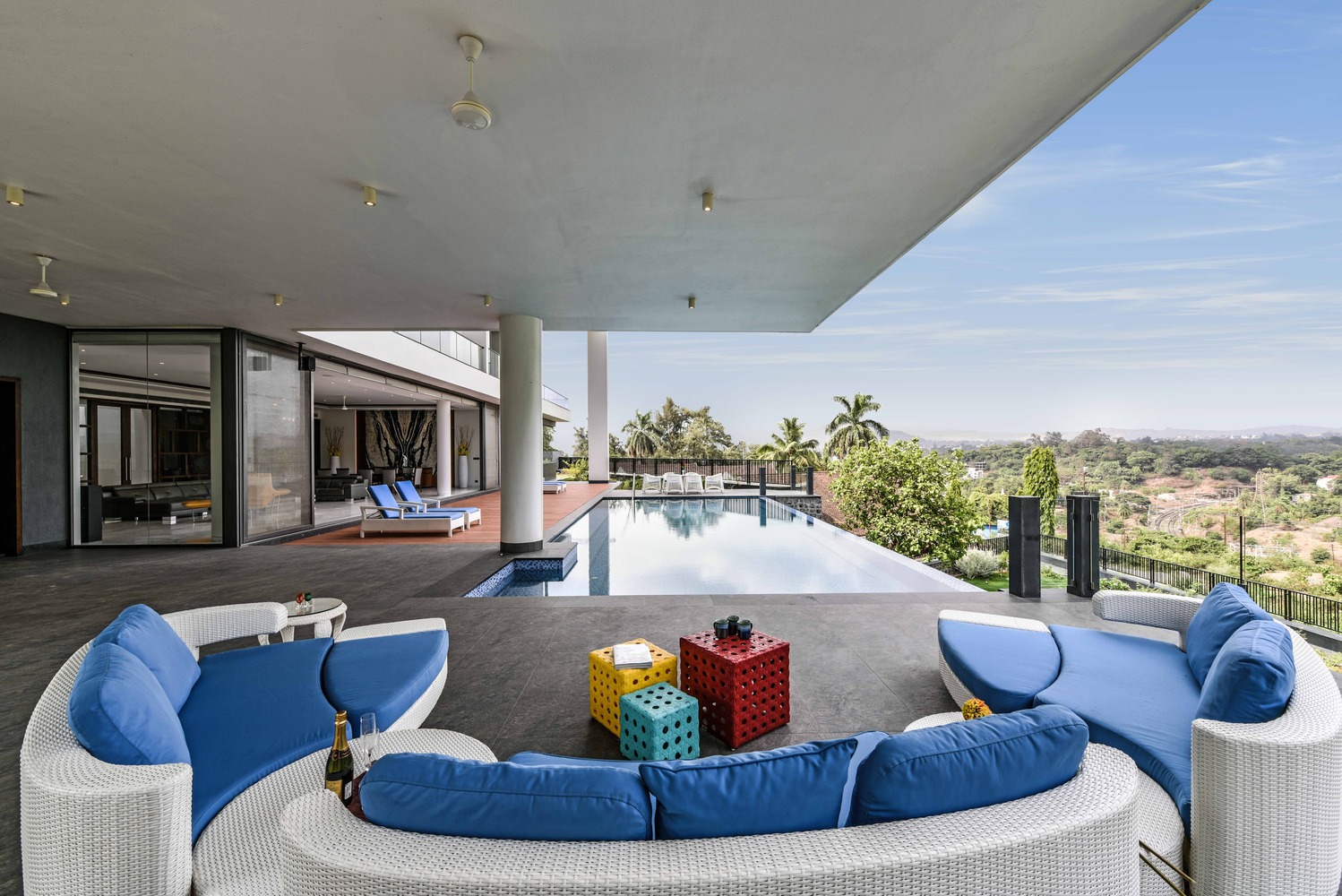

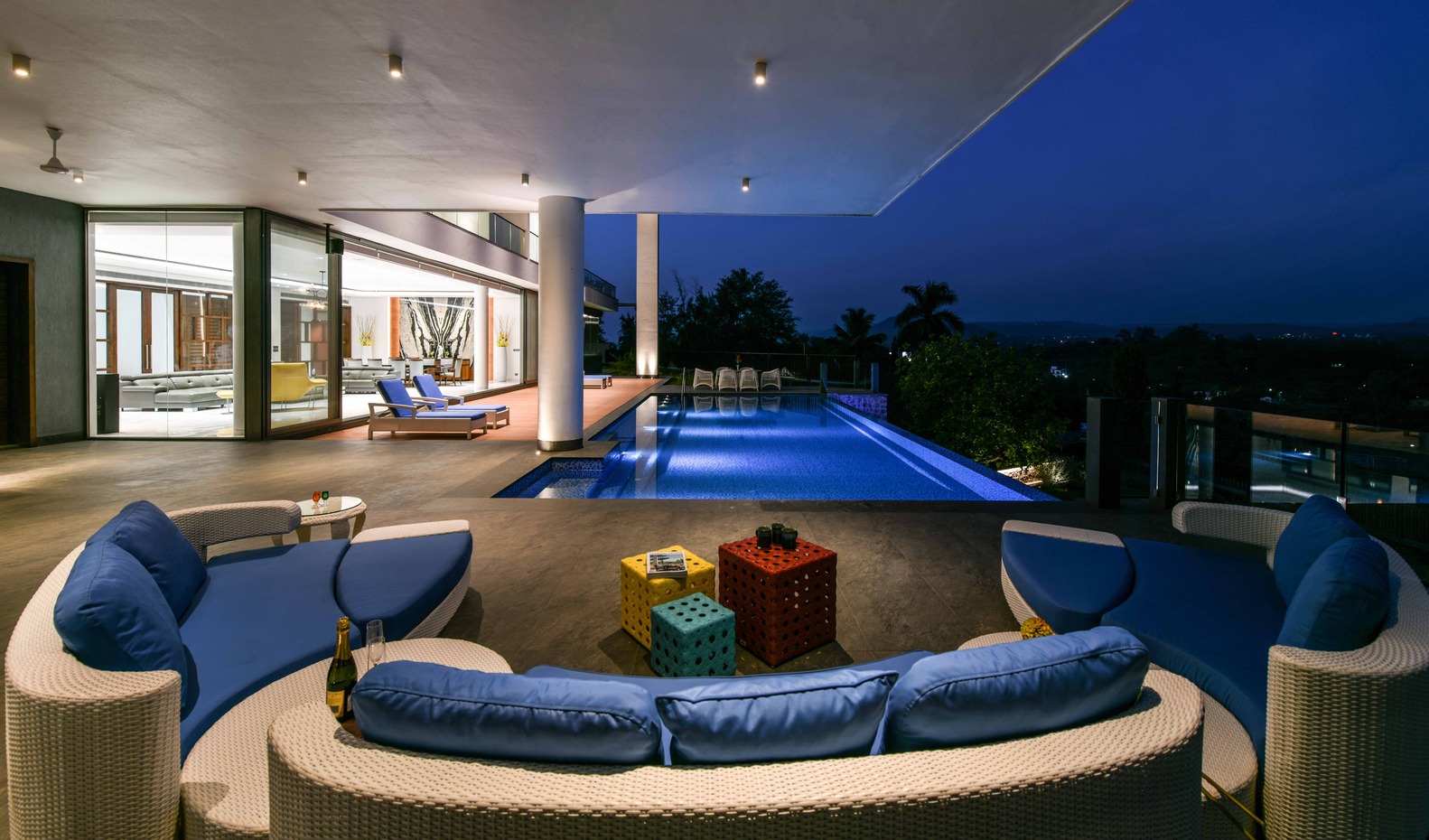

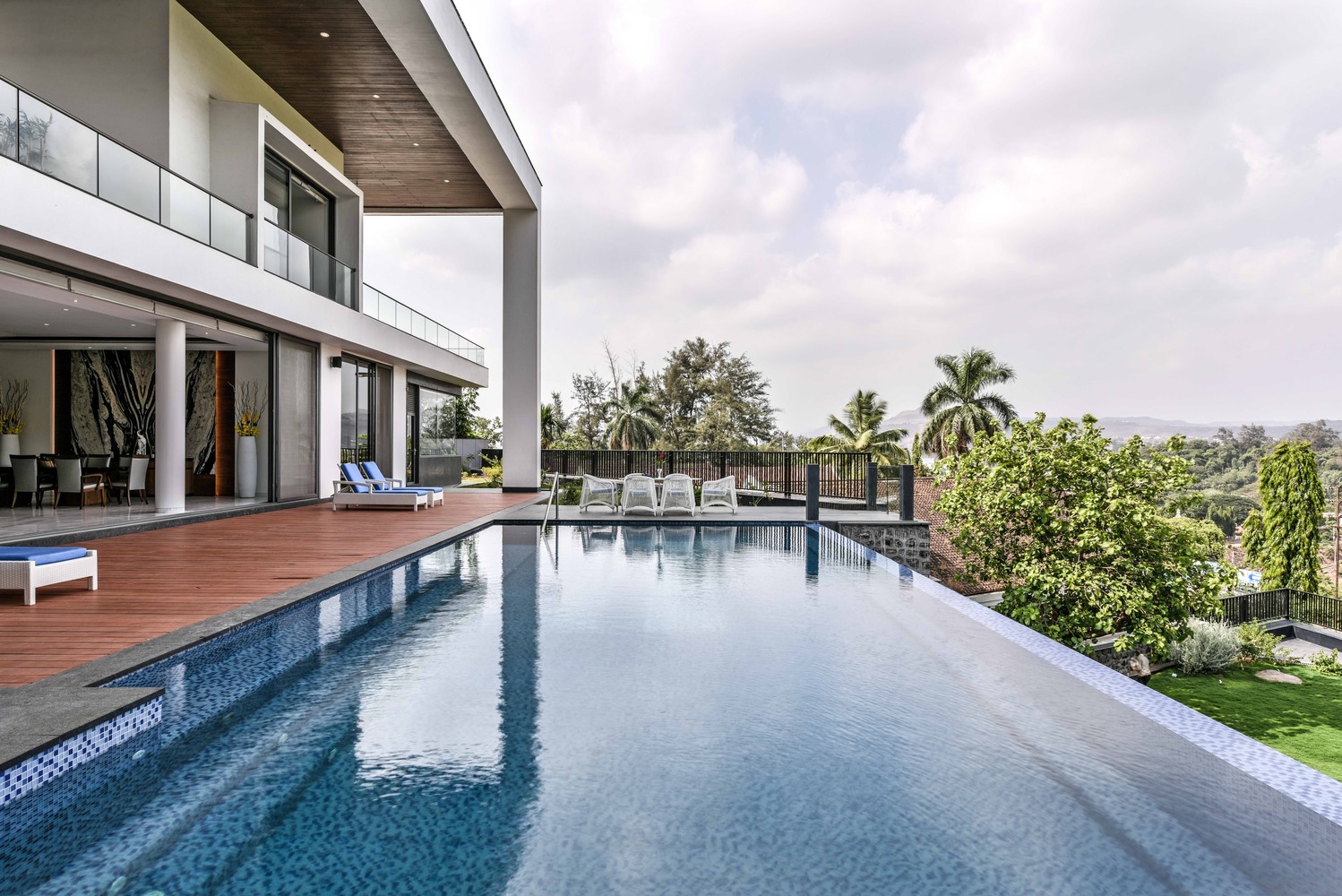

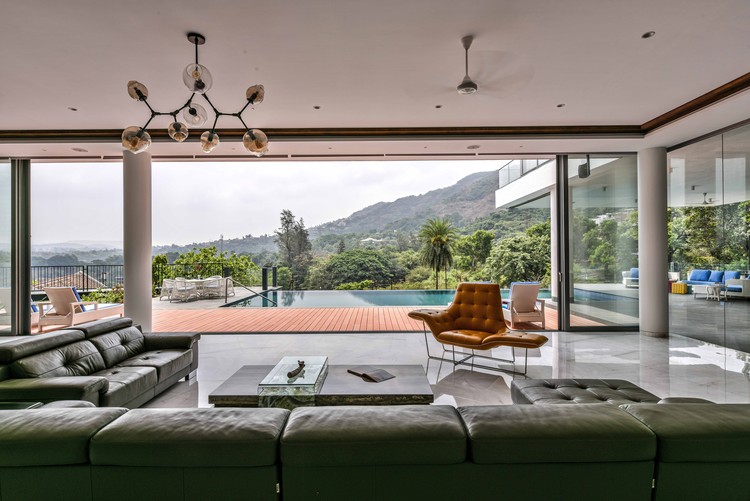

别墅的设计语言是现代的。外墙和内墙都是白色的。地板是用白色拉萨大理石做的。别墅内部的白度和没有梁的无缝楼板创造了一个美丽的视觉对比，模糊了内部的边界与郁郁葱葱的绿色花园和树叶的外部景观。别墅的美丽是无限的游泳池，创造了一个令人叹为观止的景观从生活区。一幅迷人的山景是由一个30英尺高的大门构成的，它部分覆盖了室外座位。

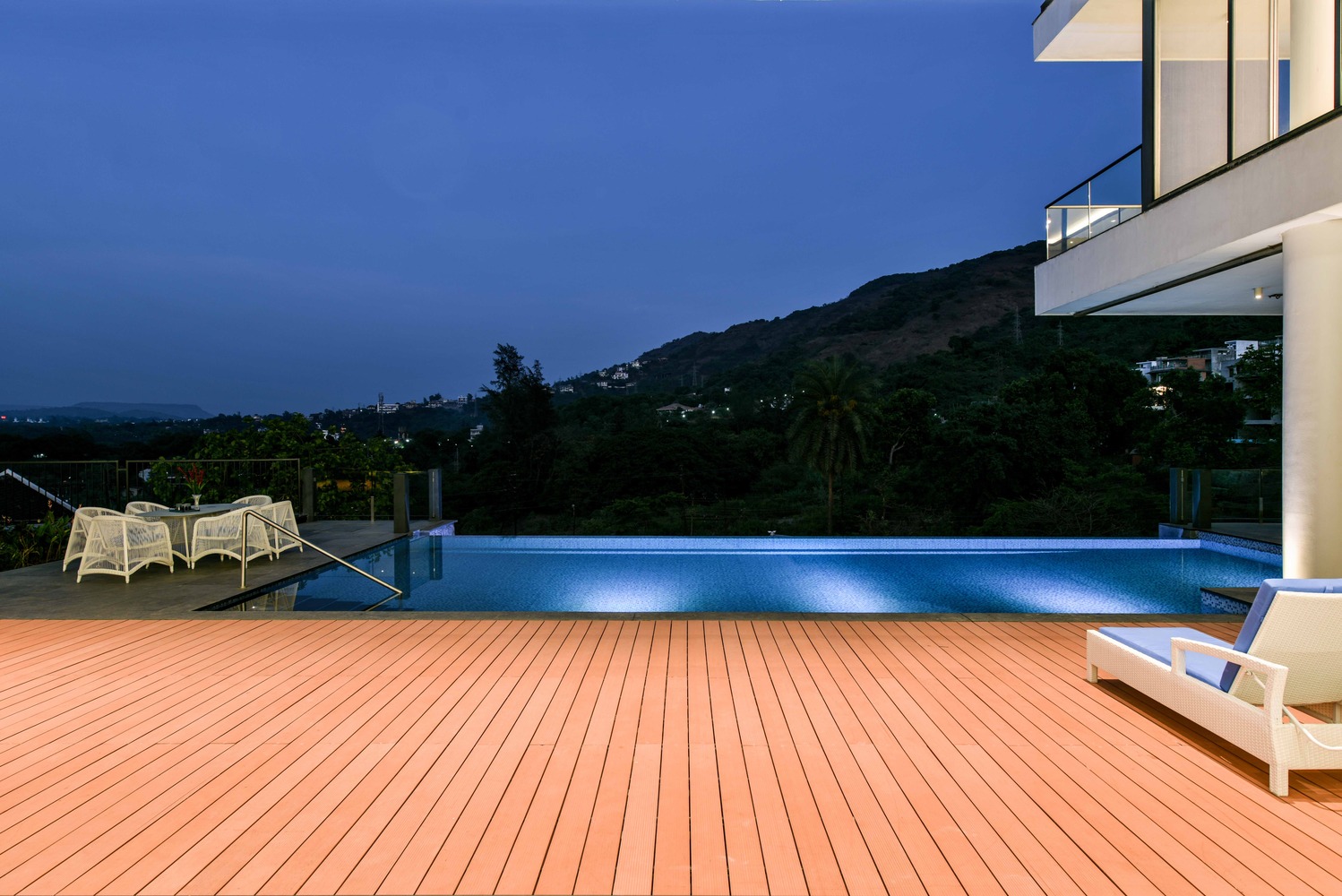

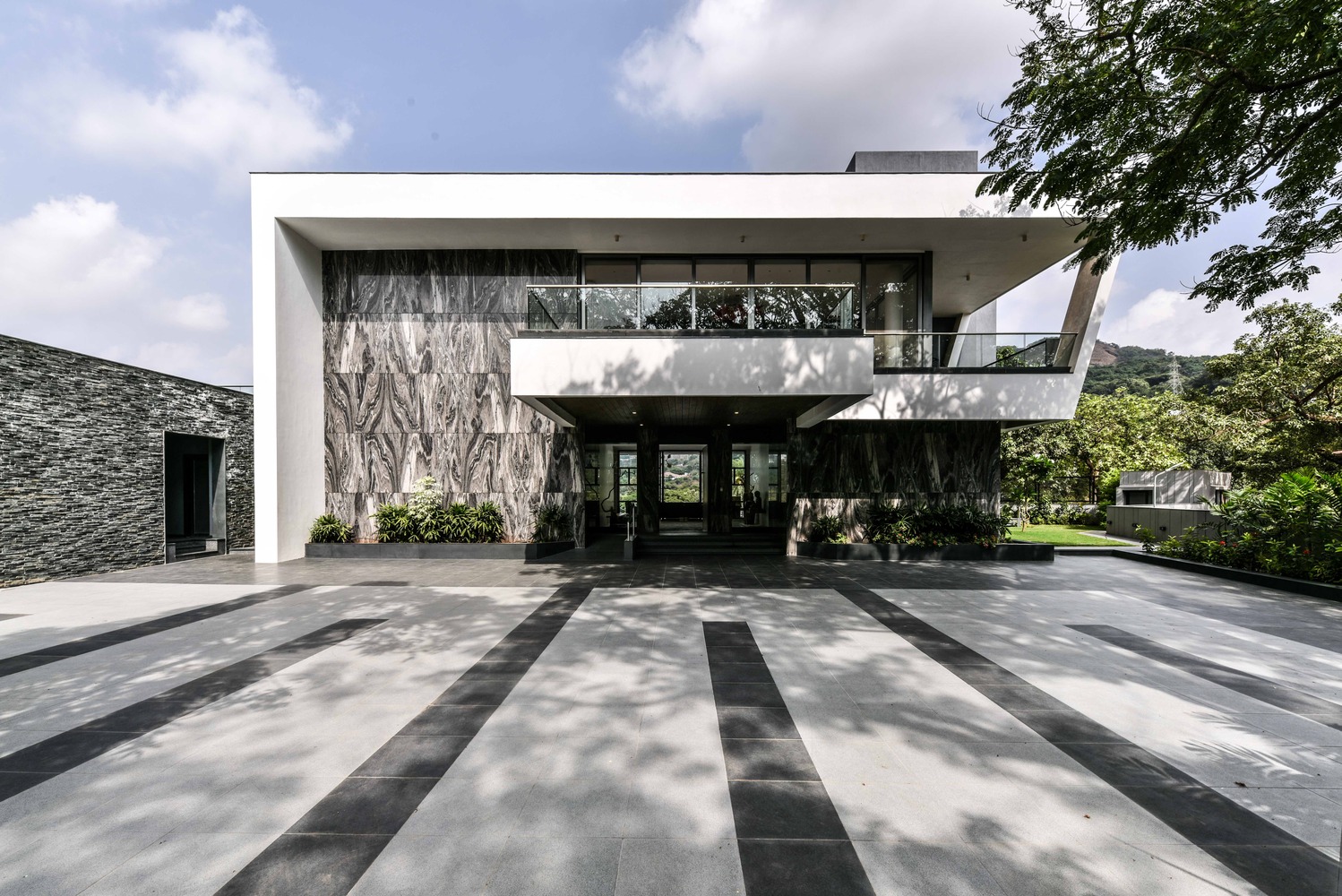

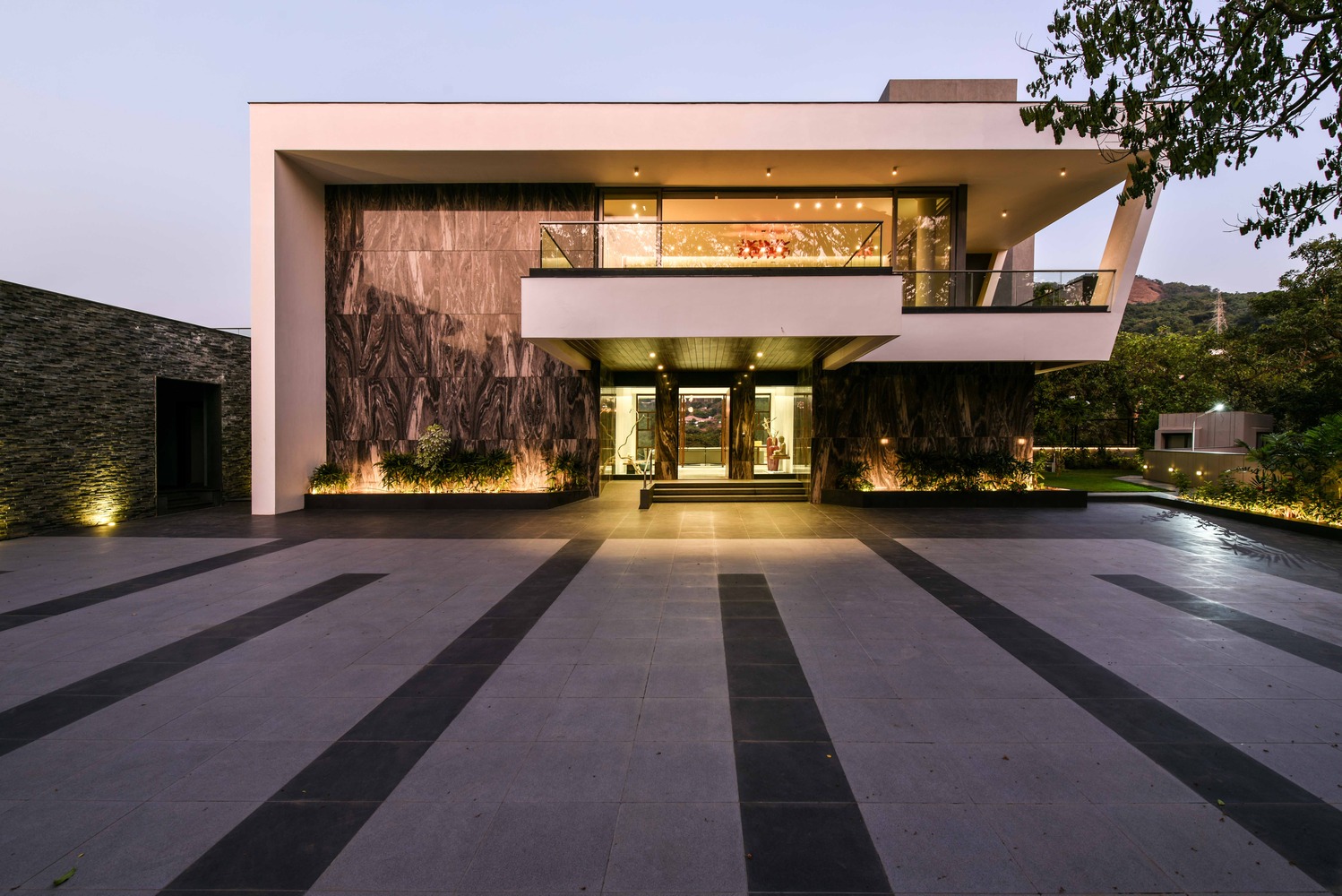

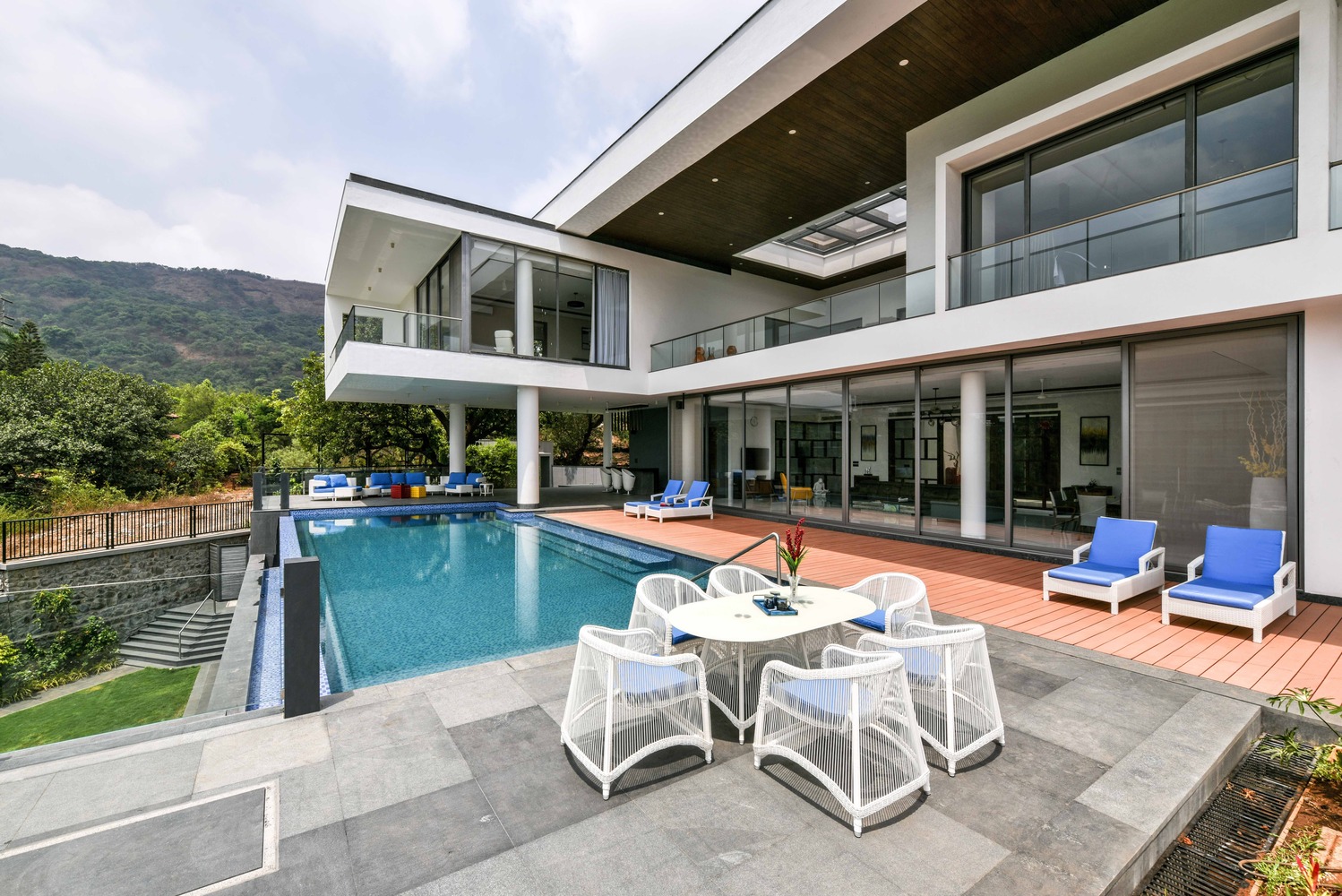

The design language of the villa is modern contemporary. Both the exterior and interior walls are draped in white color. The flooring is finished in white lhasa marble. The whiteness of the villa on the inside and the seamless slabs without beams create a beautiful visual contrast and blur the boundaries of the inside with the lush green garden and foliage of the outside landscape. The beauty of the villa is the infinity pool which creates a breathtaking vista from the living area. An alluring view of the mountains is framed with a large portal thirty feet in height which partially covers the outdoor seating.

(Prashant Bhat)

(Prashant Bhat)

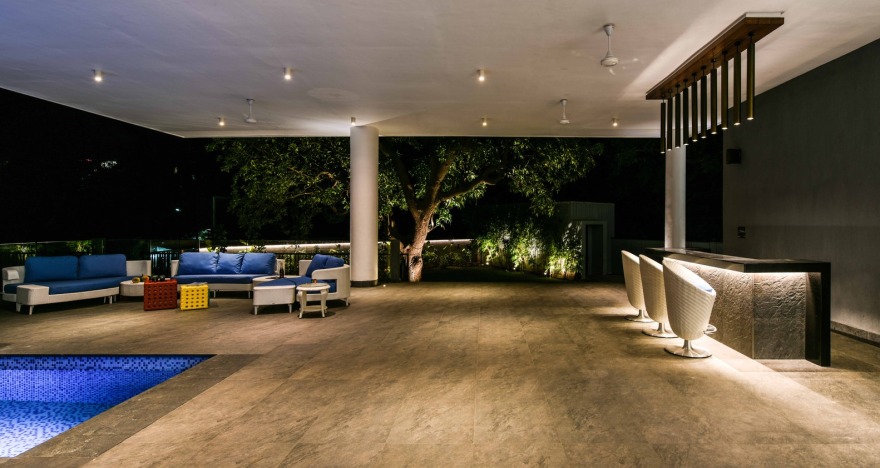

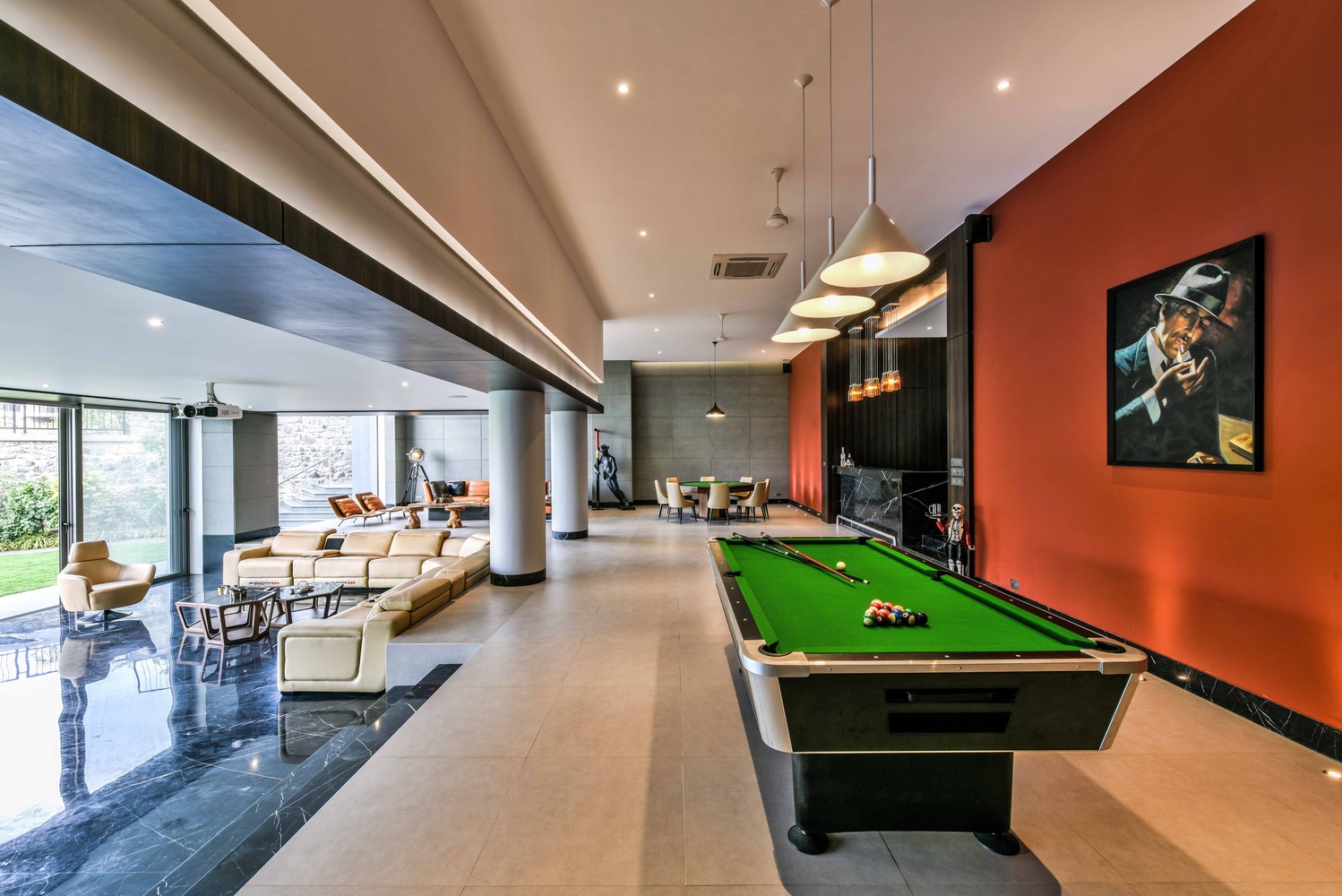

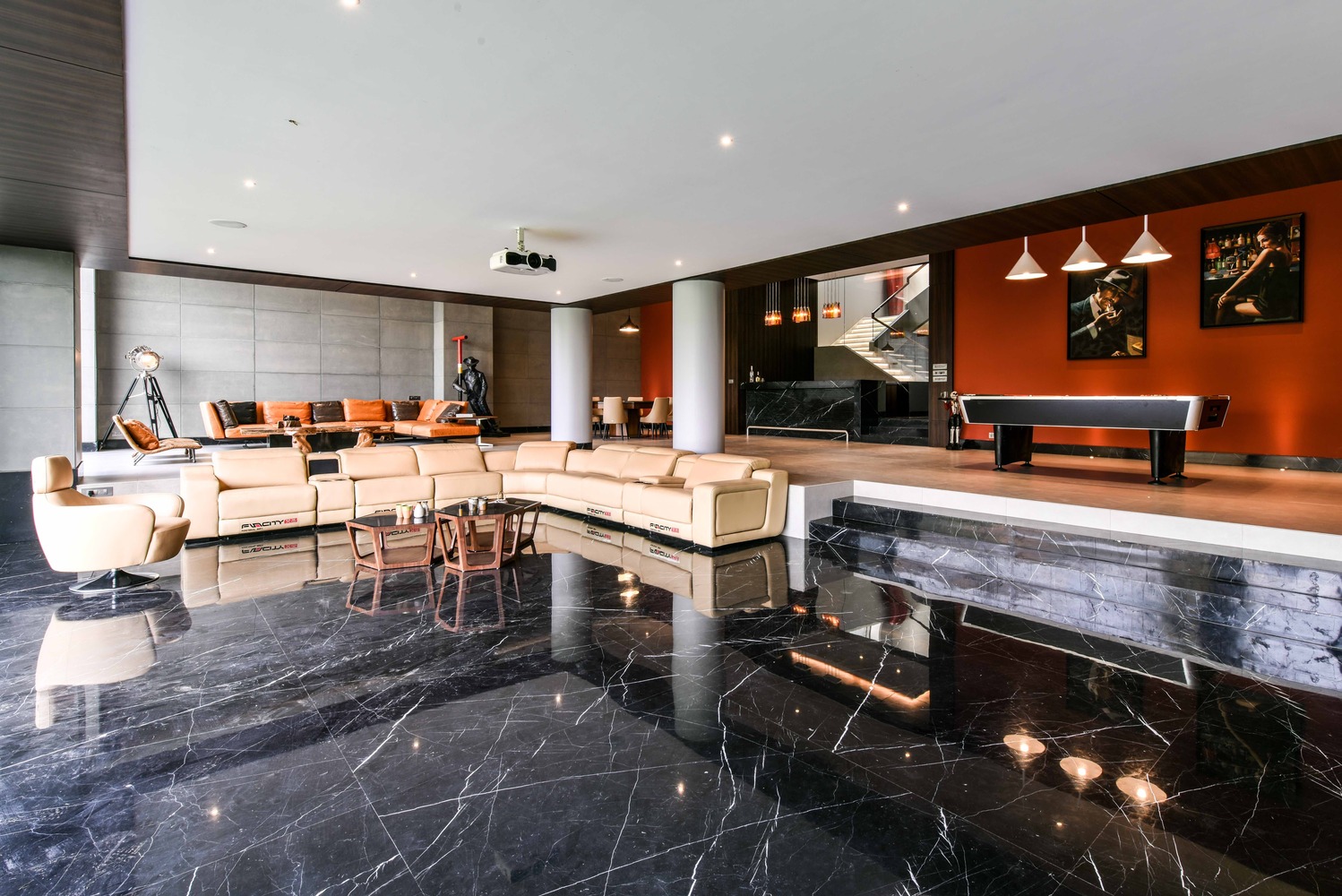

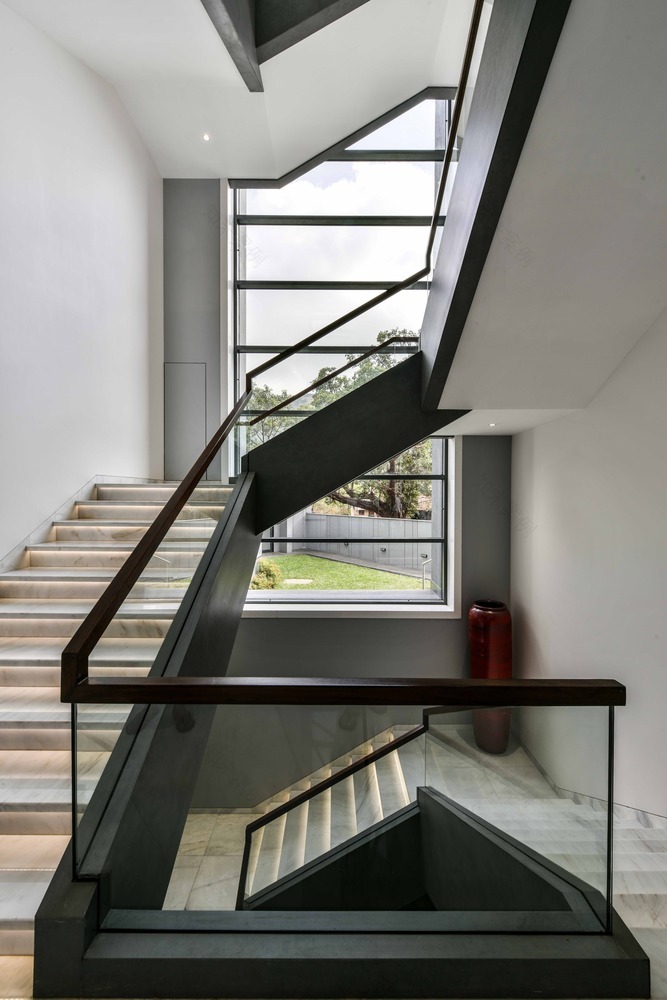

一个白色大理石楼梯与间接LED灯下的上升楼梯下的楼梯，通向低地娱乐区。这些墙是混凝土砌成的，一堵墙是红色的。游泳池下面的区域被丢弃，被当作剧院对待。原木中间的桌子，古怪的工艺品和卡片桌，一个带有黑色大理石条的台球桌是一个充满活力的娱乐区，是一些显赫的艺术品。

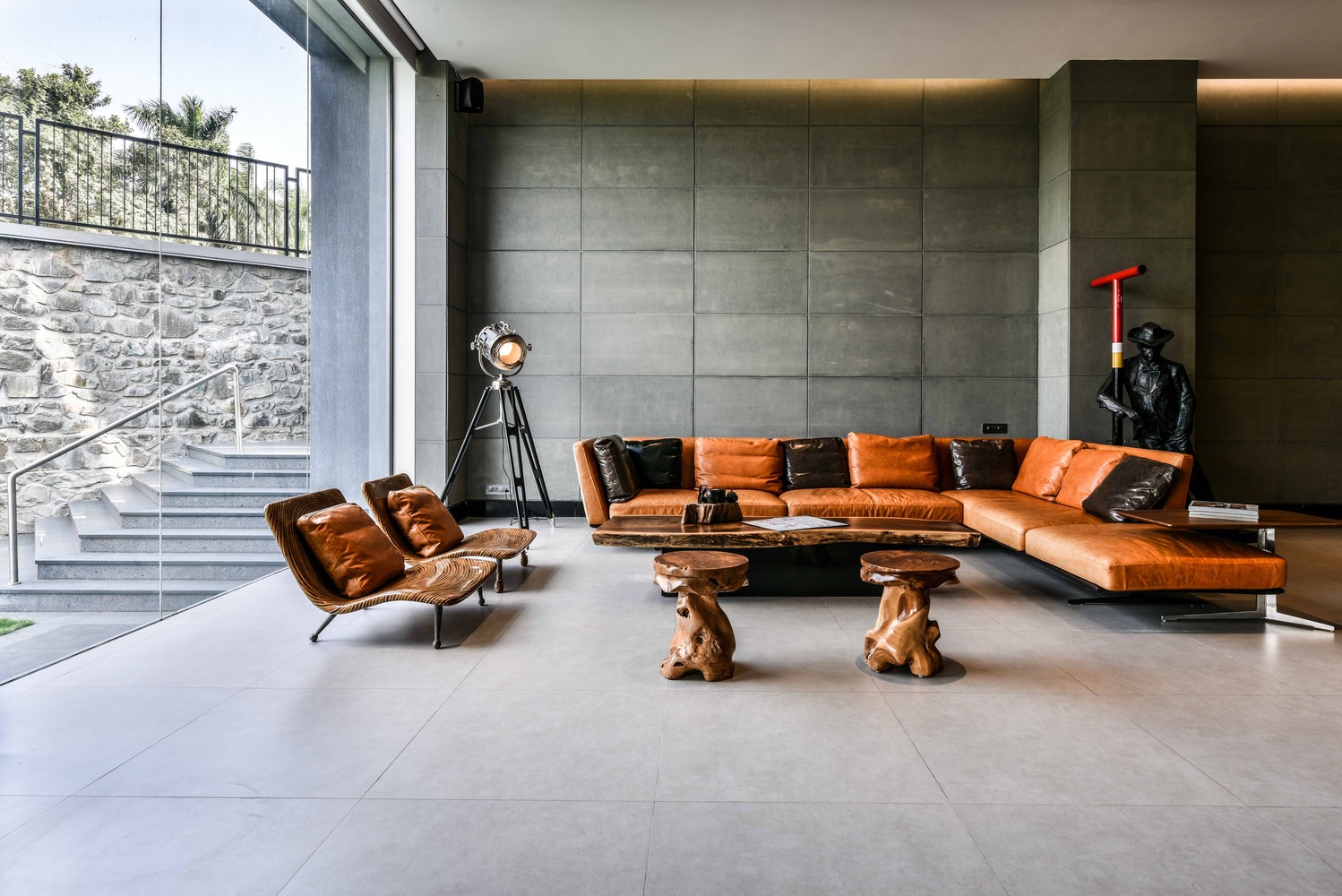

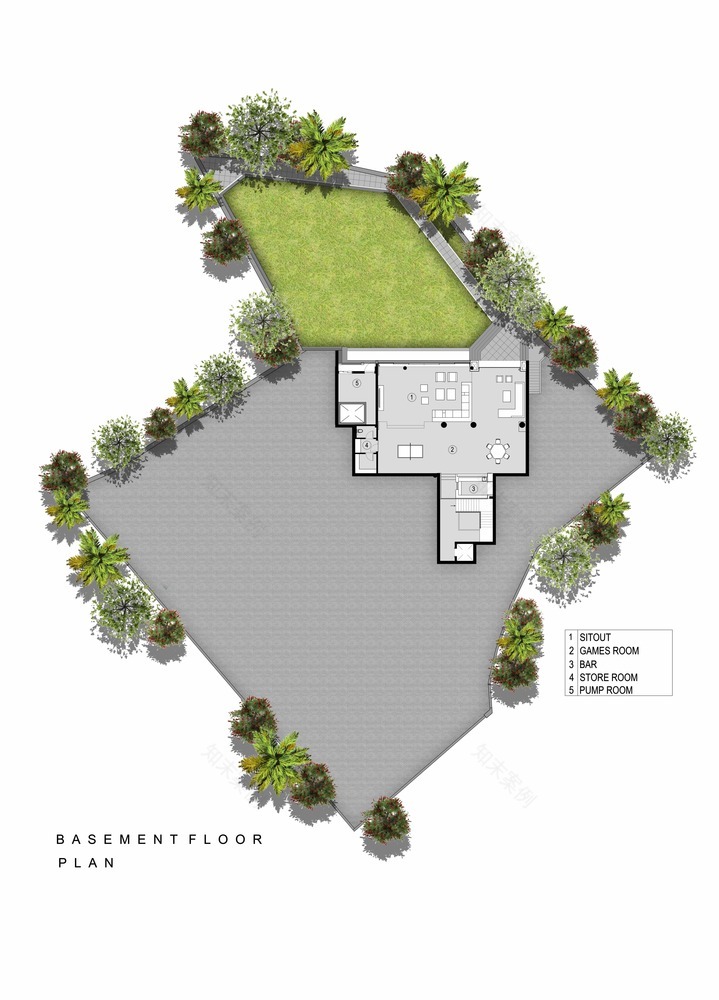

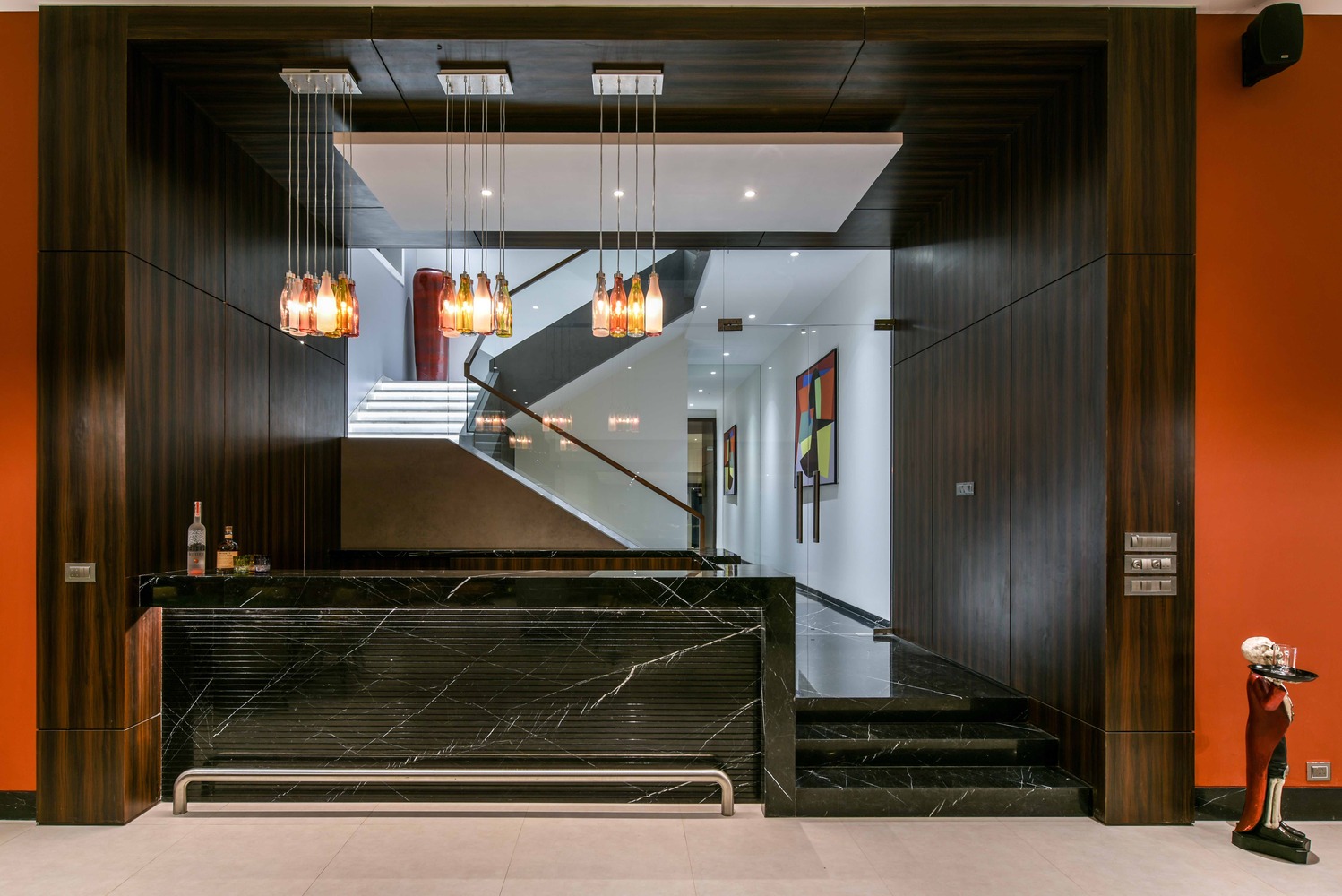

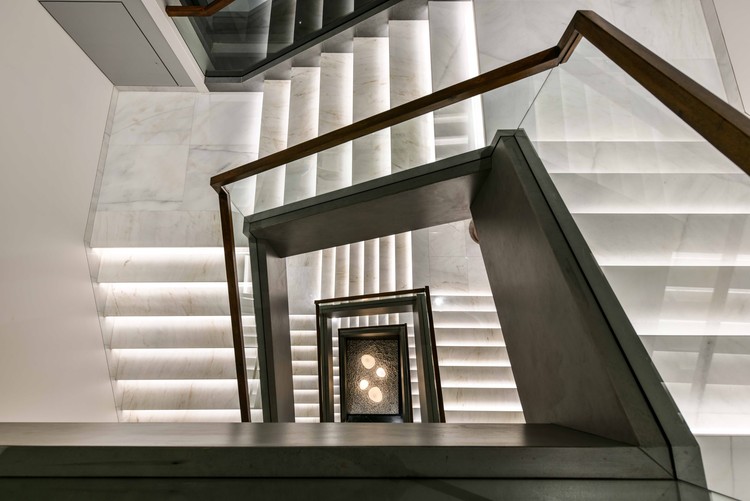

A white marble staircase with indirect LED lights under the risers of the staircase leads to the lower ground entertainment area. The walls are of concrete with one wall in bold red. The area under the swimming pool is dropped and is treated as the theatre. Raw wood center tables, quirky artefacts and a card table along, a pool table with a bar made of black marble form a vibrant entertainment area are some of the illustrious pieces of artwork.
