乡间别墅 · SPONGE 结构与环保设计的完美结合

“SPONGE”结构

‘SPONGE’ STRUCTURE

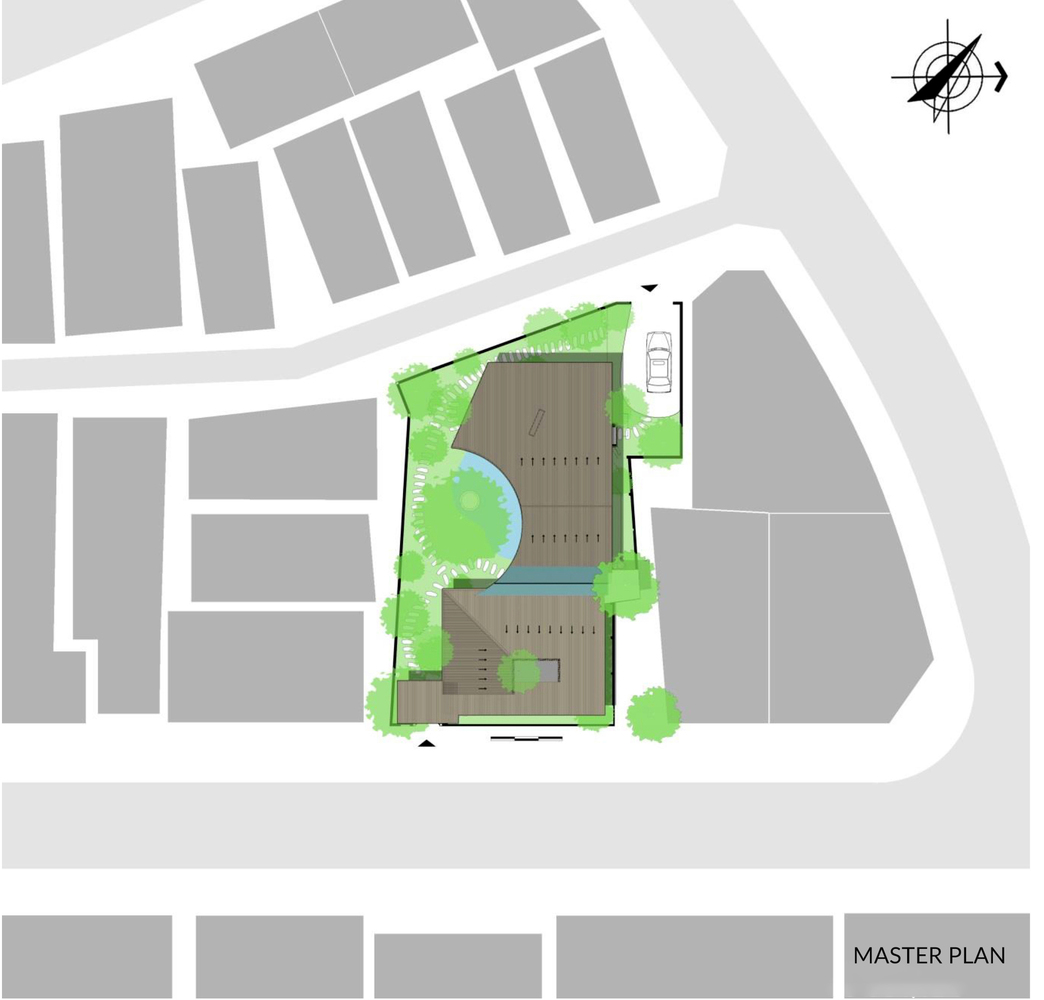

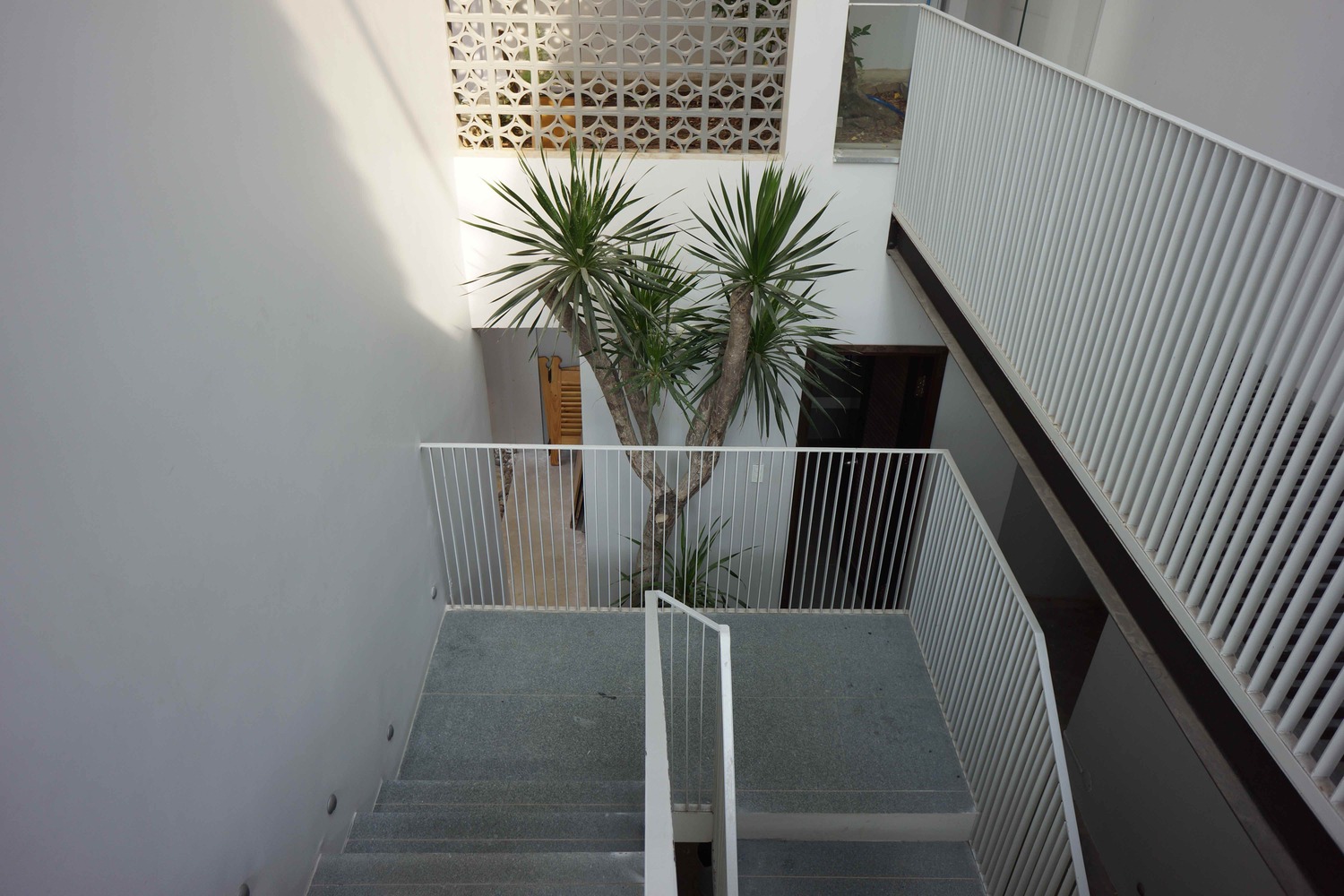

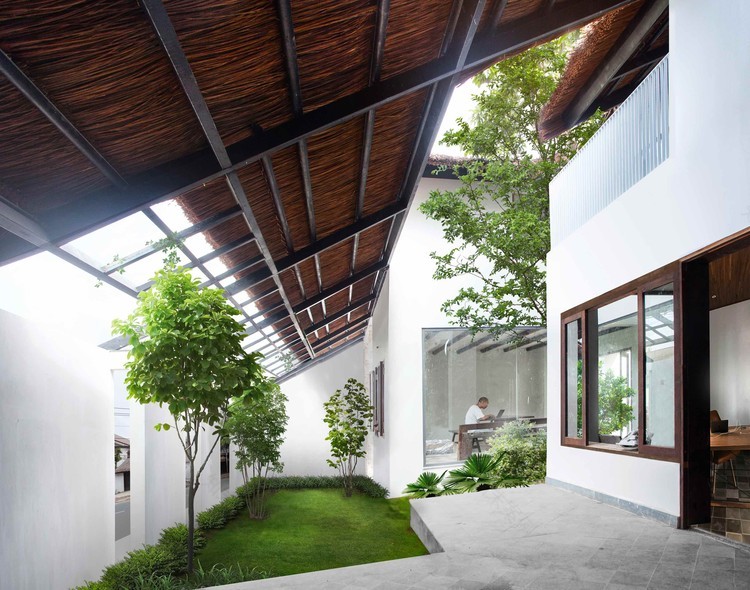

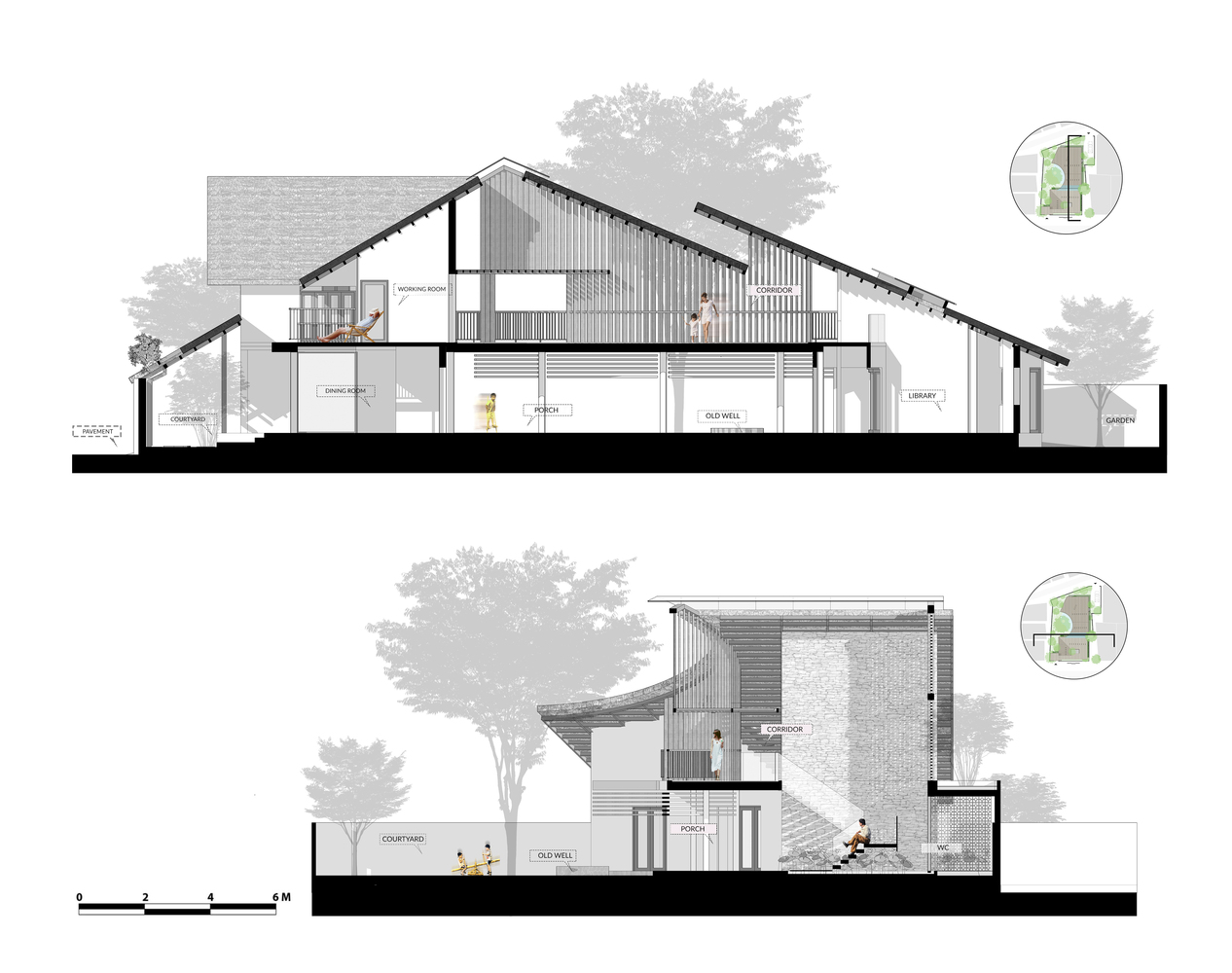

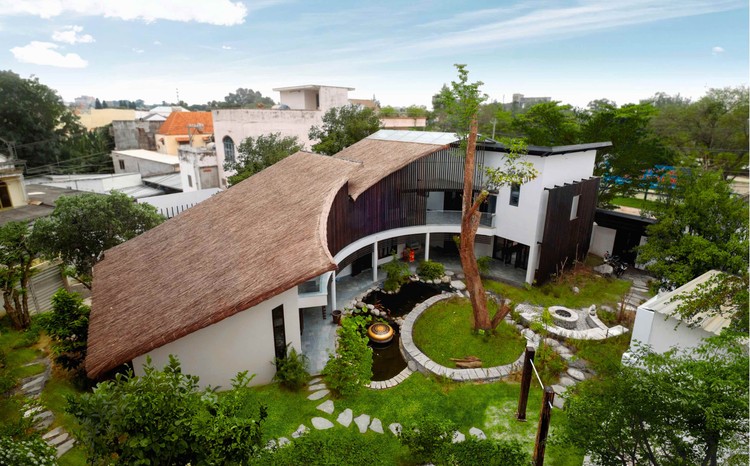

在建筑结构方面，功能房位于开放空间之间：大弯廊、花园、庭院、中庭布置灵活。开阔的露台空间覆盖着茅草屋顶，边缘是树木。整个建筑结构考虑人体测量。

Regarding the building structure, functional rooms are located between open spaces: Large curved corridor, garden, courtyard and atrium are arranged flexibly. Open terrace spaces are covered by thatch roofs and edged by trees. The whole building structure considers human measurements.

考虑民间建筑

CONSIDERING FOLK ARCHITECTURE

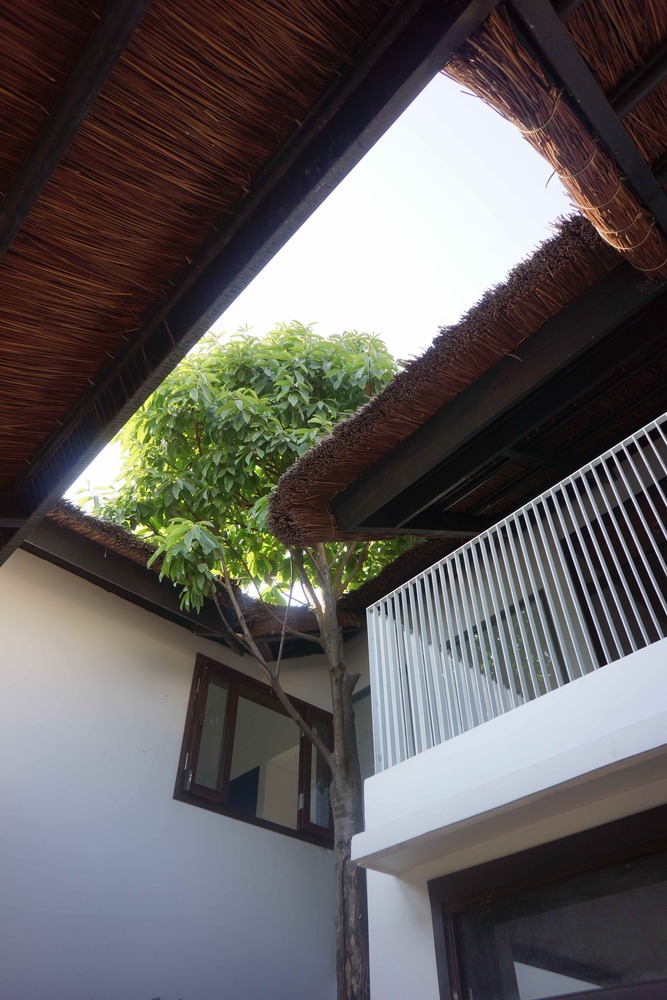

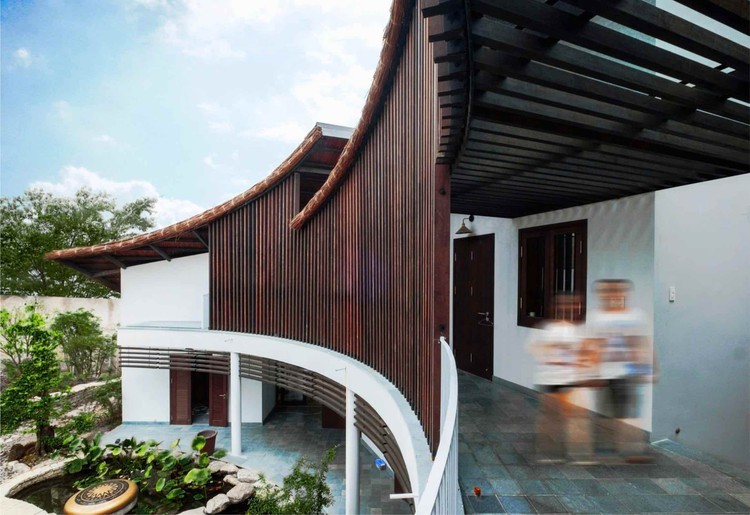

在传统经验的基础上，内部与外部的互动在宽敞的建筑中起着重要的作用。板层太阳能保护层由木材制成，并出现在走廊上，与屋顶，它创造了一个弯曲的表面。此外，茅草屋顶的自然灰色与花园融为一体。

Based on traditional experiences, the interaction between the inside and the outside within spacious architecture plays an important role. The lamellar solar protection made out of wood and appears along the corridor, with the roof, it creates a curved surface. Besides, the natural grey color of the thatch roof melts together with the garden.

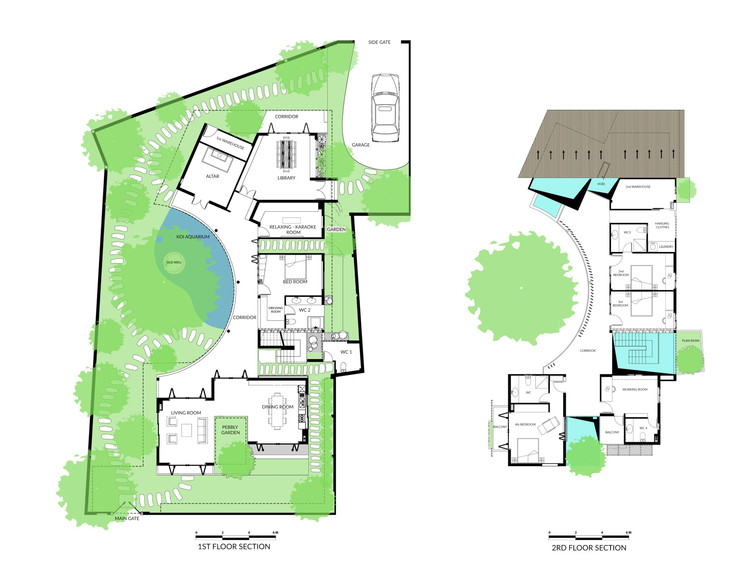

1st & 2nd Floor

气候和能源便利

CONVENIENCE BY CLIMATE AND ENERGY

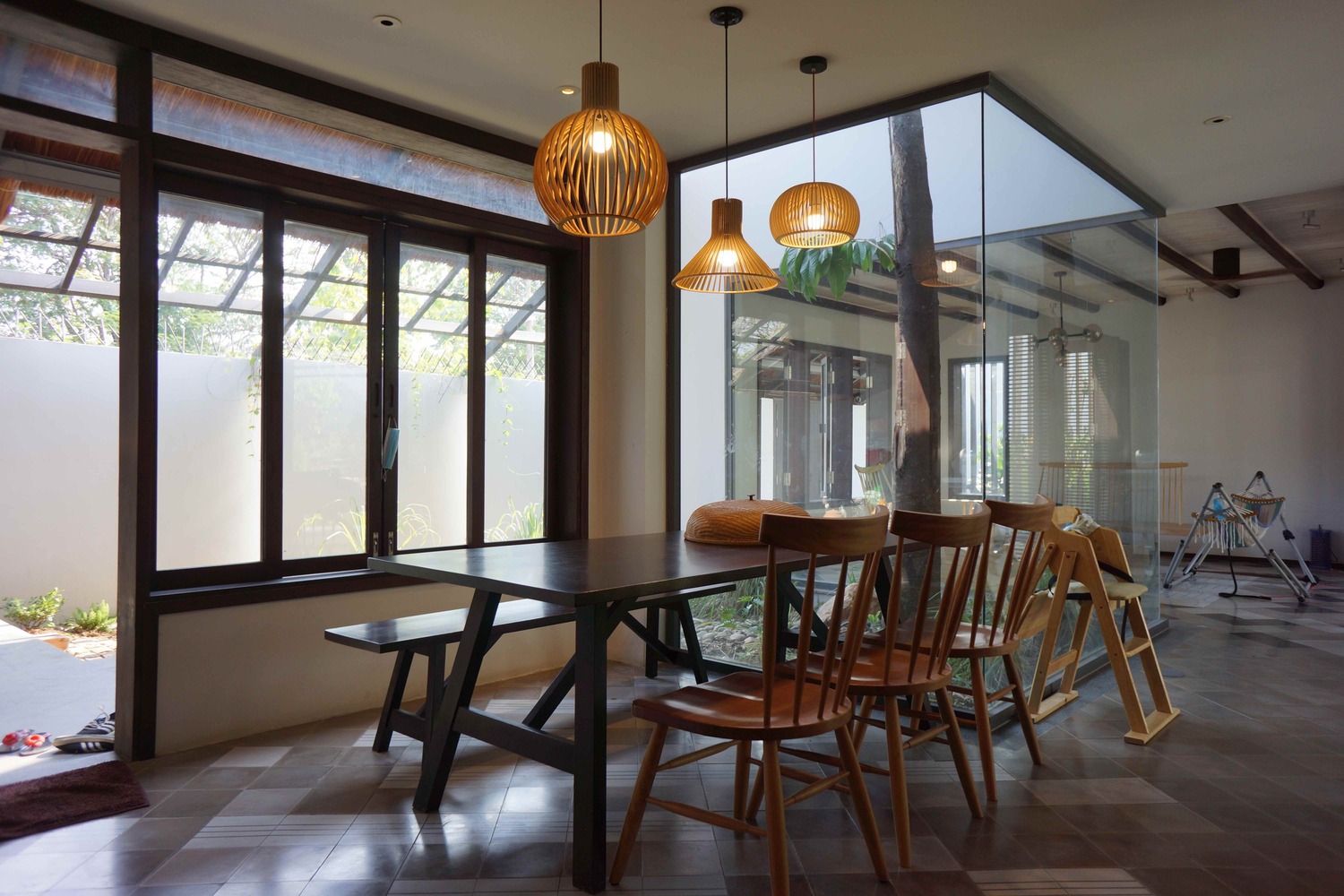

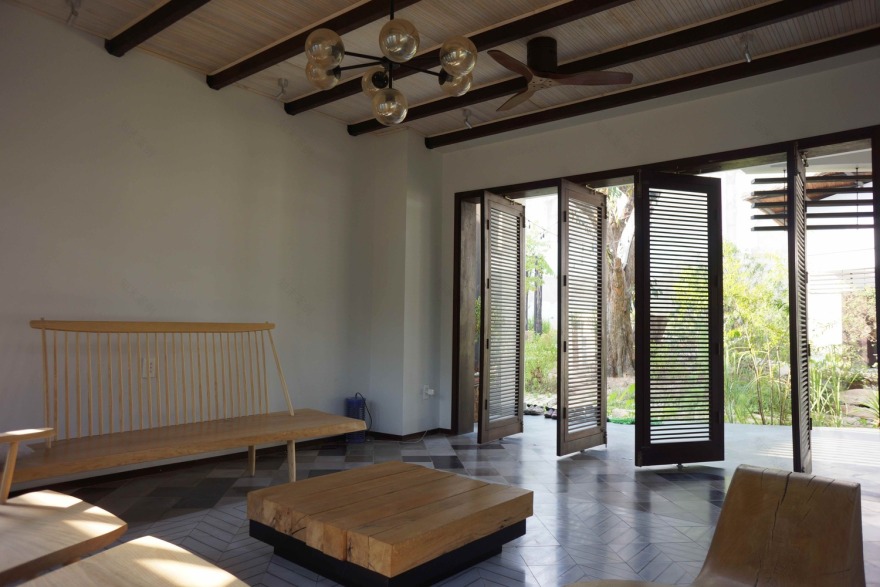

整个功能空间被一个茅草屋顶和木制层板系统覆盖。这堵墙覆盖了两层土坯，包括一个生态隔热层。每个房间至少有两个方面与自然互动，创造一个舒适和新鲜的室内气候。

The entire functional spaces are covered by a thatch roof and wooden lamellae system. The wall covered two layers of adobe including an ecological insulation. Each room has at least two sides interacting with the nature which creates a comfortable and fresh indoor climate.

智能电子系统以一种生态、经济、高效的方式，根据个人的需要，对所有的电子设备进行调节。每天产生5千瓦电力的太阳能电池位于屋顶顶部，并通过电缆传输电力来减少消耗。一个370平方米的大水箱收集雨水，足以浇灌花园里的植物。此外，茅草屋顶也调节室内气候。

A smart electronic system regulates all the electronical devices depending on the personal needs in a ecological, economical and efficient way. Solar ceels producing 5Kw electricity/ day are located on the top of the roof and reduce consumption by cable transferred electricity. A 370m² big water tank collects rainwater which is enough to water plants in the garden. Furthermore, the roof made of thatch also regulates the indoor climate.

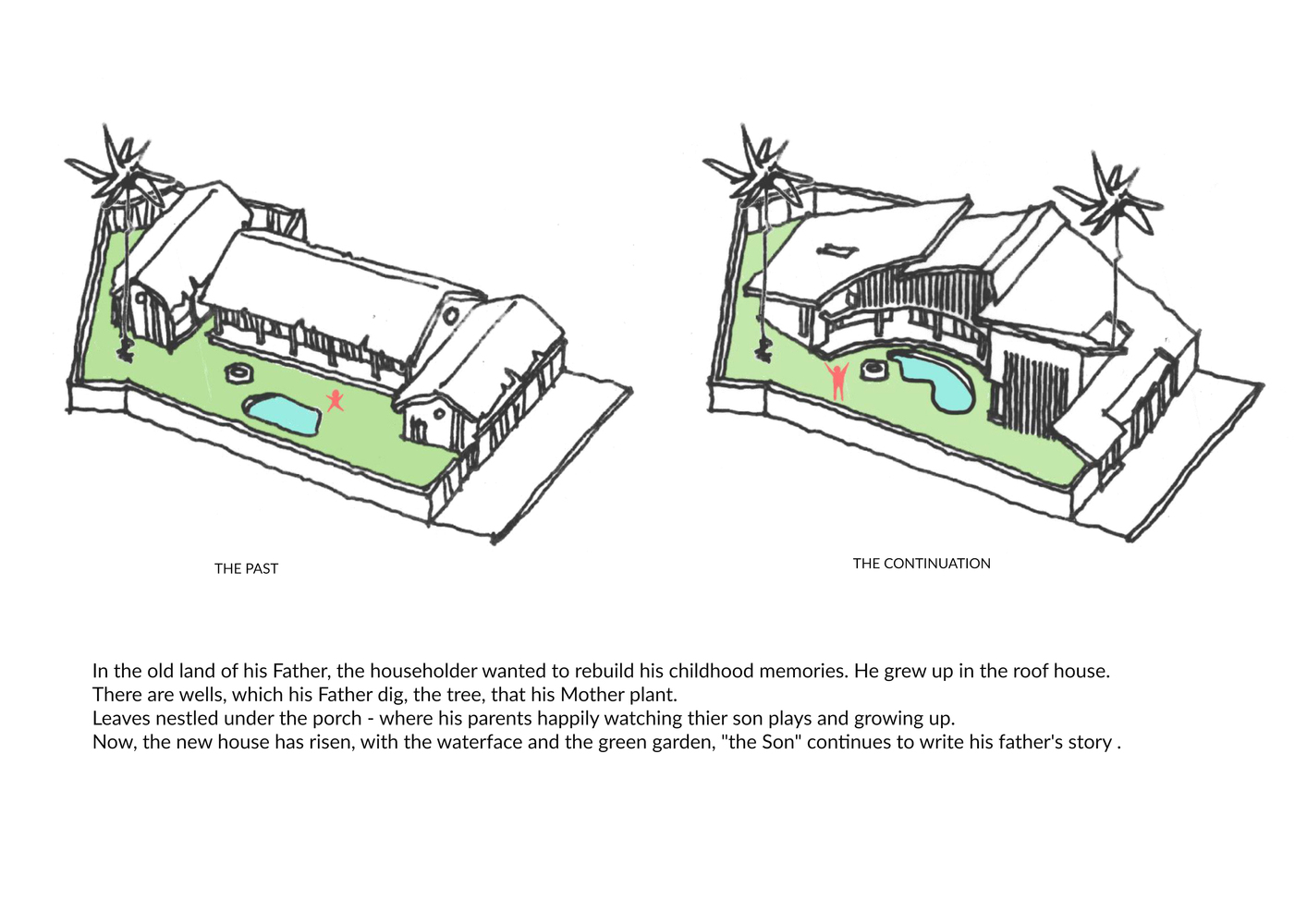

所有的项目都唤起了熟悉的、民间的和现代的形象。以城市住宅为线索，从农村继承核心建筑价值​​。

All the projects evoke images that are both familiar, folk and modern. The urban house as a hint to inherit the core architectural values ​​from the countryside.

Architects 1+1>2 Architects

Location Bien Hoa, Vietnam

Architects in Charge Hoang Thuc Hao, Nguyen Van Tuan, Nguyễn Trọng Đức

Area 440.0 m2

Project Year 2016

Photographs Son Vu

Category Houses
