瑞典乌普萨拉大学主楼翻新工程

© Anders Fredriksén

(Anders Fredriksén)

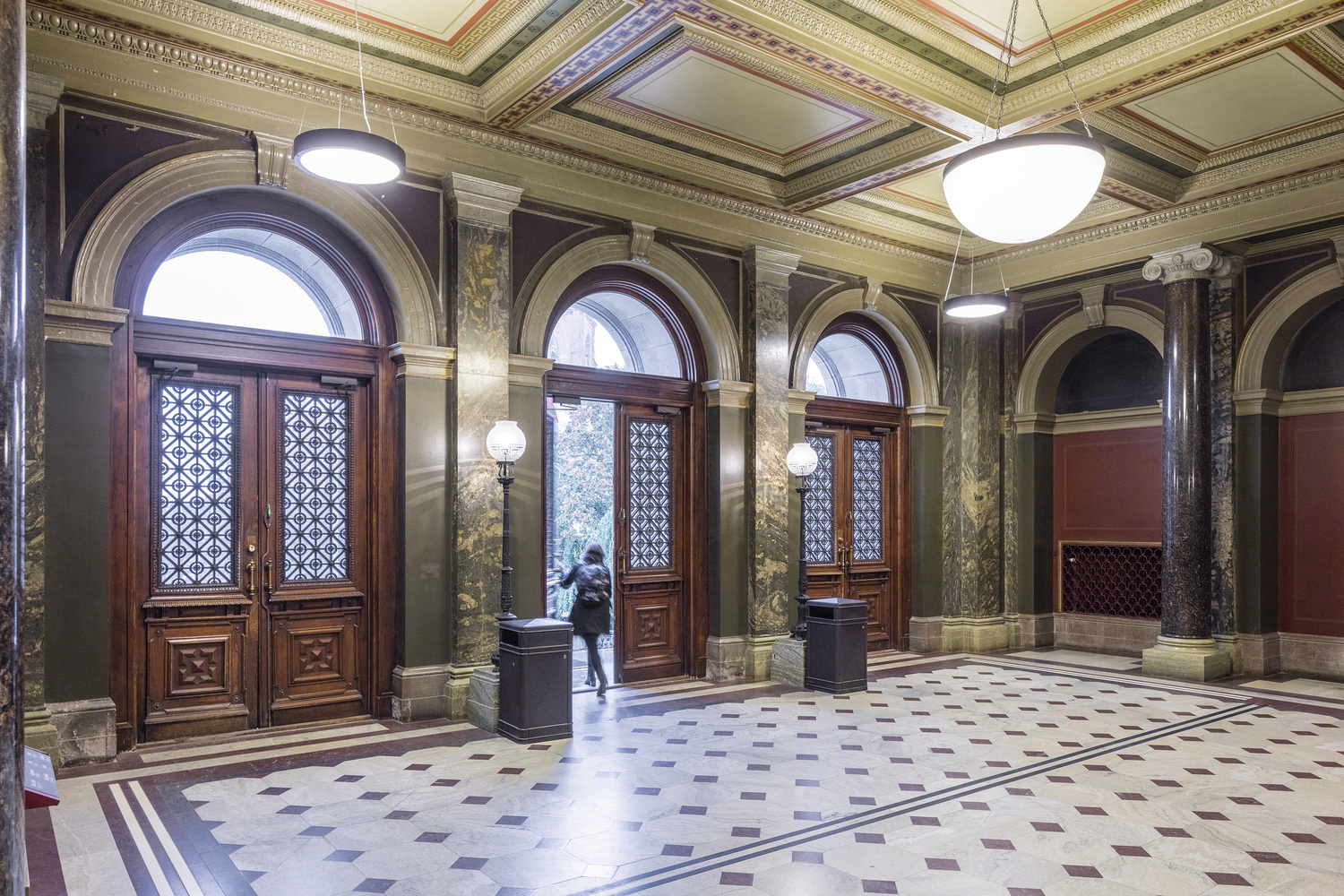

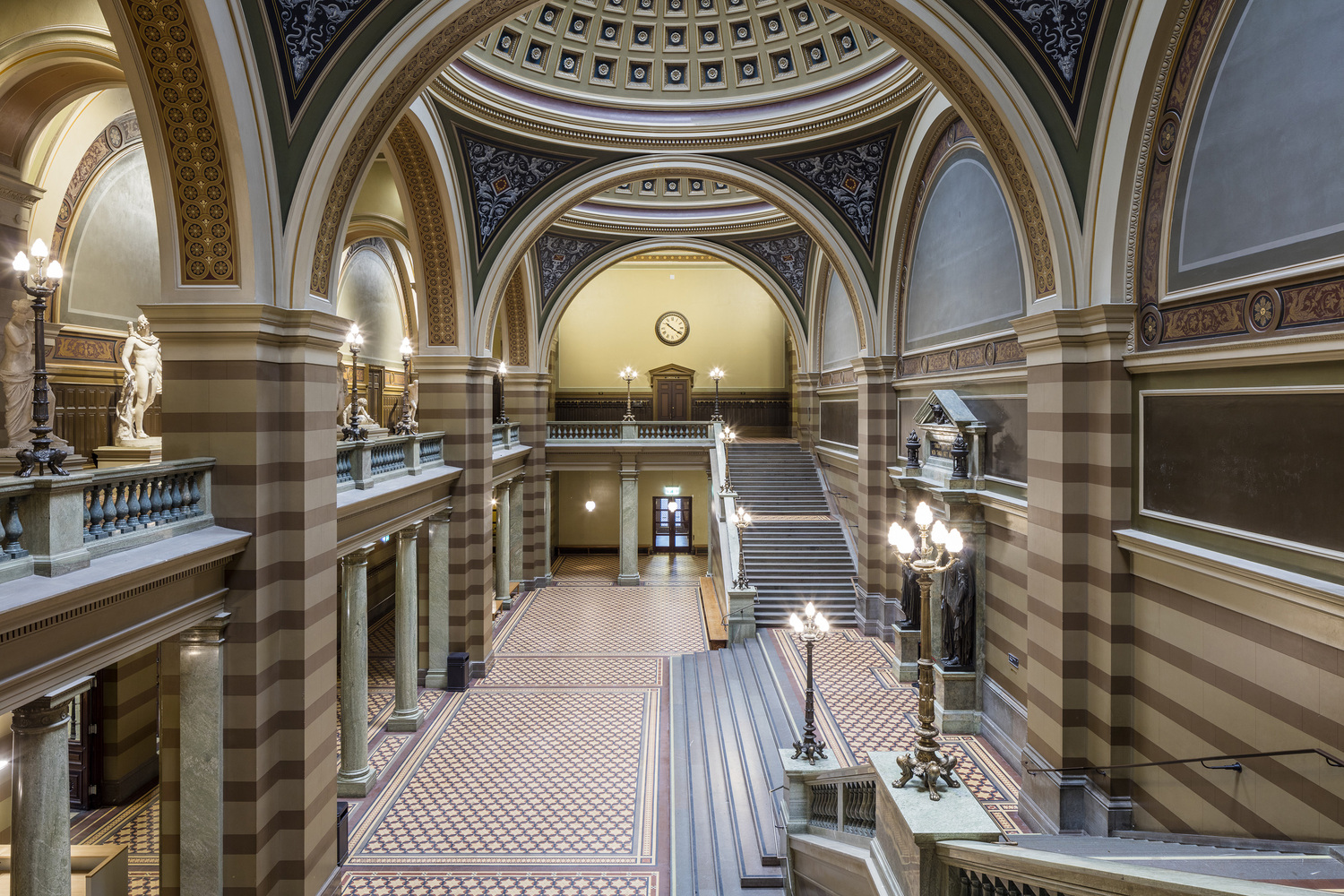

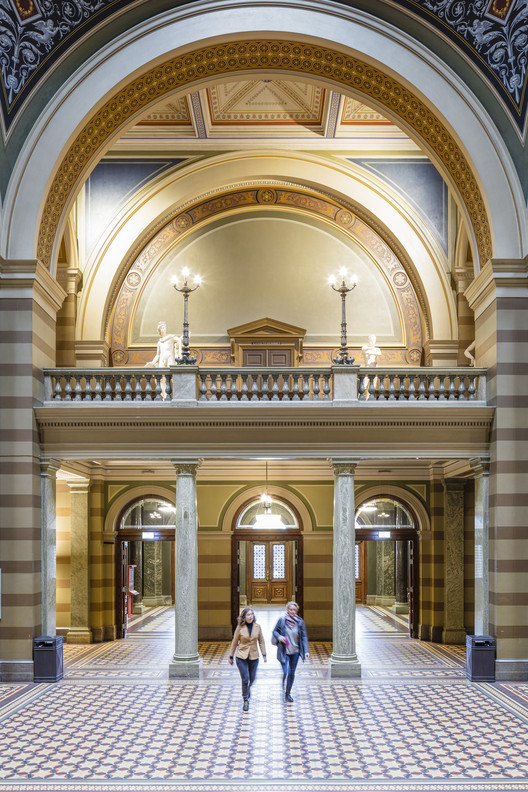

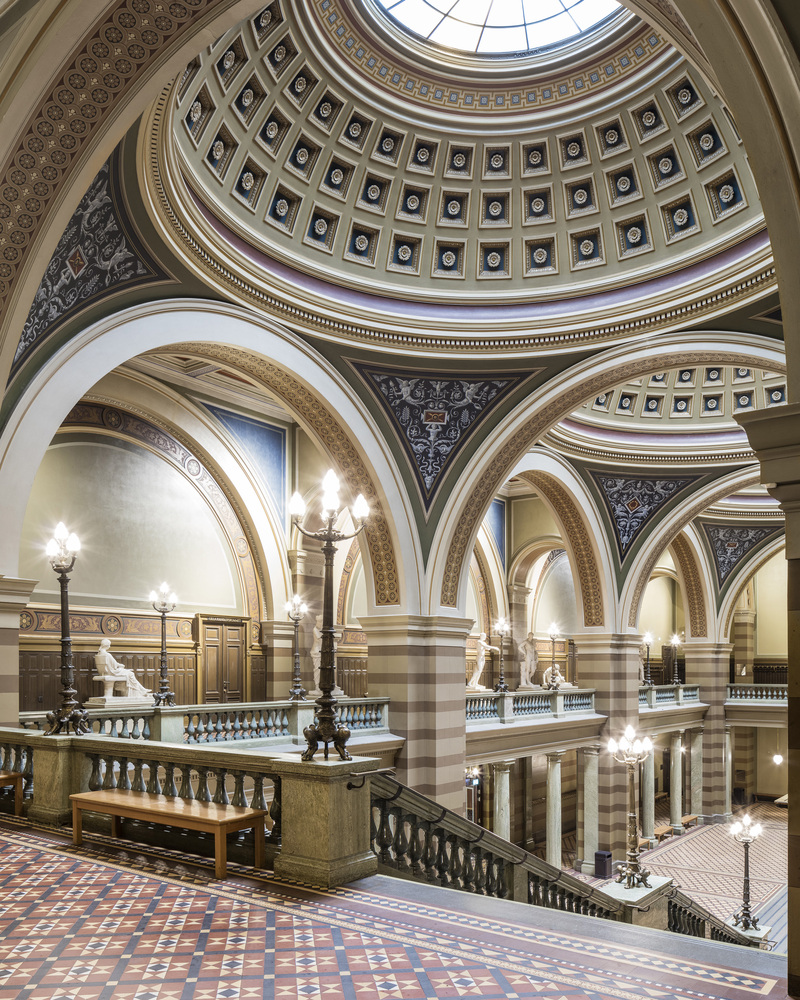

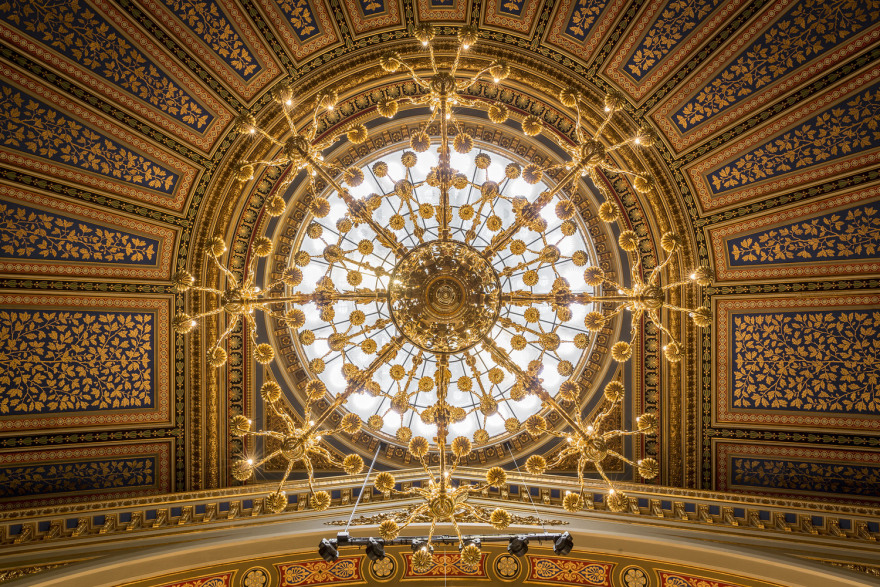

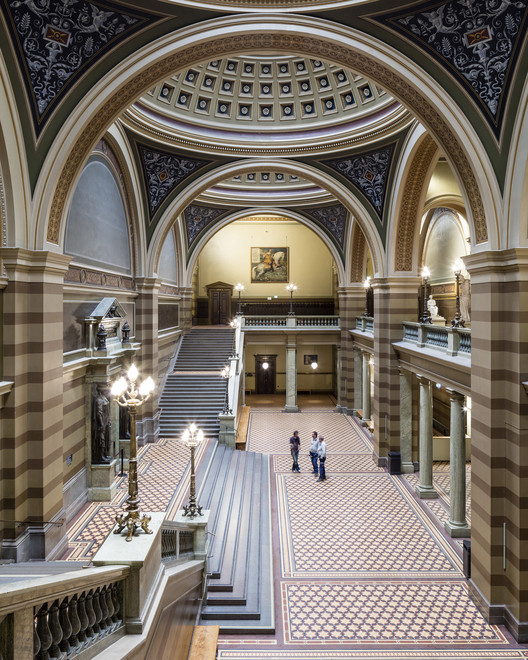

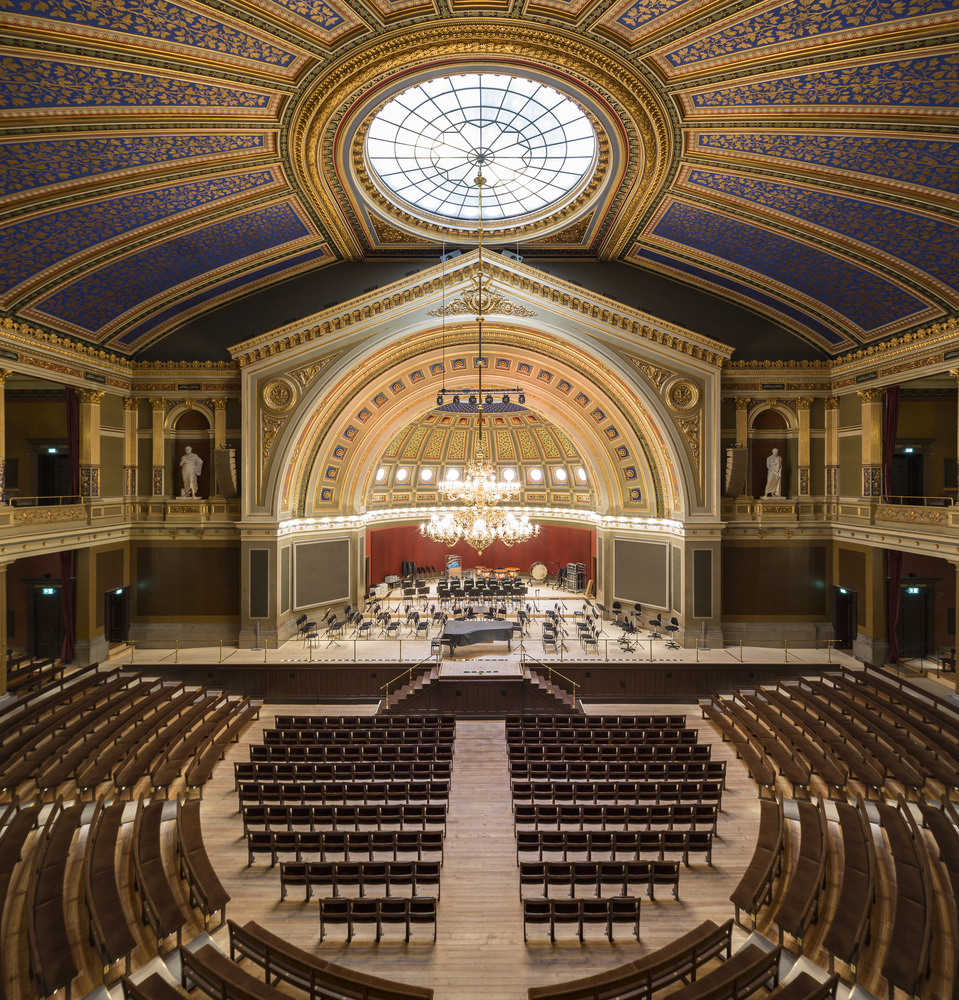

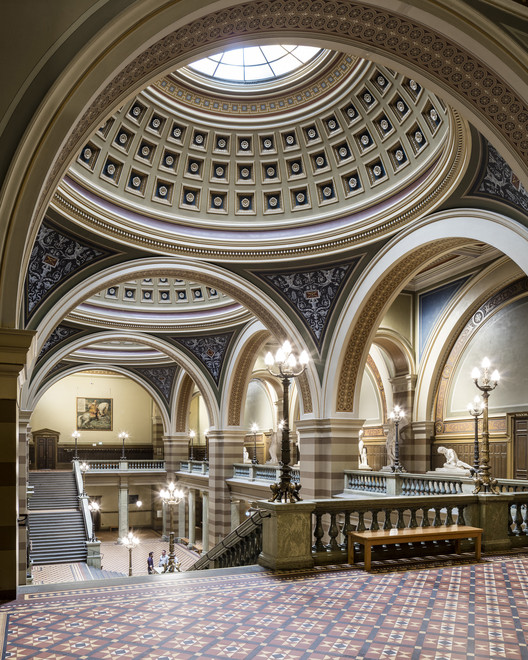

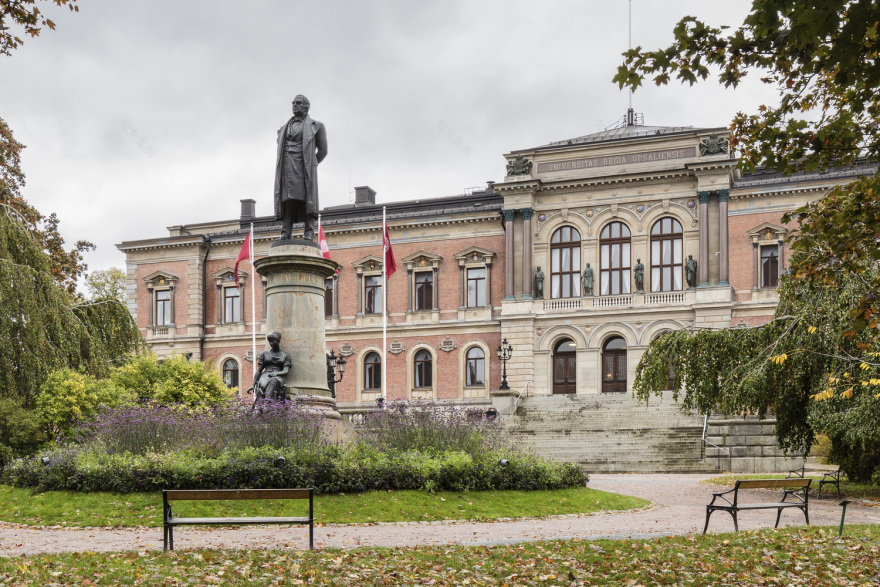

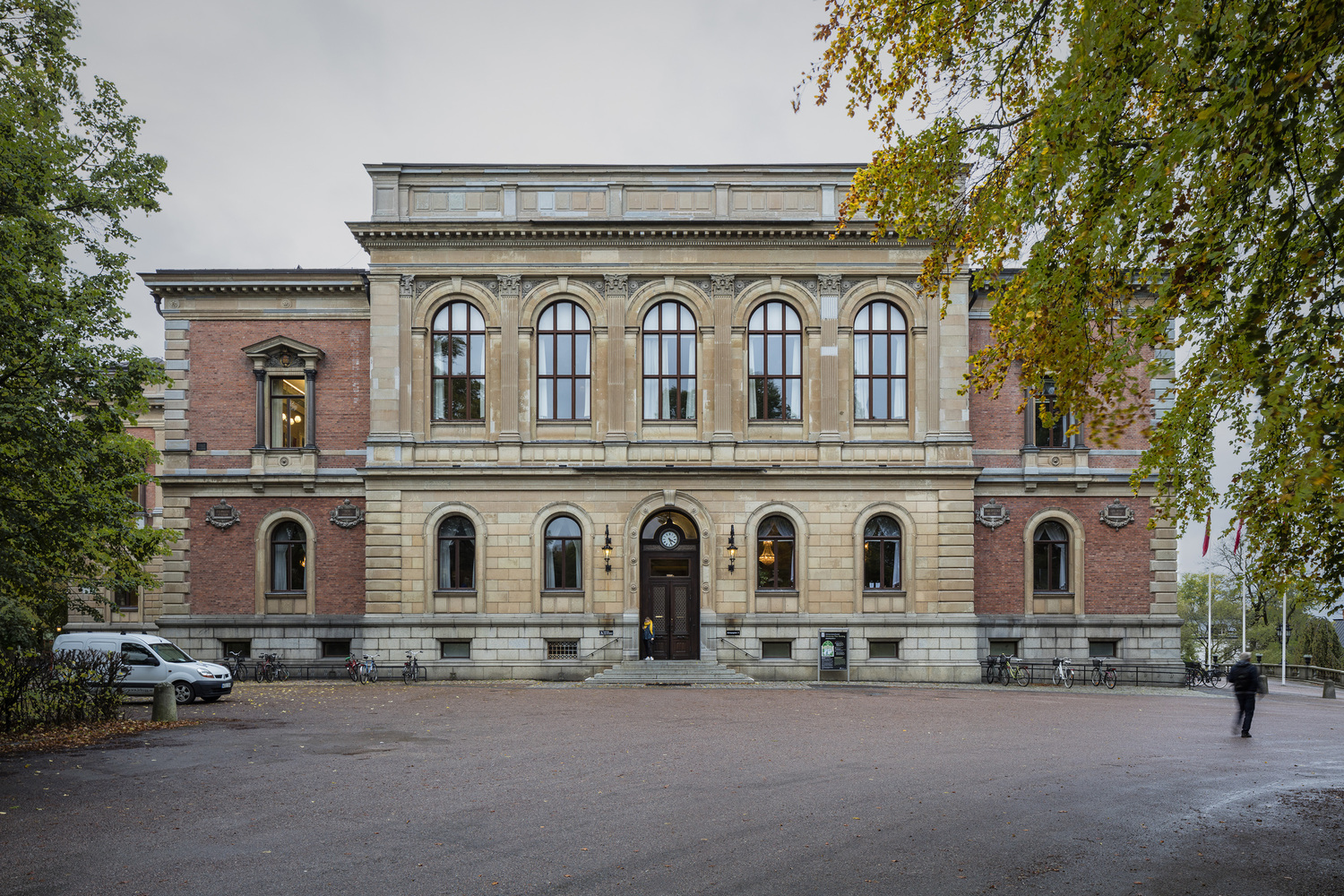

架构师提供的文本描述。乌普萨拉大学主楼是瑞典建筑遗产的一部分。这座建筑和公园是根据西奥多·霍姆格伦1877年至1887年之间的图纸建造的，毗邻大教堂和大学当时的第一座中心建筑古斯塔维亚南。前厅是瑞典最突出的空间造物之一，由三个统一的玻璃圆顶组成。半圆形的奥拉是该建筑的心脏，可容纳多达2000人.楼里还有讲堂和许多其他教室。今天，原有的活动、教育和教学正在该建筑中进行，其作为一个集体点的作用得到了加强，因为这些机构搬到了城外的校园。为了使活动继续进行，AIXArkitekter一直致力于技术设备的可访问性适应、消防安全和更新。

Text description provided by the architects. The Uppsala University Main Building is a listed building part of the Swedish architectural heritage. The building and the park were built according to the drawings of Theodor Holmgren between 1877 and 1887, next to the Cathedral and the University's first central building at the time, the Gustavianum. The vestibule is one of Sweden's most prominent space creations crowned by three uniform glass domes. The semi-circular aula is the heart of the building and can hold up to 2000 people. There are also lecture halls and many other classrooms in the building. The original activity, education, and teaching are ongoing in the building today and its role as a collective point is strengthened, as the institutions move to the campus outside the city. In order for the activity to continue, AIX Arkitekter has worked with the accessibility adaptation, fire safety and renewed of technical equipment.

© Anders Fredriksén

(Anders Fredriksén)

© Anders Fredriksén

(Anders Fredriksén)

AIX还致力于维护和恢复外观中的石头细节，以及大量活动经常需要的其他一些小的调整。作为今天需要的一部分的技术设备已经插入，但没有破坏整体印象，而且尽可能没有进行重大干预。维修是用传统的材料和方法进行的，例如，在发现新的、破损的、用传统方式砍碎的东西时，已经更换了破旧的外墙。部分轻微和无害的损害已经被挽救，作为建筑物的一部分。室内装饰画已经被保存者附在一起并被拿走了。Mona Lantzourakis是2012年以来的保护建筑师。

AIX has also worked with the conservation and restoration of stone details in the facades and some other minor adjustments that the large range of activities needs constantly. Technical equipment that is part of today's needs has been inserted without damaging the overall impression and as far as possible without major intervention. Maintenance has been done with traditional materials and methods, for example, worn-out façade has been replaced where serious damage has been found against new, broken and chopped in a traditional way. Parts of minor and harmless damage have been saved as part of the building's patina. The interior decorative paintings have been attached and taken by conservators. Mona Lantzourakis is the conservation architect since 2012.

© Anders Fredriksén

(Anders Fredriksén)

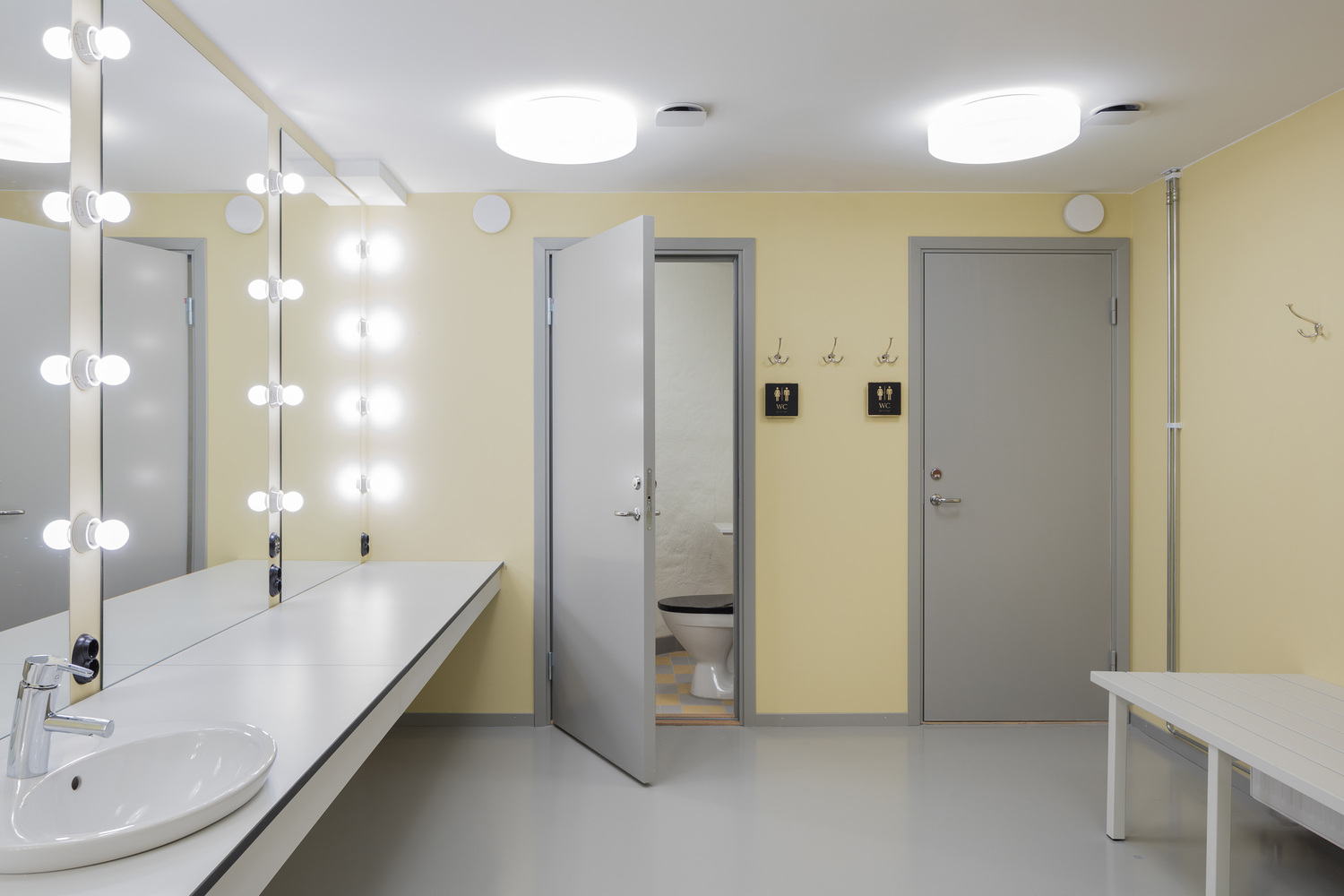

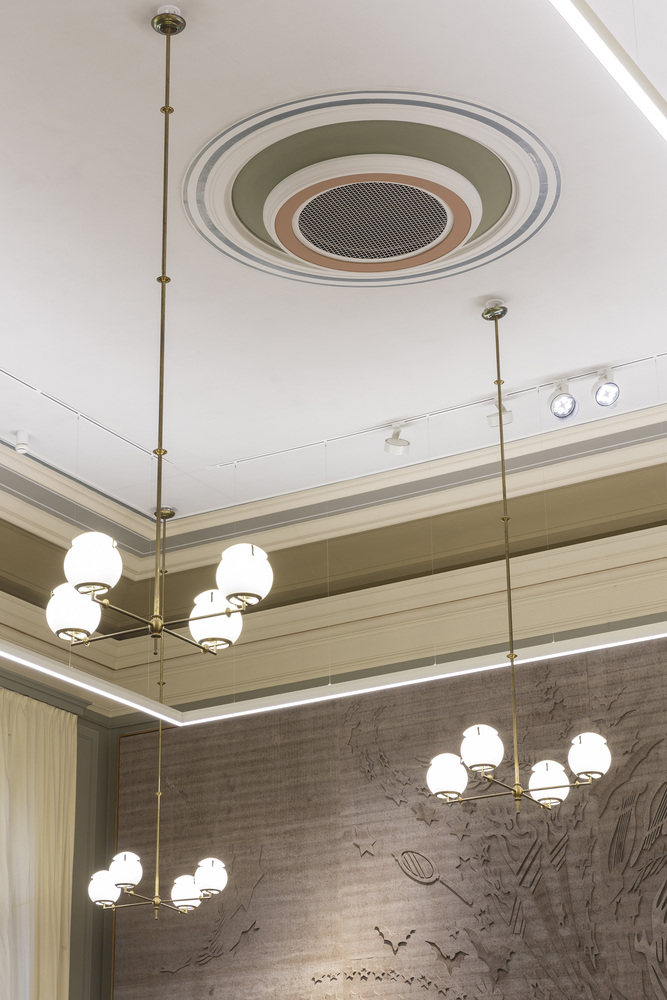

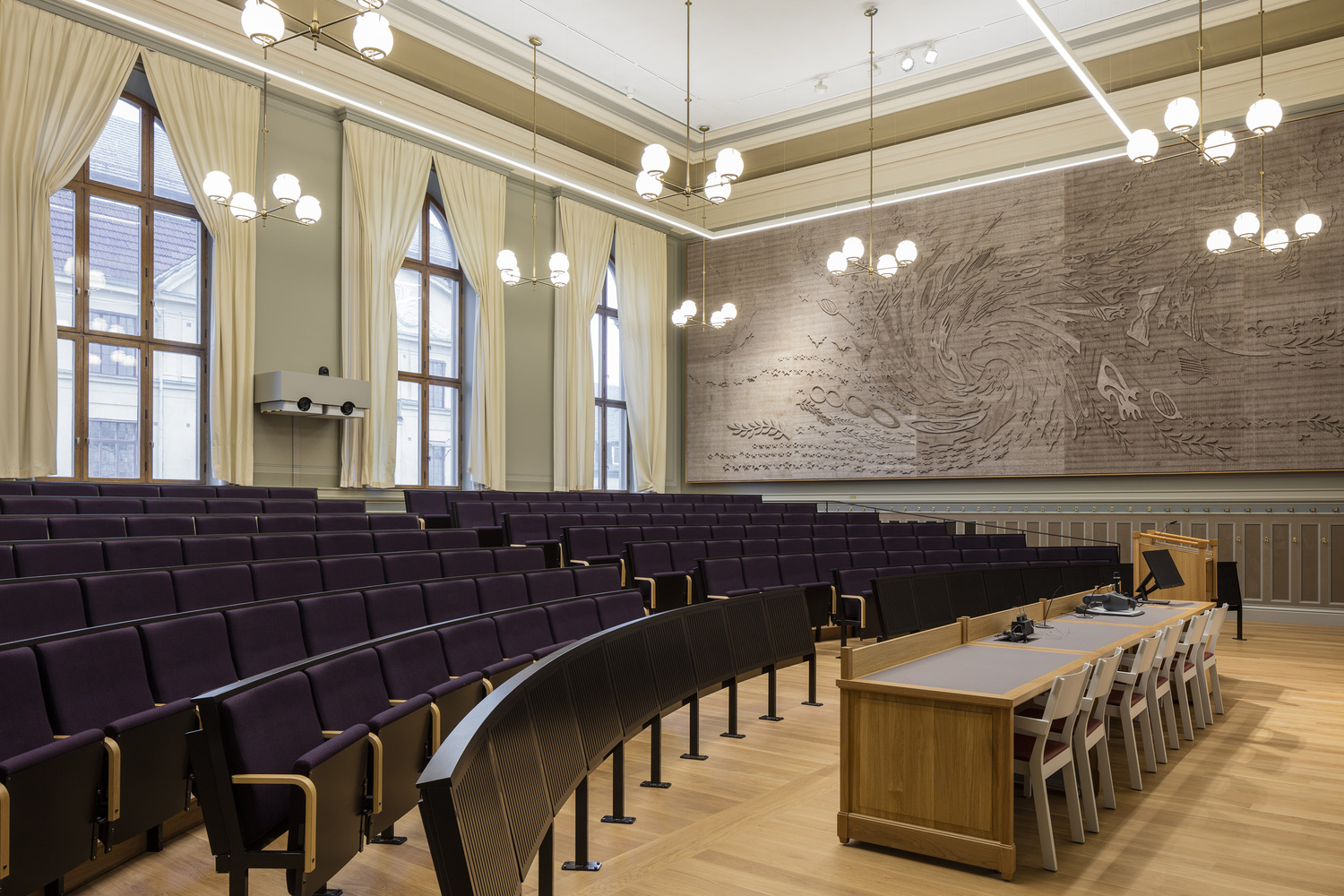

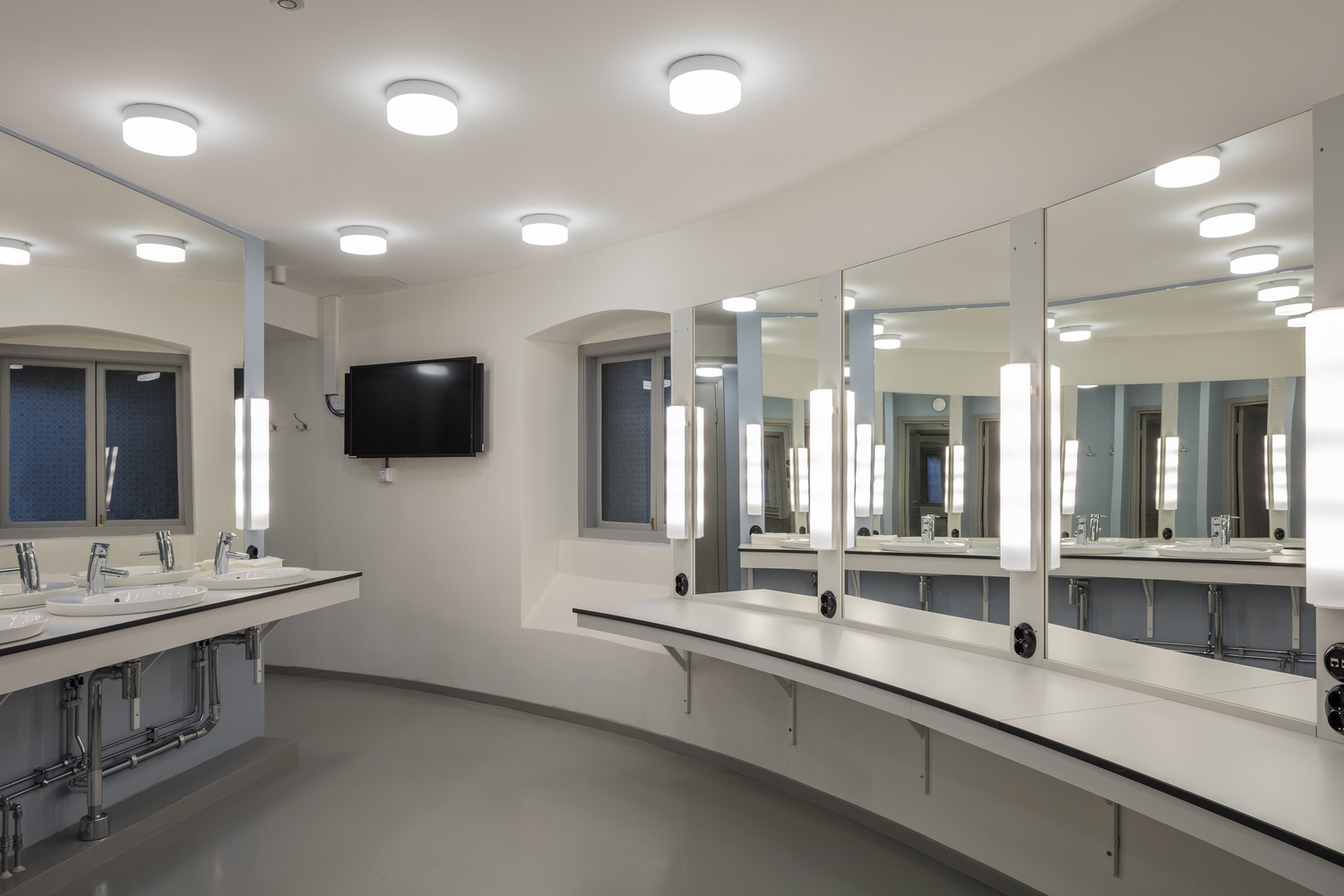

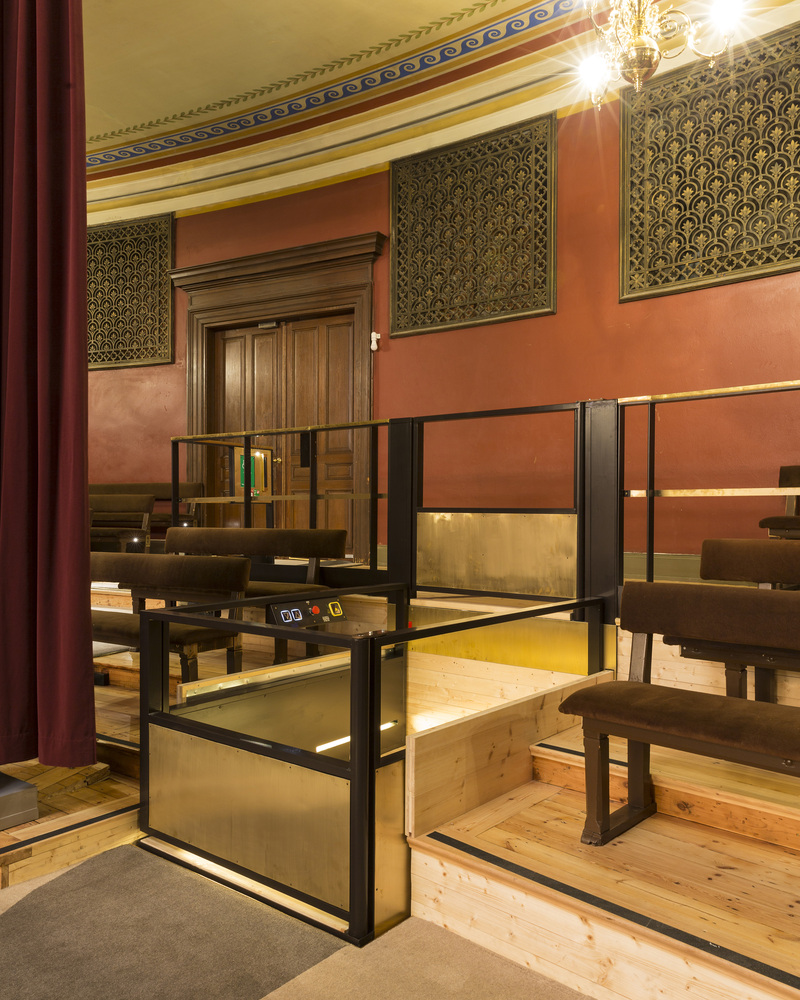

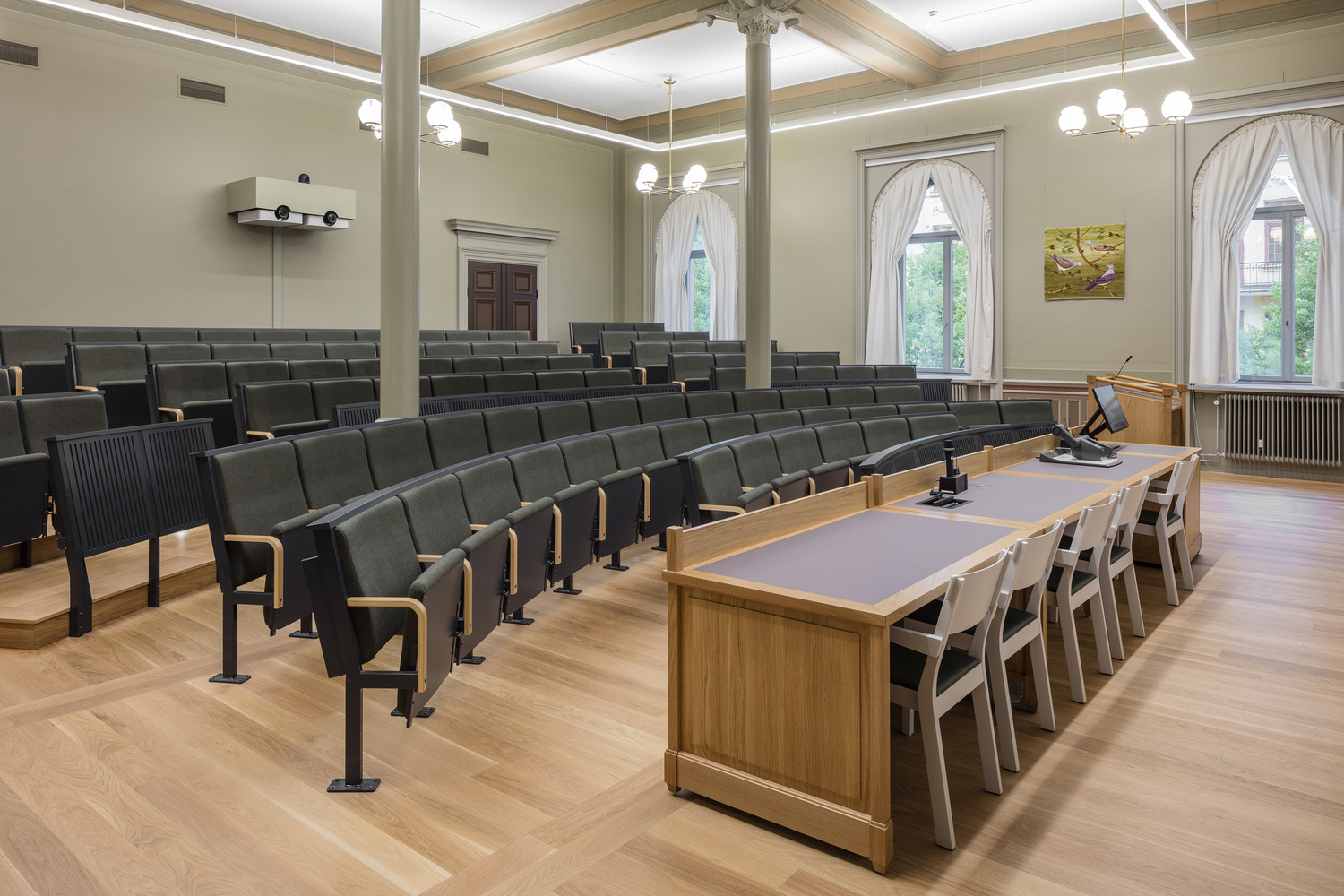

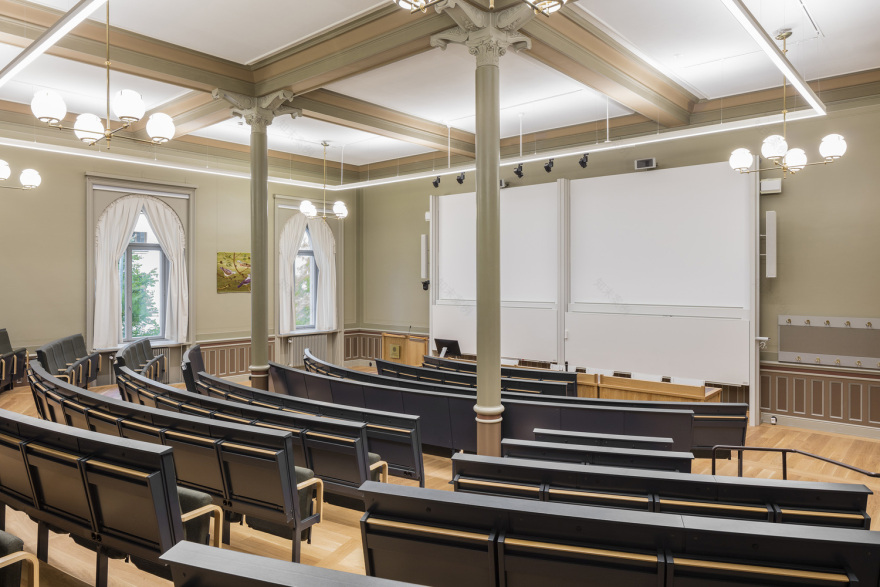

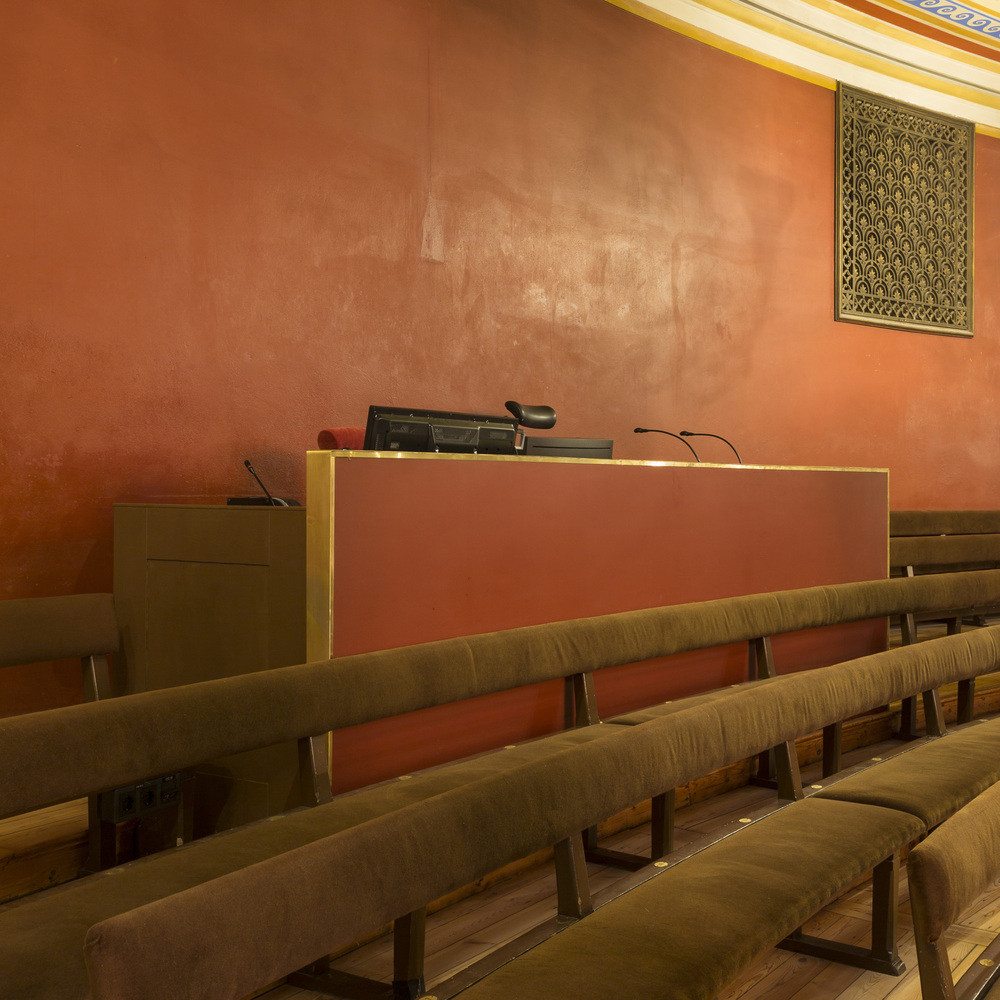

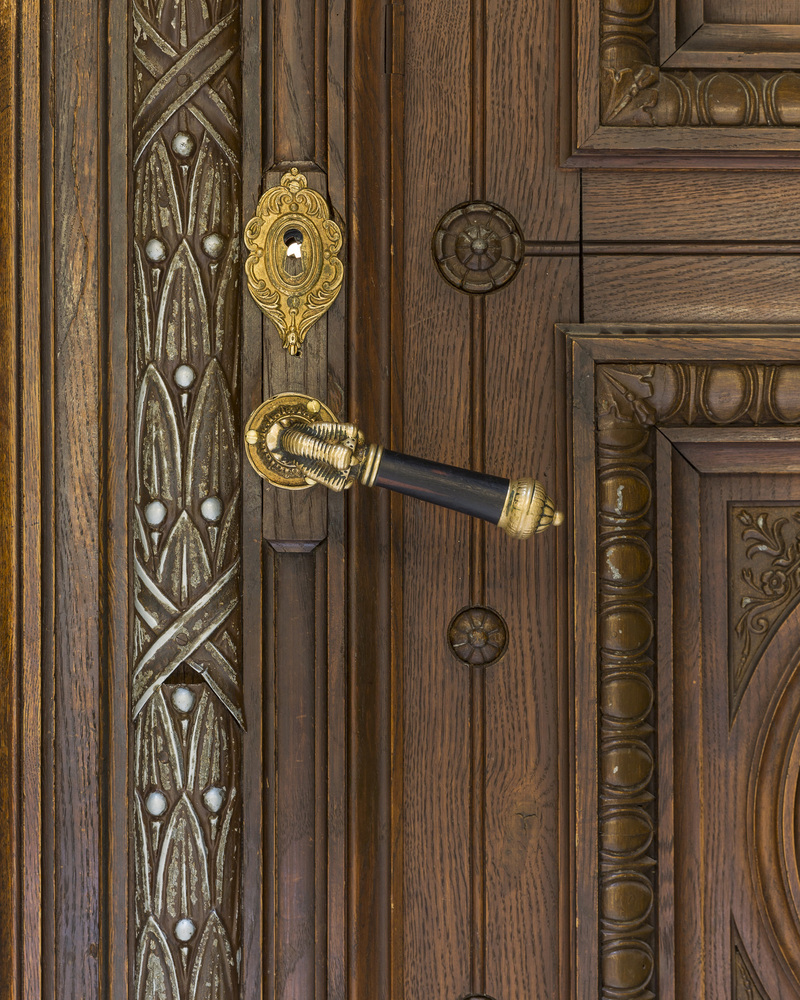

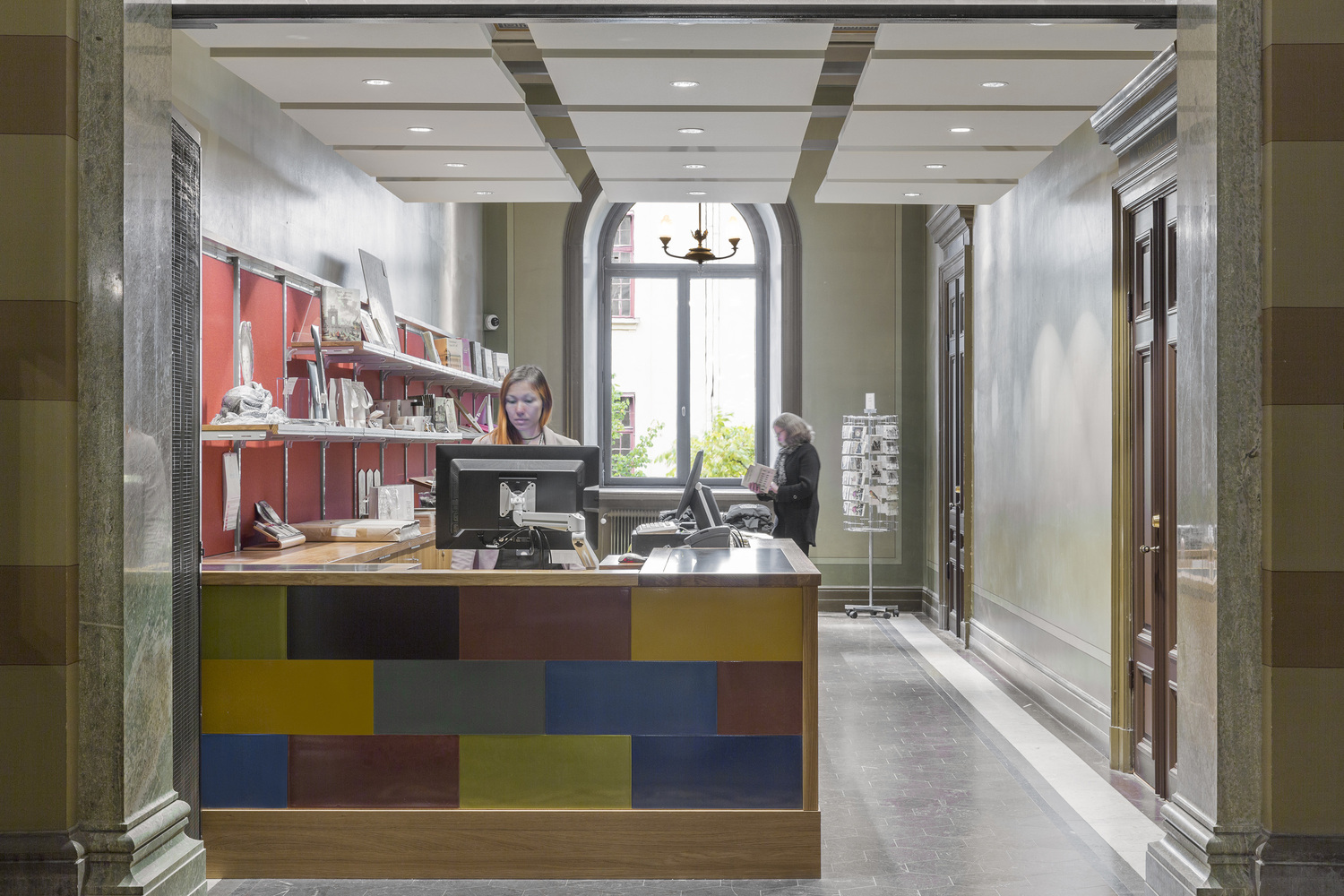

在艺术家宿舍和工作人员中，空间是木地板不好的问题，AIX用新的、更有目的地板解决方案重建了新的空间。大厅里新建了一家接待和商店。声学措施已经在奥拉和演讲厅实施，并融入了艺术装饰。在设计中，模型和实际试验得到了尽可能广泛的应用。例如，在教室中建立了一个测试室，并在现有的门对上测试了门的自动化。为了改善无障碍环境，已经采取了一些措施。在奥拉，通过一个新的平台和重建记分板，可以进入现场。大量的门已经被重建，要么通过移动配件，要么用电触点完成它们。

© Anders Fredriksén

(Anders Fredriksén)

© Anders Fredriksén

(Anders Fredriksén)

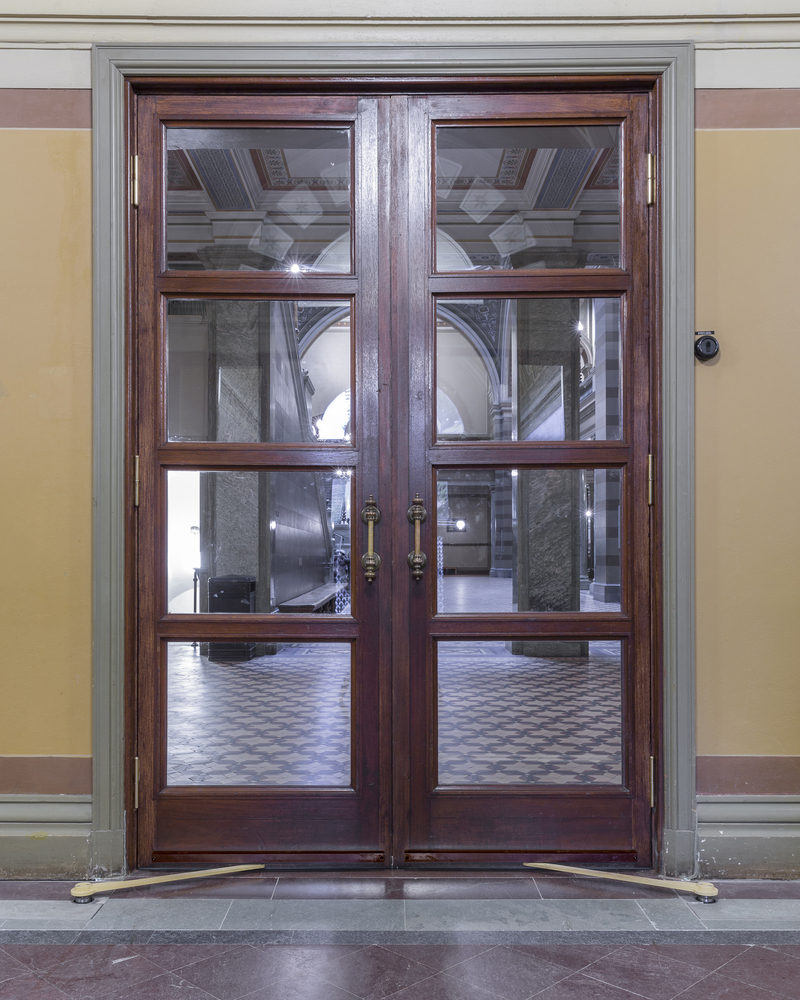

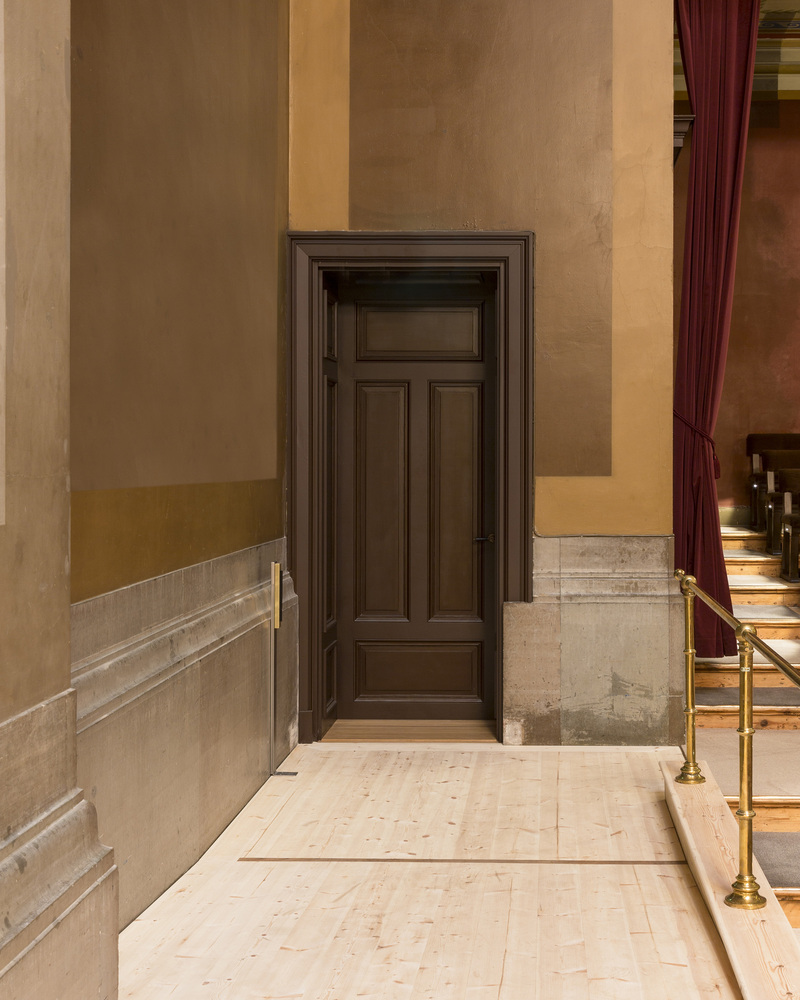

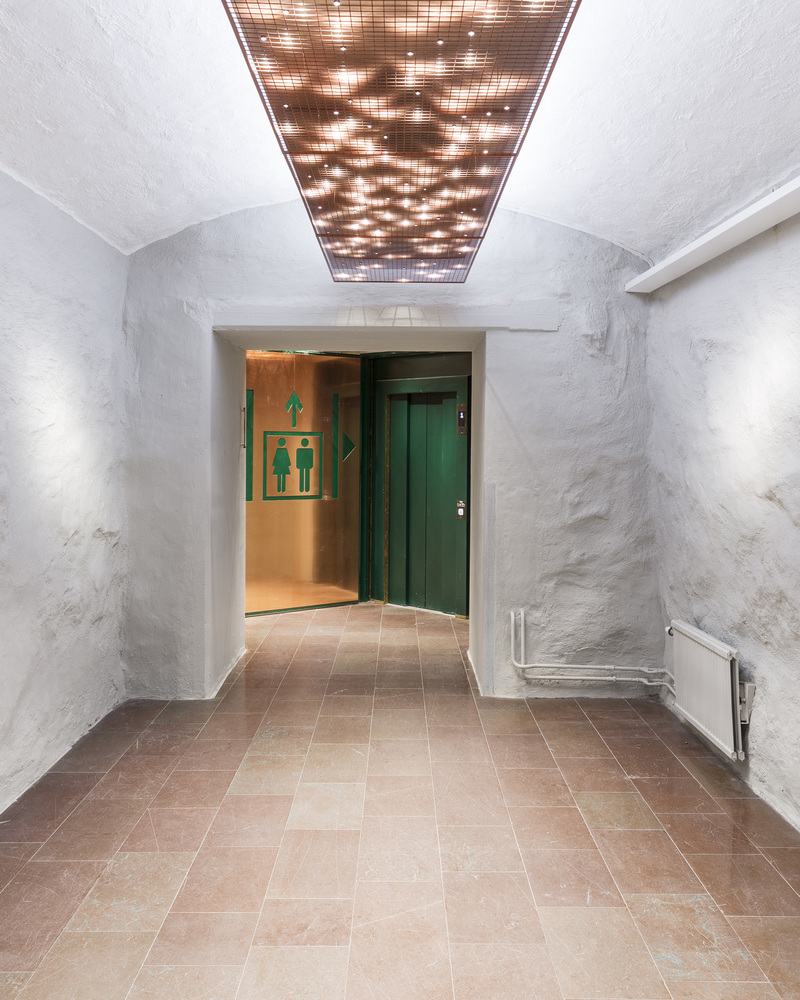

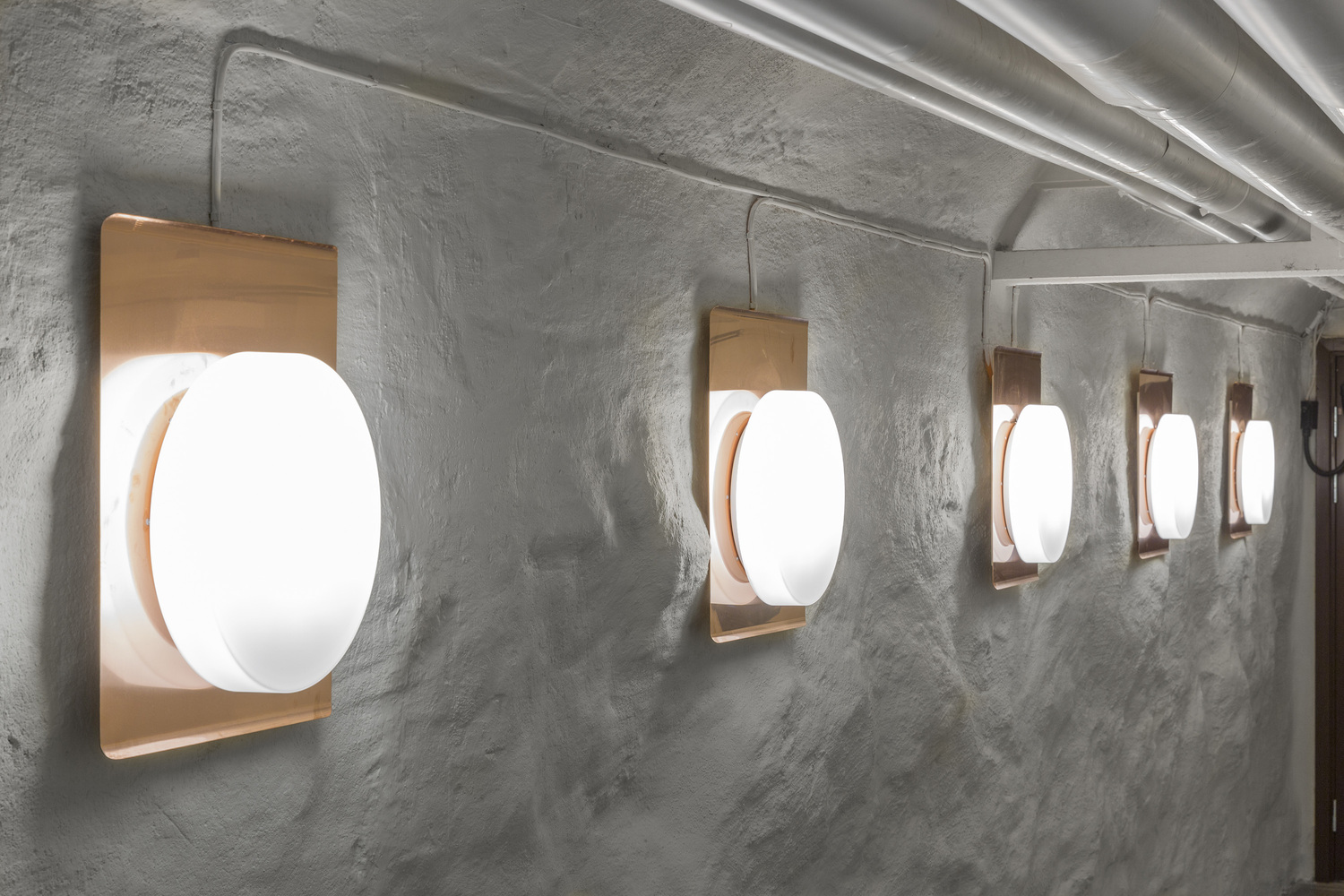

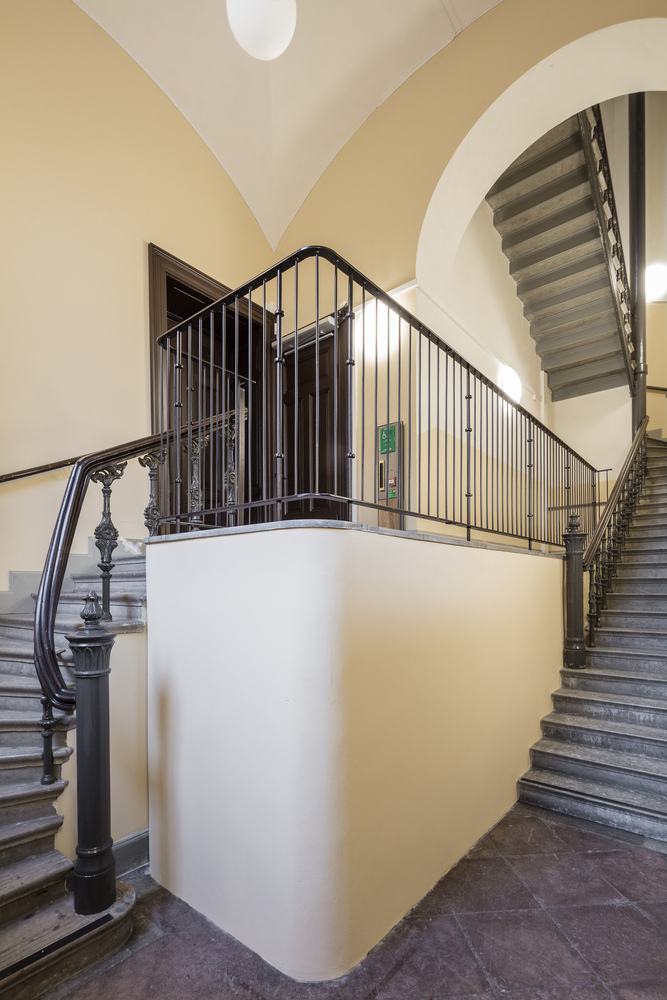

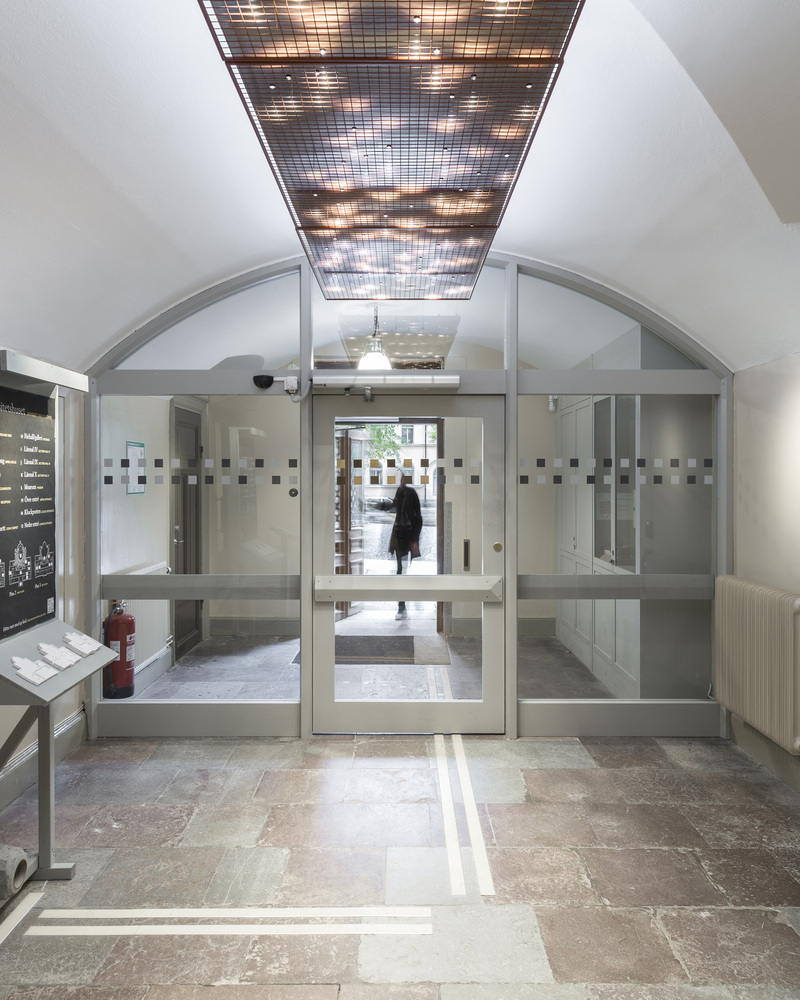

一种新的有价值的入口解决方案已经在大楼的前面创造出来了。照明已经补充了新的光源或切换到现代光源，以增加照明水平。铁路已得到重建和补充。楼梯已经用对比标记完成了。新的标牌和信息板欢迎访客。所有的电气系统和AV系统都得到了更新和改进.新的消防安全设备已经整合到建筑中。一个新的耐火衣柜已经建成，以减少火灾压力。许多现有的门被防火措施所保留，并配有膨胀的密封。

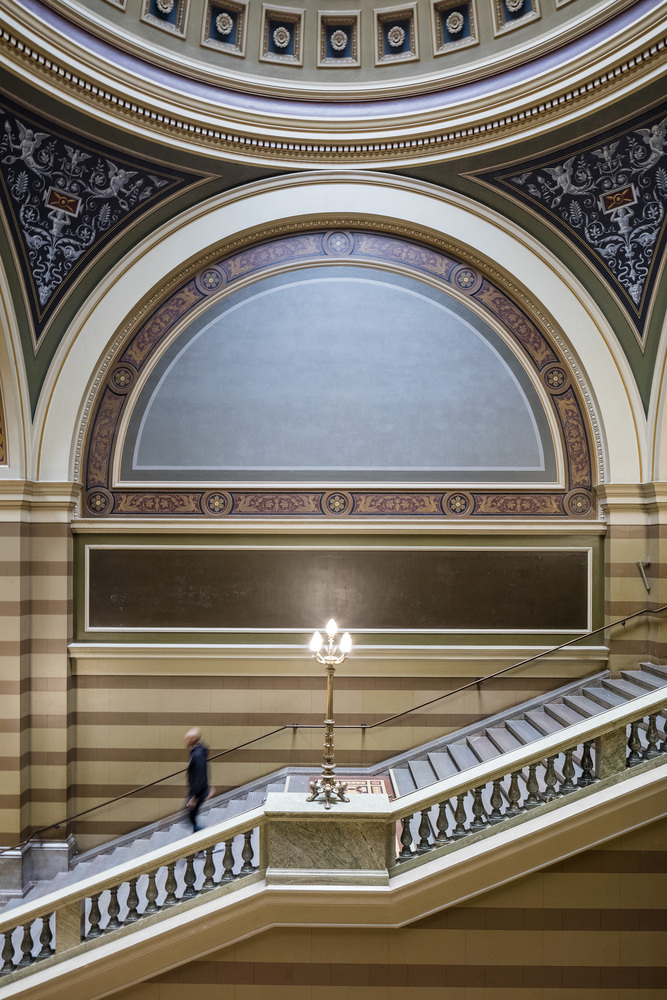

A new worthy entrance solution has been created on the front of the building. The lighting has been supplemented with new light sources or switched to modern ones in to increase lighting levels. The rails have been rebuilt and supplemented. Stairs have been completed with contrast markings. New signs and information boards welcome visitors. All the electrical system and AV-system has been renewed and improved. New fire safety equipment has been integrated into the architecture. A new fire-resistant wardrobe has been built to reduce fire stress. Many existing doors have been retained by fire protection measures and provided with intumescent seals.

© Anders Fredriksén

(Anders Fredriksén)

Architects AIX Arkitekter

Location Uppsala, Sweden

Lead Architect Mona Lantzourakis

Architecture Team Silvia Las Heras Jiménez, Odd Fries, Darío Marazuela, Linnéa Zickerman, Björn Wikmark, Martin Orrskog, Richard Tegnér, Johan Bohlin, Erik Törnkvist

Area 7700.0 m2

Project Year 2017

Photographs Anders Fredriksén

Category Restoration
