智利 Patagonia 湖畔的 GZ1 小屋

2018/08/22 11:00:00

查看完整案例

微信扫一扫

下载

c.Gustavo Zylbersztajn

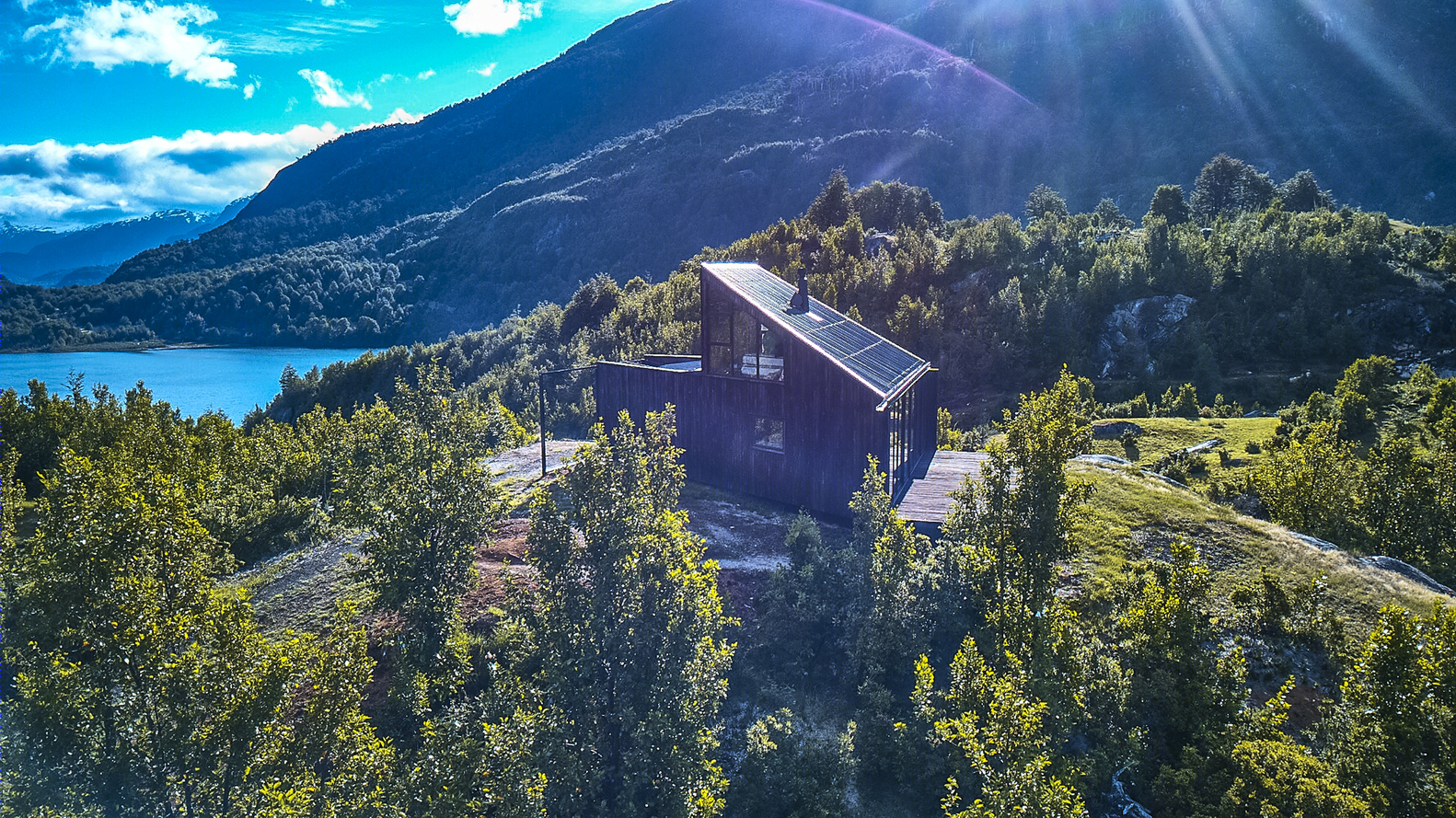

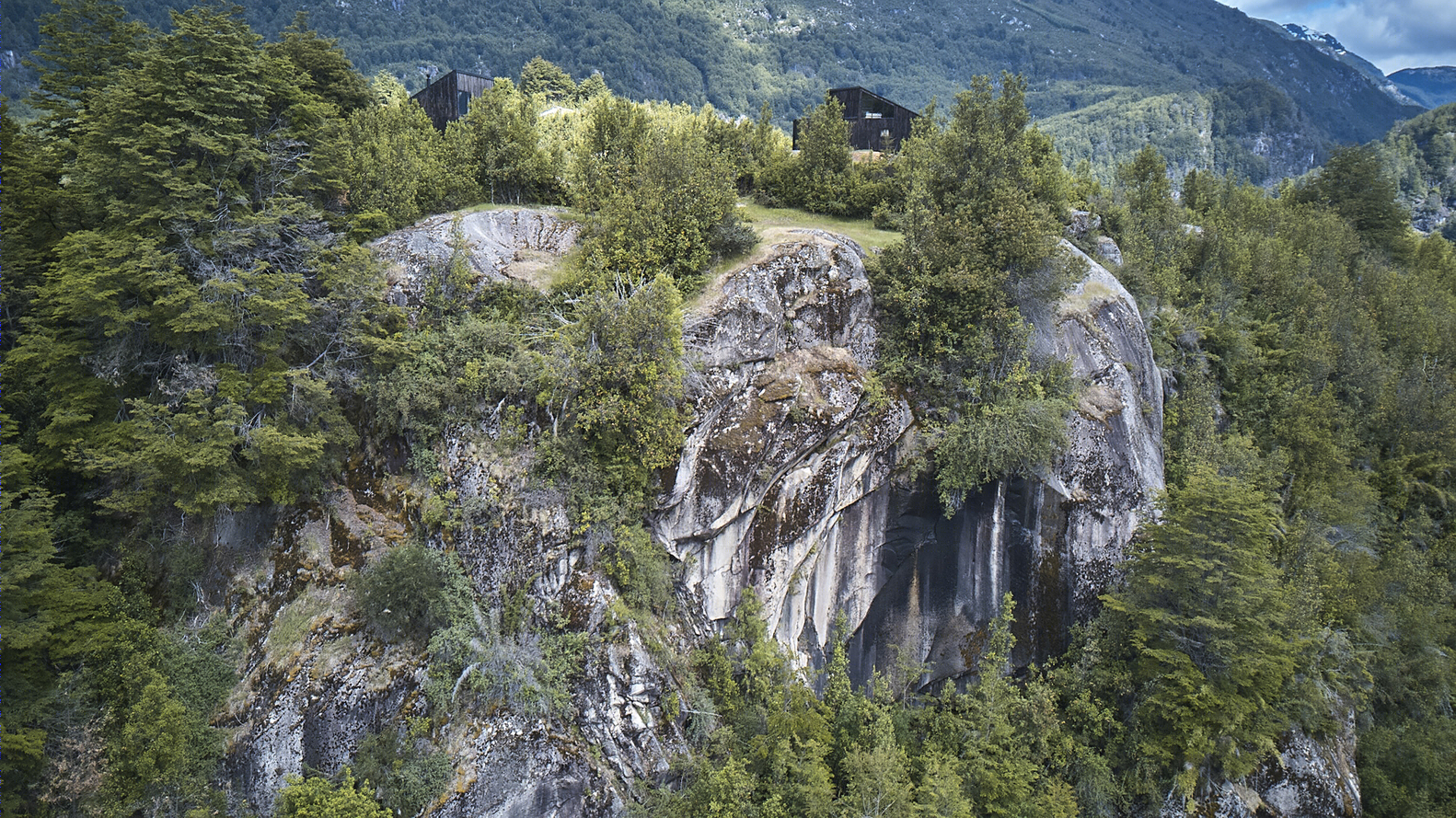

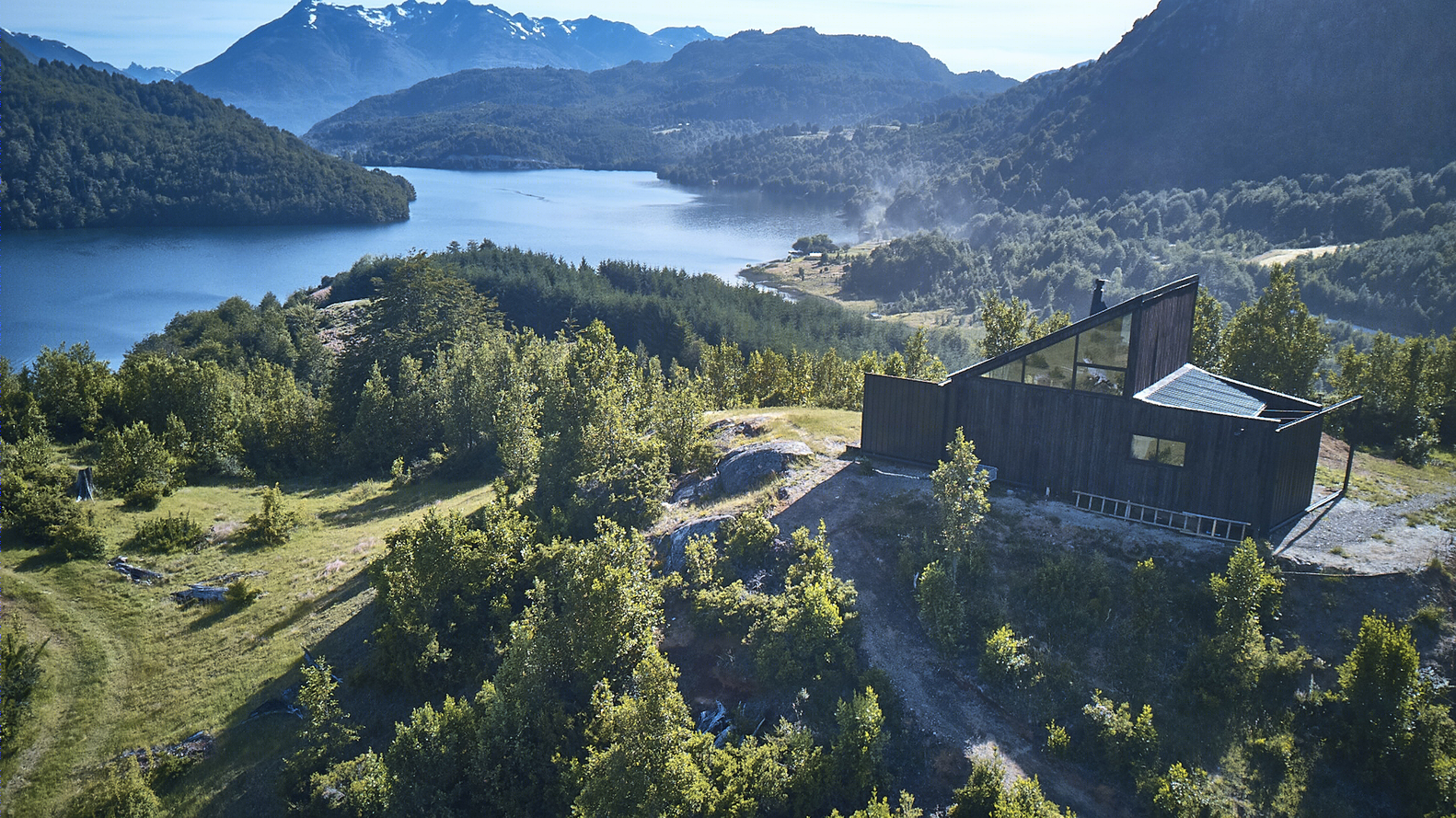

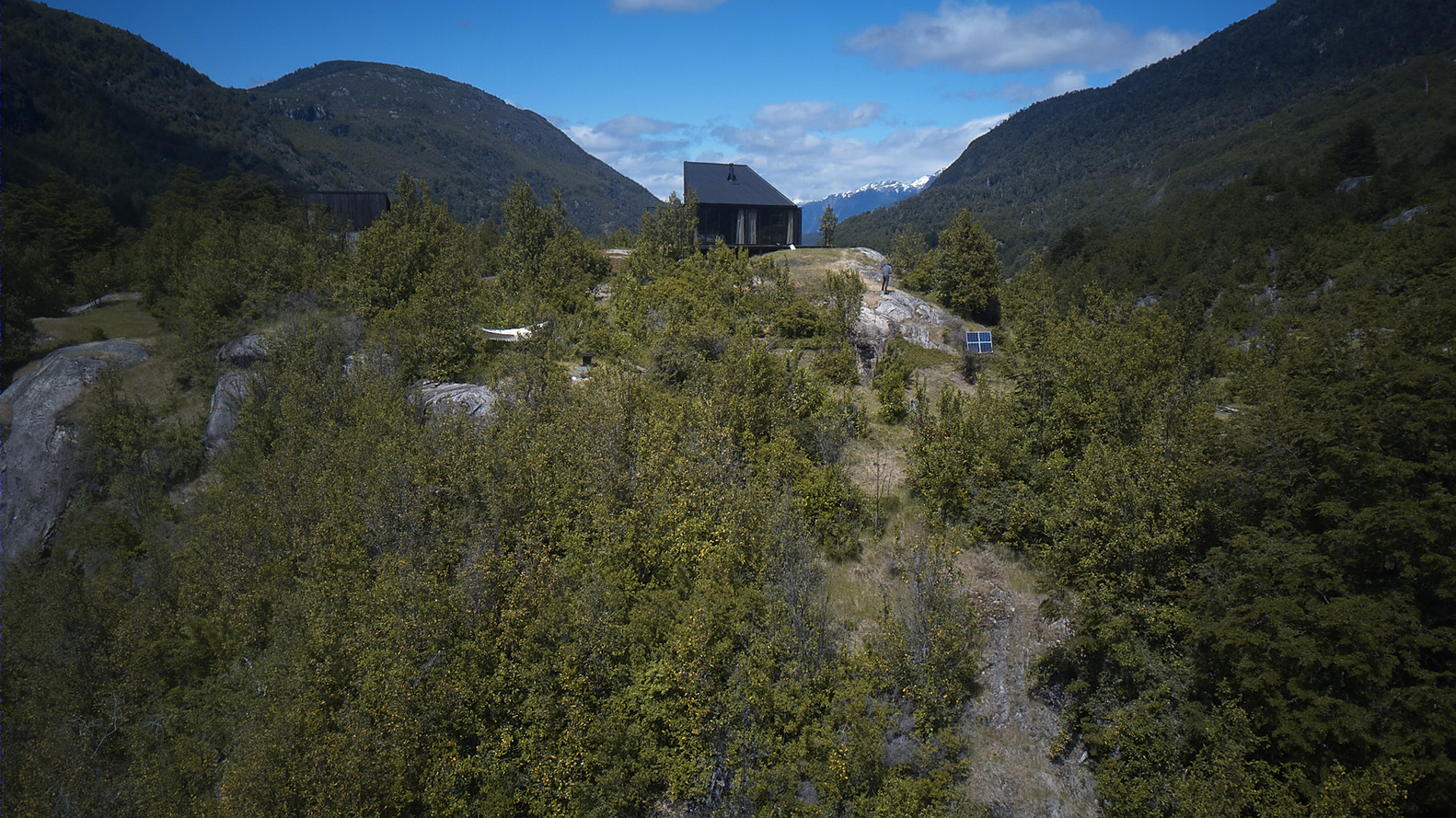

建筑师提供的文字说明。GZ1房子有65平方米，位于隆康纳湖畔，距Futalufu镇大约15公里，在智利Patagonia的“拉戈斯地区”（湖泊地区）。鉴于该地区的气候条件，除了房子被放置的高度外，它是湖泊的主要景观，其他的东西都放在后面。

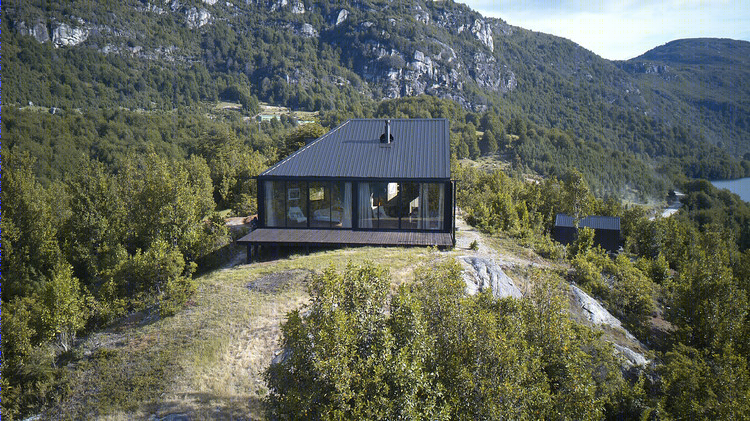

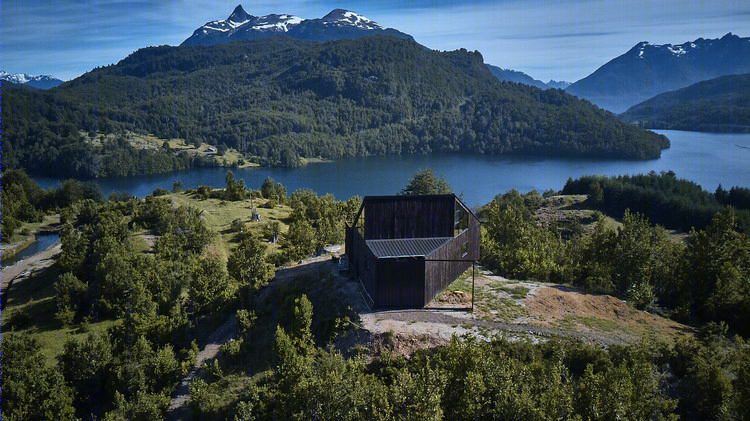

Text description provided by the architects. The GZ1 house has 65 square meters and is located over the Lonconaos Lake Peninsula, about fifteen kilometers from the town of Futaleufu, in the “Region de Los Lagos” (Region of Lakes), in the Chilean Patagonia. Given the weather conditions in this area, in addition to the height where the house is placed, it frames the main view of the lake and everything else is left behind.

c.Gustavo Zylbersztajn

Floor Plans

平面图

c.Gustavo Zylbersztajn

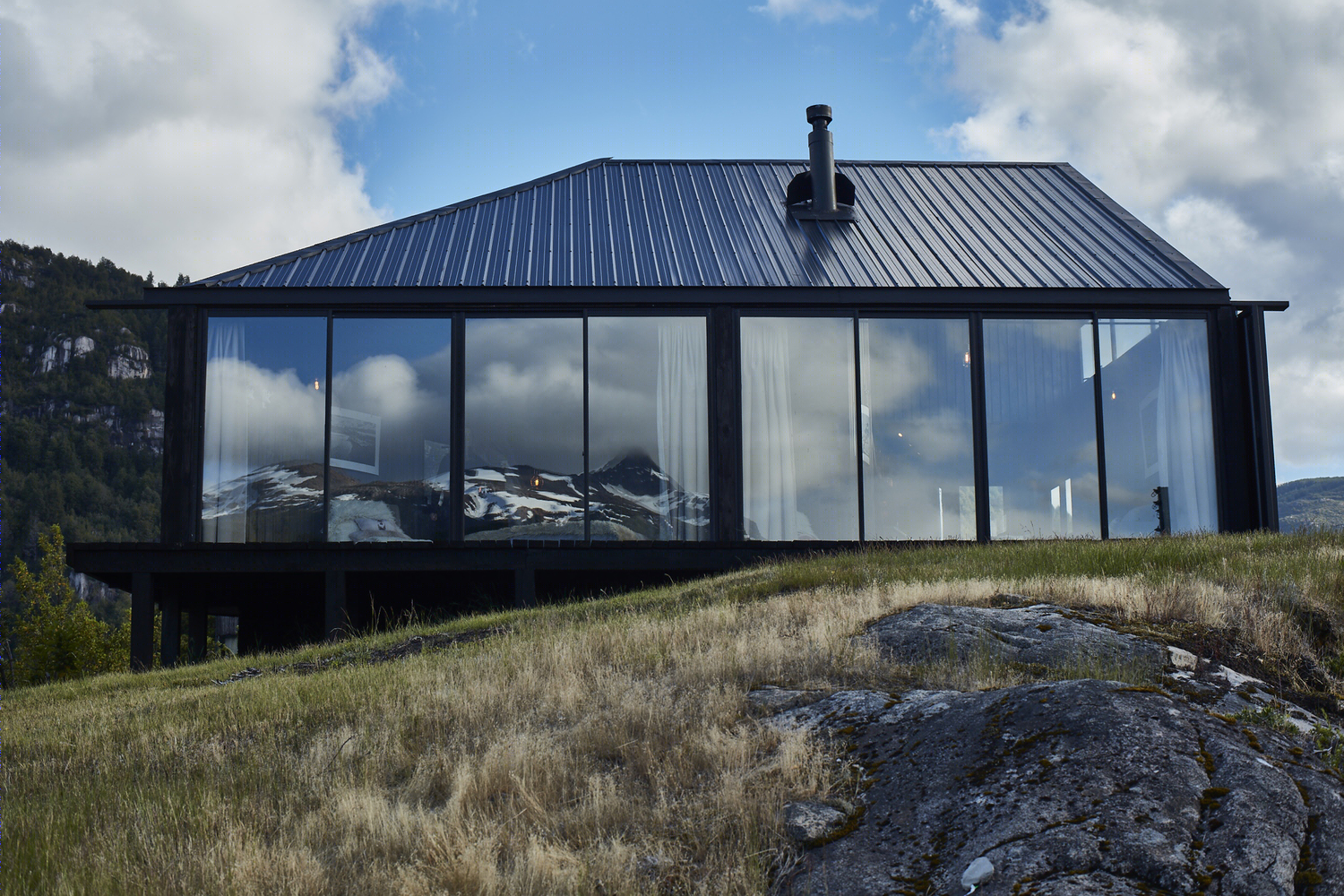

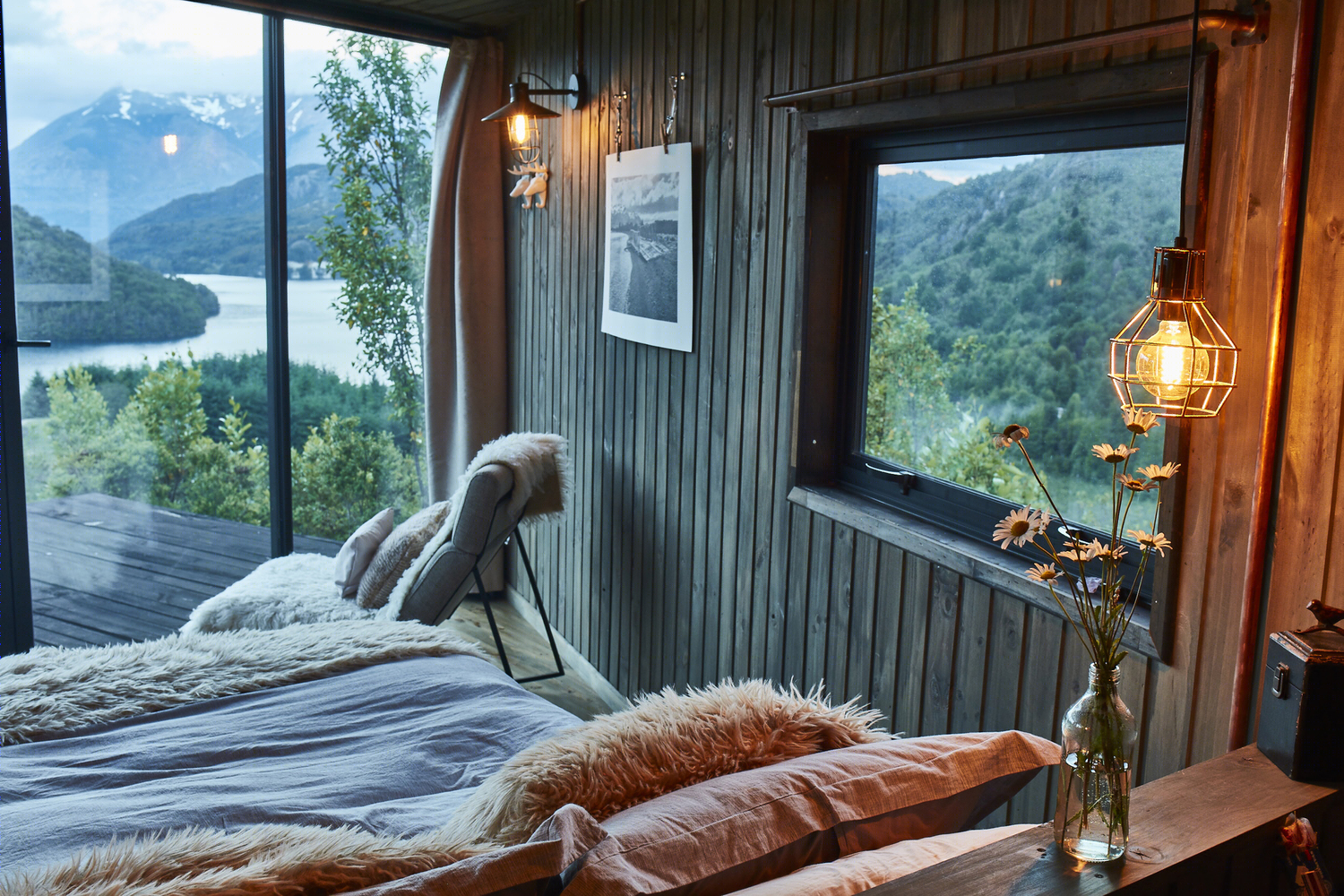

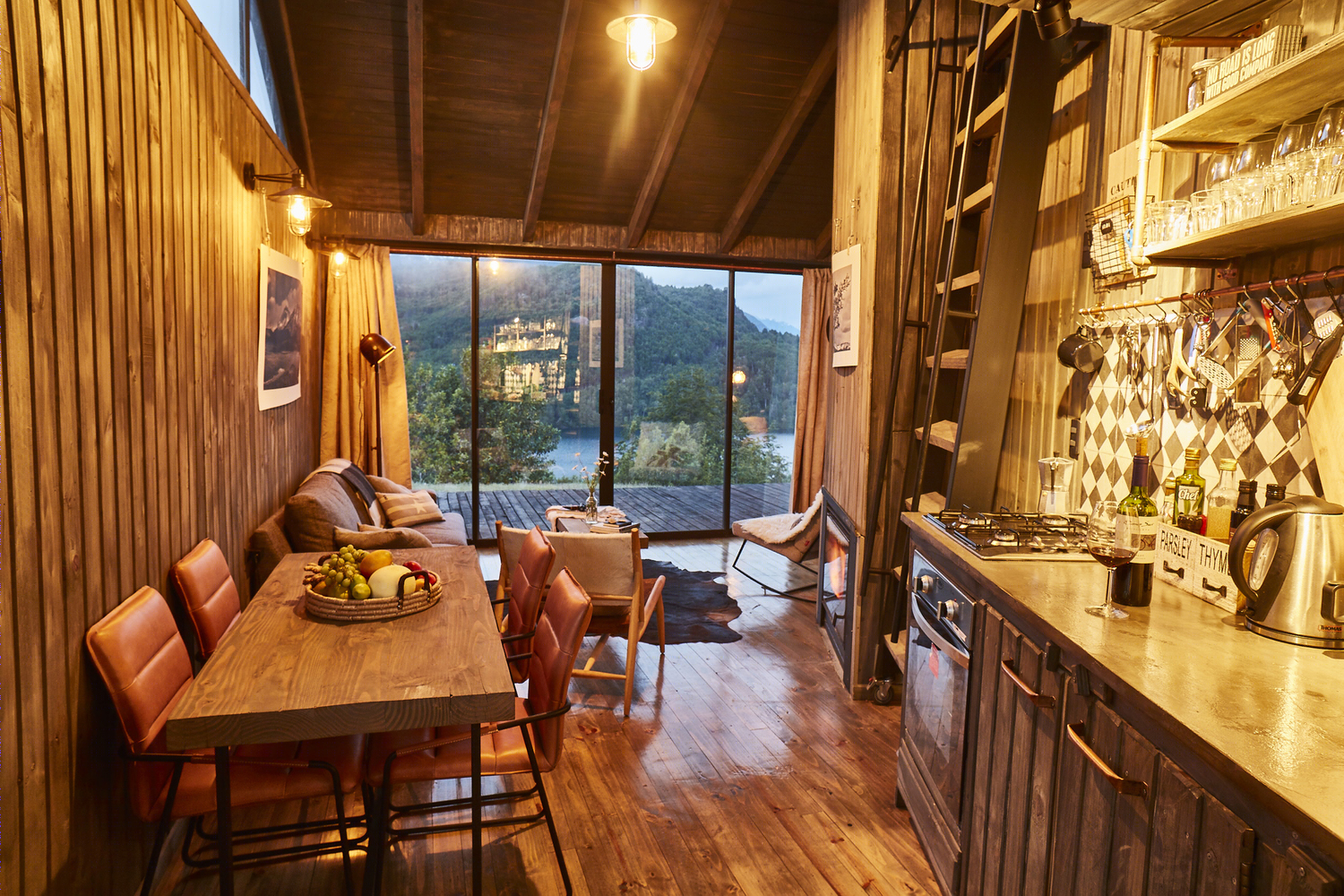

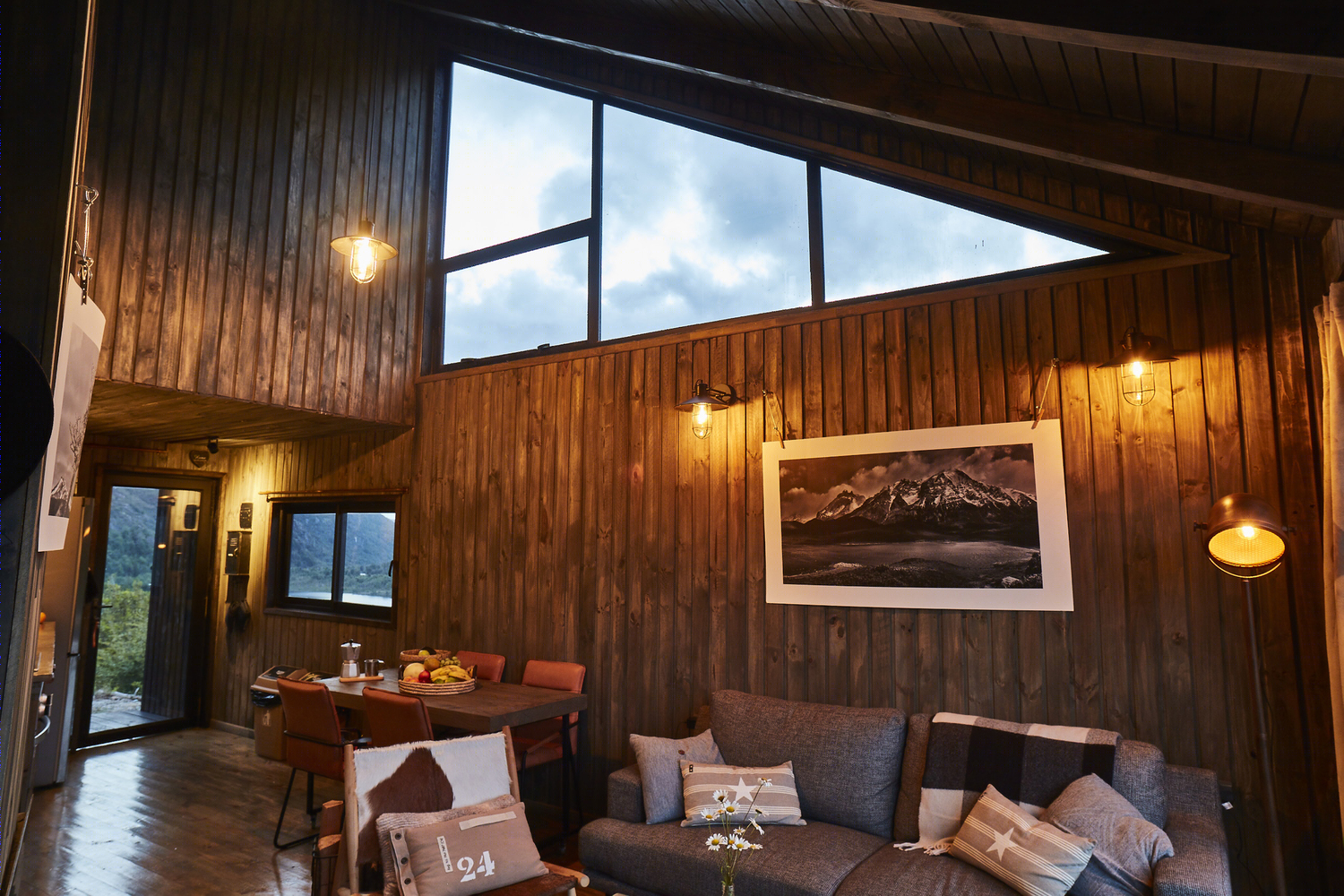

客厅和主卧室与湖面上的露台相连，一堵玻璃砌成的墙提供了绝对的自由视野。公共事业室和其他服务室都在房子的后面，这减少了它的空间，使它的植物呈A形。

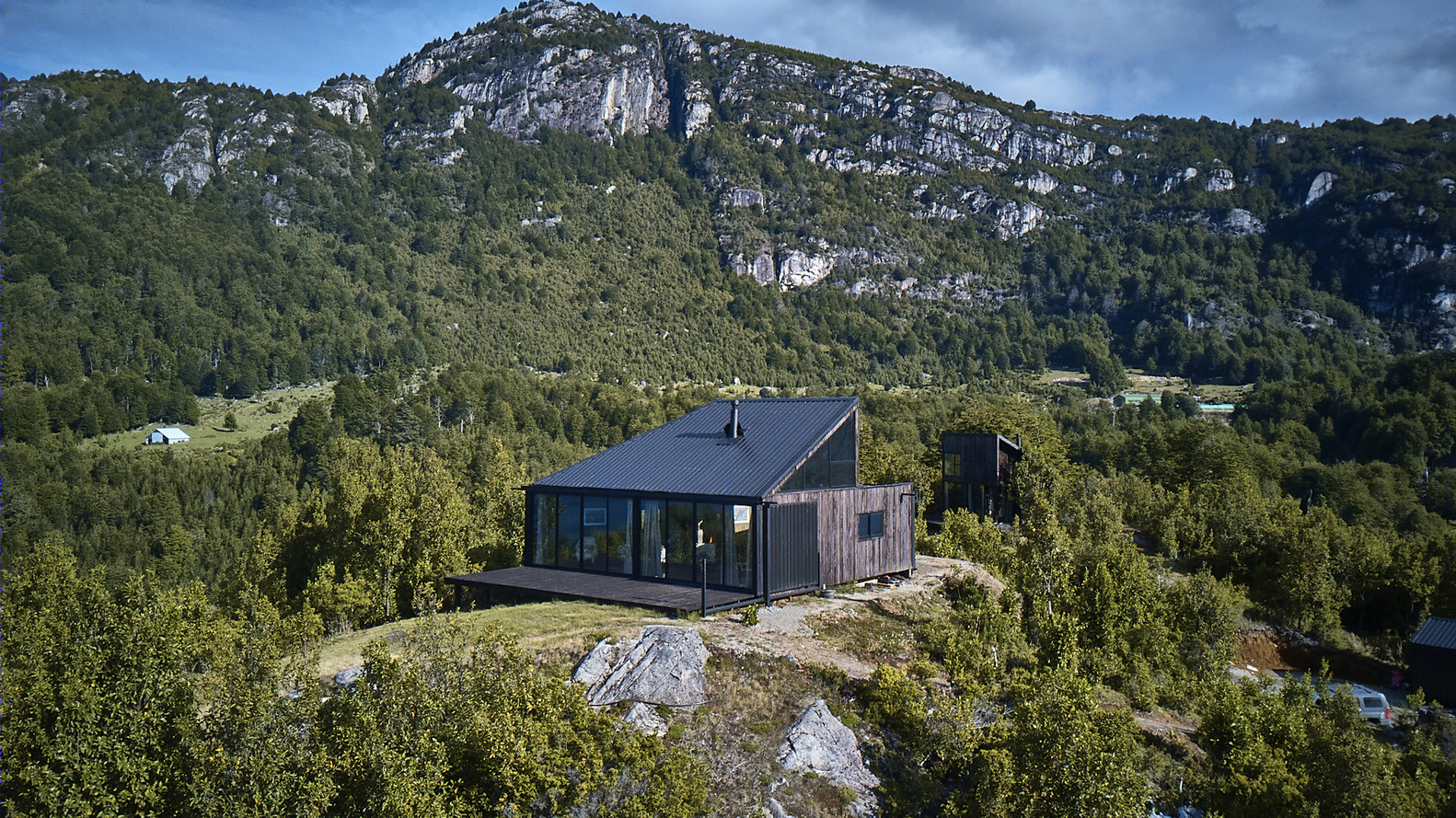

The living room and the master bedroom connect to a terrace above the lake, a glass made wall provides an absolute free view. The utility room and other service rooms are in the back of the house, which reduces its space, giving its plant an A shape.

c.Gustavo Zylbersztajn

一个带有丙烯酸屋顶的后院是通往这所房子的通道。它是通过金属门关闭的，有两种方式，第一种是在暴风雨时期保护房子，第二扇是给浴室留下隐私，因为这扇门有一个打开的窗户，看上去就像湖。

A backyard with an acrylic roof serves as the access to the house. It’s closed through a metal door which works in two ways, the first one is to protect the house in periods of storms, and the second one is to give privacy to the bathroom since this one has an open window that looks right to the lake.

c.Gustavo Zylbersztajn

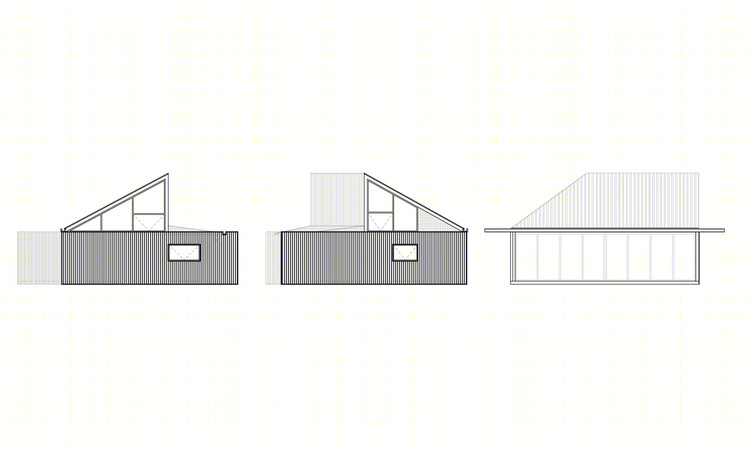

Elevations

c.Gustavo Zylbersztajn

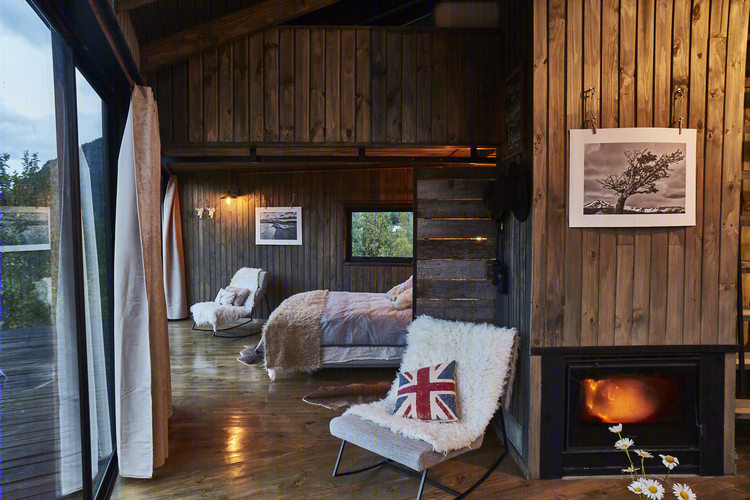

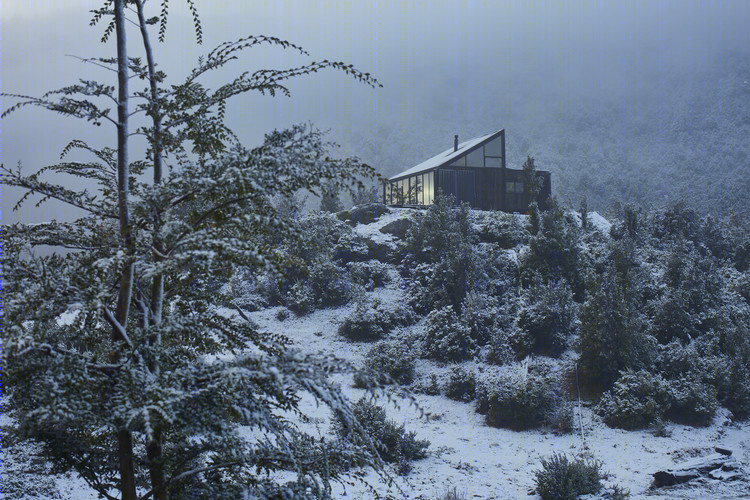

倾斜的屋顶上升，创造一个阁楼，这是通过一个可伸缩的楼梯，腾出空间的小住宅，而不打扰它。最后，房子的壁炉在建筑物的中央，以保持热量，并有一个竖井，自然分配热量到浴室和卧室。

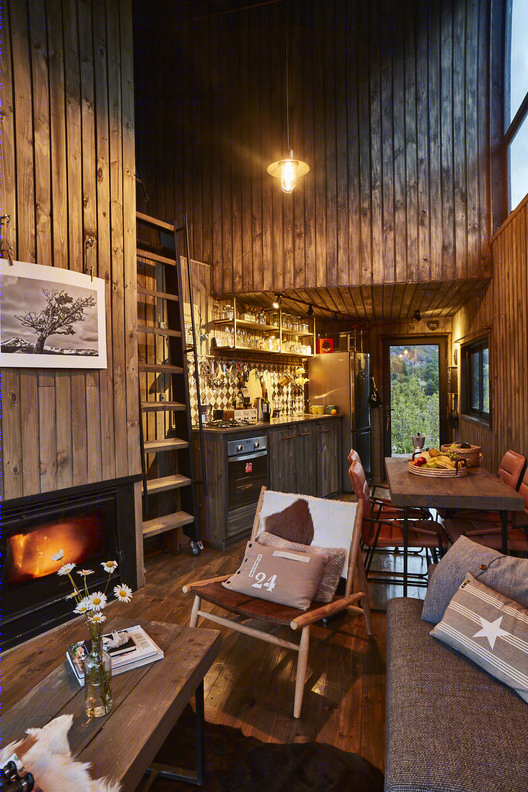

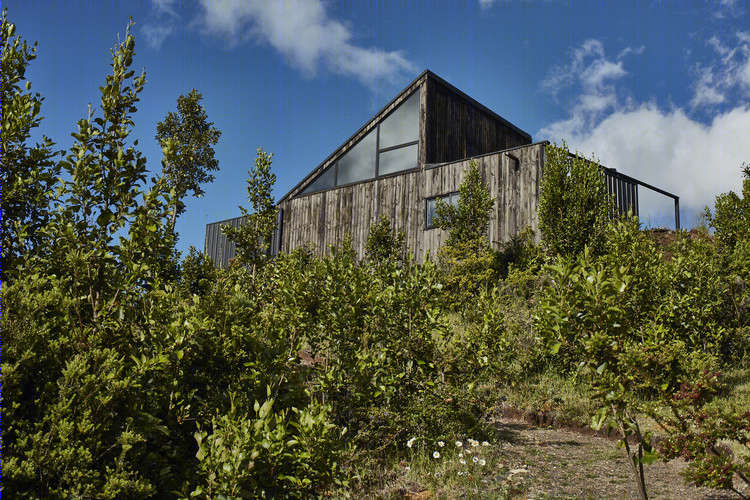

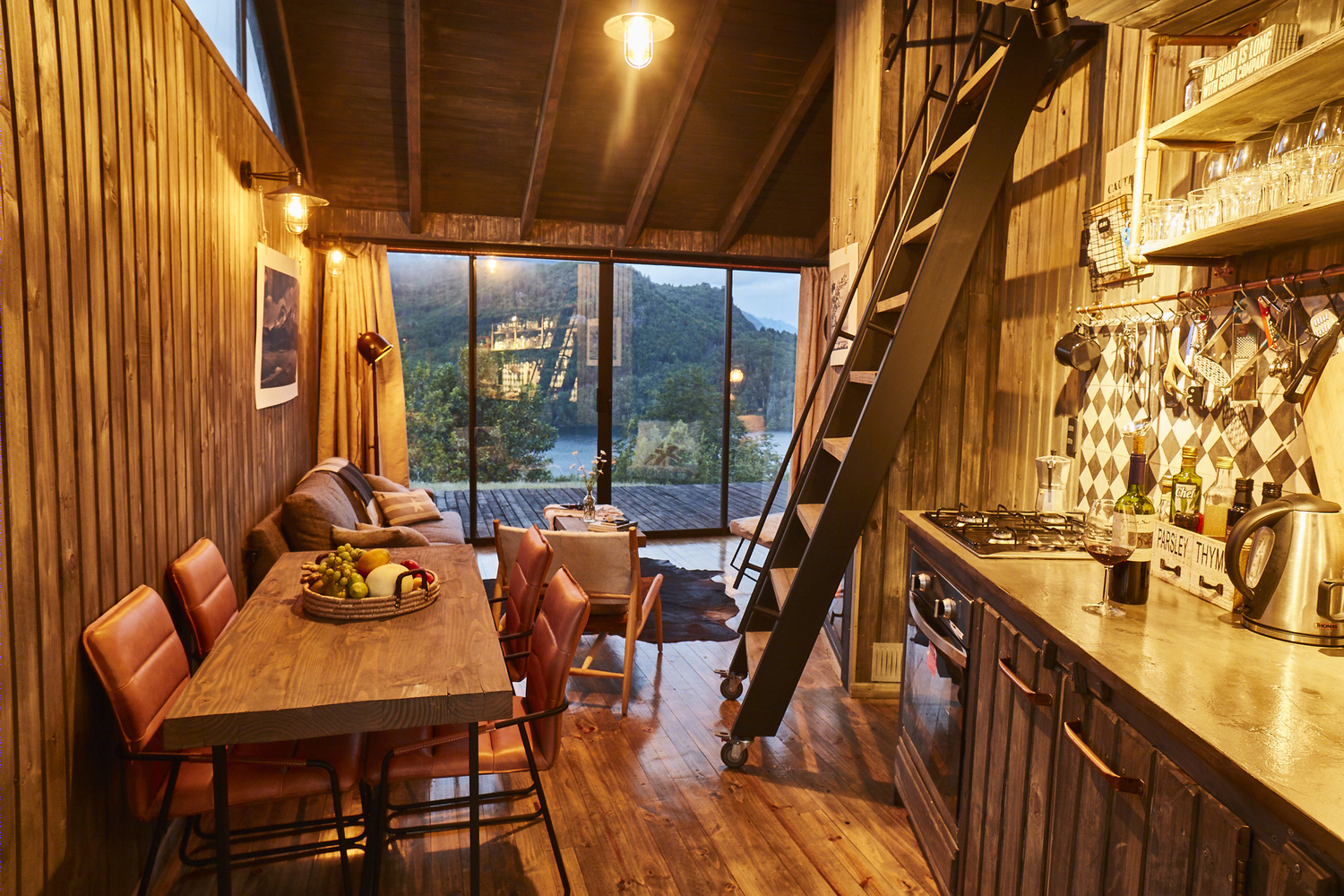

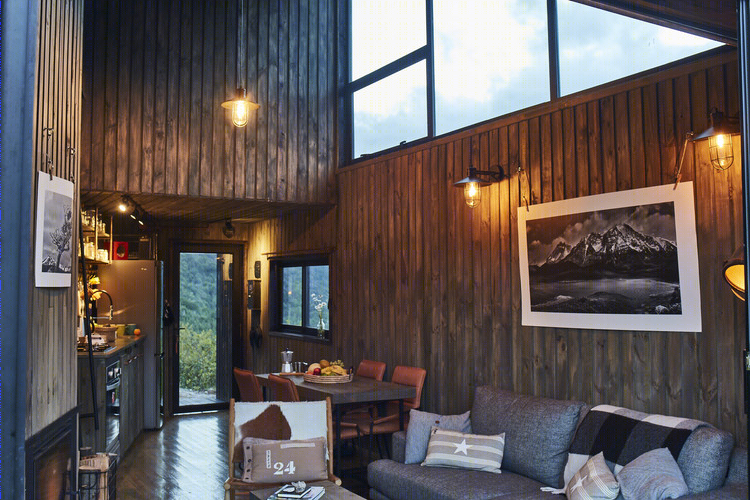

The sloping roofs rise to create a loft, which is accessed through a retractable staircase that frees space in the small dwelling, without disturbing it. Finally, the fireplace of the house is in the middle of the building in order to maintain heat and has a shaft that distributes heat naturally to the bathroom and bedroom.

c.Gustavo Zylbersztajn
