Jose House 的开放式设计与自然光线运用

架构师提供的文本描述。这座房子是一座典型的单层露台房屋，地块为23‘x75’。最初的房屋布局通常是封闭的，其简略是在一侧创建一个开放的平面，在分隔中心墙的另一侧创建一个私人房间。在预算有限的情况下，布局尽量利用现有结构，增加一半阁楼盖，原来是旧水箱的现有楼板。屋面木支架也没有接触，建筑物的规模保持与现有的邻近房屋相匹配。

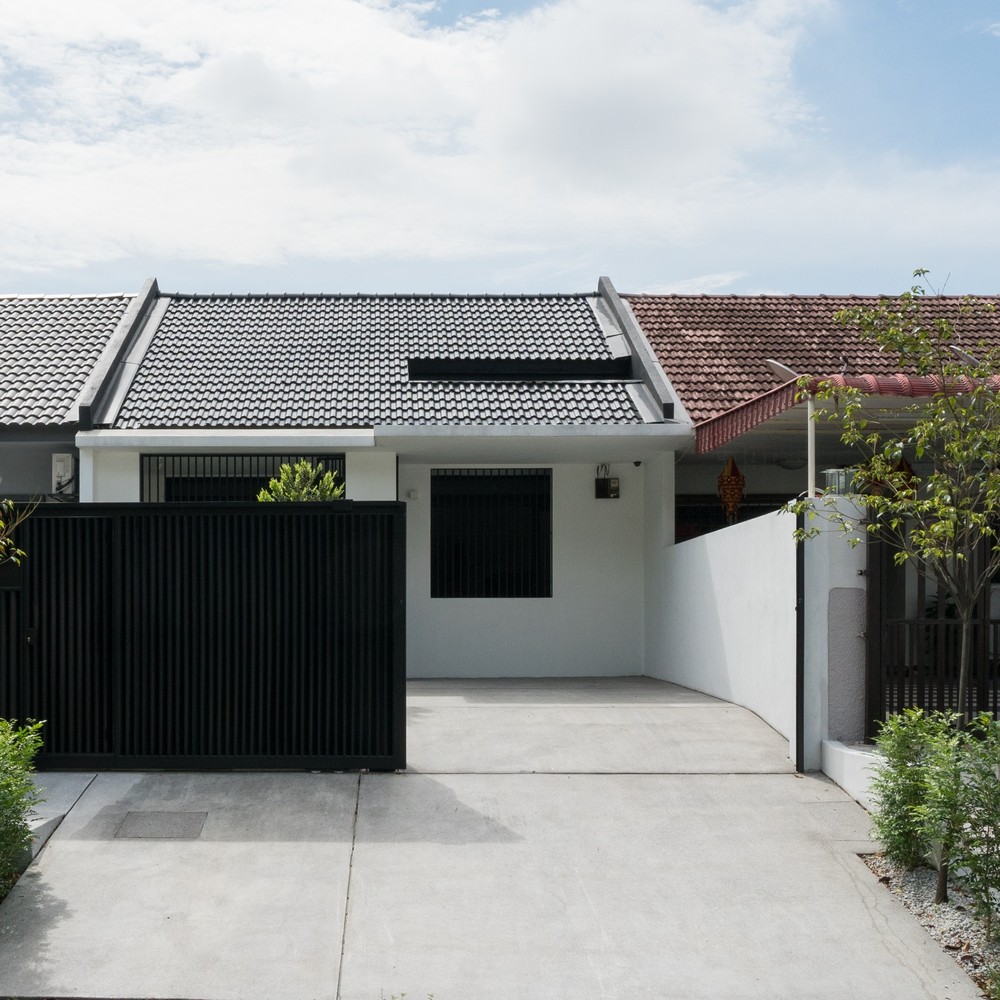

Text description provided by the architects. The house is a typical single storey terrace house on a plot of  23' x 75' land. The original house layout is typically closed and the brief was to create an open plan on one side and private rooms on the other side of the dividing center wall. With a restricted budget, the layout utilizes the existing structure as much as possible with the addition of a half loft floor which originally was the existing floor slab for an old water tank. The roof timber supports was also untouched and the scale of the building was maintained to match with the existing neighboring houses.

Text description provided by the architects. The house is a typical single storey terrace house on a plot of  23' x 75' land. The original house layout is typically closed and the brief was to create an open plan on one side and private rooms on the other side of the dividing center wall. With a restricted budget, the layout utilizes the existing structure as much as possible with the addition of a half loft floor which originally was the existing floor slab for an old water tank. The roof timber supports was also untouched and the scale of the building was maintained to match with the existing neighboring houses.

© Ceavs Chua

c Ceavs Chua

Ground floor plan

© Ceavs Chua

c Ceavs Chua

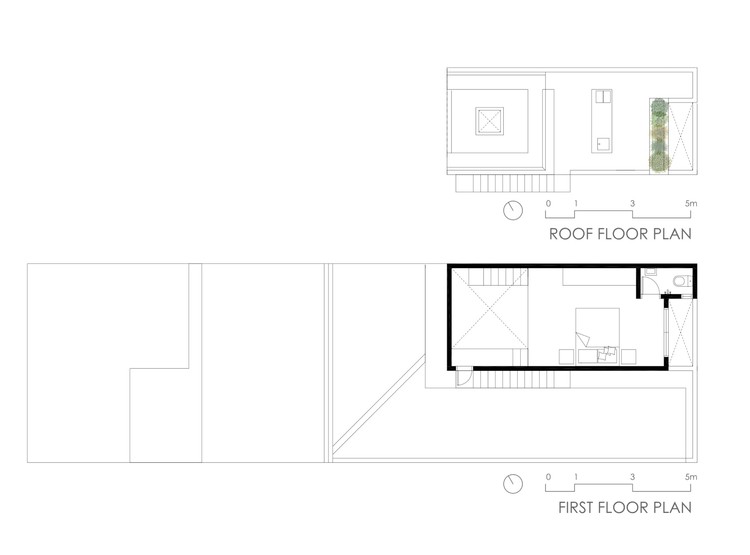

1st floor plan

一楼图则

© Ceavs Chua

c Ceavs Chua

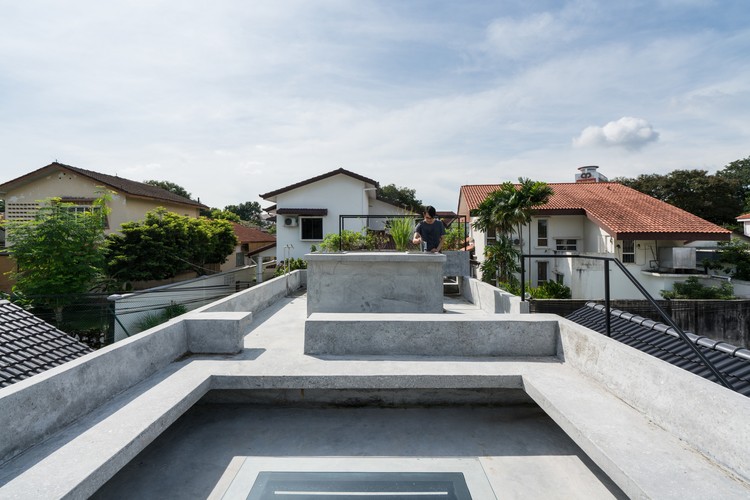

屋顶观景甲板的比例是不可见的，从街道的水平，并用于夜间外出和烧烤。‘U’形混凝土座椅稍微降低了一个玻璃桌子，双倍作为天窗，以带来光线到房子的中心。这座房子是通过祖母的眼睛来设计的，目的是在里面重现她对自然和光明的热爱。我们对这些想法进行了探索和提炼，以创造出仔细的视野、光、影、空的框架。

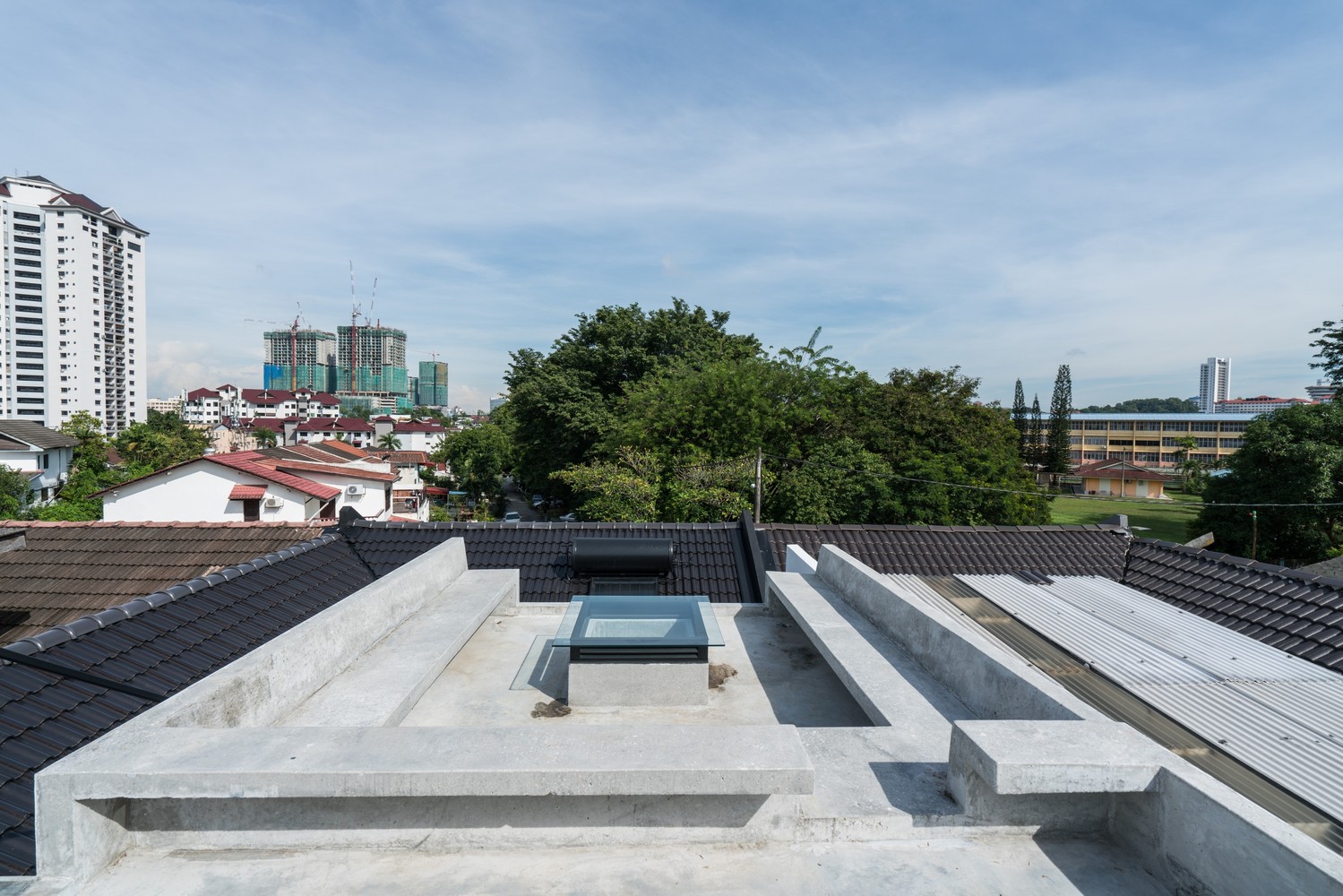

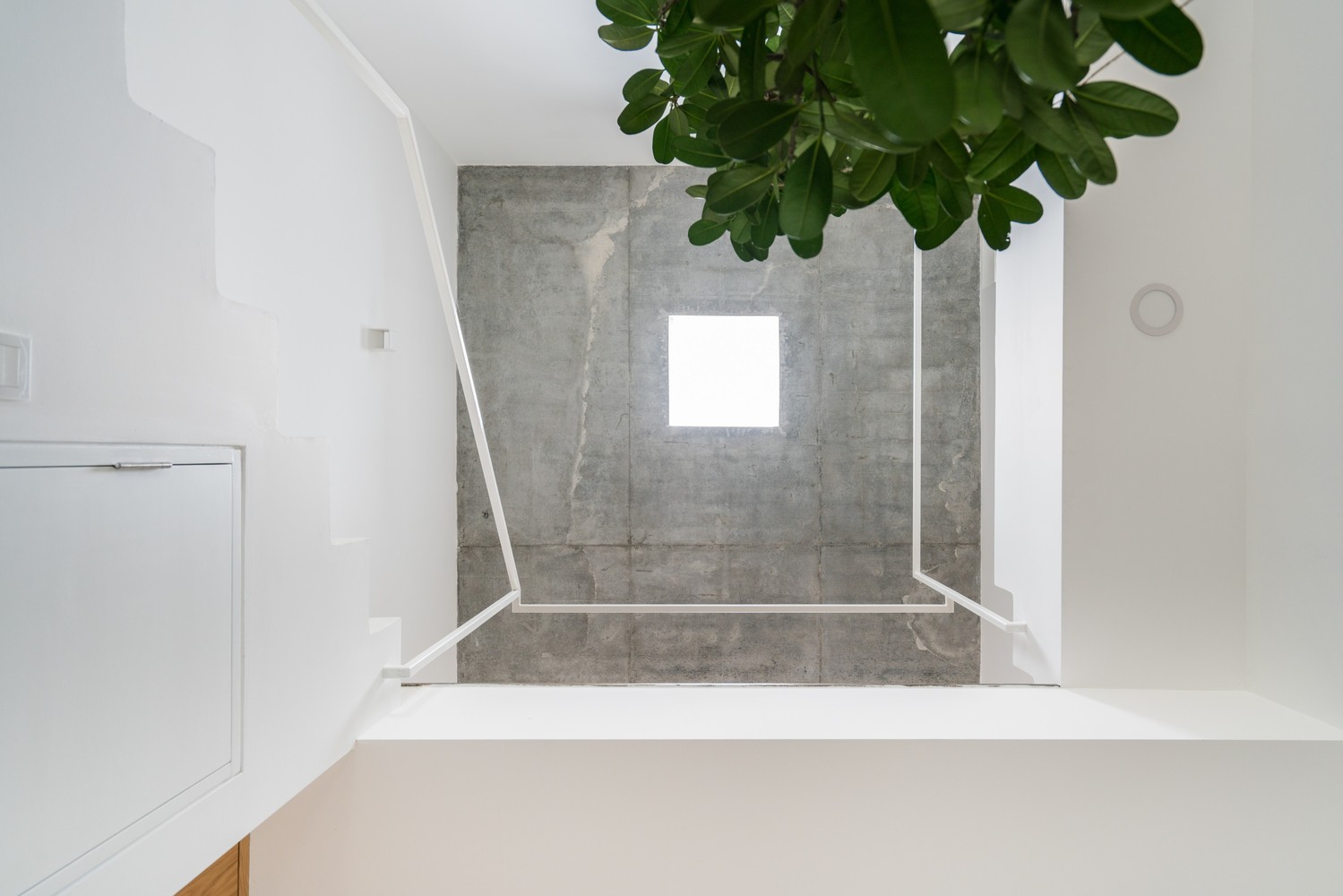

The roof viewing deck is proportioned to be unseen from street level and is used for night time hangout and barbecues. The 'U' shaped concrete seats is slightly lowered with a glass table that doubles up as the skylight to bring light to the center of the house. This house was designed through the eyes of a grandmother to recreate her love for nature and light whilst inside. The ideas are explored and distilled to create careful framings of view, light, shadow, void & relationships. Clearly, a natural harmonization of the houses' linear spatial qualities.

The roof viewing deck is proportioned to be unseen from street level and is used for night time hangout and barbecues. The 'U' shaped concrete seats is slightly lowered with a glass table that doubles up as the skylight to bring light to the center of the house. This house was designed through the eyes of a grandmother to recreate her love for nature and light whilst inside. The ideas are explored and distilled to create careful framings of view, light, shadow, void & relationships. Clearly, a natural harmonization of the houses' linear spatial qualities.
