墨西哥 RODIN 街 33 号公寓楼丨HAUSM2

Mexico RODIN Street 33 apartment buildings

设计方：HAUSM2

位置：墨西哥

分类：居住建筑

内容：实景照片

图片：12张

摄影师：OnnisLuque

这是由HAUSM2设计的RODIN街33号公寓楼，位于墨西哥城。该项目位于一个狭窄的场地里，要求一个精确的建筑布局。为了优化室内空间，建筑师决定探索一种可以享受开放空间的结构系统。起居室与饭厅清晰地与户外阳台相联系。每个楼层设有一间公寓，让居民享有墨西哥美丽的城市天际线风景。立面设有一个20平方米的阳台，混凝土框架结构，这种半开口的阳台可以让居民在室内外空间切换。铜鼓这种方式，居民可以通过玻璃立面的移动而增加或减少室内空间。

译者：筑龙网艾比

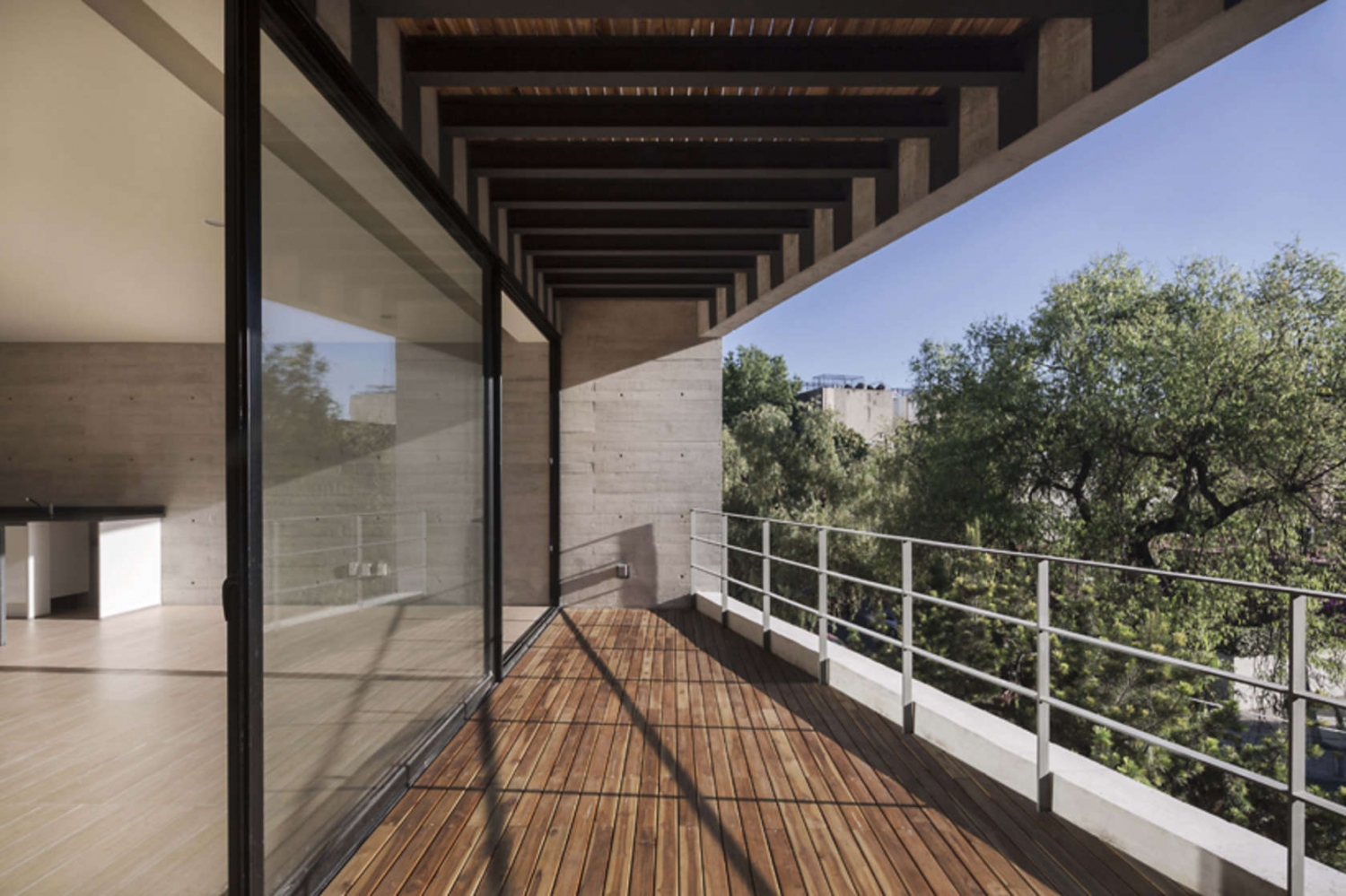

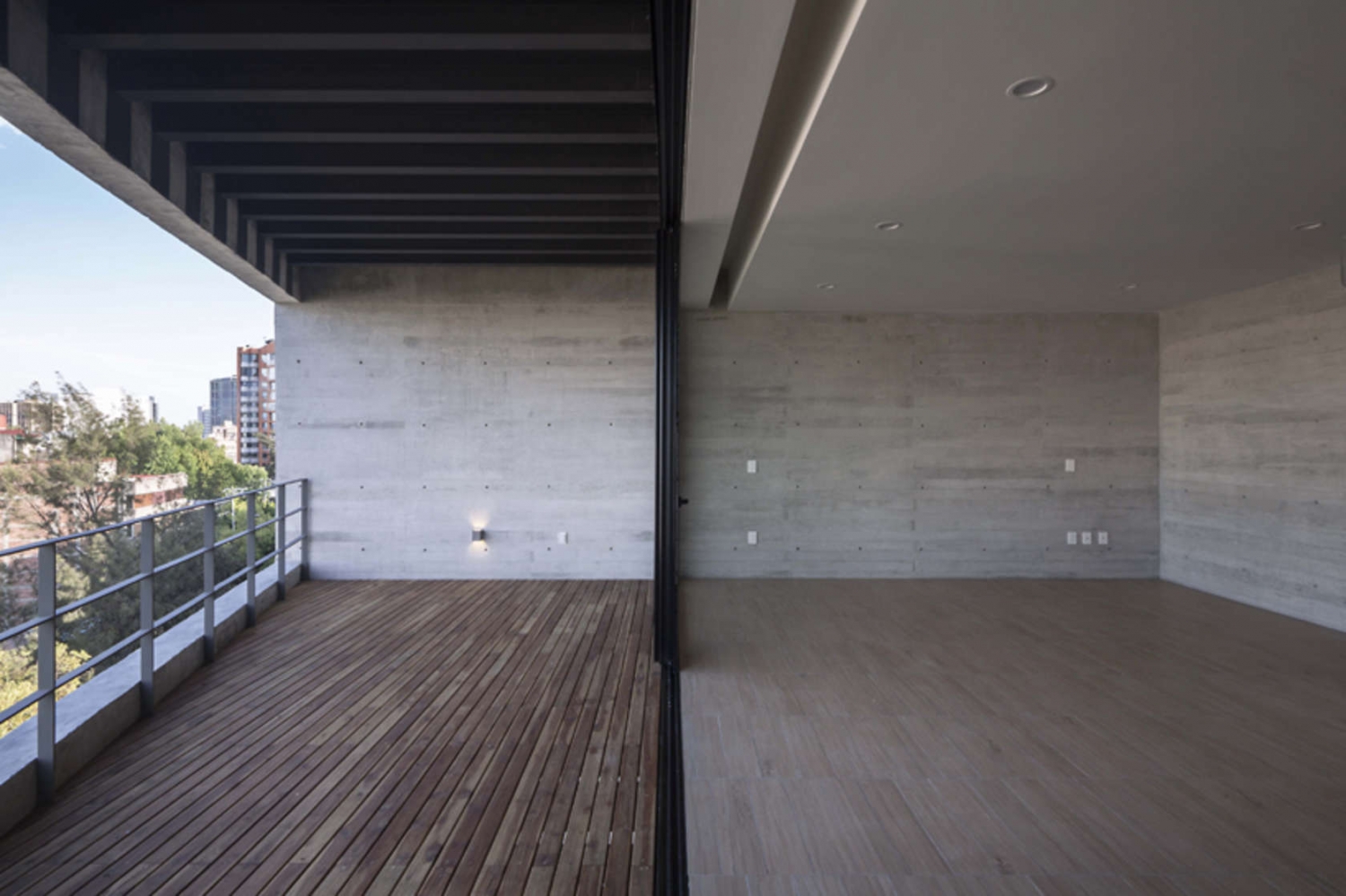

The apartment building is located in a narrow site dimensions (7.8m wide by 28m long) on Rodin 33 street, this conditions demands an accurate lecture of the architectural program. to optimize the interior space we decided to look forward for a structural sistem that allow us to enjoy the open space.The living room and dinner room are clearly conected to the exterior terraces taking the widest side of the site 7.8 meters. One apartment is located by floor, allowing to the user take an interesting view of the Mexico city skyline.The facade is molded by a 20 square meters terrace that is contained by a concrete frame structure, this semiopen terrace allows to the user transform the space in an hybrid condition between interior and exterior space. in this way the habitant can increase or decrease the interior space by the displacement of the glass facade.

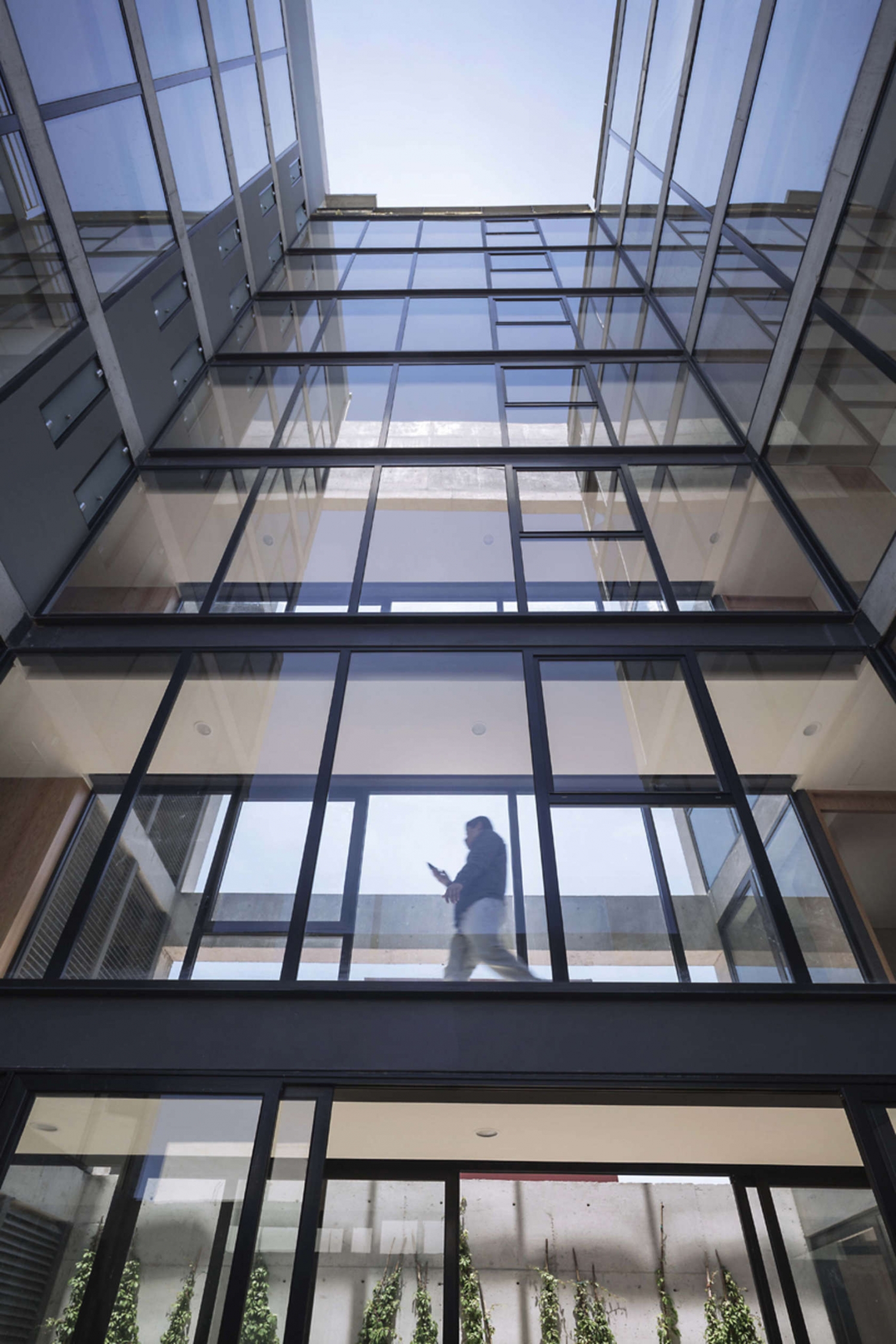

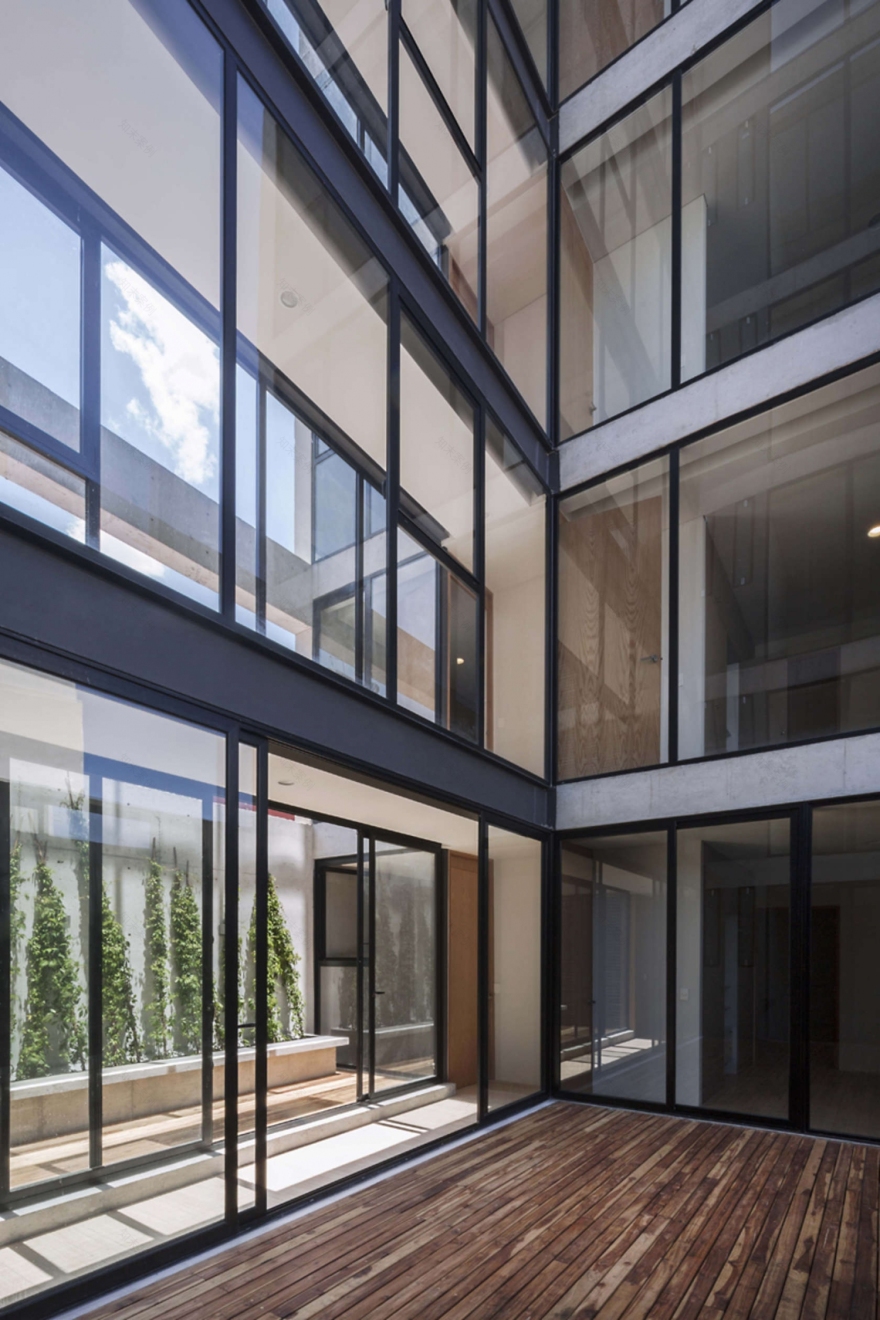

to provide natural lighting for each living space of the building we decided to create an interior 6 meters patio, this void divides the public and privative areas.Two lateral walls of reinforced concrete are combined together with 10 foundation piles 18 meters deep to support the entire structure of the building. Transversely a series of reinforced concrete beams running side by side defines each apartment floor. In parking lots you can appreciate the constructive system used throughout the development, in this space the structure remains exposed. This constructive system allow us to optimize construction time. In two basements we placed, the lobby, two parking floors, elevators, engine rooms, water tank, services and storage rooms.

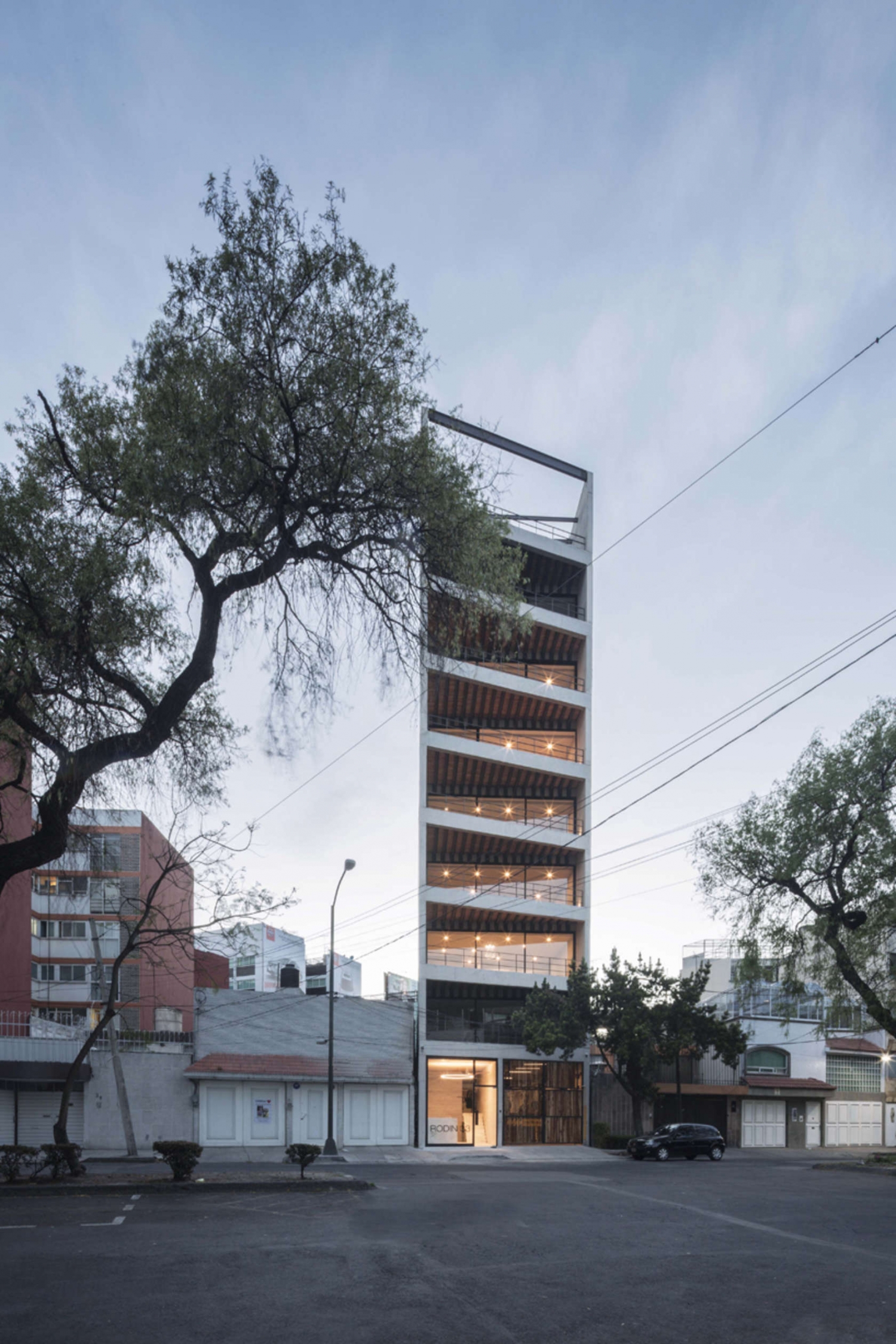

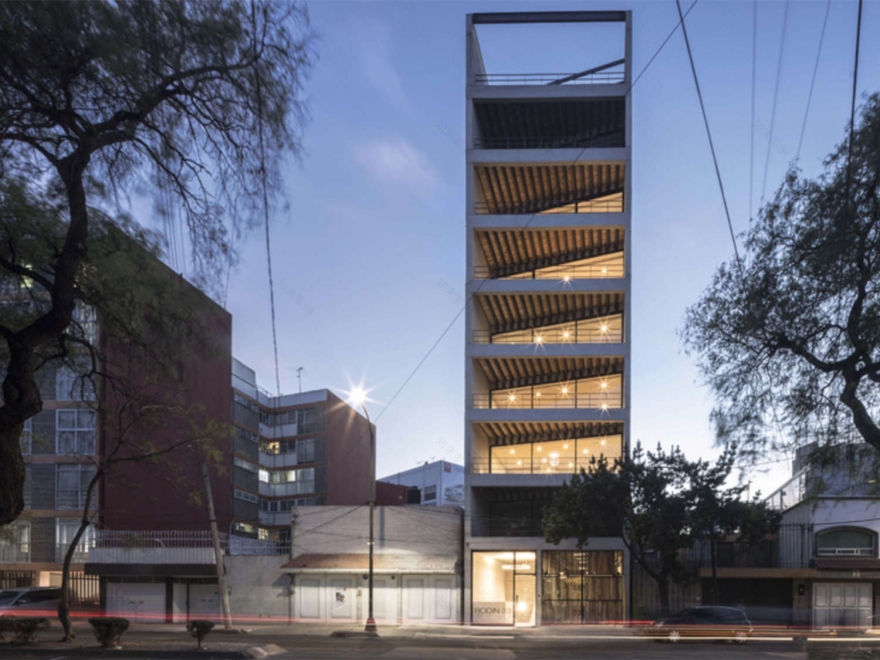

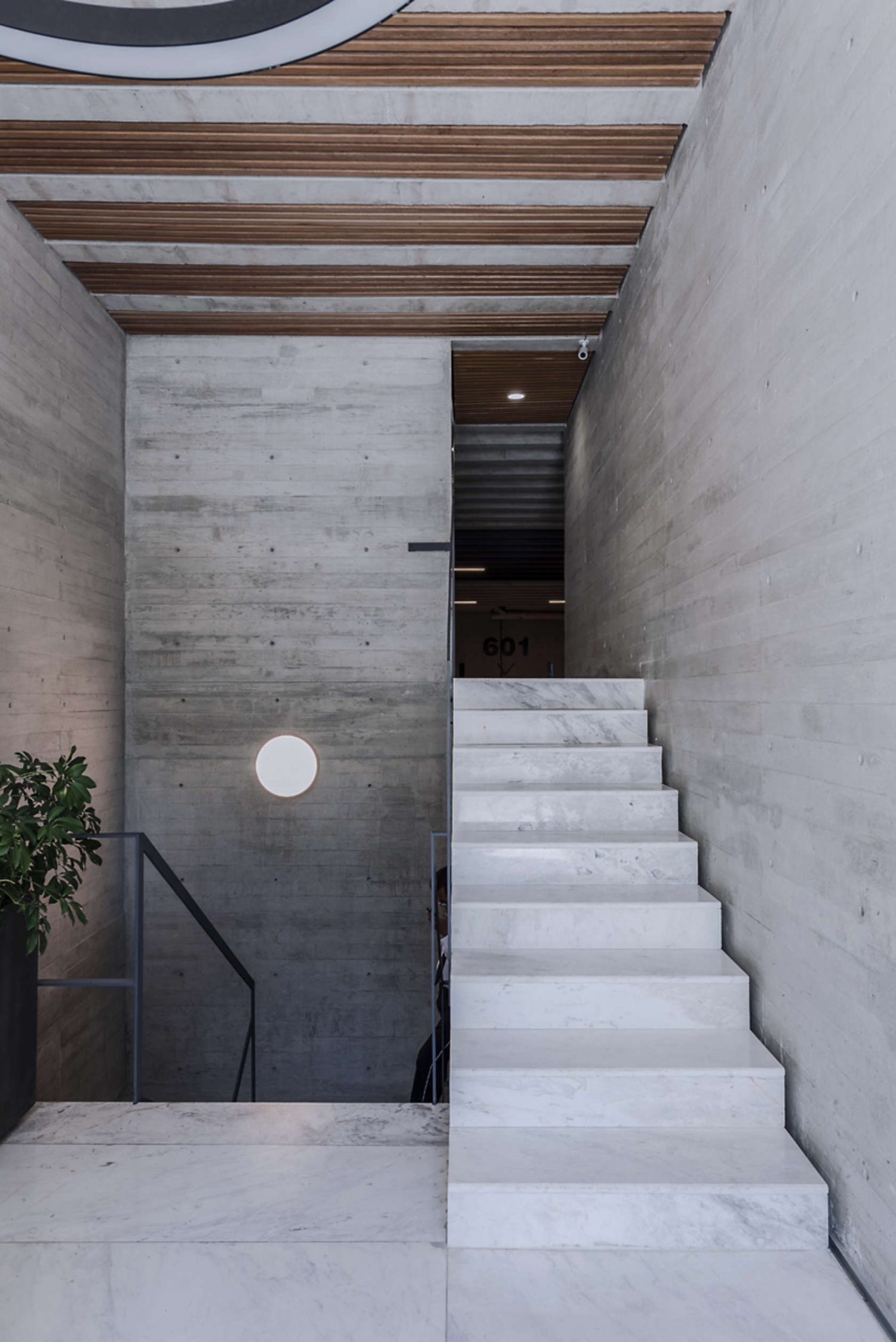

墨西哥RODIN街33号公寓楼实景图

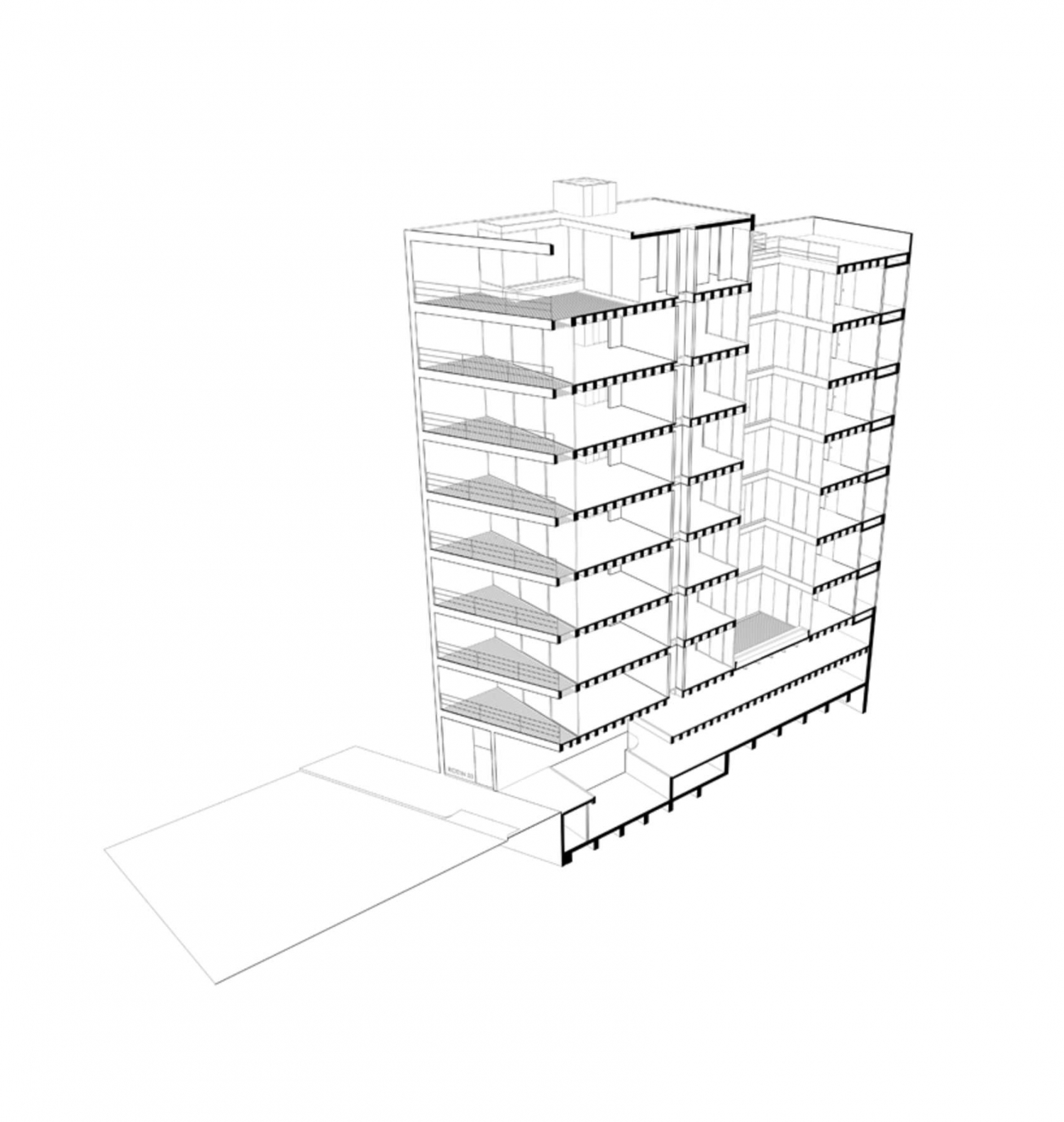

墨西哥RODIN街33号公寓楼示意图

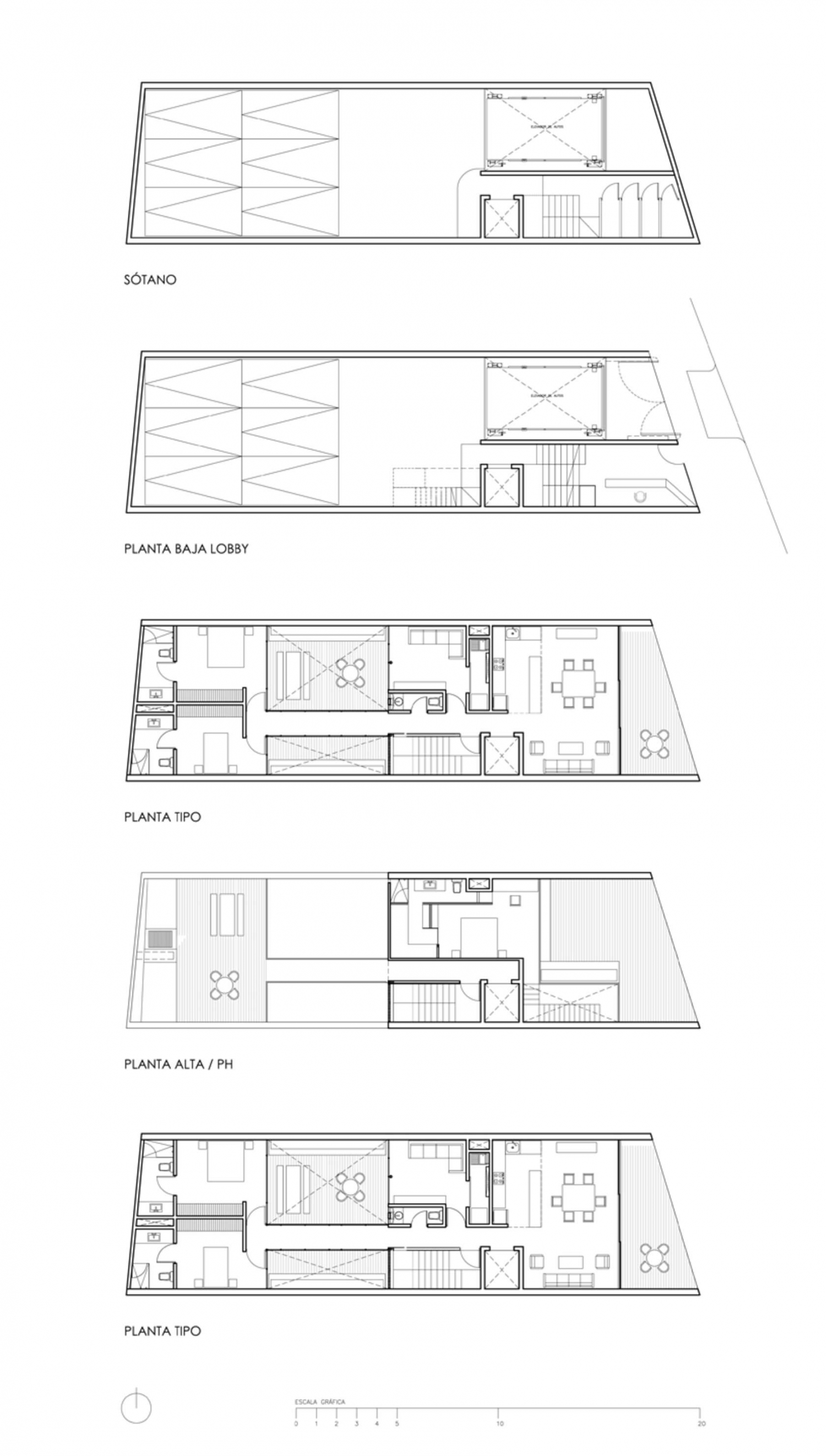

墨西哥RODIN街33号公寓楼平面图
