米科斯塔酒店及公寓丨Dilekci Architects

Turkey Mi’Costa Hotel Residences

设计方：Dilekci Architects

位置：土耳其

分类：居住建筑

内容：实景照片

结构工程师：Nu Mühendislik

景观设计师：Nesil Peyzaj

机电工程

师：Nükleer Mühendislik

委托人：SUV Yapı A.Ş.

建筑设计负责人：Durmus Dilekci

图片：26张

摄影师：Özgür Arı

这是由Dilekci Architects设计的Mi’Costa酒店式公寓，位于耳其伊兹密尔。该项目获得了2015年密斯•凡•德•罗建筑奖的提名。当地特色为海洋、气候以及温泉，酒店和住宅十分普遍。这个酒店式公寓中的每个房间都看到海景，较低楼层还可以享受到明亮的阳光和宽敞的花园。项目设计采用生态技术和可持续性发展标准。冬季热能由地热水产生。消防用水通过反渗透的方法收集。电力通过风力涡轮机产生。流线型外观异常醒目。

译者： 艾比

From the architect. Mi’Costa Hotel and Residences Project is one of the nominated projects from Turkey for Mies Van Der Rohe 2015, that is most prestigious European Union Prize.The project Micosta is located in magnificent Boyalik beach in Çeşme Peninsula, Izmir. Çeşme Peninsula excels from its sea, climate and thermal springs. Hotels and houses are very common in the region.Each room in Micosta, is design to see the sea coast uninterruptedly. Moreover, structures in the project area comes down closer to the sea (at the same time to prevent from wind) and some of the structures composed of high. Buildings can also be accessible from two fronts that has come down to external fields. The lower floors can take the sun on the South side to the bright and spacious gardens.

Active solar orientation (south) lie directly behind the project. Hot and windy climate has been the determining factor for those facts. Extensive use of open space for each unit garden-terrace areas are formed. Sky and horizon to seek to meet these areas and to get more sun light in to the middle of courtyard, the structure is moved to south direction for 2 meters on each floor. This shift from the southern direction also provided to create advantageous and effective sun shadow area. The units has inner and outer spaces to use according to different weather conditions. In addition to being in a seafront location, courtyard sheltered areas has designed to prevent houses from the wind of north. This courtyard creates a space for each unit to meet up and disperse. Moreover, entrance lobby, social center, restaurant and spa areas are reachable from this courtyard. Besides, the open spaces covers the swimming pool and thermal pool areas.There are two entrances to the project area. The central area is being accessed by the main entrance lounge. In addition, an upper rib entry can be made on the north side.

The project designed upon ecological and sustainability criteria. Emphasis was placed on the use of passive climatic data. Orientation of the project was creating shadows by using the sun’s angle of incidence. Also by taking the advantage of the northern lights and turning in to a positive part of this project. At the same time, units with two fronts contributes to the interior space ventilation meaning that two front-units can benefit from this north-south air-ventilation. During the winter, thermal energy is provided by geothermal water. Fire water tanks and pool water is obtained by the method of reverse osmosis. Widely used electric power is also contribute from the common used wind turbines in Çeşme. Structural system of concrete is a skeleton system. GFRC high performance glass has been used at the facades.

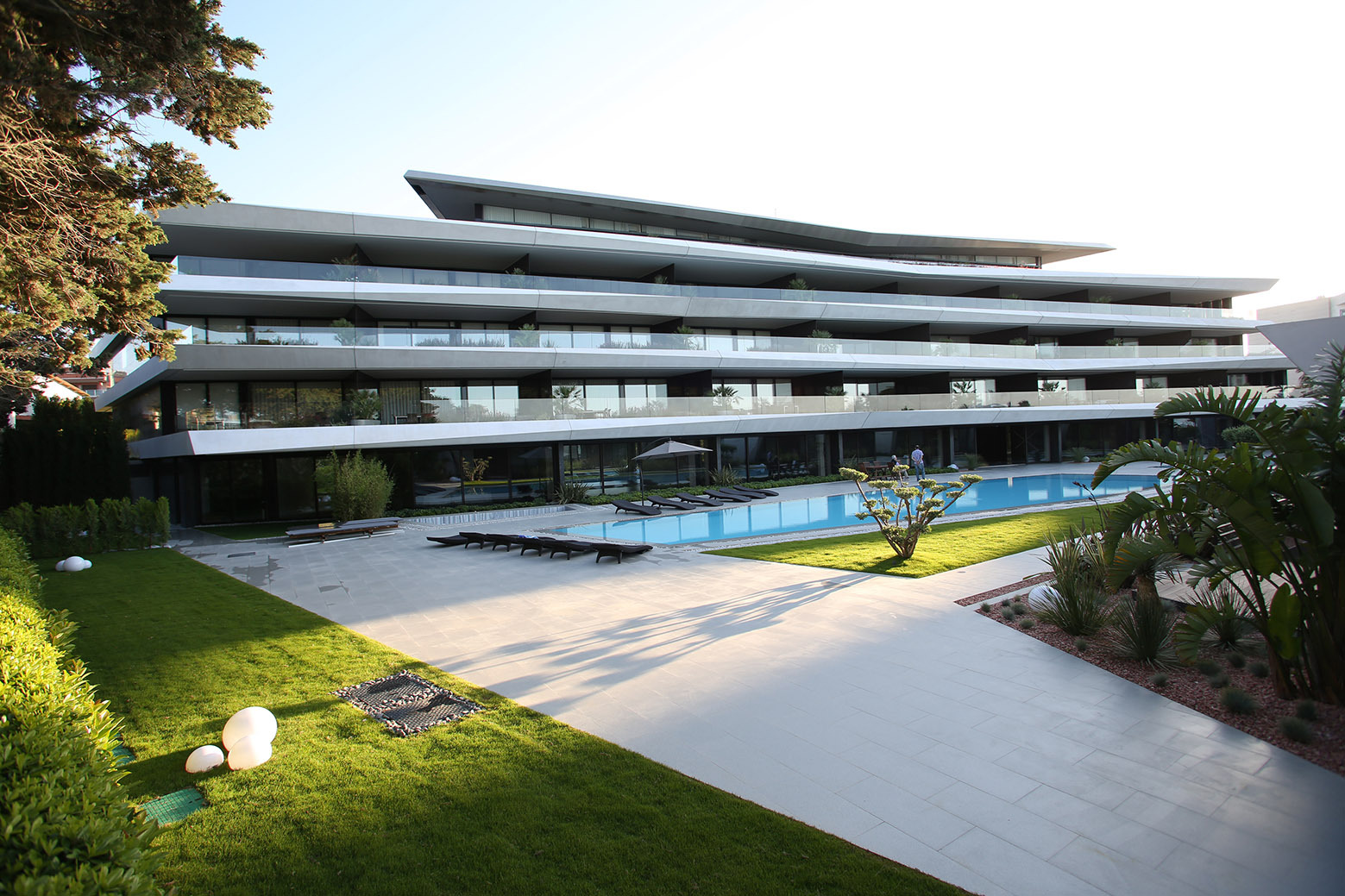

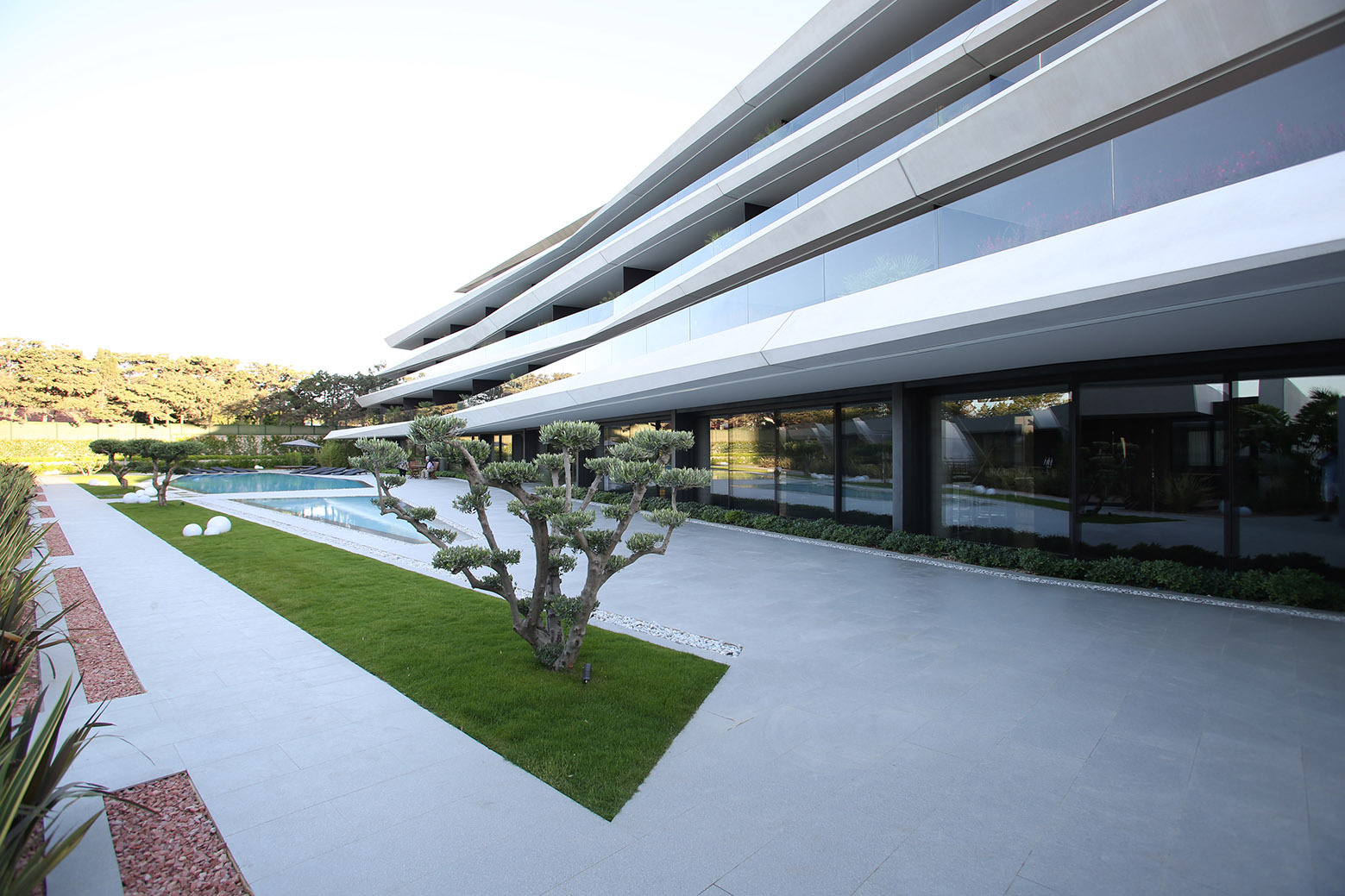

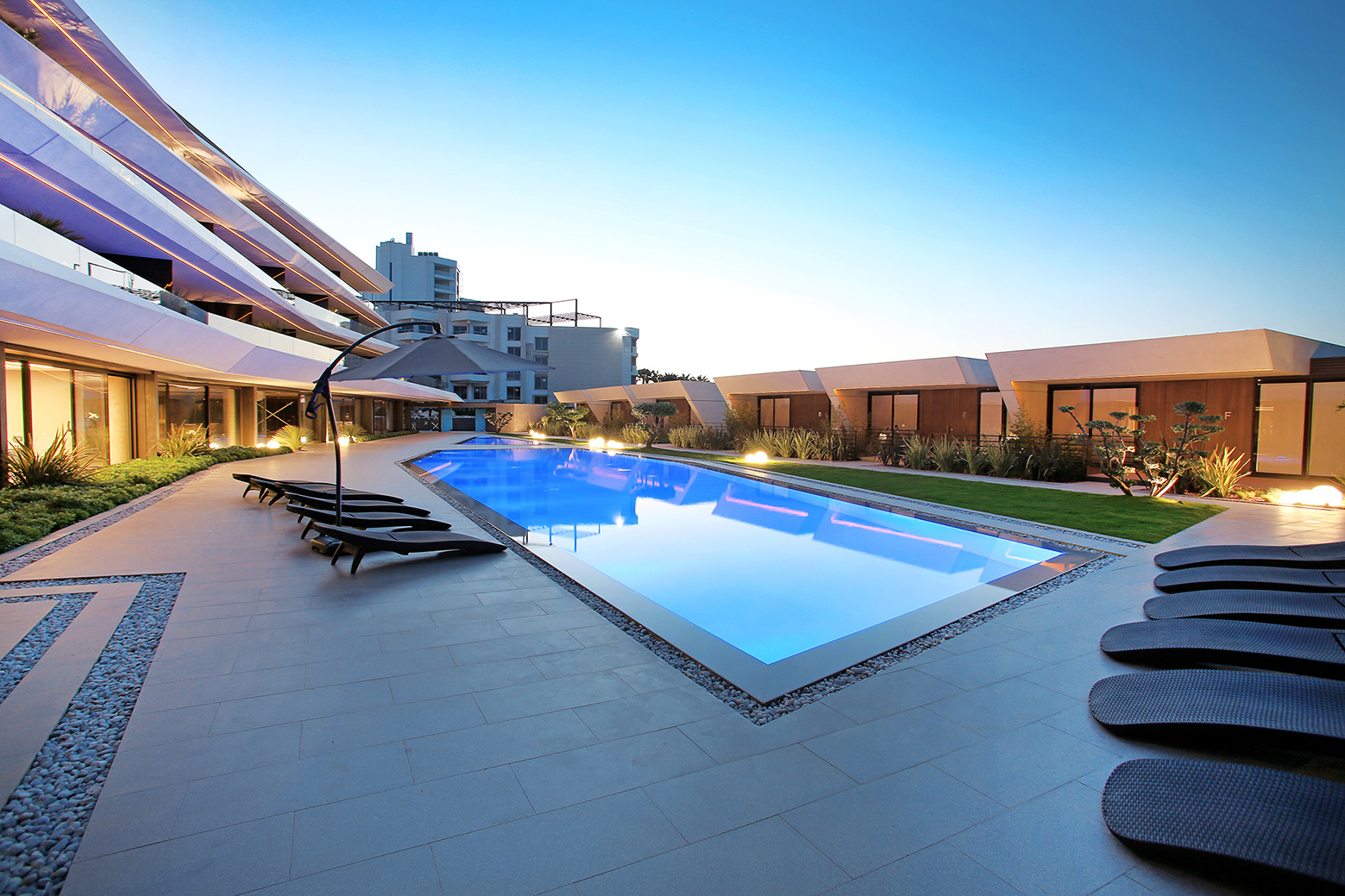

土耳其Mi’Costa酒店式公寓外部实景图

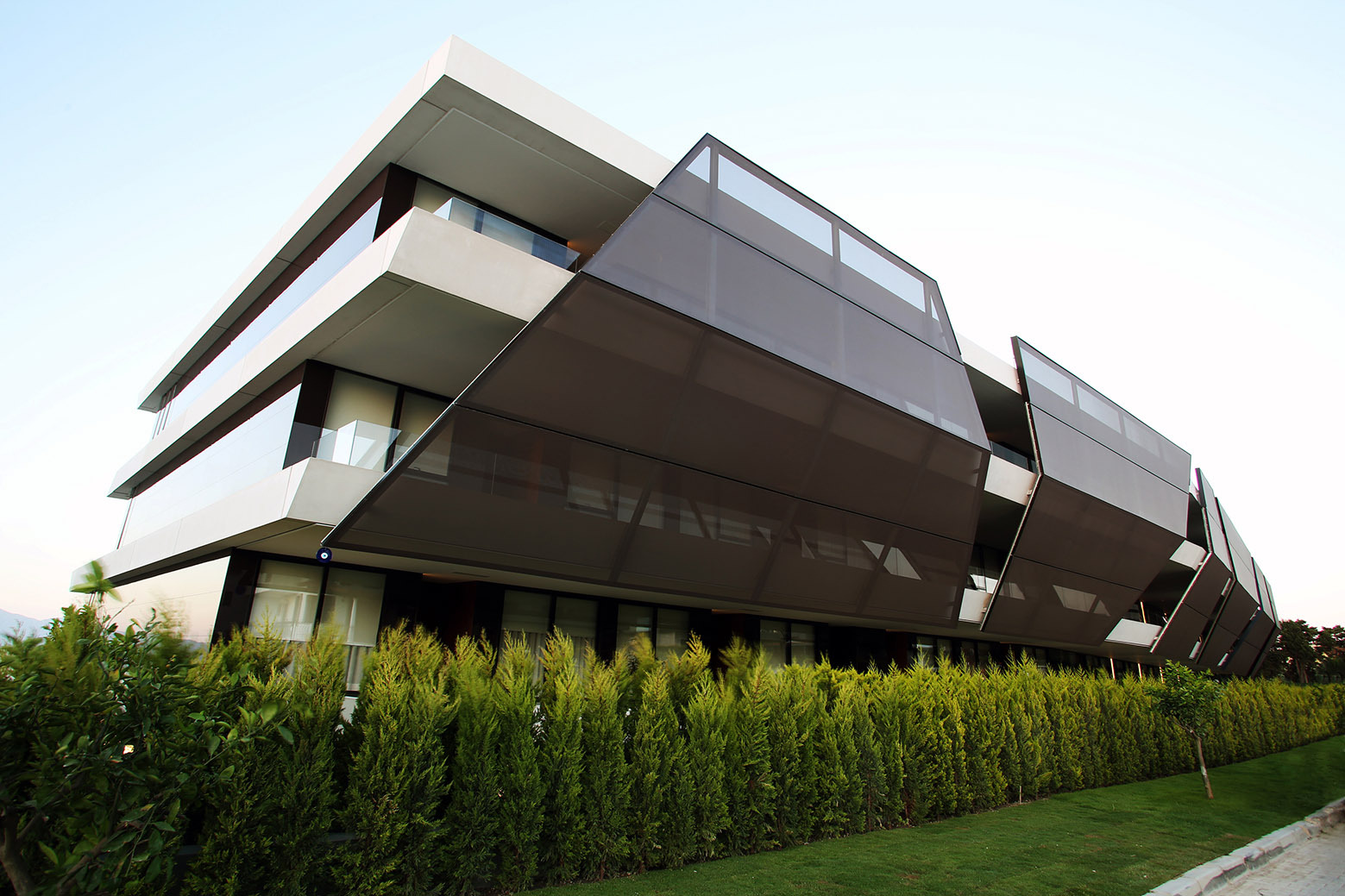

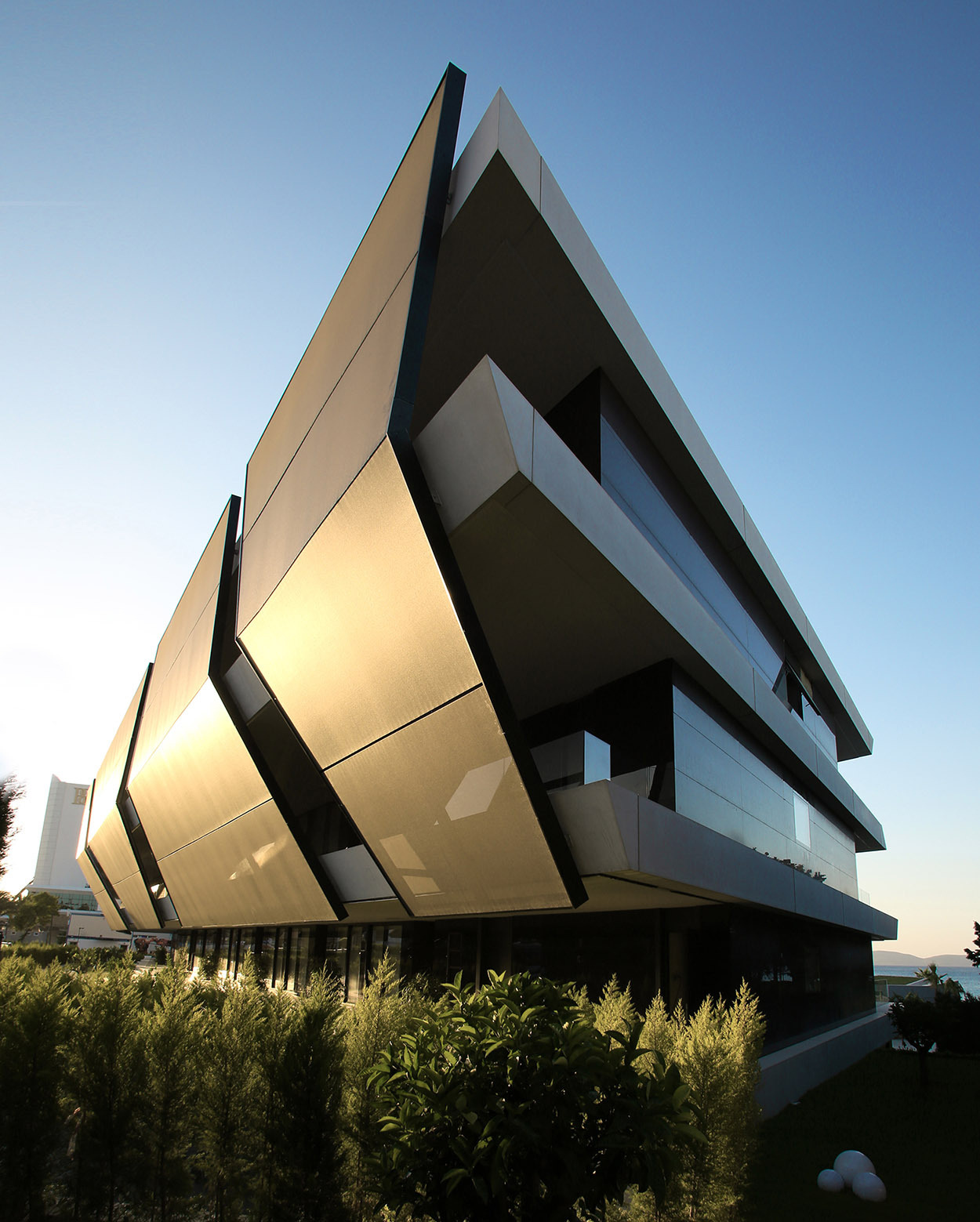

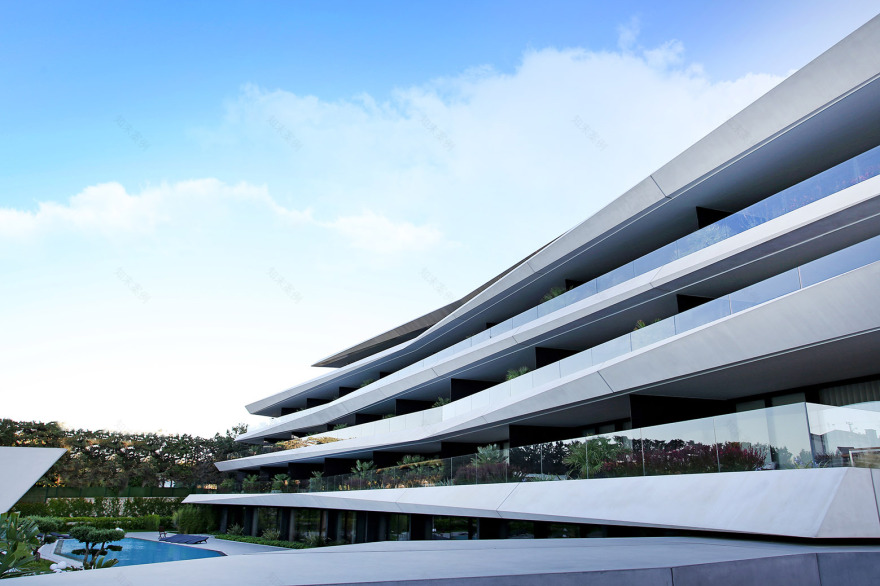

土耳其Mi’Costa酒店式公寓外部侧面实景图

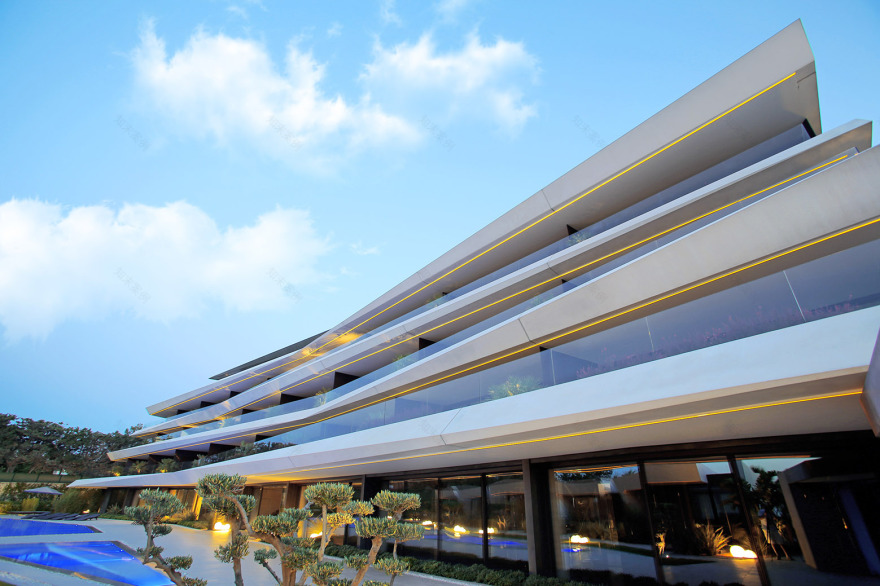

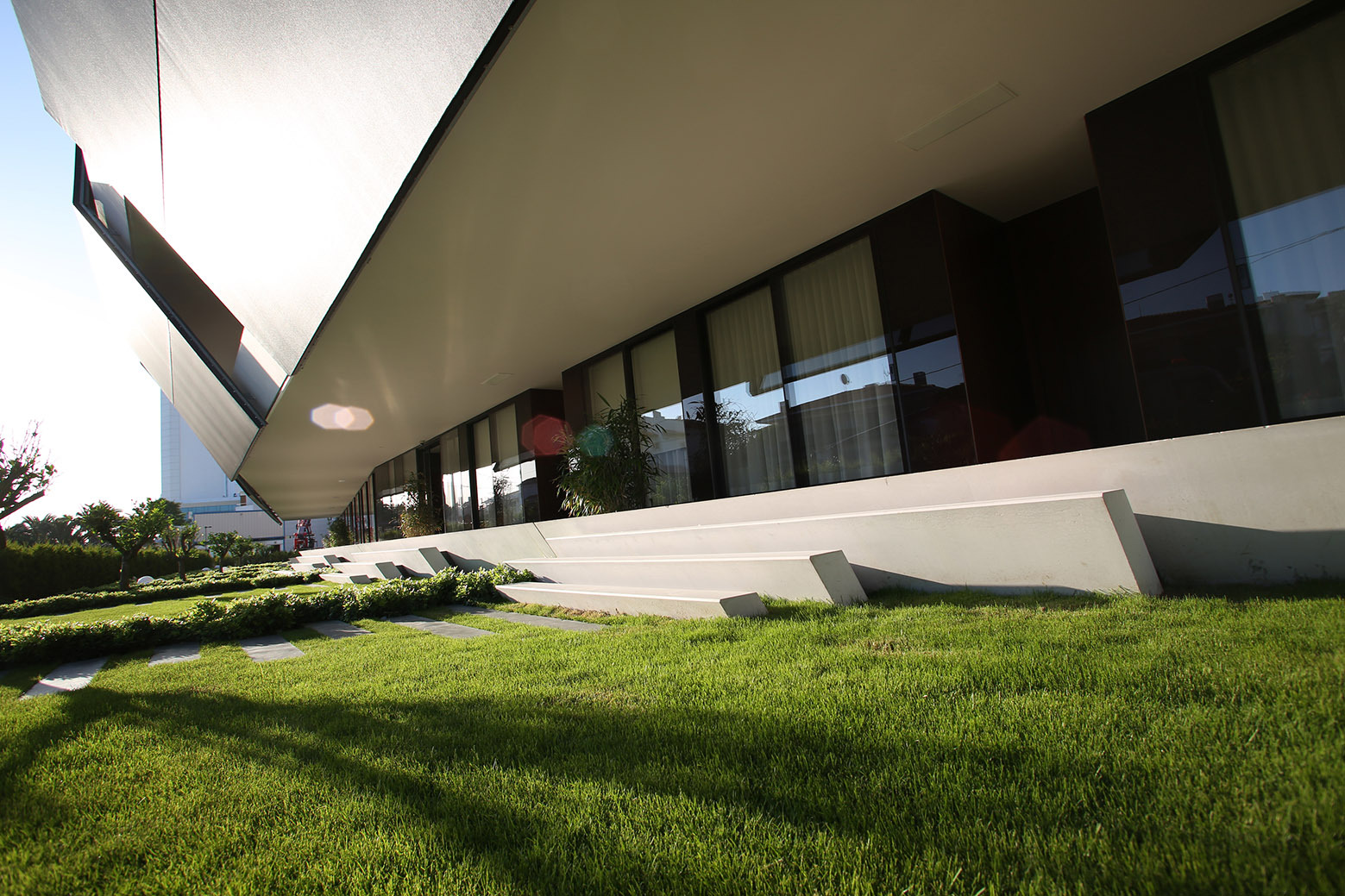

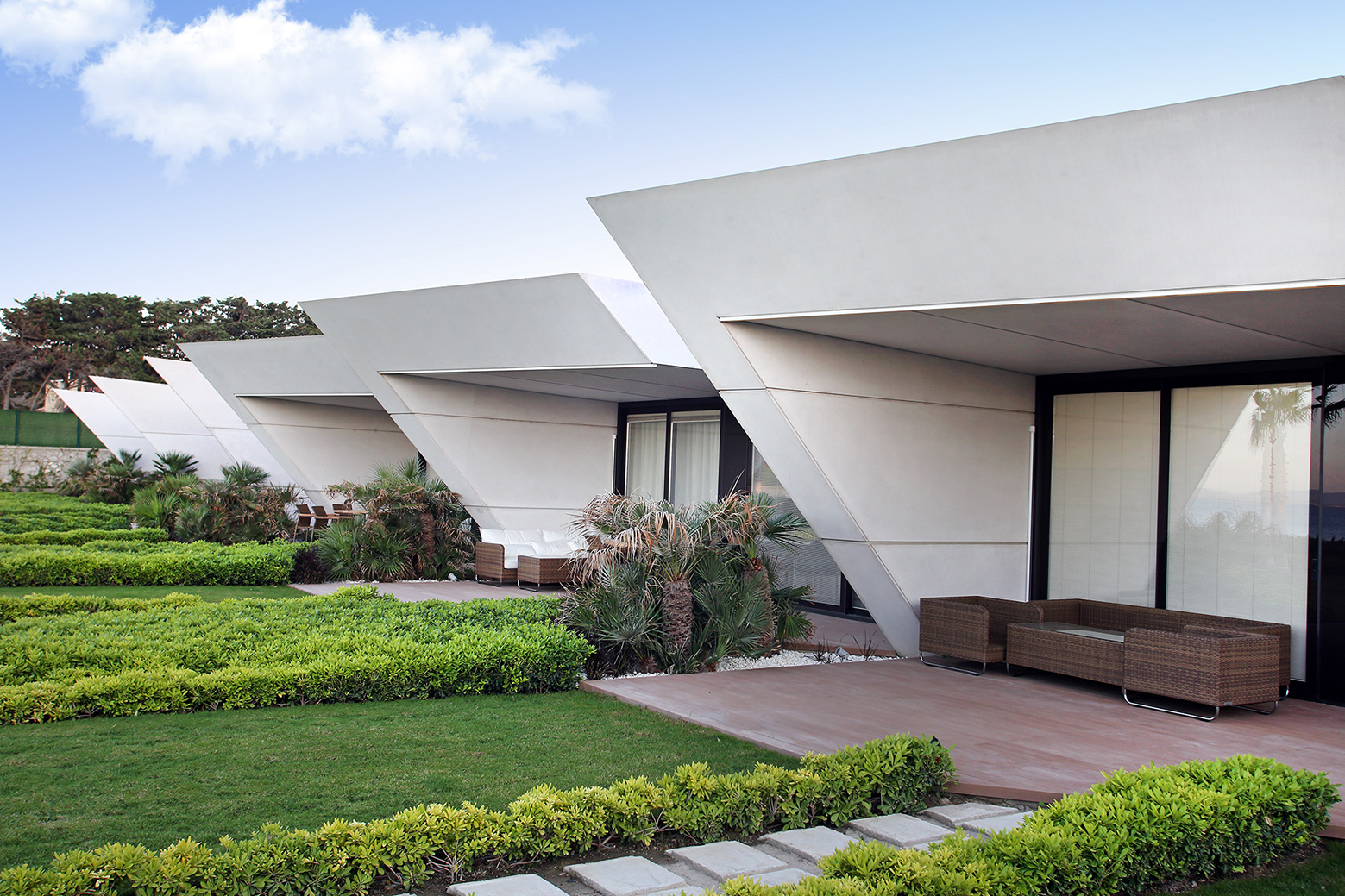

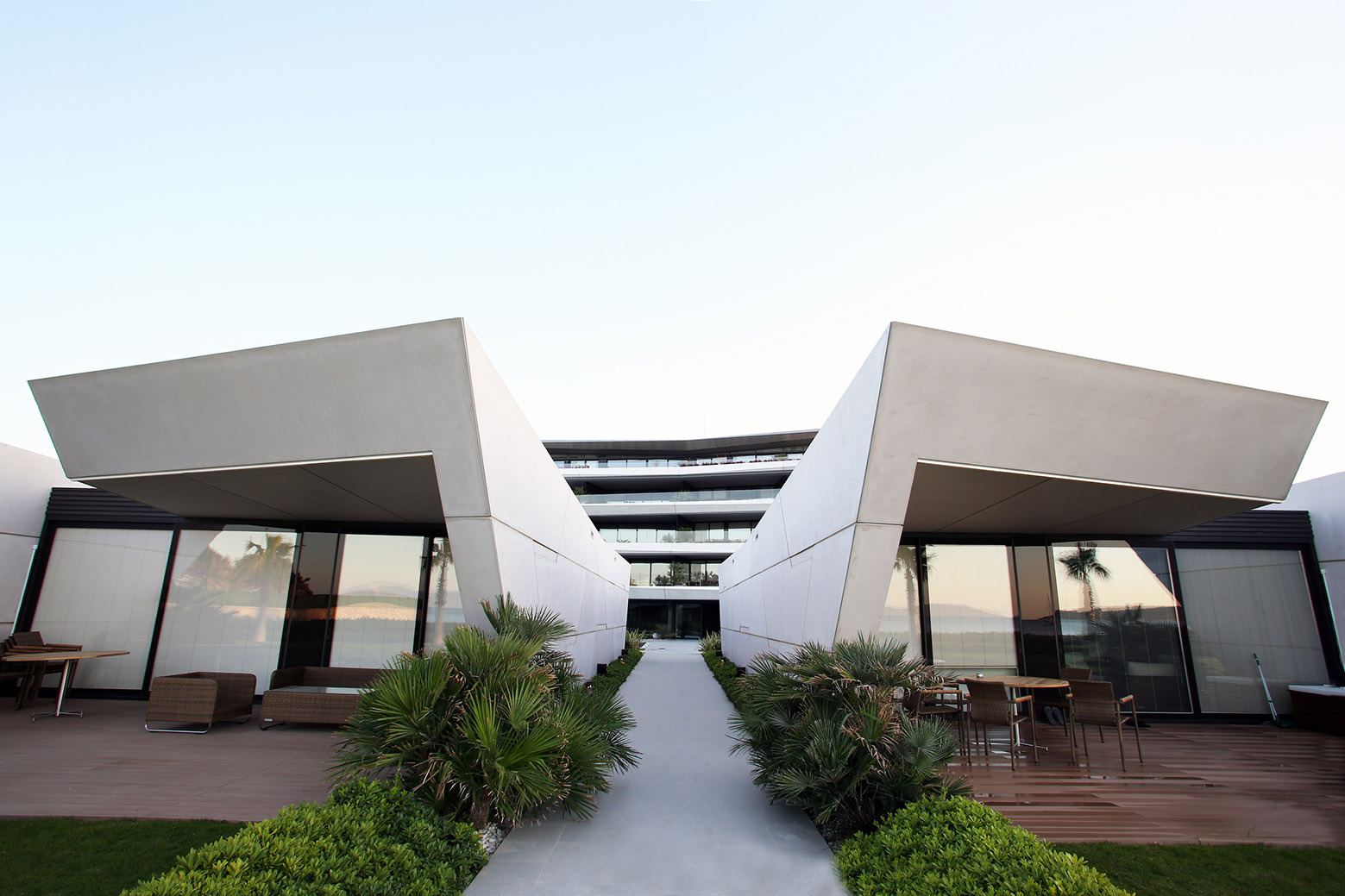

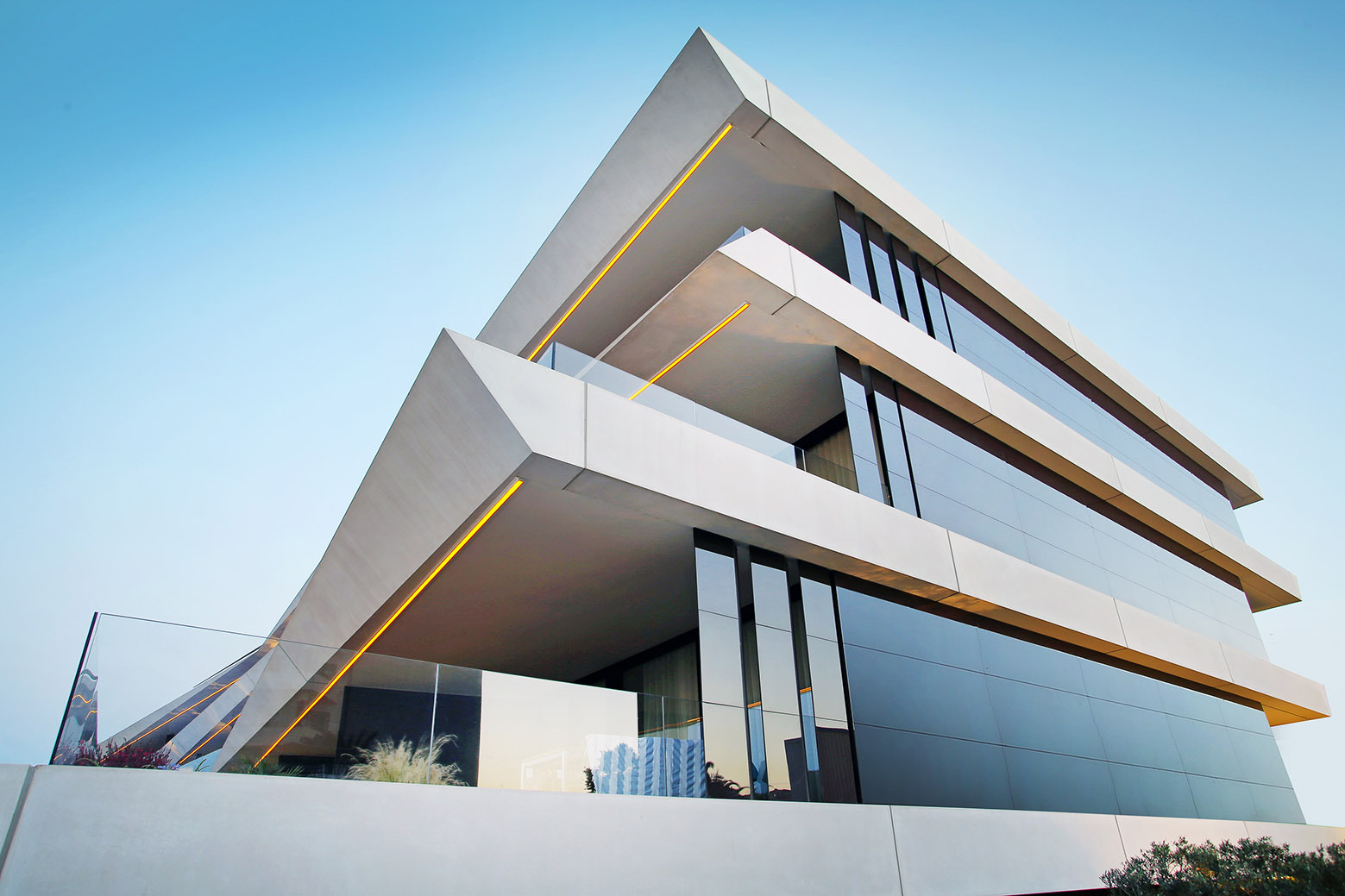

土耳其Mi’Costa酒店式公寓外部局部实景图

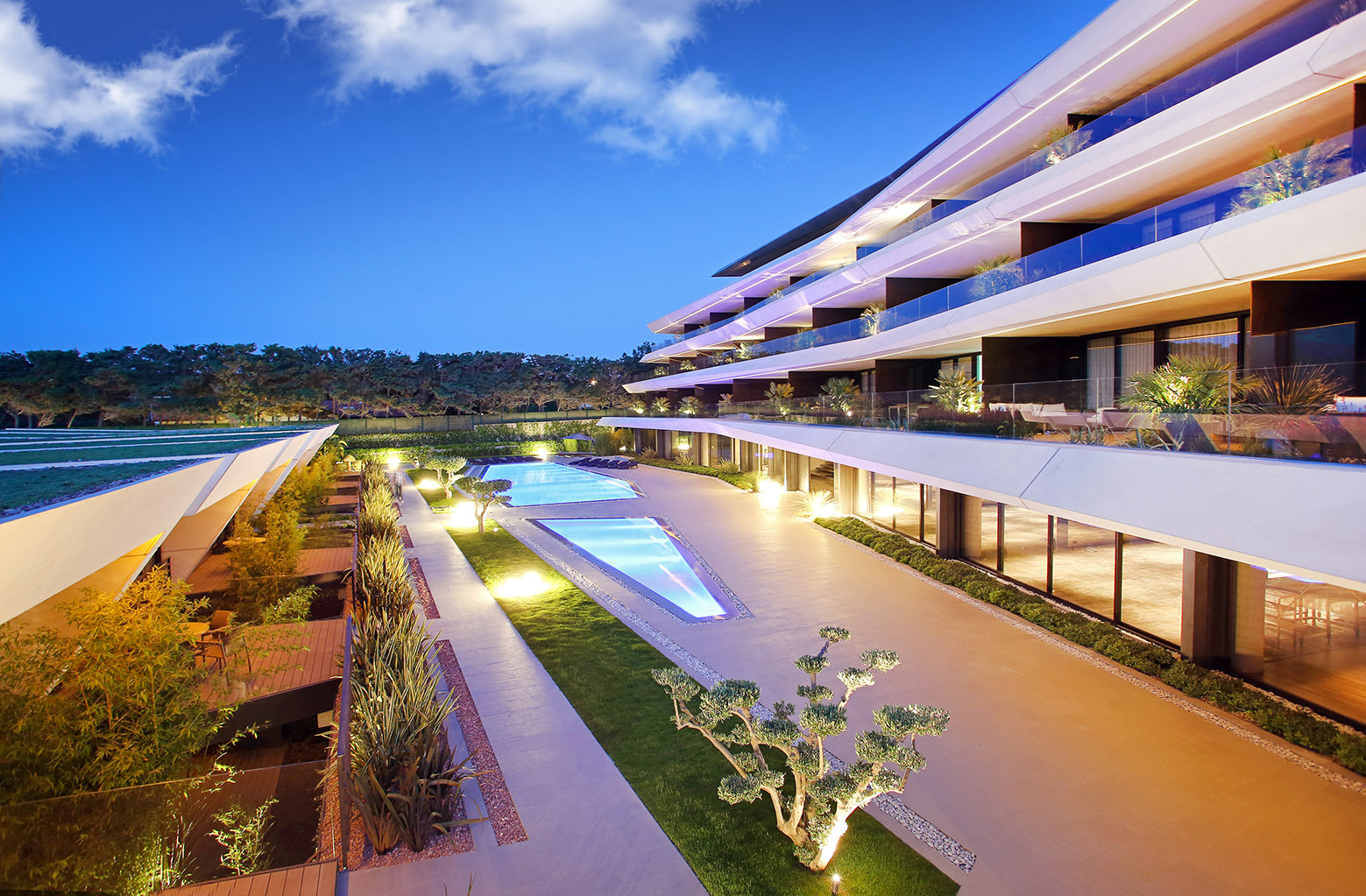

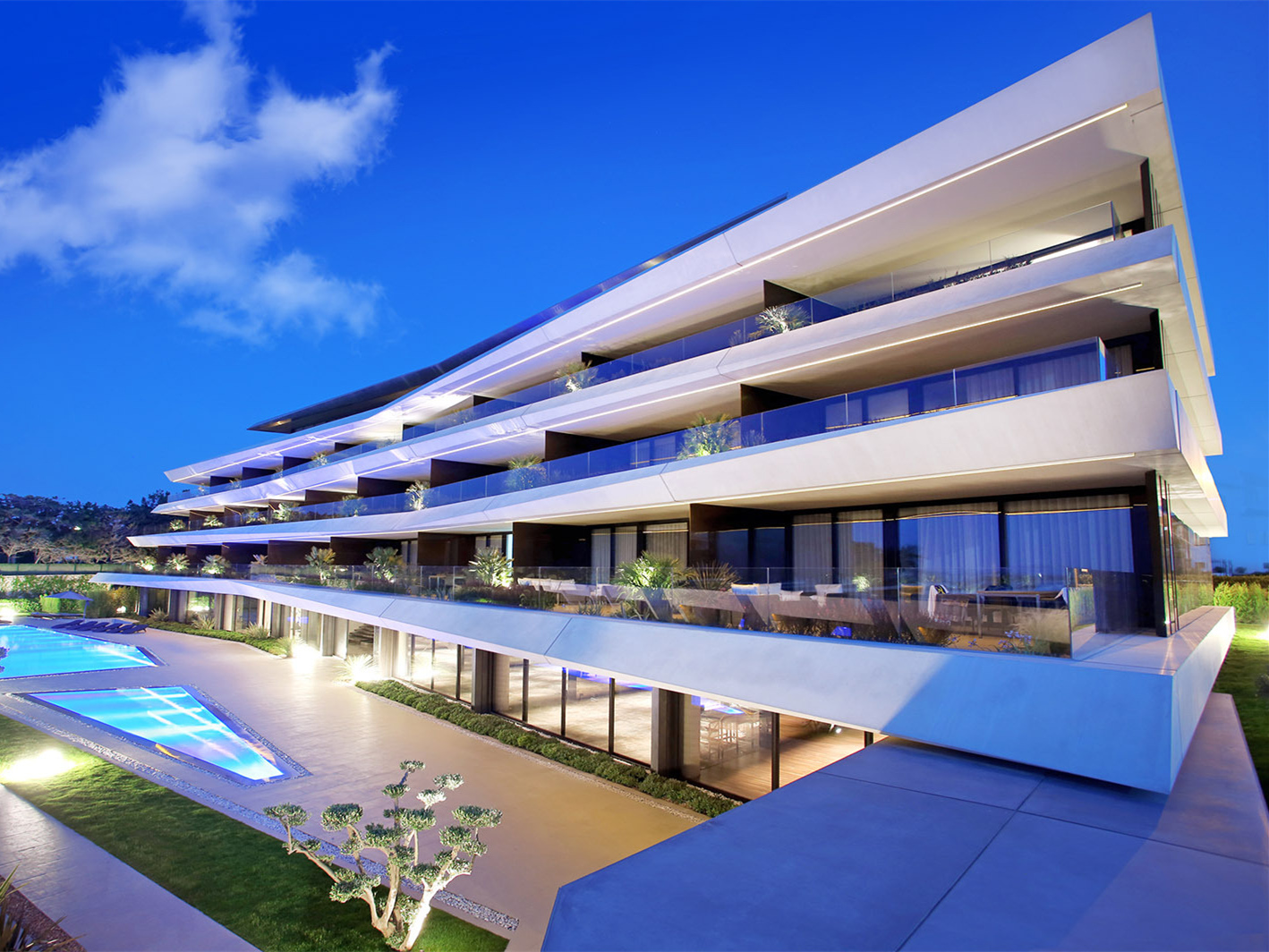

土耳其Mi’Costa酒店式公寓外部夜景实景图

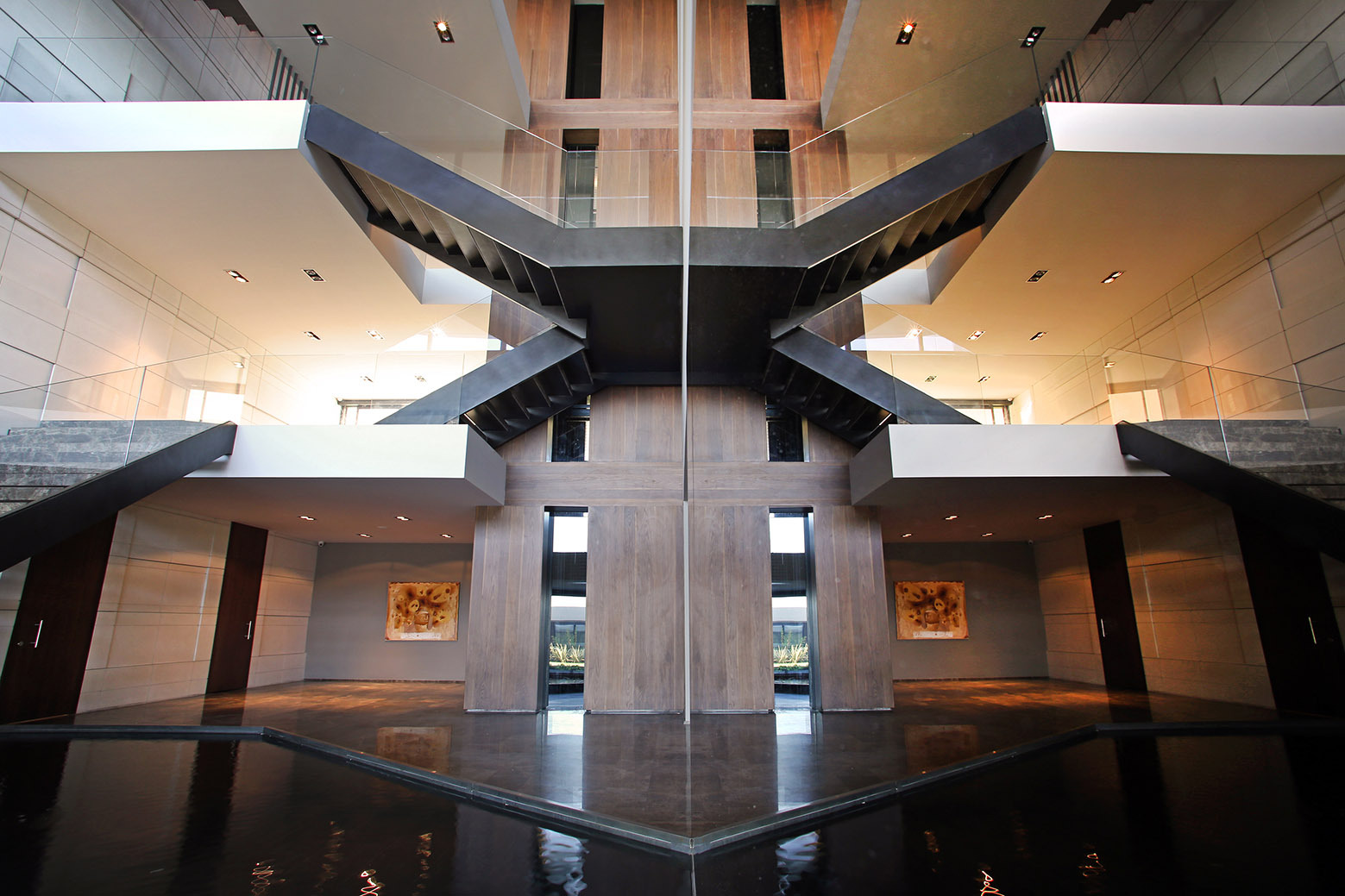

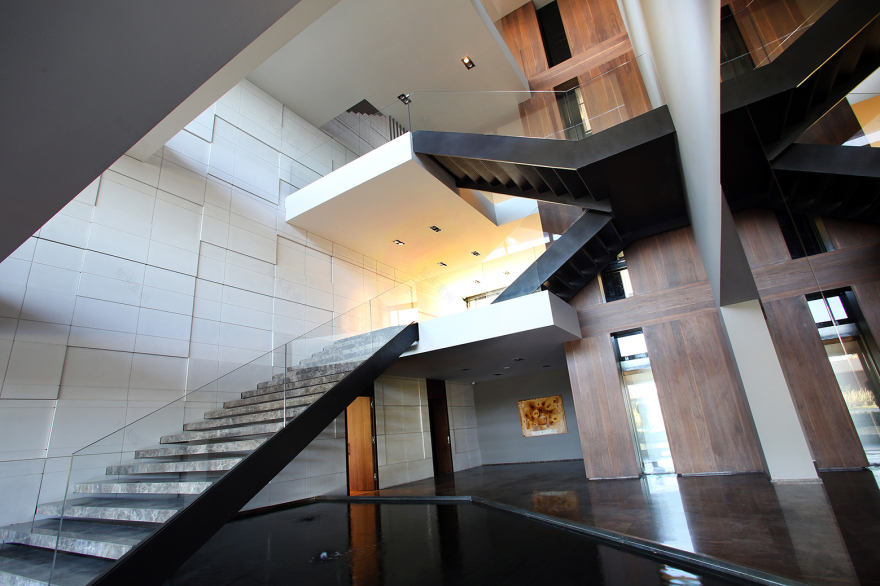

土耳其Mi’Costa酒店式公寓内部大厅实景图

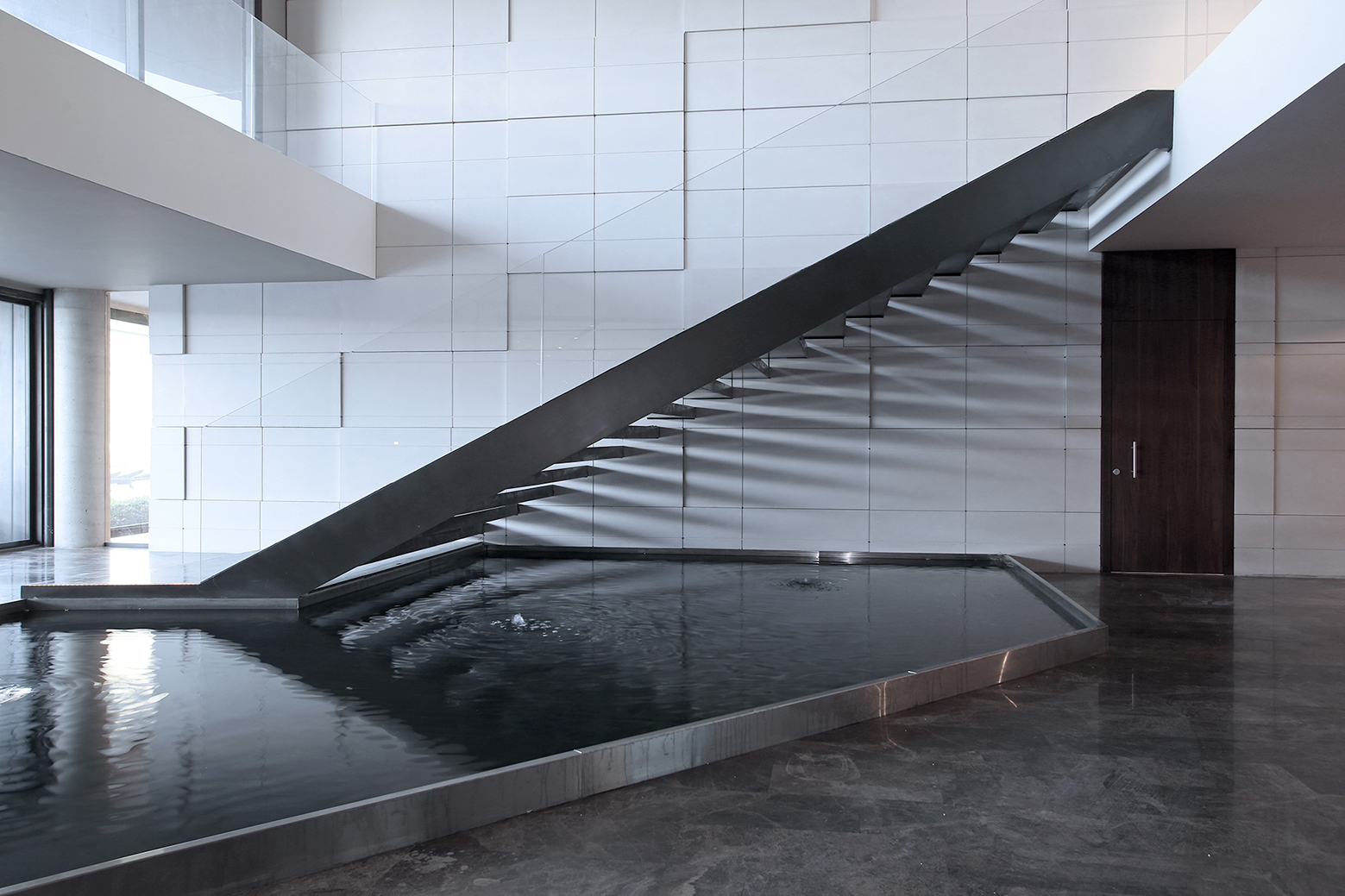

土耳其Mi’Costa酒店式公寓内部实景图

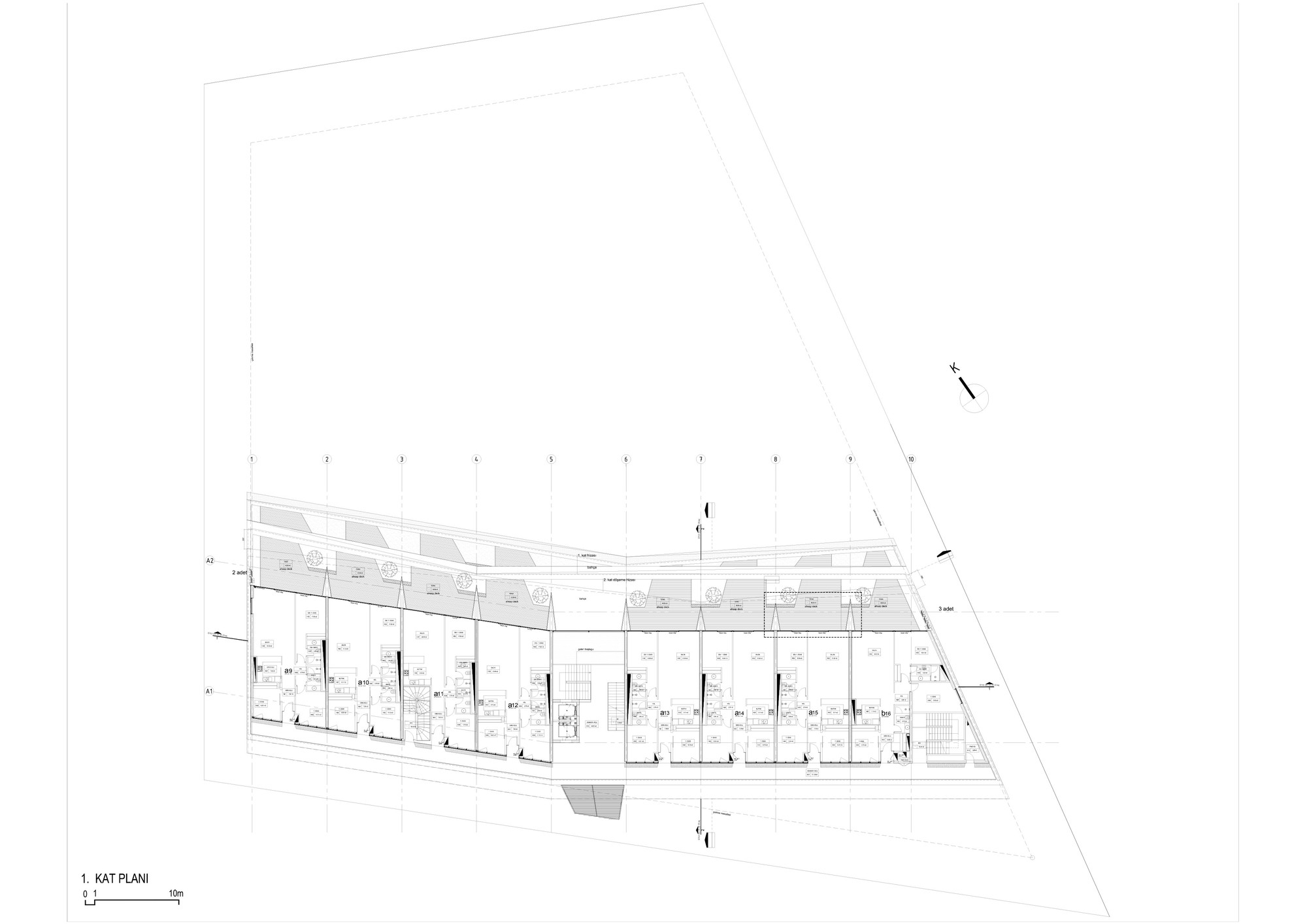

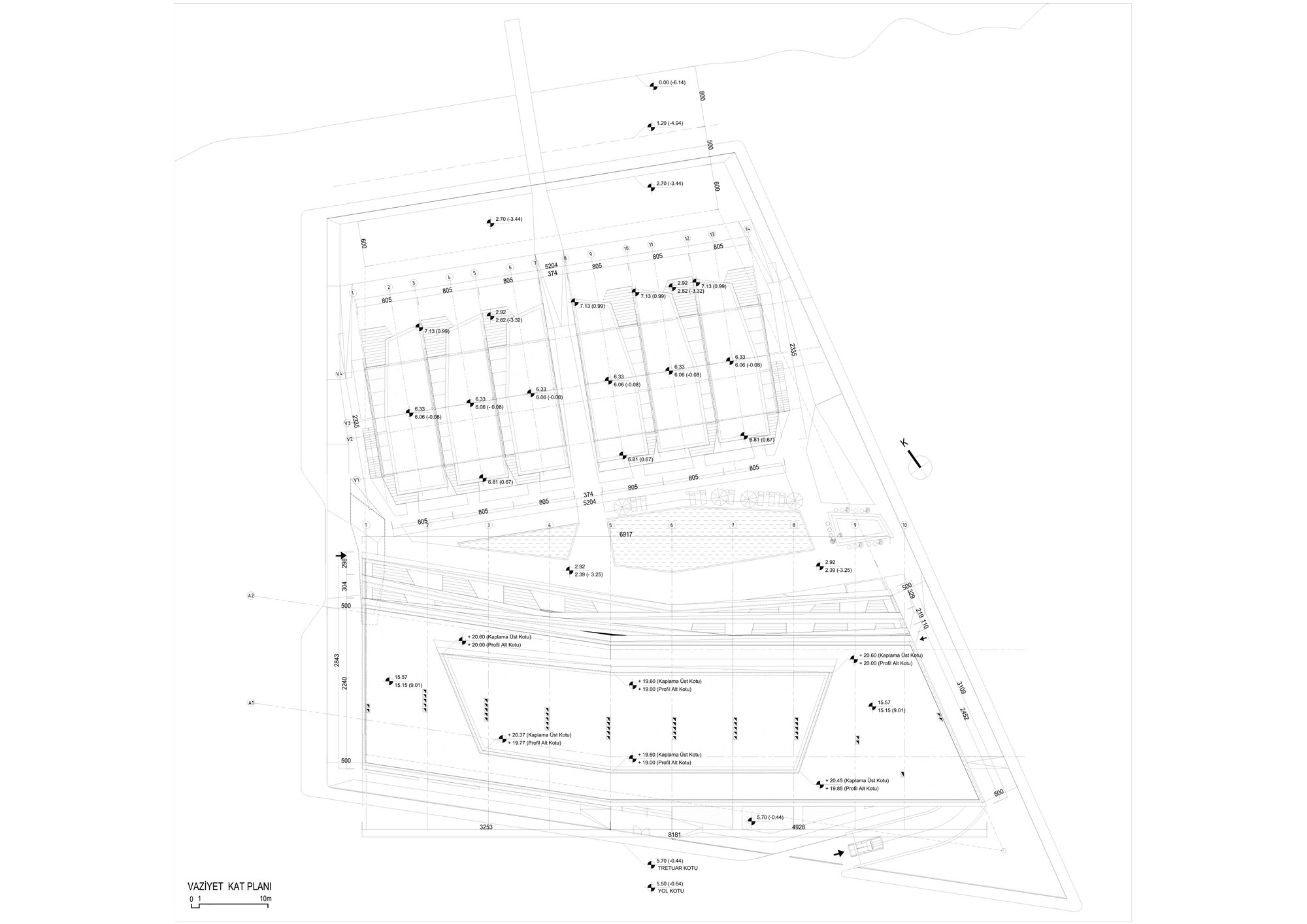

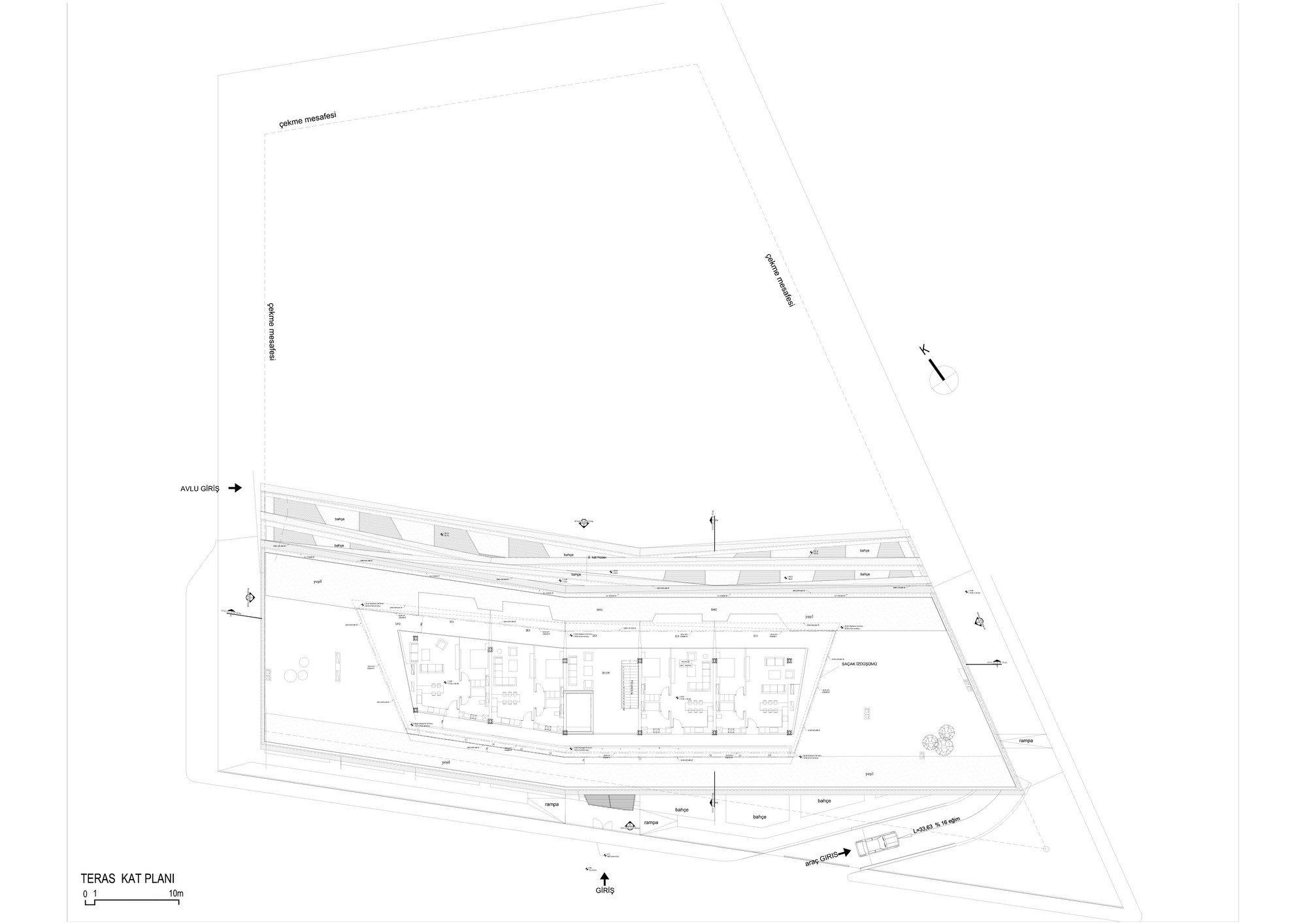

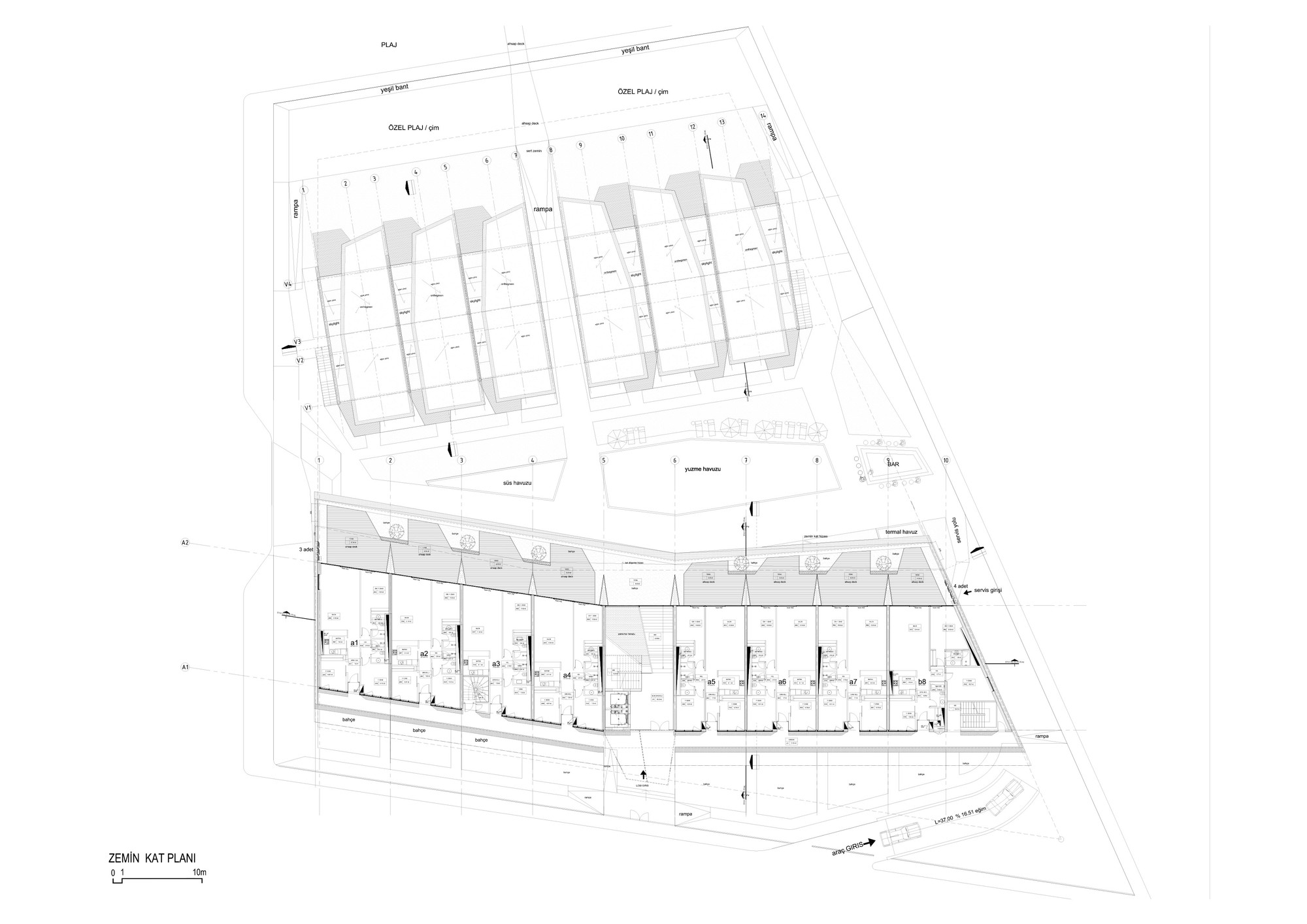

土耳其Mi’Costa酒店式公寓平面图

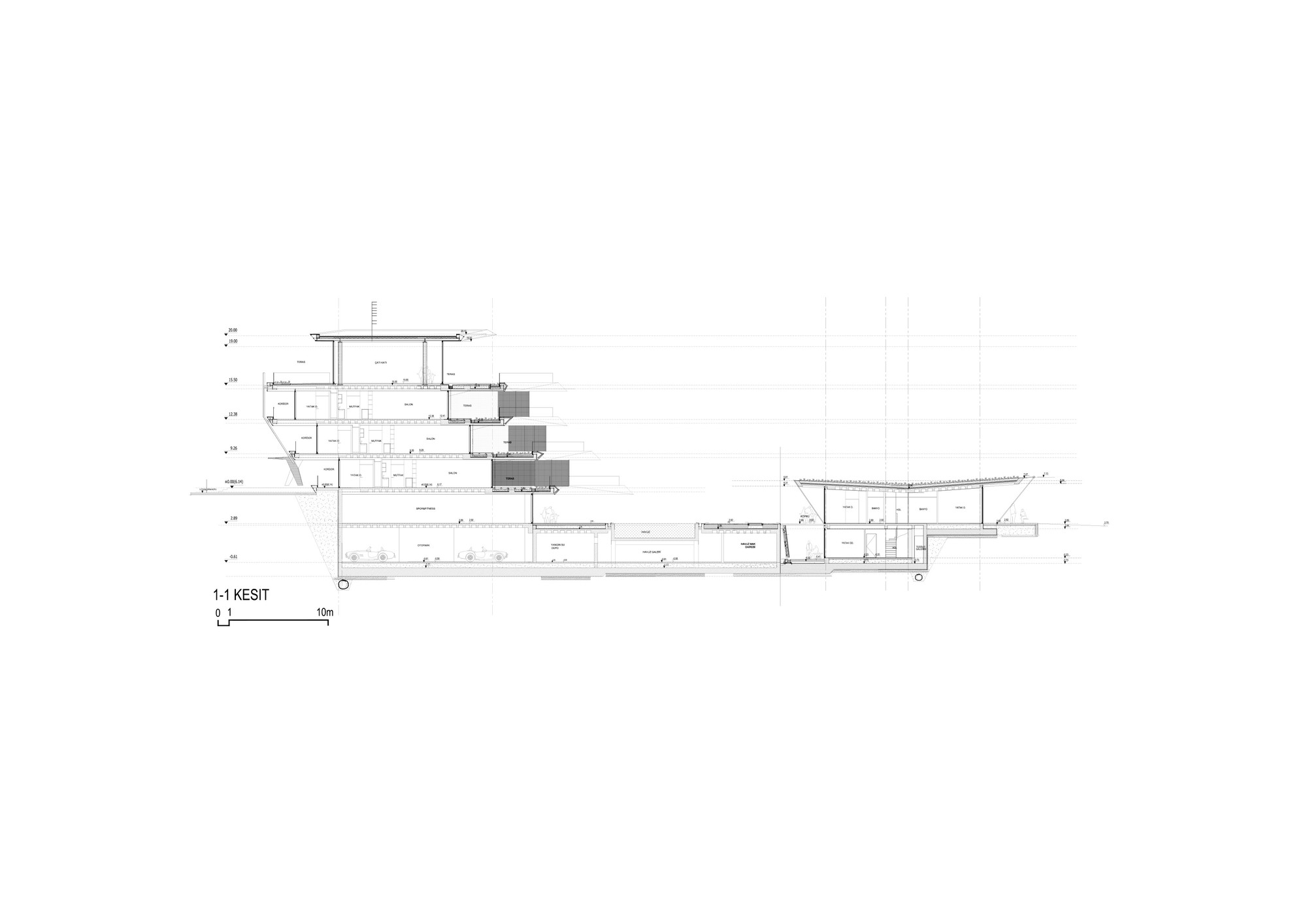

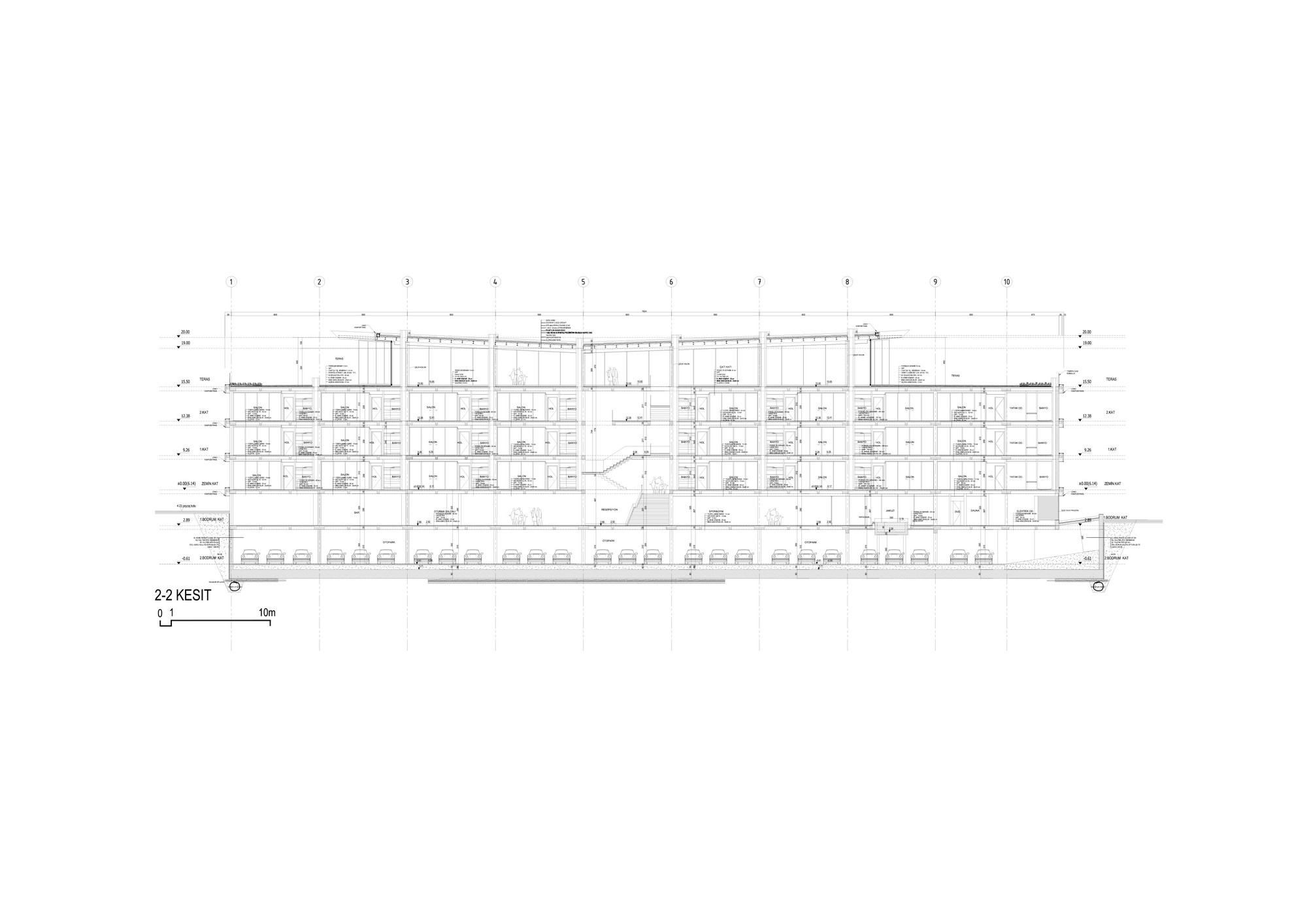

土耳其Mi’Costa酒店式公寓剖面图
