马来西亚The Capers综合住宅楼丨RT+Q Architects

Malaysia The Capers Comprehensive residential building

设计方：RT+Q Architects

位置：马来西亚

分类：居住建筑

内容：实景照片

图片：19张

这是由RT+Q Architects设计的The Capers综合住宅楼。这是一个混合居住发展项目，由景观停车库裙楼上方的两座36层高的塔楼及两个5层高的公寓组成。该项目距马来西亚吉隆坡市中心以北5公里。该项目由YTL LAND开发，主负责人是Dato Yeoh Seok Kian。

建筑形式的探索是从对场地的解读开始的：其平整的地形以及地理位置，高低不平的绿化景观和公园。塔楼有机形式的灵感来源于这一地区柔软波浪状的白茅草(lalang grass)及野生杂草。

该建筑的蜿蜒而自由的形式，以一种反直觉的规律，衬托了曾由YTL开发的其他塔楼的造型和严格的几何形状。而该建筑在YTL的其他住宅项目中，是一个“相关物（relative）”，其幽默的语义和调皮的美学同样能被享受，就像是严格城市条件里的一个恶作剧。由于其独特的造型，该建筑已经获得了诸如“歪建筑（the crooked building）”、“侧立的战舰（the up-ended battleship）”、“波壮刃短剑（the kris）”和“弯曲的建筑（the bengkok building）”等出租车司机、路人和好奇的旁观者起的绰号。

译者： 艾比

From the architect. The Capers is a mixed residential development comprising two 36-storey towers and two 5-storey blocks of residential apartments, rising from the piano nobile of a landscaped carparking podium. It is located amidst the suburban sprawl of Sentul, 5 km north of the Kuala Lumpur city-centre. It occupies 4.3 acres amongst various other land-parcels within the larger Sentul Masterplan. It is developed by YTL LAND under the leadership of Dato Yeoh Seok Kian — mastermind, risk-taker and visionary.

The search for architectural form began from an interpretation of the site: its flat terrain and geography, and its rugged landscape of greenery and parks. The organic form of the towers drew inspiration from the soft billowing ‘lalang grass’ and weeds that grow wild in the area.The meandering and free form of The Capers complement, in a counter-intuitive manner, the shapes and rigorous geometry of the other tower blocks of Sentul, developed previously by YTL. While The Capers is a ‘relative’ amongst other YTL residential developments in Sentul (like The Tamarind, The Saffron etc), its playful semantics and naughty aesthetics can also be enjoyed literally as a caper — a prank — amidst the austere urban conditions of Sentul. Since the emergence of its form, it has garnered nicknames like ‘the crooked building’, ‘the up-ended battleship’, ‘the kris’, and ‘the bengkok building’ amongst taxi drivers, inquisitive passers-by and curious onlookers.

The vision was to create a new designed urban environment to stimulate urban revival and to provide about 500 units of mid-cost housing in Sentul. Conceived as part of a larger masterplan of buildings, bridges, parks, gardens and railroad corridors, The Capers is the high-rise residential counterpoint (in form and in usage) to a series of adjacent low-rise office and commercial blocks.

The residential units consist of flats, maisonettes, penthouses, bridge units and townhouses designed around a forum of landscaping, greenery, water-features, swimming pools, pavilions and amenities like function rooms, gymnasiums, prayer rooms, childcare centres, playgrounds and laundromats; in essence, it is a vital microcosm of a larger and mature urban context. The towers are oriented with views towards Batu Caves (the region’s tourist attraction of limestone cave temples) to the north and the Petronas Twin Towers (until recently the world’s tallest buildings) to the south.

The construction is borne out of a series of modest building methods, materials and structural design. For instance, the twists and turns of the building form is a result of simple laws of physics: as the floor-slabs are ‘pushed out’ every floor to sculpt the slanted profile of the tower, the building ‘knows when to turn back’ as gravity looms and common-sense prevails.

The structural design is predominantly an interlocking series of reinforced concrete vertical shear walls and horizontal flat slabs. This rudimentary economy of its structure belies the challenges encountered, subsequently, on site. For instance, the jagged form of the towers prevent normal methods of hoisting, delivery and installation. Common construction methods were rethought and improvised.Materials like aluminium panelling and steel edge-detailing were deployed as a leitmotif to express a fresh aesthetic to the prevailing multicolour and plaster-and-paint Sentul experience. Details of metallic fins and edges were also incorporated to preserve proportions and geometry of the design.

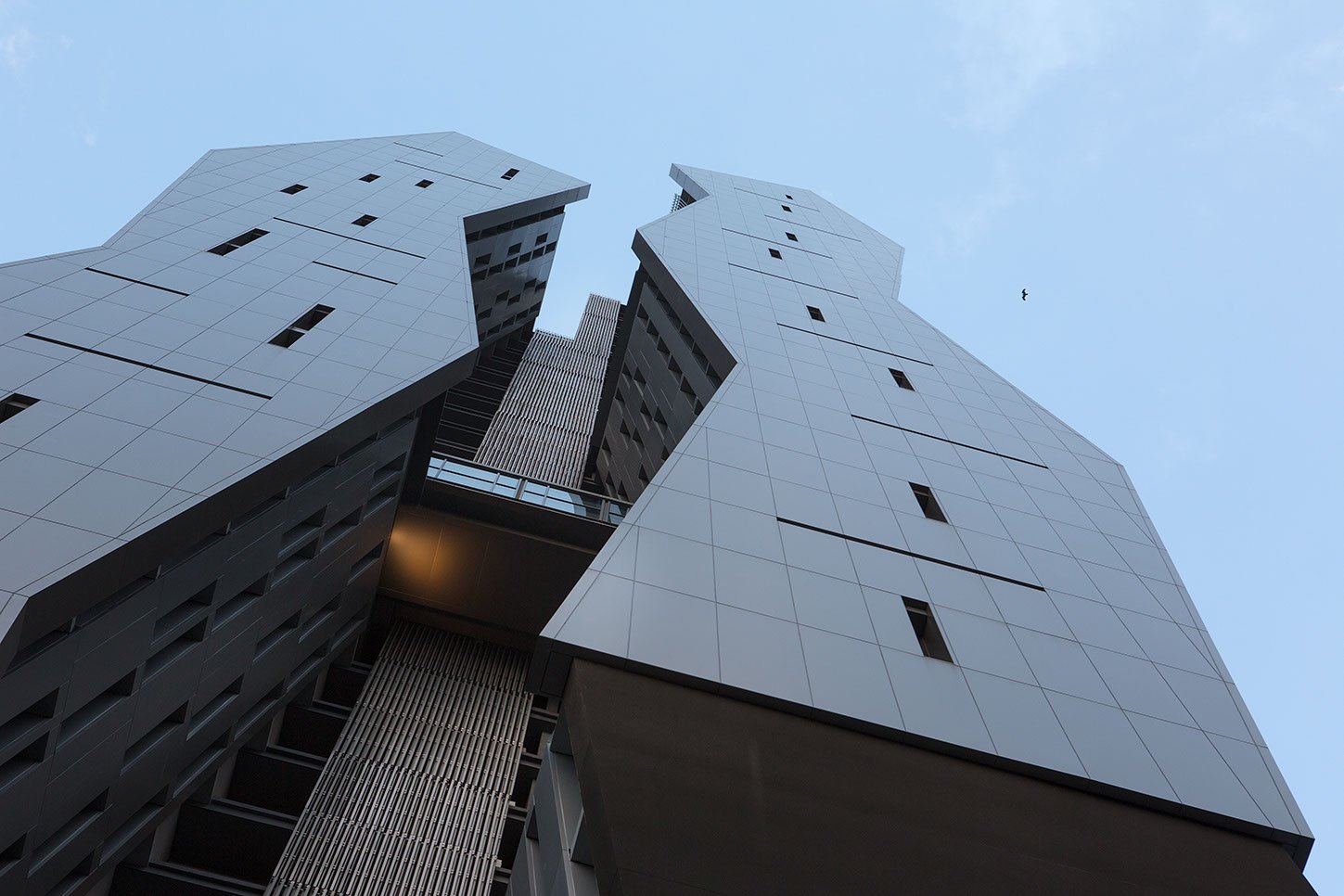

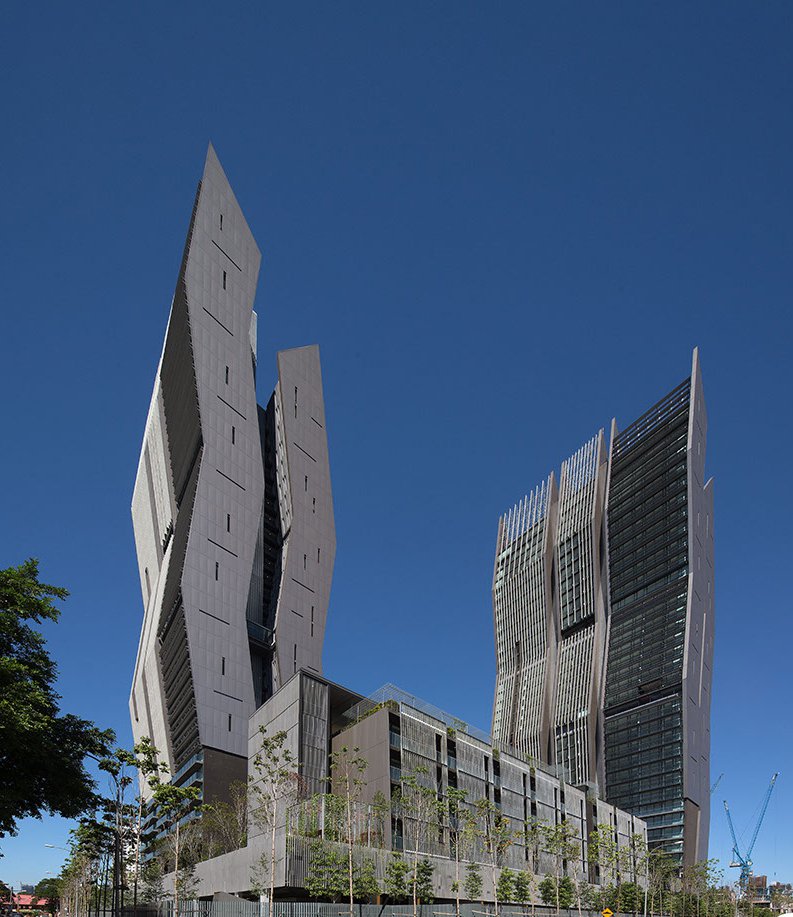

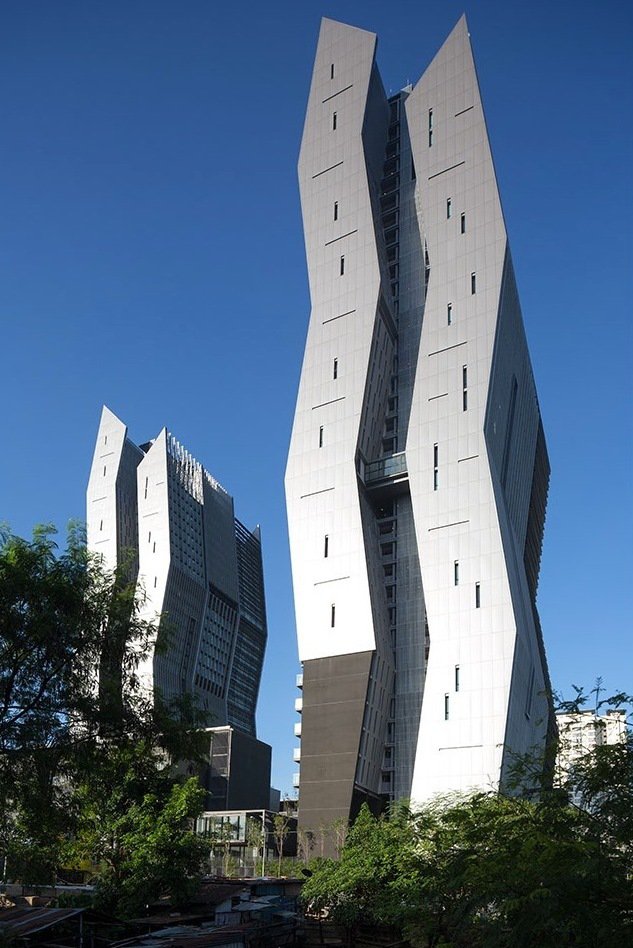

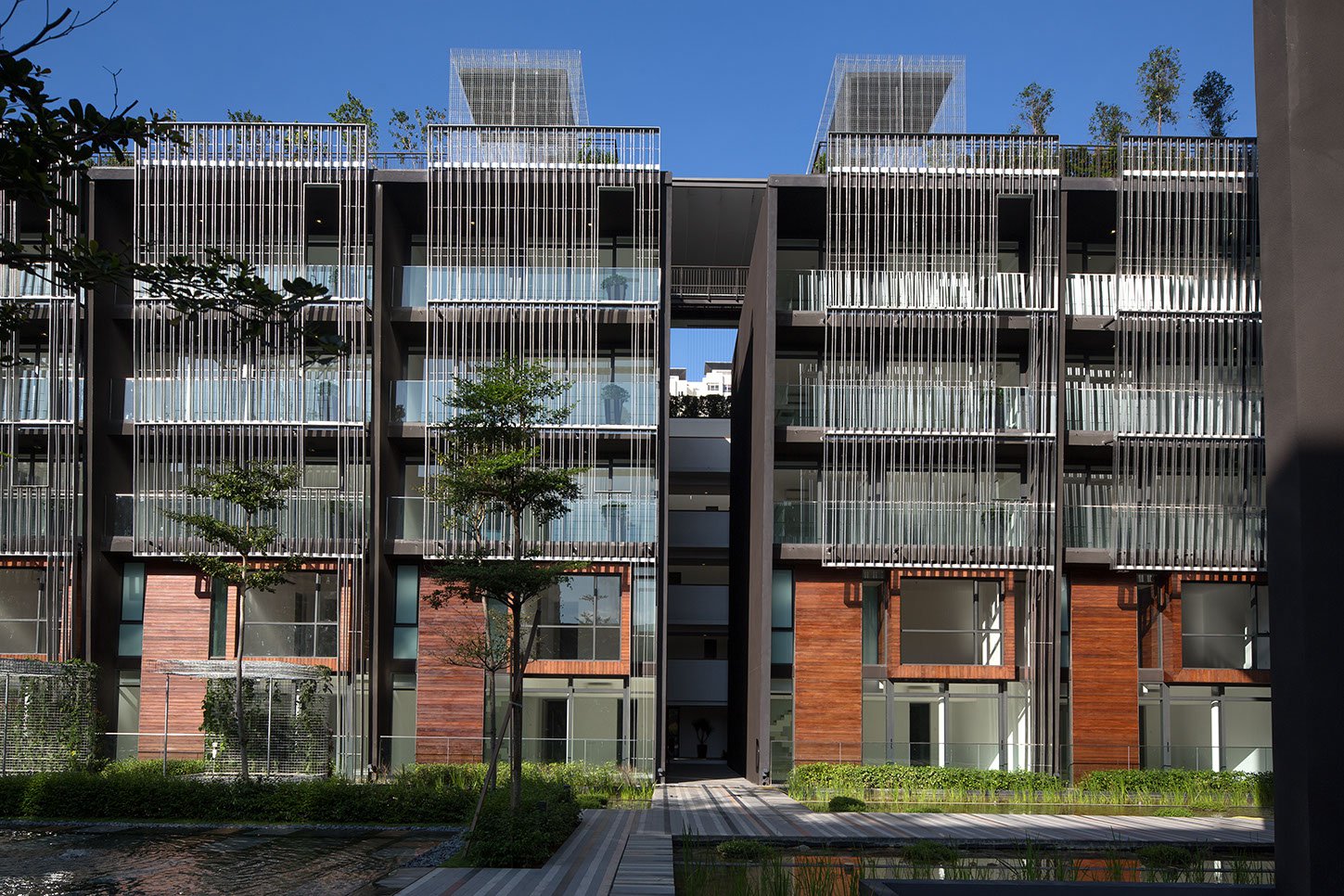

马来西亚The Capers综合住宅楼外部实景图

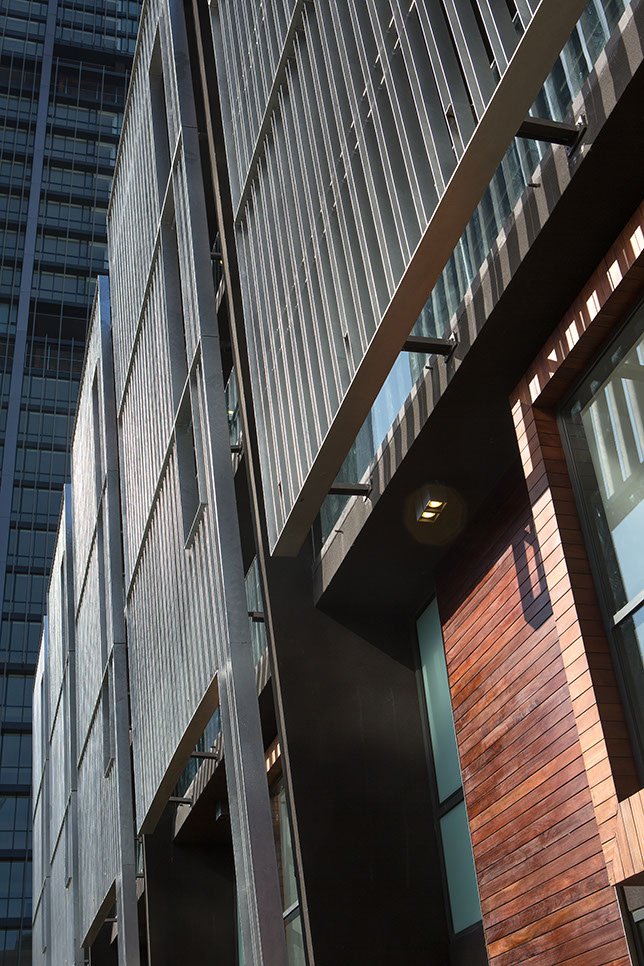

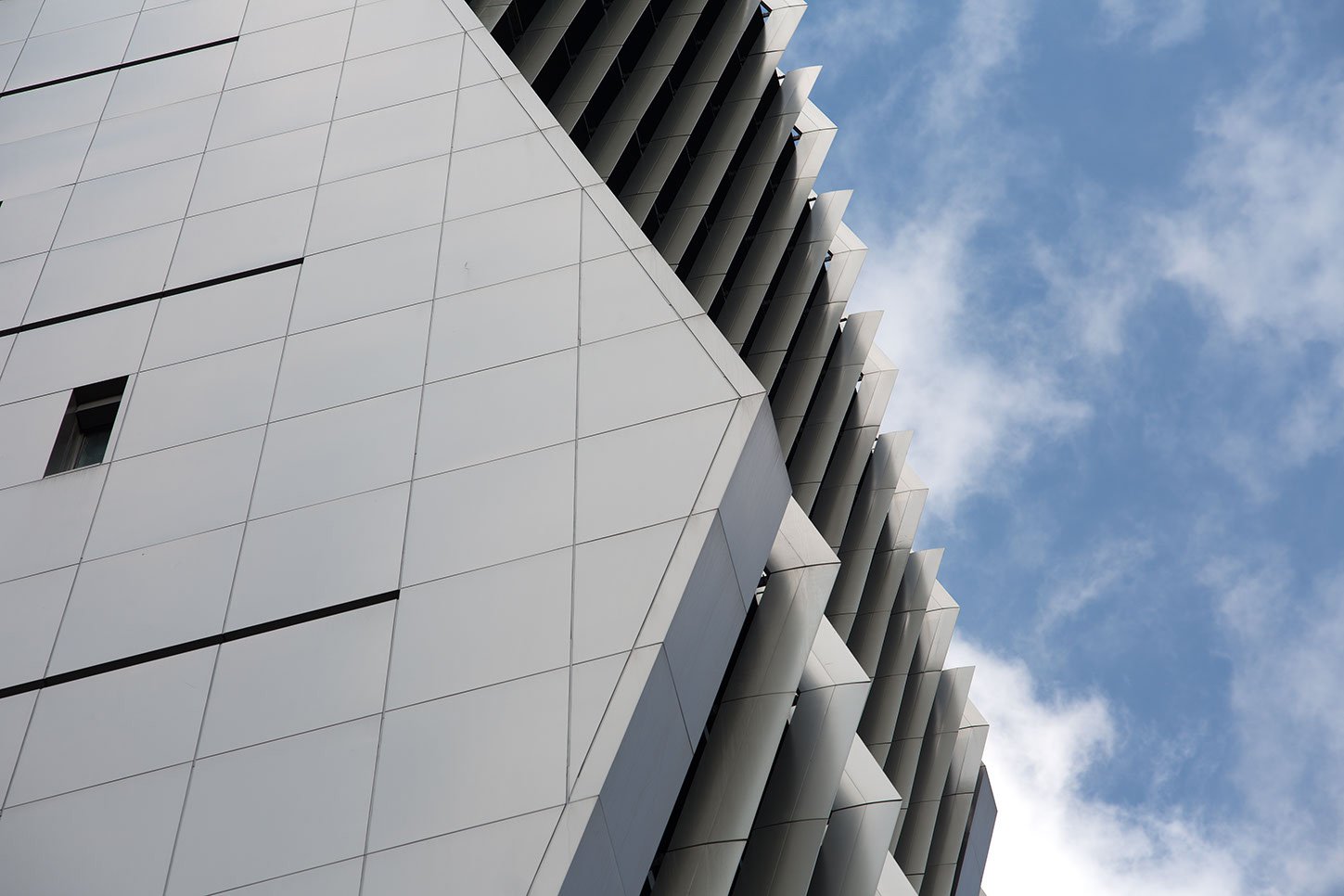

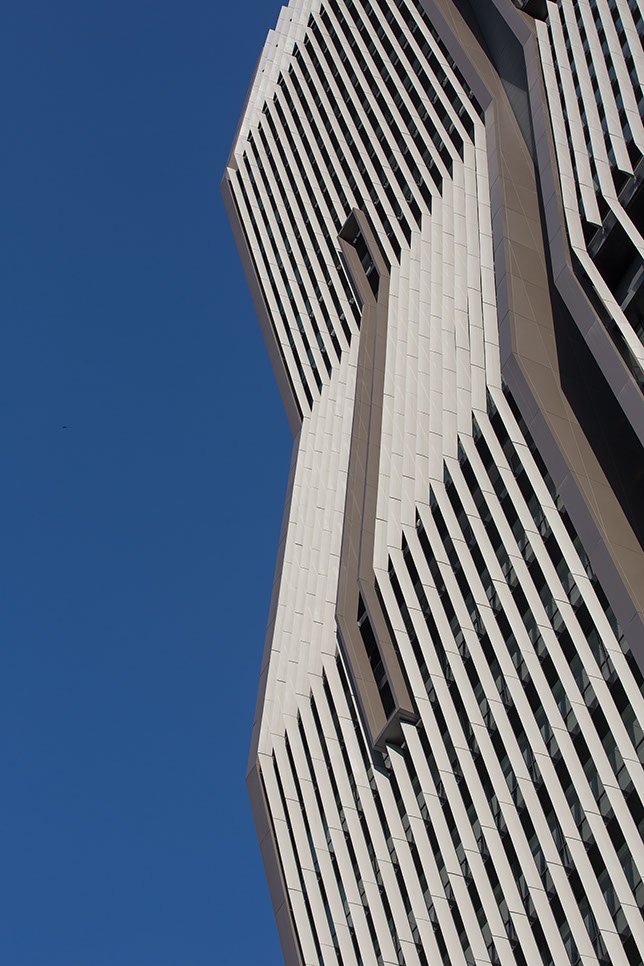

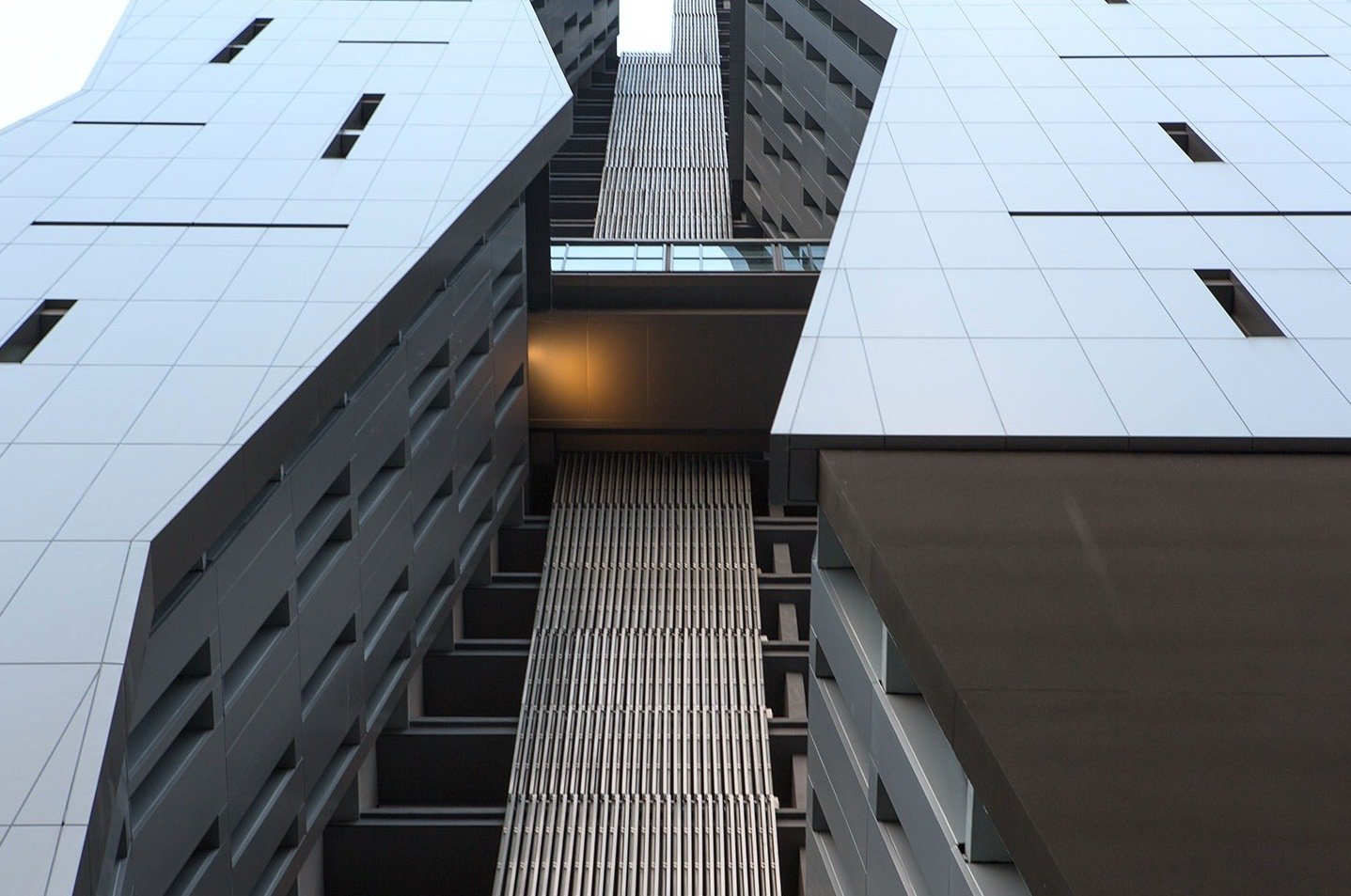

马来西亚The Capers综合住宅楼外部局部实景图

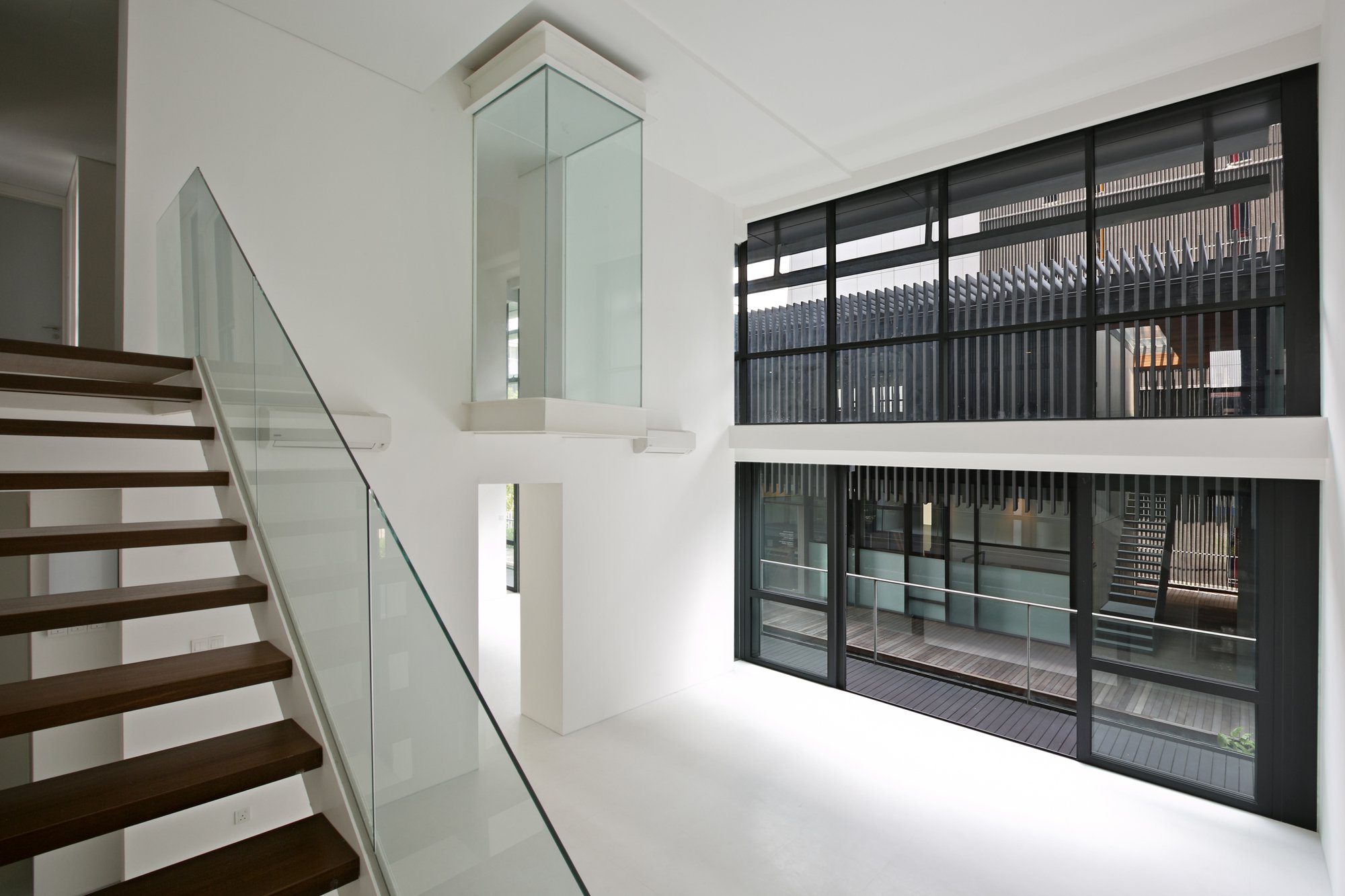

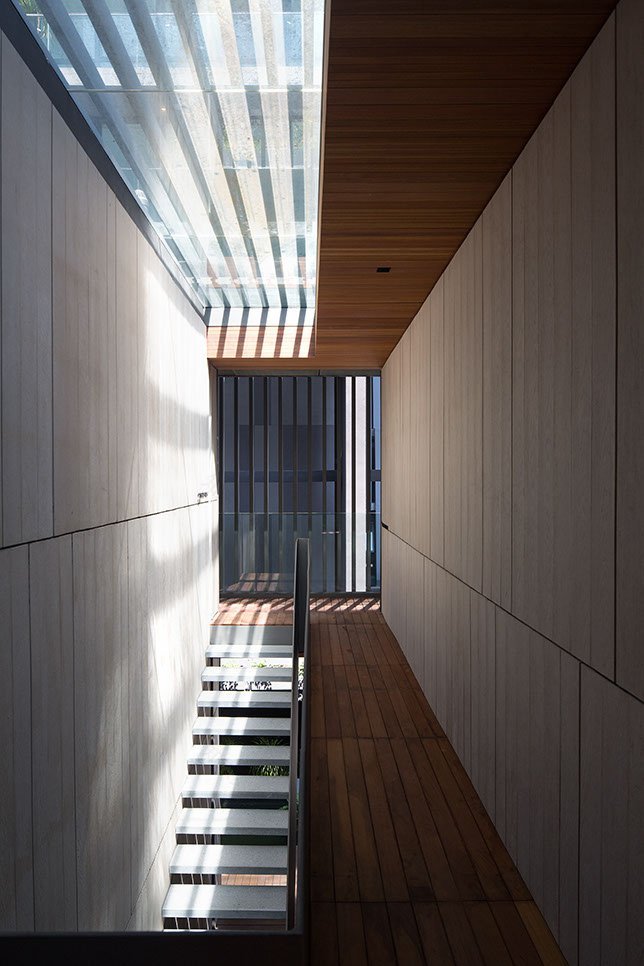

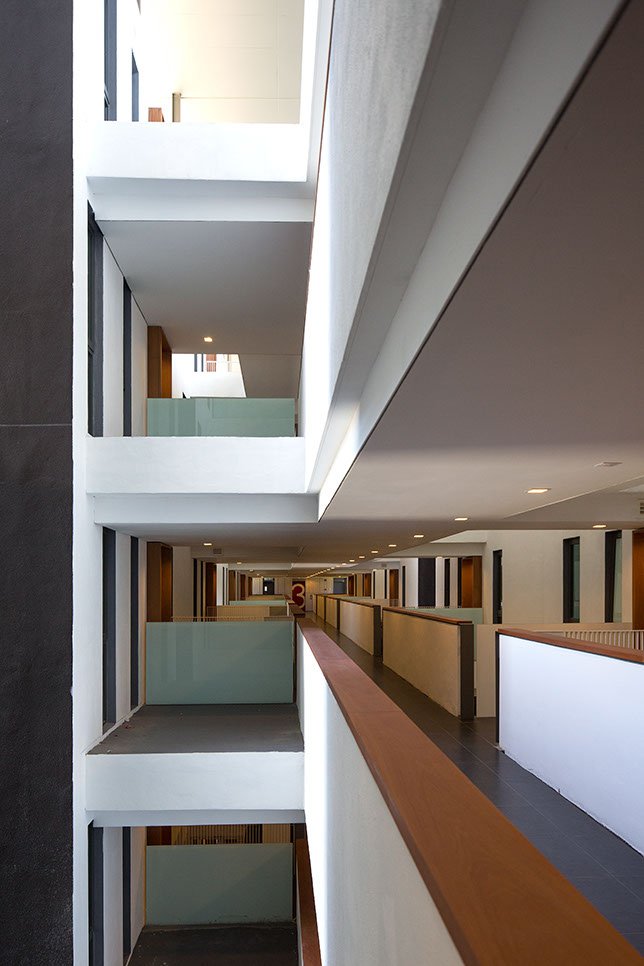

马来西亚The Capers综合住宅楼内部实景图

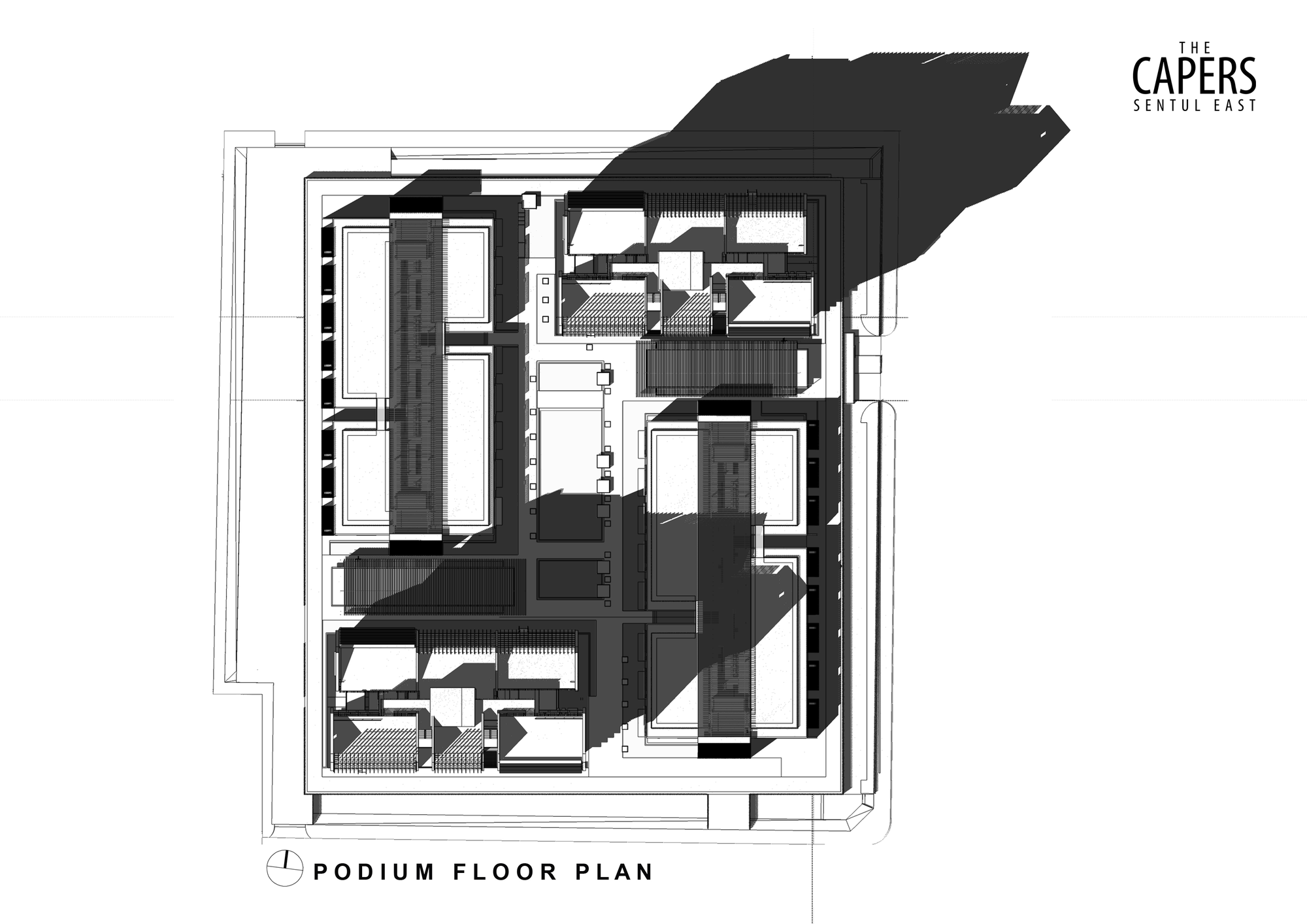

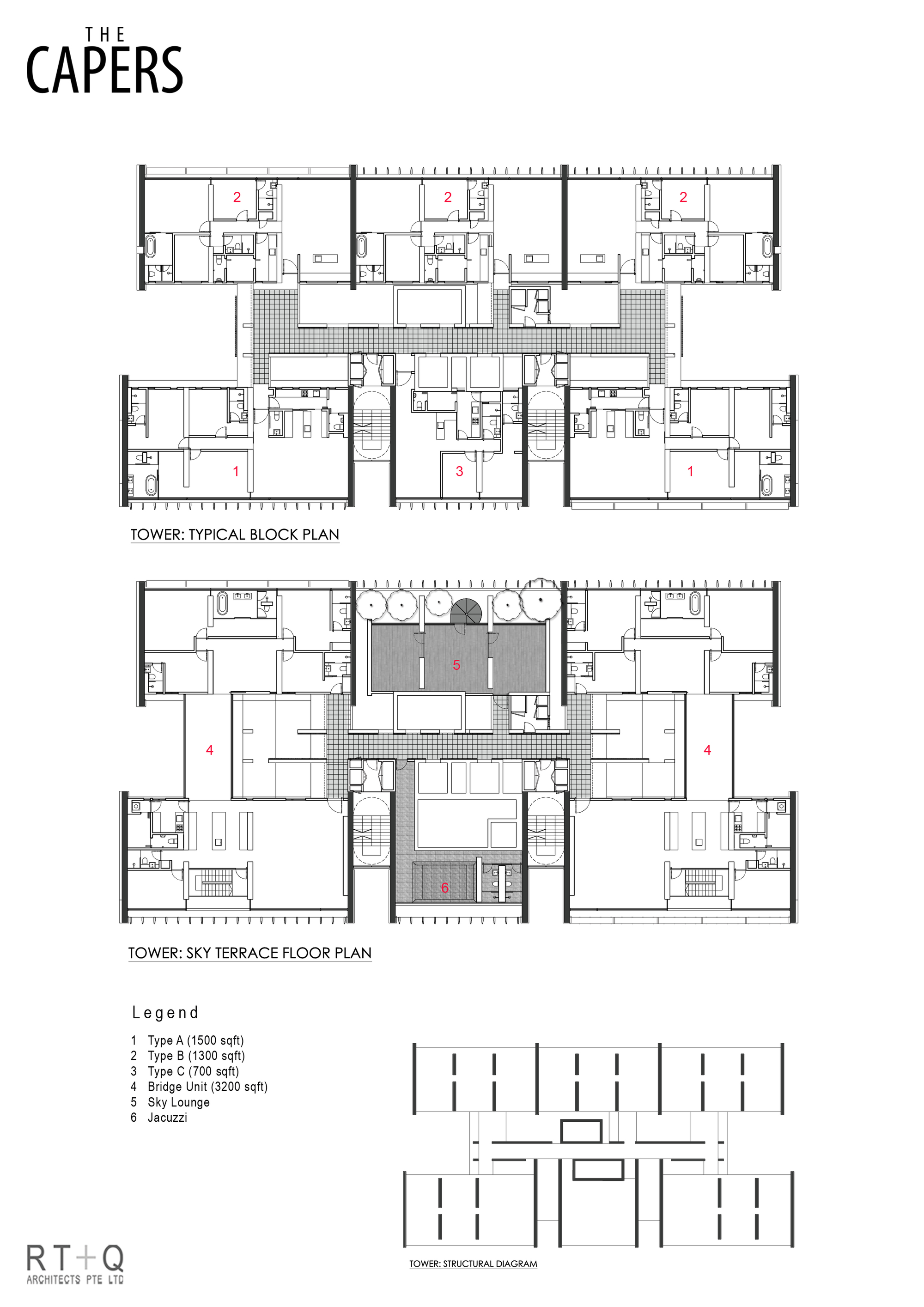

马来西亚The Capers综合住宅楼平面图

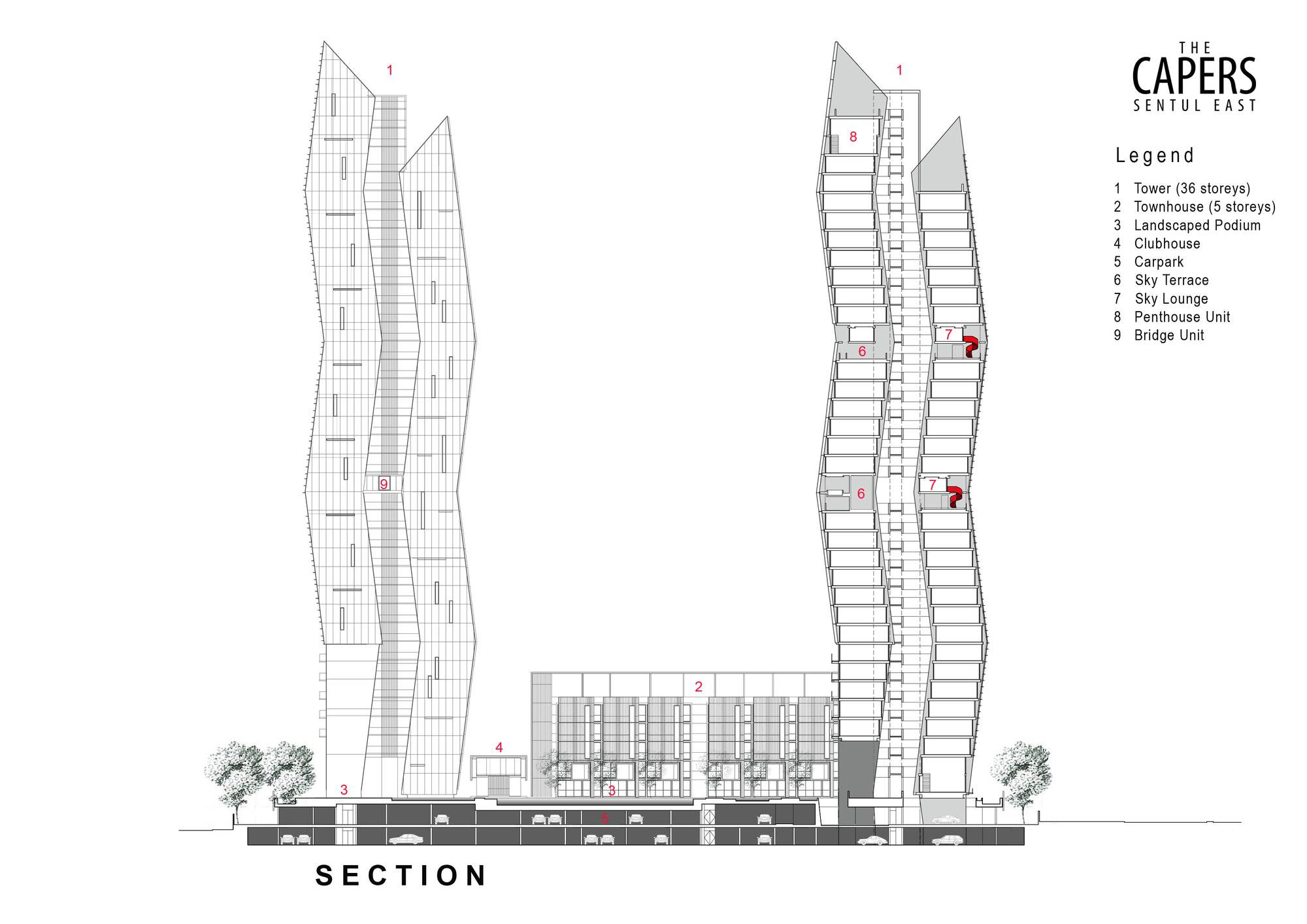

马来西亚The Capers综合住宅楼剖面图
