东京Todoroki住宅丨Teppei Fujiwara Architects Labo

Double Circular Rings in Todoroki

设计方：Teppei Fujiwara Architects Labo

位置：日本

分类：居住建筑

内容：实景照片

建筑设计负责人：Teppei Fujiwara

结构工程师：Hirofumi Ohno

承包人：Hirohashi Koumuten

项目规模：85平方米

图片：12张

摄影师：amagishi, Muraguchi

这是由Teppei Fujiwara Architects Labo设计的Todoroki住宅，位于东京Todoroki。这是一片多山地区，在住宅区中央还有一片“峡谷”——Todoroki Keikoku，这是东京内唯一现存的峡谷。为了保留周围峡谷这一丰富的自然资源，场地边界以及户外绿化有着相关建筑退线的法规要求。根据这些法规要求，这些居住区形成一个“有序列的绿色环”，让景观得以发展。因此，该项目不仅在场地内进行设计，还在整个Todoroki.片区的景观提供动态、富有序列的“绿色环”。

建筑采用了传统木匠制造的木框架结构，外墙是低辐射双层玻璃幕墙。生活空间内放置了大件家具。这就是一个自建住宅。这个住宅几近透明，但由于场地远离高高低低的街道，且有环形花园作为缓冲区，因此住宅十分巧妙地融入到周围的居住区里。通过简化施工方法，建筑成本始终控制在较低的预算。整个规划布局是开放灵活的。

译者： 艾比

The house is located in Todoroki, Tokyo. If you walk around Todoroki, you would notice how hilly this district is. No wonder, you then come across a “canyon” at the heart of the residences – Todoroki Keikoku, the only gorge existing in Tokyo. The repeating ups and downs in the area are actually a part of the topography from the Ice Age – a dynamic environment created in some 10,000 years of time.In order to preserve this rich nature surrounding the canyon, regulations for this area prescribe a setback (receding of the wall) from the border of the site and greening of the outside space.

By taking advantage of these rules, the residential area can generate a “green ring in sequence”, where green circles continue to develop.We approached with a broad concept for the house – the design wouldn’t complete just within the site but could also offer a sense of “movement” and “series of green rings” – which you would find throughout the entire landscape of Todoroki.

The site is so-called a flag lot. It has a “circular garden” which you can walk around as you take the passage to the site. The circular garden receives the frame from inside structure so that the garden could function as a midway area. In the house, all the essential elements for living are concentrated into the center and the residents move around it.

We used traditional carpenter-made wooden modules for structural frame. Then we installed the glass fabrication an outsourced curtain wall of Low-e pair glass. Living spaces are arranged by big furniture, so it is a self-build house overall. It is mostly glazed, but because of the site located off from the street in a different height, and the circular garden working as a buffer, the house curiously merges into the surrounding residential environment.Building cost was kept low by simplifying the construction method, and the whole planning is open and flexible enough to accommodate renovation or resale of the house.

东京Todoroki住宅外观图

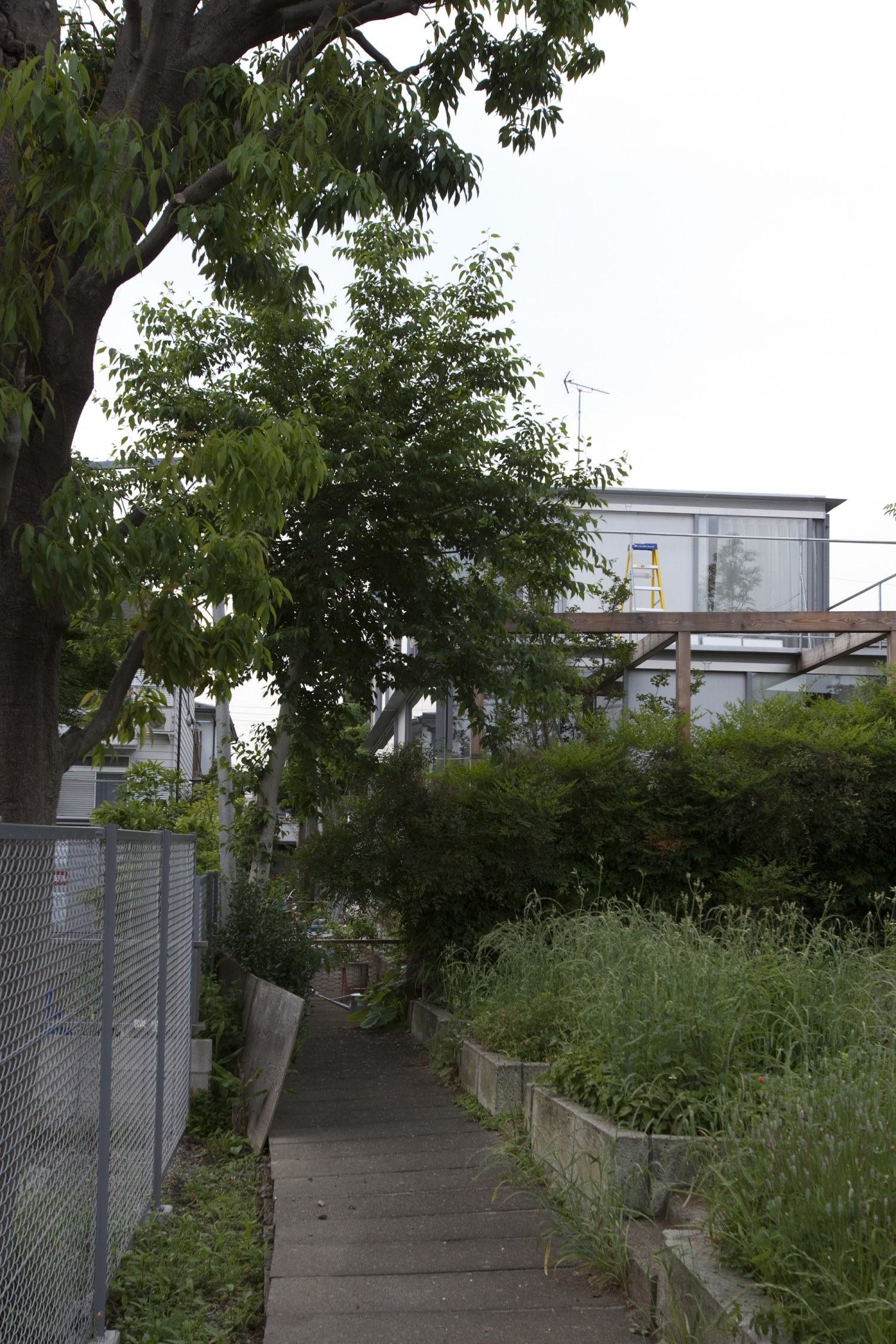

东京Todoroki住宅外部局部图

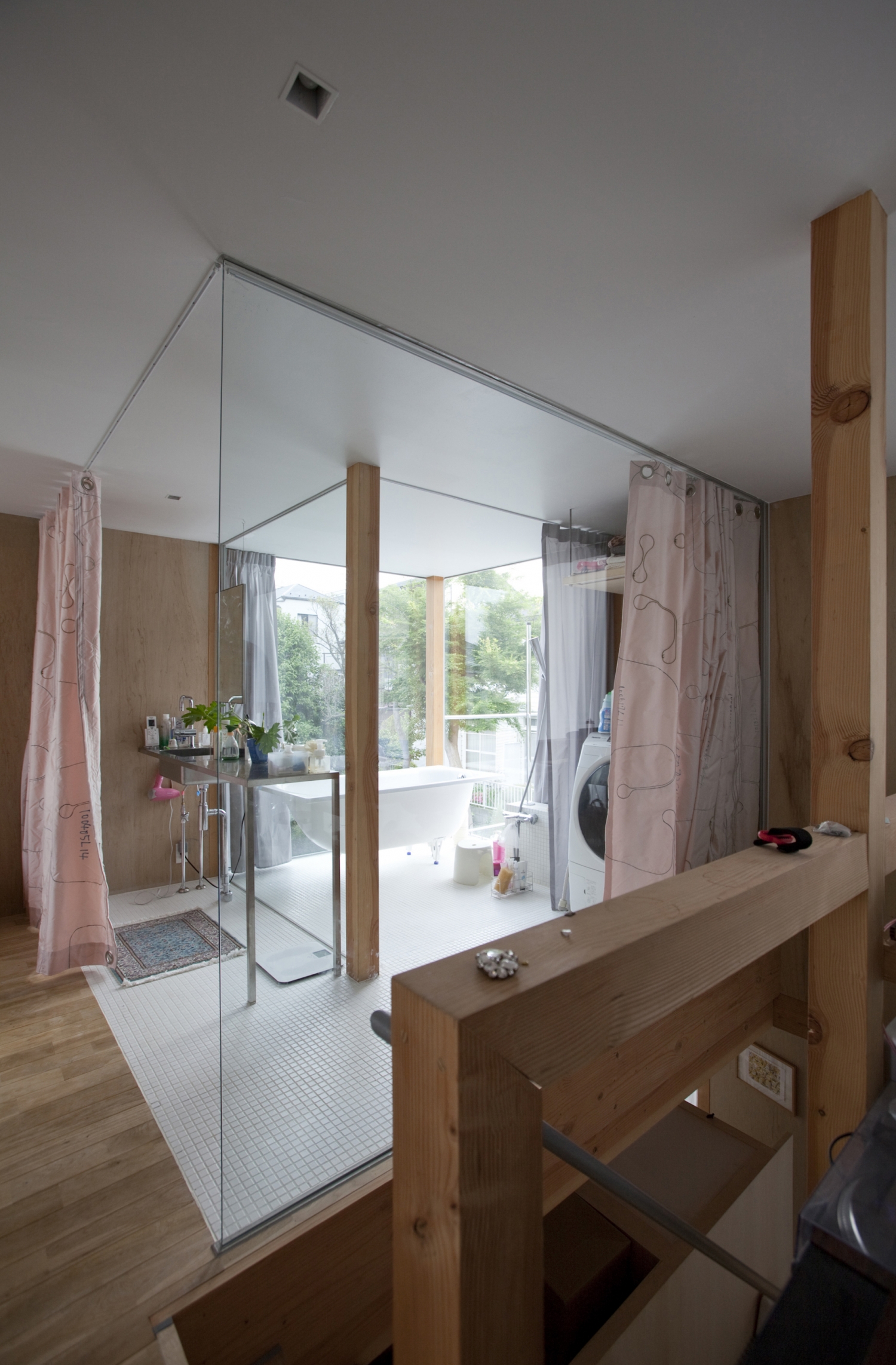

东京Todoroki住宅内部浴室图

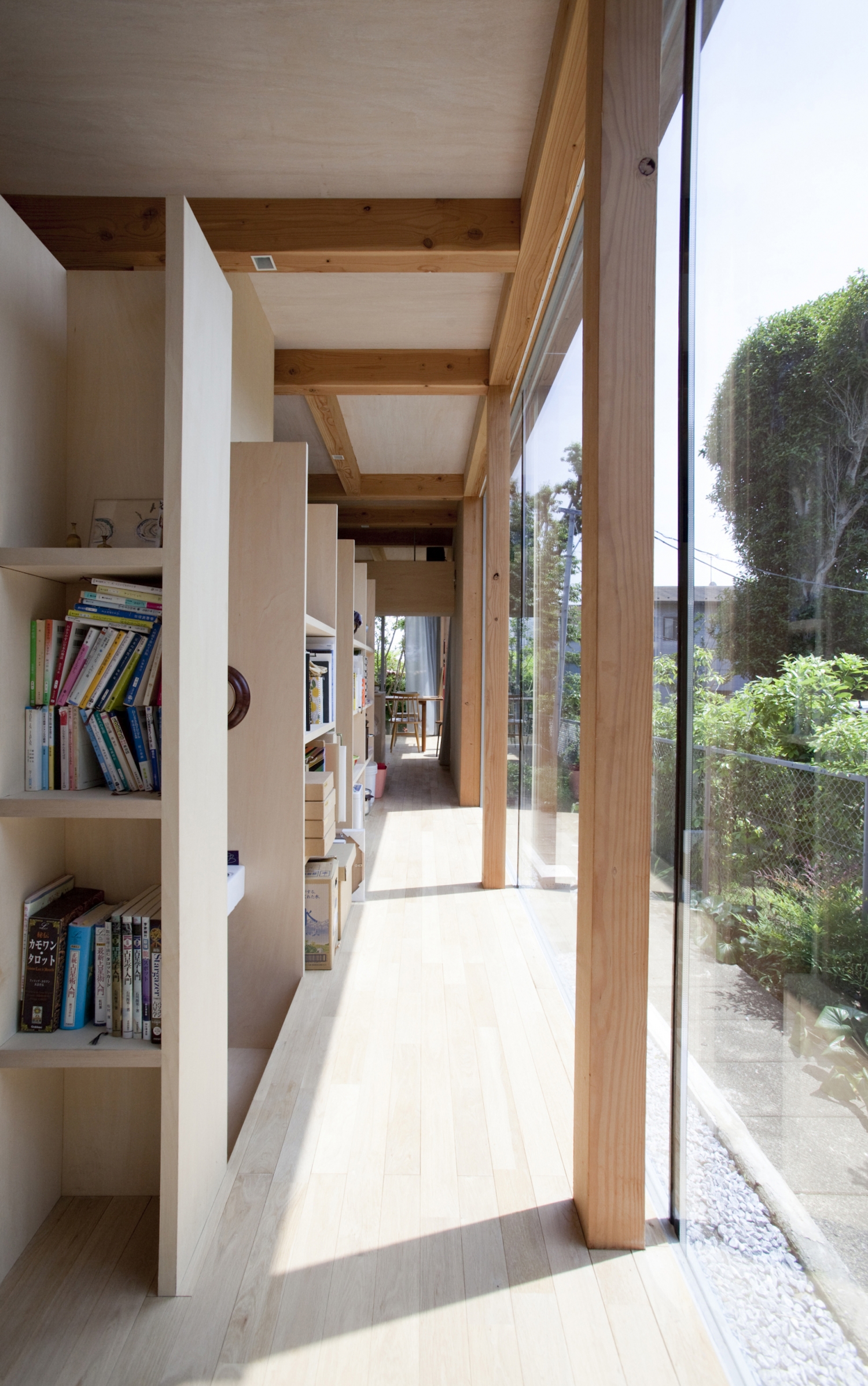

东京Todoroki住宅内部走廊图

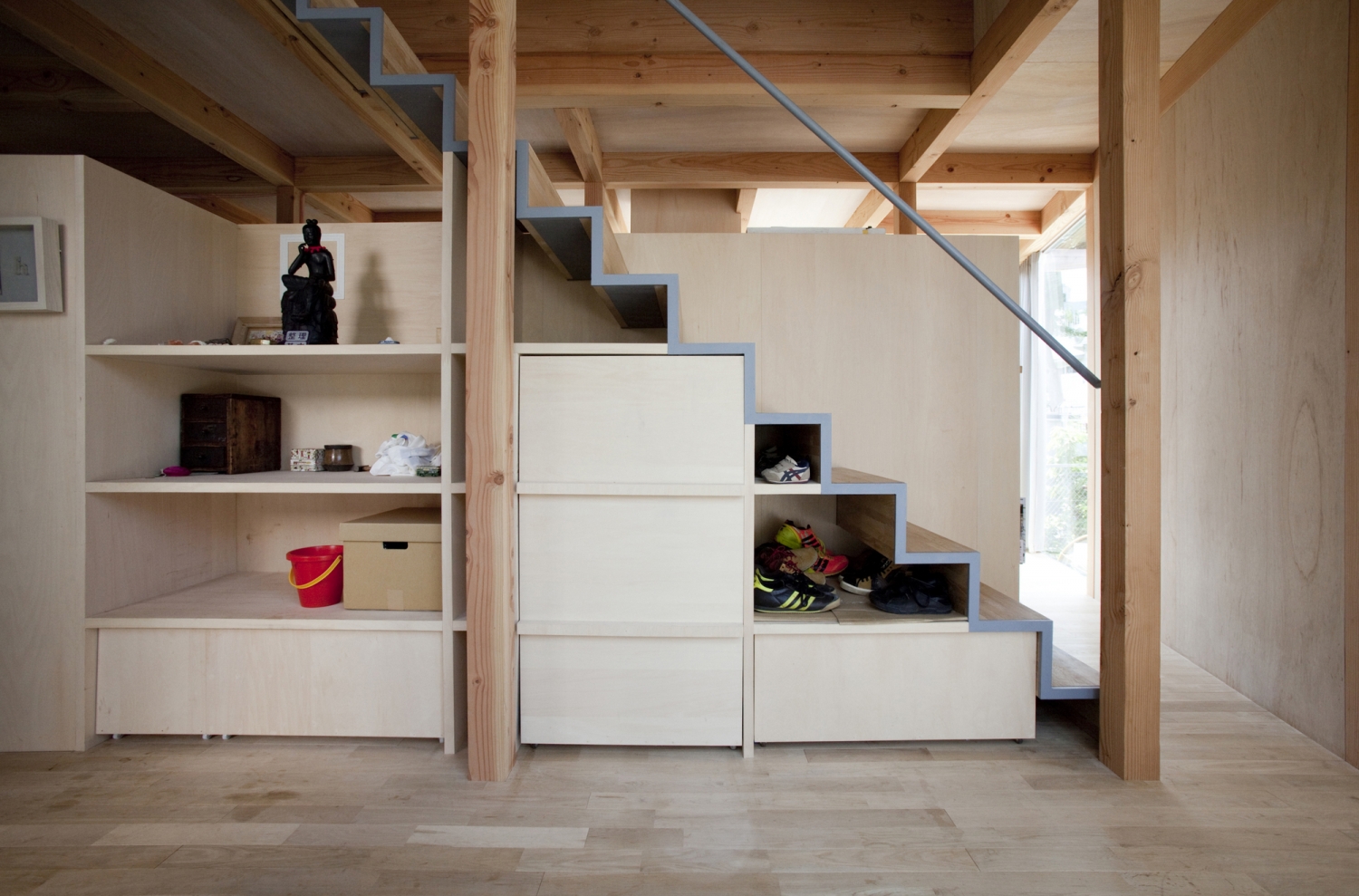

东京Todoroki住宅内部楼梯图

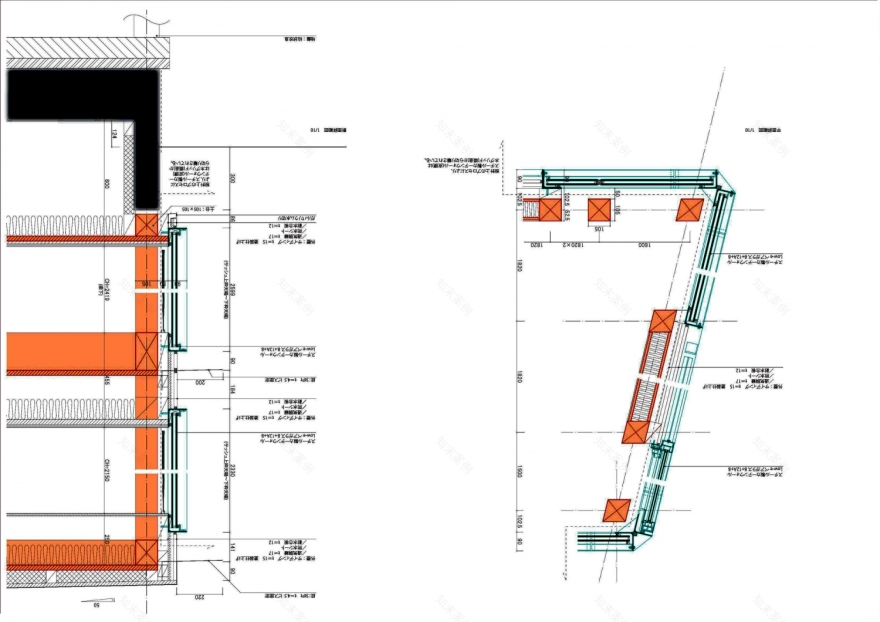

东京Todoroki住宅详图

东京Todoroki住宅总平面图

东京Todoroki

住宅平面图

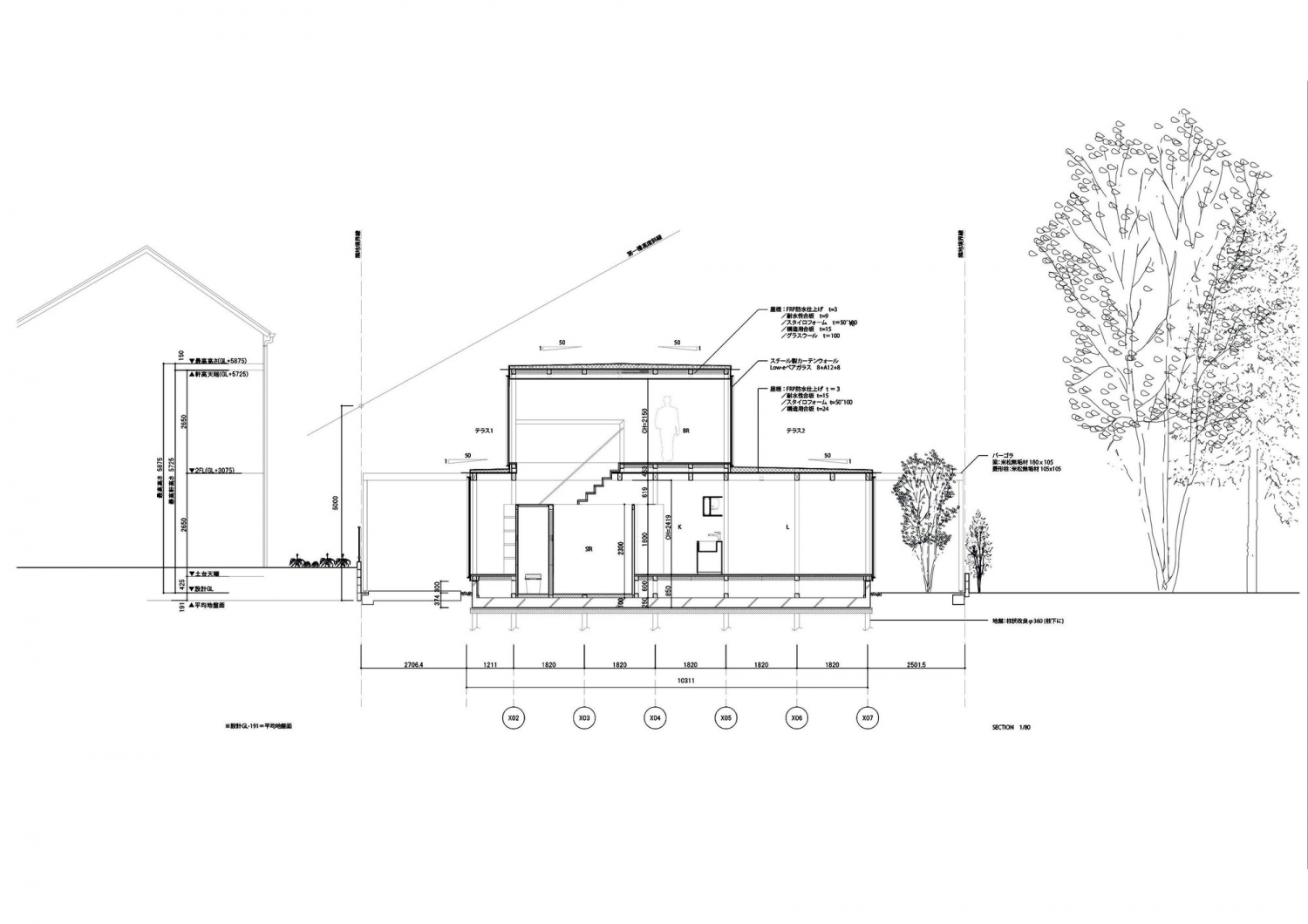

东京Todoroki住宅剖面图

东京Todoroki住宅平面图
