希腊雷福提港度假别墅 | 阳光、海景与自然相融的设计

Greece porto raftl Family Vacation villa

设计方：MOB architects

位置：希腊

分类：别墅建筑

内容：实景照片

图片：16张

别墅坐落在一个细长的场址上，场址位于希腊，阿卡提的雷福提港，场址宽12米，面积382.17平方米，别墅是为了度假修建的，别墅的面积280平方米，别墅包括两个独立的住宅单元、公用的户外空间和一个车库。复式公寓被安排在地面上的两层楼中，车库位于地下，建筑物的方向是东北向，这样的方向设计是为了减少太阳对一楼的影响，并使别墅充分欣赏北部的海景。别墅的南部非常紧凑。基本的建筑理念是为了创造大面积的外部空间，因为别墅大部分时间都是在夏季使用，所以空间要朝向花园。

外部空间与进口路径联合在一起，从而创造了一个主要的走廊：一楼的走廊是部分覆盖的，二楼的走廊是露天的。一楼的走廊是封闭的，走廊的三面都被建筑体量或二层楼高的墙包围着。剩下的一面连接着花园，花园被高高的植物围绕着，创造了一个受保护的、封闭的外部空间，这是一个进行日常活动和聚会的好地方。相反的是，二楼的走廊朝海景、太阳和风敞开。每一个住宅单元都包括两个房间、厨房-起居室和一个有卫生间的房间。两个住宅单元是通过走廊和露天楼梯连接起来的。

译者：蝈蝈

In an elongated plot of 382,17m2 and of a width of 12m, in Porto Rafti (Attica, Greece), the brief called for a vacation house of approximately 280m2, including two potentially independent residences, common-use outdoor spaces and a garage. The duplex is arranged over two floors and an underground garage, with a northeast orientation, in order to be protected from the sun andon the first floor to take full advantage of the sea view to the north. The south side is nearly compact.The basic design concept was to create large outdoor spaces facing the garden on all levels, since the house will be used mostly during summer time.

The outdoor spaces were joined with the access paths to create two main ‘verandahs’: a partly covered one on the ground floor, and an open-air one on the first floor. A section of the ground floor verandah is enclosed, being surrounded on three sides by either the building volumes or a two storey-high wall. The fourth side is linked to the garden, which is in turn enclosed by tall vegetation, forming a protected enclosed outdoor space, a place for daily activities and gathering. On the contrary, the first floor verandah opens to the sea view, to the sun and wind. Each residence comprises two rooms, a kitchen-living room and a bedroom with bathroom. The two residences are approached through the verandahs and the open air staircase.

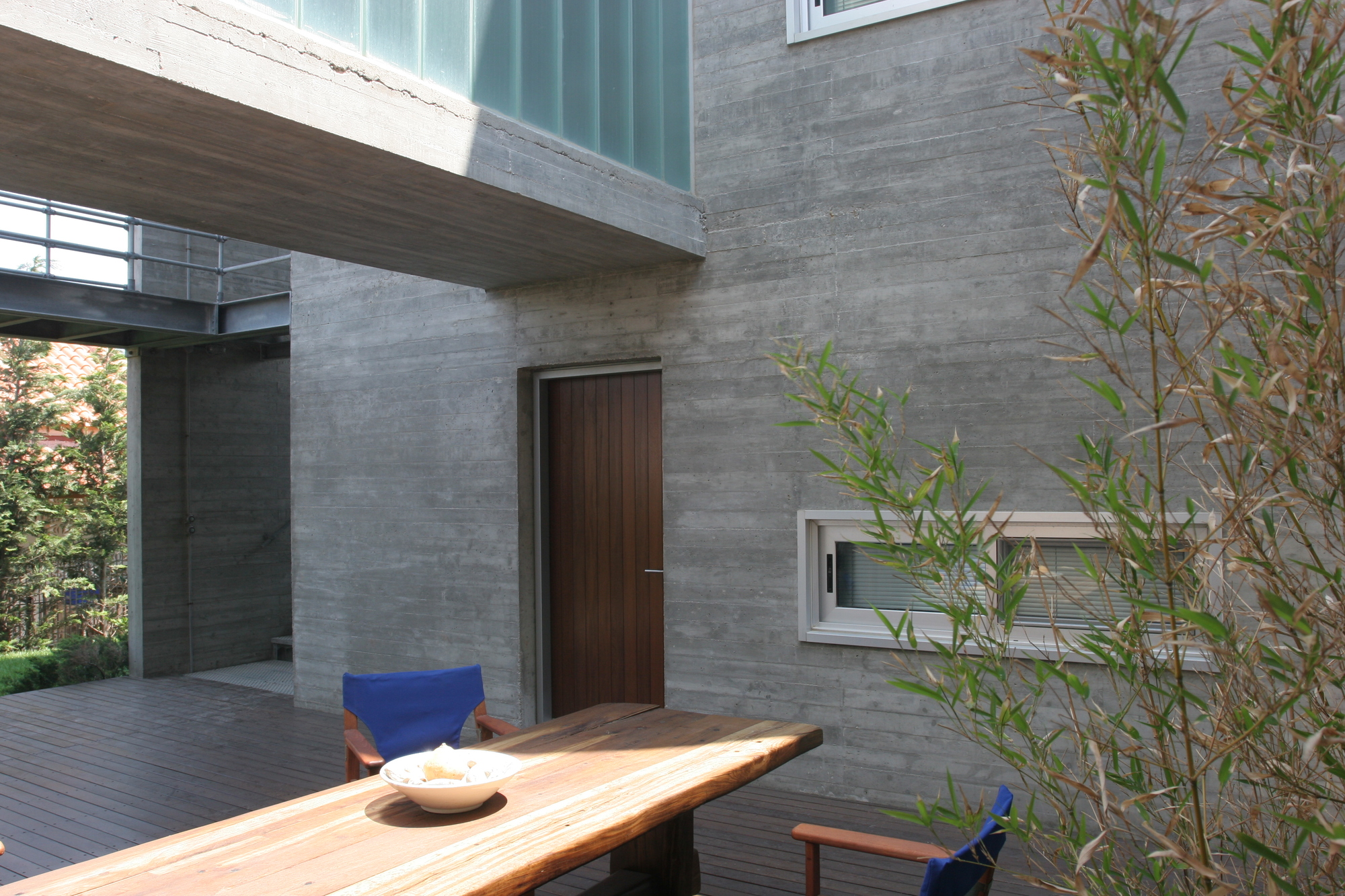

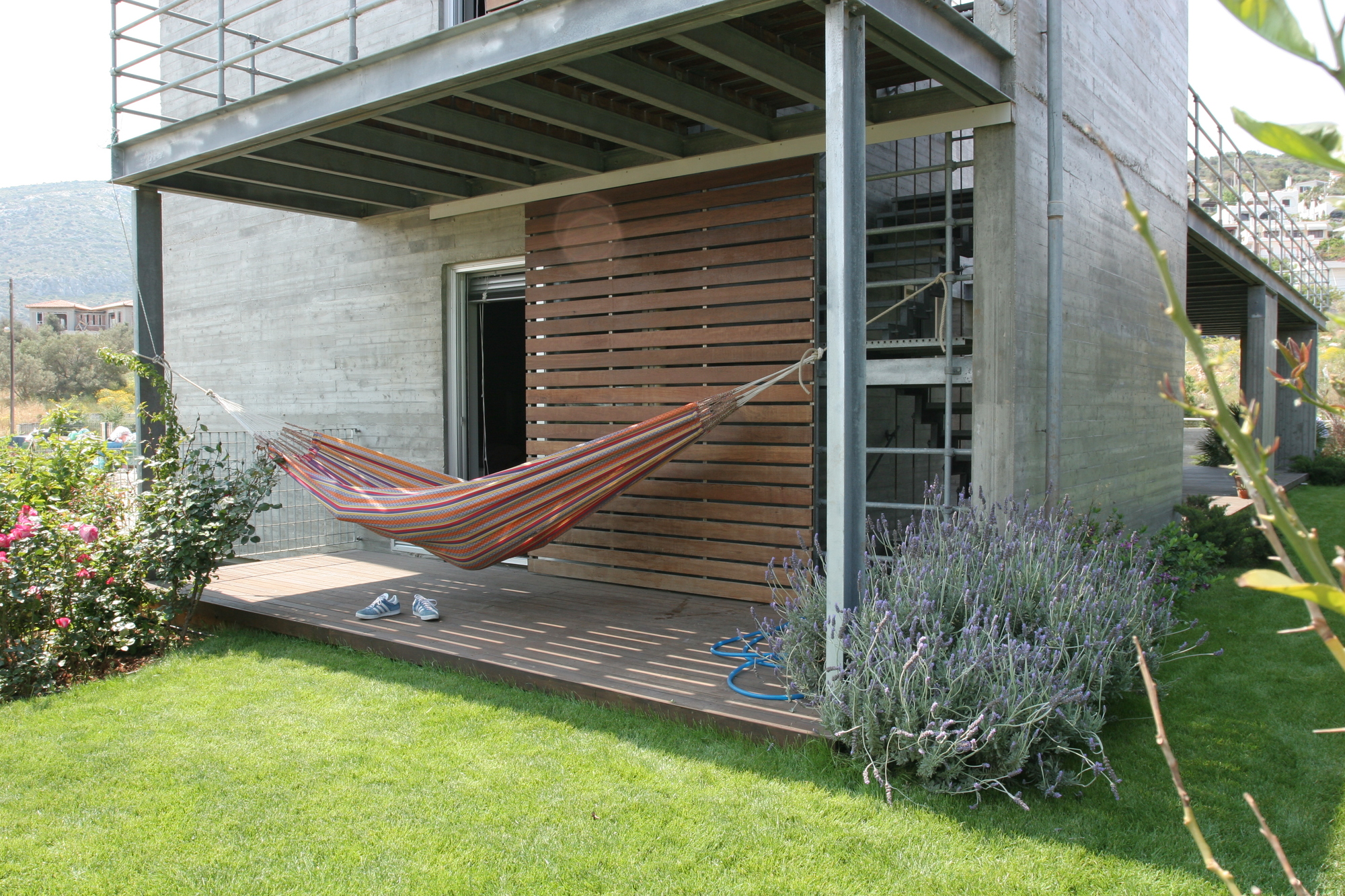

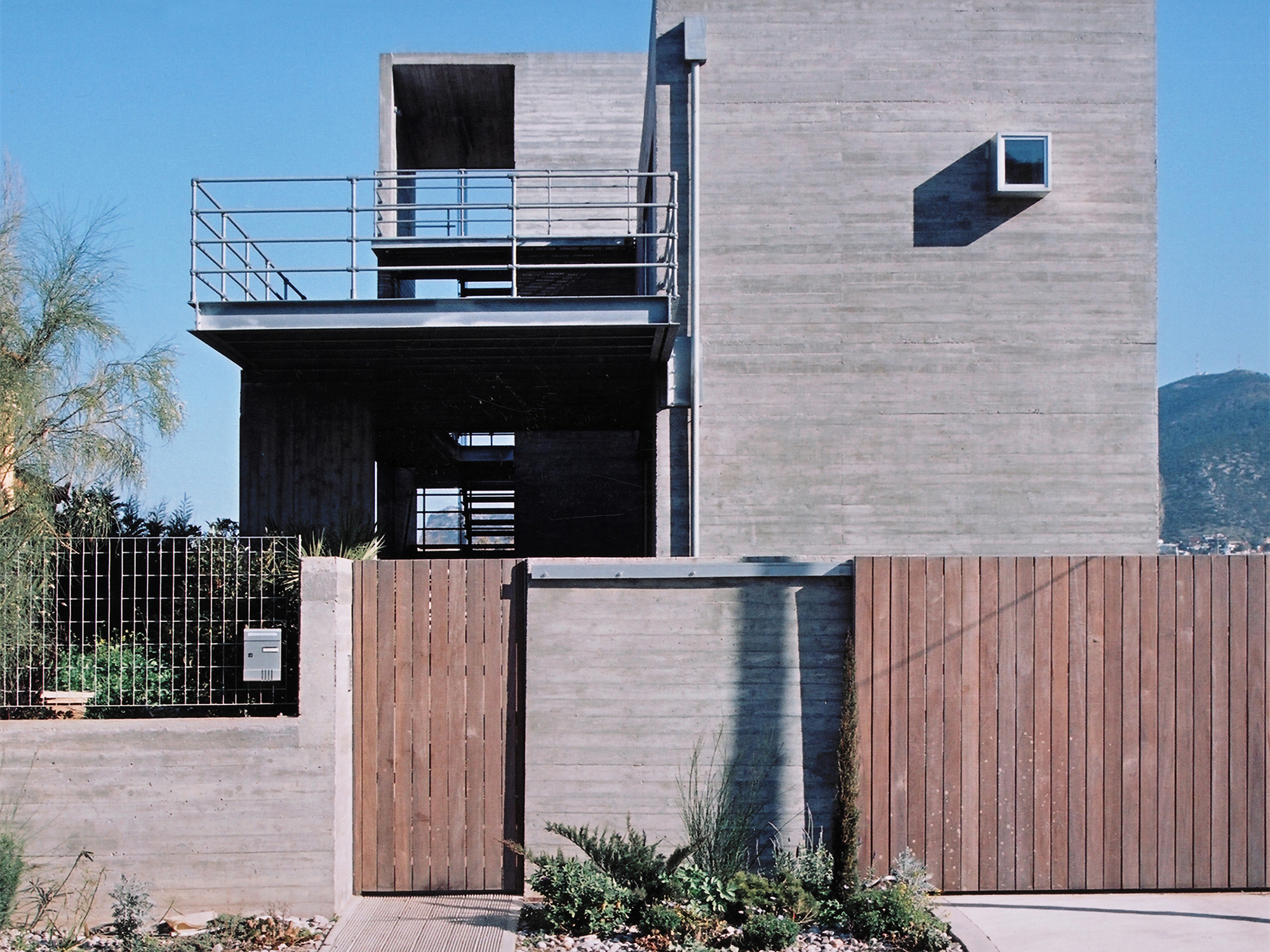

希腊雷福提港两家庭度假别墅外部实景图

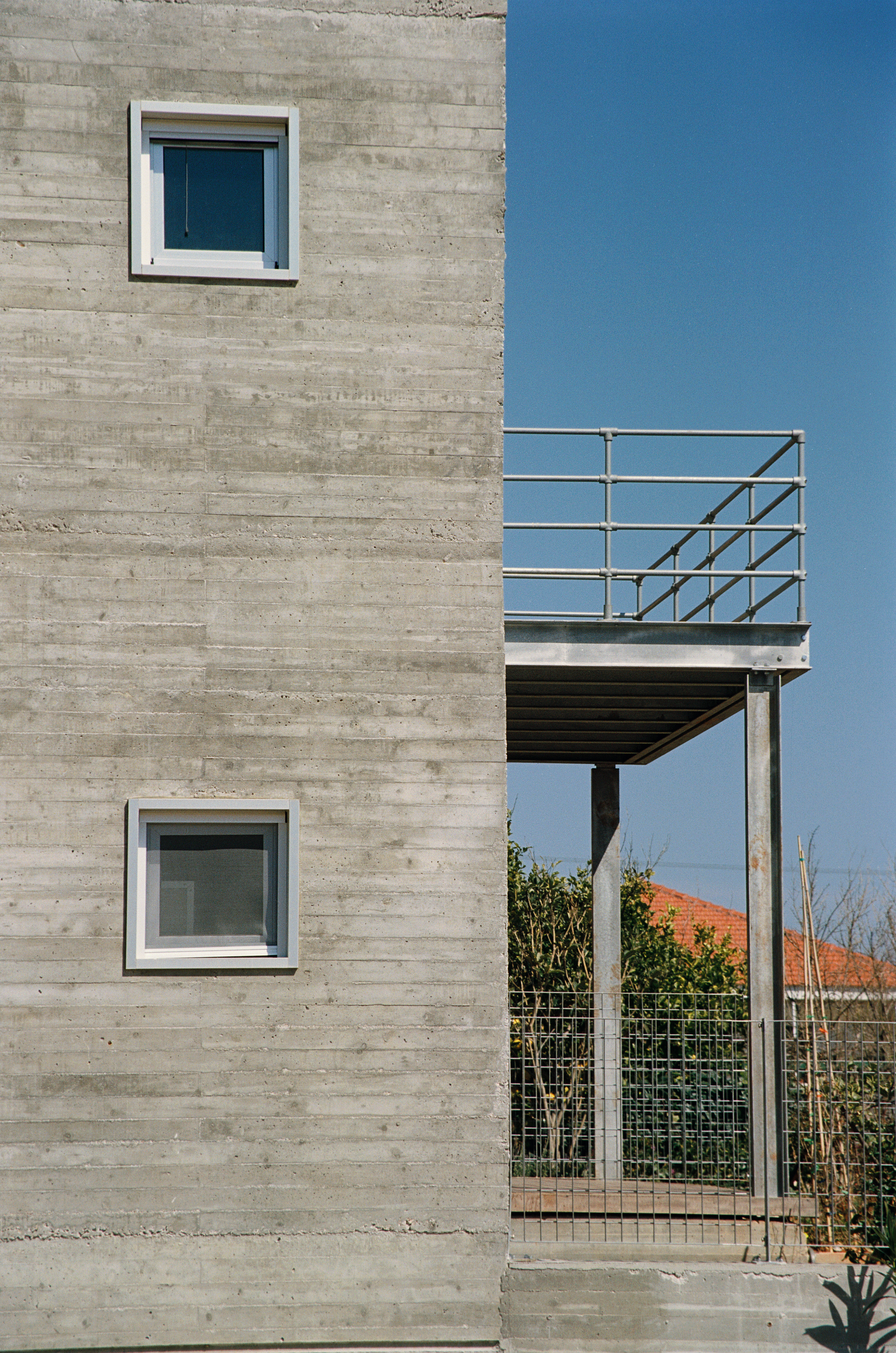

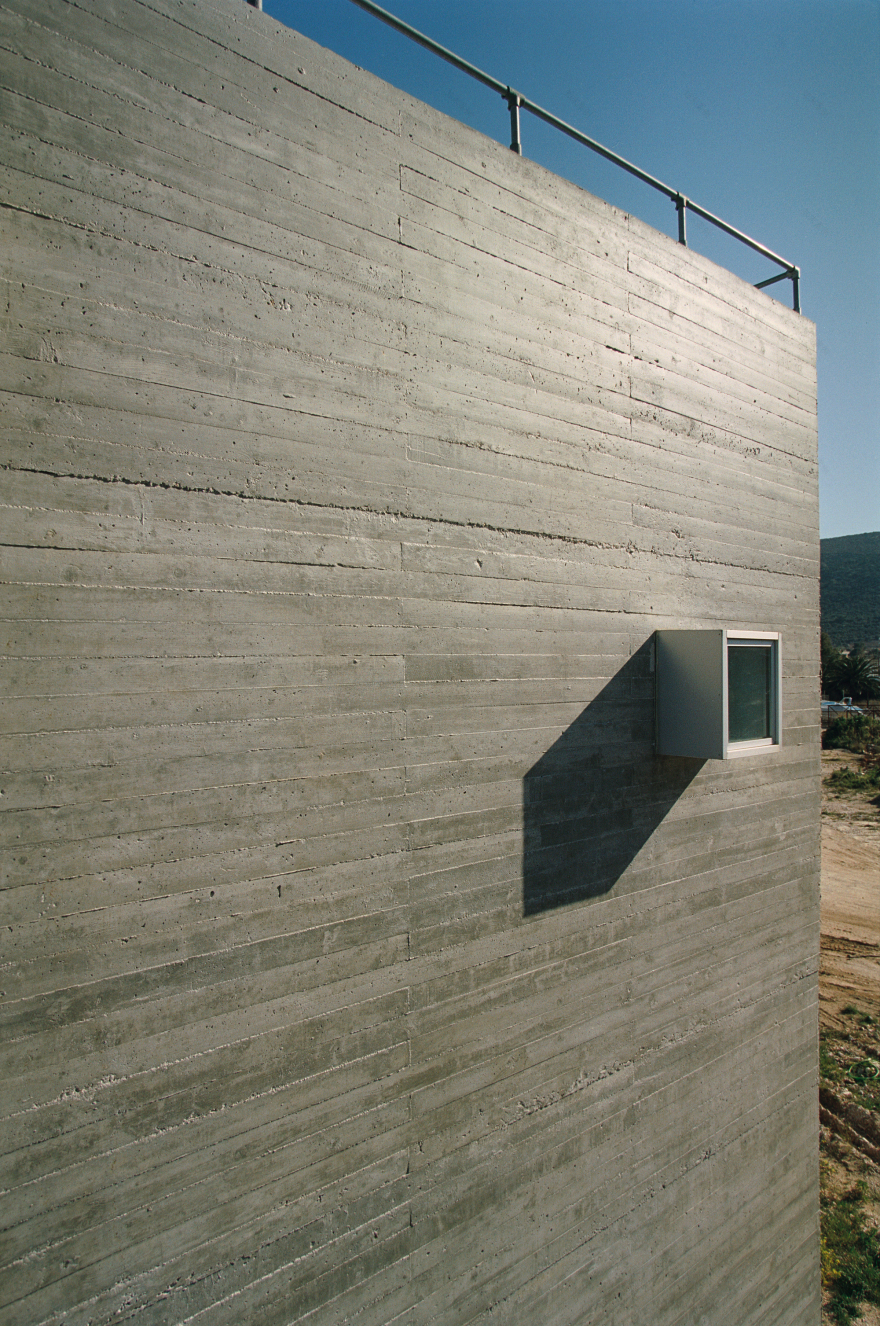

希腊雷福提港两家庭度假别墅外部细节实景图

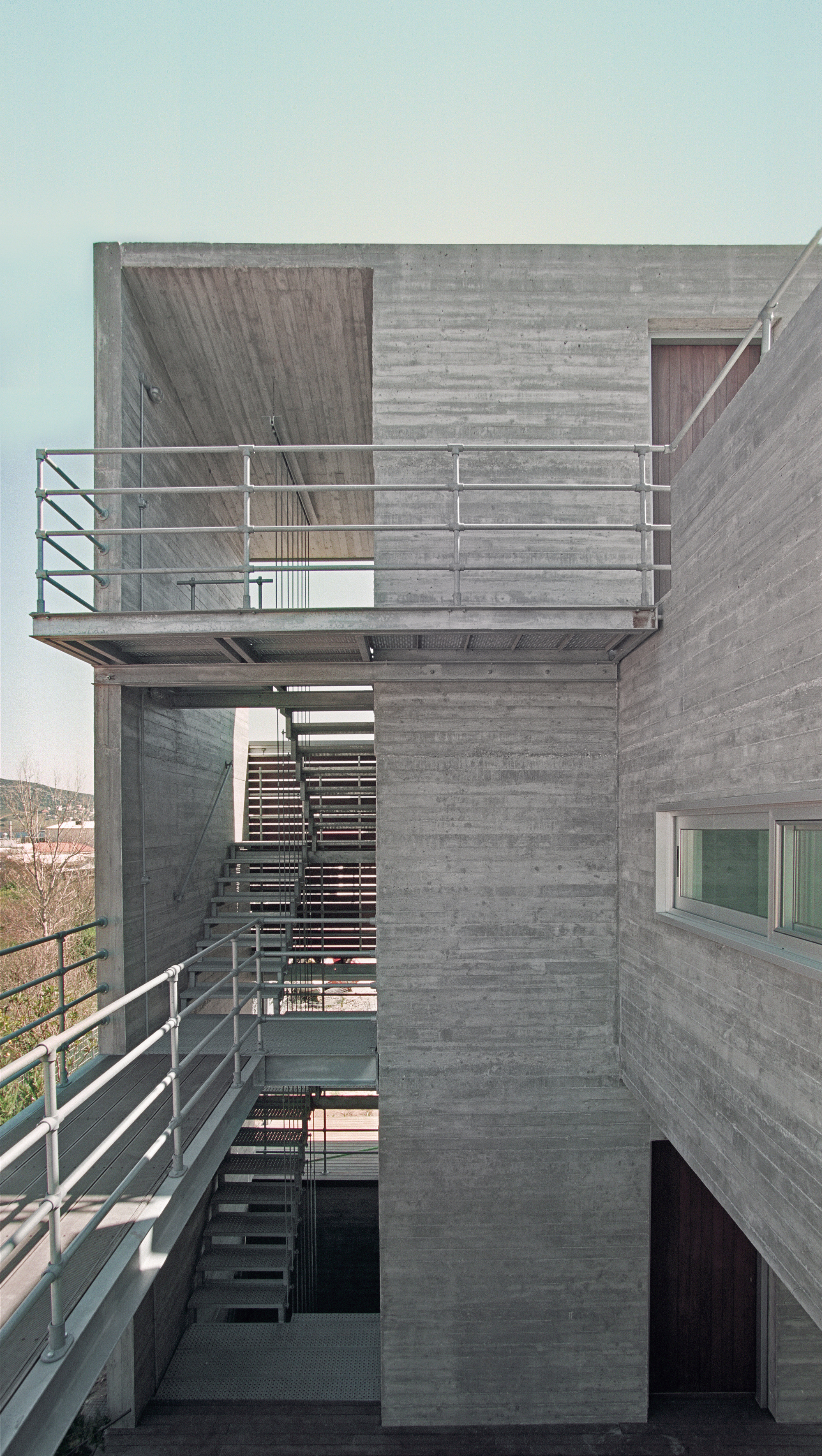

希腊雷福提港两家庭度假别墅外部局部实景图

希腊雷福提港两家庭度假别墅外部背面实景图

希腊雷福提港两家庭度假别墅内部空间实景图

希腊雷福提港两家庭度假别墅内部实景图

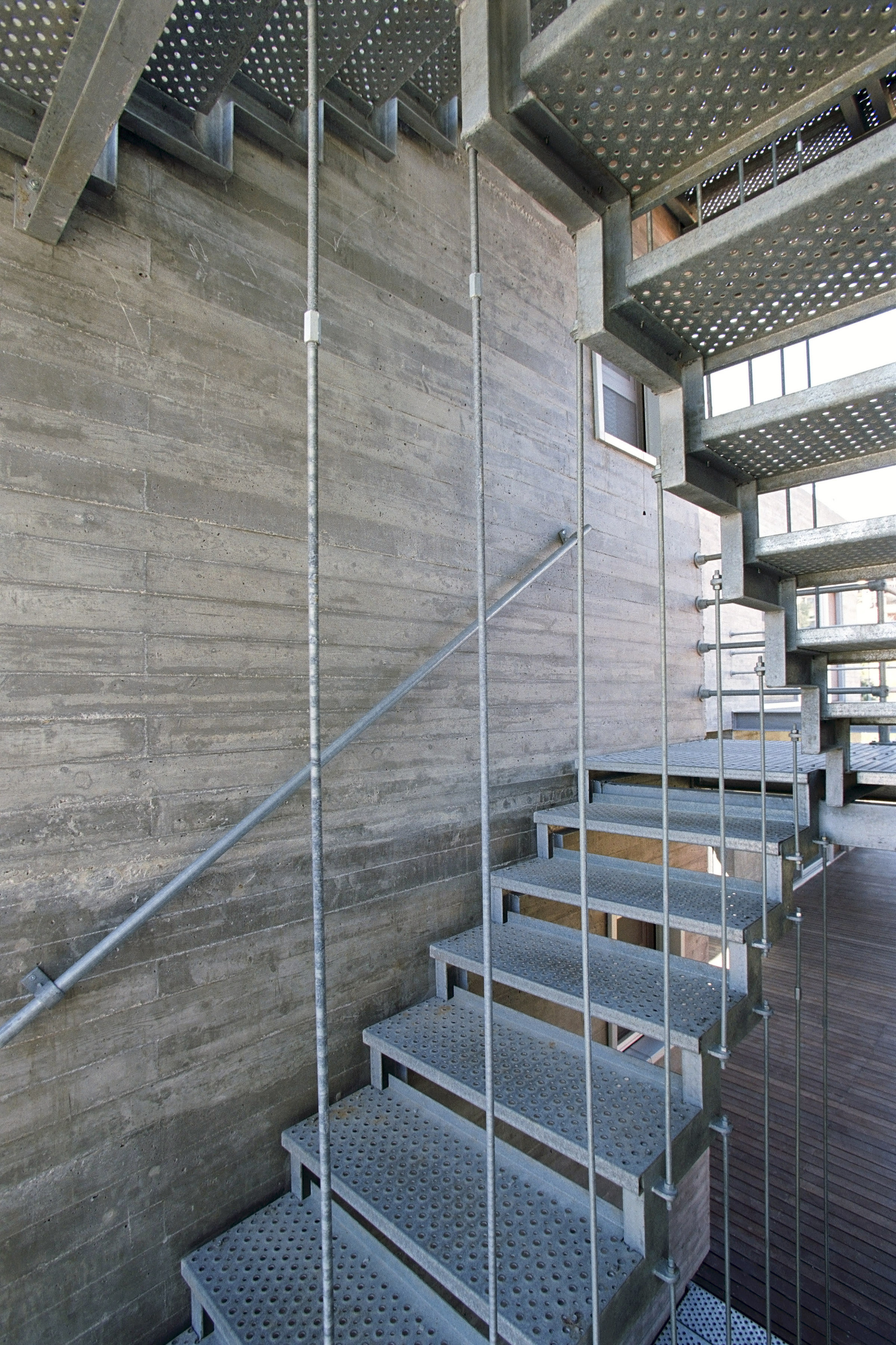

希腊雷福提港两家庭度假别墅内部楼梯实景图

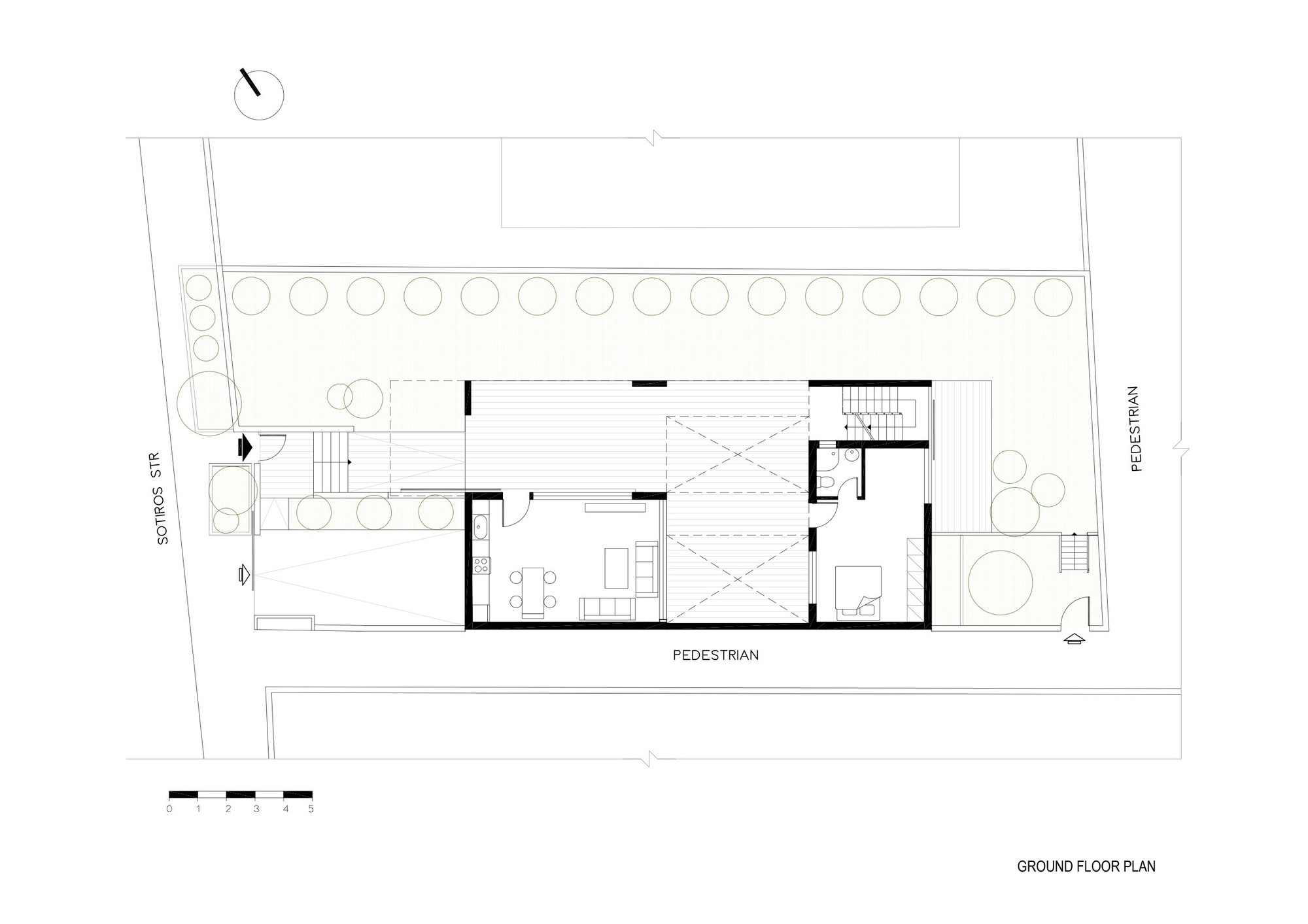

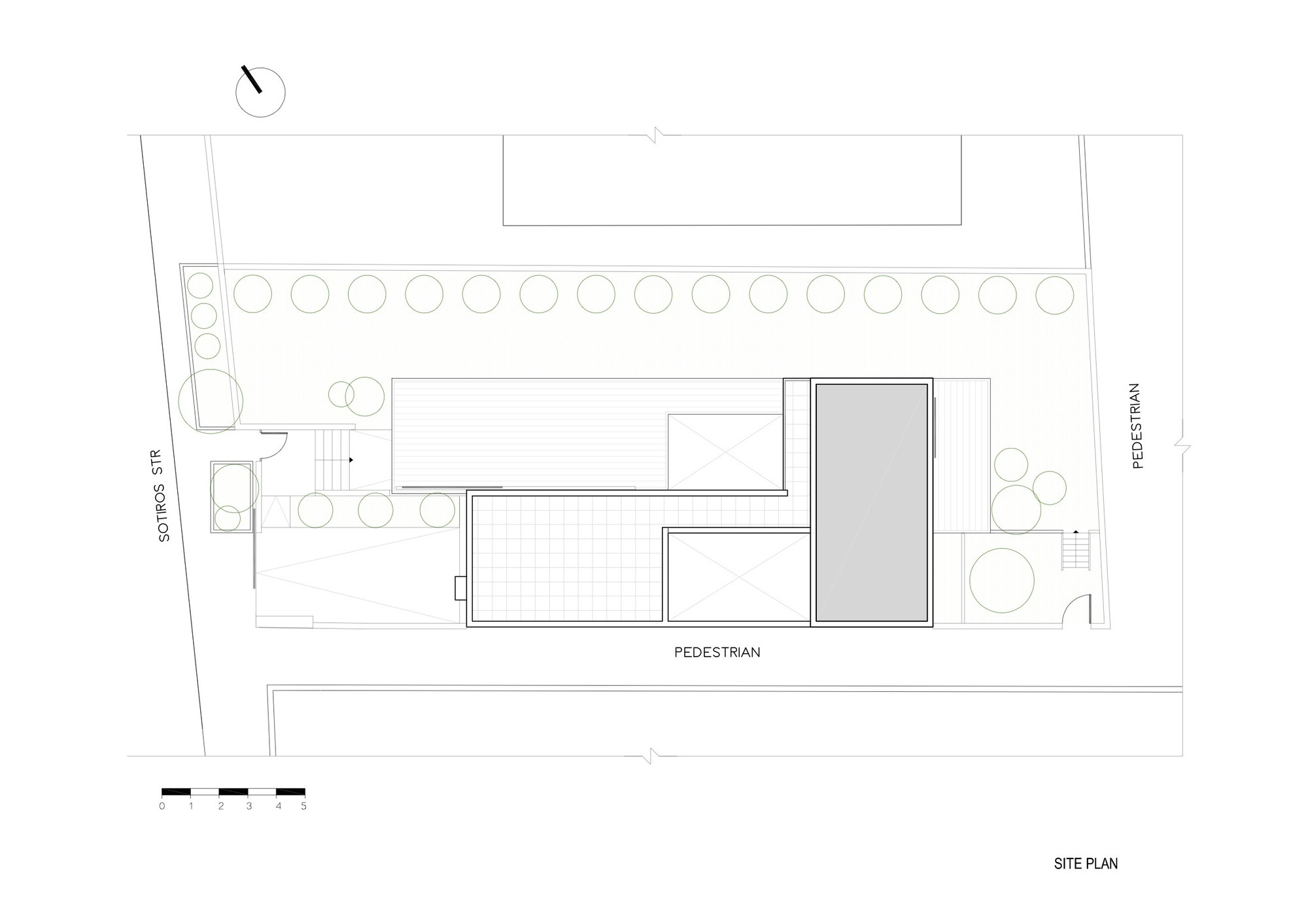

希腊雷福提港两家庭度假别墅平面图
