葡萄牙AA别墅丨XYZ Arquitectos

Portugal AA villa

设计方：XYZ Arquitectos

位置：葡萄牙

分类：别墅建筑

内容：实景照片

图片：33张

摄影师：Luís Ferreira Alves

这个项目是一栋坐落在居住区街道上的家庭别墅，与海边的大道相垂直。这个区域中分配给居住者的住宅场地是200平方米，而且住宅的建筑面积不得超过400平方米。从地形构造方面讲，项目的场址是一个东西向的斜坡，斜坡的高差约为一米。项目的体量和功能发展是根据场址情况、阳光的朝向和客户对别墅的要求进行的。客户们特别想让房间和天井及游泳池直接而又不受约束的共存，从而与家庭的特色相一致。

因此别墅是两层楼的设计：地下室和一楼，但是不在同一平面的地板创造出了四个层面。第一个层面包含了车库、储藏室、洗衣房和一个连接着街道的斜坡车道。机器房同样也在这个层面上，但是拥有通向外部的开口。第二个层面包含了两套房间和储藏室。第三个层面是别墅的主要入口所在，也是别墅的公共区域所在，包含了入口、休息室、厨房和餐饮区域和盥洗室。第四个层面包含了另外两套房间和一个办公室。

译者：蝈蝈

This project refers to a family house located in a residential street, perpendicular to the avenue by the sea. It’s located on an allotment with a mandatory pre-defined implementation of 200 m2 and a construction area that also could not exceed 400 m2.Topographically the land has a slope from East to West with about 1 meter apart.The project was developed in volumetric and functional terms taking in consideration the topography conditions, solar orientation and the housing program required by clients. The clients particularly wanted each room in direct and independent coexistence with the patio/pool, characteristics inherent in the way of being of the family.

Therefore, the house implementation has an occupation in 2 stories, basement and ground floor, developed on uneven floors creating 4 levels. The 1st level is occupied by the garage, storage, laundry and has direct car access from the street through a ramp.The pool machinery house is also at this level but with access from the outside. The 2nd level is occupied with two suites and storage. The 3rd level is where the pedestrian and main entrance in the house takes place and where the social program is reunited consisting of entrance, lounge, kitchen/eating area and toilet support. The 4th level is occupied by two more suites and an office.

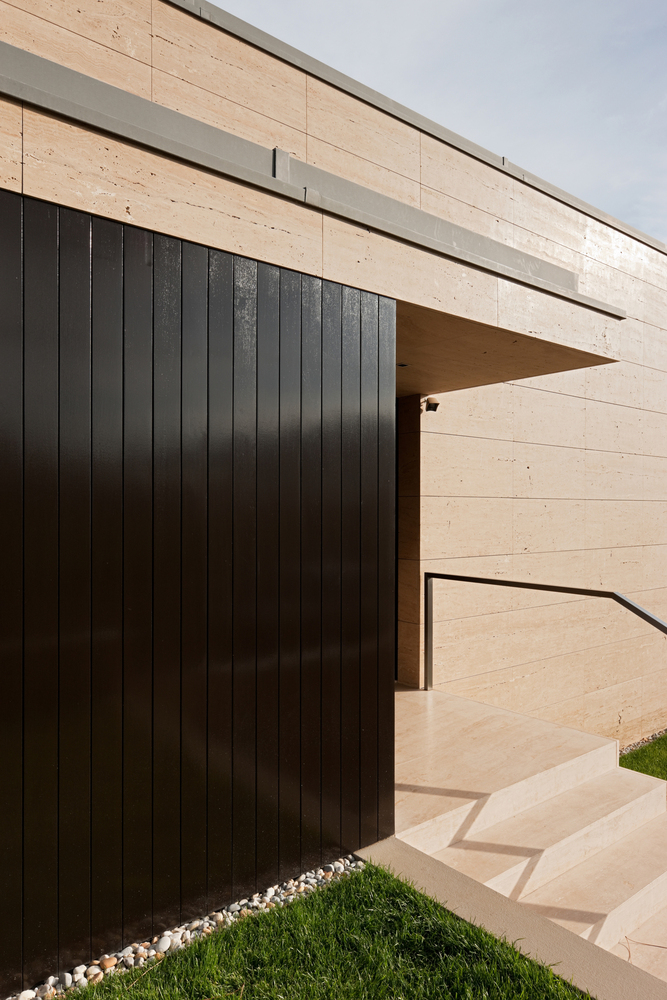

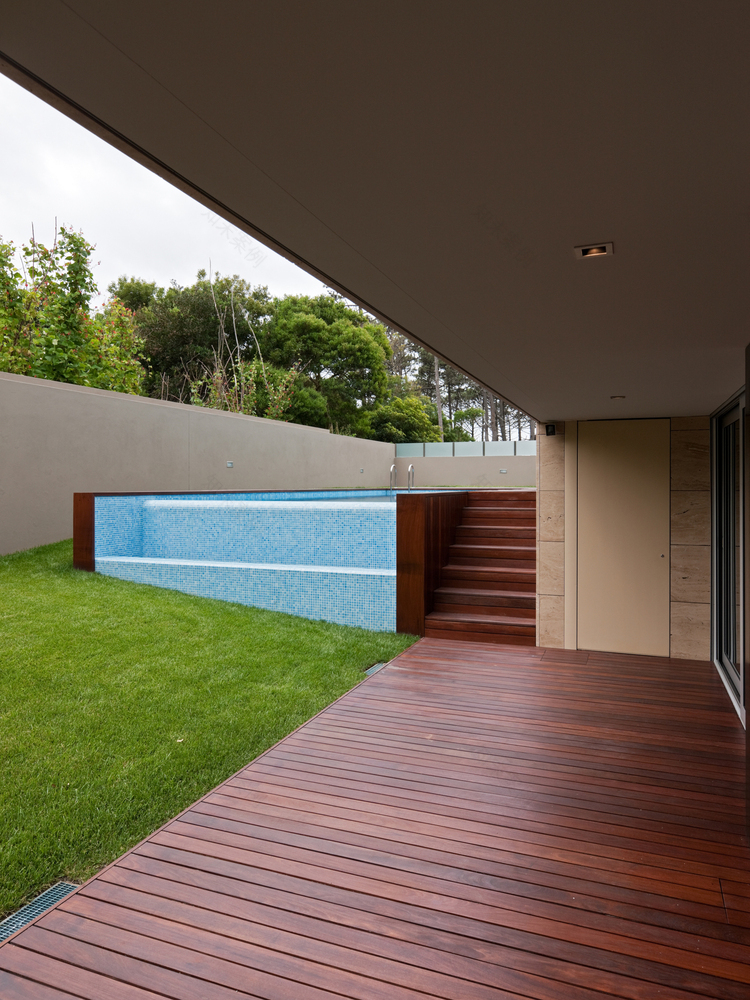

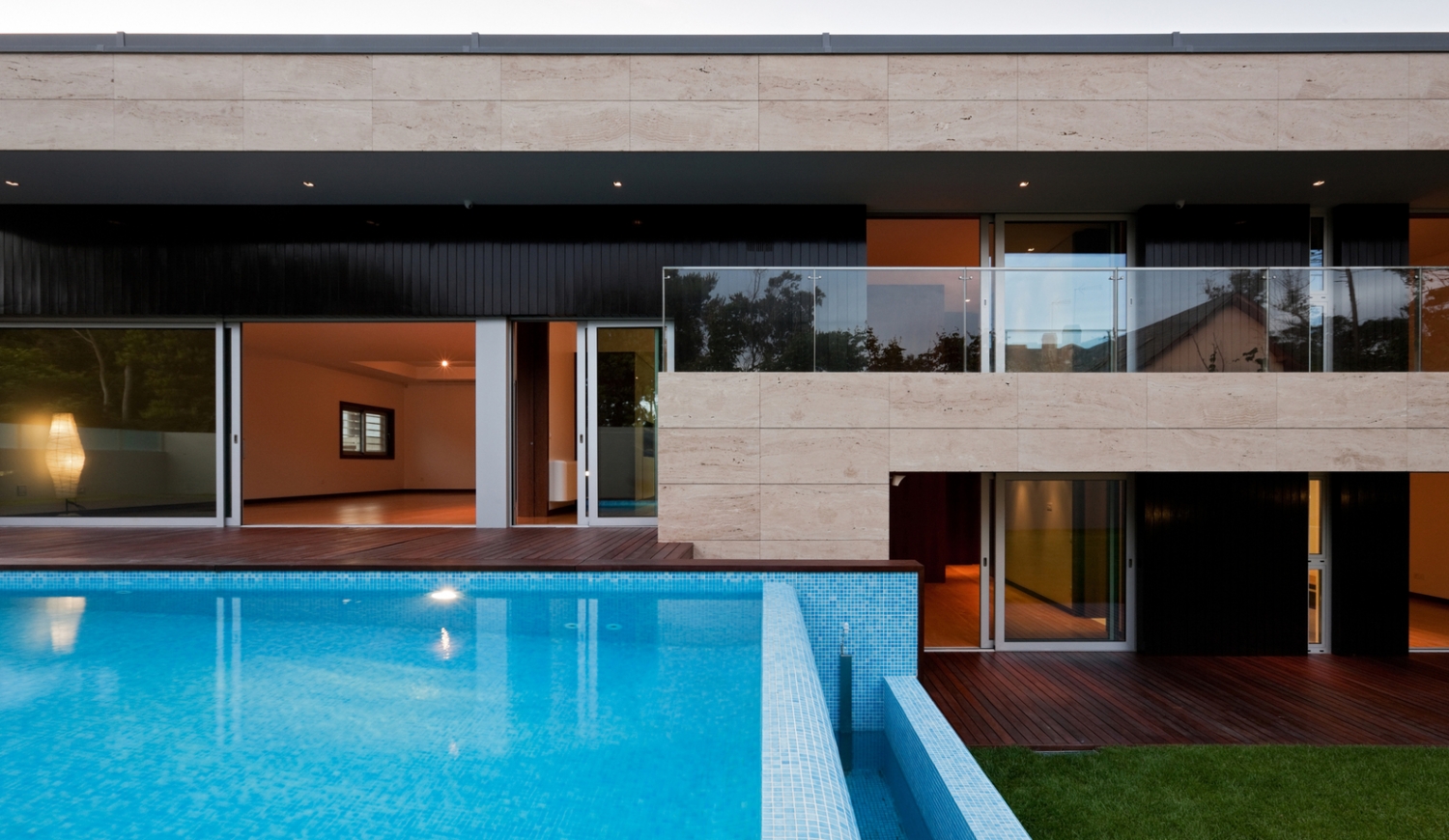

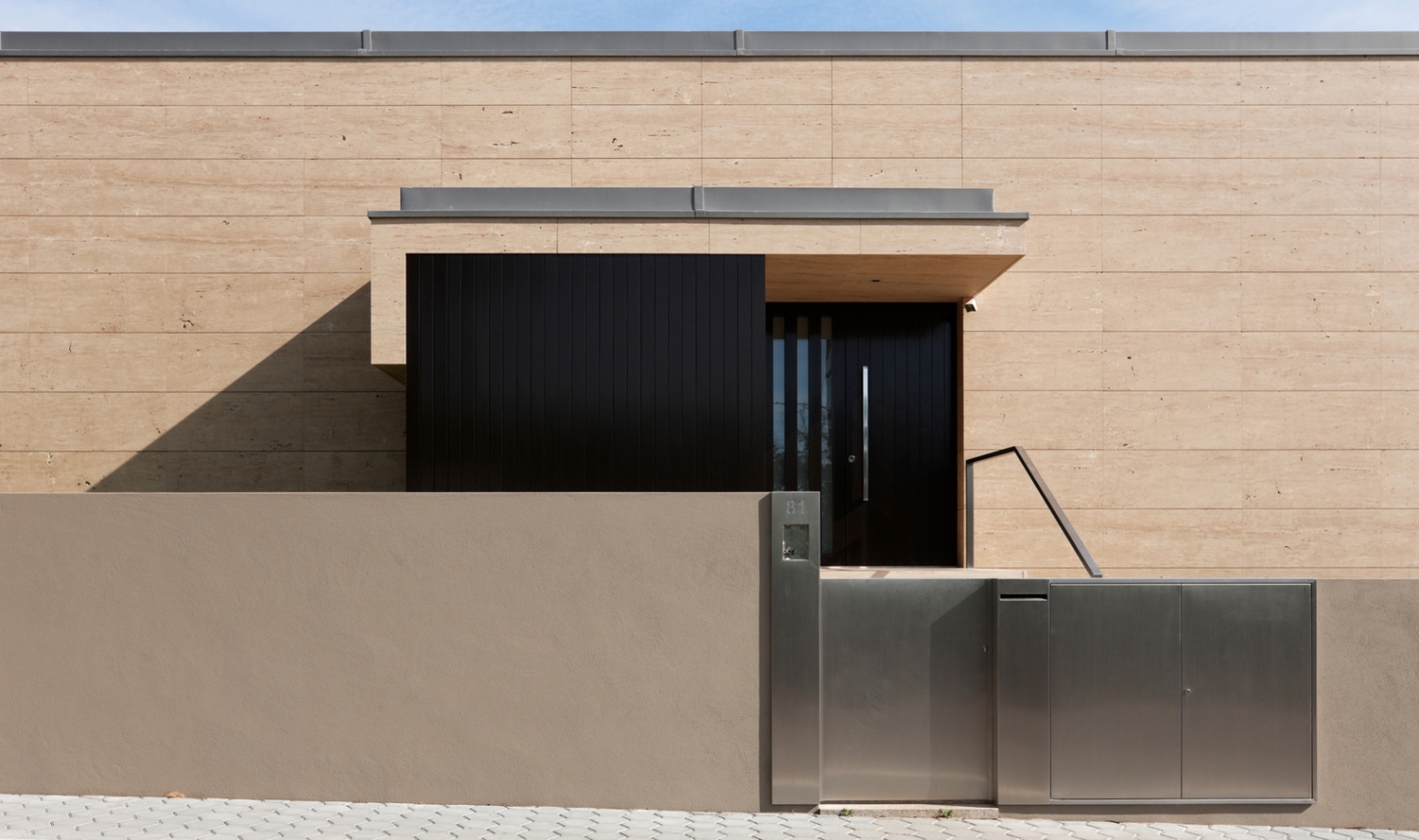

葡萄牙AA别墅外部实景图

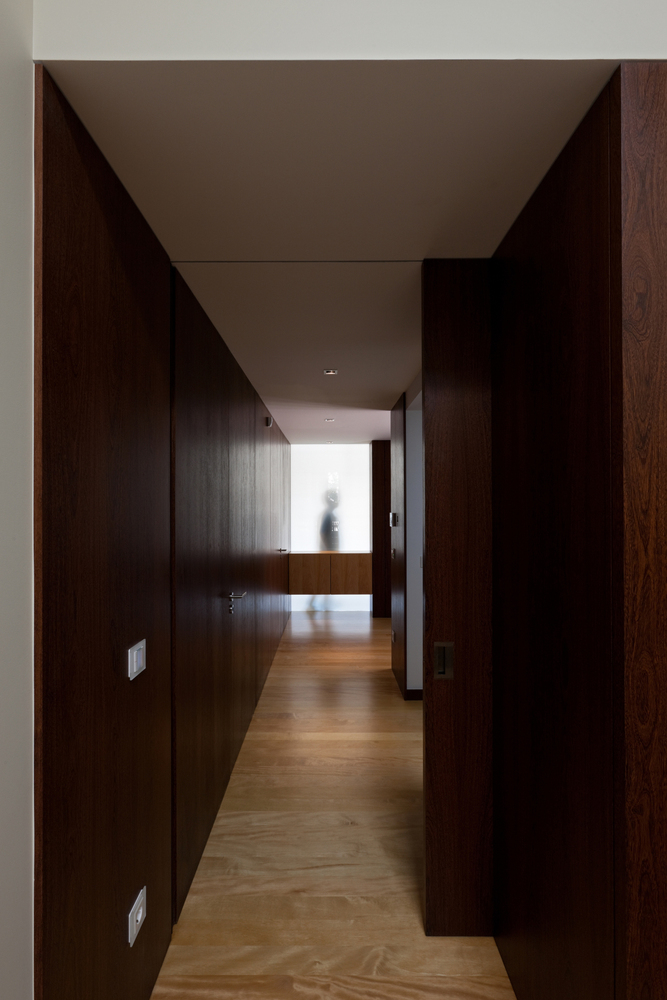

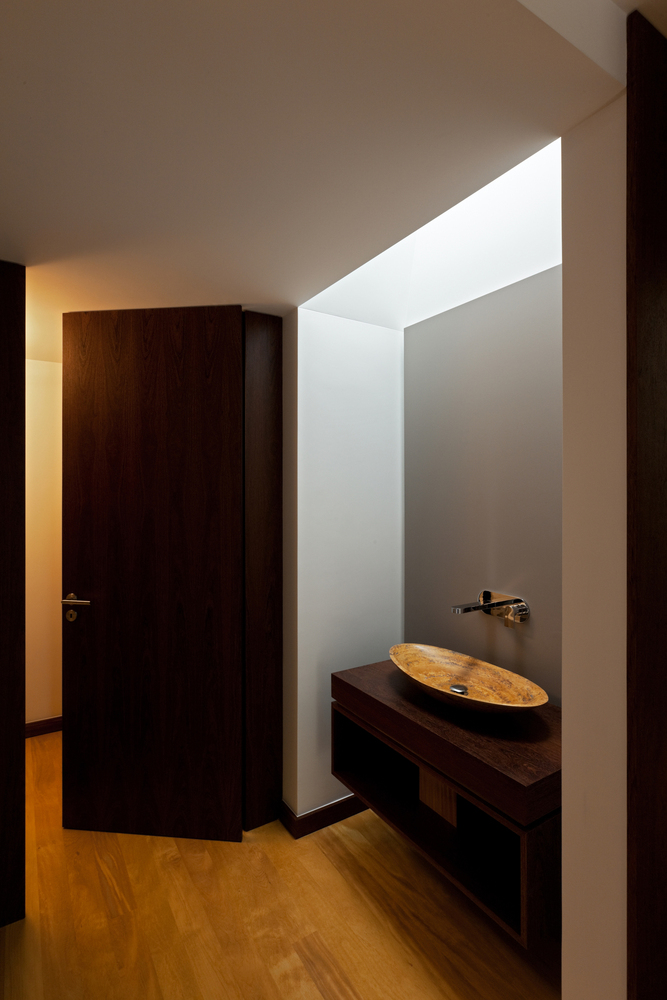

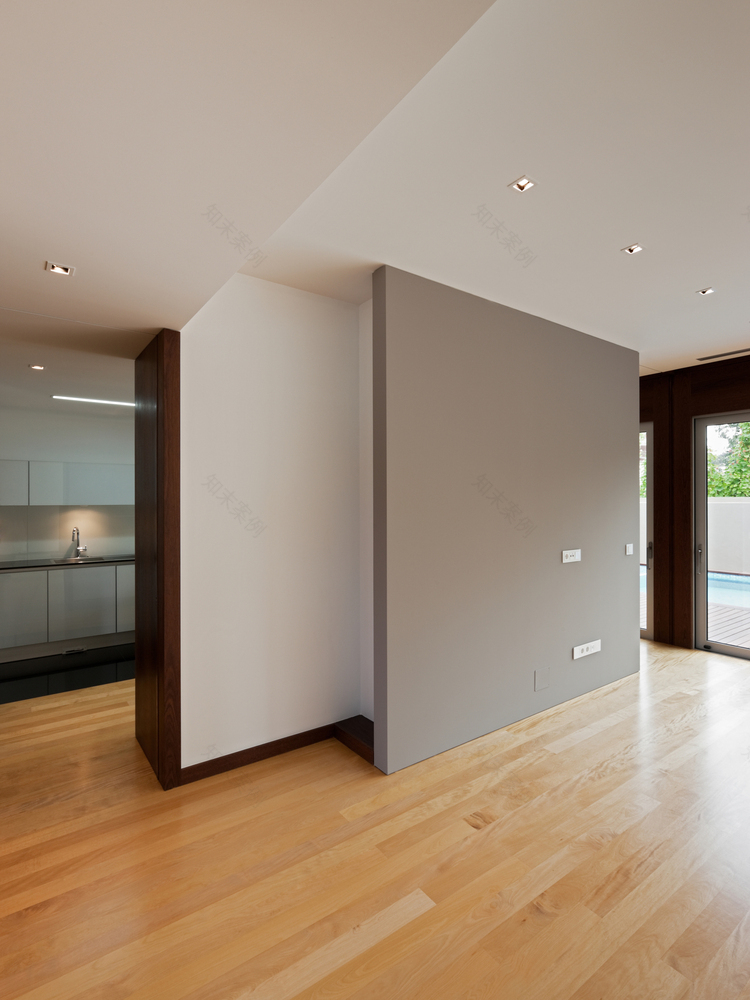

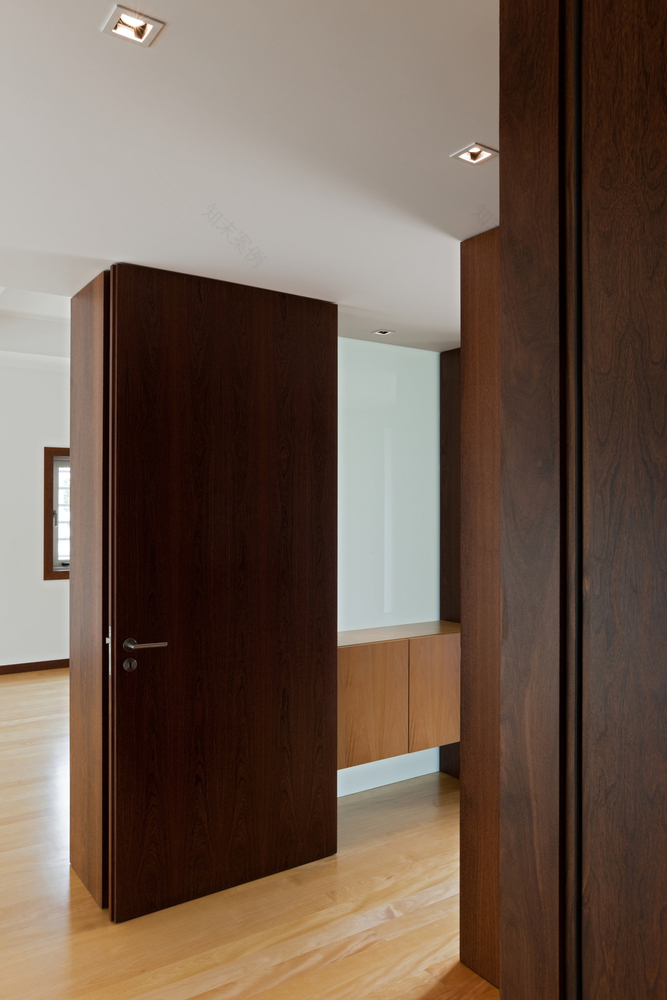

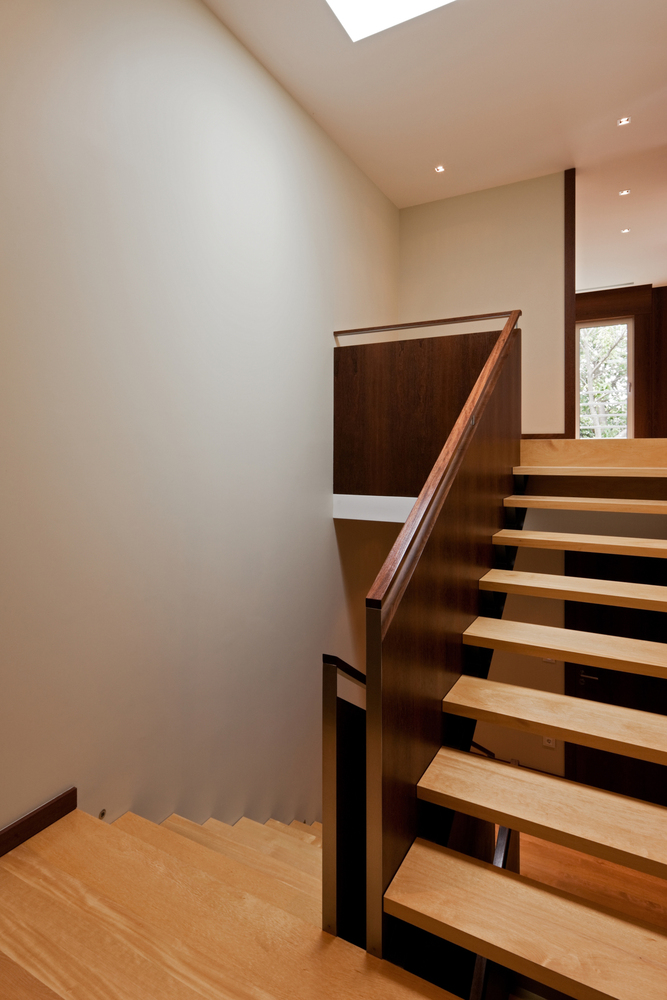

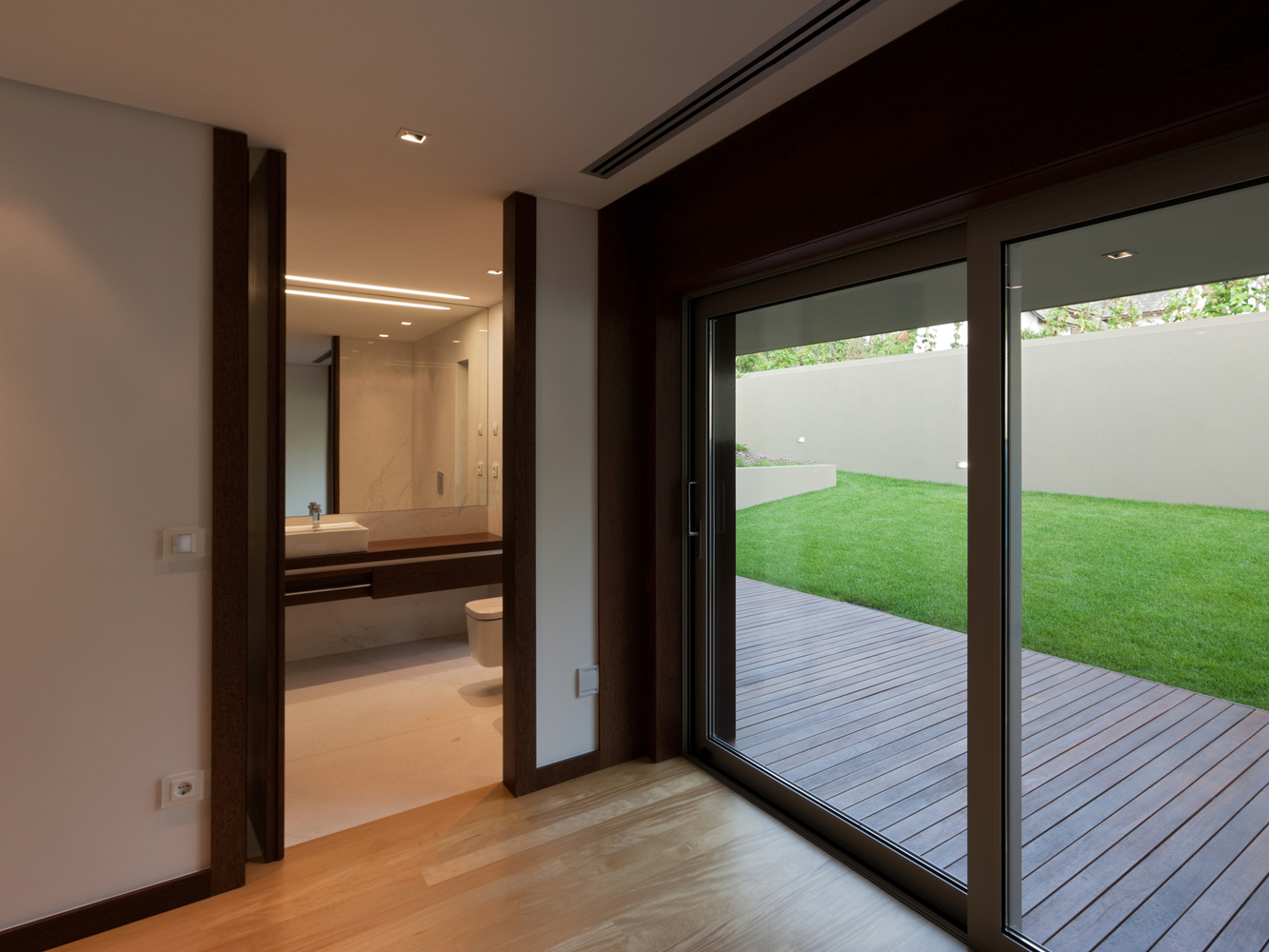

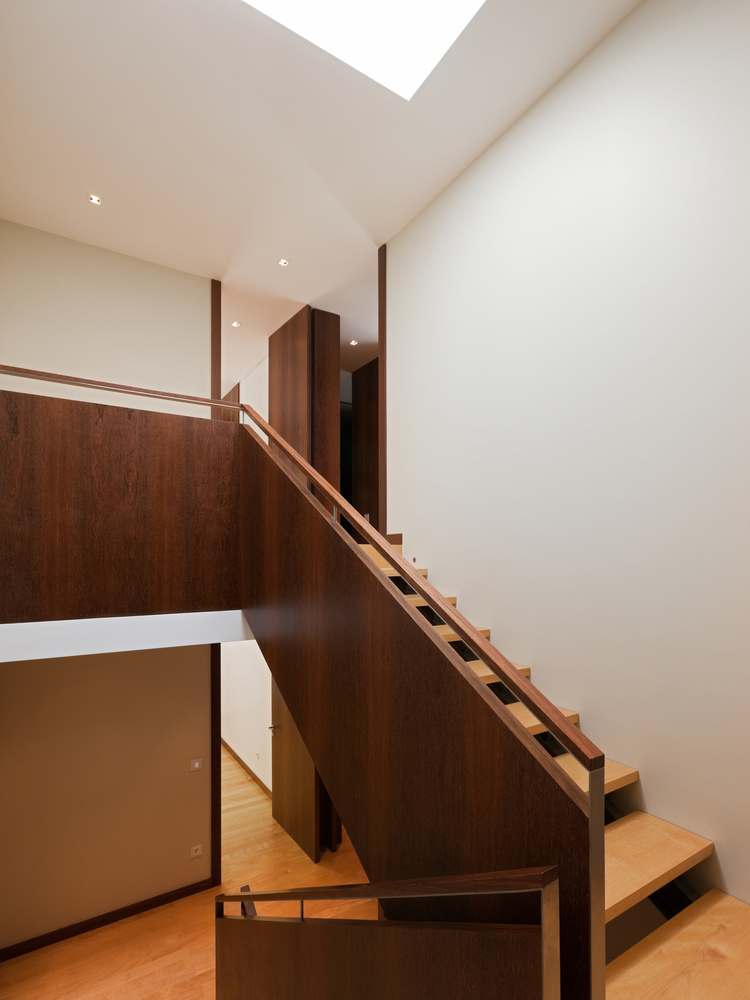

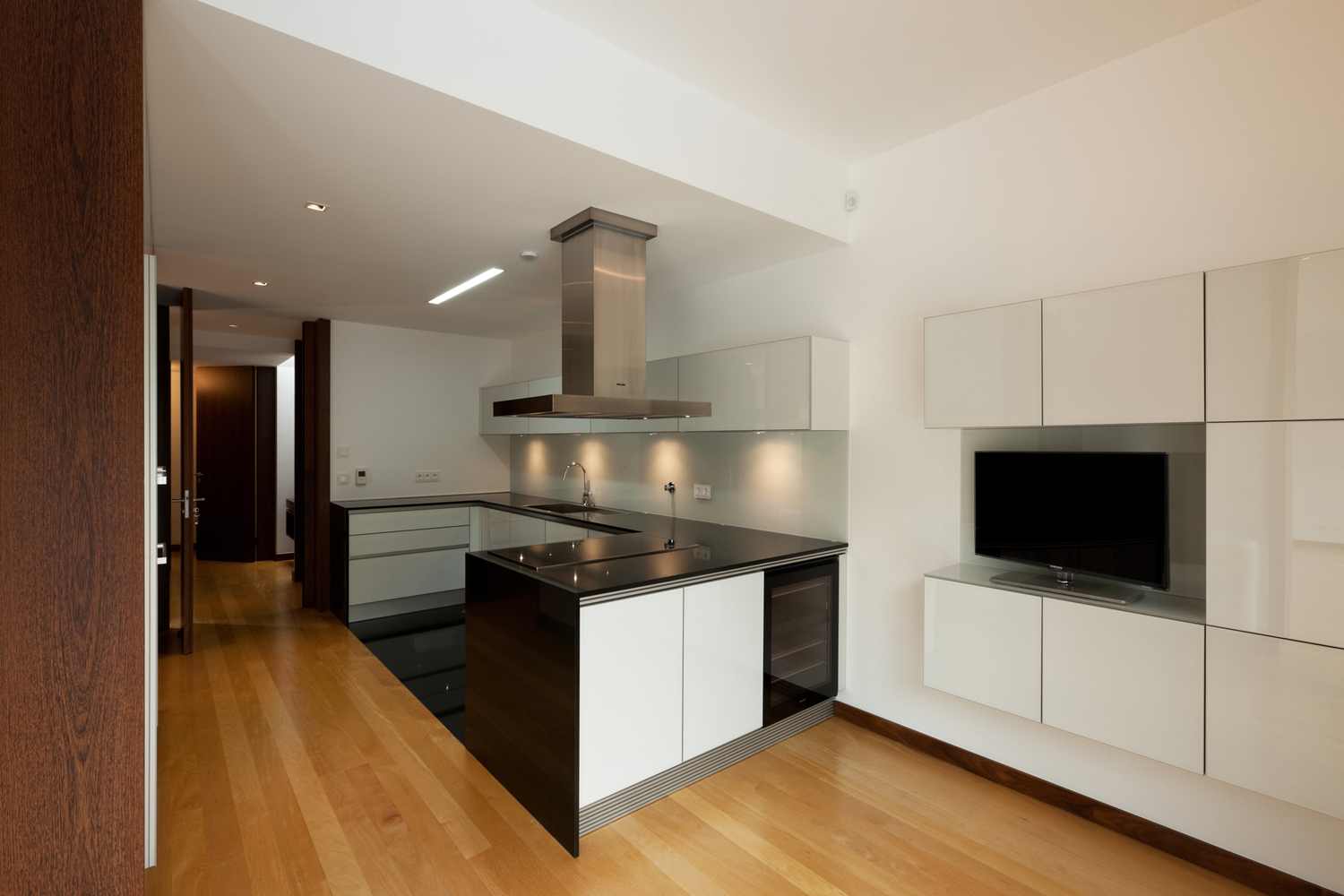

葡萄牙AA别墅内部实景图

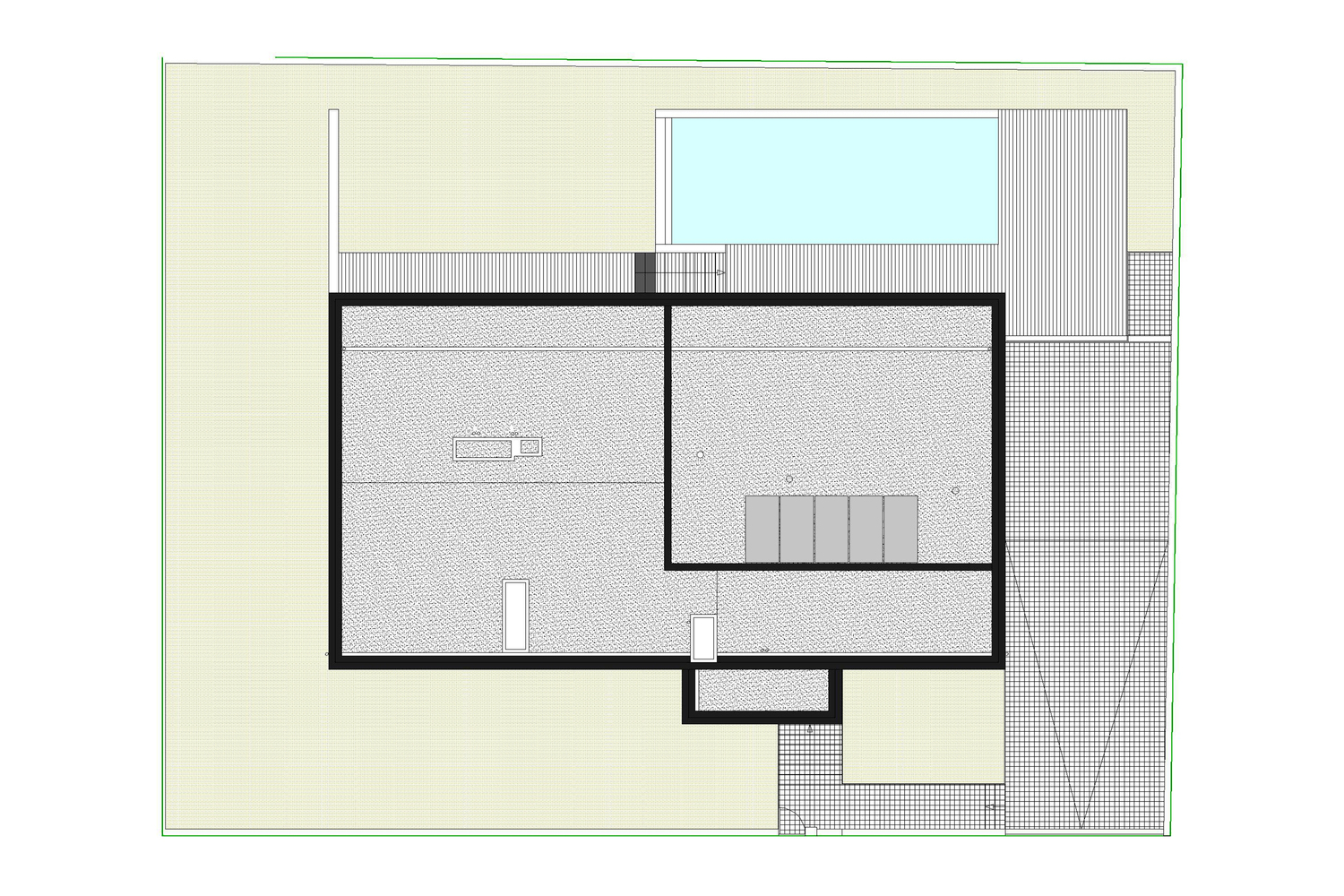

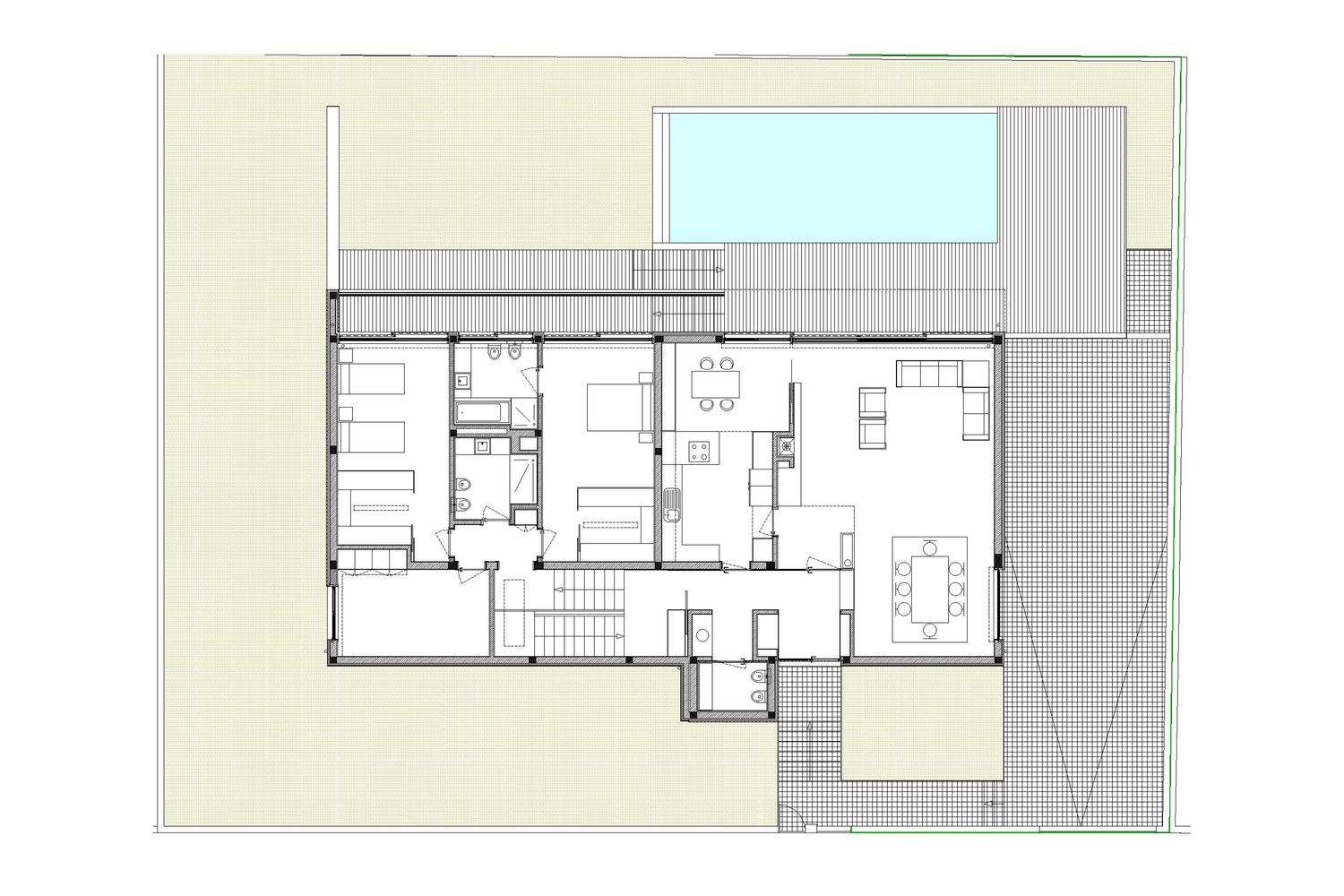

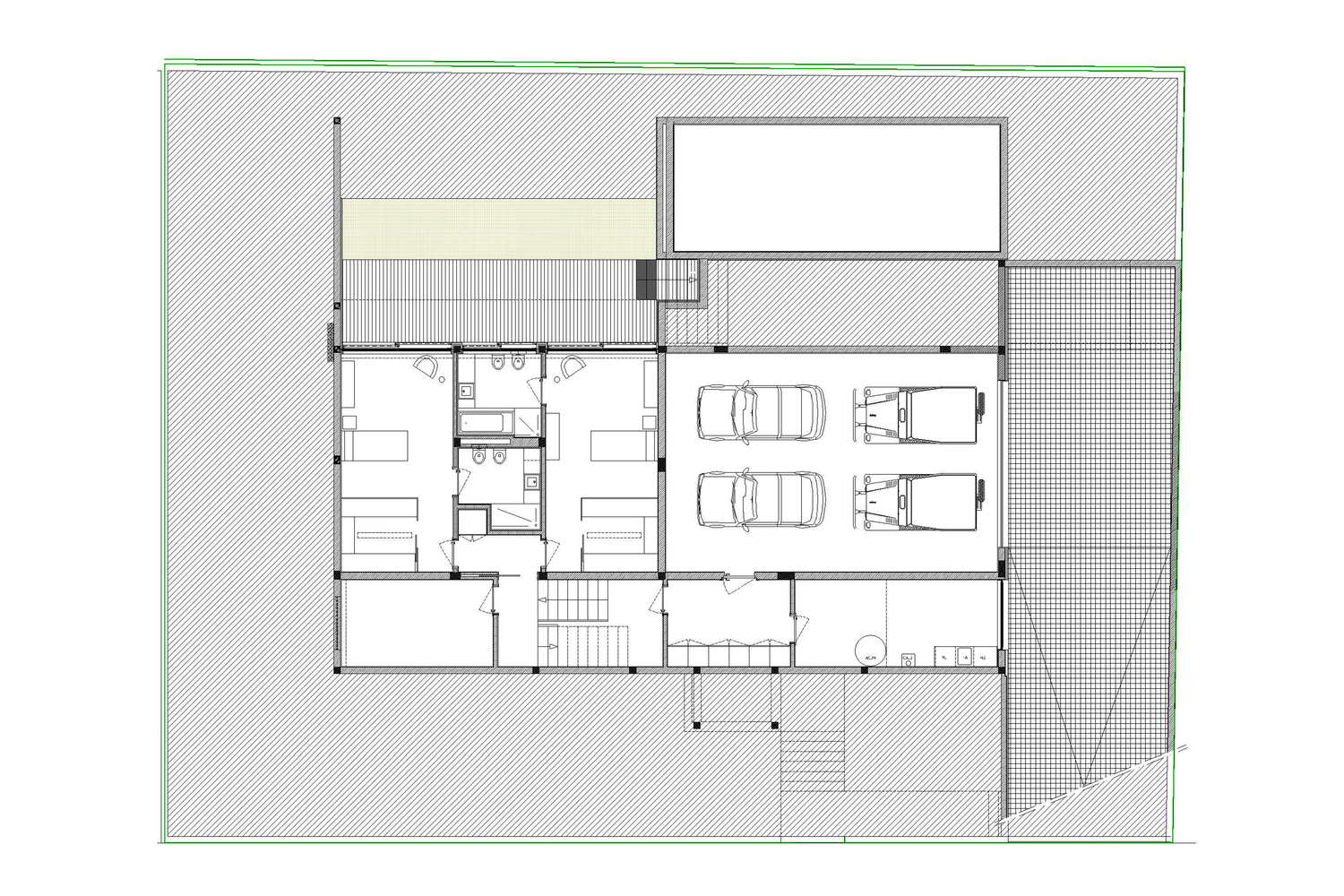

葡萄牙AA别墅平面图

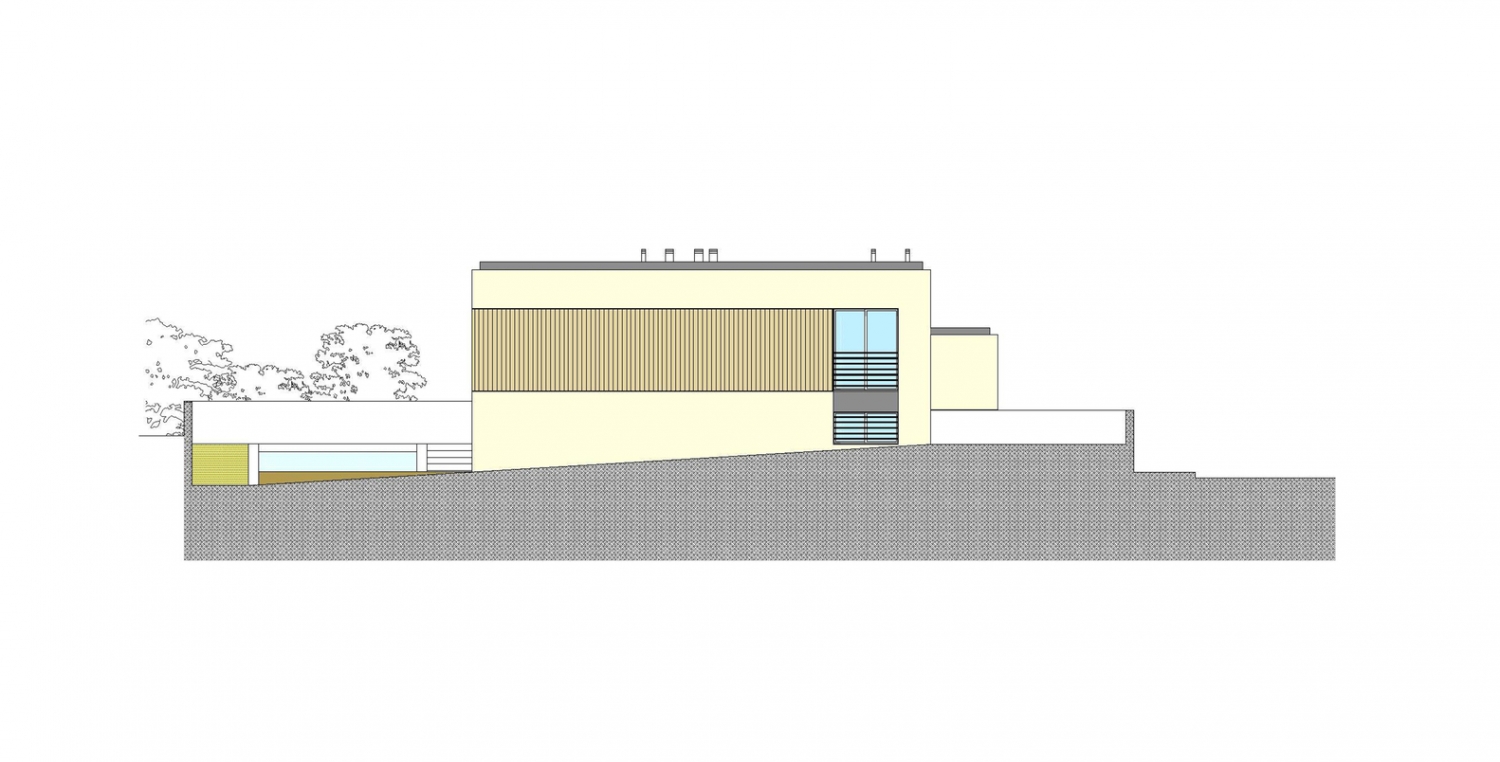

葡萄牙AA别墅立面图

葡萄牙AA别墅剖面图
