英国VictoriaGate总体规划

英文名称：England Victoria Gate overall plan

位置：英国

设计公司：ACME

这是由ACME设计的Victoria Gate总体规划。该项目旨在在利兹市中心设计一个全新而获利的城市核心街区，通过百货商店及停车场的布局提供零售、休闲等功能服务。该百货商店的可见性与标识性是设计的重要构成部分。该方案的设计将成为利兹市主要市民轴线Headrow的眼神，而设计师的最初设计理念是让该项目不仅是一个“商场”，还是利兹市现存的著名维多利亚拱廊的21世纪延伸。该建筑呈现了三种不同的元素，极具个性而彼此关联，同时展现了利兹市的特色。新的John Lewis店从而成为市中心标志性的门户。

译者：筑龙网艾比

From the architect. The brief for the Victoria Gate masterplan was to design a new, vibrant, key urban block in Leeds city centre which provided retail and leisure uses anchored by a department store, with an associated car park.  The visibility and identity of the department store was an important part of the brief.The scheme needed to be designed as an extension of the Headrow, the city’s main civic axis, and Hammerson’s brief right from the beginning was that the scheme should not be a ‘mall’ but more a 21st century extension of the existing Victorian arcades for which Leeds is famous.

Victoria Gate,in the East of Leeds city centre, forms a natural extension of Victoria Quarter and Leeds’s retail district. The scheme includes a new John Lewis department store, multi storey car parking and two arcades with a mix of shops, restaurants and leisure facilities.The buildings appear as three distinct elements with individual identities that relate to each other and the vernacular of Leeds.The new John Lewis store anchors the scheme. Placed on the extension of the Headrow, the city’s main civic axis, the store forms a visible gateway into the city centre.

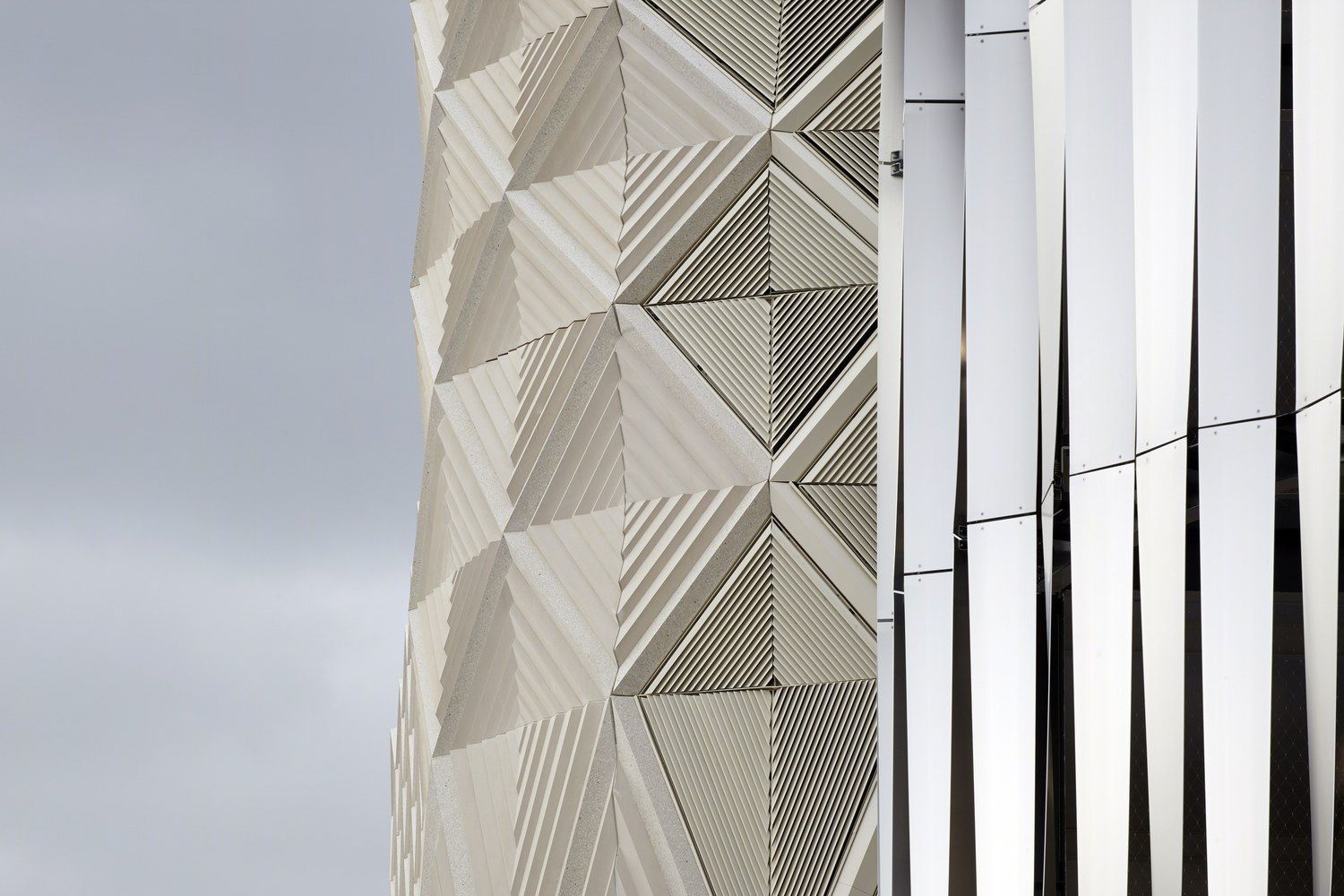

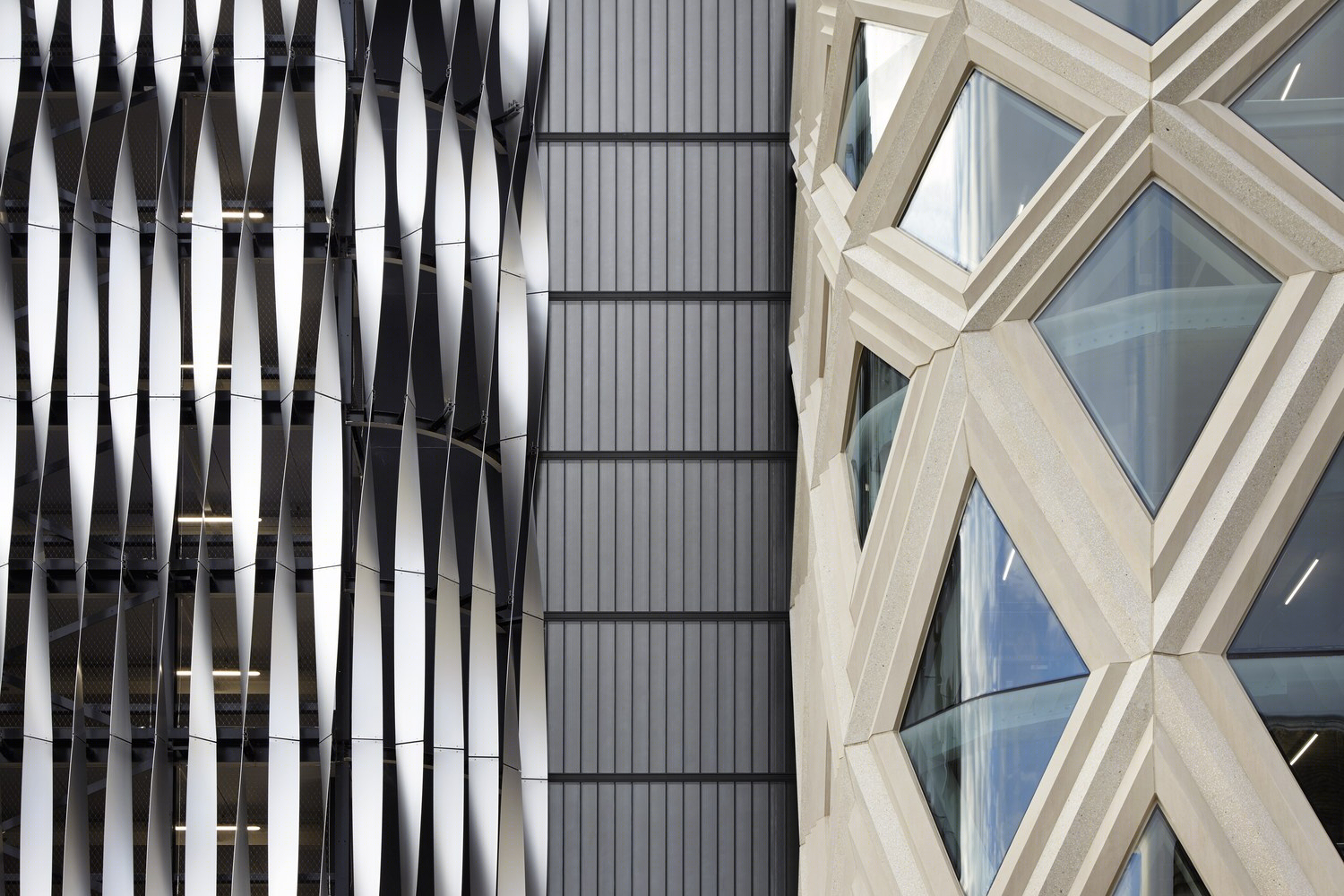

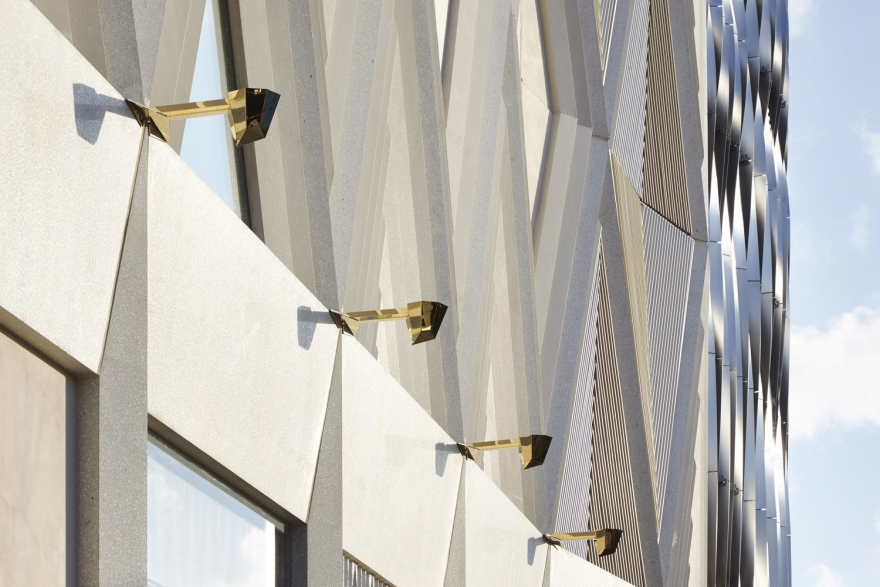

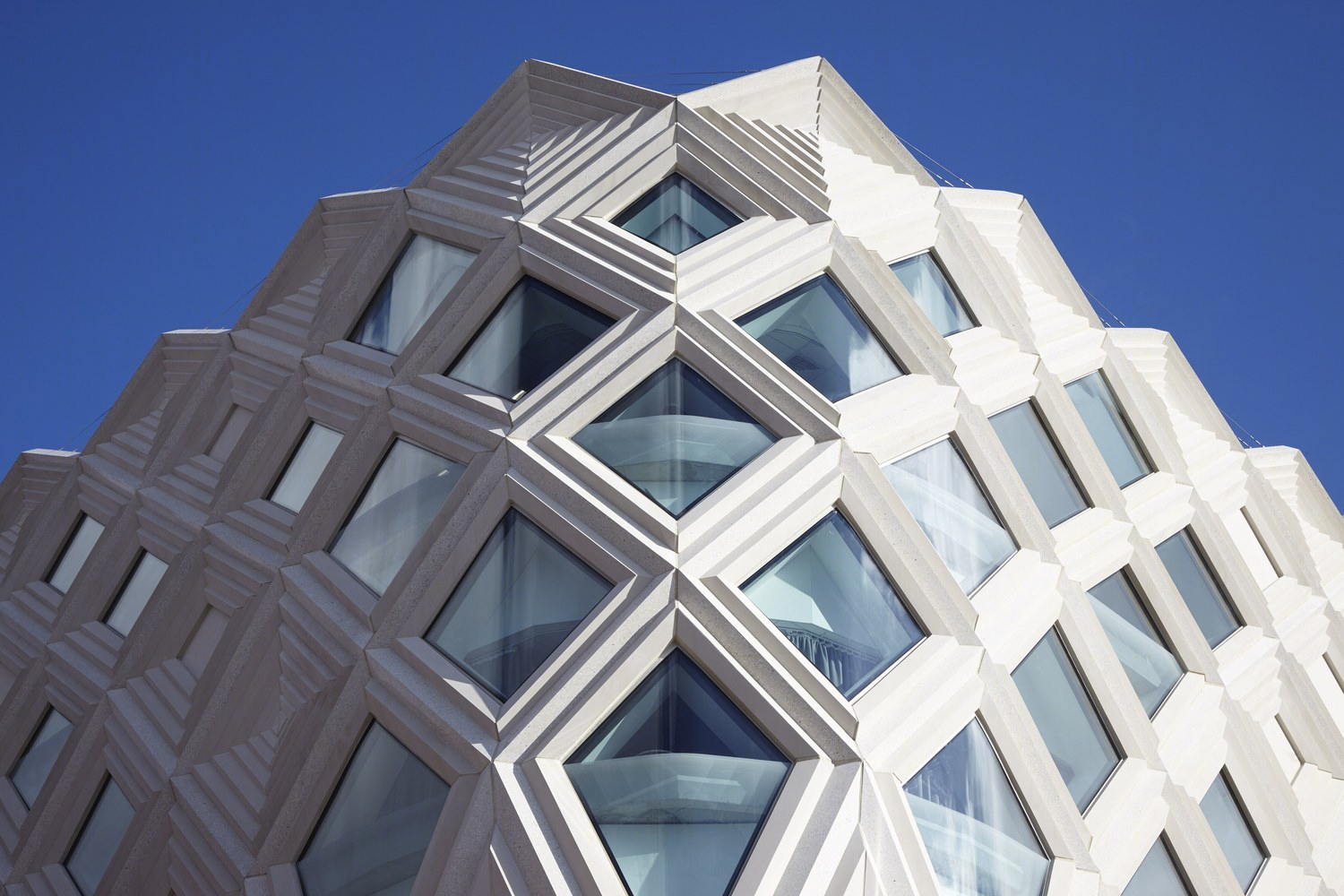

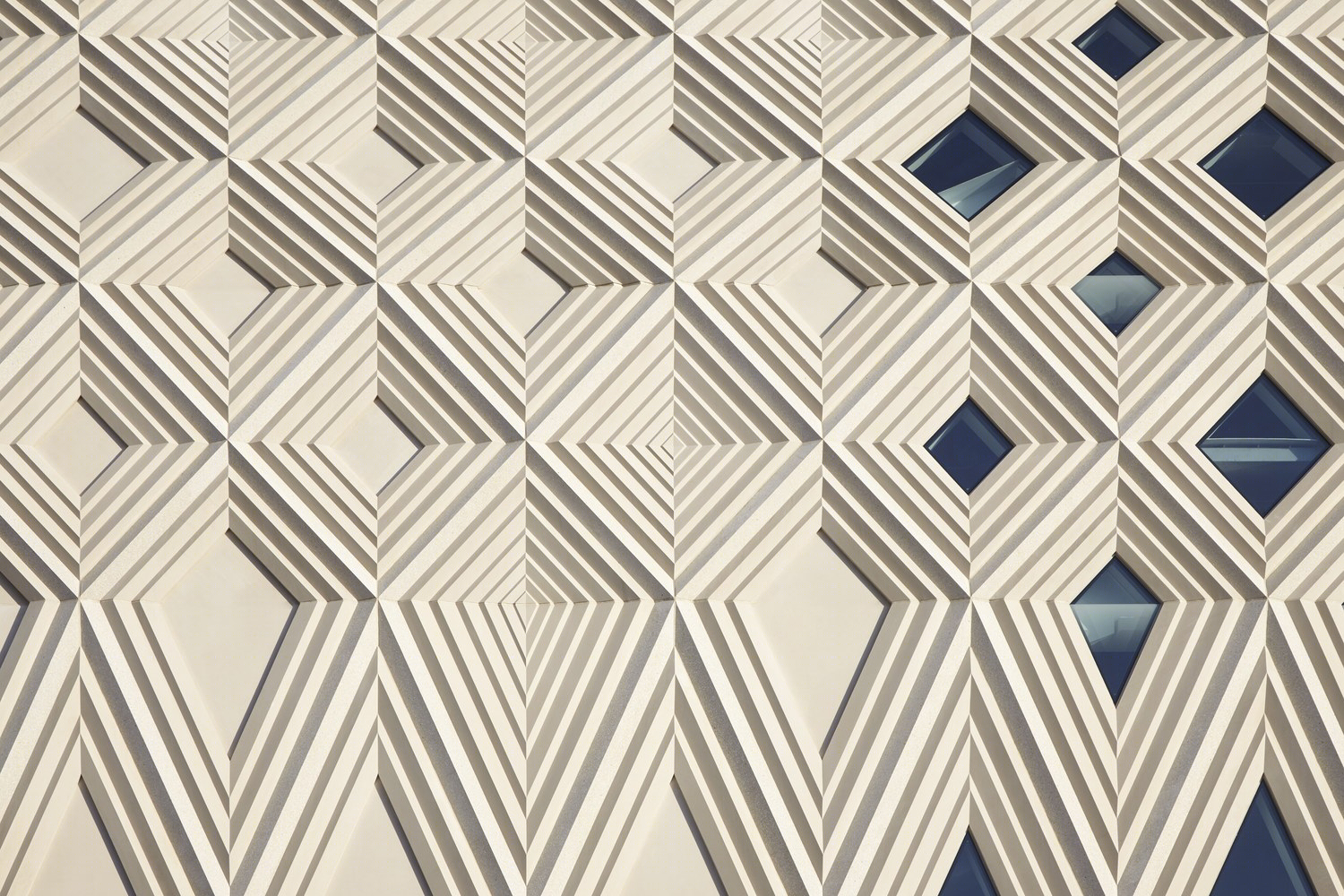

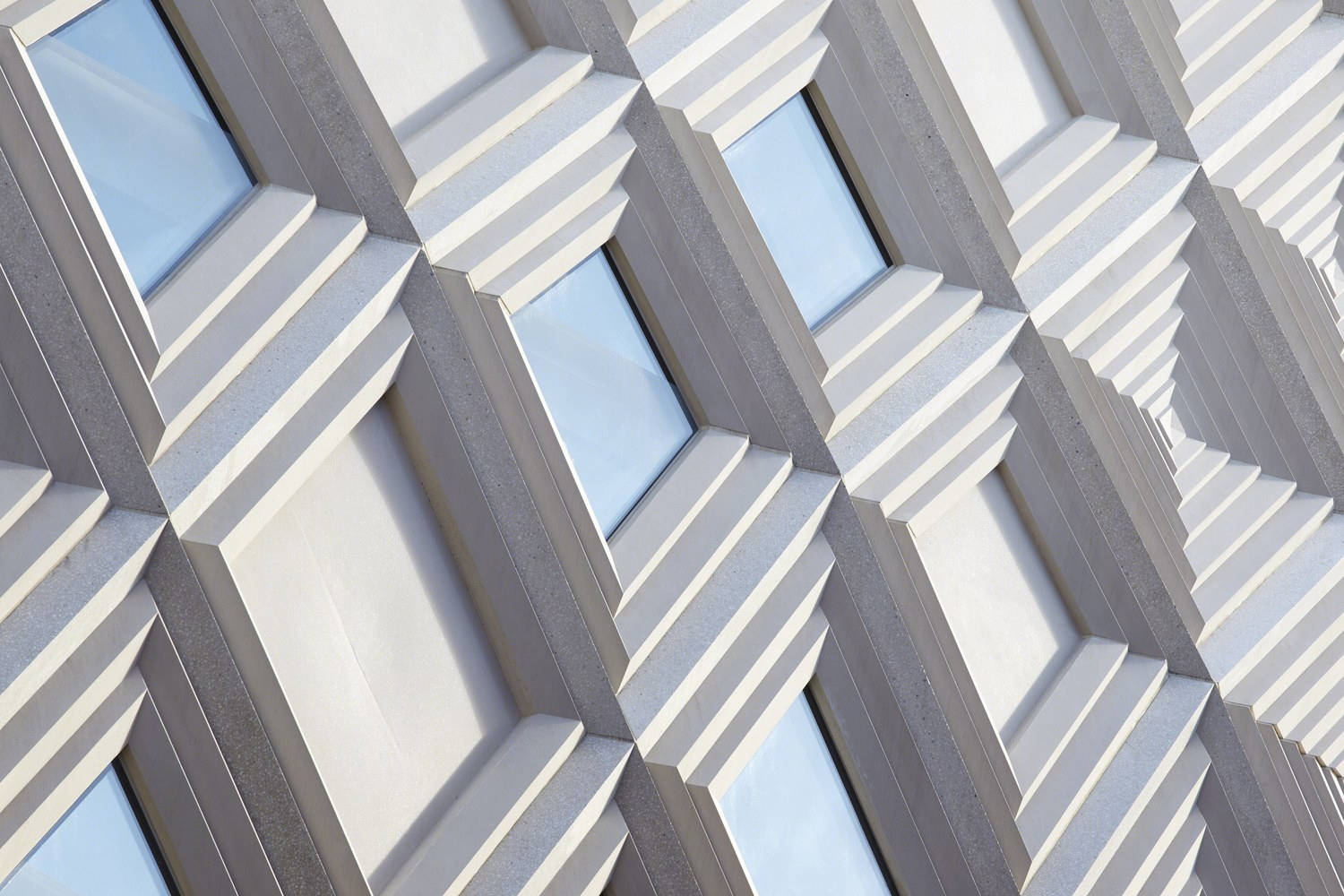

The materiality of the building draws on the history of terracotta façades in Leeds, often produced by the local Burmantoffs Terracotta works, providing a modern interpretation of a traditional material. The façade order is also influenced by the textile history of Leeds as well as John Lewis, and is designed as a layered terracotta skin reminiscent of woven fabric. The diagrid is the ordering element that repeats along the perimeter of the building ; the resulting diamonds contain infill panels which respond to the internal layout of the store and the immediate context, providing transparency and ornamentation to the building.

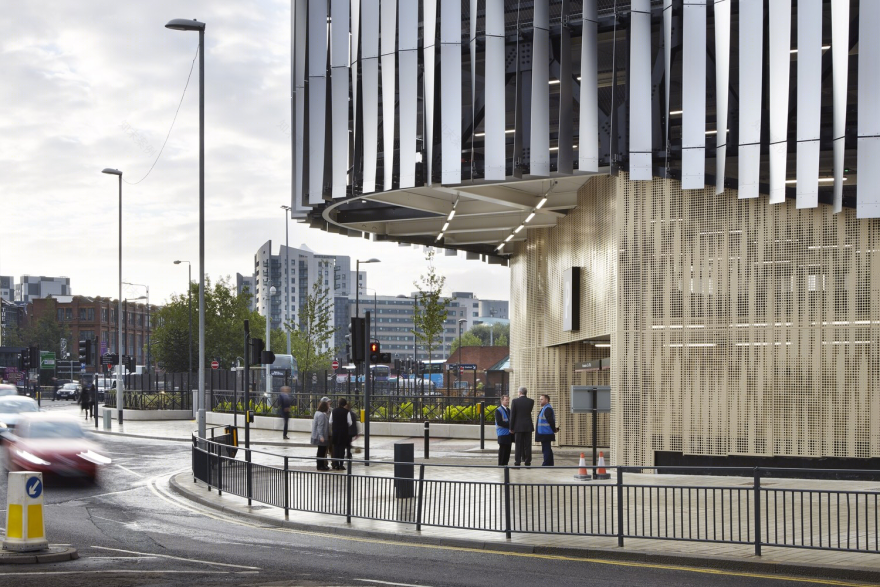

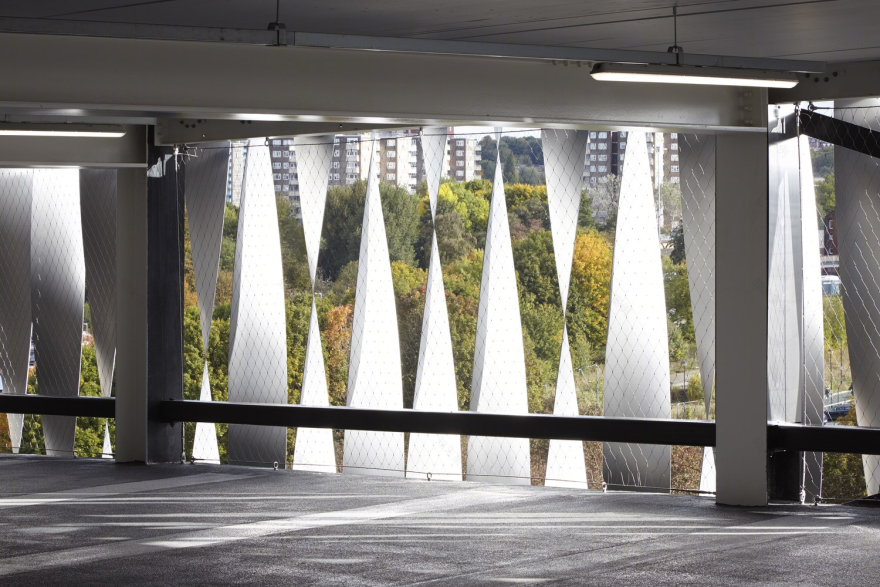

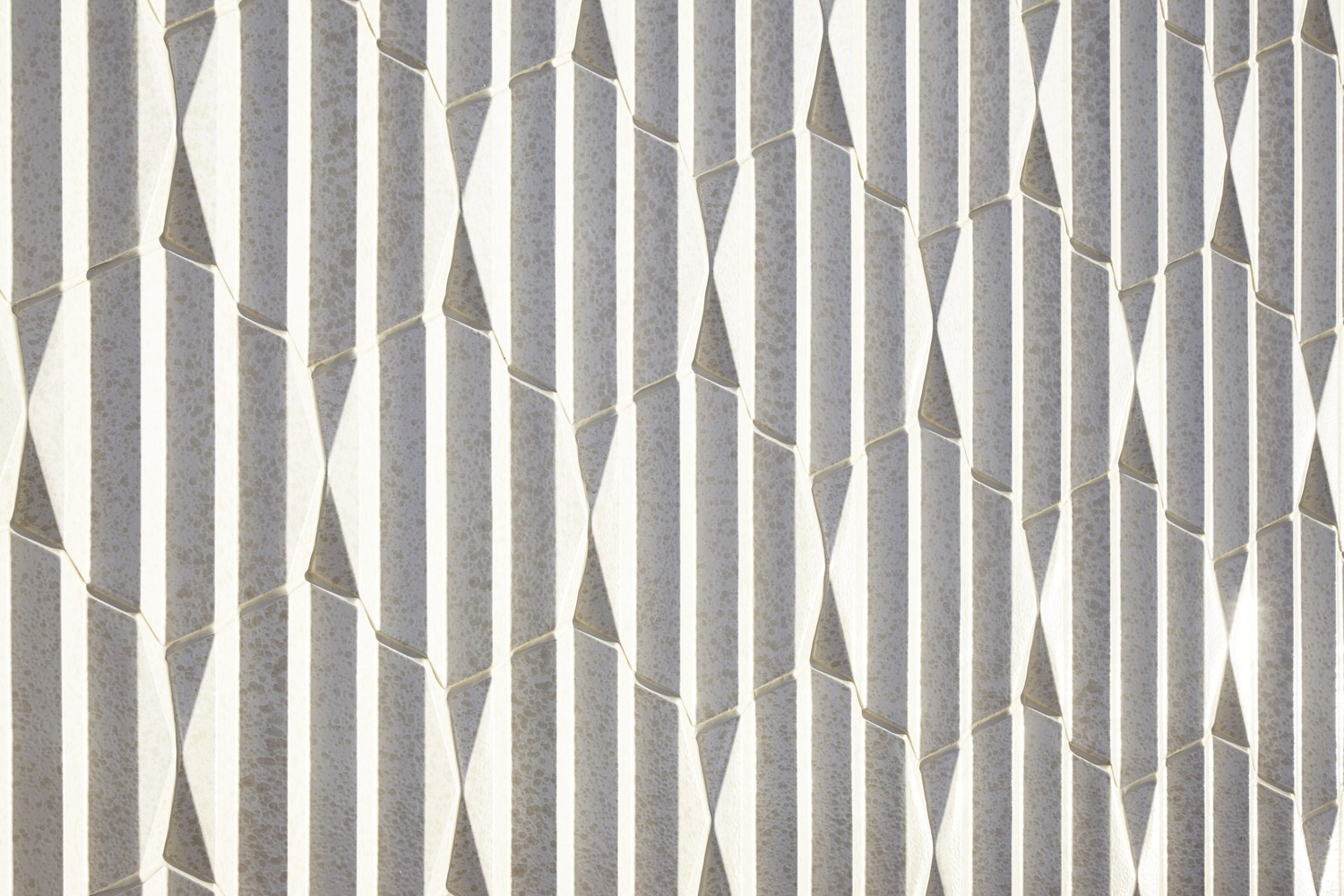

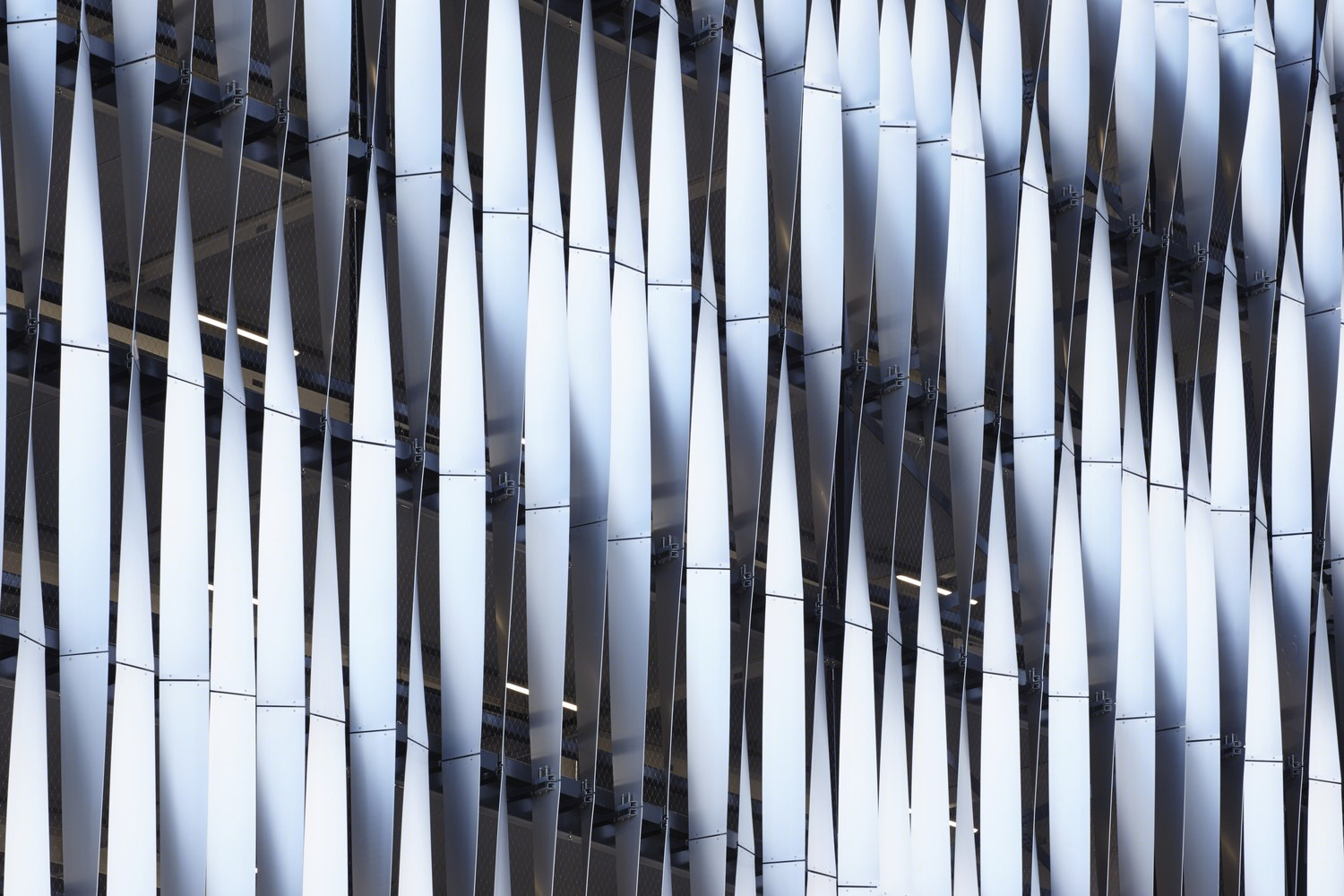

The Victoria Gate multi-storey car-park [MSCP] is visible from all main urban approaches. From the outset the intention was to separate John Lewis from the car-park, but to acknowledge their shared purpose and relationship to the façade.Twisted aluminium fin cladding creates a diagrid pattern, emphasised by the shadows generated, which relates to the John Lewis façade. The façade efficiently provides vehicular restraint, daylight and natural ventilation.

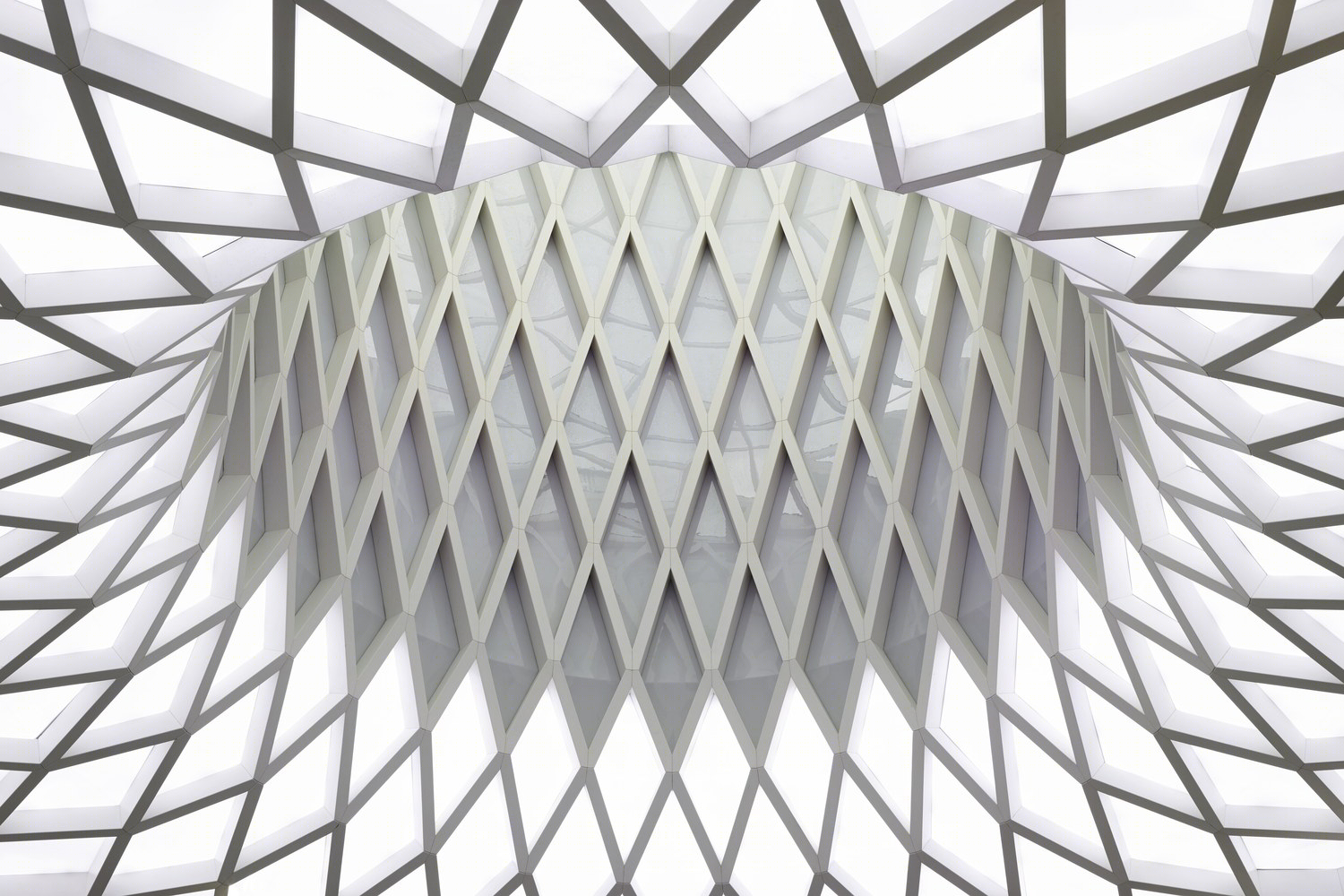

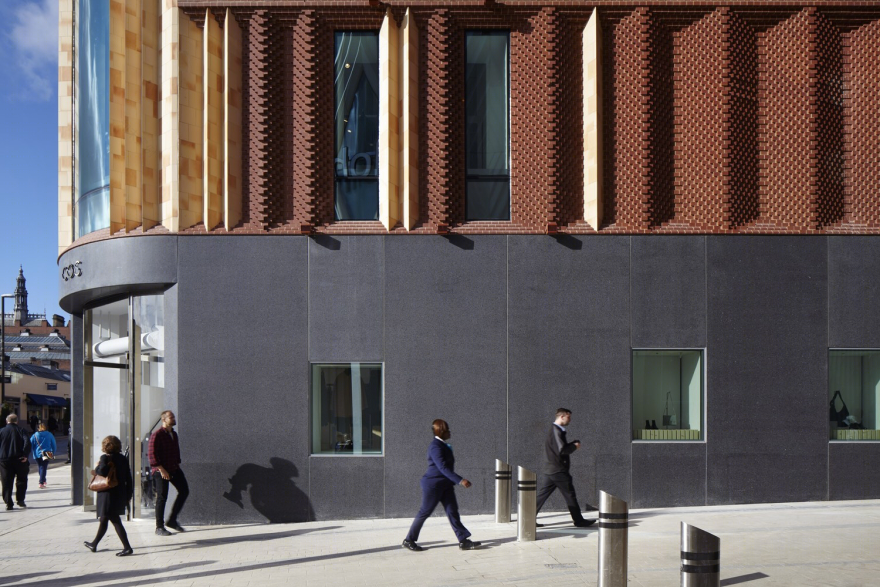

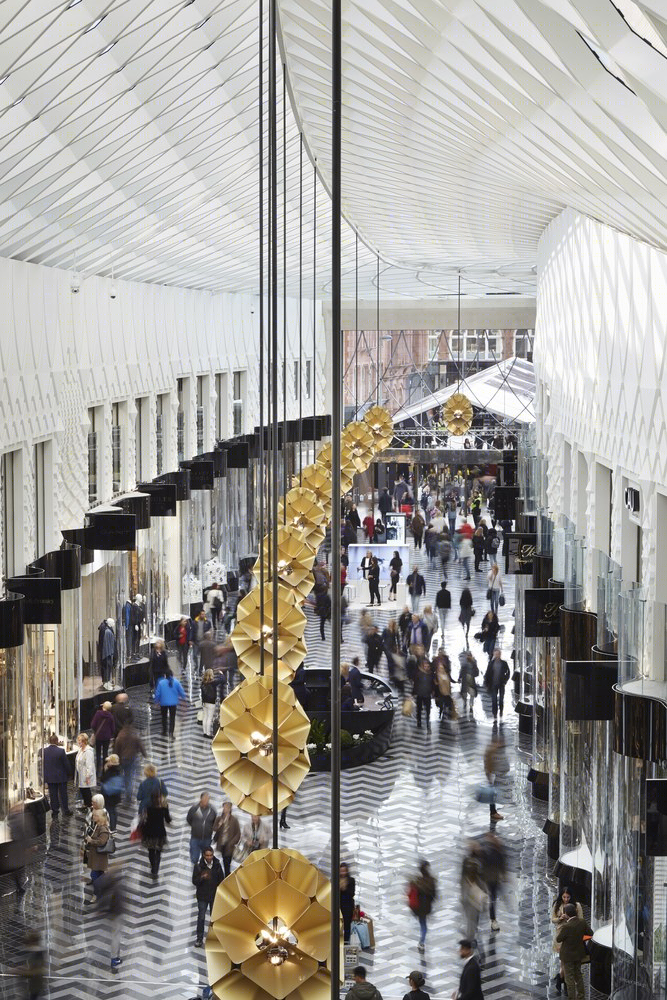

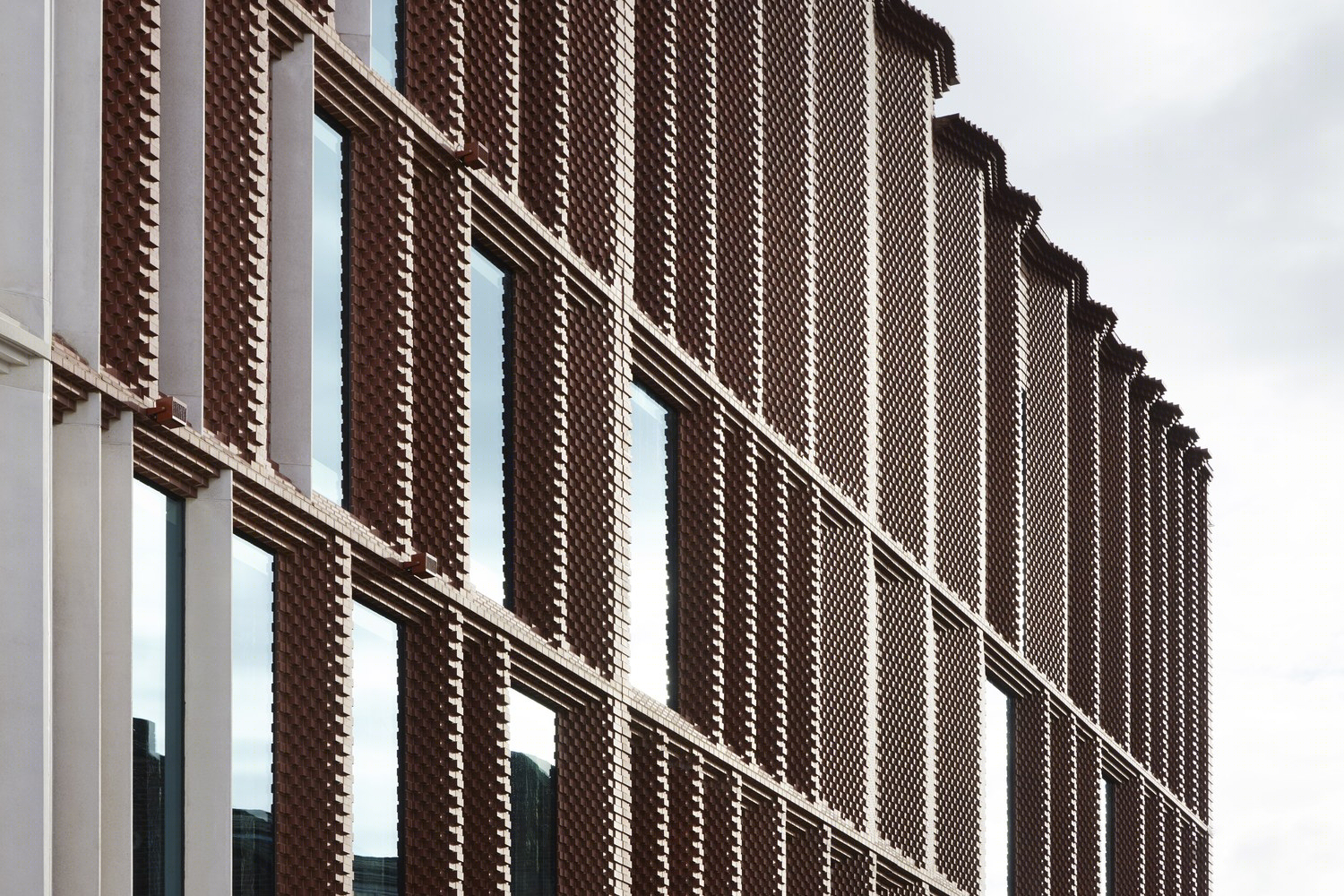

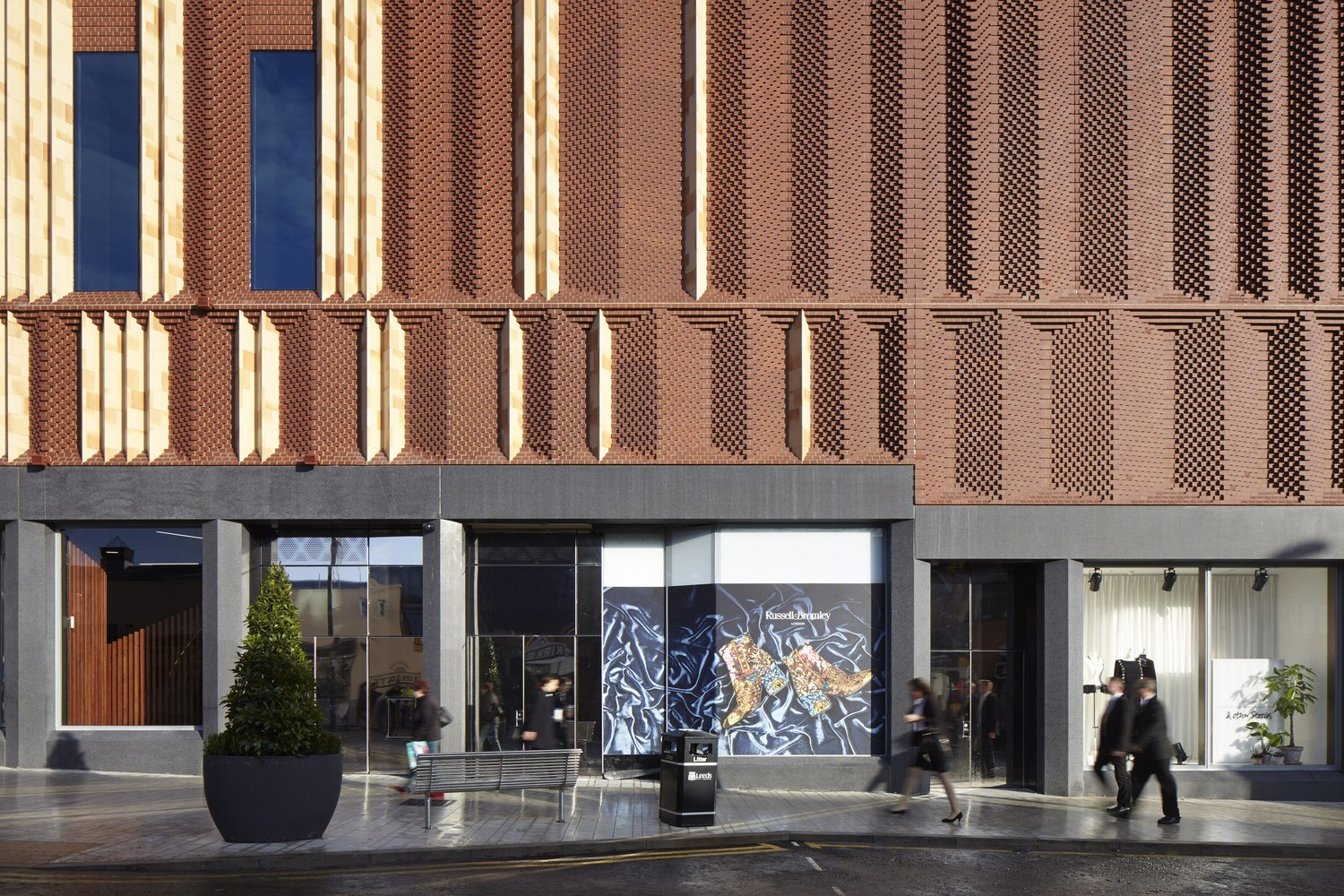

The Arcades building is designed as a two storey, twin arcade with a complex glazed roofscape continuing the grand history of Leeds’s 19th century arcades. A large casino sits above the arcade, partially over-sailing it and creating a four storey civic frontage on Eastgate.The exterior of the building evolves from the 19th and 20th century language of the surrounding Blomfield and Victorian brick and terracotta buildings, with sculpturally pleated brick elevations – brick-faced pre-cast concrete panels-  changing in rhythm and scale responding to the context of the site.The interiors of the arcades are inspired by the Victorian tradition through the use of curved glass and patterned stone floors, based on Leeds’s woolen herringbone cloth.

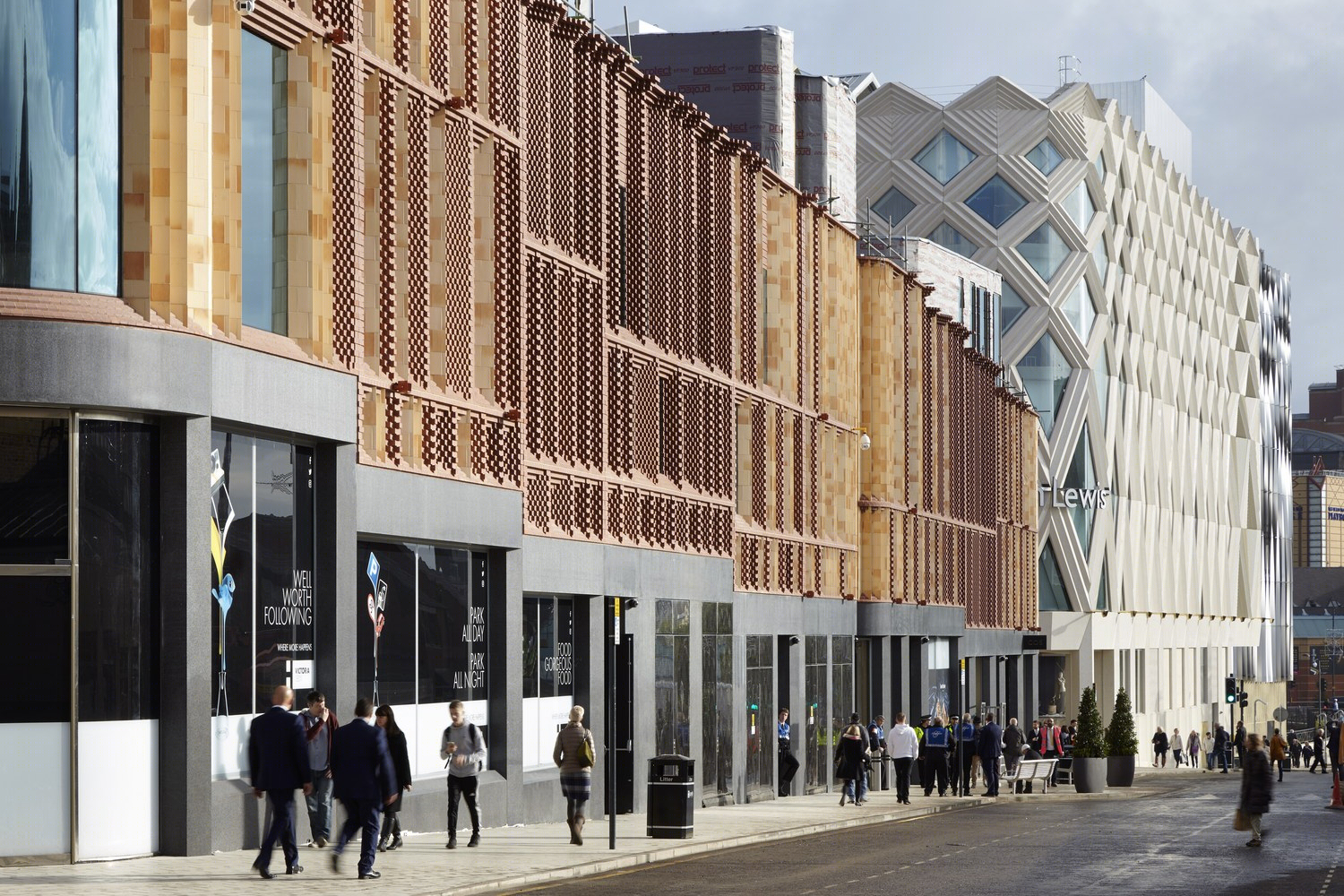

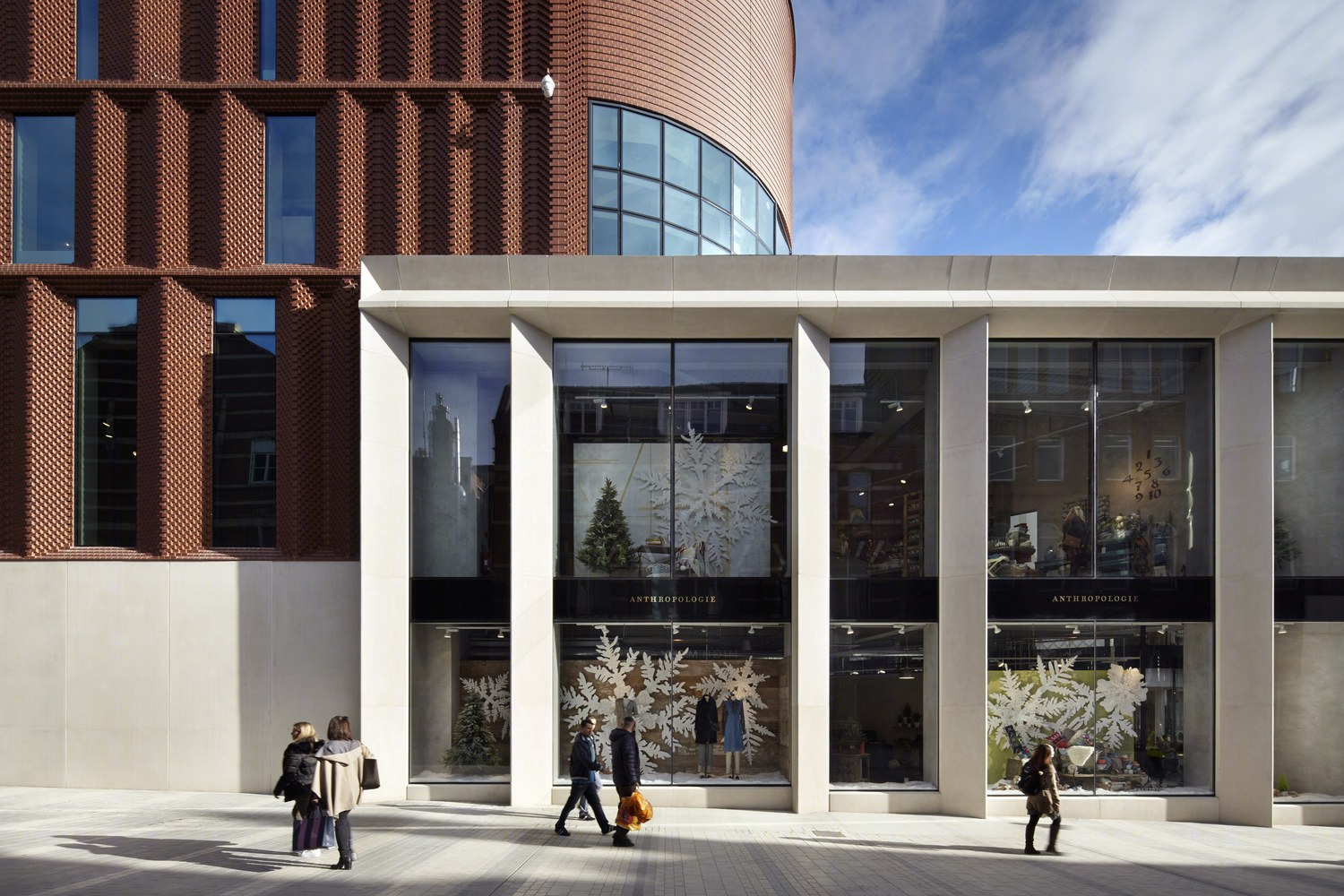

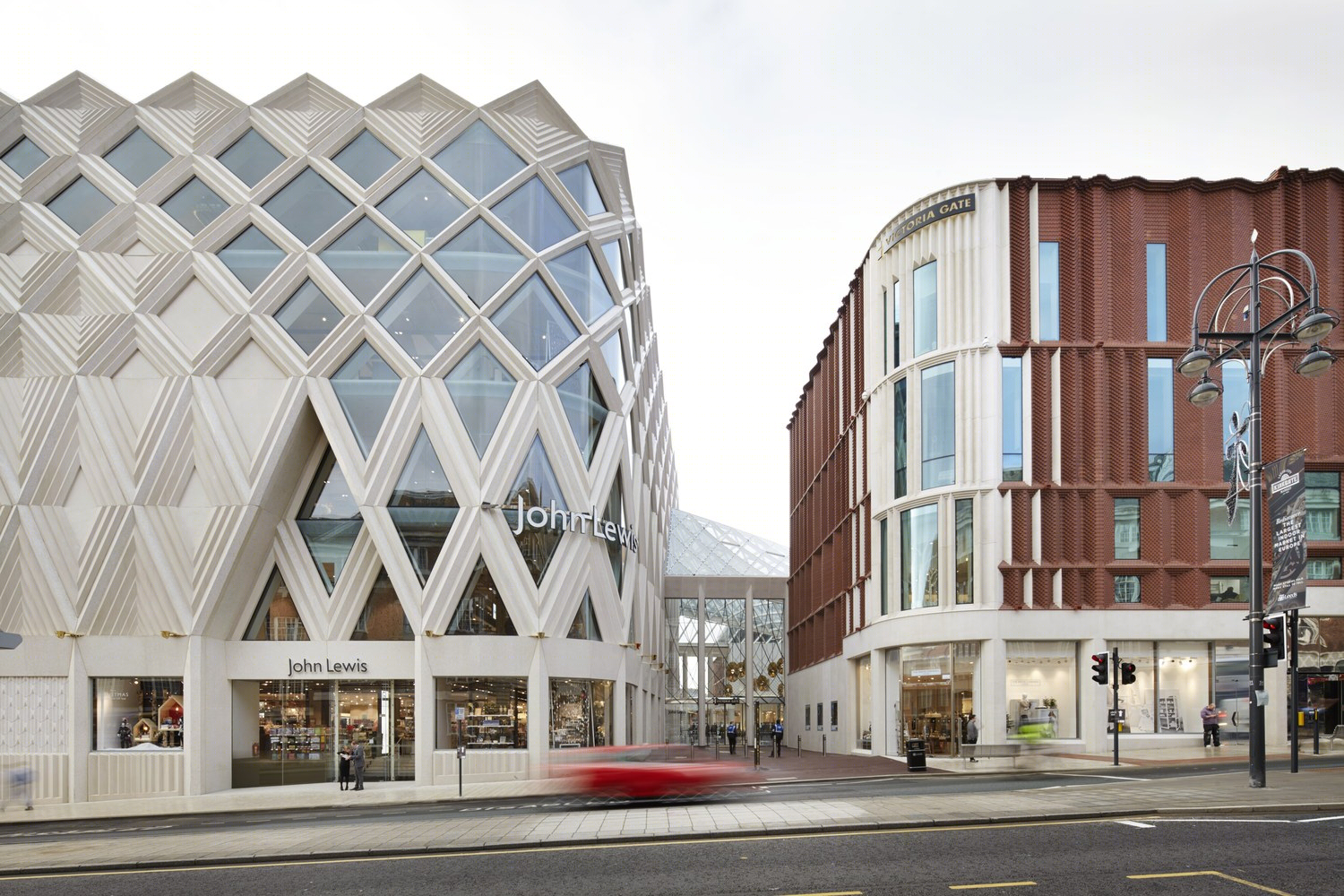

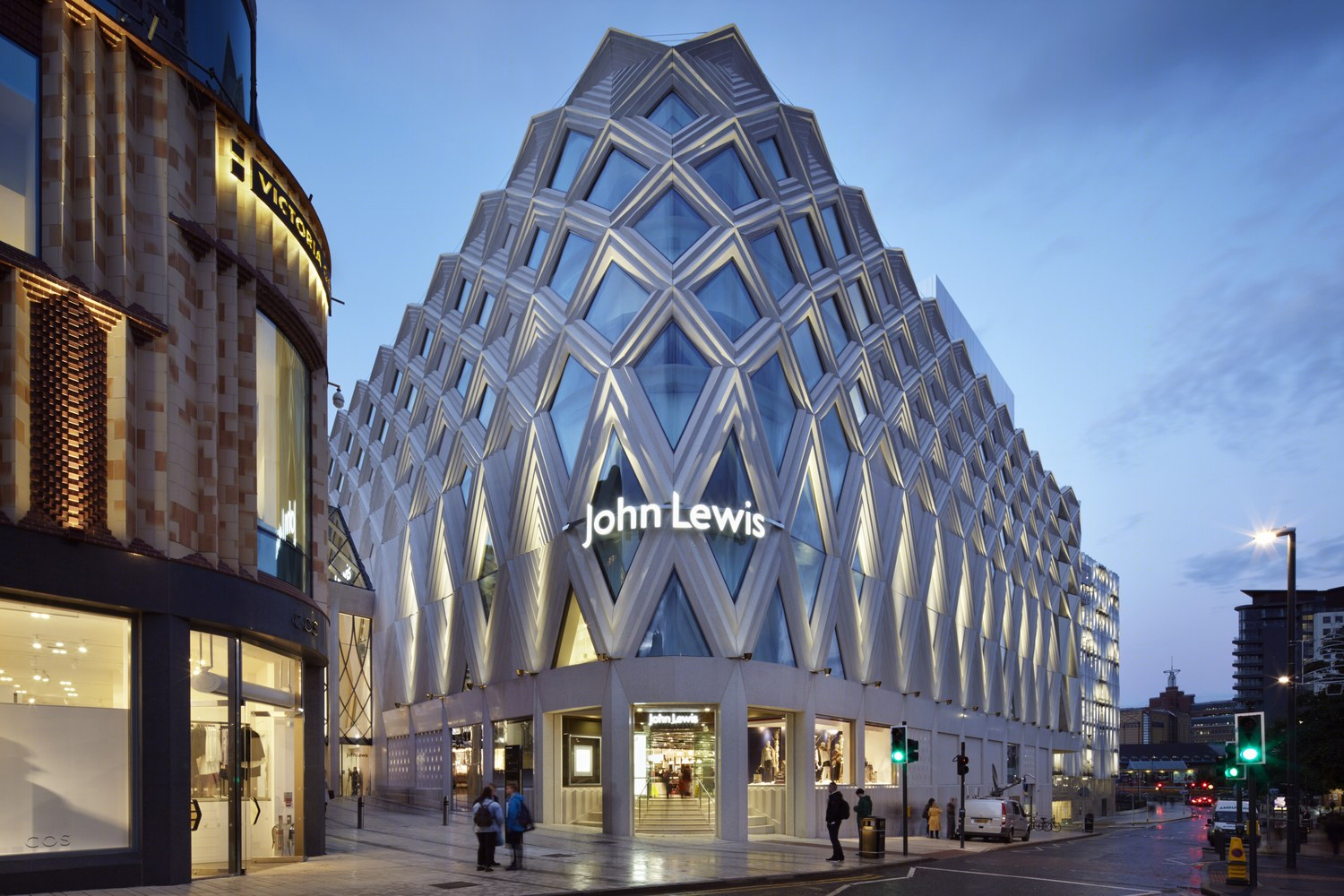

英国VictoriaGate总体规划外部实景图

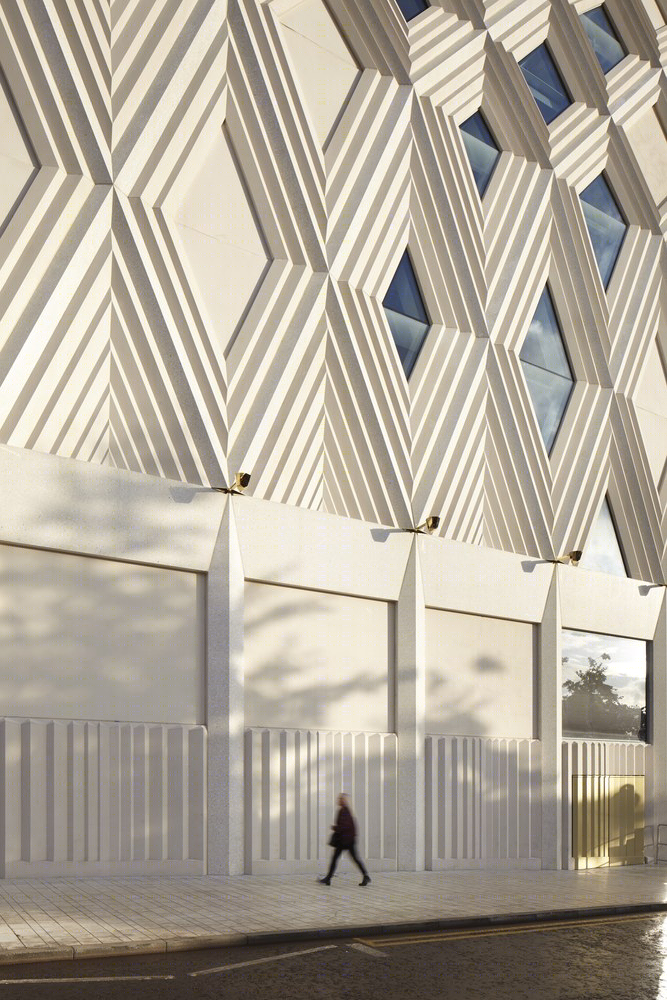

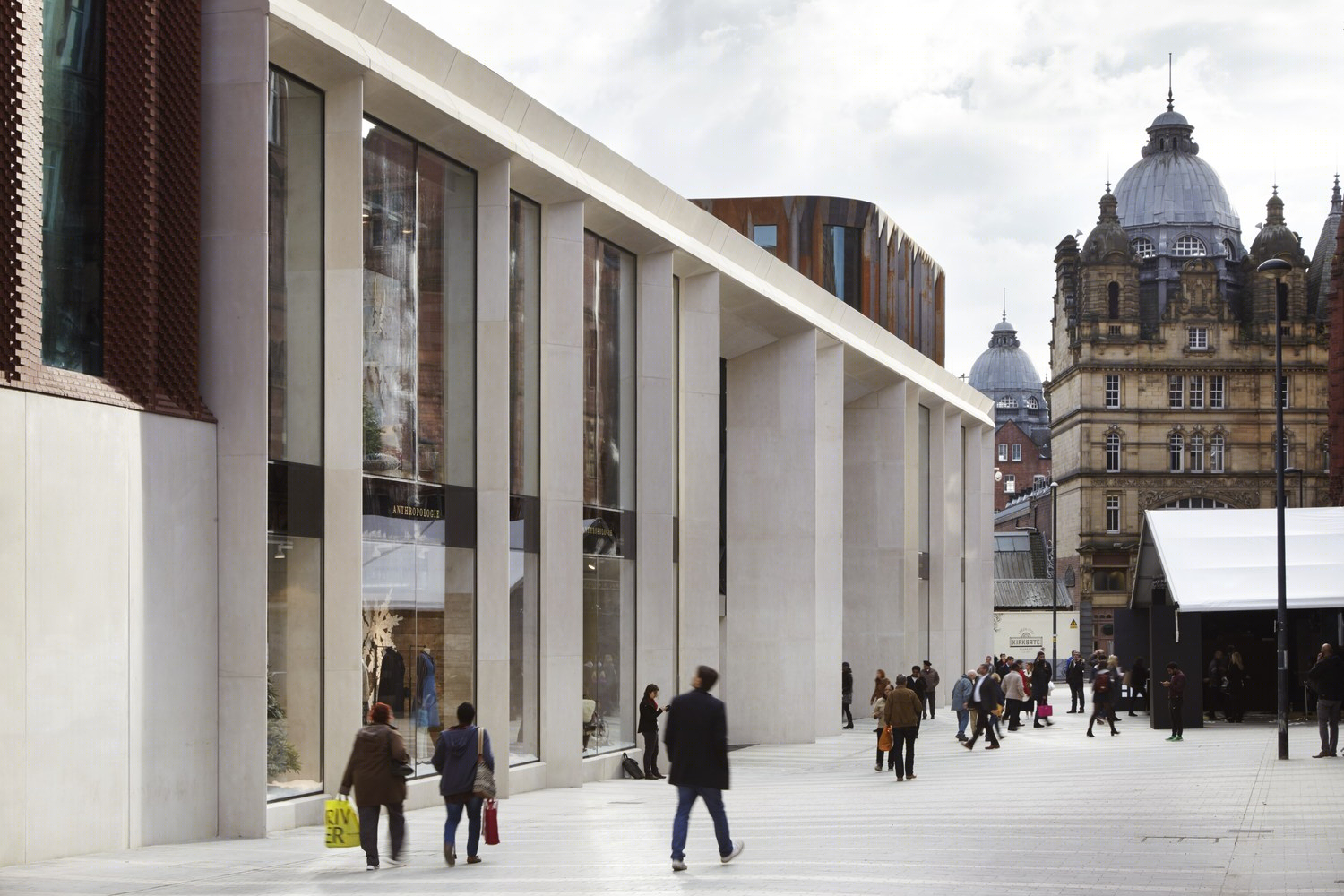

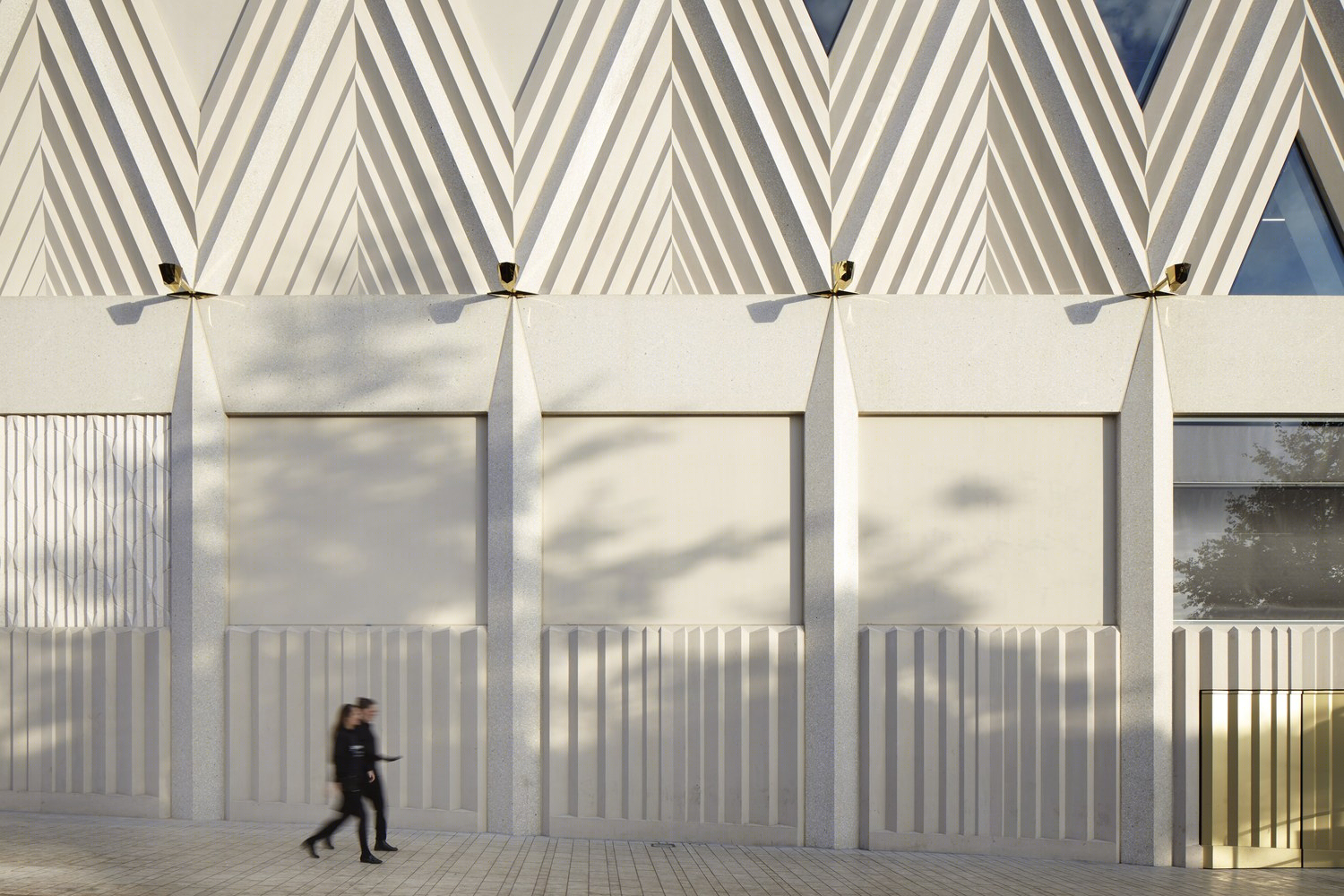

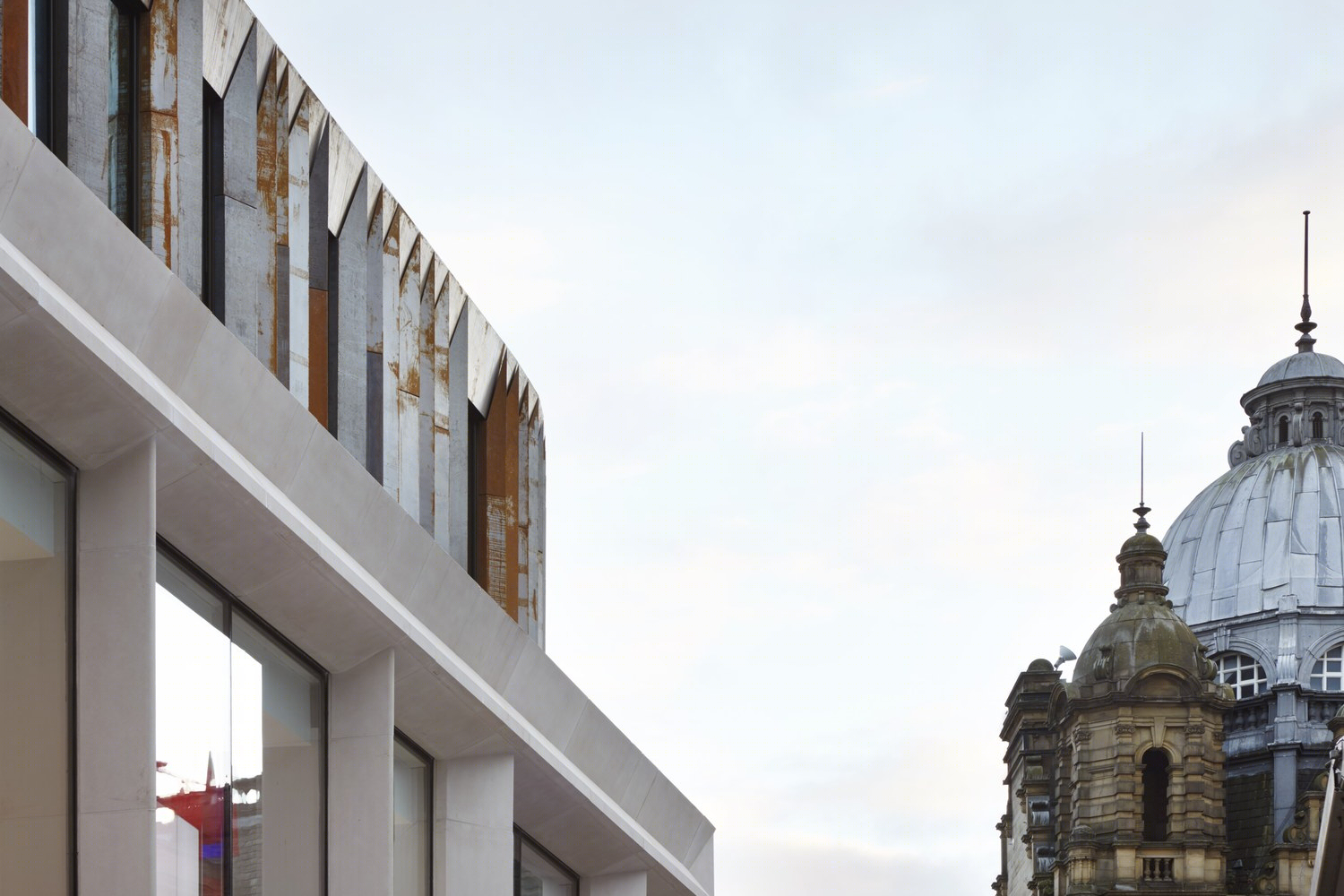

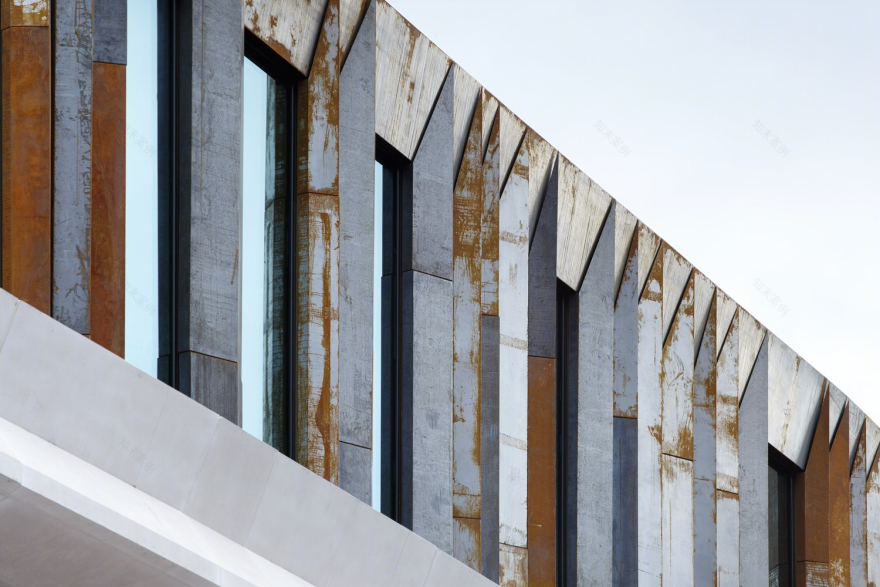

英国VictoriaGate总体规划局部实景图

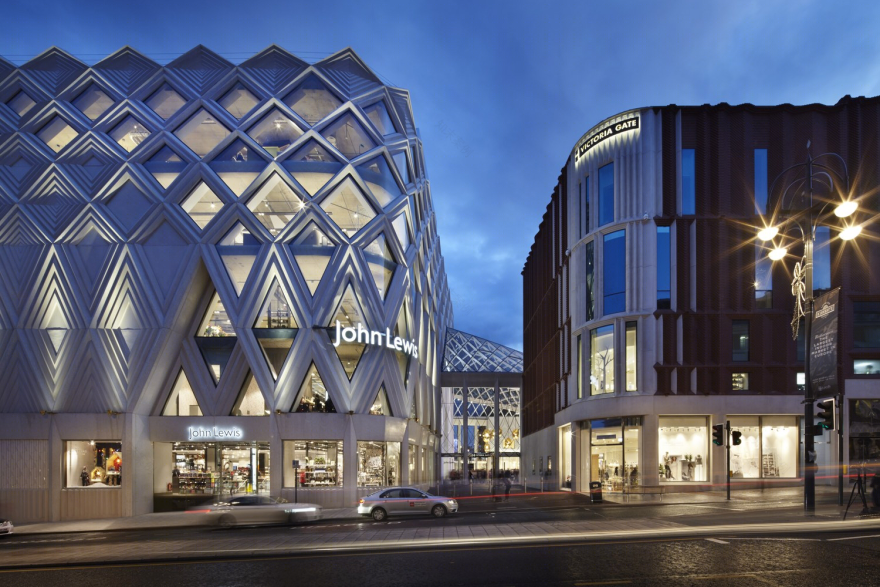

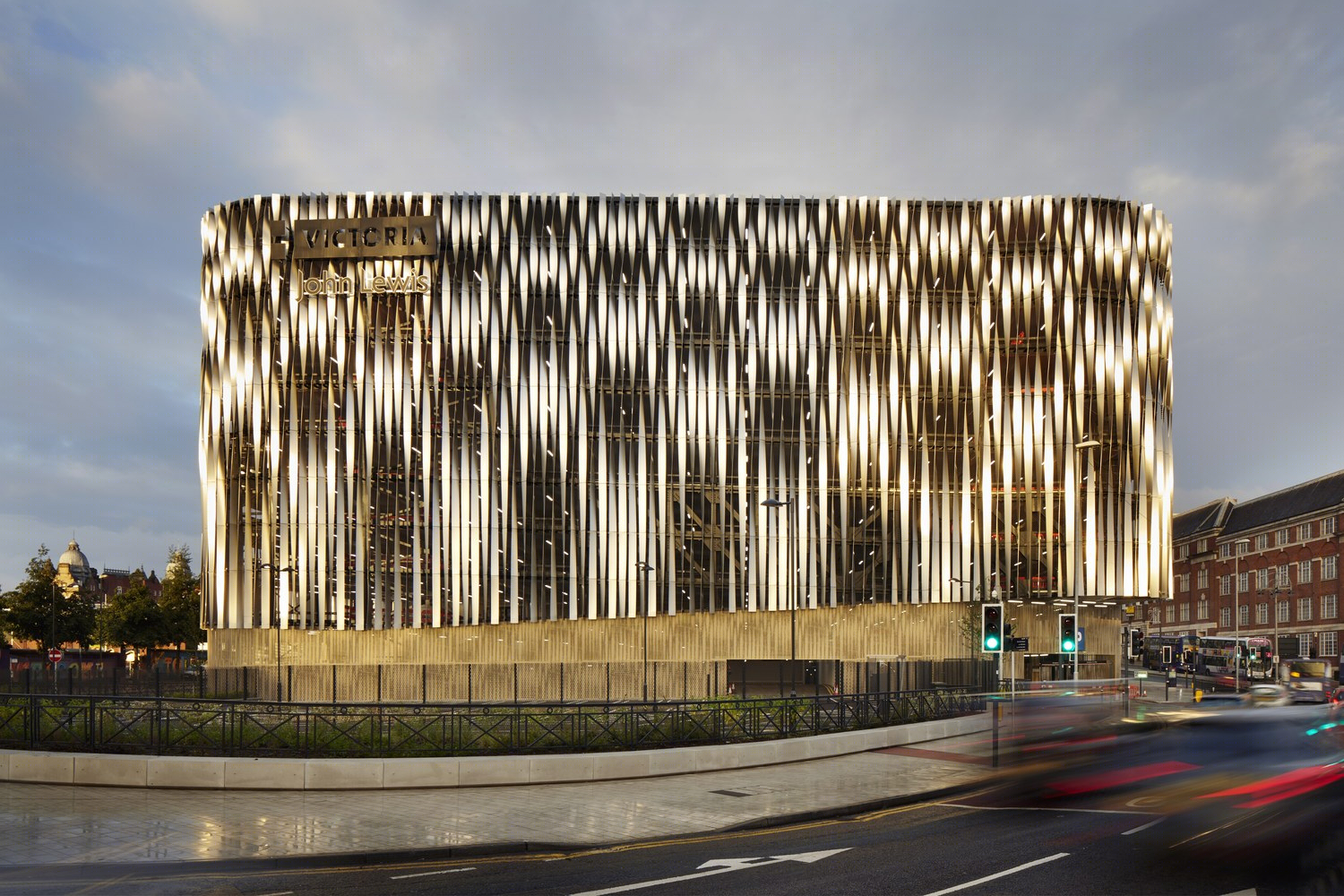

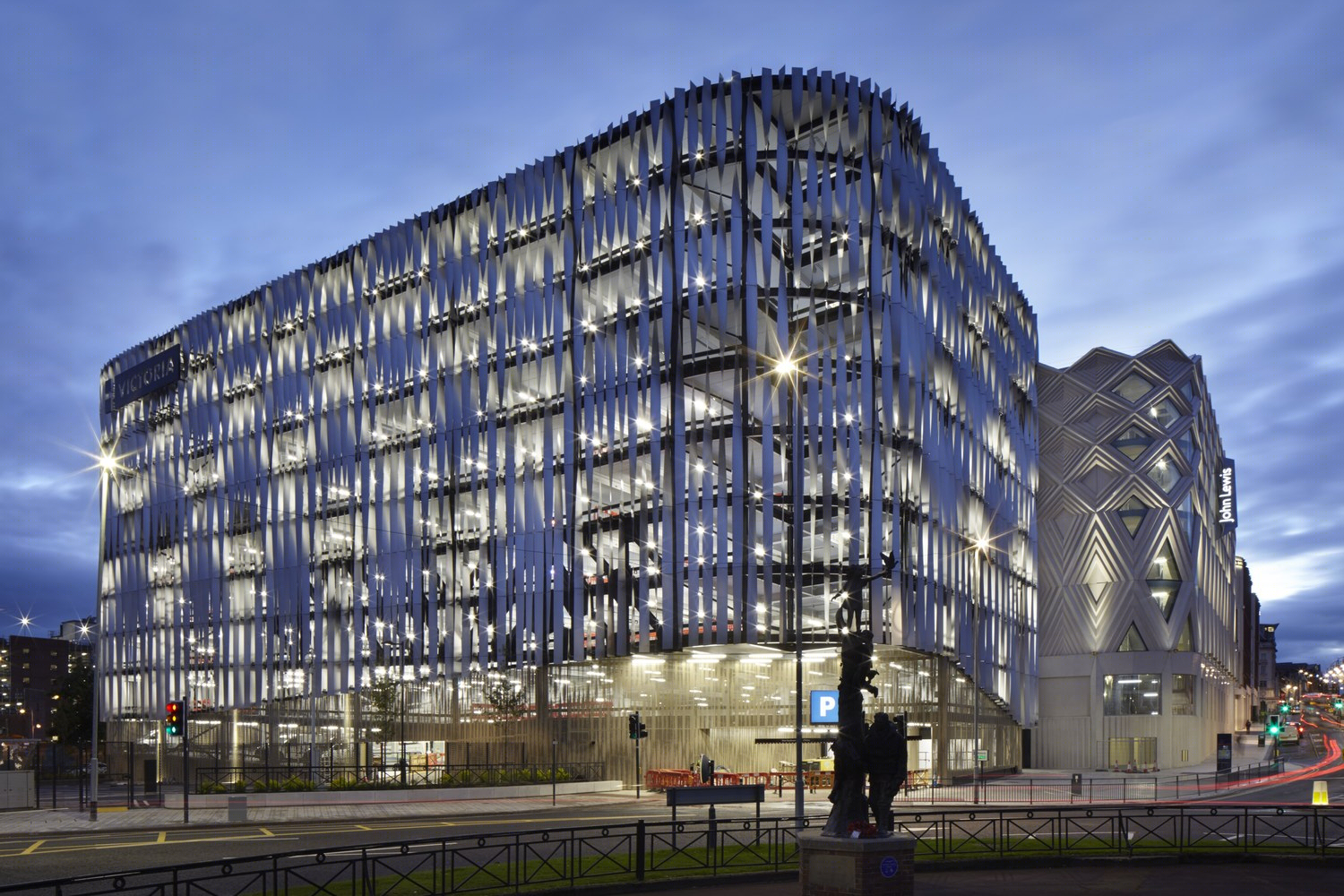

英国VictoriaGate总体规划外部夜景实景图

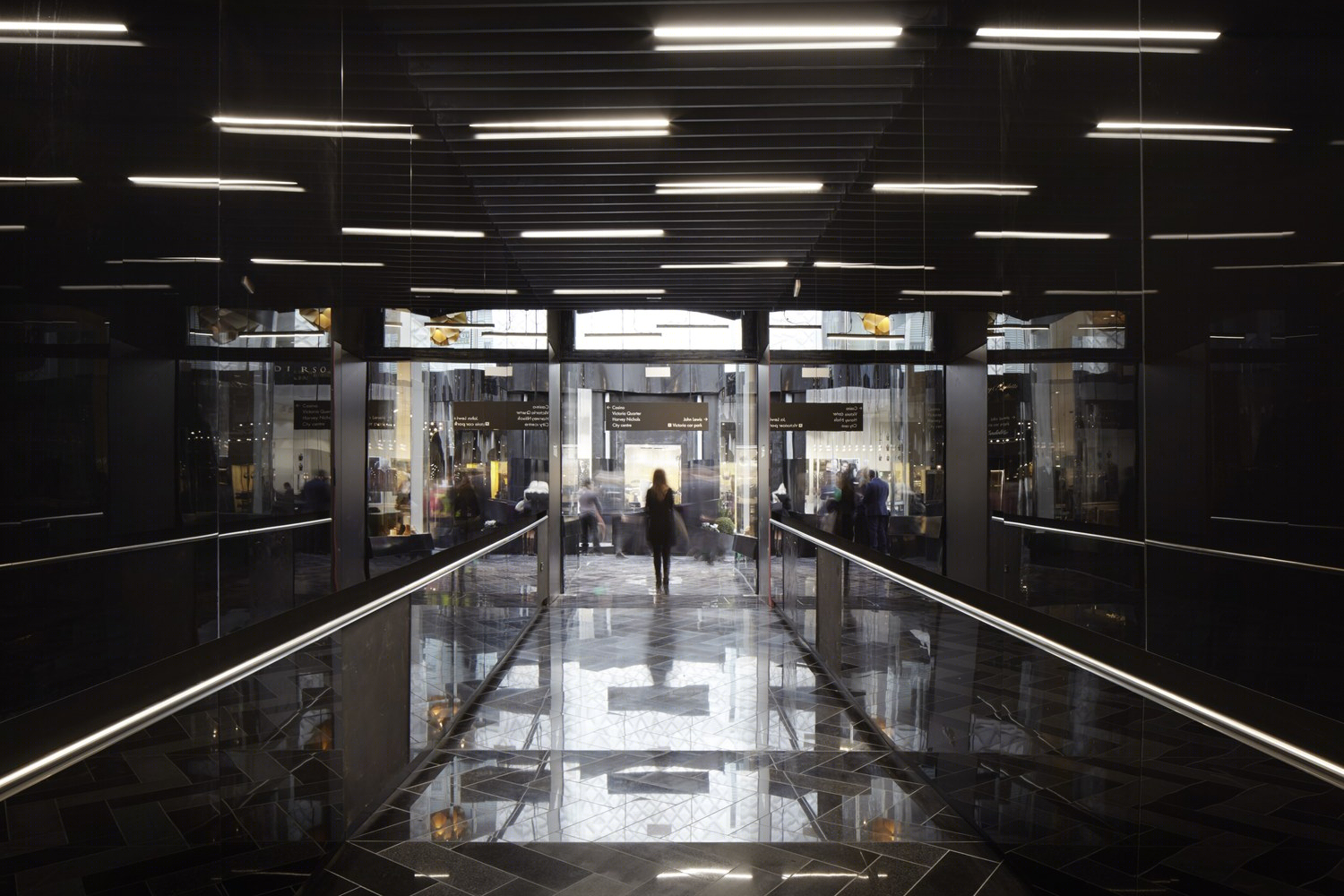

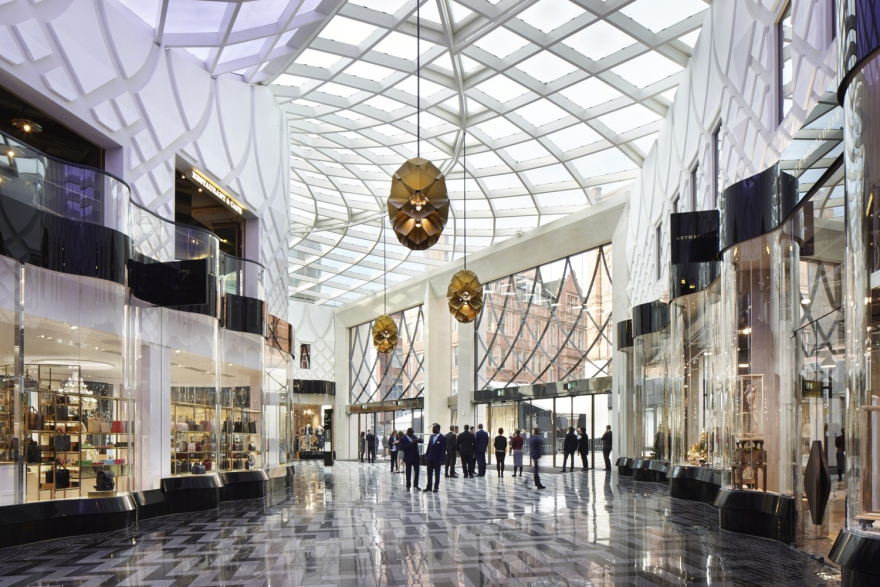

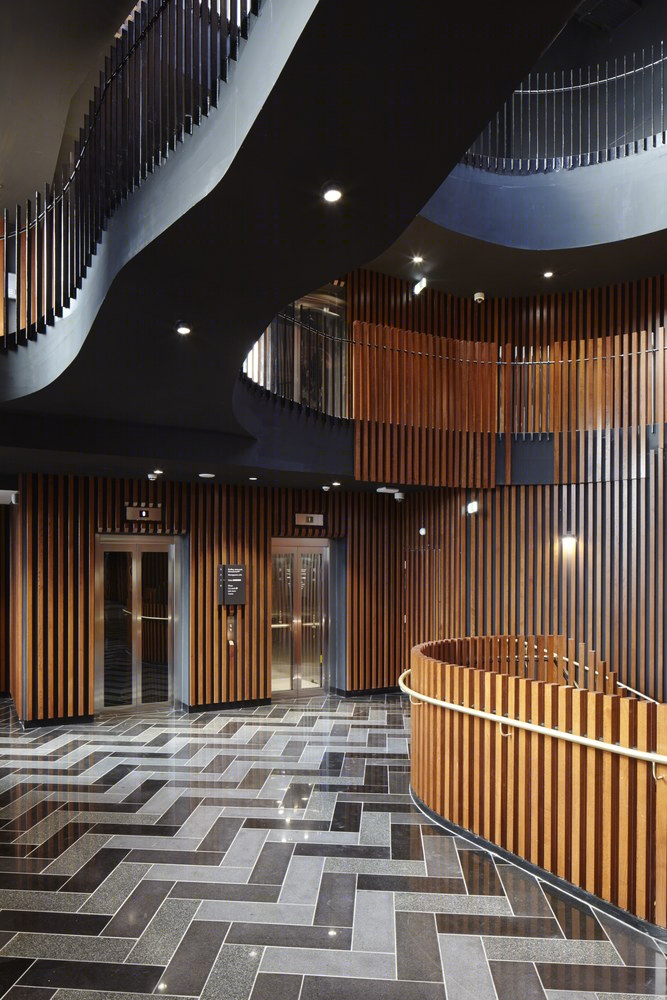

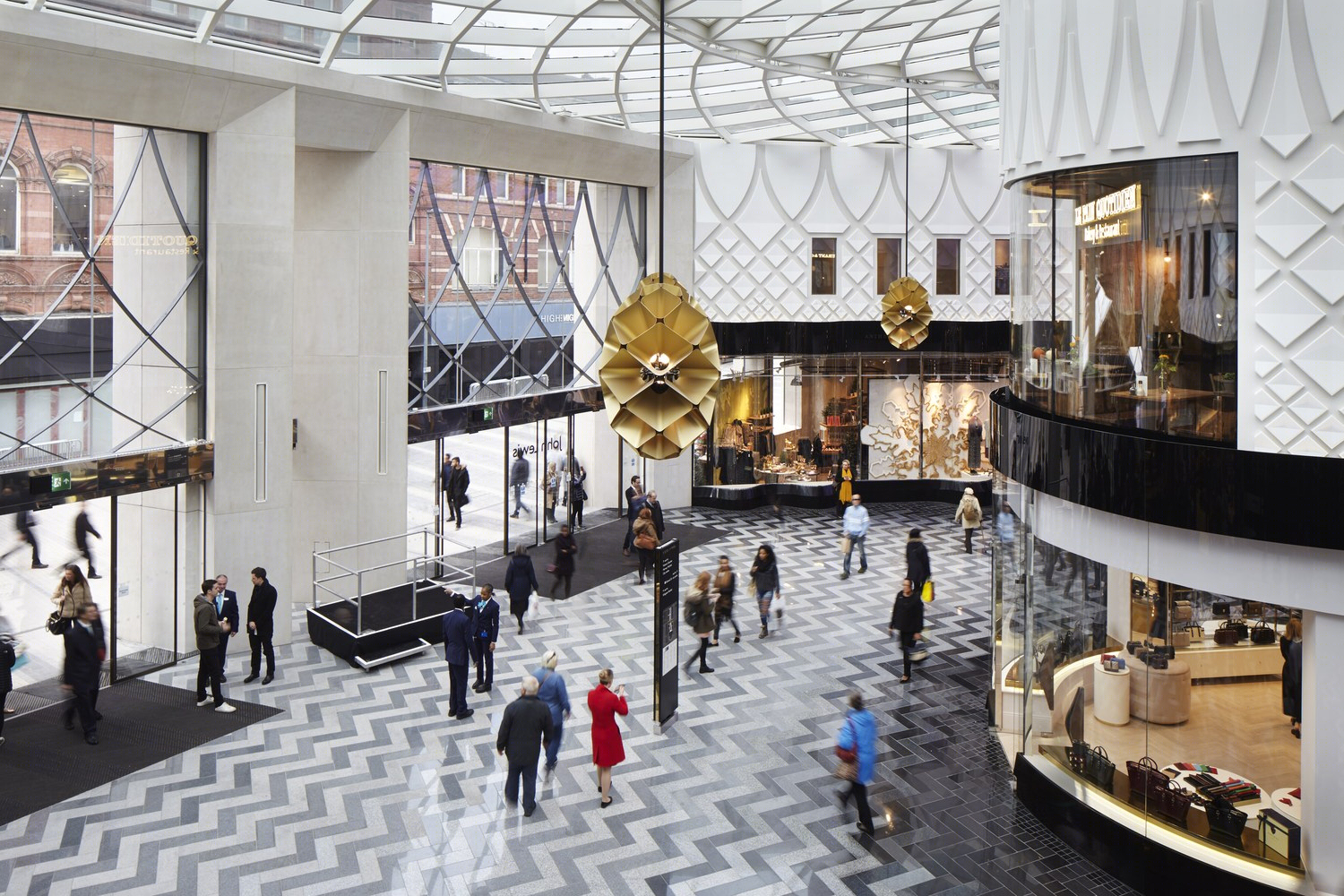

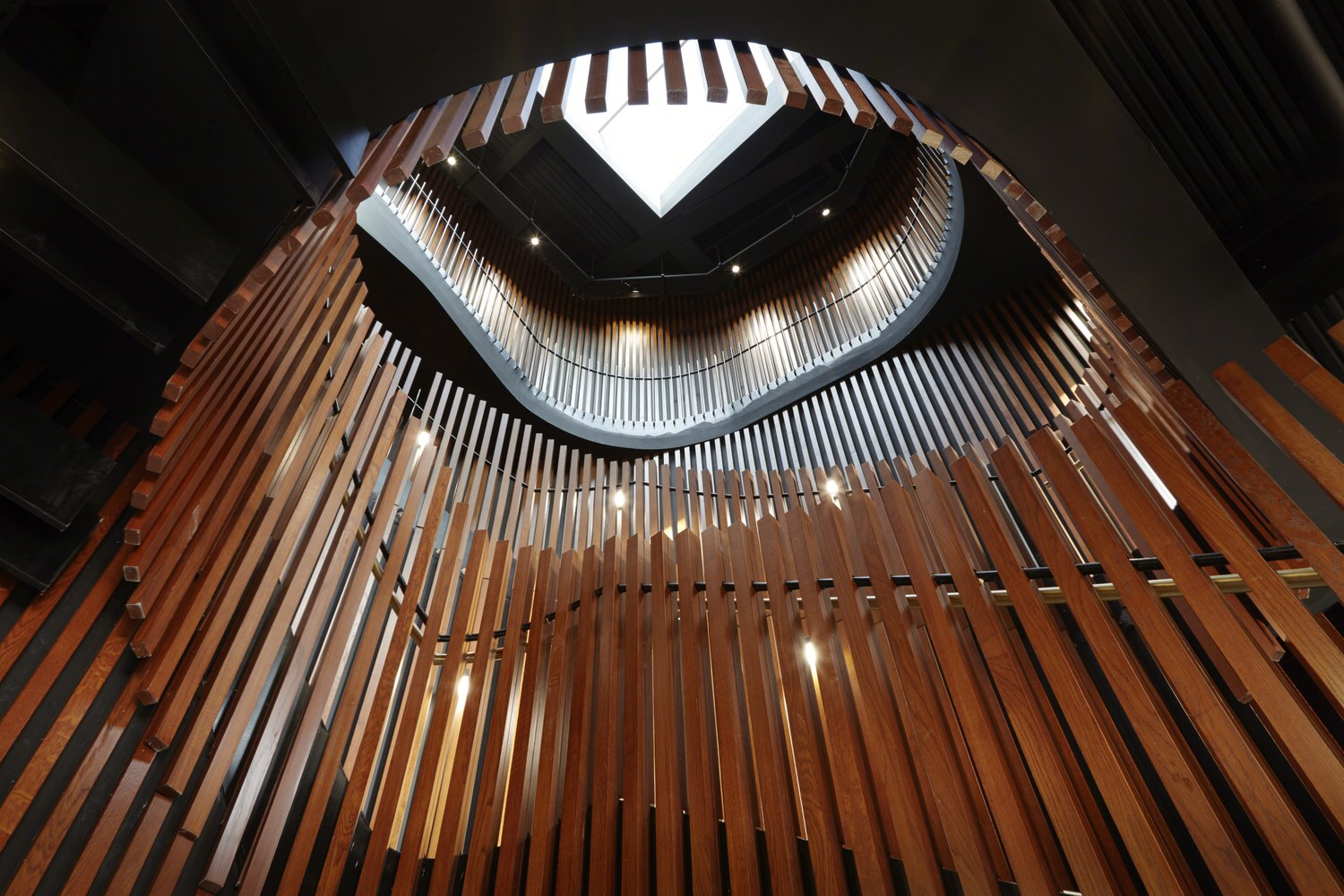

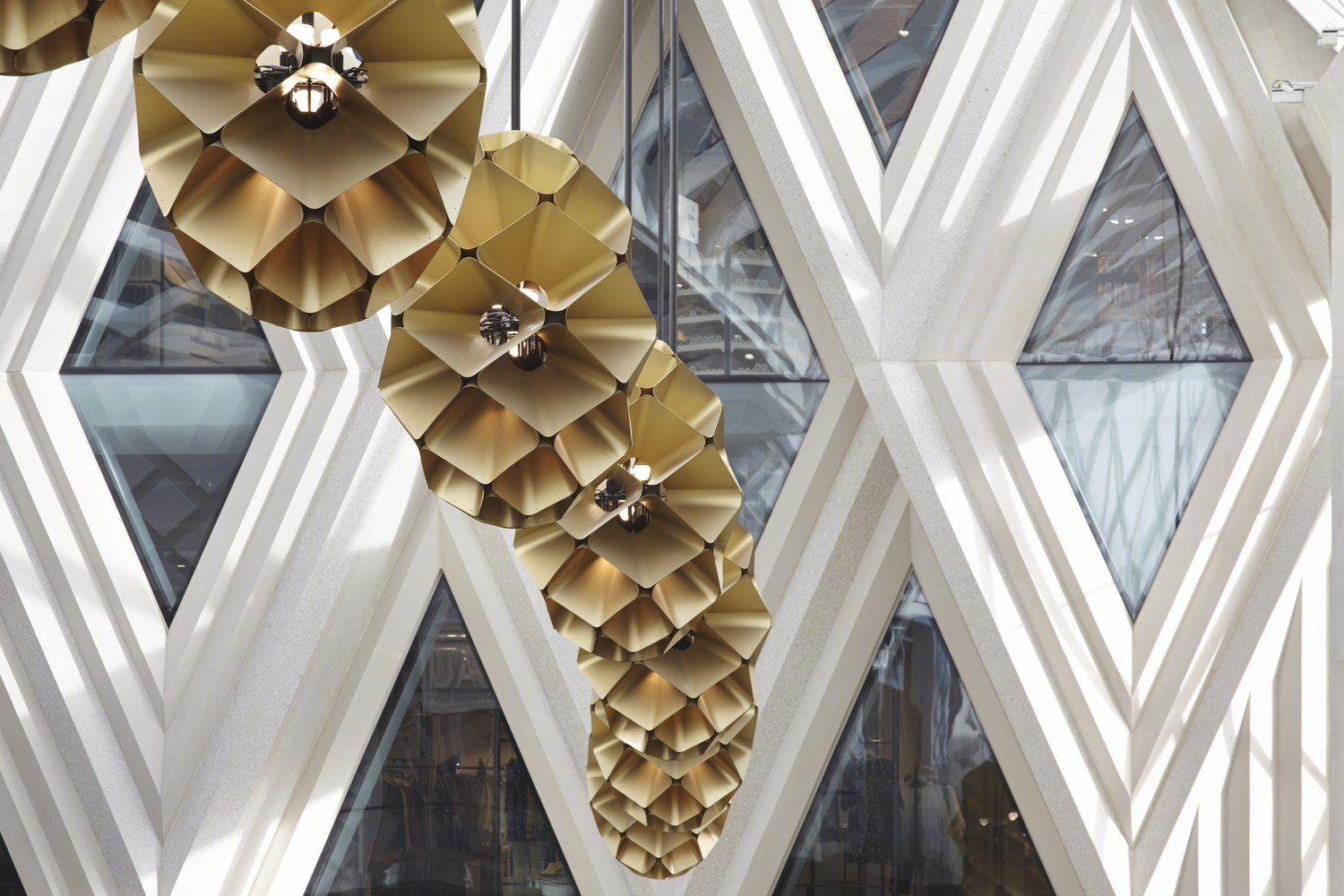

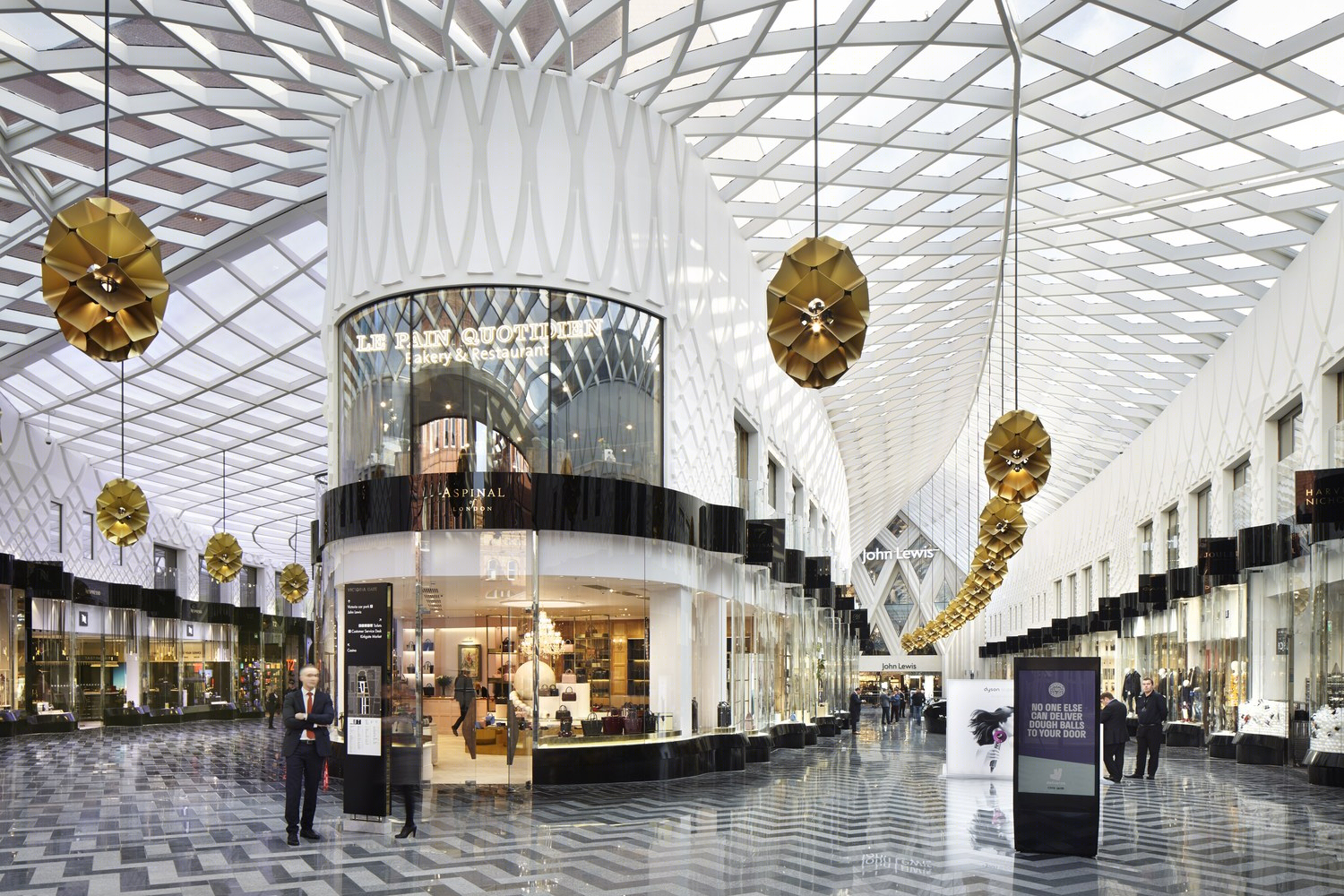

英国VictoriaGate总体规划内部实景图

英国VictoriaGate总体规划

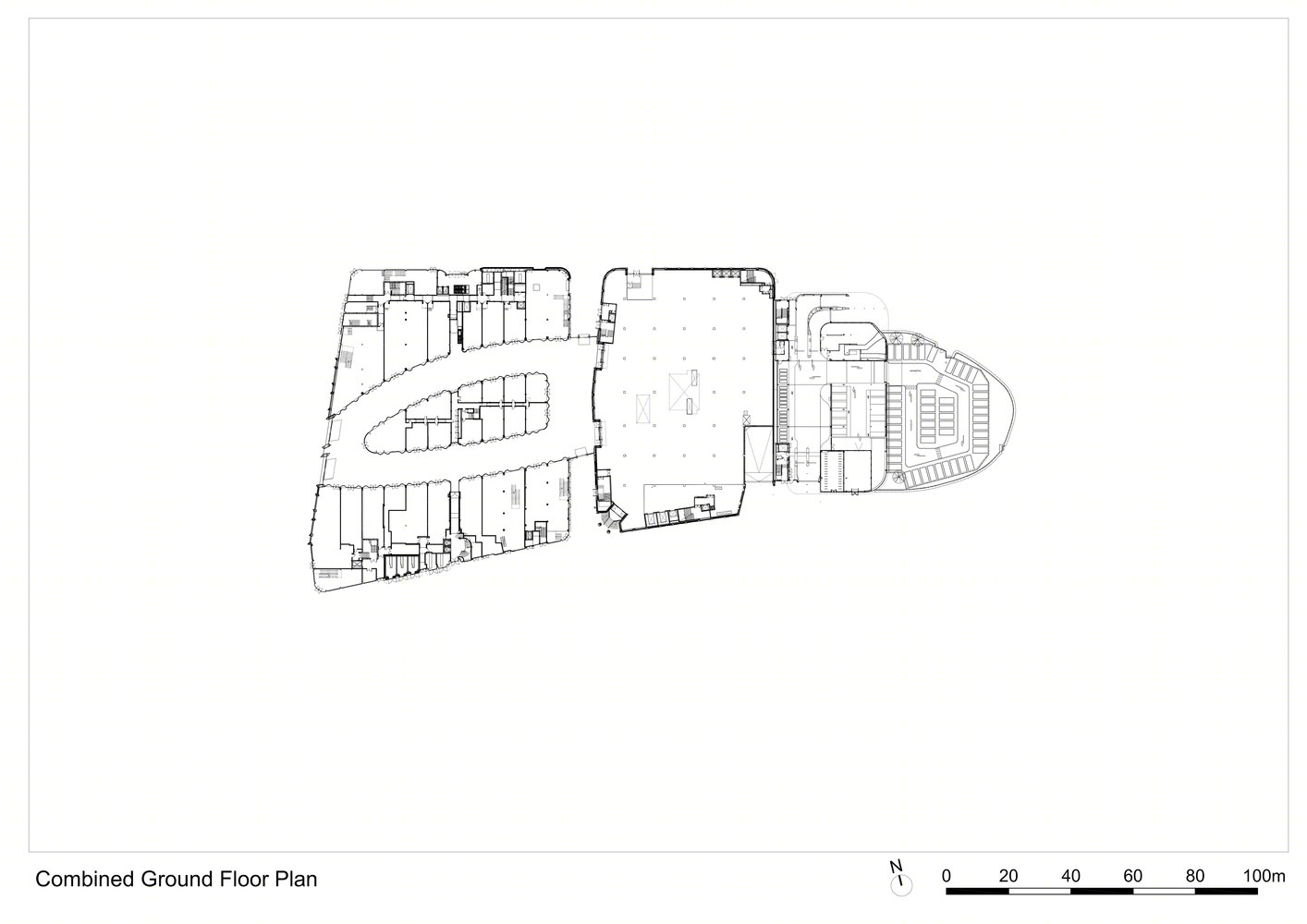

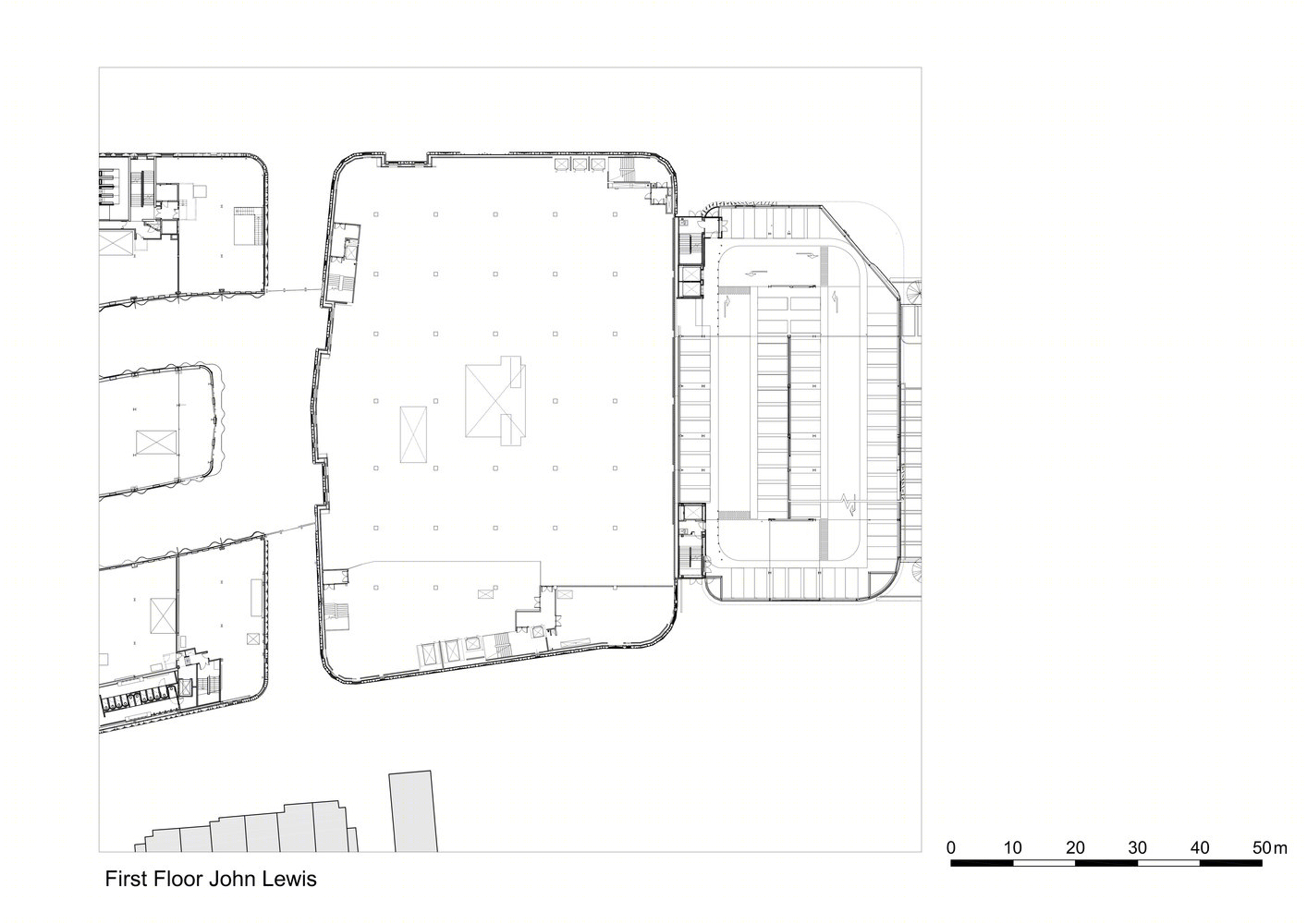

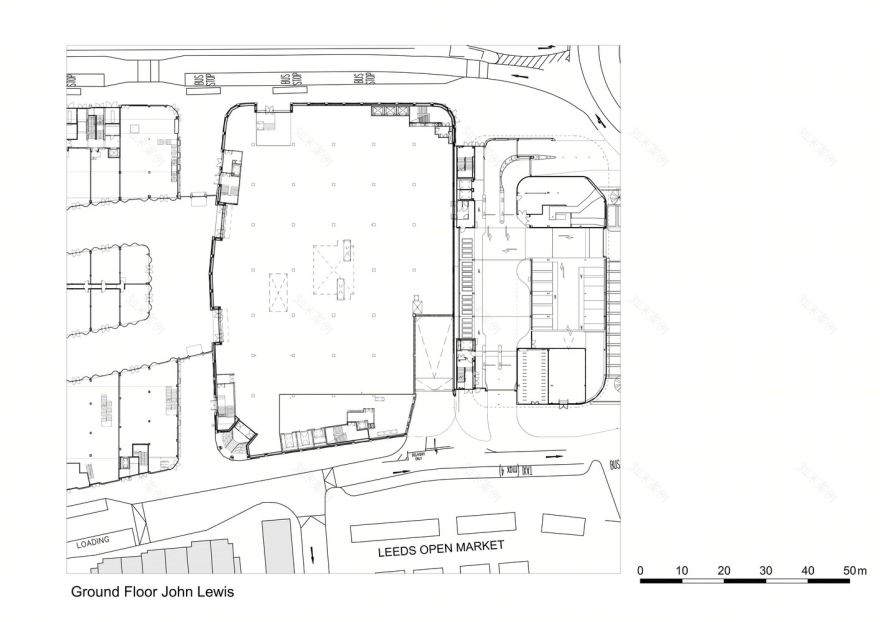

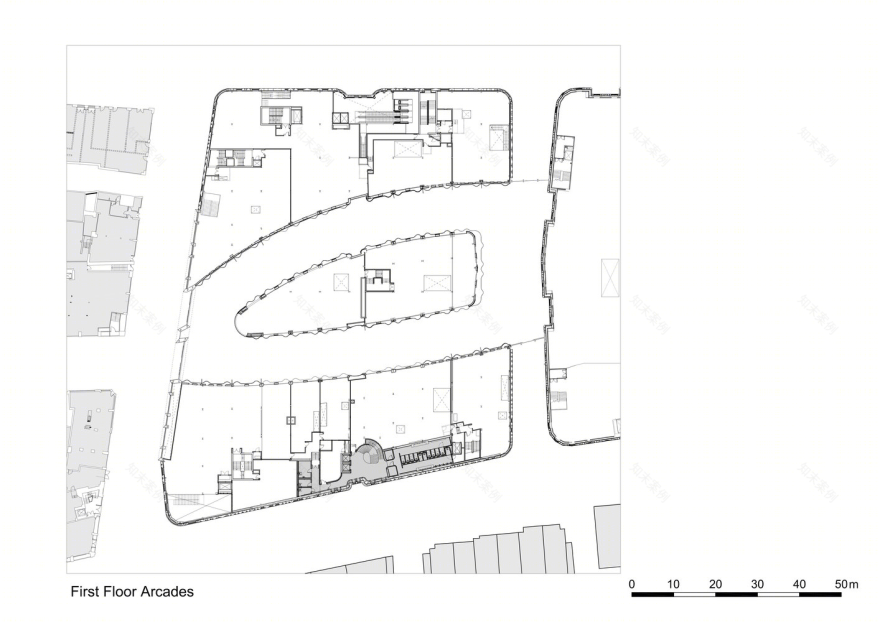

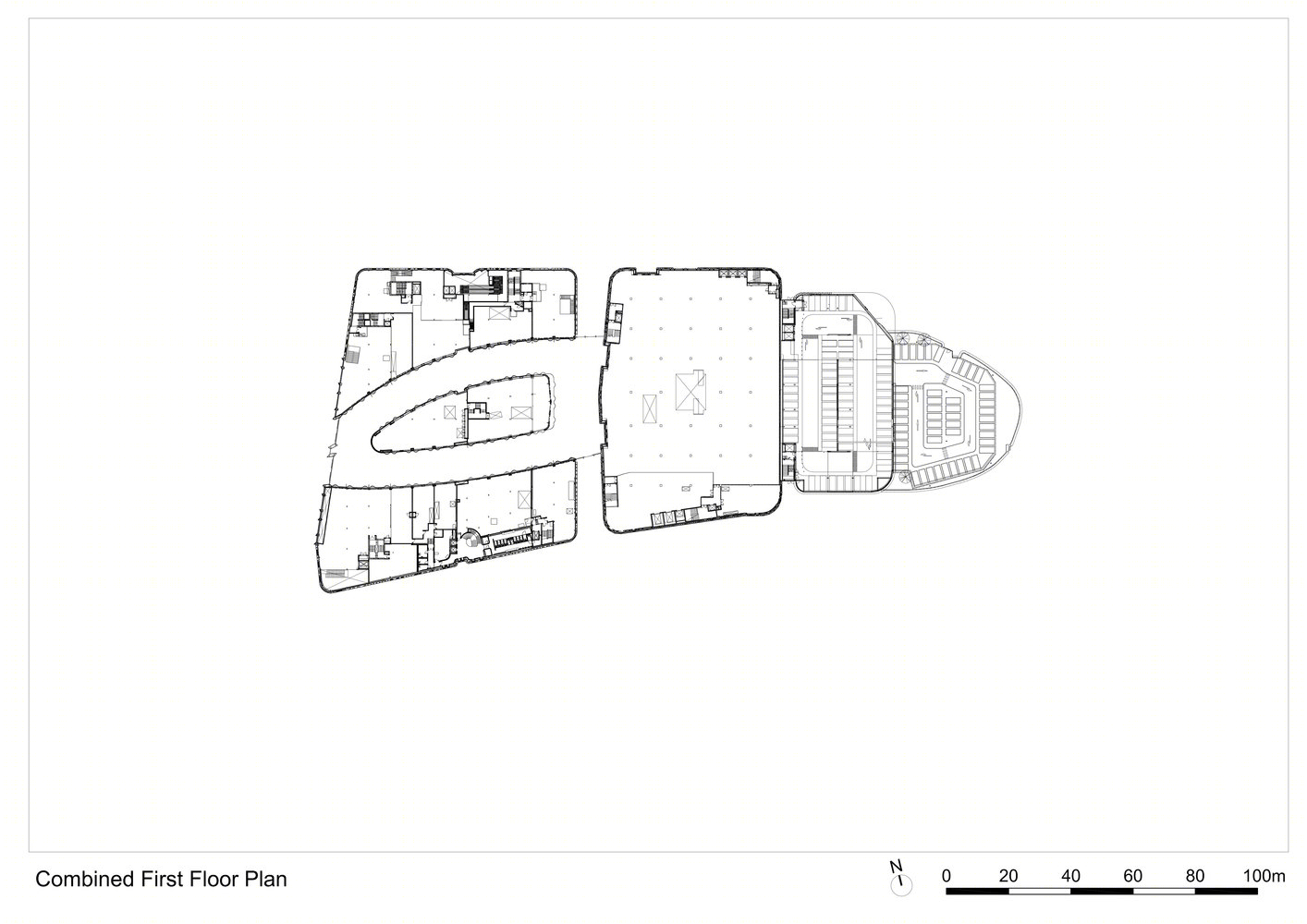

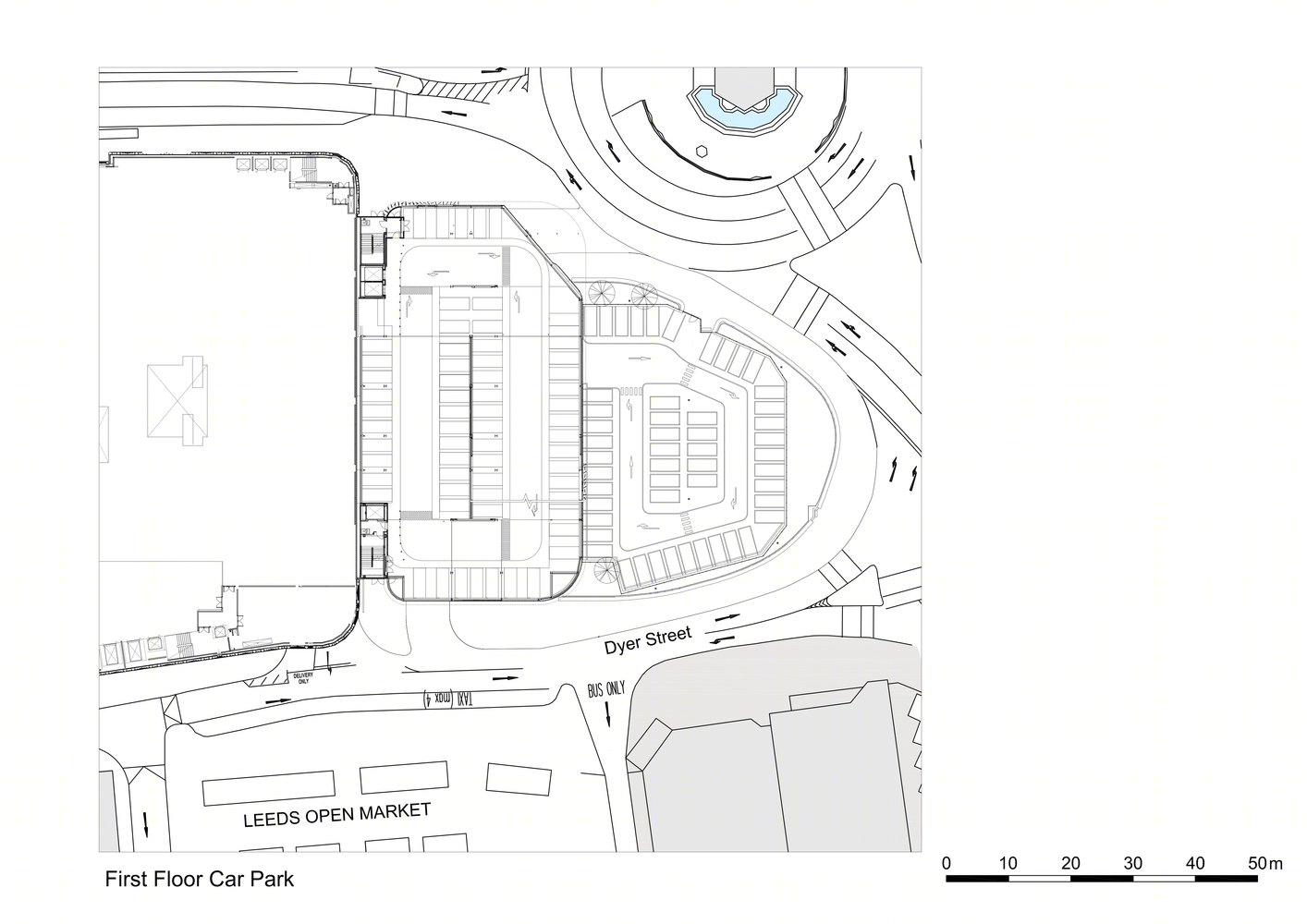

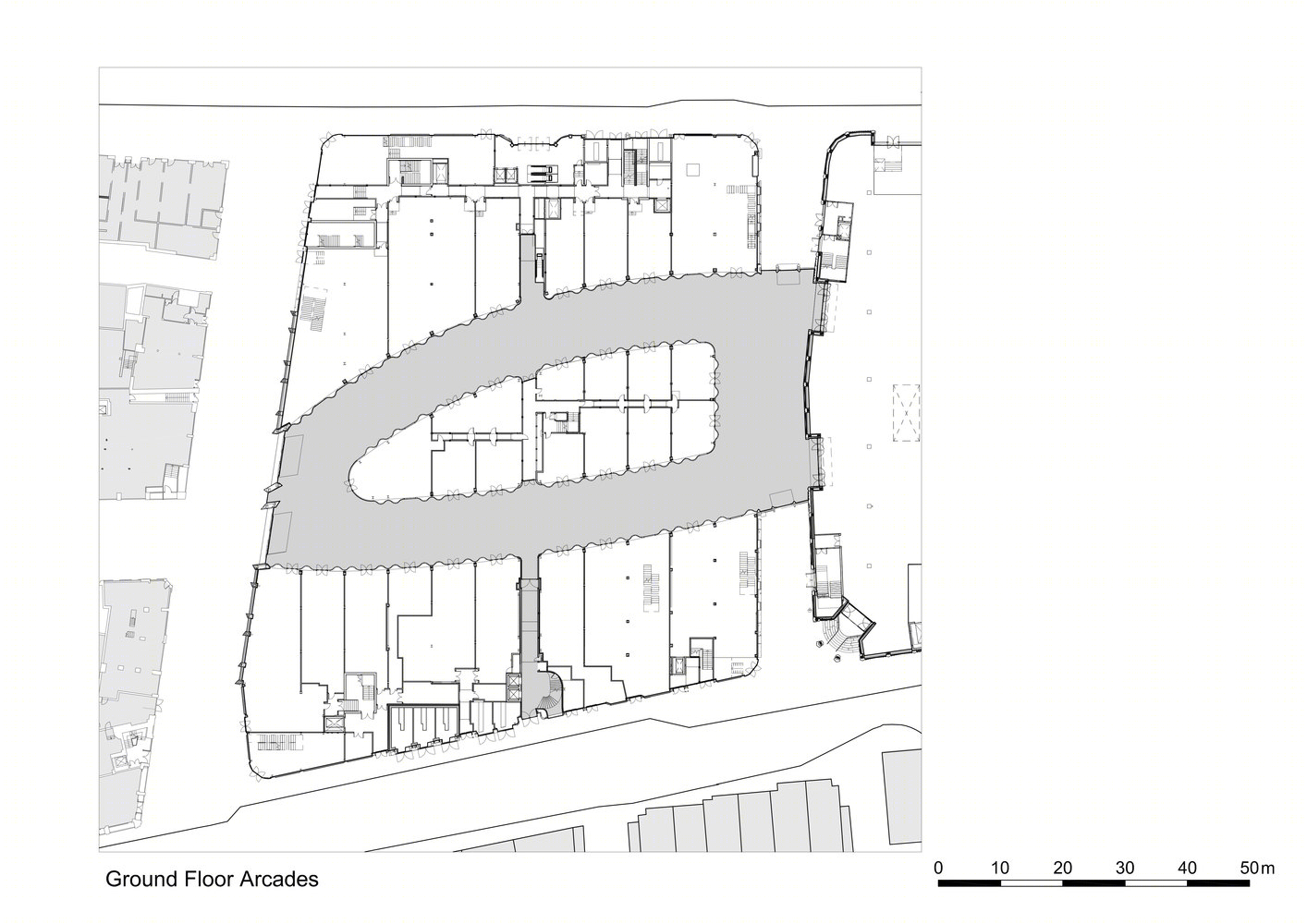

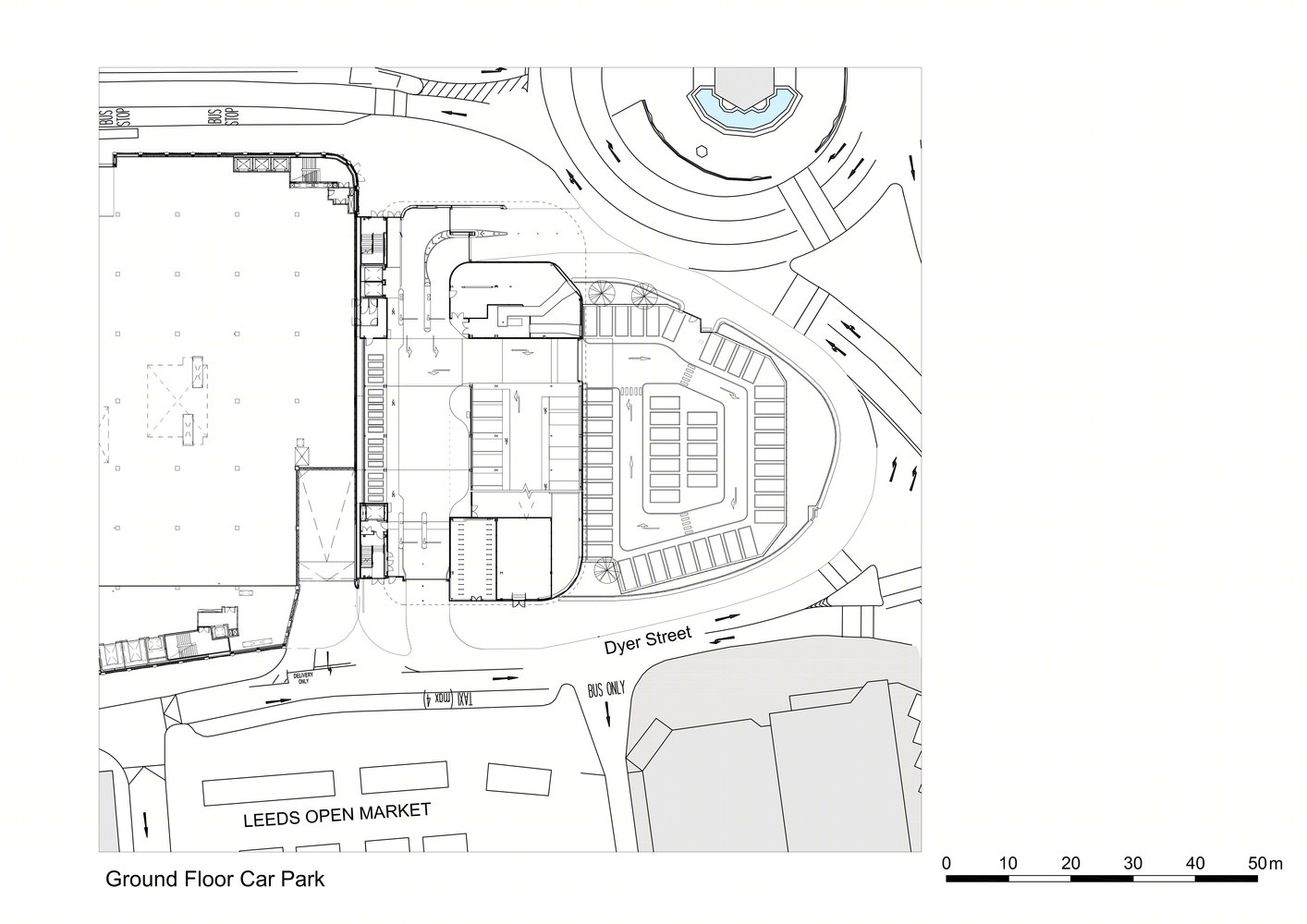

英国VictoriaGate总体规划平面图

英国VictoriaGate总体规划剖面图

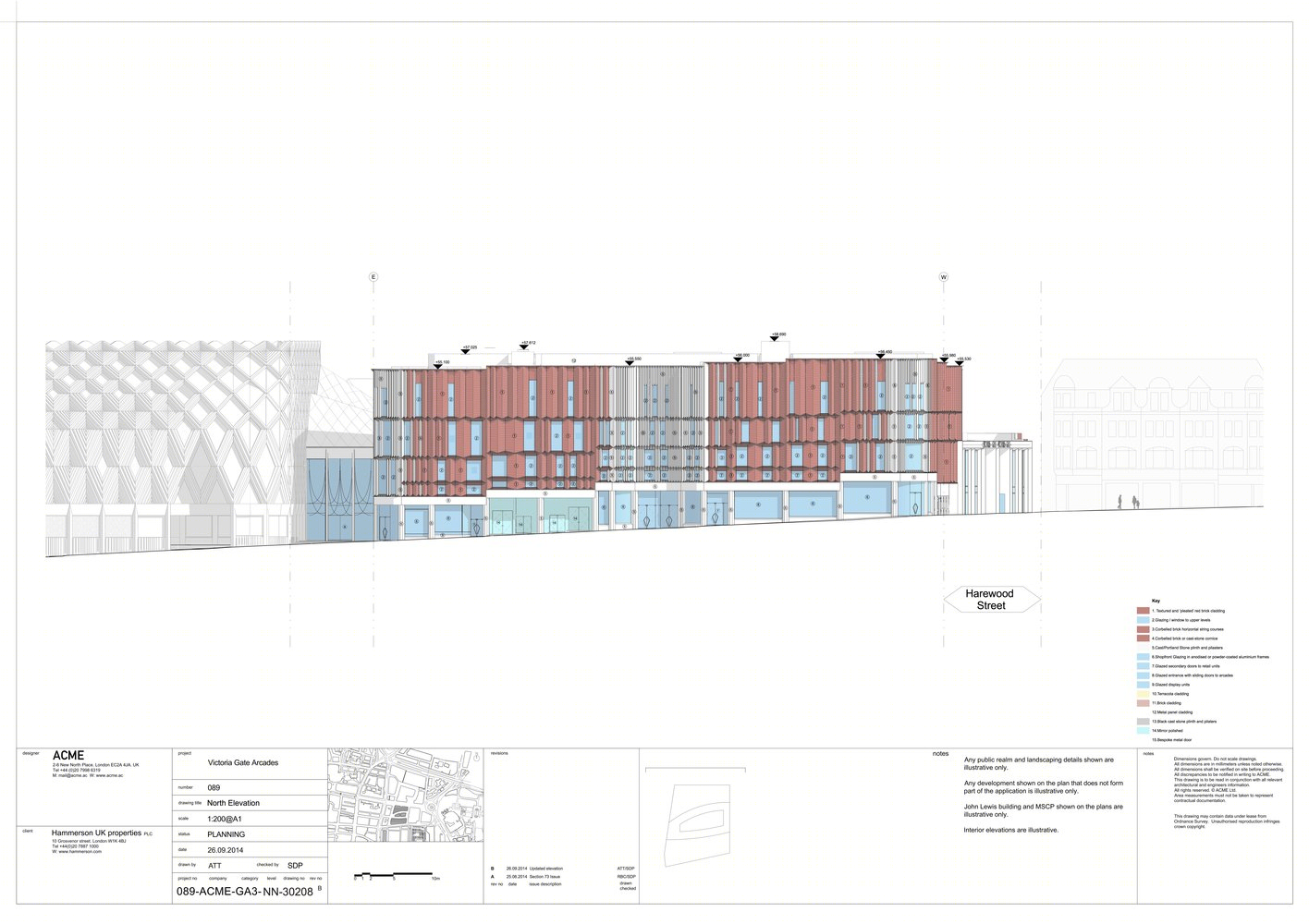

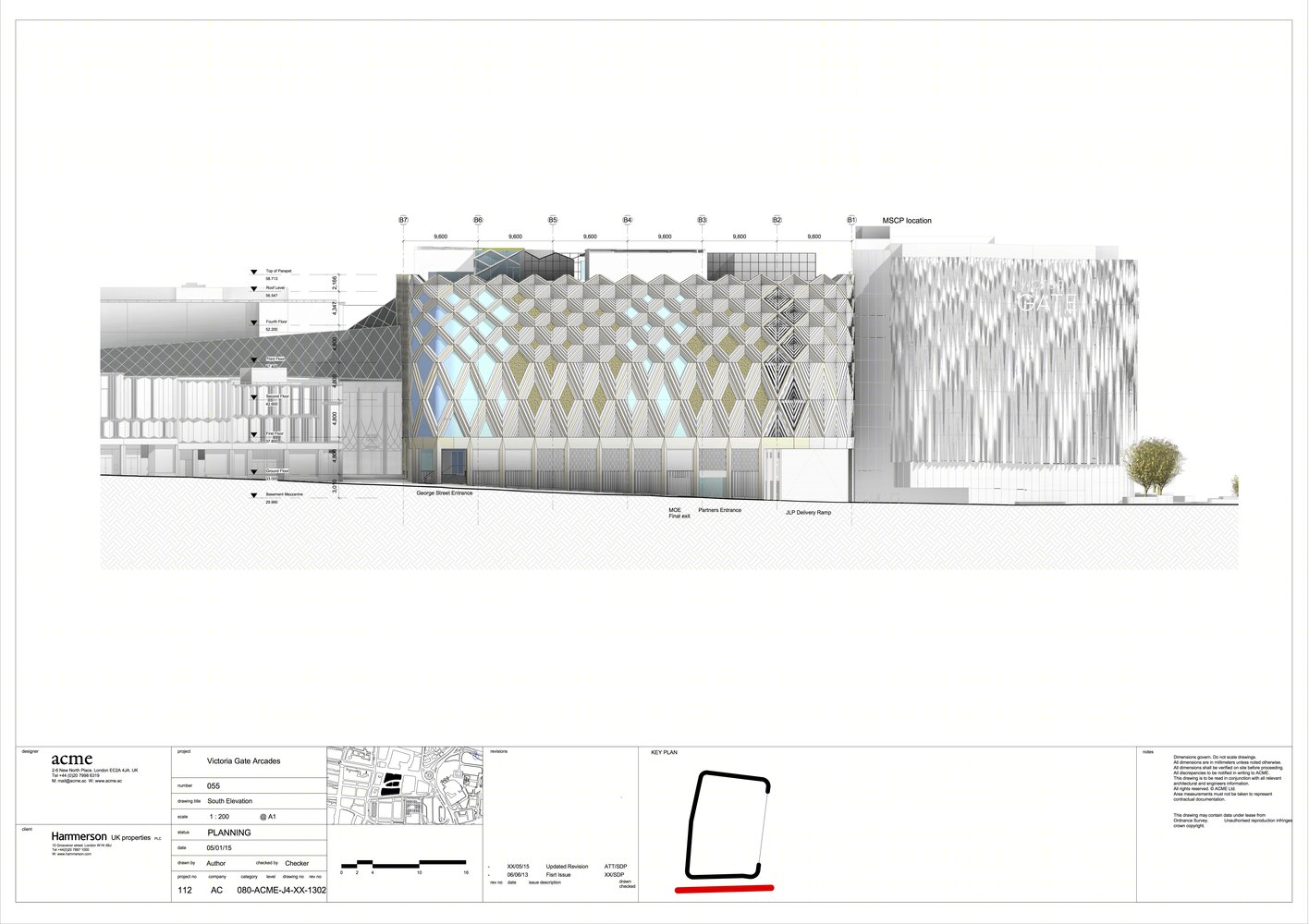

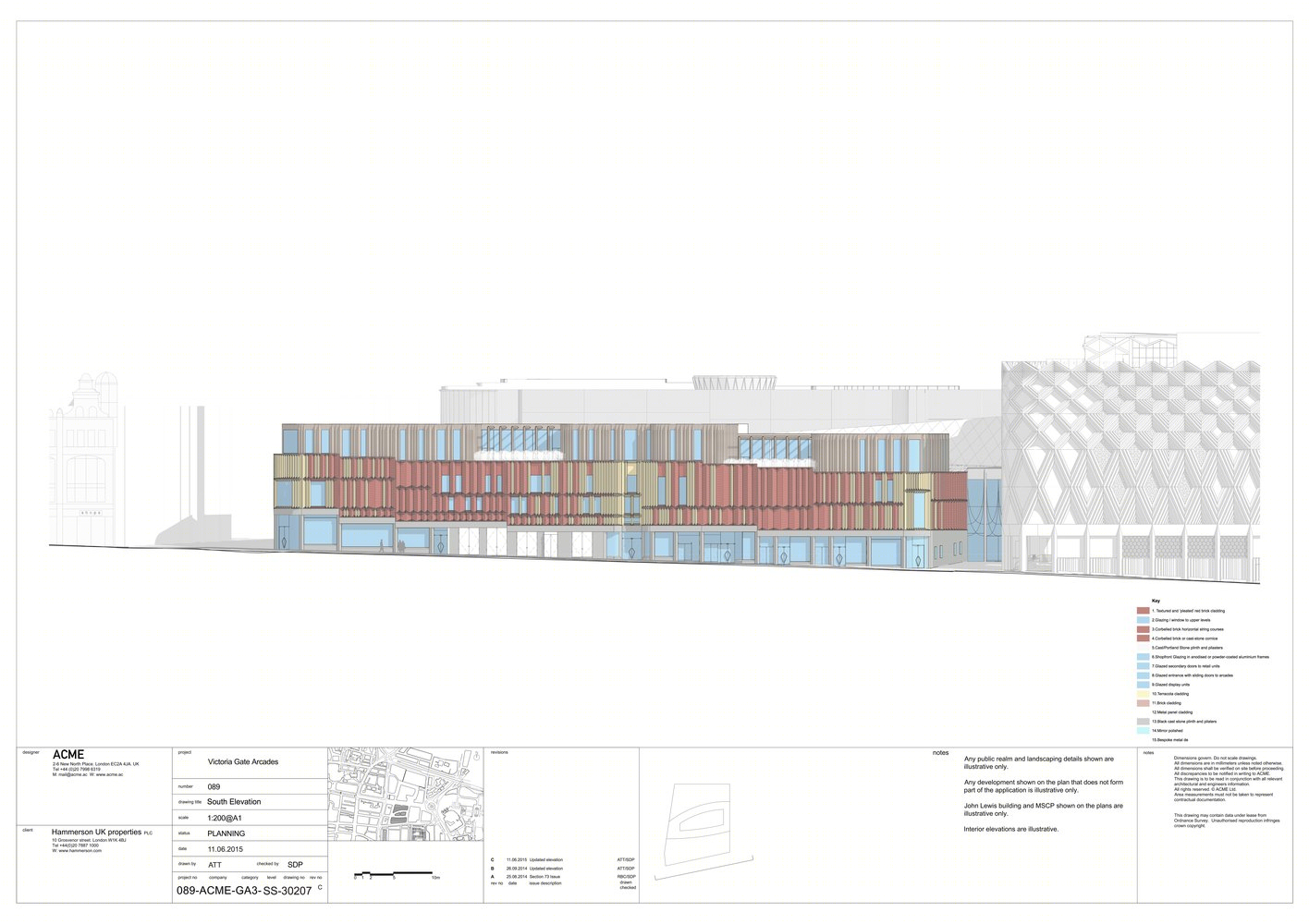

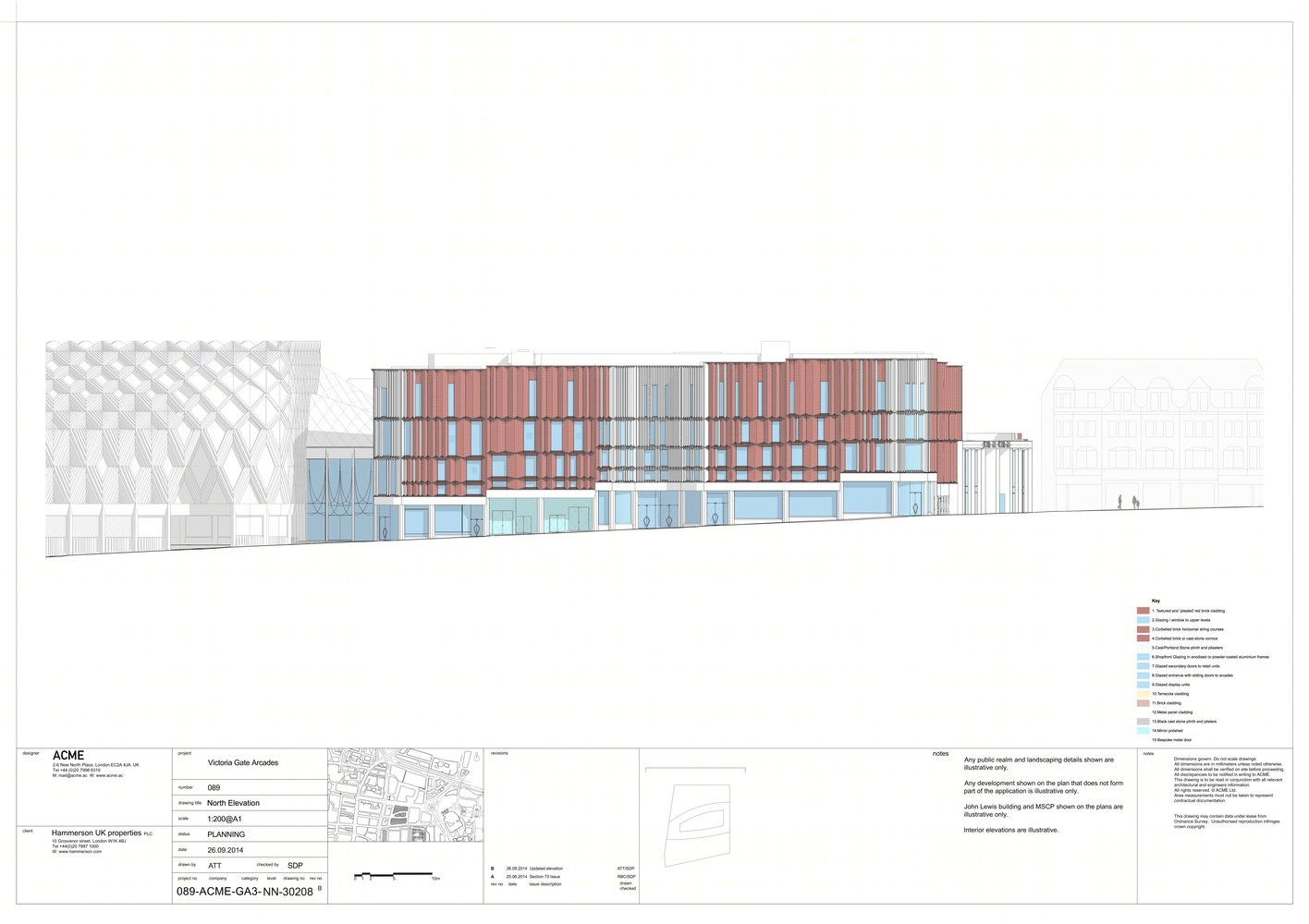

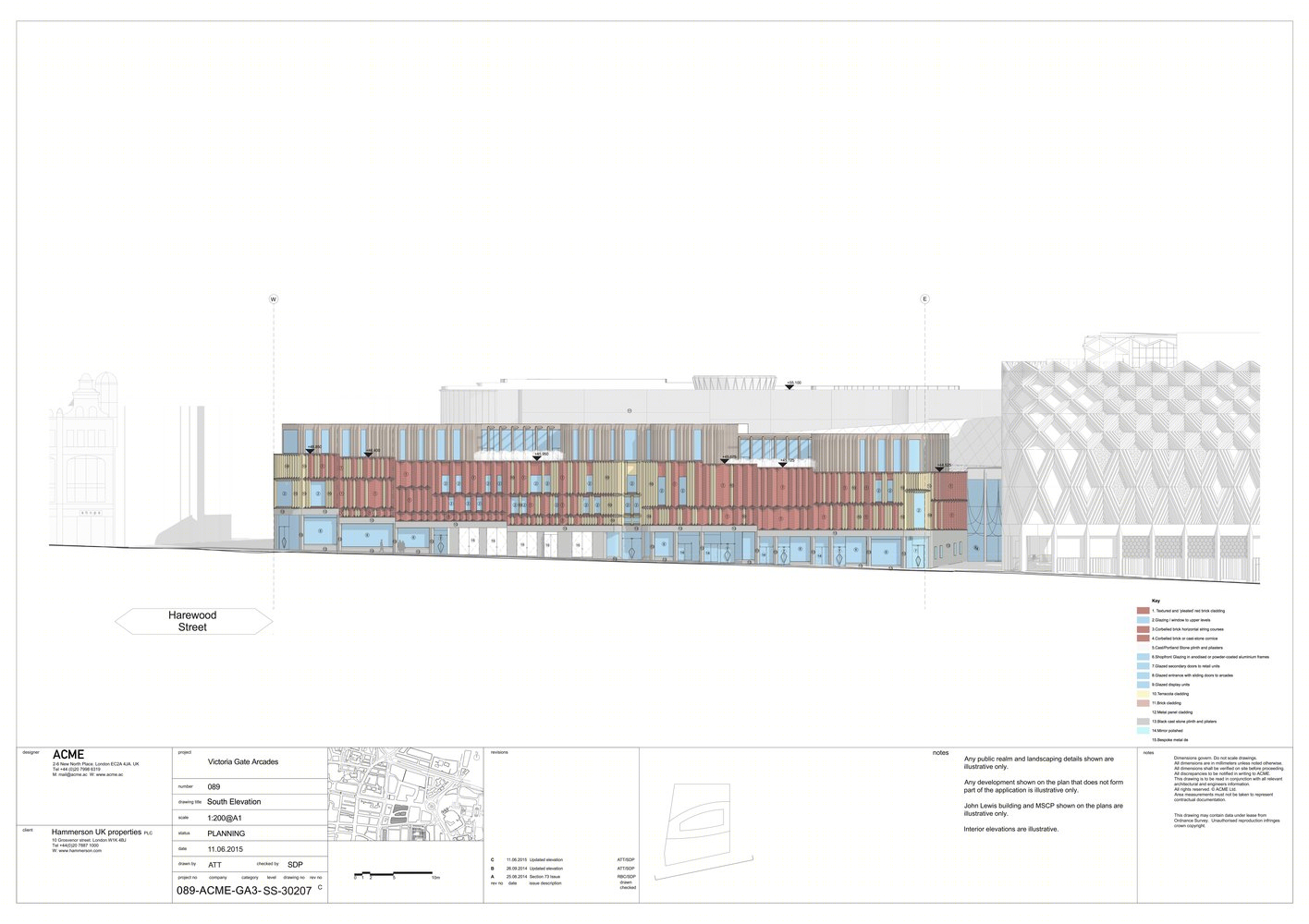

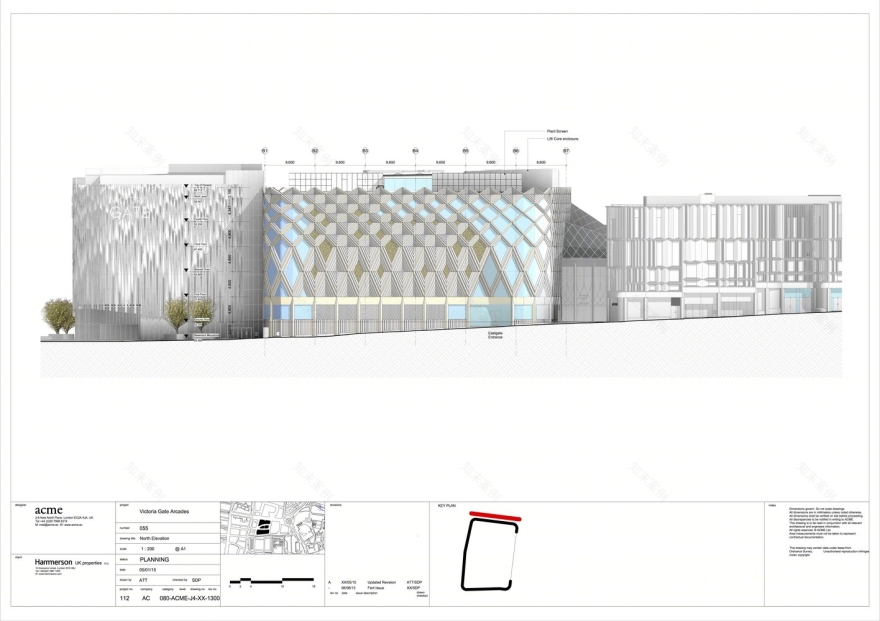

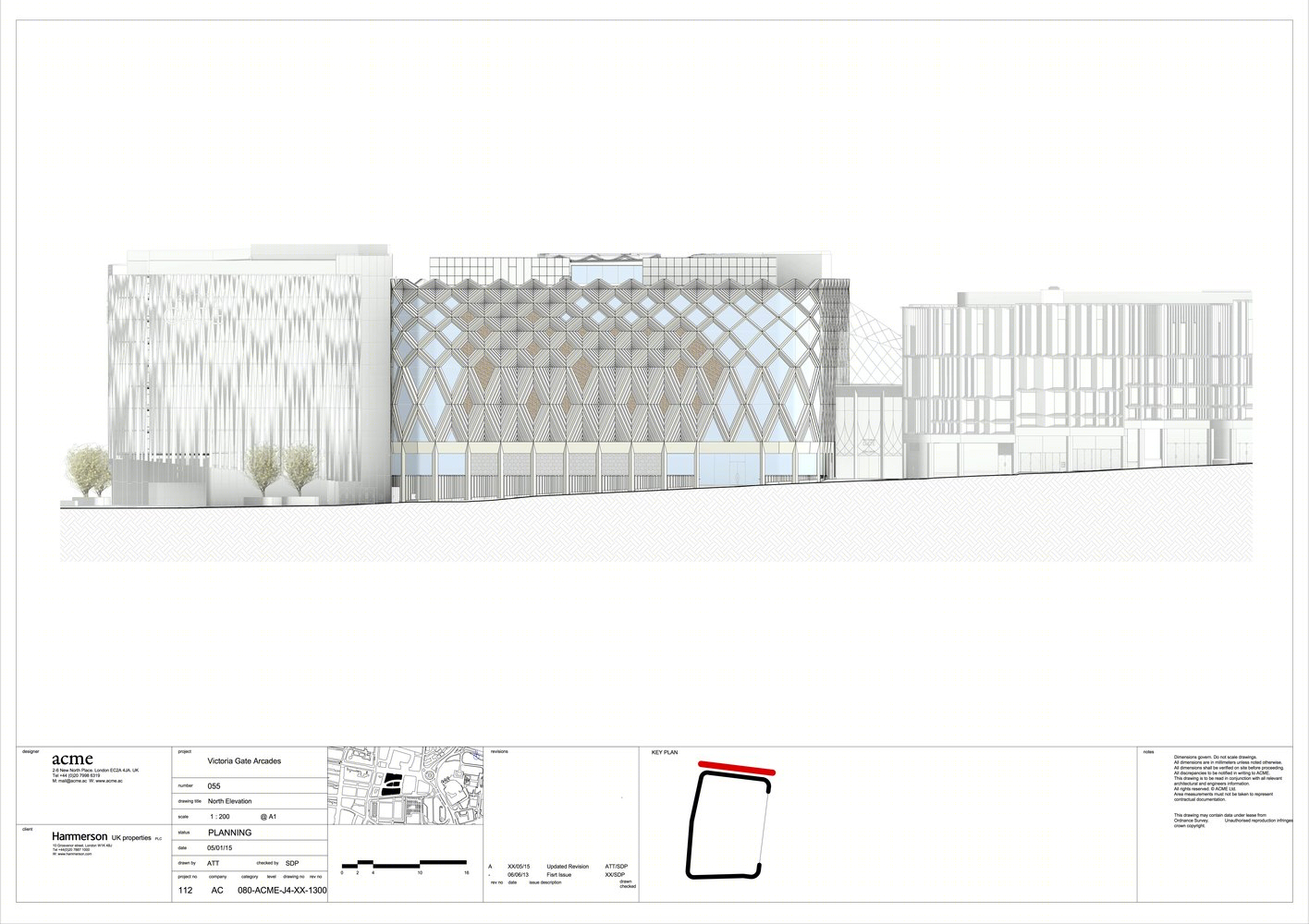

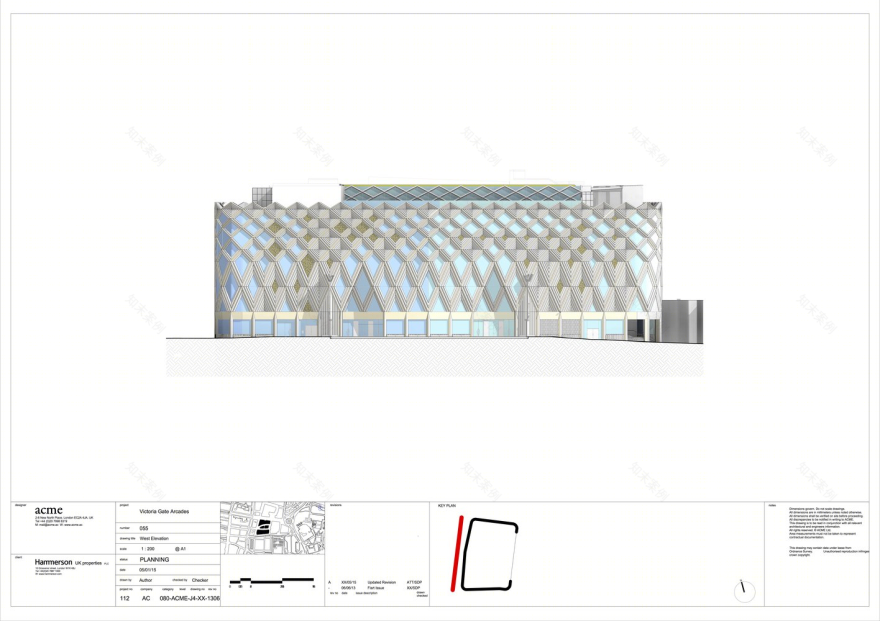

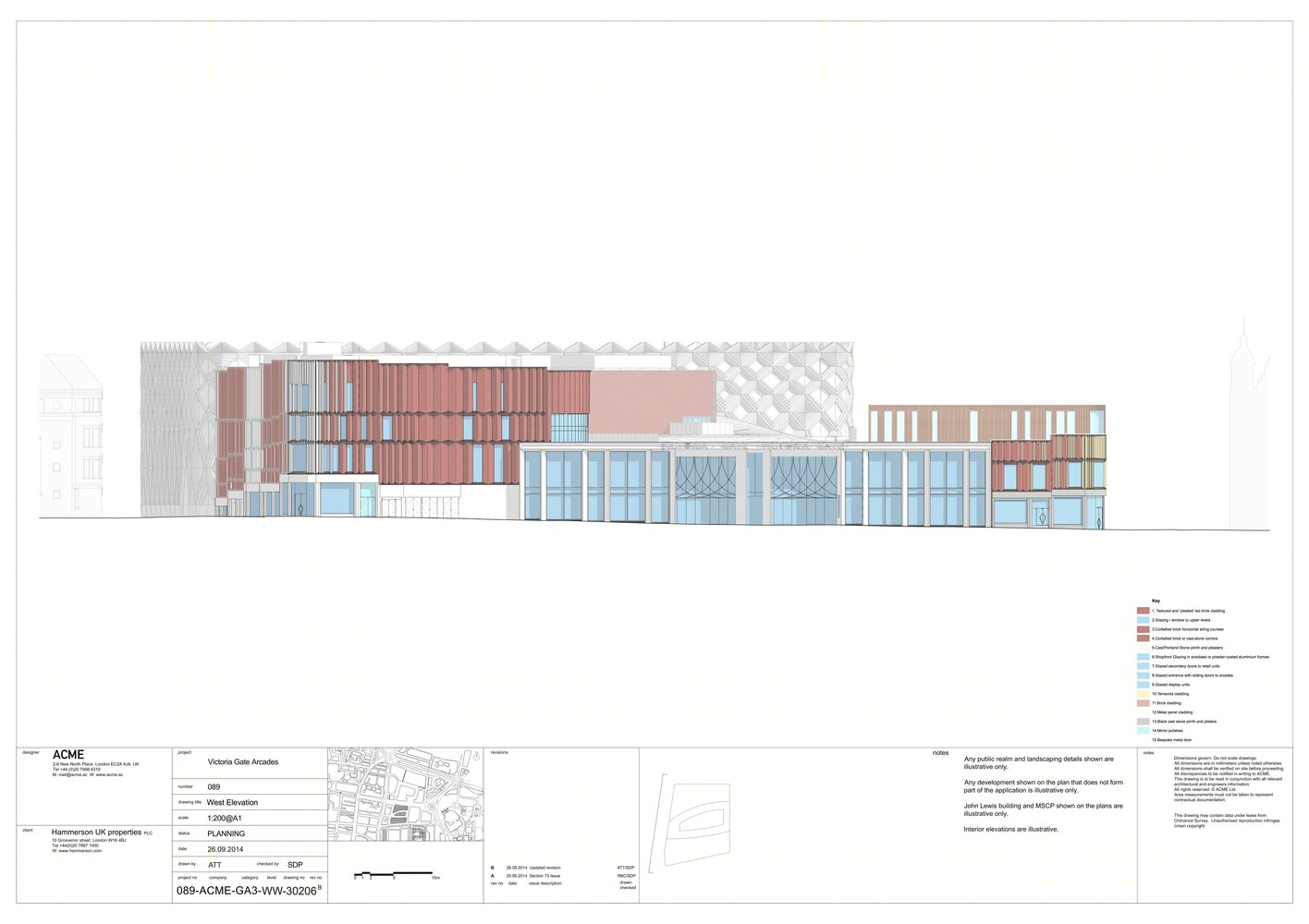

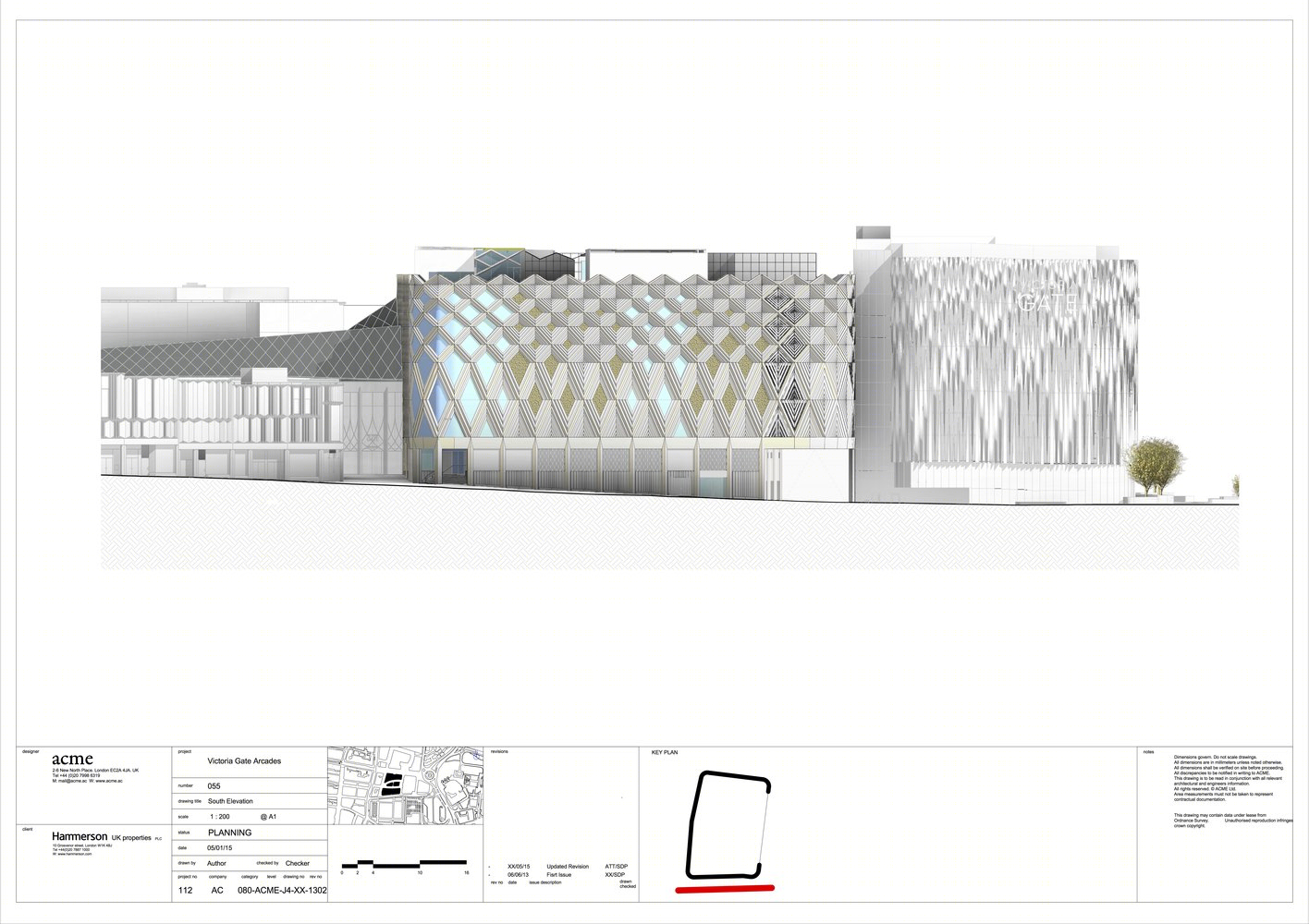

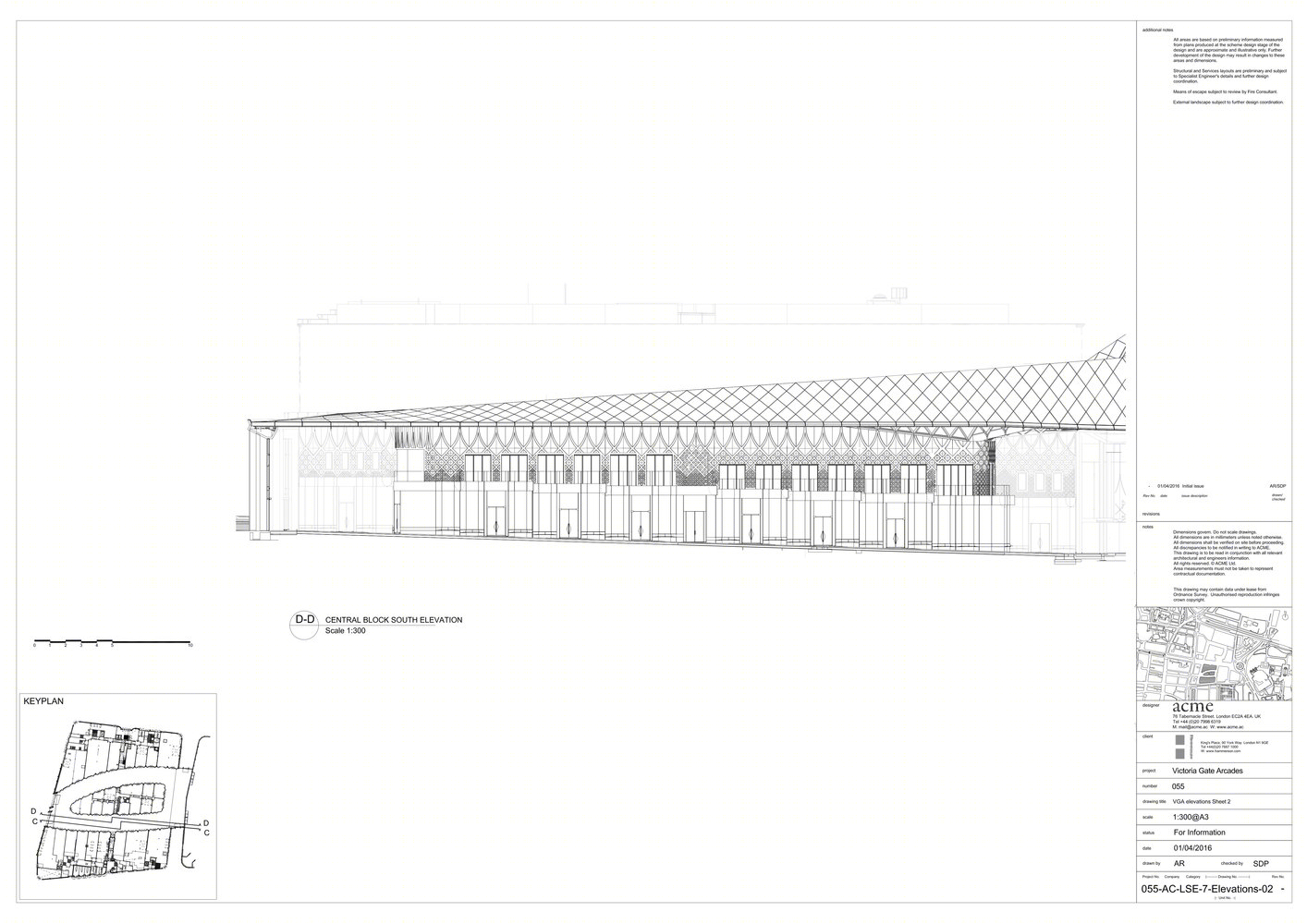

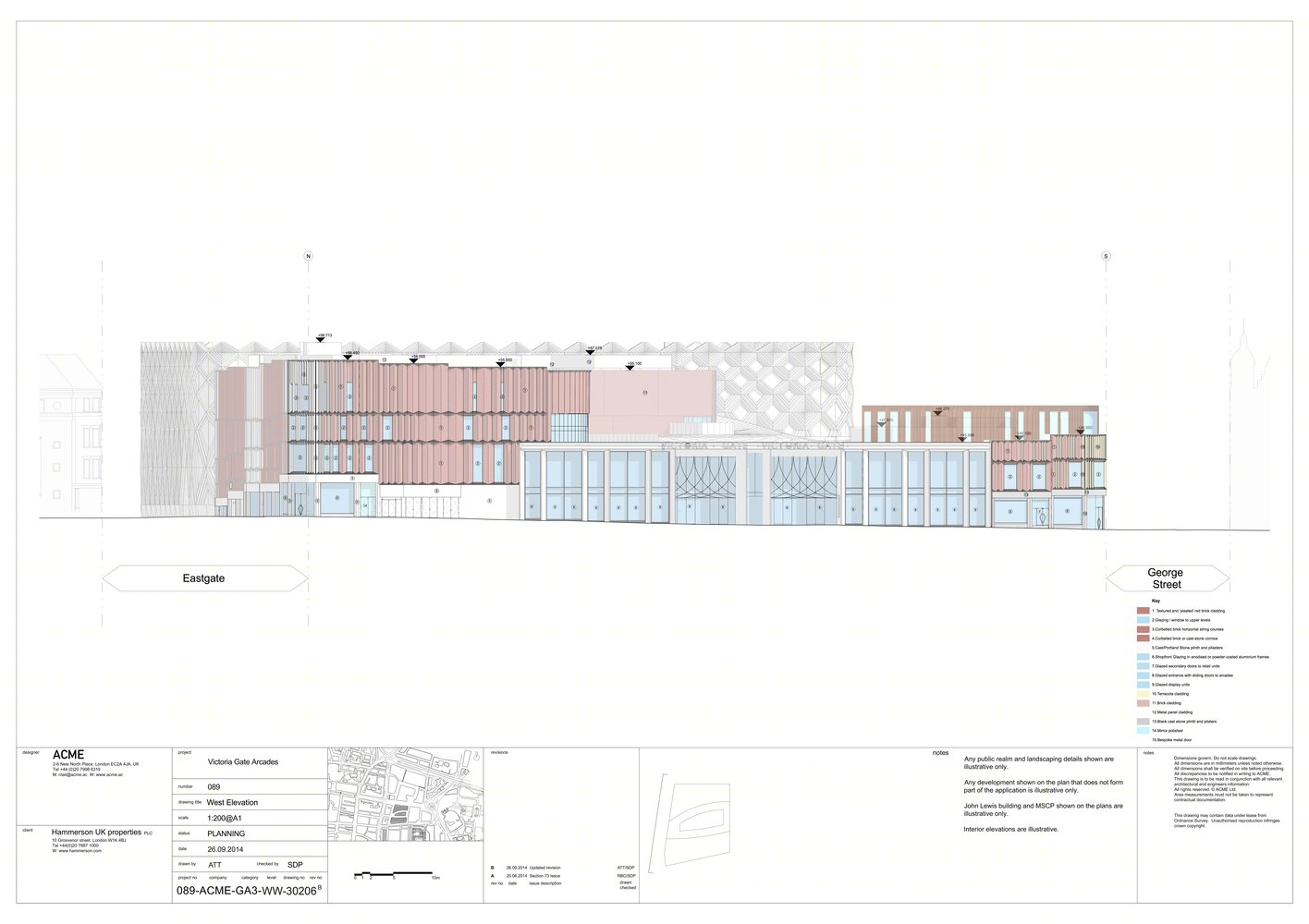

英国VictoriaGate总体规划立面图
