开罗可持续发展综合楼丨Vincent Callebaut Architectures

Cairo complex building sustainable development

设计方：Vincent Callebaut Architectures

位置：开罗

分类：商业建筑

内容：

设计方案

图片来源：Courtesy of VCA

图片：36张

德国VAC公司最近公布了为开罗，纳赛尔设计的可持续发展综合楼，该楼是为得到

绿色建筑

金奖而设计的。大楼的特色是拥有太阳能屋顶、绿色露台、立体花园和太阳能加热管。大楼包括1000个公寓。社区Gate Residence内设有健身俱乐部、温泉、健康中心、商业中心、零售商店和医疗中心。中央的林荫大道形成了建筑的脊椎，U形公寓沿着林荫大道排列，公寓的墙具有各种功能。住房的墙面是层层叠叠的玻璃和抛光的白石头，还有花园式的阳台。商业用房有两种不同的墙面。在人行道、后街和诺扎街旁，购物中心和公寓门口处的透明玻璃门在绿墙间并立着。在更私人的领域，墙上爬满了植物，让这一领域变得更私密。整个楼顶都被设想为社区花园，可种植事物和水果，还有大的泳池和运动场。综合楼的两个建筑物之间由天桥连接。太阳能热水供暖和竖直风车能够就地发电。设计师们创造出了一个叫做Phylolight的独特系统，是在一台仪器中融合城市路灯和垂直风力发电机。此外，在超级树状结构内并沿着内街的生态墙允许通过适用于开罗干燥环境的自然技术来降低温度，净化污水。

译者：蝈蝈

French firm Vincent Callebaut Architectures (VCA) has unveiled a new multi-use complex for Nasr City in Cairo. Designed to obtain LEED Gold Plus standing, the building features a solar roof, green terraces, sky villas, and a vertical system of gardens and solar heating tubes. Composed of 1000 apartment units, the Gate Residence is also designed to include a health club and spa, fitness center, business center, restaurants and cafe, retail, and medical center.

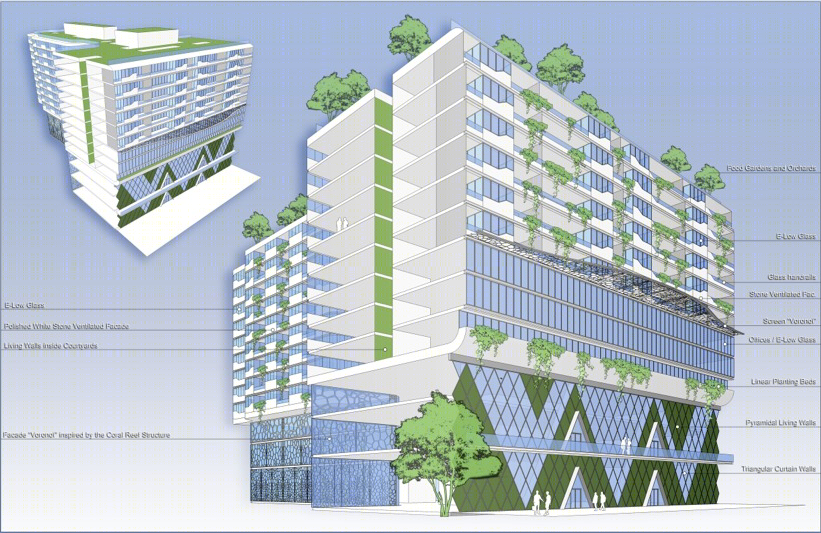

A central street, dubbed the Boulevard, forms the spine of the building. Apartment units are arranged as U-shaped rectangular buildings branching off the Boulevard. These U-shapes are softened by various facade typologies, depending on function. The housing levels are surfaced by stacked layers of e-low glass and polished white stone, punctuated by suspended garden balconies, while the commercial levels have two different facades.

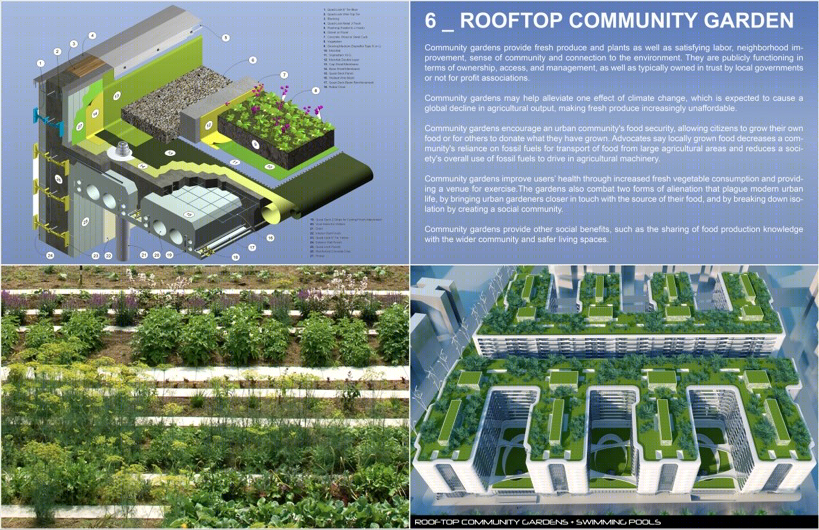

Along the Promenade, Back Street and Nozha Street, a transparent curtain wall juxtaposed by green walls at main entrances for shopping centers and apartment lobbies. In more private areas, a voronoi screen, inspired by coral reef structure, demarcates the patio areas and the inner street between offices and housing. This screen allows climbing plants to grow along its structure and provide further privacy.The entire roof is conceived of as a community garden with food gardens, orchards, infinity pools, and a sports area. The two plots of the complex are connected via sky bridges.

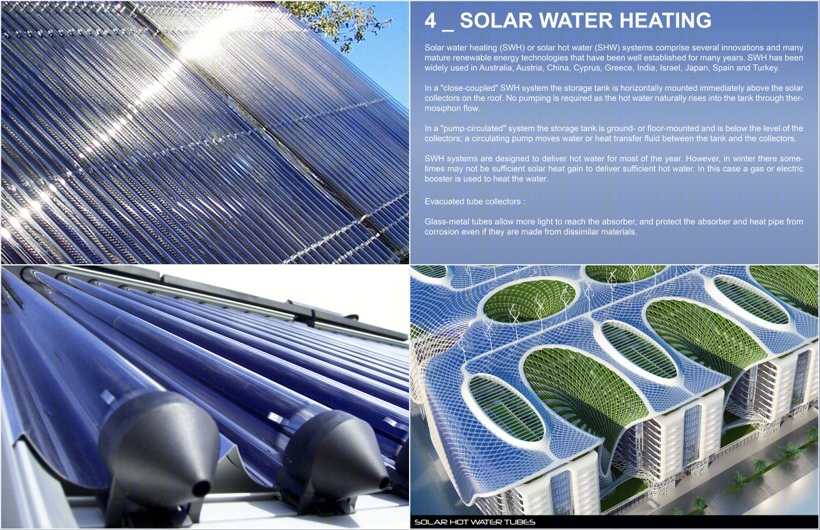

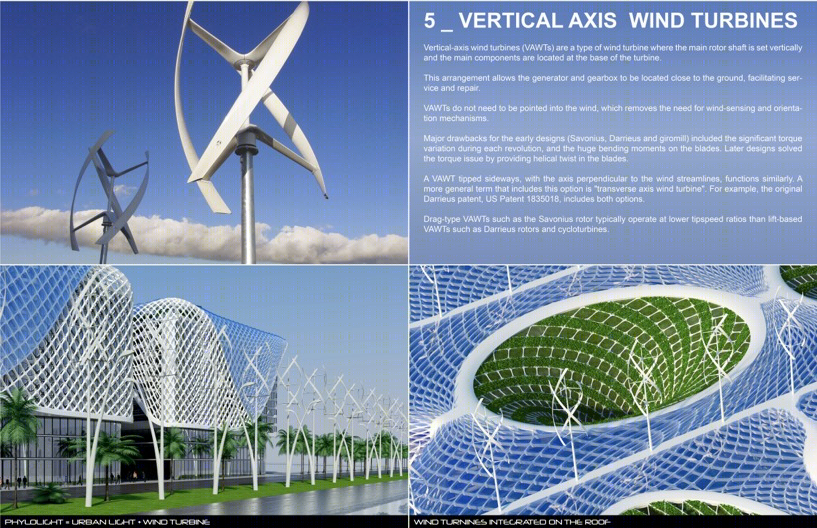

Solar water heating and vertical axis wind turbines also contribute towards in-situ energy generation. The designers have proposed a unique system called the Phylolight, merging urban street light and vertical wind turbines within a single instrument. In addition, living walls within the megatrees and along the inner street allow for temperature reduction and greywater purification through natural technologies suitable for Cairo’s arid climate.

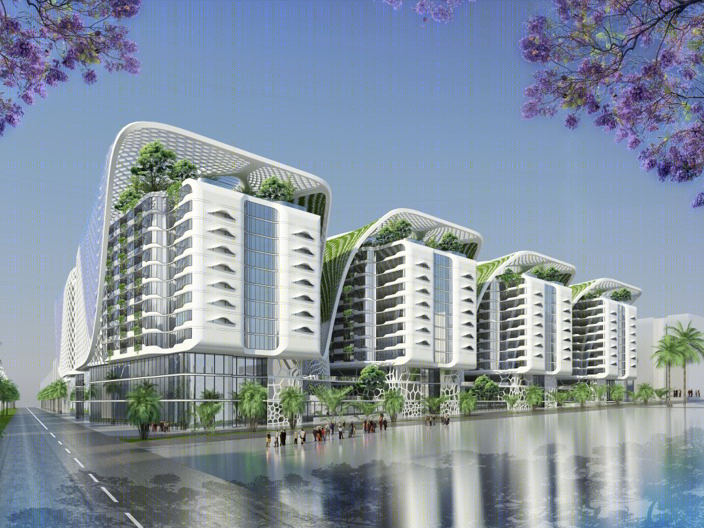

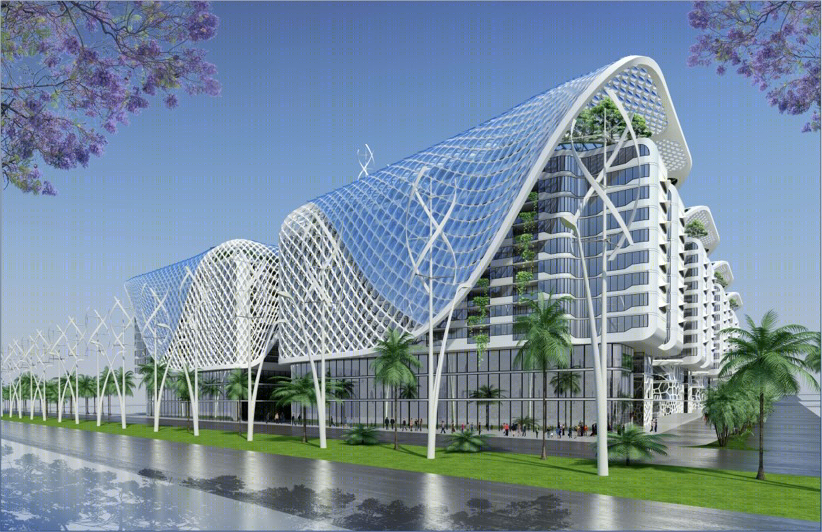

开罗可持续发展综合楼外部效果图

开罗可持续发展综合楼外部局部效果图

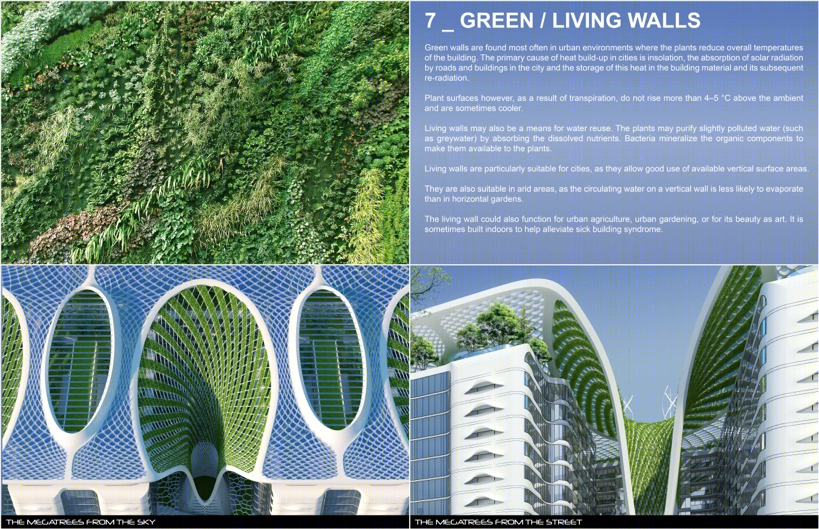

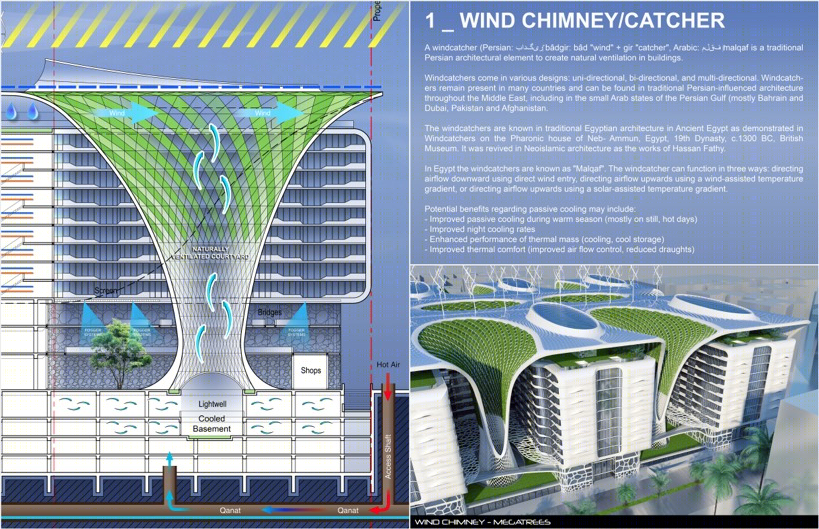

开罗可持续发展综合楼垂直绿化示意图

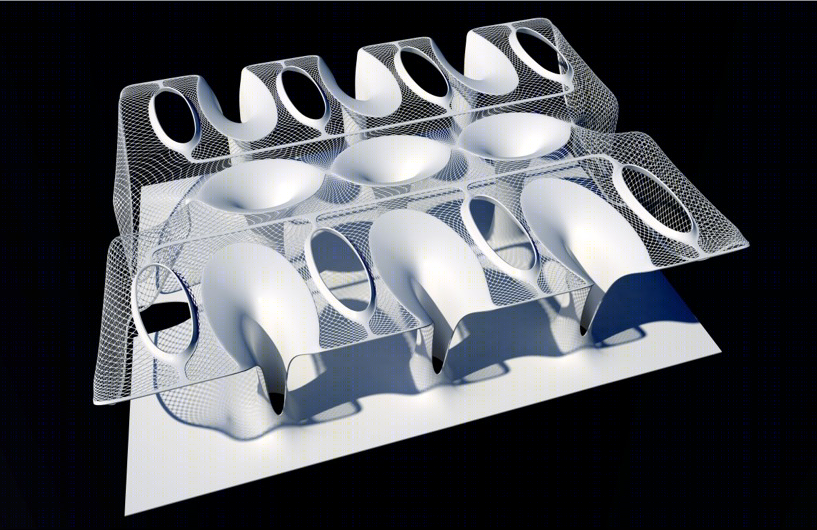

开罗可持续发展综合楼示意图

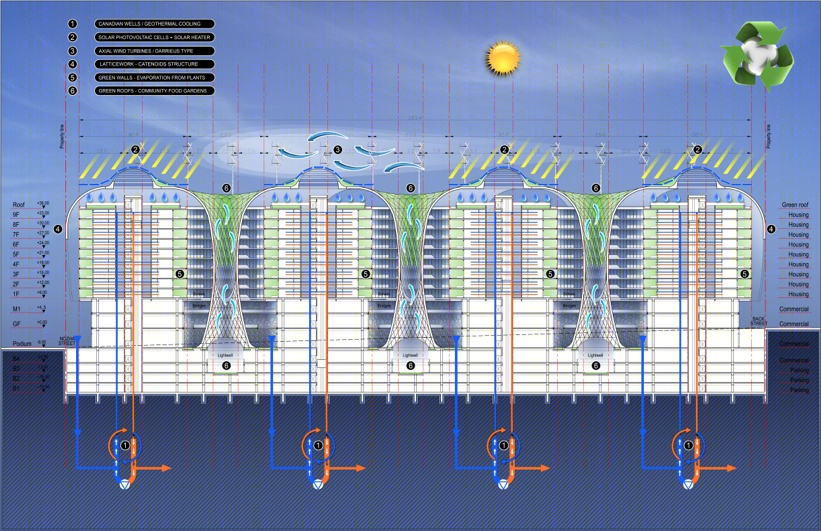

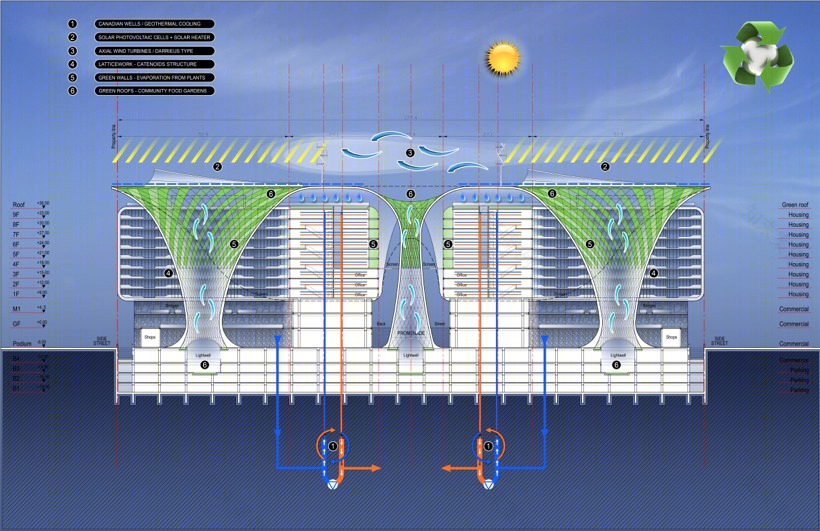

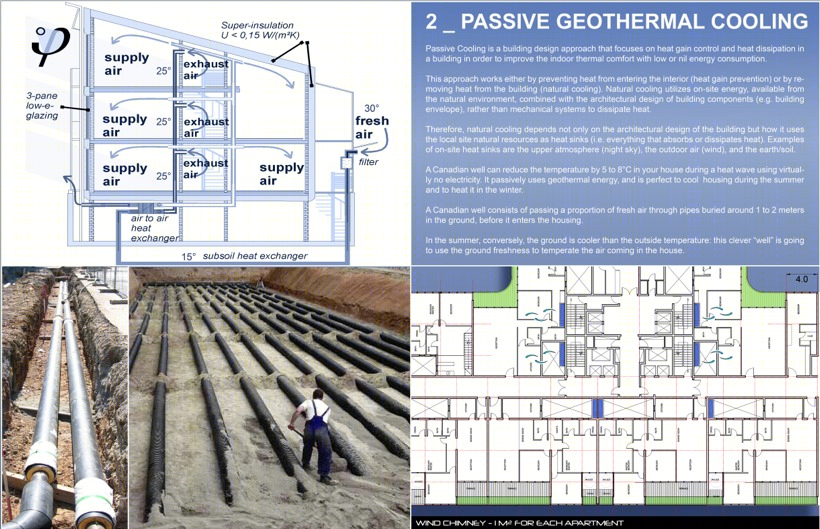

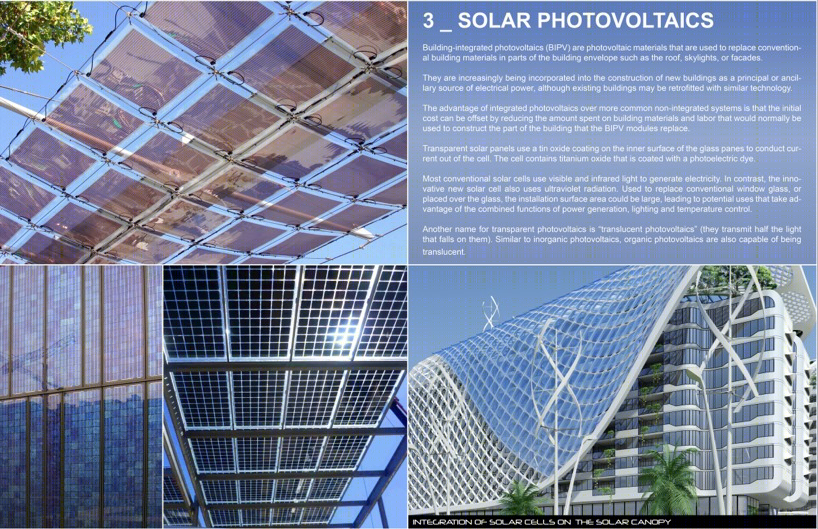

开罗可持续发展综合楼分析图

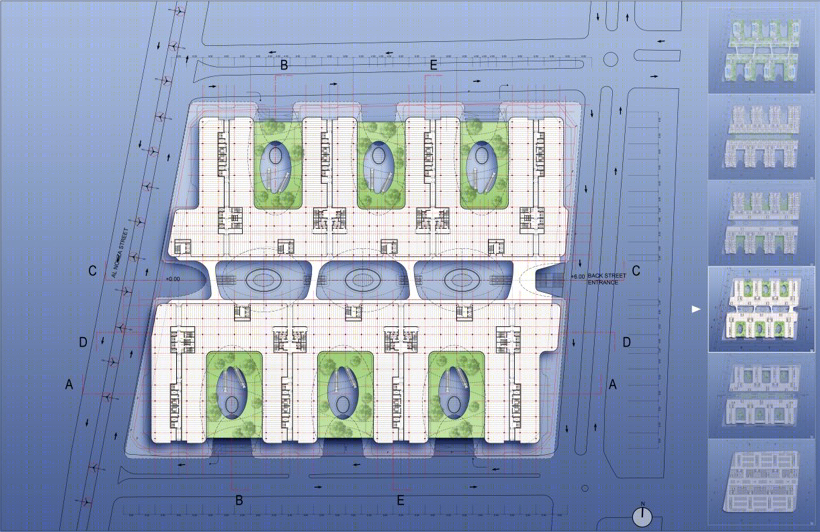

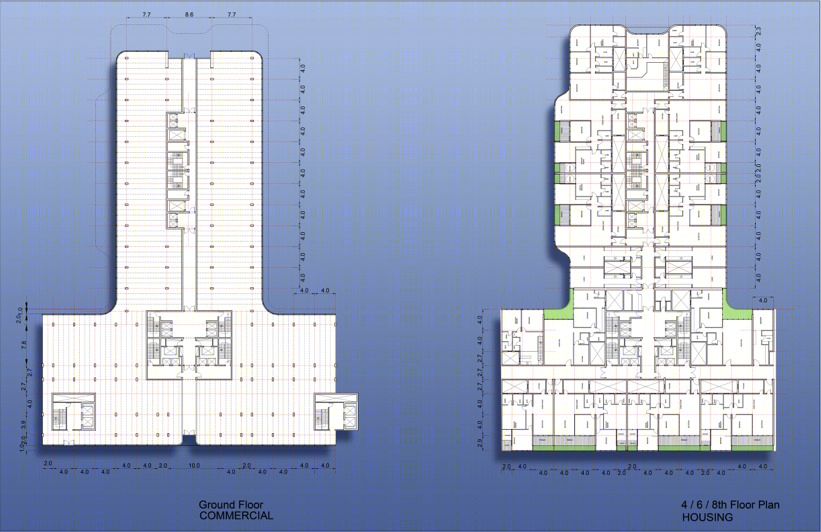

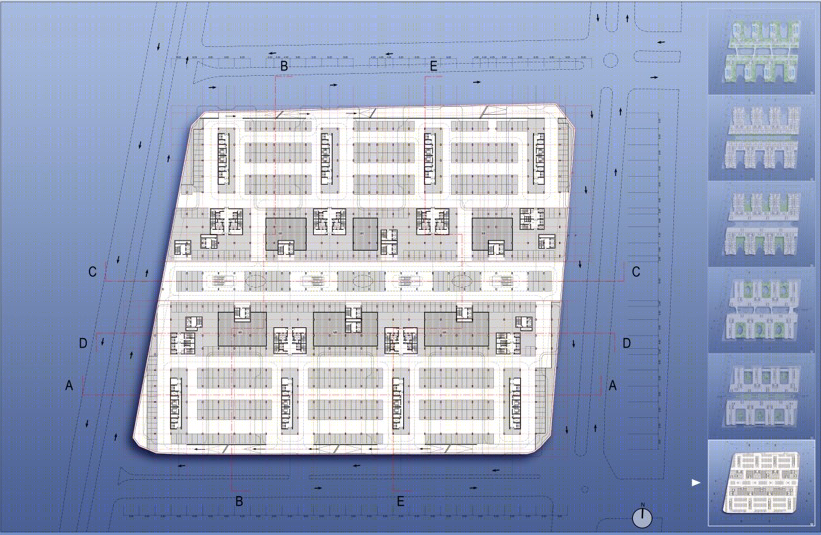

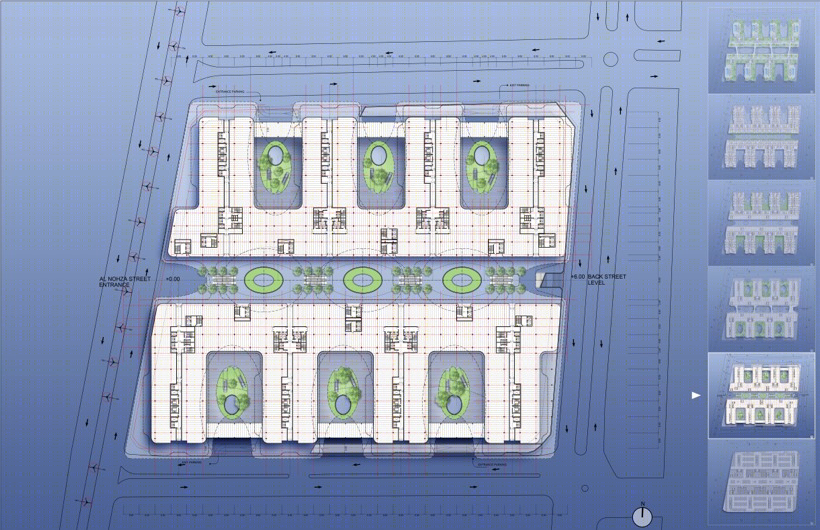

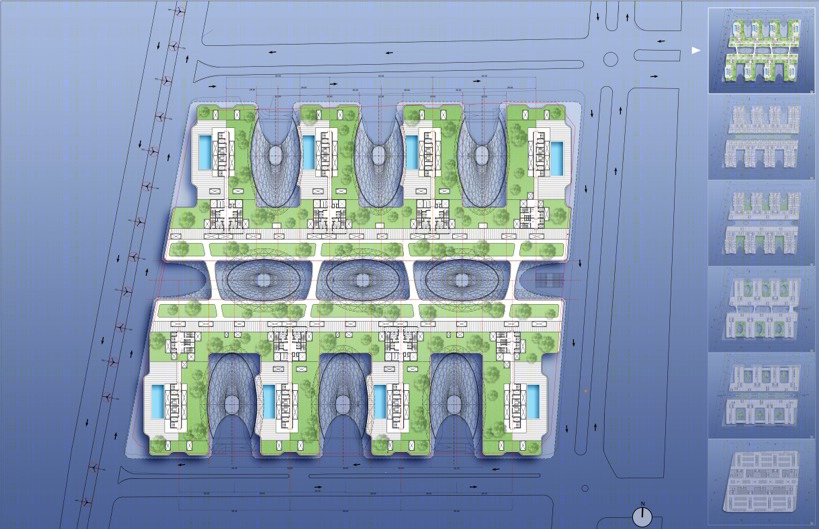

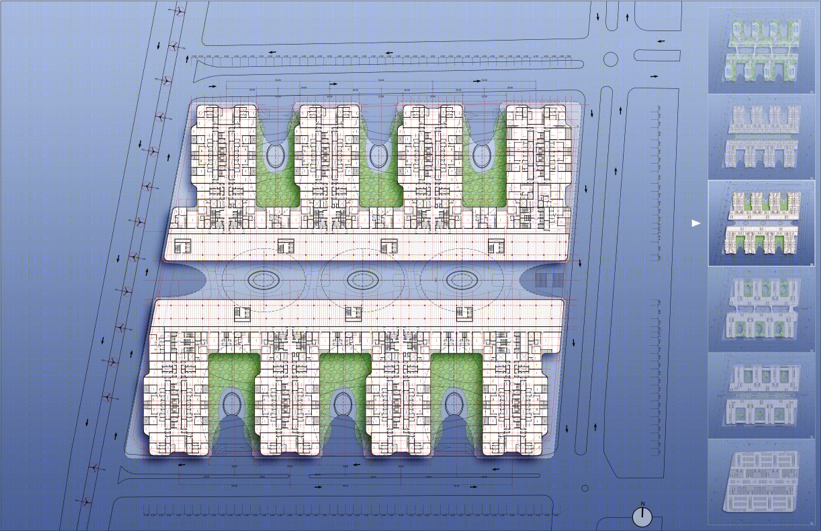

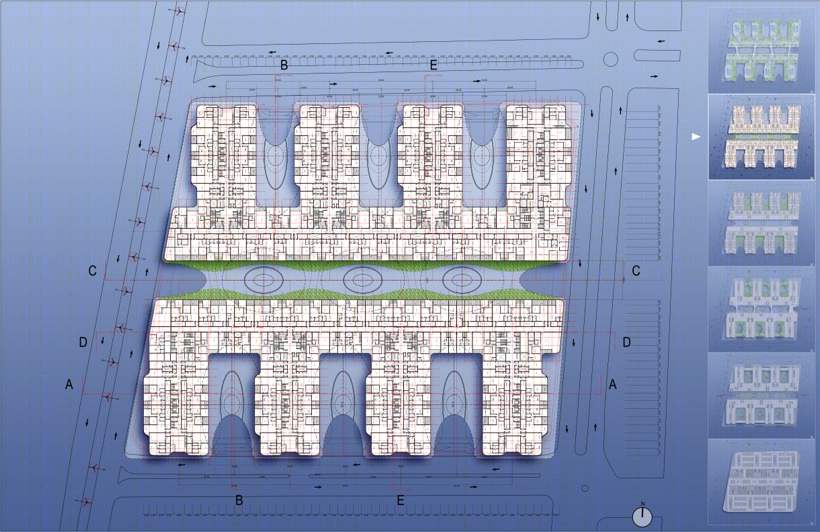

开罗可持续发展综合楼平面图

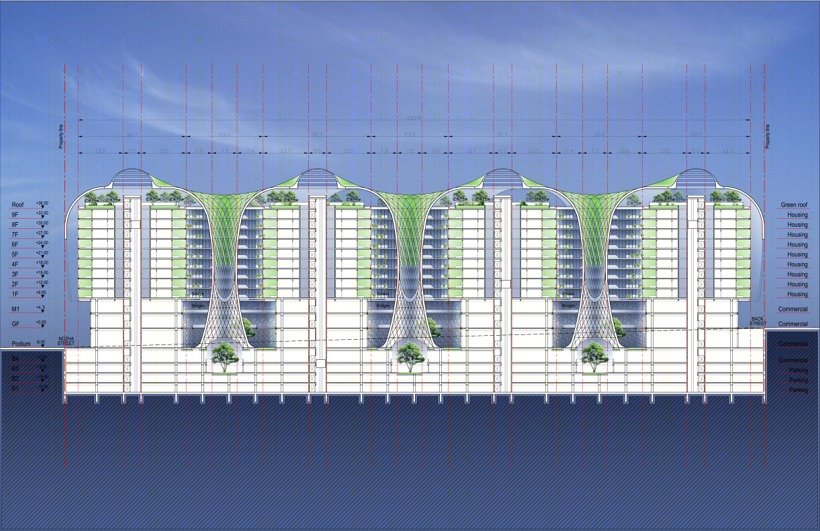

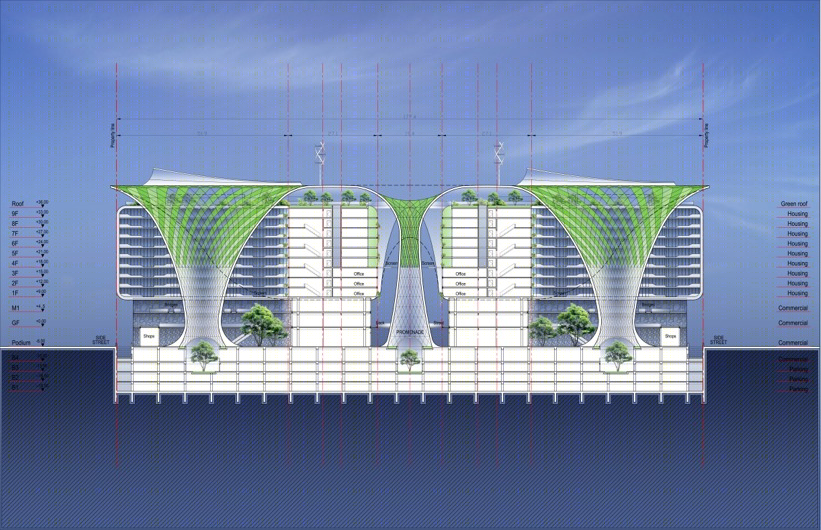

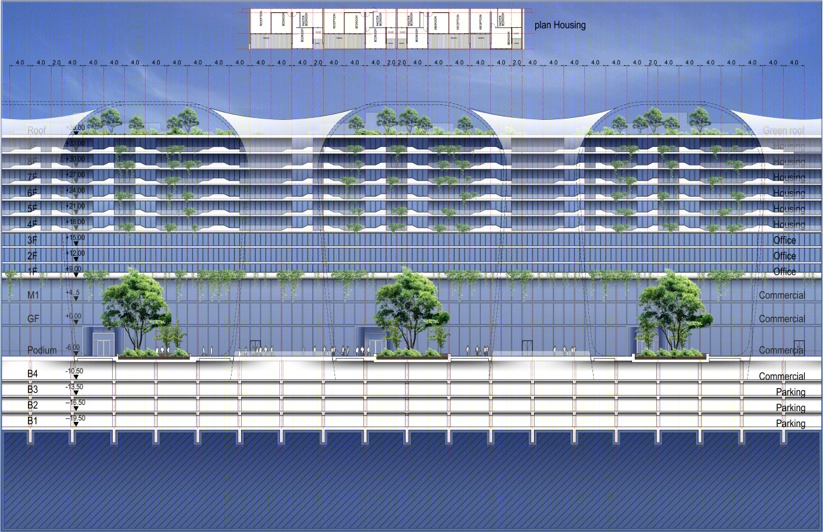

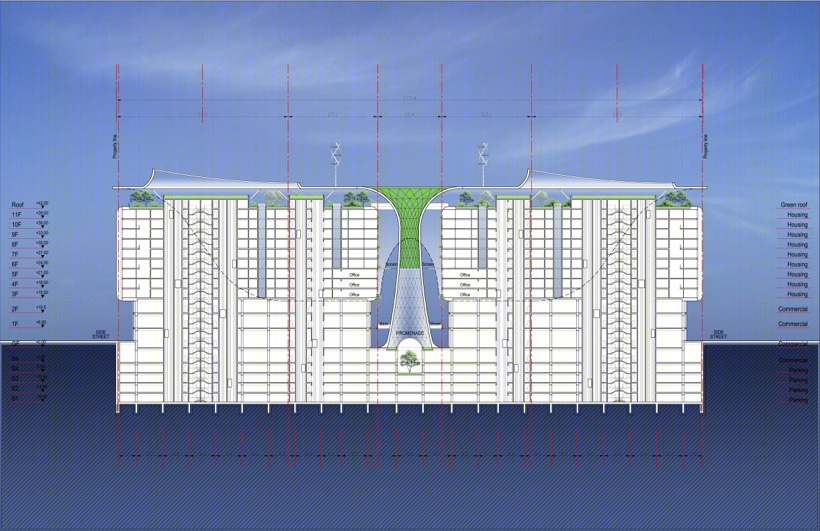

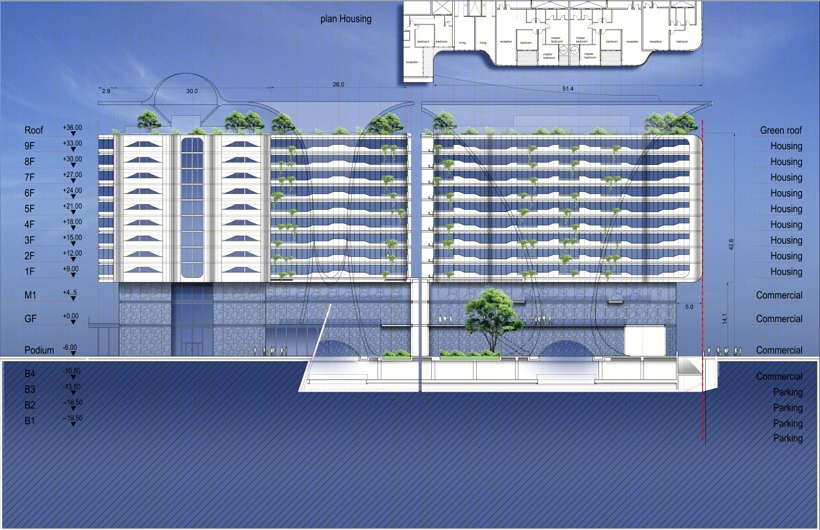

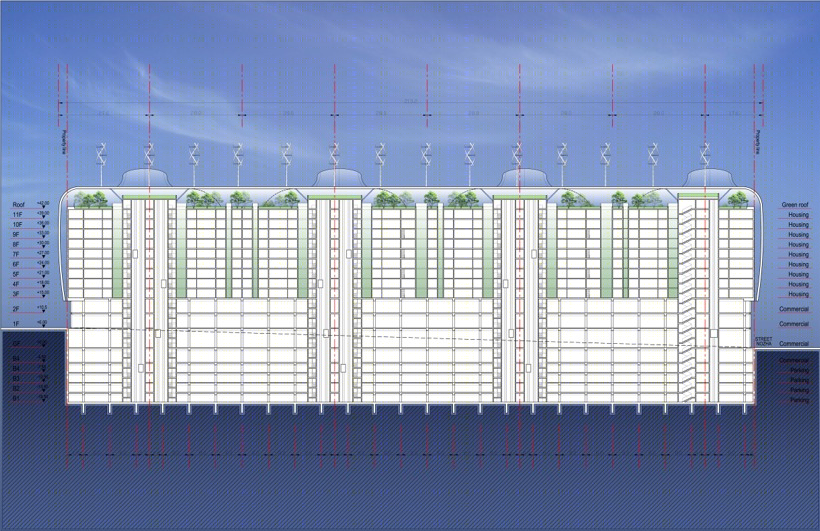

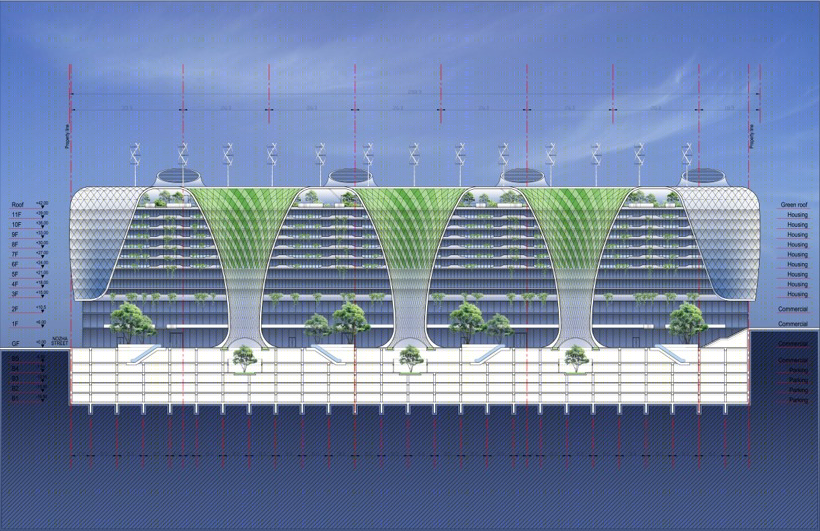

开罗可持续发展综合楼剖面图

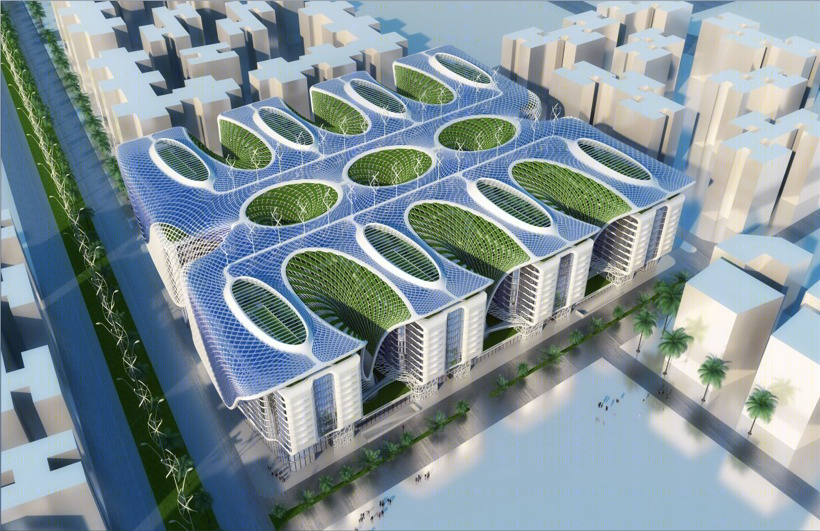

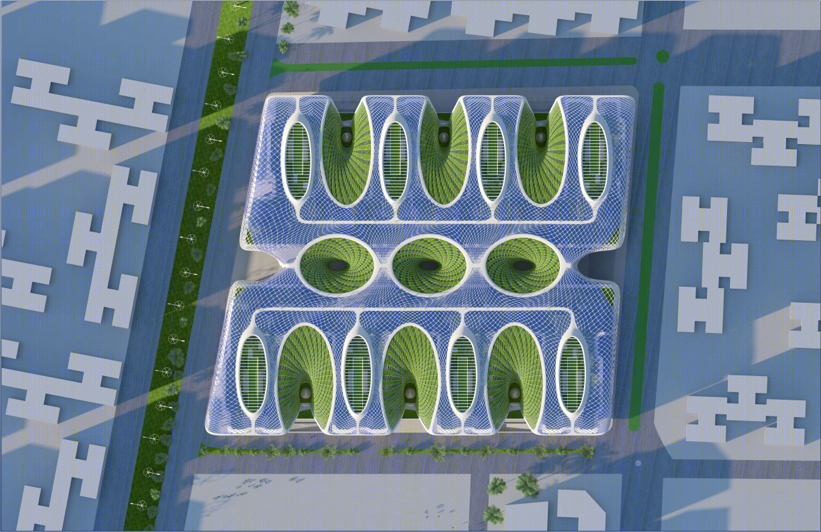

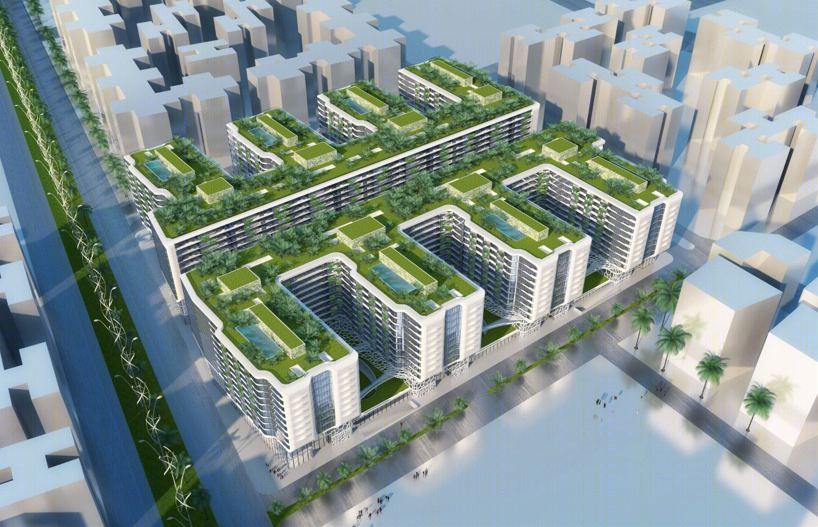

开罗可持续发展综合楼鸟瞰图

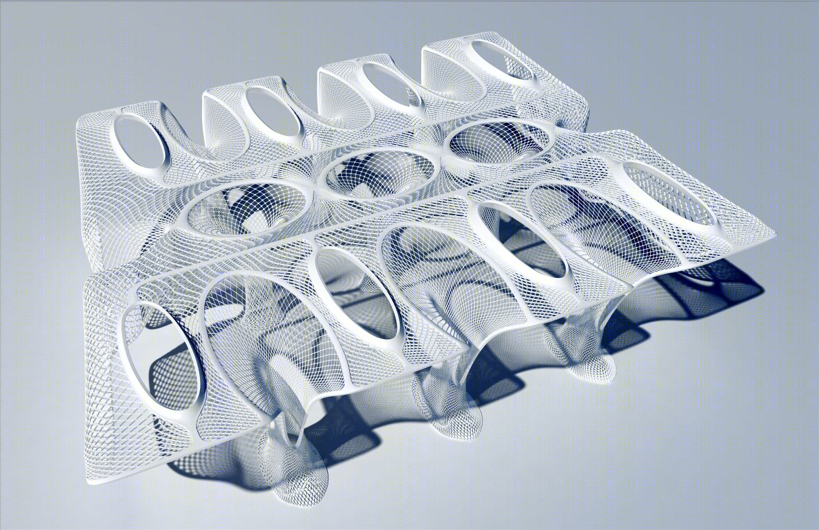

开罗可持续发展综合楼模型图
