海南蓝湾小镇威斯汀度假酒店丨gad·浙江绿城建筑设计公司

hainan Blue Bay Town Westin Resort Macau

设计方：gad·浙江绿城建筑设计公司

位置：海南

分类：宾馆酒店建筑

内容：实景照片

建筑设计负责人：Zhang Wei, Jiang Fang

设计团队：Shang Fei, Wang Jia, Xu Qin, Hu Damin, Li Baozhong, Tian Senyuan, Chen Yonghao, Li Zijie, Li Yanfeng

图片：23张

摄影师：Yao Li, Zhao Qiang, Ian F. Gibb

这是由gad·浙江绿城建筑设计公司设计的海南蓝湾小镇威斯汀度假酒店。该项目位于海南陵水清水湾，相对于在热带地区建造东南亚建筑风格的传统手段，设计师另辟蹊径，将酒店定位为现代、舒朗而又有滨海度假氛围的独特风格，独具匠心地单用一条简单曲线，使得酒店几乎所有客房均直面大海。对此，酒店管理公司赞赏有加，并称其为最好的利用海南海景的五星级酒店。在此基础上，结合海南当地气象环境——海风，设计师又把这条曲线抬离地面8m，形成令海风穿行其间的通道，创造出各种功能区域的同时，也为其提供了良好的自然气候。

这条长长的灰空间，不仅成为酒店内部的主要动线，而且使各种功能空间有机会自成体系的组织院落。如会议的院落、中餐的院落、spa的院落等等。使用者可以享受到大型酒店的设施，也可以感受到小型酒店的情趣。这些院落既相互独立又相互连接，与上方“悬浮”着400间客房的“庞然大物”融为一体，成为该

酒店设计

中的另一个亮点。同时，客房的“悬浮”使得更多的功能空间有了欣赏海景的机会。例如在宴会厅的前厅和草坪上，可以顺畅地欣赏到远处猴岛与海平面的亲密关系。并且不管是在竖直方向还是水平方向，各种主要的功能空间观海的视线均相互避让，因此形成了最大化的观海面。这也是酒店管理公司倍加推崇的原因之一。

虽然海南的海风舒爽，但到了台风季节却是威猛无比。为了在此季节仍能正常运营，酒店中几乎所有的重要空间都做了可开可合的外墙门窗设计。而在风和日丽的日子里，这些玻璃外墙可以完全通长地打开，那些安静的座椅区转眼又变成了室外空间的一部分。

海南强烈的阳光带来了明亮的天空与白色的沙滩。建筑本身的色彩设计与这亮色相呼应。外墙铝板中的珍珠光泽在不同时段的阳光下显现出不同的光泽。加上建筑飘逸的水平线条与通透的淡色玻璃，站在远处遥望，恍惚间仿佛真的看到如此体量的建筑流动荡漾起来。或许只有设计师知道，在这样的观感下其实是扎实稳健的纯钢结构骨骼。

译者： 艾比

The project is located at the most east end of the Clear Water Bay, Lingshui County of Hainan. Blue sky and sea, white sand constitute superior natural landscape of the base. Over the past years, increasing newly-built five-star hotels in Hainan have intensified the competition. Thus, to stand out among the hotels with its own characteristics become the core task for this design.

Instead of traditional Southeast Asian architectural style for hotels in tropical areas, the designers have creatively targeted at the unique style of modern relaxing hotel which also boasts seaside resort atmosphere. During the process of design, discarding the common practice of facing the architectures to the sea and enclosing a garden for most resort hotels, the designers have originally adopted a simple curve, making almost all guest rooms face directly the sea. For this, the hotel management company has spoken highly of it, saying that it is the five-star hotel making best use of Hainan seascape. Based on that and in combination of the local Hainan climatic environment—sea wind, the designers have further lifted the curve to 8m from the ground, forming a channel through which sea wind may blow.

Besides creating various functional regions, it also provides with favorable natural climate. The long gray space has not only become a main circulation line within the hotel, but also enabled various functional spaces to form independent courtyards. For example courtyards for meeting room, Chinese cuisine restaurant and spa. Users can enjoy the facilities of large hotels as well as fun of small hotels.

The courtyards are independent from each while connected to each other and integrated with the upside colossal “floating” 400 guest rooms, making another highlight of the hotel design. Meanwhile, the “floating” guest rooms have rendered access to seascape to more functional spaces. For example, on the lobby and lawn of the banquet hall, you can freely appreciate the close relations of the Monkey Island and the sea level. Both vertically and horizontally, views from the main functional spaces to the sea are not interfering with each other, and thus a maximized horizon is formed. It is another reason for the hotel management company’s appreciation.

Fresh and comfortable sea wind in Hainan can be wild in typhoon seasons. To maintain normal operation in such seasons, almost all importance spaces of the hotel are equipped with outer wall doors and windows that can be opened and closed. In sunny days, these glass outer walls can be completely opened and that quiet seat zone instantly becomes a part of the exterior space.

The strong sunlight brings Hainan bright sky and white beach, with which the color design of the architecture echoes. The pearly luster on the aluminum sheet of the outer wall presenting various glosses under sunlight of different time, together with the graceful horizontal line of the architecture and the transparent light glasses, has made the architecture of this size flow when observed at a distance. Maybe only designers know that it is actually solid and stable clean steel structure.

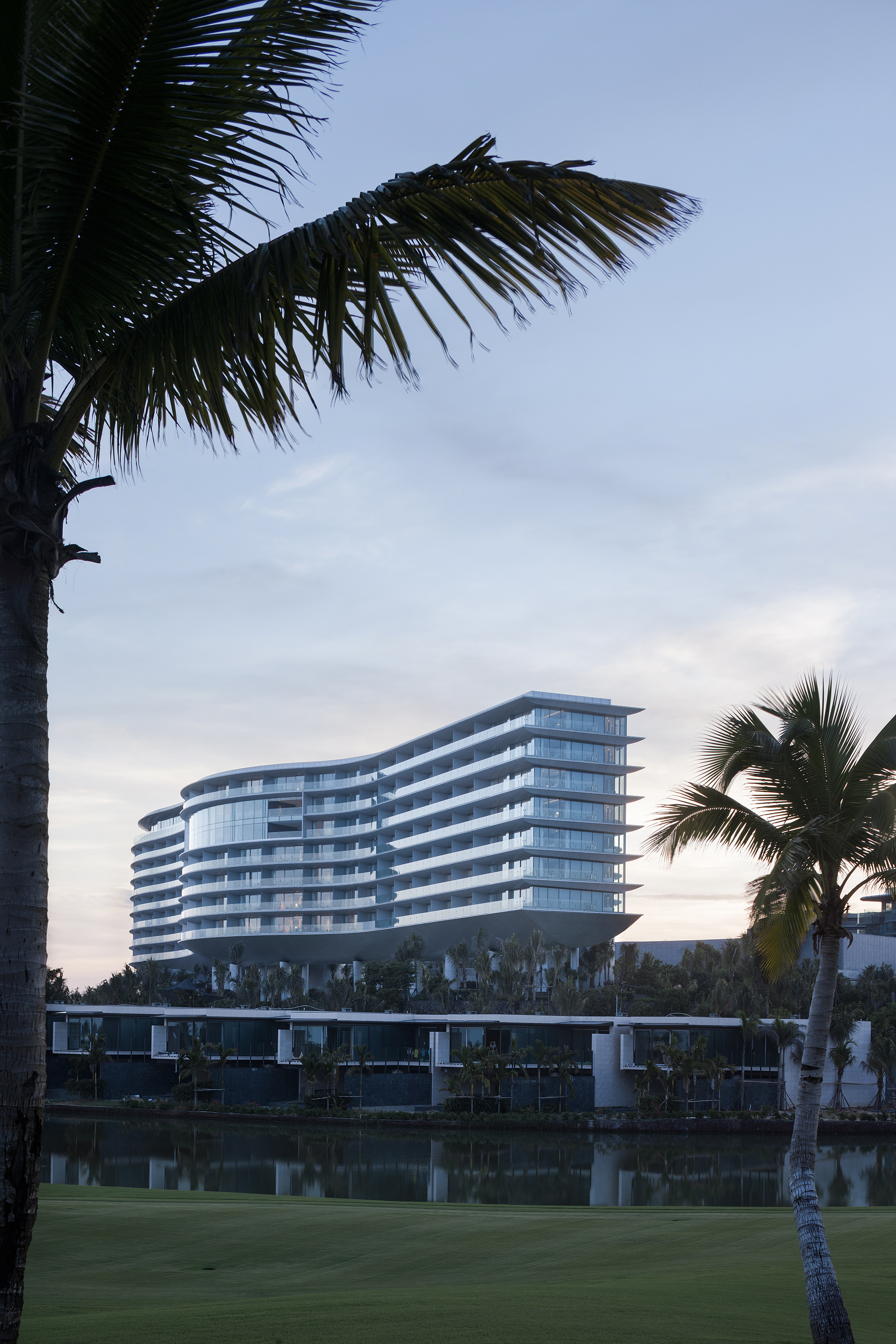

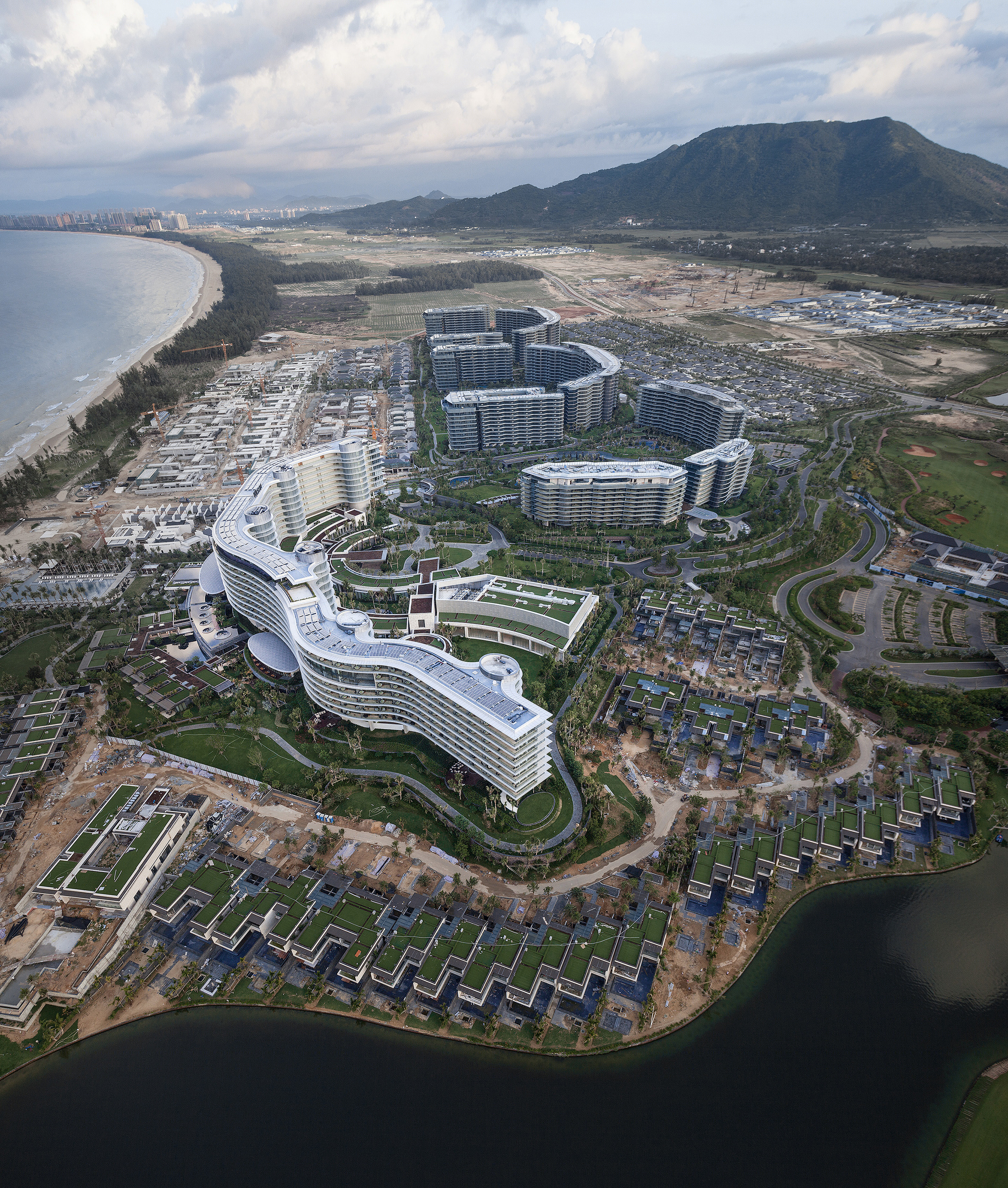

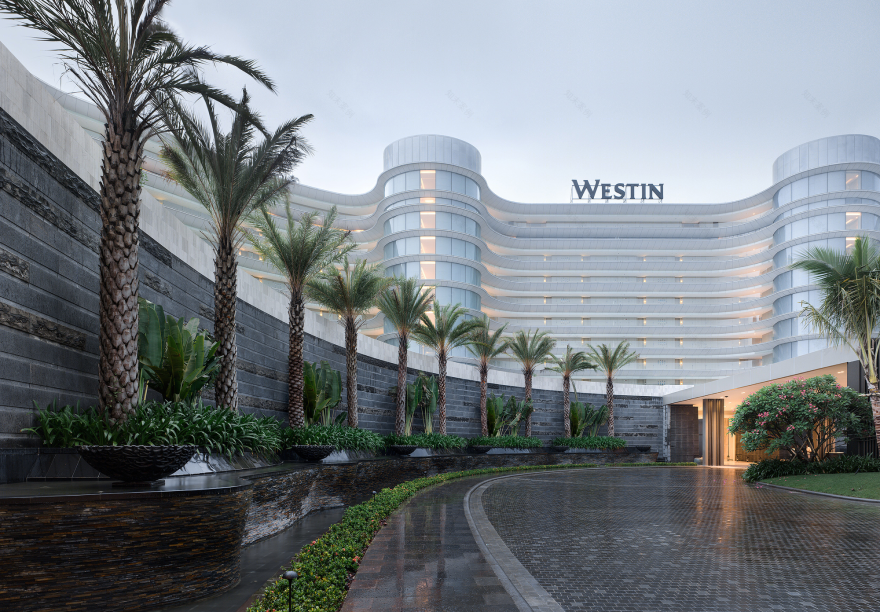

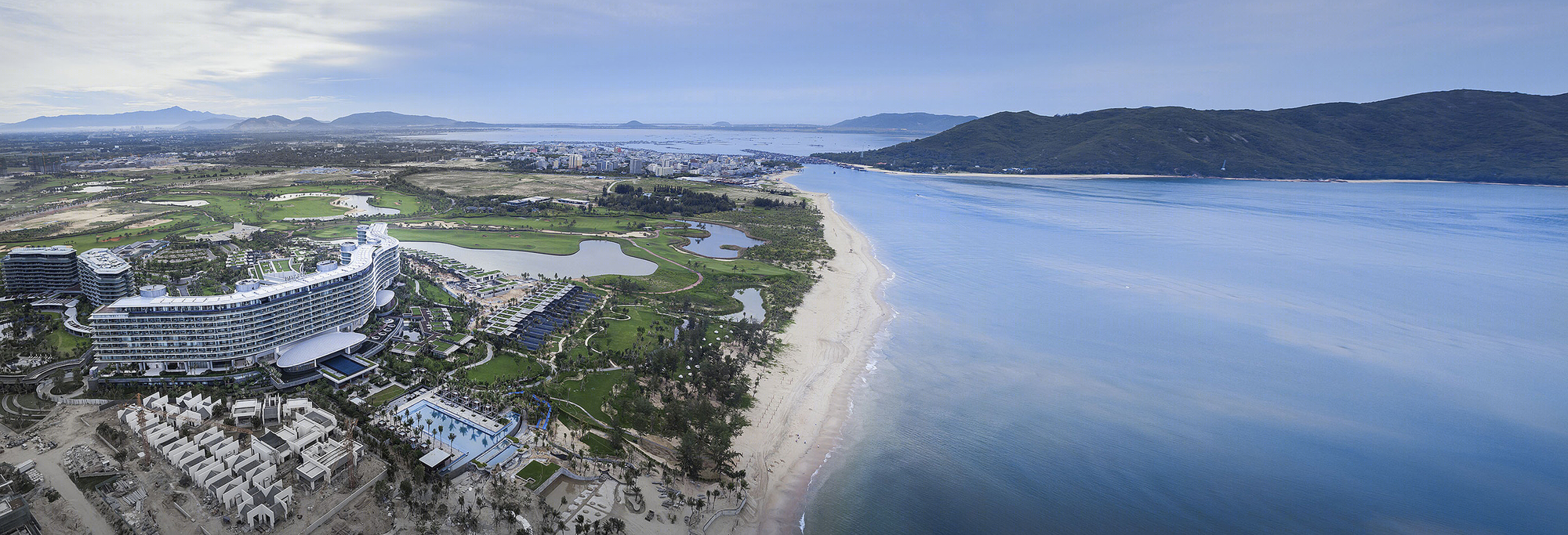

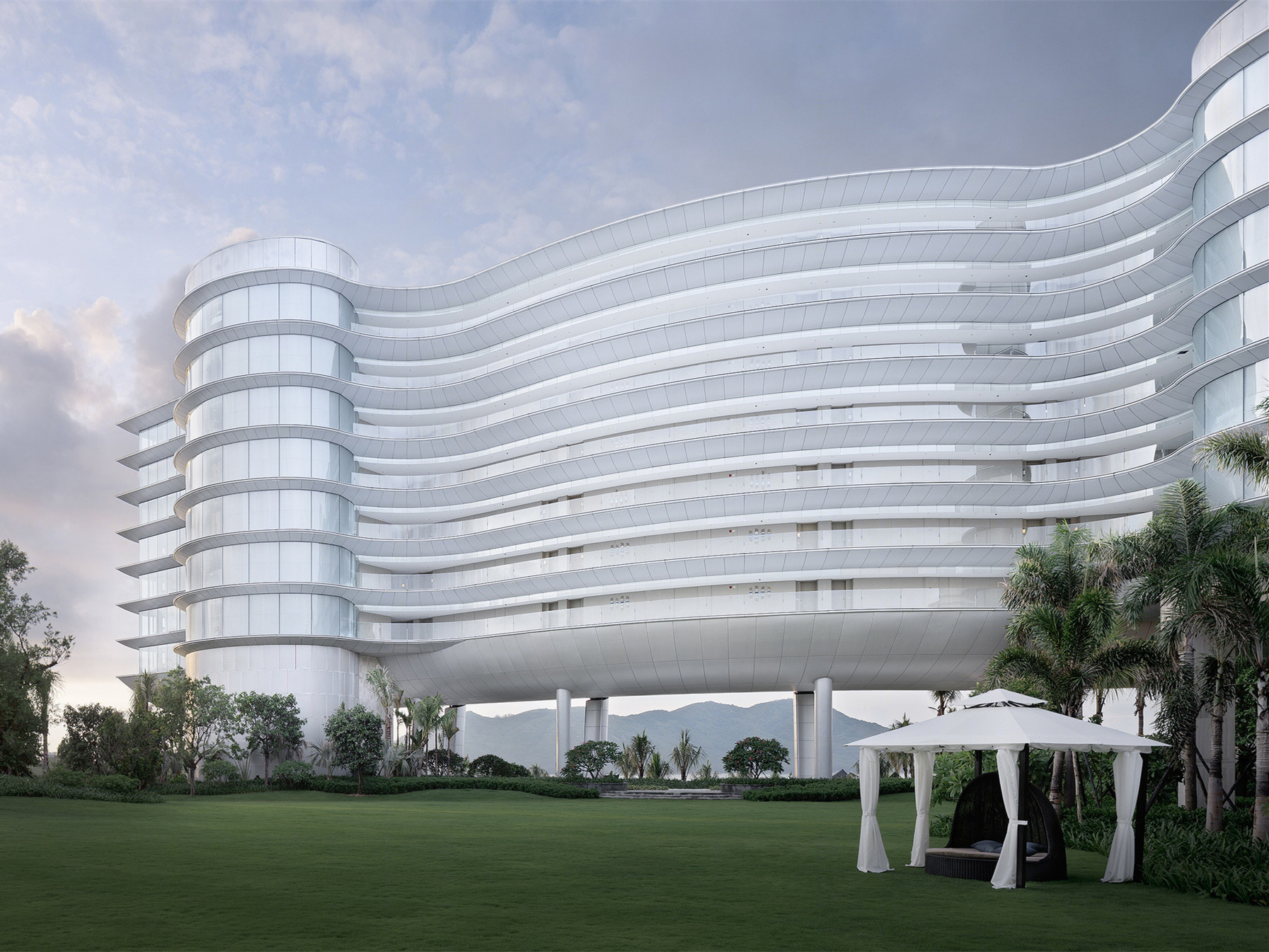

海南蓝湾小镇威斯汀度假酒店外部实景图

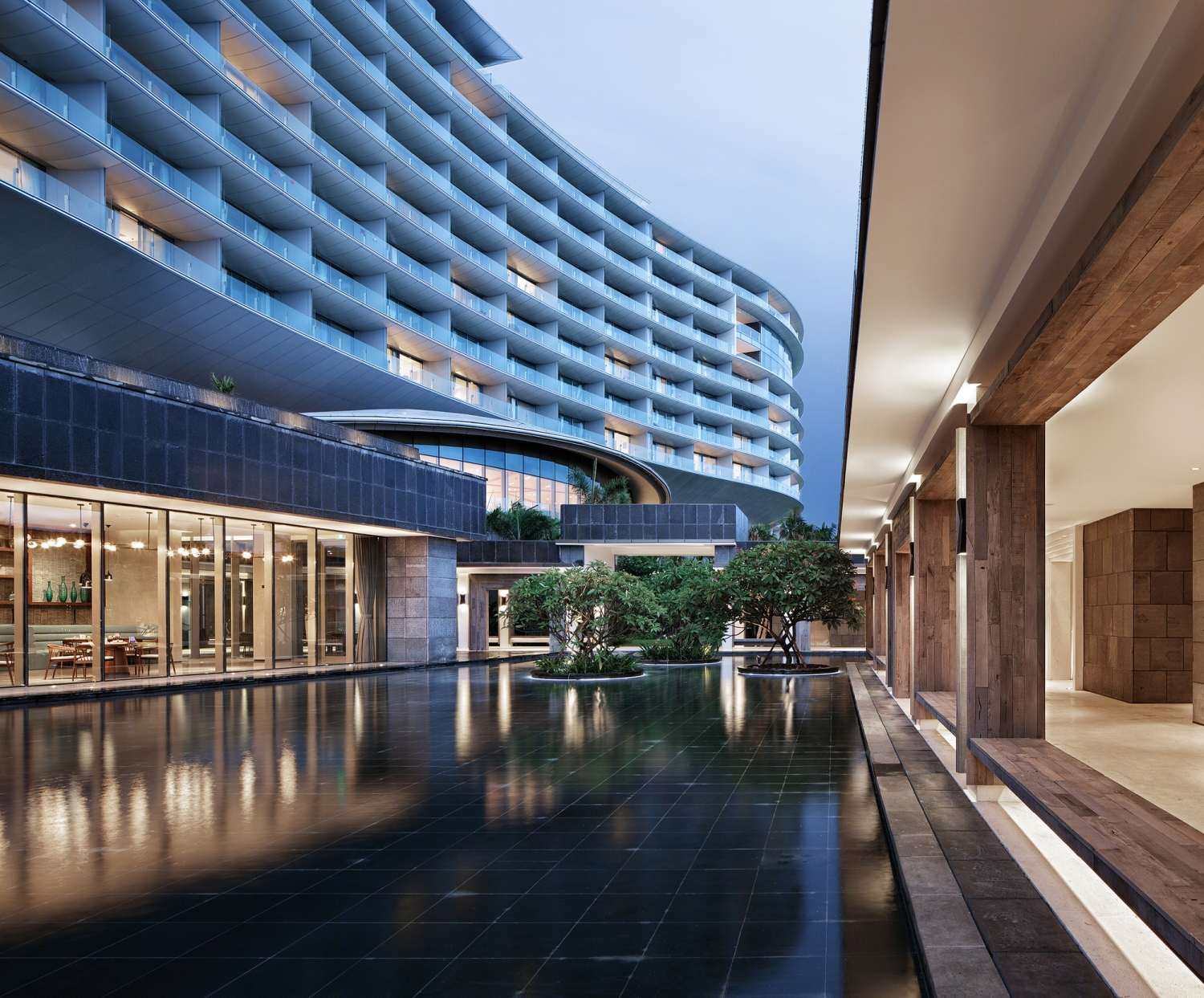

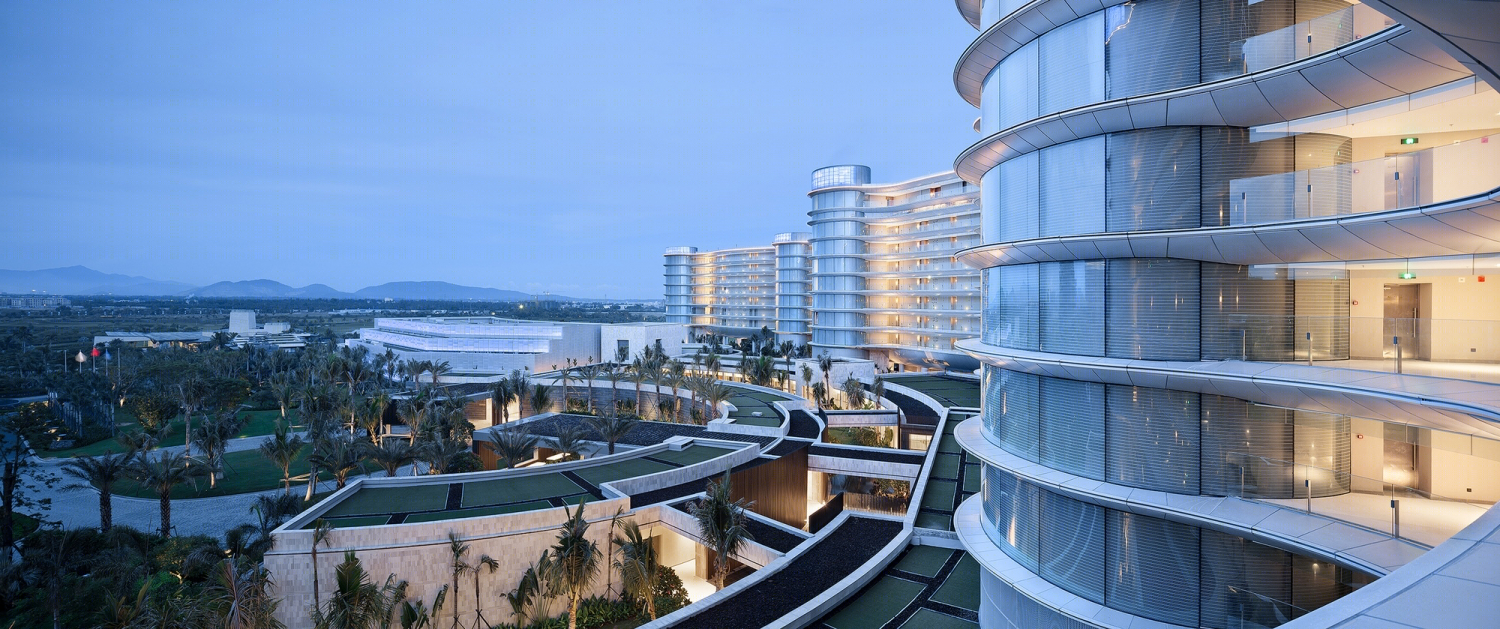

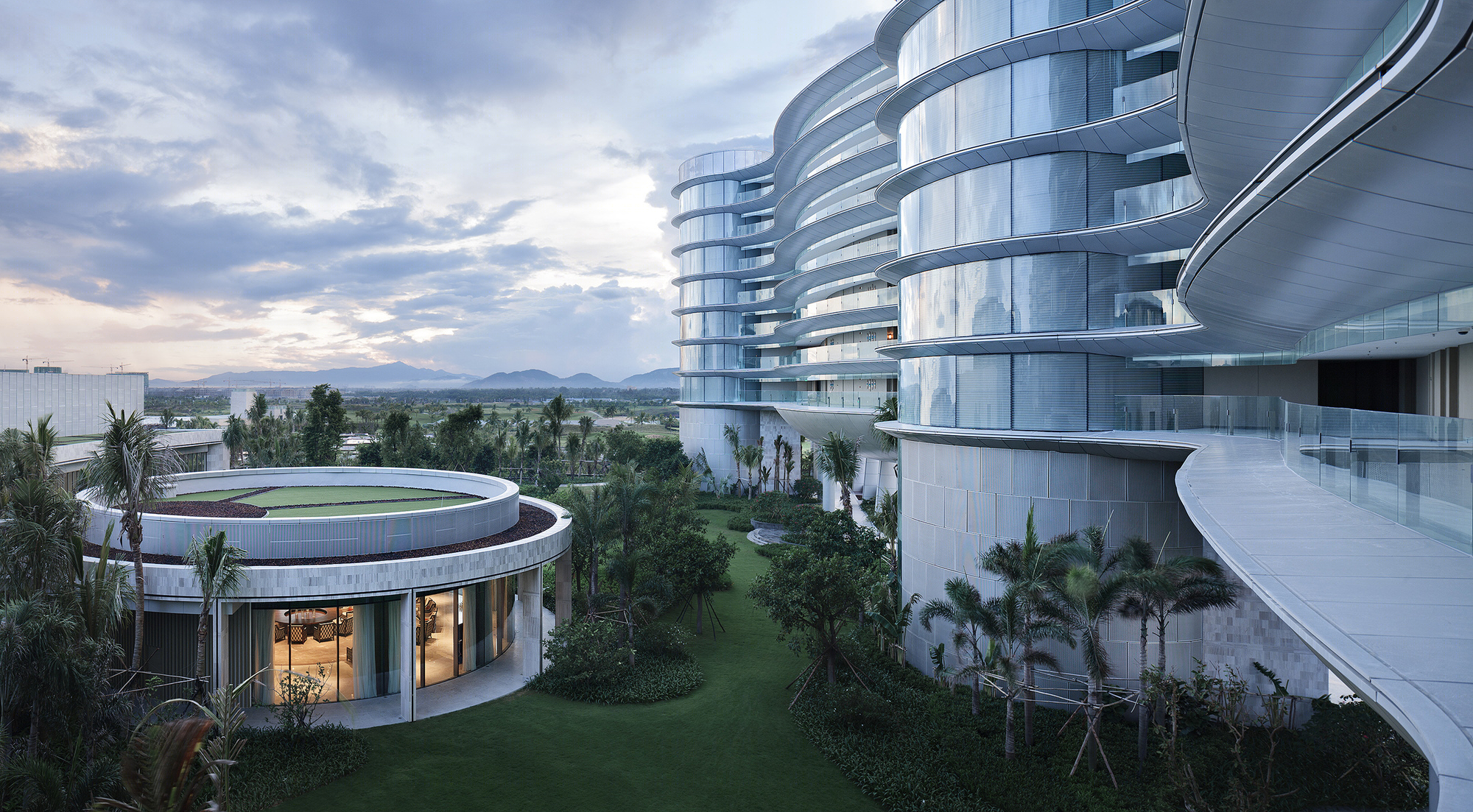

海南蓝湾小镇威斯汀度假酒店外部局部实景图

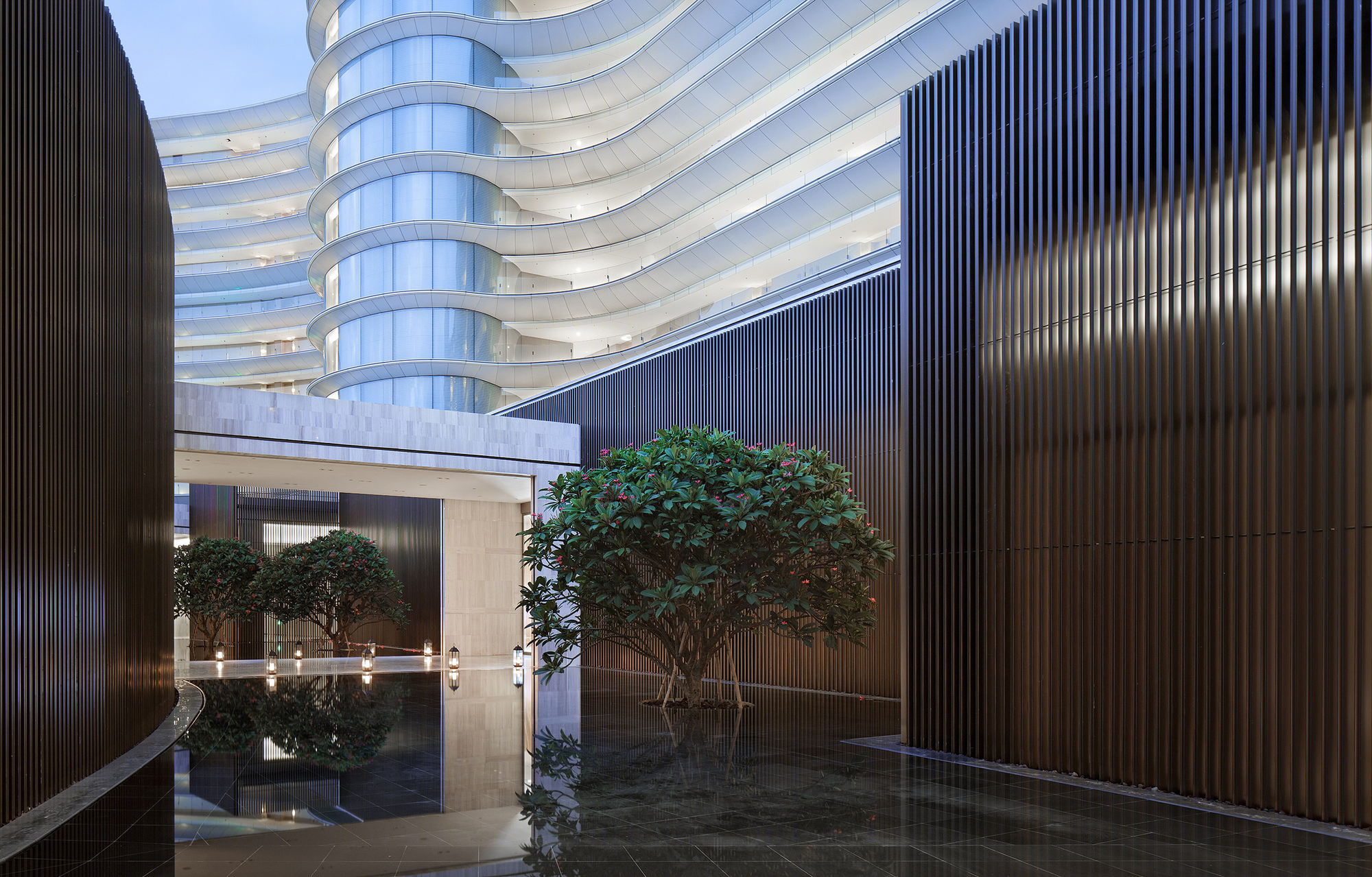

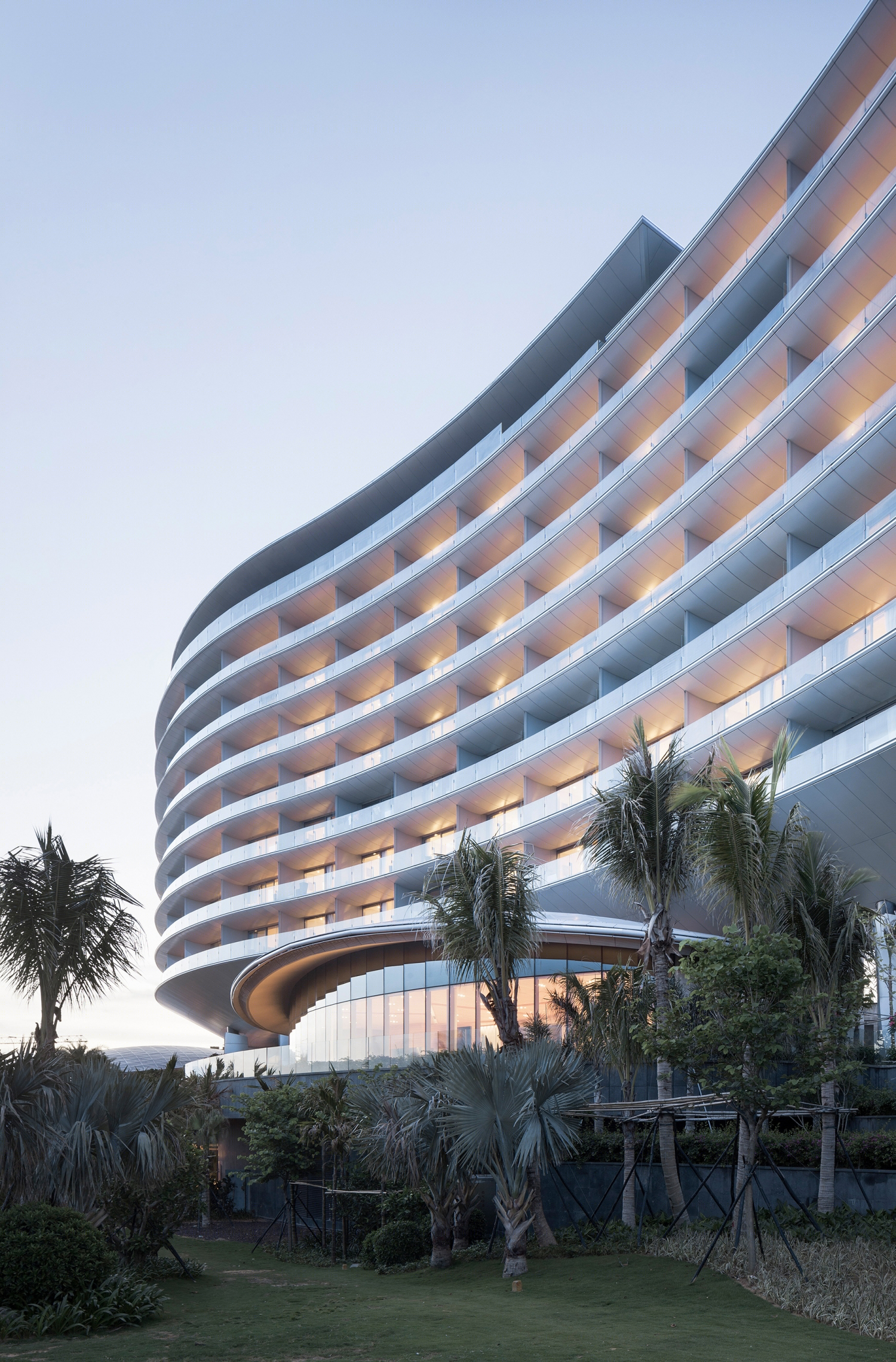

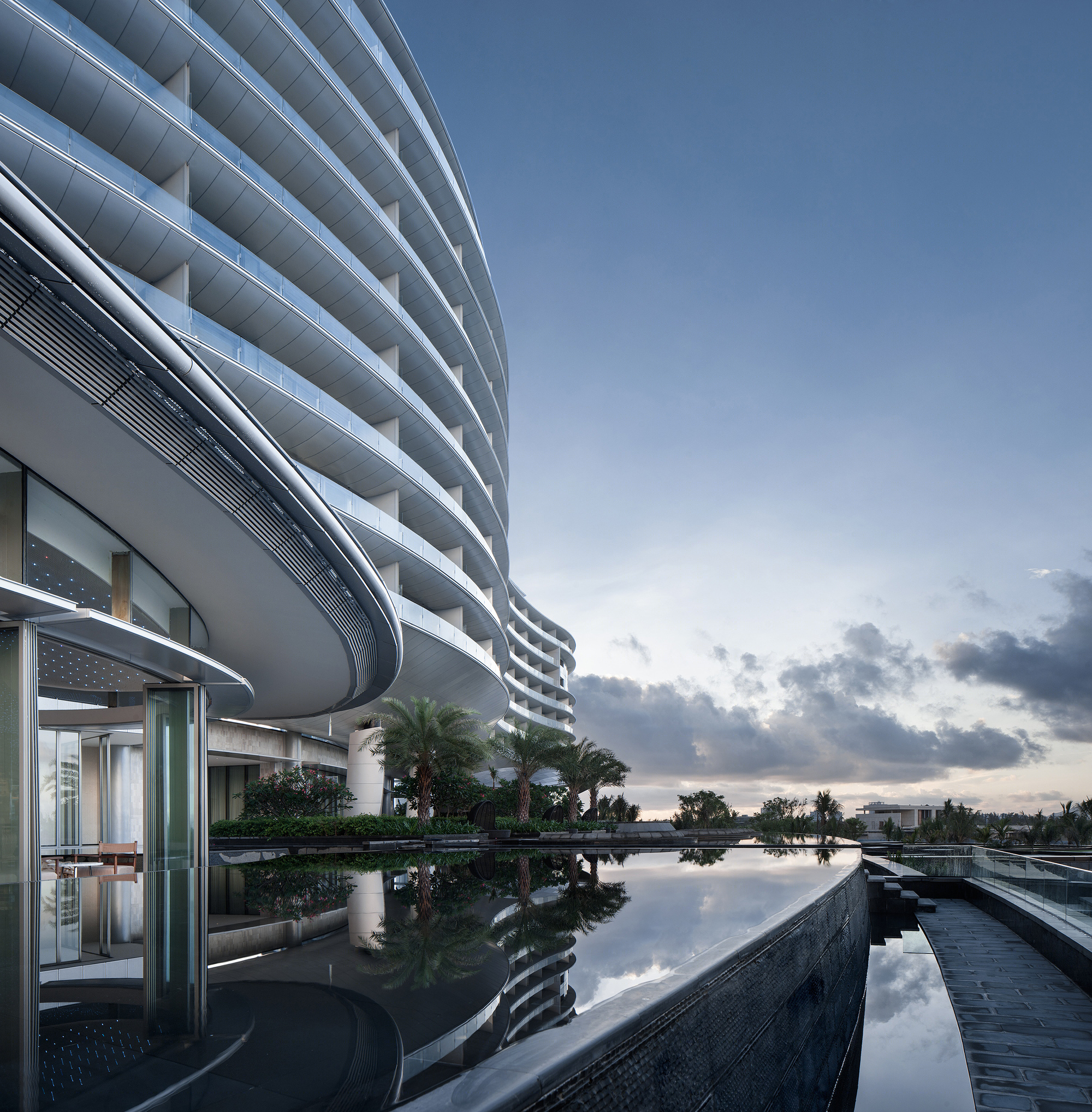

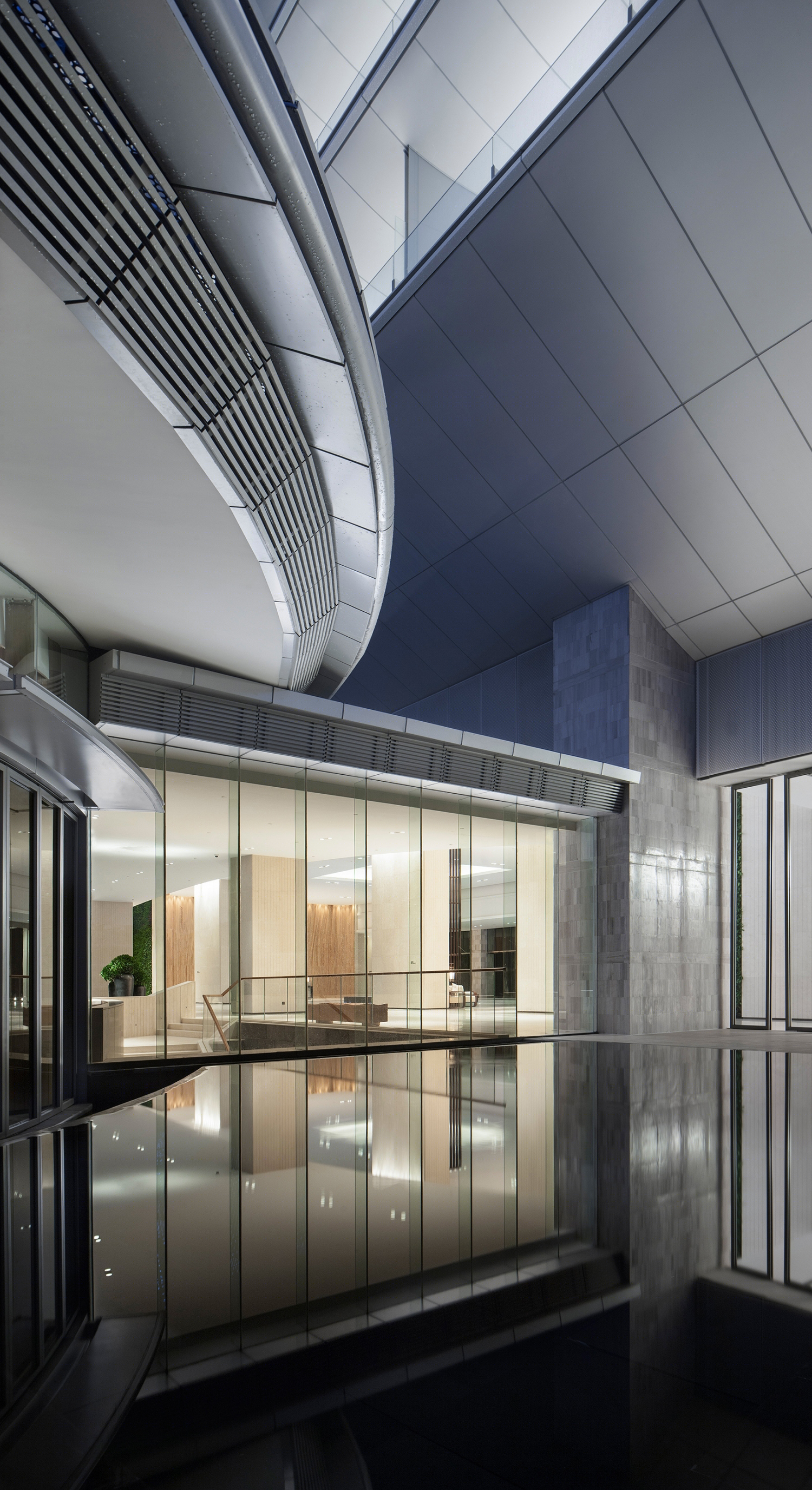

海南蓝湾小镇威斯汀度假酒店外部细节实景图

海南蓝湾小镇威斯汀度假酒店外部夜景实景图

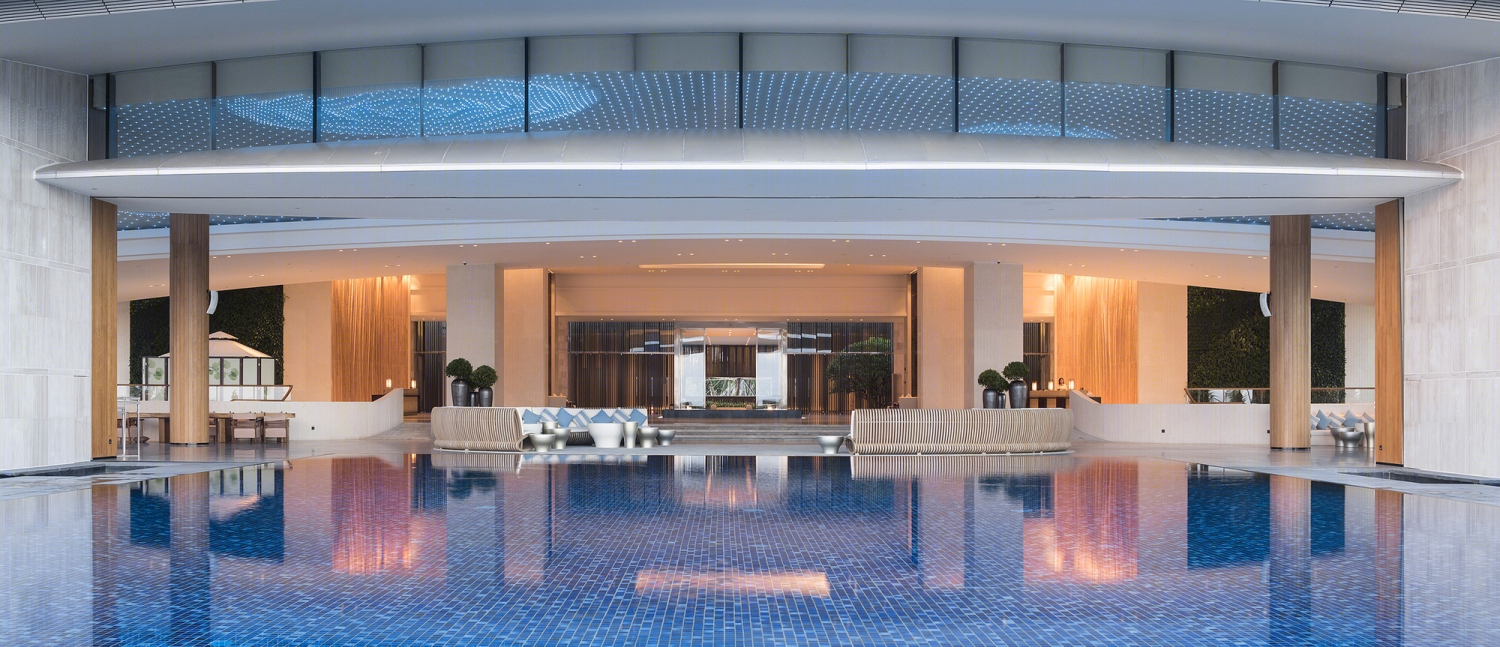

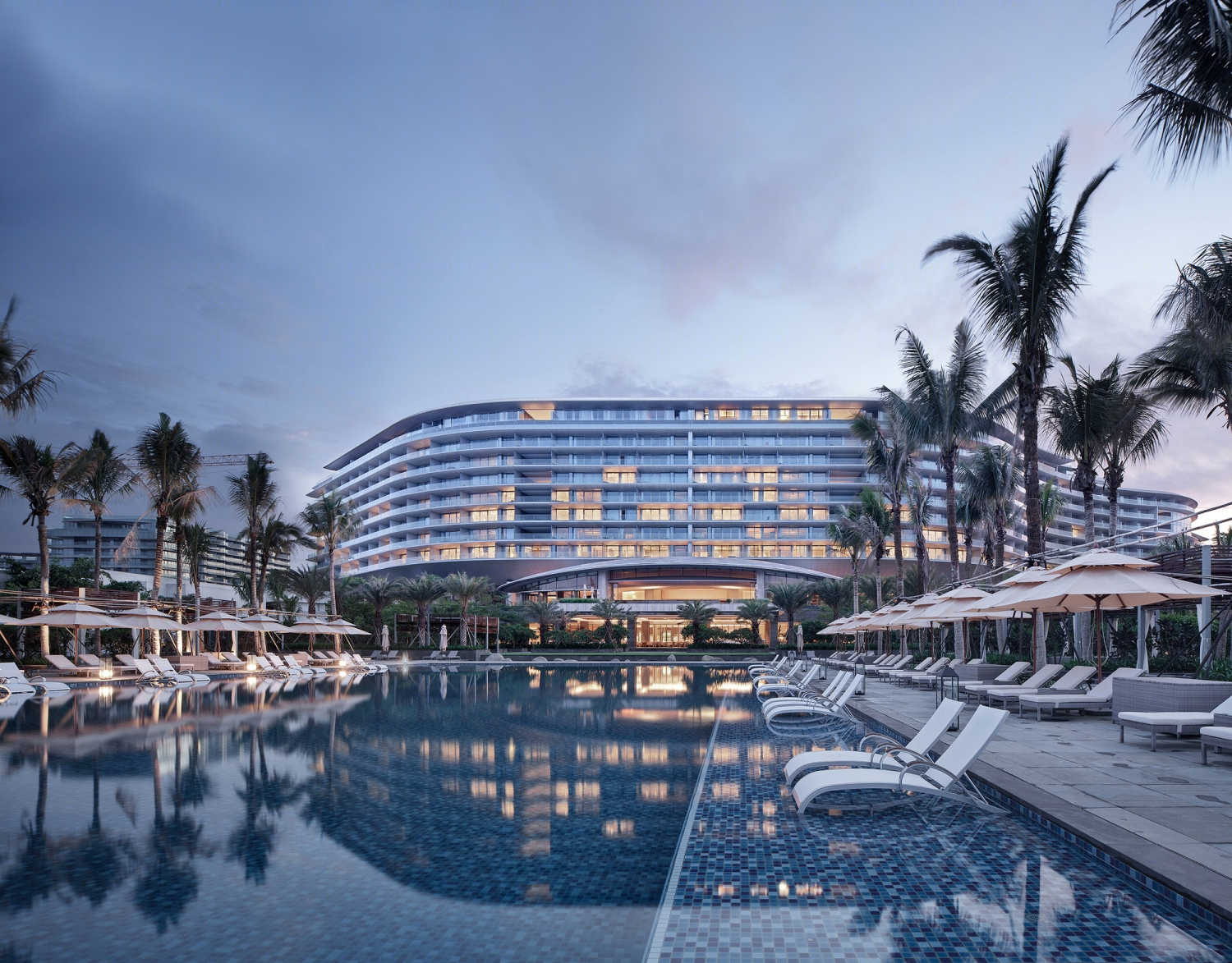

海南蓝湾小镇威斯汀度假酒店外部游泳池实景图

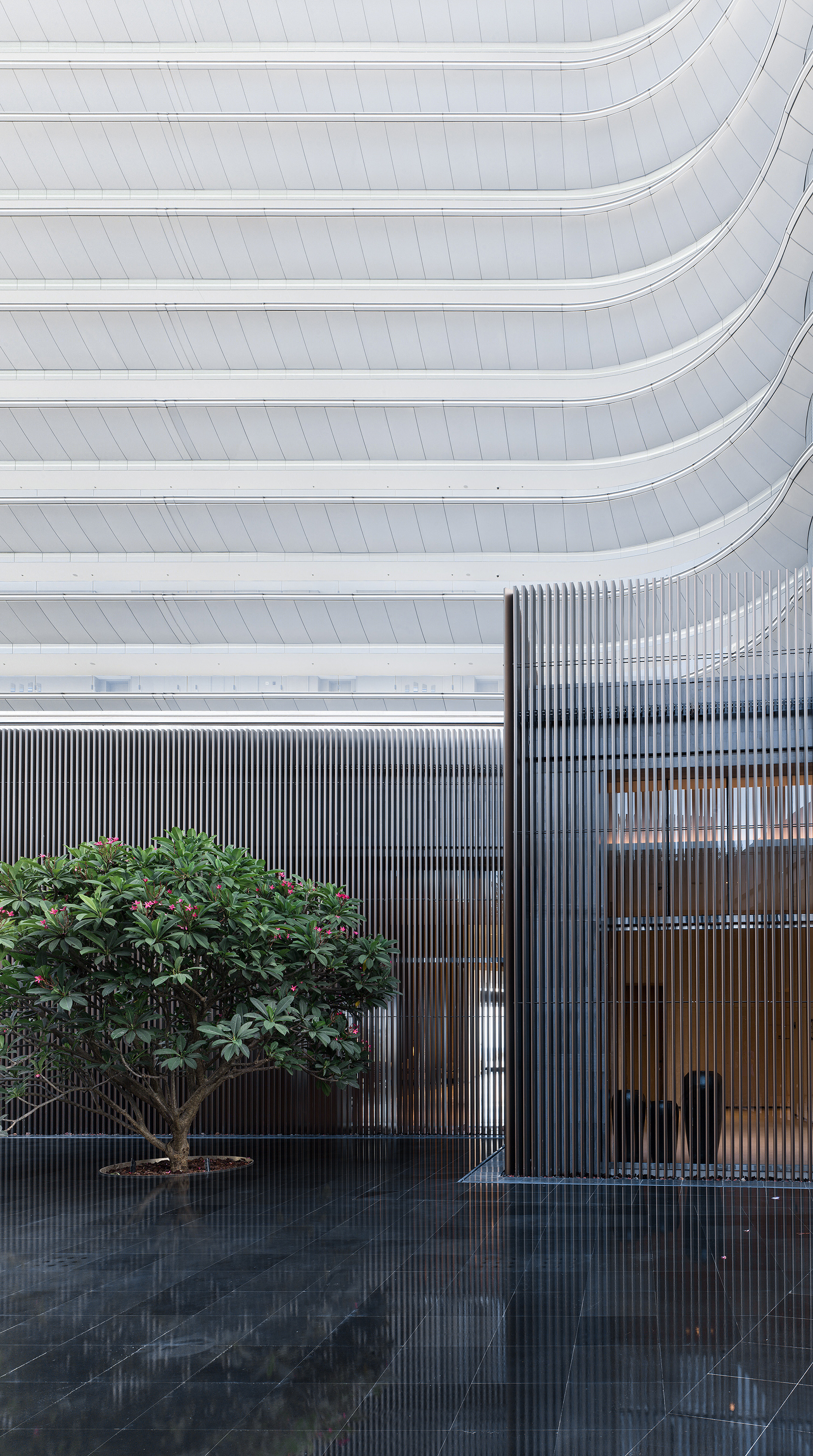

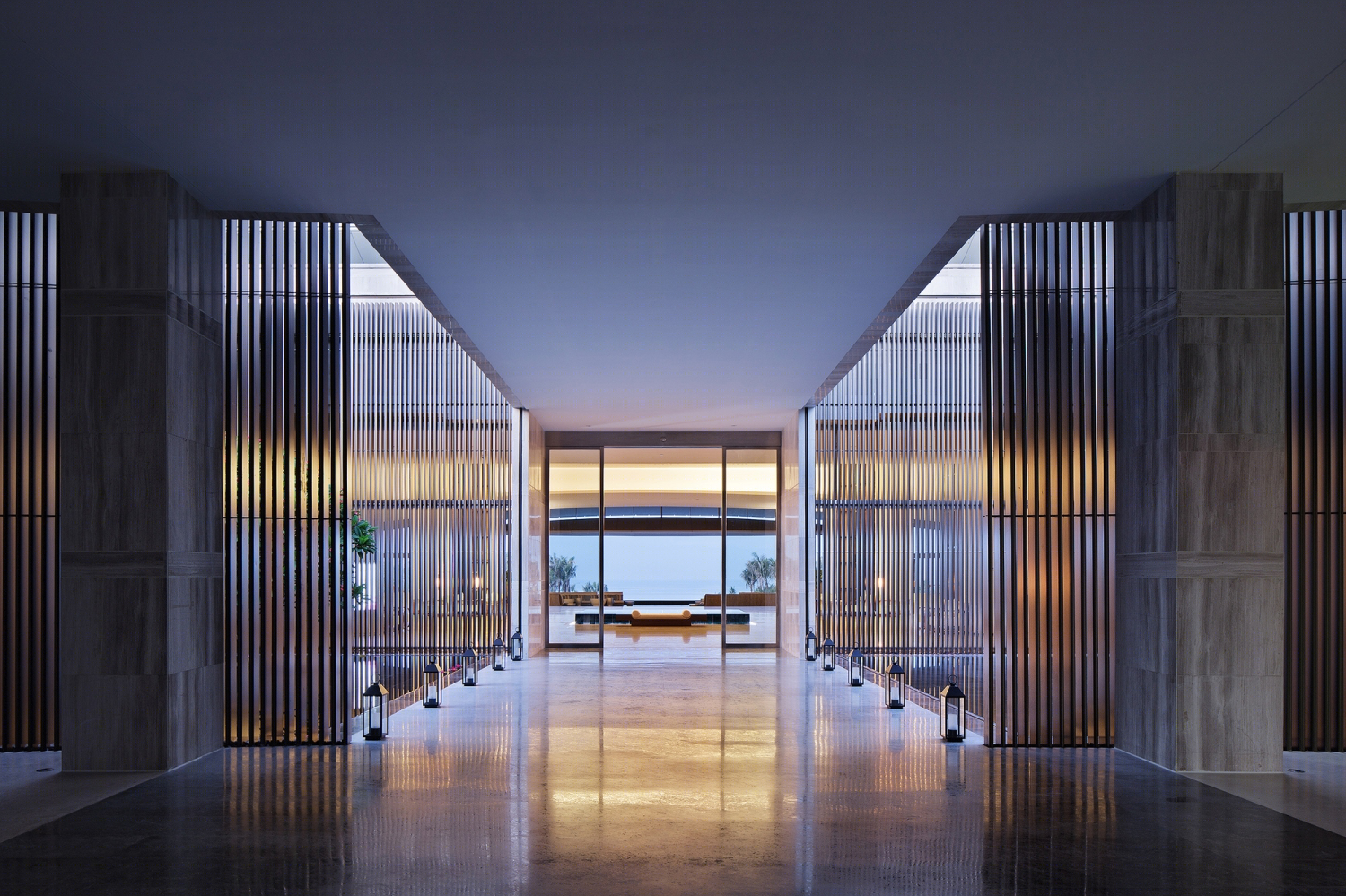

海南蓝湾小镇威斯汀度假酒店内部大厅实景图

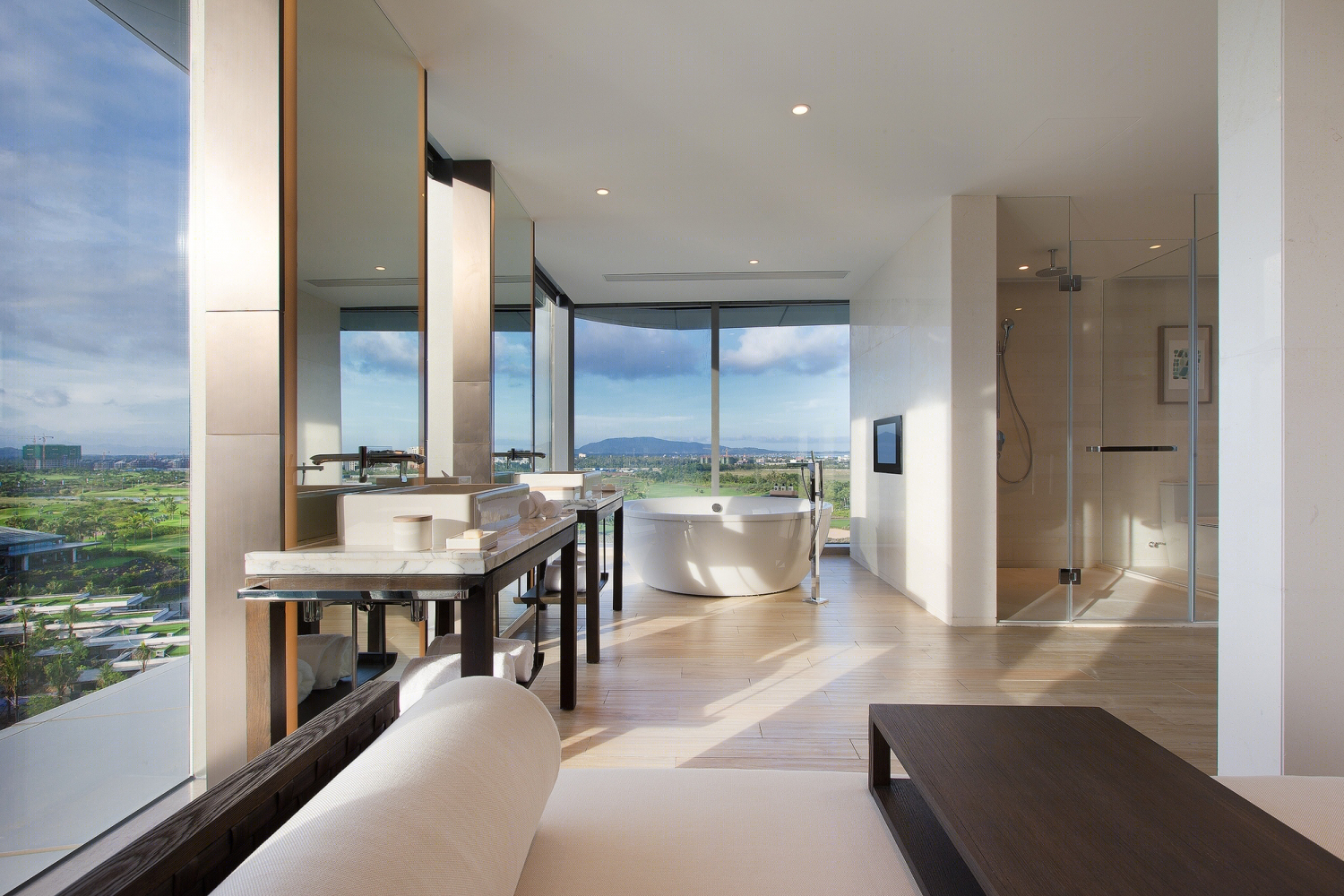

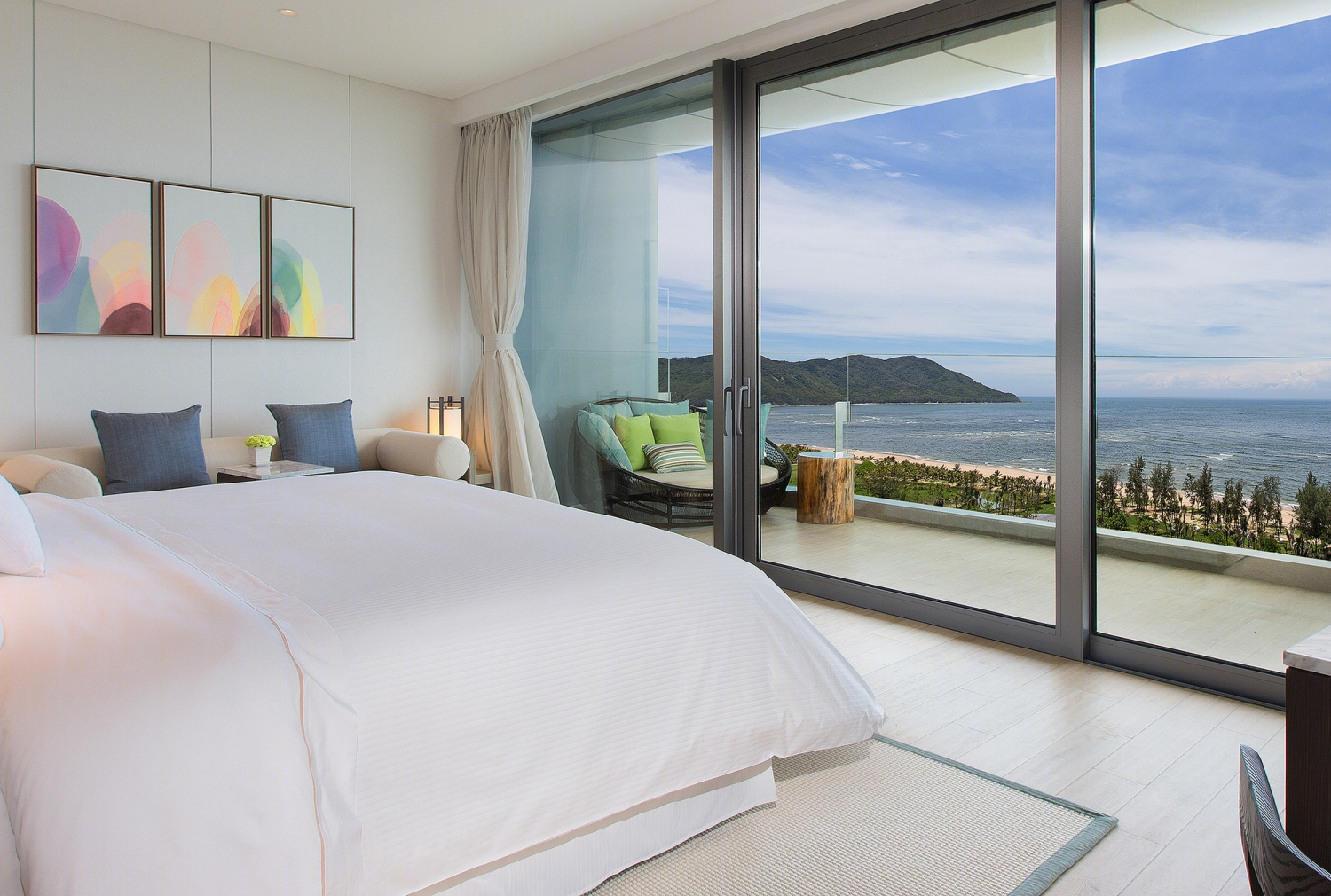

海南蓝湾小镇威斯汀度假酒店内部客房实景图

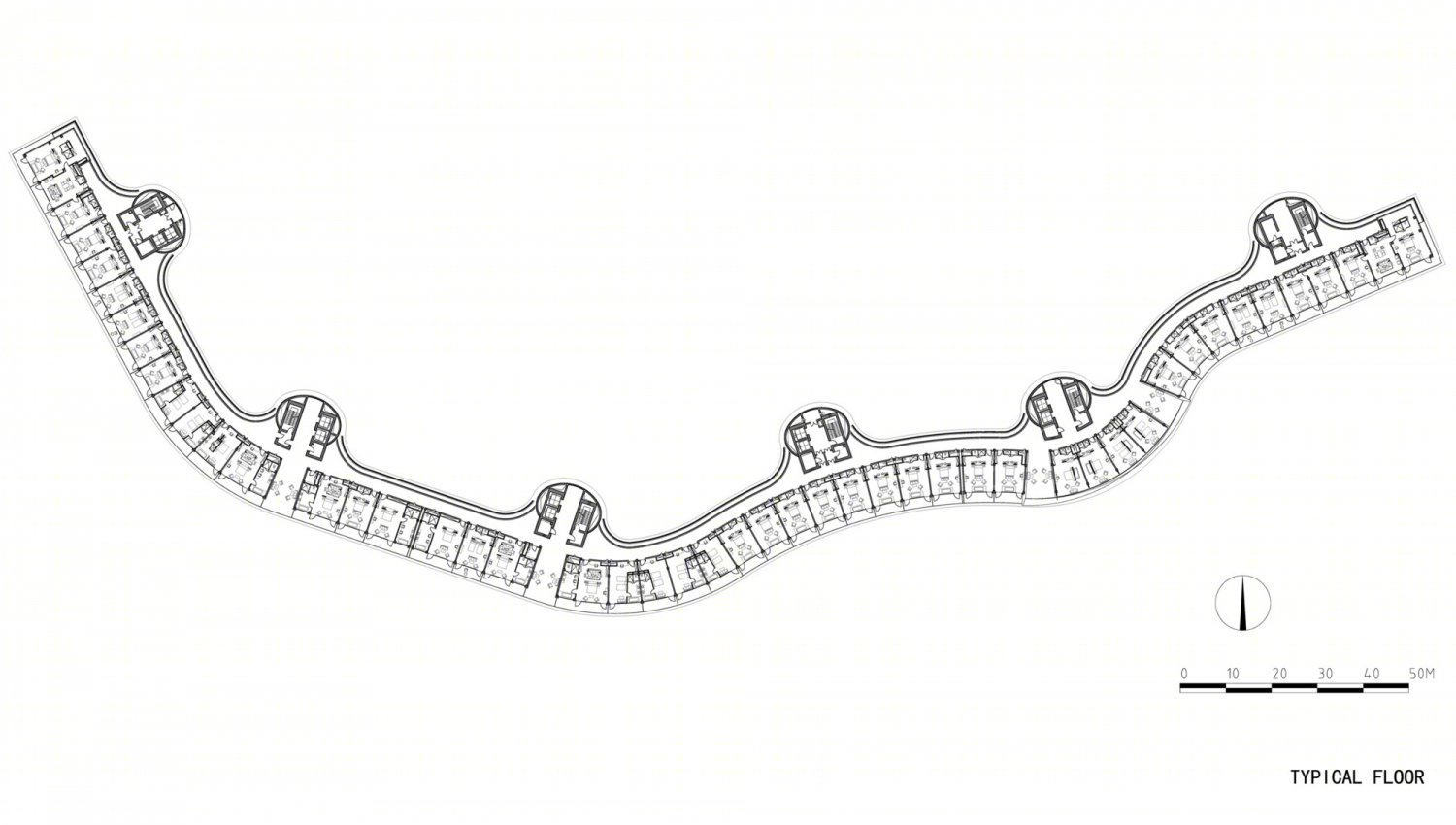

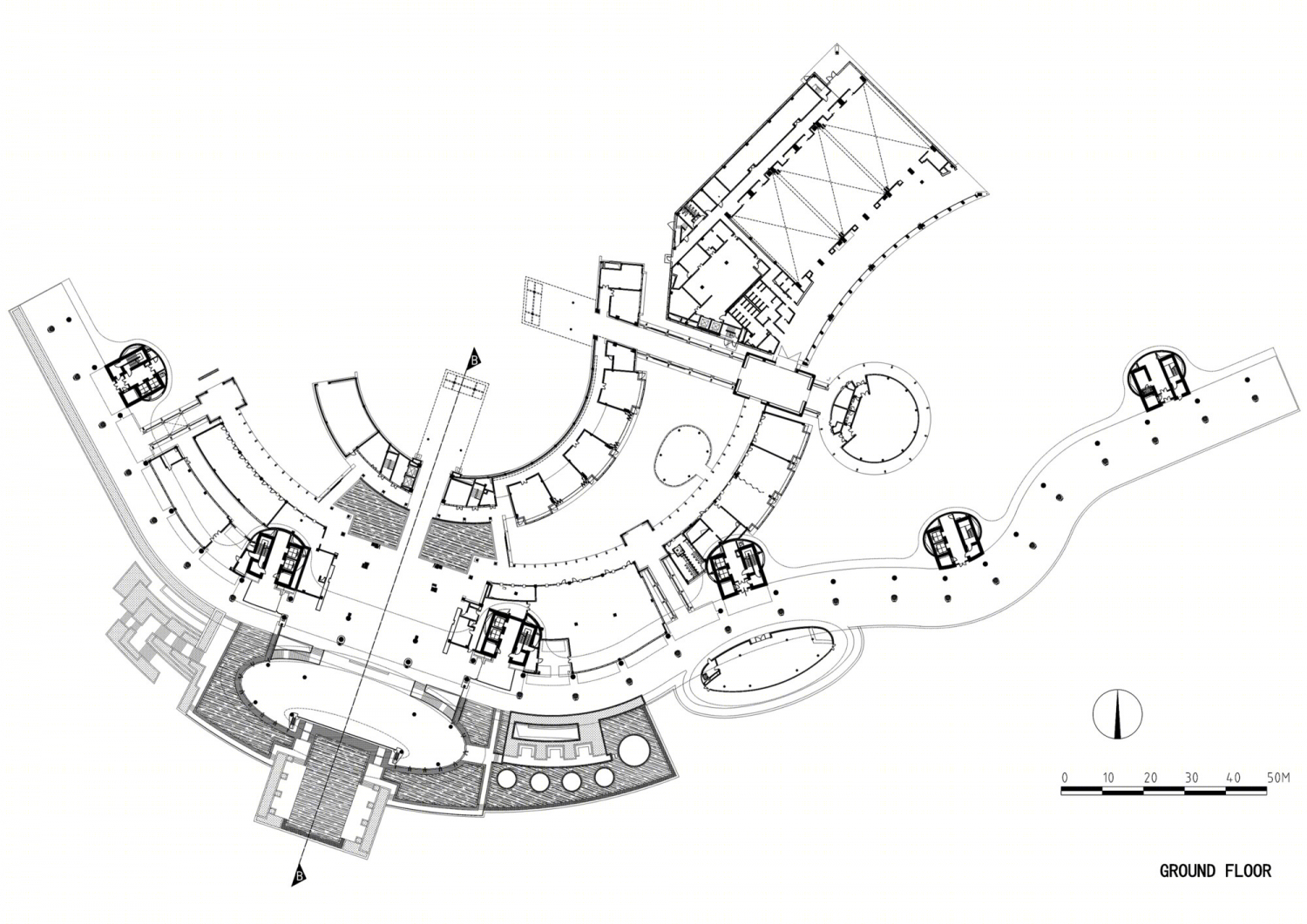

海南蓝湾小镇威斯汀度假酒店平面图

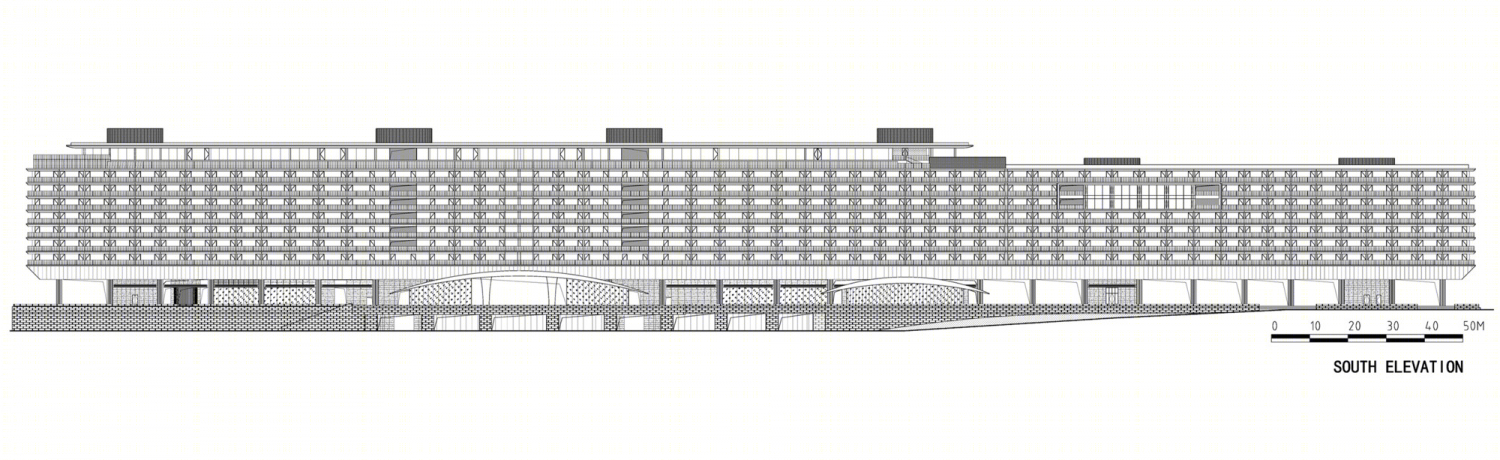

海南蓝湾小镇威斯汀度假酒店南立面图

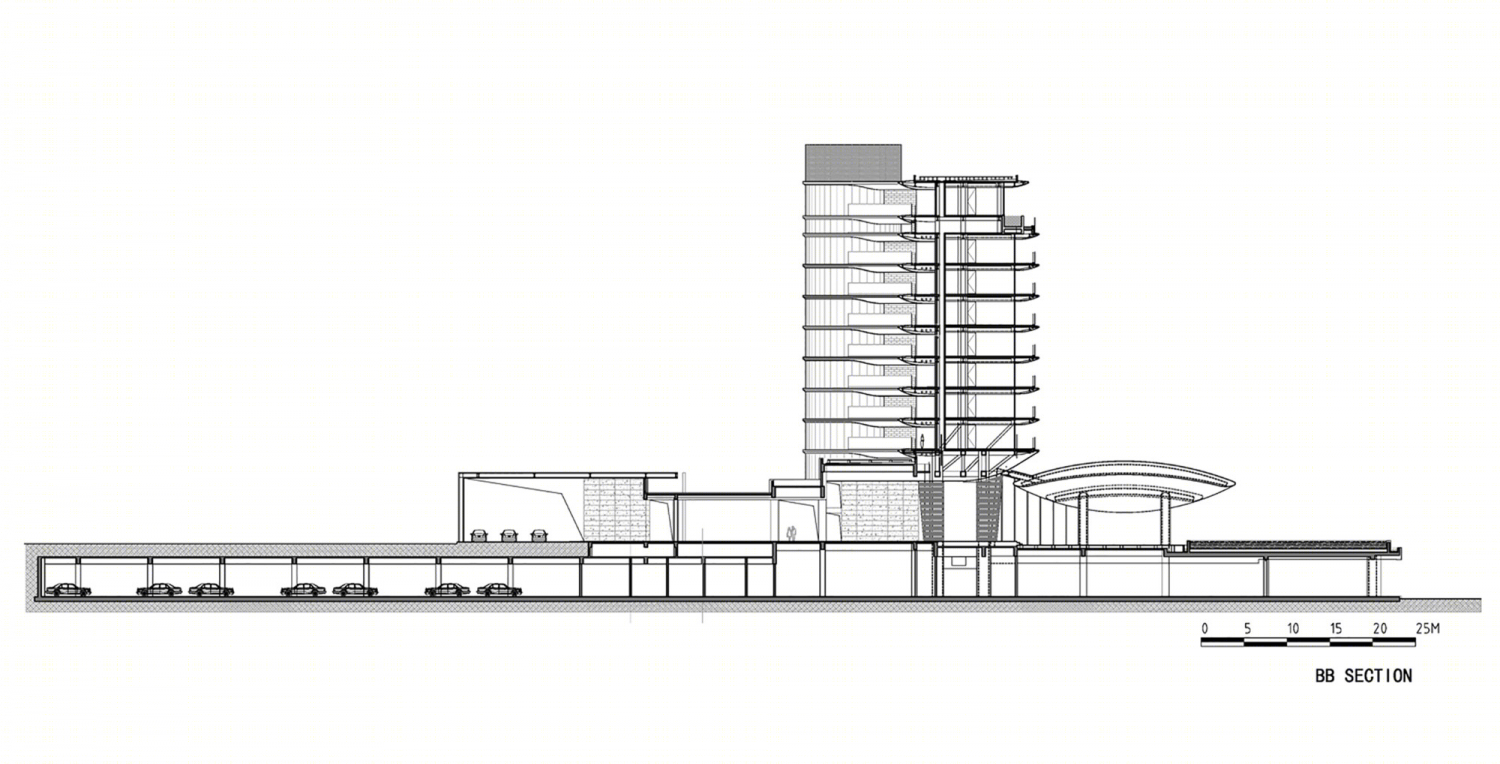

海南蓝湾小镇威斯汀度假酒店剖面图
