旋转砖块办公楼

2021/12/01 07:00:00
查看完整案例
微信扫一扫
收藏
下载
翻译

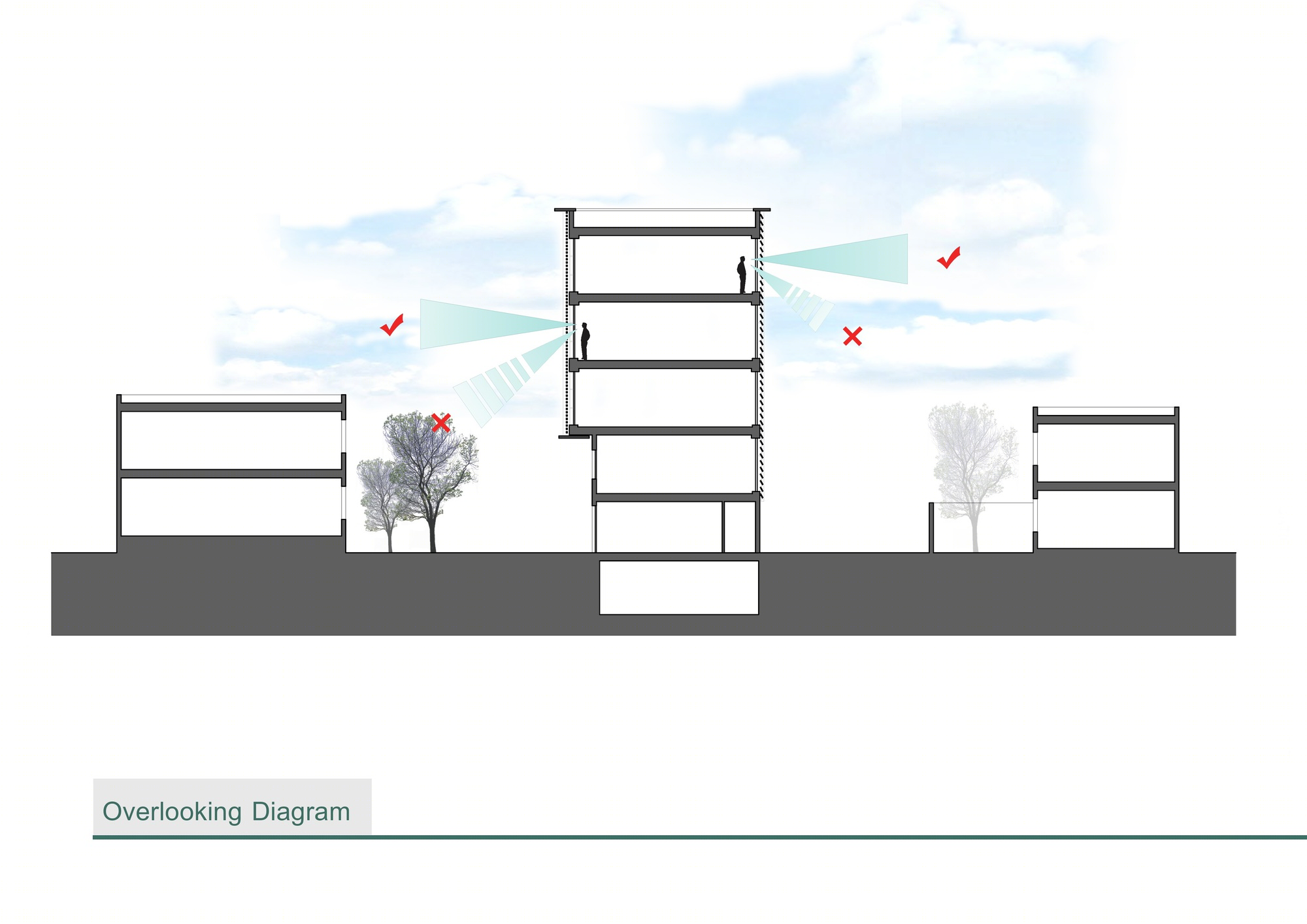

The project was designed in order to establish the office of Consulting Engineers of Aryan Pajoohan Pars. The urban texture is such that it is in the immediate vicinity of this offices building, residential buildings are located. The placement of an office building next to the residential building creates an unlikely mentality for residential neighbors in terms of the number of visitors as well as the aristocracy from the upper floors to residential buildings.

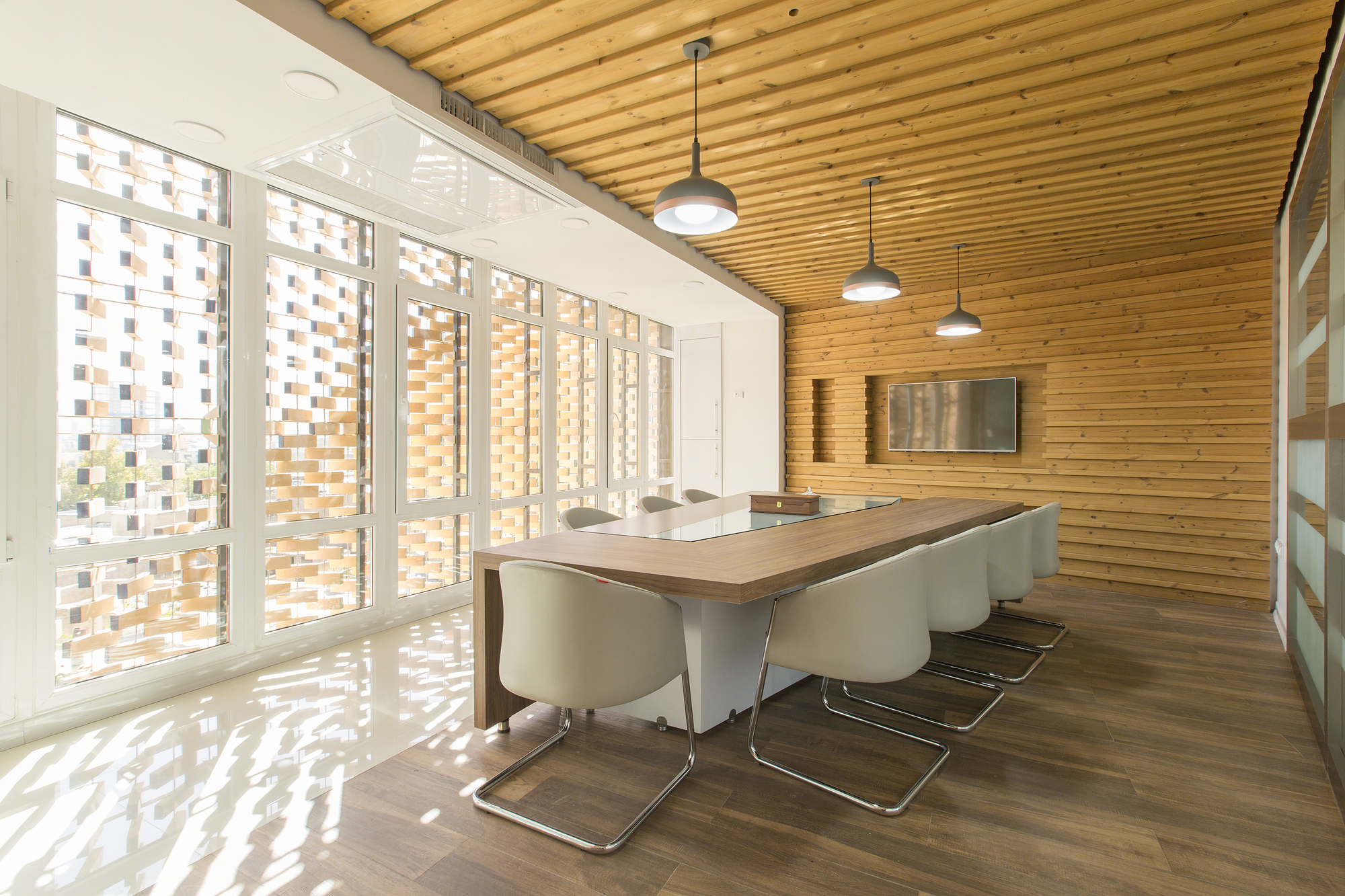

旋转砖块办公楼-1

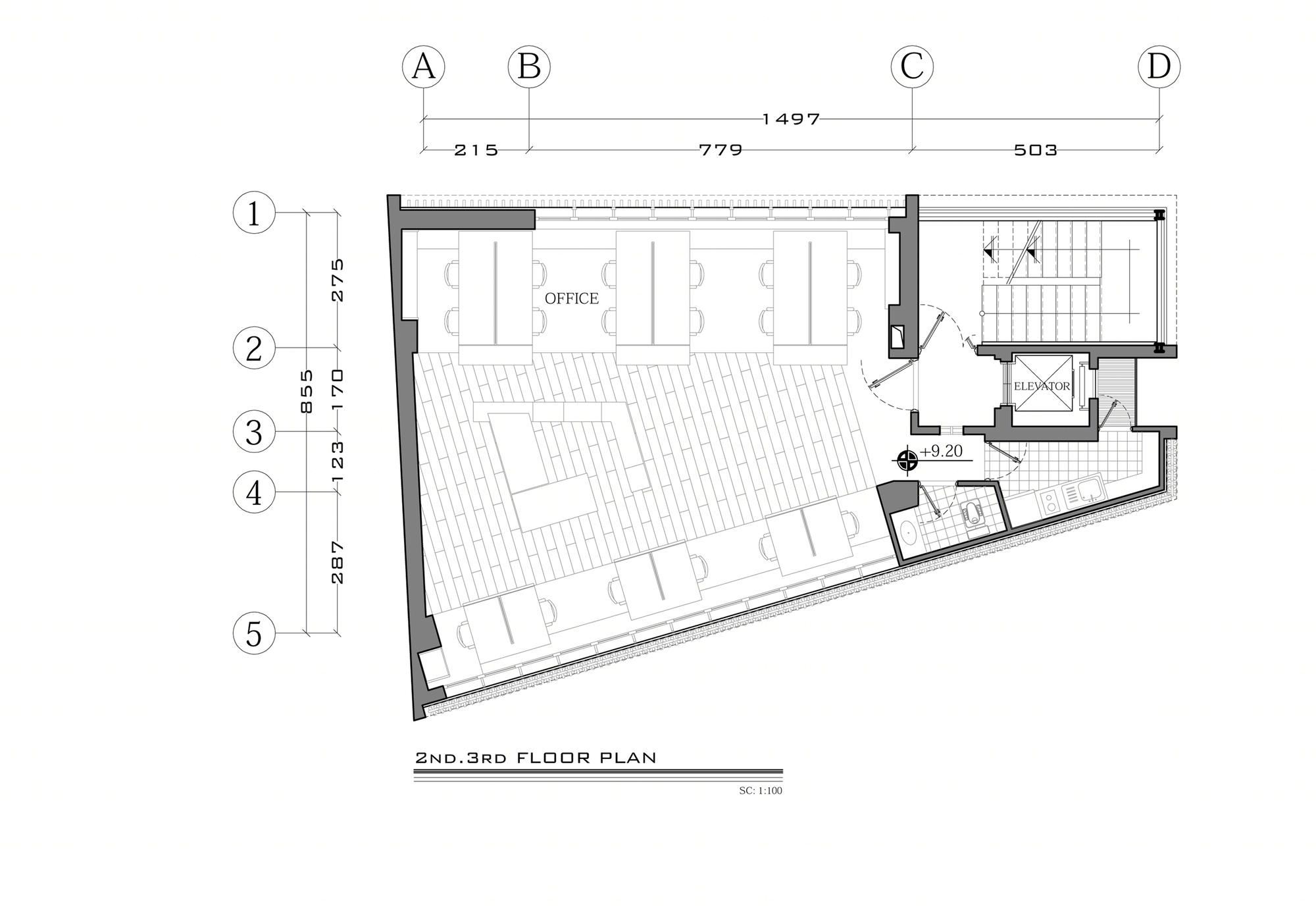

旋转砖块办公楼-2
旋转砖块办公楼-3

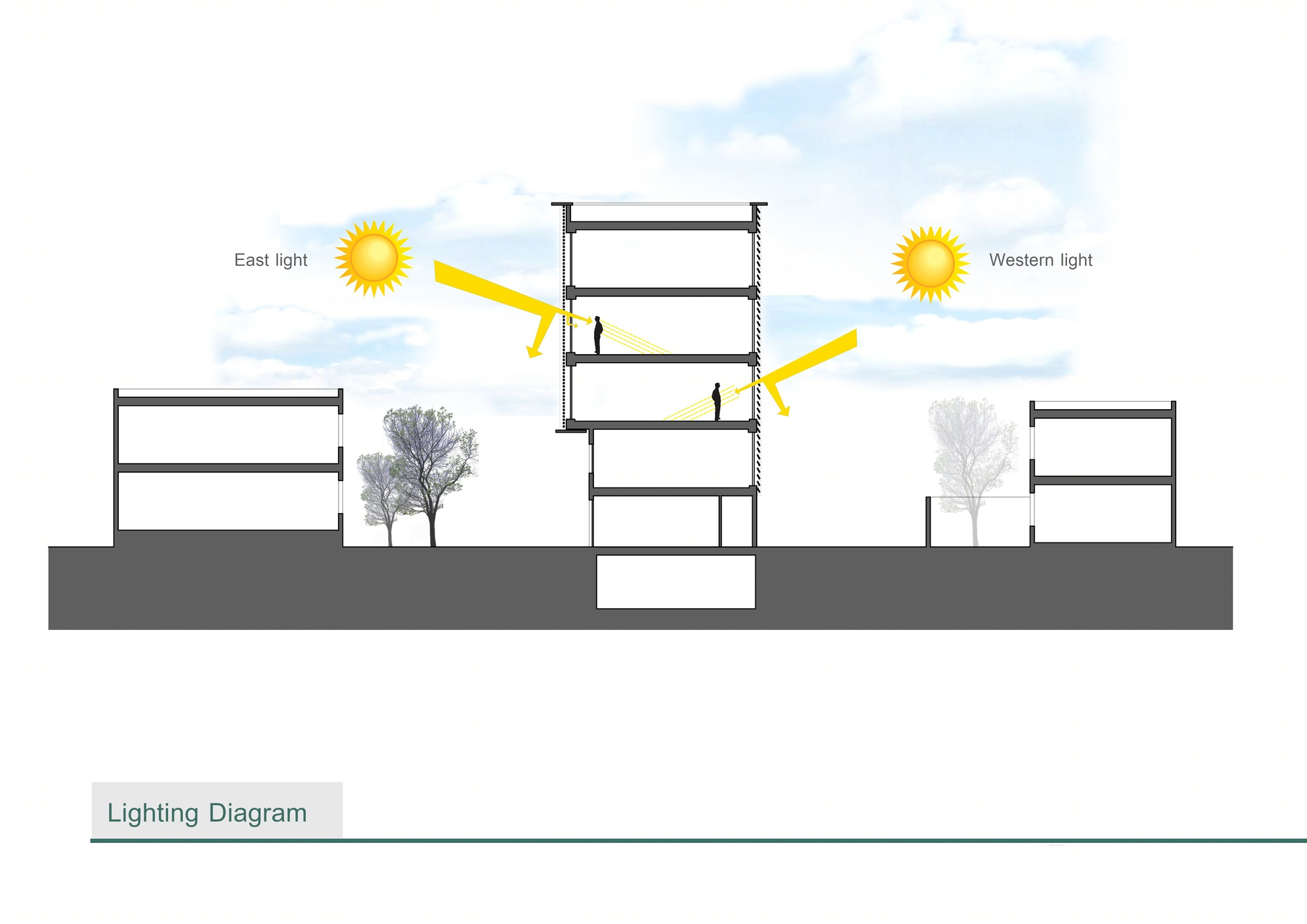

Accordingly, it was necessary to design the building in such a way that it would be successful in order to curtail the privacy and confidentiality issues. On the other, the necessity of using light and the necessity of opening up was very important in design. But due to the elongation of the natural light site, only the East and West were provided, which was not a good light. Therefore, the view should be such that we can use the disturbing light of the East and the West more desirable.
旋转砖块办公楼-5
旋转砖块办公楼-6

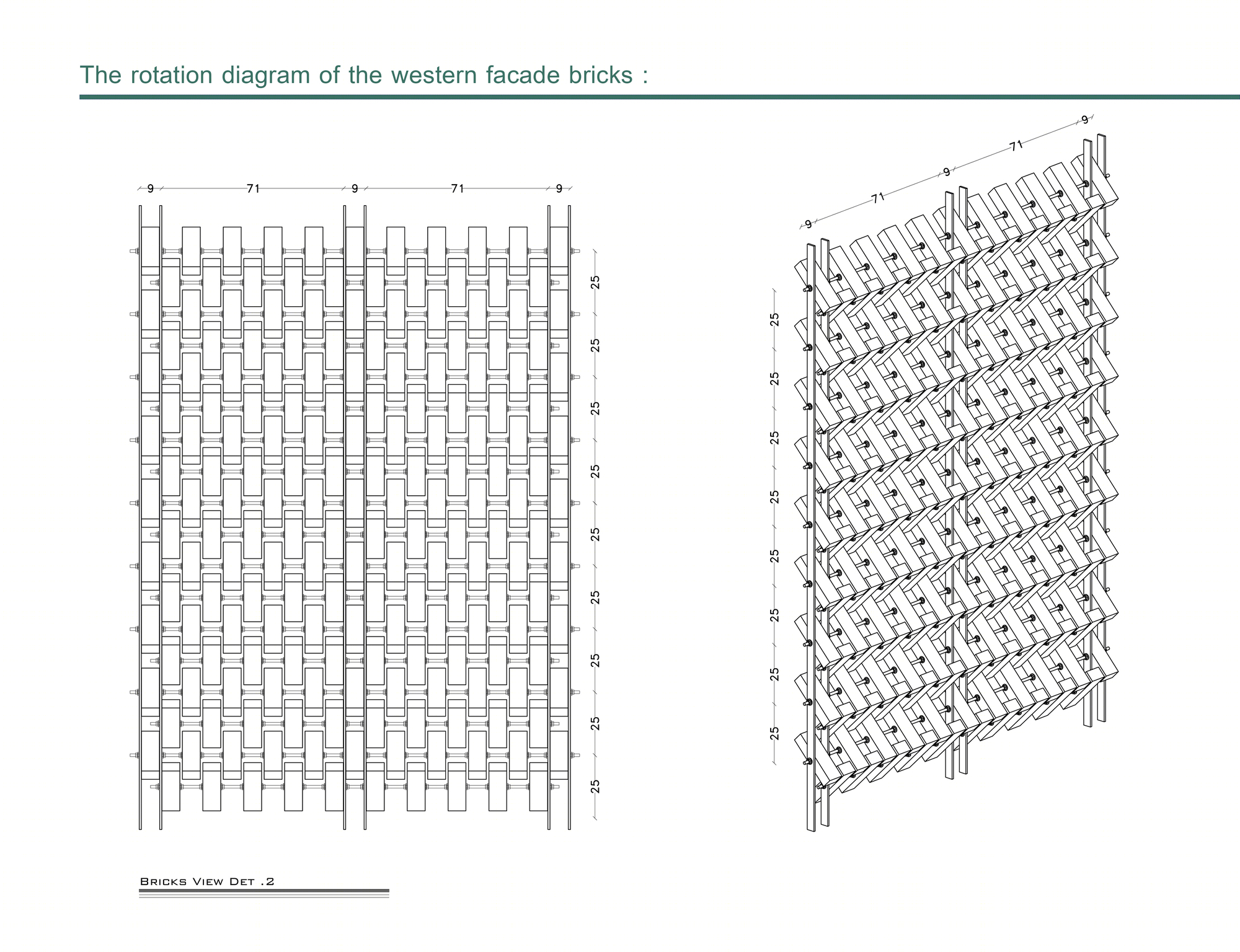

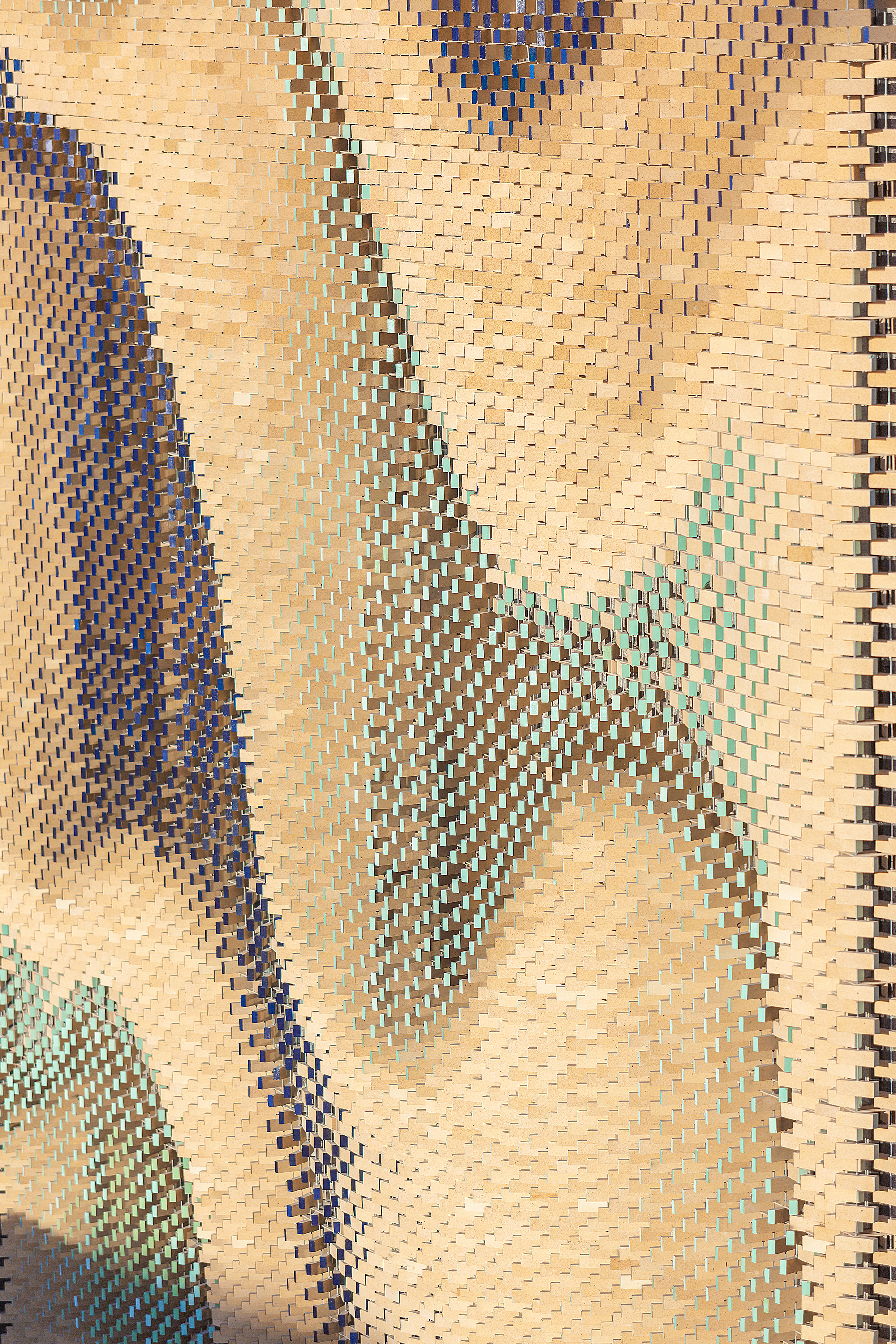

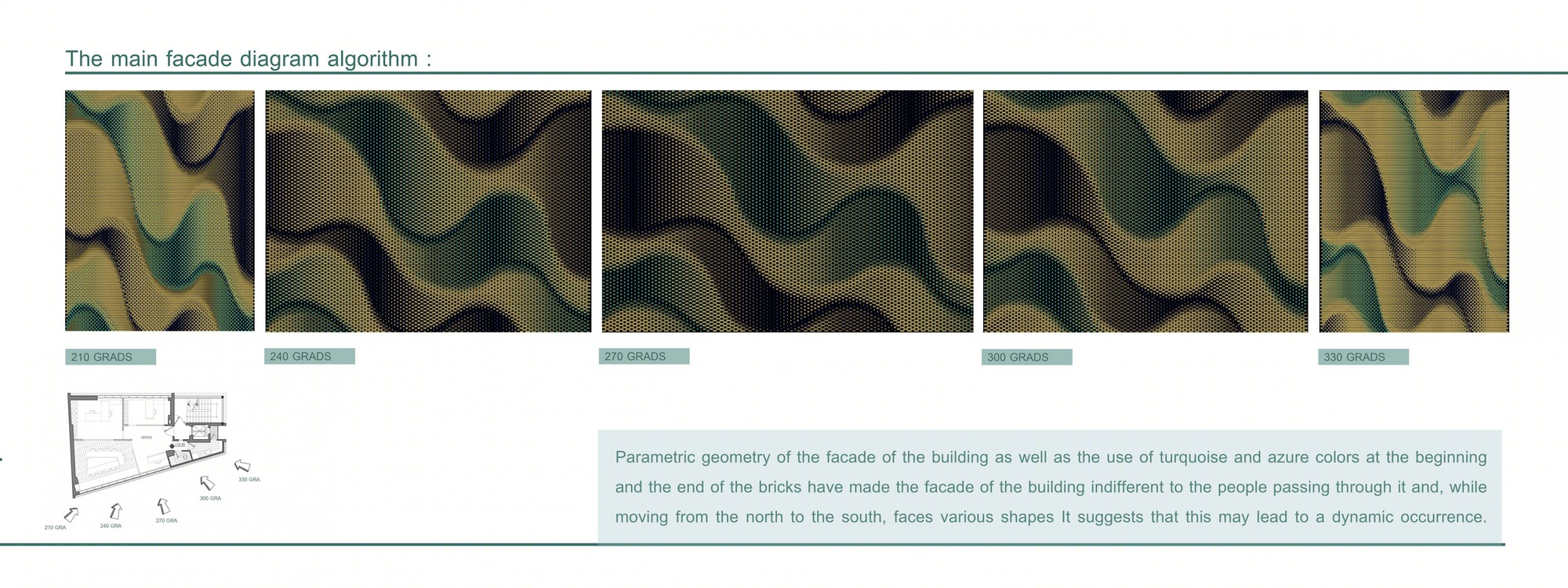

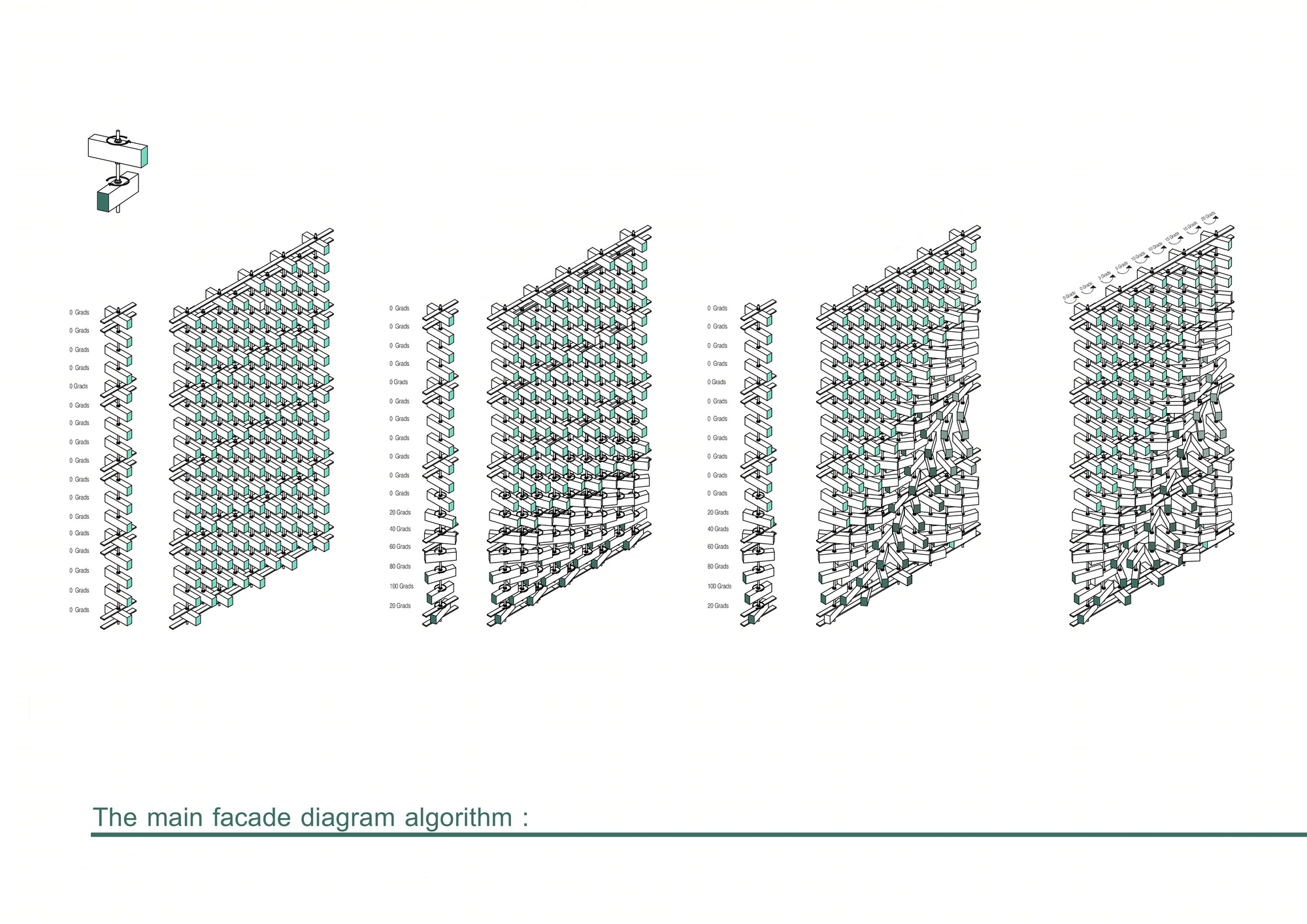

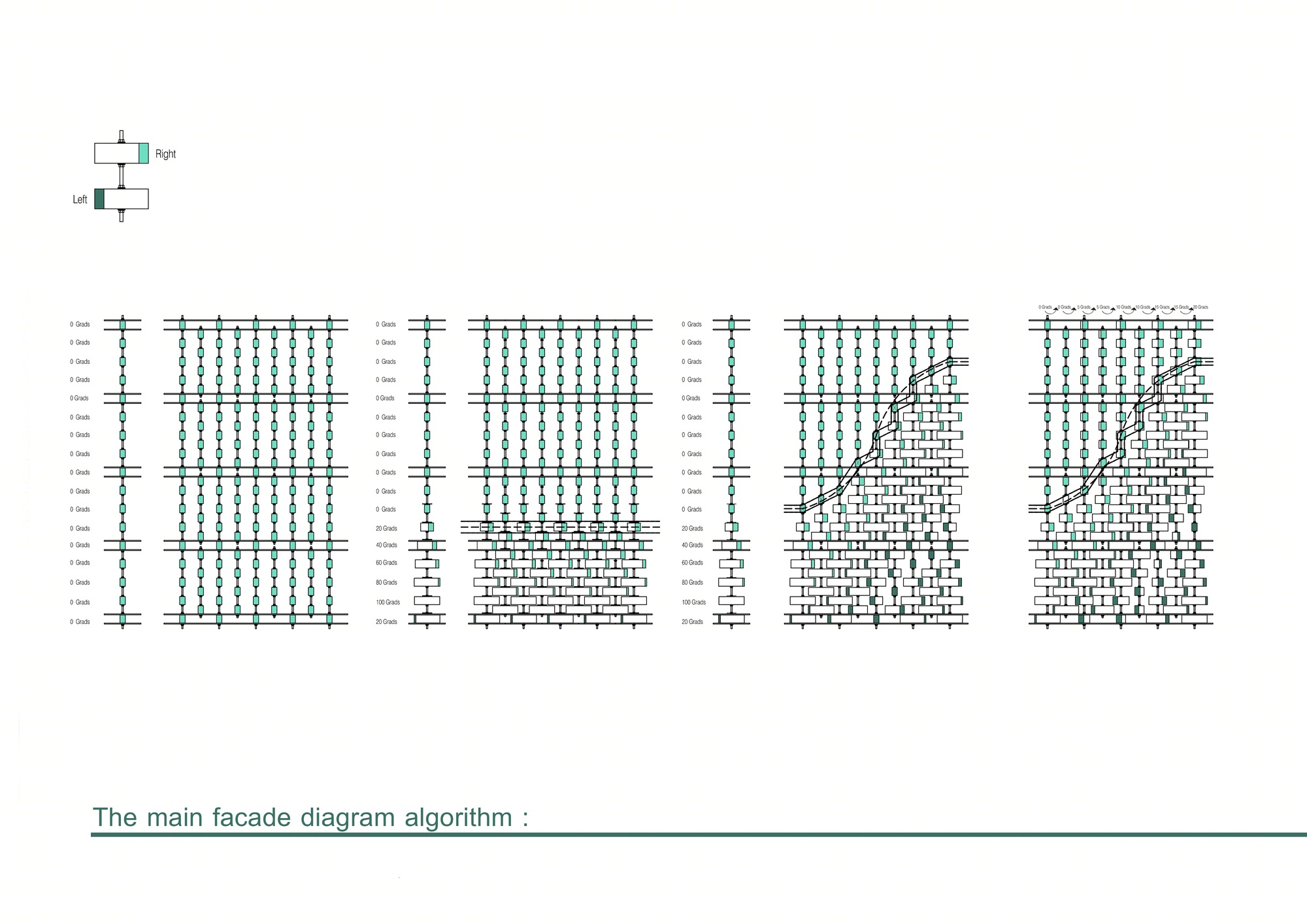

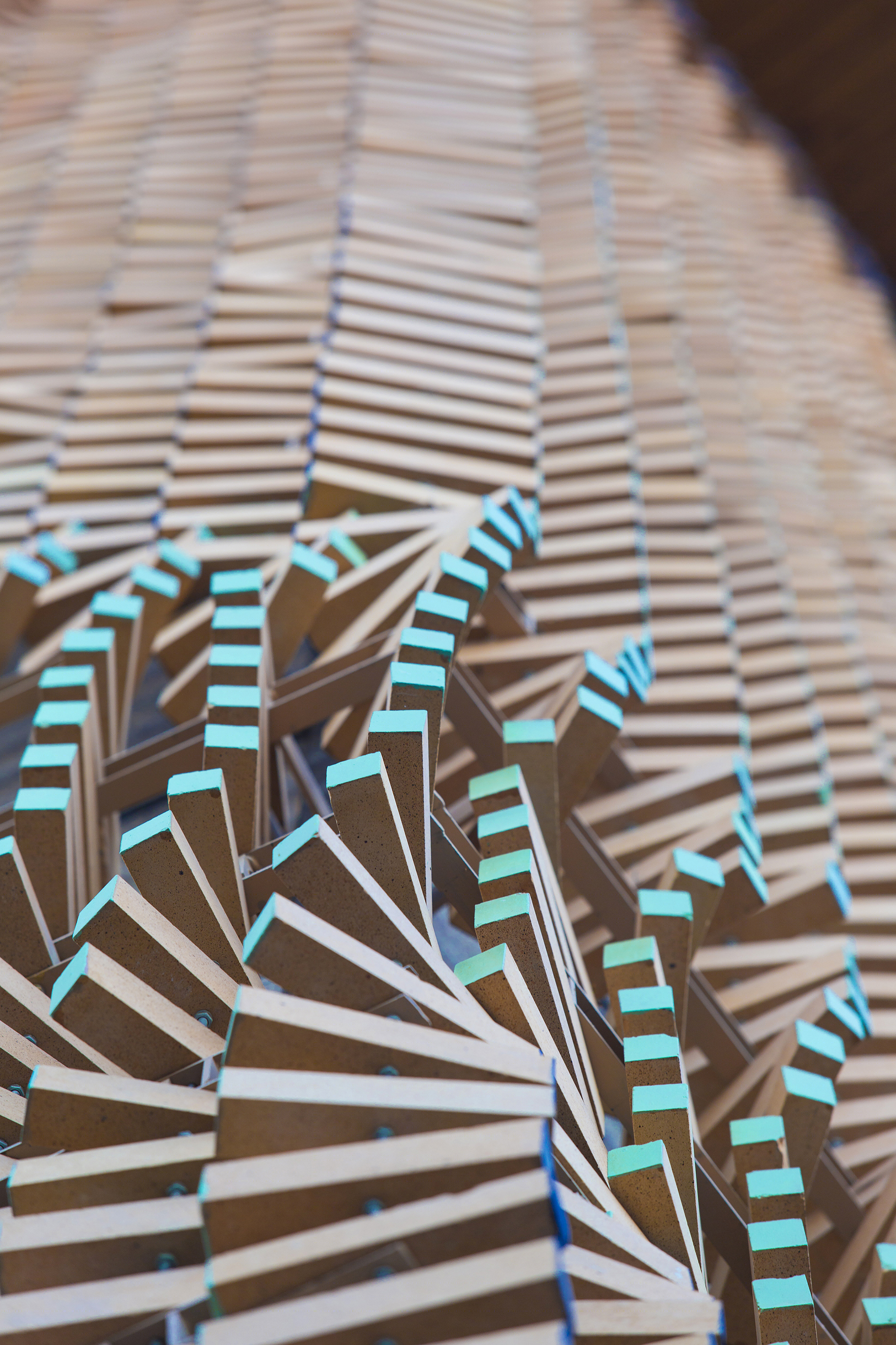

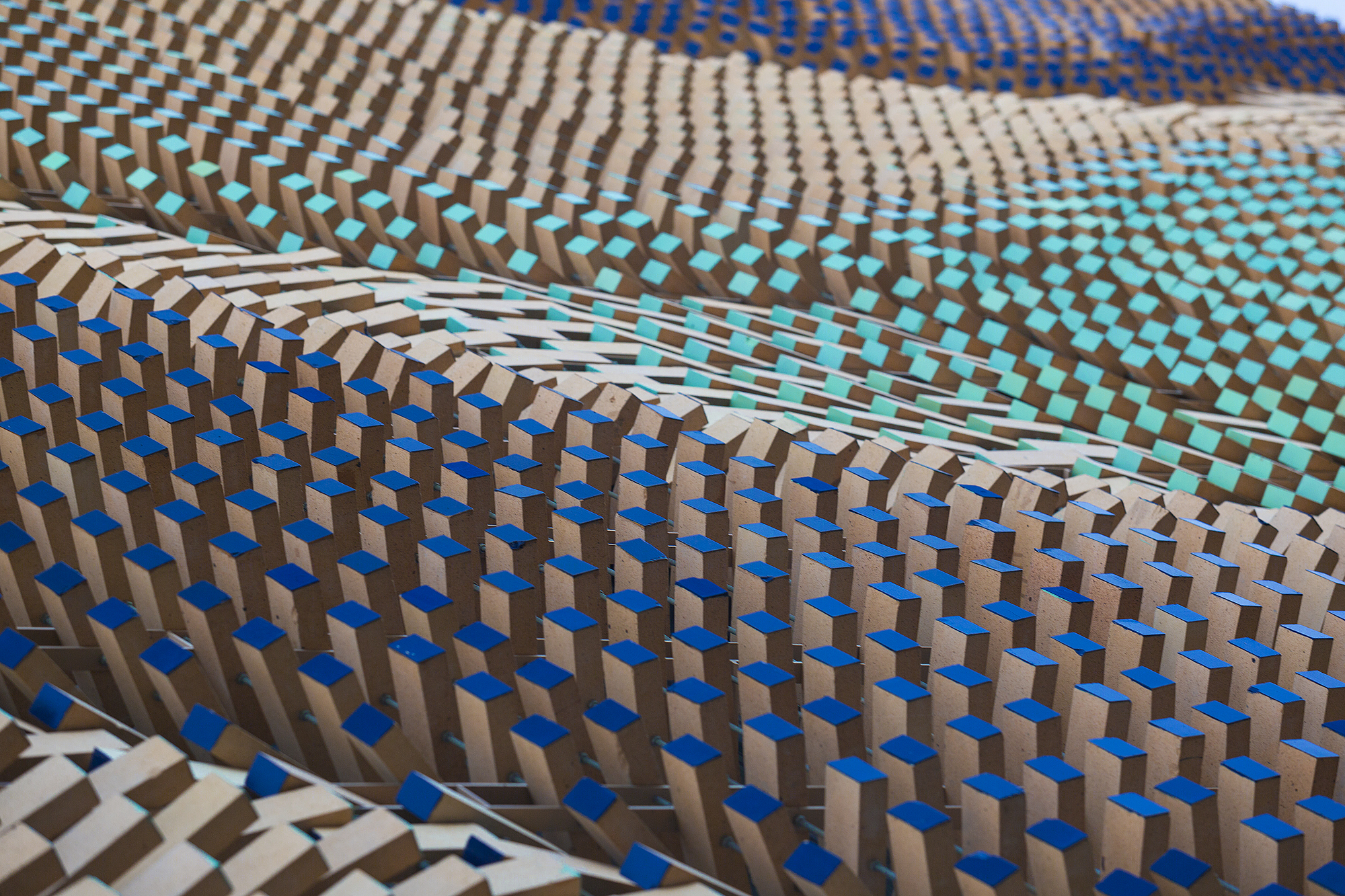

So with respect to these issues, the use of a brick grid seems to be a good idea to preserve the values of traditional architecture using parametric geometry while innovating. Parametric geometry of the facade of the building as well as the use of turquoise and azure colors at the beginning and the end of the bricks have made the facade of the building indifferent to the people passing through it and, while moving from the north to the south, faces various shapes It suggests that this may lead to a dynamic occurrence. This problem is placed in the binary Algorithm diagram in the main view.
旋转砖块办公楼-8
旋转砖块办公楼-9

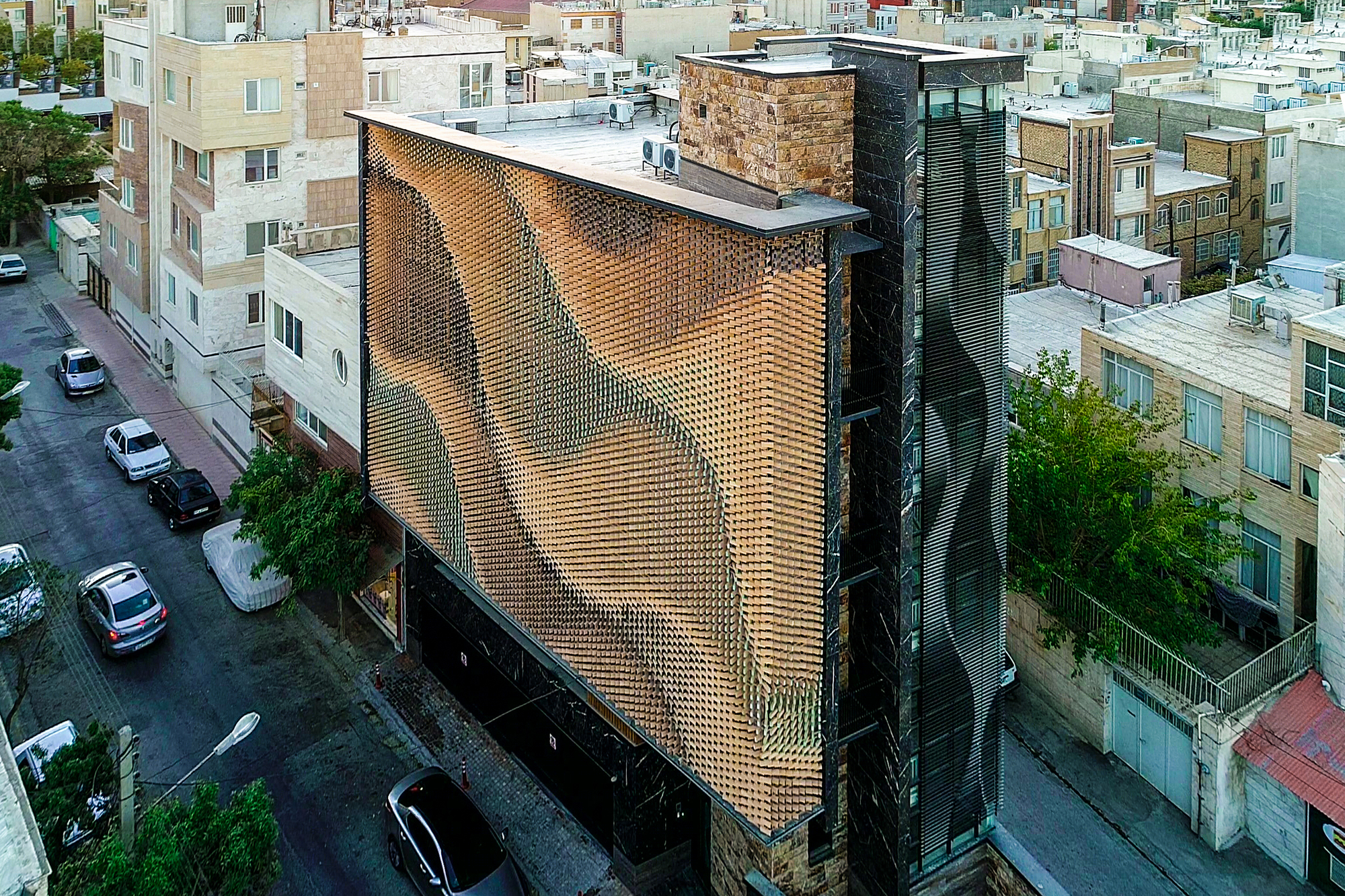

旋转砖块办公楼-10
▼项目更多图片

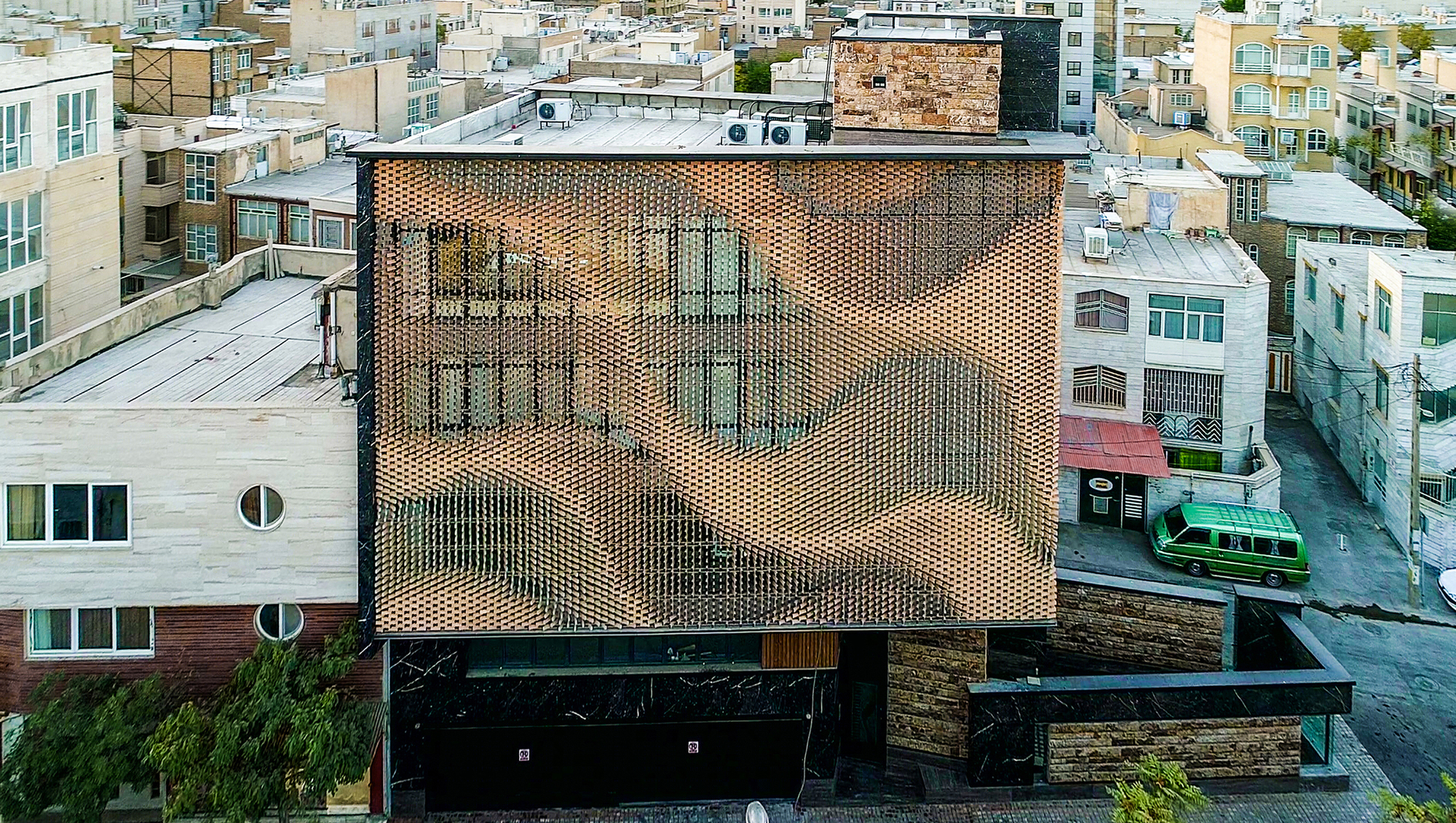

旋转砖块办公楼-12
旋转砖块办公楼-13
旋转砖块办公楼-14
旋转砖块办公楼-15
旋转砖块办公楼-16

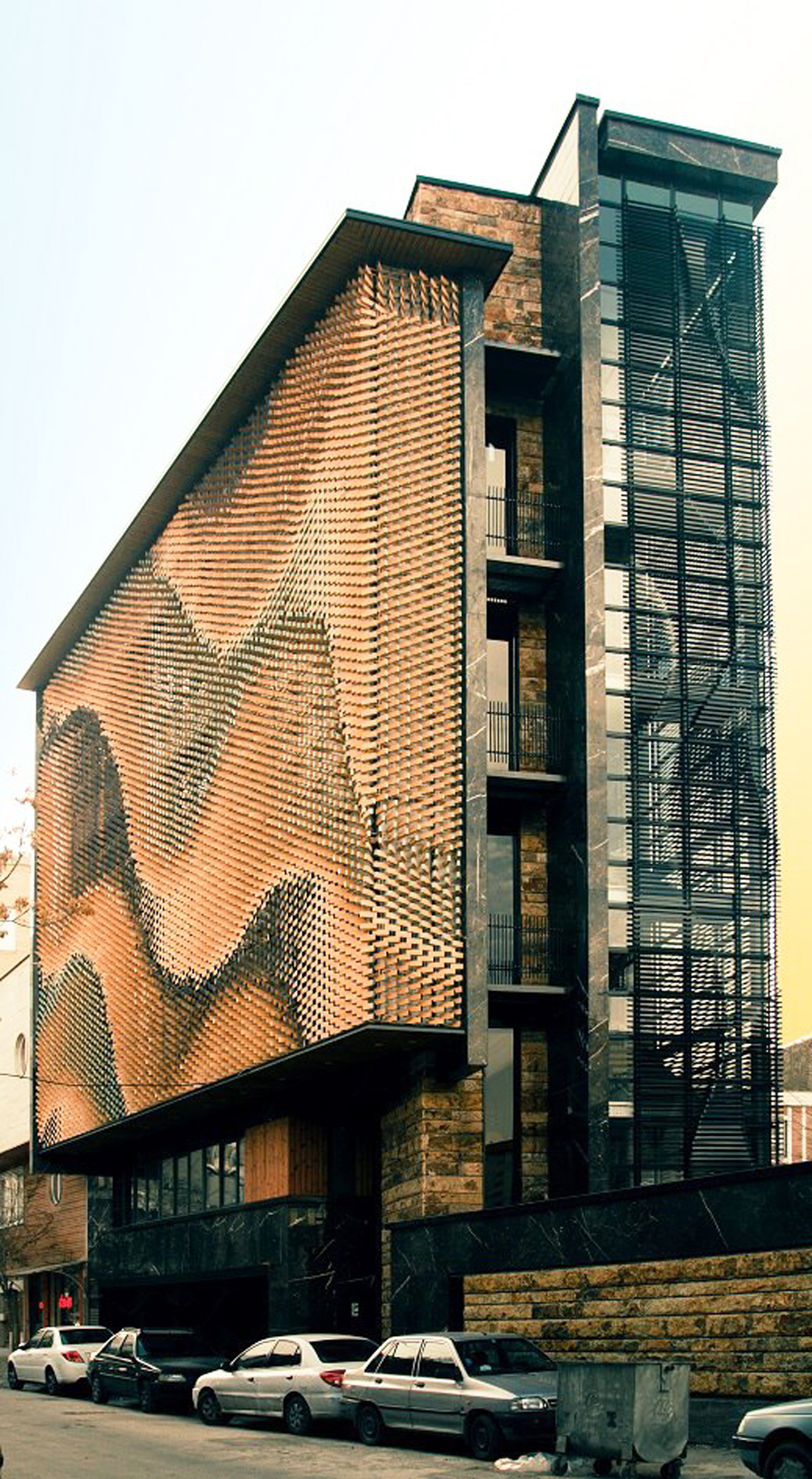

旋转砖块办公楼-17

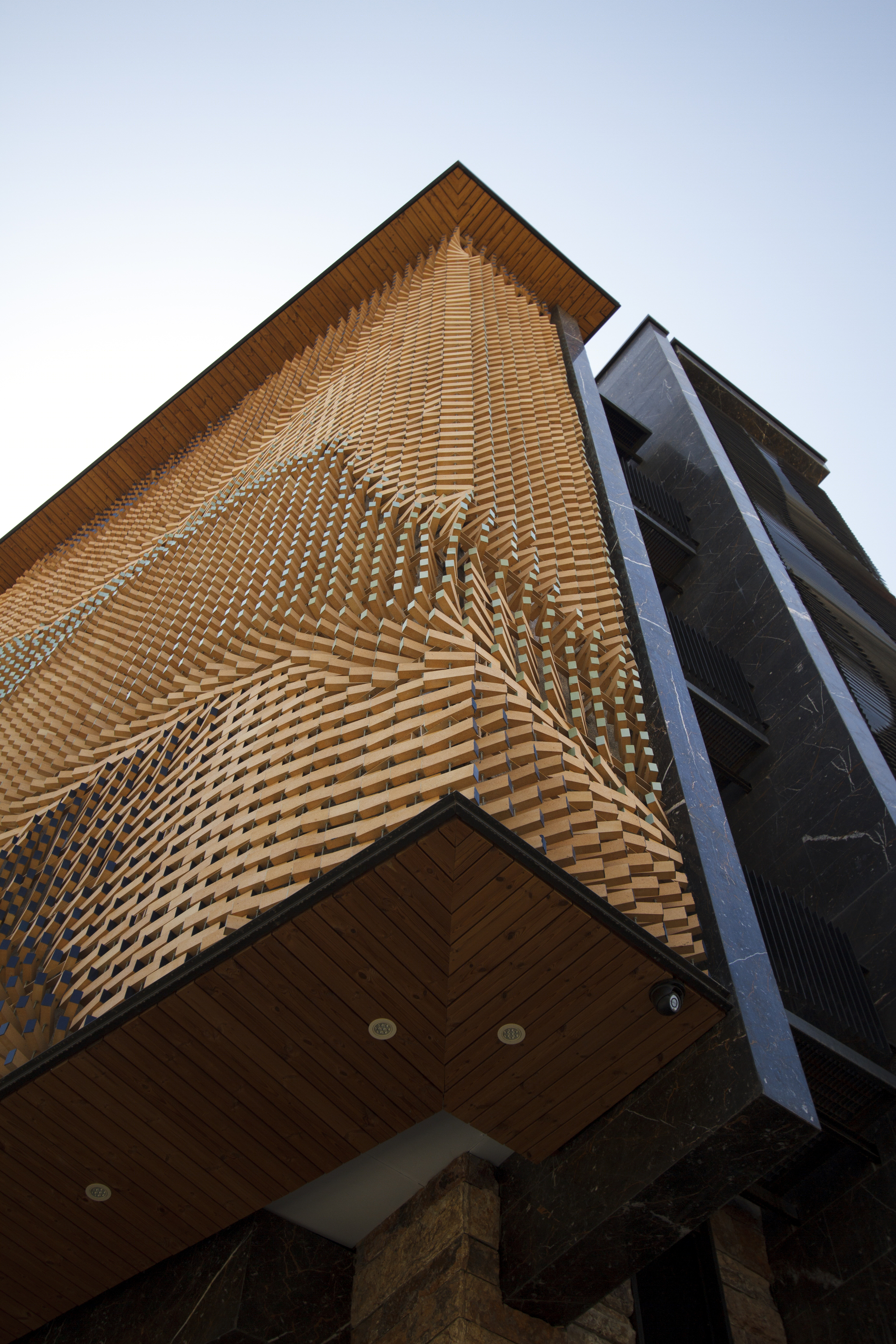

旋转砖块办公楼-18

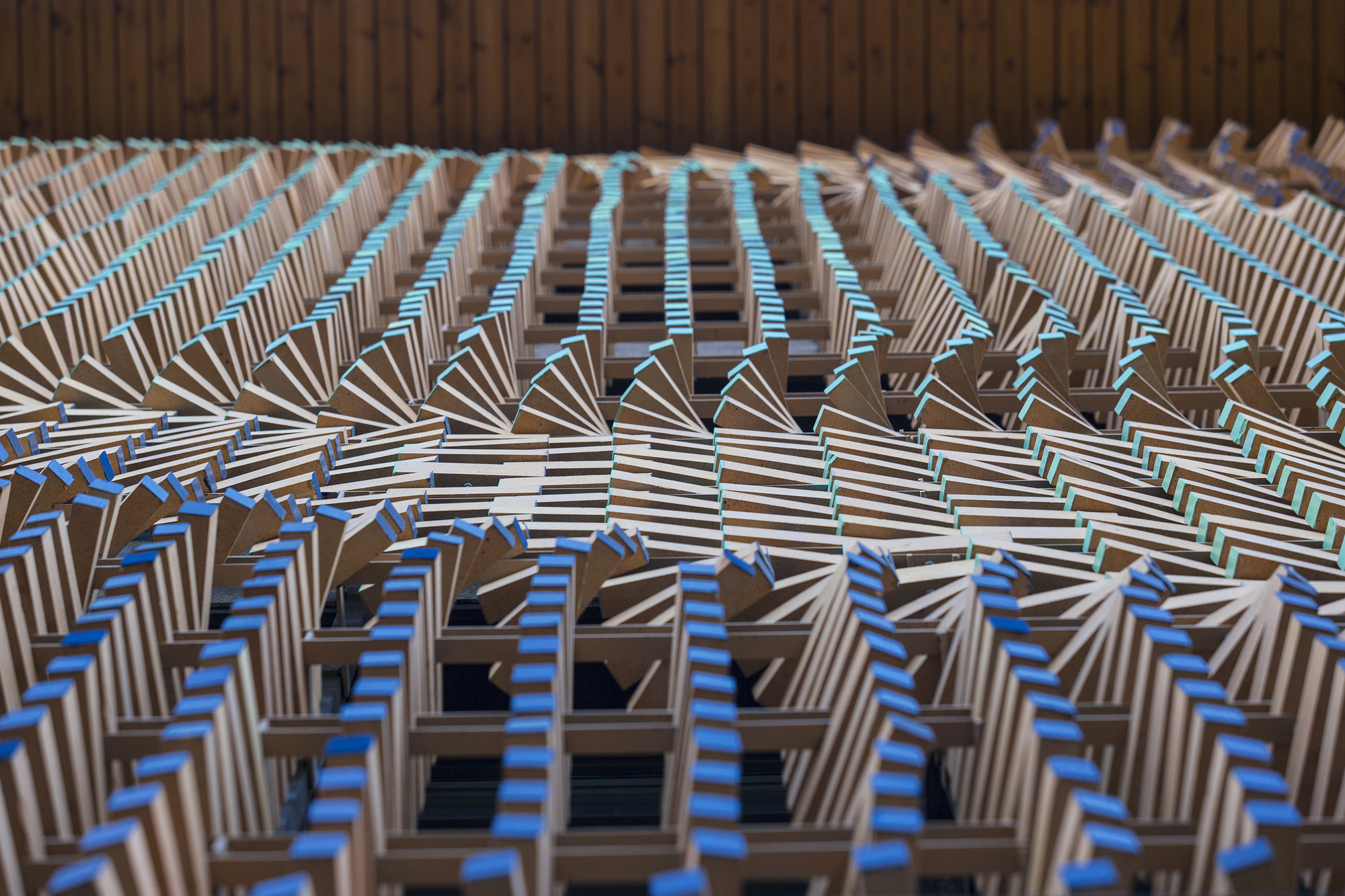

旋转砖块办公楼-19
旋转砖块办公楼-20
旋转砖块办公楼-21
旋转砖块办公楼-22

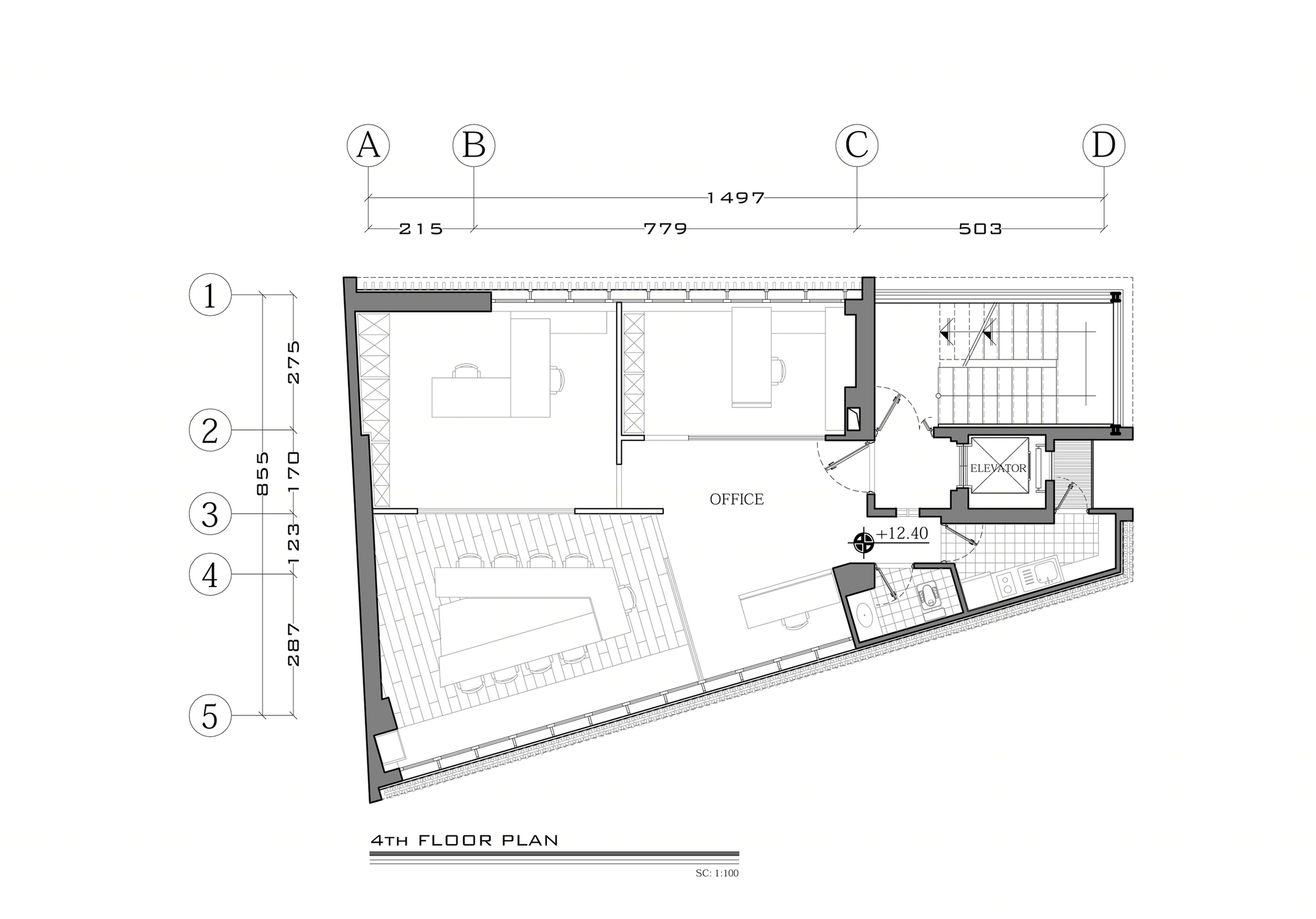

旋转砖块办公楼-23
旋转砖块办公楼-24
旋转砖块办公楼-25
旋转砖块办公楼-26
旋转砖块办公楼-27

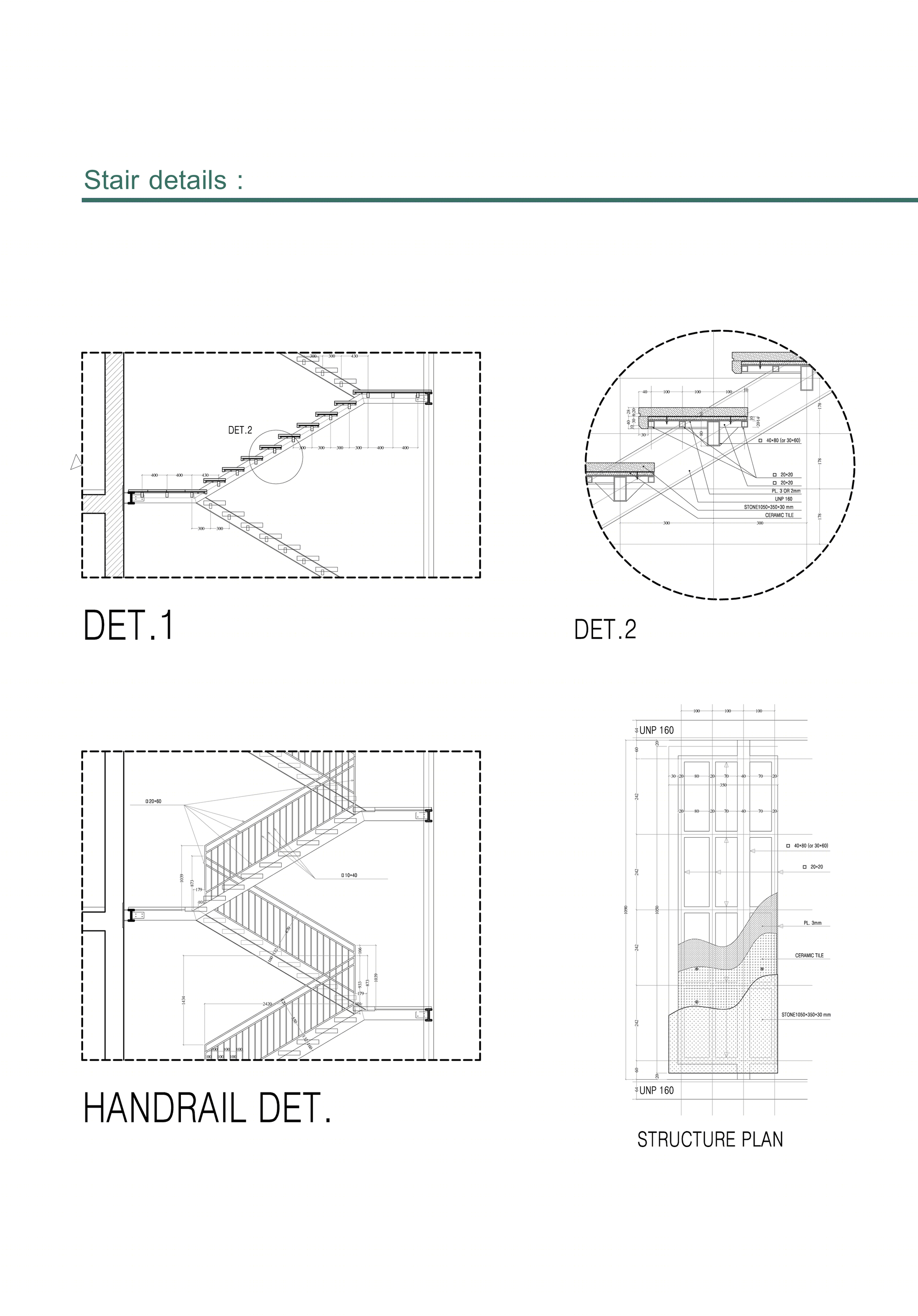

旋转砖块办公楼-28
旋转砖块办公楼-29
旋转砖块办公楼-30
