阿根廷 Palihue 住宅

Argentina Palihue Residential

设计方：Argentina

位置：阿根廷

分类：居住建筑

内容：实景照片

图片：34张

这是由Bernardo Rosello设计的Palihue住宅。该项目位于距布兰卡港市中心不超过10分钟车程的低密度住宅小区内。项目根据客户的使用需求而设计，包括一个家庭区域、宾客区（主要是为不在此久住的孩子们所用）以及私人使用区域。为了达到流畅的功能组织，项目设计了三个可以独立使用的区域。考虑到场地的三维限制特点，该项目使用了一个单一的结构模块作为组织要素，并以一种韵律性的序列重复使用，从而创建了多个不同的空间。而常规的几何基座由钢柱、混凝土墙和铝框组成。住宅的造型构思是来自该项目自身秩序与构造逻辑。

译者：筑龙网艾比

Located in a residential quarter of low housing density less than 10 minutes drive from the center of Bahia Blanca, the house was designed according to the needs of customer use, who he requested: a family area, guest area, mainly for their children who do not reside permanently, and an area for private use. To achieve a smooth functioning project organization provides in these 3 areas can be used to each other independently.

Having as limit the dimensional characteristics of the site, the project is organized from a single structural module that is repeated in a rhythmic sequence forming the different spaces. That regular geometry base, consisting of steel columns, concrete wall and aluminum frames, synthesizes constructively and with few details all the work.

The shape of the housing is a direct result of the constructive logic that the project has, from its law. The definition of the object as a formal totality given from the positioning of such constructive modules that colonize the site and organize various outdoor areas. These empty spaces or courtyards that house shape generates, have a specific use (social courtyard, patio reading, patio transition with the city, etc.) that interact with interiors that define.

To achieve thermal efficiency, reinforced concrete walls were executed in two phases: first, the outer face of a structural nature, then the inside prefabricated modules on site prepositioning of all barriers and insulation necessary to ensure indoor comfort mounted. For glazed windows exposed to the summer sun, trees and shrubs were placed with the function of regulating the direct natural light.

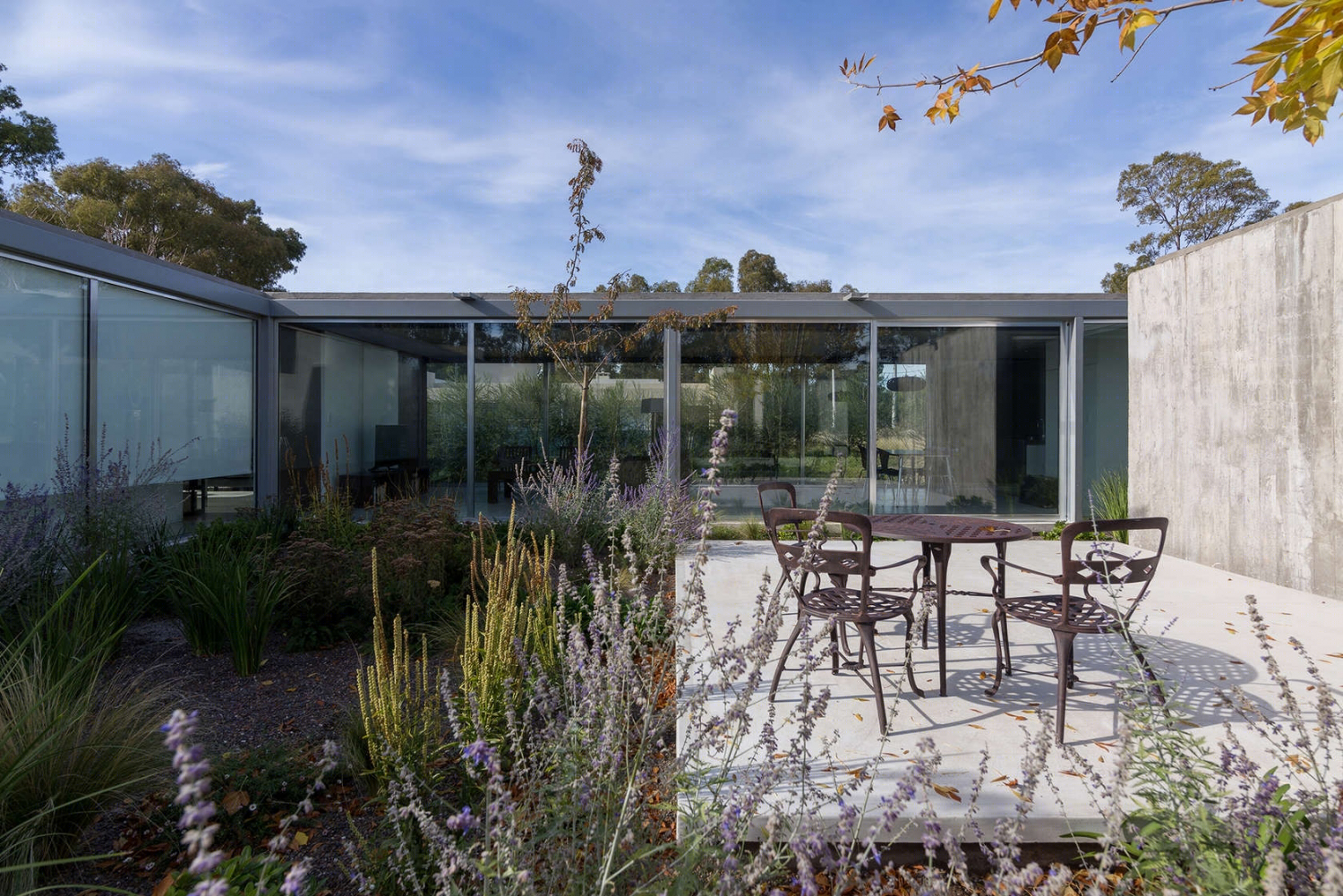

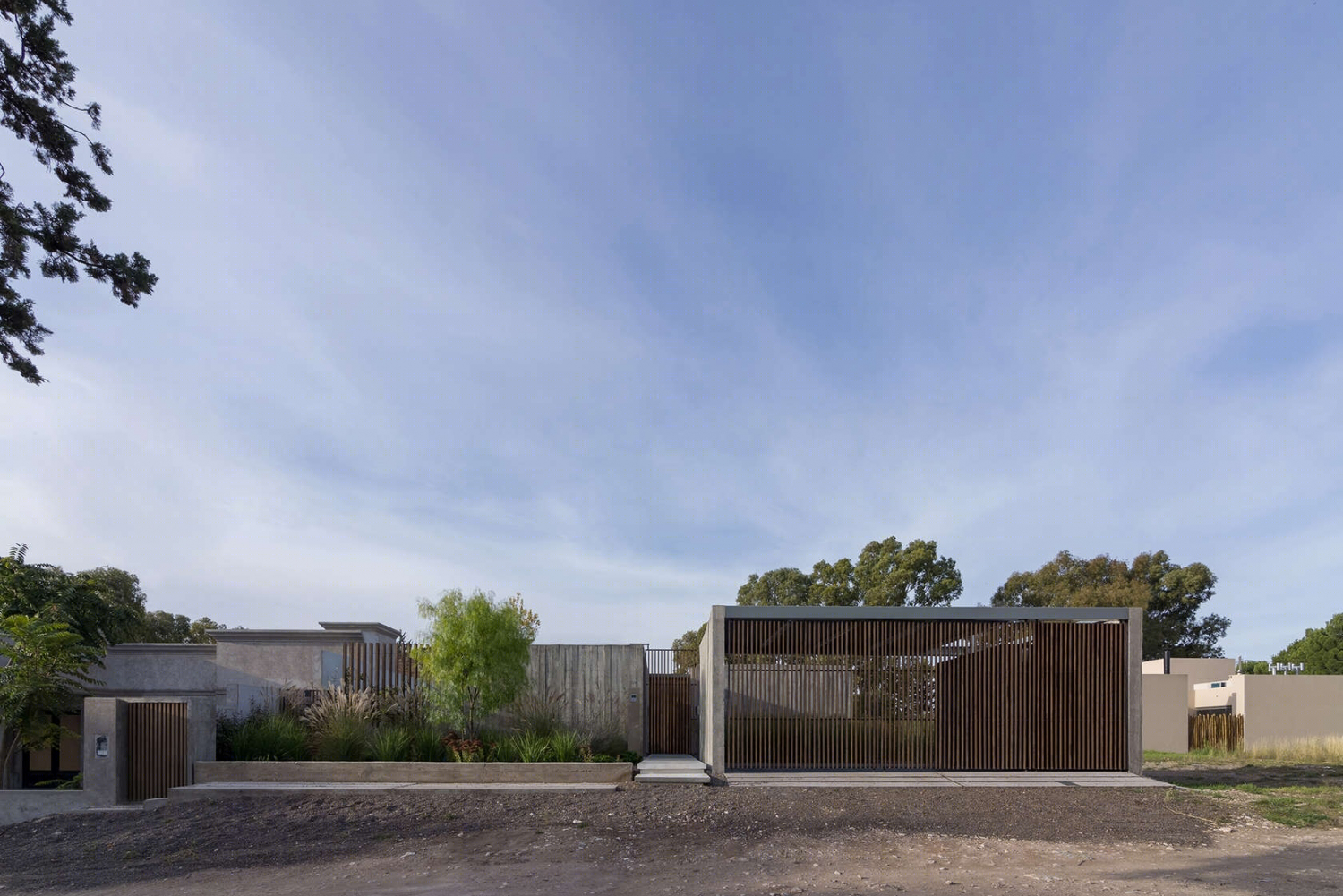

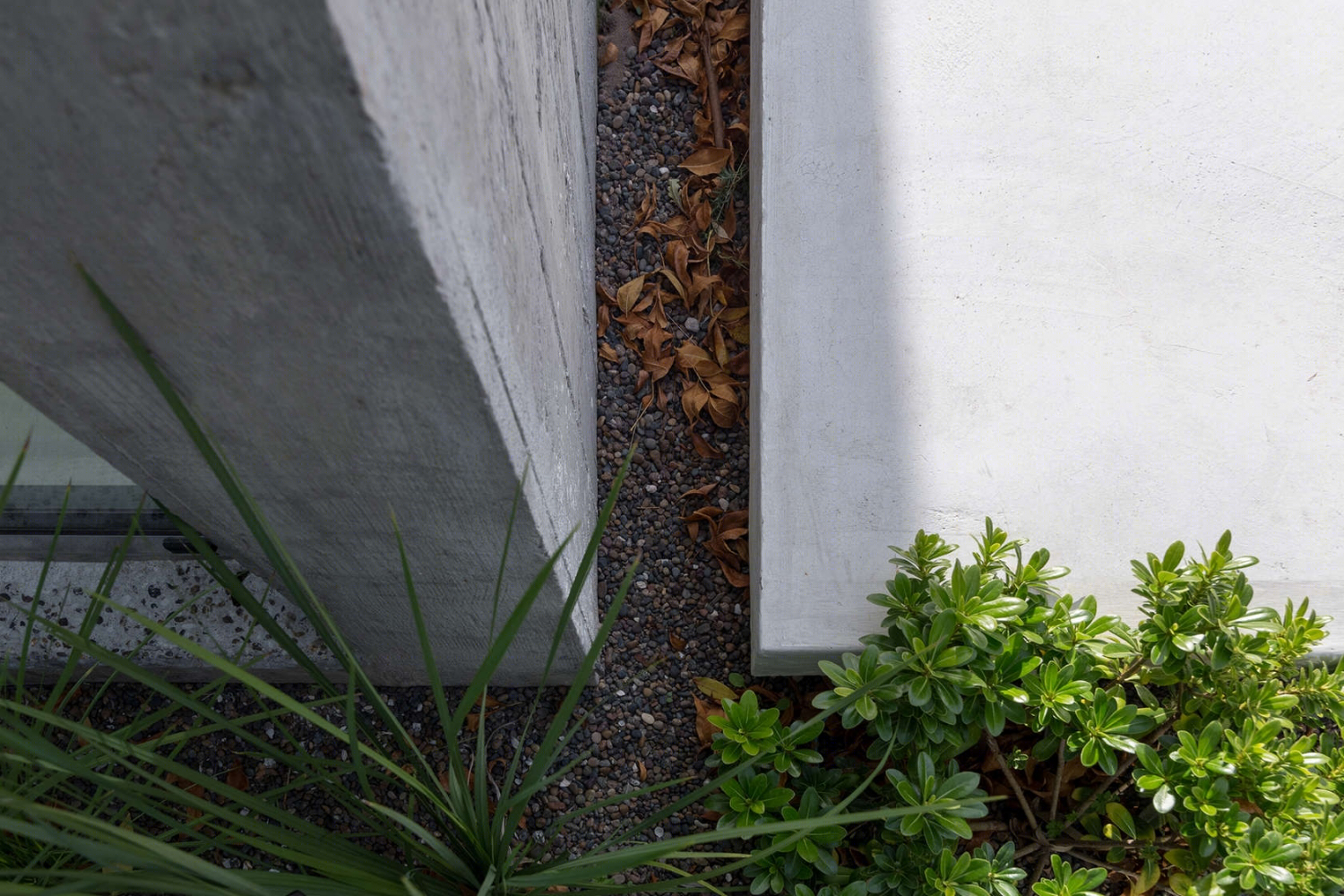

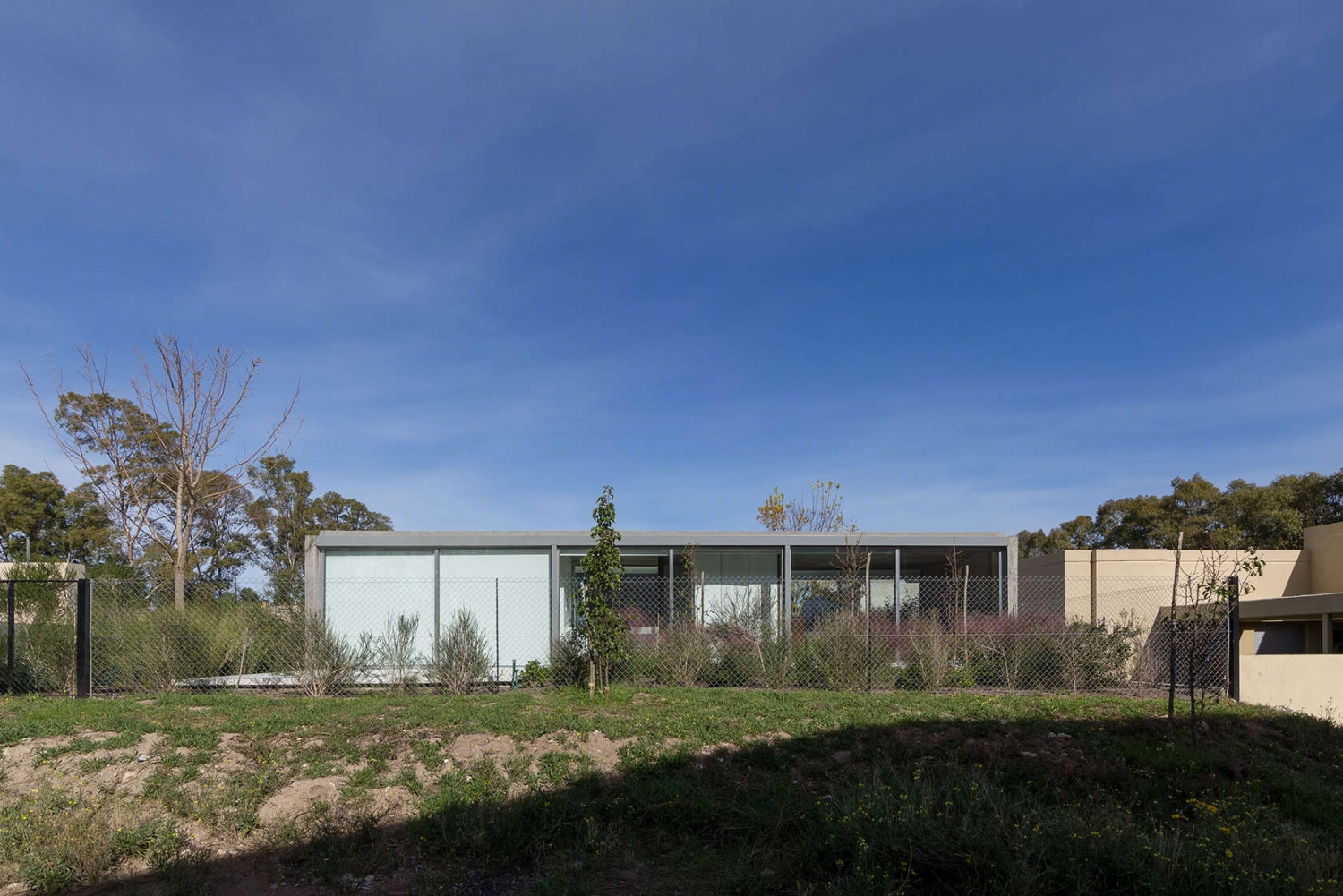

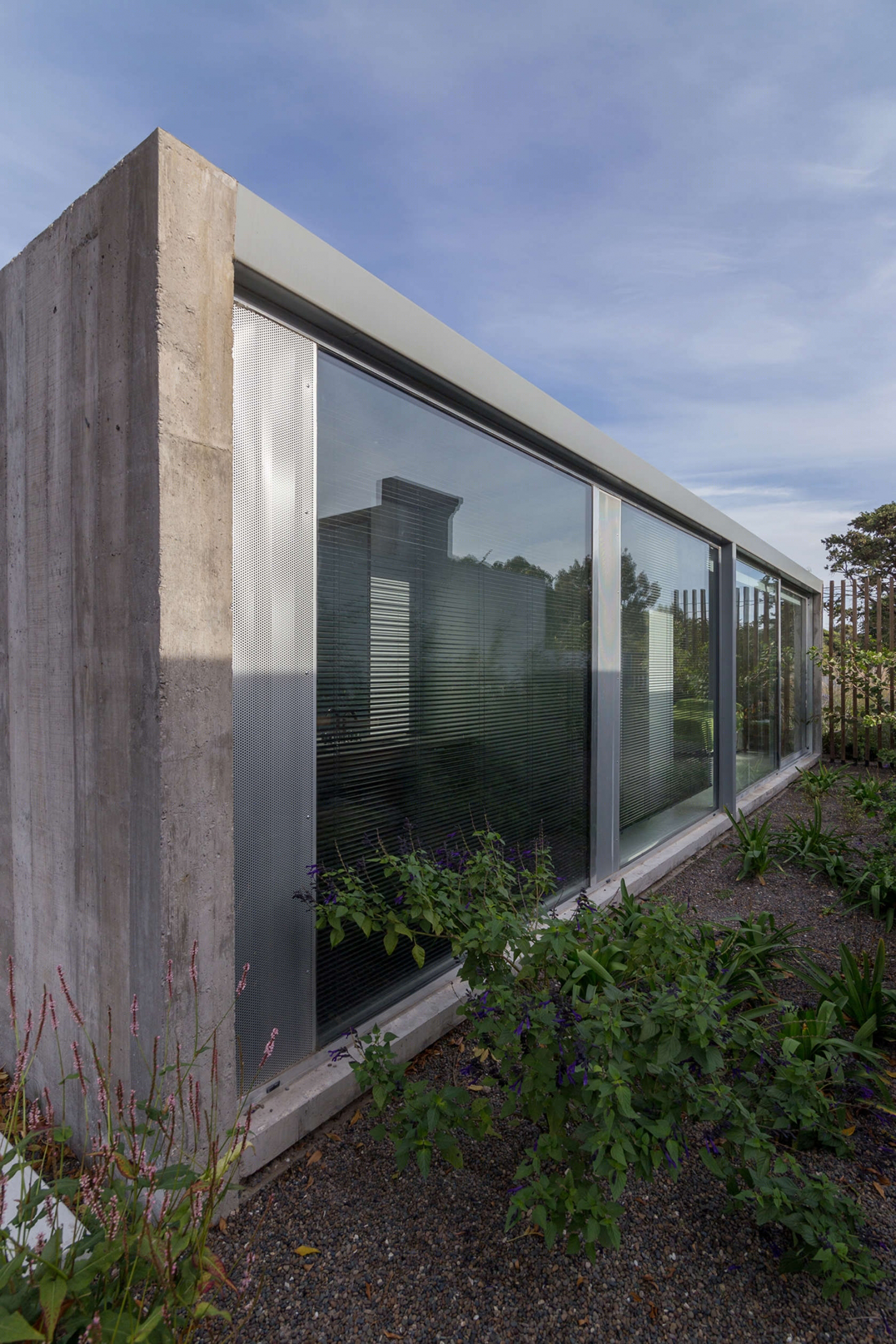

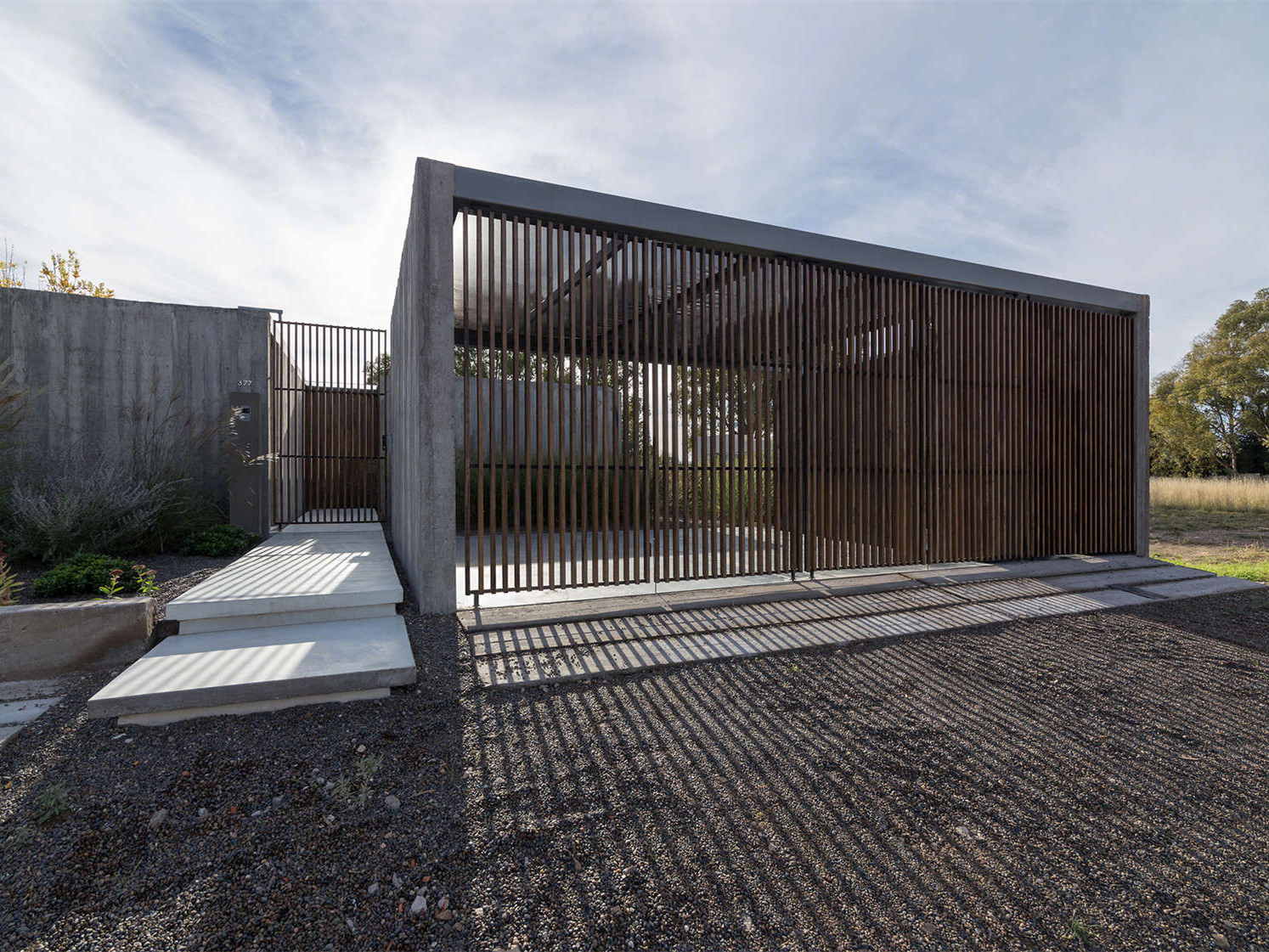

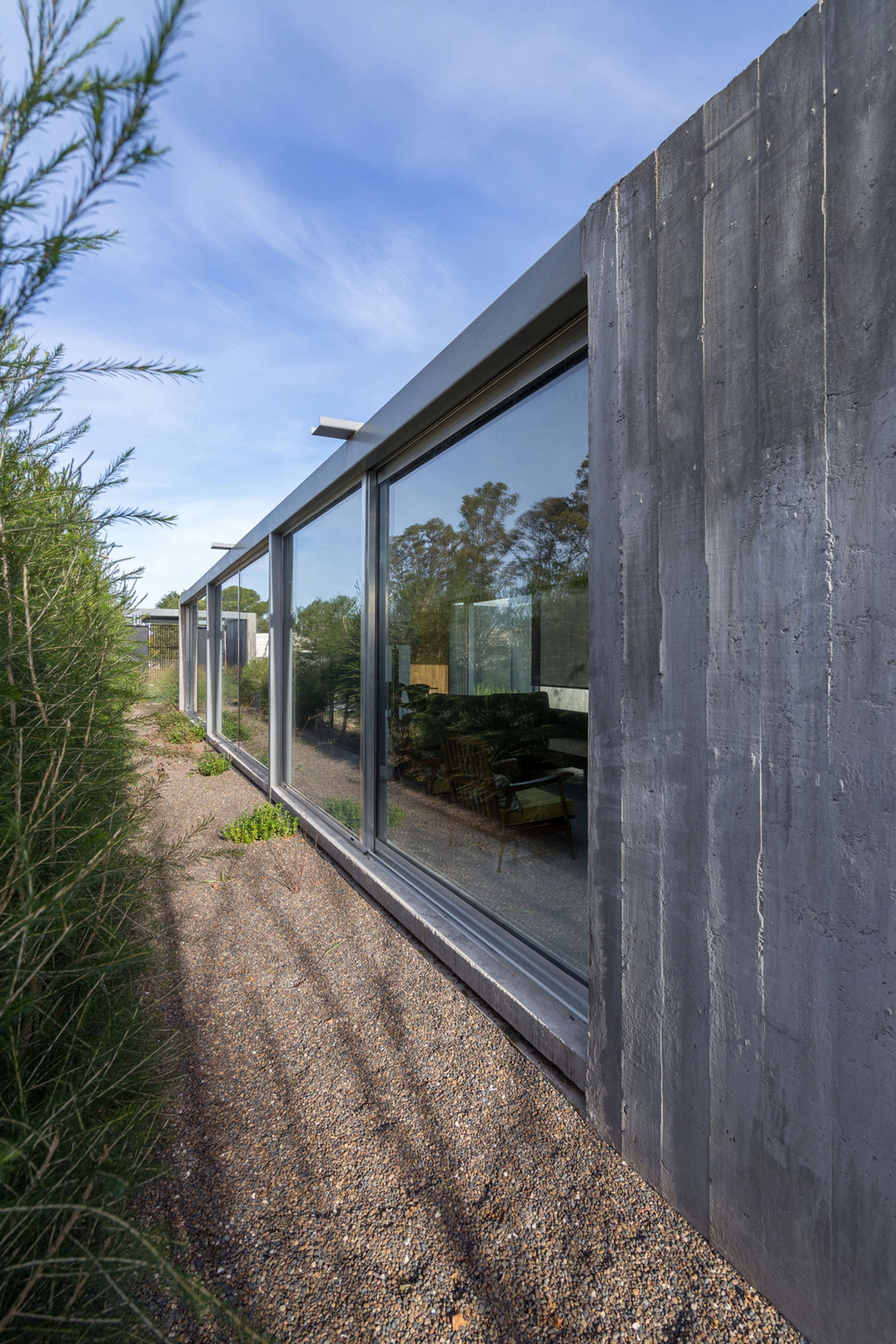

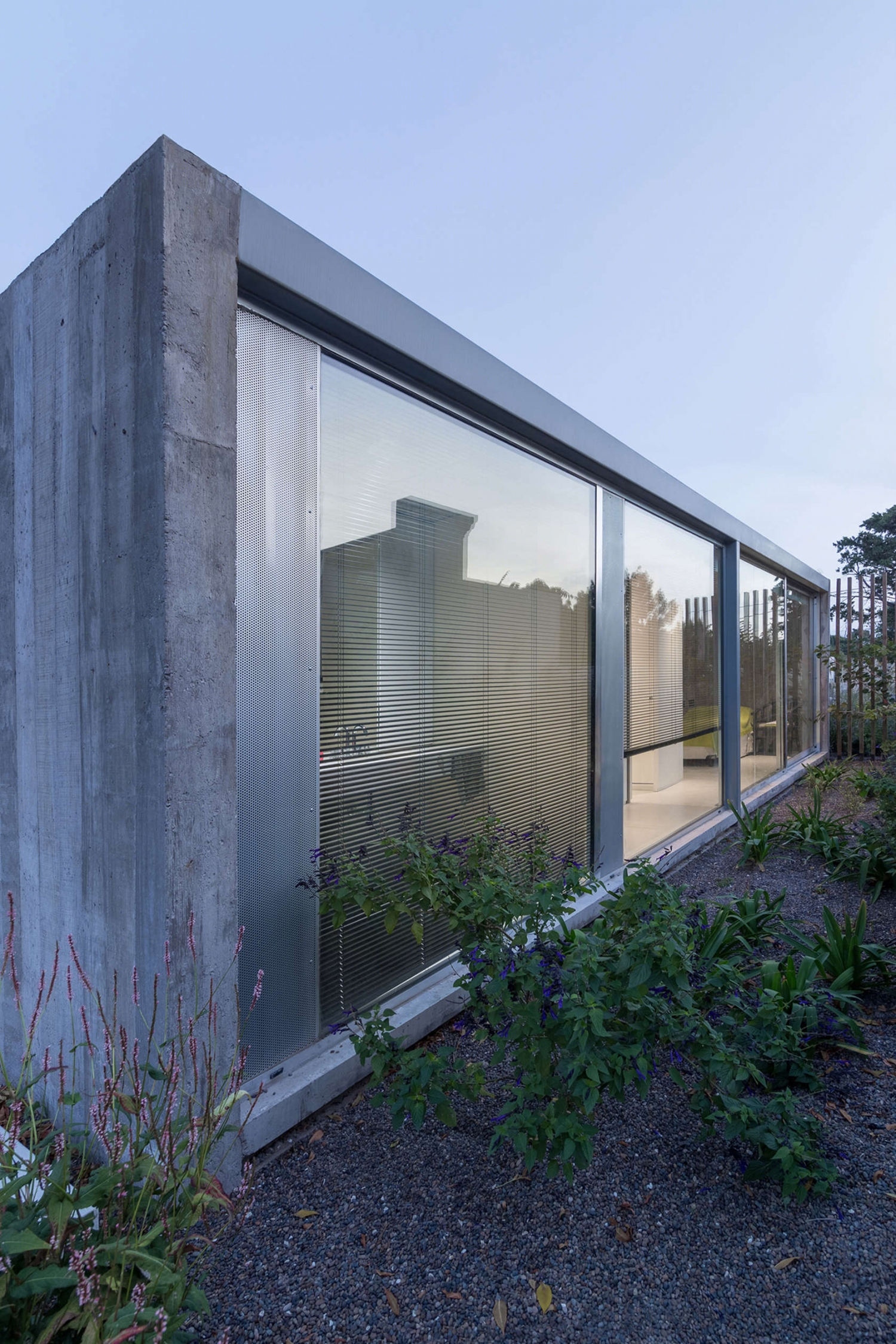

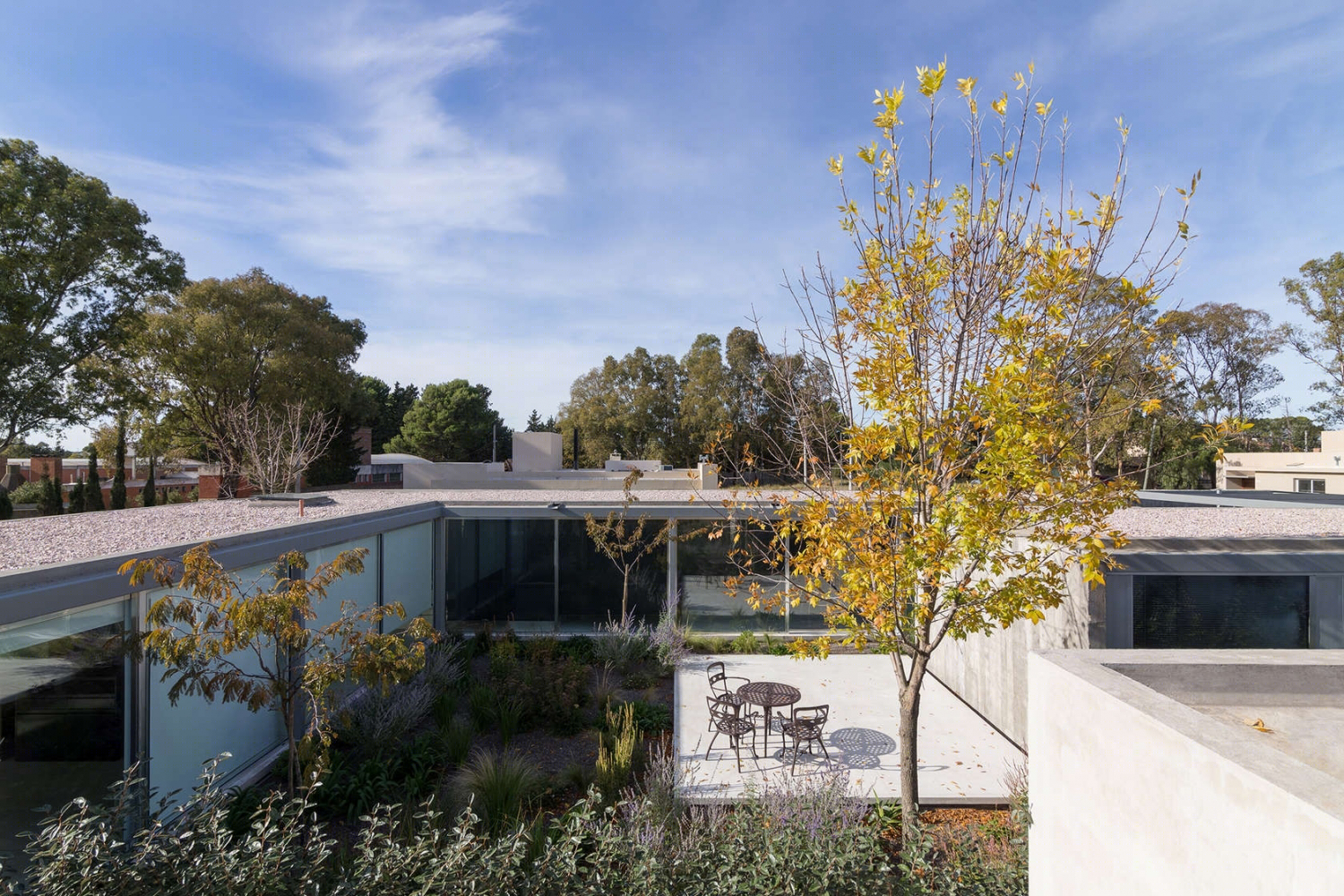

阿根廷Palihue住宅外部实景图

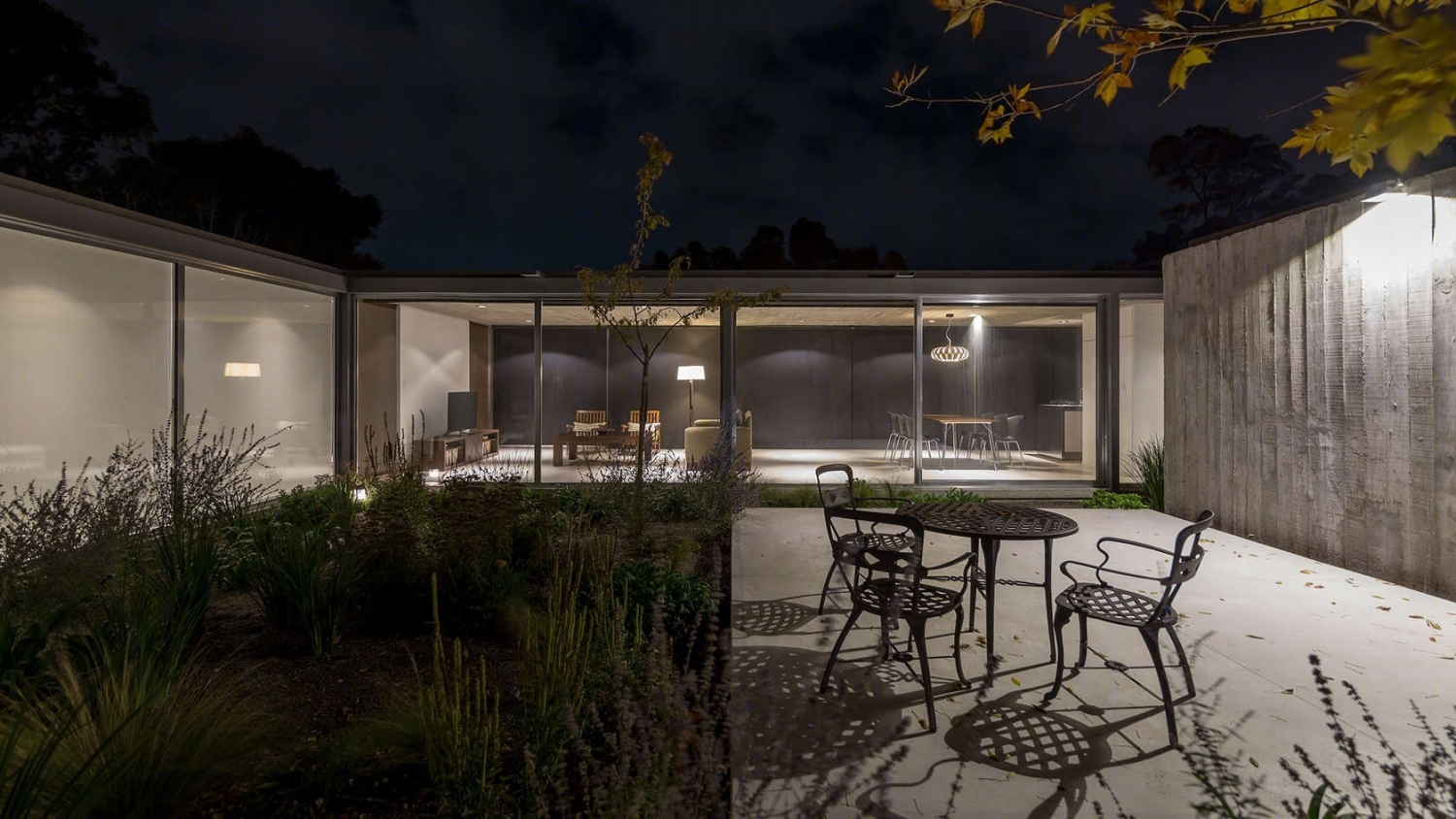

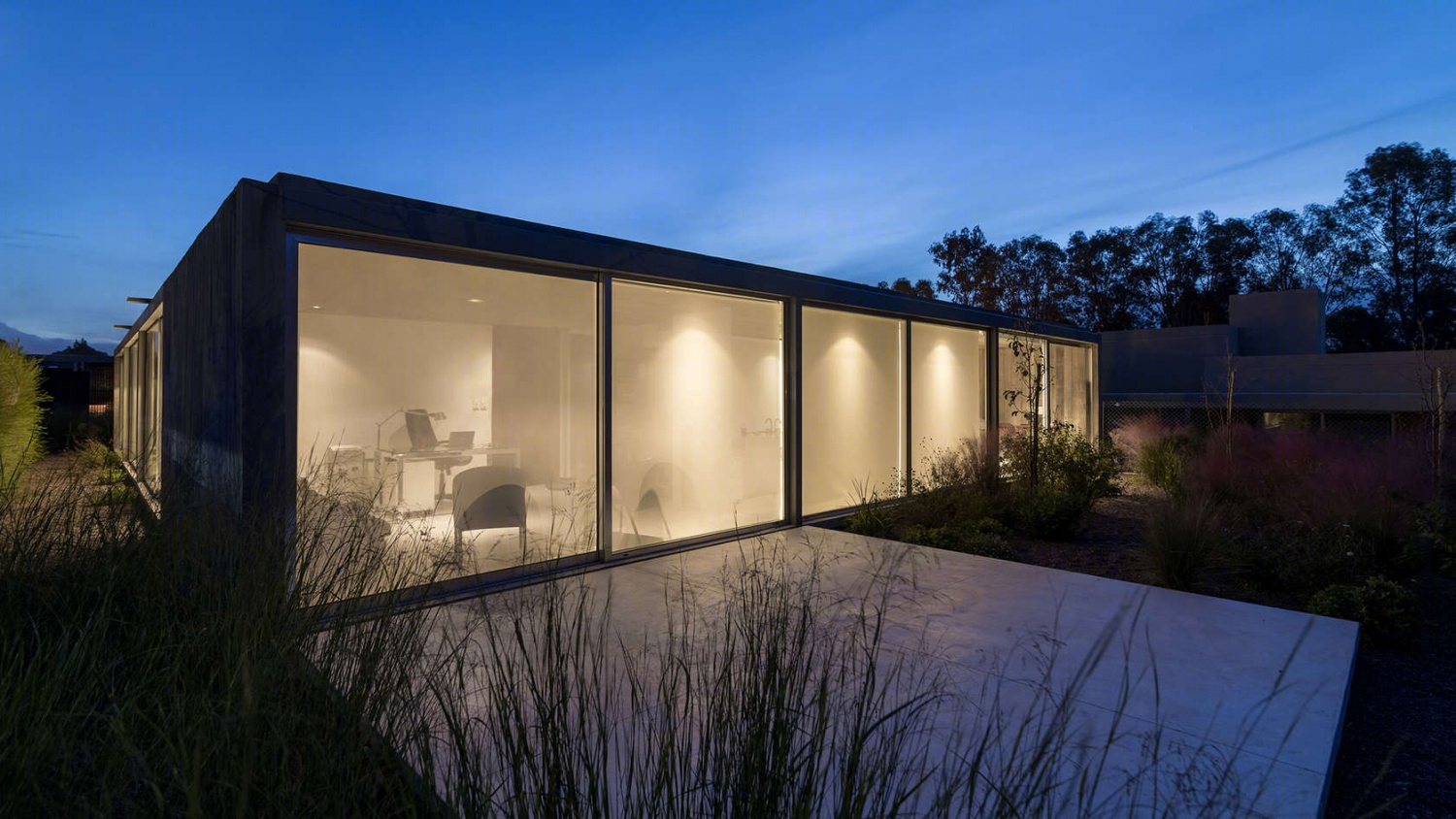

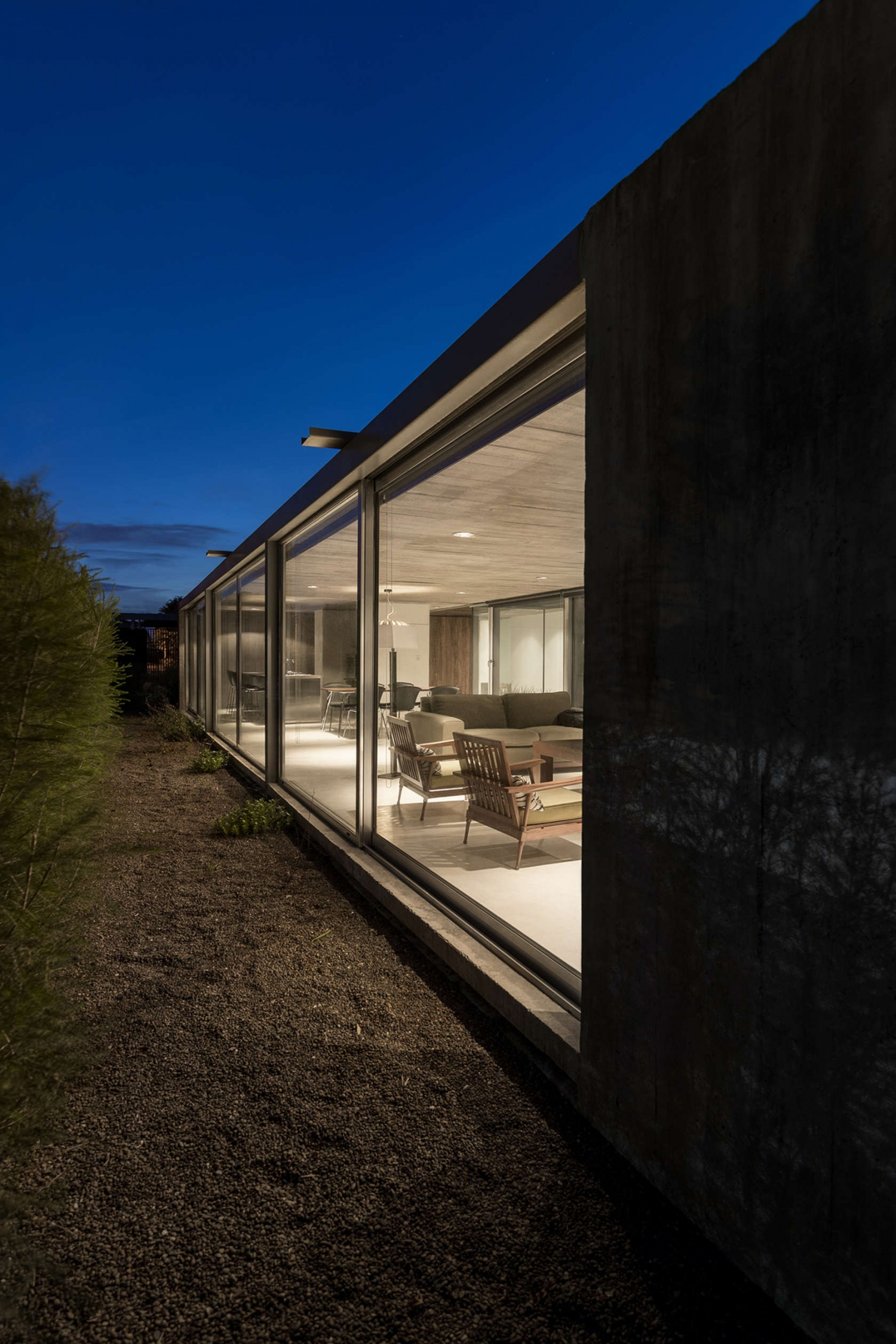

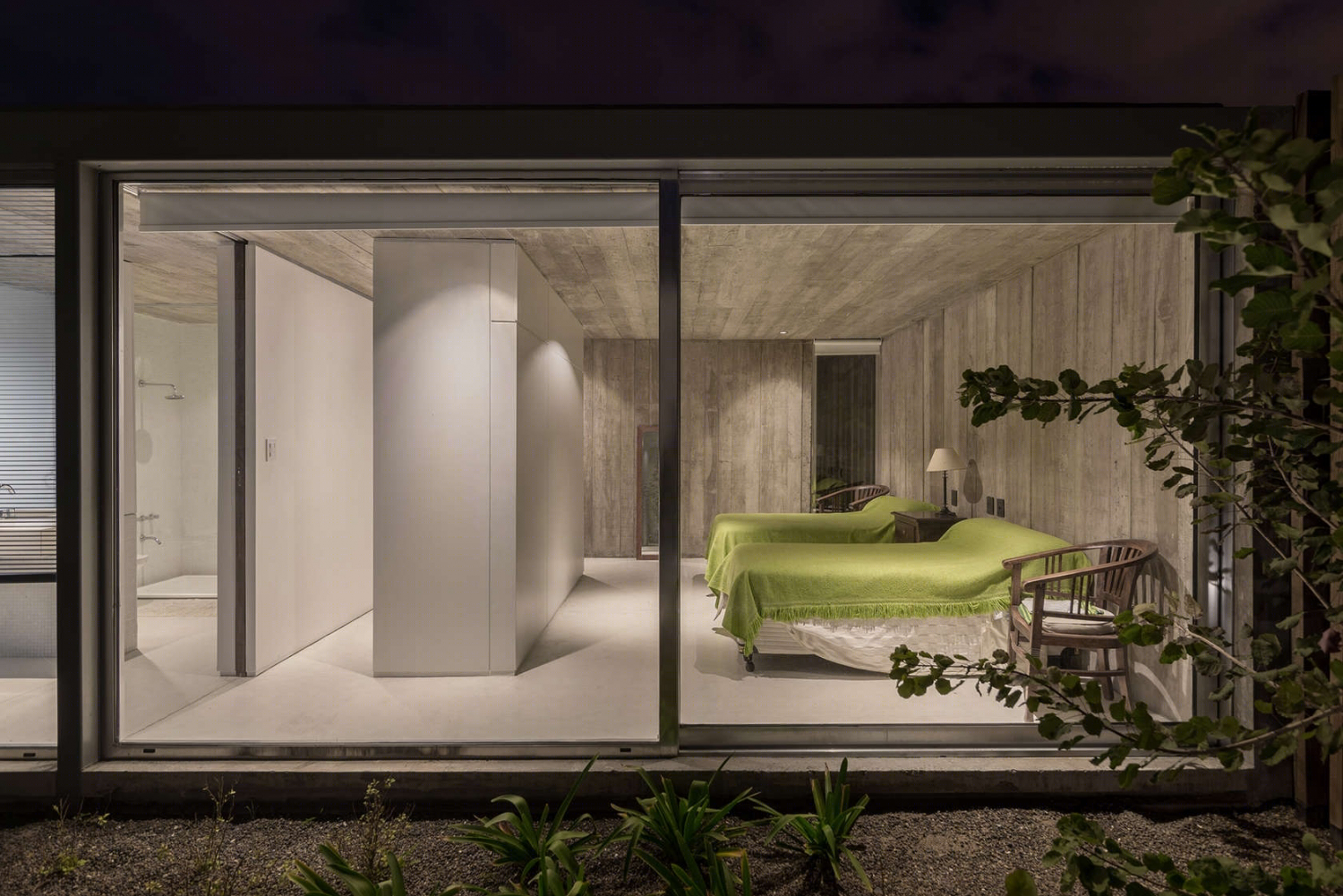

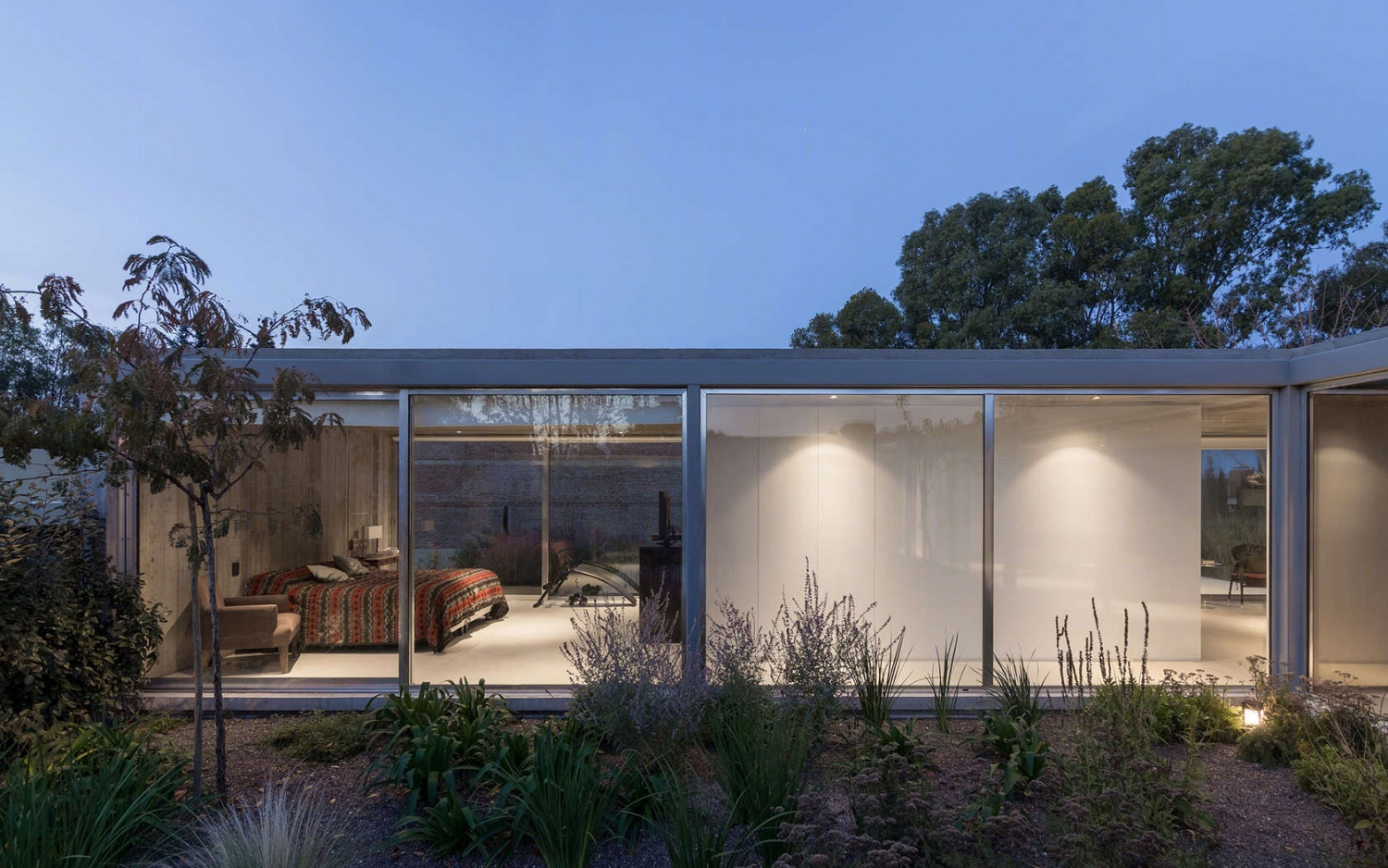

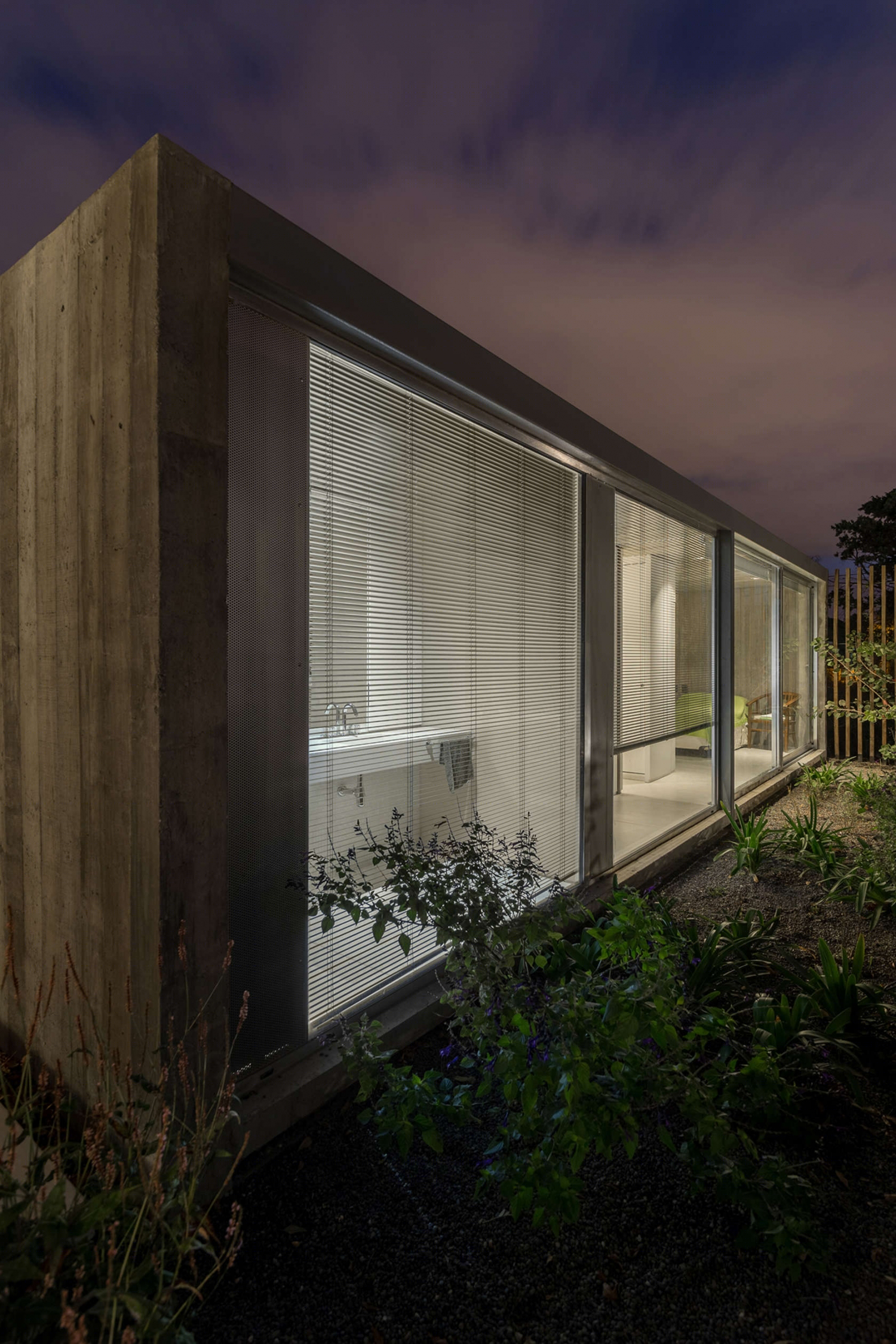

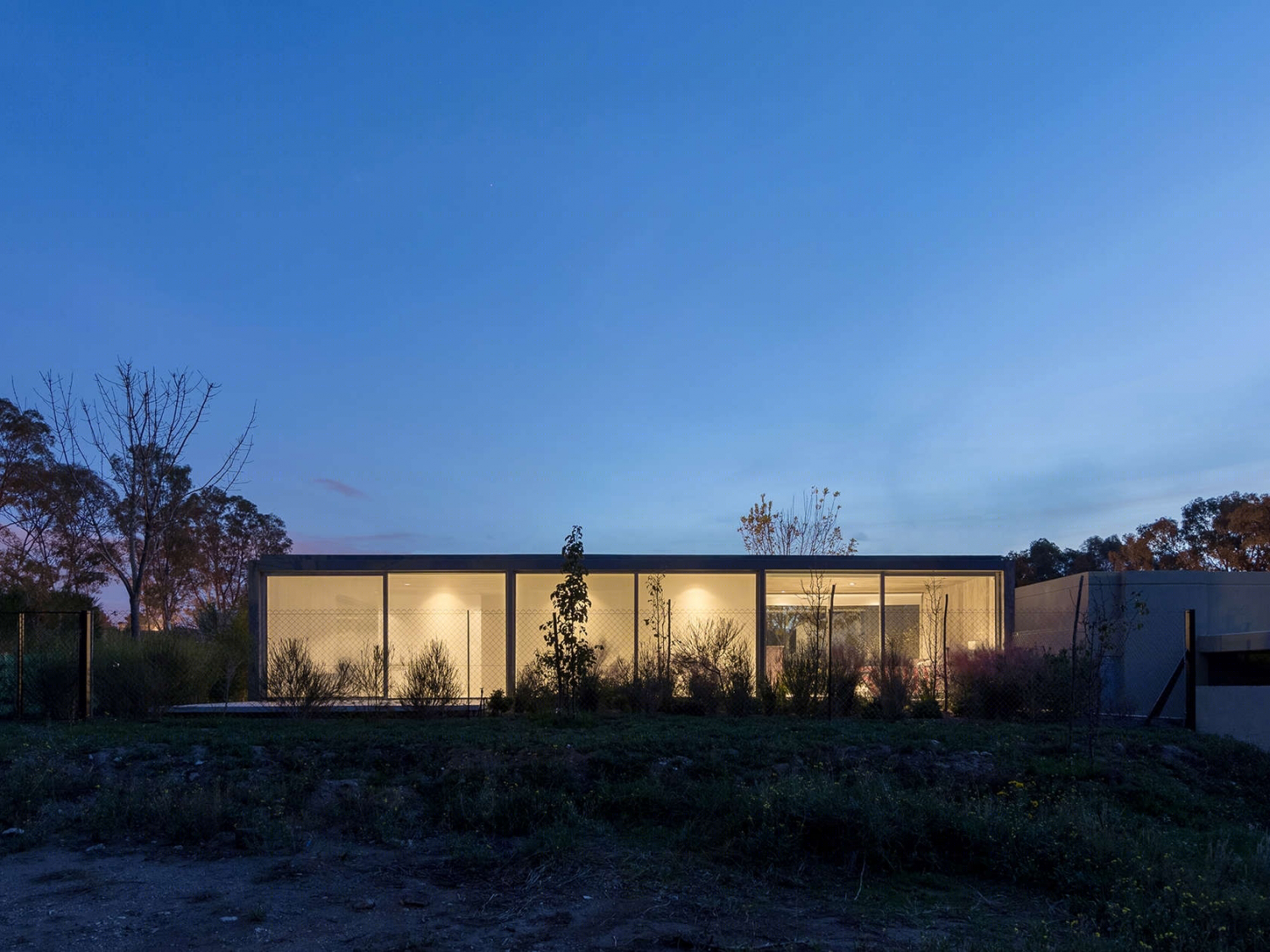

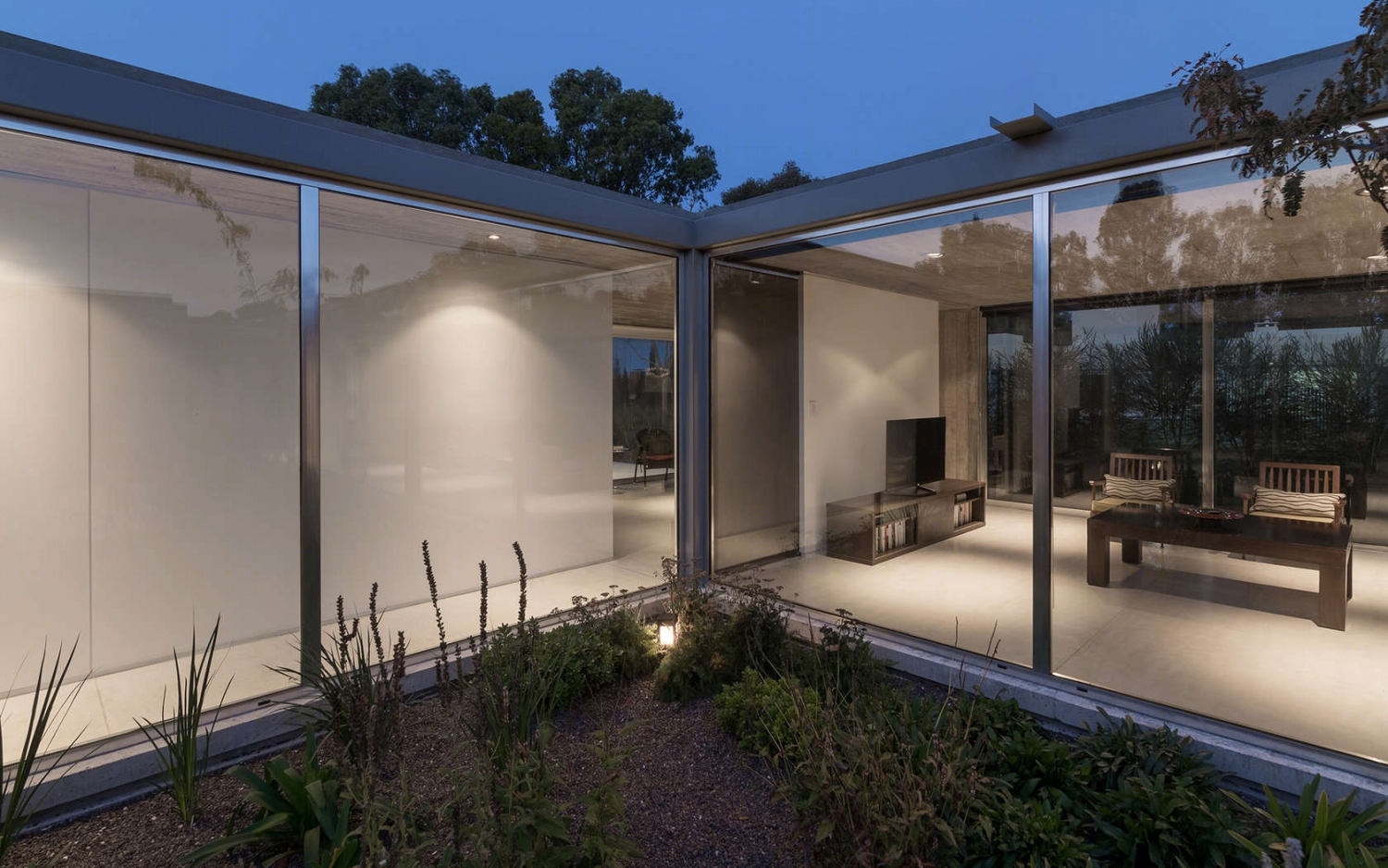

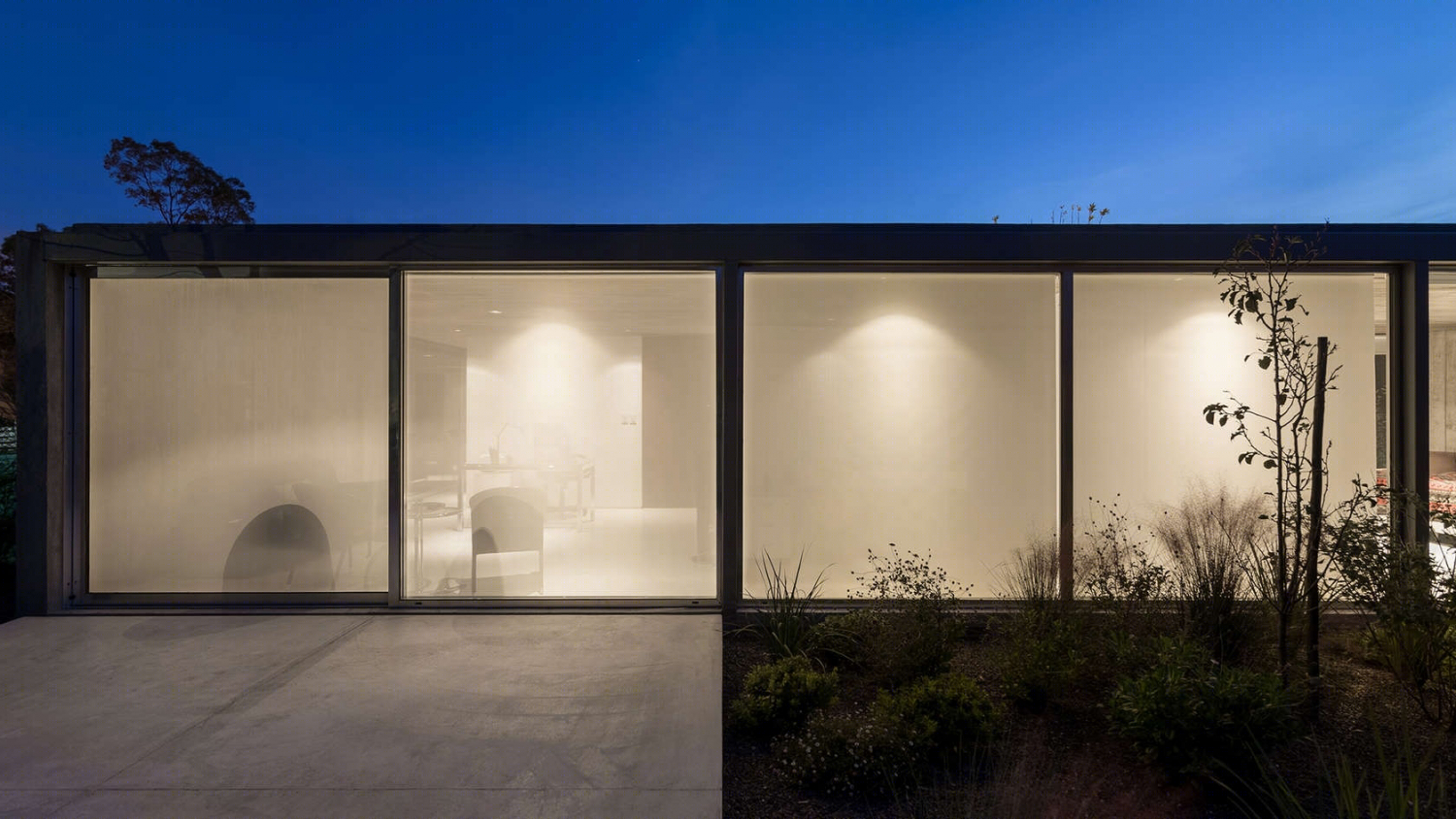

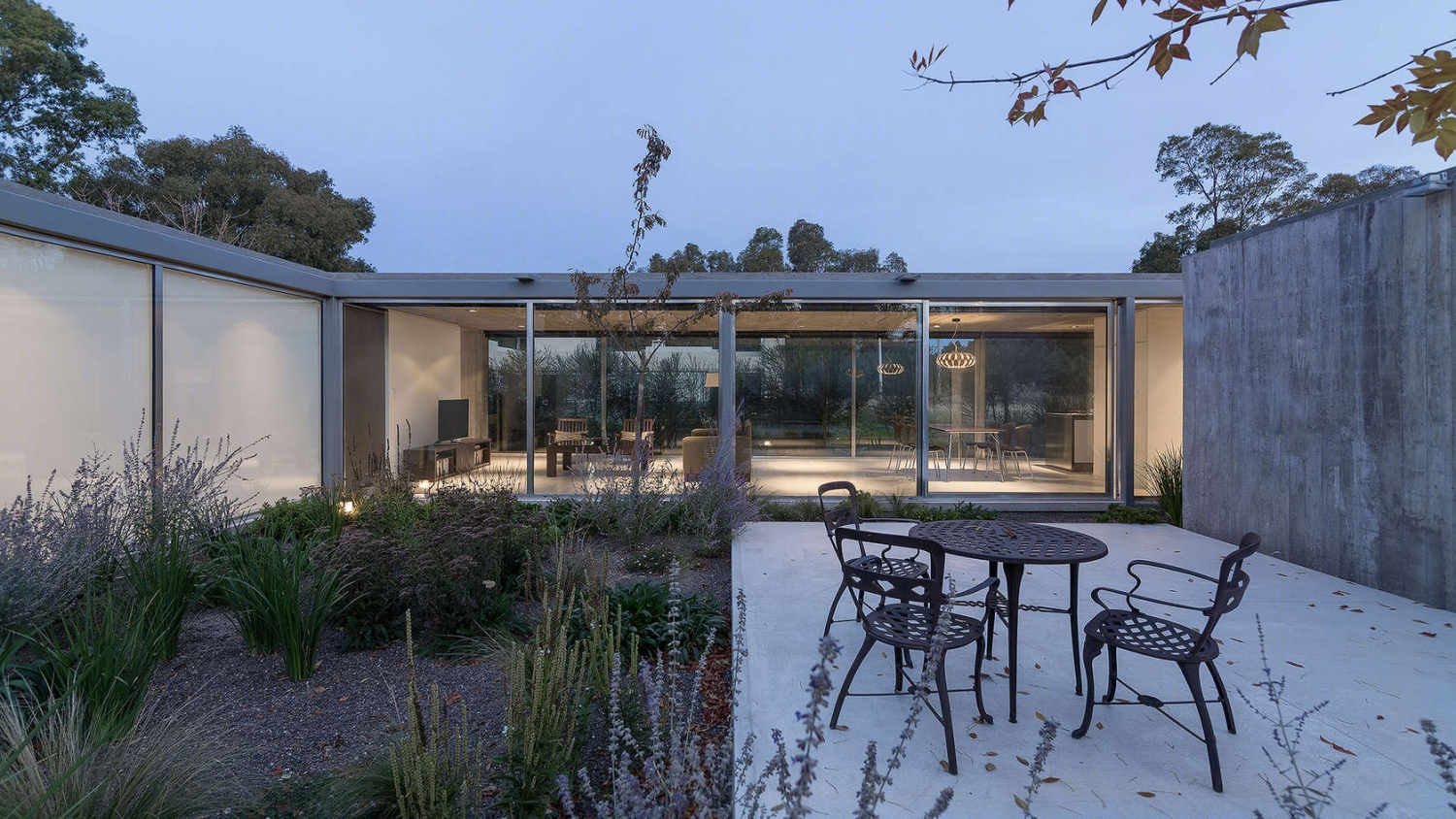

阿根廷Palihue住宅外部夜景实景图

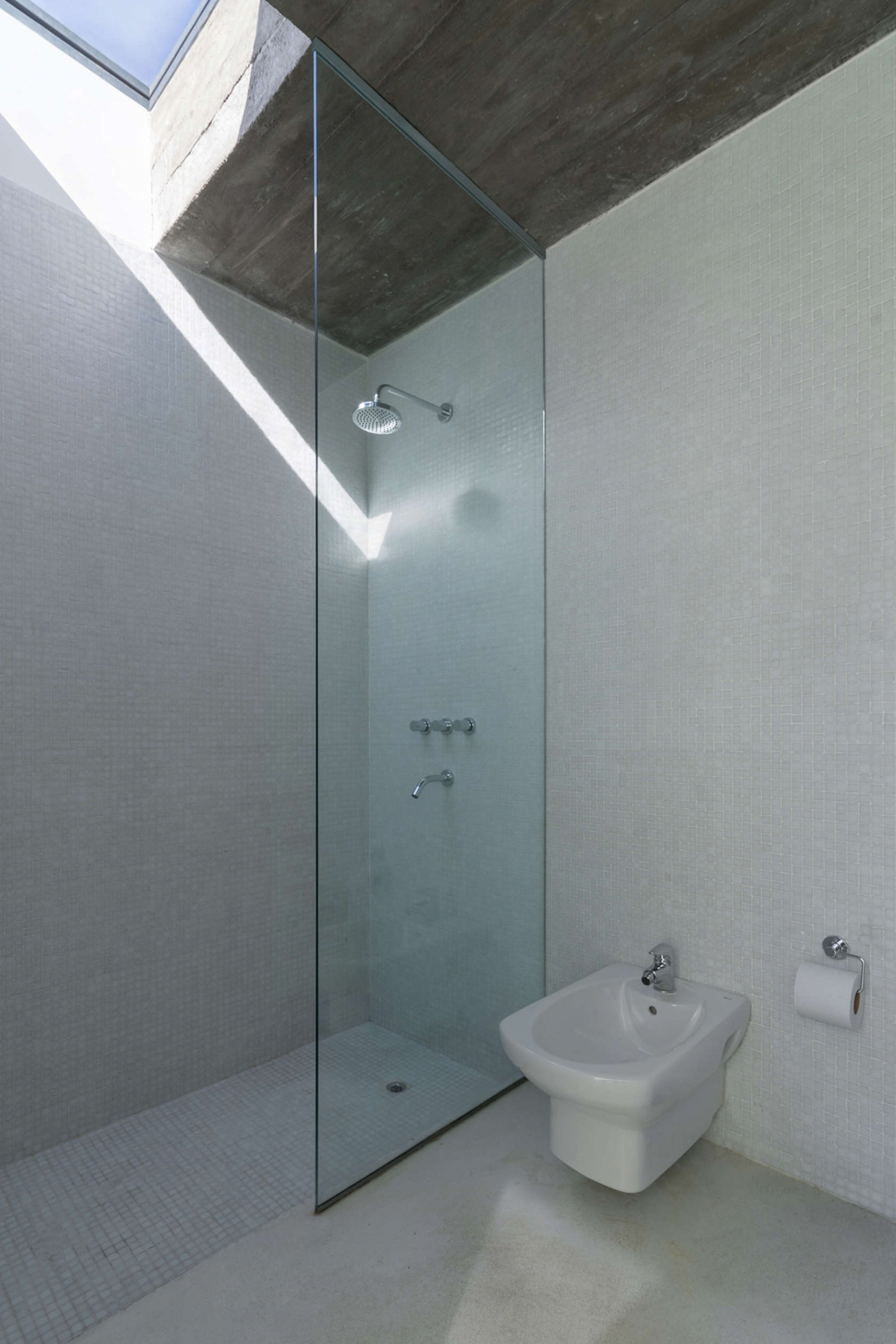

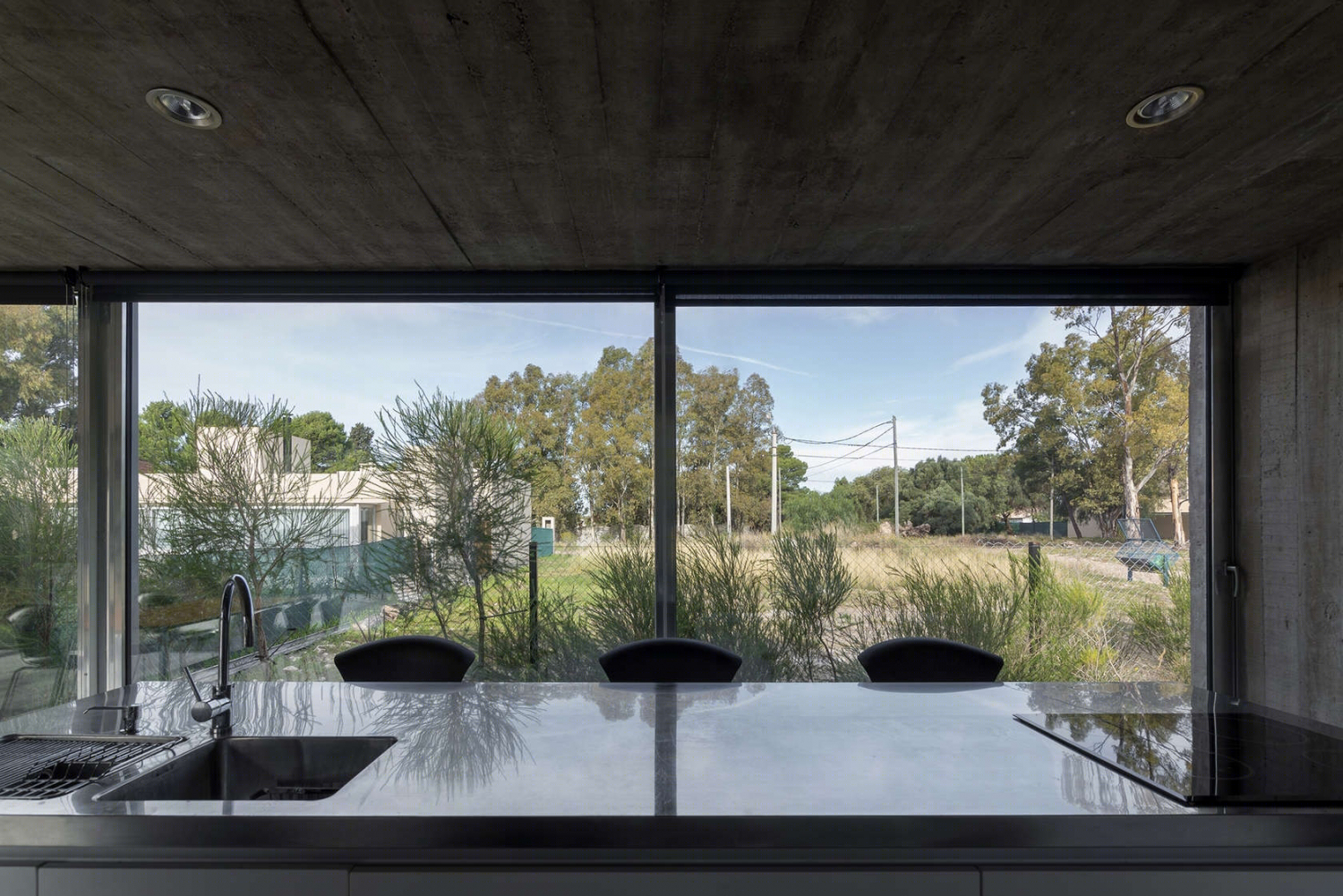

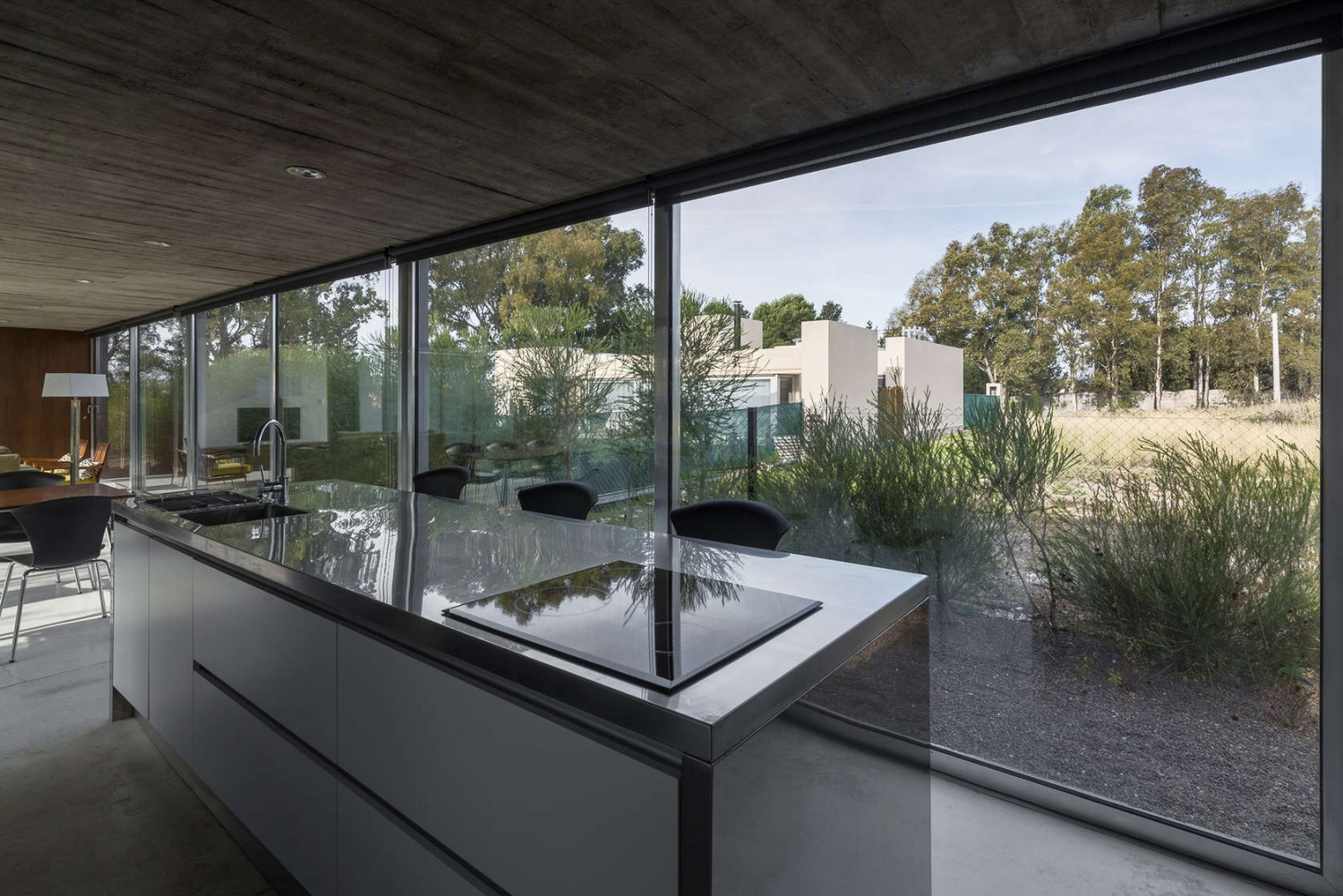

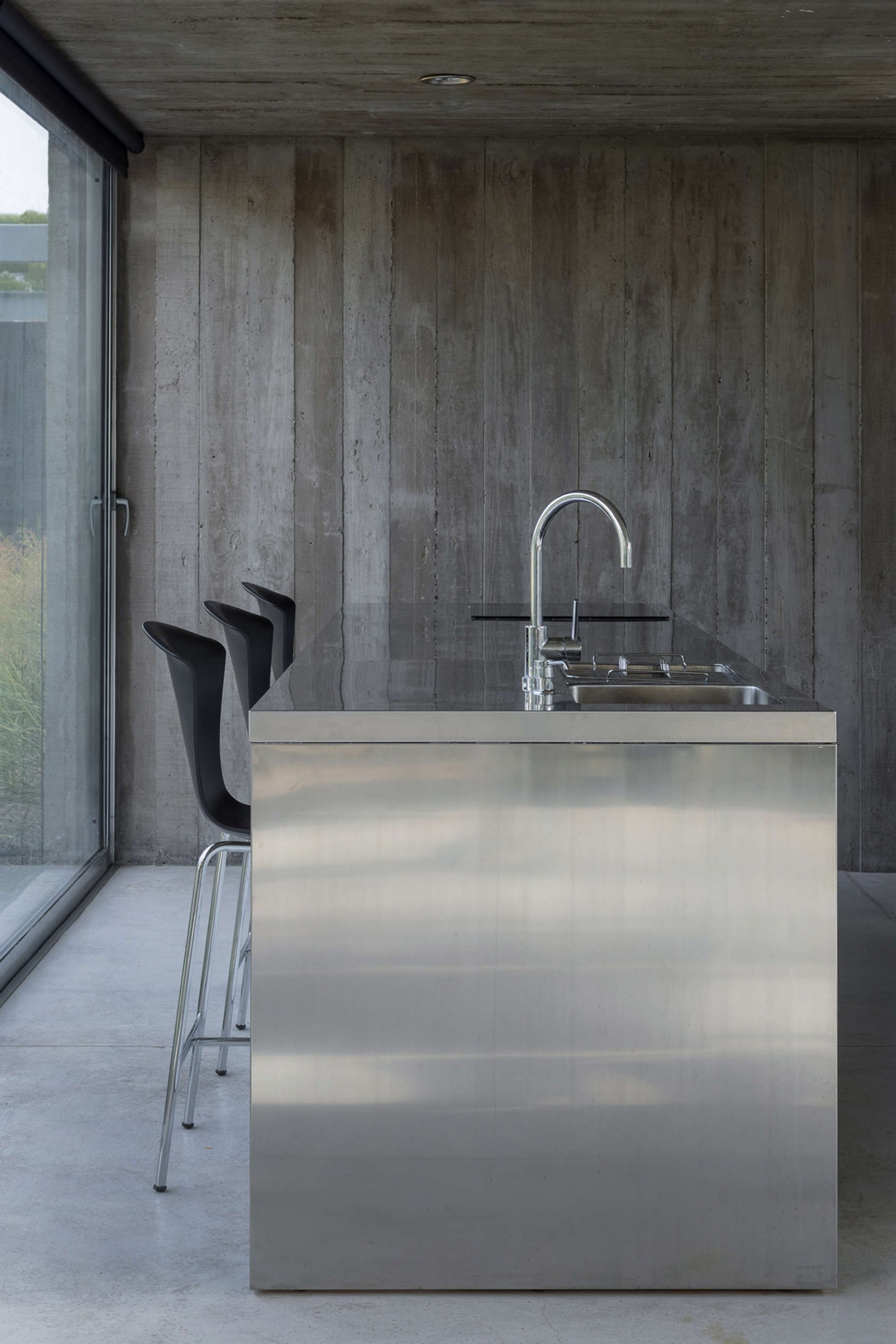

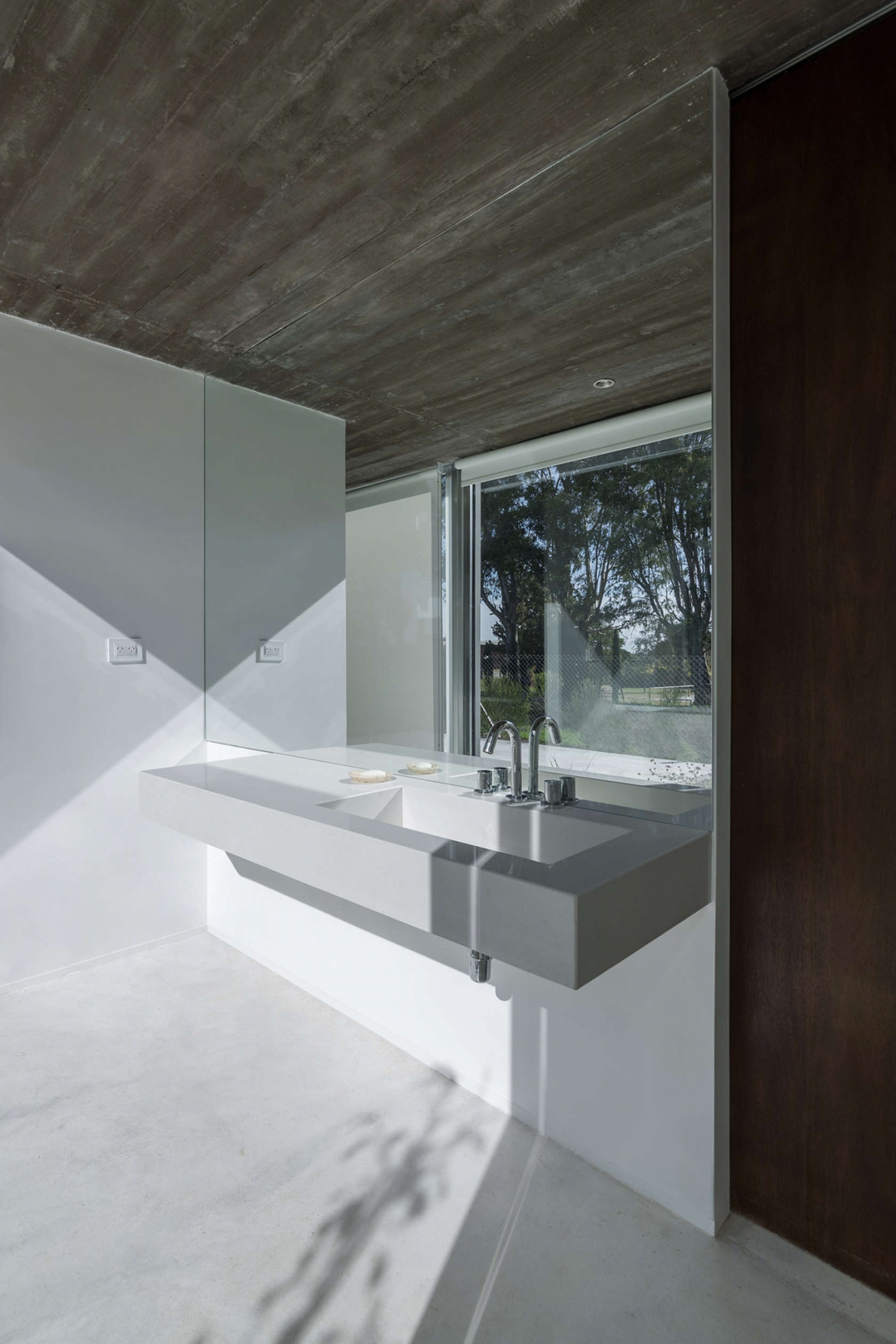

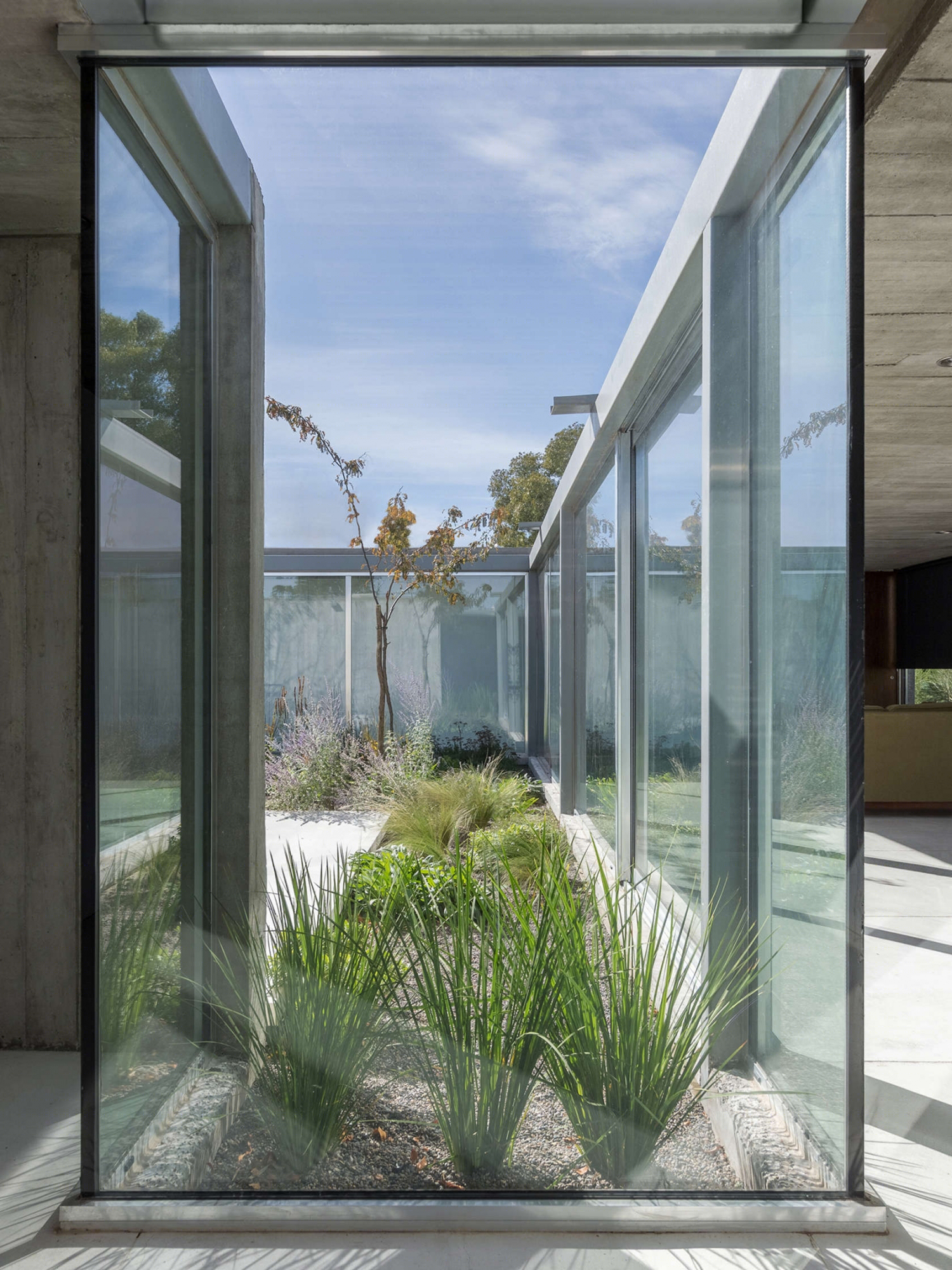

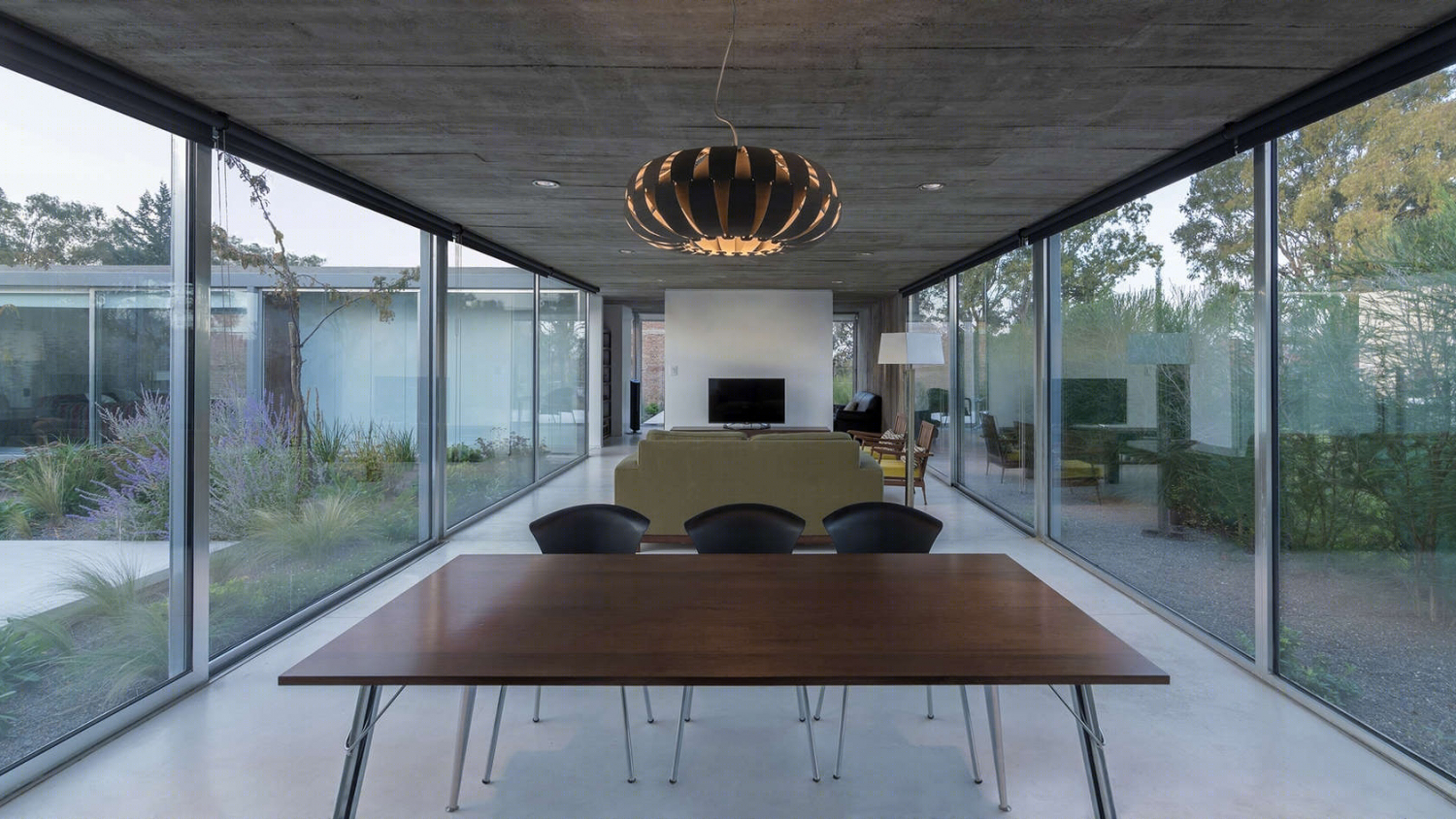

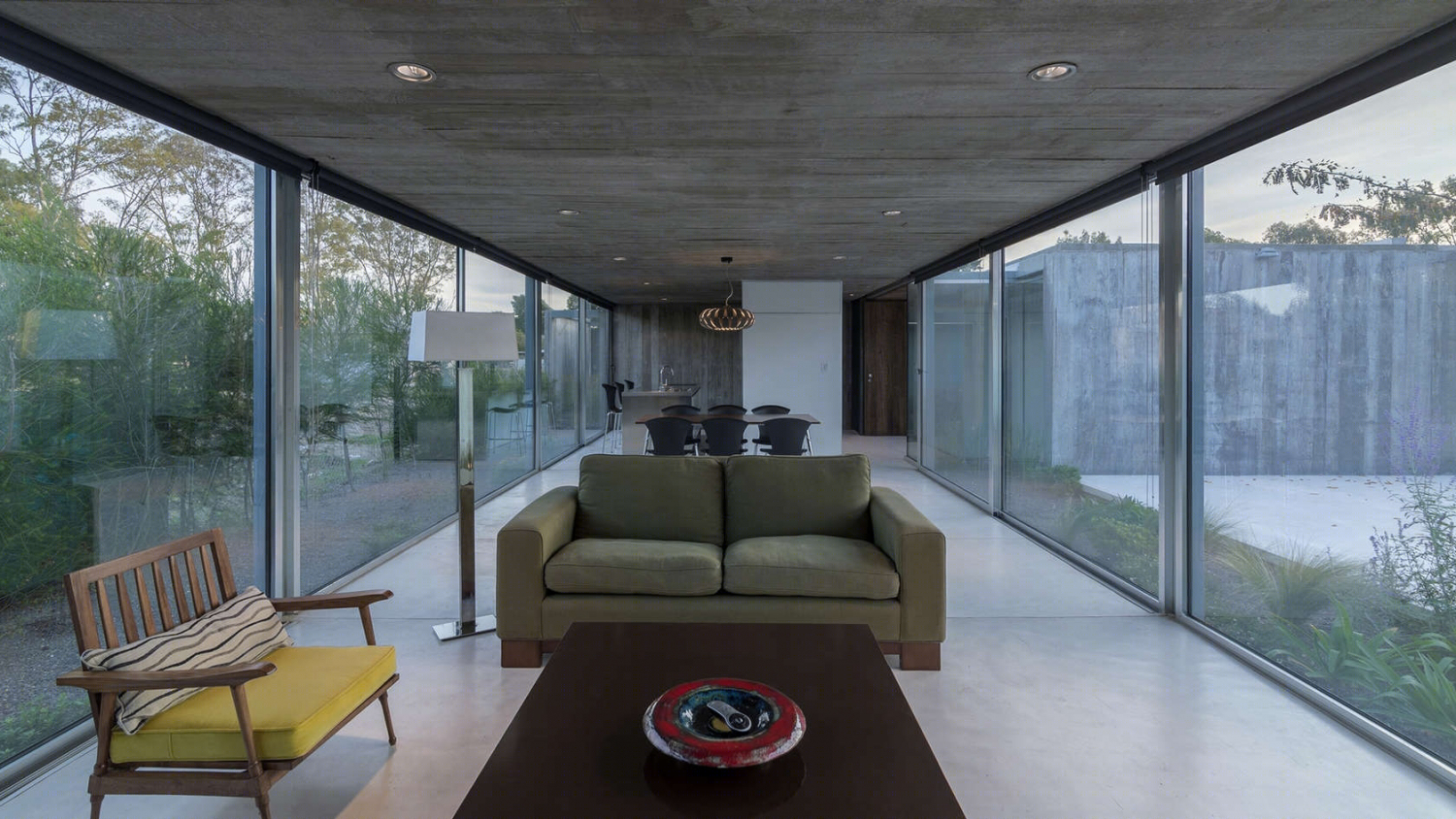

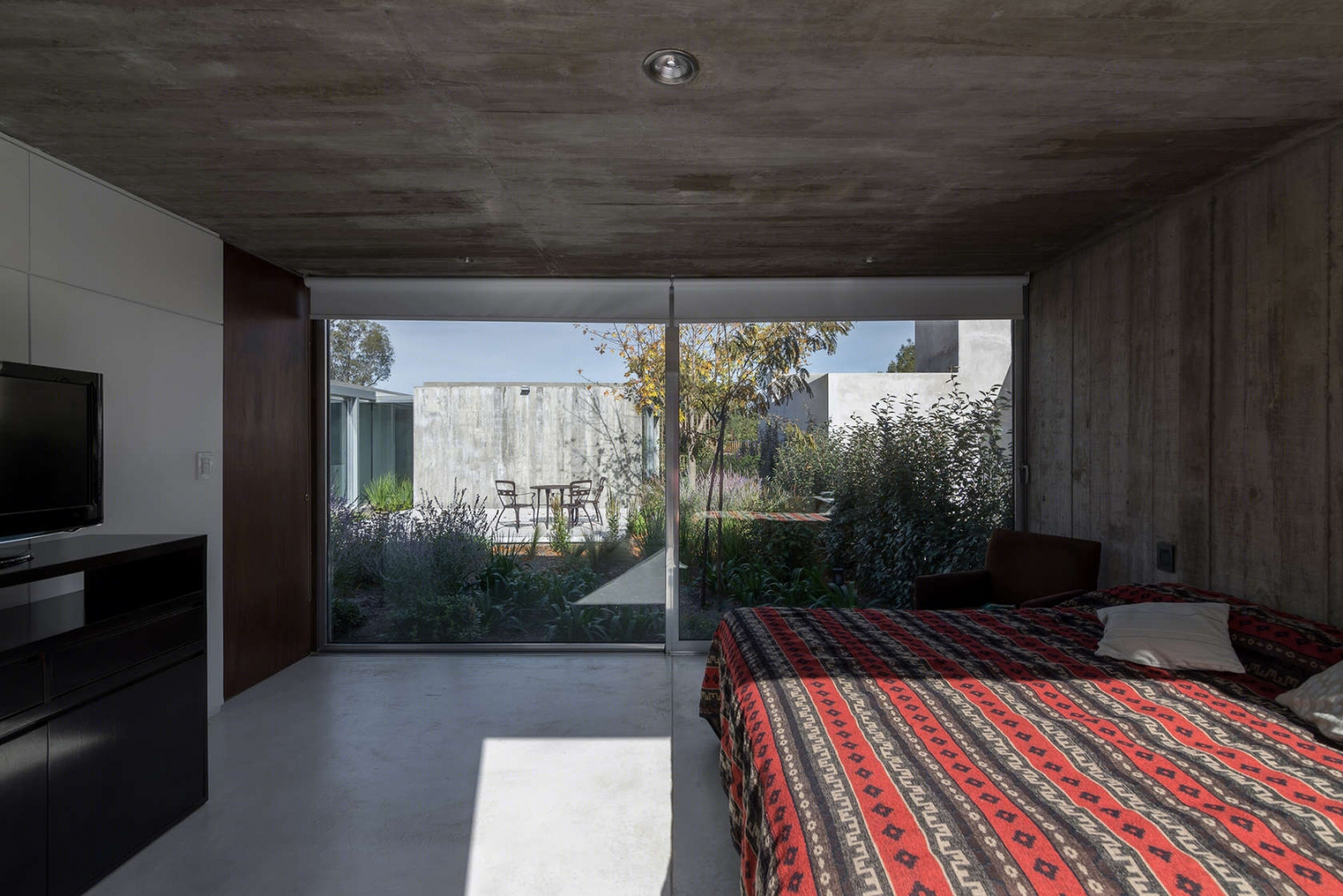

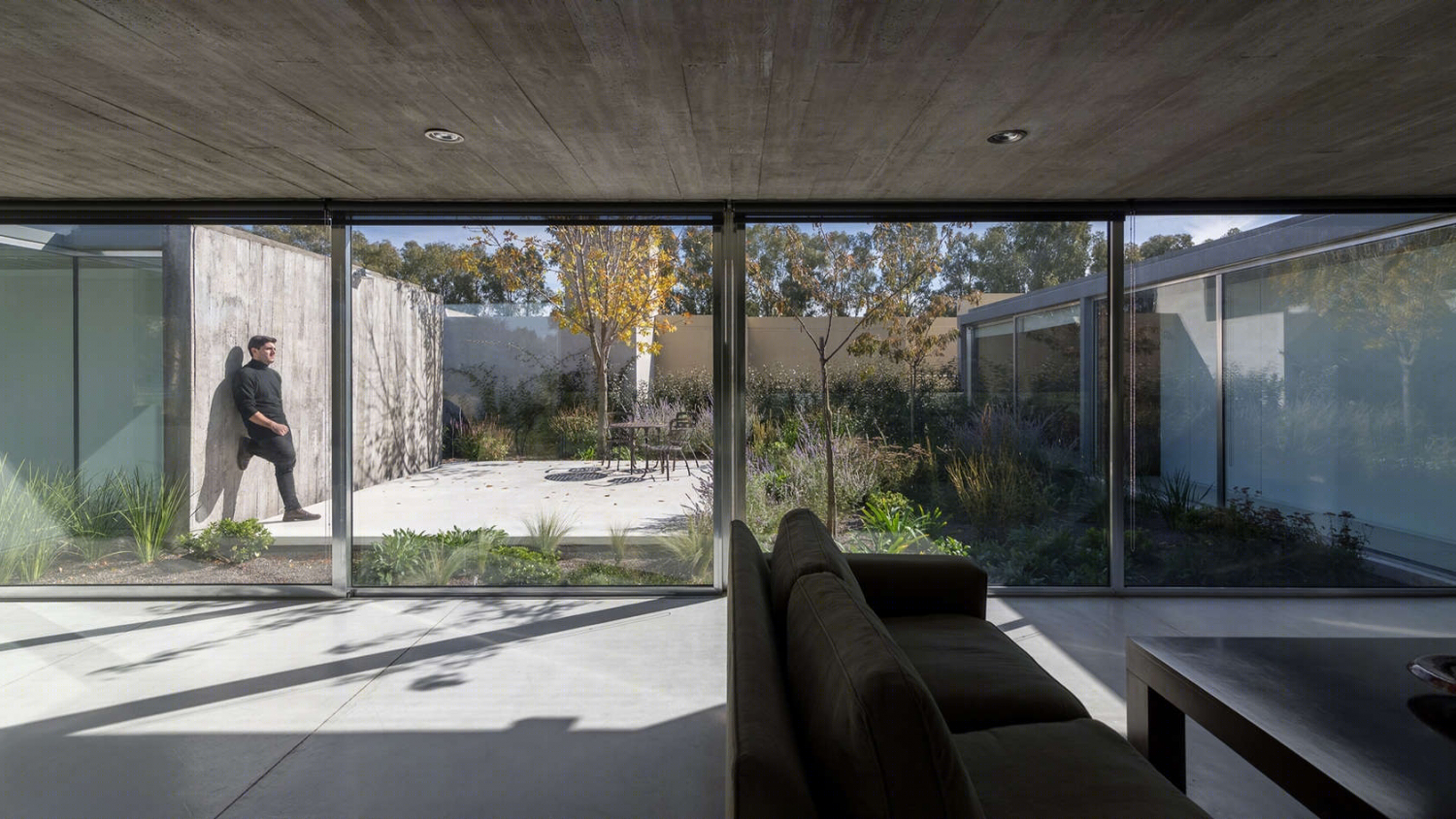

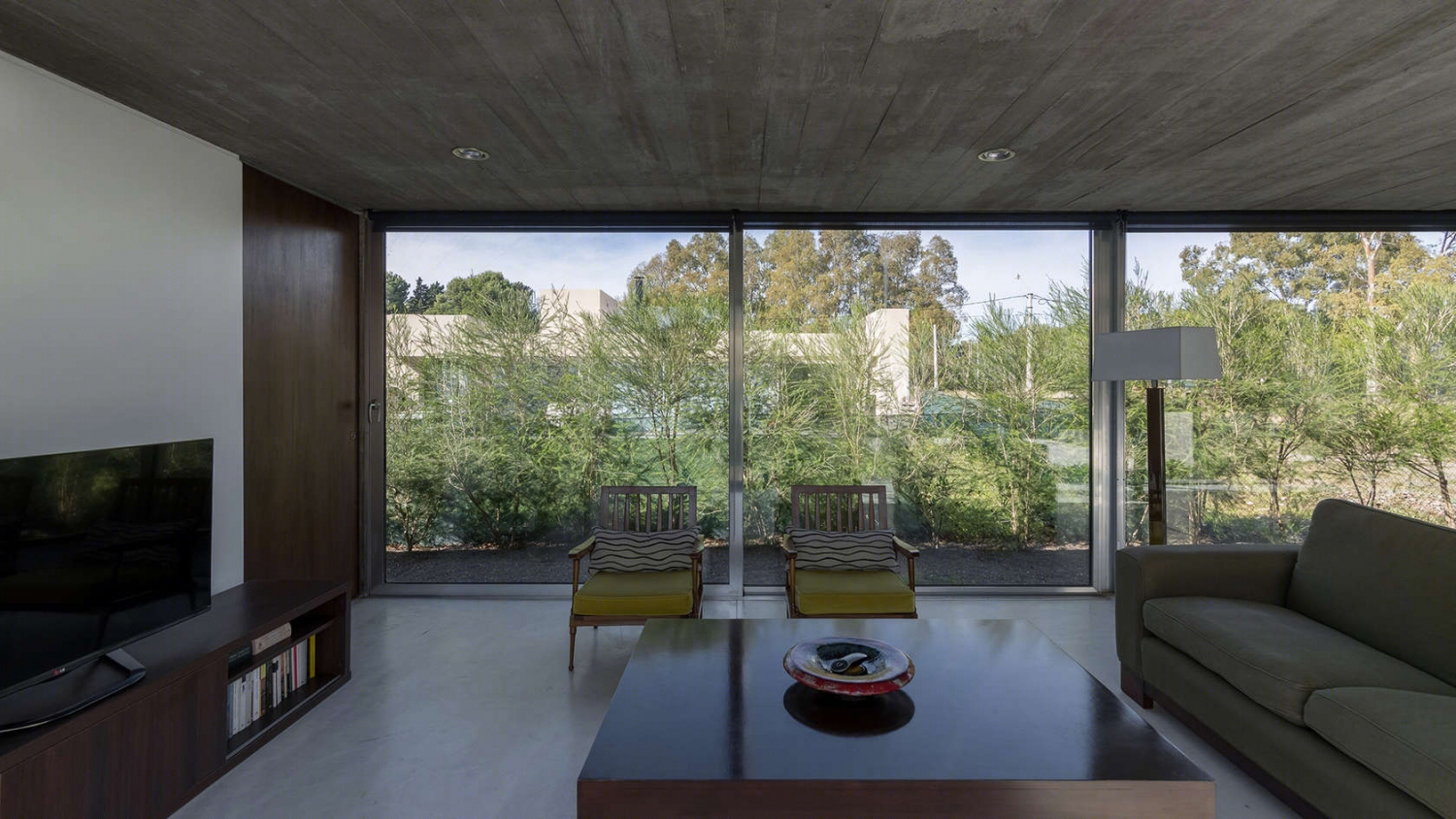

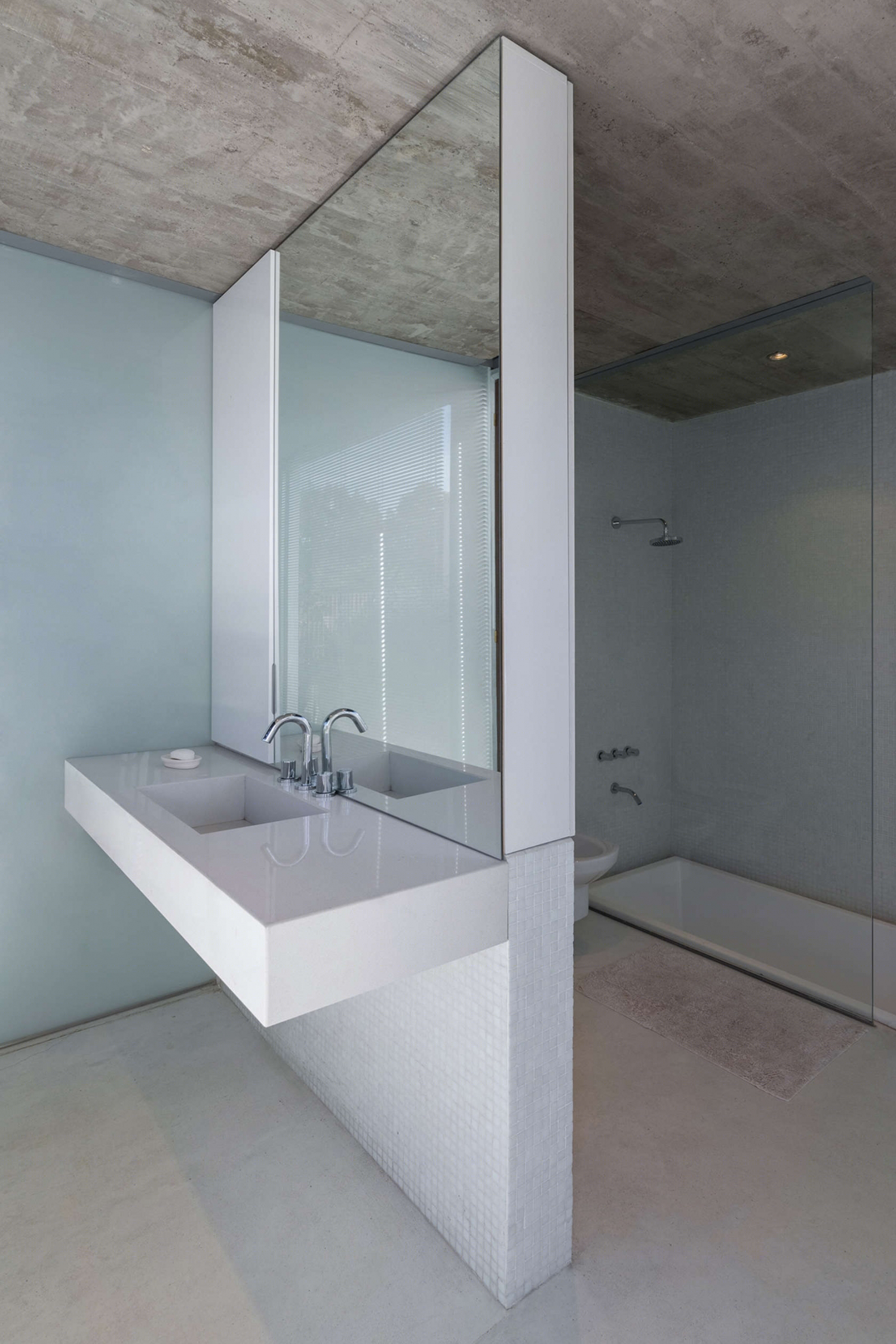

阿根廷Palihue住宅内部实景图

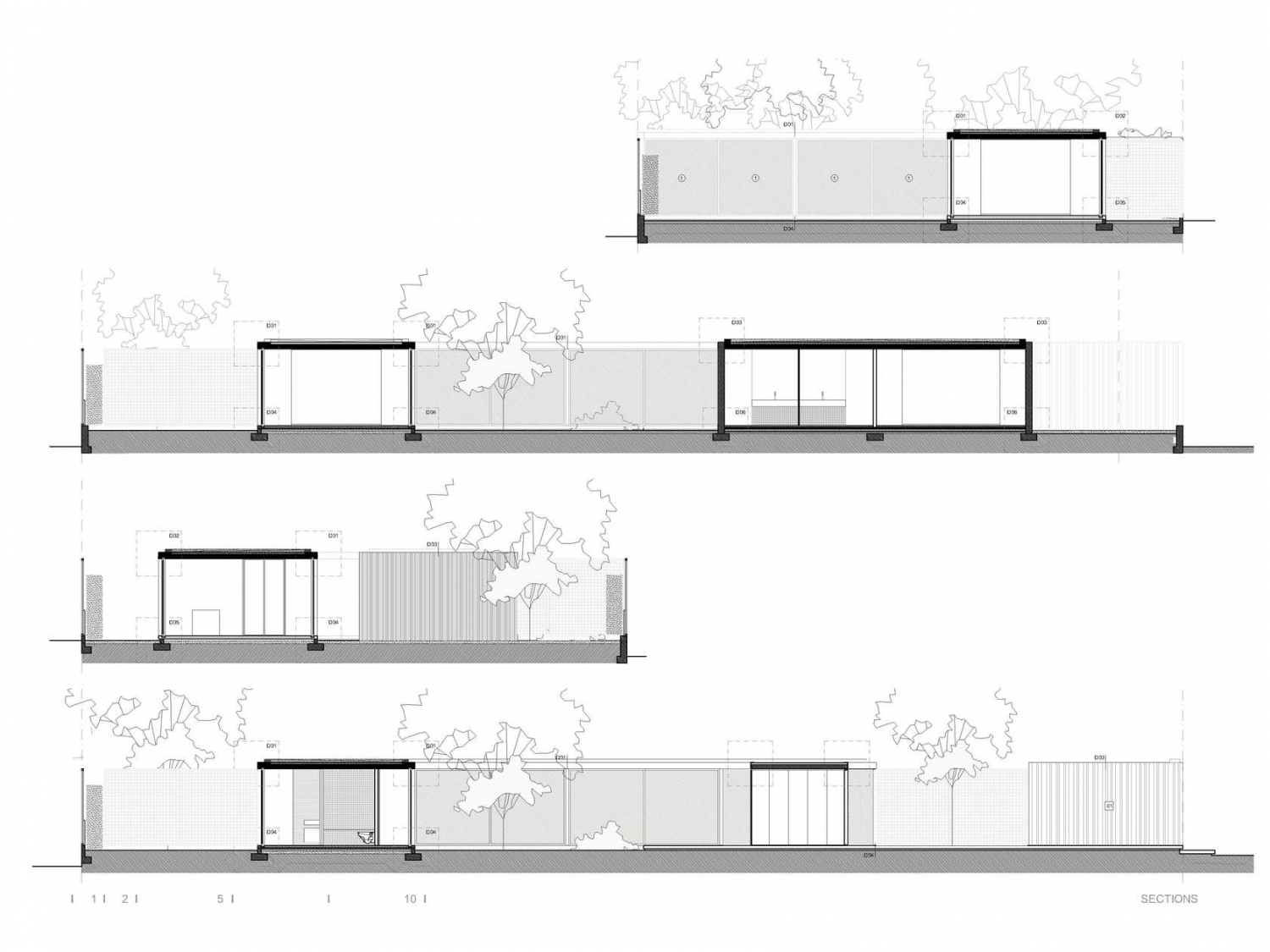

阿根廷Palihue住宅剖面图

阿根廷Palihue

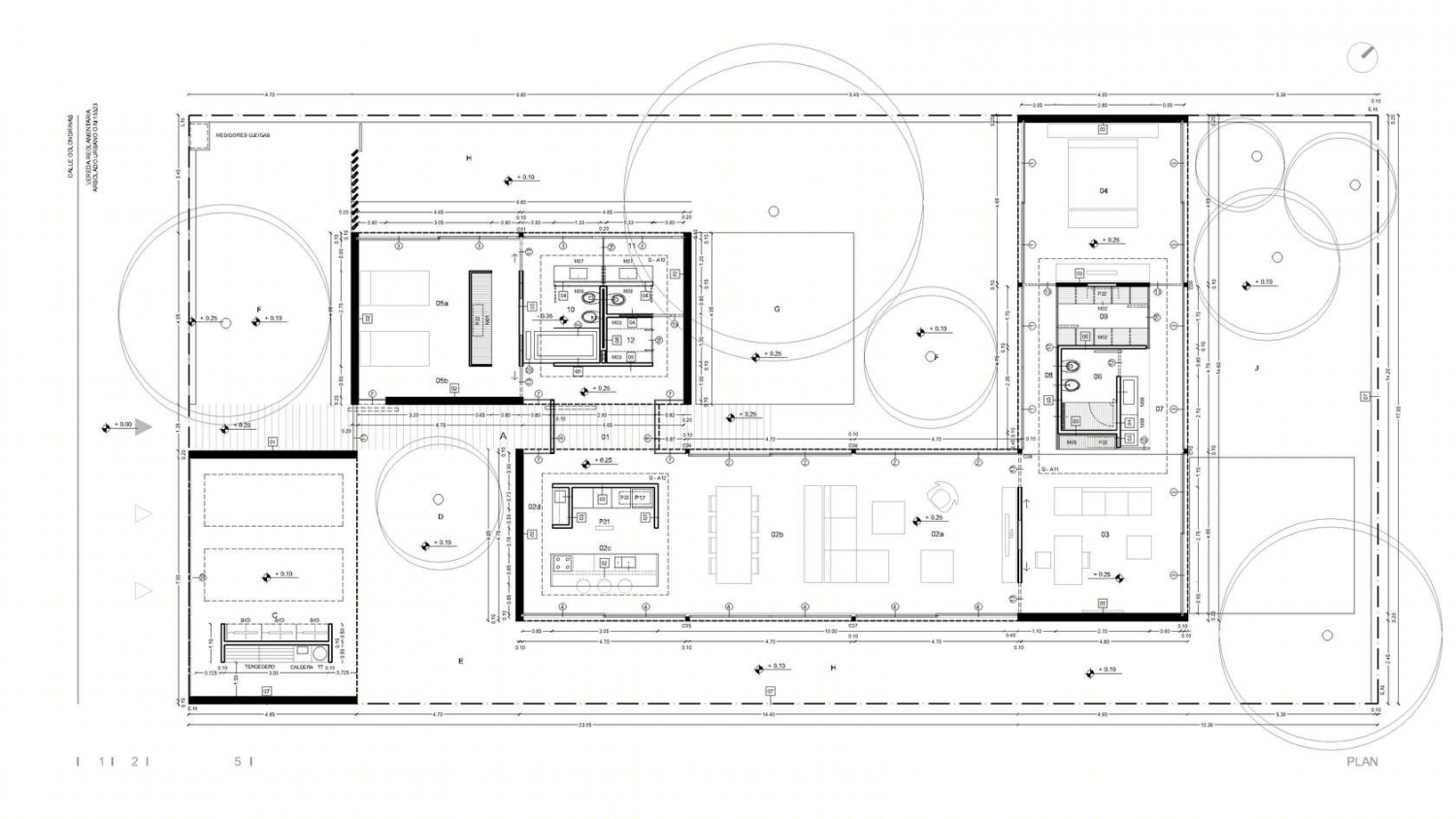

住宅平面图

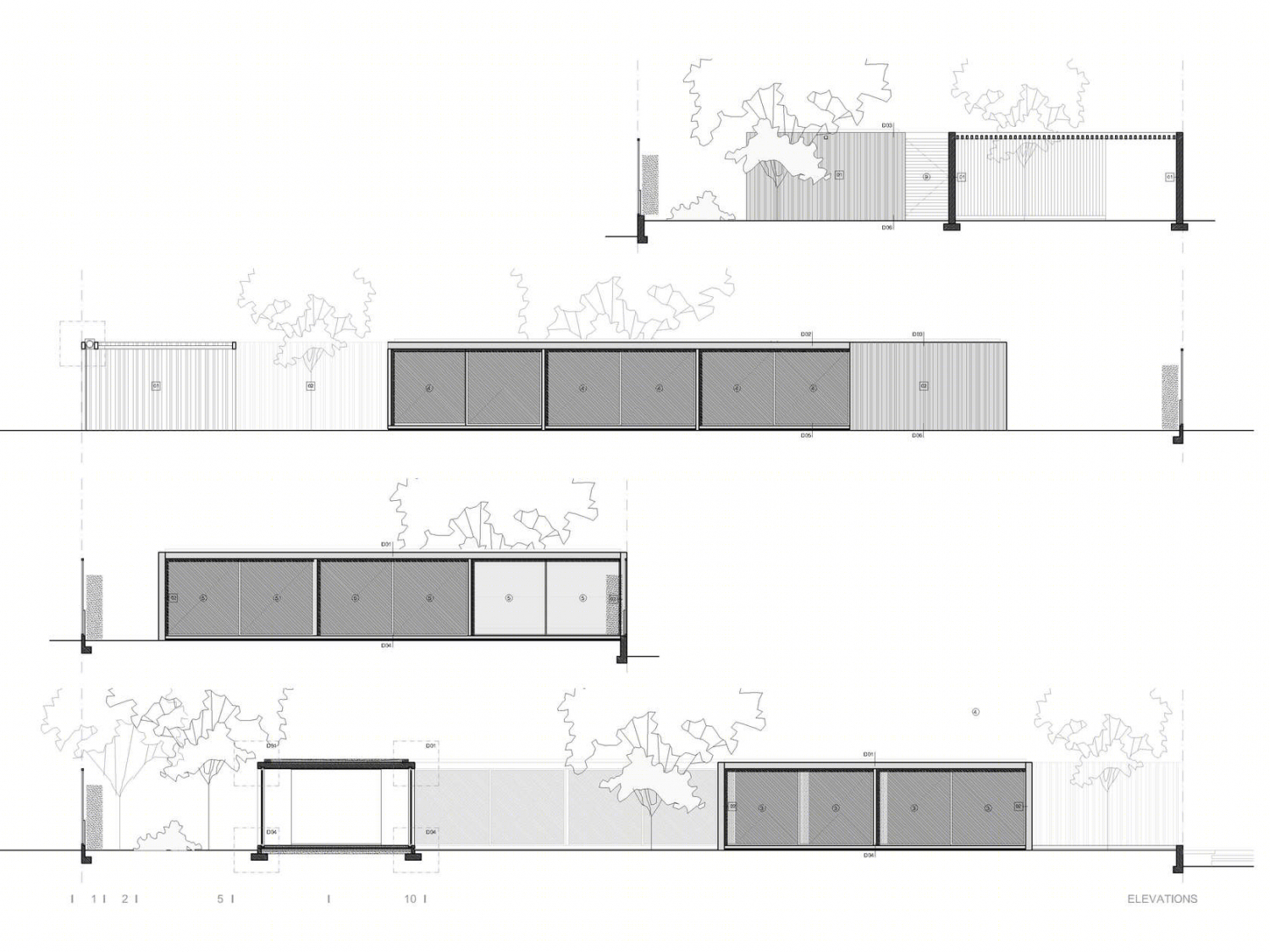

阿根廷Palihue住宅立面图

阿根廷Palihue住宅平面图
