Qingdao innovation park

设计方：Santiago Parramón, RTA-Office, Tengyuan, Qingdao

位置：山东 青岛

分类：公共设施

内容：

设计方案

合作人：Tengyuan, Qingdao

图片：18张

这是由Santiago Parramón, RTA-Office 与 Tengyuan, Qingdao 联合设计的青岛创新园区，由多栋建筑组成，位于青岛开发区。该项目将于明年开始建设。该项目区位特殊，共由6座塔楼组成，其中两座160米高，两座100米高，以及两座70米高。四个主要的办公塔楼呈对称结构，有序统一，保持连贯。轴线的布局有助突出办公综合体的主入口空间，塔楼之间使用了“连桥”将所有办公楼的公共空间连接在一起，形成一个有覆盖的公共空间，吸引人们使用。

译者： 艾比

RTA-Office recently won 1st prize in the competition of Qingdao’s Innovation Park design. The project belongs to a greater (1 million square meters) development scheme that targets IT companies from all over Qingdao.The winning proposal is set for construction next year.RTA-Office’s project occupies a privileged place, at the center of the development area and is comprised of a total of six office towers: two tall buildings of 160 m, two of 100 m and two adjacent buildings of 70 m each.

The design was made under rigorous volumetric constraints: the two existing towers, the local regulations, the client’s request and the position of the site imposed a symmetrical configuration. The four main office towers are organized along an axis that accentuates the main entrance in the office complex. These towers are connected by a detached “podium” containing all the public functions of the office buildings; this gesture generates a covered public space that draws people inside.The building’s shape and façade was designed in response to one major question: How to create a complex and iconic shape that is also efficient for an office building and a shape that makes sense economically?

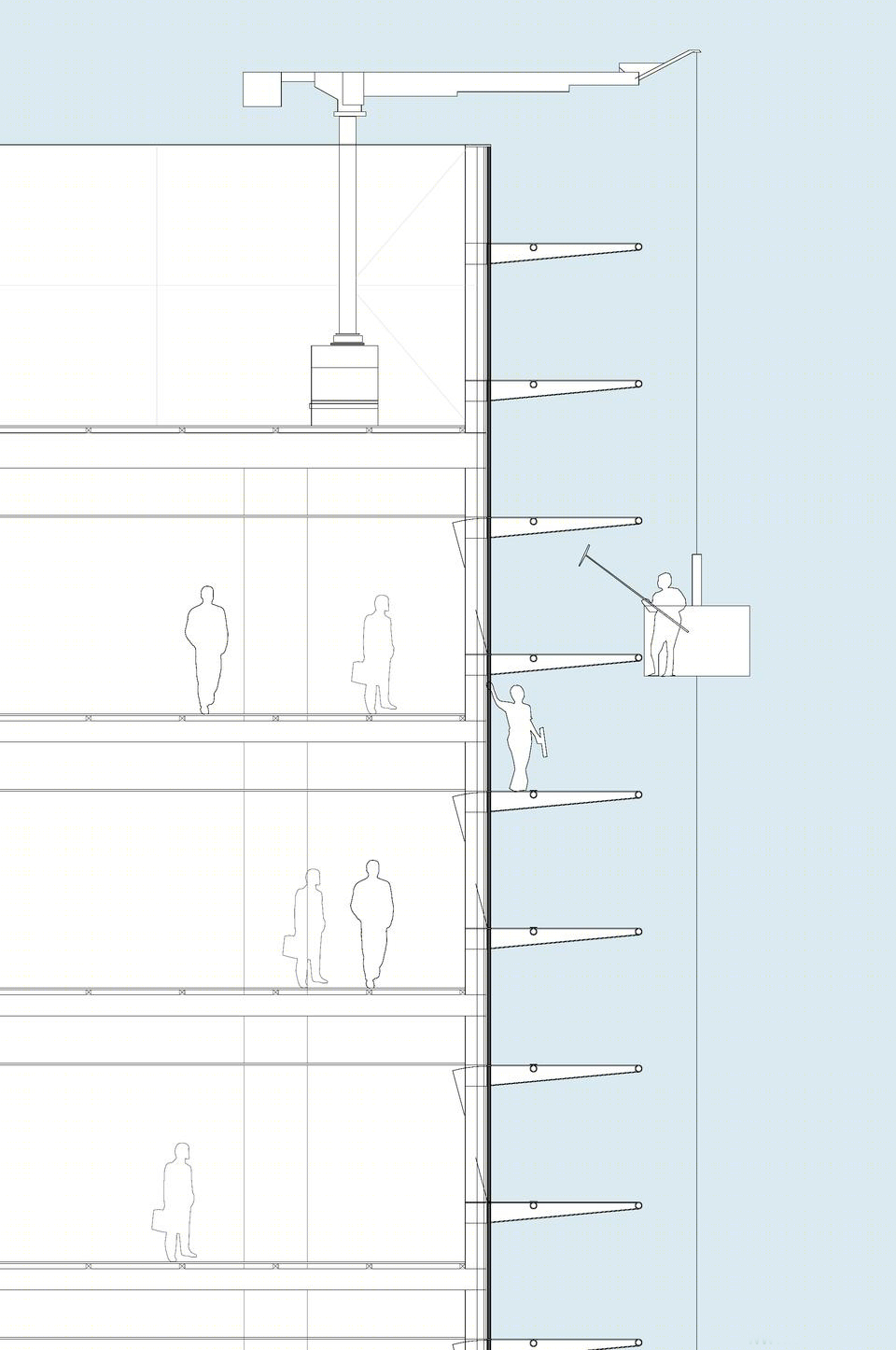

The project has taken inspiration from the natural movement of Qingdao’s sea breeze and the team has designed a façade that reflects this idea and also offers solar protection for the office space. The interior of the building presents a regular floor plans schemethat responds to functional and economic motives but outside the complex shape is more sophisticated, generated entirely by aluminum stripes that provide sun shading. The design of this system puts high emphasis on bringing comfort to the indoor climate – letting enter the natural light inside the office space while keeping the heat out.A strong and unified image is achieved through the design of a facade elegantly modelled that protects, feels and communicates.The complex is expected to open to the public in late 2015.

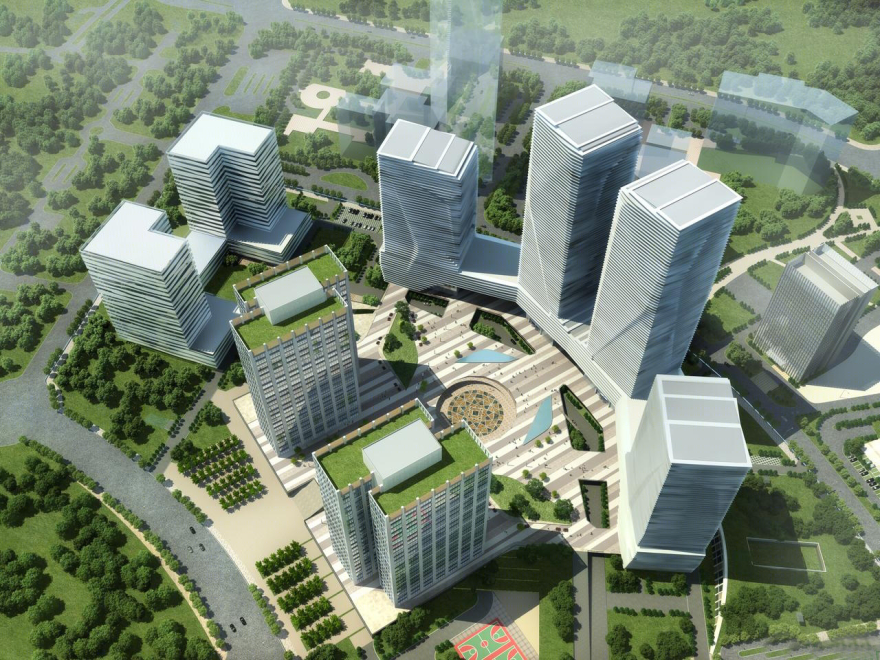

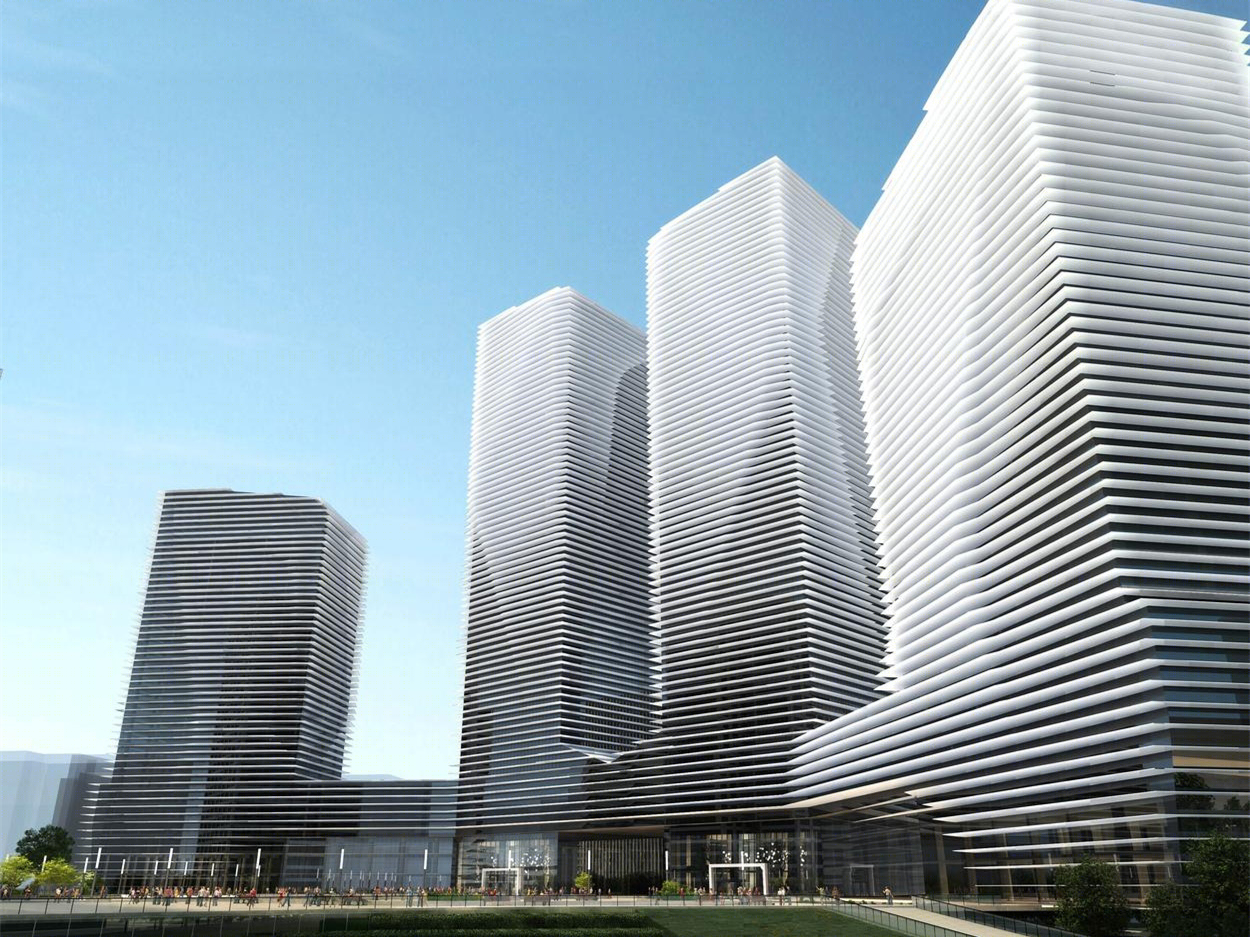

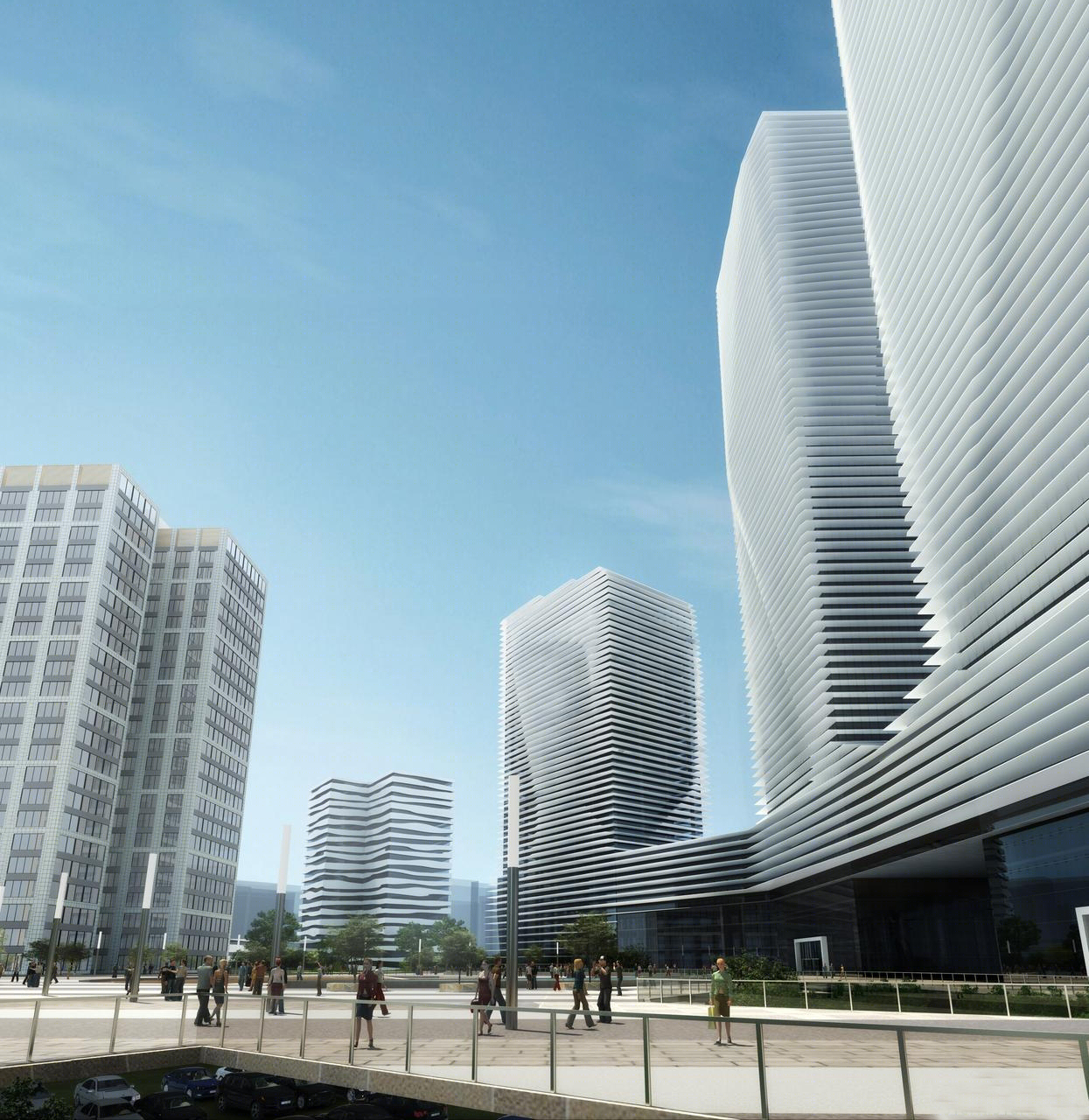

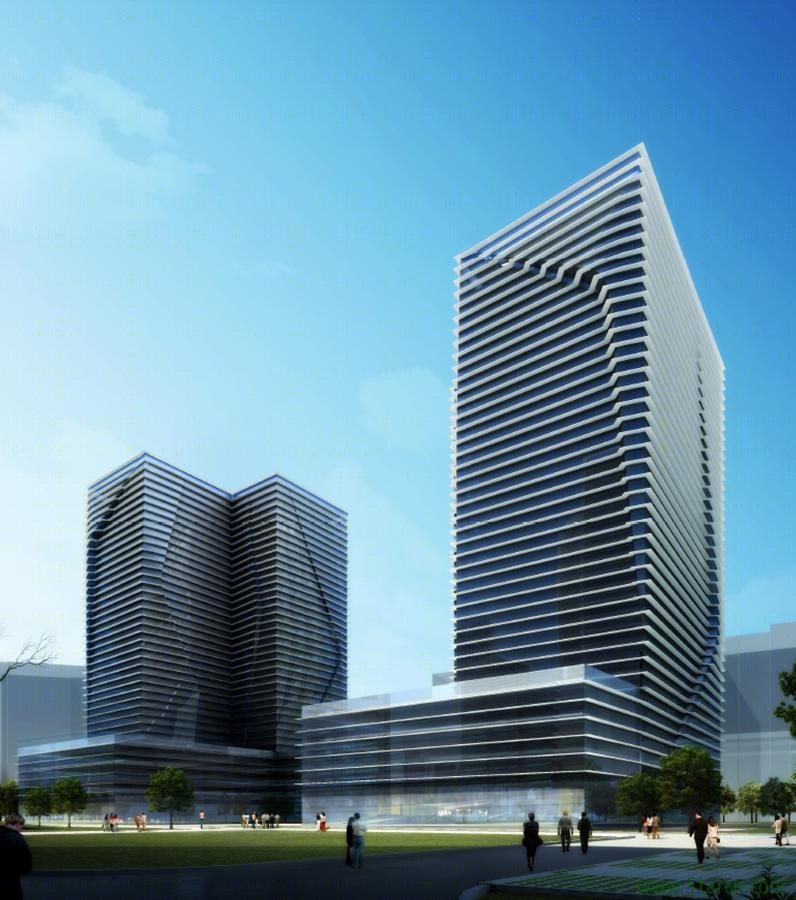

青岛创新园区外部效果图

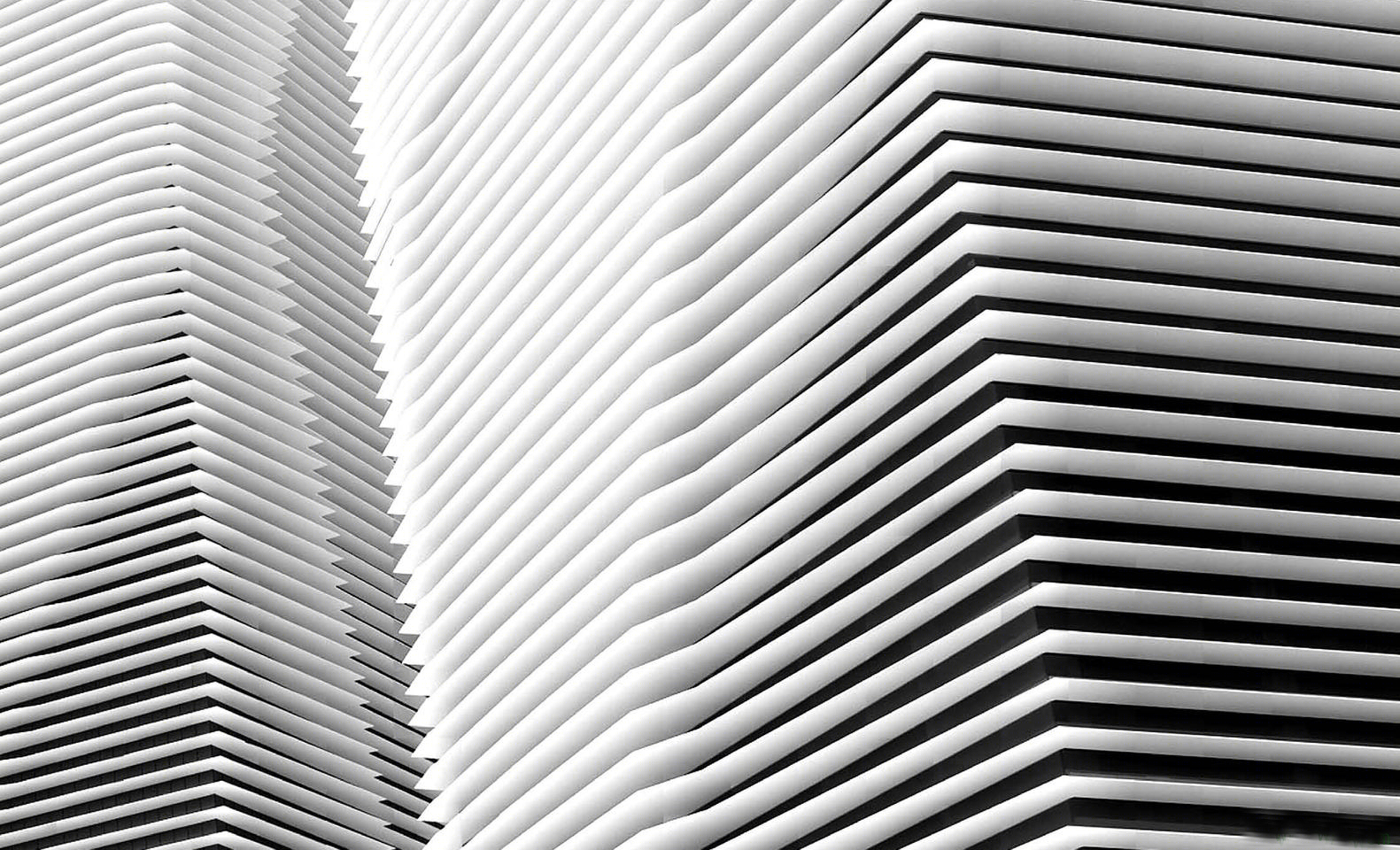

青岛创新园区外部局部效果图

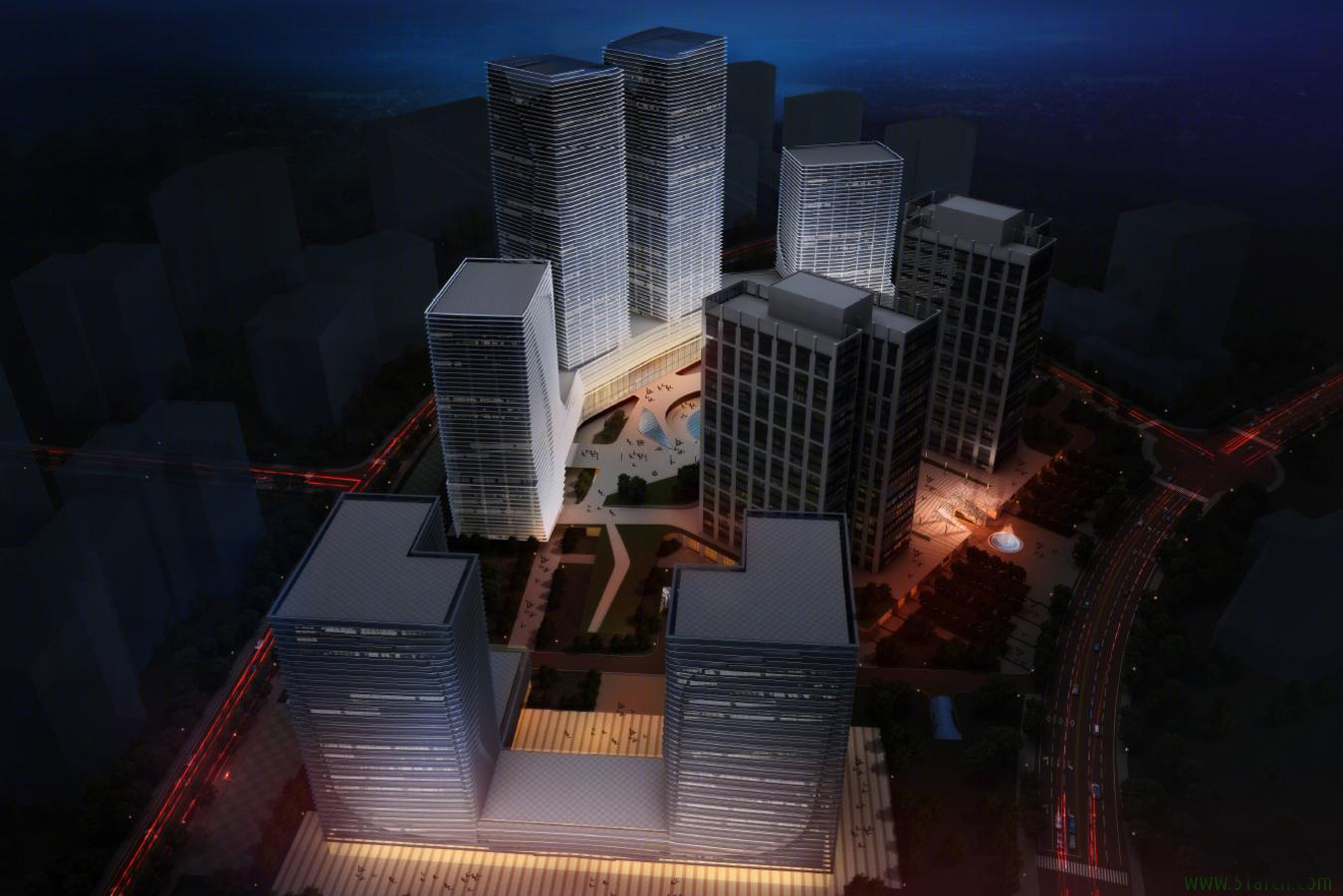

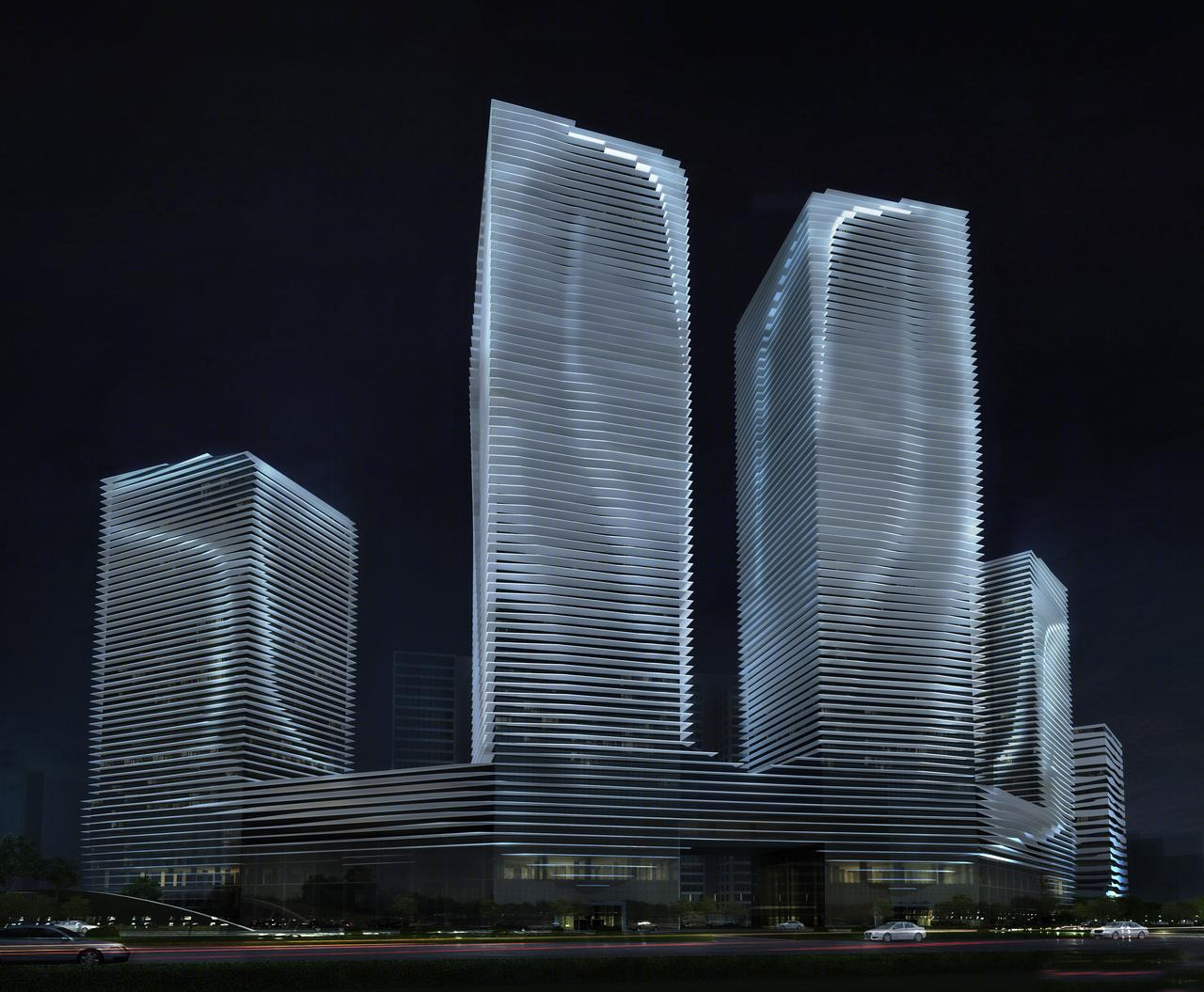

青岛创新园区外部夜景效果图

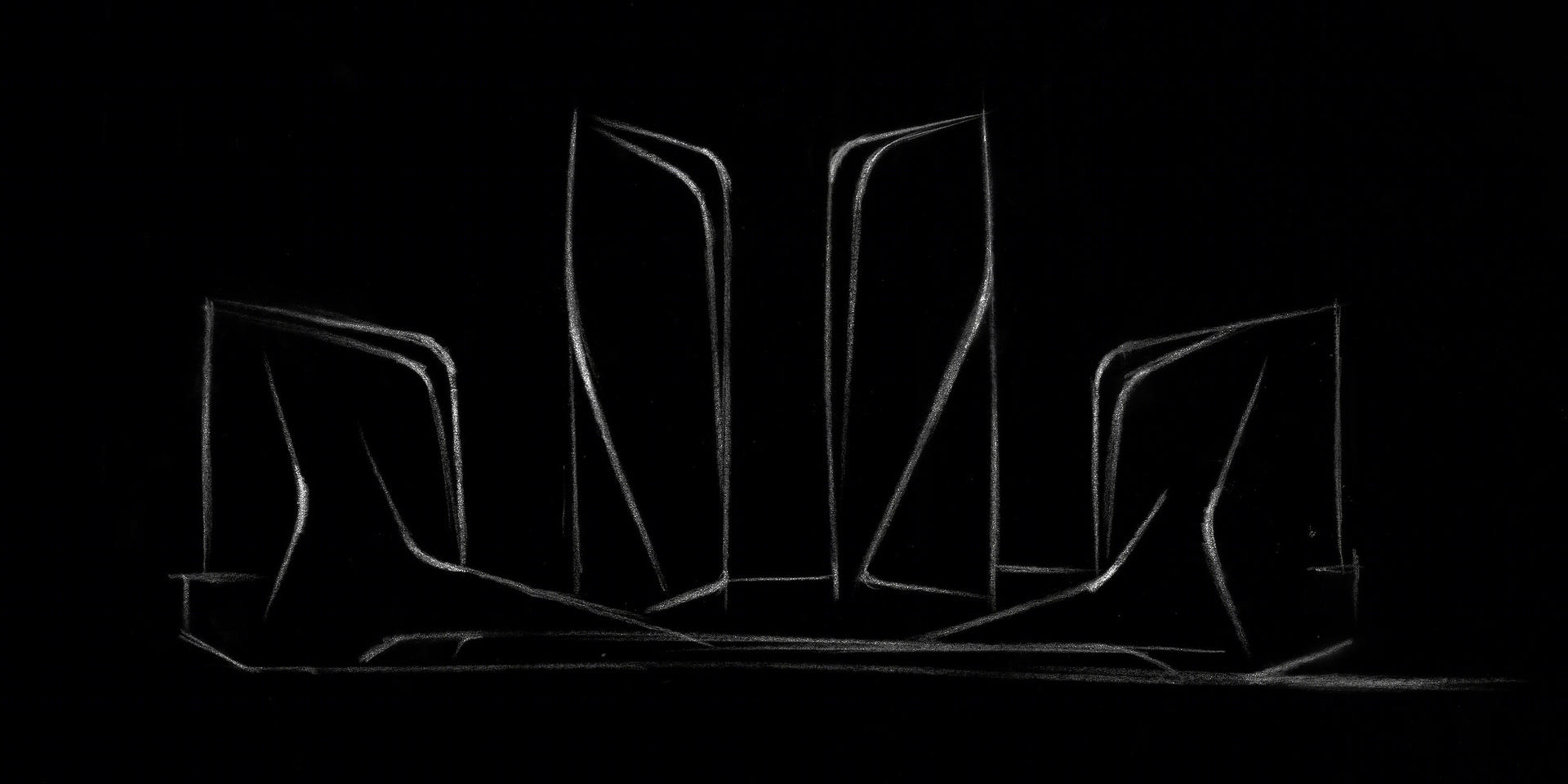

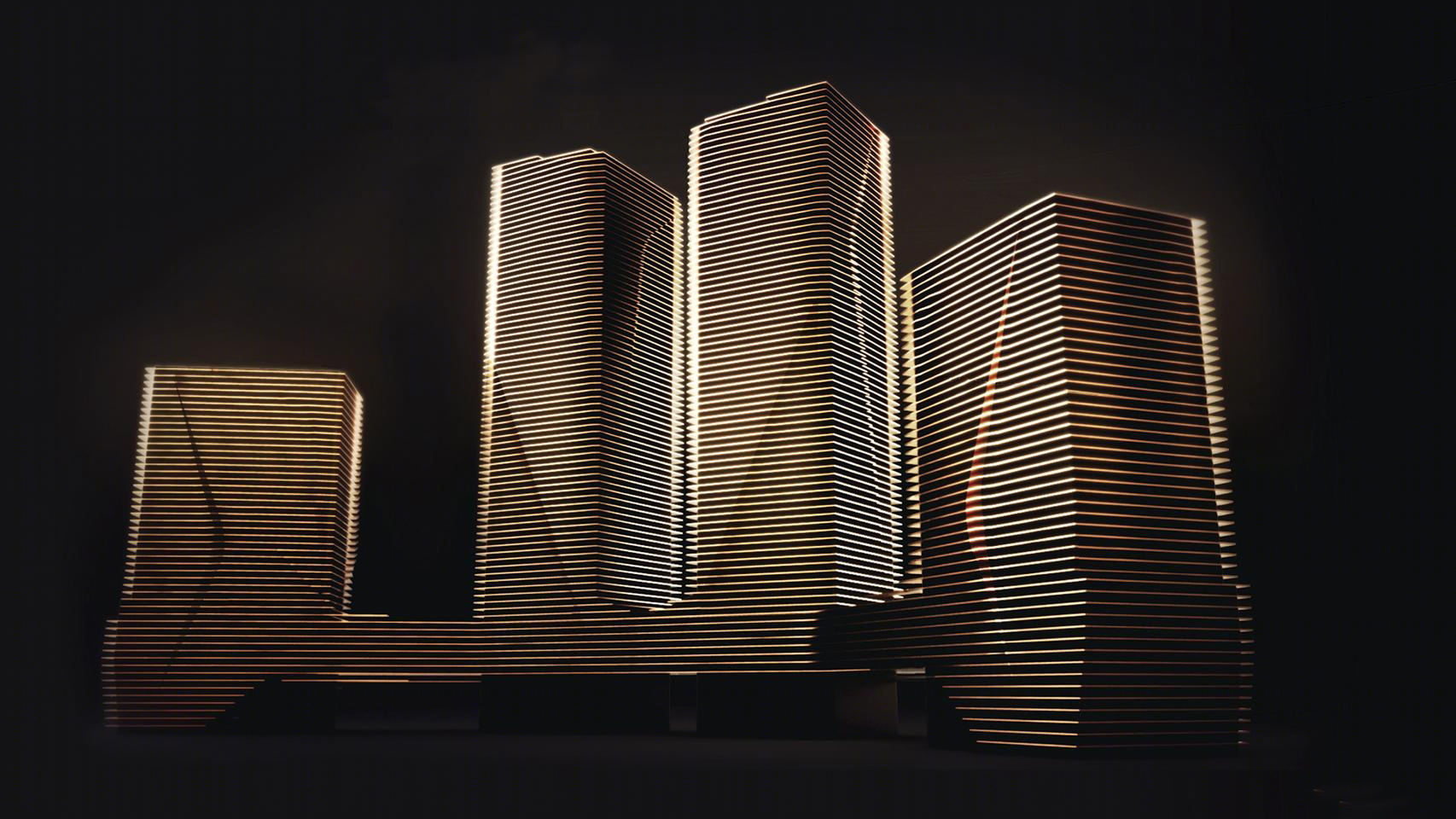

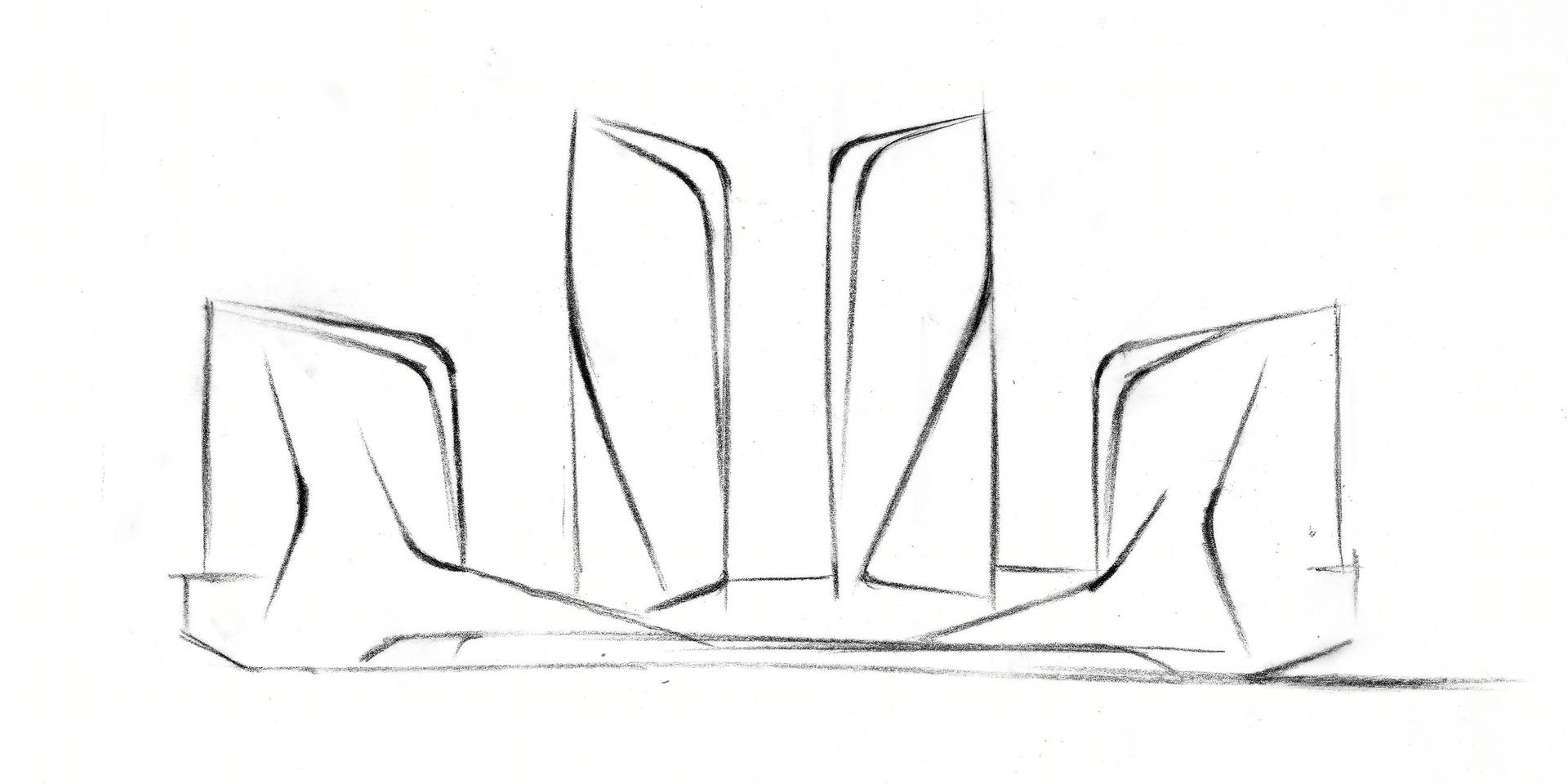

青岛创新园区草图

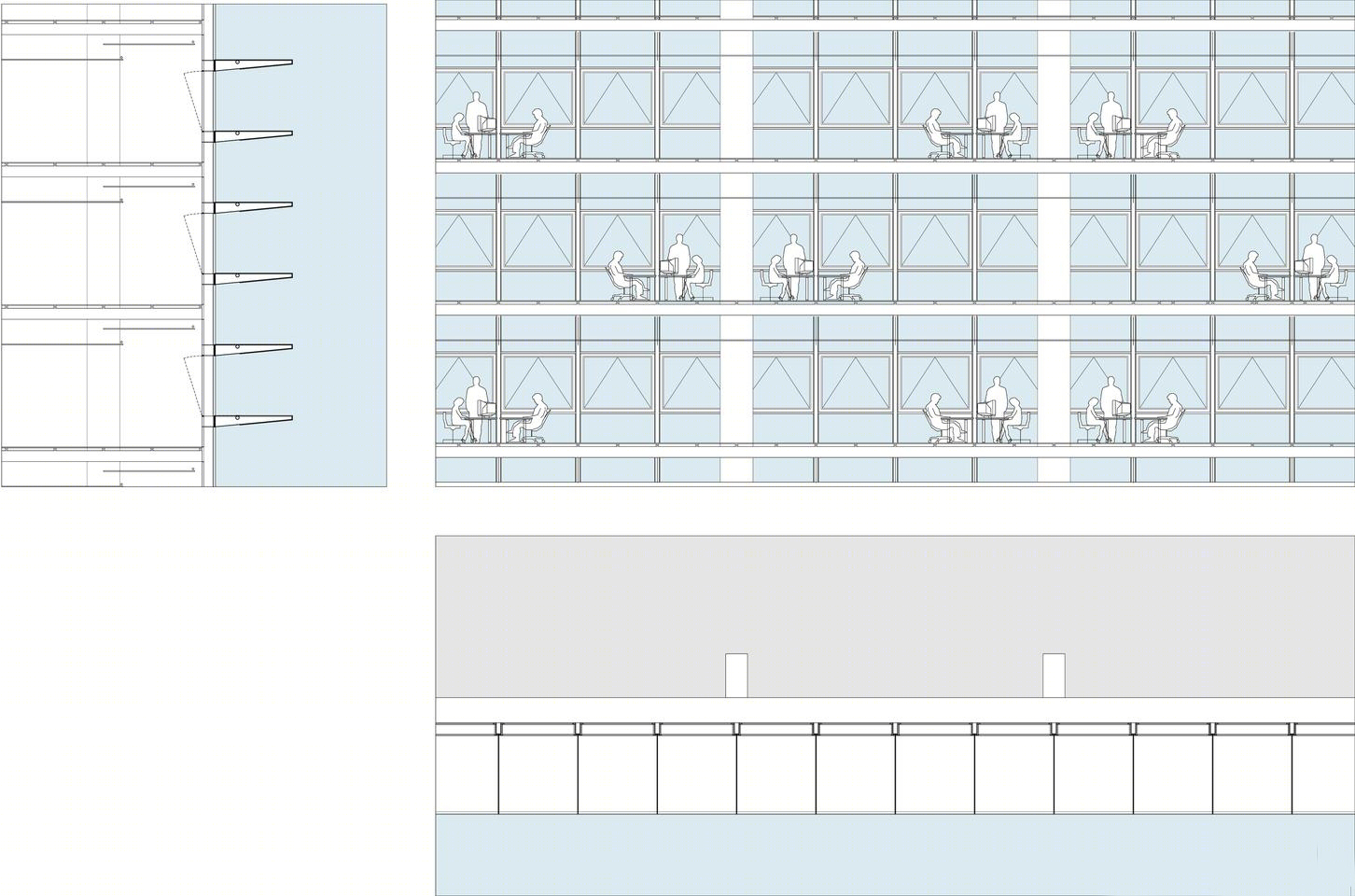

青岛创新园区立面图

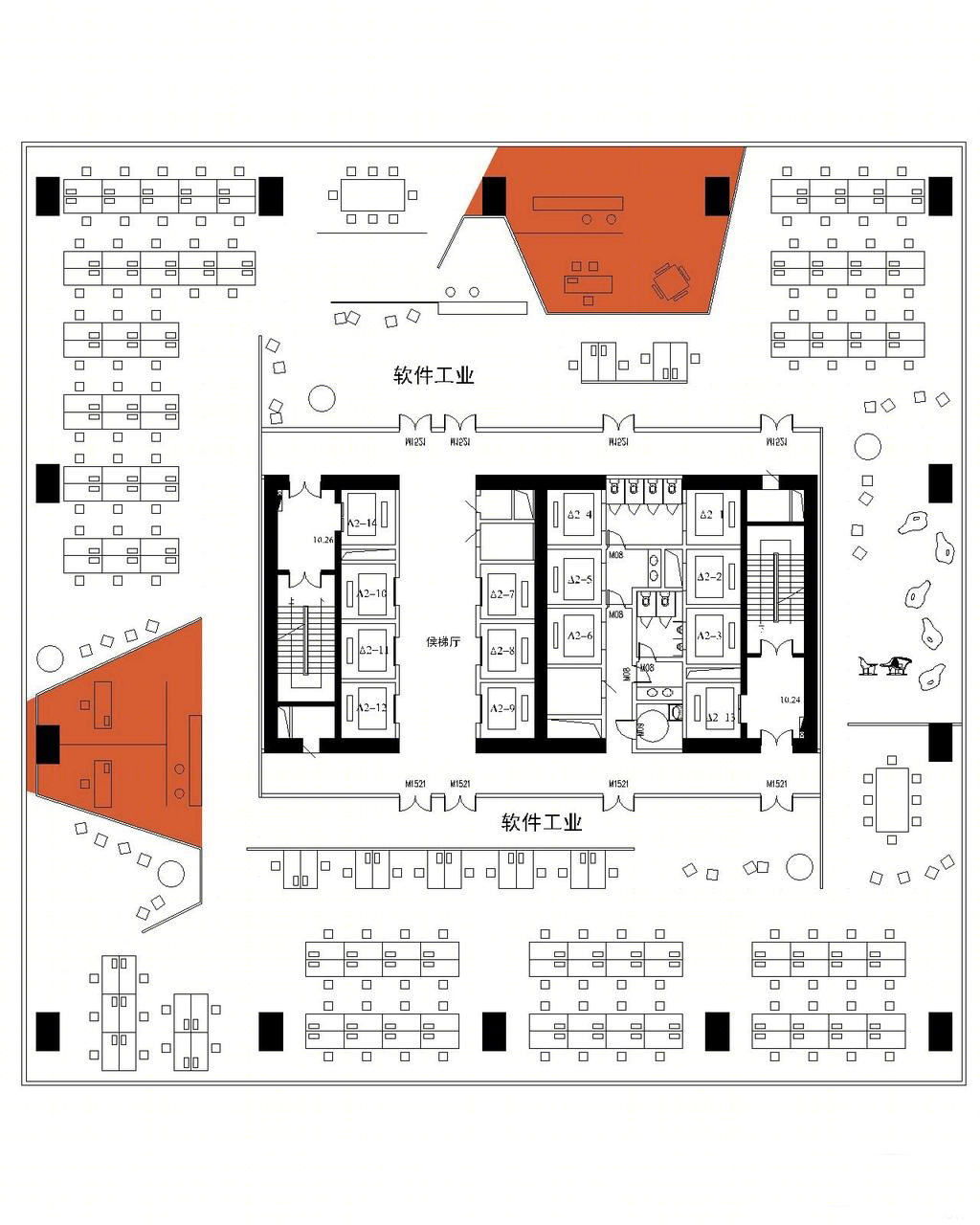

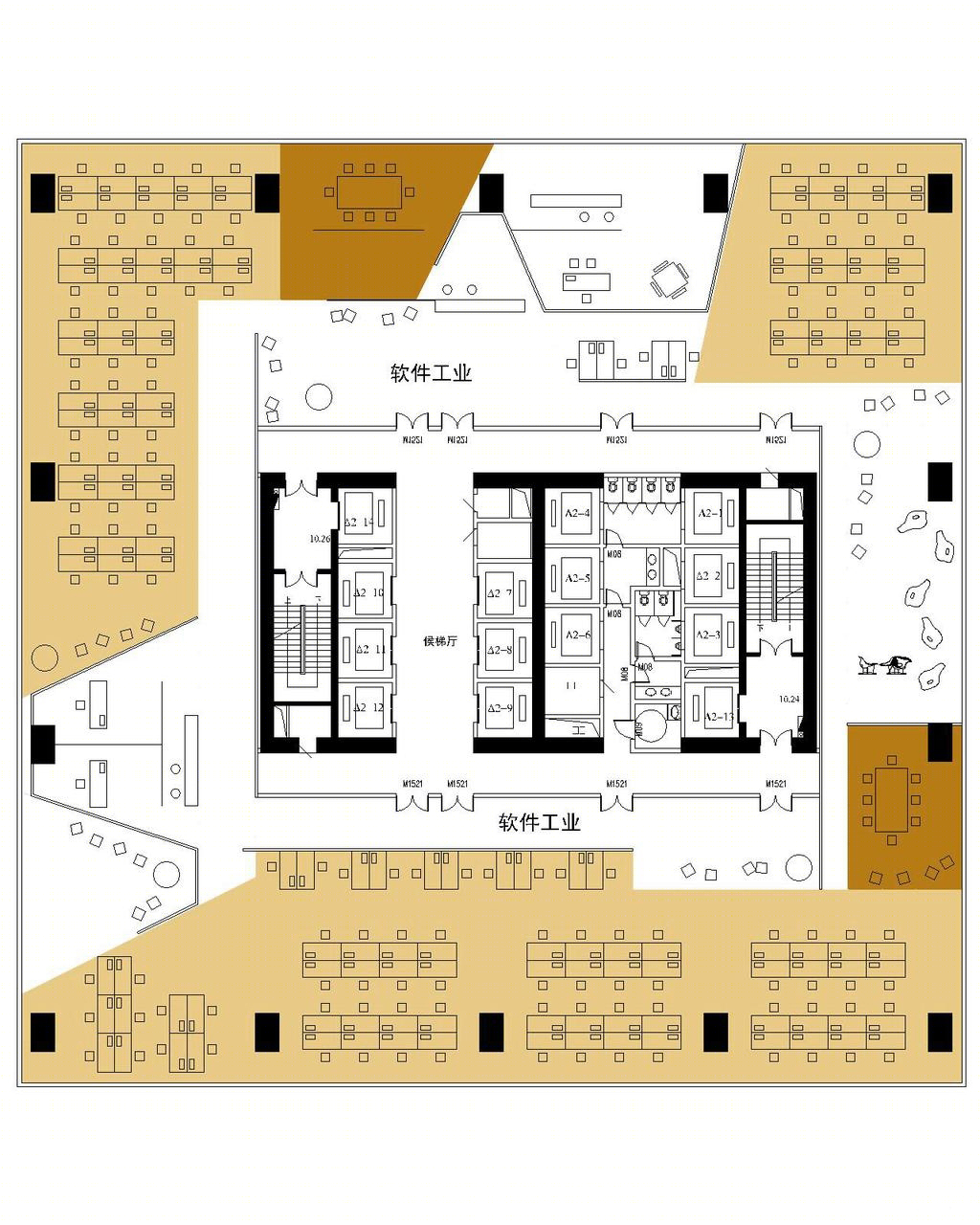

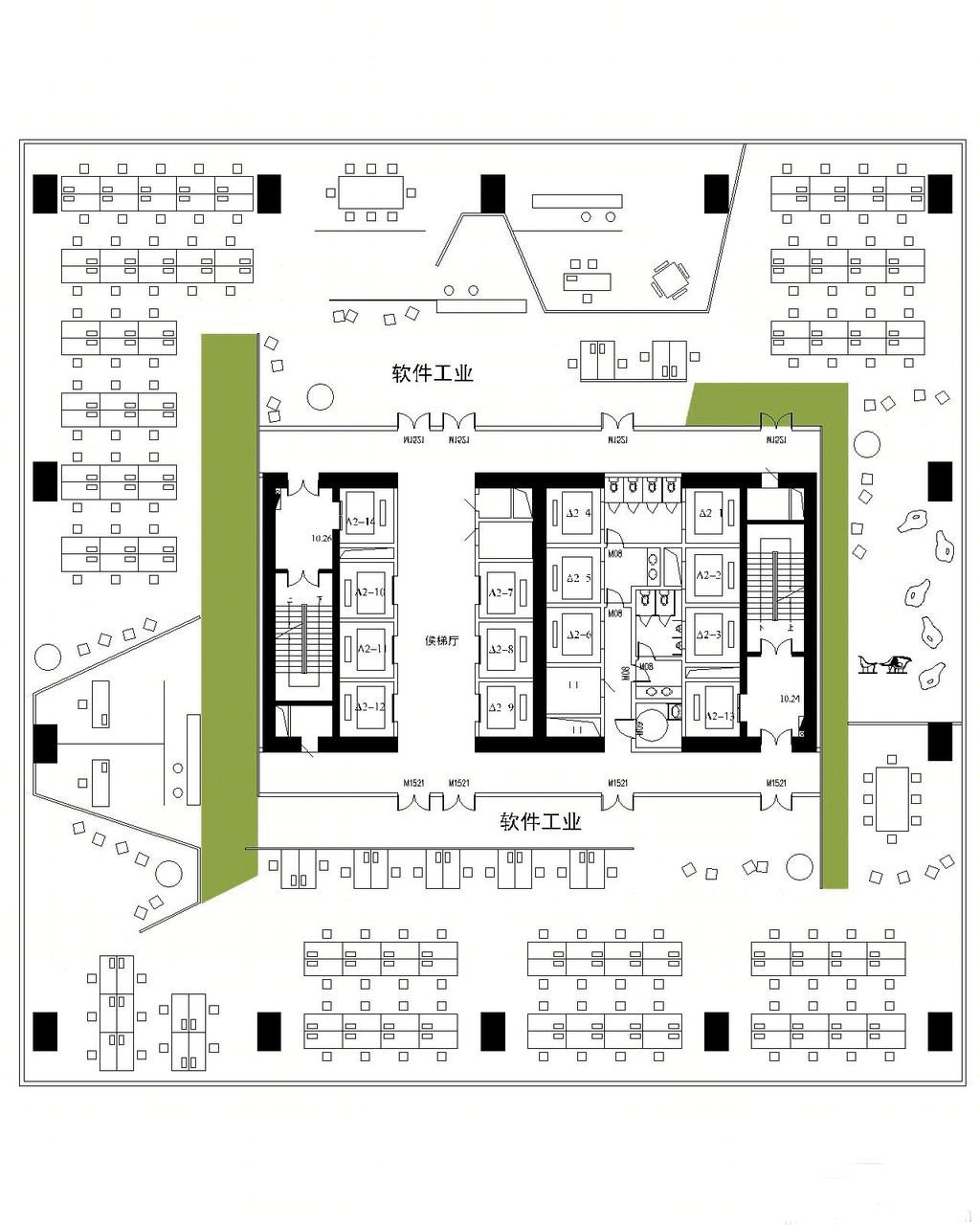

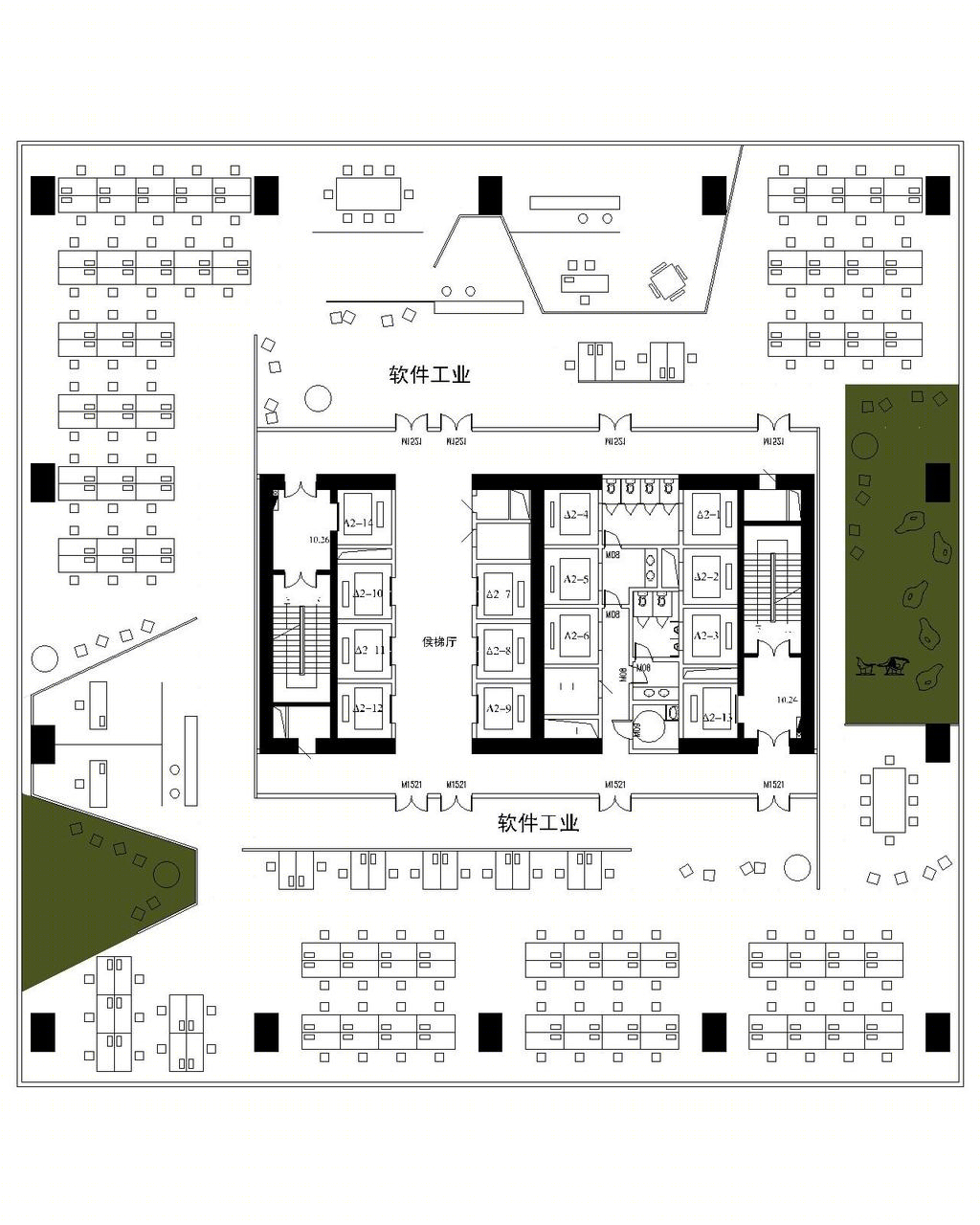

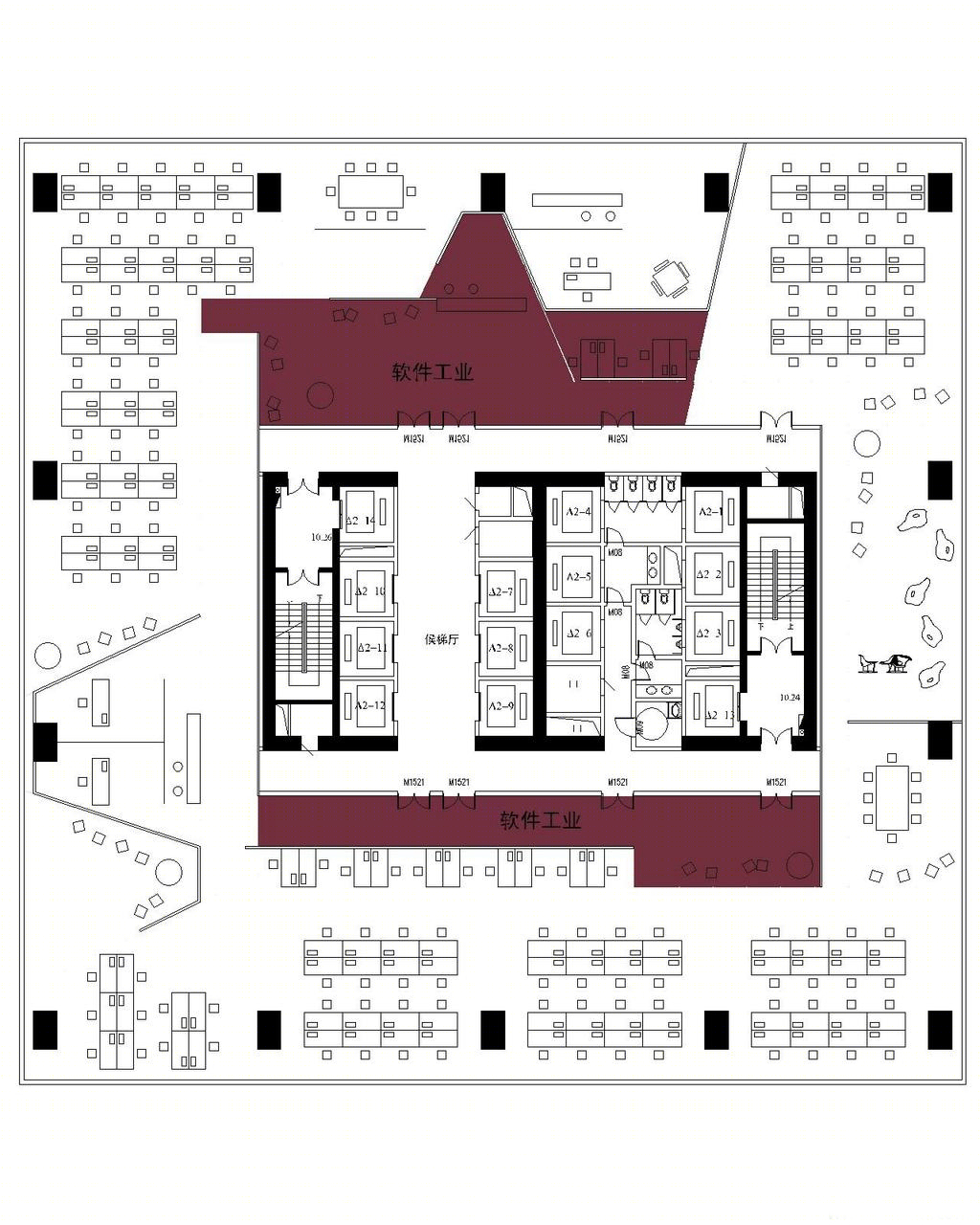

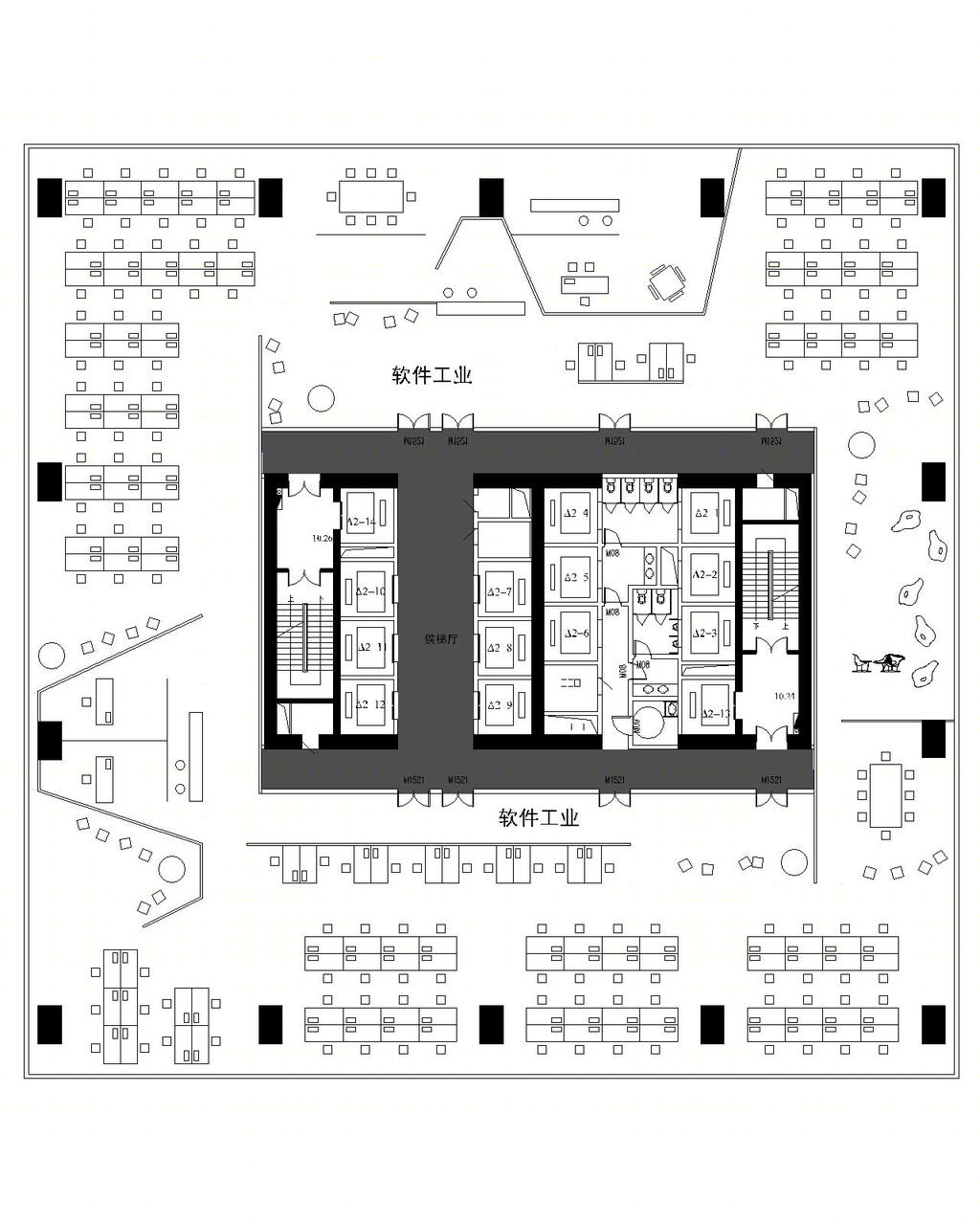

青岛创新园区平面图
