马拉加大学美术学院庭院改造丨西班牙马拉加丨DJarquitectura

在学术类建筑中有一种恒定的现象：它们会以牺牲最初的空间质量为代价不断地扩张，这导致了建筑的性质在混乱的空间序列中扭曲而变得难以清晰表达。

There is a constant in academic buildings: their continuous expansion, at the expense of their initial qualities, which leads to deform their nature in a confusion of architectures difficult to articulate.

▼项目概览，overall of the project ©Jesus Granada

在马拉加大学，美术学院决定改造并重新利用工程学院的旧楼。旧楼由三个不同时期的不同建筑组成，每栋建筑都有着各自的设计风格，而统一的屋顶结构与设备则占据了建筑之间的缝隙空间，这种建筑形式带给人们一种理性，甚至略显荒凉的外观印象。相比之下，学生们对它的使用是激烈的，建筑颓废的外表激发了学生们无尽的灵感和创造力。

▼插画表达，illustration ©DJarquitectura

The Faculty of Fine Arts decides to occupy the old buildings of the University’s engineering school, made up of three disparate buildings from different periods, each of them with a free and autonomous design, which have generated an organization of voids occupied by roofs and facilities, offering a desolate appearance. In contrast, there is the intense use by students, which due to its decadent semblance is a sign of inspiration and creativity.

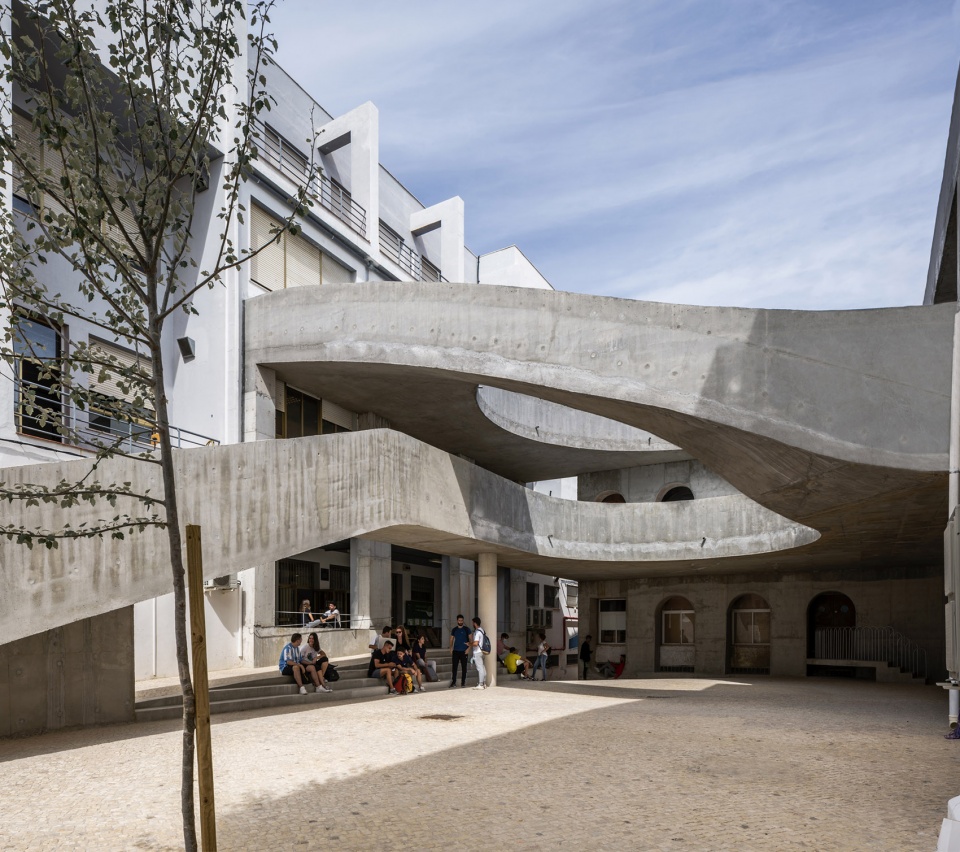

▼漂浮在庭院中的混凝土结构，Concrete structure floating in the patio ©Jesus Granada

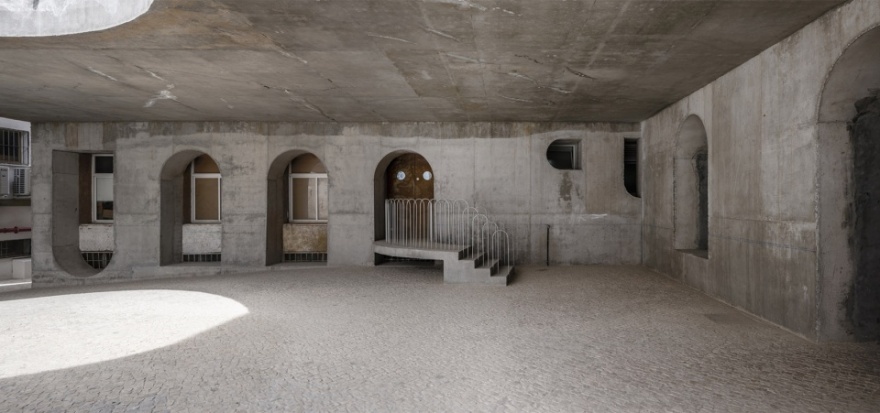

▼结构下部空间， space under the structure ©Jesus Granada

设计任务包括拆除现有的结构并翻新原有设施，以使空间得到充分的利用，同时在建筑群内部创造出一处用于艺术表演与展示的参考性场所。除了这些基本的要求外，DJarquitectura事务所为设计限定了一个格外条件，即，改造后的庭院必须连接到不同的建筑，促进建筑间的关系、改善它们的可达性与疏散性。

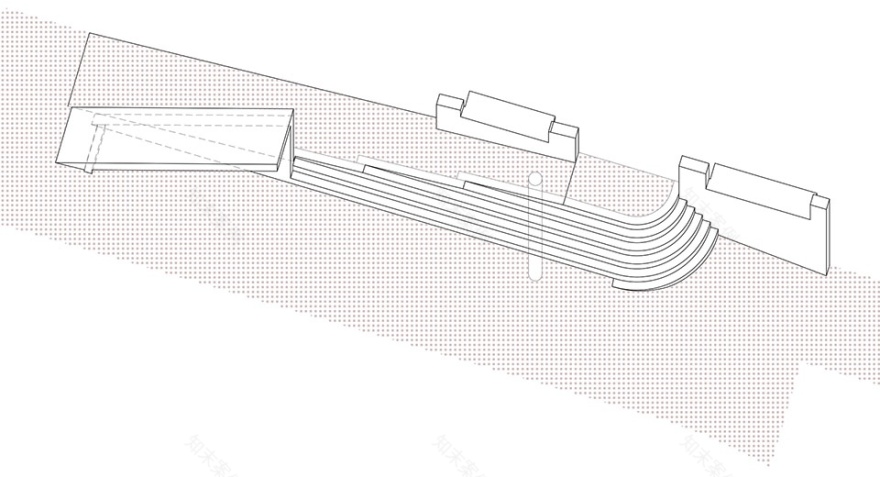

▼楼梯入口分析图，analysis diagram ©DJarquitectura

The commission consists of eliminating the existing structures and renovating the facilities, preparing them for adequate use and building a reference place for acts and artistic presentations. To these requirements we add the condition that it must connect the different buildings, facilitating their relationship, accessibility and evacuation.

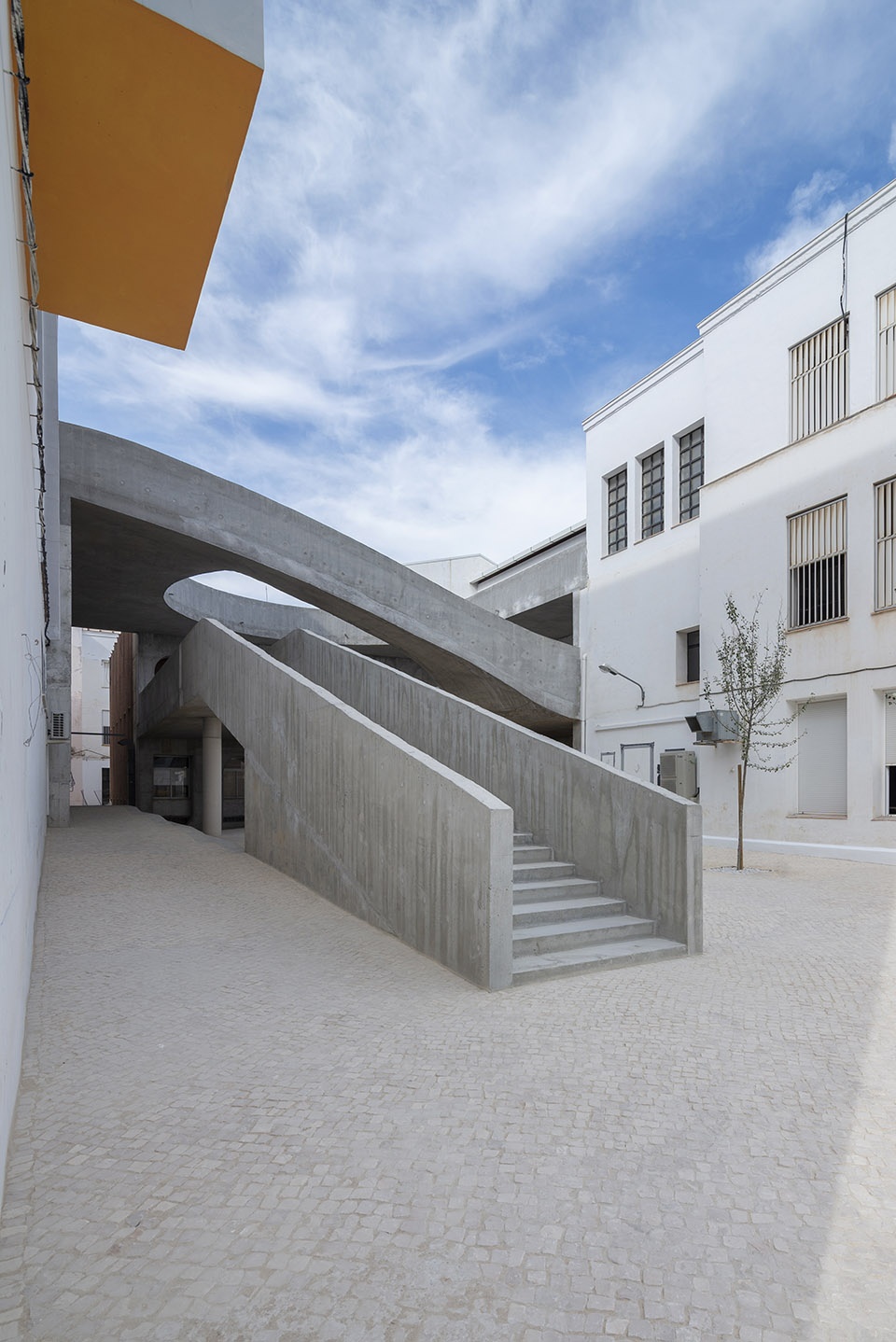

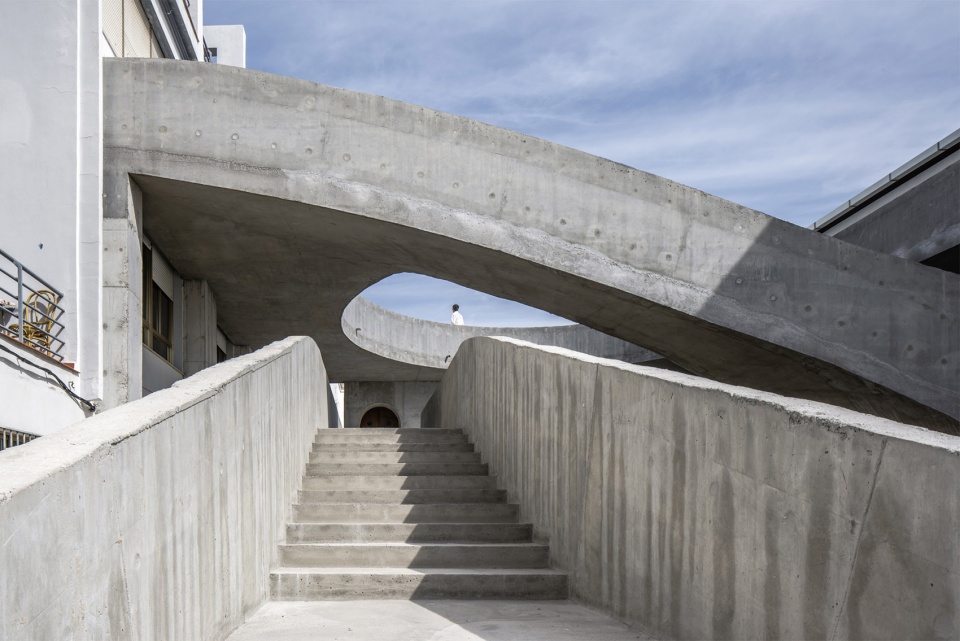

▼入口楼梯，entrance steps ©Nicolás Díaz

▼丰富的层次与视口，Rich layers with viewports ©Jesus Granada

原有的楼层被拆除重建，除了还原各入口楼层的位置外，还完美解决了可达性的问题。一座巨大的混凝土结构被嵌入到其中一个庭院内部，简洁的建筑语言与复杂的施工技术使其成庭院中引人注目的焦点。这座混凝土结构呈现出坡道的形式，向上弯曲的地板将建筑的不同楼层联系在一起，而一系列宽度不同的平台与楼梯则将教室的使用范围延伸到室外。

The existing floor is replaced by a new one that resolves accessibility and recovers the original levels of the accesses. A concrete structure embedded in one of the courtyards, with simple rhetoric and complex technology, a floor that curls upwards looking for the different levels of the buildings; some platforms and stairs with variable widths that allow to extend the use of the classrooms to the outside.

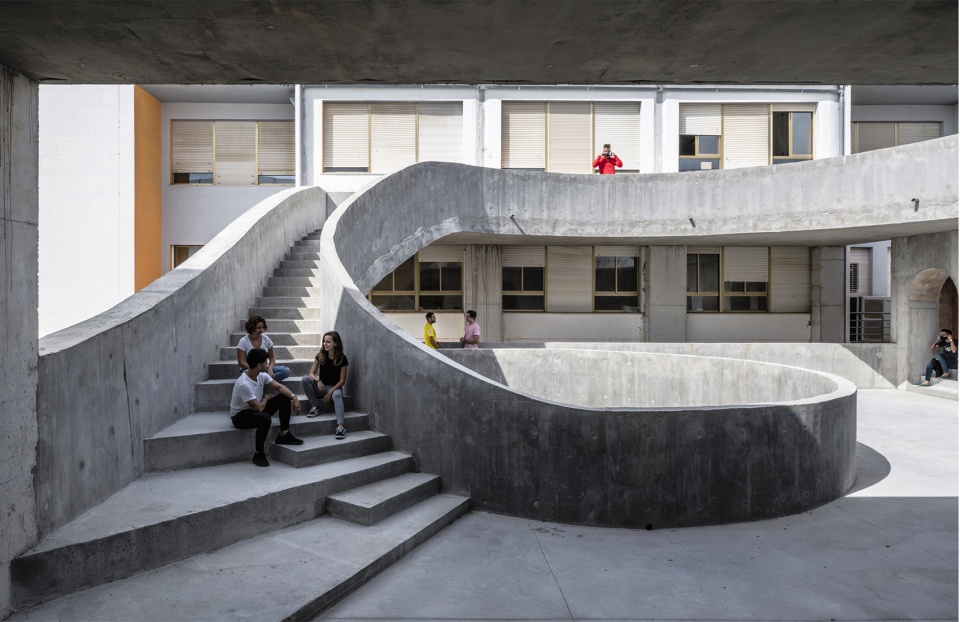

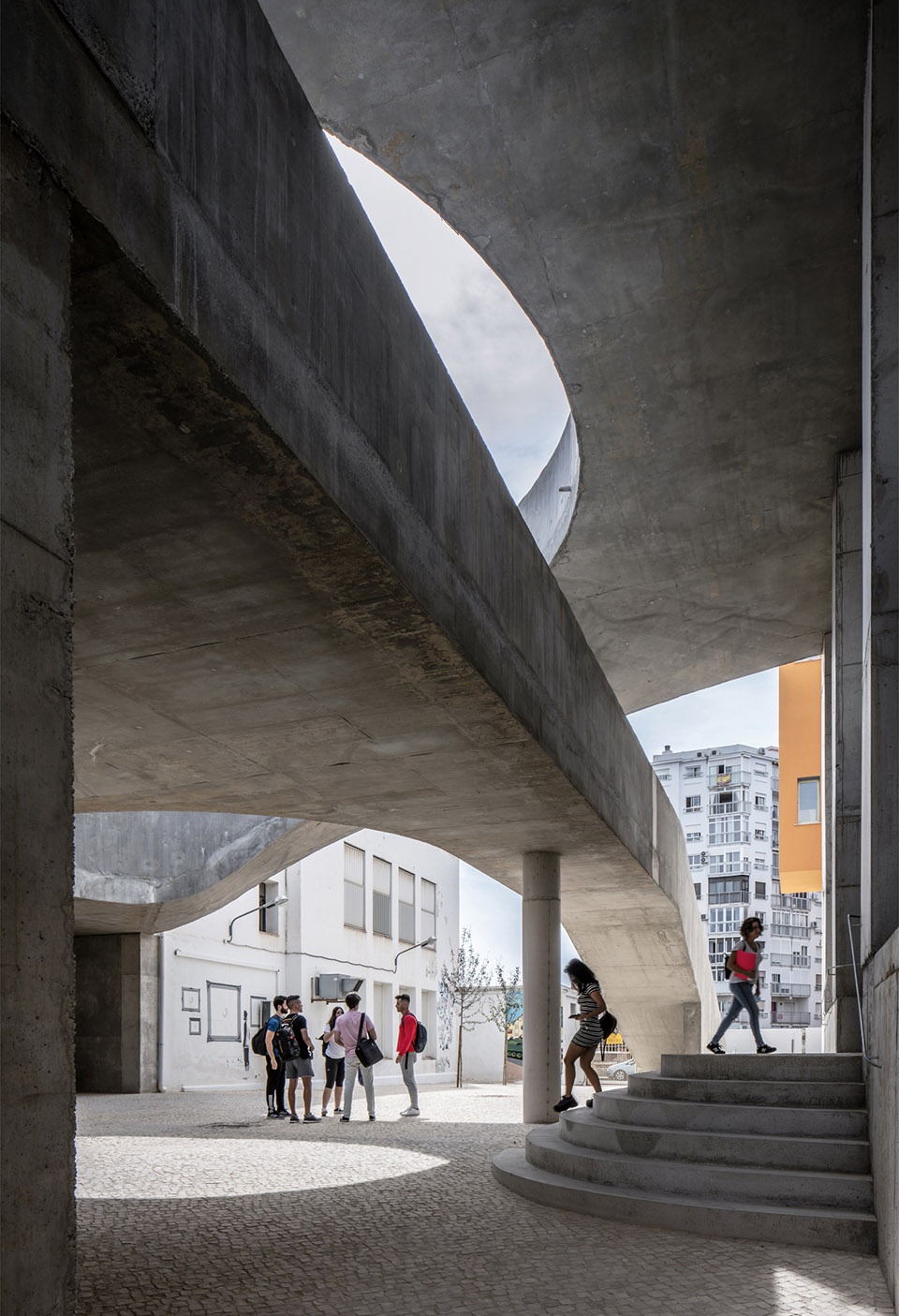

▼盘旋的楼梯成为学生们聚会休憩的平台，The spiral staircase serves as a platform for students to gather and rest ©Jesus Granada

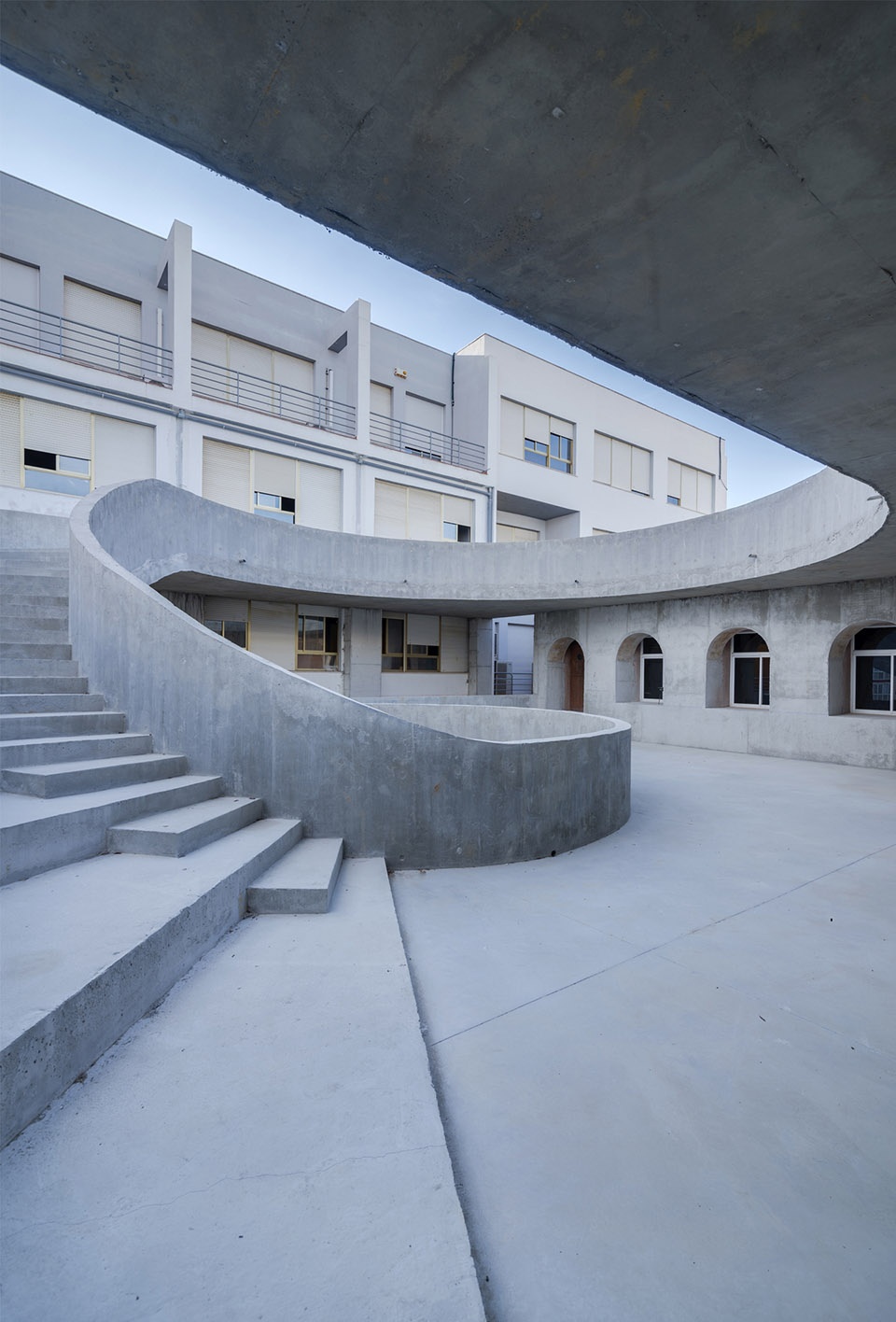

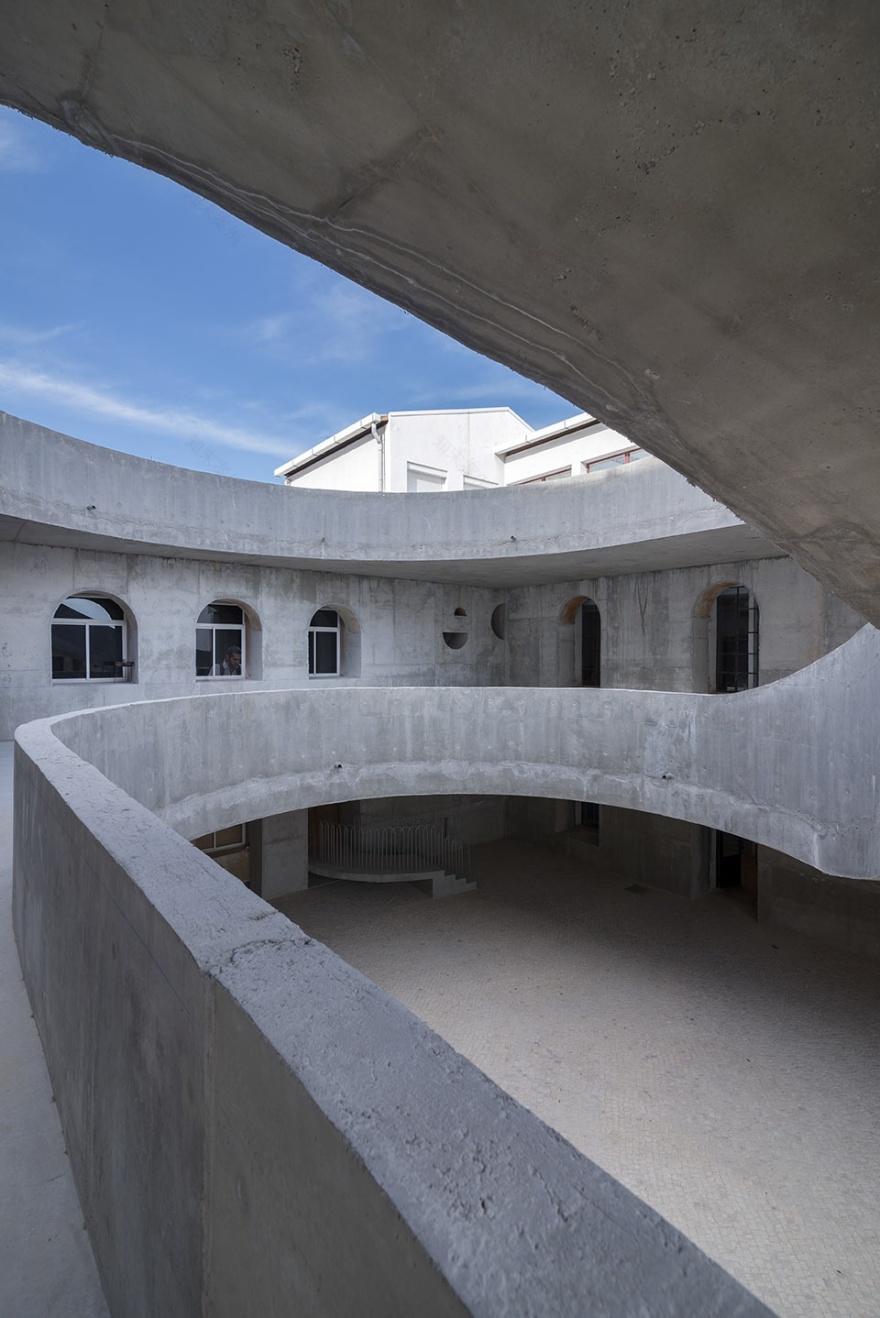

▼曲线带来的结构美感， Curves that bring structural beauty ©Nicolás Díaz

▼俯视庭院， overlooking the patio ©Nicolás Díaz

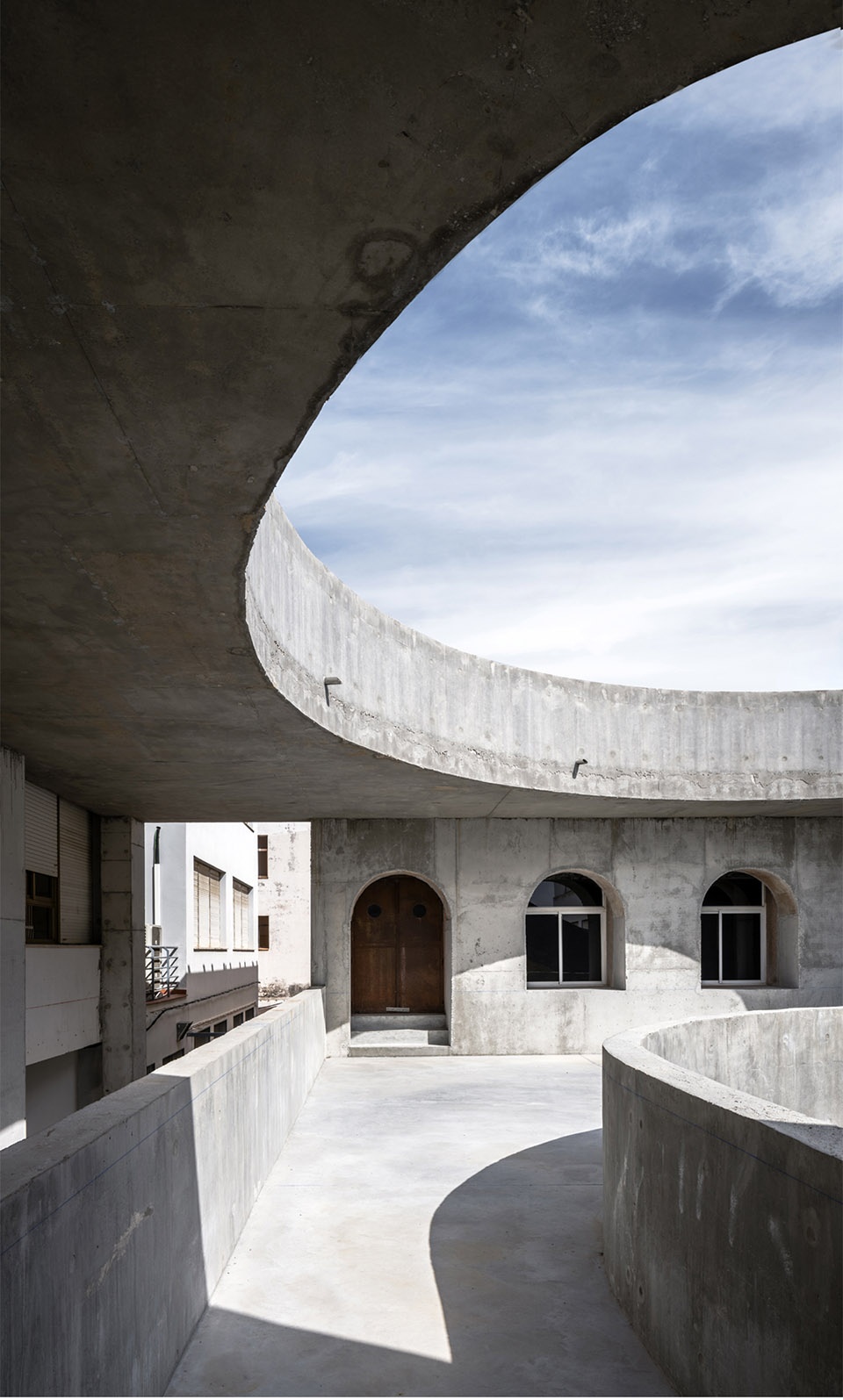

▼光影与裸露的混凝土， Light and shadow and exposed concrete ©Jesus Granada

原始而朴素的混凝土结构就如同一座没有肌肉和皮肤包裹的骨架，支撑结构的两堵墙连接到原建筑上，使坡道主体漂浮在周围的环境中，进而将地面空间释放了出来。本次改造设计为庭院赋予了一个全新的形象，同时以独特的建筑语言将突兀的缝隙空间融入到原有的建筑群之中。

▼承重墙体与原建筑的结合，The integration of load-bearing walls with the original building ©Jesus Granada

▼细部，details ©Nicolás Díaz / Jesus Granada

An architecture built only of bone, without muscles or skin. That floats from its perimeter releasing the ground, with two walls that are attached to the buildings, creating a whole a new identity for this courtyard, transmuting the existing gaps with another language.

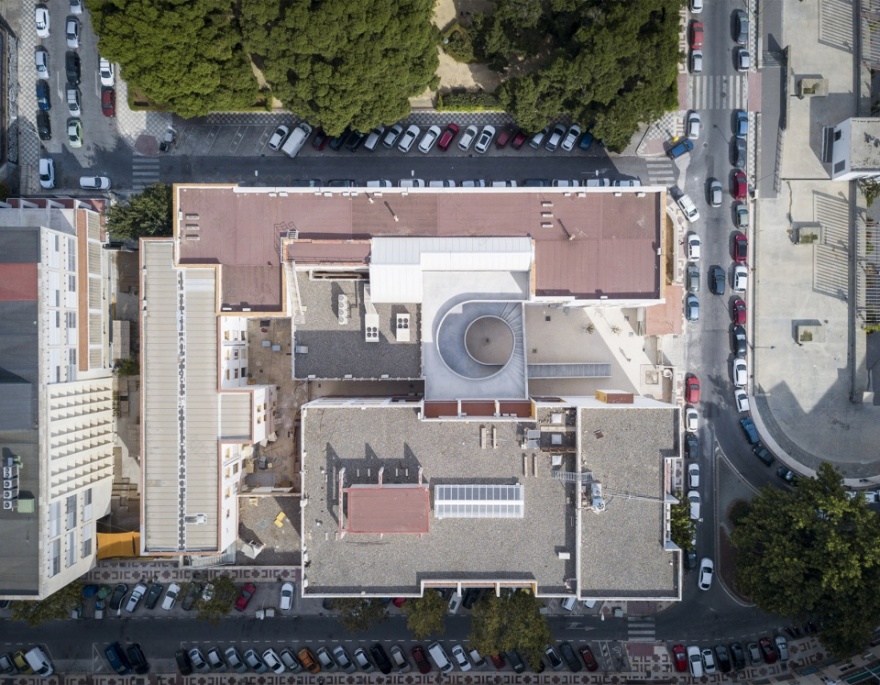

▼航拍顶视图，top view ©Nicolás Díaz

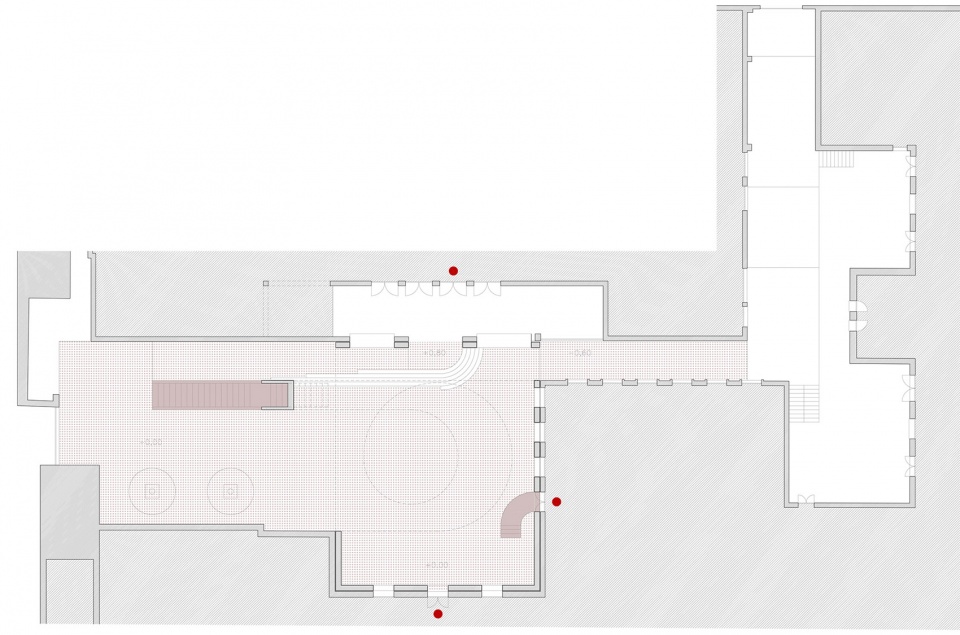

▼底层平面图，ground floor plan

©DJarquitectura

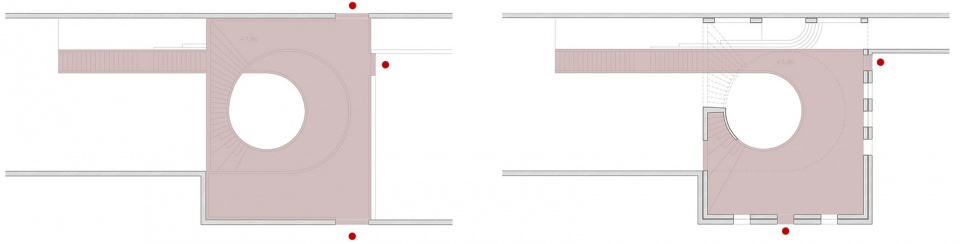

▼二&三层平面图，upper floor plans

©DJarquitectura

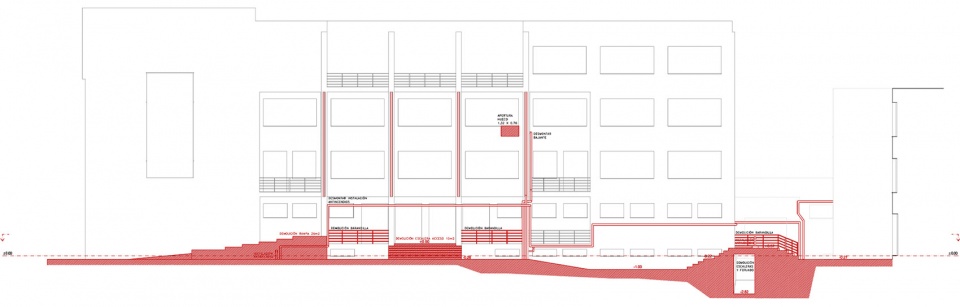

▼剖面图，section

©DJarquitectura

Title of the work: #revolucionenelpatio

1ª FASE DE OBRA DE MEJORA EN LOS PATIOS DE LA FACULTAD DE BELLAS ARTES DE LA UNIVERSIDAD DE MÁLAGA.

Authors and construction managers: DJarquitectura / Diego Jiménez López – Juana Sánchez Gómez/

Collaborate: Jorge Barrios Corpa /ingeniero de caminos/ Jorge Salguero Ropero /arquitecto/ Graziano Camelia /arquitecto/

Location: Patio de la Facultad de Bellas Artes, Campus El Ejido, Málaga

Promoter: Universidad de Málaga

Builder: C. Lasor, s.l.

Start date of the work: Julio de 2019

End date of work: 03 de diciembre de 2020

Builded surface: 570,85m2 de patio y 371,80m2 de tribuna plegada

Budget: 420.547,25€

Photographies: Jesus Granada, Nicolás Díaz y DJarquitectura
