Otrivin 空气实验室丨英国伦敦丨ecoLogicStudio

我们希望通过 Otrivin 实验室，使城市居民能够建立自然循环经济。在实验室，我们收集二氧化碳、净化被污染的城市空气、3D 打印无塑料的生物降解产品。说到底，我们将空气污染转化为产品，保卫我们呼吸新鲜空气！——Claudia Pasquero 和 Marco Poletto，ecoLogicStudio 联合创始人。

With the Otrivin Air Lab, we want to enable urban dwellers to design new nature based circular economies. At the lab we harvest carbon dioxide, purify polluted urban air and 3d print plastic free biodegradable products. Essentially, we convert air pollution into products that help protect our breathing!”— affirm Claudia Pasquero and Marco Poletto, co-founders of ecoLogicStudio.

ecoLogicStudio 是一家专门从事建筑环境生物技术的建筑与设计创新公司，该项目是 ecoLogicStudio 与 Otrivin 合作构想的生活展厅和生物设计工坊——Otrivin 空气实验室，于 2022 年 6 月 15 日至 9 月 17 日在英国伦敦的建筑中心向公众开放。

Otrivin 空气实验室使参观者参与生物可降解聚合物的开发，这些聚合物是由活体光合微藻驱动的空气净化过程的副产品制成的。ecoLogicStudio 由建筑师和研究员 Claudia Pasquero、Marco Poletto 创立，因其项目集成系统思维、计算设计、生物技术和数字原型，而享誉国际。这种从微观尺度向城市尺度“拓宽”的设计方法，尽体现在 Otrivin 空气实验室中，在这里，实践操作构成了公共领域的开放实验室。目前，ecoLogicStudio 和“Otrivin 呼吸新鲜空气行动计划”正在试验基于自然的创新解决方案，以减轻城市空气污染对呼吸健康的影响。在此之前，相关项目还包括位于华沙的 AirBubble 游乐场——于第 26 届联合国气候变化会议期间首次亮相的“空气泡泡”空气净化生态机。

▼项目概览，general view

通过应用 ecoLogicStudio 首创的光合作用技术，Otrivin 空气实验室测试了建立循环生产工作流的可能性，使二氧化碳和城市空气污染经过代谢，变成新鲜生物质。在这里，参观者能够收获微藻，而这种物质可以转化为藻类生物塑料和生物纤维，然后经过 3D 打印，最终变成生物降解产品。

Through the application of the PhotoSynthetica technology, pioneered by ecoLogicStudio, the Otrivin Air Lab tests the feasibility to build a circular production workflow, where carbon dioxide (CO2) and urban air pollution are re-metabolized into fresh biomass. At the Otrivin Air Lab, visitors will be able to harvest microalgae that will then be transformed into algae-based bioplastic, biofilament for 3D printing and finally into new biodegradable products.

▼由外部望向内部，looking from outside to inside

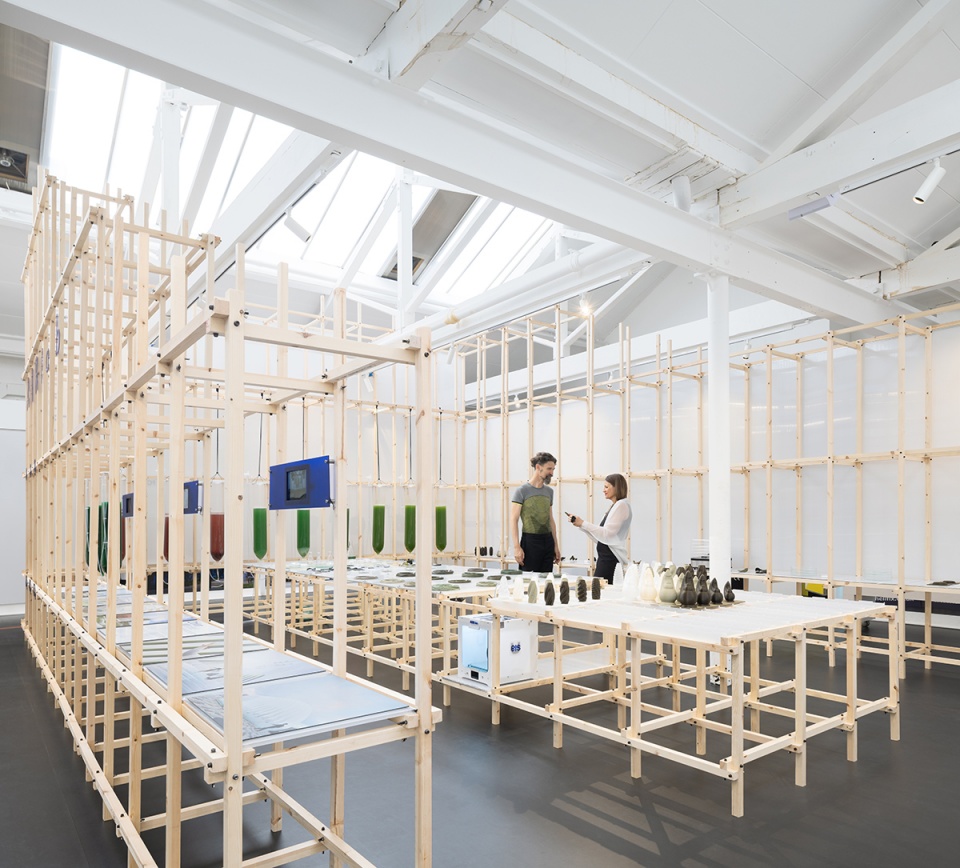

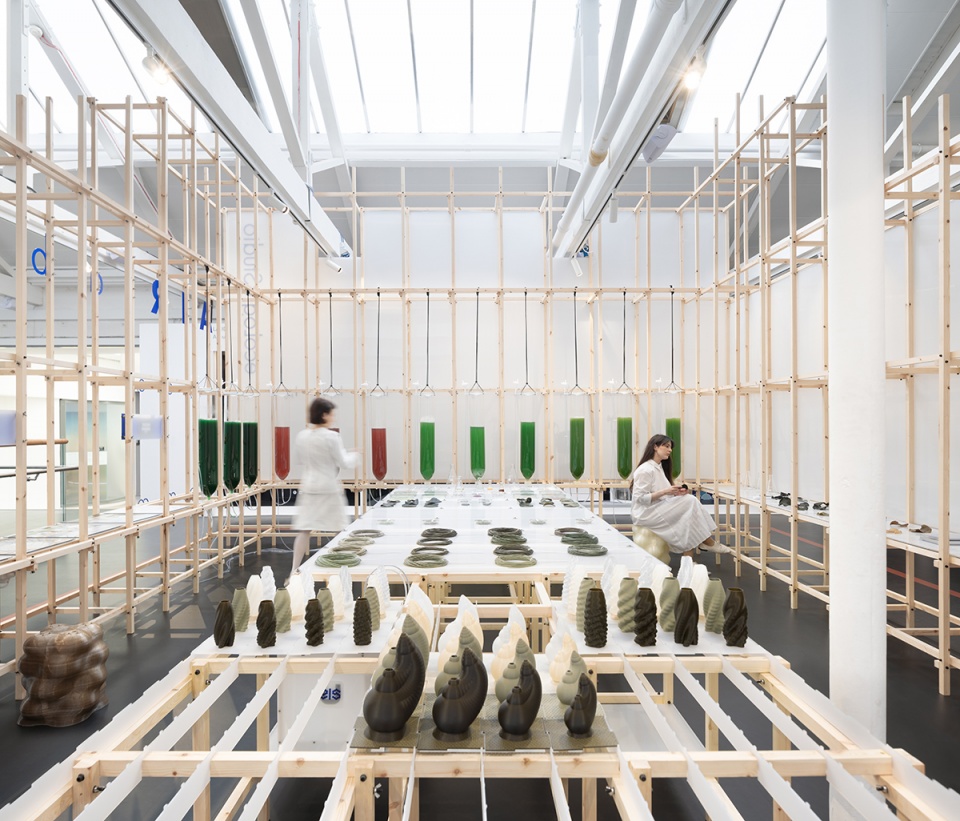

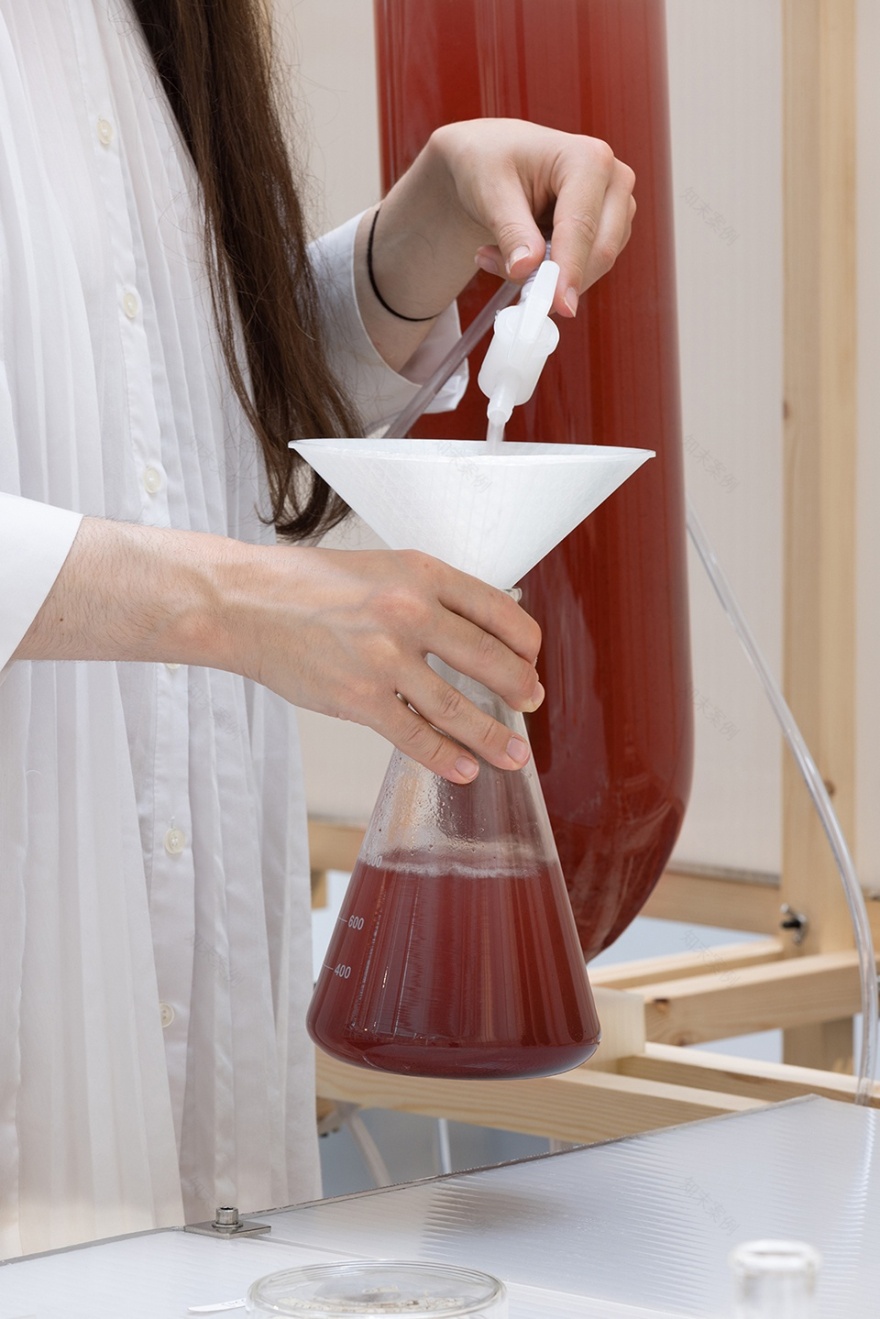

▼实验室内部，inside the lab

实验室由轻质量、可拆卸的木结构围合而成，该结构容纳了空气净化和生物质转过过程不同阶段所涉及的所有系统。主要的光和作用墙装有 12 个光生物反应器，它们都是一米高的定制实验室级别玻璃容器，每个容器都装有 10 升的活体光和微藻。微藻种类包括螺旋藻、小球藻、紫球藻和氰化物藻，这四种菌株因其多用性和美观性而被选中。据悉，该墙每天将吸收 240 克二氧化碳、释放 180 克氧气、产生 84 克生物量。

The laboratory is enclosed by a lightweight and reversible timber structure that hosts all the systems involved in the different phases of the air-purification and biomass transformation process. The main photosynthetic wall houses 12 photobioreactors. These are one metre tall bespoke lab grade glass vessels, each filled with 10 litres of living photosynthetic microalgae. Four strains have been selected for their versatility and beauty: Spirulina, Chlorella, Porphyridium and Cyanidium. The wall will adsorb 240g of CO2 and release 180g of Oxygen producing 84g of biomass daily.

▼轻质量、可拆卸的木结构，lightweight and reversible timber structure

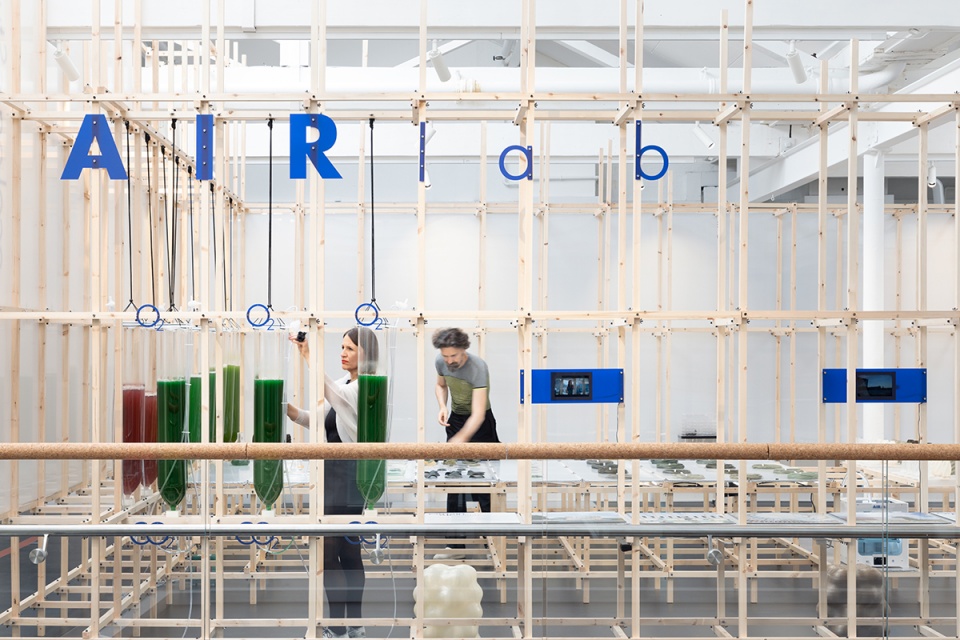

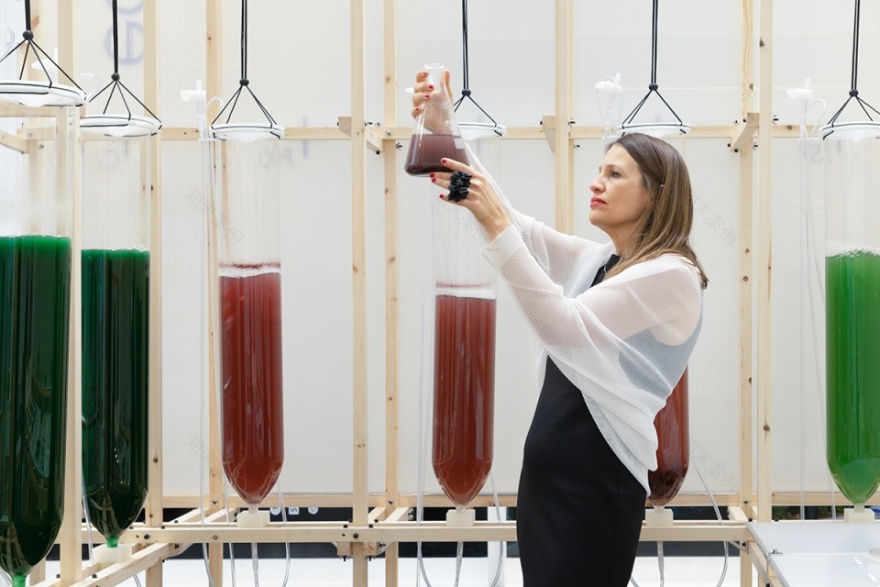

▼光和作用墙装与光生物反应器，main photosynthetic wall and photobioreactors

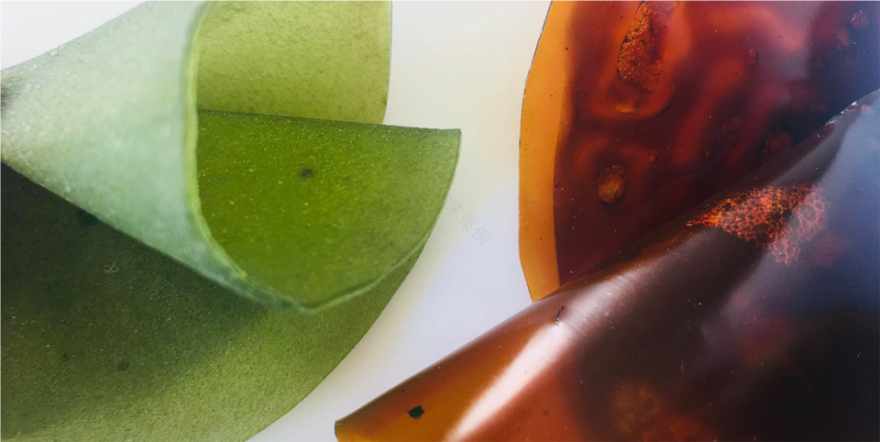

ecoLogicStudio 的生物设计师将源于日常收获的具有各种特性的材料样本制成目录，放置于 Otrivin 空气实验室。他们将测试从生物塑料、生物橡胶到 3D 打印藻丝的各种藻类菌株，制成美丽的色彩渐变目录。这些精美的藻丝将应用于实时 3D 打印，被制成生产碳中和的产品。

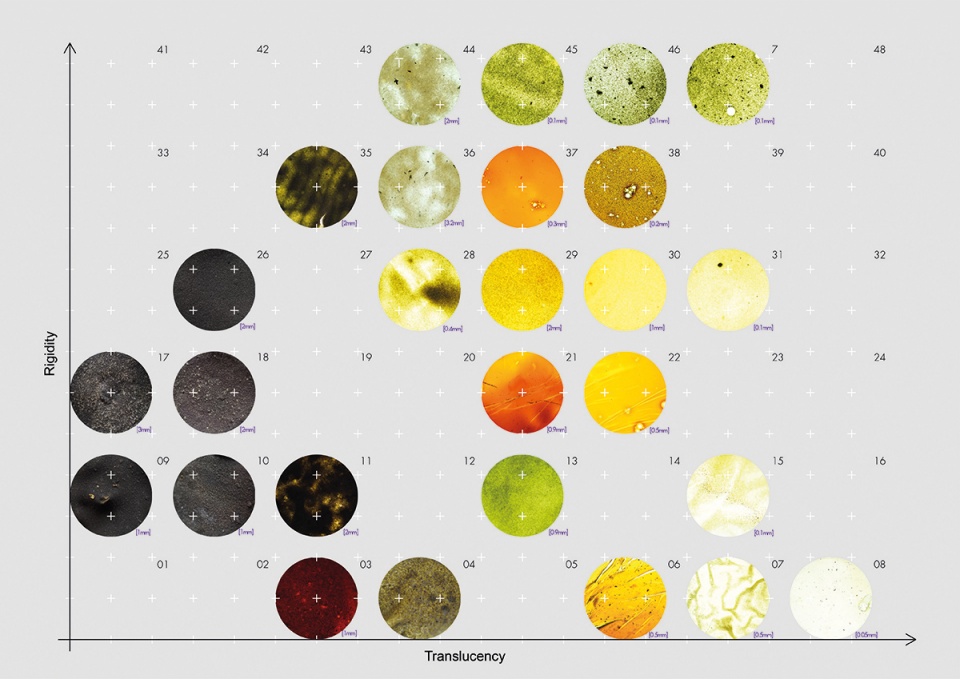

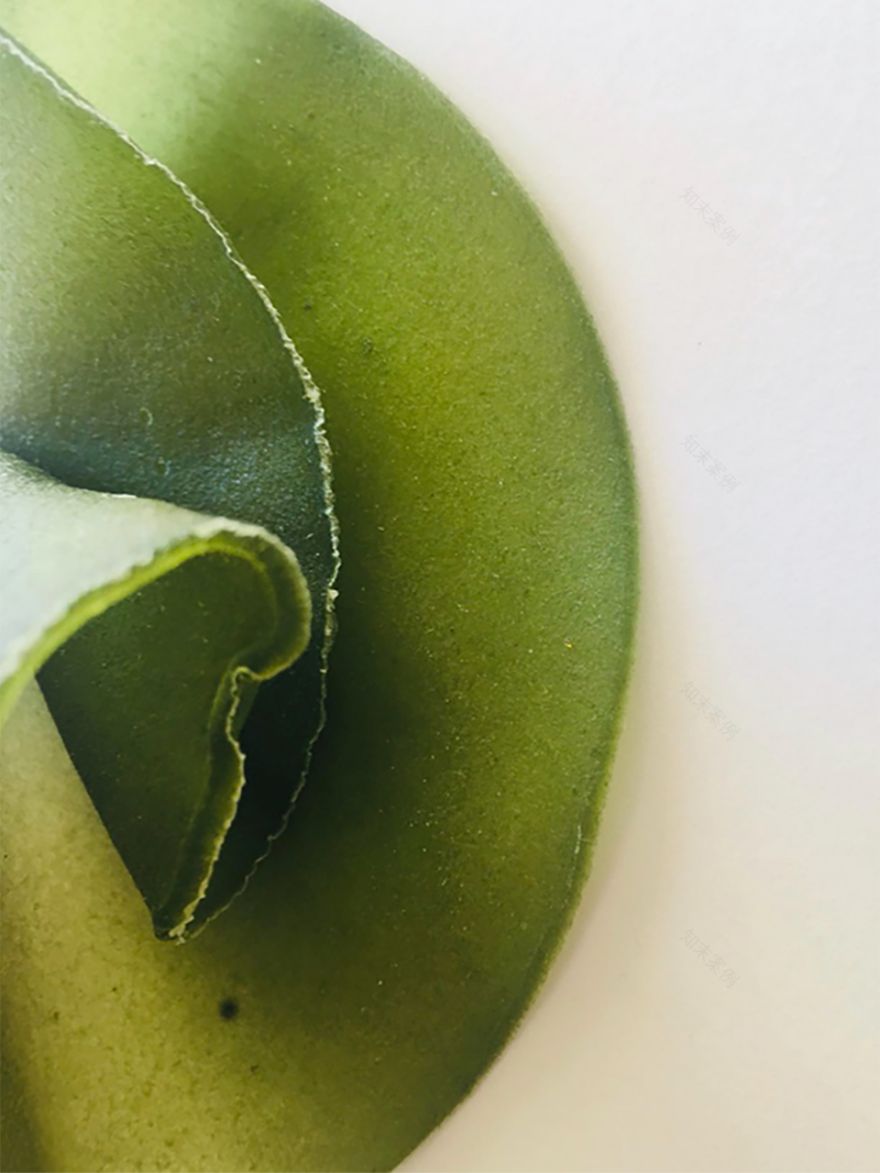

▼生物材料样本目录，bioplastic catalogue of material properties

In the Otrivin Air Lab, ecoLogicStudio’s bio-designers will craft a catalogue of material samples with various properties derived directly from the daily harvest. From bioplastics and bio-rubbers, to 3d printing algae filaments, they will be testing various algae strains resulting in a catalogue of beautiful colour gradients. These crafted filaments will be employed in a live 3d printing process to produce carbon neutral products.

▼色彩渐变目录，a catalogue of beautiful colour gradients

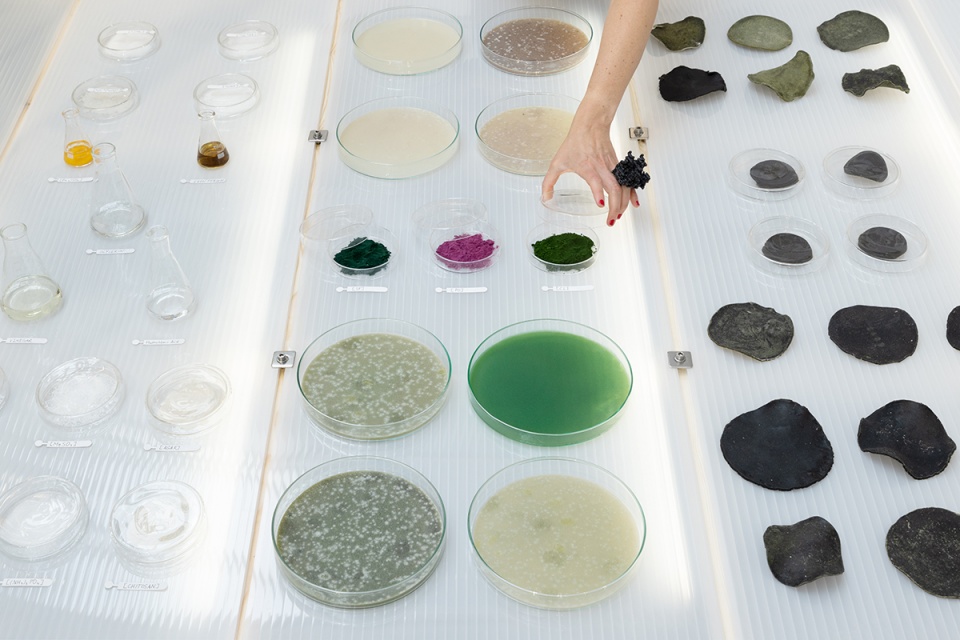

▼各种藻类菌株，various algae strains

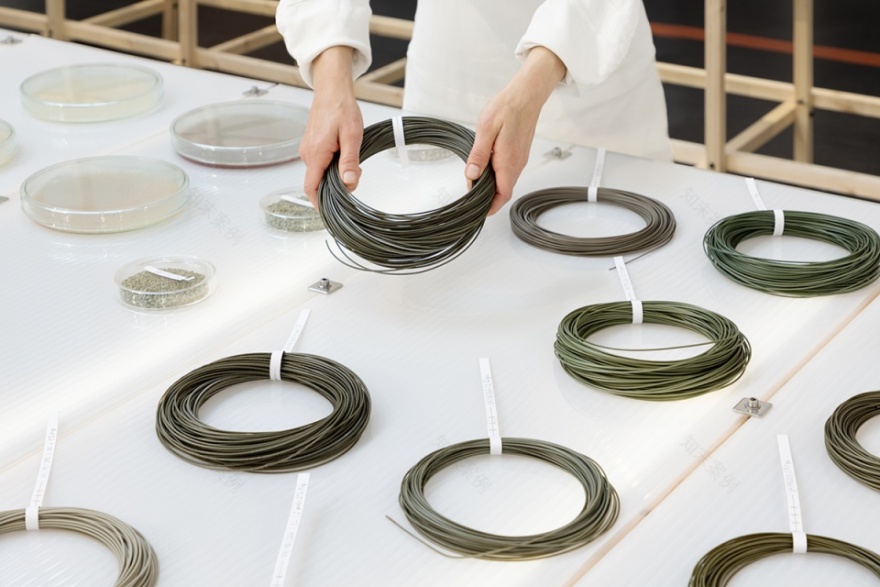

▼3D 打印藻丝，3d-printedalgae filaments

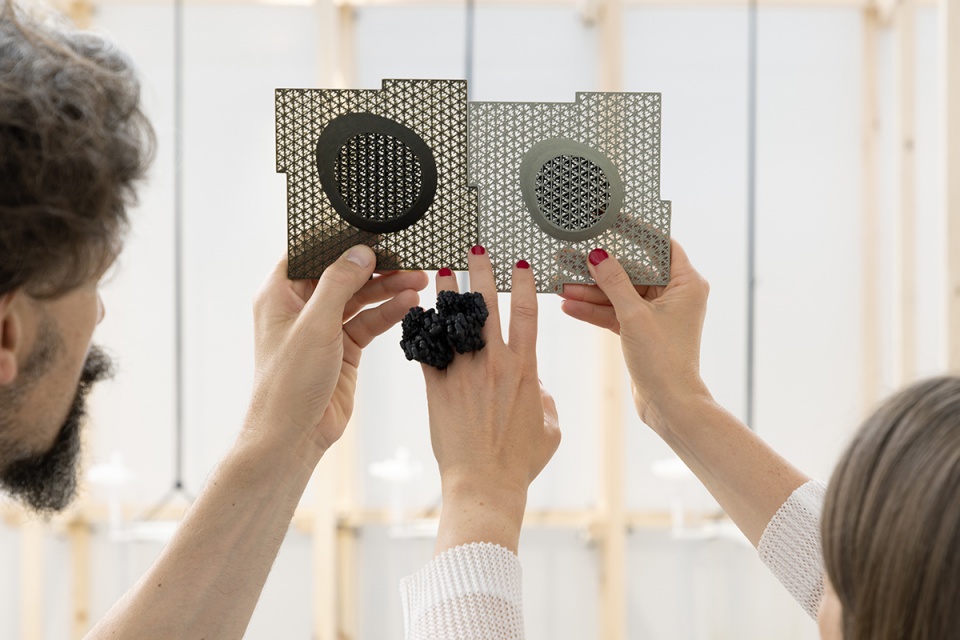

▼3D 打印瓷砖，3d-printed tiles

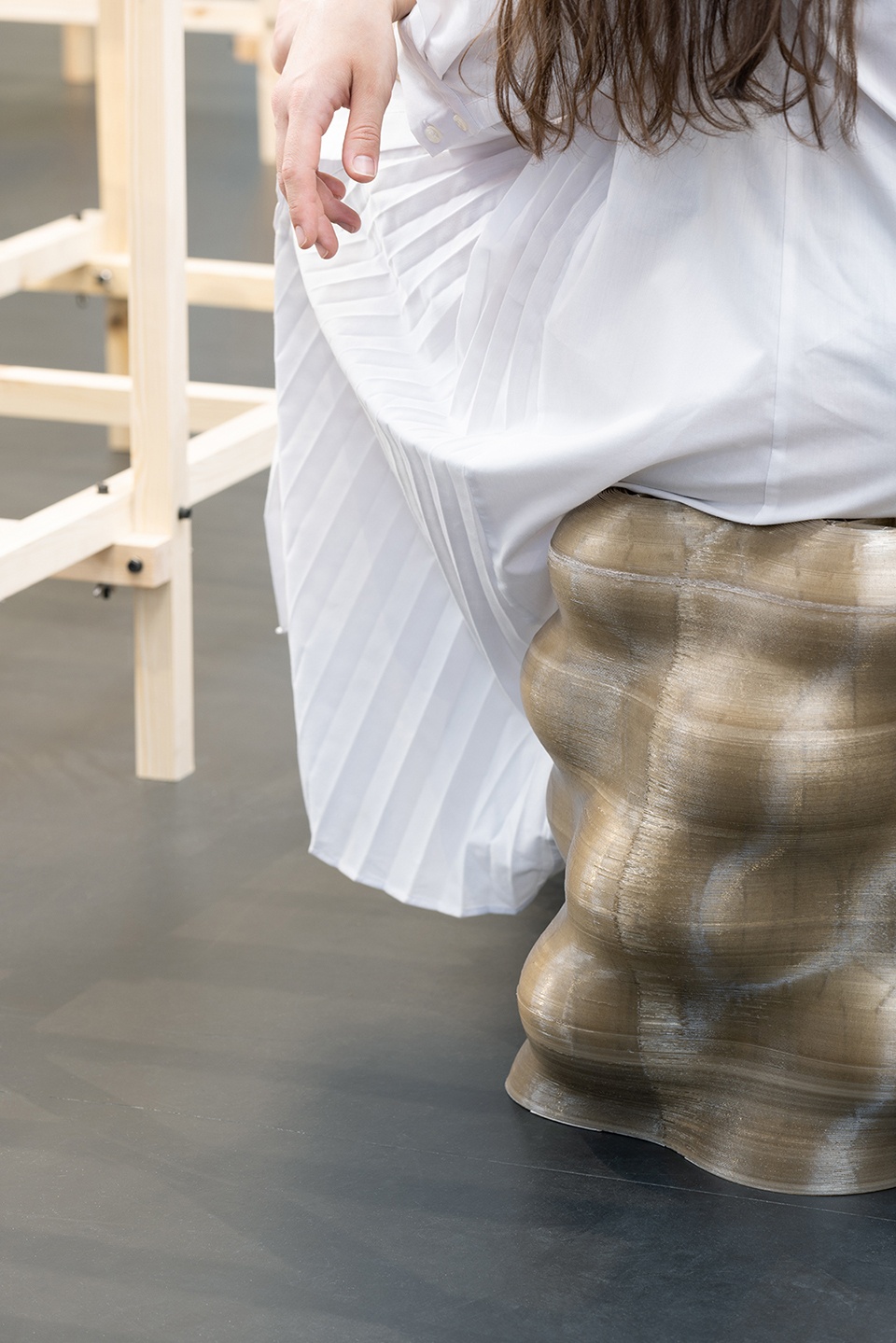

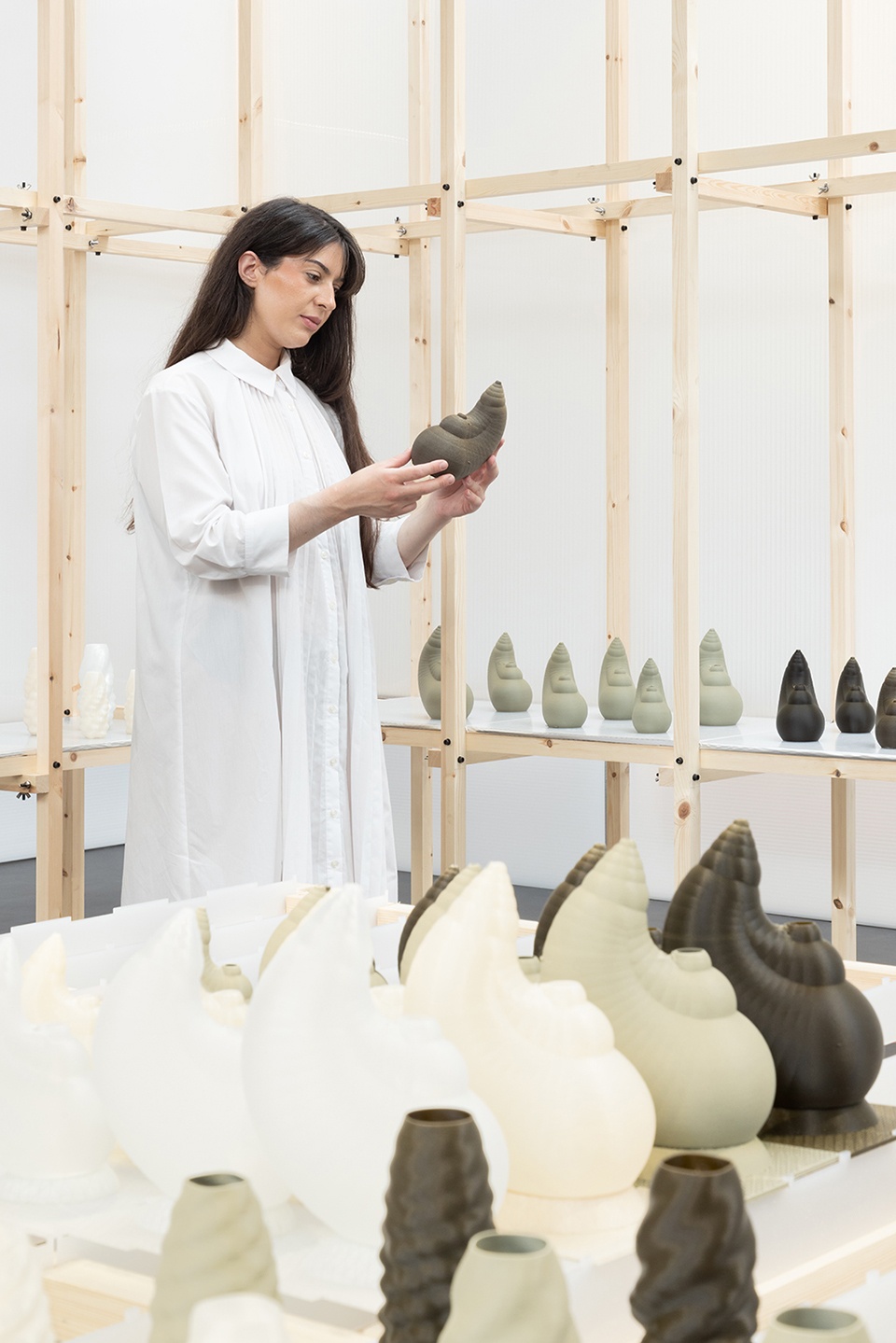

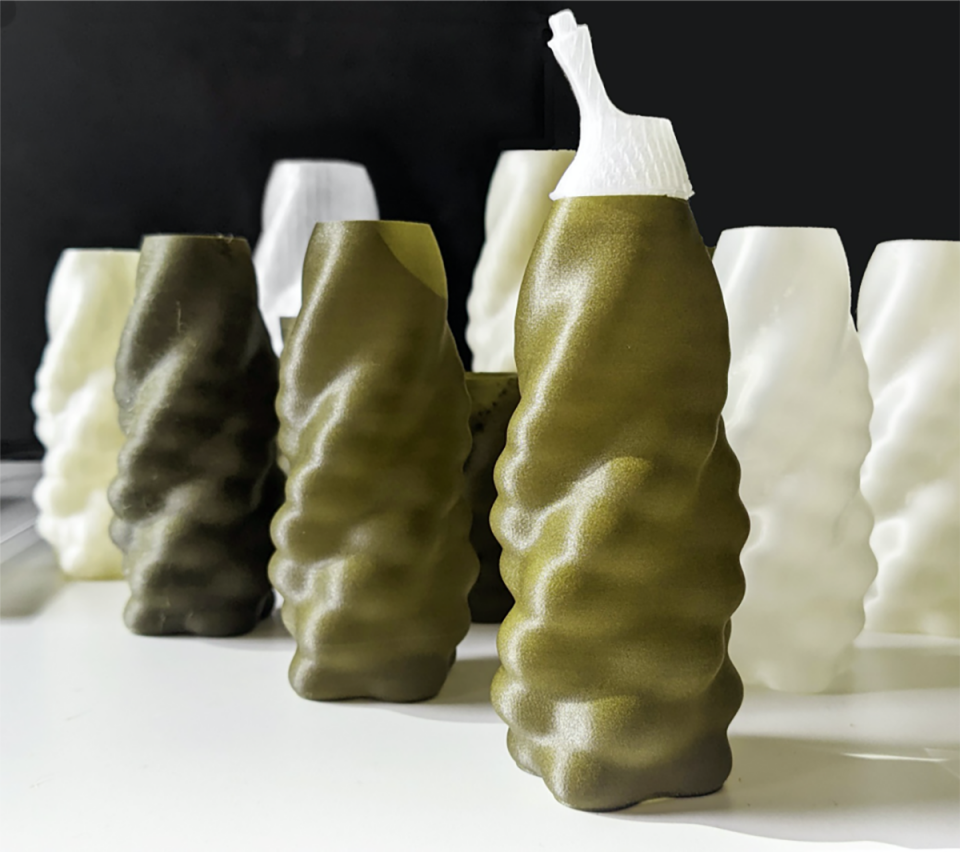

▼生物降解产品，biodegradable products

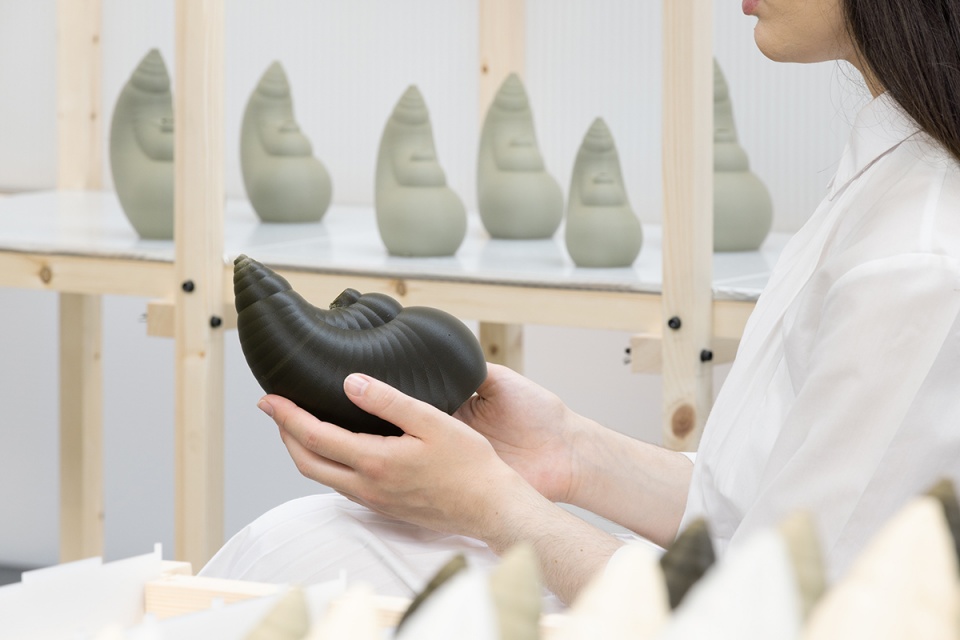

独特的 Fibonacci NetiPot 引入了一系列新的产品机会，更新了后疫情时代鼻腔清洁和呼吸健康的历史演变。其目标是通过将一种愉悦的美感、审美和触觉刺激的体验带入日常的自我保健生活方式中，从而提高人们对空气质量对呼吸系统健康的影响的认识。每生产一个 NetiPot 鼻腔清洗器，空气中就会有 15 克二氧化碳消失，这样一来，我们在照顾自己的同时，也能够保护我们所处的环境。NetiPot 为产品、展示和包装的发展带来了新的机遇，Otrivin 空气实验室开创性的生物数字制造工艺旨在消除废弃物的产生，优化材料使用及性能，提高自然生物降解性，并实现碳中性工业的可扩展性。

In particular, the unique Fibonacci NetiPot introduces a new line of product opportunities that updates the historical evolution of nasal cleansing and respiratory wellness for the post-pandemic age. The ambition is to raise awareness about the impact of air quality on our respiratory health, by bringing a pleasurable experience of beauty, aesthetic and haptic stimulation into everyday lifestyles of self-care. With each NetiPot produced 15g of carbon dioxide are removed from the air, so that by taking care of ourselves we can also take care of the environment we are part of. The NetiPot embodies a new sphere of opportunity for the evolution of products, shelf displays and packaging. The Otrivin Air Lab pioneering bio-digital fabrication process aims to eliminate the production of waste, to optimise material use and performance, to improve natural biodegradability and to achieve carbon neutral industrial scalability.

▼实验室要素，elements

▼产品细部，details

ecoLogicStudio 和 Otrivin 是合作伙伴，他们相信，在缓解糟糕的空气质量对我们呼吸健康的影响方面，任何行动都不算太渺小，而实验是发现创新想法的关键部分，它可以激发思考，并成为可持续性制造未来的模板。

ecoLogicStudio & Otrivin are partners in the belief that no action is too small when it comes to mitigating the impact of poor air quality on our breathing health, and that experimentation is a key part of the journey towards uncovering innovative ideas that can inspire thought and be a template for a sustainable manufacturing future.

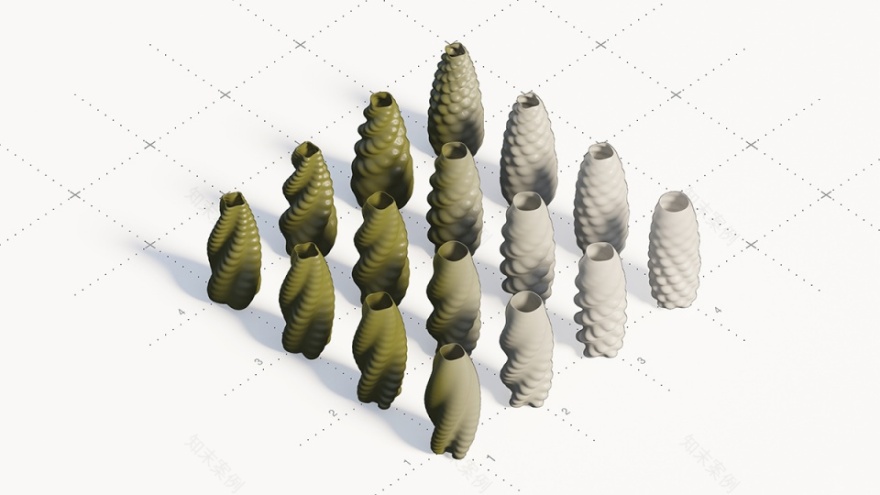

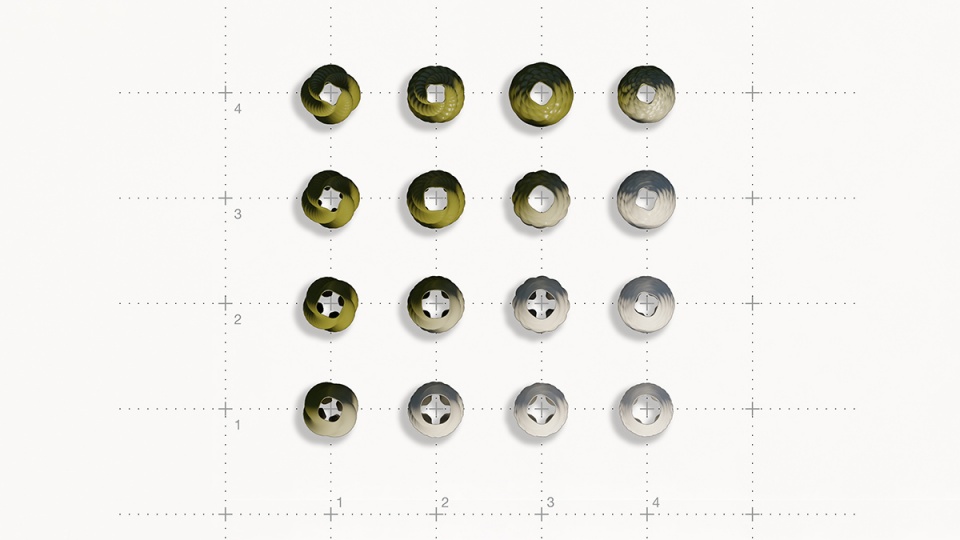

▼生物数字产品图例，bio-digital product diagram

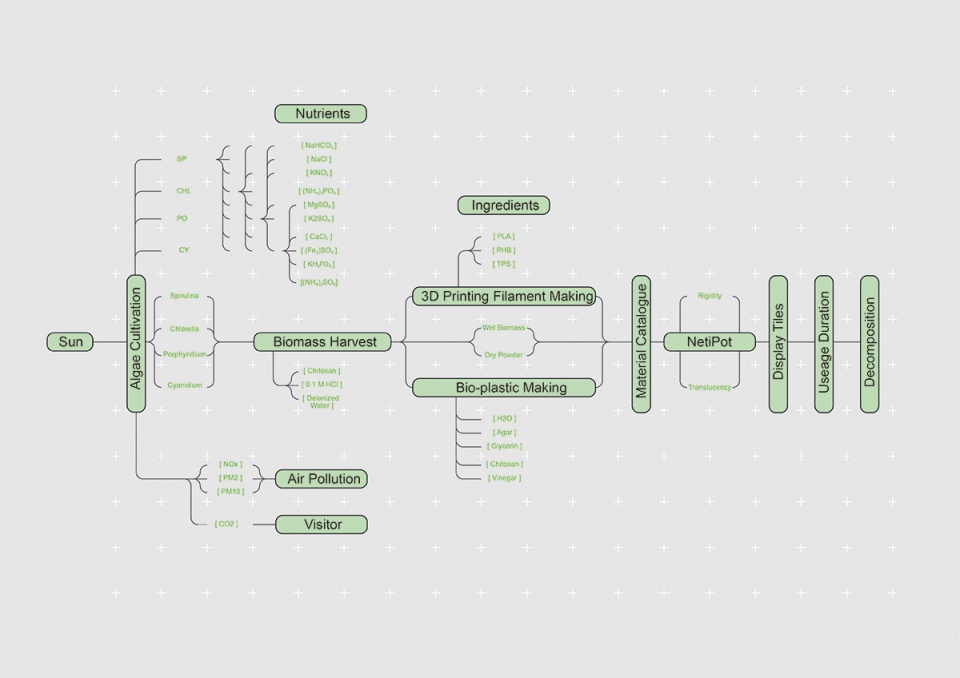

▼生产流程，process diagram

ECOLOGICSTUDIO PRESS OFFICE:

MINT LIST

Giulia Milza, Maria Azzurra Rossi

press@mintlist.info

PROJECT NAME: Otrivin Air Lab

EXHIBITION INFO:

15 June — 17 September 2022

The Building Centre

26 Store St, London WC1E 7BT, United Kingdom

DESIGNERS: ecoLogicStudio (London, UK)

DESIGN TEAM: Claudia Pasquero, Marco Poletto with Terezia Greskova, Konstantina Bikou, Qing Tang, Anshika Tajpuriya, Haoyi Chen, Emiliano Rando, Alessandra Poletto

ACADEMIC PARTNERS: Synthetic Landscape Lab, IOUD UIBK Innsbruck University; Department of Plastics and Rubber, FChPT STU Bratislava; Urban Morphogenesis Lab, The Bartlett UCL London

BIOLOGICAL MEDIUM: ecoLogicStudio, Algomed, Synthetic Landscape Lab UIBK

BIOMATERIAL DEVELOPMENT: ecoLogicStudio, NonOilen, Filamentum, Synthetic Landscape Lab UIBK

CLIENT: Otrivin®
