神乐坂 UNPLAN 青年旅社

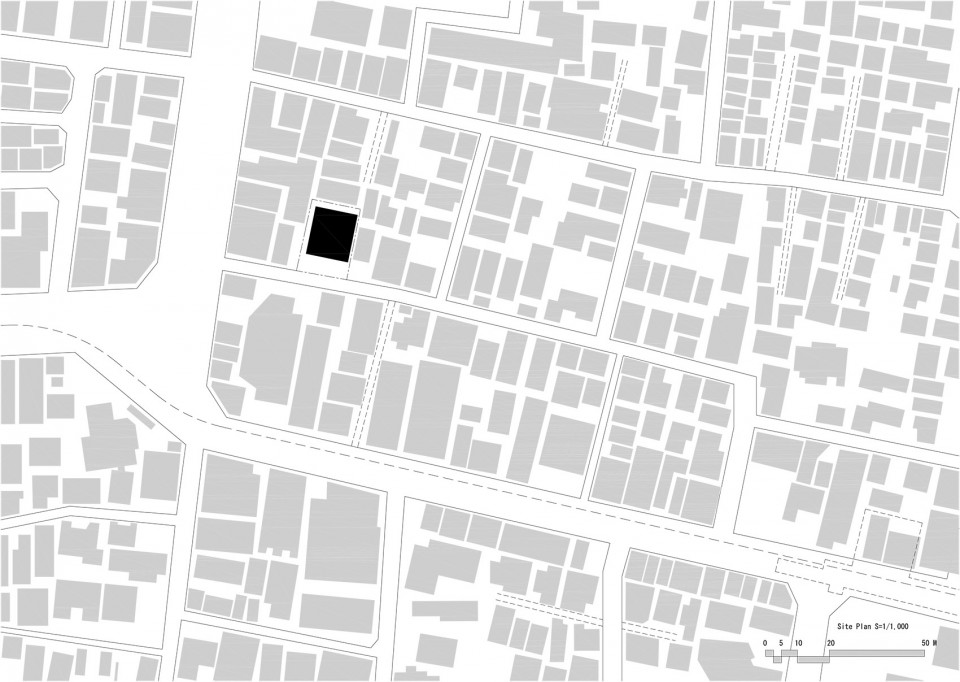

▼总平面图，site plan

▼一层平面图，first floor plan

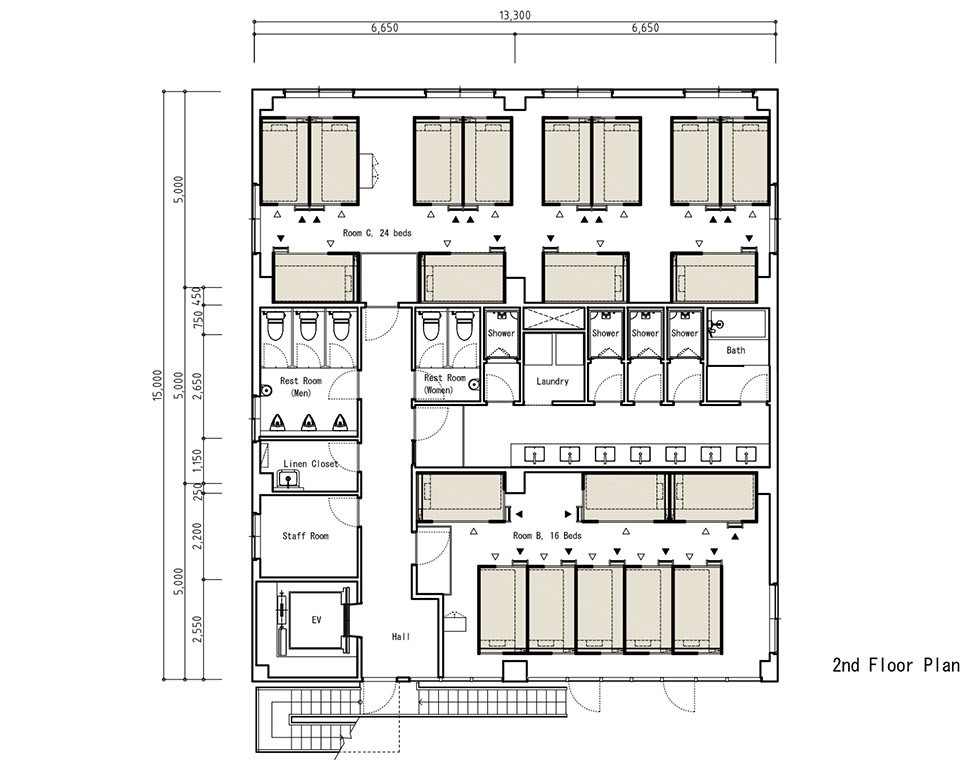

▼二层平面图，second floor plan

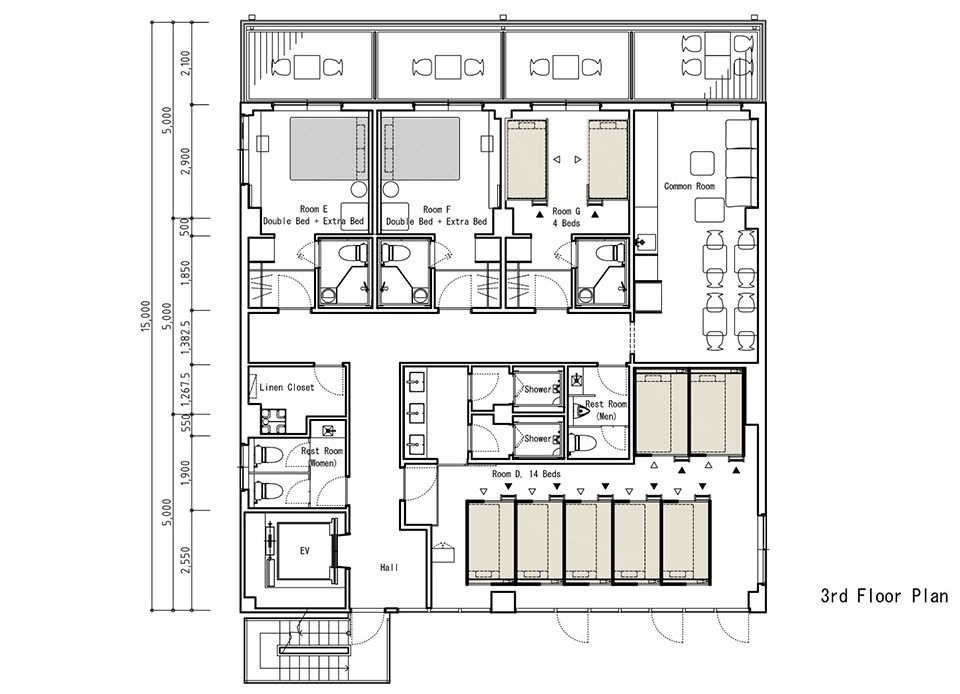

▼三层平面图，third floor plan

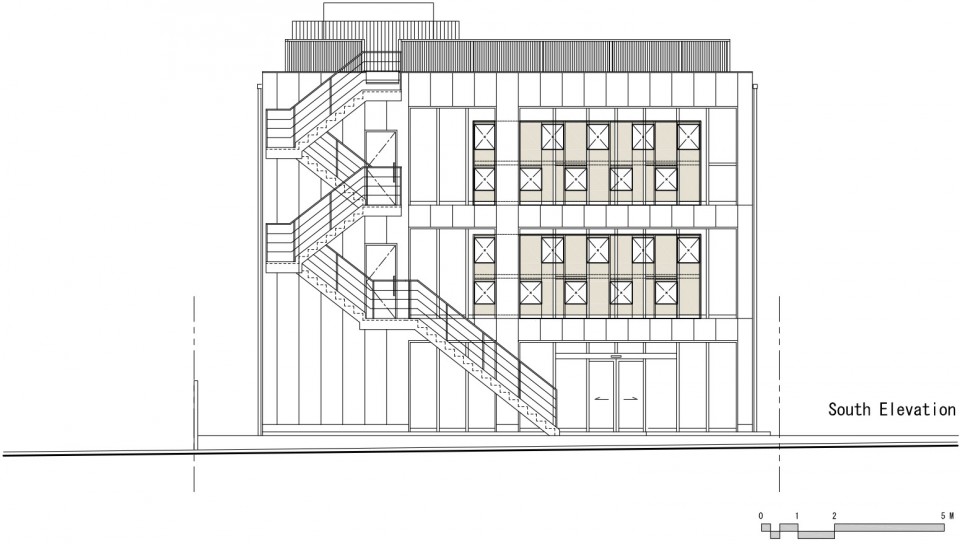

▼南立面图，south elevation

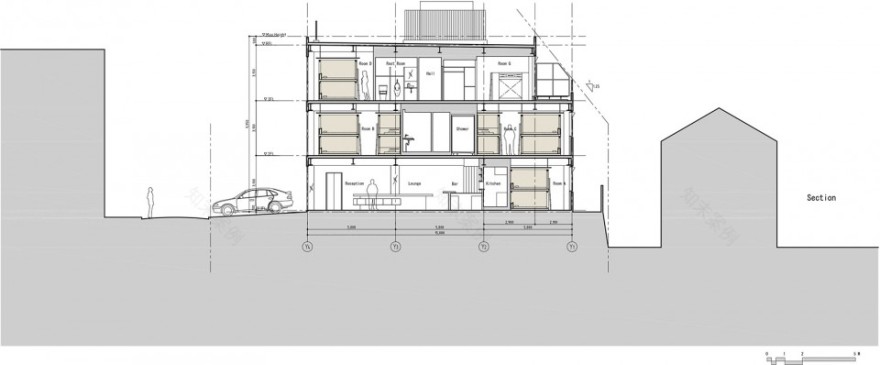

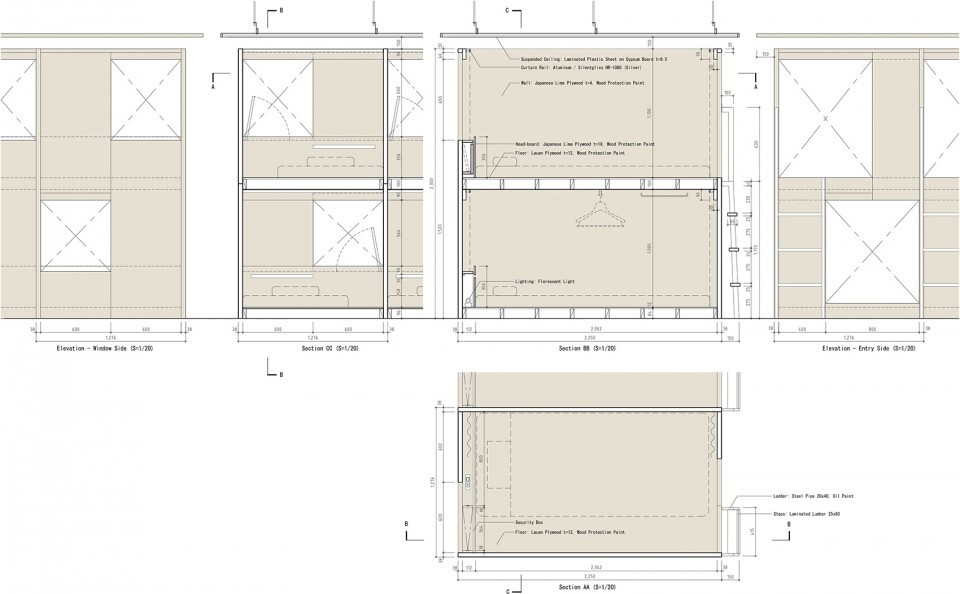

▼剖面图，section

Dimension

Site Area: 359.78m2

Building Area: 202.65m2

Total Floor Area: 570.57m2 (F1: 199.50m2 / F2: 199.50m2 / F3: 171.57m2)

Terrace Area: 137.50m2 (F1: 11.92m2 / F3: 27.93m2 / Roof: 97.65m2)

Hotel

Rooms: 7 rooms (4 bunk bed dormitories, 2 double rooms, 1 family room)

Capacity: 78 persons

Drawings: Aida Atelier

English text: Aida Atelier
