NM 宅 | 混凝土与木质的生态对话

NM房子坐落在山顶的花岗岩石基础上，背面是松树林，前面是壮丽开阔的风景。房屋屋顶向内折，与山谷产成对应。一层是客厅，厨房，卫生间。二层是两间卧室和一间公用浴室。建筑可以看成由一个混凝土外表皮加上内部一个木盒子组成。内部的木材用的是刨花板，上面有着清晰的木屑花纹，外面的混凝土被施工成带有这样纹理的机理，以契合周围的环境：松树的树皮和花岗岩上的地衣。

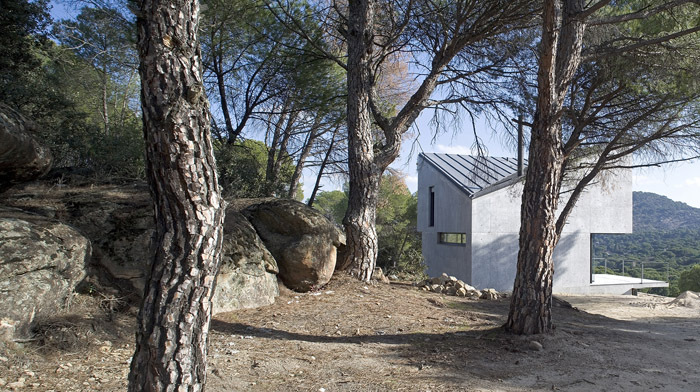

At the top of the plot, using a clearing in the pine forest, the NM house sits in front of a granite riff, towards a wide panorama.

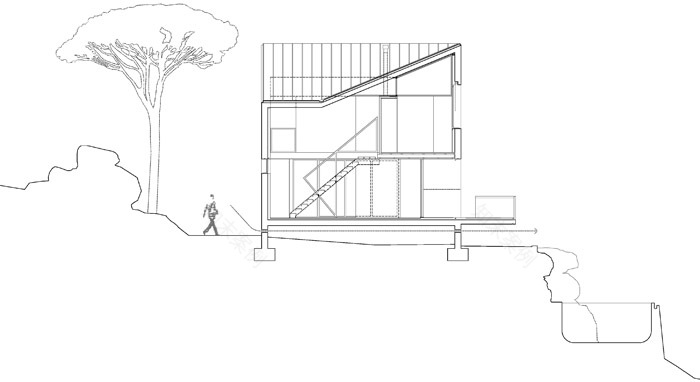

The starting parallelepiped, was deformed to adjust to a more efficient form-factor. The result of this adjustment is a volume with truncated corners and a folded roof, forming a valley on its diagonal.

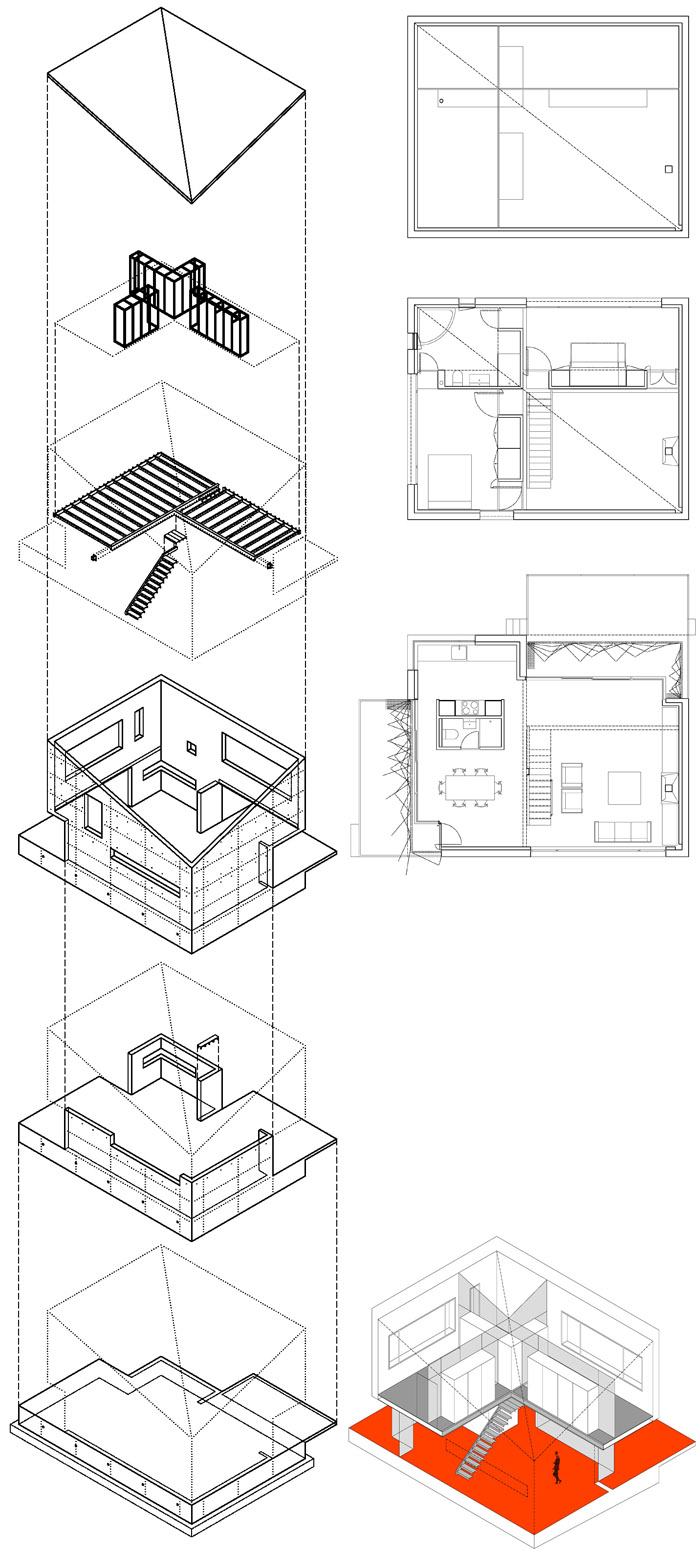

The program is resolved on 2 levels:

– the lower concentrates the common areas (living room, kitchen and toilet)

– the higher counts with 2 bedrooms and a shared bathroom.

The work was divided into two parts:

– “Wet work” for the envelope or shell of the house, worked out of reinforced concrete.

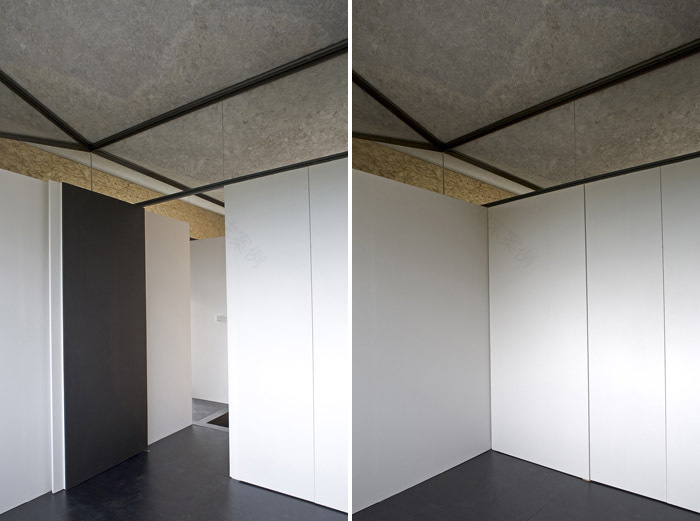

– “Dry work” for the house inside, conceived as a large wooden cabinet mounted on metal substructure.

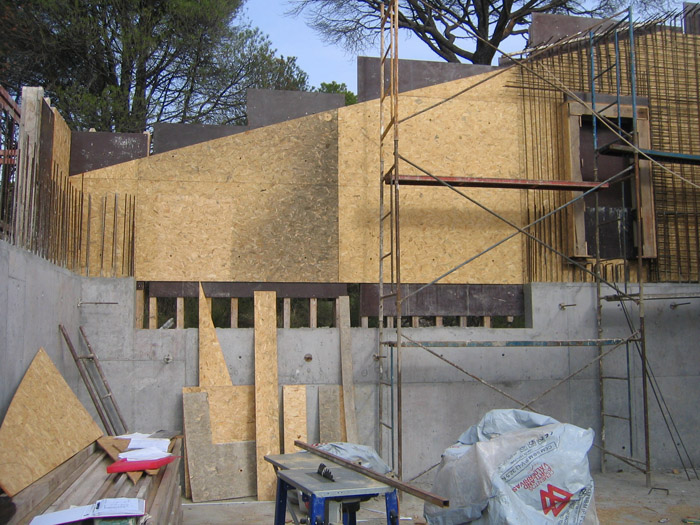

The formwork for the outer surface of the concrete was made with oriented strand board (OSB-

II) to mark its texture with its wooden chips, characterizing its materiality, halfway between pine bark and lichens growing on granite.  The same board was used to finish the inner sides of the shell, except for the inner side of the roof, which was kept in the same textured concrete. The holes in the hoses were sealed with stainless steel balls, which reflect sunlight and moonlight, producing flashes with daylight and subtly punctuating the darkness of the night.
