飞乐鸟艺术中心

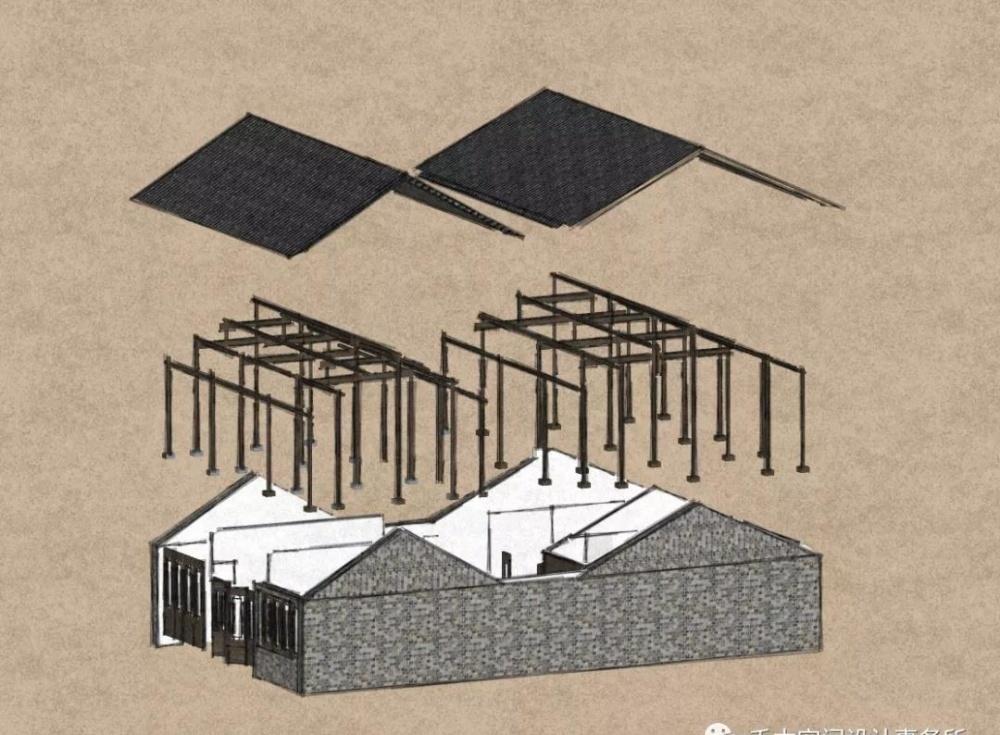

飞乐鸟艺术中心建筑结构框架

Frame drawing of building structure

飞乐鸟艺术中心平面布局图

The layout plan

由于整个项目建筑位于南京老门东古建筑景区内，而主体是有一定年月的文物保护建筑，所以在布局上除了前厅和庭院做了布局上的改动以及异形的设计，更多的是以原有框架做矩形屋中屋结构的设计，这样尽可能的保证空间面积的利用，另外一方面不影响和破坏原有主题的建筑结构。

Because the whole project building is located in the scenic area of the old building in the east of Nanjing, and the main body is a cultural relic preservation building for a certain period of years, in addition to the layout changes of the lobby and courtyard and the design of the irregular shape, the design of the rectangular roof structure is more based on the original frame, so as to ensure the utilization of the space area as far as possible, on the other hand, it does not affect and break. Bad original theme of the building structure.

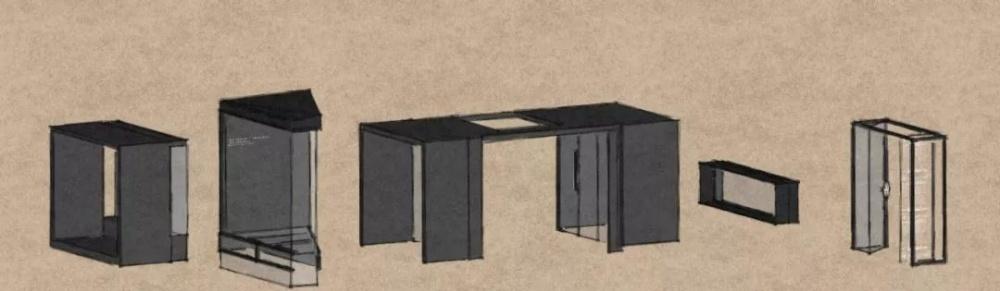

整体框架的设计上，基于“屋中屋”，有几个盒子的元素，即使用了1和2替代了原有房屋的花格窗，做到更好的空间取景同时增加房屋内的采光；3使用廊的形式，把前后两间独立房屋做了一个空间的延伸和连接；4和5则是不破坏原建筑墙体，做的外立面的一个加法，使原有传统的建筑上增加一些现代的材质的元素。

In the overall frame design, there are several box elements, even if 1 and 2 are used to replace the original house's lattice windows, so as to achieve better space viewing and increase the lighting in the house; 3. use the form of corridor, make a space extension and connection between the front and rear two independent houses; 4 and 5 are an addition to the facade without destroying the original building walls, so as to make the original tradition. Some elements of modern material are added to the building.

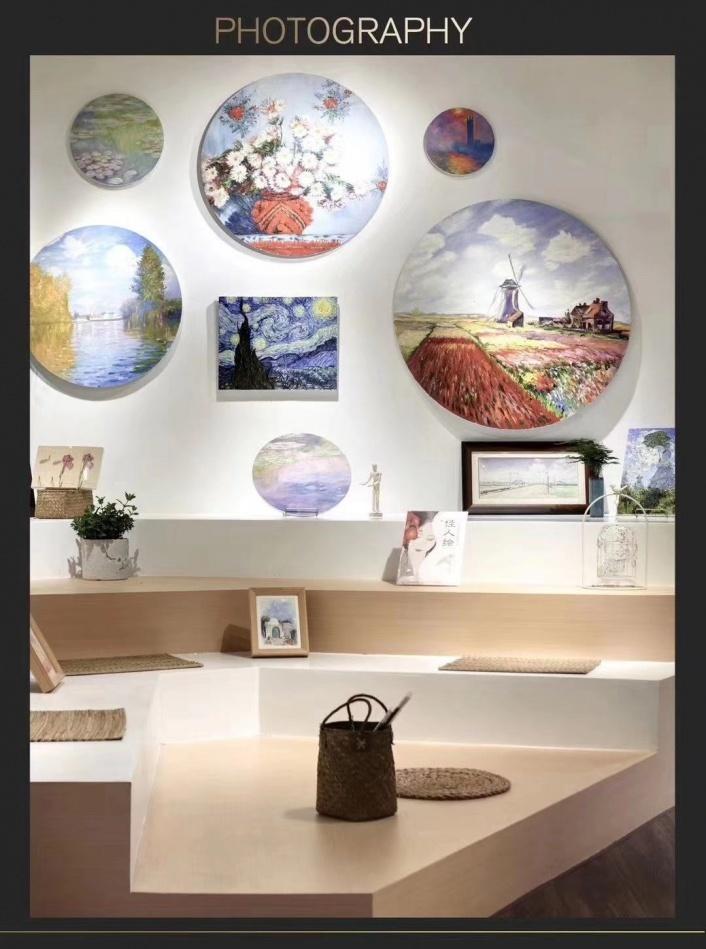

前厅实际上用了一些“梯田”的元素，再配合以圆、方一些几何盒子作为空间的基础设施，而墙面的格子使用的是亚克力材质，保证空间的纯净。这些几何体一方面保证艺术中心一些展台的功能，另一方面也可以为后期举办沙龙发挥作用。

In fact, the front hall uses some elements of terrace, and then uses some geometric boxes of circle and square as the space infrastructure. The lattice of the wall uses acrylic material to ensure the purity of the space. On the one hand, these geometries guarantee the functions of some exhibition booths in the Art Center, on the other hand, they can also play a role in holding salons in the later stage.

艺术中心前厅效果

Art Center Front Hall Effect

艺术中心前厅效果

Art Center Front Hall Effect

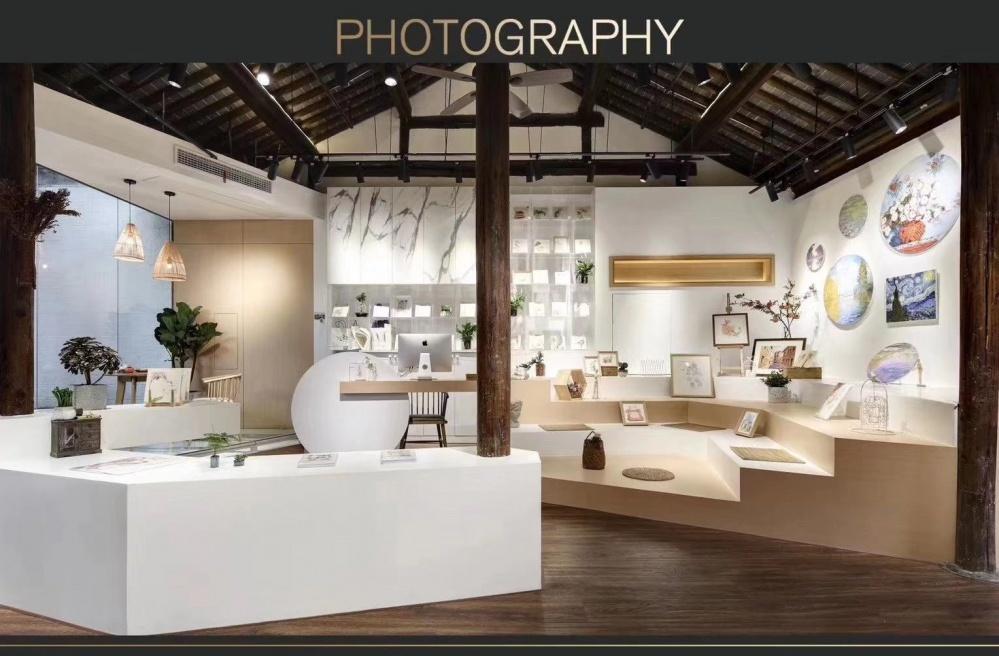

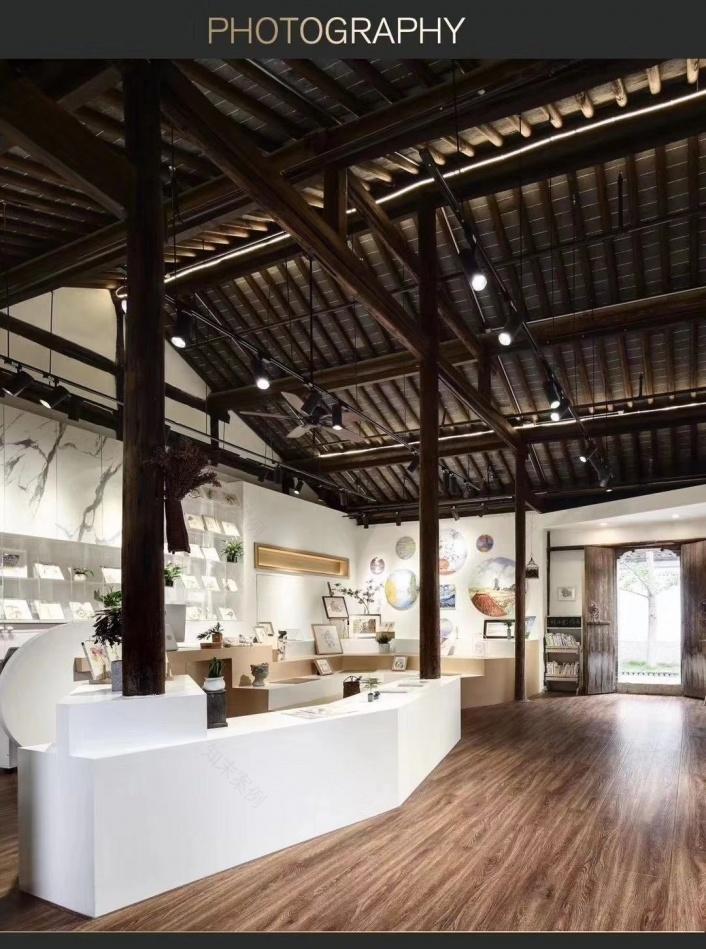

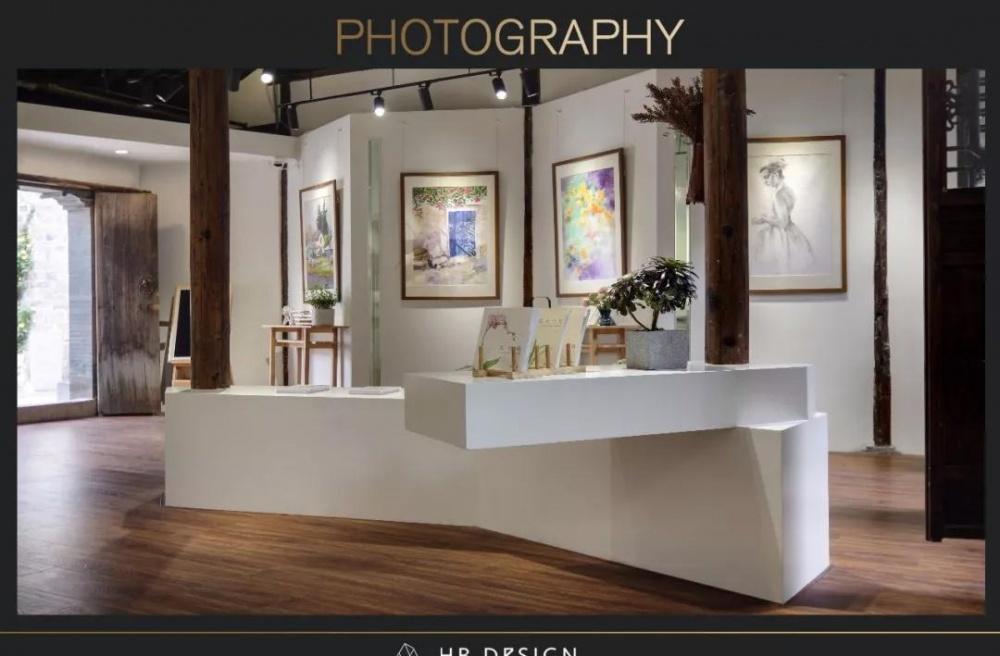

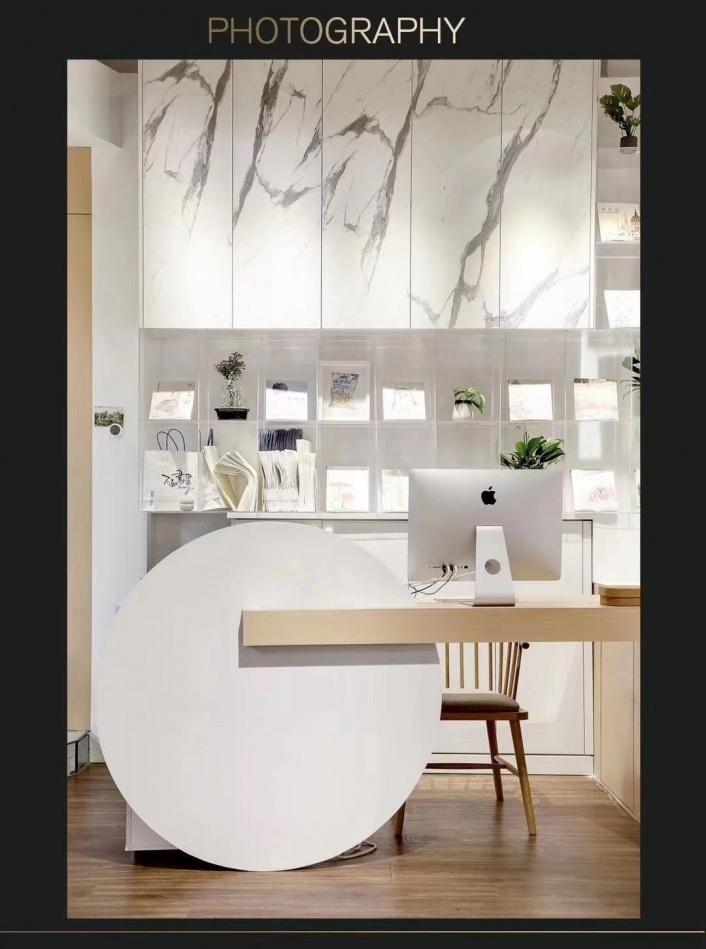

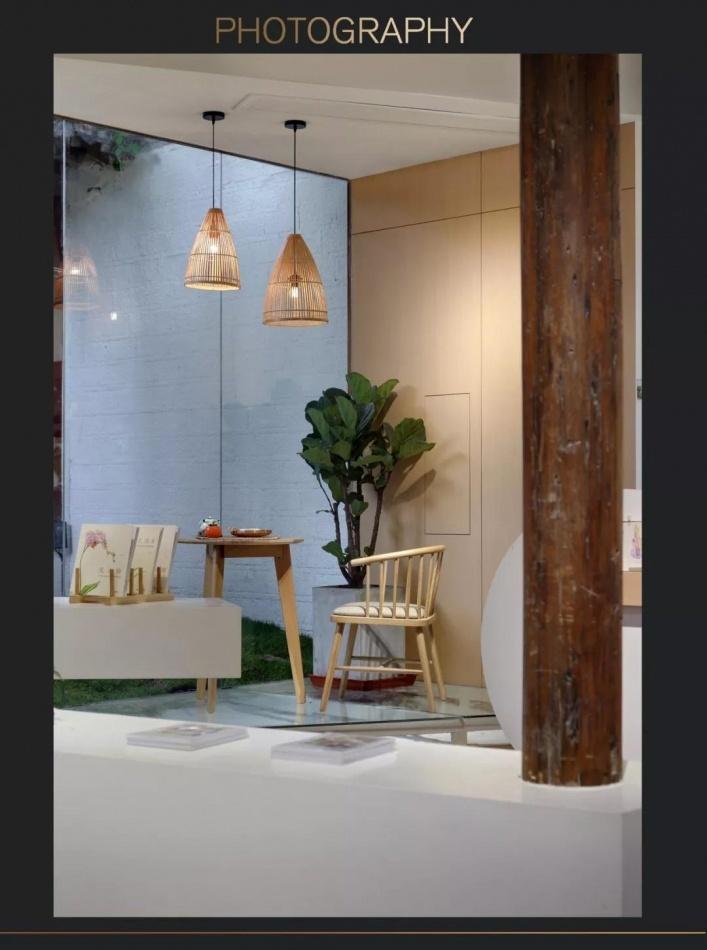

艺术中心前厅实景

艺术中心前厅实景

艺术中心前厅实景

艺术中心前厅实景

艺术中心前厅实景

艺术中心前厅实景

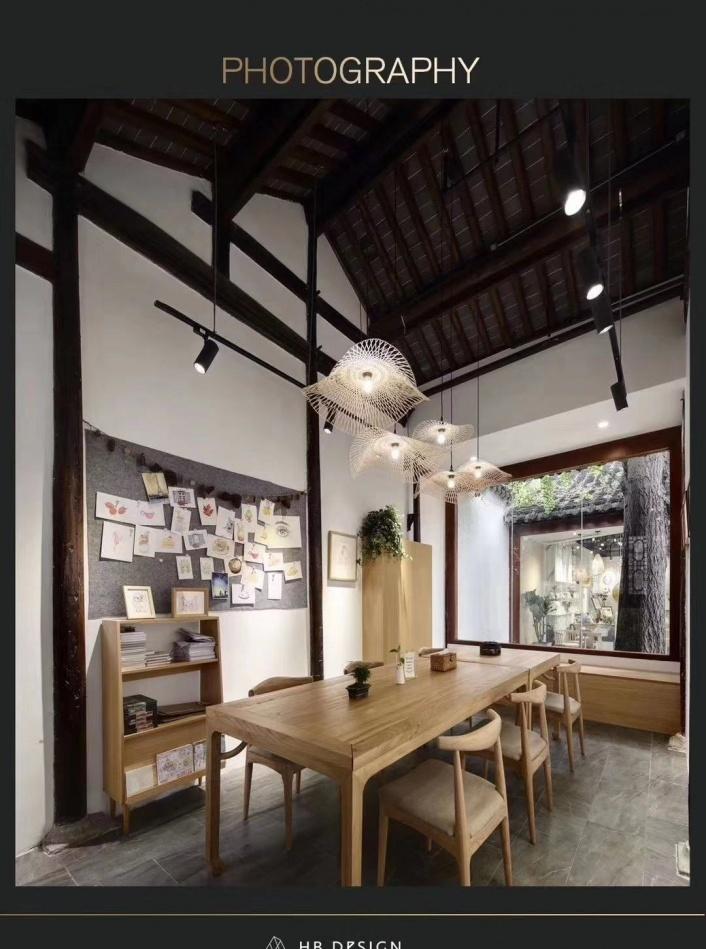

画室实景

画室实景

画室一角

画室一角

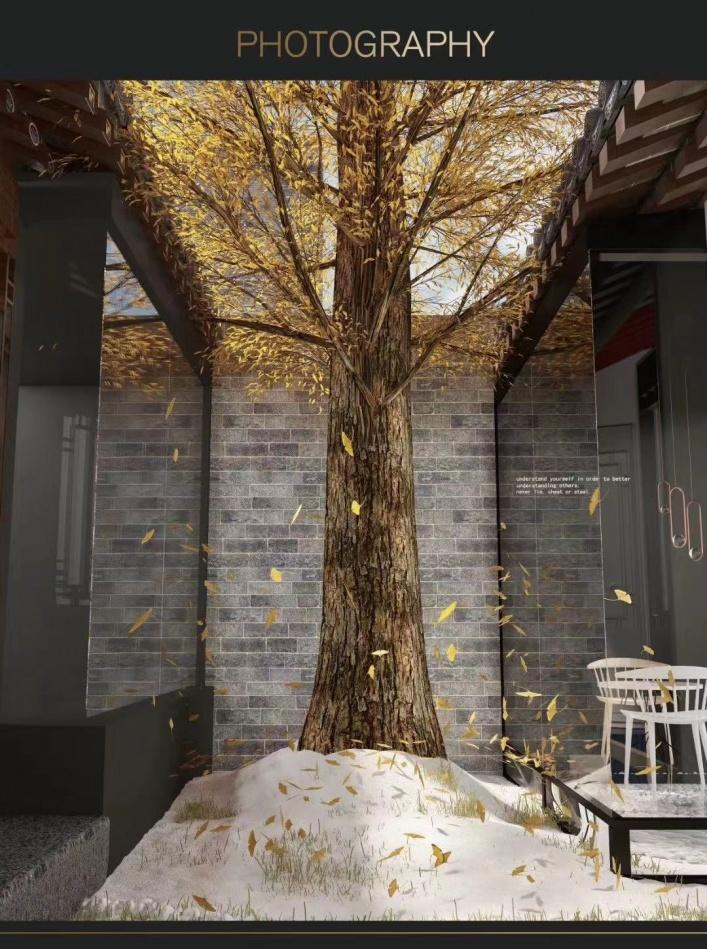

季节效果

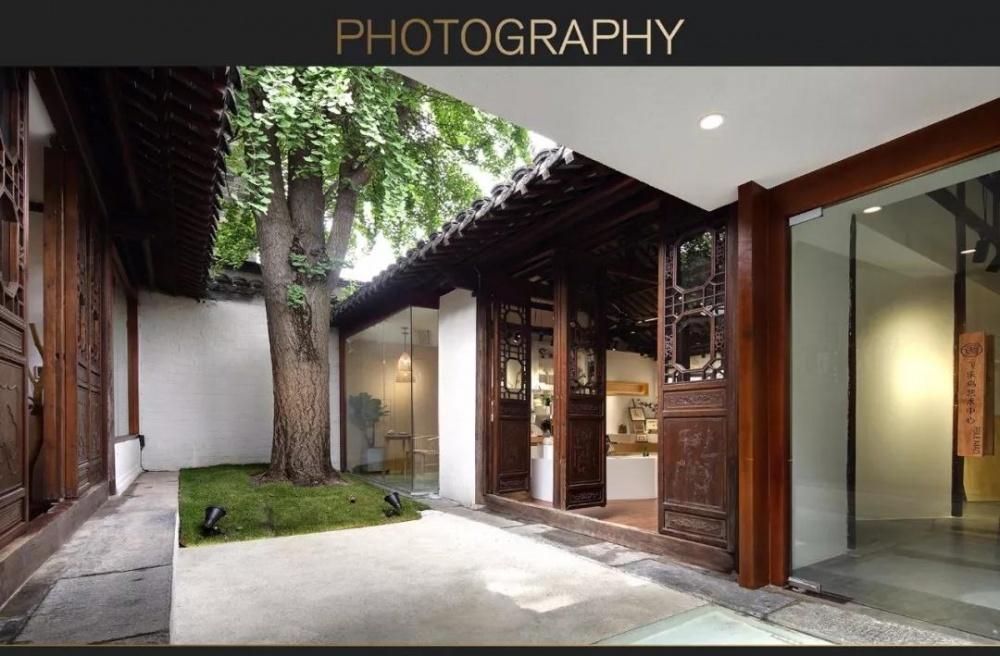

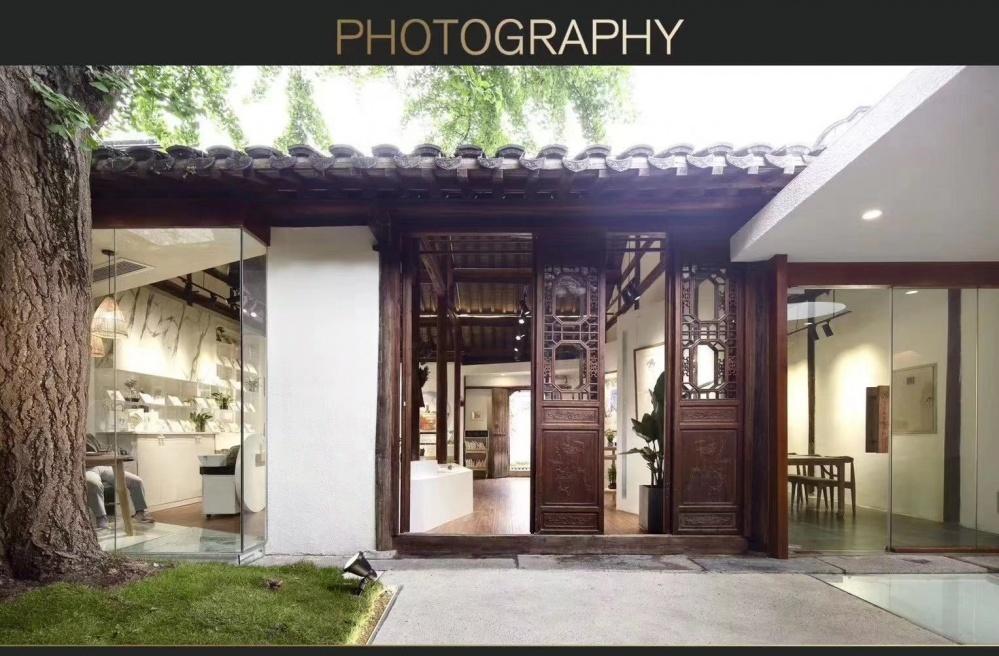

院内实景

院内实景
